Grundig LXW 102-8625 REF User Manual

2
CONTENTS
󳢯Quick and Easy Installation
󳢯Versatility and Expandability
󳢯That doesn’t make you feel fatigue on your Eyes.
󳢯Flat-Panel Digital Display easy on the Eyes.
Safety Precautions
………………………………………………………………………………………………………………
4
󳢯Installation
……………………………………………………………………………………………………………………
5
󳢯Use and Maintenance
…………………………………………………………………………………………………
5~6
󳢯Important Safety Instructions
…………………………………………………………………………………………
7~8
User Guidance Information
󳢯What is the LCD TV?
………………………………………………………………………………………………………
9
󳢯Name of each part
…………………………………………………………………………………………………………
10
󳢯Controls and Functions
…………………………………………………………………………………………………
11
󳢯Accessories
…………………………………………………………………………………………………………………
11
󳢯Mounting on a wall
…………………………………………………………………………………………………………
12
󳢯Installation Precautions
…………………………………………………………………………………………………
12
󳢯Installing an Antenna
……………………………………………………………………………………………………
13
󳢯Remote controller
…………………………………………………………………………………………………………
14
󳢯Precautions
…………………………………………………………………………………………………………………
15
Connections
󳢯VCR Connections
…………………………………………………………………………………………………………
16
󳢯Cable TV Connections
……………………………………………………………………………………………………
17
󳢯Camcorder/ Game Console Connections
……………………………………………………………………………
18
󳢯DVD Connections
…………………………………………………………………………………………………………
19
󳢯DTV Connections
…………………………………………………………………………………………………………
20
󳢯PC Connections
……………………………………………………………………………………………………………
21
󳢯Audio Out Connections
…………………………………………………………………………………………………
22
󳢯Headphone Connections
…………………………………………………………………………………………………
22
󳢯External Adjustment
………………………………………………………………………………………………………
23
Basic Use
󳢯Powering the LCD TV
……………………………………………………………………………………………………
24
󳢯Initial Settings
………………………………………………………………………………………………………………
24
󳢯Watching TV
…………………………………………………………………………………………………………………
25
󳢯Selecting TV/ External Input
………………………………………………………………………………………………
26
󳢯Using the Menu
……………………………………………………………………………………………………………
26
󳢯To Set Location
……………………………………………………………………………………………………………
27
󳢯Setting Channels
…………………………………………………………………………………………………………
28
󳢯To set or erase a channel
………………………………………………………………………………………………
28
󳢯Changing Picture Settings
………………………………………………………………………………………………
29
3
CONTENTS
Basic Use
󳢯Changing Sound Settings
…………………………………………………………………………………………………
30
󳢯Custom Sound Adjustment
…………………………………………………………………………………………………
31
󳢯Sound Output
…………………………………………………………………………………………………………………
31
󳢯Selecting the Menu Language
……………………………………………………………………………………………
32
󳢯Setting OSD Tone Menu Background
…………………………………………………………………………………
32
󳢯Setting Blue Background
…………………………………………………………………………………………………
33
󳢯Setting Digital Noise Reduction
…………………………………………………………………………………………
33
Application
󳢯Changing Screen Size
………………………………………………………………………………………………………
34
󳢯Changing the Screen Size for WSS Signal Input
……………………………………………………………………
35
󳢯Manual Store
…………………………………………………………………………………………………………………
35
󳢯Sorting Program
………………………………………………………………………………………………………………
36
󳢯Editing Program Name
……………………………………………………………………………………………………
37
󳢯Adjusting Unclear Screen
…………………………………………………………………………………………………
38
󳢯To view the still picture
……………………………………………………………………………………………………
38
󳢯Viewing Picture in Picture
……………………………………………………………………………………………
39~40
󳢯Auto Volume Level
…………………………………………………………………………………………………………
41
󳢯Stereo Setting
…………………………………………………………………………………………………………………
41
󳢯Resetting LCD TV Setting
…………………………………………………………………………………………………
42
󳢯Setting Time
…………………………………………………………………………………………………………………
43
󳢯Automatic Power On/ Off
…………………………………………………………………………………………………
44
󳢯Teletext
………………………………………………………………………………………………………………………
45
External adjustment
󳢯External adjustment
………………………………………………………………………………………………………
46
󳢯Set ID
…………………………………………………………………………………………………………………………
47
󳢯Special features
……………………………………………………………………………………………………………
48
󳢯RS232C Communication Protocol
…………………………………………………………………………………
49~53
Maintenance and Service
󳢯Trouble shooting
………………………………………………………………………………………………………………
54
󳢯Trouble shooting Tip
…………………………………………………………………………………………………………
55
󳢯Supported Display Modes
……………………………………………………………………………………………
55~56
4
Safety Precautions
Cautions
Warnings
Power Supply
Do not use a damaged power cord or plug or a loose outlet.
󳢯Doing so may result in
fire or electric shock.
Do not plug several devices into the same outlet.
󳢯Doing so may cause
the outlet to overheat and start a fire.
Insert the power plug fully into the outlet.
󳢯A loose or improperly
inserted power plug may result in fire.
Do not touch the power plug with wet hands.
󳢯Doing so may result in
electric shock.
Be sure to ground the unit.
󳢯Failing to do so may lead to electric shock when a short circuit or overload occurs.
If necessary, install a ground fault circuit breaker. Never ground to a telephone line, lightning rod, or metal gas pipe. (Doing so may result in fire, electric shock, or other hazards.)
Do not bend the power cord excessively or place heavy objects on it.
󳢯Doing so may result in
fire or electric shock.
Always unplug the unit before cleaning.
󳢯Not doing so may
result in fire or electric shock.
When disconnecting the power cord from an AC outlet, always grasp it by the plug.
󳢯Pulling on the cord
can damage the internal wire and may result in fire.
The purpose of these precautions is to ensure user safety and prevent property damage. Be sure to read and observe all safety precautions.
5
Safety Precautions
Cautions
Warnings
Installation
Warnings
Do not place the unit where it is exposed to rain, excessive moisture or grease.
󳢯Doing so may result in fire,
electric shock, malfunction, or deformation.
Do not use or store flamm able or combustible materials near the unit.
󳢯Doing so may result in fire
or explosion.
Do not place the unit on an unstable surface, such as a wobbly stand or sloped table, or on any surface whose area is smaller than the bottom area of the unit.
󳢯If a child climbs on the unit, it could
topple and fall onto the child, resulting in serious injury to the child or damage to the unit. Place the unit on a flat stable surface
.
Do not place containers with liquids such as flower vases, soft drink cans, or medicine bottles or small metallic objects on top of the unit.
󳢯If liquid enters the unit or any
metal object falls into the unit, it may result in short-circuit, fire, or electric shock.
Do not place the unit in a poorly ventilated enclosure, such as a cabinet.
󳢯Doing so poses a serious
risk of fire.
Do not run power cords near heat-producing appliances such as radiators, stoves, or irons.
󳢯The excessive heat could
melt the insulation and expose live wires, resulting in fire or electric shock.
Install the antenna away from high-voltage power lines and communication cables and make sure it is installed securely.
󳢯If the antenna touches a power
line, contact with the antenna could result in fire, electric shock, serious injury, or death.
Do not place a burning candle, burning anti-mosquito incense, or lighted cigarette on top of the unit. Do not place the unit near any heat source such as a fireplace or space heater.
󳢯Doing so poses a serious
risk of fire.
Install the unit at an adeq­uate distance from the wall to ensure sufficient ventilation.
󳢯
If the temperature inside the unit rises, it may res­ultin fire.
Do not cover the unit with a tablecloth, curtain, or other material.
󳢯
If the temperature inside the unit rises, it may result in fire.
Be sure to place the unit on a level surface.
Form a drip loop where the coaxial antenna cable enters your building to prevent rainwater from traveling along the cable and coming in contact with the antenna input terminal.
󳢯If rainwater finds its way inside
the unit, it may result in fire or electric shock.
The following precautions are divided into "Warnings" and "Cautions".
Warning : Ignoring this precaution may result in death or serious injury. Caution : Ignoring this precaution may result in injury or property damage.
6
Safety Precautions
Warnings
Cautions
Use and Maintenance
Do not insert any metal objects, such as a screwd river, paper clip, or bent wire into the ventilation openings or A/V terminals.
󳢯Doing so poses a serious
risk of fire or electric shock.
Do not allow children to climb or hang on the unit.
󳢯The unit could topple
over onto a child and result in serious injury.
Never disassemble or modify the unit in any way. Do not attempt to service the unit yourself.
󳢯Doing so may result in fire
or electric shock. If the unit requires repair, contact the service center.
Disconnect the power cord from the wall outlet during an electrical storm.
󳢯
Not doing so may result in fire or electric shock.
When not using the unit for long periods of time, discon­nect the power cord from the wall outlet.
󳢯
Dust could accumulate over time on the unit and cause it to generate heat and ignite, or deteriorate insulation, which in turn may result in an electrical fire.
When removing the batteries from the remote control, make sure children do not swallow them. Keep the batteries out of the reach of infants and children.
󳢯If a child has swallowed a
battery, seek medical atten-
tion immediately.
If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center.
󳢯Failure to do so may result
in fire or electric shock.
When moving the unit, be
sure to turn off the unit and
unplug the power cord from
the wall outlet.
󳢯
Moving the unit with the power cord connected to the outlet may cause damage to the cord, resulting in fire or electric shock.
Wipe off any moisture, dirt, or dust on the power plug pins with a clean dry cloth.
󳢯
Failure to do so may result in fire or electric shock.
Always use two or more people to lift or move the unit.
󳢯If the unit is dropped, it
could be damaged or otherwise cause injury.
Always turn off the unit and unplug the power cord when cleaning the unit. Use a soft dry cloth to clean the unit.
󳢯Never clean with industrial
strength polish, wax, benzene, paint thinner, air freshener, lubricant, detergent, or other such chemicals. Also, do not clean with a damp cloth.
It is advisable to clean the interior of the unit at least once a year. Contact the store of purchase or service center for information.
󳢯Continuing to use the unit
without cleaning off the dust build-up inside it may result in fire or electric shock.
Warnings
7
Safety Precautions
Important Safety Instructions
Important safeguards for you and your new product
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the apparatus
Always be careful when using your LCD TV. To reduce the risk of fire, electrical shock, and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.
Safety Precautions
8
Important Safety Instructions
- These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in
the operating instructions unless you are qualified to do so.
- Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Caution :
TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
WARNING
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELE-
CTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature conceming operation and maintenance has been included with this product.
User Guidance Information
9
What is LCD TV?
What is LCD TV?
LCD (Liquid Crystal Display) is a next generation flat-panel display module. Liquid crystal material is contained between sheets of glass and electricity causes the liquid crystal material to reflect or block the light emitted from a light source inside the display chassis. By incorporating this LCD display module, LCD TVs enable you to enjoy outstanding picture quality without the worries of space limitation and harmful radiation you may have experienced with conventional CRT TVs.
Features
- Picture-in-Picture : Enables you to simultaneously display two different image sources.
- PC Compatible Monitor : Enables you to connect PC (D-Sub) input for displaying high-resolution SXGA (1280x1024, 60Hz)
PC images.
- HDTV-Ready Display : Enables you to view high-definition digital pictures using a DVD player or HDTV set-top receiver.
- Various Picture/Sound Controls : Enables you to set the picture and sound settings for a number of different types of
programs and viewing and listening conditions.
- Auto Power On/Off Timer : Enables you to set the TV to automatically turn ON or OFF at a preset time.
- ATM : Enables you to set the TV to search for all available standard broadcast and cable TV channels and store them
automatically.
10
User Guidance Information
Front View
Names of each part
Main Power Button
- Please turn off the main power switch, if the LCD TV will
not be used for a long period of time.
Stand by Button
Source Button
- Input Source Select Button
Menu Button
- OSD Menu Display Button
Program/Channel ▼, ▲ Button
Volume ◀, ▶ Button
11
User Guidance Information
Back View
Controls and Functions
S-Video 1
󱆌
SCART (Full SCART, Half SCART)
󱆍
Audio out
󱆎
ANT - Antenna Terrestrial
󱆏
Audio Input (Composite 2/ S-Video 2)
󱆐
Composite 2
󱆑
S-Video 2
󱆒
Headphone
AC Input
RS-232C Terminal
Analog RGB (D-SUB)
Digital RGB (DVI-D)
Component 1
Component 2
Audio Input (Component 1, 2, PC/ DVI)
Audio Input (Composite 1/ S-Video 1)
Composite 1
󱆏
󱆐
󱆑 󱆒
Audio out Cable
Accessories
The configuration of the components may look different from the following illustration.
Power Cord
Antenna Cable
User's Guide
Battery 1.5V( AAA
×2)
User's Guide
SCART Cable
(Europe+Middle East only)
Remote Control
❶❷ ❸❹❺❼ 󱆌 󱆍󱆎
Wall Mounting
Using the Stand
Mounting on a Wall
Installation Precautions
12
User Guidance Information
Your LCD TV can be mounted on a wall as shown in the figure above.
Please secure enough space for safe use. (Please refer to A and B.)
Installation of the LCD TV in an improperly ventilated location can cause a fire or damage to the LCD TV due to increased temperature
.
(Using the Stand)
B
(Mounting on a wall)
A
Do not install on an unstable location with support area smaller than the LCD TV.
Contact your dealer to purchase the "Adjustable-angle wall mount" required for wall-mounted installation.
13
User Guidance Information
For a House
Installing an Antenna
Using an Outdoor Antenna
To install or use an outdoor antenna, if possible, consult a qualified technician for help.
Using an Indoor Antenna
Locate a wall jack with an F-connector, and then connect the coaxial antenna cable to the wall jack.
For an Apartment or Condo Complex
Wall Jack with
F-Connector
Coaxial (Round) Antenna Cable
Copper
Wire
Copper
Wire
Coaxial (Round) Antenna Cable
Remote Controller
1. POWER : TURNS THE TV ON AND OFF(page.24)
2. SOURCE : USE TO SELECT AN INPUT SOURCE (page.26)
3. MUTE : PRESS TO TEMPORARILY CUT OFF THE SOUND (page.25)
4. SLEEP : PRESS TO SELECT A TIME FOR THE TV TO TURN OFF
AUTOMATICALLY (page.44)
5. STILL : PRESS TO STOP THE ACTION DURING A PARTICULAR
SCENE (page.38)
6. ARC (Aspect Ratio Control) : PRESS TO CHANGE THE
SCREEN SIZE (page.34)
7. MTS (Multi-Television Sound) : PRESS TO SELECT MONO
OR STEREO MODE (page.41)
8. LAST : TUNES TO THE PREVIOUS PROGRAM (page.25)
9. PSM : PICTURE STATUS MEMORY KEY (page.29)
(CUSTOM, DYNAMIC, STANDARD, MOVIE, MILD)
10. SSM : SOUND STATUS MEMORY KEY (page.30)
(CUSTOM, STANDARD, MUSIC, MOVIE, SPEECH)

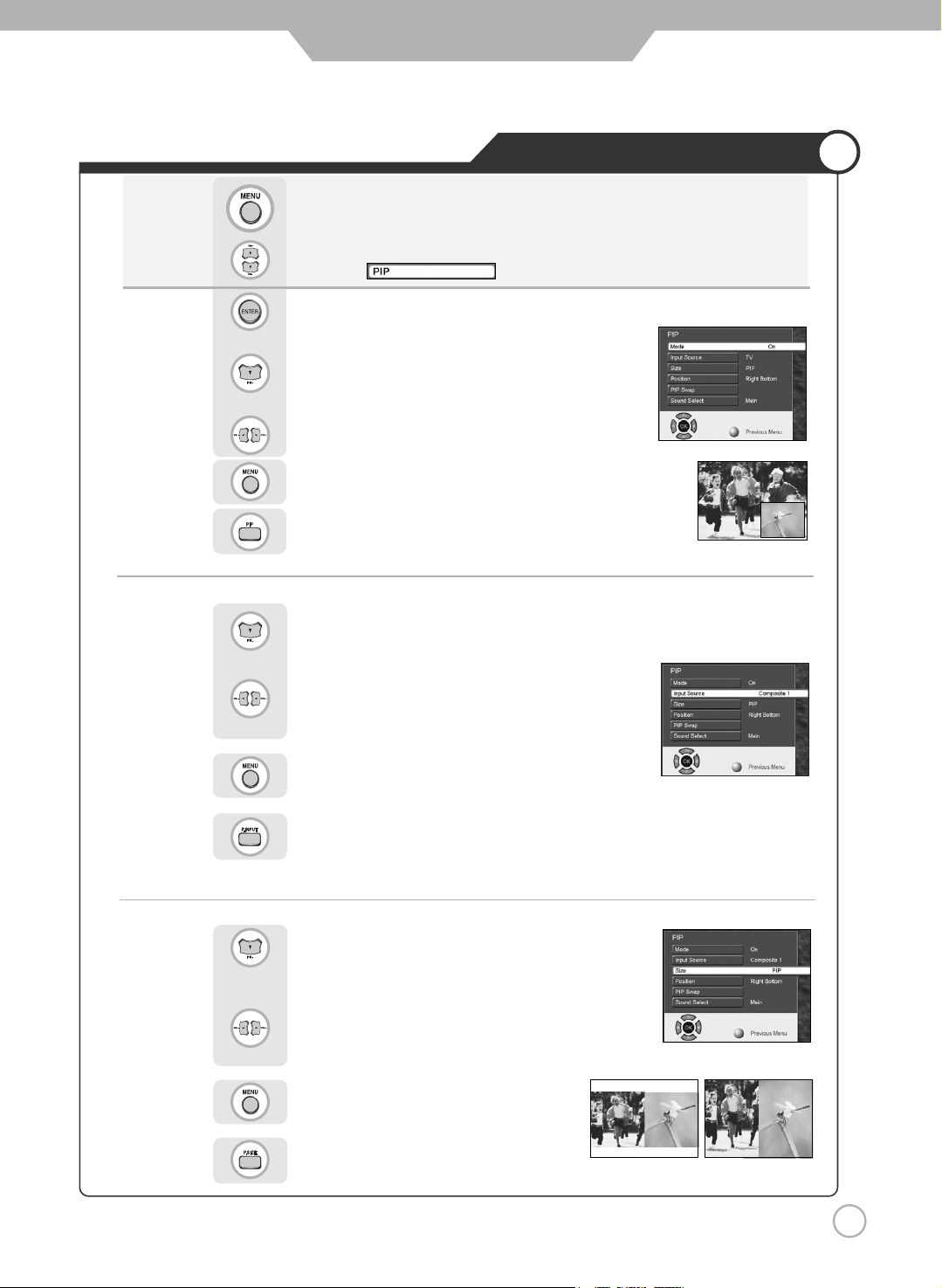

PIP CONTROL KEY (page 39, 40)
11. PIP : PIP ON/OFF
12.
P.INPUT : PIP INPUT SELECT KEY
13.
P.POSITION : PIP POSITION CONTROL KEY
14.
P.SIZE : PIP AND PBP MODE CHANGE
15.
SWAP : PIP SOURCE SWAP
16.
S.SELECT : SOUND SWAP KEY
17. AUTO (
AUTO IN PROGRESS) : PRESS TO CONTROL THE
MONITOR SCREEN AUTOMATICALLY
18. TV : TV INPUT SOURCE SELECT KEY
19. MENU : DISPLAYS THE MAIN ON-SCREEN MENU
20. DISPLAY : PRESS TO DISPLAY THE CURRENT PROGRAM
AND AUDIO/ VIDEO SETTINGS (page.25)
21. ▲,▼ (PR+, PR-) : PROGRAM, MENU CONTROL OR PAGE UP
AND DOWN KEY, STAND BY ON
22. ◀,▶ (VOL-, VOL+) : PRESS TO INCREASE OR DECREASE
THE VOLUME OR MENU CONTROL KEY
23. ENTER : SAVE THE VALUE
TELETEXT CONTROL KEY (page 45)
24. TTXON : TEXT ON KEY
25. MIX : MIX WITH TV SCREEN
26. STORE : STORE THE USER DEFINED FAVORITE PAGE
27. FLOF LIST : EXCHANGE FLOF/LIST MODE
28. SIZE : TELE TEXT SCREEN SIZE KEY
29. HOLD : HOLD FUNCTION DURING TELETEXT DISPLAY
30. UPDATE : DISPLAY CANCEL OR TEXT UPDATE KEY
31. INDEX : TEXT INDEX KEY
32. TIME: TIME DISPLAY
33. REVEAL :
SELECT HIDDEN CONTENT DURING TELETEXT DISPLAY
34. RED, GREEN, YELLOW, BLUE : DIRECT ACCESS TELETEXT
LINKED PAGE KEY
Functions of remote control buttons
The remote control is using Infra-Red (IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle.
14
User Guidance Information
Avoiding Remote Control Problems
Instering Batteries in the Remote Controller
Precautions
How to use remote controller
2. Insert the two supplied batteries (AAA, 1.5V). Ensure that the polarities (
+
and -) of the batteries are aligned
correctly.
1. Open the cover out completely.
3. Replay the cover.
1. Check the polarity (
+
,-) of the batteries in the remote controller.
2. Check that the batteries have power.
3. Check that the LCD TV is powered and that it is properly plugged in.
4. Check if any three-wavelength lamp, special fluorescent or neon sign is turned on near the LCD TV.
CAUTION : Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the national code (Recycling program).
·
The remote control should be operated within 23feet(7m) and 30˚to the left and the right of the IR receiver
on the front of the LCD TV.
·
Used batteries should be disposed properly.
15
User Guidance Information
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Composite 1/2".
·If S-Video has been connected, select "S-Video 1/2".
·If SCART terminal has been connected, select SCART1 or SCART2.
3. Turn on the VCR, insert the tape and press play button.
VCR Connections
·Connect the LCD TV's Composite In terminal to the VCR's Composite Out terminal using the Composite cable.
(Make sure the colour of the terminals and the colour of the cable are the same)
Use the S-Video cable for higher picture quality.
Connection terminals of other appliances differ by manufacture and model.
< LCD TV Back view >
< LCD TV Back view >
Composite Cable
S-Video Cable
SCART Cable
Auto Cable
·Connect the SCART terminal of the LCD TV and the VCR with the SCART cable.
< VIDEO >
(R) (L)
< VIDEO >
(R) (L)
< VIDEO >
(R) (L)
Connecting to the composite terminal
Connecting to the S-Video terminal
Connecting to the SCART terminal
< LCD TV Back view >
Playing the VCR
16
Connection
Viewing Cable TV
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Composite 1/2".
·If S-Video has been connected, select "S-Video 1/2".
·If SCART terminal has been connected, select SCART1 or SCART2.
3. Turn on the cable broadcasting receive and select the channel you wish to view.
Cable TV Connections
·Connect the LCD TV's Composite in terminal to the cable broadcasting receiver’s composite Out terminal using the
Composite cable. (Make sure the colour of the terminals and the colour of cable are the same)
·Connect the SCART terminal of the LCD TV and the cable broadcasting receiver with the SCART cable
In order to watch Cable TV, Subscribe to your local Cable TV company and install a separate converter(Set-Top-Box) Connection terminals of other appliances differ by manufacture and model.
Use the S-Video cable for higher picture quality.
Composite Cable
S-Video Cable
SCART Cable
Audio Cable
< LCD TV Back view >
< LCD TV Back view >
< LCD TV Back view >
(R) (L)
< Cable broadcasting receiver >
< Cable broadcasting receiver >
< Cable broadcasting receiver >
(R) (L)
(R) (L)
Connecting to the composite terminal
Connecting to S-Video terminal
Connecting to the SCART terminal
17
Connection
Using Camcorder/Game Console
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Composite 1/2".
· If S-Video has been connected, select "S-Video 1/2".
3. Turn on the Camcorder or video game and Set to Video mode.
(Please refer to the User's manual of Camcorder/ Video game for more information)
4. Insert tape into Camcorder and press play button or insert disc into the Video game console.
Camcorder/Game Console Connections
18
Connection
Connection terminals of other appliances differ by manufacture and model.
< LCD TV Back view >
< LCD TV Back view >
Composite Cable
·Connect the LCD TV's Composite In terminal to the camcorder/game console's Composite Out terminal with the
Composite cable. (Make sure the colour of the terminals and the colour of cable are the same)
S-Video cable can be used if there is an S-Video terminal.
Connecting to the composite terminal
Connecting to S-Video terminal
(R)
(L)
(R)
(L)
< Camcorder/ Game machine >
< Camcorder/ Game machine >
S-Video Cable
Audio Cable
DVD Connections
Playing the DVD
19
Connection
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Component 1/2".
·If S-Video has been connected, select "S-Video 1/2".
·If SCART terminal has been connected, select SCART1 or SCART2.
3. Turn on the DVD, insert the DVD and press Play button.
Connection terminals of other appliances differ by manufacture and model.
< LCD TV Back view >
< LCD TV Back view >
< LCD TV Back view >
Component cable
Audio cable
(R)
(L)
1. Connect LCD TV's Y, Pb,Pr terminal in component 1/2 to DVD's Video Out terminal using the external cable.
2. Connect LCD TV's Audio terminals (left & right) in component 1/2 to DVD's Audio Out terminal using the Audio cable.
S-Video cable can be used if there is an S-Video terminal.
·Connect the SCART terminal of the LCD TV to the DVD with the SCART cable.
Connecting to the component terminal
Connecting to the S-Video terminal
Connecting to the SCART terminal
PrPbY
S-Video Cable
SCART Cable
Audio Cable
< DVD >
< DVD >
< DVD >
(R) (L)
(R) (L)
Viewing DTV
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "Component 1/2".
·If D-Sub 15 Pin terminal has been connected, select PC.
·If DVI terminal has been connected, select "DVI".
·If SCART terminal has been connected, select SCART1 or SCART2 .
3. Turn on the DTV receiver and select the channel that you want.
DTV Connections
20
Connection
< LCD TV Back view >
< LCD TV Back view >
1. Connect LCD TV's Y, Pb,Pr terminal in component 1/2 to Video receiver's Video Out terminal using the external cable.
2. Connect LCD TV's Audio terminals (left & right) in component 1/2 to DTV receiver's Audio Out terminal using the Audio cable.
DTV receiver's output terminal can be marked Y, Pb,Pr or Y, Cb, Cr according to products.
·Some of DTV receiver(Set-Top-Box) have an PC Connector (D-Sub 15pin) instead of Component output .
·Some of DTV receiver(Set-Top-Box) have an DVI Connector instead of Component output .
·Connect Audio Cable from the Audio output terminal of receiver to the PC Audio input terminal of the LCD TV.
·Connect the SCART terminal of the LCD TV to the DTV receiver with the SCART cable.
Connecting to the component terminal
Connecting to the D-SUB or DVI terminal
Connecting to the SCART terminal
Connection terminals of other appliances differ by manufacture and model.
(R)
(L)
< DTV receiver>
(R)
(L)
PrPbY
< DTV receiver>
< DTV receiver>
Audio Cable
Audio Cable
Component Cable
D-SUB Cable
DVI-D Cable
Audio Cable
SCART Cable
< LCD TV Back view >
PC Connections
How to Use as PC
PC Connections
21
Connection
·Connect LCD TV's RGB terminal to PC's RGB terminal using the D-Sub cable.
·Connect LCD TV's PC Audio terminal to PC's Audio terminal using the Audio cable.
(Only possible for PC's with Audio terminal)
·If there is a DVI- D terminal in your PC, use the DVI- D cable connection.
1. Turn on the LCD TV and press on the remote controller.
2. Use to move to "PC".
If DVI has been connected, select "DVI".
3. Set the PC video output mode to VGA (640
×480)/ SVGA (800×600)/ XGA (1024×768), SXGA (1280×
1024, 60Hz). In the mode higher than SXGA (1280×1024, 60Hz) "Out of Range" message appears. Be sure to change your PC video format to less than SXGA mode.
< LCD TV Back view >
< PC >
Connection terminals of other appliances differ by manufacture and model.
D-SUB Cable
Audio Cable
DVI-D Cable
Connection
22
Audio Out Connections
Headphone Connections
< LCD TV Back view >
·Connect LCD TV's Audio Out terminal to AUDIO's Audio Out terminal using the Audio Out Cable.
·Connect the Headphone to the LCD TV's headphone terminal.
Connection terminals of other appliances differ by manufacture and model.
(R)
VIDEO
(L)
< AUDIO>
< Speaker> < Speaker>
< LCD TV Back view >
Audio Cable
Audio Out Cable
Headphone
Connection
23
External Adjustment
<Back view of the LCD TV>
·Use the RS-232C jack to control monitor's functions externally by external equipment.
How connect a external equipment
Caution : Regular customer does not allow using the external adjustment that is used for service
purpose only.
RS232C Cable
Use to move to .
Press to select.
Press to move to "Plug & Play".
Press to select.
Use to move to the desired "Language".
Press to select.
Press to go back to the previous menu.
Use to move to the desired "country".
Press to select.
24
Using the menu
·When the brand new television set it turned on for the first time, following settings can be set using the plug
and play function of the TV.
·Press the "Main power" button of LCD TV and then press the "Stand by" button. You will see the country mode
selection menu.
Press .
Basic Use
󳢯 Automatically "ATM" beginning. 󳢯 After "ATM" ends, select the desired Language. 󳢯 Select other of none expressed country.
Initial Settings
Powering the LCD TV
Power on/ off
·To turn the LCD TV on :
Press the "Main Power" button of LCD TV and then press the "Standby" button.
·To turn the LCD TV off :
Press "Standby" button on the LCD TV and then press the "Main Power" button. Turning the main power switch off will save energy. It is the same as unplugging the power cord. If ON Time setting is set, the main power should be ON.
·To turn on/off by remote controller :
Press the Power button of remote controller (If the LCD TV is not turned on, check that the "Main Power" button on the LCD TV main body is turned on. The main power indicator will light up red if turned on).
CAUTION -
After turning off the main Power, please wait at least more than 3 seconds to turn the main power back on.
Press button on the remote control.
Press button or wait 10 seconds for the display to disappear.
25
Watching TV
Basic Use
INFO - To check the current state
To turn off only sound
Volume Control
Channel Selection
󳢯
Use the mute function to turn off the LCD TV sound for a while, when a phone or a bell rings.
Press to go back to the channel previously viewed.
increases the channel.
decreases the channel.
Press button again to hear the sound again.
󳢯
Display shows user's setting and selections.
To go back to the previous channel
increases the volume.
decreases the volume.
Use to move the cursor
to the desired function.
Press to select.
Using the Menu
Selecting TV/External Input
26
Basic Use
Aside from the watching TV, you can connect SCART 1/2, Composite 1/2 , S-Video 1/2, Component
PC and DVI to the TV set and enjoy these functions.
All input sources will be automatically detected and displayed on screen, but you may select an
activated source when the input cable is connected only.
󳥸
Press . 󳢯The menu screen will appear.
Press to go back to the previous menu.
Once Source button press it indicate a present status and repress it is set with different itput Source.Only connected selection it is possible.
PressPress .
Use to move to the desired input source.
󳢯
You can between the TV signal and the input signal of other appliances connected to the TV.
󳢯
Use this function to switch to the input source you wish to view.
TV
SCART 1 SCART 2
Composite 1 S-Video 1 Composite 2
PC DVI
Component 2 Component 1 S-Video 2
Use to select the desired country.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Country".
To Set Location
27
Basic Use
·TV System Standard
I/PAL : United Kingdom, Hongkong
B.G/PAL : Germany ,Netherland, Switzerland, Italy, Austria, Yugoslavia
B/PAL : Australia, New Zealand, Singapore, Norway, India, Thailand, Indonesia, Malaysia
D/PAL : China, North Korea
B.H/PAL : Belgium
L/SECAM : France
D.K/SECAM : Russia, Poland, Czechoslovakia, Hungary
B/SECAM : Egypt, Iran, Iraq
To Set Location
󳥸
󳥸
Press .
To set or erase a channel
Use to move to "Add" or "Erase".
Press to select.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Add/ Erase".
Press to select.
Use to move to "Start".
Press to select.
󳢯
Press "Start" to start the automatic channel search/set function. All broadcasting channels will be set.
Press to go back to the previous menu.
Setting Channels
Press .
28
Basic Use
󳢯
Use the Auto Search function to preset all channels that are being broadcast
Press .
󳢯
ATM : Auto tuning management.
Use to move to .
Press to select.
Press to move to "ATM".
Press to select.
Use select between Custom/ Dynamic/
Standard/ Move/ Mild.
Use to move to .
Press to select.
Press to move to "Screen Mode".
Use to move to .
Press to select.
Press to move to "Custom Adjust".
Press to select.
Use to move to the desired category.
Use to adjust the setting.
Use select between Brightness/ Contrast/
Colour/ Sharpness
Press to go back to the previous menu.

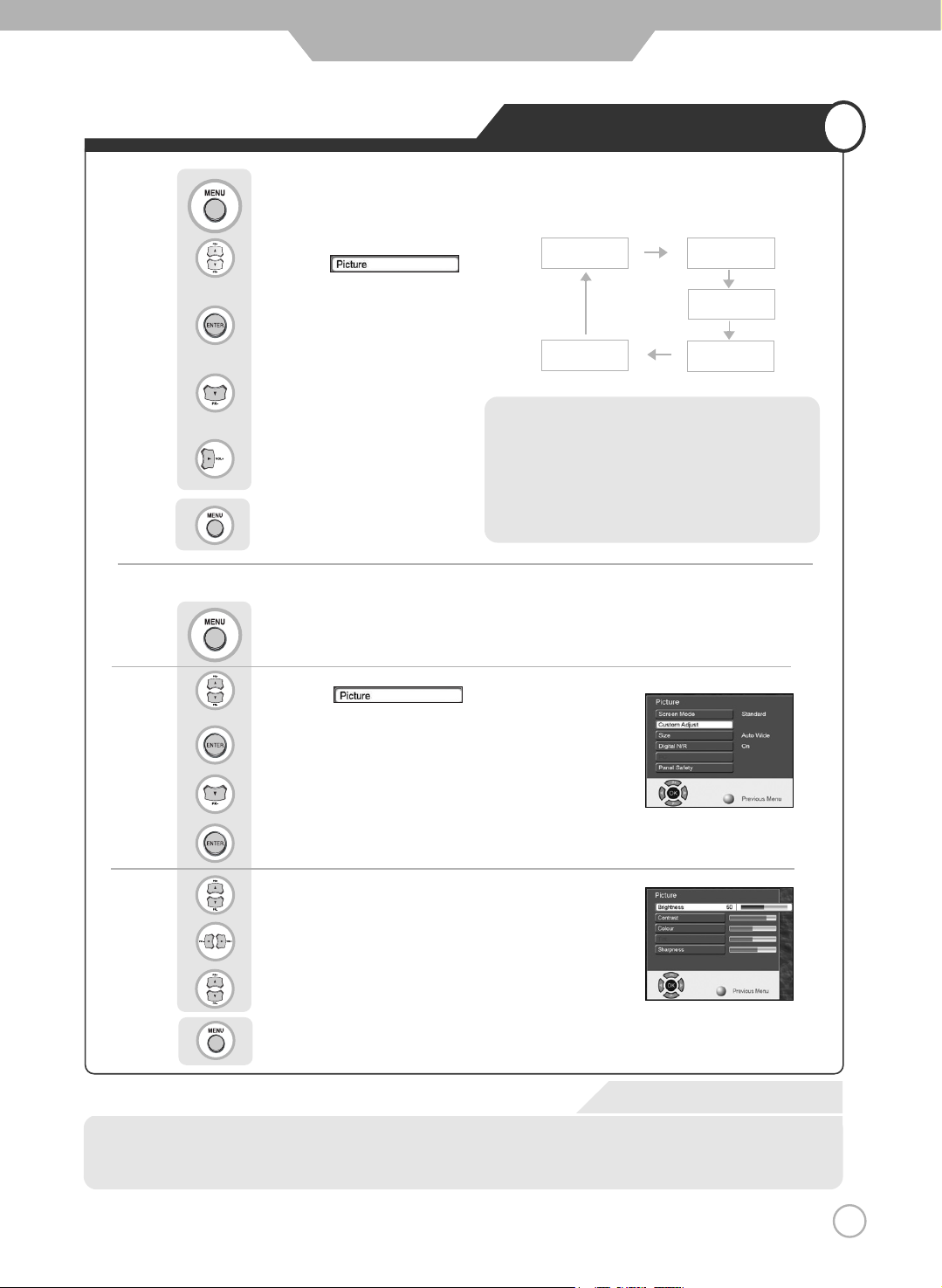

Changing Picture Settings
Press to go back to the previous menu.
󳢵
Custom Mode
29
Basic Use
Press .
Custom Picture Adjustment
·Brightness : It adjusts the brightness of the image.
·Contrast : It adjusts the contrast of image.
·Tint : It adjust the natural tint of the image.
·Colour : It adjusts the intensity of the colour.
·Sharpness : It adjusts the clarity of the image.
·Custom : Select to set user's preferences.
·Dynamic : Select when using the LCD TV in a
brightly lit environment.
·Standard : It is the best screen setting.
·Movie : Select when watching a movie.
·Mild : Select when using the LCD TV in a dimly lit
environment.
Custom
Dynamic
Standard
Movie
Mild
󳥸
󳥸
󳥸
Press .
Use select between Custom, Standard, Music, Movie, Speech.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to “Custom Adjust”.
Press to select.
30
Basic Use
Changing Sound Settings
󳢵
Sound
·Volume : It adjusts the sound volume.
·Balance : It adjusts the volume of speakers on the left and the right.
·Equalizer : It adjusts the volume by frequency bands and the user can select the desired sound quality.
Press .
Custom
Standard Music Movie Speech
·Standard : It is the flat sound setting with no equalizer effect at all.
·Music : It is preset for music listening.
·Movie : It is preset sound for watching a movie.
·Speech : It is preset for hearing vocal audio clearly.
·Custom : Select when listening to the sound to user's preference.
Use to select the "External" or "Internal".
Use to move to .
Press to select.
Press to move to "Sound Output".
Use to move to the desired category.
Use to adjust the setting.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Custom Adjust".
Press to select.
Built-in Speaker External Speaker Note
External X O 500mVrms
Internal O X Adjusts the Sound Volume
Sound Output
Custom Sound Adjustment
31
Basic Use
Press .
Press to go back to the previous menu.
Press .
󳥸
󳥸
󳥸
Use to select the desired language.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Language".
Selecting the Menu Language
32
Basic Use
󳢯
Menu screen can be viewed in the language preferred by the user.
Press .
󳥸
󳥸
Use to select the "On" or "Off".
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Digital N/R".
Setting Digital Noise Reduction
Use to move to .
Press to select.
Press to move to "Blue Screen".
Setting Blue Background
Use to select the "On" or "Off".
Press to go back to the previous menu.
󳥸
󳥸
33
Basic Use
󳢯
The LCD TV can be set to display blue screen when no TV signal or signal from other connected
appliances are being received. If there is an incoming signal, the blue screen will be replaced by the normal picture screen.
Press .
󳢯
Use when screen is noise or lines appear.
Press .
󳥸
󳥸
34
Changing Screen Size
Application
Press .
Auto wide wide
4 : 3
Zoom 1
Zoom 2
Panorama
14 : 9
Auto wide
wide Panorama
Zoom1 Zoom2
4 : 3 (normal)
14 : 9
󳢯
In PC input mode, you can only select either the wide or the normal (4 : 3) mode.
󳢯
In Component 1/2 input mode, you can't Select Auto Wide.
󳢯
In Component 1/2 input mode (1080i), you can't Select Zoom2.
󳢵
Screen Size
·Auto wide - It automatically displays for the screen format of input signal.
·wide - It makes 16 : 9 format for input signal.
·Panorama - It makes 4 : 3 format fit into 16 : 9 format with minimal loss in content.
·Zoom 1 - It enlarges the natural screen factor by approx. 5 %
·Zoom 2 - It enlarges the natural screen factor by approx. 10 %
·4 : 3 - It is the standard format of broadcasting.
·14 : 9 - It makes 14 : 9 format for input signal.
Use to move to the desired category.
Use to adjust the setting.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Manual Store".
Press to select.
Manual Store
Use to select the Panorama or 4 : 3.
Press to go back to the previous menu.

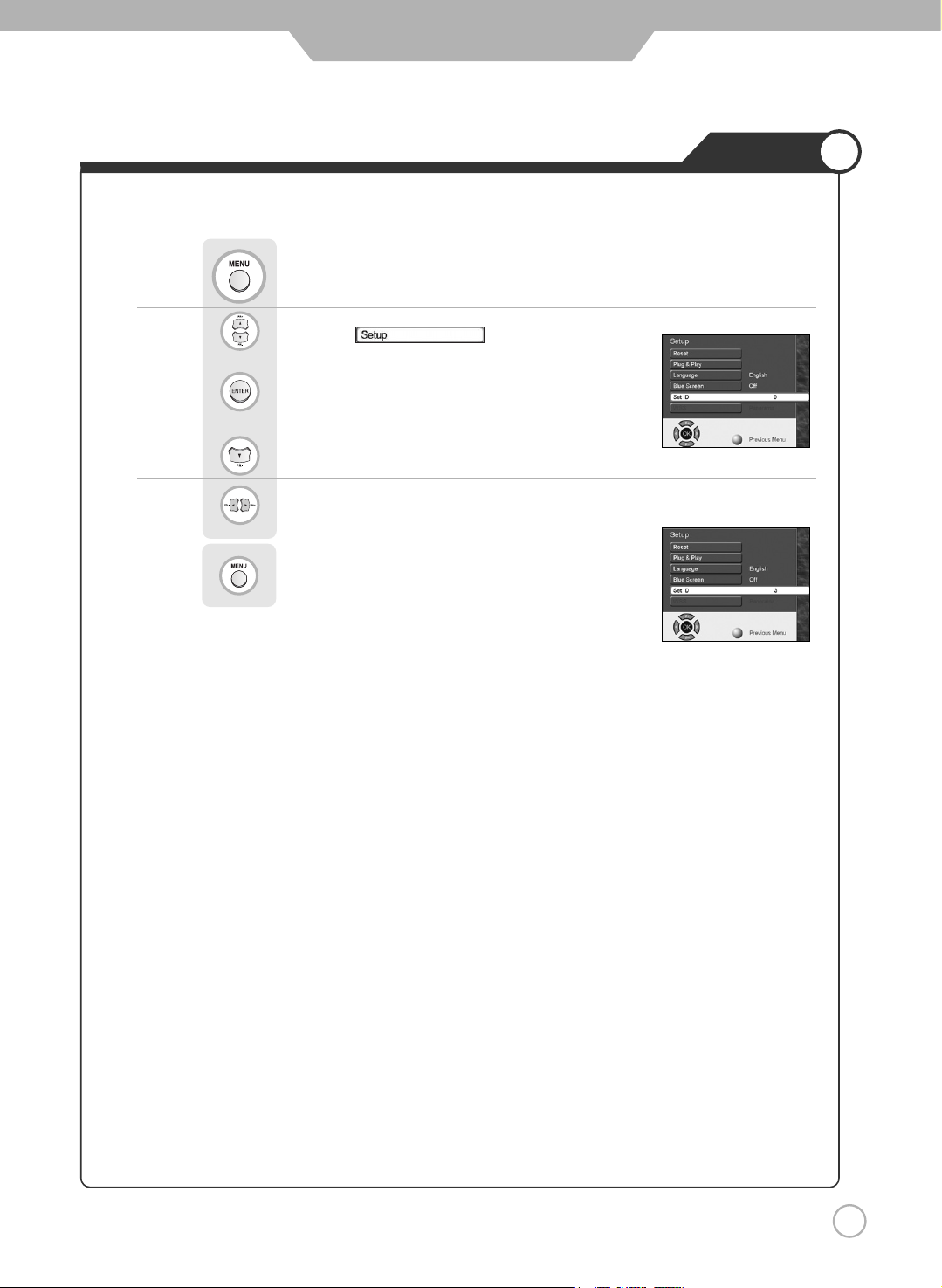

Changing the Screen Size for WSS Signal Input
Use to move to .
Press to select.
Press to move to "WSS ".
Press .
󳥸󳥸
35
Application
󳢯
When WSS signal is incoming from a connected external appliance, screen size can be changed to panorama or 4 : 3.
󳢯
Colour system and sound system can be setup for each channel.
󳢯
Select "OK" in Manual Store to save the Program settings.
Press .
󳢯
WSS : Wide Screen Size.
Use to move to the desired Program Number.
Press to move to the next category.
Use to move to the Preferred Program Number.
Press to sort.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Program Sort".
Press to select.
Sorting Program
36
Application
Press .
󳥸
󳥸
󳥸󳥸󳥸
󳢯
In this mode, you can arrange programs in numerical order.
Editing Program Name
Use to move to the desired Program Number.
Press to move to program name.
Use to register program name.
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Program Name".
Press to select.
Press .
󳥸
󳥸
󳥸
󳥸
37
Application
󳢯
Favorite programs can be stored to make it easier to find.
Adjusting Unclear Screen
Use to move to .
Press to select.
Press to move to "Fine Tune".
Press to select.
Press .
Use to tune.
Press to go back to the previous menu.
To return to initial setting or Auto Setting, use to select "Reset" and press .
To view the still picture
38
Application
󳢯
Use screen fine-tune controls to adjust the screen when picture quality is unclear or lines appear.
Press .
󳢯
Picture will freeze, but sound will continue to be heard.
Press again to cancel.
Press to move to "Size".
Use to select the desired size.
Press to go back to the previous menu.
Viewing Picture in Picture
Press to move to "Input Source".
Use to select the "On" or "Off".
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Mode".
Press .
󳢯
Or press .
󳢯
The sub-screen can be changed to display picture from the desired input source
.
39
Application
󳢯 Or press .
󳢯 Sound from only one of the screens may be heard.
󳢯
Or press .
TV/External Input
Changing the Screen Size
󳥸󳥸
󳥸
󳥸
Use to select the desired input source.
Press to go back to the previous menu.
Use to select the "Main" or "Sub".
Press to go back to the previous menu.
Press to move to "Sound Select".
Press to move to "PIP Swap".
Viewing Picture in Picture
Press to select "OK".
Press to go back to the previous menu.
Use to select the desired position.
Press to go back to the previous menu.
Press to move to "Position".
4040
Application
Selecting Sub Screen Sound
Selecting Position
󳢯
Or press .
󳢯
Sub-screen position can be selected only from the .
󳢯
The main screen and the sub screen will swap.
󳢯
The sound of the sub screen can be selected when PIP is being displayed.
Main Screen/Sub Screen Swap
󳥸
󳥸
󳥸
Use to select the desired category.
Press to go back to the previous menu.
Stereo Settings
Use to move to .
Press to select.
Press to move to "MTS".
Use to select the "On" or "Off".
Press to go back to the previous menu.
Use to move to .
Press to select.
Press to move to "Auto Volume Level".
Auto Volume Level
4141
Application
󳢯
This feature maintains an equal Volume level ; even if you change channels.
󳢯
Or press . (Multi Television Sound)
Press .
Press .
󳥸
󳥸
󳥸
󳥸
Press to select “OK”.
Use to move to .
Press to select.
Press to move to "Reset".
Resetting LCD TV Settings
Application
42
󳢯
It resets all of the parameters to the factory default.
The LCD TV will turn off. The parameters will be set to factory default.
Press .
󳥸
󳥸
Use to move to .
Press to select.
Press to move to "Clock".
Press to move one step.
Use to adjust the desired hour.
Press to move one step.
Use to adjust the desired minute.
Press to go back to the previous menu.

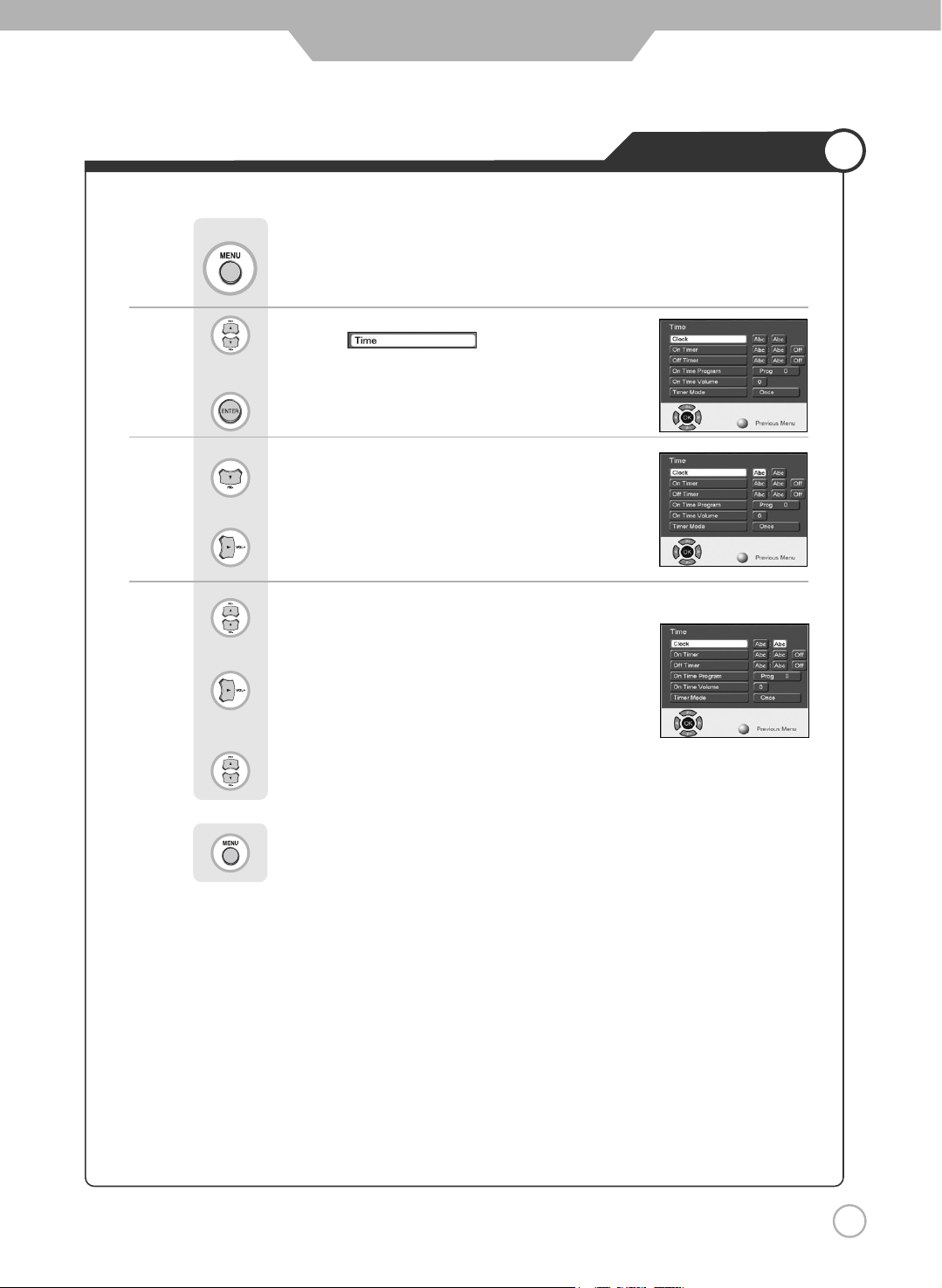

Setting Time
󳥸
󳥸
󳥸
󳥸
43
Application
Press .
You can set your local time by adjusting the differences from GMT, according to your location.
Use to move to .
Press to select.
Press to move to desired category.
Press to go back to the previous menu.
Automatic Power On/Off
44
Application
Setting Time for Power On Setting Time for Power Off
Setting Hour
Use to select,
to set
Setting Minute
Use to select,
to set
Set/Cancel
Use to select,
to select the "On" or "Off"
Channel Select
Use
to set program
Volume Control
Use to set volume
󳢯
It automatically turns off the TV after a designated period of time
󳢯
Depending on the number of times the "Sleep" button is pressed, the TV will be turned off after 30, 60, 90, 120, 150 or 180 minutes.
󳢯
It sets the current time and then the automatic turn on/off can be set. The time settings are retained only if the main power is off, the time is reset. To retain the time setting, do not turn the main power switch off.
To have the TV turn off after you fall a sleep
Clock time must be set
Press .
Press .
45
Teletext
Basic Function
TEXT On/Off
1. Press "ON" once , then displays the Teletext pages.
2. If you press "ON" once more, Text mode is off.
TOP TEXT
The user guide displays four fields-red, green, yellow and blue at the bottom of the screen. The yellow field denotes the next group and the blue field indicates the next block.
- Group/Block/Page selection
1. WIth the blue button you can progress block to block.
2. Use the Yellow button to proceed to the next group with automatic overflow to the next block.
3. With the Green button you can proceed to the next existing page with automatic overflow to the next group.
4. The RED button permits to return to previous selection.
FLOF TEXT
The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.
- Page selection
1. Press the Index button to select the index page.
2. You can select the pages, which are colour coded along the bottom line with the same coloured buttons.
Special Teletext Function key
MIX : In the mix mode display, the underlying video and the teletext page display are both simultaneously
visible on the screen. This command turns the display to mix mode and is enabled only in the text mode.
STORE : This command stores the user defined favorite pages. This command is enabled only if the list
mode is active.
LIST : This command toggles between list mode and current. Text mode(FLOF, TOP or normal)
SIZE : Toggle the display page size between double-size top, double-size bottom and normal.
HOLD : The update of the current display page is halted so that the content will not be changed.
CANCEL : Press this button to view the updated teletext page or display cancel.
INDEX : Return to the index page.
TIME : When watching a TV program, press this button to display the time at the top right hand corner of the
screen.
Press this button again to remove the display.
REVEAL : Press this button to display the concealed information. Such as solutions of riddles or puzzles.
RED, GREEN, YELLOW, BLUE-In the TOP/FLOF automatic navigation mode, these keys select and display
the linked page.
Application
External adjustment
46
External adjustment
How connect a external equipment
<Back view of the LCD TV>
External adjustment
47
Set ID
󳢯
The adjustment range of Set ID is 0 ~ 99.
Use to move to .
Press to select.
Press to move to "Set ID".
Use to select the desired ID number.
Press to go back to the previous menu.
󳥸
Press .
󳥸
External adjustment
48
Special features
Pin NO.4 and Pin
NO.6 must be
connected on
monitor side
·Use a crossed (reverse) cable. Wire the cable so that each pair of data lines cross between the two devices. These data line pairs are RXD (Receive to send) and TXD (Transmit data), DTR (DTE side ready) and DSR (DCE side ready), and RTS (Ready to send) and CTS (Clear to send).
PC LCD TV
D-sub 9 D-sub 9
·7-wire configuration
(Standard RS-232C cable)
·3-wire configuration
(Not standard)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (Dce side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 6 DSR DSR 6 4 DTR RTS 7 8 CTS CTS 8 7 RTS
PC LCD TV
D-sub 9 D-sub 9
RXD 2 3 TXD TXD 3 2 RXD GND 5 5 GND DTR 4 4 DTR DSR 6 6 DSR RTS 7 7 RTS CTS 8 8 CTS
Type of connector : D-Sub 9-pin male
RS-232C configurations
Control line
External adjustment
49
RS232C Communication Protocol
󳢯
BAUD RATE : 9600 bps
󳢯
Data Length : 8bits
󳢯
Parity : None
󳢯
Stop bit : 1bit
The Remote Control and LCD TV Key Control(Except Main Power) Don't Operate When Controlling LCD TV Set by PC.
Item ASCII Code Data(hex)
1. Power p 00h~01h
2. Input Source i 00h~07h
3. Aspect Ratio r 00h~08h
4. Volume Mute w 00h~01h
5. Volume Control v 00h~64h
6. Screen Mode s 00h~04h
7. Brightness b 00h~64h
8. Contrast k 00h~64h
9. Colour c 00h~64h
10. Tint t 00h~64h
Item ASCII Code Data(hex)
11. Sharpness h 00h~64h
12. Information f 00h~01h
13. Pip On o 00h~01h
14. Pip Source u 00h~07h
15. Pip Location n 00h~03h
16. Pip Sound set e 00h~01h
17. Pip Mode d 00h~02h
18. Remote Control On j 00h~01h
19. Abnormal State q 00h~01h
20. Sound Mode y 00h~04h
* Transmission
{Command}{ }{SET ID}{ }{Data}{Cr}
󳢯 {Commad} To Control Code LCD TV 󳢯 { } "Space , ASCII Code = 0x20" 󳢯 {SET ID} You Can Adjust SET ID Setup
Menu of LCD TV
󳢯 {Data} Data Command
Transmit 'FF' data to data read mode
󳢯 {Cr} Carriage Return
ASCII Code 0x0d
* Ok Acknowledge
{SET ID}{:}{OK}{x}{Data}{x}
󳢯The LCD TV set transmits ASCII based on this
format When receiving normal data. At this time, If the data is data read mode, it indicates present status data if the data is data write mode, it returns the data of PC.
* In case set ID is 0, Ack data doesn’t feed back, and
you can adjust all LCD TV set.
COMMUICATION PARAMETERS
Command List
Tramsmission / Receiving Protocol List
External adjustment
50
RS232C Communication Protocol
2. Input Source : i
To Input Source Select * Transmission
{i}{ }{SET ID}{ }{Data}{Cr} Data 0 : TV Data 1 : Scart 1 Data 2 : Scart 2 Data 3 : Composite 1 Data 4 : S-Video 1
1. Power : p
To Control Power On/Off of the LCD TV * Transmission
{p}{ }{SET ID}{ }{Data}{Cr} Data 0 : Off Data 1 : On
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Off Data 1 : On
Read Power On Source Status * Transmission
{p}{ }{SET ID}{ }{FF}{Cr}
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Power Off Data 1 : Power On Data 2 : TV Data 3 : Scart 1 Data 4 : Scart 2 Data 5 : Composite 1 Data 6 : S-Video 1 Data 7 : Composite 2 Data 8 : S-Video 2 Data 9 : Component 1 Data 10 : Component 2 Data 11 : DVI Data 12 : PC
If Other Functions Transmit 0xFF data based on this
format, Ack data feeds back present status about each function.
Data 5 : Composite 2 Data 6 : S-Video 2 Data 7 : Component 1 Data 8 : Component 2 Data 9 : DVI Data 10 : PC
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : TV Data 1 : Scart 1 Data 2 : Scart 2 Data 3 : Composite 1 Data 4 : S-Video 1 Data 5 : Composite 2 Data 6 : S-Video 2 Data 7 : Component 1 Data 8 : Component 2 Data 9 : DVI Data 10 : PC
3. Aspect Ratio : r
To adjust screen format * Transmission
{r}{ }{SET ID}{ }{Data}{Cr} Data 0 : Auto wide Data 1 : Wide Data 2 : Panorama Data 3 : Zoom1 Data 4 : zoom2 Data 5 : 4:3 Data 6 : 14:9 Data 7 : 4:3(In PC Mode) Data 8 : Wide(In PC Mode)
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Auto wide Data 1 : Wide Data 2 : Panorama Data 3 : Zoom1 Data 4 : zoom2 Data 5 : 4:3 Data 6 : 14:9 Data 7 : 4:3(In PC Mode) Data 8 : Wide(In PC Mode)
External adjustment
51
RS232C Communication Protocol
4. Volume Mute : w
To Select volume mute on/off * Transmission
{w}{ }{SET ID}{ }{Data}{Cr} Data 0 : On Data 1 : Off
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : On Data 1 : Off
5. Volume Control : v
To adjust volume * Transmission
{v}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
6. Screen Mode : s
To Select Screen Mode * Transmission
{s}{ }{SET ID}{ }{Data}{Cr} Data 0 : Custom Data 1 : Dynamic (In PC Mode : High) Data 2 : Standard (In PC Mode : Middle) Data 3 : Movie (In PC Mode : Low) Data 4 : Mild
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Custom Data 1 : Dynamic Data 2 : Standard Data 3 : Movie Data 4 : Mild
7. Brightness : b
To adjust Brightness * Transmission
{b}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
8. Contrast : k
To adjust Contrast * Transmission
{k}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
9. Colour : c
To adjust Colour (Not available in PC Mode) * Transmission
{c}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
10. Tint : t
To adjust Tint (Not available in PC Mode) * Transmission
{t}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
External adjustment
52
RS232C Communication Protocol
11. Sharpness : h
To adjust Sharpness * Transmission
{h}{ }{SET ID}{ }{Data}{Cr} Data : Min : 00h~Max : 64h
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data : Min : 00h~Max : 64h
12. Information : f
Information on/off * Transmission
{f}{ }{SET ID}{ }{Data}{Cr} Data 0 : On Data 1 : Off
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : On Data 1 : Off
13. Pip On : o
Pip on/off * Transmission
{o}{ }{SET ID}{ }{Data}{Cr} Data 0 : On Data 1 : Off
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : On Data 1 : Off
14. Pip Source : u
To Select Pip Source * Transmission
{u}{ }{SET ID}{ }{Data}{Cr} Data 0 : TV Data 1 : Scart 1 Data 2 : Scart 2 Data 3 : Composite 1 Data 4 : S-Video 1 Data 5 : Composite 2 Data 6 : S-Video 2 Data 7 : Component 1 Data 8 : Component 2 Data 9 : DVI Data 10 : PC
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : TV Data 1 : Scart 1 Data 2 : Scart 2 Data 3 : Composite 1 Data 4 : S-Video 1 Data 5 : Composite 2 Data 6 : S-Video 2 Data 7 : Component 1 Data 8 : Component 2 Data 9 : DVI Data 10 : PC
15. Pip Location : n
To Select Pip Position * Transmission
{n}{ }{SET ID}{ }{Data}{Cr} Data 0 : Right Bottom Data 1 : Right Top Data 2 : Left Top Data 3 : Left Bottom
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Right Bottom Data 1 : Right Top Data 2 : Left Top Data 3 : Left Bottom
External adjustment
53
RS232C Communication Protocol
16. Pip Sound Set : e
To Select Pip Sound * Transmission
{e}{ }{SET ID}{ }{Data}{Cr} Data 0 : Main Data 1 : Sub
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Main Data 1 : Sub
17. Pip Mode : d
To Select Pip Mode * Transmission
{d}{ }{SET ID}{ }{Data}{Cr} Data 0 : PIP Data 1 : PBP1 Data 2 : PBP2
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : PIP Data 1 : PBP1 Data 2 : PBP2
18. Remote Control On : j
To Select Remote Control on/off * Transmission
{j}{ }{SET ID}{ }{Data}{Cr} Data 0 : Pc Control Data 1 : Remote Conroller On
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Pc Control Data 1 : Remote Conroller On
19. Abnormal Status : q
You Can Read LCD TV Status * Read Only Mode * Transmission
{q}{ }{SET ID}{ }{FF}{Cr}
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : OK Data 1 : Stanby Data 2 : AC Downr
20. Sound Mode : y
To Select Sound Mode * Transmission
{s}{ }{SET ID}{ }{Data}{Cr} Data 0 : Custom Data 1 : Standard Data 2 : Music Data 3 : Movie Data 4 : Speech
* Ack
{SET ID}{:}{OK}{x}{Data}{x} Data 0 : Custom Data 1 : Standard Data 2 : Music Data 3 : Movie Data 4 : Speech
54
Maintenance and Service
Trouble shooting
Problem Action
Screen appears, Voice is not heard 1. Press the "Mute"button. (page 25)
2. Increase the sound by pressing volume adjustment button.
3. Check if voice terminal of external input is connected properly.
4. Check if speaker cables are connected properly.
5. If it is on PIP mode, convert audio of main screen and sub screen by pressing S.SELECT.
6. Select and check the other input.
If the sound still does not work and the other channels are the same after you have done as the above, contact your dealer or an authorized service center.
7. Check if the headphone jack gets pluged in.
8. Check if the speaker on/off selection at "On" in sound mode.
Lots of noise (static) occurs. When connecting a Set-Top-Box, check that it is on stereo broadcasting. If it
is, the TV program may not be available or the reception may be bad. Check the audio source with another player. If that source is good, contact your dealer or an Authorized service center.
Sound related Matters
In case a problem occurs with your
LCD
TV, please take the following steps first.
If you still have the problem, turn the power off and contact your dealer or an authorized service center.
Screen related Matters
Problem Action
The screen does not appear.
Is the power plug pulled out? Insert the power plug. Turn the main power button on and press the power button of the remote controller.
The screen appears too
This problem occurs for a brief time in the process of
slowly after the power is turned on.
image elimination processing in order to hide temporary screen noise that occurs when the power is turned on. But if the screen does not come after 1 minute has passed, contact your dealer or an authorized service center.
Screen is too bright or too dark. Perform brightness adjustment or Contrast adjustment. (Please refer
to page 29)
Screen is too large or too small. Adjust the screen size. (Please refer to page 34)
Stripes appear on the screen
Stop using wireless telephones, hair driers and electric drills.
and it shakes.
Simultaneous Screen
Check that LCD TV and external equipment are connected.
does not appear.
Check the inputs of simultaneous screen by pressing sub-screen selection.
The screen does not move. Press the STILL button. (Please refer to page 38) Check if the Pause
button is pressed on external equipment.
Computer Input Screen is abnormal. Perform manual fine adjustment (Please refer to page 21).
Automatic Turn On does not work. Automatic Turn On function works only when turning the LCD TV off
with the remote controller or Standby button.
The screen shows snow or black patt­erns and then reverts to a clear picture.
The problem only occurs with DVI input when an abnormal signal is issued during an authorization process for a High-bandwidth Digital Content Protection (HDCP) compatible device. While it may vary depending on the actual device, the screen reverts to normal within a short time (5-7 seconds).
The screen flickers in multi-screen mode (PIP/PBP).
The problem occurs when both main and sub screens are supplied with interlaced signals. Whilst an internal de-interlacer should remove any trembling that occurs with interlaced signal input, either of the screens can still tremble when both screens are input with interlaced signals, because there is only one de-interlacer available.
Trouble shooting Tips
Supported Display Modes
Maintenance and Service
55
Problem Action
Remote controller does not work. 1. Check if main power is On.
2. Check that the batteries of the remote controller were loaded properly.
3. Check to see if any obstacle exists between the LCD TV and the remote controller and remove it, if any.
4. If the batteries have no power, replace them with two new batteries.
5.Please check out current mode of fnuction key.
LCD TV makes strange noise. It is the noise when the mechanism expands or contracts
from to changes to the environment due to factors such as humidity, temperature, etc. It is not a failure.
LCD TV indication lamp is On. The red means the Stand-by power is ON. It will take a
few seconds to turn off as the main power is off.
󳢯 This LCD TV is for household use and registered as suitable on electromagnetic waves. 󳢯 Therefore, you can use it in every location as well as residential areas. 󳢯 For improvement of product's quality, program can be upgrade without costomer's agreemant.
Others
󳢯 If any signal of unsupported resolution is input, the "Out of Range" message appears.
Considerations in Installation
PC mode
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
31.47 60
37.86 72
37.50 75
31.47 70
35.15 56
37.88 60
48.88 72
46.88 75
48.36 60
56.48 70
60.02 75
64.0 60
640×480
720
×400
800
×600
1024
×768
1280
×1024
Supported Display Modes
Specifications
Aspect Ratio 16 : 9
Screen Size (H×V) 885.168(H)×497.664(V)mm
Resolution 1366×768
Pixel pitch (H×V) 0.648(H)×0.216(V)mm (RGB Vertical Script)
Displayable Colors 16.7M
Brightness 500cd/m2(center of screen)
Contrast 1000:1
Viewing Angle 89。/89。/89。/89。
Input signal
PAL, SECAM,
SD, HD, VGA~SXGA
Tuner PAL, SECAM
PC Input Analog RGB, DVI-D
AC Input AC100-240V~, 50/60Hz, 2.8A(MAX)
Power Consumption 240W (Typical)
󳢯
If any signal of unsupported resolution is input, the "Out of Range" message appears.
Component Mode
[
Y, Cb(
Pb), Cr(Pr)
]
Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz)
720×480 15.73 60.00 SDTV, DVD 480i
720×576 15.63 50.00 SDTV, DVD 576i
720×480 31.47 59.94 SDTV, 480p
720×576 31.25 50.00 HDTV, 576p
1280×720 37.50 50.00 HDTV, 720p
1280×720 45.00 60.00 HDTV, 720p
1920×1080 28.12 50.00 HDTV, 1080i
1920×1080 33.75 60.00 HDTV, 1080i
Maintenance and Service
56
Memo
Maintenance and Service
Maintenance and Service
Memo
Maintenance and Service
Memo
90-X-4000AP-L01-GRD-00
Loading...
