Groen CKPF-3 User Manual
OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
MODELS CKPF/3
CAPKOLD COOKCHILL SYSTEMS
PUMP-FILL STATION
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt
of same and to determine the possibility of any damage, including concealed
damage. Unied Brands suggests that if you are suspicious of damage to make
a notation on the delivery receipt. It will be the responsibility of the consignee to
le a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time
of printing/creation. Unified Brands recommends referencing our product line websites,
unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 137164 REV. F (02/15)
1055 Mendell Davis Drive
Jackson, MS 39272
888-994-7636, fax 888-864-7636
unifiedbrands.net
IMPORTANT - READ FIRST - IMPORTANT
WARNING: Do NOT attempt to install, set-up or operate this machine before reading and understanding this manual and
ALL accompanying manuals. KEEP ALL MANUALS FOR FUTURE REFERENCE.
WARNING: Be sure operators read, understand and follow operating instructions, cautions and safety instructions in this
manual. Additional manuals may be supplied for specic sub-components of the CapKold CKPF/3 Mobile
Pump/Fill Station. Be sure operators read, understand and follow ALL operating instructions, cautions and
safety instructions in these additional manuals. Any potential user of this equipment MUST be trained in safe
and correct operating procedures.
WARNING: When using this machine, ALL operating instructions, safety instructions and precautions MUST be followed
and strictly adhered to.
WARNING: This machine is intended for use in the commercial transfer and packaging of food products, per the
instructions contained in this manual. Other use could result in personal injury or damage to the equipment
and will void ALL warranties.
WARNING: AVOID ALL direct contact with HOT equipment surfaces. Food products transferred through this machine
are at temperatures as high as 212°F (100°C). Direct skin contact could result in severe burns.
WARNING: AVOID ALL direct contact with HOT food. Food products transferred through this machine are at temperatures
exceeding 140°F (60°C) and in direct skin contact could produce severe burns.
WARNING: Use of any replacement parts other than those supplied by Unied Brands, or its authorized distributors
voids ALL warranties and may cause bodily injury or equipment damage. Service performed by other than
Unied Brands Authorized Service Agents will void ALL warranties.
WARNING: Turn electric power OFF and unplug the CKPF/3 unit BEFORE working on any internal components.
WARNING: Turn electric power OFF and unplug the CKPF/3 unit BEFORE performing and cleaning operation.
WARNING: AVOID contact with cleaning products and follow manufacturer’s instructions, warnings and recommendations
for using such products. Many cleaners and sanitizers are harmful to the skin, eyes, mucous membranes
and clothing. Read warning and follow directions on the cleaner/sanitizer product label.
CAUTION: NEVER leave a chlorine sanitizer in contact with stainless steel longer than 30 minutes, before thoroughly
rinsing o. Longer contact can cause corrosion.
WARNING: Do not use a fuse with a higher AMP rating than specied on the Wiring Diagram of the circuit.
WARNING: Never place ngers or other body parts in the groves of the Tipper Tie clipper accessory where the clips seal
the product casings.
2 OM-CKPF/3
IMPORTANT - READ FIRST - IMPORTANT
WARNING: Always turn the air switch to the OFF position and disconnect the air hose to the Tipper Tie clipper accessory
when removing a clip jam. Always follow the manufacturer’s instructions and use a screwdriver to REMOVE
a clip jam. NEVER attempt to REMOVE a clip jam with your ngers.
WARNING: If a clip jams in the dies area of the Tipper Tie clipper accessory, DO NOT attempt to cycle the machine again
until the jam has been cleared. Follow ALL safety procedures. Place the air valve in the OFF position and
disconnect the air supply BEFORE attempting to REMOVE the clip or other obstruction from the die area.
Use a screwdriver, NOT your ngers, to remove the jam.
WARNING: Disconnect both air hoses on the air-operated product dispensing valve BEFORE disassembly.
OM-CKPF/3 3
IMPORTANT - READ FIRST - IMPORTANT
WARNING: The CapKold CKPF/3 Mobile Pump/Fill Station electrical power cord should NOT be allowed to rest on the
oor in water or a high moisture environment.
WARNING: DO NOT operate the CapKold CKPF/3 Mobile Pump/Fill Station with the pump rotor housing cover removed,
or without ALL bolts installed and properly tightened.
WARNING: DO NOT spray or hose down the CapKold CKPF/3 Mobile Pump/Fill Station Control Panel or Inverter with
water.
CAUTION: When cleaning and working on the components of the CapKold CKPF/3 Mobile Pump/Fill Station, be careful
of metal surfaces, components and housings that may still be HOT. DO NOT touch HOT surfaces as direct
skin contact can result in severe burns.
4 OM-CKPF/3
IMPORTANT - READ FIRST - IMPORTANT
CAUTION: When working on the rotor housing of the product pump or removing the rotors from the housing, be aware
that the surfaces may be HOT. Use protective devices and remove rotors with a tool to avoid skin contact.
Keep feet and other body parts clear of the rotor housing during rotor removal and installation.
CAUTION: REMOVE product tubing and rotors, BEFORE removing rotor housing from the unit.
CAUTION: CapKold CKPF/3 Mobile Pump/Fill Station MUST have a separate ground wire for safe operation
OM-CKPF/3 5
Table of Contents
Important Operator Warnings ............................................................................ page 2
Equipment Description ...................................................................................... page 7
Installation ....................................................................................................... page 9
Start-Up ......................................................................................................... page 10
Operation ........................................................................................................ page 11
Equipment Cleaning/Sanitization Procedures ................................................. page 20
Maintenance ................................................................................................... page 22
Troubleshooting ............................................................................................... page 24

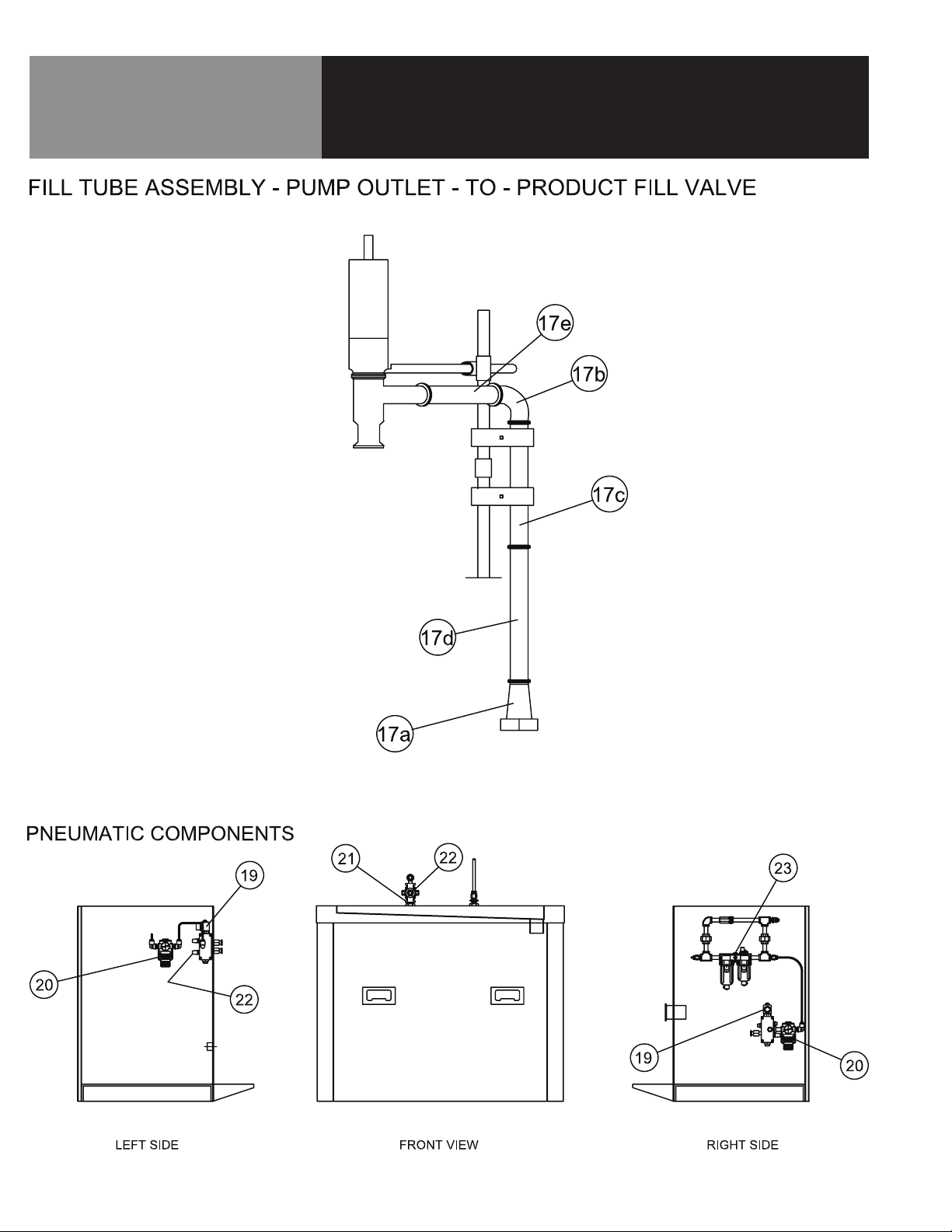

Suggested Spare Parts List .............................................................................. page 25

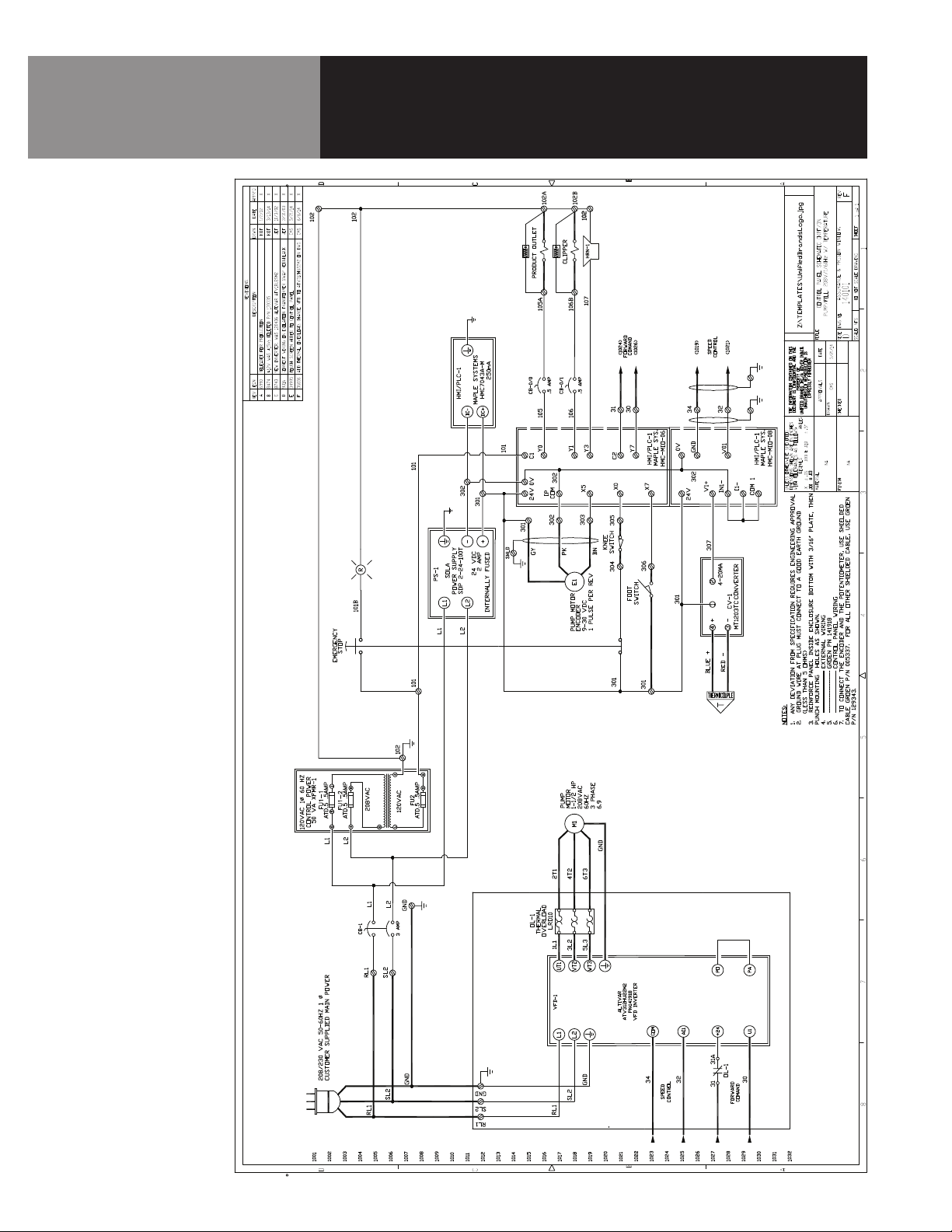

Wiring Schematic ............................................................................................ page 30
Service Log .................................................................................................... page 31
6 OM-CKPF/3
Equipment Description
GROEN MODEL CKPF/3
MOBILE PUMP/FILL STATION
The CapKold CKPF/3 Mobile Pump/Fill Station is designed to rapidly and gently transfer food
product from a steam-jacketed kettle into flexible plastic casings and other food containers.
The base of the unit is a rectangular cabinet on locking casters.
A pedestal mounted control package is located on the left side of the deck of the cabinet. It
allows fast and simple adjustment of pumping speed and volume. An air-operated product
dispensing valve is mounted on a pipe frame over the right side of the cabinet deck, directly
over a grate with sink and drain. An accessory clipper mounts on the pipe frame between the
control panel and the product dispensing valve. It is used to close plastic casings filled with
food product.
A foot switch is mounted under the front of the cabinet to control operation of the product
dispensing valve. The product pump housing is mounted on the lower rear of the cabinet. It is
driven by a motor and inverter located inside the cabinet.
Standard Features:
1. All stainless steel construction
2. Rear-mounted positive displacement pump
3. Air-operated product flow control valve
4. Right-to-Left operator fill sequence
5. Full surface spill tray with drain and removable stainless steel grate
6. Four locking casters
7. 15-foot air hose; air regulator; air filter
8. UL and NSF listed; HACCP capable
Integrated Control Package:

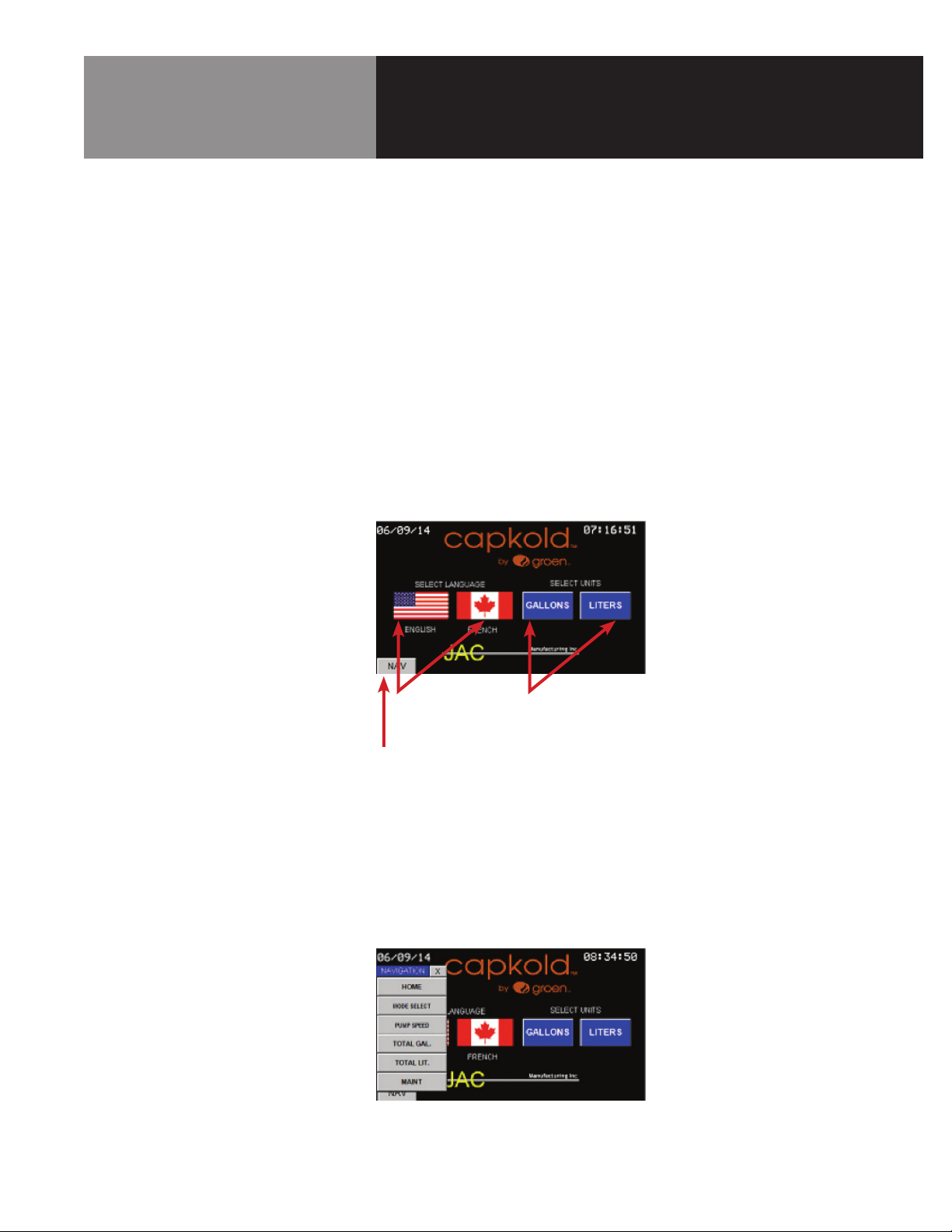

The CapKold CKPF/3 Mobile Pump/Fill Station control panel is pedestal-mounted to the fill
station and is provided with a water resistant case and a clear, lockable cover to simplify
clean-up and to protect the touch screen. The height of the control panel is designed to
reduce operator fatigue and simplify changes of pump speed and volume settings for different
products.
The standard operating controls include:

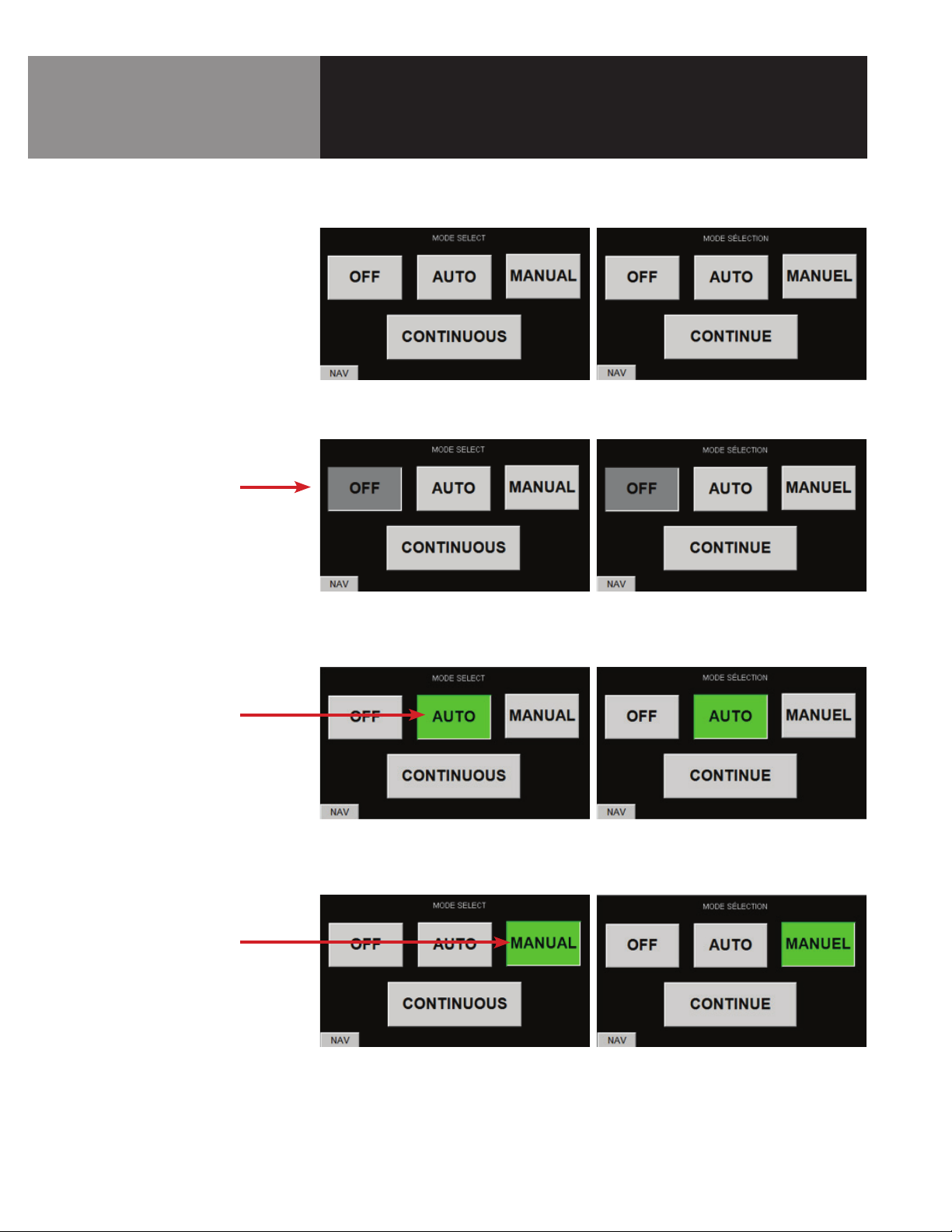

1. Manual, Metered or Continuous pumping – operator selectable
2. Pump Speed (0 to 20 gallons per minute – GPM) – operator input
3. Metered Volume (0.0 to 10 gallons in 0.01 gallon increments) – operator input
4. Foot-activated fill switch
5. Knee-operated and hand-operated STOP switches
6. Digital display of volume pumped per casing, total casings pumped and total volume
pumped per batch
Additional controls provided for add-on options:

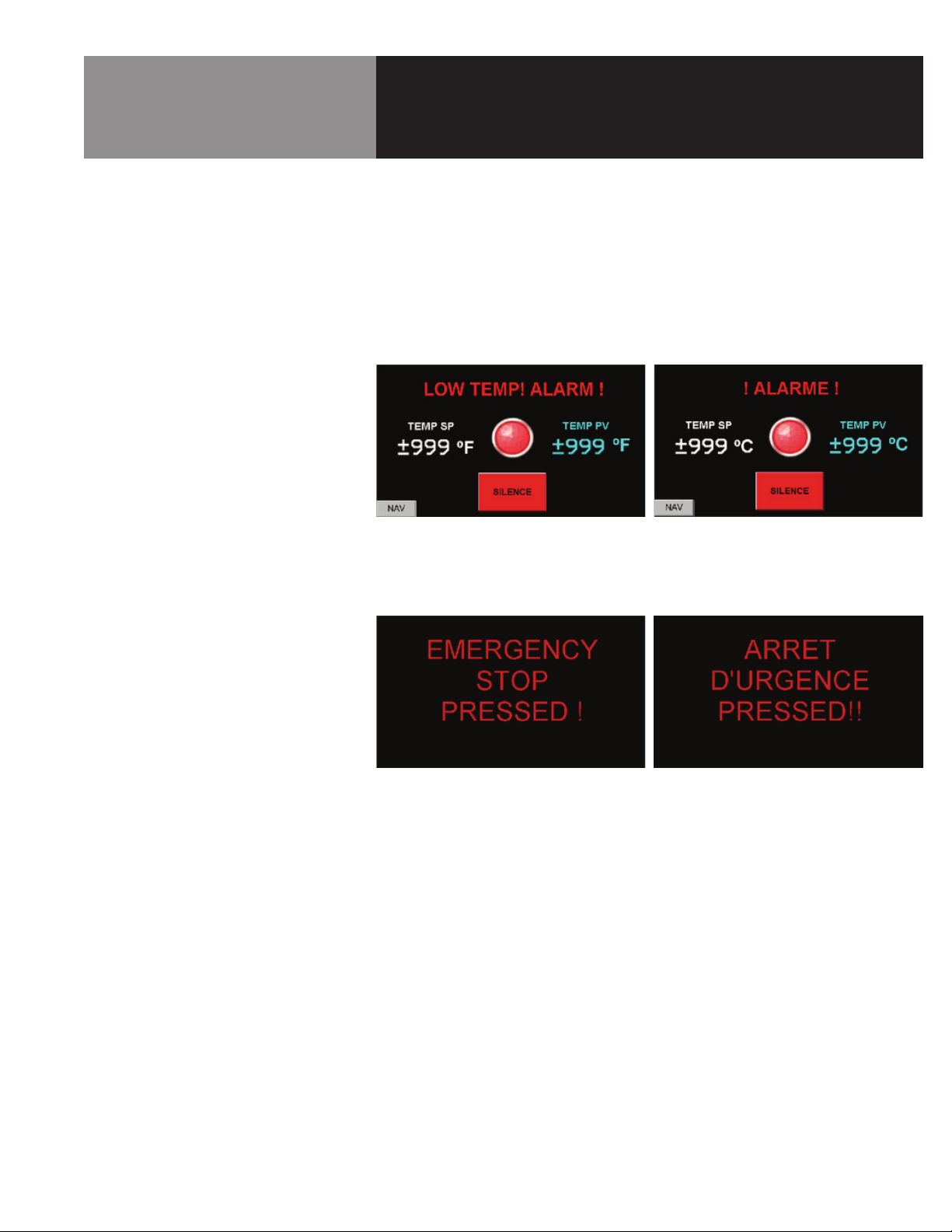

7. Temperature monitor and lock-out indicator with audible alert when product temperature
drops below user preset limit (typically 180°F or 82°C).
8. Product Temperature Recorder
OM-CKPF/3 7
Equipment Description
OPTIONAL FEATURES
AND ACCESSORIES
• Air-Operated Casing Clipper (Tipper-Tie)

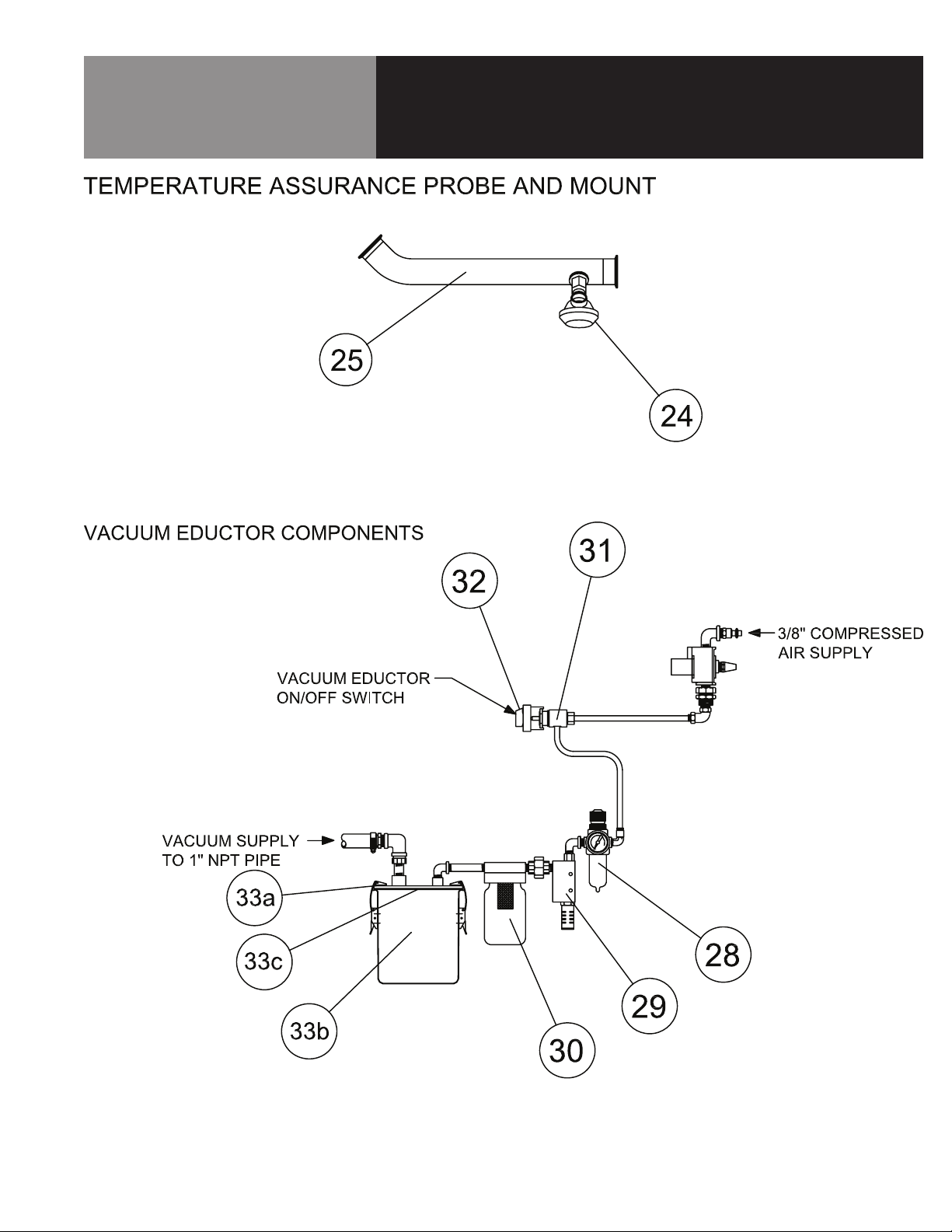

• Product Temperature Assurance with lockout and visual/audible alert
• Product Temperature Recorder
• 2-section 3” Transfer Hose assembly (6-foot long) with fittings to connect to pump-fill
station and kettle valve
• Additional 3” Transfer Hose section (3-foot long) with fittings
• High-volume air-eductor vacuum pump (for product vacuum packaging for cook tank
production)
• Casing Bin Holder (mounts to side of station and holds empty casing bags)
• Pan Fill adaptors for 2-1/2”, 4” and 6” hotel pans
• KIWI Label Maker (manual) with single set of letters and starter ink supply (casing content/
product date labeling on Tyvek® tape labels)
• Data Max Labeler
• Prison Package
8 OM-CKPF/3
Installation
UNPACKING AND INSPECTION
CASING CLIPPER INSTALLATION
The CapKold CKPF/3 Mobile Pump/Fill Station is a mobile cabinet mounted on short legs and
lockable casters. It will arrive packed in a wooden crate. Carefully inspect the crate for any
signs of damage and then carefully remove the unit from the crate, inspecting it further for
any signs of damage. Notify the delivery agent immediately if damage is found and follow their
instructions regarding submission of an insurance claim.
During unpacking, inspect all packing materials to ensure that no loose parts are inadvertently
discarded.
Check the casters to ensure they are fully inserted in the leg sockets and that their locks are
released; then move the station to its intended operation location.
The CapKold CKPF Mobile Pump/Fill Station is intended for use with a Tipper Tie Casing Clipper
installed adjacent to the fill valve. Locate the clipper unit and mounting hardware (which may
have been packed and shipped separately). Mount the clipper to the CapKold CKPF/3 Mobile
Pump/Fill Station as follows:
The clipper unit is air-operated and requires a source of compressed air regulated between 80
to 90 PSI, minimum. Typical operation of the clipper at 10 cycles per minute will require approximately 60 CFM (cubic feet per minute) of clean dry air. Insufficient supply of air will cause
the clipper unit to malfunction.
ELECTRICAL POWER
REQUIREMENTS
WARNING
THE RECEPTACLE AND CIRCUIT MUST
BE PROPERLY GROUNDED.
CLEANING/SANITIZING
FOR FIRST USE
The CapKold CKPF/3 Mobile Pump/Fill Station is supplied with a 15-foot air hose terminated
with a quick disconnect fitting. It can be connected directly to the facility compressed air supply, or in some cases to an auxiliary compressed air outlet on the CapKold kettle.
Electrical power must be supplied to the CapKold CKPF/3 Mobile Pump/Fill Station through a
25-foot power cord attached to the cabinet and terminated with a three-prong, twist-lock plug.
The plug requires a NEMA L6-30R receptacle (Hubbell™ 2621 supplied with Single-Phase, 30
Amp 220-240 Volt (50/60Hz) AC service. The unit will draw approximately 15 Amps in normal
operation.
Before operating the CapKold CKPF/3 Mobile Pump/Fill Station it is recommended that the unit
be cleaned and sanitized for use. See the instructions starting on page 20.
OM-CKPF/3 9
NOTE
SOME STYLES OF CAPKOLD KETTLES ARE
SUPPLIED WITH 3” PRODUCT ELBOWS FITTED
WITH TRI-CLAMP FLANGES IN LIEU OF 3”
SANITARY THREADS. IN SUCH CASES THE
6-FOOT HOSE ASSEMBLY WILL BE SUPPLIED
WITH A MATING TRI-CLAMP FLANGE AT ONE
END. INSTALL THE HOSE TO THE ELBOW BY
INSERTING A BEADED GASKET BETWEEN THE
TWO FLANGES AND THEN COMPRESS THE
FLANGES TOGETHER WITH A TRI-CLAMP.
Start-Up
Move the CapKold CKPF/3 Mobile Pump/Fill Station adjacent to a CapKold kettle within 6’feet of
the kettle outlet valve. Lock the casters on the pump/sill station
Thoroughly wash, rinse and install the 3-inch sanitary-thread elbow to the underside of the
pump housing. Orient the elbow as desired and tighten the 3-inch hex nut with the wrench supplied with the CapKold CKPF/3 Mobile Pump/Fill Station.
Connect one end of the 2-section 6-foot sanitary hose to the outlet of the elbow on the pump
housing. Hand-tighten the 3-inch nut. Connect the other end of the sanitary hose to the 3-inch
threaded elbow outlet under the CapKold kettle. This will be located directly above the airoperated drop down valve (if one is supplied) or immediately below the manual or air-operated
ball valve (if one is supplied). Hand-tighten the 3-inch nut onto the elbow. Inspect the hose
installation and adjust the position of the pump/fill station, if needed. Finally, TIGHTEN BOTH
3-INCH NUTS WITH THE WRENCH SUPPLIED WITH THE UNIT.
