OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
This manual provides information for:
MODELS BPM-30/40G(S) & BPP-30/40G Domestic ECLIPSE™ ERGONOMIC TILTING BRAISING PAN
·Stainless Steel
·Manual or Power Tilt
·Gas Heated
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
POST IN A PROMINENT LOCATION
Instructions to be followed in the event user smells gas. This information shall be obtained by consulting your local gas supplier. As a minimum, turn off the gas and call your gas company and your authorized service agent. Evacuate all personnel from the area.
WARNING
Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE
It is the responsibility of the consignee to inspect the container upon receipt of same and to determine the possibility of any damage, including concealed damage. Unified Brands suggests that if you are suspicious of damage to make a notation on the delivery receipt. It will be the responsibility of the consignee to file a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands recommends referencing our product line websites, unifiedbrands.net, for the most updated product information and specifications.
PART NUMBER 145339, REV. DF ((2//09)6)
1055 Mendell Davis Drive
Jackson, MS 39272 888-994-7636, fax 888-864-7636 groen.com
|
IMPORTANT — READ FIRST — IMPORTANT |
|
|
WARNING: |
DISCONNECT POWER BEFORE SERVICING. FAILURE TO DISCONNECT COULD RESULT IN |
|
ELECTROCUTION AND DEATH. |
CAUTION: |
UNIT WEIGHS 470 TO 560 LB. (191 TO 255 KG). FOR SAFE HANDLING, INSTALLER SHOULD |
|
OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT |
|
(SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND |
|
MOVE IT TO THE PLACE OF INSTALLATION. |
WARNING: |
INSTALLATION OF THE BRAISING PAN MUST BE DONE BY PERSONNEL QUALIFIED TO WORK |
|
WITH GAS AND ELECTRICITY. IMPROPER INSTALLATION CAN RESULT IN INJURY TO PERSONNEL |
|
AND/OR DAMAGE TO EQUIPMENT. |
WARNING: |
THIS UNIT IS DESIGNED FOR COMMERCIAL USE. NEVER USE HOME OR RESIDENTIAL GRADE |
|
GAS CONNECTIONS. THEY DO NOT MEET COMMERCIAL GAS CODES AND COULD BE |
|
HAZARDOUS. |
DANGER: |
ELECTRICALLY GROUND THE UNIT AT THE TERMINAL PROVIDED. FAILURE TO GROUND UNIT |
|
COULD RESULT IN ELECTROCUTION AND DEATH. |
WARNING: |
KEEP THE APPLIANCE AREA FREE AND CLEAR OF COMBUSTIBLE MATERIALS. FAILURE TO DO |
|
SO COULD RESULT IN FIRE OR PROPERTY DAMAGE. |
CAUTION: |
BE SURE ALL OPERATORS READ, UNDERSTAND AND FOLLOW THE OPERATING INSTRUCTIONS, |
|
CAUTIONS AND SAFETY INSTRUCTIONS CONTAINED IN THIS MANUAL. |
CAUTION: |
KEEP FLOORS IN BRAISING PAN WORK AREA CLEAN AND DRY. IF SPILLS OCCUR, CLEAN |
|
IMMEDIATELY TO AVOID THE DANGER OF SLIPS OR FALLS. |
WARNING: |
WHEN TILTING BRAISING PAN FOR PRODUCT TRANSFER: |
|
1) USE CONTAINER DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT SPLASHING. |
|
2) PLACE CONTAINER ON STABLE, FLAT SURFACE, AS CLOSE TO PAN AS POSSIBLE. |
|
3) STAND TO SIDE OF PAN WHILE POURING — NOT DIRECTLY IN POUR PATH OF HOT |
|
CONTENTS. |
|
4) RETURN PAN BODY TO LEVEL POSITION AFTER CONTAINER IS FILLED OR TRANSFER IS |
|
COMPLETE. |
|
5) DO NOT OVERFILL CONTAINER, AVOIDING DIRECT SKIN CONTACT WITH HOT CONTAINER |
|
AND ITS CONTENTS. |
WARNING: |
DO NOT HEAT EMPTY PAN FOR MORE THAN 5 MINUTES AT A SETTING HIGHER THAN 300oF. |
WARNING: |
IF THE PAN CONTAINS ITEMS IN HOT LIQUIDS SUCH AS SAUCE OR MELTED FAT, THEY CAN |
|
SLIDE FORWARD SUDDENLY DURING TILTING AND CAUSE THE HOT LIQUID TO SPLASH OUT. |
WARNING: |
AVOID ALL DIRECT CONTACT WITH HOT FOOD PRODUCT OR WATER IN THE PAN. DIRECT |
|
CONTACT COULD RESULT IN SEVERE BURNS. |
WARNING: |
IT IS RECOMMENDED THAT WATER AND SOLUTIONS BE KEPT OUT OF CONTROLS AND |
|
BURNERS. DO NOT USE HIGH PRESSURE SPRAY DIRECTLY ON THE CONTROL CONSOLE, |
|
ELECTRICAL CONNECTIONS AND BURNERS. USE A GARDEN HOSE SPRAY CONNECTED TO CITY |
|
WATER SUPPLY. |
CAUTION: |
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. |
|
PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND |
|
PROTECTIVE CLOTHING. CAREFULLY READ THE WARNINGS AND FOLLOW THE DIRECTIONS ON |
|
THE LABEL OF THE CLEANER TO BE USED. |
WARNING: |
BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE ELECTRIC POWER SUPPLY |
|
AND CLOSE THE MAIN GAS COCK. ALLOW FIVE MINUTES FOR UNBURNED GAS TO VENT. |
CAUTION: |
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY GROEN OR AUTHORIZED |
|
DISTRIBUTORS CAN CAUSE INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND |
|
WILL VOID ALL WARRANTIES. |
IMPORTANT: |
SERVICE PERFORMED BY OTHER THAN GROEN AUTHORIZED SERVICE AGENT WILL VOID ALL |
|
WARRANTIES. |
2 OM-BPM/BPP-G
Table of Contents
IMPORTANT OPERATOR WARNINGS (READ FIRST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 EQUIPMENT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 INSPECTION AND UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 INITIAL START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 SEQUENCE OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 SCHEMATIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 SERVICE LOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 REFERENCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
OM-BPM/BPP-G 3
Equipment Description
Groen™ Gas-Heated Eclipse™ Ergonomic Tilting Braising Pans provide a stainless steel pan equipped with patented heat transfer fins, burner/combustion chamber, hand-operated or electric powered tilting mechanism, thermostatic controls, and hinged cover. Eclipse serves as braising pan, griddle, fry pan, oven, kettle, bainmarie and food warmer/server, can be adapted for use as a non-pressure steamer and can be used to stir-fry, reheat and saute foods.
The pan body is made from heavy-duty stainless steel welded into one solid piece, with a polished interior and exterior. A pouring lip is welded to the front wall. The cooking surface is a stainless steel clad plate fitted with welded heat transfer fins which assure uniform heat transfer over the entire surface. The gas burner/combustion chamber supplies the heat.
An easily operated worm and gear mechanism tilts the pan and provides precise control for pouring or dumping the contents of the pan. This hand-wheel controlled mechanism is located in a stainless steel console to the right of the pan body. For BPP models with electric power tilt, a switch operates an electric motor that starts and stops the pan tilt smoothly. To assist cleaning, the pan body can be tilted past the vertical position. When the pan is tilted, the burners shut off automatically.
The thermostat provides automatic control of cooking temperature. Operating the thermostat dial on the front of the control console turns the heat on or off and sets the pan temperature.
A vented, heavy gauge, one-piece, stainless steel cover with a condensate drip shield on the rear edge is standard on the Braising Pan. A fully enclosed, torsion bar type counterbalance provides easy operation to open the cover and to maintain it open at any position. The cover opens to the back and is hinged to the frame, so it moves independently of the pan body.
The braising pan is mounted on an open-leg frame fabricated from tubular stainless steel.
Models BPM and BPP have an ignition system that uses electronic spark ignition. Optional models BPM -30GS and BPM-40GS have a standingflame pilot light that ignites the main burner.
Model |
Pan Dimensions |
Ignition |
||
|
|
|||
L to R |
Depth |
|||
|
|
|||
|
|
|
|
|
BPM-30G |
26.25" (667mm) |
10" ( 25mm) |
Spark |
|
|
|
|
|
|
BPP-30G |
26.25” (667mm) |
10" ( 25mm) |
Spark |
|
|
|
|
|
|
BPM-30GS |
26.25” (667mm) |
10" ( 25mm) |
Flame |
|
|
|
|
|
|
BPM-40G |
35.75” (908mm) |
10" ( 25mm) |
Spark |
|
|
|
|
|
|
BPP-40G |
35.75” (908mm) |
10" ( 25mm) |
Spark |
|
|
|
|
|
|
BPM-40GS |
35.75” (908mm) |
10" ( 23cm) |
Flame |
|
Options available with these models are:
1.Fill faucet with swing spout. (Left or right mounted) - specify single or double pantry
2.Fill faucet with 48" or 60" spray hose assembly (left or right mounted) - specify single or double pantry
3.Caster mounting kit.
4.Flanged Feet
5.Fold-down work tray (pan support) mounted on right side.
6.2” Tangent draw-off (Factory-installed must be indicated on initial order)
7.Steamer Insert set.
8.Steamer Pan Carrier.
9.Quick gas disconnect with restraining cable.
10.Pouring Lip Strainer.
11.Strainer for 2" TDO valve.
Performance Data
Optional Tangent Draw-Off
MODELS |
FIRING RATE |
|
|
|
|
BPM-30G,BPM-30GS, |
104,000 BTU/hr |
|
BPP-30G |
||
|
||
|
|
|
BPM-40G, BPM-40GS, |
144,000 BTU/hr |
|
BPP-40G |
||
|
4 OM-BPM/BPP-G
The unit will arrive completely assembled, wrapped in protective plastic on a heavy skid, in a heavycardboard carton. Immediatelyuponreceipt, inspect the carton for damage. Report any apparent shipping damage or an incorrect shipment to the delivery agent.
When installation is to begin, get someone to assist in removing the carton. Lift it straight up and away from the unit. Do not simply raise it and push backwards - it will break the cover assembly vent handle. Write down the model number, serial number, and installation date of your unit, and keep this information for future reference. Space for these entries is provided at the top of the Service Log in this manual.
Cut the straps holding the unit on the skid, and lift the unit straight up off the skid.
CAUTION
SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT.
UNIT WEIGHS 420 TO 560 LB (190 TO 255 KG). FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THEPLACEOF INSTALLATION.
|
Vent |
Thermostat |
|
|
|
|
|
Power |
Cover |
|
Switch |
|
|
Indicator
Light
Manual Tilt
Handwheel
Stainless Steel
Console
The unit is strapped to a skid, and shipped in a heavy cardboard carton.
(Shown is model BPM-40G with optional right side mounted, double pantry faucet assembly.)
OM-BPM/BPP-G 5
!" #!"$ & " " " !" " ! % " " ! # " ! " # " #!" !" & ! # ! "" % !" % " " % " !! #! ""!
5:;(33 ;/, 9(0:05. (5 05 ( >,33 =,5;03(;,+ 9664 -69 ,--0*0,5; 7,9-694(5*, ,46=, (5@ 0;,4: >/0*/ 40./; 6):;9<*; 69 9,:;90*; ;/, -36> 6- (09 -69 *64)<:;065 (5+ =,5;03(;065 3,(9 (33 *64)<:;0)3, 4(;,90(3 -964 ;/, (9,( +09,*;3@ (96<5+ ;/, <50;
|
5:;(33(;065 65 *64)<:;0)3, -3669: 0: (336>,+ |
|||
|
5:<9, 40504<4 *3,(9(5*, ;6 *64)<:;0)3, (5+ |
|||
|
565*64)<:;0)3, *65:;9<*;065 |
|
||
|
|
|
|
|
|
|
0504<4 |
,*644,5+,+ |
|
|
|
3,(9(5*,: |
3,(9(5*,: |
|
|
|
|
|
|
,-; !0+, |
|
-69 :,9=0*, |
|
|
|
|
|
>/,5 -(<*,; 0: |
|
|
|
|
05:;(33,+ 65 3,-; |
|
|
|
|
:0+, |
|
|
|
|
|
|
|
0./; !0+, |
|
-69 :,9=0*, |
|
|
|
|
>/,5 -(<*,; 0: |
|
|
|
|
05:;(33,+ 65 90./; |
|
|
|
|
:0+, |
|
|
|
|
|
|
|
,(9 |
|
-69 :,9=0*, |
|
|
|
|
|
|
|
5:;(33 ;/, <50; <5+,9 ( =,5; /66+ |
|
||
|
,=,3 ;/, <50; )@ (+1<:;05. ;/, )<33,; -,,; 69 -3669 |
|||
|
-3(5.,: 65 ;/, 3,.: , :<9, ;/, ;03;05. |
|||
|
4,*/(50:4 /(: ),,5 ;<95,+ (33 ;/, >(@ ;6 ;/, |
|||
|
/690A65;(3 76:0;065 /,*2 3,=,35,:: >0;/ ( :7090; |
|||
|
3,=,3 :,; 65 ;/, )6;;64 6- ;/, 7(5 )6+@ 5*/69 |
|||
|
;/, 9,(9 3,.: :,*<9,3@ ;6 ;/, -3669 0- -3669 -3(5.,: |
|||
|
(9, 69+,9,+ 69 9,8<09,+ |
|
|
|
|
6473,;, 70705. ;6 ;/, .(: :,9=0*, >0;/ 05*/ |
|||
|
! 707, 69 (7796=,+ ,8<0=(3,5; |
|
||
69 ( <50; 65 *(:;,9: ;/, 05:;(33(;065 :/(33 ), 4(+, >0;/ ( *655,*;69 ;/(; *64703,: >0;/ ;/, :;(5+(9+ -69 655,*;69: -69 6=,()3, (:
7730(5*,: ! ' ! ,:;9(05 46=,4,5; 6- ;/, <50; )@ (;;(*/05. ( *()3, 69 */(05 ;6 ;/, ,@,3,; 796=0+,+ (; ;/, )(*2 6- ;/, -9(4, (5+ (5*/6 ;/, *()3, 69 */(05 ;6 ;/, >(33 69 -3669 (2, ;/, 3,5.;/ (5+ 36*(;065 6- ;/, *()3, :<*/ ;/(; ;/, <50; *(556; 7<33 65 ;/, .(: *655,*;065 >/03, ;/, *()3, 0:
*655,*;,+ 69 8<0*2 +0:*655,*;
"/, .(: *655,*;065 -69 ( <50; 65 *(:;,9: 4<:; ), 4(+, >0;/ ( 8<0*2 +0:*655,*; +,=0*, ;/(; *64703,: >0;/ ! ' !
69 ,3,*;9650* :7(92 0.50;065 796=0+, $' 7/(:, ,3,*;90*(3 :,9=0*, ;6 ;/, -0,3+ >0905. *65;963 )6? (; ;/, 9,(9 6- ;/, ,3,*;90*(3 *65:63, "# ! # "/, <50; 4<:; ), ,3,*;90*(33@ .96<5+,+ 05 (**69+(5*, >0;/ 36*(3 *6+,: 69 05 ;/, ():,5*, 6- 36*(3 *6+,: >0;/ ;/, (;065(3 3,*;90*(3 6+, ! 69 ;/, (5(+0(5 3,*;90*(3 6+, ! (: (7730*()3,
5:;(33(;065 4<:; *65-694 >0;/ 36*(3 *6+,: 69 >0;/ ;/, 4,90*(5 (;065(3 !;(5+(9+ ' 3(;,:; ,+0;065 (;065(3 <,3 (: 6+, "/, 7(5 :/6<3+ ), 05:;(33,+ 05 (5 (+,8<(;,3@ =,5;03(;,+ 9664 >0;/ ( 796=0:065 -69 (+,8<(;, (09 :<773@ ;6 ;/, <50; "/, ),:; =,5;03(;065 >033 <:, ( =,5; /66+ (5+ ,?/(<:; -(5 " 6):;9<*; ;/, -3<, 69 =,5; +<*; (-;,9 05:;(33(;065 ! ! 05:;(33(;065 4<:; *65-694 ;65:;(33(;065 6+,: -69 (:7730(5*,: (5+ 8<074,5; (5+ 69 36*(3 *6+,:
6 OM-BPM/BPP-G
CAN/CGA B149 Installation Codes for Gas Appliances and Equipment and/or local codes.
9.Adequate space for proper service and operation is required. DO NOT block any air intake spacings to the combustion chamber or obstruct air flow.
10.After the pan has been connected to the gas supply, check all gas joints for leaks. A soap solution or other suitable leak detector should be used. Do not use flame to check for leaks
11. PRESSURE TEST WARNING |
|
|
|
||
a) Test pressure exceeding |
PSIG |
||||
|
|
|
|||
(3.45kPa). During pressure testing of the |
|||||
gas supply piping system at pressures |
|||||
exceeding |
PSIG , the braising pan and its |
||||
individual shutoff valve must be disconnected |
|||||
from the gas supply piping system. |
|
|
|||
b) Test pressure equal to or less than |
PSIG |
||||
(3.45kPa). During pressure testing of the gas |
|||||
supply piping system at pressures equal to or |
|||||
less than |
PSIG , the braising pan |
must be |
|||
isolated from the gas supply piping system by closing its individual manual shutoff valve.
Initial Start-Up
Now that your Braising Pan has been installed, you should test it to ensure that the unit is operating correctly.
1.Remove literature and packing materials from the interior and exterior of the unit.
2.Put enough water into the pan to cover the bottom
to a depth of to inc h. With the pan body in the horizontal position, note how the water lies in the pan, to confirm that the pan was leveled properly during installation.
3.Following "To Start Pan" instructions for your pan model, begin heating the water at a thermostat setting of 235oF. At this setting, heating should continue until the water boils.
4.To shut down the unit, turn the thermostat dial to "OFF".
WARNING
WATER IS EXTREMELY HOT AND CAN CAUSE SEVERE BURNS. AVOID CONTACT WITH HOT WATER WHEN EMPTYING UNIT.
5. Turn the tilting handwheel clockwise to pour out the water and to confirm that the pan body can be tilted smoothly from horizontal to vertical. For BPP models, push the UP/DOWN switch to confirm operation of tilting system.
If the unit functions as described above, it is ready for use. If it does not, contact your local Groen Authorized Service Agency.
Operation
A. Controls
Operator controls for the Braising Pans are:
1.Power ON Switch and Power ON indicator
2.The thermostat dial, located on the control console to the right rear of the pan body. This dial is used to turn the thermostat on or off and to set the thermostat for pan temperatures between 175o and 425o F.
3.HEATing indicator light located on the control panel, lights when the burners have ignited.
4.The main supply gas valve, installed on the gas line to the unit.
5.For BPM-30GS and BPM-40GS units with standing pilot flame, the gas control valve is on the Combination Gas Control, which is located under the pan on the gas line to the burner manifold. This valve has settings of "OFF", "PILOT", or "ON" for the Combination Control.
6.For BPP-30G and BPP-40G models a power tilt switch is located on the control panel. It is used to raise and lower the pan body.
B. Operating Procedure
WARNING
KEEPTHEAREAAROUNDBRAISING PAN FREE AND CLEAR OF COMBUSTIBLE MATERIALS.
CAUTION
KEEP FLOORS IN BRAISING PAN WORK AREA CLEAN AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY TO AVOID THE DANGER OF SLIPS OR FALLS.
OM-BPM/BPP-G 7
1. To Tilt Pan Body
a. Manual Tilt Model - Turn the tilting handwheel clockwise to tilt the pan body, or counterclockwise to return the pan body to horizontal. 23 complete turns of the handwheel will tilt the body 90 degrees to vertical. b. Power Tilt Model -
(1)Press the power tilt switch marked “up” to raise the pan or “down” to lower the pan.
(2)The spring loaded switch will return to the OFF (middle) position when you release it.
(3)If the power tilt mechanism stops working (see the Troubleshooting section) and you must raise or lower the pan body without delay, you can tilt the body by hand. Remove the small plug on top of the control box and fit the provided tool into the hole. Turn the tool clockwise to lower it. It may take several minutes to move the pan to the desired position, but the operation can be speeded up
by substituting a reversible drill with a inc h hexagonal driver bit in place of the tool.
CAUTION
REPLACETHE HOLE PLUG BEFORE CLEANING OTHERWISE WATER COULD ENTER THE ELECTRICAL CONTROL BOX AND DAMAGE THE PARTS.
2.For Standard Models with Electronic Ignition
(BPM, BPP-30G and 40G)
a. To Start Pan (See Panel Overlay)
(1)Set the Power Switch to “OFF.”
(2)Set the thermostat to “OFF.”
(3)Open the main supply gas valve (handle parallel to the gas pipe).
Gas Valve “On” |
Gas Valve “Off” |
(4)Set Power Switch to “ON.”
(5)Rotate the thermostat dial until the Heat Light comes on. (It lights when the main burner is on).
b.To Turn Off Pan
(1)Set the thermostat to "OFF".
(2)Set Power Switch to “OFF.”
(3)For a prolonged shut-off period:
(a)Set the thermostat to "OFF".
(b)Turn the main gas valve OFF (handle at right angles to the gas pipe).
(c)Disconnect the electrical power from the unit.
c.If Power Fails
1)Do not try to operate the unit until power is restored.
2)When power is restored, follow directions under “To Start Pan.”
3.For Models with Optional Standing-Flame Pilot (BPM-30GS, BPM-40GS)
NOTE: These models can be operated without a 115 Volt power supply. In case of a power failure, the unit can continue to operate.
a.To Start Pan
(1)Set thermostat to "OFF".
(2)Light gas pilot.
(a)Set knob on Combination Gas Control Valve to "OFF" by depressing the knob slightly and turning it clockwise.
(b)Turn the main supply gas valve ON (parallel to the gas pipe).
(c)Tilt the pan, so the pilot burner is easier to reach.
(d)Hold a lighted match at the pilot burner, while you depress the knob on the Combination Control and turn it counter-clockwise to the "PILOT" position. Continue to hold the knob down for 60 seconds.
(e)Release the knob. The pilot flame should stay lighted.
(f)Turn the knob counterclockwise to "ON".
(3)Lower the pan tilt to horizontal or cooking position.
(4)Turn the thermostat dial to the desired temperature.
8 OM-BPM/BPP-G
CAUTION
DO NOT HEAT AN EMPTY PAN FOR MORE THAN FIVE MINUTES AT A SETTING HIGHER THAN 300F. DAMAGE TO THE PAN COULD RESULT.
b.To Turn Off Pan
(1)Set the thermostat dial to "OFF".
(2)To turn off the gas pilot, depress the knob on the Combination Control and turn it clockwise to "OFF".
c.To Relight Pilot
(1)Close the main supply gas valve.
(2)Set the thermostat to "OFF".
(3)Depress the knob on the Combination Control and turn it clockwise to "OFF".
(4)Wait 5 minutes, then proceed as instructed at "To Start Pan" above.
WARNING
WHEN TILTING BRAISING PAN FOR PRODUCT TRANSFER:
1)USE CONTAINERS DEEP ENOUGH TO CONTAIN AND MINIMIZE PRODUCT SPLASHING.
2)PLACE CONTAINER ON A STABLE, FLAT SURFACE, AS CLOSE TO THE BRAISING PAN AS POSSIBLE.
3)STAND TO THE SIDE OF THE PAN WHILE POURING — NOT DIRECTLY IN THE POUR PATH OF HOT CONTENTS.
4)RETURN PAN BODY TO UPRIGHT POSITION AFTER CONTAINER IS FILLED OR TRANSFER IS COMPLETE.
5)DO NOT OVERFILL CONTAINER. AVOID DIRECT SKIN CONTACT WITH HOT CONTAINER AND CONTENTS.
4. To Move a Unit on Casters
The unit must be anchored with a cable or chain to avoid accidentallybreaking or pulling loose the gas connection. When the unit is to be moved, first turn off and disconnect the gas connection.
Disconnect the cable from its anchor point on the floor or wall. Anchor the unit again as soon as it is in its new operating location or returned to the previous location. Turn on the gas supply and check for leaks with a soap solution. If leaks are found, do not operate the equipment. Call for service.
5.To Preheat the Pan
a. For best braising pan or frying results, preheat pan before you put in any food.
b.To get an even temperature across the pan, preheat at a setting of 300oF or less for 15 minutes or through several on-off cycles of the burner.
CAUTION
DO NOT HEAT AN EMPTY PAN FOR MORE THAN FIVE MINUTES AT A SETTING HIGHER THAN 300oF. DAMAGE TO THE PAN COULD RESULT.
C. Cooking
1.To simmer or slowly heat an item, set the dial at 210oF or lower. Put the cover down to minimize moisture loss, or leave it up to help dry or reduce the product. Set the thermostat higher to cook or drive off moisture faster. You may adjust the thermostat to any setting to cook the item exactly as required.
2.Leave the cover vent open to let excess steam escape. For long simmering operations, you may wish to close the vent to retain moisture.
WARNING
STEAM CAN CAUSE BURNS. AVOID ESCAPING S T E AM W H E N R AI S I N G C O V E R .
3.To check progress when the cover is closed, lift the handle of the vent cover slightly, and move it quickly to either side.
4.Standing to one side of the pan (to avoid the steam that will be released) grasp the nearer corner of the cover handle and raise the cover. The cover will stay in the open position until you push it down.
WARNING
ITEMS IN SAUCE OR MELTED FAT CAN SLIDE FORWARD SUDDENLY DURING TILTING AND SPLASH THE HOT LIQUID.
5.To pour product, remove grease, or assist in cleaning, first raise the cover, then tilt the pan forward by turning the tilting handwheel. When you stop turning the wheel, the pan body will hold its position.
OM-BPM/BPP-G 9
Sequence of Operation
The following "action-reaction" outline is provided to help the user understand how the equipment functions.
A. Standard Models with Spark Ignition
1.When the power switch is turned on, it starts the spark igniter and opens the automatic valve for the pilot burner. The spark ignites a pilot flame, which heats the sensor. The sensor then sends a signal to turn off the spark. The flame thereafter acts as a standing pilot until the power is turned off.
2.If the pilot flame is not sensed within 70 seconds after spark begins, a timer shuts down the entire operation. To attempt a second trial for ignition, turn off the power switch. Check the gas supply valves and wait five minutes before trying again by switching power on. If there is still no pilot flame in four tries, close all valves, turn off the power, and contact an authorized Groen Service Agency.
3.When the operator sets a temperature on the thermostat, it allows the automatic gas valve to admit gas to the main burners, where it is ignited by the pilot flame. When the braising pan reaches the set temperature, the thermostat switch opens. This stops the signal to the gas control valve and shuts off gas to the main burner. The pilot flame remains lit. When the pan cools below the set temperature, the thermostat switch closes and starts another cycle. On and off cycling continues and maintains the pan at the desired temperature. This action is indicated by the Heat indicator light.
B. Models with Optional Standing Pilot Ignition
1.When the operator presses down the knob on the Combination Gas Control Valve and turns it to “Pilot”, gas is admitted to the pilot burner. Depressing the knob in this position overrides the automatic control, which otherwise shuts off all gas supply when the thermopile is cold. Lighting and maintaining the pilot flame for sixty seconds heats the thermopile to operating temperature, so the thermopile begins to provide electric current at 750 millivolts. Electricity from the thermopile powers the control circuit and the Combination Gas Control Valve. When the thermopile begins operating at full capacity, the knob may be released.
2.When the knob is turned to “ON”, the automatic valve for the main burner is able to open. Setting the thermostat to call for heat causes the thermostat to send a signal to the valve, which opens and admits gas to the main burner. Gas from the main burner is ignited by the pilot flame. When the pan reaches the set temperature, the thermostat switch opens, stopping the signal to the main burner valve and causing the valve to close. When the pan cools below the set temperature, the thermostat switch closes and
starts another heating cycle. On-off cycling continuesandmaintainsthepanatthedesiredtemperature.
C. All Models
1.The thermostat controls heating by alternately calling for flames at the full capacity of the main burners and then signaling the control to shut the burner off completely. Because the control works in this “all or nothing” way, the pan heats as fast as it can until it reaches the set temperature. Turning the thermostat dial to a higher temperature will cause heating to continue longer, until the pan reaches the higher temperature, but it cannot make the pan heat any faster.
2.The pans are protected from overheating by a secondary thermostat. If the pan temperature rises above 425º F, the thermostat causes the automatic gas control valve to close. When the pan cools, the thermostat automaticallyresets and permits normal operation to continue.
3.The tilt switch will shut off all burners whenever the braising pan is tilted 10 degrees or more from the horizontal.
4.A gas pressure regulator, which controls gas pressure at the burner manifold is built into the gas control valve.

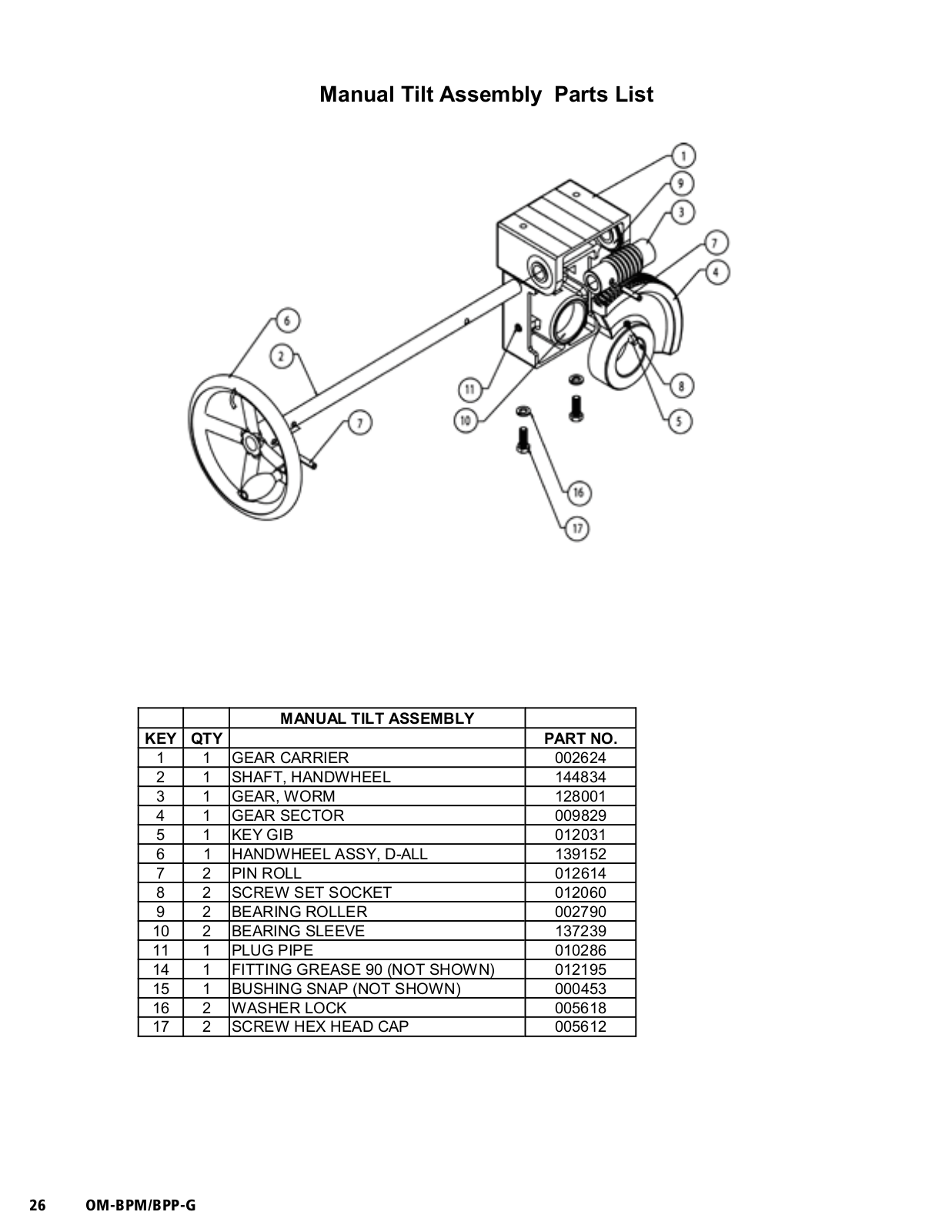

5.On manual tilt models, turning the tilting handwheel turns a worm gear, which turns a gear wheel on one of the trunnions which support the pan body. Turning the gear wheel produces the tilting action.
6.On power tilt models, pressing the up/down switch operates a gear motor which turns worm and gear wheel as described in item 5 above.
NOTE: Neither model will heat (operate) when the braising pan has been tilted 10 degrees or more from the horizontal.
10 OM-BPM/BPP-G
Cleaning
WARNING
KEEP WATER AND SOLUTIONS OUT OF CONTROLS AND BURNERS. NEVER USE A HIGH PRESSURE SPRAY DIRECTLY ON THE CONTROL CONSOLE OR ANY ELECTRICAL CONNECTIONS.
1. Before any cleaning operation, shut off the burner by turning the thermostat dial to "OFF". If water or cleaning solution will be sprayed, unplug the unit from the electric power source, or shut off the power at the circuit breaker or fuse panel.
Use a brush, cloth, sponge or other non-abrasive tool for cleaning.
2. Clean all food-contact surfaces soon after use, before the pan has cooled completely. If the unit is in continuous use, thoroughly clean and sanitize both interior and exterior at least once every 12 hours.
CAUTION
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ THE WARNINGS AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED.
3.Scrape or rinse out large amounts of food residues, then wash the inside of the pan body with a mixture of hot water and soap or an appropriate detergent, such as Mikro-Quat from ECOLAB. Follow the detergent supplier's recommendations on strength of the solution to use. Rinse the pan thoroughly with hot water and drain completely.
4.To remove materials stuck to the equipment, use a brush, sponge, cloth, plastic or rubber scraper, or plastic wool along with the detergent or soap solution. To minimize the effort required in washing, let the detergent solution sit in the pan and soak into the residue, or heat the detergent solution briefly in the pan. Do NOT use any abrasive materials or metal implement that might scratch the surface, because scratches make the pan hard to clean and provide places for bacteria to grow. Do NOT use steel wool, which may leave particles imbedded in the pan surface and cause eventual corrosion and pitting.
5.As part of the daily cleaning program, clean all external and internal surfaces that may have been soiled. Remember to check such parts as the underside of the cover, control console, etc.
6.Controls and the control console may be cleaned with a damp cloth or sprayed with a garden hose spray connected to city water supply. Do not use a pressure sprayer directly on the unit or electrical parts.
Don’t use metal implements or steel wool to clean the braising pan.
OM-BPM/BPP-G 11
WARNING
DO NOT SPRAY WATER DIRECTLY ON BURNERS AND GAS COMBUSTION CHAMBERS.
7. The exterior surface of the unit may be polished with a recognized stainless steel cleaner.
NOTICE
NEVER LEAVE A CHLORINE SANITIZER IN CONTACT WITHSTAINLESS STEELSURFACES LONGER THAN 30 MINUTES. LONGER CONTACT CAN CAUSE CORROSION.
8.If the equipment needs to be sanitized, use a sanitizing solution equivalent to one that supplies 100 parts per million available chlorine. Obtain advice on the best sanitizing agent from your supplier of sanitizing products. Following the supplier's instructions, apply the sanitizing agent after the unit has been cleaned and drained. Rinse off the sanitizer thoroughly.
9.If there is difficulty removing mineral deposits or a film left by hard water or food residues, clean the pan thoroughly and then use a deliming agent, such as Groen De-limer/De-Scaler (P/N 140513), in accordance with the manufacturer's directions. Rinse and drain the unit before further use.
10.If especially difficult cleaning problems persist, contact your cleaning product representative for assistance.
Maintenance
Your Braising Pan is designed to require minimum maintenance, but certain parts may need replacement after prolonged use. After installation, no user adjustment should be necessary. If a service need arises, only authorized personnel should perform the work.
WARNING
ELECTRIC POWER ALWAYS SHOULD BE SHUT OFF BEFORE WORK IS DONE ON INTERNAL COMPONENTS.
Service personnel should check the unit at least once a year. This periodic maintenance should include inspecting electrical wires and connections, cleaning the inside of the control console, and possible adjustment of the pilot light. (Units with .
standing pilot ignition only) At least twice a year, grease the two trunnion bearings and worm gear
Groen recommends the use of number two grade LGI lithium grease. Add grease through the zerk fittings on the gear hosing until grease flows out of the bearings around trunnion shaft. Also, add grease in the gear to cover arc that is in contact with the worm gear. Clean up excess grease.
WARNING
DISCONNECT ELECTRICAL POWER FROM THE UNIT BEFORE ATTEMPTING TO GREASE THE TRUNNION BEARINGS.
A Service Log is provided with the warrantyinformation at the back of this manual. Each time service is performed on your Groen equipment, enter the date on which the work was done, what was done, and who did it. Keep the manual with the equipment for quick and easy reference.
12 OM-BPM/BPP-G

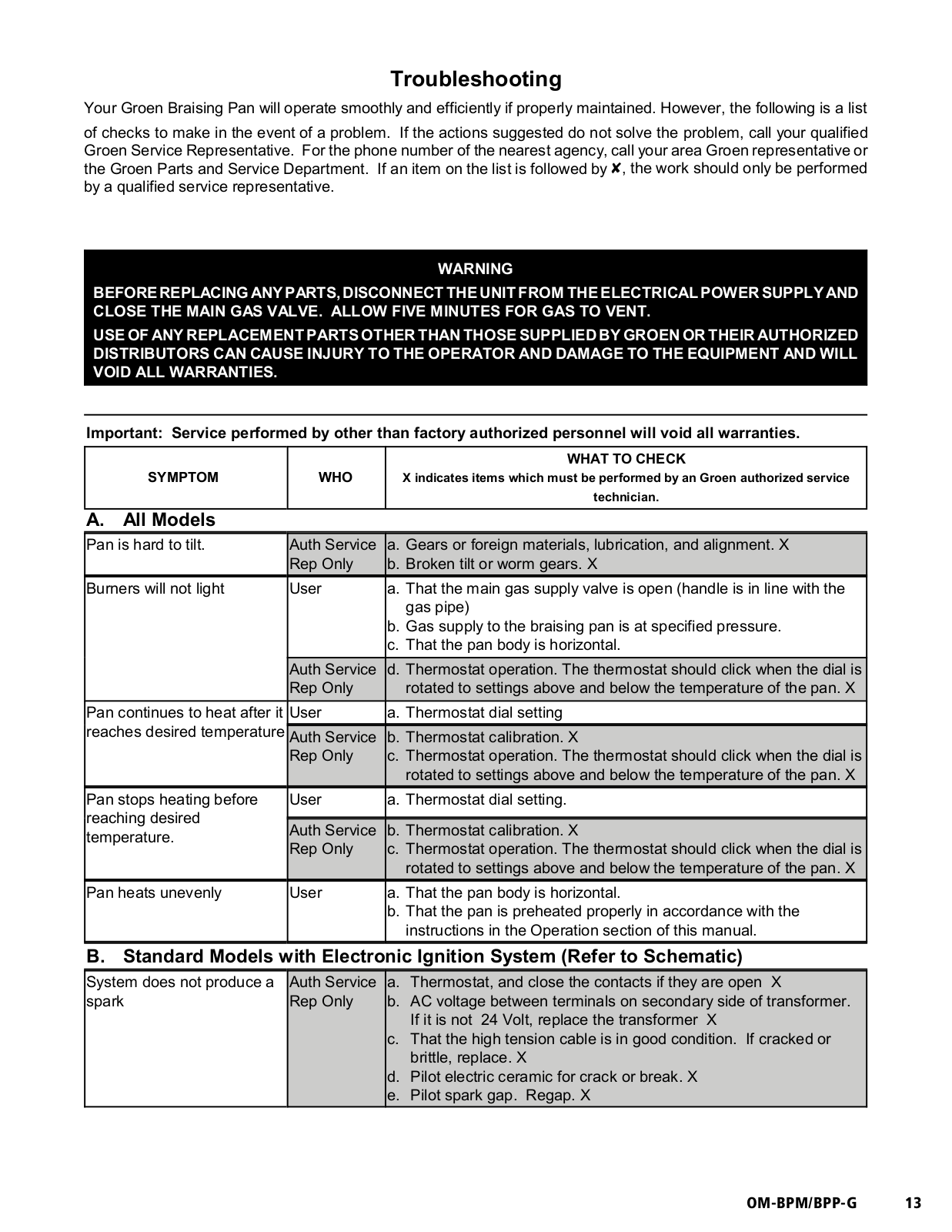

Loading...
