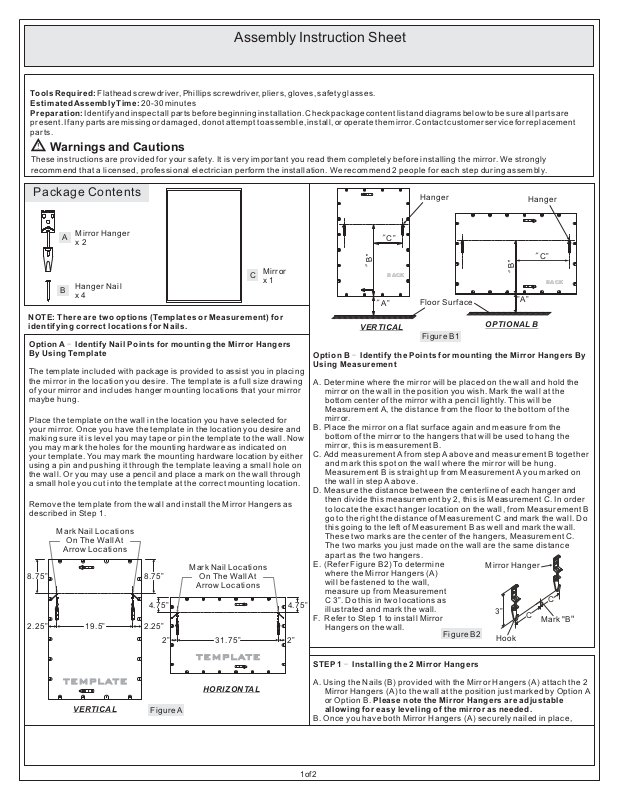

Assembly Instruction Sheet
ToolsRequired:
EstimatedAssembly Time:
Preparation:
present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethemirror.Contact customer service for replacement
parts.
Flatheadscrewdriver,Phillips screwdriver,pliers,gloves,safetyglasses.
20-30minutes
Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare
Warnings and Cautions
These instructions are provided for your safety. It is very important you read them completely before installing the mirror. We strongly
recommend that a licensed, professional electrician perform the installation. We recommend 2 people for each step during assembly.
Package Contents
Mirror Hanger
A
x2
Mirror
C
Hanger Nail
B
x4
NOTE: There are two options (Templates or Measurement) for
identifying correct locations for Nails.
Option A Identify Nail Points for mounting the Mirror Hangers
By Using Template
The template included with package is provided to assist you in placing
the mirror in the location you desire. The template is a full size drawing
of your mirror and includes hanger mounting locations that your mirror
maybe hung.
Place the template on the wall in the location you have selected for
your mirror. Once you have the template in the location you desire and
making sure it is level you may tape or pin the template to the wall. Now
you may mark the holes for the mounting hardware as indicated on
your template. You may mark the mounting hardware location by either
using a pin and pushing it through the template leaving a small hole on
the wall. Or you may use a pencil and place a mark on the wall through
a small hole you cut into the template at the correct mounting location.
Remove the template from the wall and install the Mirror Hangers as
described in Step 1.
-
Mark Nail Locations
On The WallAt
Arrow Locations
19.5”
8.75”8.75”
4.75”
2.25”2.25”
Mark Nail Locations
On The WallAt
Arrow Locations
2” 2”
31.75”
TEMPLATE
x1
4.75”
" C”
" B”
BACK
" A”
VERTICAL
Option B Identify the Points for mounting the Mirror Hangers By
Using Measurement
A. Determine where the mirror will be placed on the wall and hold the
B. Place the mirror on a flat surface again and measure from the
C. Add measurementA from stepA above and measurement B together
D. Measure the distance between the centerline of each hanger and
E. (Refer Figure B2) To determine
F. RefertoStep1toinstallMirror
STEP 1 Installing the 2 Mirror Hangers
-
mirror on the wall in the position you wish. Mark the wall at the
bottom center of the mirror with a pencil lightly. This will be
Measurement A, the distance from the floor to the bottom of the
mirror.
bottom of the mirror to the hangers that will be used to hang the
mirror, this is measurement B.
and mark this spot on the wall where the mirror will be hung.
Measurement B is straight up from Measurement A you marked on
the wall in step A above.
then divide this measurement by 2, this is Measurement C. In order
to locate the exact hanger location on the wall, from Measurement B
go to the right the distance of Measurement C and mark the wall. Do
this going to the left of Measurement B as well and mark the wall.
These two marks are the center of the hangers, Measurement C.
The two marks you just made on the wall are the same distance
apart as the two hangers.
where the Mirror Hangers (A)
will be fastened to the wall,
measure up from Measurement
C 3”. Do this in two locations as
illustrated and mark the wall.
Hangers on the wall.
-
Hanger
Floor Surface
Figure B1
Figure B2
Hanger
" B”
”A”
OPTIONAL B
Mirror Hanger
3”
C
Hook
" C”
BACK
C
Mark "B"
TEMPLATE
VERTICAL
Figure A
HORIZONTAL
A. Using the Nails (B) provided with the Mirror Hangers (A) attach the 2
Mirror Hangers (A) to the wall at the position just marked by Option A
or Option B.
allowing for easy leveling of the mirror as needed.
B. Once you have both Mirror Hangers (A) securely nailed in place,
1of2
Please note the Mirror Hangers are adjustable
(Step 1 Continued)
adjust as the length of the Mirror
Hangers (A) so that each Mirror
Hanger (A) is the same length.
Mirror Hanger
Adjustment Screw
Hanger Nail
FINISH: ANTIQUE BRASS
Figure 1
STEP 2 Hanging the Mirror-
A. With the help of another person place the mirror onto the mirror
hanger hooks. Making sure each hook is securely hooked into the
hangers before letting go of the mirror.
B. If needed you May remove the mirror and adjust the mirror hanger
hooks to level the mirror and replace the mirror.
Clean glass with household glass cleaner. Retain this sheet for
future reference.
Mirror Hanger
Bracket
Catch
Hanger
VERTICAL
Bracket
Catch
Hanger
Figure 2
Hook
Mirror Hanger
HORIZONTAL
FINISH: POLISHED CHROME
FINISH: BRUSHED NICKEL
AA
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
1”
A-A
24”
36”
2of2
