( Rated 110-130V/60Hz, bulb 40W-60W maximum.)
E12
Light Bulb (Not included)
USER MANUAL FOR MODEL# 19113-5BK
CANOPY INSTALLATION INSTRUCTIONS
Please read all instructions carefully. Before you proceed to install, make sure that the power
supply is turned off and remains off until installation is complete.

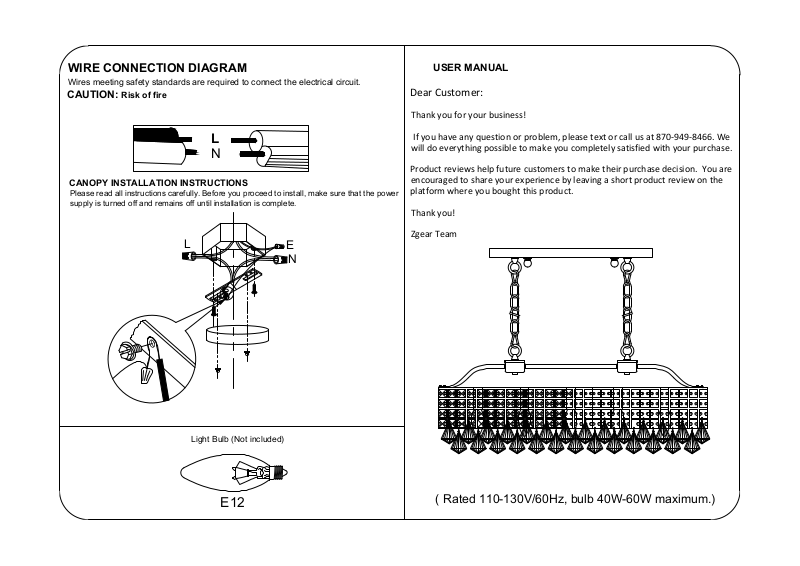

WIRE CONNECTION DIAGRAM
Wires meeting safety standards are required to connect the electrical circuit.
CAUTION: Risk of fire
N
L
L
E
N
Dear Customer:
Thank you for your business!
If you have any question or problem, please text or call us at 870-949-8466. We
will do everything possible to make you completely satisfied with your purchase.
Product reviews help future customers to make their purchase decision. You are
encouraged to share your experience by leaving a short product review on the
platform where you bought this product.
Thank you!
Zgear Team
Page 2
Assembly and Installation Steps
Hanging crystals
Remove the M5 nut, M5 spring gasket and M5 flat gasket.
Step 1
Please only remove part# A, B and C, part#D is fixed on the lamp and can
not be removed.
Warm Tips
A
B
C
Put part#E at both ends of the rod, then tighten the nut.
Step 2
D
E
Step 4
There are 2 screws and 2 nuts in the plastic
bag. Hang the lamp to the ceiling by attaching
the screws to the nuts.
Step 5
Hang the crystals from the metal ring.
Step 6
Install 5 E12 bulbs
(Not included).
Step 7
Attach the collar loop
to the buckle.
Step 3
4A. Attach the crossbar to the junction box of the ceiling by using 2 pcs of
5/32 screws in the accessories bag.
4B. Connect the wires. The hot/positive wire (+) has an “L” label on it. The
other one is the negative wire (-). And the bare cooper is the ground wire.
4C. Attach the canopy to the ceiling with screws.
Page 3
Please note: The parts in this table are completely unassembled for
illustrative purpose. In the actual product that you receive, some parts
are assembled and attached together.
1
1 PCS
11 12
2
3
4
5
6
7
8
9
10
1 PCS
2 PCS
2 PCS
2 PCS
2 PCS
1 PCS
2 PCS
1 PCS
5 PCS
58 PCS
288 PCS
