ASSEMBLY INSTRUCTIONS
175 Southbelt Industrial Dr,
Houston, TX 77047
Email:sales@eastwestfurniture.net
Description

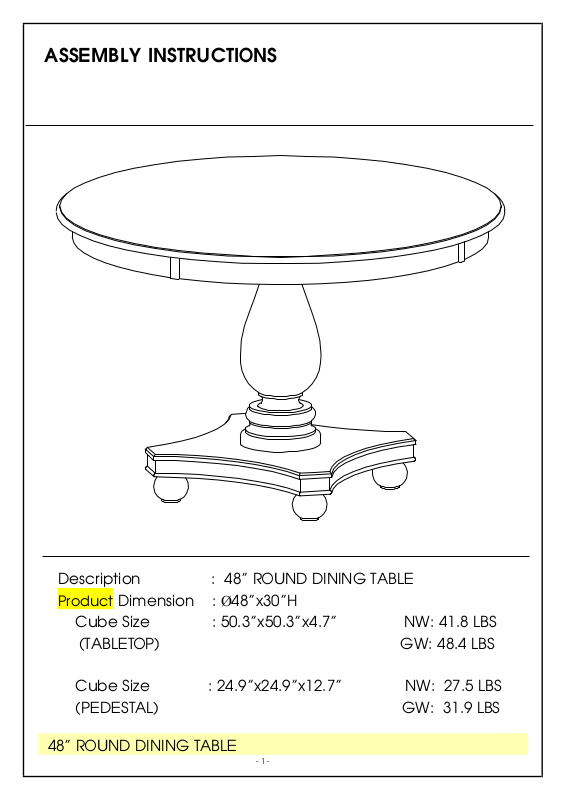

: 48” ROUND DINING TABLE
Product Dimension : Ø48”x30”H
Cube Size : 50.3”x50.3”x4.7” NW: 41.8 LBS
(TABLETOP) GW: 48.4 LBS
Cube Size : 24.9”x24.9”x12.7” NW: 27.5 LBS
(PEDESTAL) GW: 31.9 LBS
48” ROUND DINING TABLE
- 1 -
Page 2
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:

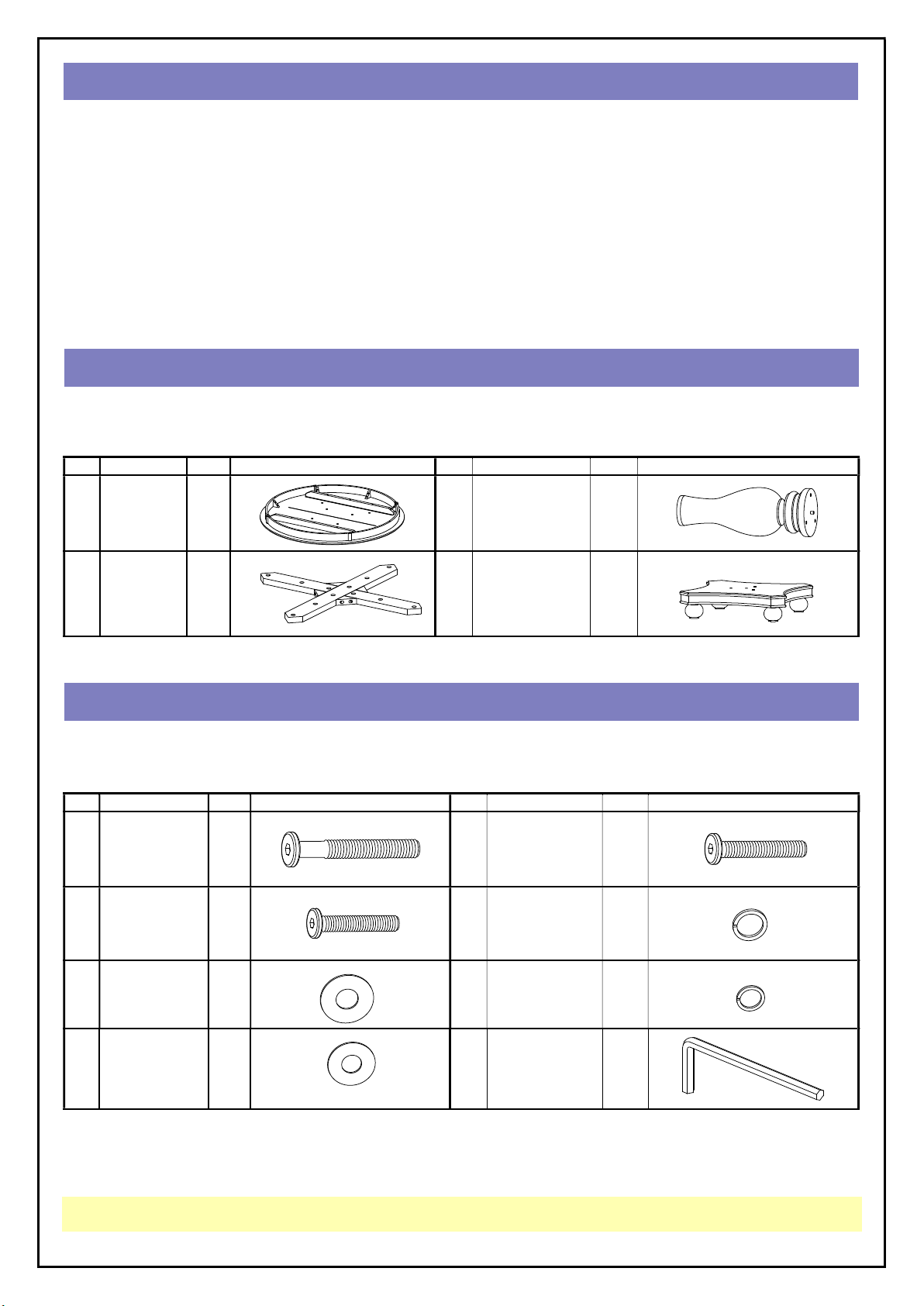

NO Description Qty Sketch NO Description Qty Sketch
A Table Top 1 B Pedestal
C
Cross
piece
1 D Foot Flatfrom 1
1
HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
NO Description Qty Sketch NO Description Qty Sketch
1
3
Long bolt
(M8x60mm)
Short bolt
(M6x30mm)
3
8 4
Medium bolt
2
(M6x40mm)
Large lock
(8.5x13mm)
washer
4
3
Large flat
5
(8.5x19mm)
Small flat
7
(6.5x13mm)
washer
washer
3
4
48” ROUND DINING TABLE
- 2 -
6
(6.5x9mm)
8
Small lock
washer
Allen key
(M4)
4
1
Page 3
STEP 1

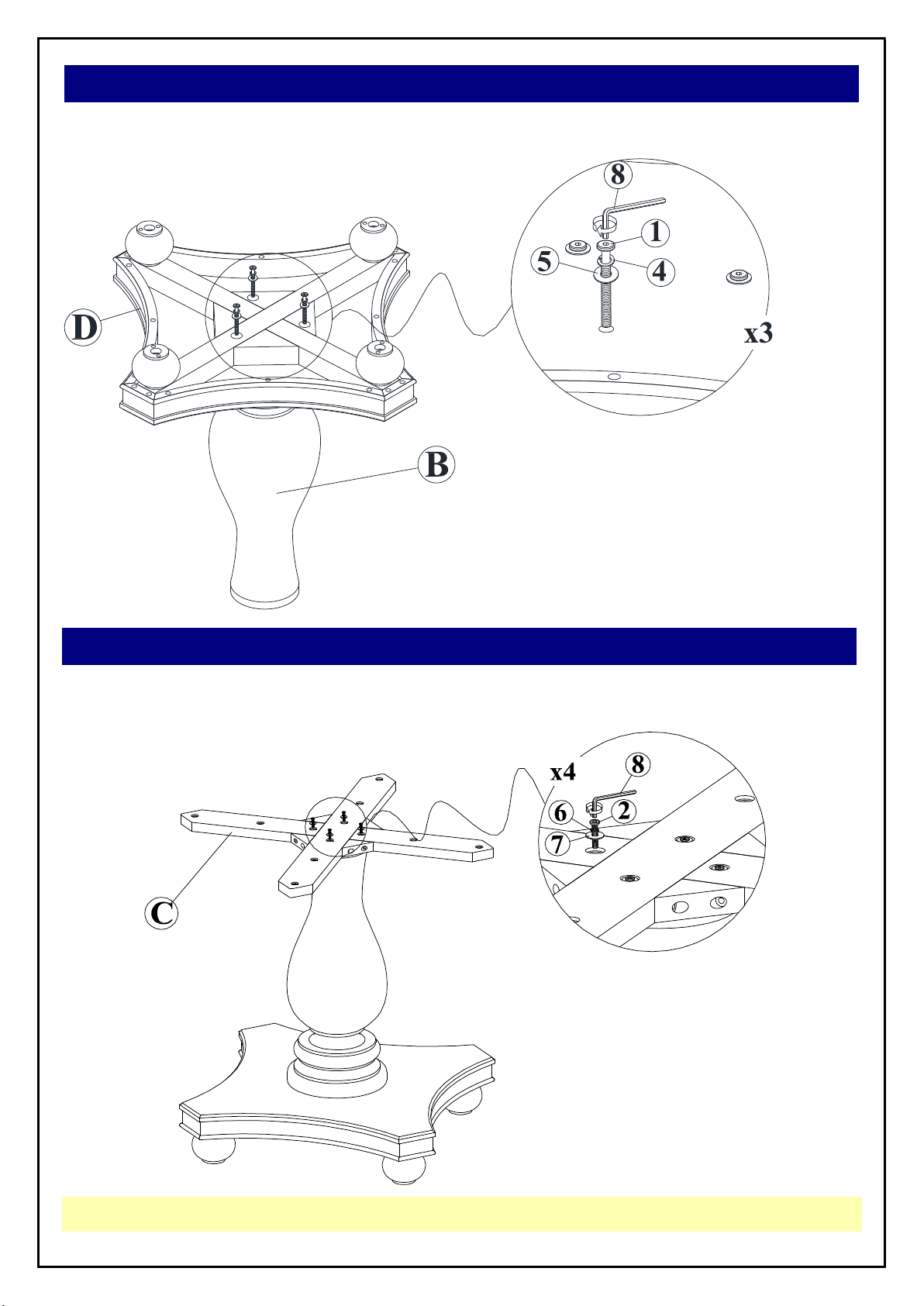

Attach the Foot Flatfrom (D) to the Pedestal (B) with long bolt (1) and washer (4), (5). Tighten with
Allen key (8).
STEP 2
Put the Cross piece (C) on top of the Pedestal (B), and attach with medium bolts (2), washers (6), (7).
Tighten with Allen key (8).
48” ROUND DINING TABLE
- 3 -
Page 4
STEP 3

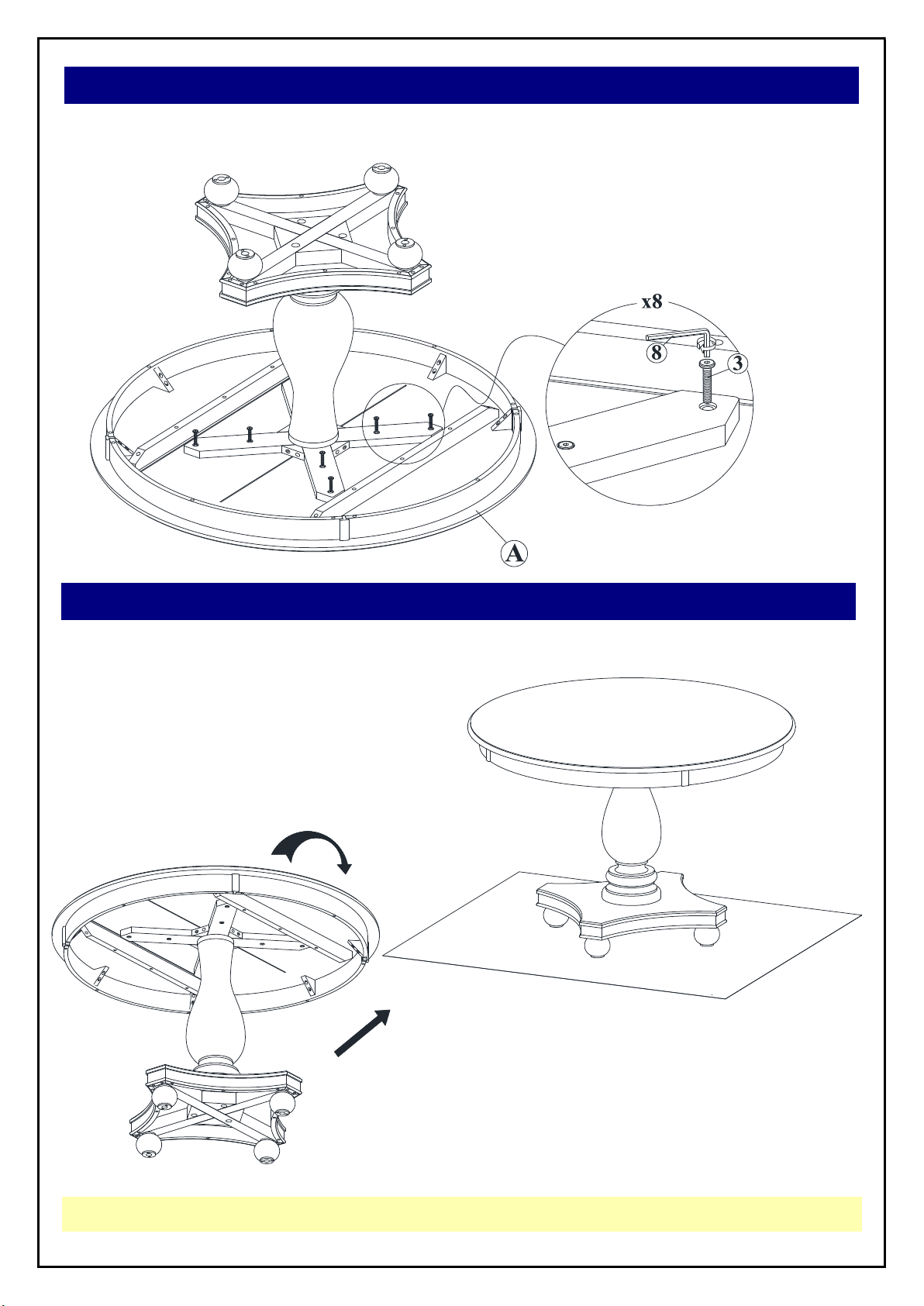

Carefully place the Cross piece (from Step 3) on bottom side of the table top (A), attach with short
bolts (3). Tighten with Allen key (8)
STEP 4
Flip the table and put on flat ground. Complete the assembly
48” ROUND DINING TABLE
- 4 -
