GreenWorks Tools 21227 User Manual
21227
CORDLESS LINE TRIMMER USER’S MANUAL
AKKU-RASENTRIMMER BEDIENUNGSANLEITUNG
DESBROZADORA SIN CABLES MANUAL DE UTILIZACIÓN
MANUALE D’USO
TONDEUSE À FIL SANS FIL MANUEL D’UTILISATION
CORTADOR DE SEBES SEM FIO MANUAL DE UTILIZAÇÃO
SNOERLOZE LIJNTRIMMER GEBRUIKERSHANDLEIDING
РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
LANGATON SIIMATRIMMERI KÄYTTÄJÄN KÄSIKIRJA
SLADDLÖS GRÄSTRIMMER INSTRUKTIONSBOK
KABELLØS GRESSTRIMMER BRUKSANVISNING
TRÅDTRIMMER UDEN LEDNING
PODKASZARKA BEZPRZEWODOWA
AKKUMULÁTOROS SZEGÉLYVÁGÓ
ΑΣΥΡΜΑΤΟ ΚΟΠΤΙΚΟ ΓΡΑΜΜΗΣ
ﺁﻝﺓ ﺕﺵﺫﻱﺏ ﺡﺵﺍﺉﺵ ﺥﻁﻱﺓ ﻝﺍﺱﻝﻙﻱﺓ
KABLOSUZ İPLİ BUDAMA MAKİNESİ
חרמש חוט ללא כבל
AKUTOITEGA JÕHVTRIMMER
1
6
12
17
23
29
34
39
45
50
55
60
65
70
75
80
85
90
95
100
106
111
116
121
126
131
136
DE
ES
IT
FR
PT
NL
RU
FI
SV
NO
DA
PL
CS
SK
SL
HR
HU
RO
BG
EL
AR
TR
HE
LT
LV
ET
EN
BRUGERVEJLEDNING
PODRĘCZNIK OBSŻUGI
NÁVOD K OBSLUZE
NÁVOD NA POUŽITIE
UPORABNI KI PRIROČNIK
KORISNIÈKI PRIRUÈNIK
HASZNÁLATI ÚTMUTATÓ
MANUAL DE UTILIZARE
PЪКОВOДСТВO ЗА УПОТРЕБА
ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
ﻡﺩﺥﺕﺱﻡﻝﺍ ﻝﻱﻝﺩ
KULLANICI KILAVUZU
שמתשמל ךירדמ
NAUDOJIMO VADOVAS
LIETOTĀJA ROKASGRĀMATA
KASUTUSJUHEND
TAGLIABORDI A FILO SENZA CAVO
English (Original Instrcutions)

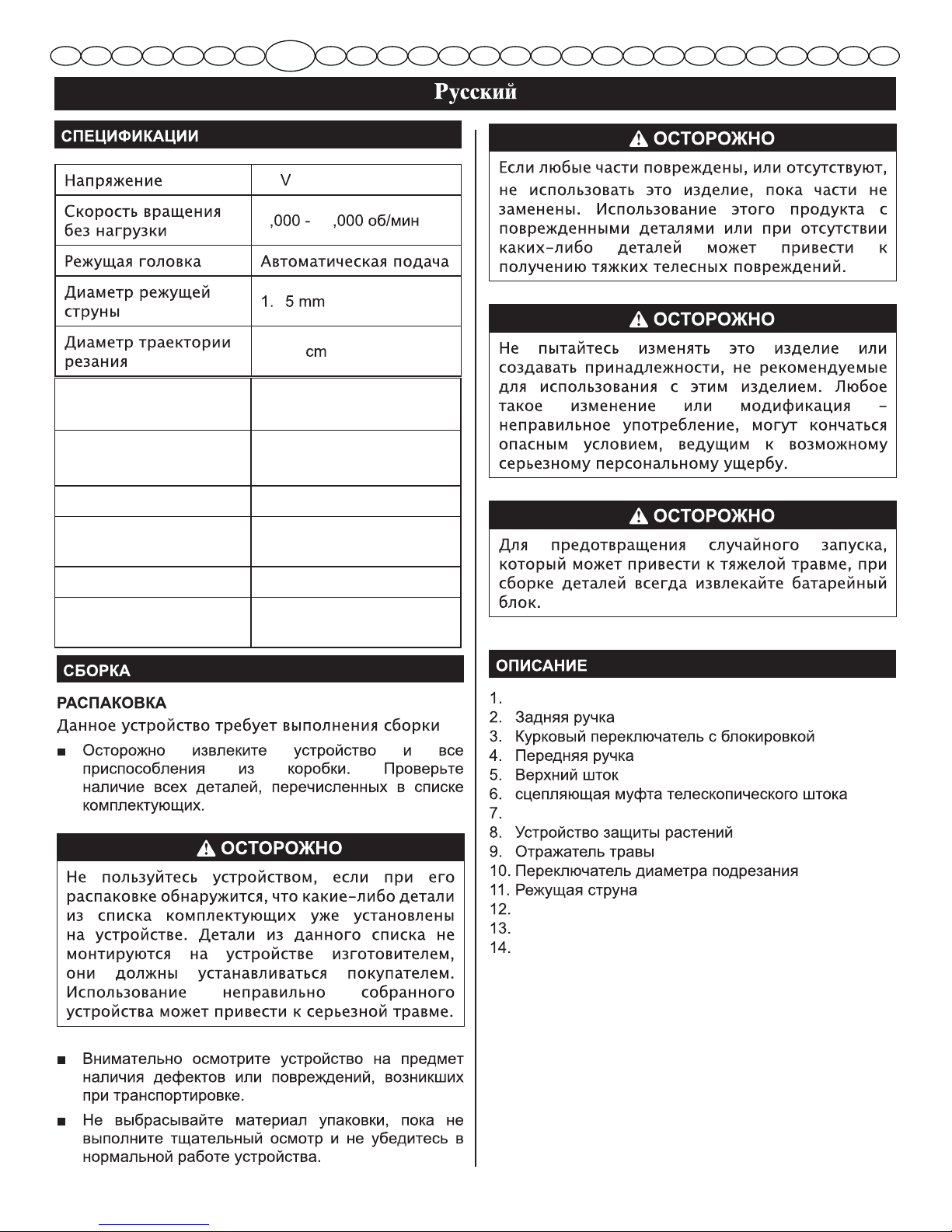

SPECIFICATIONS
ASSEMBLY
UNPACKING
This product requires assembly.
■ Carefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
WARNING
Do not use this product if any parts on the Packing
List are already assembled to your product when you
unpack it. Parts on this list are not assembled to the
product by the manufacturer and require customer
installation. Use of a product that may have been
improperly assembled could result in serious personal
injury.
■ Inspect the product carefully to make sure no breakage
or damage occurred during shipping.
■ Do not discard the packing material until you have
carefully inspected and satisfactorily operated the
product.
WARNING
If any parts are damaged or missing do not operate this
product until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING
Do not attempt to modify this product or create
accessories not recommended for use with this product.
result in a hazardous condition leading to possible
serious personal injury.
WARNING
To prevent accidental starting that could cause serious
personal injury, always remove the battery pack from
the product when assembling parts.
DESCRIPTION
1. Switch trigger
2. Rear handle
3. Lock-out trigger
4. Front handle
5. Upper shaft
6. Shaft coupler
7. Lower shaft
8. Plant protector
9.
10. Cutting diameter slide
11. Cutting line
12. Pivoting button
13. Edger wheel
14. Trimmer/Edger button
15. Battery pack
16. Charger
Voltage 24 Volts
No Load Speed 9,000 - 10,000 rpm
Cutting head Automatic feed
Cutting Line Diameter 1.65 mm
Cutting Path Diameter 250/300 mm
Measured sound
pressure level
L
PA
=82 dB(A),
K
PA
=3 dB(A)
Guaranteed sound
power level
Vibration 2 m / s , k=1.5
L
WA
=96 dB(A),
2
Battery pack 29807/29837/29697
Charger 29817/29827
Weight with battery
pack
3.13 kg
EN
DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
English

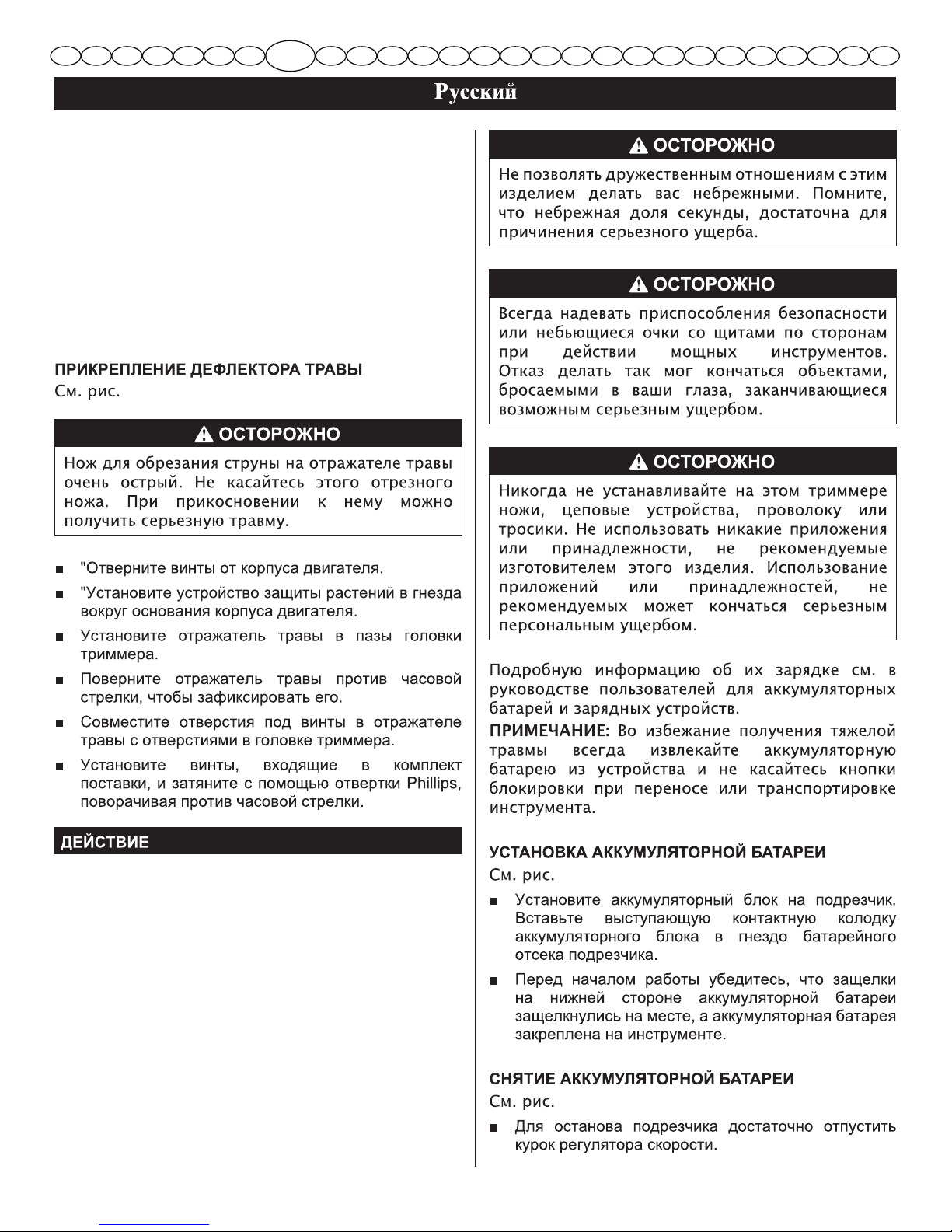

WARNING
Avoid contact with the blade. Failure to avoid contact
can result in serious personal injury.
■ Remove supplied screws from the motor housing.
■ Fit the grass deflector into the slots on trimmer head.
■ Turn counterclockwise to lock grass deflector into
place.
■ Line up the screw holes in the grass deflector with the
holes in the motor housing head.
■ Install supplied screws and tighten by turning
clockwise with a phillips screwdriver.
OPERATION
WARNING
Do not allow familiarity with products to make you
careless. Remember that a careless fraction of a
WARNING
Always wear eye protection. Failure to do so could
result in objects being thrown into your eyes resulting
in possible serious injury.
WARNING
product. Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
For complete charging instructions, refer to the Operator’s
Manuals for your battery pack and charger models.
NOTE: To avoid serious personal injury, always remove
the battery pack and keep hands clear of the lock-out
button when carrying or transporting the tool.
T
ATTACHING GRASS DEFLECTOR
O INSTALL BATTERY PACK
See Figure 3.
See Figure 2.
■ Place the battery pack in the trimmer. Align raised ribs
on battery pack with grooves in the trimmer’s battery
port.
■ Make sure the latch on bottom of the battery pack
snaps in place and that battery pack is fully seated
and secure in the trimmer before beginning operation.
TO REMOVE BATTERY PACK
See Figure 3.
■ Release the variable speed control trigger to stop the
trimmer.

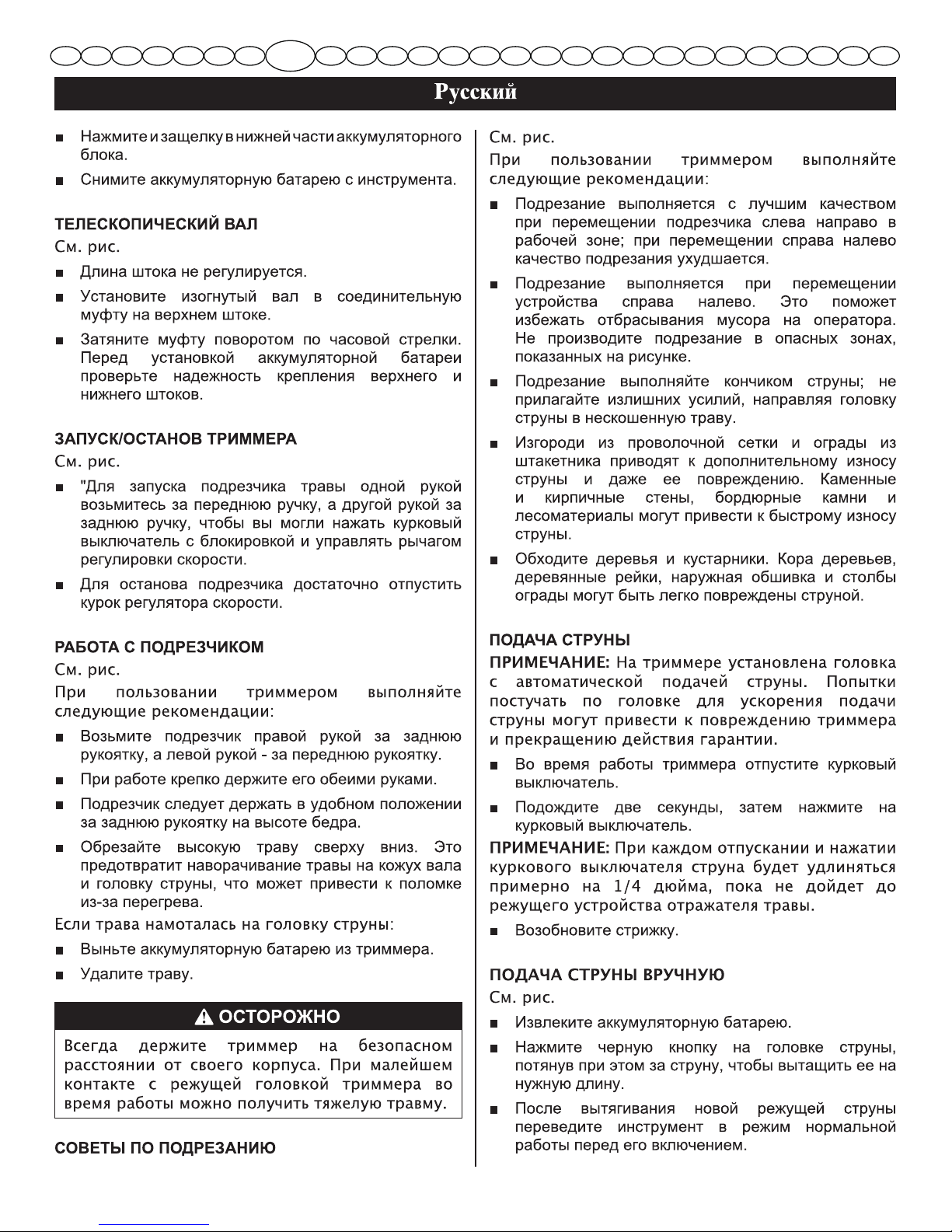

■ Press and hold the battery latch button at the bottom
of the battery pack.
■ Remove battery pack from the trimmer.
SHAFT ASSEMBLY
See Figure 4.
The shaft's length cannot be adjusted.
■ Insert the lower shaft into the shaft coupler on the
upper shaft.
■ Tighten the coupler by turning clockwise. Make
sure the upper and lower part of shafts are securely
tightened before reinstalling the battery pack.
STARTING/STOPPING THE TRIMMER
See Figure 5.
■ To start the trimmer, grip the front handle with one
hand while holding the rear handle with your other
hand making sure to depress the lock-out trigger while
squeezing the variable speed trigger.
■ To stop the trimmer, just
release the variable speed
control trigger.
EN
DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
English
OPERATING THE TRIMMER
See Figure 6.
Follow these tips when using the trimmer:
■ Hold the trimmer with your right hand on the rear
handle and your left hand on the front handle.
■ Keep a firm grip with both hands while in operation.
■ Trimmer should be held at a comfortable position with
the rear handle about hip height.
■ Cut tall grass from the top down. This will prevent grass
from wrapping around the shaft housing and string
head which may cause damage from overheating.
If grass becomes wrapped around the string head:
■ Remove the battery pack from the trimmer.
■ Remove the grass.
WARNING
Contact with the trimmer cutting head while operating
can result in serious personal injury.
CUTTING TIPS
See Figure 8
■ Keep the trimmer tilted toward the area being cut; this
is the best cutting area.
■ The trimmer will cut better when moved from left to
right across the area to be cut; it is less effective when
moved from right to left.
■ Use the tip of the cutting line to do the cutting; do not
force cutting head into uncut grass.
■ Wire and picket fences cause extra cutting line wear,
even breakage. Stone and brick walls, curbs, and
wood may wear cutting line rapidly.
■ Avoid trees and shrubs. Tree bark, wood moldings,
siding, and fence posts can easily be damaged by the
cutting line.
ADVANCING CUTTING LINE
NOTE: The trimmer is equipped with an auto-feed head.
Bumping the head to try to advance the line will damage
the trimmer and void the warranty.
■ With the trimmer running, release the switch trigger.
■ Wait two seconds, and press the switch trigger.
NOTE:
The cutting line will extend approximately 0.635cm
with each stop and start of the trigger until the cutting line
■ Resume trimming.
ADVANCING THE CUTTING LINE MANUALLY
See Figure 7.
■ Remove the battery pack.
■ Push the black button located on the cutting head
while pulling on cutting line to manually advance the
cutting line.
■ After extending new cutter line, always return the
machine to its normal operating position before
switching on.

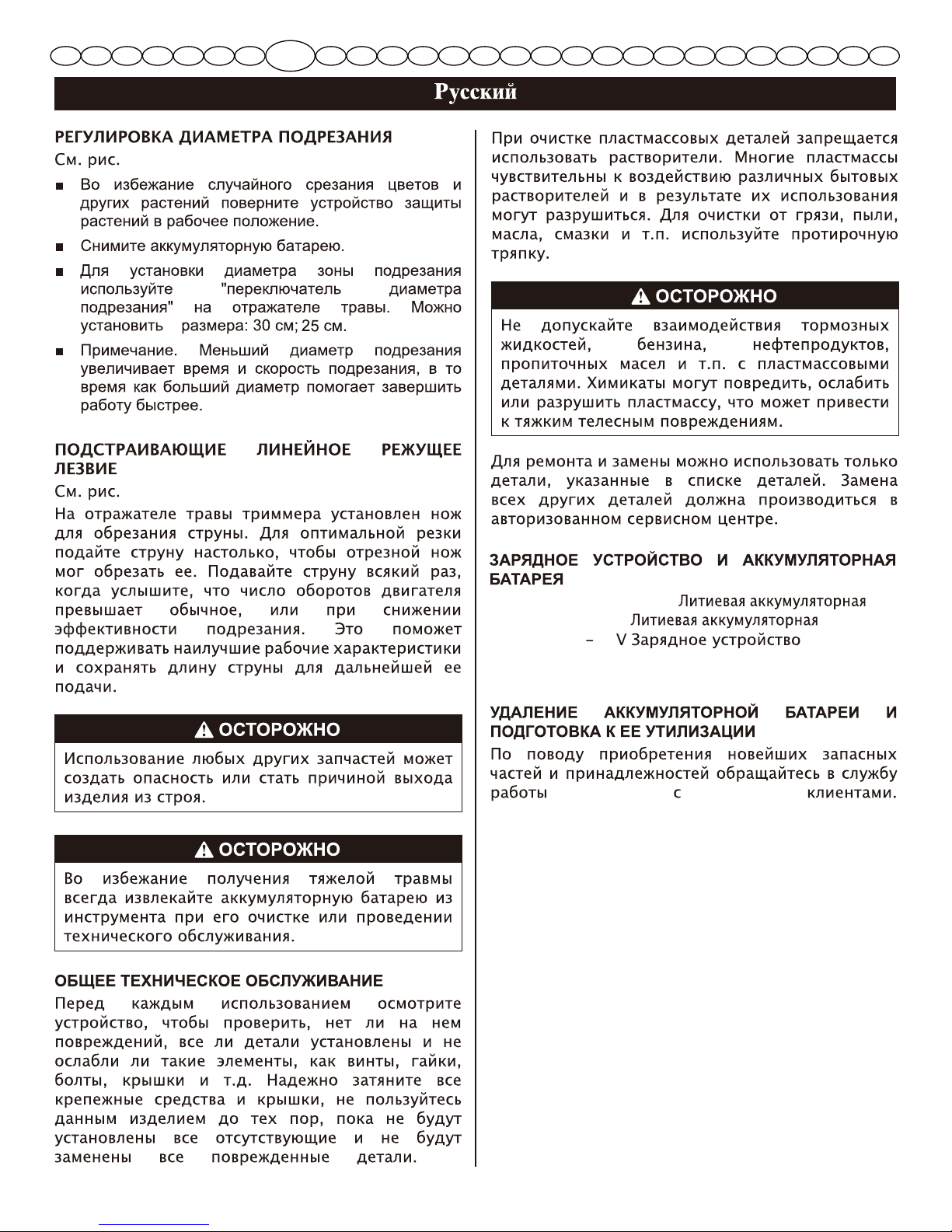

ADJUSTABLE CUTTING DIAMETER
See Figure 9.
■ Rotate the plant protector to its working position to
avoid cutting flowers or plants by mistake.
■ Remove the battery pack.
■ Adjust the "cutting diameter slide" on the grass
deflector to adjust the cutting path diameter. There are
2 diameter options: 30cm, 25cm.
Note: a smaller diameter cutting path will maximize run
time and cutting speed, while a larger cutting path will help
complete the trimming task quicker.
LINE CUT-OFF BLADE
See Figure 10.
This trimmer is equipped with a line cut-off blade on the
trimmed to length by the line cut-off blade. Advance line
whenever you hear the engine running faster than normal,
best performance and keep line long enough to advance
properly.
WARNING
When servicing, use only identical replacement parts.
Use of any other parts may create a hazard or cause
product damage.
WARNING
To avoid serious personal injury, always remove the
battery pack from the tool when cleaning or performing
any maintenance.
GENERAL MAINTENANCE
Before each use, inspect the entire product for damaged,
missing, or loose parts such as screws, nuts, bolts, caps,
etc. Tighten securely all fasteners and caps and do not
operate this product until all missing or damaged parts
are replaced.
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
EN
DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
English
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING
based products, penetrating oils, etc., come in contact
with plastic parts. Chemicals can damage, weaken or
destroy plastic which may result in serious personal
injury.
Only the parts shown on the parts list are intended to
be repaired or replaced by the customer. All other parts
should be replaced at an Authorised Service Centre.
CHARGER AND BATTERY PACK
29697/29807- 24V 43Wh Lithium battery pack
29837- 24V 86Wh Lithium battery pack
29817/29827- 24V charger
BATTERY PACK REMOVAL AND PREPARATION FOR
RECYCLING
Contact customer service for the latest replacement parts
and accessories.

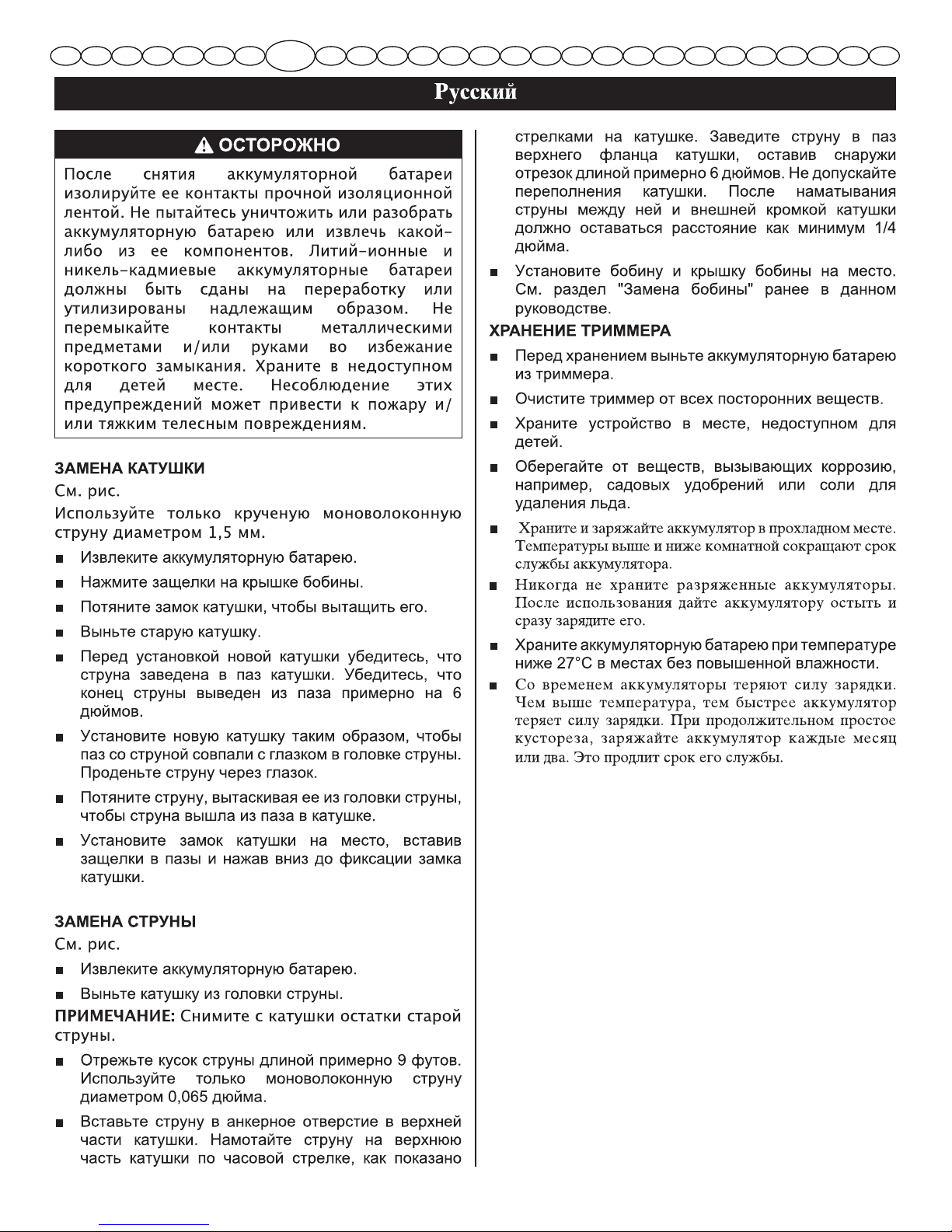

WARNING
Upon removal, cover the battery pack’s terminals with
heavy-duty adhesive tape. Do not attempt to destroy
or disassemble battery pack or remove any of its
components. Lithium-ion and nickel-cadmium batteries
must be recycled or disposed of properly. Also, never
touch both terminals with metal objects and/or body
parts as short circuit may result. Keep away from
children. Failure to comply with these warnings could
■ Install the new spool so that the cutting line and slot
align with the eyelet in the cutting head. Thread the
cutting line into the eyelet.
■ Pull the cutting line extending from the cutting head
so the cutting line releases from the slot in the spool.
■ Reinstall the spool cover by depressing tabs into slots
and pushing down until spool cover clicks into place.
CUTTING LINE REPLACEMENT
See Figures 12 - 13.
■ Remove the battery pack.
EN
DE ES IT FR PT NL RU FI SV NO DA PL CS SK SL HR HU RO BG EL AR TR HE LT LV ET
SPOOL REPLACEMENT
See Figure 12.
Use original manufacturer’s replacement cutting line for
best performance.
■ Remove the battery pack.
■ Push in tabs on side of spool cover.
■ Pull spool cover up to remove.
■ Remove the old spool.
■ To install the new spool, make sure the cutting line is
captured in the slot on the new spool. Make sure the
end of the cutting line is extended approximately 15cm
beyond the slot.
65
■ Remove the spool from the cutting head.
NOTE: Remove any old cutting line remaining on the
spool.
■ Cut a piece of cutting line approximately 3m long. Use
only 1.65mm diameter monofilament cutting line.
■ Insert the cutting line into the anchor hole in the upper
part of the spool. Wind the cutting line around the upper
part of the spool clockwise, as shown by the arrows on
the spool. Place cutting line in the slot on upper spool
flange, leaving about 15cm. extended beyond the slot.
Do not overfill. After winding the cutting line, there
should be at least 0.635 cm between the wound
■ Replace the spool, and the spool cover. Refer to spool
replacement earlier in this manual.
STORING THE TRIMMER
■ Remove the battery pack from the trimmer before
storing.
cutting line and the outside edge of the spool.
■ Clean all foreign material from the trimmer.
■ Store it in a place that is inaccessible to children.
■ Keep away from corrosive agents such as garden
chemicals and de-icing salts.
■ Store and charge your batteries in a cool area.
Temperatures above or below normal room
temperature will shorten battery pack life.
■ Never store batteries in a discharged condition. Wait
for battery pack to cool and fully charge immediately.
■ Store the battery pack where the temperature is below
27˚C and away from moisture.
■ All batteries gradually lose their charge. The higher the
temperature, the
quicker they lose their charge. If you
store your unit for long periods of time without using
it, recharge the batteries every month or two. This
practice will prolong battery pack life.
Loading...
