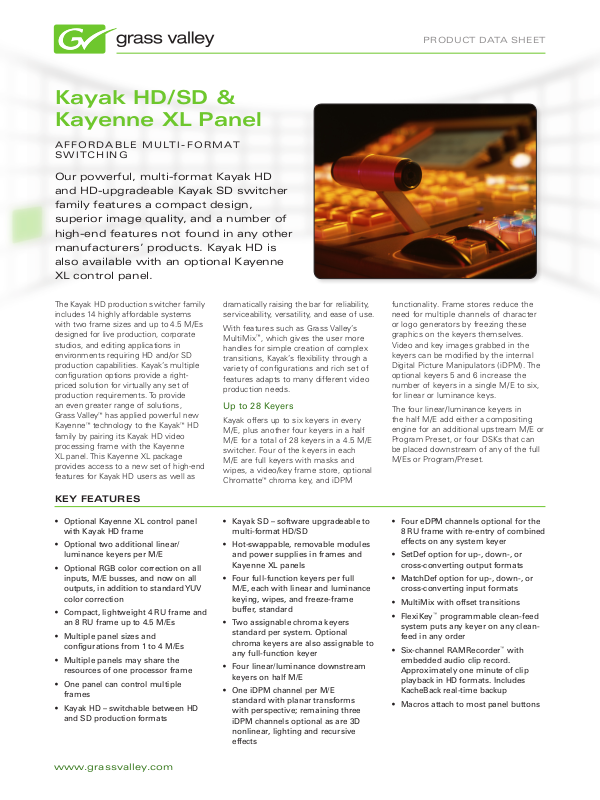

GRASS VALLEY KAYAK HD, KAYAK SD, Kayak HD/SD, Kayenne XL Panel Datasheet

Kayak HD/SD &
Kayenne XL Panel

A FFORD A B L E M U LT I - F O R M AT
SWITCHING

Our powerful, multi-format Kayak HD
and HD-upgradeable Kayak SD switcher
family features a compact design,
superior image quality, and a number of
high-end features not found in any other
manufacturers’ products. Kayak HD is
also available with an optional Kayenne
XL control panel.

PRODUCT DATA SHEET

The Kayak HD production switcher family
includes 14 highly affordable systems
with two frame sizes and up to 4.5 M/Es
designed for live production, corporate
studios, and editing applications in
environments requiring HD and/or SD
production capabilities. Kayak’s multiple
configuration options provide a right­priced solution for virtually any set of
production requirements. To provide
an even greater range of solutions,
Grass Valley™ has applied powerful new
Kayenne™ technology to the Kayak™ HD
family by pairing its Kayak HD video
processing frame with the Kayenne
XL panel. This Kayenne XL package
provides access to a new set of high-end
features for Kayak HD users as well as

KEY FEATURES

Optional Kayenne XL control panel •
with Kayak HD frame

Optional two additional linear/•
luminance keyers per M/E

Optional RGB color correction on all •
inputs, M/E busses, and now on all
outputs, in addition to standard YUV
color correction

Compact, lightweight 4 RU frame and •
an 8 RU frame up to 4.5 M/Es

Multiple panel sizes and •
configurations from 1 to 4 M/Es

Multiple panels may share the •
resources of one processor frame

One panel can control multiple •
frames

Kayak HD – switchable between HD •
and SD production formats

dramatically raising the bar for reliability,
serviceability, versatility, and ease of use.

With features such as Grass Valley’s
MultiMix™, which gives the user more
handles for simple creation of complex
transitions, Kayak’s flexibilit y through a
variety of configurations and rich set of
features adapts to many different video
production needs.

Up to 28 Keyers

Kayak offers up to six keyers in every
M/E, plus another four keyers in a half
M/E for a total of 28 keyers in a 4.5 M/E
switcher. Four of the keyers in each
M/E are full keyers with masks and
wipes, a video/key frame store, optional
Chromatte™ chroma key, and iDPM

Kayak SD – software upgradeable to •
multi-format HD/SD

Hot-swappable, removable modules •
and power supplies in frames and
Kayenne XL panels

Four full-function keyers per full •
M/E, each with linear and luminance
keying, wipes, and freeze-frame
buffer, standard

Two assignable chroma keyers •
standard per system. Optional
chroma keyers are also assignable to
any full-function keyer

Four linear/luminance downstream •
keyers on half M/E

One iDPM channel per M/E •
standard with planar transforms
with perspective; remaining three
iDPM channels optional as are 3D
nonlinear, lighting and recursive
effects

functionality. Frame stores reduce the
need for multiple channels of character
or logo generators by freezing these
graphics on the keyers themselves.
Video and key images grabbed in the
keyers can be modified by the internal
Digital Picture Manipulators (iDPM). The
optional keyers 5 and 6 increase the
number of keyers in a single M/E to six,
for linear or luminance keys.

The four linear/luminance keyers in
the half M/E add either a compositing
engine for an additional upstream M/E or
Program Preset, or four DSKs that can
be placed downstream of any of the full
M/Es or Program/Preset.

Four eDPM channels optional for the •
8 RU frame with re-entry of combined
effects on any system keyer

SetDef option for up-, down-, or •
cross-converting output formats

MatchDef option for up-, down-, or •
cross-converting input formats

MultiMix with offset transitions •

FlexiKey•
system puts any keyer on any clean­feed in any order

Six-channel RAMRecorder•
embedded audio clip record.
Approximately one minute of clip
playback in HD formats. Includes
KacheBack real-time backup

Macros attach to most panel buttons•

™

programmable clean-feed

™

with

www.grassvalley.com

PRODUCT DATA SHEET

POWERFUL INTERNAL EFFECTS ADD PUNCH TO YOUR PRODUCTIONS

With up to six keyers, two backgrounds, two utility busses, up to four iDPM channels, and up to four chroma keyers per full M/E, Kayak HD
switchers give you more power per M/E than any other switcher in their class.

So Many 3D DVEs Available

With four iDPMs per M/E, Kayak
ensures there is always a high-end 3D
effects channel available for an artistic
advantage. iDPM options include
extensive Kurl™ nonlinear warp effects
such as page turn, page roll, slits,
mirrors, spheres, and ripples along with
Spektra™ advanced lighting, defocus,
glow, and output recursive effects for
unlimited creative effects in each of the
full keyers. Four more channels of eDPM
(expanded Digital Picture Manipulator)
can be installed in the 8 RU frame
expansion slot. The eDPM channels
provide the advantage of an external
DVE compositing multiple channels to
re-enter on one or more keyers, or M/E
background transitions. With a total
of 20 full-featured DVE channels, no
competitor can match Kayak’s effect
creation capabilities.

Exclusive MultiMix with Offset
Transitions

To simplify and automate transition
effects, Kayak’s exclusive MultiMix with
Offset Transitions offers a graphical
user interface with separate control
of transition element timing for
managing complex transitions, with
separate transitions types allowed
for each element. Transition elements

include keyers, backgrounds, iDPM
channels, eDPM channels, external DVE
channels, or any of Kayak’s six internal
RAMRecorder channels with embedded
audio record and playback. MultiMix
is very powerful for quickly creating
transitions like the popular flying keys
with animations.

Simulcast Made Simple

Once the effects are created, Kayak
makes it simple to get multiple versions
of the program to air with Macros,
Bus Linking, M/E Couple, and FlexiKey
programmable clean feeds.

M/E Couple lets the operator control
mirrored M/Es to enhance and simplify
multi-branded feeds. Both M/E Couple
and Aux Bus Linking include automatic
source substitution—further improving
control of content for separate program
feeds.

FlexiKey provides independent graphics
on simulcast outputs for alternate
branding or simultaneous HD and SD
feeds. The six outputs (four PGM per
M/E, two PVW) can include any or all
keyers in an M/E on any or all of four
outputs of the M/E, in any combination.
Graphics can be positioned for a 4:3
aspect ratio of an SD feed when used
with the SetDef output conversion
option.

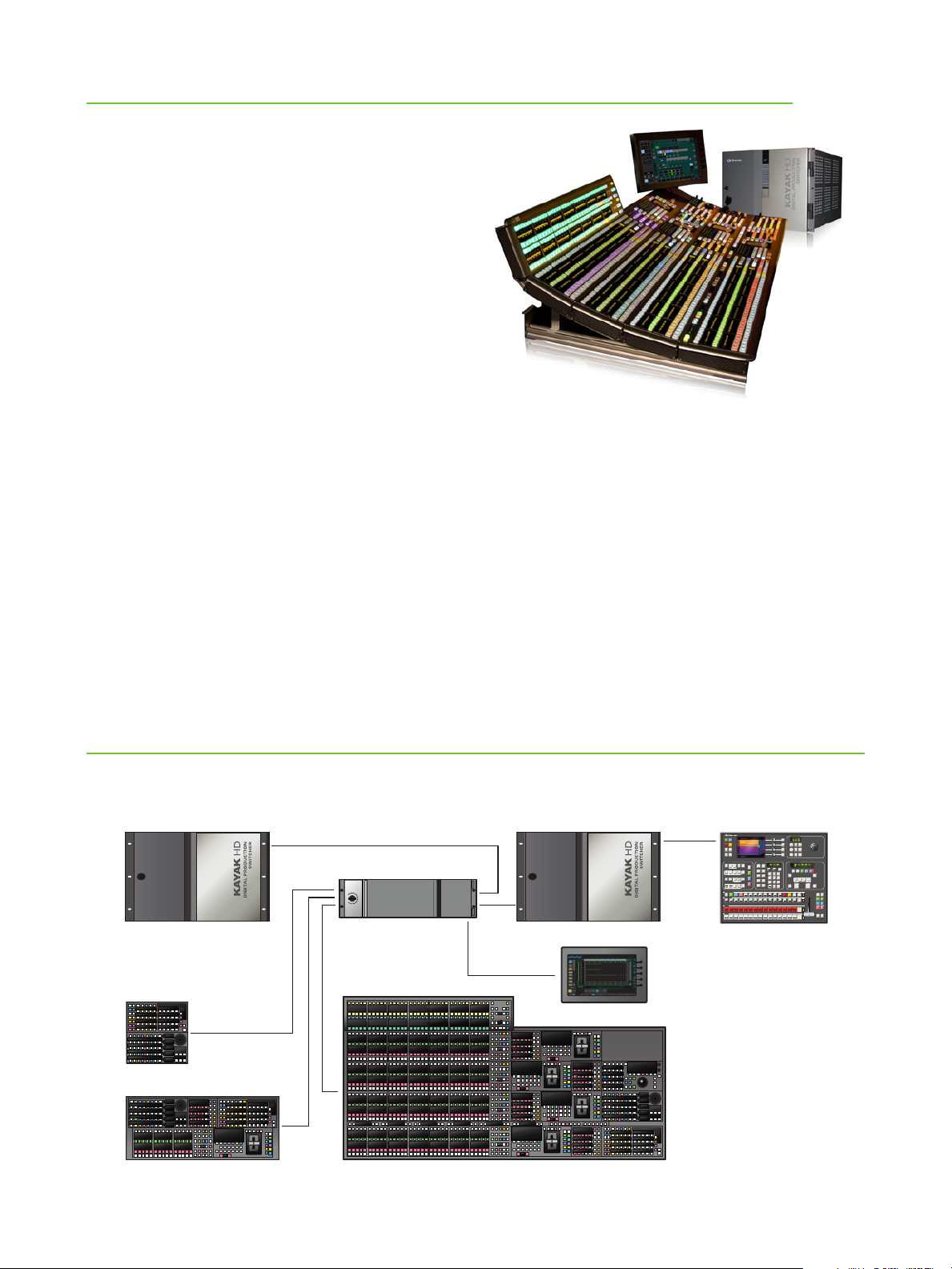

Multiple Control and Processor
Combinations

Sharing of the resources in a single
processor mainframe, such as M/Es,
DPMs, or RAMRecorder channels, is
simultaneously allowed from multiple
Kayak and Kayenne XL control panels.
Conversely, one Kayenne XL panel
controls many different processor
mainframes and other devices.

Completely Self-Contained Multi­Format Video Production

The SetDef output conversion, combined
with MatchDef input conversion, allows
complete, multi-format production with
up/down/cross converting of HD input
and output formats, including aspect
ratio conversion on up to four outputs,
or eight outputs in the 8 RU frame.
Simultaneous HD and SD program
feeds are easily done without external
conversion gear. Signals converted
with MatchDef video input converters
may be used anywhere within Kayak
HD production switcher, sent to any
output (including aux buses), and do not
consume expensive resources such as
resizers or other M/E resources.

www.grassvalley.com

MultiMix Controls for Complex Transitions

PRODUCT DATA SHEET

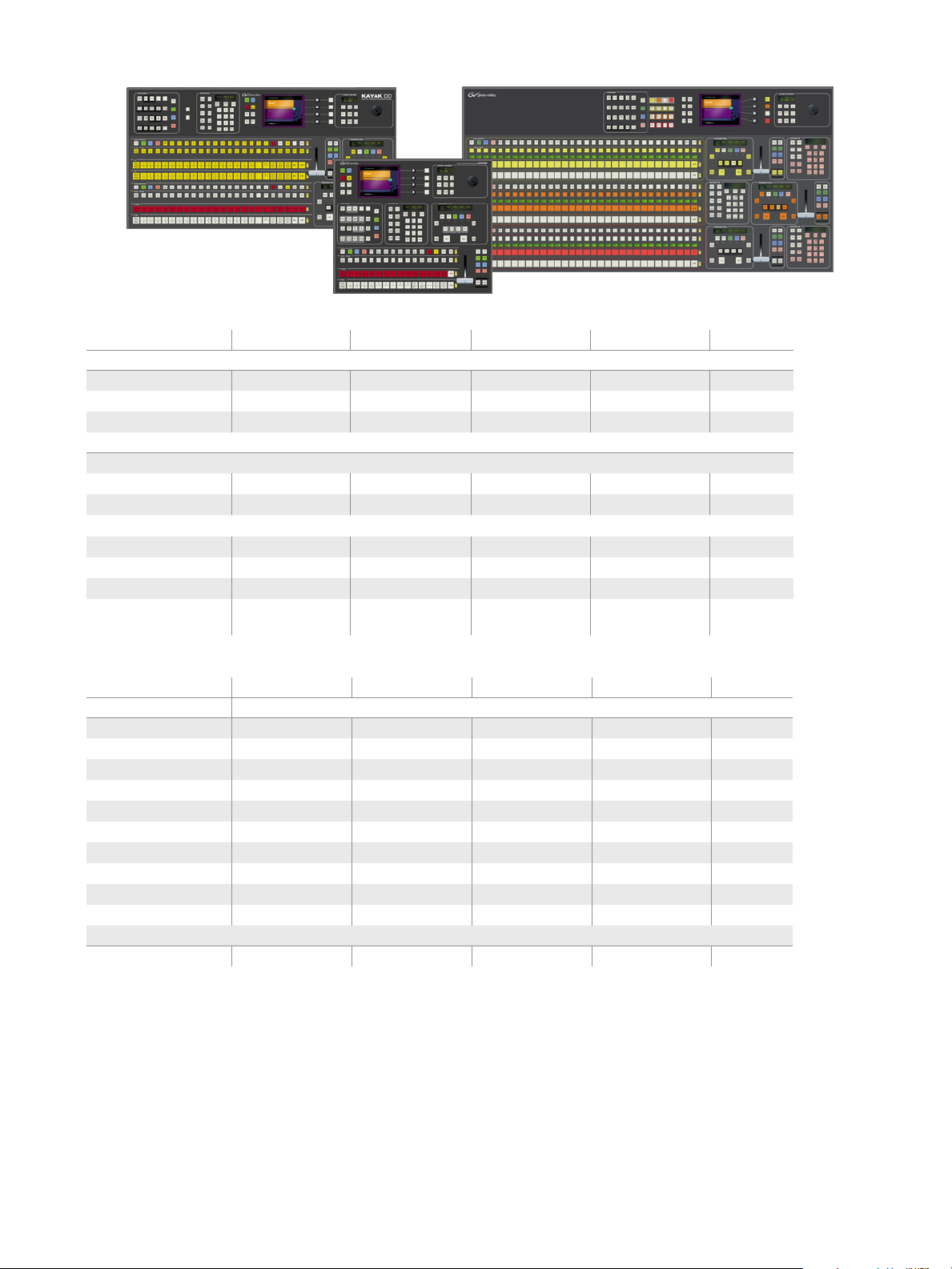

SPECIFICATIONS

Video Processing Frame

Model Frame Size M/Es1 Inputs Outputs2 GPI Inputs GPI/Tally

Outputs

100C 4 RU 1 24-48 12-24 8-16 32-64 Up to 83 Up to 2

150C 4 RU 1.5 24-48 12-24 8-16 32-64 Up to 8

200C 4 RU 2 48 24 16 64 Up to 8

250C 4 RU 2.5 48 24 16 64 Up to 8

200 8 RU 2 48-96 24-48 16-32 64-128 Up to 16

250 8 RU 2.5 48-96 24-48 16-32 64-128 Up to 16

300 8 RU 3 72-96 36-48 24-32 96-128 Up to 16

350 8 RU 3.5 72-96 36-48 24-32 96-128 Up to 16

400 8 RU 4 96 48 32 128 Up to 16

450 8 RU 4.5 96 48 32 128 Up to 16

Kayak HD/Kayak SD Video Standards

HD Mode

4

SD Mode

1080i 29.97/30 SMPTE 274M Table 1-4, 5 525i 29.97 SMPTE 259M

1080i 25 SMPTE 274M Table 1-6 625i 25 SMPTE 259M

1080pSF 23.976/24/25/29.97/30 SMPTE RP211 Tables 12 - 16

720p 50/59.94/60 SMPTE 296 Table 1-1, 2

1 Half M/Es include cuts and mixes, no wipes or iDPM, with simple linear/luminance keyers without chroma keys or freeze-frame buffers.

2 Video outputs programmable as M/E, program, or AUX bus outputs.

3 Up to 4 for every 24 inputs.

4 Available on Kayak HD and Kayenne XL package only. Kayak SD models have SD production modes only, but can accept HD sources with MatchDef option.

MatchDef

Inputs

3

3

3

SetDef

Outputs

Up to 2

Up to 4

Up to 4

3

3

3

3

3

3

Up to 4

Up to 4

Up to 6

Up to 6

Up to 8

Up to 8

PRODUCT DATA SHEET

SPECIFICATIONS (CONT.)

Serial Digital Video Inputs

Formats:

ITU-T R656•
SMTPE 259M, 270 Mb/s•
SMPTE 292M, 1.5 Gb/s•

Return loss: >15 dB, 5 MHz to 1.5 GHz

Type of connector: 75Ω BNC (SMPTE

259M)

Interface:

HD video formats SMPTE 292M-1998•
SD video formats SMPTE 259M-1997•

Nominal amplitude: 800 mV p-p
terminated

Channel coding: conforms to SMPTE
259M, SMPTE 292M

Ancillary data: blanked or passed (user

5

selectable)

Embedded audio: blanked or passed
(user selectable)

5

EDH: blanked

Input impedance: 75Ω

Max. cable length:

HD video 100m using Belden 1694A •
type cable

SD video 300m using Belden 1694A •
type cable

Serial Digital Video Outputs

Format:

ITU-R601/656•
SMPTE 259M, 270 Mb/s•
SMPTE 292M, 1.5 Gb/s•

Return loss: >15 dB, 5 MHz to 1.5 GHz

Type of connector: 75Ω BNC (SMPTE

259M)

Interface:

HD video formats SMPTE 292M-1998•
SD video formats SMPTE 259M-1997•

Nominal amplitude: 800 mV p-p across
75Ω

Rise and fall times: 400 to 1400 ps
75Ω termination between 20% and 80%
amplitude

Timing jitter: ≤1 UI (HD, SD)

Alignment jitter: ≤.2 UI (HD, SD)

Output impedance: 75Ω

DC offset: <50 mV with 75Ω termination

Analog Reference Input

Video standard:

For HD video: Tri-level sync, analog •
equivalent to the standard being used

For SD video: color black, analog •
equivalent to the standard being used

Return loss: >40 dB, up to 5 MHz

Connectors: 2 each BNC loop-through

for both HD and SD inputs

Impedance: 75Ω external termination

Supported Control Protocols

VTRs (BVW-75) •
AMP (advanced media protocol) •

®

PVS, Profile XP Media

for Profile
Platform, K2, M-Series

™

, and Turbo™
DDR systems RS-422 serial or
Ethernet

Video servers (Louth VDCP, Odetics) •
Routers/routing control systems •

™

, Venus™, Triton™, and third-

(Trinix
party routers; Jupiter
router control systems)

Control systems (Andromeda•

™

and Encore™

™

and

third-party systems)
Grass Valley Under Monitor Displays •

(serial tally for UMD). Requires
Andromeda system or third-party tally
box such as Tally Display or Image
Video

Grass Valley external remote AUX •
Panels (CP-300 Series)

ESAM II for audio-follow-video •
applications

Edit controllers (native and Grass •
Valley Model 100 and 200)

Power

4 RU frame:

Line voltage: 100V-240 VAC ±10% •
autorange, power factor corrected.
Automatic line-voltage sensing for
120V and 240V sources

Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 500W•
Leakage current: <2.5 mA•
DC-OUT for control panel: 48 VDC, •

max. 3A

8 RU frame:

Line voltage: 100V-240 VAC ±10% •
autorange, power factor corrected.
Automatic line-voltage sensing for
120V and 240V sources

Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 1,300W•
Leakage current: <2.5 mA•
DC-OUT for control panel: 48 VDC, •

max. 3A

Kayak 1 M/E control panel: 48 VDC in,
max. 1.3A

Kayak 1.5 and 2 M/E control panel:

48 VDC in, max. 1.3A

Kayak 2.5 and 3 M/E control panels:

48 VDC in, max. 1.3A

KDD-PSU frame (remote control
panel power supply):

Line voltage: 100V-240 VAC ±10%, •
power factor corrected

Line frequency: 50/60 Hz ±5%•
Power consumption: Max. 375W•
Leakage current: <2 mA at 250 VAC•

Kayenne XL Panel Control Unit

Line voltage: 100V-240 VAC ±10%

autorange, power factor corrected.
Automatic line-voltage sensing for 120V
and 240V sources

Line frequency: 50/60 Hz ±5%

Power consumption: Max. 600W

Leakage current: <2.5 mA

Kayak HD/SD Control Panel
Connection

Type of connection: 10/100 Base-T

Protocol: TCP(UDP)/IP

Cable and connectors: CAT5 UTP,

RJ-45 connectors

Max. cable length: 100m/300 ft.
1 frame and up to 4 panels connect
without use of external hub/switch

Kayenne XL Control Panel
Connections

Panel to PCU: Custom multi-pin cable.

15m/49 ft. max. length

PCU to frame: 100/1000 Base-T
compatible, CAT5 cable, 8-conductor

twisted pair. 100m/328 ft. max. length

Environmental Conditions

Storage temperature: -20 to 70ºC

(-4 to 158ºF)

Operating temperature: 0 to 40ºC (32
to 104ºF)

Relative humidity: 0-95% (non­condensing)

Electromagnetic environment: E2
(according to EN55103-1, -2)

5 Video passing through Scalars or iDPMs will be blanked of any ancillary data or embedded audio.

www.grassvalley.com

PRODUCT DATA SHEET

Kayak HD/Kayak SD Mechanical Specifications

Component Depth Width Height Weight

Control Panels

7

6

Rack Units

100C 418 mm (16.5 in.) 448 mm (17.6 in.) 145.80 mm (5.74 in.) 7 kg (15.4 lbs.) n/a

150C, 200C, 200 418 mm (16.5 in.) 809 mm (31.8 in.) 145.80 mm (5.74 in.) 10 kg (22 lbs.) n/a

250C, 250, 300 544 mm (21.42 in.) 1132 mm (44.57 in.) 162 mm (6.38 in.) 18 kg (39.68 lbs.) n/a

Frames

Compact 4 RU Frame

100C and 150C 546.10 mm (21.5 in.) 482.60 mm (19 in.) 177.8 mm (7 in.) 16.33 kg (36 lbs.) 4

200C and 250C 546.10 mm (21.5 in.) 482.60 mm (19 in.) 177.8 mm (7 in.) 17.69 kg (39 lbs.) 4

8 RU Frame

200 and 250 522.73 mm (20.58 in.) 482.60 mm (19 in.) 441.96 mm (17.4 in.) 29.03 kg (64 lbs.) 8

300 and 350 522.73 mm (20.58 in.) 482.60 mm (19 in.) 441.96 mm (17.4 in.) 30.39 kg (67 lbs.) 8

400 and 450 522.73 mm (20.58 in.) 482.60 mm (19 in.) 441.96 mm (17.4 in.) 31.75 kg (70 lbs.) 8

KDD-PSU Remote Panel
Power Supply Option

240 mm (9.45 in.) 482 mm (19 in.) 44 mm (1.73 in.) 2.8 kg (6.2 lbs.) 1

Kayenne XL Control Panel Mechanical Specifications

Component Depth Width Height Weight Rack Units

Control Panels Flat Support Structure Orientation

KHDXL-PNL-100-15

8

356.4 mm (14.03 in.) 758.3 mm (29.85 in.) 84.3 mm (3.32 in.) n/a

KHDXL-PNL-200-25 488.4 mm (19.23 in.) 1341.7 mm (52.82 in.) 84.3 mm (3.32 in.) 29.9 kg (65.8 lbs.) n/a

KHDXL-PNL-200-35 488.4 mm (19.23 in.) 1533.7 mm (60.38 in.) 84.3 mm (3.32 in.) n/a

KHDXL-PNL-300-25 637.1 mm (25.08 in.) 1341.7 mm (52.82 in.) 84.3 mm (3.32 in.) n/a

KHDXL-PNL-300-35 637.1 mm (25.08 in.) 1533.7 mm (60.38 in.) 84.3 mm (3.32 in.) 44.7 kg (98.4 lbs.) n/a

KHDXL-PNL-400-25 746.3 mm (29.38 in.) 1341.7 mm (52.82 in.) 84.3 mm (3.32 in.) n/a

KHDXL-PNL-400-35 746.3 mm (29.38 in.) 1533.7 mm (60.38 in.) 84.3 mm (3.32 in.) 57.3 kg (126.2 lbs.) n/a

KHDXL-PNL-AUX-25 185.7 mm (7.31 in.) 621.7 mm (24.48 in.) 84.3 mm (3.32 in.) n/a

KHDXL-PNL-AUX-35 185.7 mm (7.31 in.) 813.7 mm (32.04 in.) 84.3 mm (3.32 in.) 6.3 kg (13.8 lbs.) n/a

KHDXL-PNL-MENU 91.7 mm (3.61 in.) 417.85 mm (16.45 in.) 270.10 mm (10.63 in.) 4.49 kg (9.9 lbs.) n/a

PCU

KHDXL-PNL-PCU 588.52 mm (23.17 in.) 482.60 mm (19 in.) 132.59 mm (5.22 in) 16.06 kg (35.4 lbs.) 3

6 All weights approximate. 7 For additional options see Kayenne XL package. 8 w/o Local Aux module.

PRODUCT DATA SHEET

Kayak 8 RU
Video Processing Frame

Kayenne XL Panel Control Unit

Kayenne XL Menu Panel

Kayenne XL
4 M/E Panel with Device Control Module

Kayak 8 RU
Video Processing Frame

1 M/E Kayak Panel

Master E-MEM +
Multi-Function
Satellite Panel

1 M/E Kayenne XL Panel

KAYAK HD FRAME WITH OPTIONAL KAYENNE XL CONTROL PANEL

The new, advanced Kayenne XL
panel is now available for Kayak HD
production switchers

Grass Valley’s new Kayenne technology is now available to
control the Kayak HD video processing frame.

The Kayak HD video processing frame can connect with a
range of state-of-the-art modular Kayenne XL control panels
including a local aux panel and a high-resolution touchscreen
menu panel.

Modular Control Panels

Each module of the Kayenne XL control panel snaps into
an extruded aluminum tray, is easily removable, and is
hot-swappable. This modularity provides multiple panel
configurations ranging in depth from 1 to 4 M/E stripes and
a choice of 35, 25, or 15 (on selected models) source select
buttons per row. The control panels are ergonomically designed
and can be mounted flat or in a banked curve.

Each source select and aux bus module has two rows of
OLED Source Name Displays that provide ultra-clear text and
extremely wide viewing angles. All buttons are illuminated with
a selection of RGB colors, which dynamically change to indicate
context (M/E colors, key colors, source colors, and function
colors). Many buttons also have programmable soft functions,
which are indicated by a four-character LED display above them,
such as those found on the innovative Multifunction Module.
Transition Modules have Enhanced Status Displays using easy
to read LEDs.

Panel Control Units

The Kayenne XL control panels run silently with no fan noise
as their CPUs are located remotely in a separate 3 RU panel
control unit (PCU).

Each PCU supports one or more control surfaces, limited by the
number of control ports on the PCU. A control surface typically
consists of M/E stripes, a local aux stripe, plus a touchscreen
menu panel with five control knobs. This may be augmented
with satellite panels consisting of one or two modules. Each
PCU has eight ports that connect to panel stripes or satellite
panels. The PCU can be mounted up to 15 meters from the main
panel.

Resource Sharing

A single panel may control multiple frames or devices.
The resources of a single frame may also be shared in a
collaborative mode between more than one panel—including a
mix of Kayenne XL and Kayak panels.

SYSTEM CONFIGURATION OPTIONS

A Kayak HD frame may be controlled by one or more panels. The panels may be a mix of Kayak and Kayenne XL.
A Kayak or Kayenne XL control panel may control more than one Kayak HD frame.

www.grassvalley.com

ORDERING INFORMATION

PRODUCT DATA SHEET

Options

KHDXL-PNL-xxx-xx

Kayenne XL control panel. Options 1, 2,
3, or 4 M/E, 15, 25, or 35 source buttons

KHD-RAMREC

Adds internal six-channel RAMRecorder
with standard capacity allowing
approximately 30 seconds of clip
playback in HD, 2 minutes, 45 seconds
in SD

KHD-RAMREC-WCPU

RAM Recorder with newer CPU module,
RAM module, and software license. For
systems in field with old CPU 6716630xx.
Replaces old CPU

KHDxxx-KLIPCACHE

Doubles RAMRecorder storage capacity
for clip lengths to ~1 minute in HD, 5
minutes 30 seconds in SD

KHDxxx-IDPM-x

Adds three iDPMs per M/E on keyers 2, 3
and 4. Order one per M/E

KHDxxx-KURL-x

Adds Kurl™ effects to all enabled DPMs
in one M/E. Includes page turn, page
roll, spheres, ripples, splits, mirrorssize
modulation, position modulation, and
slits

9

9

9

9

9

KHDxxx-PANEL

Various control panels for controlling 1,

1.5, 2, 2.5 or 3 M/Es, each can control
up to 4.5 M/Es with M/E delegation or
multiple panels

KHDxxx-SPEKTRA-x

9

Adds DPM Spektra lighting, defocus,
glow, and output recursive effects for all
enabled DPMs in one M/E

KHDxxx-RGB

9

Adds RGB color correction on every keyer,
background bus, and output

KHDxxx-CHROMA

9

Adds Dual Chromatte™ chroma keyers,
with flexible licenses allowing
assignment of chroma keys to any full
keyer

KHDxxx-NETCEN

Adds remote monitoring and diagnostic
support via NetCentral

9

™

software

KHD-PSU

Adds internal redundant power supply
unit for frame and panel (when powered
by frame)

KDD-PSU

Adds rack-mounted remote power supply
unit for remote, or additional, control
panels

KHDxxx-MDEF

Adds 2 MatchDef format converter
inputs. Converts SD or HD sources (up
to 8 in 4 RU models, up to 16 in 8 RU
models). Requires 1 M/E or IOXPAND
option for every 4 sources. Converters
act as frame synchronizers when not
converting

KHD-ADVKEY

Enables two additional linear/luminance
keyers: five and six in every full M/E

KHD-EDPM

Kayak HD/SD four-channel Digital Picture
Manipulator module and software for the
expansion slot in an 8 RU frame. Not for
the 4 RU frame. Spektra and Kurl must be
ordered separately

KHDxxx-SETDEF

SetDef dual video format converters for
converting two outputs of the switcher
from the production format to another
HD or SD format. One SetDef option for
every 12 outputs

9

9

9

9

KHD-IOXPAND

Adds 24 SDI inputs, 12 SDI outputs, 8 GPI
inputs, 32 GPI/tally outputs, and allows
up to 4 optional MatchDef scalar inputs.
Fits in any available M/E slot

KHD-HMEDSK-UPG

Adds:

Half M/E or 4 downstream keyers •
(DSKs) for full M/E systems (-100,

-200, -300, & -400 models)
4 DSKs for up to 20 keyers in 8 RU •

frame
4 DSKs for up to 12 keyers in 4 RU •

frame
Half M/E mode with A/B background •

mix and 4 lin/lum keyers

KHD-ME-UPG

Adds full M/E to any chassis with an
empty M/E slot. Order one or more for
total M/Es required

9

9-10

KAYENNE XL PANEL ORDERING INFORMATION

KHDXL-PNL-100-15

1 M/E panel with 15-button source •
selectors

Panel Control Unit•
Touchscreen menu panel•
One 15-button source select module •
One local E-MEM module•
One master E-MEM module •
One transition module•
One multifunction module •
System bar•
Manual set •
Cables•

9 Requires software license key.

10 The 4 RU chassis holds up to two M/E and/or I/O Expander modules. One M/E upgrade option can be added to a Kayak HD 1 M/E or 1.5 M/E frame if it does not also have an I/O Expander module.

The 8 RU chassis holds up to four M/E and/or I/O Expander modules. One or two upgrade options can be added to a Kayak HD or SD 2 M/E system, less any I/O Expander modules in the chassis.

KHDXL-PNL-200-xx

2 M/E panel with 25- or 35-button •
source selectors

Panel Control Unit•
Touchscreen menu panel•
Two 25- or 35-button source select •

modules
One 25- or 35-button local aux module•
Two local E-MEM modules•
One master E-MEM module•
Two transition modules•
One multifunction module•
System bar•
Manual set •
Cables•

KHDXL-PNL-300-xx

3 M/E panel with 25- or 35-button •
source selectors

Panel Control Unit•
Touchscreen menu panel•
Three 25- or 35-button source select •

modules
One 25- or 35-button local aux module•
Three local E-MEM modules •
One master E-MEM module•
Three transition modules •
One multifunction module•
System bar•
Manual set •
Cables•
One option slot (DCM shown)•

KHDXL-PNL-400-xx

4 M/E panel with 25- or 35-button •
source selectors

Panel Control Unit•
Touchscreen menu panel•
Four 25- or 35-button source select •

modules
One 25- or 35-button local aux module•
Four local E-MEM modules •
One master E-MEM module•
Four transition modules •
One multifunction module •
System bar•
Manual set •
Cables•
Two option slots (one DCM shown)•

PRODUCT DATA SHEET

CUSTOMER SUPPORT & SERVICES

Our customer support and services offerings ensure optimal system performance and maximize uptime. These services include call centers staffed around the clock, commissioning,
professional training courses, and technical maintenance programs and service agreements.

www.grassvalley.com/support

© Copyright 2011 Grass Valley USA, LLC. All rights reserved. Profile is a registered trademark and Grass Valley, Andromeda, Chromatte, Encore, FlexiKey,
Jupiter, Kalypso, Kayenne, Kurl, M-Series, MultiMix, NetCentral, RAMRecorder, Trinix, Triton, Turbo, Venus, and Zodiak are trademarks of GVBB Holdings
S.a.r.l. All other tradenames referenced are service marks, trademarks, or registered trademarks of their respective companies. Specifications subject to
change without notice. LPS-4012D-1
