Storage System

Instruction Manual

SOFTWARE VERSION 3.3

071-8461-05 June 2009

Affiliate with the N.V. KEMA in The Netherlands

CERTIFICATE

Certificate Number: 510040.001

The Quality System of:

Grass Valley, Inc.

400 Providence Mine Road Nevada City, CA 95945 United States

15655 SW Greystone Ct. Beaverton, OR 97006 United States

10 Presidential Way 3

Floor, Suite 300 Woburn, MA 01801 United States

Nederland B.V. 4800 RP BREDA The Netherlands

Weiterstadt, Germany Brunnenweg 9 D-64331 Weiterstadt Germany

Rennes, France Rue du Clos Courtel Cesson-Sevigne, Cedex France

Technopole Brest Iroise CS 73808 29238 Brest Cedex 3 France

17 rue du Petit Albi-BP 8244 95801 Cergy Pontoise Cergy, France

2300 South Decker Lake Blvd. Salt Lake City, UT 84119 United States

7140 Baymeadows Way Suite 101 Jacksonville, FL 32256 United States

Including its implementation, meets the requirements of the standard:

ISO 9001:2000

Scope: The design, manufacture and support of video hardware and software products and related systems.

This Certificate is valid until: June 14, 2009 This Certificate is valid as of: August 30, 2006 Certified for the first time: June 14, 2000

H. Pierre Sallé President KEMA-Registered Quality

The method of operation for quality certification is defined in the KEMA General Terms And Conditions For Quality And Environmental Management Systems Certifications. Integral publication of this certificate is allowed.

KEMA-Registered Quality, Inc.

4377 County Line Road Chalfont, PA 18914 Ph: (215)997-4519 Fax: (215)997-3809

CRT 001 073004

ccredited By:

ANAB

STORAGE SYSTEM

Instruction Manual

SOFTWARE VERSION 3.3

071-8461-05 JUNE 2009

of software © 2000 – 2009, Microsoft Corporation. All rights reserved. This document may not be copied in whole or in part, or otherwise reproduced except as specifically permitted under U.S. copyright law, without the prior written consent of Grass Valley, Inc., P .O. Box 59900, Nevada City, California 95959-7900. This product may be covered by one or more U.S. and foreign patents.

Disclaimer Product options and specifications subject to change without notice. The information in this

manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Grass Valley, Inc. Grass Valley, Inc. assumes no responsibility or liability for any errors or inacc uracies that may appear in this publication.

U.S. Government Restricted Rights Legend

Trademarks and Logos

Revision Status

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.277-7013 or in subparagraph c(1) and (2) of the Commercial Computer Software Restricted Rights clause at FAR 52.227-19, as applicable. Manufacturer is Grass Valley, Inc., P.O. Box 59900, Nevada City, California 95959-7900 U.S.A.

Grass Valley, K2, Aurora, Summit, Dyno, Infinity, Turbo, M-Series, Profile, Profile XP, NetCentral, NewsBrowse, NewsEdit, NewsQ, NewsShare, NewsQ P ro, and Media Manager are either registered trademarks or trademarks of Grass Valley, Inc . in the United State s and/ or other countries. Grass Valley, Inc. products are covered by U.S. and foreign patents, issued and pending. Additional information regarding Grass Valley, Inc. trademarks and other proprietary rights may be found at www.thomsongrassvalley.com.

ment

Other trademarks and logos used in this docu trademarks of the manufacturers or vendors of the associated products, such as Microsoft® Windows® operating system, Windows Media® play er, Internet Explorer® internet browser, and SQL Server™. QuickTime and the QuickTime logo are trademarks or registered trademarks of Apple Computer, Inc., used under license therefrom.

Rev Date Description

November 23, 2005

Initial release of the K2 Storage System Instruction Manual — 071-8461-00

are either registered trademarks or

September 6, 2006

July 3, 2007 Revisions for software release 3.2 — 071-8461-02 September 7,

2007 July 15, 2008 Add L35, update procedures for expansion, K2 appliances —

June 25, 2009 Add

Revisions for software release 3.1 — 071-8461-01

Added Lx0 RAID, multiple K2 Media Server types, and revised for software release 3.2.5 — 071-8461-03

071-8461-04

K2 FCP Connect and other information for software release 3.3

— 071-8461-05

4 K2 Storage System Instruc tion Manual June 25, 2009

Contents

Safety Summaries..............................................................................................13

Finding Information...........................................................................................27

Grass Valley Product Support.................................................................................32

Telephone Support.............................................................................................32

Chapter 1 Product Description

Overview Description..............................................................................................36

Key features............................................................................................................36

Chapter 2 Installing the Level 10 Storage System

Level 10 description................................................................................................40

Preparing Level 10 devices.....................................................................................41

Setting up the Control Point PC..........................................................................41

Setting up the Level 10 Gig E switch..................................................................42

Cabling the switch..............................................................................................53

Setting up the Level 10 K2 Media Server...........................................................53

Setting up the L10 RAID chassis........................................................................54

Preparing K2 Storage System clients.................................................................56

K2 configuration and NetCentral............................................................................56

Networking for Level 10...........................................................................................58

Networking requirements....................................................................................58

Networking tips...................................................................................................59

Setting up host tables.........................................................................................60

Testing the control network ................................................................................61

Configuring the Level 10 storage system................................................................62

Prerequisites for initial configuration...................................................................62

Defining a new K2 Storage System....................................................................63

Configuring the server - Part 1 ...........................................................................65

Configuring RAID................................................................................................67

Creating a new file system.................................................................................72

Configuring the server - Part 2 ...........................................................................74

Adding K2 Storage System clients..........................................................................76

Basic operations for the Level 10 storage system...................................................76

Level 10 storage system power-off proced ure..................................... ...... ..... ...76

Level 10 system power-on procedure ................................................................78

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 79

Powering on the HP ProCurve switch ................................................................79

Powering on the control point PC.......................................................................80

................................................................................................................................80

Chapter 3 Installing the Level 10R Storage System

Level 10R description..............................................................................................82

Preparing Level 10R devices ..................................................................................83

Setting up the Control Point PC..........................................................................83

Setting up the Level 10R Gig E switch...............................................................84

Cabling the switch..............................................................................................96

Setting up the Level 10R K2 Media Server ........................................................97

Setting up the L10R RAID chassis.....................................................................98

Preparing K2 Storage System clients.................................................................100

K2 configuration and NetCentral............................................................................100

Networking for Level 10R........................................................................................102

Networking requirements....................................................................................102

Networking tips...................................................................................................103

Setting up host tables.........................................................................................104

June 25, 2009 K2 Storage System Instruction Manual 5

Contents

Testing the control network................................................................................ 105

Configuring the Level 10R storage system............................................................. 107

Prerequisites for initial configuration ..................................................................107

Defining a new K2 Storage System....................................................................108

Configuring server A - Part 1..............................................................................110

Configuring RAID ............................................................................................... 112

Creating a new file system.................................................................................118

Configuring server A - Part 2..............................................................................120

Configuring the redundant server....................................................................... 123

Adding K2 Storage System clients.......................................................................... 127

Basic operations for the Level 10R storage system................................................ 128

Level 10R storage system power-off proced ure....................... ...... ..... ............... 128

Level 10R system power-on procedure..............................................................130

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 132

Powering on the HP ProCurve switch................................................................ 132

Powering on the control point PC.......................................................................133

Failover behaviors..............................................................................................134

................................................................................................................................138

Chapter 4 Installing the Level 20 Storage System

Level 20 description................................................................................................ 140

Preparing Level 20 devices.....................................................................................141

Setting up the Control Point PC......................................................................... 141

Setting up the Level 20 Gig E switch.................................................................. 142

Cabling the switch.............................................................................................. 153

Setting up the Level 20 K2 Media Server........................................................... 153

Setting up the NH1 K2 Media Server.................................................................154

Setting up the NH1-10GE K2 Media Server.......................................................155

Setting up the L20 RAID chassis........................................................................ 156

Preparing K2 Storage System clients.................................................................157

K2 configuration and NetCentral............................................................................158

Networking for Level 20..........................................................................................159

Networking requirements ................................................................................... 159

Networking tips................................................................................................... 160

Setting up host tables.........................................................................................161

Testing the control network................................................................................ 162

Configuring the Level 20 storage system................................................................163

Prerequisites for initial configuration ..................................................................163

Defining a new K2 Storage System....................................................................164

Configuring the server - Part 1...........................................................................166

Configuring RAID ............................................................................................... 168

Creating a new file system.................................................................................173

Configuring the server - Part 2...........................................................................175

Configuring optional NH servers ........................................................................ 177

Adding K2 Storage System clients.......................................................................... 180

Basic operations for the Level 20 storage system ..................................................180

Level 20 storage system power-off proced ure...................................................180

Level 20 system power-on procedure................................................................ 182

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 183

Powering on the HP ProCurve switch................................................................ 183

Powering on the control point PC.......................................................................184

................................................................................................................................184

Chapter 5 Installing the Level 20R Storage System

Level 20R description.............................................................................................. 186

Preparing Level 20R devices.................................................................................. 187

Setting up the Control Point PC......................................................................... 187

6 K2 Storage Sy stem Instruction Manual June 25, 2009

Setting up the Level 20R Gig E switch...............................................................188

Cabling the switch..............................................................................................200

Setting up the Level 20R K2 Media Server ........................................................201

Setting up the NH1 K2 Media Server .................................................................202

Setting up the NH1-10GE K2 Media Server.......................................................203

Setting up the L20R RAID chassis.....................................................................204

Preparing K2 Storage System clients.................................................................205

K2 configuration and NetCentral............................................................................206

Networking for Level 20R........................................................................................208

Networking requirements....................................................................................208

Networking tips...................................................................................................209

Setting up host tables.........................................................................................210

Testing the control network ................................................................................212

Configuring the Level 20R storage system.............................................................213

Prerequisites for initial configuration...................................................................213

Defining a new K2 Storage System....................................................................214

Configuring server A - Part 1..............................................................................216

Configuring RAID................................................................................................218

Creating a new file system.................................................................................224

Configuring server A - Part 2..............................................................................226

Configuring the redundant server.......................................................................229

Configuring optional NH servers.........................................................................233

Adding K2 Storage System clients..........................................................................236

Basic operations for the Level 20R storage system................................................237

Level 20R storage system power-off proced ure.............................................. ...237

Level 20R system power-on procedure..............................................................239

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 241

Powering on the HP ProCurve switch ................................................................241

Powering on the control point PC.......................................................................242

Failover behaviors..............................................................................................243

................................................................................................................................247

Chapter 6 Installing the Level 30 Storage System

Level 30 description................................................................................................250

Preparing Level 30 devices.....................................................................................251

Setting up the Control Point PC..........................................................................251

Setting up the Level 30 Gig E switch..................................................................252

Cabling the switch..............................................................................................263

Setting up the Level 30 K2 Media Server...........................................................263

Setting up the NH1 K2 Media Server .................................................................264

Setting up the NH1-10GE K2 Media Server.......................................................265

Setting up the L30 RAID chassis........................................................................266

Preparing K2 Storage System clients.................................................................267

K2 configuration and NetCentral............................................................................268

Networking for Level 30...........................................................................................270

Networking requirements....................................................................................270

Networking tips...................................................................................................271

Setting up host tables.........................................................................................272

Testing the control network ................................................................................273

Configuring the Level 30 storage system................................................................275

Prerequisites for initial configuration...................................................................275

Defining a new K2 Storage System....................................................................276

Configuring the server - Part 1 ...........................................................................278

Configuring RAID................................................................................................280

Creating a new file system.................................................................................285

Configuring the server - Part 2 ...........................................................................287

Configuring optional NH servers.........................................................................289

June 25, 2009 K2 Storage System Instruction Manual 7

Contents

Adding K2 Storage System clients.......................................................................... 292

Basic operations for the Level 30 storage system ..................................................292

Level 30 storage system power-off proced ure...................................................292

Level 30 system power-on procedure................................................................ 294

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 295

Powering on the HP ProCurve switch................................................................ 295

Powering on the control point PC.......................................................................296

................................................................................................................................296

Chapter 7 Installing the Level 30R Storage System

Level 30R description.............................................................................................. 298

Preparing Level 30R devices.................................................................................. 299

Setting up the Control Point PC......................................................................... 299

Setting up the Level 30R Gig E switch............................................................... 300

Cabling the switch.............................................................................................. 312

Setting up the Level 30R K2 Media Server........................................................ 313

Setting up the NH1 K2 Media Server.................................................................314

Setting up the NH1-10GE K2 Media Server.......................................................315

Setting up the L30R RAID chassis..................................................................... 316

Preparing K2 Storage System clients.................................................................317

K2 configuration and NetCentral............................................................................318

Networking for Level 30R........................................................................................ 320

Networking requirements ................................................................................... 320

Networking tips................................................................................................... 321

Setting up host tables.........................................................................................322

Testing the control network................................................................................ 324

Configuring the Level 30R storage system............................................................. 325

Prerequisites for initial configuration ..................................................................325

Defining a new K2 Storage System....................................................................326

Configuring server A - Part 1..............................................................................328

Configuring RAID ............................................................................................... 330

Creating a new file system.................................................................................336

Configuring server A - Part 2..............................................................................338

Configuring the redundant server....................................................................... 341

Configuring optional NH servers ........................................................................ 345

Adding K2 Storage System clients.......................................................................... 348

Basic operations for the Level 30R storage system................................................ 349

Level 30R storage system power-off proced ure....................... ...... ..... ............... 349

Level 30R system power-on procedure..............................................................351

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 353

Powering on the HP ProCurve switch................................................................ 353

Powering on the control point PC.......................................................................354

Failover behaviors..............................................................................................355

................................................................................................................................359

Chapter 8 Installing the Nearline 10 Storage System

Nearline 10 description ................................................ .................................. ...... ...362

Preparing nearline 10 devices................................................................................. 363

Setting up the Control Point PC......................................................................... 364

Setting up the Nearline 10 Gig E switch............................................................. 365

Cabling the switch.............................................................................................. 373

Setting up the NH1 K2 Media Server for Nearline............................................375

Setting up the NH1-10GE K2 Media Server for Nearline................................... 376

Installing Multi-Path I/O Software on NL10R K2 Media Servers........................ 377

Setting up the Nearline 10 RAID chassis........................................................... 378

Networking for nearline 10...................................................................................... 382

Networking requirements ................................................................................... 382

8 K2 Storage Sy stem Instruction Manual June 25, 2009

Networking tips...................................................................................................382

Setting up host tables.........................................................................................383

Testing the control network ................................................................................384

Configuring the nearline 10 storage system............................................................386

Prerequisites for initial configuration...................................................................386

Defining a new K2 Storage System....................................................................387

Configuring the NH server - Part 1.....................................................................389

Configuring RAID................................................................................................392

Creating a new file system.................................................................................396

Configuring the NH server - Part 2.....................................................................397

Configuring the second NH server for NL10R....................................................398

............................................................................................................................402

Basic operations for the nearline 10 storage system ..............................................402

Nearline 10 storage system power-off procedure...............................................402

Nearline 10 system power-on procedure............................................................404

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices.............. 405

Powering on the HP ProCurve switch ................................................................405

Powering on the control point PC.......................................................................406

Using FTP for file transfer...................................................................................406

................................................................................................................................407

Chapter 9 Description of K2 Storage Devices

Control point PC description....................................................................................410

K2 Ethernet switch description................................................................................411

K2 Ethernet switch specifications.......................................................................411

K2 Media Server descriptions .................................................................................413

GS K2 Media Server description........................................................................414

GS K2 Media Server specifications....................................................................414

LS K2 Media Server description.........................................................................415

LS K2 Media Server specifications.....................................................................415

NH K2 Media Server...........................................................................................416

NH K2 Media Server specifications....................................................................417

K2 RAID storage description...................................................................................418

Chapter 10 Overview of K2 Storage Tools

K2 System Configuration.........................................................................................419

Server Control Panel...............................................................................................421

Storage Utility..........................................................................................................421

About RANKs and LUNs in Storage Utility.........................................................422

NetCentral...............................................................................................................423

Windows Remote Desktop Connectio n...................................................................423

................................................................................................................................424

Chapter 11 Managing K2 software

About K2 software......................................................... ...... ..... ...... ..... ....................426

Software components installed...........................................................................427

Pre-installed software..............................................................................................427

................................................................................................................................428

Backup and recovery strategies..............................................................................429

About the recovery disk image process..............................................................429

Creating a recovery disk image for storing on E:................................................431

Creating a recovery disk image CD set..............................................................432

Restoring from a system-specific recovery disk image on E:.............................434

Restoring from the generic recovery disk image on E:.......................................435

Restoring from a recovery disk image CD set....................................................439

Activating the Windows operating system..........................................................441

June 25, 2009 K2 Storage System Instruction Manual 9

Contents

Chapter 12 FTP on the K2 Storage System

About the K2 FTP interface..................................................................................... 443

FTP commands supported.................................................................................444

FTP security....................................................................................................... 444

About networks and FTP......................................................................................... 444

Sample network configuration and hosts file...................................................... 444

Chapter 13 GV Connect access for Final Cut Pro systems

About K2 FCP Connect..................................... ...... ..... .................................. ...... ...448

Install and configure Macintosh Final Cut Pro systems on a K2 SAN..................... 448

Final Cut Pro on K2 SAN installation checklist................................................... 448

K2 SAN System Requirements..........................................................................449

Macintosh System Requirements.......................................................................449

Licensing K2 FCP Connect on the K2 SAN .......................................................450

Cable Macintosh systems ..................................................................................452

Configure Macintosh systems for control network..............................................452

Install Xsan software.......................................................................................... 452

Install K2 FCP Connect software on Macintosh systems................................... 453

Add Macintosh systems to SAN hosts file.......................................................... 453

Configure Macintosh hosts files .........................................................................453

Add Mac Client to K2 SAN................................................................................. 455

Configure Mac Client on K2 SAN....................................................................... 455

Test K2 SAN file access..................................................................................... 458

Configure HotBin................................................................................................ 459

About QuickTime import delay........................................................................... 459

Using Final Cut Pro on a K2 SAN...........................................................................459

Operation guidelines..........................................................................................460

Media access ..................................................................................................... 460

Export to K2 SAN............................................................................................... 460

Maintaining K2 FCP Connect..................................................................................460

About the GV Helper Tool.................................................................................461

Managing K2 FCP Connect licenses..................................................................461

Stopping and starting the K2Config for Mac Daemon service...........................462

Accessing logs ...................................................................................................462

Chapter 14 Administering and maintaining the K2 Storage System

Setting up application security ................................................................................466

Virus scanning and protection policies....................................................................467

Ports used by K2 services....................................................................................... 468

Modifying K2 Storage System settings ...................................................................469

Accessing K2 Storage System features................................... ...... .................... 469

Renaming a K2 Storage System........................................................................ 469

Adding devices to a K2 Storage System............................................................470

Removing a K2 Storage System ........................................................................472

Accessing a K2 Storage System from multiple PCs...........................................472

Reconnecting to a K2 Storage System .............................................................. 473

Taking a K2 Storage System offline...................................................................473

Bringing a K2 Storage System online.................................................................474

Viewing iSCSI assignments ............................................................................... 474

Managing redundancy on a K2 Storage System..................................................... 475

Identifying current primary/backup K2 Media Servers........................................475

Triggering an intentional failover........................................................................ 477

Working with K2 Media Servers..............................................................................479

Accessing K2 Media Server features................................................................. 479

Taking a K2 Media Server out of service ........................................................... 479

Using the Stop button in Server Control Panel................................................... 481

Placing a K2 Media Server in service.................................................................481

10 K2 Storage System Instruction Manual June 25, 2009

Shutting down or restarting a K2 Media Server..................................................482

Identifying K2 Media Server software versions..................................................482

Modifying K2 Media Server network settings .....................................................483

Removing a K2 Media Server.............................................................................484

Replacing a K2 Media Server.............................................................................484

Replacing an iSCSI interface adapter (TOE card)..............................................486

Installing the Fibre Channel card driver..............................................................487

Recovering from a failed K2 Media Server system battery ................................489

Checking K2 Media Server services...................................................................490

Disabling OpForce..............................................................................................491

Working with K2 Media Clients................................................................................493

Accessing K2 Media Client features...................................................................493

Shutting down or restarting a K2 Media Client...................................................493

Taking a K2 Media Client offline.........................................................................494

Bringing a K2 Media Client online ......................................................................494

Adding a K2 Media client....................................................................................494

Removing a K2 Media Client..............................................................................495

Identifying K2 Media Client software ve rsi ons....................................................495

Modifying K2 Media Client control network settings...........................................496

Modifying K2 Media Client media (iSCSI) network settings ...............................496

Modifying load balancing....................................................................................496

Working with K2 appliances....................................................................................497

About K2 appliances...................................... ..... .................................. ...... ..... ...497

K2 appliance system requirements ....................................................................497

Adding a K2 appliance........................................................................................498

Identifying K2 appliance software versions........................................................500

Modifying K2 appliance control network settings................................................500

Modifying K2 appliance media (iSCSI) network settings....................................501

Modifying load balancing....................................................................................501

Working with the K2 Coder......................................................................................502

About the K2 Coder............................................................................................502

Installing the K2 Coder.......................................................................................504

Configuring the K2 Coder...................................................................................505

Using the K2 Coder............................................................................................513

Using Storage Utility................................................................................................514

Accessing Storage Utility....................................................................................514

Overview of Storage Utility .................................................................................515

Working on the media file system and database.....................................................516

Checking the media file system..........................................................................516

Cleaning unreferenced files and movies ............................................................517

Making a new media file system.........................................................................517

Expanding the media file system by capacity.....................................................519

Expanding the media file system by bandwidth..................................................521

Backing up the media database.........................................................................526

Working with RAID storage.....................................................................................543

Checking RAID storage subsystem status.........................................................543

Checking controller microcode...........................................................................544

Identifying disks..................................................................................................544

Get controller logs ................................................................................ ...... ........547

Unbind RANK.....................................................................................................547

About full/background bind.............................................................................. ...548

Bind RANK .........................................................................................................549

Binding Hot Spare drives....................................................................................551

Loading RAID controller microcode ....................................................................551

Downloading disk drive firmware........................................................................552

Replacing a disk module ....................................................................................553

Replacing a controller.........................................................................................554

June 25, 2009 K2 Storage System Instruction Manual 11

Contents

Upgrading to L30 controllers.............................................................................. 555

Configuring Level 2 RAID chassis network and SNMP settings......................... 556

Configuring Level 3, 10, 20, 30 RAID chassis network and SNMP settings.......557

Working with Ethernet switches.............................................................................. 559

Design considerations for Ethernet switches..................................................... 559

Configuring a switch through the K2 Configuration application.......................... 560

Verifying spanning tree settings..............................................................................561

Check the firmware version................................................................................561

Check spanning tree settings.............................................................................561

Configure RSTP.................................................................................................562

Enable spanning tree.........................................................................................563

Appendix A Level 35 K2 Storage System

L35 system description ...........................................................................................566

L35 cabling..............................................................................................................568

L35 network configuration.......................................................................................569

L35 K2 Storage System configuration..................................................................... 570

Index...................................................................................................................... 571

12 K2 Storage System Instruction Manual June 25, 2009

Safety Summaries

Read the following sections for impor tant safety in formation.

• Safety Summary

• Sicherheit – Überblick

• Consignes desécurité

• Certificat ions and compliances

June 25, 2009 K2 Storage System Instruction Manual 13

Safety Summaries

Safety Summary

Read and follow the important safety information below, noting especially those instructions related to risk of fir e, electric shock or injury to persons. Additi onal specific warnings not listed here may be found throughout the manual.

Safety terms and symbols

Terms in this manual

Safety-rel ated stateme nts may appear in this man ual in the foll owing form:

WARNING: Any instructions i n this manual that re quire opening the equipment cover or enclosure are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

WARNING: Warning statements identi fy conditi ons or practices that may result in personal injury or loss of li fe.

CAUTION: Caution statements identify conditions or practices that may result in damage to equipment or other property, or which may cause equipment crucial to your business environment to become temporarily non-operational.

Terms on the product

These terms may appear on the product:

DANGER — A personal injury hazard is immediately accessible as you read the

marking.

WARNING — A personal injury hazar d exists but is not immediat ely accessible as you

read the marking.

CAUTION — A hazard to property, product, and other equipment is present.

Symbols on the product

The following symbols may appear on the product:

Indicates that dangerous high voltage is present within the equipment enclosure that may be of sufficient magnitude to constitute a risk of elec tric shock.

Indicates that user, operator or service technician should refer to product manual(s) for important operating, maintenance, or service instructions.

This is a prompt to n ote fuse rating when rep lacing fuse(s). The fuse referenced in the text must be replaced with one having the ratings indicated.

14 K2 Storage System Instruction Manual June 25, 2009

Warnings

The following warning statements identify conditions or practices that can result in personal injury or loss of life.

Dangerous voltage or current may b e present — Disconnec t power and remove battery

(if applicable) before removing protective panels, soldering, or replacing components.

Do not service alone — Do not internally service this product unless another person

capable of rendering first aid and resuscitation is present.

Remove jewelry — Prior to servicing, remove jewelry such as rings, wat ches, and

other metallic objects.

Identifies a prote ctive grounding terminal wh ich must be connected to earth ground prior to making any other equipment connections.

Identifies an external protec tive gro unding te rminal whi ch may be connected to earth ground as a supple ment to an internal grounding terminal.

Indicates that static sensitiv e components are pres ent which may be damaged by electrostatic discharge. Use anti-static procedures, equipment and surfaces during servicing.

Avoid exposed circuitry — Do not touch exposed connections, components or

circuitry when power is present.

Use proper power cord — Use only the power cord supplied or specified for this

product.

Ground product — Connect the grounding conductor of the power cord to earth

ground.

Operate only with covers and enclo sure panels in plac e — Do not opera te this pr oduct

when covers or enclosure panels are removed.

Use correct fuse — Use only the fuse type and rating specified for this produc t. Use only in dry environment — Do not operate in wet or damp conditions. Use only in non-explosive environment — Do no t ope rate th is pr oduct in a n explos ive

atmosphere.

High leakage current may be present — Earth connect ion of product is essenti al before

connecting power.

Dual power supplies ma y be present — Be ce rtain to plug each power s upply cord into

a separate bra nch circuit employ ing a separate service ground. Disconnect both power supply cords prior to servicing.

Double pole neutral fusing — Disconnect mains power prior to servicing. Use proper lift points — Do not use door latches to lift or move equipment. Avoid mechanical hazards — Allow all rotating devices to come to a stop before

servicing.

June 25, 2009 K2 Storage System Instruction Manual 15

Safety Summaries

Cautions

The following caution statements identify conditions or practices that can result in damage to equipment or other property

Use correct power source — Do not operate this product from a power source that

applies more than the voltage specified for the product.

Use correct voltage setting — If this product lacks auto-ranging power supplies,

before applying power ensure that the each power supply is set to match the power source.

Provide proper ventilation — To prevent product overheating, provide equipment

ventilation in accordance with installation instructions.

Use anti-static procedures — Static sensitive components are present which may be

damaged by electrostatic discharge. Use anti-static procedures, equipment and surfaces during servicing.

Do not operate with suspected equipment failure — If you suspec t pro duct damage or

equipment failure, have the equipment inspected by qualified service personnel.

Ensure mains disconnect — If mains switch is not provided, the power cord(s) of this

equipment provide the means of disconnection. The socket outlet must be installed near the equipment and must be easily accessible. Verify that all mains power is disconnected before installing or removing power supplies and/or options.

Route cable properly — Route powe r cords and other cabl es so tha t they ar not likel y

to be damaged. Properly support heavy cable bundles to avoid connector damage.

Use correct power supply co rds — P ower cord s fo r this equipmen t, i f provi ded, me et

all North American electrical codes. Operation of this equipment at voltages exceeding 130 VAC requires power supply cords which comply with NEMA configurations. International power cords, if provided, have the approval of the country of use.

Use correct replacemen t batter y — This pr oduct may conta in bat teri es. To r educe t he

risk of explosion, check polarity and replace only with the same or equivalent type recommended by manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Troubleshoot only to board level — Circuit boards in this product are densely

populated with surfac e mount technology (SMT) components and application specific integrated circuits (ASICS). As a result, circuit board repair at the component level is very difficult in the field, if not impossible. For warranty compliance, do not troubleshoot systems beyond the board level.

16 K2 Storage System Instruction Manual June 25, 2009

Sicherheit – Über bl ick

Lesen und befolgen Sie die wichtigen Sicherheitsinformationen dieses Abschnitts. Beachten Sie insbesondere die Anweisungen bezüglich

Brand-, Stromschlag- und Verletzungsgefahren. Weitere spezifische, hier nicht aufgeführte Warnungen finden Sie im gesamten Handbuch.

WARNUNG: Alle Anweisungen in diesem Handbuch, die das Abnehmen der Geräteabdeckung oder des Gerätegehäuses erfordern, dürfen nur von qualifiziertem Servicepersonal ausgeführt werden. Um die Stromschlaggefahr zu verringern, führen Sie keine Wartungsarbeiten außer den in den Bedienungsanleitungen genann ten Arbeiten aus, es se i denn, Sie besitzen d ie entsprechende Qualifikation en für diese Arbeiten.

Sicherheit – Begriffe und Symbole

In diesem Handbuch verwendete Begriffe

Sicherheitsrelevante Hinweise können in diesem Handbuch in der folgenden Form auftauchen:

WARNUNG: Warnungen weisen auf Situationen oder Vorgehensweisen hin, die Verletzungs- oder Lebensgefahr bergen.

VORSICHT: Vorsichtshinweise weisen auf Situationen oder Vorgehensweisen hin, die zu Schäden an Ausrüstungskomponenten oder an deren Gegenständen oder zum zeitweisen Ausfall wichtiger Komponenten in der Arbeitsumgebung führen können.

Hinweise am Produkt

Die folgenden Hinweise können sich am Produkt befinden:

GEFAHR – Wenn Sie diesen Begriff lesen, besteht ein unmittelbares

Verletzungsrisiko.

WARNUNG – Wenn Sie diesen Begriff lesen, besteht ein mittelbares

Verletzungsrisiko.

VORSICHT – Es besteht ein Risiko für Objekte in der Umgebung, den Mixer selbst

oder andere Ausrüstungskomponenten.

Symbole am Produkt

Die folgenden Symbole können sich am Produkt befinden:

Weist auf eine gefährliche Hochspannung im Gerätegehäuse hin, die stark genug sein kann, um eine Stromsch laggefahr darzustel len.

June 25, 2009 K2 Storage System Instruction Manual 17

Safety Summaries

Weist darauf hin, dass der Benutzer, Bediener oder Servicetechniker wichtige Bedienungs-, Wartungs- oder Serviceanweisungen in den Produkthandbüchern lesen sollte.

Dies ist eine Aufforderung, beim Wechsel von Sicherungen auf deren Nennwert zu achten. Die im Text angegebene Sicherung muss durch eine Sicherung ersetzt werden, die die angegebenen Nennwerte besitzt.

Weist auf eine Schutzerdungsklemme hin, die mit dem Erdungskontakt verbunden werden muss, bevor weitere Ausrüstungskomponenten angeschlossen werden.

Weist auf eine externe Schutzerdungsklemme hin, die als Ergänzung zu einem internen Erdungskontakt an die Erde angeschlossen werden kann.

Weist darauf hin, dass es stati sch empfindlic he Komponenten gibt, die durch eine elektrostatische Entladung beschädigt werden können. Verwenden Sie ant i sta ti sc he Pr ozeduren, Ausrüstung und Oberflächen während der Wartung.

Warnungen

Die folgenden Warnungen weisen auf Bedingungen oder Vorgehensweisen hin, die Verletzungs- oder Lebensgefahr bergen:

Gefährliche Spannungen oder Ströme – Schal ten Sie de n Strom ab, un d entfe rnen Sie

ggf. die Batterie, bevor si e Schut za bdeckungen abnehmen, löten oder Kompone nte n austauschen.

Servicearbeiten nic ht alleine ausführen – Führen Sie interne Servicearbeiten nur aus,

wenn eine weitere Person anwesend ist, die erste Hilfe leisten und Wiederbelebungsmaßnahmen einleiten kann.

Schmuck abnehmen – Legen Sie vor Servicearbe iten Schmuck wie Ring e, Uhren und

andere metallische Objekte ab.

Keine offen liegenden Leiter berühren – Berühre n Sie bei eingesc haltete r Stromzuf uhr

keine offen liegenden Leitungen, Komponenten oder Schaltungen.

Richtiges Netzkabel verwenden – Verwenden Sie nur das mitgeliefert e Netzkabel ode r

ein Netzkabel, das den Spezifikationen für dieses Produkt entspricht.

Gerät erden – Schließen Sie den Erdleiter des Netzkabels an den Erdungskontakt an. Gerät nur mit angebrachten Abdeckungen und Gehä useseiten betreiben – Sc halten Sie

dieses Gerät nicht ein, wenn die Abdeckungen oder Gehäuseseiten entfernt wurden.

Richtige Sicherung verwenden – Verwenden Sie nur Sicherungen, deren Typ und

Nennwert den Spezifikationen für dieses Produkt entsprechen.

Gerät nur in trockener Umgebung verwen den – Betreiben Si e das Gerät nicht in nassen

oder feuchten Umgebungen.

Gerät nur verwenden, wenn keine Explosionsgefahr besteht – Verwenden Sie dieses

Produkt nur in Umgebungen, in denen keinerlei Explosionsgefahr besteht.

18 K2 Storage System Instruction Manual June 25, 2009

Hohe Kriechströme – Das Gerät muss vor dem Ein schalten unbe dingt gee rdet werd en. Doppelte Spannungsversorgung kann vorhanden sein – Schließen Sie die beide n

Anschlußkabel an getrennte Stromkreise an. Vor Servicearbeiten sind beide Anschlußkabel vom Netz zu trennen.

Zweipolige, neutrale Sicherung – Schalten Sie den Netzstrom ab, bevor Sie mit den

Servicearbeiten beginnen.

Fassen Sie das Gerät beim Transport richtig an – Halten Sie das Ger ät beim Transpo rt

nicht an Türen oder anderen beweglichen Teilen fest.

Gefahr durch mechanische Teile – Warten Sie, bis der Lüfter vollständig zum Halt

gekommen ist, bevor Sie mit den Servicearbeiten beginnen.

Vorsicht

Die folgenden Vorsichtshinweise weisen auf Bedingungen oder Vorgehensweisen hin, die zu Schäden an Ausr üstungsko mponente n oder anderen Gegenstände n führen können:

Gerät nicht öffnen – Durch das unbefugte Öffnen wird die Garantie ungültig. Richtige Spannungsquelle verwenden – Betreiben Sie das Gerät nicht an einer

Spannungsquelle, die eine höhere Spannung liefert als in den Spezifikationen für dieses Produkt angegeben.

Gerät ausreichend belüften – Um eine Überhitzung des Geräts zu ve rmeiden , müss en

die Ausrüstungskomponenten entsprechend den Installationsanweisungen belüftet werden. Legen Sie kein Papier unter das Gerät. Es könnte die Belüftung behindern. Platzieren Sie das Gerät auf einer ebenen Oberfläche.

Antistatische Vorkehrungen treffen – Es gi bt stati sch empfindl iche Komponenten, d ie

durch eine elektrostatische Entladung beschädigt werden können. Verwenden Sie antistatische Prozeduren, Ausrüstung und Oberflächen während der Wartung.

CF-Karte nicht mit einem PC verwenden – Die CF-Karte ist speziell formatiert. Die auf

der CF-Karte gespeicherte Software könnte gelöscht werden.

Gerät nicht bei eventuellem Ausrüstungsfehler betreiben – Wenn Sie einen

Produktschaden oder Ausrüstungsfehler vermuten, lassen Sie die Komponente von einem qualifizierten Servicetechniker untersuchen.

Kabel richtig verle gen – Verlegen Sie Netzkabel und andere Kabel so, dass Sie nicht

beschädigt werden. Stützen Sie schwere Kabelbündel ordnungsgemäß ab, damit die Anschlüsse nicht beschädigt werden.

Richtige Netzkabel verwenden – Wenn Netzkabel mitgeliefert wurden, erfüllen diese

alle nationalen elektri schen Normen. Der Betri eb dieses Geräts mit Spann ungen über 130 V AC erfordert Netzkabel, die NEMA-Konfigurationen entsprechen. Wenn internationale Netzkabel mitgeliefert wurden, sind diese für das Verwendungsland zugelassen.

Richtige Ersatzbatterie verwenden – Dieses Gerät enthä lt eine Batter ie. Um die

Explosionsgefahr zu verringern, prüfen Sie di e Polarität und taus chen die Batterie nur gegen eine Batterie desselben Typs oder eines gleichwertigen, vom Hersteller empfohlenen Typs aus. Entsorgen Sie gebrauchte Batterien entsprechend den Anweisungen des Batterieherstellers.

June 25, 2009 K2 Storage System Instruction Manual 19

Safety Summaries

Das Gerät enthält keine Teile, die vom Benutzer gewartet werden können. Wenden Sie sich bei Problemen bitte an den nächsten Händler.

20 K2 Storage System Instruction Manual June 25, 2009

Consignes desécurité

Il est recommandé de lire, de bi en comprendre et s urtout de respe cter les in formations relatives à la sécurité qui sont exposées ci-après, notamment les consignes destinées à prévenir les risques d’incendie, les décharges électriques et les blessures aux personnes. Les avertissements complémentaires, qui ne sont pas nécessairement repris ci-dessous, mais pré sents da ns toute s les se ctions du manue l, sont éga leme nt à prendre en considération.

AVERTISSEMENT: Toutes les instructions présentes dans ce manuel qui concernent l’ouverture des capots ou des logements de cet équipement sont destinées exclusivement à des membres qualifiés du personnel de maintenance. Afin de diminuer les risques de décharges électriques, ne procédez à aucune intervention d’entre t ien autre que celles contenues dans le manuel de l’utilisateur, à moins que vous ne soyez habilité pour le faire.

Consignes et symboles de sécurité

Termes utilisés dans ce manuel

Les consignes de sécurité présentées dans ce manuel peuvent apparaître sous les formes suivantes :

AVERTISSEMENT: Les avertissements signalent des conditions ou des pratiques suscepti bles d’occas ionner des bles sures graves, voire même fatales.

MISE EN GARDE: Les mises en ga rde signalent des conditions ou des pratiques suscept ibles d’ occasionner un endommagement à l’équipement ou aux installations, ou de rendre l’équipement temporairement non opérationnel, ce qui peut por ter préjudice à vos activi tés.

Signalétique apposée sur le produit

La signalétique suivante peut être apposée sur le produit :

DANGER — risque de danger imminent pour l’utilisateur. AVERTISSEMENT — Risque de danger non imminent pour l’utilisateur. MISE EN GARDE — Risque d’endommagement du produit, des installations ou des

autres équipements.

Symboles apposés sur le produit

Les symboles suivants peut être apposés sur le produit :

Signale la présence d’une tension élevée et dangereuse dans le boîtier de l’équipement ; cette tension peut être suffisante pour constituer un risque de décharge électrique.

June 25, 2009 K2 Storage System Instruction Manual 21

Safety Summaries

Signale que l’utilisateur, l’ opérateur ou le technicien de maintenance doit faire référence au(x) manuel(s) pour prendre connaissance des instructions d’utilisation, de maintenance ou d’entretien.

Il s’agit d’une invite à prendre note du calibre du fusible lors du remplacement de ce dernier. Le fusible auquel il est fait référence dans le texte doit être remplacé par un fusible du même calibre.

Identifie une borne de protection de mise à la masse qui doit être raccordée correctement avant de procéder au raccordement des autres équipements.

I dentifie une borne de protection de mise à la masse qui peut être connectée en tant que borne de mise à la masse supplémentaire.

Signale la présence de compo sants sensi bles à l’él ectrici té stati que et qui sont susceptibles d’être endommagés par une décharge électrostatique. Utilisez des procédures, des équipements et des surfaces antistatiques durant les interventions d’entretien.

Avertissements

Les avertissements suivants signalent des conditions ou des pratiques susceptibles d’occasionner des blessures graves, voire même fatales :

Présence possible de tensions ou de courants dangereux — Mettez hors tension,

débranchez et retirez la pile (le cas échéant) avant de déposer les couvercles de protection, de défaire une soudure ou de remplacer des composants.

Ne procédez pas seul à un e intervention d’entre tien — Ne réalisez pas une intervention

d’entretien interne sur ce produit si une personne n’est pas présente pour fournir les premiers soins en cas d’accident.

Retirez tous vos bijoux — Avant de procéder à une intervention d’entretien, retirez

tous vos bijoux, notamment les bagues, la montre ou tout autre objet métallique.

Évitez tout contact avec les circuits exposés — Évitez tout contact av ec les

connexions, les composants ou les circuits exposés s’ils sont sous tension.

Utilisez le cordon d’alimentation approprié — Utilisez exclusivement le co rdon

d’alimentation fourni avec ce produit ou spécifié pour ce produit.

Raccordez le produit à la masse — Raccordez le conducteur de masse du cordon

d’alimentation à la borne de masse de la prise secteur.

Utilisez le produit lorsque les couvercles et les capots sont en place — N’utilisez pas

ce produit si les couvercles et les capots sont déposés.

Utilisez le bon fusible — Utilisez exclusivement un fusible du type et du calibre

spécifiés pour ce produit.

Utilisez ce produit exclusivement dans un environnement sec — N’utilisez pas ce

produit dans un environnement humide.

Utilisez ce produit exclu siv eme nt dans un environnement non ex plosible — N’utilisez

pas ce produit dans un environnement dont l’atmosphère est explosible.

22 K2 Storage System Instruction Manual June 25, 2009

Présence possible de courants de fuite — Un raccordement à la masse est

indispensable avant la mise sous tension.

Deux alimentations peuvent être présentes dans l’équipement — Assurez vous que

chaque cordon d’alimen tation est raccordé à des circuits de ter re séparés. Débranc hez les deux cordons d’alimentation avant toute intervention.

Fusion neutre bipolaire — Débranchez l’alimentation principale avant de procéder à

une intervention d’entretien.

Utilisez les points de levage appro priés — Ne p as u ti li ser les verrous de la po rt e po ur

lever ou déplacer l’équipement.

Évitez les dangers méca nique s — Laissez le ventilateur s’arrêter av ant de p rocéder à

une intervention d’entretien.

Mises en garde

Les mises en garde suivantes signalent les conditions et les pratiques susceptibles d’occasionner des endommagements à l’équipement et aux installations :

N’ouvrez pas l’appareil — Toute ouverture prohibée de l’appareil aura pour effet

d’annuler la garantie.

Utilisez la source d’alimenta tion adéqu ate — Ne bra nchez pa s ce pr oduit à une so urce

d’alimentation qui utilis e une tensi on supérieu re à la tens ion nomin ale spéci fiée pour ce produit.

Assurez une ventilation adéquate — Pour éviter toute surchauffe du produit, assurez

une ventilation de l’équipement conformément aux instructions d’installation. Ne déposez aucun document sous l’appareil – ils peuvent gêner la ventilation. Placez l’appareil sur une surface plane.

Utilisez des procédures antis tatiques - Les composants sensi bles à l’électrici té statique

présents dans l’équipement sont susceptibles d’être endommagés par une décharge électrostatiq ue. Utilisez des pr océdures, des équi pements et des surf aces antistat iques durant les interventions d’entretien.

N’utilisez pas la carte CF avec un PC — La carte CF a été spécialement formatée. Le

logiciel enregistré sur la carte CF risque d’être effacé.

N’utilisez pas l’équipemen t si un dysfonction nement est susp ecté — Si vo us suspectez

un dysfonctionnement du pr oduit, fai tes inspec ter cel ui-ci par un membre qualif ié du personnel d’entretien.

Acheminez les câbles correctement — Acheminez les câbles d’alimentation et les

autres câbles de manière à ce qu’ils ne risquent pas d’être endommagés. Supportez correctement les enroul ements de câbles afin de ne pas endomma ger les connecteur s.

Utilisez les cordons d’alimentation adéquats — Les cordons d’alimentation de cet

équipement, s’ils sont fournis, satisfont aux exigences de toutes les réglementations régionales. L’util isat ion de cet é quipement à des tens ions dé passa nt les 130 V e n c. a. requiert des cordons d’alimentation qui satisfont aux exigences des configurations NEMA. Les cordons internationa ux, s’ils sont four nis, ont reçu l’approba tion du pays dans lequel l’équipement est utilisé.

June 25, 2009 K2 Storage System Instruction Manual 23

Safety Summaries

Utilisez une pile de remplacement adéquate — Ce produit renferme une pile. Pour

réduire le risque d’explosion, vérifiez la polarité et ne remplacez la pile que par une pile du même type, recommandée par le fabricant. Mettez les piles usagées au rebut conformément aux instructions du fabricant des piles.

Cette unité ne contient aucune partie qui peut faire l’objet d’un entretien par l’utilisateur. Si un problème survient, veuillez contacter votre distributeur local.

24 K2 Storage System Instruction Manual June 25, 2009

Certifications and compliances

Canadian certified power cords

Canadian approval includes the products and power cords appropriate for use in the North America power network. All other power cords supplied are approved for the country of use.

FCC emission control

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifica tions not expr essly a pproved by Grass Val ley can affect emission compliance and could void the user’s authority to operate this equipment.

Canadian EMC Notice of Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

EN55103 1/2 Class A warning

This product has been evaluated for Electromagnetic Compatibility under the EN 55103-1/2 standards f or Emissions and Immuni ty and meets the r equi re ments for E4 environment.

This product complies wit h Class A (E4 environment). In a do mestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

FCC emission limits

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cau se harmful interference , and (2) this device must accept any interference received, including interference that may cause undesirable operation.

June 25, 2009 K2 Storage System Instruction Manual 25

Safety Summaries

Laser compliance

Laser safety requirements

Laser safety

This product may contain a Class 1 certified laser device. Operating this product outside specifi cations or alte ring it s origin al des ign may res ult in hazardous radia tion exposure, and may be cons idered an act of mod ifying or new manufact uring of a laser product under U.S. regulations contained in 21CFR Chapter 1, subchapter J or CENELEC regulations in HD 482 S1. People perfo rming s uch an a ct ar e req uired by law to recertify and reidentify this product in accordance with provisions of 21CFR subchapter J for distribution within the U.S.A., and in accordance with CENELEC HD 482 S1 for distribution within countries using the IEC 825 standard.

Laser safety in the United States is regulated by the Center for Devices and Radiological Health (CDRH). The laser saf ety regulations are published i n the “Laser Product Performance Standard,” Code of Federal Regulation (CFR), Title 21, Subchapter J.

The International Electrotechnical Commission (IEC) Standard 825, “Radiation of Laser Products, Equipme nt Classifi cation, Requi rements and User’s Guide,” governs laser products o utside the United States . Europe and member nations of the European Free Trade Association fall under the jurisdiction of the Comité Européen de Normalization Electrotechnique (CENELEC).

Safety certification

This product has been evaluated and meets the following Safety Certification Standards:

Standard Designed/tested for compliance with:

UL1950 Safety of Informatio n Technology Equipment,

IEC 950 Safety of Inf ormation Technology Equip ment,

CAN/CSA C22.2, No. 950-95

EN60950 Safety of Informatio n Technology Equipment,

including Electrical Business Equipment (Third edition).

including Electrical Business Equipment (Second edition, 1991).

Safety of Information Technology Equipment, including Electrical Business Equipment.

including Electrical Business Equipment

1992.

26 K2 Storage System Instruction Manual June 25, 2009

Finding Information

This manual describes the K2 St orage System and prov ides instruc tions for instal ling and using the product in a variety of applications. The manual contains information for pre-defined levels, in both redund ant and non- redundant configurati ons. Refer to the sections that apply to th e level of your K2 Storage System. For custom K2 Storage Systems that do not fit one of these pr e-defined levels, you must work with your Gr ass Valley representative for installation and operation.

This manual does not provide the complete in formation for devices that function as clients to the K2 Storage System. For information on client devices, refer to oth er documentation, as follows:

• For Aurora Edits, refer to the Aurora Edit Installation and Configuration Guide.

• For K2 Media Clients, refe r to the K2 Media Client System Guide.

How this manual is org anized

This manual is organized around the tasks required to install, configure, and operate the K2 Storag e System. Th e followi ng descri bes the chapte rs incl uded in t his manu al:

Chapter 1, Product Descriptio n — Provides the product functi onal description a nd an

overview of the key features. Chapter 2 to Chapter 8 — These chapters provide procedures for installing,

configuring, and operating the different levels of the 4 Gig K2 Storage System, as follows:

• Chapter 2, Installing the Level 10 Storage System

• Chapter 3, Installing the Level 10R Storage System

• Chapter 4, Installing the Level 20 Storage System

• Chapter 5, Installing the Level 20R Storage System

• Chapter 6, Installing the Level 30 Storage System

• Chapter 7, Installing the Level 30R Storage System

• Chapter 8, Installing the Nearline 10 Storage System

Chapter 9, Description of K2 Storage Devices — Provides descriptions and

specifications of the devices of the K2 Storage System.

Chapter 10, Overview of K2 St orage Tools — Contains overview de scriptions for the

system tools used with the K2 Storage System.

Chapter 6, Managing K2 software — Contains descriptions of the software

components that provide the K2 Storage System functionality.

Chapter 12, FTP on the K2 Storage System — Contains descriptions of networking

and interface requirements for FTP/streaming transfers.

Chapter 14, Administering and maintaining the K2 Storage System — Contains

instructions for custom izing and maintaining the K2 Storage System so that it meets your site’s workflow requirements.

Appendix A, Level 35 K2 Storage Syste m — Provi des information for installing and

configuring the Level 35 K2 Storage System.

June 25, 2009 K2 Storage System Instruction Manual 27

Finding Information

Getting more information

The following illustration shows the recommended order in which to reference the documentation.

Path for the installer of K2 Media Client models with stand-alone storage

FFFFF FFFFFF FFFFF

FFFFFF FF FF FFFFFF

K2 Media Client Release Notes

The latest information about the hardware and software shipped with the system. Packaged with K2 Media Client.

uick

is docume

you

you el h

ps el h

Quick Start Guide

The essential steps for installing the K2 Media Client. Different models each have their own version, packaged with the K2 Media Client.

Grass Valley

K2 Manual

Documentation

K2 Media Client System Guide*

Specifications and instructions for system settings.

Path for the installer of the K2 Storage System with connected K2 Media Clients

ley

Val

FFFFF FFFFFF FFFFF

FFFFFF FF FF F

Grass

K2 Manual

FFFFF

FFFF FFFFF

FFFFF

FFFFFF FF FF F

FFFFF

FFFFFF FF FF F FFFFF

FFFFFF FF FF F

FFFFF

FFFFFF FF FF FFFFFF

FFFFFF FF FF F

FFF FF FF F

FFFFFF FF FF FFFFFF

FFFFFF FF FF F

FFF

FFFFFF FF FF F

n e

docum is

ps yo

hel

ps yo

hel

Documentation

ley

Grass Val

K2 Manual

Documentation

K2 Media Client and K2 Storage System** Release Notes

The latest information about the hardware and software shipped with the system.

Path for the operator

FFFFFF FFFFF

FFFFF

FFFFFF FF FF FFFFFF

K2 Media Client Release Notes

The latest information about the hardware and software shipped with the system.

K2 Storage System Cabling Guide**

Diagrams for cabling K2 Storage System devices.

Grass Valley

K2 Manual

Documentation

K2 Media Client User Manual*

Information for using the user interface to record, play and manage clips and to configure channels.

K2 Storage System Instruction Manual*

Instructions to install/configure K2 Storage (SAN), with K2 Media Client, K2 Media Server.

Find the K2 Documentation CD packaged with K2 Media

Clients and with K2 RAID Storage devices, primary chassis.

Find the Storage Release Notes and Cabling Guide

packaged with K2 RAID Storage devices, primary chassis.

K2 Media Client System Guide*

Specifications and instructions for system settings.

Other Manuals*

Including:

Quick Start Guide

User Manual

- Service Manual

- RAID manuals

K2 Release Notes

The release notes contain the latest information about the software shipped on your system. The release notes include software upgrade instructions, software specifications and r equir ements, f eature ch ange s from the pr evious relea ses, and any known problems. Because release notes contain the latest information, they are printed out rather than included in the Documentation CD-ROM. You can find the release notes packaged with the primary RAID storage chassis.

ley

Grass Val

Grass Valley

K2 Manual

Documentation

28 K2 Storage System Instruction Manual June 25, 2009

K2 Storage System Cabling Guide

The cabling guides provide diagrams for storage system cabling and external configuration, su ch as setting addre sses on RAID devices. Ther e is a cabling guide for each pre-defined level of K2 Storage System. Each cabling guide covers both redundant and non-re dundant systems. You can find the cabli ng guide packag ed with the primary RAID storage chassis.

Documentation CD-ROM

Except for the release notes, the full set of support documentation, including this manual, is available on the Documentation CD-ROM that you receive with your K2 Storage System. You can find the Document ation CD-ROM packaged with the RAID storage chassis.

The Documentation CD-ROM includes the following:

•

K2 Storage System Instruction Manual — Contains installation, configuration, and

maintenance procedures for shared storage options.

•

K2 Storage System Cabling Guide — Contains diagrams for cabling th e devi ce s of

the K2 Storage System.

•

RAID Instruction Manuals — There is an Instruc tion Manual for each typ e of RAI D

storage device that can be a part of a K2 Storage System. These manuals contain procedures for configuring and servicing the device.

•

K2 Media Client System Guide — Contains the product specifications and

step-by-step instructions for mo difying system settings. Include s instructions for adding a K2 Media Client to the K2 Storage System.

•

K2 Media Client Quick Start Guides — The Quick Start Gui des provides step-by-ste p

installation inst ructions for basic installation and oper ation of the K2 Media Clien t, including recording and playing clips.

•

K2 Media Client User Manual — Describes the K2 Media Client and provides

instructions for configuring and operating the product.

•

K2 Media Client Service Manual — Contains information on servicing and

maintenance.

On-line Help Sy st e m s

K2 Media Client Help — You can access the on-line help through the AppCenter user

interface as follows:

• In the menu bar select drop-down menu.

NetCentral Help — From the NetCentral interface access on-line help as follows:

• For general help with NetCentral manager, select

• For help specific to mon itoring K2 Storage System system devices, select

| Device Providers

Help, then choose AppCenter Help Topics from the

Help | NetCentral Help Topics.

Help

and then select the monitored device.

June 25, 2009 K2 Storage System Instruction Manual 29

Finding Information

Thomson Grass Valley Web Site

This public Web site contains all the latest manuals and documentation, and additional support information. Use the following URL.

http://www.thomsongrassvalley.com.

30 K2 Storage System Instruction Manual June 25, 2009

Using the Dell Server documentation

This manual contains all of the inf ormation you need to install the K2 Storage System, however, a full set of Dell server documentation has been provided on the Dell Product Documentation CD-ROM. The Dell server documentation applies to the K2 Media Server. Refer to the documents on this CD-ROM only as required by procedures in this manual.

Information referenced on the Dell Product Documentation CD-ROM includes, but is not limited to:

• Unpacking and rack-mounting the K2 Media Server

• Important safety and regulatory information

• K2 Media Server Status indicators, messages, and error codes

• Troubleshooting help for the K2 Media Server hardware.

CAUTION: Do not use the Dell Quick Inst allation Guide provid ed with the Dell CD-ROM package. This guide includes i nst ructions for using the OpenManage softwa re CD-ROM to install an operating syste m. The K2 Media Server comes fully configured and is ready for installation. To begin installation, refer to one of the installation chapters in this manual.

June 25, 2009 K2 Storage System Instruction Manual 31

Finding Information

Grass Valley Product Support

For technical assi stance, to check on the status of a qu estion, or t o report ne w issue, cont act Grass Valley Product Support via e-mail, the Web, or by phone or fax.

Web Technical Support

To access support infor mation on the Web, v isit the pr oduct support Web page on the Grass Valley Web site. You can download software or find solutions to problems.

World Wide Web: http://www.grassvalley.com/support/ Technical Support E-mail Address: gvgtechsupport@grassvalley.com.

Telephone Support

Use the following information to contact Product Support by phone.

International Support Centers

Our international support centers are available 24 hours a day, 7 days a week.

Support Center Toll free In country

France +800 80 80 20 20 +33 1 48 25 20 20 United States +1 800 547 8949 +1 530 478 4148

Authorized Local Support Representative

A local support represen ta ti ve ma y be avai l abl e in your count ry. To locate a support center duri ng normal local business hours, refer to the following list. This list is regularly updated on the website for Thomson Grass Valley Product Support (http://www.grassvalley.com/support/contact/phone/).

After–hours local phone support is also available for warranty and contract customers.

Region Country Telephone Asia

Pacific Central America,

South America North America

China +86 10 5883 7575 Hong Kong, Taiwan, Korea, Macau +852 2531 3058 Japan +81 3 6848 5561 Southeast Asia - Malaysia +603 7492 3303 Southeast Asia - Sing apore +65 6379 1769 Indian Subcontinent +91 11 515 282 502

Australia, New Zealand +61 1300 721 495 All +55 11 5509 3440

North America, Mex ico, Caribbean +1 800 547 8949

+91 11 515 282 504

+1 530 478 4148

32 K2 Storage System Instruction Manual June 25, 2009

Telephone Support

Region Country Telephone Europe

Middle East, Near East, Africa

UK, Ireland, Isra e l +44 118 923 0499 Benelux – Netherland s +31 (0) 35 62 38 421 Benelux – Belgium +32 (0) 2 334 90 3 0 France +800 80 80 20 20

+33 1 48 25 20 20 Germany, Austria, Eastern Europe +49 6150 104 444 Belarus, Russia, Tadzhikistan, Ukraine, Uzbekistan +7 095 258 09 20

+33 (0) 2 334 90 30 Nordics (Norway, Sweden, Finland, Denmark, Iceland) +45 40 47 22 37 Southern Europe – Italy +39 02 24 13 16 01

+39 06 87 20 35 42 Southern Europe – Spain +34 91 512 03 50 Middle East +971 4 299 64 40 Near East and Africa +800 80 80 20 20

+33 1 48 25 20 20

June 25, 2009 K2 Storage System Instruction Manual 33

Finding Information

34 K2 Storage System Instruction Manual June 25, 2009

Chapter 1

Product Description

This chapter describes the K2 Storage System as follows:

• “Overview Description” on page 36

• “Key features” on page 36

June 25, 2009 K2 Storage System Instruction Manual 35

Chapter 1 Product Description

iSCSI Clients

K2 Media Server

iSCSI over

Gigabit

Ethernet

SCSI over

Fibre Channel

RAID

Storage

iSCSI to SCSI

Bridge

Overview Description

The K2 Storage System is Grass Valley’s shared storage solution that gives multiple clients access t o a common pool of media . Clients acces s the shared med ia storage via a Gigabit Ethernet network and a Fibre Channel connection. Data is communicated using the Small Computer System Interface (SCSI) data transfer interface and the Internet SCSI (iSCSI) protocol.

36 K2 Storage System Instruction Manual June 25, 2009

Refer to the “Installing…” chapters later in this manual for the system description of each of the different levels of storage available.

Refer to the K2 Media Client System Guide for diagrams and explanations of the media file system and the media database.

Key features

The key fea tures of the K2 Storage System are as follows:

• iSCSI storage access protocol

• Gigabit Ethernet connectivity

• RAID 1, 5, and 6 storage

• FTP transfers

• Standard IT networked storage configurations to fit a wide variety of size and

Key features

performance requirements.

• Scaling from 100 to < 1000MB/s

• Redundancy and fault recovery with no single point of failure

• Tuned and optimized file system fo r reliable a nd robust transaction of media files

• Best in class stor age management for high throughput, deterministi c per fo rmanc e with load balancing

June 25, 2009 K2 Storage System Instruction Manual 37

Chapter 1 Product Description

38 K2 Storage System Instruction Manual June 25, 2009

Chapter 2

Installing the Level 10 Storage System

The K2 Level 10 (L10) storage system was initially released with K2 system software version 3.2 in September 2007.

Use this ch apter to install the K2 Level 10 storage system. This chapter includes the following to pics:

• “Level 10 description” on page 40

• “Preparing Level 10 devices” on page 41

• “Networking for Level 10” on page 58

• “Configuring the Level 10 storage system” on page 62

• “Adding K2 Storage System clients” on page 76

• “Basic operations for the Level 10 storage system” on page 76

Work through these topics sequentially to install the storage system.

June 25, 2009 K2 Storage System Instruction Manual 39

Chapter 2 Installing the Level 10 Storage System

Level 10 description

K2 clients

Control point PC

FTP/streaming

Control

K2SUMMIT

PRODUCTION CLIENT

Control

Media

Control

FTP

Control

K2SUMMIT

PRODUCTION CLIENT

Control

Media

Gigabit Ethernet Switch

Media

K2 Media

K2 MEDIA SERVER

K2SUMMIT

PRODUCTION CLIENT

Control

Media

Server

Fibre Channel

K2 SAS STORAGE

RAID Primary

Chassis

K2 SAS STORAGE

RAID Expansion

Chassis (optional)

K2 SAS STORAGE

The K2 Level 10 (L10) storage system was initially released with K2 system software version 3.2 in September 2007.

The Level 10 storage system has one Gigabit Ethernet switch, one GS K2 Media Server, and one L10 RAID chassis. Up to four RAID Expansion chassis a re opt i onal for increased storage capacity.

K2 Media Clients and other iSCSI clients, such as Aurora Edits, are connected to the GigE switch. Each K2 Medi a Client has one GigE connection for media ( iSCSI ) an d one GigE connection fo r control. The GigE switch i s configured with V-LANs to keep the control/FTP traffic and the media (iSCSI) traffic separate.

The GS K2 Media Server has one GigE connection for media (iSCSI), one GigE connection for control, one GigE connection for FTP, and one Fibre Channel connection to the RAID st orage. The server host s an iSCSI interface card for the GigE media connection and a Fibre Channel card for the RAID storage connection. The iSCSI interface card pr ovides a bridge bet ween GigE iSCSI and Fibre Channel SCSI. The server also hosts software components that allow it to fun ction in various roles, including media file syst em manager, media data base server, and FTP s erver. The GS K2 Media Server has redundant power supplies.

The L10 RAID chassis is connected via a s in gle Fibre Channel conn ect ion to the K2 Media Server. It is al so conn ected t o th e GigE c ontro l networ k, wh ich is requi red fo r SNMP (NetCen tral) monitoring.

40 K2 Storage System Instruction Manual June 25, 2009

The K2 configuration control po int PC is co nnected to the GigE cont rol network. The K2 System Configuration application runs on this PC for configuring the storage system.

FTP/streaming traffic accesses the K2 Storage System via the FTP GigE port on K2 Media Servers. FTP/streaming traffic does not go to K2 Media Clients.

Refer to Chapter 9, Description of K2 Storage Devices for more information. Also refer to “Design considerations for Ethernet switches” on page 559.

Preparing Level 10 devices

Use the topics in thi s sect io n to pre pare ea ch devic e so that i t is r eady to b ecome part of the Level 10 storage system.

• “Setting up the Control Point PC”

• “Setting up the Level 10 Gig E switch”

• “Cabling th e switch”

• “Setting up the Level 10 K2 Media Server”

• “Setting up the L10 RAID chassis”

Preparing Level 10 devices

• “Preparing K2 Storage System clients”

Setting up the Control Point PC

To set up the K2 configuration Control Point PC, you have the following options:

• Use the Grass Valle y Cont rol Point PC that comes from the factory with software pre-installed. This includes the K2 System Configuration application, remote AppCenter, and NetCentral software. Refer to the K2 Media Client System Guide for rack mount instructions.

• Use a PC that you own and install the required software.

For either option, you must do the following fo r the Control Point PC th at runs the K2 System Configuration application:

• Assign a control network IP address to the PC. Refer to “Networking ti ps” on

page 112.

• Connect the PC to the GigE control network.

To use your own PC, you must additionally do the following:

• Verify that the PC meets system requirements.

• Install the K2 Control Point software.

• Install other supporting software.

• Install and license NetCentral server software. Yo u can install this on the NetCentral server PC, which can be the K2 configuration Control Point PC. Refer to the NetCentral User Guide.

Also refer to “Control point PC description” on page 410.

June 25, 2009 K2 Storage System Instruction Manual 41

Chapter 2 Installing the Level 10 Storage System

To fix the sc reen resolution problem seen with NetCentral on the Grass Valley Control Point PC, do the following:

1. Go to Display properties (right mouse selection of properties on the display area)

2. Select Settings tab

3. Select the Advanced button

4. In the Gen eral tab, set the DPI setting to Normal size (96 DPI)

5. Restart the PC

Setting up the Level 10 Gig E switch

These procedures are for the HP ProCurve switch 2900 series. You must use this switch for iSCSI traffic on Level 10.

For control and FTP/streaming traffic, it is allowed to use a different brand of switch, such as a Cisco Catalyst switch, if required by your site. If you are using a non-HP switch, apply the information in the following procedures accordingly. Refer to the documentation you received with the switch as necessary.

Also refer to “Design considerations for Ethernet switches” on page 559.

• Assign an IP address and logon to the switch. Refer to “Configuring the GigE

switch via serial connection” on page 42 .

• Set up VLANs on the switch. Refe r to “Conf ig uri ng the GigE switch via the Web

interface” on page 46.

• Configure QOS and verify the flow control setting.

Also refer to “K2 Ethernet switch description” on page 411 and “Design

considerations for Ethernet switches” on page 559.

Configuring the GigE switch via serial connection

NOTE: Make sure you check the switch firmware and up grade if necessary, as instructed at the end of this procedure.

The following procedure is for the HP ProCurve switch 2900 series. Do not use this procedure on other switch models.

Use a direct console connection to the switch, start a console session, and access the Switch Setup screen to set the IP address.

1. Configure the PC terminal emulator on the control point PC or another PC as a DEC VT-100 (ANSI) ter minal o r use a VT-1 00 termin al, and c onfigu re ei ther one to operate with these settings:

• Baud rate 115200

• 8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff

• Also disable (uncheck) the “Use Function, Arrow, and Ctrl Keys fo r Windows”

option

42 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10 Gig E switch

2. Connect the PC to the switch’ s Console Port using t he console cable included with

the switch. (If your PC or t erminal has a 25-pi n serial connector , first attach a 9-pin to 25-pin straight-through adapter at one end of the console cable.)

3. Turn on the PC’s power and start the PC terminal program.

4. Press

Enter two or three times a nd you will se e the copyrig ht page and th e message

“Press any key t o c ont inu e”. Press a key, an d yo u wi ll t hen see the switch c ons ole command (CLI) prompt.

NOTE: If you press E nter too man y times and get past the log in, enter the command EN to get into the command line.

5. Type the following, then press

Enter:

If prompted to save the current configuration, answer no (press the n key) to proceed. The main menu opens.

6. On the main menu, choose

7. Select

IP Configuration, then press Enter.

8. Press the right-arrow key to choose

Switch Configuration, then press Enter.

Edit, then press Enter. Tab to fields and enter

information as follows: a. Change b. Tab to the

Manual option.

c. Tab to the d. Tab to the

Gateway to be the default router.

IP Config (DHCP/Bootp) field and use the Space bar to select the

IP Address field and enter the switch’s control network IP address. Subnet Mask field and enter the subnet mask used for your network.

9. Press

10.Select

11.From the main menu, chose

Enter, then right-arrow to Save. Press Enter and revert to previous menu.

Return to Main Menu and press Enter.

Console Passwords and press Enter. The Set Pa ssword

Menu opens.

12.Chose

Set Manager Password and press Enter.

13.When prompted for the password, type a password of up to 16 ASCII characters

with no spaces and press

Enter. The password can be one that is us ed on ot her K2

devices, such as “adminK2” or “K2Admin”, or it can be your site's administrator password.

14.When prompted to ent er the password again, retype the pa sswor d a nd press

15.Select

16.From the main menu, tab to

Return to Main Menu and press Enter.

Command Line (CLI) and press Enter. The command

Enter.

prompt appears.

17.Type the following, then press

Enter:

configure

You are now in configuration mode.

June 25, 2009 K2 Storage System Instruction Manual 43

Chapter 2 Installing the Level 10 Storage System

18.Configure an administrator username. The username can be one that is used on other K2 devices, such as “Administrator” or “K2Admin”, or it can be your site's administrator userna me. For exa mp le, to se t t he username to “administra tor ” t ype the following, then press

password manager user-name administrator

19.When prompted, enter and re-enter the pass word.

Enter:

20.Set spanning tree to RSTP. Type the following, then press

Enter:

spanning-tree force-version rstp-operation

This configures spa nning tr ee, but i t does no t turn s panning t ree on. You must turn spanning tree on using the switch’s Web interface.

21.Decide your SNMP community name as explained in the fol lo wing opt io ns, the n proceed with the next step:

• If you decide to use a unique SNMP community name (not “public”), add the

community and set it s RW permissions . For example, if the community na me is “K2”, type the following, then press

Enter:

snmp-server community K2 unrestricted

• If you decide to use the default SNMP community “public” for NetCentral

monitoring, which already has RW permissions set as required by NetCentral, proceed to the next step.

22.Enter the SNMP community and IP address of the NetCentral server PC. For example, if the IP a ddr ess is “192.168.40.11” and the community is “publ ic”, you type the following, then press

Enter:

snmp-server host public 192.168.40.11

23.Enable Authentication traps. Type the following, then press

Enter:

snmp-server enable traps authentication

This allows NetCentral to test the switch to verify th at it can send i ts SNMP trap messages to NetCentral.

24.Type the following, then press

Enter:

When prompted, save the configuration by pressing the y key. The main menu opens.

25.If you need a trunk for ISLs to gang switches together, use the following steps. These steps illustrate trunking the last three 1 Gig ports for three 1 Gig ISLs, which is the recommended co nfiguratio n for ISLs on all multi-switch K2 Storage Systems. Refer to “ Design con sid erati ons for Eth ernet swi tc hes” on page 559 and consult with your Grass Valley representative if your requirements deviate from the recommended policy:

a. At the main menu, select b. Choose selection

Port/Trunk Settings and press Enter.

c. Press the right-arrow key to choose

Switch Configuration and press Enter.

Edit, then press Enter.

d. Down arrow until at the bottom of the list of ports and select the last (highest

44 K2 Storage System Instruction Manual June 25, 2009

port number) 1 Gig port in the list.

e. Right-arrow over to the Group column.

Setting up the Level 10 Gig E switch

f. Use the Space bar and set the bottom 1 Gig port to g. Set the next port up also to h. Set the next port up also to i. Press

26.Select

Enter, then right-arrow to Save. Press Enter and revert to previous menu.

Return to Main Menu and press Enter.

27.From the main menu, tab to

Trk1. Trk1.

Command Line (CLI) and press Enter. The command

Trk1.

prompt appears.

28.Check the version of firmware currently installed on the switch. Type the

following, then press

Enter:

show flash

Information is displayed similar to the following example:

HP_iSCSI_switch1# show flash Image Size(Bytes) Date Version

----- ---------- -------- ------Primary Image : 6737518 07/25/08 T.13.23 Secondary Image : 5886358 10/26/06 T.11.12 Boot Rom Version: K.12.12 Current Boot : Primary

29.Check the Primary Image Version and refer to your K2 Release Notes for

information about currently supported versions. Then proceed as follows:

•If K2 Release Notes instruct you to change the firmware on the switch, do so before continuing. Refe r to th e doc umentat ion you r eceive d with t he switc h for instructions to change the firmware. Then continue with the next procedure.

•If K2 Release Notes confirm that the version on the switch is a currently supported version, continue with the next procedure.

30.Type the following, then press

Enter:

The main menu opens.

31.From the main menu, choose

Reboot Switch and press Enter. When prompted

“Continue Reboot…?' , answer yes (pres s the y key) to pr oceed. The switch r estarts.

32.You can now use the switch ’s we b bro ws er int er fa ce f or f urther configuration , as instructed in the next procedure.

33.Close the PC terminal program and disconnect the console cable.

Continue with the next procedure “Configuring the GigE switch via the Web

interface”.

June 25, 2009 K2 Storage System Instruction Manual 45

Chapter 2 Installing the Level 10 Storage System

Configuring the GigE switch via the Web interface

The following procedure is for the HP ProCurve switch 2900 series. Do not use this procedure on other switch models.

1. From the control point PC or another PC, make su re that you have a di rect Ethernet cable connection to the switch, with no switches, routers, proxies, or other networking devices in between.

2. On the PC, open Intern et Expl orer and typ e the s witch’ s IP a ddress in the Addr ess field, as in the following example.

http://192.168.100.61

This should be the name or IP address as currently configured on the switch.

3. Press

Enter to open the switch’s configuration application.

NOTE: The configuration application for the HP ProCurve switch requires Java.

You can also access the switch’s configuration application from the K2 System Configuration applicat ion .

4. In the switch’s configuration application, choose

Features

Configuration, then Device

5. Set Spanning Tree to

On and click Apply Changes. If prompted, log in with the

switch’s administrator username and password.

6. Click

46 K2 Storage System Instruction Manual June 25, 2009

Port Configuration.

Setting up the Level 10 Gig E switch

This setting varies depending on switch model. Set as instructed in text.

7. If you do not need trunks, such as on a one- swi tc h syst em, sk ip to the next step in

this procedure. If you need trunks, such as on a two-switch system with ISLs, do the following:

a. Select (Ctrl + Click) the trunked ports. Typically the trunked ports are at the

bottom of the list and are labeled Trk1.

b. Click

Modify Selected Ports.

If prompted, log in as administrator.

c. For the trunked ports, set Port Enabled to Yes. On some switch models, some

ports are disabled by default, so make sure you enable them. Leave Mode as default of

d. Set Flow Control as follows:

-Set to

June 25, 2009 K2 Storage System Instruction Manual 47

Auto.

Disable.

Chapter 2 Installing the Level 10 Storage System

This setting varies depending on switch model. Set as instructed in text.

NOTE: This setting is for t he 2900 series switch. Ot her switch models might requi re a different setting.

e. Click

Apply Settings.

8. On the Port Configuration page, do one of the following:

• If you do not have trunks, select all ports.

• If you have trunks, select the remaining ports (the ports not trunked).

9. Click

Modify Selected Ports.

10.Make su re Port Enabled is set to

Yes, leave Mode as default of Auto.

11.Set Flow Control as follows:

•Set to

Disable.

NOTE: This setting is for t he 2900 series switch. Ot her switch models might requi re a different setting.

12.Click

Apply Settings. Wait until settings are applied and the Web inte rface

becomes active.

13.Choose

VLAN Configuration. If prompted, log in with the switch’s administrator

username and password.

48 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10 Gig E switch

14.Create a new Media (iSCSI) VLAN as follows:

a. Click

Add/Remove VLANs.

b. In the VL AN Name field enter Media. c. In the VLAN ID field enter 60. d. Click e. Click

Add VLAN. Main Screen to return to VLAN Configuration.

15.Configure the Media VLAN as follows:

a. In the Media VL AN row, click

Modify.

June 25, 2009 K2 Storage System Instruction Manual 49

Chapter 2 Installing the Level 10 Storage System

b. Select all the odd numbered ports. (Tip: Use Ctrl + Click.) c. In the Mode drop-down list, select

Untagged, then click Apply. This removes the

odd ports from the default (Control) VLAN. If you have a trunk, do not configure it as “Tagged”. Media VLAN traffic

(iSCSI) does not go over the trunk.

16.Click the

VLAN Configuration tab.

17.If you have a trunk, configure the default (Control) VLAN as follows: a. In the DEFAULT_VLAN row, click

Modify.

b. In the Current Mode list box, scroll down and select the trunk. c. In the Mode drop-down list, select

Tagged, then click Apply. This al lows default

VLAN traffic (non-iSCSI) to go over the trunk.

18.Click the

VLAN Configuration tab.

50 K2 Storage System Instruction Manual June 25, 2009

19.If you have a trunk, ver if y t hat for the default VLAN the tr unk i s di splayed in the

Tagged Ports column.

20.If you have two switches, repeat this procedure for the other switch.

21.Close the switch configurati on appl ic at ion.

Configuring QOS on the GigE switch

Prerequisites for this procedure are as follows:

• The switch is HP ProCurve switch 2900 series.

• Trunks, VLANs and all other configuration is complete.

• The switch has an IP address

• You have network access to the switch Use this procedure to make the Quality of Service (QOS) setting on the HP ProCurve

switch 2900 series.

1. If you have not already done so, from a networ k connect ed PC open the MS-DOS

command prompt and login to the switch as administrator, as follows:

Setting up the Level 10 Gig E switch

a. Telnet to the switch. For example, if the switch’s IP address is 192.168.40.12,

you type the following, then press

Enter.

telnet 192.168.40.12

b. Press c. Type the switch’s administrator username and press

Enter one or more times until the switch’s username prompt appears.

Enter, then type the

switch’s administrat or password and press

Enter. The switch console command

(CLI) prompt appears.

2. Type the following, then press

Enter:

config

You are now in configuration mode.

3. Type the following, then press

Enter:

show qos vlan

The screen display s VLAN information . Note the ID n umber of the Media (iSCSI ) VLAN. It should be 60, as follows:

VLAN priorities

VLAN ID Apply rule | DSCP Priority

------- ----------- + ------ ---------- 1 No-override | No-override 60 No-override | No-override

a. Assign the Media VLAN the QOS priority of 3. For example, if the V LAN ID

is 60, you type the following, then press

June 25, 2009 K2 Storage System Instruction Manual 51

Enter.

Chapter 2 Installing the Level 10 Storage System

vlan 60 qos priority 3

4. Type the following, then press

Enter:

show qos vlan

The screen displays VLAN information. Make sure that the Priority column reports that the Media VLAN has a value of 3.

Verifying the flow control setting on the GigE switch

Prerequisites for this procedure are as follows:

• The switch is HP ProCurve switch 2900 series.

• Trunks, VLANs, QOS, and all other configuration is complete.

• The switch has an IP address

• You have network access to the switch

Use this procedure to check flow control settings, and if necessary, configure flow control to “off” (disabled) for all ports.

1. If you have not already done so, from a network conn ected PC open the MS-DOS command prompt and login to the switch as administrator, as follows:

a. Telnet to the switch. For example, if the switch’s IP address is 192.168.40.12,

you type the following, then press

Enter.

telnet 192.168.40.12

b. Press c. Type the switch’s administrator username and press

Enter one or more times until the switch’s username prompt appears.

Enter, then type the

switch’s administrat or password and press

Enter. The switch console command

(CLI) prompt appears.

2. Type the following, then press

Enter:

config

You are now in configuration mode.

3. Type the following, then press

Enter:

show interface brief

The screen displays setting for all po rts. In the Flow Ctrl column (at the right) idenfity settings for ports and proceed as follows:

• If all ports are s et to “off”, no fur ther configura tion is necessary. Do not proceed.

• If one or more ports are set to “on”, continue with this procedure.

4. Set ports to flow control “off” as necessary. You can set a range of ports. For example, to set ports 1 - 21 to off, you type the following, then press

Enter.

no int 1-21 flow-control

5. Type the following, then press

Enter:

show interface brief

Verify that all ports have flow control set to off.

52 K2 Storage System Instruction Manual June 25, 2009

Cabling the switch

Control ports

Media (iSCSI) ports

• Install the switch in its permanent location.

• Provide power to the switch.

• Use CAT5e or CAT6 cables. The maximum cable length is 50 meters for CAT5e

and 100 meters for CAT6.

• Connect cables as follows:

2900 series switch

To the media port s make one iSCSI connect ion from each K2 Media Client or other iSCSI client, and one iSCSI connection from the K2 Media Server.

To the control ports make a conne ction from each K2 Me dia Client or other iSCSI client, from the RAID storage chassis, and from the control point PC. Also make the FTP network connection and the control network connection from the K2 Media Server.

Cabling the switch

Refer to cabling procedures later in this chapter fo r the GigE connections at each of the devices of the K2 Storage System.

Setting up the Level 10 K2 Media Server

The Dell PowerEdge 1950 is qualified as the platfor m for the GS K2 Media Server. Do the foll owing to prepare the GS K2 Media Server:

• Install the server in its permanent location. Refer to the rack mount instructions that

you received with the server’s product bundle.

• Provide power to the servers.

• Connect cables as follows:

Dell 1950 PowerEdge server

Fibre Channel to RAID controller

To control port on GigE switch

To media (iSCSI) port on GigE switch

Gb 2Gb 1

FTP: To control port on GigE switch

June 25, 2009 K2 Storage System Instruction Manual 53

Chapter 2 Installing the Level 10 Storage System

Connect the iSCSI interface port to a media port on the GigE switch. Connect the motherboard GigE port 1 and GigE port 2 to control ports on the GigE switch.

Connect the Fibre Channel port to the RAID storage device.

• Assign a control network IP address to GigE port 1. Use standard Windows procedures. Refer to “Networking tips” on page 112.

• Change the hostname. Use standard Windows procedures.

• Configure SNMP prope rties so t he trap dest ination po ints to the NetCentr al server PC. Use standard Windows proce dures. If you are not using the SNMP communit y name “public”, configure the community name and set permissions to RW. Also make sure t hat the Authentication trap is enabled.

Also refer to “K2 Media Server descriptions” on page 413.

Setting up the L10 RAID chassis

Do the foll owing to prepare the L10 RAID storage devices:

• Install the chassis in its permanent location. After mounting the chassis in the rack, you must secure bracket s t o th e front rail to support t he Gra ss Vall ey be zel . Refer to the K2 Lx0 RAID Instruction Manual for rack mount ins tr uct ions.

• “Connect the L10 RAID Primary and Expansion chassis” on page 54

• “Power on the L10 RAID chassis” on page 55

In addition, you will configure network settings, SNMP settings, and bind RAID disks. These tasks are part of the K2 System Configuration application and Storage Utility procedures later in this chapter.

On the L10 RAID, you do not need to manually set a Fibre Channel address ID on controllers or a chassis address on Expansion chassis.

Once the RAID storage is connected and conf i gured, do not swap Expans ion chassis or otherwise reconfigure storage. If you connect an Expansion chassis in a different order or to the wrong controller , the control ler will see a co nfigurat ion mismatch and fault.

Connect the L10 RAID Primary and Expansion chassis

Connect Ethernet, Fibre Channel, and SAS cabling as shown.

54 K2 Storage System Instruction Manual June 25, 2009

Setting up the L10 RAID chassis

BBU IN MODEM

FLT CLR

BAT

5 4 3 2

LAN

ACT/LNK

LNK/ACT

1 0

BACKUP

FLT

RDY

MNT

ACS

FLT/LNK

DP1 DP0

HPE FLT

A/L

SAS cable connectors are keyed to DP IN/OUT ports.

DP-OUT

DP-IN

FLT/LNK

FLT RDY

FLT CLR

SAS cables

DP-OUT

DP-IN

FLT/LNK

FLT RDY

FLT CLR

BBU IN MODEM

FLT/LNK

DP1 DP0

DP-OUT

To K2 Media Server

HPE FLT

A/L

DP0

DP-IN

FLT RDY

DP-IN

FLT RDY

To control port on GigE switch

5 4 3 2

LAN

ACT/LNK

LNK/ACT

1 0

ACS

BACKUP

FLT

RDY

Expansion 1

BAT

Primary

MNT

Expansion 2

Expansion

If you have more Expansion chassis than those illustrated, continue the indicated cabling pattern, connecting additional chassis to DP0.

Power on the L10 RAID chassis

Connect power cords and power up RAID storage devices as follows:

1. Verify power and cab ling.

2. Press and hold down the power button on the controller, as shown.

RDY

Power Cords

(115V/230V)

LED

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

1 0

A/L

BACKUP

FLT

If the RAID chassis has two controllers, you can press the power button on either controller. You do not need to press both power buttons.

Pressing the power b utton on a cont roller also powers o n any connected Expansion chassis. There are no power buttons on Expansion chassis.

3. Release the power button when the Power Good LED on the power supply is

illuminated. This takes 1-3 seconds .

RDY LED

BAT

LAN

MNT

LNK/ACT MC

ACS

RDY

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

LNK/ACT

1 0

A/L

BACKUP

FLT

RDY

BAT

LAN

MNT

ACS

June 25, 2009 K2 Storage System Instruction Manual 55

Chapter 2 Installing the Level 10 Storage System

4. Wait while the primary RAID chassi s performs self-test and in itialization. This takes about four minutes. While this is taking place, the RDY LED is illuminated with a steady on light.

5. Watch for the RDY LED to begi n blinking at one second interval s. The LED might turn off and back on two times before st arti ng the one sec ond blink patter n. When the RDY LED is blinking at one second inter vals, the self- test and initial izati on is complete and the chassis is ready for use.

Your preparations for L10 RAID storage are now complete.

Preparing K2 Storage System clients

Any devices that function as iS CSI clients to the K2 Storage Syst em must be prepared with the following requirements:

• One or more connections to the control network.

• A static IP address for t he control network.

• For a non-redundant K2 Storage System, one connection to the media (iSCSI) network.

Additional steps that are required for Aurora Edits include the following:

• Implement Aurora Edit security features.

• Install SNFS softwar e and K2 software.

For more informati on, refer to the Aurora Edit Ins tallation and Confi guration Guide. For more information refer to the K2 Media Client System Guide.

K2 configuration and NetCentral

Before you begin using the K2 System Configuration application to configure the storage system, you should set up the NetCentral system according to the following requirements:

•

NetCentral installed — NetCentral server software must be installed on a

NetCentral server PC. This can be the K2 configuration Control Point PC or another PC that has network communication with the K2 Storage System control network.

Device providers instal led — A device pr ovider must be ins talled on the NetCentral

• server PC for each t ype of devic e in the K2 S torage System. For a Level 10 storage system, the following device providers must be installed:

• Control point PC device provider — This is the Windows monitoring device

provider.

• K2 Media Server device provider

• HP Gigabit Switch device provider or Cisco Gigabit Switch device provider

• K2 Media Client device provider, if any K2 Media Clients are accessing the

Level 10 storage system.

• Device provider for iSCSI clients, if any iSCSI clients such as Aurora Edits are

56 K2 Storage System Instruction Manual June 25, 2009

K2 configuration and NetCentral

accessing the Level 10 storage system.

• K2 L10 RAID storage device provider. This device provider supports RAID devices for Levels 10, 20, and 30.

•

Grass Valley PC Monitor ing software in stalled — This soft ware must be instal led on

the K2 configuration Co ntrol Point PC. It includes Grass Valley SNMP agents and other WMI based components to perform process monitoring. This provides the informati on for some of the SNMP trap messages that must be sent to NetCentral.

Control Point PC monitored by NetCentral — The K2 configuration Control Point

• PC should be added to the NetCentral system and fully monitored by NetCentral. This means t hat its SNMP trap destinati on is set to send SNMP traps to the NetCentral server PC. Whether the Control Point PC and the NetCentral server PC are the same PC or are different PCs, you should still add the Control Point PC to NetCentral.

Refer to the NetCentral User Guide to set up the NetCentral system. After installing a device provider, you can find addition al doc ument at ion about monitoring that t ype of device on the NetCentral Help menu.

June 25, 2009 K2 Storage System Instruction Manual 57

Chapter 2 Installing the Level 10 Storage System

Networking for Level 10

Use the topics in this section to configure the Gigabit Ethernet (GigE) network for the Level 10 storage system.

• “Networking requirements” on page 58

• “Networking tips” on page 59

• “Setting up host tables” on page 60

• “Testing the control network” on page 61

Network ing requirements

Required networking strategies for a Level 10 K2 Storage System (a non-redundant K2 Storage System) are as follows:

• Three networks:

• Media network — Exclusively for iSCSI traffic.

• Streaming/FTP network — For media transfers and FTP traffic.

• Control network — For all other non-streaming, non-iSCSI traffic.

• Networks must be on separate subnets.

• The Media (iSCSI) network traffic is kept separate from any other traffic. This separation is provided by dedicated Gigabit ports, cables, and by a dedicated VLAN on the HP GigE switch or by separate switches.

• K2 Media Servers have a dedica ted FTP port. Make a dedic ated FTP connection to the FTP port.

• While control a nd FTP tr affic i s each on i ts own subne t, it is not requi red that each type of traffic has its own VLAN on GigE switches. For example, you make both FTP and control connections to the “control” ports ( DEFAULT_VLAN) on the HP GigE switch.

• While the Level 10 K2 Media Server (both redun dant and non-r edundant) has two media (iSCSI) ports, only one is used.

• Static IP addresses are required for the media network on K2 Storage System iSCSI devices. This includes K2 Media Servers, generic iSCSI clients (such as Aurora Edits), and K2 Media Clients.

• Machine names (host names) assigned to each K2 device.

• Host tables (host s fi le s) pr ovi de name reso lut i on on each K2 Media Client, iSCSI client, and K2 Media Server.

• IP addresses for FTP/streaming ports must have name resolution such that hostnames are appended with the “_he0” suffix. You can use host tables (as in

“Setting up host tables” on page 60) or another mechanism to provide the name

resolution. This directs the streaming traffic to the correct port. Refer to the K2 Media Client System Guide for a complete explanation.

• K2 Media Servers (including optional NH servers) must be on the streaming network, as they provide the FTP interface for shared storage streaming traffic.

58 K2 Storage System Instruction Manual June 25, 2009

Shared storage K2 Media Clients do not need to be on the streaming network because they do not send or receive streaming traffic.

• On the shared storage K2 Media Client, the two con trol GigE port s are configured

as a team. The control team shares a single IP addr ess. Do not attempt to un-team the control ports. On the Level 10 K2 Storage System, only one control port is connected, as control team redundancy is not supported.

• On the shared storage K2 Media Client, the two media (i SCSI) GigE ports ar e not

teamed. On the Level 10 K2 Stor age Sys tem, on ly one media port is conne cted, as iSCSI redundancy is not supported.

Use the following procedures as necessary to implement your networking strategies.

NOTE: It is recommended that you c onfigure Med ia network (iSCSI) I P addresses and Streaming network IP addresses using the K2 System Configuration application, rather than doing so on the local machine using standard Windows procedures.

Networking tips

• Before beginning network configuration, determine the IP addresses and names

needed for the machines in your K2 system. Work wi th the ne twork adminis trat or at your facility to have those IP addresses and names available for your use.

• Establish a consistent convention for machine names and IP addresses. It is

recommended that you embed a root name or other unique identifier for this particular K2 Storage System in the computer name. Also, a common convention for IP addresses is to use a numerical pattern or sequence in the IP addresses to indicate device-types and/or ports, as in the following example:

NOTE: This example assumes a subnet mask of 255.255.255.0

Example of Level 10 names and IP addresses

Computer name

root-server-1 K2 Media

root-raid-1 RAID — 192.168.100.51 — — root-gige-1 GigE switch — 19 2 .16 8.100.61 — — root-cppc-1 Control point PC— 192.168.100.81 — —

Device type Streaming network

Server

addresses

192.168.101.11

Control network addresses

192.168.100.11 192.168.99.11 —

Media network addresses

— The second

Comments

media port is not used.

root-client-1 iSCSI client — 192.168.100.111 192.168.99.111 — root-client-2 iSCSI client — 192.168.100.121 192.168.99.121 root-client-3 iSCSI client — 192.168.100.131 192.168.99.131 root-client-4 iSCSI client — 192.168.100.141 192.168.99.141

June 25, 2009 K2 Storage System Instruction Manual 59

Chapter 2 Installing the Level 10 Storage System

This IP address must resolve to hostname root-server-1_he0

Setting up host tables

The hosts file is used by the control network and the streaming/FTP network to determine the IP address of devices on the network when only a the device name (hostname) is given. The steps that fol l o w descr ib e how to edit th e hosts file located at C:\Windows\system32\drivers\etc\hosts on Windows XP and Windows 2003 Server operating s ystem comp uters. If you includ e the na mes and addre sses of al l the devices on the netw ork, then you can cop y the same file ont o all th e other K2 devices instead of editing the hosts file on each K2 device.

For FTP transfers on a K2 Storage System, transfers go to/from K2 Media Server s that have the role of FTP server. No transfers go directly to/from the shared storage K2 Media Clients that are on the K2 Storage System. So in the hosts file, you must add the “he_0” extension to a K2 Media Server hostname and associate that hostname with the K2 Media Server’s FTP/streaming network IP address.

Refer to the K2 Media Client System Guide for more information. To edit the hosts file manually:

1. Open the following file using Notepad or some other text editing application:

C:\Windows\system32\drivers\etc\hosts

2. Enter all IP addresses with machine names. The text format is simple. First type the Ethernet IP address, t hen use the TAB key or Space ba r to insert a few spaces. T hen type the machine name.

Here is an example:

192.168.100.11 root-server-1

192.168.101.11 root-server-1_he0

192.168.100.51 root-raid-1

192.168.100.61 root-gige-1

3. Save the file and exit the text editor.

4. Copy the new hosts fi le onto al l the oth er mac hin es. This is easier than edit ing the file on each machine.

Host table tips

• If transferring to or from a Profile XP or Open SAN system via UIM, the hosts file must also follow UIM naming conventions for those systems. Refer to the UIM Instruction Manual.

• Do not enter media (iSCSI) network IP addresses in the host table, as hostname resolution is not required for the media network.

• Use the following tip with care. While it can solve a problem, it also introduces a name resolution “anomaly” that might be confusing if not considered in future troubleshooting act iv ities.

For each SAN (shared storage) K2 Media Client, add the “_he0” suffix to the hostname but then associate that hostname with the K2 Media Server’s FTP/

60 K2 Storage System Instruction Manual June 25, 2009

streaming network IP ad dre ss , not th e K2 M edi a Client’s IP address. Aliasing K2 Media Client hostnames in this way would not be required if the transfer source/ destination was always correctl y specified as the K2 Media Server. H owever, a common mistake is to a ttempt a transfer in whic h the source/destinati on is incorrectly specified as the K2 Media Client. The host file aliasing corrects this mistake and redirects to the K2 Media Server, which is the correct transfer source/ destination.

An example of a hosts file entry with this type of aliasing is as follows:

192.168.101.11 server-1_he0 client-1_he0 client-2_he0

Testing the control network

To test the control network use the ping command as follows:

Testing the control network

1. On the control point PC, click

2. Type cmd and click

OK. The command prompt window opens.

Start | Run. The Run dialog box opens.

3. Type ping, then a spa ce, then the name of one of your K2 Sto rage System devices,

such as the Gigabit Ethernet switch, as in the following example:

ping root-gige-1

4. Press

Enter.

The ping command should return the IP address of the device, as in the following example:

Pinging root-gige-1.mycorp.com [192.168.100.61] with 32 bytes of data:

Reply from 192.168.100.61: bytes=32 time=10ms TTL=127 Reply from 192.168.100.61: bytes=32 time<10ms TTL=127 Reply from 192.168.100.61: bytes=32 time<10ms TTL=127 Reply from 192.168.100.61: bytes=32 time<10ms TTL=127

This verifies that the name of the device is being correctly resolved to the IP address, which indicat es that on the Control Poin t PC the host table entry is correct.

5. Ping the other K2 Storage System devices to which you have assigned control

network IP addresses.

6. Go to each Windows device in the K2 Storage System and repeat this procedure.

This verifies that network communication is correct to and from all devices.

June 25, 2009 K2 Storage System Instruction Manual 61

Chapter 2 Installing the Level 10 Storage System

Configuring the Level 10 storage system

Work through the topics in this section sequentially to do th e initial configuration of the Level 10 storage system.

• “Prerequisites for initial configuration” on page 62

• “Defining a new K2 Storage System” on page 63

• “Configuring the server - Part 1” on page 65

• “Configuring RAID” on page 67

• “Creating a new file system” on page 72

• “Configuring the server - Part 2” on page 74

Prerequisites for in itia l c onfiguration

Before beginning your in itia l conf igurat ion, mak e sure the d evices of t he K2 Sto rag e System meet the following prerequisites. Refer to sections earlier in this manual for detailed information. .

Devices Prerequisite for Level 10 configuration

Control point PC Ethernet cable connected

Control Point software installed Control network IP address assigned Network communication over the control network with all other K2 devices Power on

Ethernet s w it c h Ethernet ca b l es co nnected

Control network IP address assigned VLANs set up Trunks set up Power on

K2 Media Server Ethernet cables connected

Fibre Channel cable connected Software installed, as from the factory, including QuickTime 7 Control network IP address assigned Power on

62 K2 Storage System Instruction Manual June 25, 2009

Defining a new K2 Storage System

Define a Level 10 K2 Storage System as follows:

1. On the control point PC, open the K2 System Configuration application. A login

dialog box opens.

2. Log in to the K2 System Configuration application with the Windows

administrator account. By default this as follo ws:

Defining a new K2 Storage System

• Username: Administrator

• Password: adminK2 Refer to “Setting up application securi ty” on page 466 for more information about

administrator accounts and logging in to applications.

3. Click

New K2 System. The New K2 System wizard opens.

June 25, 2009 K2 Storage System Instruction Manual 63

Chapter 2 Installing the Level 10 Storage System

4. Follow the on-screen text to define your Level 10 K2 Stora ge System, as described in the following table.

On this page… Do this… Page 1

Create a name for your Level 10 K2 Storage System an d t ype it in the Name box. Select Level 1 0 . Do not select the Server redundancy option. Click Next

Page 2

Move the following into the Number of Devices Box:

•One K2 Media Server

• One Ethernet switch

• K 2 Media Clients as appropriate for your system.

• (Optional) Other devices as appropriate for your system.

Click Next.

64 K2 Storage System Instruction Manual June 25, 2009

On this page… Do this… Page 3

Review the information on this page and verify that you have correctly defined your K2 St o r ag e Sys te m. For a Level 10 storage system you should have the following:

• One Gigabit Ethernet switch

•One K2 Media Server

• The number and type of clients appropriate f or your system.

Finish. The Define New K2 Storage System wizard closes.

Click

Configuring the server - Part 1

Your K2 Storage System ap pea rs in the t ree v iew of the K2 System Co nfigur atio n application.

5. Continue with the next procedure.

Configuring the server - Part 1

1. In the K2 System Configuration application tree view, select [K2Server1].

2. Click the

Follow the on-screen text to configure the for a Level 10 K2 Storage System, as

Configure button. The Configure K2 Server wizard opens.

June 25, 2009 K2 Storage System Instruction Manual 65

Chapter 2 Installing the Level 10 Storage System

described in the following table:

On this page… Do this… Define server roles

Enter the name for the K2 Media Server, as currently c o nfig ur ed on th e machine. For Level 10, select all roles. Click

Software Configuration

This page checks for the software required to support the roles you selected on the previous page.

Software required on the Level 10 K2 Media Server is as follows:

•SQL Server

•K2 Server

• File System Server

•File System Client

•SNMP Services

•QuickTime If software with Yes in the Required column reports a s Not Installed, you

must first install it on the before c ontinuing. After installing the sof tware,

Check Software. When all required software reports as Installed,

click click

Next.

66 K2 Storage System Instruction Manual June 25, 2009

On this page… Do this… Network Configuration

This page displays the control network Ethernet port, and allows you to configure the FTP/ Streaming netwo r k Ethe r net port.

NOTE: This page does not configure the iSCSI interface (media network) ports.

The top port is the port over which the K2 System Configuration application is communicatin g. If correct l y configured, it is already assigned the control network IP address, a s displayed on this page. If the server has the role of FTP server, select the other port and click

Modify. A network configuration dialog box opens. Enter the FTP/

Streaming IP address and the subnet mask and click

Next.

Click

File System Server Configuration

Configuring RAID

Apply.

Click Launch Storag e Manager. Storage Utility opens.

3. Continue with the ne xt procedure to use Storage Utility to configure t he storage and file system.

Leave the Configure K2 Server wizard open while you are using Storage Utility. When you are done with Storage Utility, you continue with the wizard.

Configuring RAID

Use Storage Utility to complete the configuration of the L10 RAID chassis, as explained in the following topics:

• “Configuring RAID network and SNMP settings”

• “Binding disk modules”

June 25, 2009 K2 Storage System Instruction Manual 67

Chapter 2 Installing the Level 10 Storage System

Refer to “Prerequisites for initia l config uration” on p age 62 to confirm that the RAID storage is ready for configuration.

Configuring RAID network and SNMP settings

Use the Storage Utility to configure the following settings for the Level 10 RAID controller:

•IP address

• Subnet mask

• Gateway Address

• SNMP trap destinations For L10 RAID, network a nd SNMP settings are set and stored on the RAID contr oller

module, so the combined RAID storage devices, including the optional Expansion chassis, exist as a single entity on the control network.

The RAID storage device is configured by default for the SNMP community name “public”. If your site’s policies require using a different SNMP community name, contact your Grass Valley representative.

To configure these settings, do the following:

1. Launch Storage Utility from the K2 System Configuration application as in the previous procedure.

2. As prompted, wait while Storage Utility gathers system information, then Storage Utility opens.

3. In Storage Utilit y tree view, expand the node for the L1 0 RAID, right-click the icon for a L10 RA ID controlle r, and select

Configuration | Network Properties.

The Controller Network Settings dialog box opens.

68 K2 Storage System Instruction Manual June 25, 2009

Configuring RAID

4. In the Controller Slot Number f ield enter 0 and then press Enter. The settings from

controller 0 are loaded into the Controller Network Settings dialog box and are available for you to modify.

5. Enter the control network IP address and other network settings.

6. You want SNMP trap messages go to the NetCentral server PC, so for SNMP

Configuration enter the IP address of th e NetCentral ser ver PC. You can also enter IP addresses for other SNMP managers to which you want to send SNMP trap messages.

7. Click

OK to save settings and close.

8. In Storage Utilit y click

disk modules”.

Binding disk modules

Use the following procedure to bind disk modules as required for the Lev el 10 storage system.

Also refer to “About RANKs and LUNs in Storage Utility” in the chapter Overview of K2 Storage Tools.

NOTE: Binding dest roys all user data on the disks.

1. In the Storage Ut ility main windo w, identi fy bound RANKs and un bound dis ks by

View | Refresh. Continue wi th the ne xt proce dure “Binding

June 25, 2009 K2 Storage System Instruction Manual 69

Chapter 2 Installing the Level 10 Storage System

their placement in the hierarchy of the tree view. In the following illustration, disk numbers are represented by “XX”. Refer to “Identifying disks” on pa ge 544 for an explanation of how disks are actually numbered in Storage Utility.

View disk properties and identify the four disks you will use for the metadata/ journal RAID 1 RANKs, the one metadat a/journa l Hot Spare disk, any other disks that you intend to use for Hot Spares, and the remainder of the disks that are available for media stora ge. Make sure you select disks appropr ia te ly as you bind disks in the remainder of this procedure.

2. To bind unbound disks for media storage, do the following: a. Right-click the

Unbound node for a contro ller, then se lect Bind in the context

menu. (If the RAID chassis has two controllers, both controllers are represented by the single “Controller” node)

The Bind dialog box opens showing all unbound disks for the controller listed in the Available Disk list.

70 K2 Storage System Instruction Manual June 25, 2009

Configuring RAID

b. Leave Full Bind unchecked. Refer to “About full/background bind” on

page 548.

c. In the

Bind Type drop down box, select RAID 5 or RAID 6, as specified by your

system design.

d. In the Available Disks box , select six contig uous disks at the top of the list. (TIP:

Use ‘shift-click’ or ‘control-click’ to select disks.).

e. Click the add (arrow) button to add disks to the Selected Disks list.

NOTE: As an aid in identifying a disk module’s physical location, select it in the Selected Disks l ist, t hen cl ick

f. Click

OK to close the Bind dialog box and begin the binding process. The

Identify Disks. This c auses the di sk dr ive l ight to f lash.

Progress Report dialog box opens, showing the status of the binding process.

June 25, 2009 K2 Storage System Instruction Manual 71

Chapter 2 Installing the Level 10 Storage System

g. Close the Progress Report and repeat these steps for other unbound disks. If

specified by your system design, you can bind some disks as Hot Spares, as explained in “Binding Hot Spare drives” on page 551. When you are done, if you did not bind any extra Hot Spares, you should have the following results:

For L10 storage you should have two RAID 5 or RAID 6 RANKs of six disks each on the primary RAID storage devi ce. For each o ptional Expan sion chassis, you would have an additional one or t wo RAID 5 or RAID 6 RANKs of six disks each.

h. Click

3. Restar t the K2 Medi a Server.

NOTE: Make sure start up processes on the K2 Media Server are complete before proceeding.

4. Continue with the next procedure “Creating a new file system”.

Close in Progress Report window.

Creating a new file system

1. In Stor age Utility, click Tools | Make New File System. The Setting dialog box opens.

72 K2 Storage System Instruction Manual June 25, 2009

Creating a new file system

2. For the Real Time Input/Output (RTIO) rate, enter the value specified by your

system design. If you do not know this value, contact your Grass Valley representative.

3. If the K2 Storage System is to be acc essed by only K2 Media Clien ts you can leave

Windows Security unchecked. If accessed by Aurora Edits, refer to the Aurora Edit Installation and Configuration Guide for instructions.

4. Click

OK. The Configuration File dialog box opens.

The configuration file for the media file system is displayed. You can verify media file system parameters by viewing this file. Do not edit this file. Click

Accept.

A “…Please wait…” message box displays progress and a “…succeeded…” message confirms the process is complete.

5. A message informs you that you must restart the K2 Media Server, however the

restart at the end of the Configure K2 Ser ver wizard su ffices, so you do no t need to restart now.

6. Close the Storage Utility.

NOTE: Do not attempt to sta rt K2 Media Cl ients or otherwise brin g the K2 Sto rage System online until instructed to do so later in this chapter.

7. Continue with the next procedure.

June 25, 2009 K2 Storage System Instruction Manual 73

Chapter 2 Installing the Level 10 Storage System

Configuring the server - Part 2

1. Return to the Configur e K2 S erv er page from which you laun ched Storage Utility and proceed as described in the following table:

On this page… Do this… File System Server

Configuration

This page checks on the configuration of the server in one of its main roles as a file system server. The server also functions as a file system client, which is also checked from this page.

Check. When the wizard reports that the configuration is correct,

Click

Next.

click If you get a “The V: will not be available until this device is rebooted…” message, you can safely continue with this procedure and follow the instructions related to this message later in the procedure.

74 K2 Storage System Instruction Manual June 25, 2009

On this page… Do this… iSCSI Bridge Server

Configuration

This page manages the components that bridge between iSCSI (the GigE media network) and the Fibre Channel connection to the RAID storage. You configure network set tings on the iSCSI adapters and the page validates that the Fibre Channel adapter is in place and that the media RANKs are visible as iSCSI targets.

Select an iSCSI adapter and click dialog box opens. Enter the media network IP address and the subnet mask and click Apply. Do the same for the other iSCSI adapter. You must onfigure the second iSCSI adapter, even though it is not us ed on a L10 system.

Check. The Validation Report opens.

Click

Configuring the server - Part 2

Modify. A network configuration

Confirm that the iSCSI configuration is succes sful. Close the Validation Report and then click Next.

Database Server Configuration

You do not need to enter or configure anything on this page.

Next.

Click

June 25, 2009 K2 Storage System Instruction Manual 75

Chapter 2 Installing the Level 10 Storage System

On this page… Do this… FTP Server Configuration

This page appears on ly if the server has the role of FTP server.

Do not modify these settings. Leave at default values of Max FTP streams = 4 and FTP Data So ck e t Time ou t = 60. Only qu alified Grass Valley personnel should specify other values, as these settings are intended for use only with custom systems designed by Grass Valley. Click

Completing the Configuration Wizard

Click Finish. The wizard closes. The server restarts. Wait until all startup processes have completed before continuing.

Your configurations for the Level 10 K2 Storage System are complete.

Adding K2 Storage System clients

You can add now clients, suc h as K2 Media Clients or Aurora Edit s, to the K2 Storage System and configure them using the K2 System Configuration application.

• For Aurora Edits, refer to the Aurora Edit Installation and Configuration Guide fo r instructions.

• For K2 Media Clients, refe r to K2 Media Client System Guide for instructions.

Basic operations for the Level 10 storage system

Use the following procedures as you work on your Level 10 storage system:

• “Level 10 storage system power-off procedure”

• “Level 10 system power-on procedure”

Level 10 storage system power-off procedure

Use the following sequence to power-off the Level 10 storage system.

1. Power-off all K2 Media clients or other iSCSI clients.

2. Shut down the K2 Media Server.

76 K2 Storage System Instruction Manual June 25, 2009

Level 10 storage system power-off procedure

3. Shut down optional NH K2 Media Servers, if any.

4. On the primary RAID chassis controller, identify the RDY LED. It blinks at a rate

of 1 blink per second during normal operation.

RDY

LED

BBU IN MODEM

Power Good

HPE FLT

DP1 DP0

FLT/LNK

A/L

LED

5 4 3 2

ACT/LNK

1 0

BACKUP

FLT

LAN

LNK/ACT MC

ACS

RDY

RDY LED

BAT

MNT

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

LNK/ACT

1 0

A/L

BACKUP

FLT

RDY

BAT

LAN

MNT

ACS

Power Cords

(115V/230V)

5. Press and hold down the power button on the RAID controller.

6. Release the power button in about 5 seconds, when the RDY LED blinks more

quickly, at a rate of abo ut 2 blinks per second. Do not hol d down the power butt on for longer than 15 seconds.

The power button on the RAID controller turns off power for the primary RAID chassis and any connected Expansion chassis. Power-off normally occurs within 20 seconds and is ind icate d when LEDs ot her th an thos e on the power sup plies go off and the fans stop rotating.

7. Wait for RA ID power-off to complete before proc eeding.

8. Power-off all Ethernet switches.

9. Power-off the control point PC and/or the NetCentral server PC, if necessary.

June 25, 2009 K2 Storage System Instruction Manual 77

Chapter 2 Installing the Level 10 Storage System

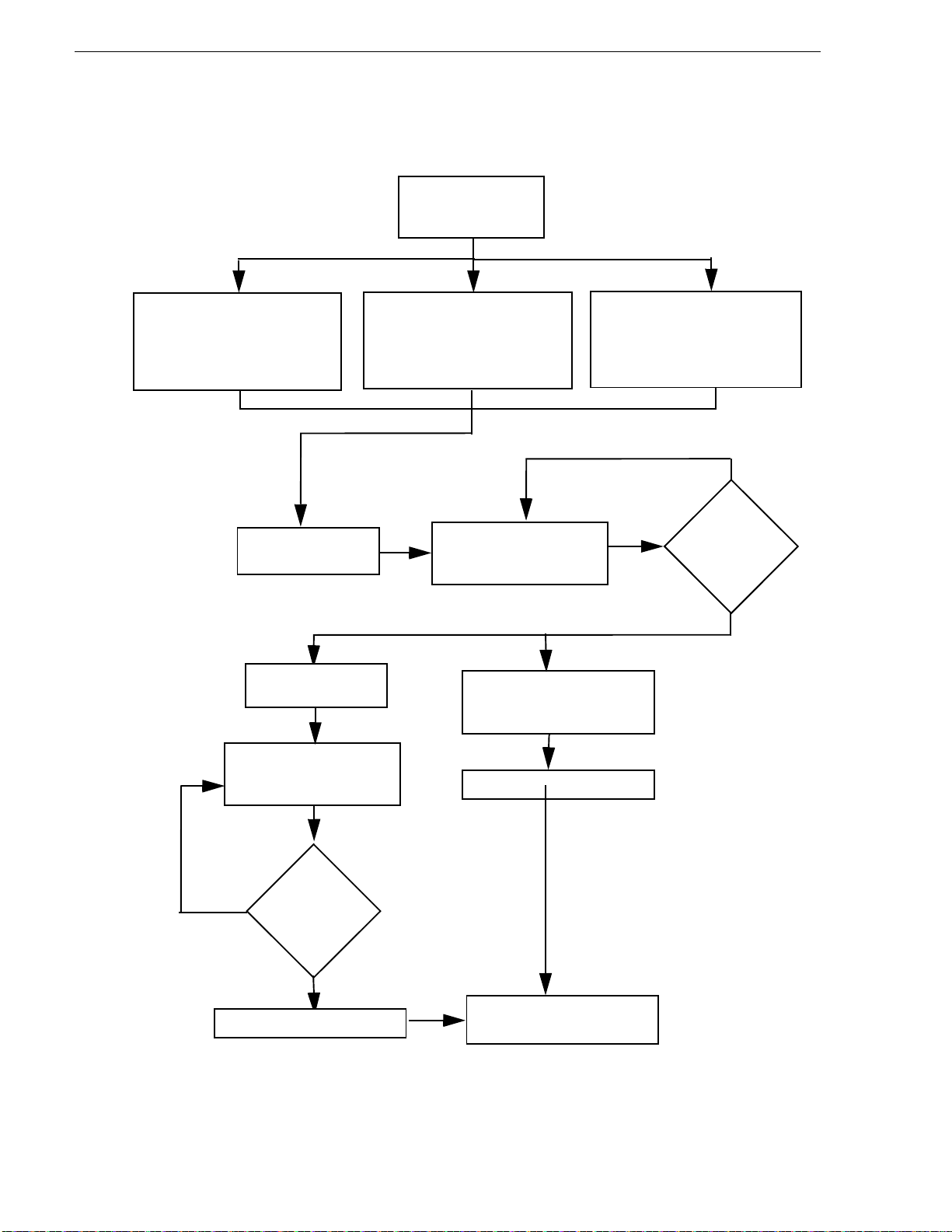

Power on Level

Level 10 (iSCSI) K2

Storage System

Power on and verify control point PC. Refer to page 80 for procedures.

Power on and verify HP ProCurve switch. Refer to page 79 for procedures.

Power on and verify RAID devices. Refer to page 79 for procedures.

Elapsed time: 5 minutes

Elapsed time: 1 minute

Power on the K2 Media Server.

From the control point PC, at the command prompt, ping the K2 Media Server.

Power on

K2 Media Clients and other iSCSI clients.

Begin record/pla y op e rations.

Yes

Power on optional NH servers, if any.

From the control point PC, at the command prompt, ping the K2 Media Server.

Yes

Media Server

responds to ping?

Elapsed time:

3 minutes

K2 Storage System power-on complete

Media Server

responds to ping?

Elapsed time:

3 minutes

Begin FTP operation s.

Level 10 system power-on procedure

78 K2 Storage System Instruction Manual June 25, 2009

Powering on Level 10, 20, 30, and Nearline 10 RAID storage devices

Use the following pr ocedure to power o n and verify prope r operation of RAID st orage devices.

1. Verify power and cab ling.

2. Press and hold down the power button on the controller, as shown.

RDY

LED

BBU IN MODEM

Power Good

HPE FLT

DP1 DP0

FLT/LNK

A/L

LED

5 4 3 2

ACT/LNK

1 0

BACKUP

FLT

LAN

LNK/ACT MC

ACS

RDY

RDY LED

BAT

MNT

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

LNK/ACT

1 0

A/L

BACKUP

FLT

RDY

BAT

LAN

MNT

ACS

Power Cords

(115V/230V)

If the RAID chassis has two controllers, you can press the power button on either controller. You do not need to press both power buttons.

Pressing the power b utton on a cont roller also powers o n any connected Expansion chassis. There are no power buttons on Expansion chassis.

3. Release the power button when the Power Good LED on the power supply is

illuminated. This takes 1-3 seconds .

4. Wait while the primary RAID chass is performs self-test and in itialization. This

takes about four minutes. While this is taking place, the RDY LED is illuminated with a steady on light.

5. Watch for the RDY LED to begi n blinking at one s econd intervals. Th e LED might

turn off and back on two times before st arti ng the one second bli nk patt ern. When the RDY LED is blinking at one second interval s, the sel f-test and initi aliza tion is complete and the chassis is ready for use.

Powering on the HP ProCurve switch

Use the following procedure to power on and verify proper operation of the HP ProCurve switch.

1. Power up the switch.

2. Watch LEDs to verify proper operation. The diagnostic self test LED Behavior is

as follows:

• Initially, all the status, LED Mode and port LEDs are on for most of the durati on of the test.

• Most of the LEDs go of f a nd t hen may come on again duri ng phases of the self test. For the duration of the self te st, the Test L ED stays on.

If the ports are connecte d to active network devi ces, the LEDs behave accor ding to the LED Mode selected. In the default view mode (Link), the LEDs should be on.

June 25, 2009 K2 Storage System Instruction Manual 79

Chapter 2 Installing the Level 10 Storage System

• If the ports are conne cted to active network devic es, the LEDs behave accordin g to the LED Mode selected. In t he default view mode ( Link), the LEDs shoul d be on.

• If the ports are not c onne cte d to active network devices, the LEDs will st ay of f.

Powering on the control point PC

Use the following procedure to powe r on K2 Storage System’s control point PC and verify proper operation during power up of the system.

1. Power up and log on to the PC using standard Windows procedures.

2. Start and log on to NetCentral.

3. NetCentral report s d evi ces as offline. As each device of the K2 Storage Sys tem i s powered on, check NetCentral to verify the device’s status

80 K2 Storage System Instruction Manual June 25, 2009

Chapter 3

Installing the Level 10R Storage System

The K2 Level 10 Redundant (L10R) storage system was initially released with K2 system software version 3.2 in September 2007.

Use this ch apter to install the K2 Level 10R sto r age system. This chapter includes the following to pics:

• “Level 10R description” on page 82

• “Preparing Level 10R devices” on page 83

• “Networking for Level 10R” on page 102

• “Configuring the Level 10R storage system” on page 107

• “Adding K2 Storage System clients” on page 127

• “Basic operations for the Level 10R storage system” on page 128 Work through these topics sequentially to install the storage system.

June 25, 2009 K2 Storage System Instruction Manual 81

Chapter 3 Installing the Level 10R Storage System

RAID Primary

Chassis

RAID Expansion

Chassis (optional)

K2 Media Servers

Gigabit Ethernet Switches

Control B

Media B

Control A

Media A

Control A

Media A

Control B

Media B

Control

FTP

Media

Control

FTP

Media

Control point PC

K2 clients

Control

ISLs

Control

FTP/streaming

Control B

Media B

Control A

Media A

Fibre Channel

Fibre

Channel

Level 10R description

K2SUMMIT

PRODUCTION CLIENT

K2SUMMIT

PRODUCTION CLIENT

K2 MEDIA SERVER K2 MEDIA SERVER

K2 SAS STORAGE

K2SUMMIT

PRODUCTION CLIENT

The K2 Level 10 Redundant (L10R) storage system was initially released with K2 system software version 3.2 in September 2007.

82 K2 Storage System Instruction Manual June 25, 2009

The Level 10R storage system has two Gigabit Ethernet switches connected by Inter-Switch Link s (ISLs) to su pport a redundant Ethernet fabric. Th e storage system also has redundant GS K2 Media Servers. The servers are conf igured to have id entical roles. This provides redundancy for database, file system, iSCSI bridge, and FTP roles. One L10 RAID supports redundant Fibre Channel connections. Up to four Expansion chassis are optional for increased storage capacity.

K2 Media Clients have a pai r of redundant (te amed) Gigabit Ethernet p orts for control and two Gigabit Ether net po rts ( A and B) for me dia ( iSCSI). Each por t of the c ontrol team is connected to a di ff ere nt switch. The A media port goe s t o t he A Gi gE switch and the B media port goes to the B GigE switch. The GigE switches are configured with V-LANs to keep the control/FTP and media (iSCSI) traffic separate.

Each GS K2 Media Server has one GigE connection for media (iSCSI), one GigE connection for control, one GigE connection for FTP, and one Fibre Channel connection to the RAID storage. All GigE connections on a server go to the same GigE switch. The server hosts an iSCSI interface ca rd for the GigE media connection and a Fibre Channel card for the RAI D storage connection . The iSCSI interface c ar d provides a bridge between GigE iSCSI and Fib re Channel SCSI. The server also hosts software components that allow it to function in its roles, including media file system manager, media database server, and FTP server. Redundant K2 Media Servers are

connected by a seri al cable which s upports the hear tbeat signal required for automatic system recovery (fail ove r) fea tu res . Each GS K2 Media Server has redundan t powe r supplies.

The L10 RAID chassis has redu ndan t RAID c ontrol lers t o suppo rt t he Fib re Channel connections from the K2 Me dia Ser ve rs. The L10 RAID chassis is a ls o co nnected to the GigE control network, which is required for SNMP (NetCentral) monitoring.

On the L10 RAID chassis there are two RAID 1 RANKs (also know as LUNs) for media file syste m metadata fil es and journal f iles. The rema inder of the RAID s torage is RAID 5 or RAID 6 for media.

The K2 configuration control po int PC is co nnected to the GigE cont rol network. The K2 System Configuration application runs on this PC for configuring the storage system.

FTP/streaming traffic accesses the K2 Storage System via the FTP GigE port on K2 Media Servers. FTP/streaming traffic does not go to K2 Media Clients.

Refer to Chapter 9, Description of K2 Storage Devices for more information. Also refer to “Design considerations for Ethernet switches” on page 559.

Preparing Level 10R devices

Use the topics in thi s sect io n to pre pare ea ch devic e so that i t is r eady to b ecome part of the Level 10R storage system.

• “Setting up the Control Point PC”

• “Setting up the Level 10R Gig E switch”

• “Cabling th e switch”

• “Setting up the Level 10R K2 Media Server”

• “Setting up the L10R RAID chassis”

• “Preparing K2 Storage System clients”

Setting up the Control Point PC

To set up the K2 configuration Control Point PC, you have the following options:

• Use the Grass Valle y Cont rol Point PC that comes from the factory with software

pre-installed. This includes the K2 System Configuration application, remote AppCenter, and NetCentral software. Refer to the K2 Media Client System Guide for rack mount instructions.

• Use a PC that you own and install the required software. For either option, you must do the following fo r the Control Point PC th at runs the K2

System Configuration application:

• Assign a control network IP address to the PC. Refer to “Networking ti ps” on

page 112.

• Connect the PC to the GigE control network. To use your own PC, you must additionally do the following:

June 25, 2009 K2 Storage System Instruction Manual 83

Chapter 3 Installing the Level 10R Storage System

• Verify that the PC meets system requirements.

• Install the K2 Control Point software.

• Install other supporting software.

• Install and license NetCentral server software. Yo u can install this on the NetCentral server PC, whic h can be t he K2 conf igurat ion Cont rol Poi nt PC. Refe r to the NetCentral User Guide.

Also refer to “Control point PC description” on page 410. To fix the sc reen resolution problem seen with NetCentral on the Grass Valley

Control Point PC, do the following:

1. Go to Display properties (right mouse selection of properties on the display area)

2. Select Settings tab

3. Select the Advanced button

4. In the Gen eral tab, set the DPI setting to Normal size (96 DPI)

5. Restart the PC

Setting up the Level 10R Gig E switch

These procedures are for the HP ProCurve switch 2900 series. You must use this switch for iSCSI traffic on Level 10R.

Also refer to “Design considerations for Ethernet switches” on page 559.

• You need at least two swi tches, so that the “A” medi a (iSCSI) network and t he “B” media (iSCSI) network each have their own switch.

• Assign an IP address and logon to each switch. Refer to “Configuring the GigE

switch via serial connection” on page 84 .

• Set up VLANs on each switch. Refer to “Configuring the GigE switch via the Web

interface” on page 88.

• Configure QOS and verify the flow control setting.

Also refer to “K2 Ethernet switch description” on page 411 and “Design

considerations for Ethernet switches” on page 559.

Configuring the GigE switch via serial connection

NOTE: Make sure you check the switch firmware and up grade if necessary, as instructed at the end of this procedure.

The following procedure is for the HP ProCurve switch 2900 series. Do not use this procedure on other switch models.

84 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10R Gig E switch

For Level 10R with two switches, do the following on each switch. Use a direct console connection to the switch, start a console session, and access the

Switch Setu p screen to set the IP address.

1. Configure the PC terminal emulator on the control point PC or another PC as a

DEC VT-100 (ANSI) termi nal o r use a VT-1 00 ter minal, and confi gure eithe r one to operate with these settings:

• Baud rate 115200

• 8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff

• Also disable (un check) t he “Use Func tion, Arr ow, and Ctrl Keys for Windows” option

2. Connect the PC to the switch’ s Console Port using t he console cable included with the switch. (If your PC or t erminal has a 25-pi n serial connector , first attach a 9-pin to 25-pin straight-through adapter at one end of the console cable.)

3. Turn on the PC’s power and start the PC terminal program.

4. Press

Enter two or three times a nd you will se e the copyrig ht page and th e message

“Press any key t o c ont inu e”. Press a key, an d yo u wi ll t hen see the switch c ons ole command (CLI) prompt.

NOTE: If you press E nter too man y times and get past the log in, enter the command EN to get into the command line.

5. Type the following, then press

Enter:

If prompted to save the current configuration, answer no (press the n key) to proceed. The main menu opens.

6. On the main menu, choose

7. Select

IP Configuration, then press Enter.

8. Press the right-arrow key to choose

Switch Configuration, then press Enter.

Edit, then press Enter. Tab to fields and enter

information as follows: a. Change b. Tab to the

Manual option.

c. Tab to the d. Tab to the

Gateway to be the default router.

IP Config (DHCP/Bootp) field and use the Space bar to select the

IP Address field and enter the switch’s control network IP address. Subnet Mask field and enter the subnet mask used for your network.

9. Press

10.Select

11.From the main menu, chose

Enter, then right-arrow to Save. Press Enter and revert to previous menu.

Return to Main Menu and press Enter.

Console Passwords and press Enter. The Set Pa ssword

Menu opens.

12.Chose

Set Manager Password and press Enter.

13.When prompted for the password, type a password of up to 16 ASCII characters

June 25, 2009 K2 Storage System Instruction Manual 85

Chapter 3 Installing the Level 10R Storage System

with no spaces and press Enter. The pass word ca n be one that is used on ot her K2 devices, such as “adminK2” or “K2Admin”, or it can be your site's administrator password.

14.When prompted to ent er th e pa ssword again, retype th e pa ss wo rd and pre ss

15.Select

16.From the main menu, tab to

Return to Main Menu and press Enter.

Command Line (CLI) and press Enter. The command

Enter.

prompt appears.

17.Type the following, then press

Enter:

configure

You are now in configuration mode.

Enter:

password manager user-name administrator

19.When prompted, enter and re-enter the pass word.

20.Set spanning tree to RSTP. Type the following, then press

Enter:

spanning-tree force-version rstp-operation

This configures spa nning tr ee, but i t does no t turn s panning t ree on. You must turn spanning tree on using the switch’s Web interface.

21.Decide your SNMP community name as explained in the fol lo wing opt io ns, the n proceed with the next step:

• If you decide to use a unique SNMP community name (not “public”), add the

community and set it s RW permissions . For example, if the community na me is “K2”, type the following, then press

Enter:

snmp-server community K2 unrestricted

• If you decide to use the default SNMP community “public” for NetCentral

monitoring, which already has RW permissions set as required by NetCentral, proceed to the next step.

22.Enter the SNMP community and IP address of the NetCentral server PC. For example, if the IP a ddr ess is “192.168.40.11” and the community is “publ ic”, you type the following, then press

Enter:

snmp-server host public 192.168.40.11

23.Enable Authentication traps. Type the following, then press

Enter:

snmp-server enable traps authentication

This allows NetCentral to test the switch to verify th at it can send i ts SNMP trap messages to NetCentral.

24.Type the following, then press

Enter:

When prompted, save the configuration by pressing the y key. The main menu

86 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10R Gig E switch

opens.

25.If you need a trunk for ISLs to gang switches together, use the following steps.

These steps illustrate trunking the last three 1 Gig ports for three 1 Gig ISLs, which is the recommended co nfiguratio n for ISLs on all multi-switch K2 Storage Systems. Refer to “Desi gn cons idera tions for Etherne t switch es” on page 559 and consult with your Grass Valley representative if your requirements deviate from the recommended policy:

a. At the main menu, select b. Choose selection

Port/Trunk Settings and press Enter.

c. Press the right-arrow key to choose

Switch Configuration and press Enter.

Edit, then press Enter.

d. Down arrow until at the bottom of the list of ports and select the last (highest

port number) 1 Gig port in the list. e. Right-arrow over to the Group column. f. Use the Space bar and set the bottom 1 Gig port to g. Set the next port up also to h. Set the next port up also to i. Press

26.Select

Enter, then right-arrow to Save. Press Enter and revert to previous menu.

Return to Main Menu and press Enter.

27.From the main menu, tab to

Trk1. Trk1.

Command Line (CLI) and press Enter. The command

Trk1.

prompt appears.

28.Check the version of firmware currently installed on the switch. Type the following, then press

Enter:

show flash

Information is displayed similar to the following example:

HP_iSCSI_switch1# show flash Image Size(Bytes) Date Version

----- ---------- -------- ------Primary Image : 6737518 07/25/08 T.13.23 Secondary Image : 5886358 10/26/06 T.11.12 Boot Rom Version: K.12.12 Current Boot : Primary

29.Check the Primary Image Version and refer to your K2 Release Notes for information about currently supported versions. Then proceed as follows:

•If K2 Release Notes instruct you to change the firmware on the switch, do so

before continuing. Refe r to th e doc umentat ion you r eceive d with t he switc h for instructions to change the firmware. Then continue with the next procedure.

•If K2 Release Notes confirm that the version on the switch is a currently

supported version, continue with the next procedure.

June 25, 2009 K2 Storage System Instruction Manual 87

Chapter 3 Installing the Level 10R Storage System

30.Type the following, then press Enter:

The main menu opens.

31.From the main menu, choose

Reboot Switch and press Enter. When prompted

“Continue Reboot…?' , answer yes (pres s the y key) to p roceed. The switch restarts.

32.You can now use the switch’s web browser interface for f ur the r co nfi gur ation, as instructed in the next procedure.

33.Close the PC terminal program and disconnect the console cable.

34.Repeat this procedure on the other switch.

Continue with the next procedure “Configuring the GigE switch via the Web

interface”.

Configuring the GigE switch via the Web interface

The following procedure is for the HP ProCurve switch 2900 series. Do not use this procedure on other switch models.

For Level 10R with two switches, do the following on each switch.

1. From the control point PC or another PC, make su re that you have a di rect Ethernet cable connection to the switch, with no switches, routers, proxies, or other networking devices in between.

2. On the PC, open Intern et Expl orer and typ e the s witch’ s IP a ddress in the Addr ess field, as in the following example.

http://192.168.100.61

This should be the name or IP address as currently configured on the switch.

3. Press

Enter to open the switch’s configuration application.

NOTE: The configuration application for the HP ProCurve switch requires Java.

You can also access the switch’s configuration application from the K2 System Configuration applicat ion .

4. In the switch’s configuration application, choose

Features

Configuration, then Device

88 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10R Gig E switch

5. Set Spanning Tree to On and click Apply Changes. If prompted, log in with the

switch’s administrator username and password.

6. Click

Port Configuration.

7. If you do not need trunks, such as on a one- swi tc h syst em, sk ip to the next step in

this procedure. If you need trunks, such as on a two-switch system with ISLs, do the following:

a. Select (Ctrl + Click) the trunked ports. Typically the trunked ports are at the

bottom of the list and are labeled Trk1.

b. Click

Modify Selected Ports.

If prompted, log in as administrator.

June 25, 2009 K2 Storage System Instruction Manual 89

Chapter 3 Installing the Level 10R Storage System

This setting varies depending on switch model. Set as instructed in text.

c. For the trunked ports, set Port Enabled to Yes. On some switch models, some

ports are disabled by default, so make sure you enable them. Leave Mode as default of

Auto.

d. Set Flow Control as follows:

-Set to

Disable.

NOTE: This setting is for t he 2900 series switch. Ot her switch models might requi re a different setting.

e. Click

Apply Settings.

8. On the Port Configuration page, do one of the following:

• If you do not have trunks, select all ports.

• If you have trunks, select the remaining ports (the ports not trunked).

90 K2 Storage System Instruction Manual June 25, 2009

9. Click Modify Selected Ports.

This setting varies depending on switch model. Set as instructed in text.

Setting up the Level 10R Gig E switch

10.Make su re Port Enabled is set to

Yes, leave Mode as default of Auto.

11.Set Flow Control as follows:

•Set to

Disable.

NOTE: This setting is for t he 2900 series switch. Ot her switch models might re quire a different setting.

12.Click

Apply Settings. Wait until settings are applied and the Web interface

becomes active.

13.Choose

VLAN Configuration. If prompted, log in with the switch’s administrator

username and password.

June 25, 2009 K2 Storage System Instruction Manual 91

Chapter 3 Installing the Level 10R Storage System

14.Create a new Media (iSCSI) VLAN as follows: a. Click

Add/Remove VLANs.

b. In the VL AN Name field enter Media. c. In the VLAN ID field enter 60. d. Click e. Click

Add VLAN. Main Screen to return to VLAN Configuration.

15.Configure the Media VLAN as follows: a. In the Media VL AN row, click

Modify.

92 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10R Gig E switch

b. Select all the odd numbered ports. (Tip: Use Ctrl + Click.) c. In the Mode drop-down list, select

Untagged, then click Apply. This removes the

odd ports from the default (Control) VLAN. If you have a trunk, do not configure it as “Tagged”. Media VLAN traffic

(iSCSI) does not go over the trunk.

16.Click the

VLAN Configuration tab.

17.If you have a trunk, configure the default (Control) VLAN as follows:

a. In the DEFAULT_VLAN row, click

Modify.

b. In the Current Mode list box, scroll down and select the trunk. c. In the Mode drop-down list, sele ct

Tagged, then click Apply. This allows default

VLAN traffic (non-iSCSI) to go over the trunk.

18.Click the

VLAN Configuration tab.

June 25, 2009 K2 Storage System Instruction Manual 93

Chapter 3 Installing the Level 10R Storage System

19.If you have a trunk, ver if y t hat for the default VLAN the tr unk i s d isp layed in the Tagged Ports column.

20.If you have two switches, repeat this procedure for the other switch.

21.Close the switch configurati on appl ication.

Configuring QOS on the GigE switch

Prerequisites for this procedure are as follows:

• The switch is HP ProCurve switch 2900 series.

• Trunks, VLANs and all other configuration is complete.

• The switch has an IP address

• You have network access to the switch

Use this procedure to make the Quality of Service (QOS) setting on the HP ProCurve switch 2900 series.

1. If you have not already done so, from a network conn ected PC open the MS-DOS command prompt and login to the switch as administrator, as follows:

a. Telnet to the switch. For example, if the switch’s IP address is 192.168.40.12,

you type the following, then press

Enter.

telnet 192.168.40.12

b. Press c. Type the switch’s administrator username and press

Enter one or more times until the switch’s username prompt appears.

Enter, then type the

switch’s administrat or password and press

Enter. The switch console command

(CLI) prompt appears.

2. Type the following, then press

Enter:

config

You are now in configuration mode.

3. Type the following, then press

Enter:

show qos vlan

The screen display s VLAN informat ion. Note the I D number of the Media (iSCSI ) VLAN. It should be 60, as follows:

VLAN priorities

VLAN ID Apply rule | DSCP Priority

------- ----------- + ------ ---------- 1 No-override | No-override 60 No-override | No-override

a. Assign the Media VLAN the QOS priority of 3. For example, if the V LAN ID

is 60, you type the following, then press

94 K2 Storage System Instruction Manual June 25, 2009

Enter.

vlan 60 qos priority 3

Setting up the Level 10R Gig E switch

4. Type the following, then press

Enter:

show qos vlan

The screen displays VLAN information. Make sure that the Priority column reports that the Media VLAN has a value of 3.

Verifying the flow control setting on the GigE switch

Prerequisites for this procedure are as follows:

• The switch is HP ProCurve switch 2900 series.

• Trunks, VLANs, QOS, and all other configuration is complete.

• The switch has an IP address

• You have network access to the switch Use this procedure to check flow control settings, and if necessary, configure flow

control to “off” (disabled) for all ports.

1. If you have not already done so, from a networ k connect ed PC open the MS-DOS

command prompt and login to the switch as administrator, as follows: a. Telnet to the switch. For example, if the switch’s IP address is 192.168.40.12,

you type the following, then press

Enter.

telnet 192.168.40.12

b. Press c. Type the switch’s administrator username and press

Enter one or more times until the switch’s username prompt appears.

Enter, then type the

switch’s administrat or password and press

Enter. The switch console command

(CLI) prompt appears.

2. Type the following, then press

Enter:

config

You are now in configuration mode.

3. Type the following, then press

Enter:

show interface brief

The screen displays setting for all po rts. In the Flow Ctrl column (at the right) idenfity settings for ports and proceed as follows:

• If all ports a re set to “off”, no further configu ration is necess ary. Do not proceed.

• If one or more ports are set to “on”, continue with this procedure.

4. Set ports to flow control “off” as necessary. You can set a range of ports. For

example, to set ports 1 - 21 to off, you type the following, then press

Enter.

no int 1-21 flow-control

5. Type the following, then press

Enter:

show interface brief

Verify that all ports have flow control set to off.

June 25, 2009 K2 Storage System Instruction Manual 95

Chapter 3 Installing the Level 10R Storage System

Control ports

Media (iSCSI) ports

Control ports

Media (iSCSI) ports

Inter-Switch Links (ISLs)

Cabling the switch

• Install the switches in their permanent location.

• Provide power to the switches.

• Use CAT5e or CAT6 cables. The maximum cable length is 50 meters for CAT5e and 100 meters for CAT6.

• Connect cables as follows:

2900 series switch

To the media ports on switch A, make t he “A” media (iSCSI) network c onnecti on from each K2 Media Client. Also make the media (iSCSI) connection from K2 Media Server A.

To the media ports on swit ch B, make the “B” media (i SCSI) net wor k co nnection from each K2 Media Client. Also make the media (iSCSI) connection from K2 Media Server B.

To the control ports o n switch A, make one connect ion from each K2 Media Cli ent, from RAID controller 0, and from the control point PC. Also make the control network connection and the FTP network connection from K2 Media Server A.

To the control ports on switch B, make the second control connection from each K2 Media Client, and from RAID controller 1. Also make the control network connection and the FTP network connection from K2 Media Server B.

If you have other iSCSI clients, such as Aurora Edits, that have just one iSCSI connection and one contr ol connection, appro ximately half of the cli ents should be connected to switc h A and half of the cl ients sh ould be con nected to switch B. In a failover event, only the clients connected to one of the switches will remain operational, so make connections accordingly. Connect the client’s iSCSI connection to one of the media ports on a swit ch and the client’ s control connection to one of the control ports on the same switch.

Interconnect switch A and switch B with three 1 Gig ISLs.

Refer to cabling procedures later in this chapter fo r the GigE connections at each of the devices of the K2 Storage System.

96 K2 Storage System Instruction Manual June 25, 2009

Setting up the Level 10R K2 Media Server

The Dell PowerEdge 1950 is qualified as the platfor m for the GS K2 Media Server. Do the following to prepare GS K2 Media Servers:

• Install the server in its permanent location. Refer to the rack mount instructions that

you received with the server’s product bundle.

• Provide power to the servers.

• Connect cables as follows:

Dell 1950 PowerEdge server

Heartbeat

cable

(serial)

Fibre Channel to RAID controller 0

To control port on GigE switch A

Fibre Channel to RAID controller 1

To control port on GigE switch B

To media (iSCSI) port on GigE switch A

Gb 2Gb 1

FTP: To control port on GigE switch A

To media (iSCSI) port on GigE switch B

Gb 2Gb 1

FTP: To control port on GigE switch B

Connect the iSCSI interface port to a media port on the GigE switch. Connect the A server to the A GigE switch. Connect the B server to the B GigE switch.

Connect the motherboard GigE port 1 and GigE port 2 to control ports on the GigE switch. Connect the A server to t he A GigE swit ch. Co nnect the B server to the B GigE switch.

Connect the Fibre Channel port to the RAID storage device. Connect the A server to controller 0 and the B server to controller 1.

Make a direct connection between the serial ports of the two servers. Take care to use the proper serial cable to interconnect redundant K2 Media

Servers. This cable supports the heartbeat mechanism whereby the servers monitor each other’s health. It is a 9 pin serial cable, but it is not a standard RS-232 null modem cable. The heartbeat cable is supplied with your system (Grass Valley part numbe r 174-8137-00). Refer to the K2 Medi a Cl ien t Sy st em Guide for pinout details.

• Assign a control network IP address to GigE port 1. Use standard Windows

procedures. Refer to “Networking tips” on page 112.

• Change the hostname. Use standard Windows procedures.

• Configure SNMP prope rties so th e trap dest ination poi nts to the Net Central se rver

PC. Use standard Windows proce dures. If you are not using the SNMP communit y name “public”, configure the community name and set permissions to RW. Also

June 25, 2009 K2 Storage System Instruction Manual 97

Chapter 3 Installing the Level 10R Storage System

make sure t hat the Authentication trap is enabled.

Also refer to “K2 Media Server descriptions” on page 413.

Setting up the L10R RAID chassis

Do the following to prepare the L10R RAID storage devices:

• “Connect the L10R RAID Primary and Expansion chassis” on page 98

• “Power on the L10R RAID chassis” on page 99

On the L10R RAID, you do not need to manually set a Fibre Channel address ID on controllers or a chassis address on Expansion chassis.

Connect the L10R RAID Primary and Expansion chassis

Connect Ethernet, Fibre Channel, and SAS cabling as shown.

98 K2 Storage System Instruction Manual June 25, 2009

Setting up the L10R RAID chassis

FLT/LNK

DP1 DP0

DP-OUT

To K2 Media Server A

HPE FLT

A/L

DP0

DP-IN

FLT RDY

DP-IN

FLT RDY

To control port on GigE switch A

5 4 3 2

LAN

ACT/LNK

LNK/ACT

1 0

ACS

BACKUP

FLT

RDY

Expansion 1

BAT

Primary

MNT

To K2 Media Server B

HPE

FLT/LNK

FLT

DP1 DP0

A/L

Controller 1 Controller 0

BBU IN MODEM

DP0

DP-OUT

FLT CLR

DP-IN

FLT/LNK

FLT RDY

To control port on GigE switch B

BAT

5 4 3 2

LAN

ACT/LNK

LNK/ACT

1 0

BACKUP

FLT

RDY

SAS cable connectors are keyed

MNT

ACS

to DP IN/OUT ports.

BBU IN MODEM

FLT CLR

FLT/LNK

SAS cables

DP-OUT

FLT CLR

DP-IN

FLT/LNK

FLT RDY

FLT CLR

Expansion 2

Expansion

If you have more Expansion chassis than those illustrated, continue the indicated cabling pattern, connecting additional chassis to DP0.

Power on the L10R RAID chassis

Connect power cords and power up RAID storage devices as follows:

1. Verify power and cab ling.

2. Press and hold down the power button on the controller, as shown.

RDY

Power Cords

(115V/230V)

LED

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

LNK/ACT

1 0

A/L

BACKUP

FLT

RDY

ACS

If the RAID chassis has two controllers, you can press the power button on either controller. You do not need to press both power buttons.

Pressing the power b utton on a cont roller also powers o n any connected Expansion chassis. There are no power buttons on Expansion chassis.

3. Release the power button when the Power Good LED on the power supply is

RDY LED

BAT

LAN

MNT

BBU IN MODEM

DP1 DP0

FLT/LNK

Power Good

LED

HPE FLT

5 4 3 2

ACT/LNK

LNK/ACT

1 0

A/L

BACKUP

FLT

RDY

BAT

LAN

MNT

ACS

June 25, 2009 K2 Storage System Instruction Manual 99

Chapter 3 Installing the Level 10R Storage System

illuminated. This takes 1-3 seconds.

4. Wait while the primary RAID chassi s performs self-test and in itialization. This takes about four minutes. While this is taking place, the RDY LED is illuminated with a steady on light.

Your preparations for L10R RAID storage are now complete.

Preparing K2 Storage System clients

Any devices that function as iS CSI clients to the K2 Storage Syst em must be prepared with the following requirements:

• One or more connections to the control network.

• A static IP address for t he control network.

• For a redundant K2 Storage Syst em, K2 Media Clients have one conn ection to the A media (iSCSI) network and one connection to the B media (iSCSI) network. Other iSCSI clients with just one media port connect to either the A or the B network.

Additional steps that are required for Aurora Edits include the following:

• Implement Aurora Edit security features.

• Install SNFS softwar e and K2 software.

For more informati on, refer to the Aurora Edit Ins tallation and Confi guration Guide. Additional steps that are required for K2 Media Clients include the following:

• You must install Multi-path I/O software if the K2 Media Client connects to the K2 Storage System with a redundant Ethernet (iSCSI) fabric. For example, the following K2 Storage Systems have a redundant Ethernet fabric:

•Level 2R

•Level 3R

• Level 10R

• Level 20R

• Level 30R

For more information refer to the K2 Media Client System Guide.

K2 configuration and NetCentral

Before you begin using the K2 System Configuration application to configure the storage system, you should set up the NetCentral system according to the following requirements:

•

NetCentral installed — NetCentral server software must be installed on a

100 K2 Storage Syst em Instruction Manual June 25, 2009
