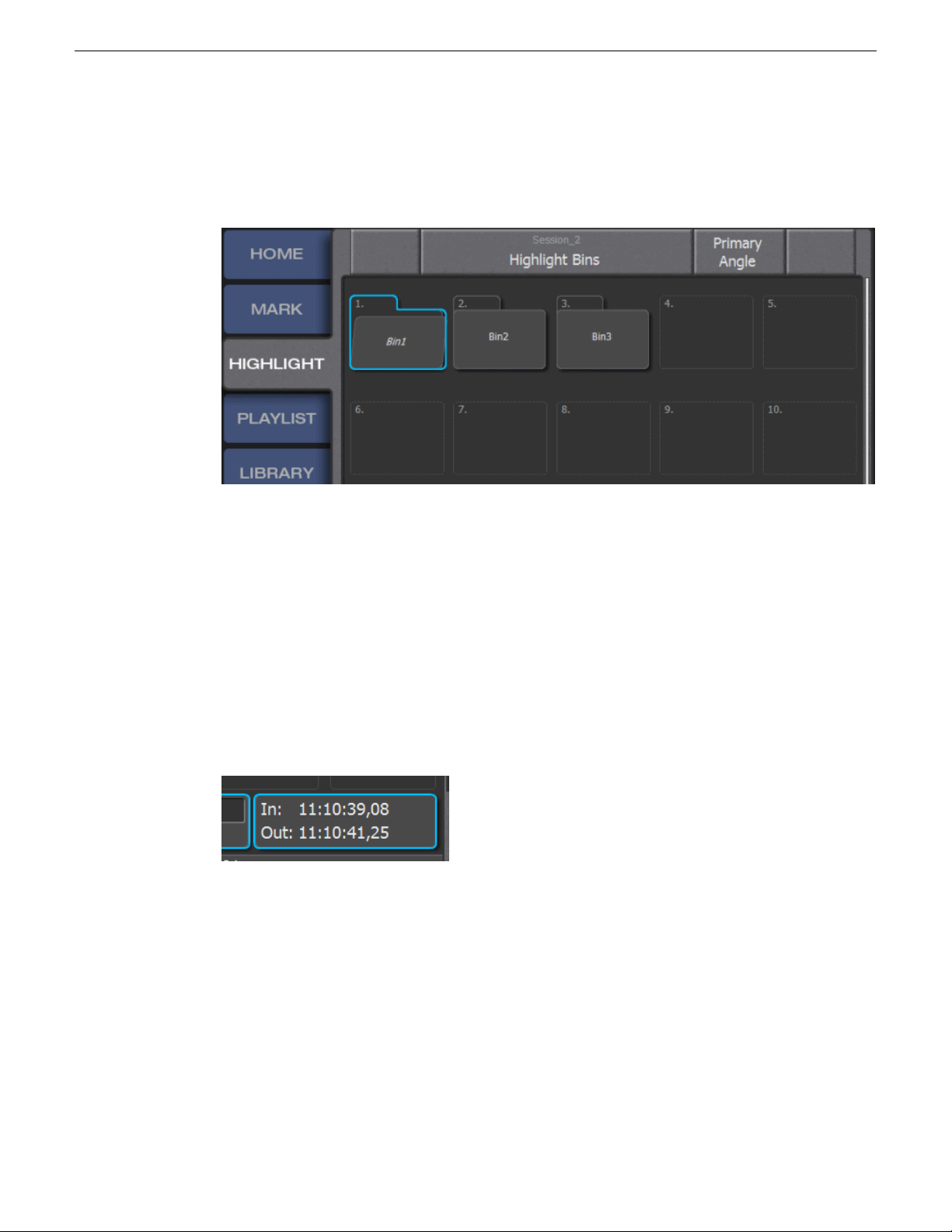

Navigating the Highlight screen..............................................................................................................53
Changing clip views in a bin...................................................................................................................54
Changing the thumbnail..........................................................................................................................55
Recalling clips.........................................................................................................................................55
Naming a clip..........................................................................................................................................56
Adding Stars...........................................................................................................................................57

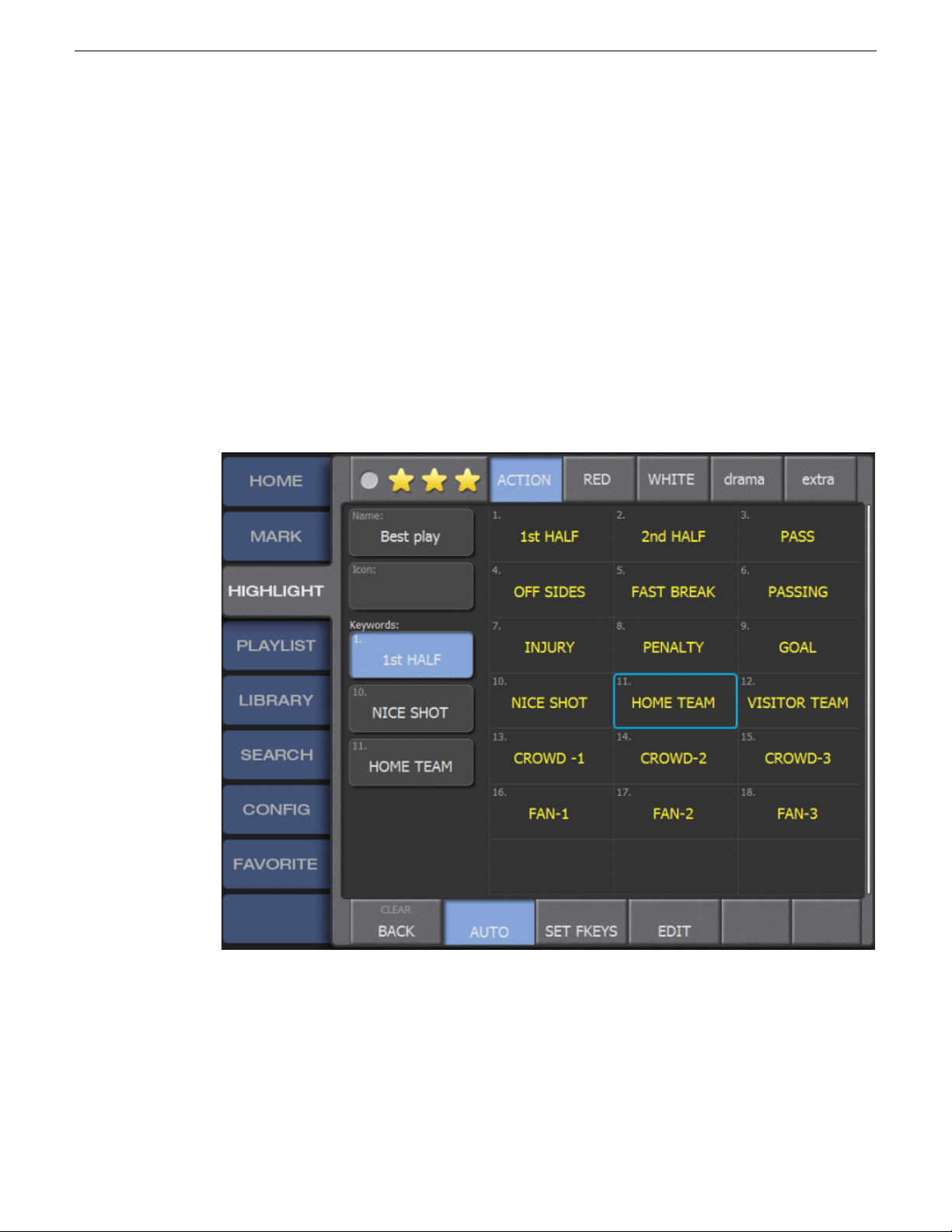

Adding keywords.....................................................................................................................................57
Editing keywords.....................................................................................................................................58
Setting keyword Fkeys............................................................................................................................59
Copying and moving clips.......................................................................................................................60
Renaming a Highlight bin........................................................................................................................60
Creating a new Highlight bin...................................................................................................................61
Changing Primary Angle.........................................................................................................................61
Recalling a clip and Match Frame operation from the record train.........................................................62
Favorites.....................................................................................................................................................63

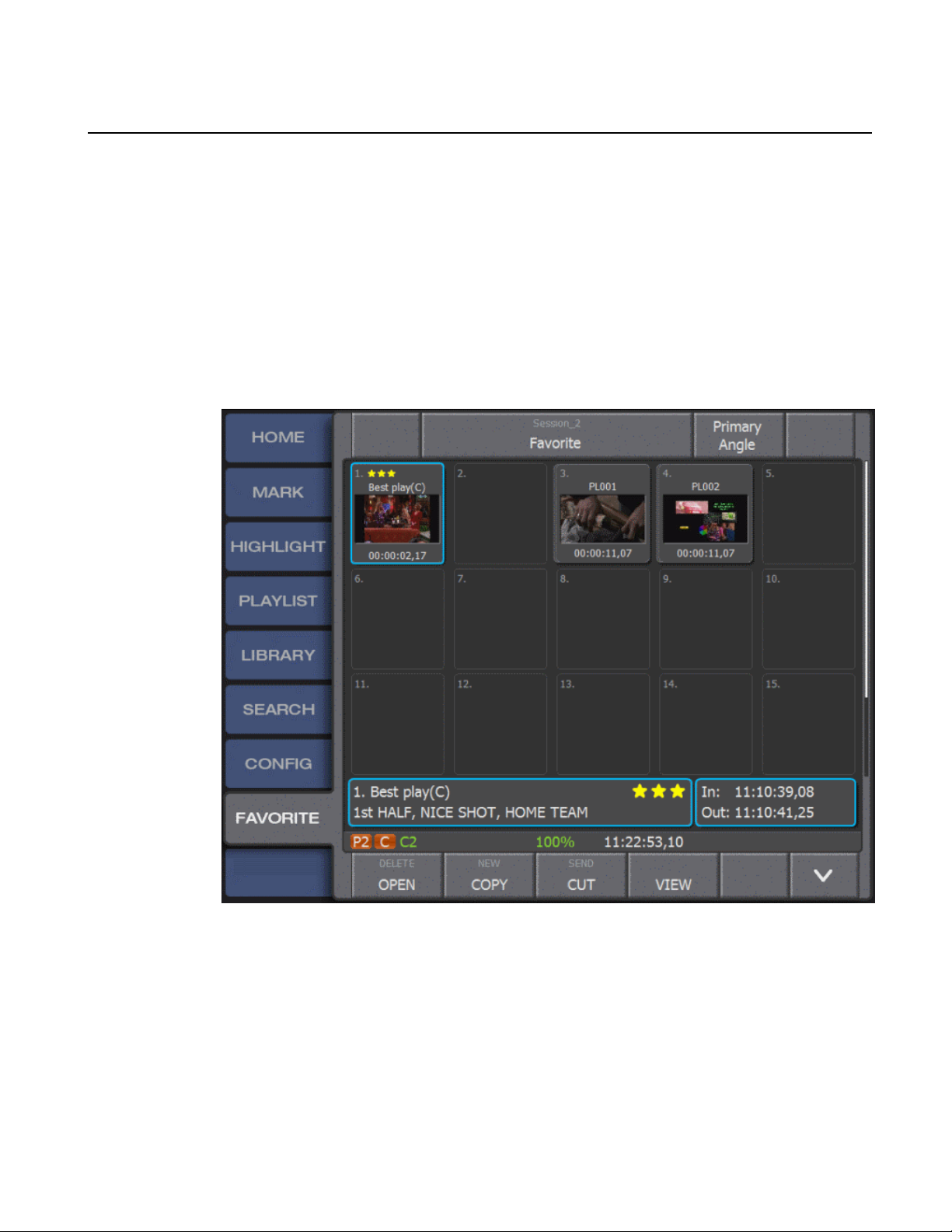

Using the Favorites screen.....................................................................................................................63
Opening the Favorite bar........................................................................................................................64
Playlists......................................................................................................................................................65
Accessing Playlist mode.........................................................................................................................65
Creating a new playlist............................................................................................................................65
Adding a clip to the end of a playlist.......................................................................................................66
Inserting a clip into the middle of a playlist.............................................................................................66
Adding a group of clips to a Playlist........................................................................................................66
Adding multiple clips to a playlist............................................................................................................66
Moving events in a playlist......................................................................................................................67
Moving multiple events in a playlist.........................................................................................................68
Shortening a clip in a playlist..................................................................................................................68
Lengthening a clip in a playlist................................................................................................................69
Adding M/E transitions to single playlist events......................................................................................70
Adding M/E transitions to all playlist events............................................................................................70
Deleting a clip from a playlist..................................................................................................................70
Removing a section of an event in a playlist...........................................................................................70
Changing the speed of an event in a playlist..........................................................................................71
Changing the angle of a clip in a playlist.................................................................................................72
Clearing the In or Out of an event in a playlist........................................................................................72
Cueing up a playlist................................................................................................................................73
Playing back a playlist.............................................................................................................................73
Jumping to a playlist event while playing back........................................................................................73
Looping playlist.......................................................................................................................................74
Renaming a playlist................................................................................................................................74
Finding the cursor...................................................................................................................................74
Navigating multiple playlists....................................................................................................................74

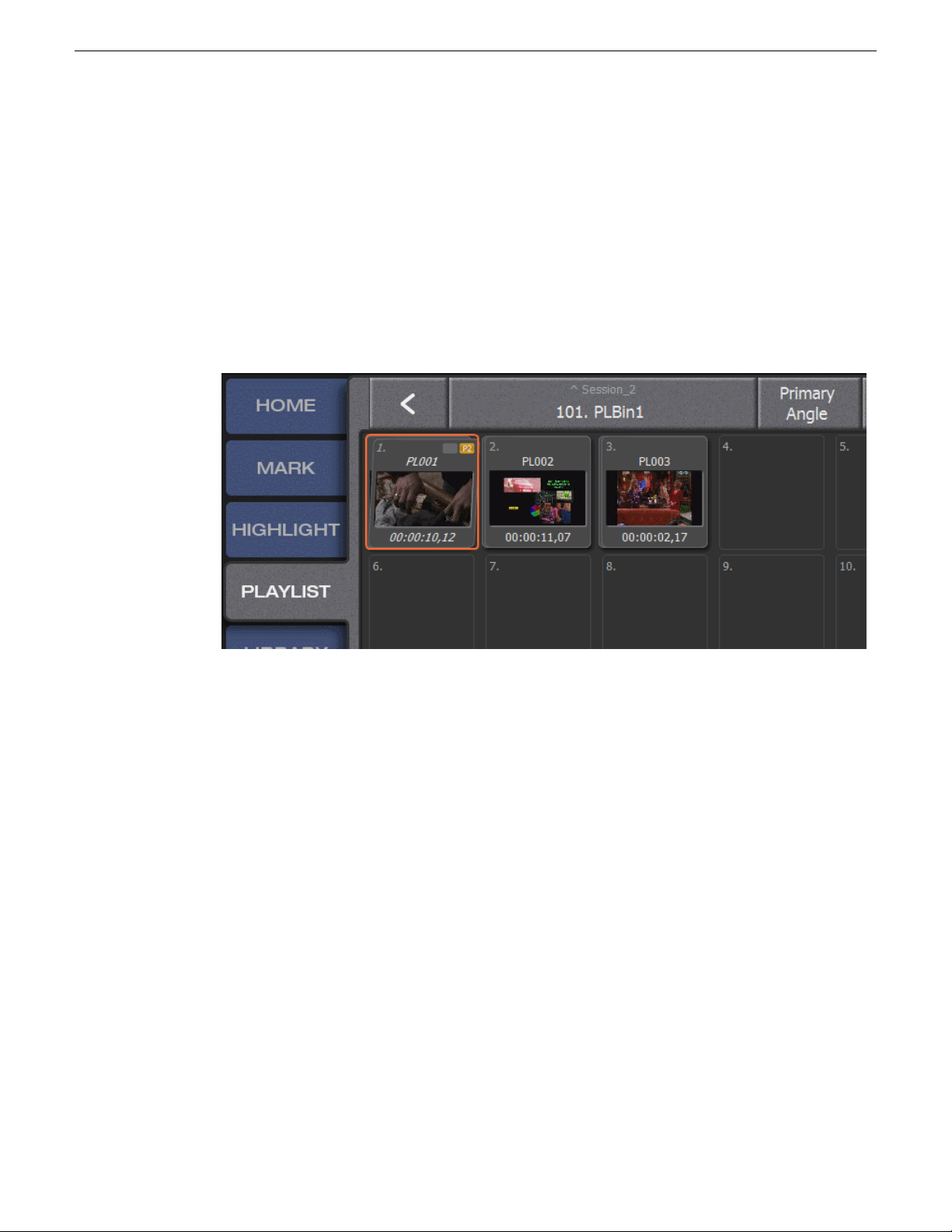

Viewing multiple playlists in a bin............................................................................................................75
Pausing a playlist....................................................................................................................................76
PGM/PVW Playlist..................................................................................................................................76
6 K2 Dyno S User Manual 20140207
Contents
Aux Playlist.............................................................................................................................................76
ShareFlex...................................................................................................................................................79
About ShareFlex.....................................................................................................................................79
ShareFlex connections...........................................................................................................................79
Setting up ShareFlex..............................................................................................................................80
Using ShareFlex with record trains.........................................................................................................81
Accessing and using a remote session..................................................................................................81
Creating local clips from remote record trains........................................................................................82
Timecode matching a local clip with remote clips...................................................................................83
Using ShareFlex with playlists................................................................................................................84
Library........................................................................................................................................................85
Saving to the Library...............................................................................................................................85
Navigating the Library.............................................................................................................................86
Copying clips..........................................................................................................................................86
Creating a new Library bin......................................................................................................................87
Importing files from a storage device to the Library................................................................................87
Renaming files in the Library..................................................................................................................87
Showing session folders in the Library...................................................................................................88
Search Function.........................................................................................................................................89

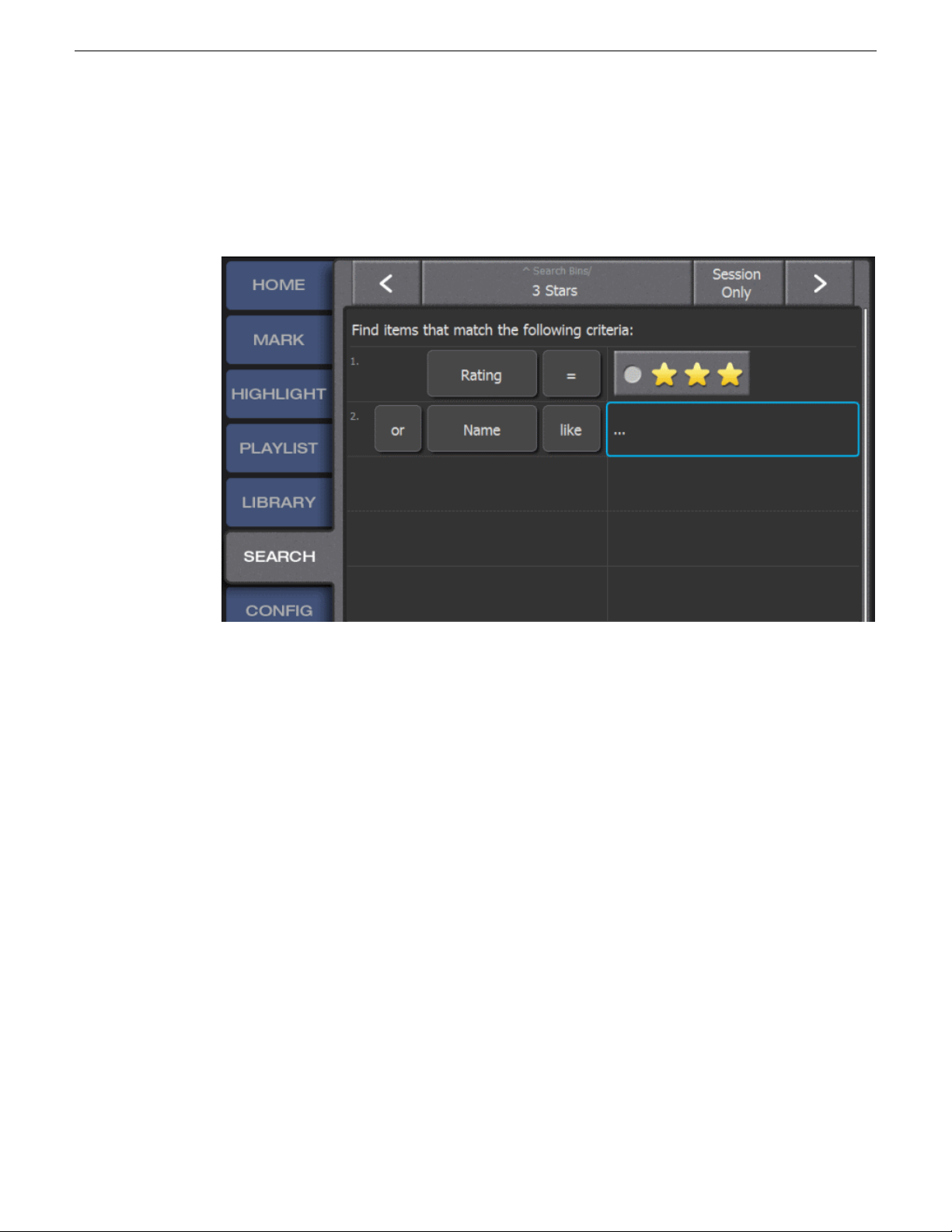

Using the default 3-Star search folder....................................................................................................89
Creating a new search folder..................................................................................................................90
Adding Criteria........................................................................................................................................91
Deleting conditions.................................................................................................................................92
Using Keyboard, (CTRL)(F) search function...........................................................................................92
Adding clips from search to a PL............................................................................................................92
VGA Expansion Screen..............................................................................................................................93
About the VGA screen............................................................................................................................93
Navigating the VGA screen.....................................................................................................................93
Dragging and dropping clips into Playlist................................................................................................94
Right-clicking clips in the Bins and Playlists...........................................................................................95
Showing more than one bin....................................................................................................................95
Showing more than one playlist .............................................................................................................96
Shutting the system down..........................................................................................................................97
Shutting the system down.......................................................................................................................97
Rebooting the Dyno and continue recording..........................................................................................99
Rejoining a session...............................................................................................................................100
Appendix..................................................................................................................................................101
Button and keyboard names and functions...........................................................................................101
Trademarks and Agreements...................................................................................................................105
Trademarks...........................................................................................................................................105
JPEG acknowledgment.........................................................................................................................105
20140207 K2 Dyno S User Manual 7
Contents
8 K2 Dyno S User Manual 20140207
Introduction
What is the K2 Dyno S Replay System?
The K2 Dyno S Replay System is a control system for live event scenarios, with the following
features:
• Quickly plays back recorded elements in both real time and slow motion
• Stores recorded segments for playback at a later time
• Assembles recorded segments in a playlist for playback with effect transitions
• Names segments and clips
• Attaches metadata to segments and clips
• Sends clips to other devices for external storage or further editing
System description
The K2 Dyno S Replay System has two main components: A K2 system and a K2 Dyno S Replay
Controller.
K2 system
The K2 system can be a K2 Summit Production Client or a K2 Solo Media Server. The K2 Summit
system has four video channel connections. Each channel can be congured as either a recorder or
a player. The K2 Solo system has two video channel connections, making it one half of a K2 Summit
system. With ChannelFlex (a feature of K2 AppCenter Elite), a record channel can be split to record
two streams of video.
The K2 Dyno S Replay System supports both 3G and non-3G K2 Summit/Solo systems. The K2
Summit 3G system is pictured here.
20140207 K2 Dyno S User Manual 9
Introduction
A K2 Summit/Solo system can be congured to complete a variety of specialized tasks, as follows:
• 3X Super Slow motion, which records at three times the frame rate for clearer slow motion
playback
• 3D activities marrying two record steams to playback as one 3D stream
The Dyno S Replay Controller controls the K2 system video streams no matter how the K2 system
is congured.
K2 Dyno S Replay Controller
Many of the functions of the K2 Dyno S Replay Controller are operated from the large touch screen.
Three key elements of the touch screen are Tabs, Slots, and Bins.
Tabs: The column of SoftKeys on the left side of the screen providing access to primary functions.
10 K2 Dyno S User Manual 20140207
Introduction

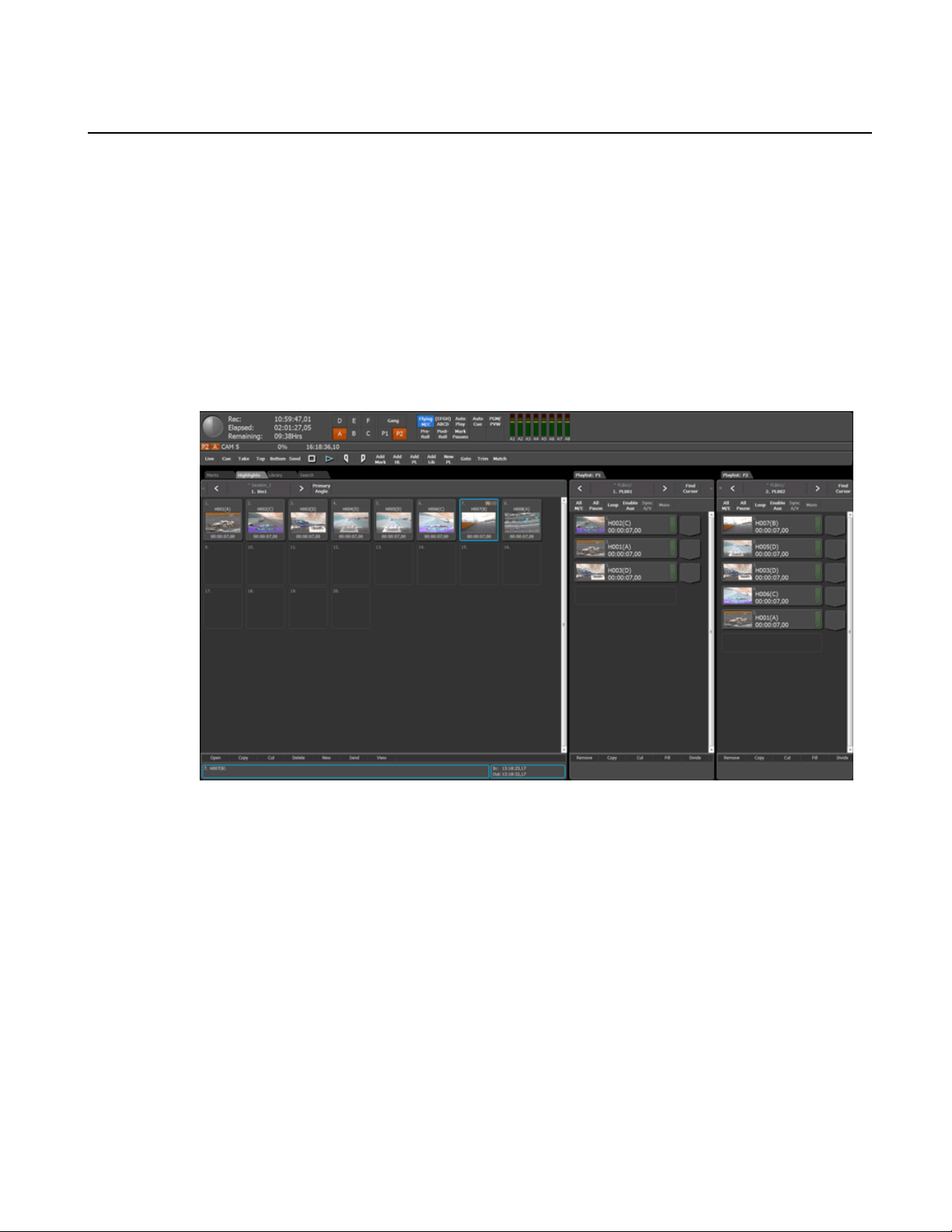

Figure 1: All tabs
Slots: The numbered storage locations for elements viewable under tabs such as highlights and
playlists.
20140207 K2 Dyno S User Manual 11
Introduction

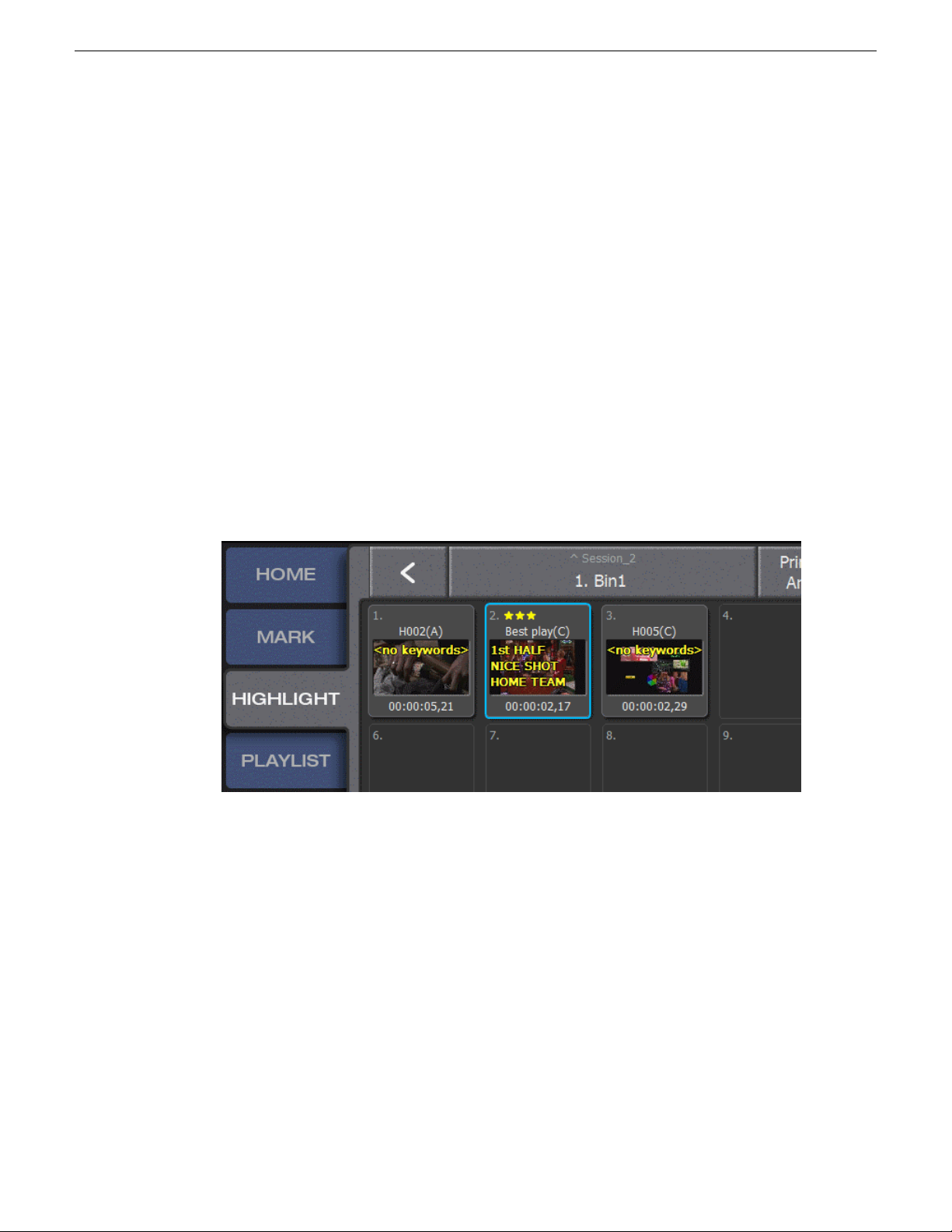

Figure 2: Slots displayed on Highlight screen
Bins: A collection of like items. A bin is similar to a PC Folder. You can have multiple bins with
highlights, playlists, or search results. Additional bins are accessed on the touch screen by tapping
the bar at the top of the screen that contains a bin name.

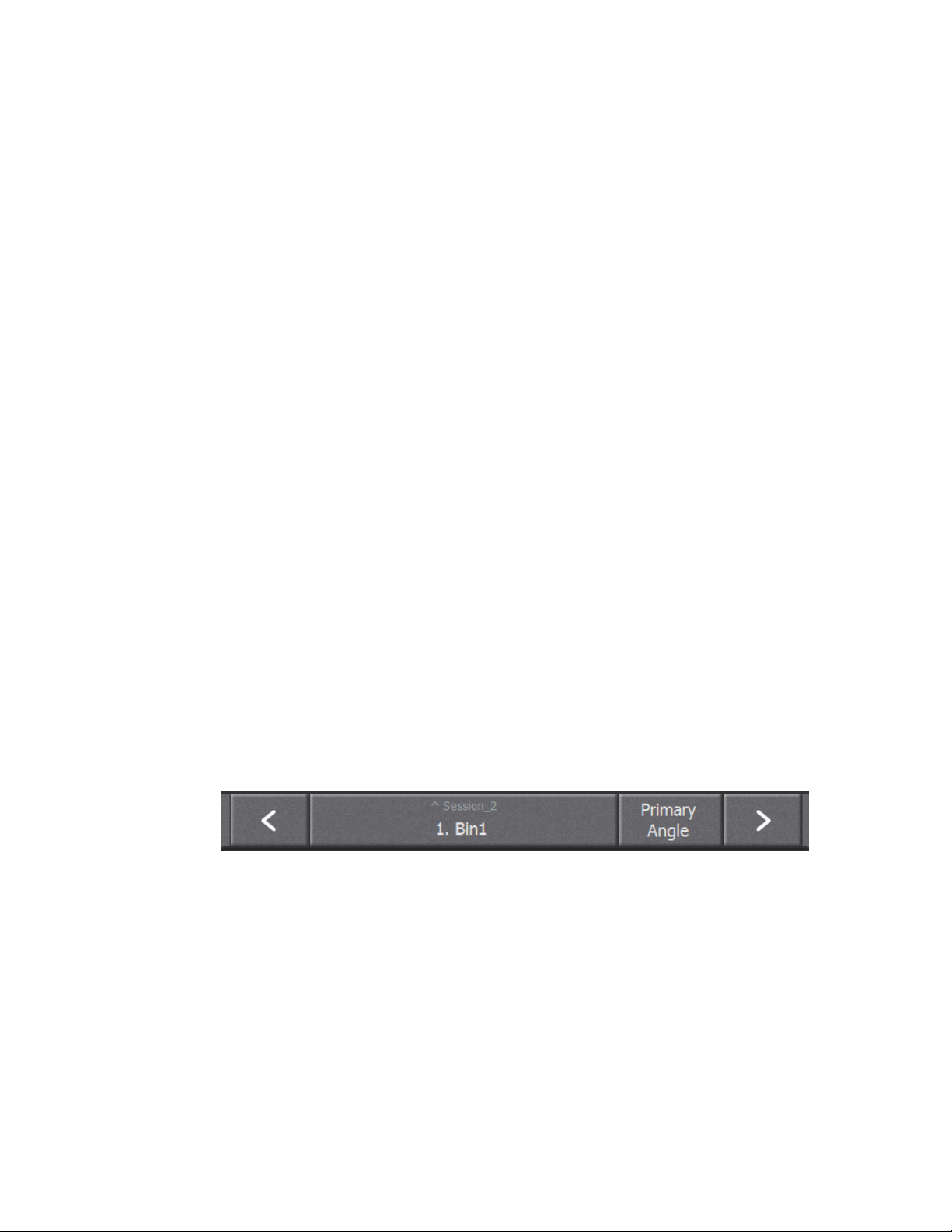

Figure 3: A collection of bins
12 K2 Dyno S User Manual 20140207
Key terms
Introduction
DescriptionTerms
Session
Clip
The bin that holds all the items from a recording period. A session
includes record streams, clips, playlists and anything created during
the period of recording. A session is transient; it is not permanent.
You can delete a session, but doing so deletes all elements of that
period of recording.
Session management is a key item for success in using the K2 Dyno
Replay Controller. You can save a session and open another but in
so doing you must consider recordable space. The contents of the
session might take up a large amount of recordable space, since the
session does include the complete record train.
A segment of video selected and saved for future use. It can be used
for individual playback or for addition to a playlist. It can be
congured to save just one record stream or all streams being
recorded at the points that dened it.
20140207 K2 Dyno S User Manual 13
Introduction
14 K2 Dyno S User Manual 20140207
Dyno Startup
Starting up the K2 Dyno S Replay Controller
1. Power on the K2 Summit system.
The power button is the round black button on the front plate.
2. Power on the K2 Dyno S Replay Controller.
The power switch is located at the back to the right under the protection ap.
3. Log on to K2 AppCenter:
• Default Username: Administrator
• Password: adminGV!
NOTE: The password is case sensitive.
Upon successful login, a list of all K2 Summit systems available on the network appears.
The most recently connected K2 Summit system appears at the top of the list.
20140207 K2 Dyno S User Manual 15
Dyno Startup
Open or New session
4. Select Share SoftKey to share the local server.
• If this is not the rst time the K2 Summit system and the K2 Dyno S Replay Controller has
been paired, K2 Dyno S Replay Controller gives you the option to reconnect to a local server.
• If K2 Summit system and K2 Dyno S Replay Controller have been previously paired, proceed
with your Session.
5. Select Add Server SoftKey and type the name of the missing K2 Summit system, if the local K2
Summit system or any K2 Summit system fails to show up in the server registry.
6. For ShareFlex user, type in the K2 Summit system name used in the Host Table.
After conguring and choosing Servers, the next screen addresses Session options.
1. If you are entering a previous Session, select the Session to be reactivated and select the Open
session SoftKey.
The record, trains, highlights, and playlists of the Sessions are restored.
2. Select New Session SoftKey if you are conguring a new Session.
By default, a new Session is created with the same channel conguration as the last Session.
About session channels
The centre of the screen is to dene the channels of the server. The options available for conguration
are limited to the settings on the server.
This setting is found on the server under the K2 AppCenter system ag, then see Channel and Type
for the conguration information.
The rst column of boxes is the ON or OFF selections for each channel. When a channel is OFF, the
K2 Dyno S Replay Controller no longer controls that channel.
The next column denes the Channel function and, depending on the server setting, the choices can
be Player, Recorder, or multichannel recorder.
Pressing Start launches the session but it will not place the server in a state of record.
16 K2 Dyno S User Manual 20140207
Configure Session Channels
1. Select Session name SoftKey.
A touch-screen keyboard displays.
Dyno Startup
2. Select the Name box, type a name for the session, and then press Enter.
3. Set Loop Record as follows:
a) Set the Loop Record box to On to recycle record space after a given record duration.
The Loop Length box is enabled.
b) Select the Loop Length box and type the record duration before the record train is recycled.
You cannot access the record train beyond this point.
When Loop Record is on, unreferenced media is discarded after the specied loop record length.
4. Press Start to begin the session.
To turn Loop Record on or off while the session is active, on the CONFIG screen select CHAN LIST.
20140207 K2 Dyno S User Manual 17
Dyno Startup
About loop modes in K2, Dyno, and GV STRATUS
Support for loop modes varies on Grass Valley products.
Grass Valley products provide features for putting an asset into a loop mode. Products and their
loop modes are as follows:
• K2 AppCenter:
• Loop play: Allows the clip to play in a continuous loop until stopped.
• Continuous record: Allows you to specify a xed-length recording that records continuously.
When the xed length you specify is reached, AppCenter begins to erase the oldest media in
3 minute segments to make room for new media.
• GV STRATUS:
• Loop play (Loop Playback): Loops the current asset between mark in to mark out.
• K2 Dyno:
• Loop record (LoopRec): Same as K2 AppCenter Continuous record.
While the GV STRATUS application can access the same K2 Storage as K2 AppCenter and K2
Dyno, the GV STRATUS application does not support a recording loop mode. Therefore, in the
GV STRATUS application, do not attempt to access an asset while it is in a loop record mode. The
asset can be put into this type of loop mode by K2 Dyno or K2 AppCenter.
Deleting a Session during startup
You can delete all non-essential Sessions from the Sessions list as follows:
1. Select the session from the list and tap the DELETE softkey.
2. To delete all Sessions currently on the server, press Shift function of the DELETE SoftKey.
Deleting a session while in an active session
To recover space, delete the non-active sessions.
1. To delete the non-active sessions while in an active session, open the CONFIG screen.
2. Tap SESSIONS.
The Sessions list page appears, listing all Sessions currently on the server.
3. Select the session you are deleting and tap DELETE.
You cannot delete an active session, indicated by the word in use in yellow.
18 K2 Dyno S User Manual 20140207
Home Screen
About the Record Status section
On the Home screen, the Record Status section displays key information about the recording status
of the Dyno.
Status indicators are as follows:
20140207 K2 Dyno S User Manual 19
Home Screen
Time Dome Represents the record space available. In continuous record mode, the wedge
shape grows as the record space is utilized. The larger the wedge, the smaller the amount of the
record space is available.
Rec: Red text indicates recording is underway.
Elapsed: The time that has passed since the start of the recording.
Remaining: The actual amount of record time available, where this record time is divided across the
number of record streams in the conguration.
20 K2 Dyno S User Manual 20140207
Adjusting audio output
1. On the HOME screen, tap the audio meters section.
The Audio panel opens.
Home Screen
The audio output adjustment is selected by default.
2. Tap audio meters to select the channels you are adjusting.
3. Adjust audio output on the selected channels as follows:
• Select + or - to change the audio output level.
• Select Mute to silence the audio output.
• Select Reset to restore both input and output audio to their default levels.
20140207 K2 Dyno S User Manual 21
Home Screen
Adjusting the audio record levels
1. On the HOME screen, tap the audio meters section.
The Audio panel opens.
The audio output adjustment is selected by default.
2. Tap audio meters to select the record channels (A,B,C,D) with the record train you are adjusting.
3. Adjust audio audio record levels on the selected channels as follows:
• Select + or - to change the audio record level.
• Select Reset to restore both input and output audio to their default levels.
Assigning Aux Channels
1. On the HOME screen, tap the audio meters section.
The Audio panel opens.
22 K2 Dyno S User Manual 20140207
2. Select SHOW AUX.
The Aux audio panel opens.
Home Screen
3. Select the pair of channels from the visible audio channels to be the source for Playlists Aux
audio.
4. Select BACK to return to the Audio panel.
Setting Flying M/E
When Flying M/E is selected, you can preset effect transitions between playback channels. Effects
are added when switching record streams during the replay of an item.
1. On the HOME screen, select Flying M/E.
2. To congure the effect for Flying M/E, select CONFIG | EFFECTS.
The Effects panel opens.
20140207 K2 Dyno S User Manual 23
Home Screen
Setting ABCD(EFGH)
3. For the Flying ME option, make changes to the effect duration and effect type as desired.
Related Topics
Effects settings on page 37
This setting grants default status to record channels to EFGH to the ABCD buttons. It also allows
access to the upper channels without using the Shift key.
On the HOME screen, select ABCD.
Setting Auto Play
When this setting is selected, any cued element is immediately played.
On the HOME screen, select Auto Play.
Related Topics
Recalling clips on page 55
24 K2 Dyno S User Manual 20140207
Setting Auto Cue
When this setting is selected, an item is automatically cued with a tap.
On the HOME screen, select Auto Cue.
Related Topics
Recalling clips on page 55
Setting Pre-Roll
Home Screen
When this setting is selected, a pre-roll adds to the clip.
1. On the HOME screen, select Pre-Roll.
NOTE: The Pre-Roll and clip duration cannot exceed the guard band duration.
2. To congure the pre-roll duration, select CONFIG | CLIP.
Related Topics
Clip settings on page 35
20140207 K2 Dyno S User Manual 25
Home Screen
Setting Post-Roll
When this setting is selected, a post-roll adds to the clip.
1. On the HOME screen, select Post-Roll.
NOTE: When the Post-Roll is turned on, the mark out point of the clip is ignored. The playback
stops at the end of the guard band marker.
2. To congure the post-roll duration, select CONFIG | CLIP.
Related Topics
Clip settings on page 35
Setting Mark Pauses
When this setting is selected, you can mark clip pauses. Pauses registered in the Marks tab will now
act as pause points.
Pauses can also become part of the property of a clip angle, and each angle can have its own pause
points.
1. Play a clip, and select Mark Pauses on the HOME screen.
2. Use the Play button or T-bar to continue playback after the video has stopped.
3. To add a pause point to a clip angle, cue a clip and press Fn+Mark.
About the T-bar
The T-bar is a lever bar to control playback speed. When you touch the T-bar, it immediately takes
control of the speed of the active player channel. Make sure you do not inadvertently touch the
T-bar, as doing so changes the playback speed to the programmed speed of the T-bar. The T-bar
can be preset with two playback speed congurations: default and alternate. The positions of bar
operations can be ne-tuned.
26 K2 Dyno S User Manual 20140207
Configuring T-bar settings: default and alternate
1. On the HOME screen, tap the T-bar section.
The T-bar panel opens.
2. To congure default T-bar settings, select Default.
The T-bar default conguration screen opens.
Home Screen
3. Change default settings as follows:
DescriptionOptions
Maximum speed
Advance the T-bar to set the maximum speed and tap the top Set
box.
Minimum speed
Pull the T-bar back to the position of the desired minimum speed
and tap the lower Set box.
20140207 K2 Dyno S User Manual 27
Home Screen
4. To congure alternative T-bar settings, select Alt.
The T-bar alternative conguration screen opens.
The four Set boxes set the custom speeds on the path of the T-bar, as indicated by their position
on the graphic range bar.
5. Move the T-bar to a position and tap a Set box to change settings as follows:
DescriptionOptions
Highest speed
Tap the top Set box to set the T-bar to top speed position. Select the
adjacent speed button and enter a speed in percentage for this T-bar
location, then press OK.
Upper middle speed
Move the T-bar down to the top of the middle range and tap the upper
middle Set box. Select the adjacent speed button and enter a play back
speed in percentage for the middle range of the T-bar, then press OK.
Lower middle speed
Move the T-bar lower down the bottom of the middle of the range and
tap the lower middle Set box. The adjacent speed button displays the play
back speed in percentage for the middle range of the T-bar.
Lowest speed
Move the T-bar to the lower limit and tap the lowest Set box. Select the
adjacent speed button and enter a speed in percentage for this T-bar
location, then press OK.
28 K2 Dyno S User Manual 20140207
Stopping all recording processes
Open the HOME screen or the CONFIG screen, press the Shift button, then tap REC STOP.
Related Topics
Shutting the system down on page 97
Locking player channels
When you lock the active player channel, either P1 or P2, you lock out all playback functions from
the Dyno on that channel. It is possible to lock one playback channel and leave the other active or
lock both playback channels.
NOTE: You cannot lock player channels while channels are ganged. Only P1 or P2 can be
selected for locking.
Home Screen
Press the desired P1 or P2 button, then on the HOME screen, select the SoftKey labeled P1 LOCK
or P2 LOCK accordingly.
Related Topics
Shutting the system down on page 97
20140207 K2 Dyno S User Manual 29
Home Screen
Monitoring and managing transfers
1. To monitor the transfers of elements both to and from the Dyno, on the HOME screen, tap the
TRANSFERS softkey.
The Transfers panel opens.
2. To monitor the transfers functions, select any of the following softkeys:
DescriptionOptions
Receiving
Sending
Completed
30 K2 Dyno S User Manual 20140207
Displays the progress of incoming transfers and their location.
Monitors transfers that are sent to another location.
Shows all completed transfers.
3. To manage the transfers functions, select any of the following softkeys:
DescriptionOptions
Move Top
Moves selected transfer to the next position in the list of potential
transfers.
Home Screen
Abort
Press the Shift function of the Abort softkey to stop any selected
transfer.
Related Topics
Shutting the system down on page 97
20140207 K2 Dyno S User Manual 31
Home Screen
32 K2 Dyno S User Manual 20140207
Configuration Screen
User Panel settings
To access these settings, tap CONFIG | USER.
DescriptionSettings
Yes adds an additional prompt before clips are deleted.Confirm deletes
Show session folders in library
Yes displays all session folders under the Library tab for
navigating purposes.
Jogging creates scenes
Auto creates a mark whenever the Job Knob is used to pause
live. Enable SAVE SCENES on the MARK screen.
Timecode display
Counter displays a timecode that begins at 0 when the record
starts. Recorded displays a timecode that begins randomly at
any timecode when the record starts.
20140207 K2 Dyno S User Manual 33
Conguration Screen
DescriptionSettings
Timecode source
Quick keys
Panel settings
This panel adjusts the controls of the K2 Dyno S Replay Controller. To access these settings, tap
CONFIG | PANEL.
Time of Day is an internally generated timecode source.
Generated is an externally generated timecode source. You can
use LTC, ANC VITC, ANC LTC, Preset Generated Timecode,
or Windows system clock as the timecode source.
On enables additional keyboard functionality such as i for
marking an in point, o for marking an out point and q for quick
cue.
DescriptionSettings
Fast-Jog multiplier
Affects the Jog Knob shuttle speed when the Shift Play
function is engaged. The multiplier increases the Fast Jog
function by 5x, 10x or 20x.
Knob sensitivity
Controls the response of the Jog Knob. Low gives the Jog
Knob a more forgiving operation. High gives the Jog Knob
a greater sensitivity to becoming active.
34 K2 Dyno S User Manual 20140207
Conguration Screen
DescriptionSettings
Screen brightness
Button brightness
Clip settings
To access these settings, tap CONFIG | CLIP.
Determines the overall brightness of the screen. Adjusts
the brightness for maximum visibility for the lighting of
the room in which the Dyno is located. Low is a dim setting
and High is the brightest setting.
Determines the brightness of the buttons. Adjusts the
brightness for maximum visibility for the lighting of the
room in which the Dyno is located. Low is a dim setting
and High is the brightest setting.
DescriptionSettings
Default duration
Sets the length of a clip that has only an In point or an Out
point.
Guard band (seconds)
Changes the length of material saved outside of a clip, beyond
the set in/out points. 0 provides no extra material. 10 provides
ten seconds of material.
20140207 K2 Dyno S User Manual 35
Conguration Screen
DescriptionSettings
Pre-roll duration
Post-roll duration
Save all highlight angles
Separate angle
Use recycle bin
Clip name seed
Sets the pre-roll duration of a clip. The pre-roll duration cannot
exceed the guard band. You can turn on and off the pre-roll
setting at the Home screen.
Sets the post-roll duration of a clip. The post-roll duration
cannot exceed the guard band. You can turn on and off the
post-roll setting at the Home screen.
All saves all the angles recorded of a clip. Primary Only saves
only the active angle of a clip.
Marks set mark in/out points for each clip angle. The guard
band duration applies to each angle at the time of clip creation.
Names set keywords for each clip angle. Data sets data such
as ratings for each clip angle.
Provides a safety measure when deleting clips. Yes sends the
data from the deleted clip to the recycle bin. The bin must be
emptied before the clip is permanently deleted. No immediately
and permanently deletes a clip selected for deletion.
Species the default root convention automatically applied
when creating a highlight. Default assigns the clip a name H
(for highlight) then a number in the progression of clips created
during a session. Time Code populates the default title with
the Time Code or Counter number of the in point of the clip.
Record Name populates the default title with the record channel
name. Custom allows for the creation of a custom seed name
for a clip.
Clip follow mode
Offspeed audio
Save ShareFlex Angles
This setting species the speed that a playlist clip plays when
it follows an off speed (300% to 1%) clip. Default Speed
restores playback to the speed dened for the following clip,
or 100% if no speed is dened. Continue Speed continues at
the speed of the preceding clip if the following clip has no
speed dened.
Species audio behavior when playback speed changes. Yes
continues the audio during offspeed play, with the resultant
change to the pitch of the audio. No mutes the audio during
offspeed play.
All saves all the angles recorded of a clip. Primary Only saves
only the active angle of a clip.
36 K2 Dyno S User Manual 20140207
Effects settings
These settings affect the transitions in a playlist.
1. On the CONFIG screen, tap EFFECTS.
The Effects panel opens.
Conguration Screen
2. To change the transition point, select one of the following Use guard band for transitions options:
DescriptionOptions
Yes
Centers transitions at In and Out points, allowing video beyond the set points
to be visible.
No
Ensures the transition is completed within the marked points of the clip. This
affects the length of the playlist.
20140207 K2 Dyno S User Manual 37
Conguration Screen
3. To change the transition duration for the Flying M/E and each of the ve preset effects, do the
following:
a) In the rst column enter a number less than 2:00 seconds but greater than or equal to 2 frames.
b) In the second column make settings as follows:
Applies the transition to both output audio and video.Video+Audio
Applies the transition to the audio while video cuts.Audio Only
Applies the transition to the video while audio cuts.Video Only
c) In the third column make settings as follows:
Creates a cross fade between the two consecutive events.Dissolve
Matte
Creates a ash of the selected color between the two events in the
list. The duration of the ash is determined by the effect duration.
To select the color, tap the adjacent color box and choose a color
from the palette.
Configuration Network Tab from Transfer Setup
1. On the CONFIG screen, tap NETWORK.
38 K2 Dyno S User Manual 20140207
Conguration Screen
2. For Include guard bands on send, tap Yes to include guard bands when transferring elements to
external devices.
3. For Mount K2 Mapped Drives, tap Yes to automatically mount your K2 mapped drives after the
start-up of K2 Summit and K2 AppCenter.
4. Tap SEND LIST.
The Transfer Destination panel opens and displays all active transfer rules currently set for the
Session.
5. To create a new transfer rule, do the following:
a) Tap BROWSE to specify the destination of the transfer and initiate a new transfer rule.
b) Tap ACCEPT once you have selected the destination.
6. Congure transfer rules as follows:
a) Tap On or Off to activate or deactivate the transfer rule.
b) Tap the second column to transfer a specic or all angles.
c) Tap the third column to change the format received at the destination (MXF,GXF, QT).
d) Tap the fourth column to verify the transfer destination.
7. To create a new destination bin for a transfer, do the following:
a) Tap BROWSE to select the bin in which you are creating the destination bin.
b) Press Shift then tap NEW.
A new destination bin is created.
8. To delete a transfer rule, select the rule to be deleted and then press Shift and tap DELETE.
Revising record and play channel status
To view the current conguration on record and play back channels and revise the current status,
on the CONFIG screen, tap CHAN LIST.
Resetting configuration
To resets all conguration screens to their factory default settings, on the CONFIG screen tap
RESET CFG.
20140207 K2 Dyno S User Manual 39
Conguration Screen
Exporting the Config information
You can save conguration settings and keywords tables to an external device. You can then load
the settings and tables to another K2 Dyno S Replay Controller, or for use later on the same K2
Dyno S Replay Controller.
1. Connect the storage device to one of the USB ports on the front of the server.
2. To navigate and nd the external storage device, press Shift then from the CONFIG screen, tap
3. Once you have identied the location for storing the settings, tap ACCEPT to allow you to congure
Importing the Config information
1. Connect the external storage device that contains the conguration le you are importing.
2. Press Shift, then from the CONFIG screen, tap LOAD.
SAVE.
the les to be created on the external source.
3. Navigate to the conguration le you are importing.
4. Select the conguration le and tap ACCEPT.
The conguration is loaded and the settings are in place.
40 K2 Dyno S User Manual 20140207
Playback
Queueing both outputs
1. To control both playback channels, press P1 | P2 buttons simultaneously.
Both P1 | P2 is lit in red.
2. To control both channels, use playback controls as follows:
• T-Bar
• Jog Knob
• Play button
Playback options
The K2 Dyno S Replay Controller has four playback options:
Table 1: Playback options
The Play button
Alternate playback speed.
Press and hold down the Fn
key and then press the Play
button.
T-bar
Alt T-bar
DescriptionOption
Plays a recorded element or record stream at 100%. This is the
primary way to place any player channel into a playback state. This
works on a playlist, on a highlight, and on the active record trains.
Plays a recorded element or record stream at a pre-programmed
alternate playback speed, as congured from the HOME screen.
Immediately takes control of the speed of the active player channel.
Make sure you do not inadvertently touch the T-bar, as doing so
changes the playback speed to the programmed speed of the T-bar.
The T-bar can be preset with two playback speed congurations:
default and alternate.
20140207 K2 Dyno S User Manual 41
Playback
Configuring the alternative playback speed
PGM/PGM Playback in green and red
An alternate speed can be pre-programmed into the Play button.
1. On the HOME screen, in the T-bar section, tap the Fn+Play SoftKey.
A number key pad opens.
2. Enter the desired alternate play back speed by percentage.
3. Tap OK to set the speed and close the number keypad.
When P1 or P2 buttons are lit in green and red, do the following:
a) Select P1 or P2 buttons from the K2 Dyno S Replay Controller.
b) Use the Jog Knob to cue the record train on the selected player.
Jogging cues only the selected channel.
c) To affect the selected channel, press the Play button on the cued record train.
PGM/PGM Playback in red and red
1. Press P1 | P2 buttons simultaneously to switch to Gang mode.
Both P1 and P2 buttons are lit in red
42 K2 Dyno S User Manual 20140207
2. Use the Jog Knob to cue the record train.
Both player channels are affected.
3. Press the Play button while cued back on the train.
Both player channels play back in sync.

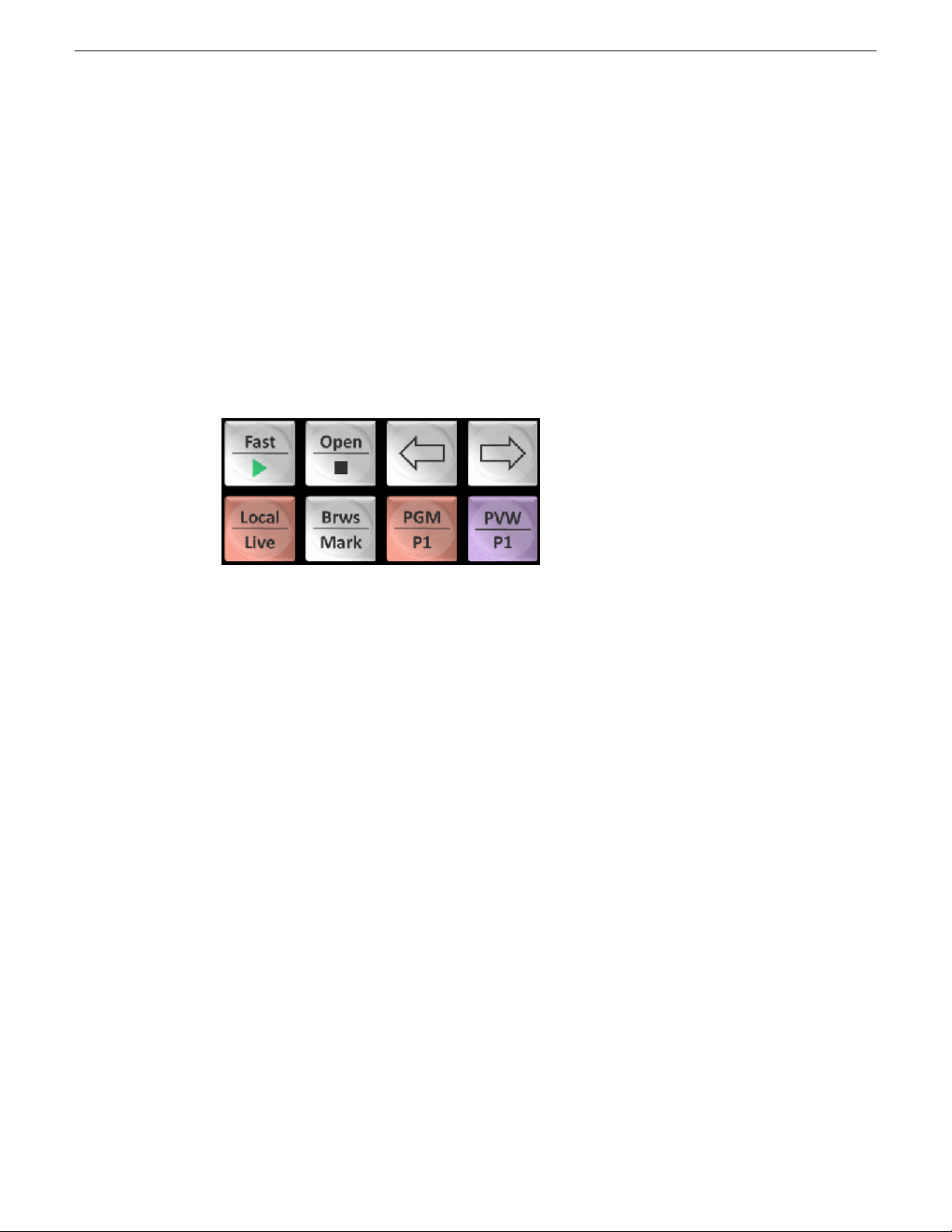

Using PGM or PVW
This setting congures the playback channels as dependent channels. P1 becomes the channel that
plays to broadcast. P2 is used to preview or stage the next element to broadcast. Elements cued on
P2 (PVW) are transferred to the P1(PGM) by using the Take button.
1. Enter PGM or PVW mode by selecting the softkey on the Home screen or by pressing Shift | P1.
Playback
In this mode, when a clip is cued, it appears on the P2 channel.
2. Use the Jog Knob to change the in-point of the clip to the point desired.
3. Press the Take button from the center stalk.
The clip is transferred to the P1 channel and play.
P2 is now ready for cueing the next element.
Going back to Live/Rec
1. To return to the record train at the point of the current record., select your player channel P1 or
P2 button.
2. Press the Live button on the Right Bank of buttons.
This takes the player channel to the current available recording of the active angle.
20140207 K2 Dyno S User Manual 43
Playback
44 K2 Dyno S User Manual 20140207
Marks
Marking function
The Mark screen displays the markers and scenes that are added to the record train.
1. To create a point at the current point of the active record train regardless of the location of the
Player Channel P1 or P2, press the Mark button.
2. To view the marks, open the MARK screen.
3. To add a mark to the point where the player is cued, press Mark.
20140207 K2 Dyno S User Manual 45
Marks

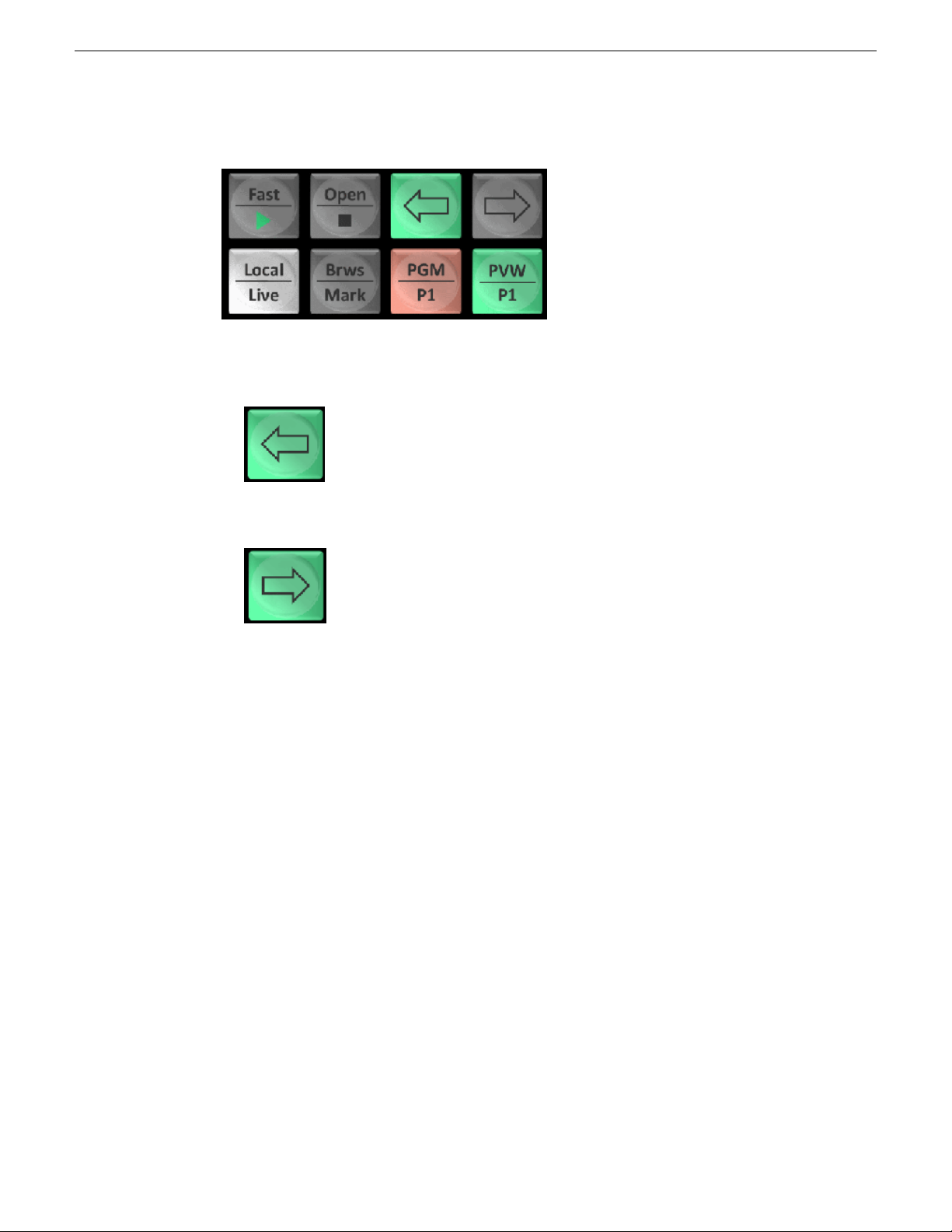

4. To navigate marks with controller arrow keys, open the MARK screen.
a) From the touch screen select a mark. When it is cued, it is outlined with an orange border.
b) Press the left arrow button from the right bank of buttons to move the selection up the screen
to the older timecoded marks.
c) Press the right arrow button to move the selection down the screen to the newer or later
timecoded marks.
5. To create a Highlight from Marks, select the mark and press the Add HL button.
A clip with default duration is created.
46 K2 Dyno S User Manual 20140207
Create clips
Creating a clip
To create a clip, you must be on an active record channel.
1. Use the Jog Knob to nd the point on the record stream where the clip is to begin.

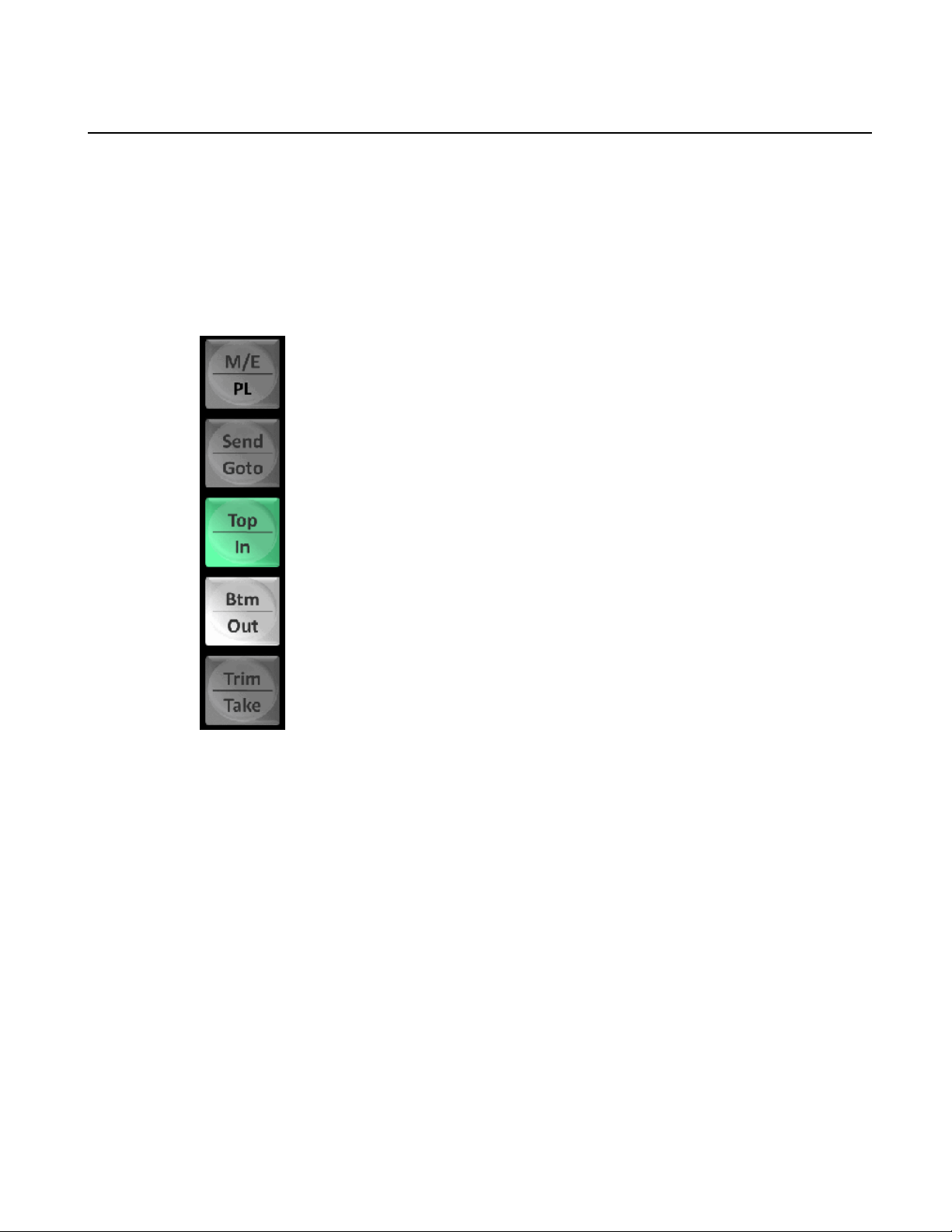

2. On the center stalk, locate and then press In button to create the beginning of the clip.
3. Cue the video to the point on the record train that the clip will end.
4. On the center stalk, press Out button to end the clip.
5. Once you have entered the In and Out points of your clip, press the Add HL button on the left
bank.
This stores the clip in the next available slot location in the active highlight bin.
6. Alternatively, open the HIGHLIGHT screen and do the following:
a) Enter the In and Out points of your clip.
b) Select the slot location for clip.
c) Save the clip in the selected slot location.
The clip is saved in a slot location you choose, rather than in the next available slot location
only.
20140207 K2 Dyno S User Manual 47
Create clips
Trimming IN or OUT
Creating a clip with one entry point
1. To change the In or Out of a created clip, rst cue the clip on a player channel P1 or P2.
2. Use the Jog Knob to nd the new points for the clip.
You cannot move outside the cue points on the record train up to the limit of the guard band, as
congured when you created the clip.
3. Once the new point is visible on the record train, press the desired In or Out button.
The new point is marked and the new duration of the clip is displayed in the clip's slot changes.
You can save a clip by using either an In point only or an Out point only.
1. Select only an In or Out point.
2. Press the Add HL button or select a slot in the highlight bin to form a default duration clip.
48 K2 Dyno S User Manual 20140207
Setting the default duration for clips
You can set the length of a clip that has only an in or an out point.
1. On the CONFIG screen, tap CLIP.
The Clip panel opens.
Create clips
2. Tap the number box to the right of Default duration.
A number key pad opens.
3. Type in the desired duration of a default clip.
4. Tap OK to save settings and close.
20140207 K2 Dyno S User Manual 49
Create clips
50 K2 Dyno S User Manual 20140207
Cue replay
Cueing a clip
1. To cue a selected highlight on the active channel, do the following:
a) On the HIGHLIGHT screen, tap the slot of the desired clip.
b) Press the Cue Up button from the left bank.
2. To cue the clip on the selected player channel using the touch screen, select the clip slot of the
desired clip with two taps.
3. To return a clip to it's preset in or out points do the following:
Shift | In
Shift | Out
Changing angle
1. Choose a player Channel, use either P1 or P2.
2. To make the corresponding record stream visible on the selected player channel, press a different
A-D button or it's Shift function for angles E-G.
DescriptionOptions
Restores the player channel to the In point of the highlight
Restores the player channel to the preset Out point of the clip
20140207 K2 Dyno S User Manual 51
Cue replay
52 K2 Dyno S User Manual 20140207
Highlights
Navigating the Highlight screen
1. Open the HIGHLIGHT screen.
2. Tap the Bin title bar at the top of the screen.
All available bins are displayed.
3. To open, double-tap a bin.
The open bin is now the active bin on the HIGHLIGHT screen.
20140207 K2 Dyno S User Manual 53
Highlights
Changing clip views in a bin
1. Open the HIGHLIGHT screen.
By default, a thumbnail with title and duration is displayed for each highlight. The thumbnail
picture from the In point of the clip.
2. To additionally display keywords, tap VIEW.
3. To hide the thumbnail and keywords and display only title and duration, tap VIEW again.
4. To return to the default view, tap VIEW again.
54 K2 Dyno S User Manual 20140207

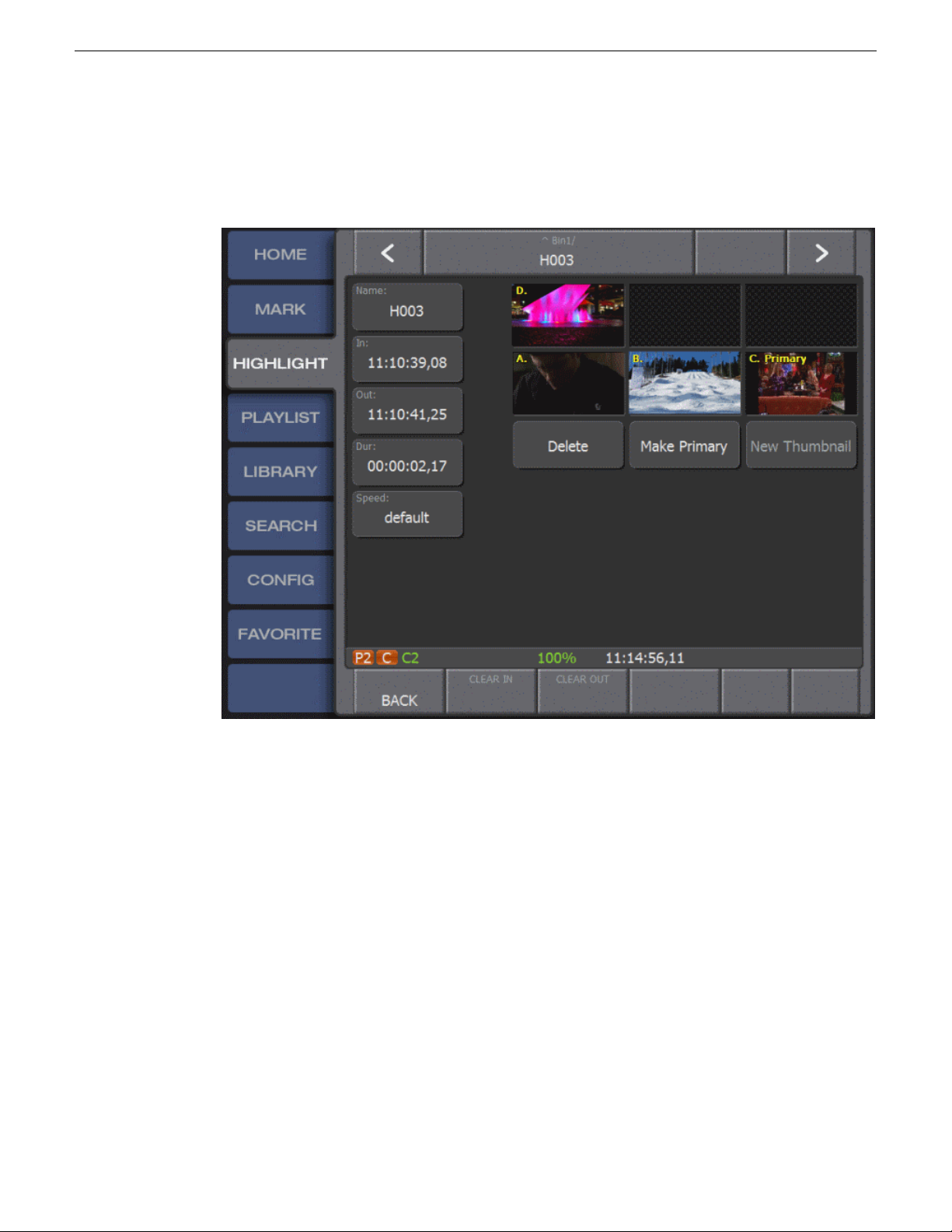

Changing the thumbnail
1. Open the HIGHLIGHT screen.
Highlights
2. Cue the highlight with the thumbnail you are changing.
3. With the highlight selected, select the clip properties box in the lower right of the screen.
4. Cue the clip to the frame that is the desired thumbnail.
5. To change the thumbnail for the selected angle, tap the Thumbnail softkey which is located below
the angle thumbnails.
Recalling clips
Clips can be recalled in three ways: slot number, Auto Cue, and Auto Play.
1. To recall a clip by slot number, use the keyboard and type the bin number, type the slot number,
and then press Enter.
2. To recall a clip by Auto Cue, on the HOME screen, select Auto Cue.
When this setting is selected, an item is automatically cued with one tap.
20140207 K2 Dyno S User Manual 55
Highlights
Naming a clip
3. To recall a clip by Auto Play, on the Home page screen, select Auto Play.
When this setting is selected, any cued element is immediately played.
Auto Play requires a double-tap on the slot. When activated, the highlight is cued and immediately
played. This allows multiple clips play seamlessly in succession.
Related Topics
Setting Auto Play on page 24
Setting Auto Cue on page 25
When you create a clip, the K2 Dyno Replay Controller automatically names the clip. Then you can
change the clip name as desired.
The automatic name is based on the CONFIG | CLIP settings.
1. To change the name of a clip, select the clip and then on the keyboard, press Enter.
The clip title bar at the bottom of the screen is changed from the clip name to the word QuickKeys
and a cursor appears.
2. Type the new name and press Enter.
Related Topics
Clip settings on page 35
56 K2 Dyno S User Manual 20140207
Adding Stars
The star rating system allows you to assign up to three stars to a highlight clip.
1. To assign a star to a highlight, select the clip with a tap.
Highlights
2. To add a star or stars to the clip, on the keyboard, press F1 one time for each star.
3. To remove all the stars, press F1 until stars are removed.
You can also add star ratings while adding keywords.
Adding keywords
1. Select the clip so that the slot is outlined in blue or cue it on a player channel.
2. Tap the clip title bar on the lower left of the touch screen.
The rst table of keywords opens.
20140207 K2 Dyno S User Manual 57
Highlights
Editing keywords
3. Select the desired keyword as follows:
• If the desired keyword is in the rst table of keywords, select the keyword.
• If the desired keyword is in the second or third table of keywords, rst select the table, then
select the keyword.
If Auto Mode is on, when you select a keyword, the next table of keywords automatically opens.
4. To adjust the star rating, on the keyboard press F1.
To build a keyword table, you must create a highlight.
1. While the highlight selected is indicated by the blue outline around the slot, tap the highlight
properties softkey near the bottom left of the screen.
2. To make any changes to the existing keyword tables, select EDIT softkey.
When you enter the EDIT mode, there are 5 tabs across the top of the touch screen.
3. To name the tab, tap the tab softkey twice.
a) To type the name of the selected tab, you can either use the touch screen keyboard or the
standard Dyno keyboard.
58 K2 Dyno S User Manual 20140207
4. Once named, press ENTER to set the tab name.
Tabs are also a means of navigating Keyword numbers. Tab 1 contains slots 1-100, Tab 2 101-200
etc.
5. To delete the keywords and Tab title for the entire active table., select Clear All softkey.
6. To enter a keyword, rst enter the tab and the rst box in the table is defaulted to the name given
the tab.
7. Select the box with the tab name.
A screen with a series of numbered slots without the / mark in the box is displayed.
8. To name the individual slot, use the touch screen keyboard.
9. To lock in the text, press ENTER once the correct keyword has been typed in.
Setting keyword Fkeys
You can assign a limited number of keywords to keyboard keys F2-F9. This allows quick access to
the keywords.
1. Select the clip so that the slot is outlined in blue or cue it on a player channel.
Highlights
2. Tap the clip title bar on the lower left of the touch screen.
The rst table of keywords appears.
3. Select a keyword and then on the keyboard press an Fkey (F2-F9) when the Set Fkeys (which is
located on the lower strip) tab is lit.
Next to the keywords is the slot number with the Fkey designation in parenthesis.
4. Verify that the correct Fkey is assigned.
5. To save the changes to the Fkeys, deselect Set Fkeys.
20140207 K2 Dyno S User Manual 59
Highlights
Copying and moving clips
There are several ways to copy and move a clip within the same bin or between bins.
1. To move a clip using tap-and-drag within the current bin, on the HIGHLIGHT screen, do the
following:
a) Tap and hold a clip's slot so that the entire slot is blue.
b) While holding down, drag the slot to it's new position.
The clip is moved to the new position.
2. To copy a clip, on the HIGHLIGHT screen, do the following:
a) Select a clip's slot so that the slot is outlined in blue.
b) On the bottom strip, tap COPY.
c) Select the destination slot location.
d) On the bottom strip, tap PASTE.
The clip is copied to the destination slot location. The result is two independently editable versions
of the clip: one in the original location and one in the destination slot location.
3. To move a clip using cut-and-move, on the HIGHLIGHT screen, do the following:.
a) Select a clip's slot so that the slot is outlined in blue.
b) On the bottom strip, tap CUT.
c) Select the destination slot location.
d) On the bottom strip, tap MOVE.
The clip is moved to the destination slot location. This allows you to organize bins in a logical
manner.
Renaming a Highlight bin
1. On the HIGHLIGHT screen, double-tap the Bin's title bar at the top of the screen.
All bins on the active server are displayed.
By default, three bins appear. Each bin is represented by a folder icon. You can create additional
bins as desired.
2. To name a bin, tap and hold the folder icon until it is outlined in blue.
3. On the keyboard, press Enter.
The Bin title tab at the bottom of the screen displays QuickKeys.
4. Type the new bin name.
5. On the keyboard, press Enter to save the new bin name.
60 K2 Dyno S User Manual 20140207
Creating a new Highlight bin
1. On the HIGHLIGHT screen, double tap the Bin title tab.
The Bins page opens, displaying a collection of folders representing bins.
Highlights
2. From the bottom strip, tap NEW.
A new folder representing a new bin appears in the next available slot.
3. On the keyboard, press Enter and the word QuickKeys appears in the Bin title bar.
4. Type the name of the new Bin and then press Enter.
Changing Primary Angle
When Primary Angle is selected, you must assign the recorded angle that appears.
1. On player channel P1 or P2, cue a created clip.
At the lower left of the touch screen, the clip properties box displays the clip's in and out timecode.
2. Tap the clip properties box.
Each available angle thumbnail is displayed. The primary angle is indicated by the word primary
displayed on the thumbnail.
3. To change the primary angle, select the thumbnail of an available angle and tap the Primary
SoftKey located under the thumbnail panel.
20140207 K2 Dyno S User Manual 61
Highlights
Recalling a clip and Match Frame operation from the record train
With this operation, as long as the record train is available, the player channel cues the record train
to the cued timecode point. This returns to the record train without the limitations of the clip In point
or Out point and allows cueing beyond the guardbands of the clip.
1. Select and cue a clip on a player channel.
2. Press Shift | Match.
62 K2 Dyno S User Manual 20140207
Favorites
Using the Favorites screen
By default, you can select the FAVORITE tab to open the Favorite screen. This default behavior
changes if you open the Favorite bar, which is displayed on any screen. If the Favorite bar is open,
the FAVORITE tab is hidden and you cannot open the Favorite screen.
1. Open the FAVORITE screen.
2. To add elements such as Highlights, Playlists and Bins, use CUT | MOVE or COPY | PASTE
functions.
3. Move your most useful elements to the top of the bin as desired.
20140207 K2 Dyno S User Manual 63
Favorites
4. Work with elements as follows:
Double tap a bin
DescriptionOptions
Opens the bin
Double tap a playlist
Double tap a clip
Opening the Favorite bar
From any screen, you can open the Favorite bar. If the Favorite bar is open, the FAVORITE tab is
hidden and you cannot open the Favorite screen.
1. To open the Favorite bar, tap-and-drag downward from the Tabs row or the Bin title bar.
Cues the list and opens the Playlist screen
Cues the clip, even if it is located on another server on the
network.
2. To open additional slots, tap the Favorite bar and drag left or right.
You can drag clips from the Favorite bar into a playlist.
3. To close the Favorite bar, tap-and-drag upward.
64 K2 Dyno S User Manual 20140207

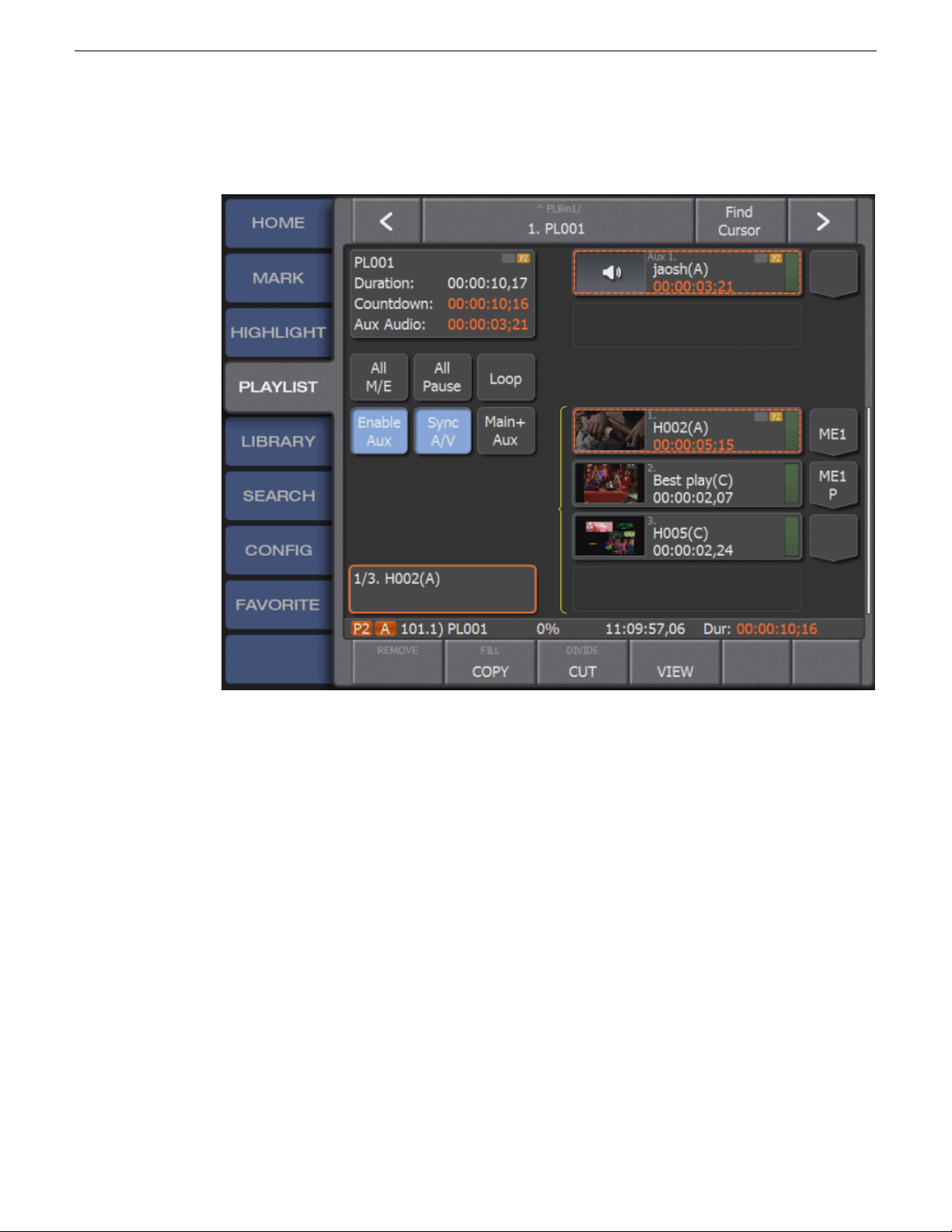

Playlists
Accessing Playlist mode
To access playlist mode, tap PLAYLIST.
• If you have not created any playlists, a playlist with no elements is displayed. You can add
elements to the playlist.
• If you have created one or more playlists, the last active playlist is displayed.
Creating a new playlist
1. To create a new playlist, press Shift | New PL.
This clears the current Playlist from the screen and replaces it with an empty playlist.
2. Go to the tab that holds the source clips to be added either Highlight, Library or Search.
3. Select the clips to be added to the playlist.
4. Press Add PL to add events to the list.
20140207 K2 Dyno S User Manual 65
Playlists
Adding a clip to the end of a playlist
Inserting a clip into the middle of a playlist
1. Open the PLAYLIST screen.
2. Load the playlist (either new or existing) that requires editing.
3. Go to the tab that has the source clips to be added, either Highlight, Library or Search.
4. Tap the clip to be added to the playlist.
5. To add the clip to the end of the active playlist, press Add PL.
1. Open the PLAYLIST screen.
2. Load the existing playlist.
3. Tap the event in the list that plays subsequent to where the new clip is to be inserted.
The event is highlighted in blue.
4. Go to the tab that holds the source clips to be added such as Highlight, Library or Search.
5. Select the clip to be inserted into the list.
6. To add the clip to the selected location, press Add PL.
Adding a group of clips to a Playlist
1. Open the PLAYLIST screen.
2. Load a new or existing playlist.
3. Go to the tab that holds the source clips to be added either Highlight, Library or Search.
4. To add a series of consecutive clips, tap the rst clip in the series.
5. Press and hold the Shift button, then tap the last clip in the series.
All the clips between these two slots are highlighted in blue.
6. To add the highlighted clips in an order from rst to last to the playlist, press Add PL.
Adding multiple clips to a playlist
1. Open the PLAYLIST screen.
2. Load a new or existing playlist.
3. Go to the tab that holds the source clips to be added either Highlight, Library or Search.
4. To add a series of non-consecutive clips, tap the rst clip in the series.
5. Press and hold Fn, then tap a series of clips in the order to be added to the playlist.
6. Release Fn once all the clips are highlighted in blue.
7. To add all the highlighted clips in order from rst to last to the active playlist, press Add PL.
66 K2 Dyno S User Manual 20140207

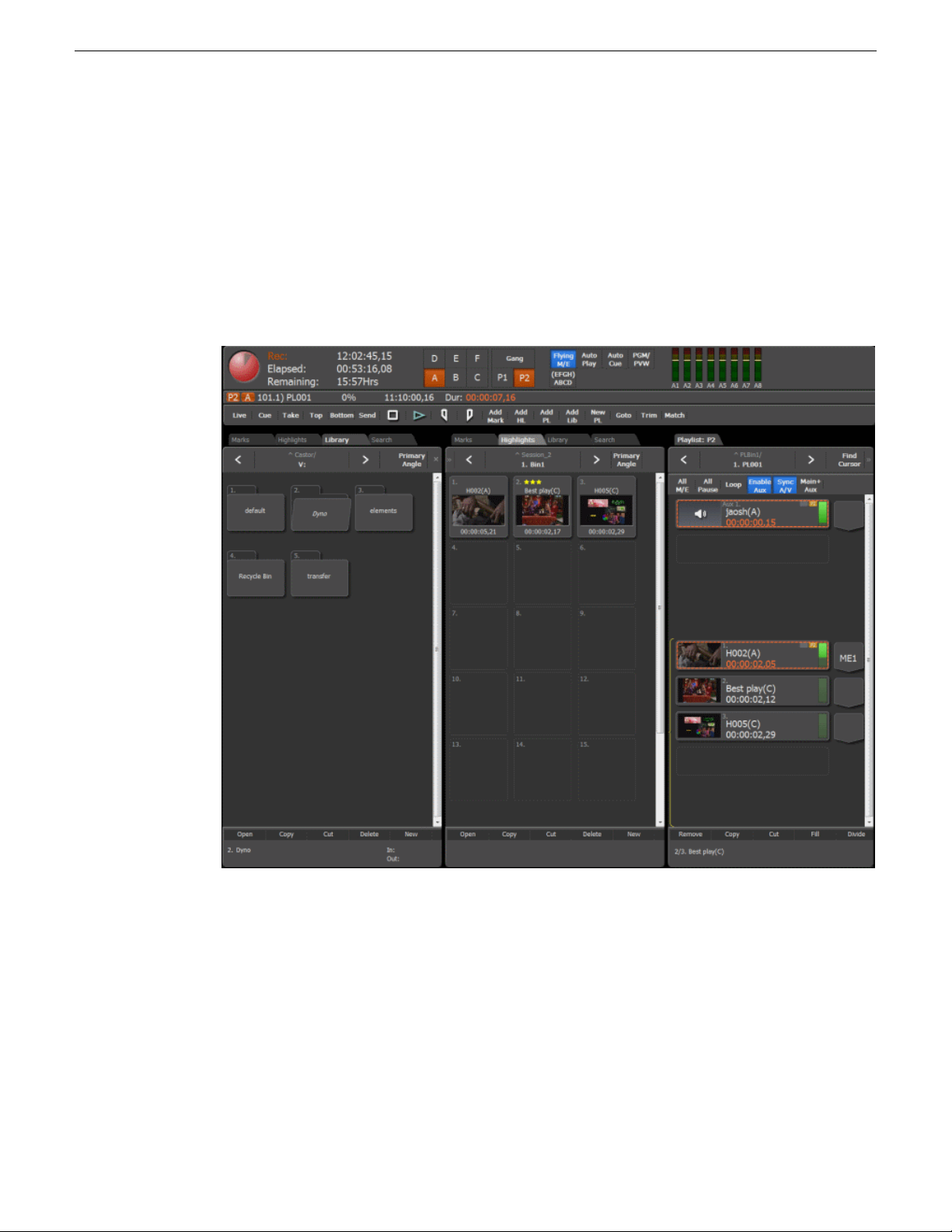

Moving events in a playlist
You can use either the VGA screen or the touch screen to move playlist events.
1. To use the VGA screen, do the following:
a) Find the playlist panel on the VGA screen that represents the list to be edited.
Playlists
b) Drag-and-drop the event to the new location.
2. To use the touch screen, do the following:
a) Open the PLAYLIST screen.
b) If the playlist to be edited is inactive, move the playlist to the active panel.
c) Drag the event to be moved to the new location in the list.
20140207 K2 Dyno S User Manual 67
Playlists
Moving multiple events in a playlist
There are several ways to move multiple events in a playlist.
1. To move consecutive clips, do the following:
a) Select Shift and select the rst and last of a group of consecutive clips.
The events are outlined in blue.
b) Tap CUT to remove the clips from the current playlist location.
The SoftKeys change to MOVE or PASTE.
c) Tap the event slot to select the destination location for the events to be moved.
d) Tap MOVE to insert the events in the list at selected location.
2. To move non-consecutive clips, do the following:
a) Press Fn and select each clip that you want to move.
The events are outlined in blue.
To select multiple non-consecutive clips, press and hold Fn.
b) Tap CUT to move the clips from their current playlist location.
The SoftKeys change to MOVE or PASTE.
c) Tap the event slot to select the destination location for the events to be moved.
d) Tap MOVE to insert the events in the list at selected location.
Shortening a clip in a playlist
1. Open the PLAYLIST screen.
2. Cue the playlist to be edited on a playlist channel.
3. To cue the event in the list that you are editing, double-tap the event slot.
The event is highlighted in orange.
4. Use the Jog Knob to cue the event within the clip to the new event In point or Out point.
68 K2 Dyno S User Manual 20140207
5. Press In or Out respectively.
6. Press Add PL.
The duration of the event is now changed without affecting the original clip in the highlight bin.
Lengthening a clip in a playlist
1. Open the PLAYLIST screen.
Playlists
2. Cue the playlist to be edited on a playlist channel.
3. To cue the event in the list that requires editing, double-tap the event slot until it is highlighted
in orange.
4. Press Shift | Trim/Take.
On the touch screen, notice that the event is now marked with opposing up and down arrows and
the progress bar is extended representing the guardband space that is now available.
5. Use the Jog Knob to cue the event within the clip to the new event In point or Out point.
6. Press In or Out.
7. Once the new In and/or Out points have been set, press Take.
The event has a new duration without affecting the original clip in the highlight bin.
8. Alternatively, you may do the following to lengthen a clip in a playlist:
a) Repeat Steps 1 to 3 as above.
b) Press Fn+In to clear an in-point.
c) Use the Jog Knob to select a new in-point.
d) Press In to set a new In point
e) Press Fn+Out to clear the Out point.
f) Use the Jog Knob to select a new Out point.
g) Press Out to set new Out point.
Changes are immediately put into effect.
20140207 K2 Dyno S User Manual 69
Playlists

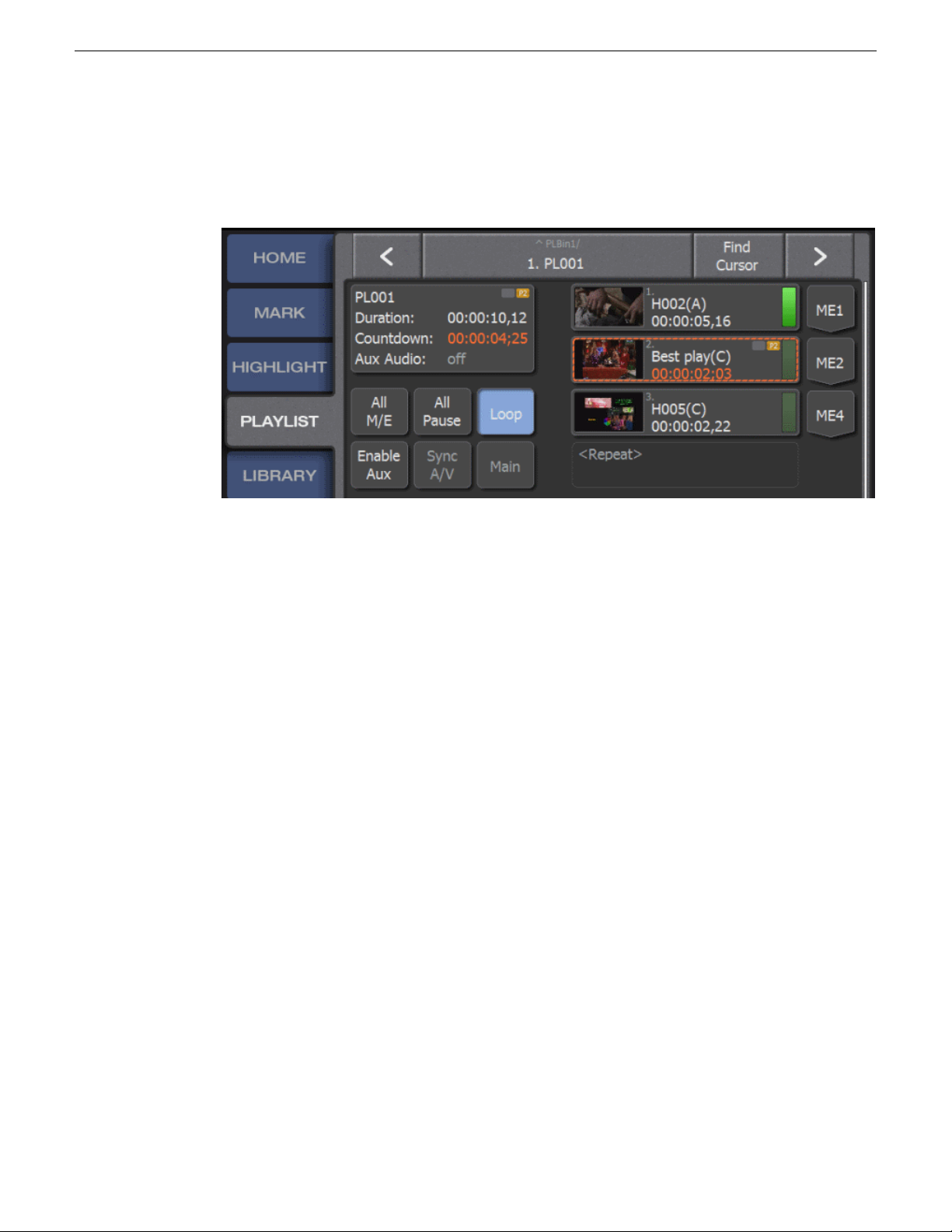

Adding M/E transitions to single playlist events
1. Open the PLAYLIST screen.
2. Select and cue the playlist to be edited.
On the far right of the touch screen is a chevron pointing downward.
3. Tap the chevron of the event prior to the transition required to activate M/E 1.
• The transition happens after the event is playing and before the next event begins.
4. To cycle through additional M/Es, tap the chevron additional times.
Adding M/E transitions to all playlist events
1. Open the PLAYLIST screen.
2. Select and cue the playlist to be edited.
3. To add M/E 1 to all events in the active playlist, tap All M/E.
Each additional tap of All M/E cycles through all ve of the preset transitions.
Deleting a clip from a playlist
1. Open the PLAYLIST screen.
2. Select the playlist to be edited so that it is visible on the playlist screen.
3. Tap the event to be deleted so that it is outlined in blue.
4. To delete selected event from the playlist, press Shift then tap REMOVE.
Removing a section of an event in a playlist
1. Open the PLAYLIST screen.
2. Select the playlist to be edited so that it is visible on the playlist screen.
3. Cue a clip in the playlist to the point to be divided.
70 K2 Dyno S User Manual 20140207
4. To create a new end point for the clip and create a new clip beginning with the newly created
end point of the previous clip, press Shift then tap DIVIDE.
5. Cue the new event to the new In point for the clip and press In.
Changing the speed of an event in a playlist
1. Open the PLAYLIST screen.
Playlists
2. Select and cue the playlist to be edited.
3. Select the event to change with a tap so it is outlined in blue.
4. Select the Event Properties panel from the lower left corner of the touch screen.
5. On the Event Properties panel, select the speed slot at the bottom of the column of slots on the
left side of the touch screen.
A number pad appears.
6. Enter the new speed as a percentage to be assigned to that specic event.
7. Select Enter to assign a new playback speed to that clip.
20140207 K2 Dyno S User Manual 71
Playlists
Changing the angle of a clip in a playlist
1. Open the PLAYLIST screen.
2. Select and cue the playlist to be edited.
3. Select the event to change with a tap so it is outlined in blue.
4. Select the Event Properties panel from the lower left corner of the touch screen.
On the Event Properties panel, notice the thumbnails of all available angles for that event, the
angle that is currently in the playlist is marked with yellow text stating Current.
5. Tap the thumbnail of the new angle to be included in playlist.
6. Tap Change Angle which is located directly below the thumbnails.
The Current text is now moved to the new angle.
7. Tap BACK to return to the playlist.
The new angle thumbnail appears in the slot of the event.
Clearing the In or Out of an event in a playlist
Use the Clear In or Out to include the event guardbands in the playlist.
1. Open the PLAYLIST screen.
72 K2 Dyno S User Manual 20140207
2. Select the playlist to be edited.
3. Select the event to be edited with a tap.
The event is oulined in blue.
4. Select the Event Properties panel from the lower left corner of the touch screen.
5. To move the In point of the event to the limit of the guardband, press Shift then tap Clear In.
6. To move the Out point of the event to the limit of the guardband, press Shift then tap Clear Out.
Cueing up a playlist
To ensure the playlist is active on the player channel desired, select the player and then go to the
PLAYLIST screen to check the active list.
To cue up a playlist, do one of the following:
Press PL/ME one time
Playlists
DescriptionOptions
Enters the playlist.
Press PL/ME two times
Press PL/ME three times
Cues the playlist to last cued location.
Cues the playlist to the top of the rst event in the list.
Playing back a playlist
Once a playlist if cued on a player channel, it is set to play.
1. Press the Play button.
2. The list plays at the 100% or at the speed assigned to an event.
3. Move the position of the T-bar to take control of the playlist speed of playback.
4. Adjust the T-bar up and down to raise of lower the speed of playback.
5. Press Fn | Play to play the list at the preset speed set on the home page.
Jumping to a playlist event while playing back
1. Cue and play a list on a player channel.
2. While the list is playing, tap an event either farther down the list or before the playing event.
The selected event is outlined in blue.
3. Press Take to immediately take the playback of the list to the event selected.
20140207 K2 Dyno S User Manual 73
Playlists
Looping playlist
1. Open the PLAYLIST screen.
2. Select and cue an active playlist.
3. Tap Loop.
When the playlist reaches the conclusion, the list follows it's applied M/E transition and then
returns to the rst event in the list, continuing to play.
Renaming a playlist
1. Open the PLAYLIST screen.
2. Cue the playlist to be renamed so that it is active and visible on the touch screen.
3. Tap the playlist title bar at the top of the touch screen.
A box at the bottom of the bottom of the touch screen appears with the word QuickKeys.
4. Type in the new name of the playlist and then press Enter on the keyboard.
Finding the cursor
On the PLAYLIST screen a longer playlist can go beyond the boundaries of the screen, which obscures
the cursor position.
To nd the location of the cursor or selected element, tap the Find Cursor SoftKey at the top of
the PLAYLIST screen.
The screen advances to the location of the currently selected element.
Navigating multiple playlists
1. Open the PLAYLIST screen.
74 K2 Dyno S User Manual 20140207
2. If multiple playlists are available, use the < or > SoftKeys at the upper right and left of the touch
screen.
• Tap > to bring the next higher playlist slot location in the bin to the selected player panel.
• Tap < to bring the next lower playlist slot location into the active player channel.
Viewing multiple playlists in a bin
1. To view all the playlist slots in a bin, double tap the playlist title bar at the top of the playlist
screen.
Playlists
The screen changes view, showing playlists in a manner similar to the default view of the Highlight
screen.
2. To take the view up one level to show all the playlist bins available, tap the title bar.
20140207 K2 Dyno S User Manual 75
Playlists
Pausing a playlist
1. To add a pause to a single event in the playlist, press Fn and then select the event chevron.
P appears in the chevron next to the selected event. When the playlist playback reaches the event
with the P in the chevron, the playback stops on the last frame of the event.
2. Press Play, Fn | Play or the move the T-bar to resume playback.
3. To assign a pause to all the events in the list, on the PLAYLIST screen tap the All Pause SoftKey.
NOTE: Mark Pauses on the Home screen does not work with clips in Playlist.
PGM/PVW Playlist
1. Tap HOME and then press PGM/PVW.
2. Tap the PLAYLIST tab and select an existing playlist.
3. Press ME/PL 3 times to cue the playlist.
Now notice that event 1 of the playlist is on P1 while event 2 is cued on P2.
4. Select Play to enable the list to play with each event transferring from P2 to P1.
Events on P2 can be adjusted or cued while on P2.
5. Press Take to advance the list to break the PGM/PVW connection.
The Playlist is now played only from P1, no longer previewing events. Take can still be used to
move clips over to the P1 channel.
6. Putting P2 in to Live and then pressing Take allows a playlist the ability to add a growing clip.
Aux Playlist
1. Tap the HOME tab.
2. Tap the Audio set up panel.
3. Tap the Aux Audio Panel from the bottom strip.
76 K2 Dyno S User Manual 20140207
4. Tap the Audio channels where the Aux Audio is to appear.
5. Tap the PLAYLIST tab.
Playlists
6. Tap the Enable Aux SoftKey (highlighted in blue above).
7. Tap the Main+Aux SoftKey to push the current playlist down the screen and reveal an additional
Aux playlist at the top of the column.
8. To select the Aux clip portion of the list, tap the upper list.
The section shows yellow brackets indicating the Aux portion of the list is now active. Clips
added to the playlist are now added to the Aux section as audio clips only.
9. To view more of the Aux list, tap the PLAYLIST view softkey to change the view to Aux.
The Main list is no longer visible as the Aux list lls the playlist column.
10. To keep Main and Aux lists tied together for editing, tap the Sync A/V SoftKey on the PLAYLIST
tab.
20140207 K2 Dyno S User Manual 77
Playlists
78 K2 Dyno S User Manual 20140207
ShareFlex
About ShareFlex
ShareFlex allows a K2 Dyno S Replay Controller to share content across multiple standalone K2
Summit systems. The K2 Dyno S Replay Controller accesses the content directly over Gigabit
Ethernet, with no need to transfer content between the K2 Summit systems. This allows a K2 Dyno
S Replay Controller that is controlling a local K2 Summit system to cue remote clips, playlists, and
record trains of a different K2 Summit system, without using remote channels.
You can share highlight clips instantly between K2 Summit systems. From your local K2 Dyno S
Replay System, you can access a different K2 Summit system to view recorded content, make a clip
from a record channel, load and play back a clip, retrieve content from the library, and place a clip
in a local playlist.
Key features of ShareFlex are as follows:
• Sharing highlight clips between systems
• Viewing recorded content locally on a different K2 Summit system
• Making a clip from a different K2 Summit system’s record channel
• Loading and playing back a clip from a different K2 Summit system
• Retrieving content from the library of a different K2 Summit system
• Placing a clip in a local playlist from different K2 Summit system
ShareFlex connections
A K2 Summit system supports up to four ShareFlex connections at the same time, one of which is
guaranteed to be a real-time connection. The number of real-time connections depends on the number
of active channel streams. ShareFlex connections beyond the real-time limit share the available
network bandwidth, with performance similar to an FTP transfer. In addition, no more than eight
total connections are supported.
Real-time connections act as if they are record channels on the K2 Summit system. The total number
of active channel streams and real-time ShareFlex connections is subject to the supported channel
stream limit for the given media type and bitrate.
The following examples are based on six DVCPROHD (DV100) channel streams, which is the
maximum supported on a K2 Summit system.
• Example 1: Two channels are recording DVCPROHD and two channels are playing DVCPROHD.
This totals to four real-time streams. That leaves two real-time connections available, and those
are used as ShareFlex connections. The total is now six real-time streams, which is the maximum
supported. For the remaining two ShareFlex connections supported, the connections are not real
time. This means there is a wait, similar to that for an FTP transfer, for the desired asset to be
available on the ShareFlex connected system.
20140207 K2 Dyno S User Manual 79
ShareFlex
Setting up ShareFlex
• Example 2: Two ChannelFlex channels are recording DVCPROHD, which means each channel
records two streams for a total of four real-time streams. In addition, two channels are playing
DVCPROHD. The total is now six real-time streams, which is the maximum supported. However,
since one real-time ShareFlex connection is guaranteed, there is another real-time connection
available for ShareFlex only. The total is now seven connections. Since no more than eight total
connections are supported, there is only one connection remaining for ShareFlex. This last
ShareFlex connection is not a real-time connection.
Network usage on the network interface connector must be below 80% for ShareFlex to operate at
these levels.
The following limitations also apply:
• Limited to the maximum disk bandwidth supported.
• Limited to the network bandwidth available.
Before using ShareFlex, verify the following prerequisites:
• Establish host tables on all connected devices
• Ensure that all connected K2 Summit systems have a valid ShareFlex license
1. On the Home screen, tap the box that displays the K2 Summit system currently controlled..
The server list opens.
2. From the server list, select ON to enable ShareFlex sharing on K2 Summit systems.
80 K2 Dyno S User Manual 20140207
Using ShareFlex with record trains
1. Select P1 or P2 while Live recording on a local K2 Summit system.
2. Press Shift | Brws buttons to list available record sessions.
3. To load the selected angle to your local playout channel, do one of the following:
ShareFlex
• Select a record train angle from the thumbnails available and tap LOAD.
• Double-tap a thumbnail.
4. Use the angle buttons to choose from the available streams associated with the selected record
train.
5. Use the Jog Knob, T-bar, or Play button to control the channel.
6. Press Shift | Local buttons on the K2 Dyno S Replay Controller to return to local record trains.
If P1 is selected to load remote record trains, local record trains and angles are still available under
P2. Verify that connected K2 Summit systems have matching timecode for frame accurate matches
to valid sources across record trains.
Accessing and using a remote session
1. Select P1 or P2 on your local K2 Summit system.
20140207 K2 Dyno S User Manual 81
ShareFlex
2. Press Shift | Brws buttons to list available record sessions.
3. To load a remote session to your local playout channel, do one of the following:
• Select a session folder or a record train angle from the thumbnails available and tap LOAD
SESSION.
• Double tap the session folder icon.
4. Access content in one of the following ways:
• Select from the Highlight bins to access and play clips
• Select from Playlist bins to access, cue, play, and edit specic playlists
For future quick access, add the remote Highlight bins and Playlist bins to your local Favorites Bar.
Creating local clips from remote record trains
1. Select P1 or P2 on your local K2 Summit system.
2. To list the available record sessions, do one of the following:
• Press Shift | Brws buttons
• Open the LIBRARY screen to navigate to a shared Summit.
3. Select the desired session created by the remote K2 Dyno S Replay Controller.
4. Double-tap the record train to load the recording to a player channel.
5. Select an angle from which to create a clip.
6. To initiate a transfer of the clip material to your local K2 Summit system, mark an In | Out and
add to the local Highlight Bin in one of the following ways:
• Tap an empty slot
• Press the Add HL button
An automatic FTP of the content is initiated.
82 K2 Dyno S User Manual 20140207
Timecode matching a local clip with remote clips
1. On the K2 Dyno S Replay Controller, select P1 or P2.
2. Select a local Highlight clip in a local Highlight bin.
3. On the K2 Dyno S Replay Controller, press Fn | Cue Up buttons.
4. From the available matching clips and angles, double-tap a thumbnail to load the clip on the
selected P1 or P2 channel.
ShareFlex
5. Use the Jog Knob, T-bar, or Play button to control the channel.
All angles associated with the clip are available with the angle buttons.
6. Verify that connected K2 Summit systems have matching timecode for frame accurate matches
to valid sources across record trains.
The in-point or out-point of the local clip must exist within the range of the guardbands of remote
clips to be valid results.
7. To access clips across the network by way of Library navigation, do the following:
a) Open the LIBRARY screen to navigate to a shared K2 Summit system.
b) Select the desired session created by the remote K2 Dyno S Replay Controller.
c) Open the remote Highlight Bin and locate the desired clip.
d) Select the clip in one of the following ways:
• Double-tap the clip
• Tap the clip and press the Shift | Open buttons on the K2 Dyno S Replay Controller.
8. Use the angle buttons on the controller to select the desired angle for playback.
All angles associated with the clip are available.
For future quick access, add the remote Highlight bins and Playlist bins to your local Favorites Bar.
20140207 K2 Dyno S User Manual 83
ShareFlex
Using ShareFlex with playlists
Changing a remotely cued playlist affects the playlist at the local level. You cannot add local clips
to remote playlists. When adding remote clips to a local playlist, an FTP transfer is required to
allow local and remote clips to be combined.
1. Open the LIBRARY screen to navigate to a shared K2 Summit system.
2. Select the desired session created by the remote K2 Dyno Replay Controller.
3. Open the remote Playlist Bin and locate the desired Playlist.
4. Select the playlist in one of the following ways:
• Double-tap the playlist
• Tap the playlist and press the Shift | Open buttons on the K2 Dyno S Replay Controller.
5. Press the PL button three times to cue for playback.
For future quick access, add the remote Highlight bins and Playlist bins to your local Favorites Bar.
84 K2 Dyno S User Manual 20140207
Library
Saving to the Library
1. To save elements such as clips or playlists to the Library, select the element to be saved outside
of the session.
2. Press the Add Lib button to save the elements to the default bin in the V: drive.
With the Add Lib button, elements are always saved to the default bin. You cannot save elements
to a different bin.
20140207 K2 Dyno S User Manual 85
Library
Navigating the Library
The Library is the storage for elements available beyond a session. It is also the gateway to the
network.
1. Open the LIBRARY screen.
All elements added to the library appear in the default bin.
2. Double-tap the bin title bar at the top of the screen to display all bins on the V: drive.
3. Double-tap the title bar again, to display all the bins on the K2 Dyno S Replay Controller.
4. Double-tap the title bar again to display all the servers on the network.
Copying clips
Clips can be copied from Highlight bin to the Library and vice versa.
1. To copy clips from Highlight bin to Library, do the following:
a) Open the HIGHLIGHT screen.
b) Select the clip or clips to be sent to the library.
c) Press Shift | Add Lib buttons on the left bank of the K2 Dyno Replay Controller.
All clips selected are copied to the default bin in the Library. This allows access to the selected
clips after closing the session.
86 K2 Dyno S User Manual 20140207
2. To copy clips from the Library to a Highlight bin, do the following:
a) Open the LIBRARY screen.
b) Select the Library bin that contains the clips to be copied.
c) Select Library clip or clips that are to be copied to the Highlight bin.
d) Tap the COPY SoftKey.
e) Open the LIBRARY screen.
f) Tap the new slot location for the Library clips.
g) Tap the PASTE SoftKey.
Library clips are copied into the Highlight Bin.
Creating a new Library bin
1. Open the LIBRARY screen.
2. Double-tap the title bar to display bins.
3. Press the Shift button and then the NEW SoftKey.
A new bin is created.
Library
Importing files from a storage device to the Library
1. Open the LIBRARY screen and navigate to the desired location.
2. Select the le you are importing.
3. Tap the COPY SoftKey.
4. Select an open slot in one of the highlight bins and then tap the PASTE SoftKey.
Renaming files in the Library
1. Open the LIBRARY screen and open the bin containing clips to be renamed.
2. Tap the le to be renamed.
3. Press Enter.
The word QuickKeys appears in the properties box at the bottom of the touch screen.
4. Use the keyboard to enter the new name for the le.
5. Press Enter to save the new name.
20140207 K2 Dyno S User Manual 87
Library
Showing session folders in the Library
Session folders are in the Dyno Folder, which is on the V: drive).
On the CONFIG screen, tap USER.
Set Show session folders in library to Yes.
88 K2 Dyno S User Manual 20140207
Search Function
Using the default 3-Star search folder
1. Go to the SEARCH tab.
2. Locate the preset search bin named 3 Stars which is presented as a default.
3. Double tap on the 3 Stars bin.
When opened, the 3 Star bin contains all clips in the active highlight bin which have been assigned
a 3 star rating.
20140207 K2 Dyno S User Manual 89
Search Function
Creating a new search folder
A simple search checks the name, tags, description, comments, and custom texts of the assets.
1. Go to the SEARCH tab.
2. From the bottom strip, locate the shift function New.
The display is changed to the criteria page.
90 K2 Dyno S User Manual 20140207
Search Function
3. To begin choosing your search criteria, tap the rst box on the line cycling through the parameters.
DescriptionOptions
Option 1 - Name
• Select the third box by using the touch screen or physical keyboard and
enter the name of the clip to be found.
• Select Enter and the Clip name is presented in the third box.
• Select Run softkey on the bottom strip and the results are displayed in the
bin window.
Option 2 - Rating
Option 3 Keywords
Option 4 Created
• The third box is populated by a Circle and 3 stars.
• Use the touch screen to select the number of stars to be searched.
• The circle selects no stars.
• Select Run softkey on the bottom strip and the results are displayed in the
bin window.
• Tap the third criteria box to advance the screen to the keywords page.
• Select up to 3 keywords and then select Back softk from the bottom strip
on the left.
• Select Run softkey on the bottom strip and the results are displayed in the
bin window.
• Select the third criteria box.
• The screen presents options for selecting the date or time when the clip
was created.
• To bring up a calendar allowing for choice of creation date, select Created,
the top softkey at the left of the screen.
• The softkey below Created is Time which allows you to search the clip
timecode using the number pad.
• The softkey below Time limits the search to the range entered on the
number pad.
• Select Run softkey on the bottom strip and the results are displayed in the
bin window.
Adding Criteria
Additional search criteria can be added to narrow the search results further.
1. Once you have added the rst criteria before selecting Run softkey, select Add softkey to add a
new search criteria line.
2. To select clips with either search criteria, select Or.
20140207 K2 Dyno S User Manual 91
Search Function
Deleting conditions
Using Keyboard, (CTRL)(F) search function
3. To limit to clips meeting both search criteria, select And.
1. To delete a search criteria from a bin, double tap the bin to be edited.
2. From the bottom strip, select Shift Function Criteria.
3. Select the criteria line to be deleted.
4. If it takes you to a keyboard or a number pad, select Back softkey from the bottom strip to return
to the criteria page.
5. Once the Criteria box is outlined in blue, select Shift function Remove from the bottom strip.
1. Press and hold the CTRL button from the keyboard and then press the F key.
A keyboard is displayed on the screen.
2. Use the touch screen keyboard or the physical keyboard to enter a clip name.
3. Press Enter to show all clips using that Clip name.
Adding clips from search to a PL
1. Go to the results bin of a search.
2. Select the clip(s) to be added to the playlist.
3. Once the clips are outlined in blue, select Add PL.
Clip(s) are now part of the active playlist.
4. Copy | Paste can also be used to place clips into the playlist.
92 K2 Dyno S User Manual 20140207
VGA Expansion Screen
About the VGA screen
The VGA Expansion screen provides a broad end view of the K2 Dyno S Replay Controller functions.
The horizontal panel across the top of the screen provides a combination of functions dened on
both the touch screen and the control panel. Tapping the Live, Cue, Take, Top, Bottom, and Send
buttons performs the same functions as the respective K2 Dyno S Replay Controller buttons.
Navigating the VGA screen
1. To select the Marks, Highlights, Library or Search bin contents of the left panel, click on the
respective tab at the top of the panel.
2. To change the contents of a Playlist Panel on the right side of the screen, click the rspective tab
and then select < or > SoftKeys that bracket the Playlist title.
This is cycled through playlists in the active bin, causing each list in succession to be active on
the K2 Dyno S Replay Controller.
20140207 K2 Dyno S User Manual 93
VGA Expansion Screen
Dragging and dropping clips into Playlist
1. On the VGA screen, click either the Marks, Highlights, Library or Search tab and then select the
bin containing the desired clip.
2. On the VGA Playlist panel, select the playlist to be edited.
3. Drag the desired bin clip into the desired position in the playlist panel.
When the clip is in the playlist panel, a shaded bar appears between the two events indicating
where the clip is to be added.
4. When the bar is in the correct location, release the mouse button and the list is updated with the
additional clip.
94 K2 Dyno S User Manual 20140207
Right-clicking clips in the Bins and Playlists
Right-click on a clip or an event, and then click the desired function.
Showing more than one bin
1. To add an additional Bin Panel, locate the << SoftKey to the left of the bin title at the top of the
screen.
VGA Expansion Screen
It compresses the view of the current bin panel and adds another bin panel to the left side of the
screen.
2. To remove the second Bin Panel, click the >> SoftKey at the top of the original bin or the x
SoftKey at the top of the new Bin Panel.
20140207 K2 Dyno S User Manual 95
VGA Expansion Screen
Showing more than one playlist
1. To add a second playlist panel, left click the > SoftKey at the far right top of the Playlist panel.
It brings a second playlist to the VGA screen as an additional Panel on the right side of the screen.
In the scenario of two player channels, the original list is associated with P1 and the new panel
with P2.
2. To hide the new panel, click the small x at the top of the playlist panel.
96 K2 Dyno S User Manual 20140207
Shutting the system down
Shutting the system down
There are three modes to shut down the system:
• Exit to Startup screen
• Exit to Shutdown
• Exit to Maintenance
1. Press the Shift button and then from the HOME screen or the CONFIG screen, tap the EXIT SoftKey.
This is the rst step in shutting down the K2 Dyno S Replay Controller in three different modes.
The Confirm Exit panel opens. The default shutdown mode is the Startup screen.
2. To exit to Startup screen, do the following:
a) Open the Confirm Exit panel, as instructed by the steps earlier in this procedure.
b) Tap Cancel to abort the Exit command and return to the previous session.
c) Tap Restart to continue to exit.
The K2 Dyno S Replay Controller restarts accordingly and displays the Server list, ready to
congure a new session.
20140207 K2 Dyno S User Manual 97
Shutting the system down
3. To exit to Shutdown, do the following:
a) Open the Confirm Exit panel, as instructed by the steps earlier in this procedure.
b) Tap the SoftKey next to the Shutdown mode prompt until it displays Shutdown.
When Shutdown is selected, the SoftKey to the left of the blue box changes to Shutdown.
c) Tap Cancel to abort the Exit command and return to the previous session.
d) Tap Shutdown to continue to exit.
The K2 Dyno S Replay Controller powers off.
98 K2 Dyno S User Manual 20140207
Shutting the system down
4. To exit to Maintenance, do the following:
a) Open the Confirm Exit panel, as instructed by the steps earlier in this procedure.
b) Tap the SoftKey next to the Shutdown mode prompt until it displays Maintenance.
When Maintenance is selected, the SoftKey to the left of the blue box changes to Exit.
c) Tap Cancel to abort the Exit command and return to the previous session.
d) Tap Exit to continue to exit.
The computer leaves the Dyno mode and the Windows operating system desktop is displayed.
e) To return to the Dyno mode from the Windows operating system desktop, double-tap the
Dyno S icon on the desktop.
Rebooting the Dyno and continue recording
1. Go to the HOME Page.
20140207 K2 Dyno S User Manual 99
Shutting the system down
2. From the bottom strip, select Shift Function Exit.
If required, the server can remain in record mode despite the state of the Dyno.
3. To continue recording and rebooting or shutting off the Dyno, tap the Continue Recording softkey
to change it to yes.
Dyno can be shut down or restarted at this point without interrupting the record train.
Rejoining a session
To rejoin a session that has been stopped but is still present on the Dyno, do the following:
1. Restart the Dyno.
2. Reconnect to the Server containing the Session to be reactivated.
3. Select the Session from the list on the right side of the screen.
4. To launch the session and restore it's elements, select Open Session softkey.
100 K2 Dyno S User Manual 20140207
