Getac W130 Series Operator's Manual

W130 SERIES

NOTEBOOK

OPERATOR’S MANUAL

3/30/04

Part Number: 7990 01144001 R01

(Dec. 2003)

TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.
NOTE
Information in this manual is subject to change without notice.

Regulations Information

Class B Regulations

USA

Federal Communications Commission Radio Frequency Interference Statement

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:

− Reorient or relocate the receiving antenna.

− Increase the separation between the equipment and receiver.

− Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

− Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.

Please note:

The use of a non-shielded interface cable with this equipment is prohibited.

Canada

Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice

This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe B prescrites dans le Règlement
sur le brouillage radioélectrique édicté par le ministère des Communications du Canada.

Products with the CE Marking comply with both the EMC directive (89/336/EEC) and
the Low Voltage Directive (73/23/EEC) issued by the Commission of the European
Community.

Compliance with these directives implies conformity to the following European Norms:

z EN50081-1: Electromagnetic compatibility-Generic emission standard

z EN55022: conducted Emission, Radiated Emission

z EN61000-3-2: Current Harmonic

z EN61000-3-3: Voltage Flicker

z EN50082-2: Electromagnetic compatibility-Generic immunity standard

z IEC1000-4-2: Electrostatic Discharge
z IEC1000-4-3: Radiated Susceptibility
z IEC1000-4-4: Electrical Fast Transients
z IEC1000-4-5: Surge Test
z IEC1000-4-6: Conducted Susceptibility
z IEC1000-4-11: Voltage Dip and Interruption

The Products pass C-UL, UL, TUV approved to comply with EN60950 standard.

About the Battery

Caution Texts Concerning Lithium Batteries

DANISH

ADVARSEL!

Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med
batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren.

NORWEGIAN

ADVARSEL:

Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til
fabrikantens instruksjoner.

SWEDISH

VARNING:

Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent
typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.

FINNISH

VAROITUS:

Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden
mukaisesti.

ENGLISH

CAUTION:

Danger of explosion if battery is incorrectly replaced. Replace only with the same or
equivalent type recommended by the equipment manufacturer. Discard used batteries
according to manufacturer's instructions.

DEUTSCH

VORSICHT:

Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur durch
denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ. Entsorgung
gebrauchter Batterien nach Angaben des Herstellers.

FRENCH

ATTENTION:

II y a danger d’explosion s’il y a remplacement incorrect de la batterie. Remplacer
uniquement avec une batterie du même type ou d’un type équivalent recommandé par le
constructeur. Mettre au rebut les batteries usagées conformément aux instructions du
fabricant.

Attention (for USA Users)

The product that you have purchased contains a rechargeable battery. The battery is
recyclable. At the end of its useful life, under various state and local laws, it may be
illegal to dispose of this battery into the municipal waste stream. Check with your local
solid waste officials for details in your area for recycling options or proper disposal.

About the Modem

Caution

1. Never install telephone wiring during a lightning storm.

2. Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.

3. Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.

4. Use caution when installing or modifying telephone lines.

5. Avoid using the telephone function during an electrical storm. There may be a
remote risk of electric shock from lightning.

6. Do not use the telephone function to report a gas leak in the vicinity of the leak.

Caution (for USA Users)

To reduce the risk of fire, use only No.26 AWG or larger telecommunication line cord.

Power Supply Cord: (optional) Detachable, minimum 1.5 m long. Listed, rated
minimum 125 V, 7 A, having a 2/18 AWG, type SVT flexible cord. One end terminates
with a parallel blade, molded-on, attachments plug with a 7 A, 125 V (NEMA 1-15P)
configuration; other end terminates with a molded-on appliance coupler.
Alternate: (optional) Detachable, maximum 4.5 m (14.76 ft) long. Listed, rated
minimum 250 V, 6 A, having a 3/18 AWG, type SVT flexible cord. One end terminates
with a Tandem blade, grounding, listed molded-on, attachments plug with a 6 A, 250 V
(NEMA 6-15P) configuration; other end terminates with a molded-on appliance coupler.

Table of Contents

Preface ..................................................................................v

Chapter 1 Getting Started.....................................................1-1

Getting the Computer Running................................................1-2

Unpacking..........................................................................1-2

Connecting to AC Power ................................................... 1-2

Opening the Cover.............................................................1-3

Closing the Cover ..............................................................1-4

Turning On and Off the Computer.....................................1-4

Taking a Look at the Computer...............................................1-5

Right-side Components......................................................1-5

Left-side Components........................................................1-7

Rear Components...............................................................1-8

Front Components..............................................................1-9

Top-open Components.....................................................1-11

Attaching and Detaching the Computer To/From the Docking

Station....................................................................................1-13

Attching the Docking Station...........................................1-13

Detaching the Computer ..................................................1-13

Taking a Look at the Docking Station (option).....................1-14

Right-Side Components.........................................................1-14

Left-Side Components...........................................................1-15

i

Rear Components...................................................................1-15

Front Components..................................................................1-16

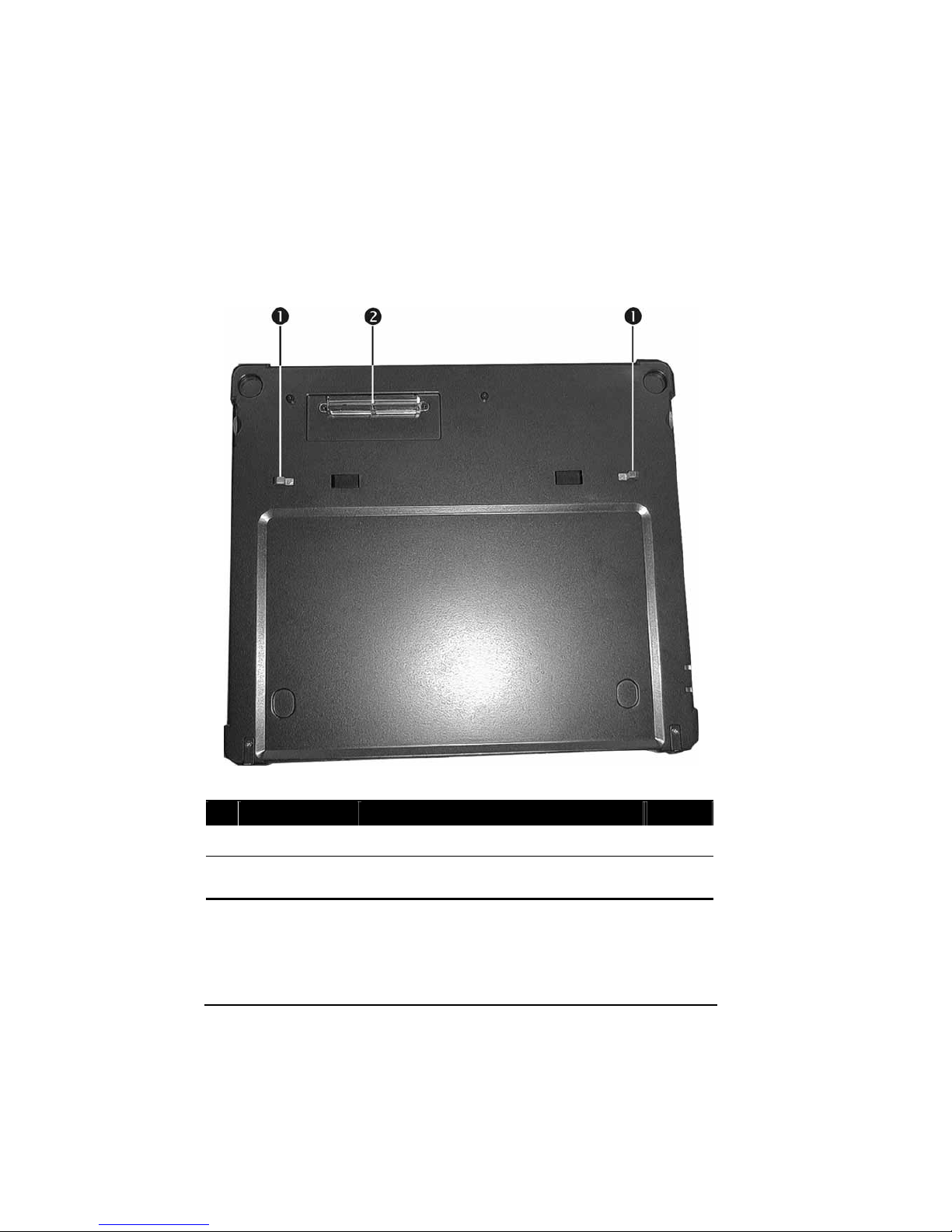

Bottom-Side Compontents.....................................................1-17

Top Compontents...................................................................1-18

Chapter 2 Operating Your Computer...................................2-1

Starting and Stopping the Computer........................................2-2

Starting the Computer........................................................2-2

Stopping the Computer ......................................................2-2

Using the Keyboard.................................................................2-4

Typewriter Keys.................................................................2-4

Cursor-control Keys...........................................................2-4

Numeric Keypad ................................................................2-5

Euro Symbol.......................................................................2-5

Function Keys ....................................................................2-5

Fn Key................................................................................2-6

Hot keys .............................................................................2-6

Using the Touchpad.................................................................2-8

Configuring the Touchpad .................................................2-9

Using the Touchscreen (optional)..........................................2-10

Configuring the Touchscreen...........................................2-11

Using the Floppy Disk Drive (optional) ................................2-12

Inserting and Ejecting Floppy Disks................................2-12

Using the Hard Disk Drive ....................................................2-14

Using the CD/COMBO Drive (optional)...............................2-15

Inserting and Removing a CD..........................................2-16

ii

Using the Video Features ......................................................2-17

Configuring the Display Modes.......................................2-17

Using the Audio Features ......................................................2-20

Connecting Audio Devices ..............................................2-20

Using the Communication Features.......................................2-21

Using the Modem.............................................................2-21

Using the LAN.................................................................2-21

Using the Wireless LAN..................................................2-22

Configuring the WLAN...................................................2-22

Chapter 3 Managing Power ..................................................3-1

AC and Car Adapter ................................................................3-2

Battery Pack.............................................................................3-3

Charging the Battery Pack .................................................3-3

Initializing the Battery Pack...............................................3-4

Checking the Battery Level................................................3-4

Replacing the Battery Pack................................................3-4

Battery Low Signals and Actions.......................................3-7

Power Management.................................................................3-8

Suspend-to-Disk (Suspend mode)......................................3-9

Manual Power Management ..............................................3-9

Power-Saving Tips ................................................................3-10

Chapter 4 Expanding Your Computer..................................4-1

Connecting an External Monitor (optional).............................4-2

Connecting a Parallel Device (optional)..................................4-3

ii

i

Connecting a Serial Device......................................................4-4

Connecting a USB Device (USB 2.0)......................................4-5

Using PC Cards........................................................................4-6

ZV and CardBus Support...................................................4-6

Inserting and Removing a PC Card....................................4-6

System Memory Upgrade........................................................4-8

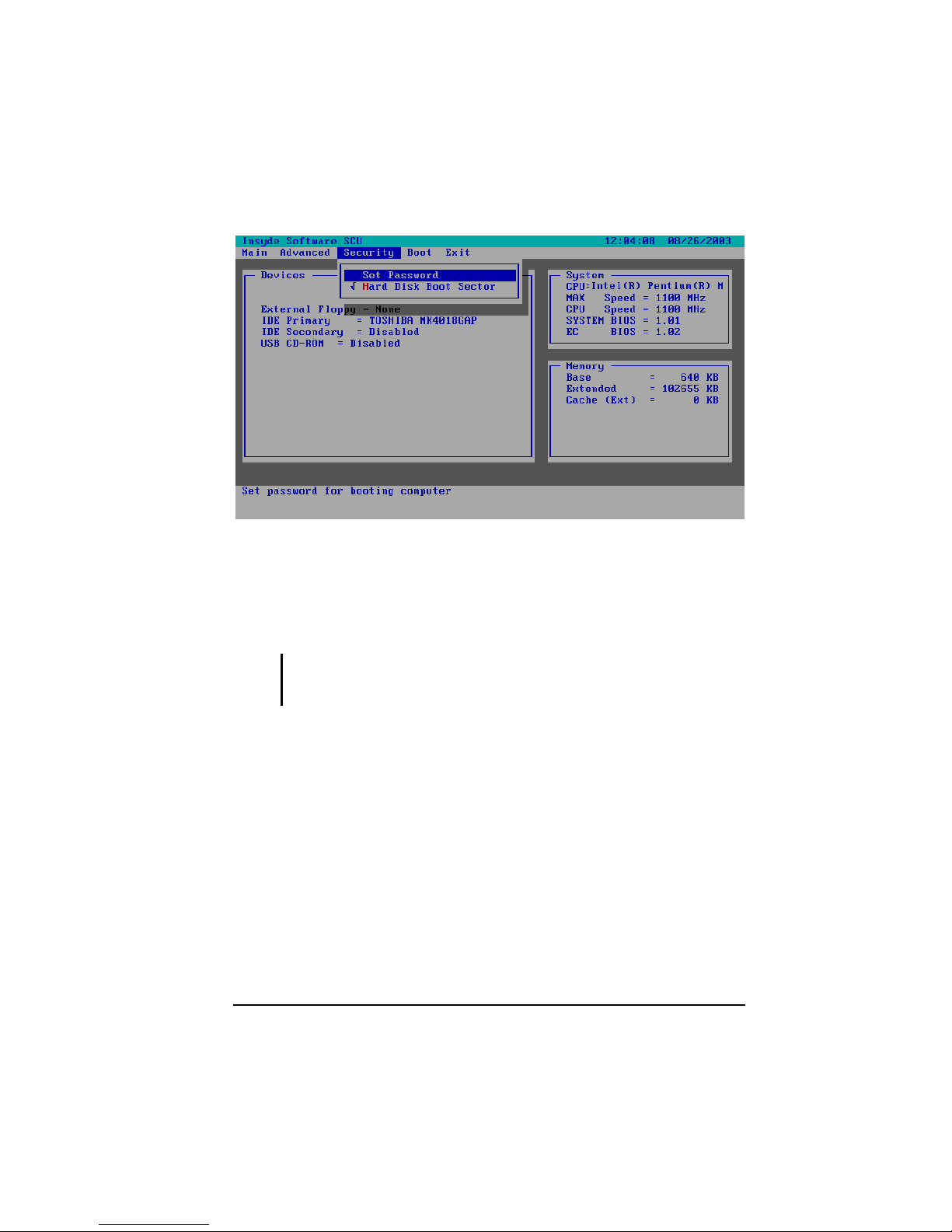

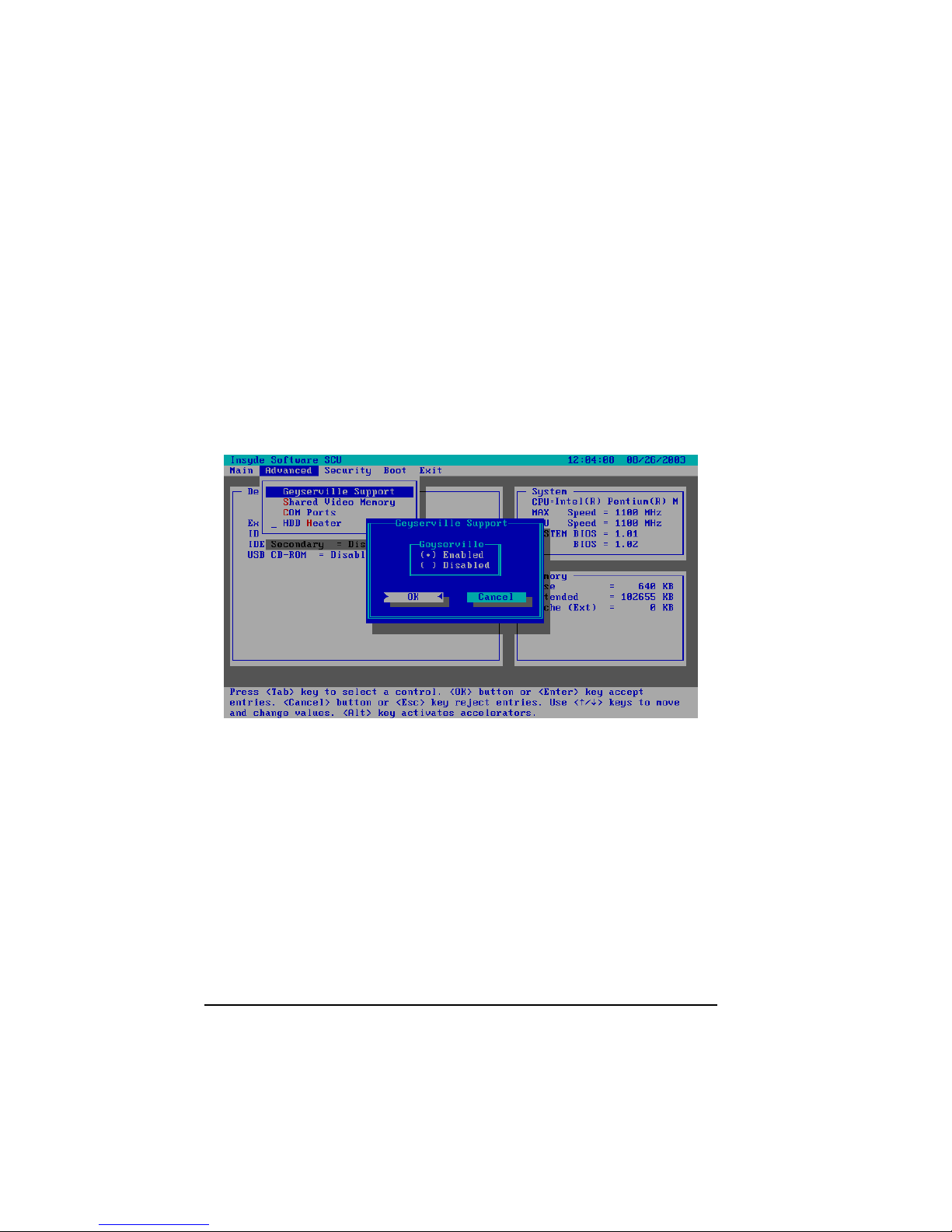

Chapter 5 SCU (Setup Configuration Utility).......................5-1

When and How to Use the SCU Program................................5-2

When to Use.......................................................................5-2

Starting SCU ......................................................................5-2

Moving Around and Making Selections ............................5-4

Main Menu...............................................................................5-5

Advanced Menu.......................................................................5-7

Boot Menu .............................................................................5-12

Exit Menu ..............................................................................5-13

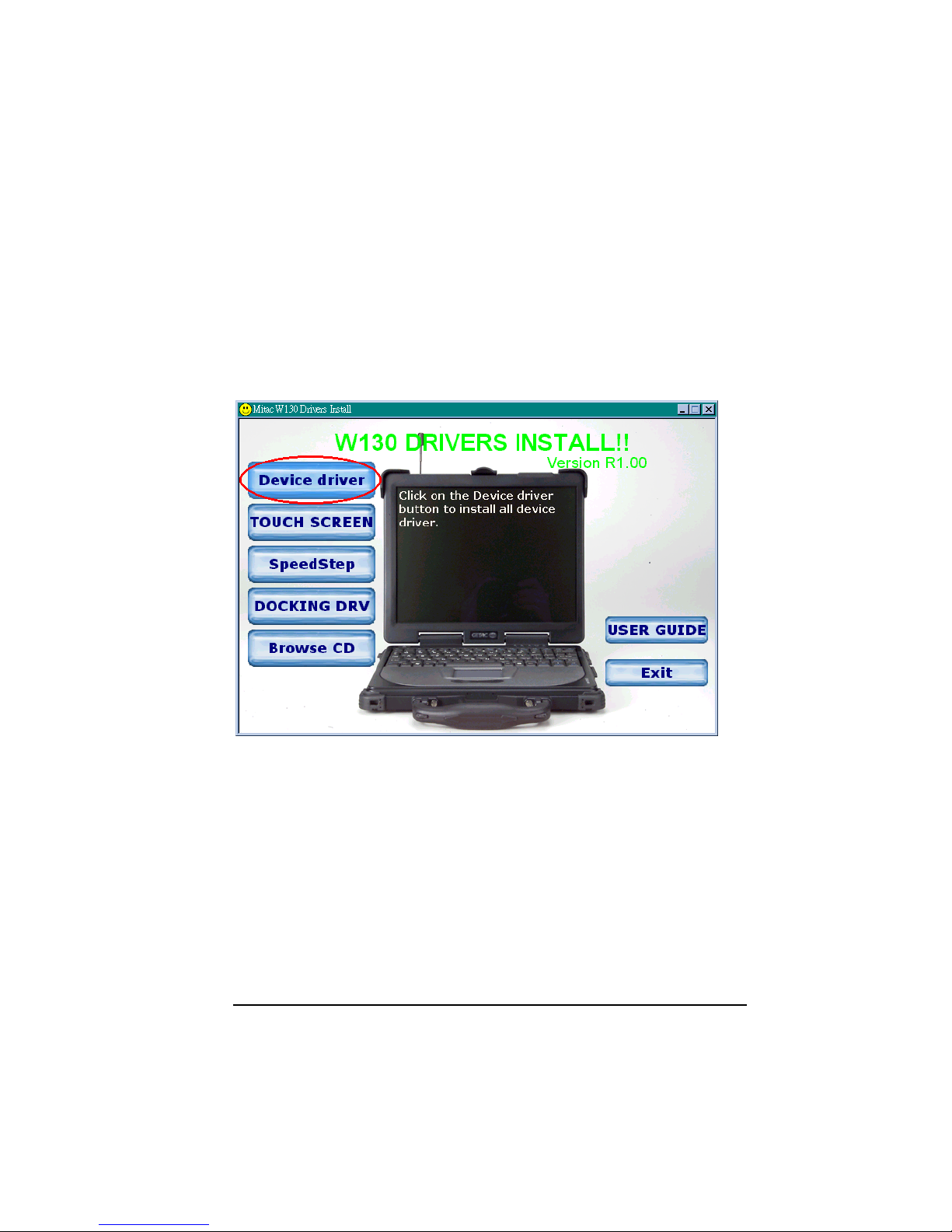

Chapter 6 Installing Software Drivers..................................6-1

How to Use the CD..................................................................6-2

Installing Drivers for Windows 2000 ......................................6-5

Installing Drivers for Windows XP .........................................6-6

Chapter 7 Caring for the Computer......................................7-1

Protecting the Computer..........................................................7-2

Using the Password............................................................7-2

Using an Anti-Virus Strategy.............................................7-2

Taking Care of the Computer ..................................................7-3

iv

Location Guidelines...........................................................7-3

General Guidelines.............................................................7-3

Cleaning Guidelines...........................................................7-4

Battery Pack Guidelines.....................................................7-4

When Traveling.......................................................................7-5

Chapter 8 Troubleshooting...................................................8-1

Preliminary Checklist ..............................................................8-2

Solving Common Problems.....................................................8-3

Battery Problems................................................................8-4

CD/COMBO Drive Problems (on optional docking station)8-5

Display Problems...............................................................8-5

Floppy Disk Drive Problems (on optional docking station)8-7

Hardware Device Problems ...............................................8-8

Hard Disk Drive Problems.................................................8-8

Keyboard, Mouse, and Touchpad Problems......................8-9

LAN/Wireless LAN Problems.........................................8-10

Modem Problems.............................................................8-10

PC Card Problems ............................................................8-10

Power Management Problems (for Windows).................8-11

Printer Problems (connected through optional docking

station)..............................................................................8-12

Software Problems...........................................................8-12

Sound Problems...............................................................8-13

Startup Problems.............................................................. 8-13

Other Problems ................................................................8-14

v

Resetting the Computer .........................................................8-15

Appendix A Specifications................................................. A-1

Preface

This manual contains information that will help you operate the
computer. It is divided into 8 chapters and an appendix.

Chapter 1, Getting Started, takes you through the process of setting up

the computer and identifying its external components.

Chapter 2, Operating Your Computer, tells you how to use the

computer’s components and features.

Chapter 3, Managing Power, provides information on power.
Chapter 4, Expanding Your Computer, provides information on

installing and using peripheral devices.

Chapter 5, SCU (Setup Configuration Utility), describes the SCU

program that configures the computer’s BIOS settings.

Chapter 6, Installing Software Drivers, describes how to install the

drivers and utilities supplied with the computer.

Chapter 7, Caring for the Computer, gives you tips in care and

maintenance.

Chapter 8, Troubleshooting, gives solutions to common problems you

may encounter when using the computer.

Appendix A, Specifications, gives a brief specification of the computer.

vi

Notational Conventions

Throughout this manual, the following conventions are used to
distinguish elements of text.

NOTE: identifies additional information that requires special attention.

CAUTION: identifies important information which, if not followed, may result in loss of data or

damage to the computer.

Keyboard keys are shown in a bold typeset. For example:

Press Enter to complete.
When keys are joined by a plus sign (+), press the first key, and, while
keeping the first key down, press the remaining keys, finally release all
the keys. When necessary, keys are also shown in graphics.
A title, command, setup item, or button that you can see on the screen is
shown in boldface. A value or an option that you can select for a setup
item is shown in italic. For example:

Select Power Management, set it to Enabled, and then

click the OK button.

vi

i

CHAPTER 1

Getting Started

Congratulations on purchasing this industrial notebook computer.
It’s rugged, compact, and portable design allows you to use it in the
field or inside a vehicle and other demanding situations where
conventional notebook computers just cannot measure up. It can also
connect with a docking station to extend the capabilities of input/output
devices.
This chapter first tells you step by step how to get the computer up and
running. You will find instructions for these procedures:

 Unpacking
 Connecting to AC power
 Opening the cover
 Connecting the computer to the docking station
 Turning on the computer
 Turning off the computer

Then, you will find a section briefly introducing the external
components of the computer. And the last section navigates you to the
information you may need after the computer is ready for use.

Getting Started

1-1

Getting the Computer Running

This section guides you through the procedures for getting the
computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these
standard items:

 Notebook Computer
 Accessories:

− AC adapter (100~240 VAC, 50~60 Hz)

− AC power cord

− Driver CD

− Docking Station (Optional), include CD-ROM/COMBO & FD

Drive

− Car adapter (12~32 VDC) − (Optional)

− External battery charger − (Optional)

− This Operation Manual

− Touchscreen Pen (Optional)

− 3M High Performance Cloth (Optional)

Inspect all the items. If any item is damaged or missing, notify
your dealer immediately.

Keep the shipping carton and packing materials in case you need
to ship or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal
battery power. It is suggested that you use AC power when you
start up the computer for the first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC
adapters may damage the computer.

Getting Started

1-2

1. Make sure the computer is turned off.

2. Plug the DC cord of the AC adapter to the power connector on the
computer.

NOTE: When the computer is attached to the docking station, connect the DC cord to
the power connector on the docking station instead.

3. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet.

4. When the AC adapter is connected, the indicator on the computer /
docking station lights up, indicating that power is being supplied from
the electrical outlet to the AC adapter and onto your computer /
docking station. Now, you are ready to turn on the computer.

CAUTION:

 When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer / docking station. A reverse procedure may damage the
AC adapter or the computer / docking station.

 When unplugging the connector, always hold the plug head. Never pull on the

cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.

Opening the Cover

CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or
slamming it shut could damage the computer.

Open the top cover by pulling the cover latch (bottom part)
outward using your thumb and at the same time using your index
finger to press on the notch on the top portion, and lifting up the
cover. You can tilt the cover forward or backward for optimal
viewing clarity.

Getting Started

1-3

Closing the Cover

When closing the cover, make sure that the hook is latched properly to
safeguard against the following:

 To prevent damage to the LCD screen during transport.
 To prevent the computer from accidentally waking up from Suspend mode during

transport without the user’s knowledge.

Turning On and Off the Computer

Turning On

1. Make sure the computer / docking station is connected to AC power.

2. Press the power button.

3. Each time the computer is turned on, it performs a Power-On Self ­ test (POST), and the operating system such as Windows should
start.

Power

Getting Started

1-4

Turning Off

To turn off the computer power, use the “Shut Down” command of
your operating system.

NOTE: There are other ways you can stop the computer so that you will be back to
where you left off when you next turn on the computer. (See “Stopping the Computer”
in Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off,
wait for at least five seconds. Turning the computer off and on rapidly can damage it.

Taking a Look at the Computer

This section identifies the external components of the computer and
briefly describes the function of each component.

Right-Side Components

Ref Component See Also



Device Indicators

Shows the current status of the computer’s
devices.

Battery State Indicator – blinks orange
when battery charge is 9% or lower.

Getting Started

1-

5

Ref Component Description See Also

Battery Charge Indicator:
– glows green when the battery is fully
charged.
– Glows orange when the battery is being
charged.
– Is dark when battery has no charge left
and AC adapter is connected and
powered on.

System State Indicator:
– glows green when the computer is
powered on.
– Glows orange when the computer is in
Suspend mode.

AC Power Indicator – glows green when
computer is connected to AC power and is
powered-on.



PC Card Slot

Accepts a PC Card for additional
functions.



RJ-45 Connector

Connects the LAN cable.



RJ-11 Connector

Connects the telephone line.



USB Port

Connects an USB device such as printer,
digital camera, joystick and more.

Getting Started

1-

6

Left-Side Components

Ref Component Description See Also



Audio Output
Connector

Connects a hi-fi set, radio set, synthesizer,
walkman, etc.



Microphone In
Connector

Connects an external microphone.

Getting Started

1-

7

Rear Components

Ref Component Description See Also



USB Port

Each of the two ports connects a USB device,
such as a USB floppy drive, printer, digital
camera, joystick, and more.



VGA Port

Connects an external monitor.



Serial Port

Connects a serial device, such as mouse.



Power
Connector

Connects the AC adapter.

Getting Started

1-8

Front Components

Ref Component Description See Also



Notched Hole

Allows you to hook the computer to the
docking station.



Wireless
Modem or
GSM Antenna

Serves as the antenna for the optional
wireless modem , GSM/GPRS, CDMA etc..



Touchscreen
Pen

Provides a convenient way to use the
touchscreen. Can be stretched for better grip
and handing.



Top Cover
Latch

Locks the top cover.



Wireless LAN
Antenna

Serves as the antenna for the WLAN.

Getting Started

1-9

Ref Component Description See Also



Speaker

Sends out sound and voice from the computer.



Battery
Compartment
Cover

Open the cover to access the battery pack.



Battery Cover
Latch

Locks the battery compartment.



Docking
Connector

Serves as the interface between the docking
station and the computer.

NOTE: Replace the battery pack, please see Page 3-5.

Getting Started

1-1

0

Top-Open Components

Ref Component Description See Also



LCD Screen

Displays the output of the computer.



Device Indicators

Shows the current status of the computer’s
devices.

Caps Lock Indicator – glows green when Caps
Lock key is pressed and its function is
activated.

Num Lock Indicator– glows green when Num
Lk key is pressed and its function is activated.

Scroll Lock Indicator – glows green when
Scroll Lk key is pressed and its function is
activated.

Getting Started

1-11

LAN 10/100 Indicator
– glows orange when LAN speed is 10 MBPS
– glows green when LAN speed is 100 MBPS

Hard Disk Drive Indicator (includes Floppy
Disk Drive or CD-ROM Drive In-use
Indicator when computer is connected to
docking station)



Keyboard

Serves as the data input device of the
computer.



Touchpad

Serves as the pointing device of the computer.



Power Button

Turns the computer power ON and OFF.

Getting Started

1-12

Attaching and Detaching the Computer To/From the
Docking Station

WARNING: Make sure that the computer is off before connecting it to or
disconnecting it from the docking station to prevent damage to either computer or
docking station.

Attaching the Docking Station

To attach the computer to the docking station:

1. Place the docking station on an upright position with the floppy and
CD drives in front facing you.

Slowly place the computer on top of the docking station slightly
inclined toward the front and carefully align the small rectangular holes
located in front near the edge of the computer to the two small hooks,
also located in the front top edge of the docking station to connect
together.

Press on the back portion to connect the computer to the docking
station.

Detaching the Computer

To detach the computer from the docking station:

2. Place both index and middle fingers firmly on the side locking latch
and press firmly while at the same time using both thumbs to pull up
the rear side of the computer.

3. Slide the computer slightly toward the rear to separate the small
rectangular holes located in front near the edge of the computer
from the two small hooks, also located in the front top edge of the
docking station.

4. Lift the computer away from the docking station.

Getting Started

1-13

Taking a Look at the Docking Station (option)

This section identifies the external components of the docking station
and briefly describes the function of each component.

Right-Side Components

Ref Component Description See Also



Device
Indicators

Shows the current status of the docking station
and computer’s devices.

AC Power Indicator – glows green when

computer is connected to AC power.
Docking Station Connection Indicator:

– glows green when the computer is properly
connected to the docking station.
– glows orange when the computer is not
connected properly to the docking station.



Release Tab

Press the Release Tab on both sides and lift up
to release computer from docking station.



Audio Output
Connector

Connects a Hi-Fi set, radio set, synthesizer,
walkman, etc.



Microphone
Connector

Connects an external microphone.

Getting Started

1-14

Left-Side Components

Ref Component Description See Also



USB Ports

Each of the two ports connects an USB device
such as printer, digital camera, joystick and
more.



Release Tab

Press the Release Tab on both sides and lift up
to release computer from docking station.

Rear Components

NOTE: The I/O ports located on the computer (except USB port) will be disabled
when the docking station is installed.

Getting Started

1-1

5

Ref Component Description See Also



Serial Ports

Connect serial devices such as mouse, etc.



Parallel Port

Connects a parallel device such as printer.



VGA Port

Connects an external monitor.



USB Port

Connects a USB device, such as printer, digital
camera, joystick and more.



Power
Connector

Connects the AC adapter.

Front Components

Ref Component Description See Also



Hooks

Allows you to hook the computer to the
docking station.



Floppy Disk
Drive

Accepts a floppy disk for installing software or
storing data files.



CD/COBMO
Drive

Accepts a compact disc (CD) for installing or
loading software, accessing data, and playing
music/video.

Getting Started

1-1

6

Bottom-Side Components

Ref Component Description See Also



Speaker

Sends out sound and voice from the docking
station.

Getting Started

1-1

7

Top Components

Ref Component Description See Also



Hooks

Secures the computer to the docking station.



Docking
Connector

Serves as the interface between the docking
station and the computer.

Getting Started

1-18

Where to Go from Here

As your computer is ready for operation, you may want to do any of the
following now:

For this purpose… Do this…

To know more about the computer… Go on to the next chapter.
To install the operating system if your

dealer has not already done so…

See the operating system manual.

To know more about the operating
system…

Read the operating system manual.

To install the drivers if your dealer has
not already done so…

See Chapter 6.

To set a power-on password… See “Security Menu” in Chapter 5.
To charge the battery pack for the first

time…

See “Charging the Battery Pack” in
Chapter 3.

Getting Started

1-19

Getting Started

1-2

0

CHAPTER 2

Operating Your Computer

This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user but are new to
notebook computers, you may choose to read only the parts containing
information unique to your computer.
Described in this chapter are the operating basics of these components:

 Keyboard
 Touchpad
 Touchscreen
 Floppy disk drive (when connected to docking station)
 Hard disk drive
 CD/COMBO drive (when connected to docking station)

And these features:

 Starting and stopping the computer
 Function keys
 Video features
 Audio features
 Communication features

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the
storage device such as the hard disk; or from a floppy disk or CD if you
have the docking station installed. The computer will automatically load
the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs
to run on. The most widely used operating system today is Microsoft Windows.

Stopping the Computer

When you finish a working session, you can stop the computer by
turning off power or leaving the computer in Standby or Suspend mode:

To stop in
this mode…

Do this… To start up or

resume again

Off Follow the shutdown procedure of your

operating system. This can prevent loss
of unsaved data or damage to your
software programs.

If the system is locked up because of
hardware or software problems, press the
power button to turn off the computer.

Press the power
button.

Standby

Depending on your settings in Windows,
you can place the computer in Standby
mode by:

• Closing the display cover

• Pressing the power button

• Pressing Fn+F10

Press any key or
Open Lid.

Operating Your Computer

2-2

To stop in
this mode…

Do this… To start up or

resume again

Hibernation

Depending on your settings in Windows,
you can place the computer in
Hibernation mode by

 pressing the power button
 by closing the display cover.

Press the power
button.

If you choose to stop in Standby or Hibernation mode, you can
return to where you left off the next time you start up the
computer. (See “Power Management” in Chapter 3 for more
information.)

Operating Your Computer

2-3

Using the Keyboard

Your keyboard has all the standard functions of a full-sized computer
keyboard plus a Fn. key added for specific functions.
The standard functions of the keyboard can be further divided into four
major categories:

Typewriter keys
Cursor-control keys
Numeric keys
Function keys

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the

Ctrl, Alt, Esc, and lock keys for special purposes. The

Control key is normally used in combination with other keys for
program-specific functions. The Alternate key is normally used in
combination with other keys for program-specific functions. The Escape
key is usually used for stopping a process. Examples are exiting a
program and canceling a command. The function depends on the
program you are using. When the lock keys (

Caps Lock, Num Lk, and Scroll

Lk

) are pressed, their corresponding indicators light up on the

computer’s device indicators.

Cursor-Control Keys

NOTE: The word “cursor” refers to the indicator on the screen that lets you know
exactly where on your screen anything you type will appear. It can take the form of a
vertical or horizontal line, a block, or one of many other shapes.

Operating Your Computer

2-4

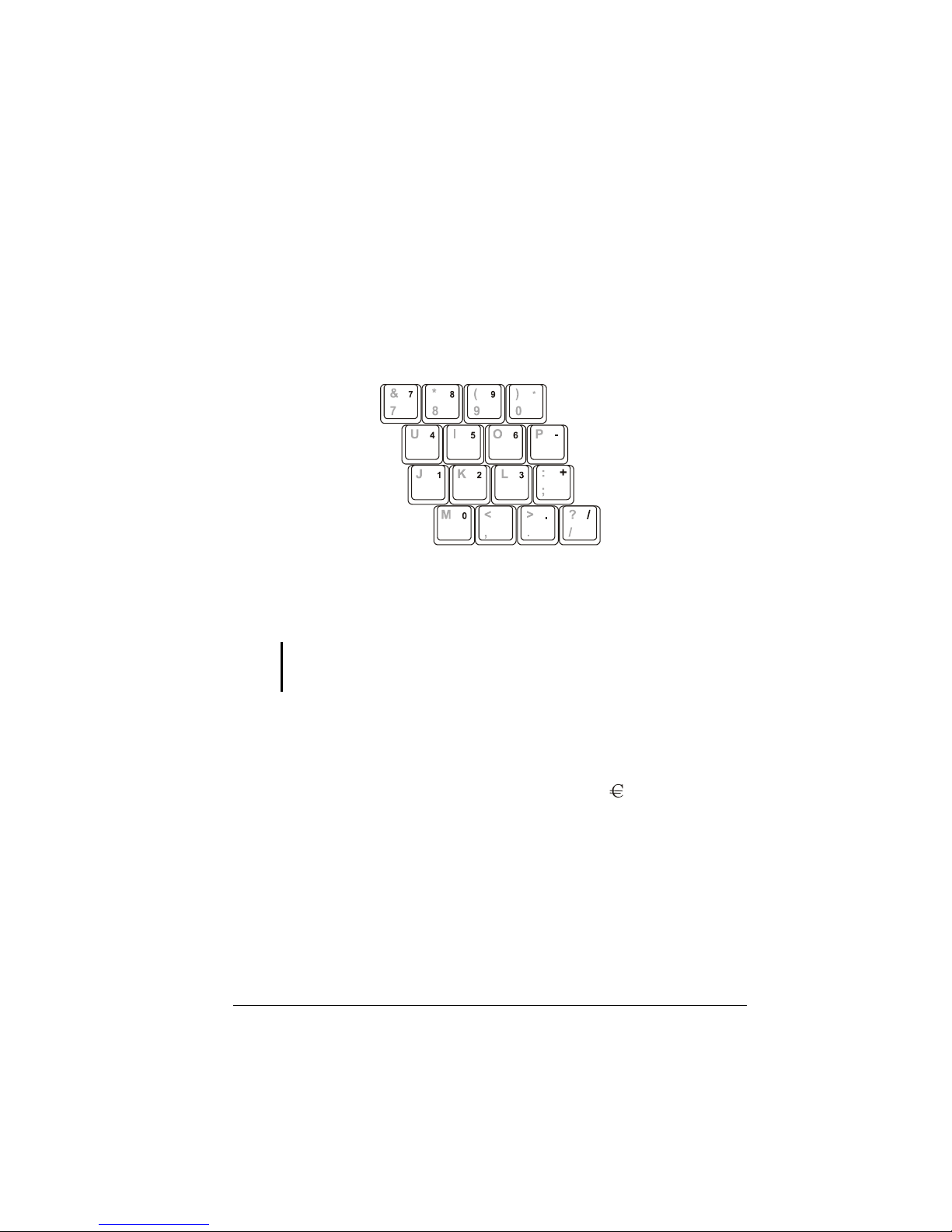

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown
next:

Numeric keys facilitate entering of numbers and calculations.
When

Num Lk is on, the numeric keys are activated; meaning you

can use these keys to enter numerals with “Fn” key.

NOTE:

 Some software may not be able to use the numeric keypad on the computer. If so,

use the numeric keypad on an external keyboard instead.

Euro Symbol

If your Windows supports the Euro dollar sign , you can press
the sign on the keyboard.

 To press the CTRL+ALT+E.

Operating Your Computer

2-5

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function
keys are multi-purpose keys that perform functions defined by
individual programs.
Hot key functions are assigned to

F1, F3, F4, F5, F6, F8, F9, and F10 by your

computer. (See “Hot Keys” section in this chapter for information.)

Fn. Key

The Fn. key, at the lower left corner of the keyboard, is used with
another key to perform the alternative function of a key. The letter “Fn.”
and the alternative functions are identified by the color of blue on the
keycap. To perform a desired function, first press and hold

Fn., then

press the other key.

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a
cyclic way. Each time a hot key combination is pressed, it shifts the
corresponding function to the other or next choice.
You can easily identify the hot keys with the icons imprinted on the
keycap. The hot keys are described next.

Key Description

Fn+F1

Toggles Keyboard backlight.

Fn+F3

Decreases the speaker volume.

Fn+F4

Increases the speaker volume.

Fn+F5

Decreases the LCD brightness.

Fn+F6 Increases the LCD brightness.
Fn+F7

Enabled/Disabled the LCD Backlight On/Off.

Fn+F8

Switches LCD on and off.

Operating Your Computer

2-

6

Key Description

Fn+F9

Switches the display output to one of the following three when
an external CRT monitor is connected through the docking
station.

LCD CRT monitor
Display on both

NOTE: If the display mode is set to 256 colors or lower, or in
DOS mode, there will be only two modes for selecting: CRT
only and Display on both.

Fn+F10

Serves as the sleep button that you can define with Windows’
Power Management. (See “Power Management” in chapter

3.)

Operating Your Computer

2-

7

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may
damage the touchpad surface.

NOTE: For optimal performance of the touchpad, keep your fingers and the pads
clean and dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to
communicate with the computer by controlling the location of the
pointer on the screen and making selection with the buttons.
The touchpad consists of a rectangular pad and two buttons. To
use the touchpad, place your forefinger or thumb on the pad. The
rectangular pad acts like a miniature duplicate of your display.
As you slide your fingertip across the pad, the pointer (also
called cursor) on the screen moves accordingly. When your
finger reaches the edge of the pad, simply relocate yourself by
lifting the finger and placing it on the other side of the pad.

Here are some common terms that you should know when using
the touchpad:

Term Action

Point Move your finger on the pad until the cursor points to the

selection on the screen.

Click Press and release the left button.

-or­Tap gently anywhere on the pad.

Double-click Press and release the left button twice in quick succession.

-or­Tap twice on the pad rapidly.

Operating Your Computer

2-8

Term Action

Drag and
drop

Press and hold the left button, then move your fingers
until you reach your destination (drag). Finally, release
the button (drop) when you finish dragging your selection
to the destination. The object will drop into the new
location.

-or­Gently tap twice on the pad, and on the second tap, keep

your finger in contact with the pad. Then, move your
finger across the pad to drag the selected object to your
destination. When you lift your finger from the pad, the
selected object will drop into place.

Scroll

To scroll is to move up and down or left and right in the
working area on the screen.

To move vertically, place your finger on the right edge of
the pad and slide your finger up and down along the edge.
To move horizontally, place your finger on the bottom
edge of the pad and slide your finger left and right.

This function works only after you install the touchpad
driver supplied with the computer and it may not work for
all applications.

TABLE NOTE: If you swap the left and right buttons, “tapping” on the
touchpad as an alternative method of pressing the left button will no longer be
valid.

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For
example, if you are a left-handed user, you can swap the two
buttons so that you can use the right button as the left button and
vise versa. You can also change the size of the on-screen pointer,
the speed of the pointer, and so on.
To configure the touchpad, you can use the standard Microsoft or
IBM PS/2 driver if you are using Windows. However, you can
install the touchpad driver supplied with your computer to take
advantage of more powerful features. (For information on
installing the driver, see “How to Use the CD” in Chapter 6.)

Operating Your Computer

2-9

Using the Touchscreen (Optional)

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use the included
touchscreen pen instead, which can be stretched for better grip and handling.

The touchscreen is a touch-sensitive device that allows you to
communicate with the computer by controlling the location of the
pointer on the screen and making selection with the buttons.

The touchscreen needs a special device driver support called a
PenMount Utility, which allows you to easily use the computer
without any external pointing device.

The touchscreen pen is located at the handle of the computer
(refer to “Rear Components” on chapter 1). To use the
touchscreen, place the touchscreen pen or your forefinger on the
touchscreen. As you slide your pen or fingertip across the screen,
the pointer, or cursor, on the screen moves in the same direction
across the screen as your fingertip or pen moves across the screen.

Here are some common terms that you should know when using
the touchscreen:

Term Action

Point Move your finger or pen on the touchscreen until the

cursor points to the selection on the screen.
Click Tap gently anywhere on the touchscreen.
Double-click Tap twice on the touchscreen rapidly.
Drag and

drop

Press lightly on the touchscreen and move your finger or

pen until you reach your destination (drag). Finally,

release your finger or pen (drop) when you finish

dragging your selection to the destination. The object will

drop into the new location.

Operating Your Computer

2-1

0

Term Action

Scroll To scroll is to move up and down or left and right in the

working area on the screen.
To move vertically, place your finger or pen on the right

edge of the touchscreen and slide your finger or pen up
and down along the edge. To move horizontally, place
your finger or pen on the bottom edge of the touchscreen
and slide your finger or pen left and right.

This function works only after you install the touchscreen
driver supplied with the computer and it may not work for
all applications.

TABLE NOTE: If you swap the left and right buttons, “tapping” on the
touchscreen as an alternative method of pressing the left mouse button will no
longer be valid.

Configuring the Touchscreen

You may want to configure the touchscreen to suit your needs. You can
also change the size of the on-screen pointer, the speed of the pointer,
and so on.
To configure the touchscreen, you can use the standard Microsoft or
IBM PS/2 driver if you are using Windows. However, you can install
the touchscreen driver supplied with your computer to take advantage of
more powerful features. (For information on installing the driver, see
Chapter 6.)

Operating Your Computer

2-11

Using the Floppy Disk Drive (optional)

Your computer may come with the optional floppy disk drive as
drive A through the optional docking station.

A floppy disk drive allows you to install new programs into your
computer, or to store information on a removable floppy disk so you can
transfer information from one computer to another.

The floppy disk drive is a high-density 3.5-inch one, which can
read and write to either double-density (2DD) 720-KB floppy
disks or high-density (2HD) 1.44-MB floppy disks. Notice that
both types of floppy disk have an arrow imprinted on the front
upper left corner , and a sliding write-protect tab on the bottom
left corner, as illustrated above. When opened, the write-protect
tab prevents data from being written to, or erased from, the floppy
disk.

Operating Your Computer

2-12

Inserting and Ejecting Floppy Disks

To insert a floppy disk, hold it with the arrow facing up and
towards the drive. Slide the disk into the drive until it clicks into
place.
To eject a floppy disk, first ensure that the floppy disk drive in-use
indicator is off, and then press the eject button on the drive. When
the floppy disk pops out of the drive, remove the floppy disk and
store it properly.

CAUTION:

 Never turn off or reset the computer while the floppy disk drive in-use indicator is

on.

 Always store your floppy disks in a safe, clean container, to protect them from the

environment and magnetic fields.

 A floppy disk must be formatted before you can use it. (To know how to format a

floppy disk, see your operating system manual.)

Operating Your Computer

2-13

Using the Hard Disk Drive

Your computer comes with a hard disk drive as drive C.
A hard disk drive is a storage device with non-removable, rotating,
magnetic storage platters inside it. It is where your operating system and
application software programs are stored.
Your hard disk drive is a 2.5-inch IDE (Integrated Drive Electronics)
hard disk drive. This type of drive embodies the latest in fast, reliable
mass storage by integrating all the control circuitry necessary for
operation directly onto the drive itself. This allows the drive
manufacturer to carefully optimize drive performance.

CAUTION:

 Make regular backups of your data files from your hard disk drive to floppy disks or

other storage media.

 Never try to remove or install the hard disk drive while the computer is powered

on. Doing so can result in loss of data, and can damage the computer and the
hard disk drive’s sensitive circuitry.

 Never turn off or reset the computer while the hard disk drive in-use indicator is on.

Operating Your Computer

2-14

Using the CD/COMBO Drive (optional)

Your computer may come with an optional CD-ROM drive, COMBO
drives, or through the optional docking station. This drive is usually
configured as drive D.
The drive uses removable 5.25-inch silver CD-ROM discs, which look
like standard music CDs. It is an ideal medium to use for distributing
multimedia because of the huge amount of data that a disc can store.
A CD-ROM drive can read CD-ROMs, audio CDs, CD-R, and COMBO
disk. A CD-RW drive not only reads the above discs but also writes to
CD-R and CD-RW discs.

CAUTION:

1. When inserting a CD, do not use force.

2. Make sure the CD is correctly inserted into the tray, and then close the tray.

3. Do not leave the CD tray open. Also, avoid touching the lens in the tray with your
hand. If the lens becomes dirty, the CD-ROM may malfunction.

4. Do not wipe the lens with rough surface materials (such as paper towel).
Instead, use a cotton swab to gently wipe the lens.

FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”

Operating Your Computer

2-1

5

Inserting and removing a CD

Follow this procedure to insert or remove a CD.

1. Turn on the computer.

2. Press the eject button and the CD tray will slide out partially. Gently
pull it until fully extended.

3. To insert a CD, put down the CD in the tray with its label facing up.
Slightly press the center of the CD until it clicks into place.

To remove a CD, hold the CD by its outer edge and lift it up
from the tray.

4. Gently push the tray back into the drive.

NOTE: In the unlikely event that you are unable to release the CD tray by pressing
the eject button, you can manually release the CD. (See “CD/COMBO Drive
Problems” in Chapter 8.)

Operating Your Computer

2-1

6

Using the Video Features

The video subsystem of your computer features:

 12.1-inch TFT (Thin-Film Transistor) color LCD display with
1024x768 XGA (Extended Video Graphics Array) resolution.

 Sunlight Readable Panel , Hi-Contrast solution (Optional).
 Simultaneous display on LCD and external monitor (connect through

the docking station), which is useful when you have a presentation as
you can control the screen from your computer and face the audience
at the same time.

 Multi-display capability, which allows you to expand your desktop on
the screen to another display device so that you have more desktop
space to work on.

Power Management.

NOTE: The computer enters Standby or Suspend mode when the LCD is closed. If
you want to use the computer with the LCD closed, set None to the “When I close the
lid of my portable computer” option in the Power Management properties. Thus the
computer does not enter Standby or Suspend mode when the LCD is closed.

Configuring the Display Modes

NOTE: To take advantage of the enhanced video capabilities, the video driver
supplied with your computer must be installed.

Your computer has been set to a default resolution and number of colors
before shipment. You can view and change display settings through your
operating system. See your operating system documentation or online
help for specific information.
For displaying in higher resolutions, you can connect an external CRT
monitor that supports higher resolutions through the optional docking
station. (See“Connecting a Monitor”in Chapter 4 for more information.)
The following table lists the display modes supported by your computer.

Operating Your Computer

2-1

7

Display Mode

LCD Only CRT Only

Simultaneous

Display

Resolution Colors

8-bit

√ √ √

16-bit

√ √ √

24-bit

√ √ √

640x480

32-bit

√ √ √

8-bit

√ √ √

16-bit

√ √ √

24-bit

√ √ √

720x480

32-bit

√ √ √

8-bit

√ √ √

16-bit

√ √ √

24-bit

√ √ √

800x600

32-bit

√ √ √

8-bit

√ √ √

16-bit

√ √ √

24-bit

√ √ √

848x480

32-bit

√ √ √

Operating Your Computer

2-18

Display Mode

LCD Only CRT Only

Simultaneous

Display

8-bit

√ √ √

16-bit

√ √ √

24-bit

√ √ √

1024x768

32-bit

√ √ √

8-bit

√

16-bit

√

24-bit

√

1152x864

32-bit

√

8-bit

√

16-bit

√

1280x1024

24-bit

√

8-bit

√

1600x1200

16-bit

√

TABLE NOTE: 8-bit = 256 colors; 16-bit = High Color or 65,536 (64 K)
colors; 24 and 32-bit = True Color 16,770,000 (16 M) colors.

Operating Your Computer

2-19

Using the Audio Features

NOTE:

 To take advantage of the enhanced audio capabilities, the audio driver supplied

with your computer must be installed.

 If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

 Digital audio and analog mixing functions required for recording and
playing sound on your computer

 SoundBlaster Pro, Adlib, and Microsoft Windows Sound System
support

 Speaker (located on the underside of both computer and the optional
docking station)

 External audio connectors (located on the left side of the computer or
on the right side of the optional docking station)

Ways of playing and recording sound vary with the operating
system used. See your operating system documentation or online
help for specific information.

Connecting Audio Devices

For higher audio quality, you can send or receive sound through
external audio devices.

 Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.
 Audio Output Connector (

) can be connected to the line-in
connector of powered speakers with built-in amplifiers, headphones,
or earphone set.

NOTE: When using external speakers/headphones, you cannot use the internal one.

Operating Your Computer

2-2

0

Using the Communication Features

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with
your computer must be installed.

The internal 56 K fax/data modem allows you to use the telephone line
to communicate with others by fax, email, or connect to an online
service or bulletin board.
To connect the telephone line to the modem, connect the end nearest the
core on the modem cable to the computer’s RJ-11 connector and the
other end to the telephone line.

Using the LAN

NOTE for Windows 2000: To take advantage of the LAN feature, the LAN driver
supplied with your computer must be installed.

The internal 100Base-T LAN (Local Area Network) module allows you
to connect your computer to a network. It supports data transfer rate up
to 100 Mbps.
To connect the network cable to the LAN module, connect one end of
the LAN cable to the RJ-45 connector on the computer and the other
end to the network hub.

Operating Your Computer

2-21

Using the Wireless LAN

Depending on your model, an internal Mini PCI wireless LAN (WLAN)
card may have been pre-installed by your computer manufacturer at the
factory. This card allows you to access corporate networks or the
Internet in a wireless environment.

The WLAN features include:

IEEE 802.11b standard compliance

2.4 GHz DSSS (Direct Sequence Spread Spectrum) technology
Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes support
WEP (Wired Equivalent Privacy) 64/128-bit data encryption
Transmission rate at 11 Mbps, 5.5 Mbps, 2 Mbps, and 1 Mbps with

automatic data rating

To take advantage of the WLAN feature, make sure that the WLAN
driver is installed correctly. (See Chapter 6 for more information.) If
your WLAN card was provided by your dealer instead of the computer
manufacturer, contact your dealer for the correct driver to use.

Configuring the WLAN

After driver installation, you can use the WLAN utility to configure and
monitor your WLAN connection. If you are using Windows XP, you can
also use its built-in WLAN utility. Follow this procedure to launch the
WLAN utility in Windows XP:

1. Select Control Panel from the Start menu.

2. Click Network and Internet Connections.

3. Click Network Connections, then double-click the Wireless
Network Connection icon

.

4. Click Properties in the Wireless Network Connection Status
dialog box.

You can configure your WLAN settings in the Wireless Network Connection
Properties dialog box.

Operating Your Computer

2-22

Managing Power

3-1

CHAPTER 3

Managing Power

Your computer operates either on external AC power, car adapter, or
internal battery power.
This chapter tells you how you can effectively manage power. To
maintain optimal battery performance, it is important that you use the
battery in the proper way.
The topics in this chapter include:

What is an AC or car adapter?
How to charge the battery pack
When and how to initialize the battery pack
How to check the battery level
How to replace the battery pack
What happens when the battery is low and what actions to take
What is Power Management?
How to save power

AC and Car Adapter

CAUTION:

 The AC and car adapter is designed for use with your computer only. Connecting

the AC adapter to another device can damage the adapter.

 The AC power cord supplied with your computer is for use in the country where

you purchased your computer. If you plan to go overseas with the computer,
consult your dealer for the appropriate power cord.

 When you disconnect the AC adapter, disconnect from the electrical outlet first

and then from the computer. A reverse procedure may damage the AC adapter or
computer.

 When unplugging the connector, always hold the plug head. Never pull on the

cord.

The AC adapter serves as a converter from AC (Alternating Current) to
DC (Direct Current) power because your computer runs on DC power,
but an electrical outlet usually provides AC power. It also charges the
battery pack when connected to AC power.
The AC adapter operates on any voltage in the range of 100 ~ 240 V
AC.
The car adapter serves as a converter from car battery to DC power. The
cigarette lighter port of the car usually provides DC power. It also
charges the battery pack when connected. The car adapter operates on
any voltage in the range of 12 ~ 32 V DC.

NOTE: The battery pack cannot be charged when the input power of car adapter falls below

11.5 V DC.

Managing Power

3-2

Battery Pack

The battery pack is the internal power source for the computer. It is
rechargeable using the AC or car adapter.
The operating time of a fully charged battery pack depends on how you
are using the computer. When your applications often access peripherals,
you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in Chapter 8. In
addition to this chapter, be sure to read the “Battery Pack Guidelines” section in
Chapter 8 as well.

Charging the Battery Pack

NOTE:

 Charging will not start if the battery’s temperature is below 0°C (32°F) or above

40°C (104°F).

 The charging process will stop when the battery’s temperature gets above 60°C

(140°F). If this happens, the battery pack may be damaged, please contact your
dealer.

 During charging, do not disconnect the AC adapter before the battery has been

fully charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and
an electrical outlet. The Battery Charge Indicator LED on the computer
glows orange to indicate that charging is in progress. You are advised to
keep the computer power off while the battery is being charged. When
the battery is fully charged, the Battery Charge Indicator LED glows
green.
It takes approximately 90 minutes to charge the battery pack to 80%
capacity and two or three more hours to fully charge the battery pack.

CAUTION: After the computer has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may damage
the battery.

Managing Power

3-3

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first
time or when the actual operating time of a battery pack is much less
than expected.
Initializing is the process of fully charging, discharging, and then
charging. It can take several hours.

1. Make sure the computer power is turned off. Connect the AC adapter to fully
charge the battery pack.

2. After the battery pack is fully charged, turn on the computer.

3. Disconnect the AC adapter and leave the computer on until the battery is
fully discharged. The computer will shut down automatically.

4. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time
can be different from the estimated time, depending on how you are using the
computer.

You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows,

click the icon

on the taskbar. (Click the icon if the computer

is using AC power.)

Replacing the Battery Pack

CAUTION:

 There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard
used batteries according to the dealer’s instructions.

 Do not attempt to disassemble the battery pack.

Managing Power

3-4

If you often rely on battery power for a long period of time while
traveling, you may consider the purchase of an additional battery pack
from your dealer and keep it with you in a fully charged state as a
backup.
To replace the battery pack, follow these steps:

1. Make sure the computer is not turned on or connected to AC power.

2. Carefully place the computer upside down.

3. Slides the battery cover latch inward and remove the battery
compartment cover.

Battery Cover Latch

4. Pull the battery block.

Battery Block

Managing Power

3-

5

5. Pull on the protruding strip to slide the battery pack to the left and
lift the battery pack out of its compartment.

Pull Battery Pack

6. Insert the new battery pack into the compartment and slide the battery
pack to the right to allow the proper connection of connectors.

7. In order to fixed battery back, we put the battery block on the rear of the
battery.

8.Replace the battery compartment cover and slide the battery cover latch
outward to secure it.

Managing Power

3-

6

Battery Low Signals and Actions

Battery Low occurs when the battery has approximately 10% of its
charge remaining. The computer in the Battery State Indicator LED
blink to alert you to take actions.

NOTE: You can set up your threshold and signals of Battery Low under Windows.

Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the computer. If you are using the
audio subsystem, PC Card, hard or CD-ROM or floppy disk drives, the
battery might run out of charge very quickly.

Always respond to Battery Low by placing your computer on
suspend-to-disk, turning off the computer, or connecting the AC or car
adapter.

If you do not take any action and after two minutes’, the computer will
automatically suspend-to-disk (if enabled under O/S program) and turn
off or, system will continue on until battery is dead.

 CAUTION:
 If you are using a flash PC Card, do not access the card during battery low

periods. This is because the access may take longer than the time it takes the
battery to run out of charge, thus making your access to the card unsuccessful.

 If you fail to save your data when the battery completely runs out of charge, then

you lose your data.

Managing Power

3-

7

Power Management

Your computer supports APM (Advanced Power Management) and
ACPI (Advanced Configuration and Power Interface) for power
management. The power management feature allows you to reduce the
power consumption for energy saving.
With an ACPI-compliant operating system such as Windows 98 and
Windows 2000, power supply to different computer components is
controlled on an as-needed basis. This allows maximum power
conservation and performance at the same time.

In general, Windows’ power management works in this way:

What… When…

Power to the hard disk is turned off When the hard disk has been idle for

a set period.

Power to the display is turned off When the display has been idle for a

set period.

The computer enters Standby mode.
The hard disk and display are turned
off and the entire system consumes
less power.

When the entire system has been idle
for a set period, or
when you press Fn+F10, * or
when you close the cover, * or
when you press the power button. *

The computer enters Suspend mode.
(See the next subsection for more
information.)

When you press Fn+F10, * or
when you close the cover, * or
when you press the power button. *

* Depends on your settings in Windows.

For detailed information on power management, see Windows’ Help.

Managing Power

3-8

Suspend-to-Disk (Suspend mode)

NOTE: If your operating system does not support ACPI, you can use the computer’s
“Suspend-to-Disk” function, which is equivalent to Windows’ Hibernation function.
(See “Power Menu” in Chapter 5 for more information.)

Manual Power Management

You can manually initiate Suspend-to-disk mode at any time in one of
two ways:

 Use the O/S that supports the Suspend function.
 Press down the power button and release it in less than 4 seconds with the

system on. Repeat the action to wake up the system under Suspend mode.

Suspend-to-disk is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all
these applications open and running, and normally they all have to be
closed before the system can be turned off.

When you use the Suspend-to-disk feature, you do not have to close the
applications. The computer stores the state of your computer to a file on
the hard disk and then shut down. The next time you turn on your
computer, you return to exactly where you left off.

Managing Power

3-9

Power-Saving Tips

In addition to your computer’s automatic power management, you can
do your part to maximize the battery’s operating time by following these
suggestions.

 Do not disable Power Management.
 Decrease the LCD brightness to the lowest comfortable level.
 Disable the parallel and serial ports if no devices are connected to these

ports. (See “Advanced Menu” in Chapter 5.)
 If you work with an application that uses the serial port or a PC Card, exit

the application when you finish using it.
 If you have a PC Card installed, remove it when not in use. Some PC Cards

drain power even while they are inactive.
 Turn off the computer when you are not using it.

Managing Power

3-1

0

Expanding Your Computer

4-1

CHAPTER 4

Expanding Your Computer

You can expand the capabilities of your computer by connecting other
peripheral devices. When using a device, be sure to read the
instructions accompanying the device together with the relevant
section in this chapter.

This chapter gives guidelines on installing and using these devices:

External monitor
Parallel device (through the optional docking station)
Serial device
USB device
PC Card

Connecting an External Monitor

If you want the benefits of a larger display screen with higher
resolution, you can connect an external CRT monitor to your
computer through the optional docking station.
Follow this procedure to connect an external monitor:

1. Make sure the computer is not turned on.

2. Plug the monitor’s D-type signal connector to the docking station’s
VGA port.

3. Plug one end of the monitor’s power cord into the power socket on
the monitor and the other end to an electrical outlet.

4. To use the monitor, turn on the monitor before turning on the computer.

5. The monitor should respond by default. If not, you can switch the
display to the monitor or to both (simultaneous displays) by pressing
Fn+

F9. In Windows, you can also change the display through the

settings in Display Properties.

6. You can change display settings through your operating system. See
your operating system documentation or online help for specific
information.

CAUTION: Do not disconnect the external monitor while the computer is in Standby mode
or Suspend mode. If no external monitor is connected when the computer resumes, the
LCD remains blank and the output is not displayed.

Expanding Your Computer

4-2

Connecting a Parallel Device (optional)

The optional docking station has a p

arallel port for connecting a
parallel device such as printer. The port supports ECP (Extended
Capabilities Port) and EPP (Enhanced Parallel Port) modes that turn
the standard parallel port into a high-speed bi-directional peripheral
port.
Follow this procedure to connect a parallel device:

1. Make sure that the “LPT Port” item is set properly in the BIOS Setup
program. (See “Advanced Menu” in Chapter 5 for information.)

2. Make sure the computer is not turned on.

3. Plug the parallel device’s cable to the docking station’s parallel port.

4. If the parallel device has independent power, plug its power cord into

an electrical outlet.

5. If the parallel device has its own power switch, turn on the parallel

device before turning on the computer.

Expanding Your Computer

4-3

Connecting a Serial Device

Your computer has a serial port for connecting a serial device such as
a serial mouse or modem.
Follow this procedure to connect a serial device:

1. Make sure the “COM1 Port” item is set properly in the SCU program.
(See “Advanced Menu” in Chapter 5 for information.)

2. Make sure the computer is not turned on.

3. Plug the device cable to the serial port on the computer.

NOTE: When the computer is connected to the optional docking station, plug its cable to
the serial port on the rear of the docking station instead of using the serial port of the
computer.

4. Turn on the computer.

NOTE: Portable modems that derive power through the serial port cannot be used with the
computer. Instead, use a modem that is powered by its own internal battery or external AC
power.

Expanding Your Computer

4-4

Connecting a USB Device (USB 2.0)

Your computer has one USB port on the right side for connecting
USB 2.0 devices such as digital camera, scanner, printer, modem, or
mouse and two USB ports on the left side of the optional docking
station.
USB is specified to be an industry standard extension to the PC
architecture. It supports “Plug-and-Play” technology so you can
install and remove USB devices without turning off the computer.
With its multiple connection capability, up to 127 devices can be
connected in a daisy-chain configuration. In addition, you can use a
USB hub that converts a single USB connector into multiple ports
where USB devices can be connected.

To connect a standard USB device, simply plug the device cable to
the USB port on the computer.

NOTE:

 When the computer is connected to the optional docking station, plug its cable to the

USB port on the left side of the docking station instead of using the USB port of the
computer.

Expanding Your Computer

4-

5

Using PC Cards

Your computer has one PC Card slot to accommodate one type II card.

ZV Port and CardBus Support

Your computer’s PC Card slot supports CardBus and ZV (Zoomed-Video)
Port specifications. CardBus is the 32-bit version of PC Card technology. It
allows speeds of up to 133 Mbps at 33 MHz. Typical applications are SCSI
host bus, graphic video, and high-speed network cards.

Inserting and removing a PC Card

NOTES:

 Some PC Cards require additional system resources. Before using such PC card, you

may have to free other system resources for the PC Card.

 Although some PC Cards can be inserted and removed without turning off the computer,

you cannot remove or install PC Cards during Standby mode.

To insert a PC Card:

1. Locate the PC Card slot on the right side of the computer.

2. Slide the PC Card, with its label facing up, into the slot until the eject
button pops out.

3. When a new card is seated, the computer will detect it and try to
install the appropriate driver. Follow the on-screen instruction to complete
the process.

Expanding Your Computer

4-

6

To remove a PC Card:

1. Your operating system may require you to stop the PC Card before you
actually remove it. (In Windows, double-click the PC Card icon in
Control Panel to stop the card.)

2. Push the eject button and the card will slide out slightly.

3. Pull the card out of the slot.

Expanding Your Computer

4-

7

System Memory Upgrade

You can upgrade your computer by changing system memory to a maximum
of 1GB on the DDR SDRAM slot. However, to avoid damage during the
installation procedure, please ask your dealer for help.

Expanding Your Computer

4-8

CHAPTER 5

Setup Configuration Utility (SCU)

SCU is a program for configuring the BIOS (Basic input/output System)
settings of the computer.
BIOS are a layer of software, called firmware that translates instructions
from other layers of software into instructions that the computer
hardware can understand. The BIOS settings are needed by your
computer to identify the types of installed devices and establish special
features.
This chapter tells you how to use the SCU program.

Setup Configuration Utility

5-1

When and How to Use the SCU Program

When to Use

You need to run the SCU program when:

 You see an error message on the screen requesting you to run Setup.
 You want to restore the factory default settings.
 You want to modify some specific settings according to the hardware.

 You want to modify some specific settings to optimize system

performance.

Starting SCU

NOTES:

 The Setup screens shown in this chapter are for your reference only. The actual

items or settings on your computer may differ.

 The Setup program may have been updated after the publication of this manual.
 The settings you select in your operating system might override similar settings in

Setup.

To run SCU, press F2 when the prompt appears in the left corner of the
screen during system startup. The prompt shows up on the screen for
only a few seconds. You must press F2 quickly. The SCU menu appears
as shown next.

Setup Configuration Utility

5-2

The menu can be divided into four areas:

 On the top line is the menu bar containing the titles of the available
menus. Each menu title brings a specific menu.

 The center left column of the menu contains items that you can set for
the selected menu title.

 The right column of the menu provides help information of the
selected item.

 The bottom lines give keyboard instructions for moving around and
making selections.

Setup Configuration Utility

5-

3

Moving Around and Making Selections

A brief description of keyboard usage is listed next:

Key Function

←, →

Selects a menu title.

↑, ↓

Selects an item or option.

Enter

Opens or closes the options window when an item is selected.

Space bar, – Cycles through the pre-defined value for the selected item.

Pressing the space bar brings up the next value; pressing the
minus (–) key does the contrary.

Esc

1) Exits the SCU program.

2) Returns to the previous menu if in a submenu.

3) Closes the options window if one is open.

NOTE: You are advised to use the touchpad or mouse (if installed), as it is more
straightforward than using the keyboard.

Setup Configuration Utility

5-4

Main Menu

The Main menu contains the basic configuration settings of the system.

Date and Time Sets the system date and time.

Setup Configuration Utility

5-

5

Internal and Numlock

sets if you can enter a number when Num Lock is turn off. When this
item is enabled, you can press and hold FN, and then press a letter key to
enter a number even if Num Lock is turned off. When this is disabled,
you cannot enter a number with the above method. A check mark ()
indicates enabled while undline (_) indicates disabled.

Setup Configuration Utility

5-

6

USB Emulation enables or disables the system’s support for the

USB port in DOS mode.

Advanced Menu

The Advanced menu contains the input/output configuration settings of the
system.

Setup Configuration Utility

5-

7

Geyserville Support

Enables or disables the Geyserville feature of the CPU. The
Geyserville feature helps conserve battery life by decreasing the
CPU’s running speed under certain conditions while still maintaining
a high performance. If this item is enabled, the CPU will
automatically change its speed whenever necessary based on the
“Power Scheme” setting in Windows’s Control Panel. If this item is
disabled, the CPU will always run in the low speed.

Shared Video Memory sets the shared memory size of the video

controller. The options are 4M, 8M, 16M and 32M.

Setup Configuration Utility

5-8

Com Ports

HDD Hearter

Setup Configuration Utility

5-

9

Security Menu

The Security menu contains the security setting that safeguards your
system against unauthorized use.

Set Password

allows you to set the password for your system. When

typing password, first make usre that Num Lock is off, then type your
password in the entry fields and press Enter. Confirm your password by
typing it again and pressing Enter. If the Enable Password to Power-on
sub-item is enabled, the set password is always required to boot the
computer.

Setup Configuration Utility

5-1

0

Hard Disk Boot Sector sets if a warning message will appear when

the hard disk boot sector (partition table) has been changed. A check
mark () indicates enabled, while an underline (_) indicates disabled.
The default setting is disabled.

CAUTION: sets this item to disabled before installing an operating system, running
Fdisk or Format program. Otherwise, the intended action will fail.

Setup Configuration Utility

5-11

Boot Menu

The Boot men sets the sequence of the devices to be searched for the
operating system.

Boot Sequence sets the first, second, third, and fourth booting

devices. The system will try to boot from the first device but if it is not
available, will try the next boot device. If you set the first boot device to
LAN Boot, the system will boot from the LAN server first. The options
are Hard Disk Drive, CD-ROM Drive, Floppy Disk Drive, and LAN
Boot. The default setting is Floppy Disk Drive, Hard Disk Drive,
CD-ROM Drive, then LAN Boot.

Note: If you set all booting options to the same device, then the computer will try to
boot from that device only.

Setup Configuration Utility

5-12

Exit Menu

The Exit menu displays ways of exiting SCU. After finished with your
setting, you must save and exit so that the new setting can take effect.

Save Change and Exit saves the changes you have made and exits
SCU.

Discard Changes and Exit

exits SCU without saving the changes you

have made.

Get Default Values loads factory default values for all the items.
Load Previous Values loads CMOS values before running SCU.

Setup Configuration Utility

5-1

3

Setup Configuration Utility

5-14

CHAPTER 6

Installing Software Drivers

To take full advantage of the unique features of your computer,
some operating systems require custom software, known as
drivers, to be installed.

If you purchased the computer with Windows pre-installed; your
dealer may have already installed the drivers. If not, you need to
install the drivers using the CD supplied with your computer.
This chapter describes how to install the drivers.

Installing Software Drivers

6-1

How to Use the CD

NOTES:

• The drivers may have been updated after this manual was published. For driver’s
upgrade, please contact your dealer.

• You can always find README or document files on the CD. These files contain
the latest information from the software supplier. Please read the files together
with this chapter.

• This driver CD supports Windows 2000 and Windows XP only.

• The available items may differ according to your computer model and Operating

System.

An autorun is provided on the driver CD to help you easily install
the drivers. As you insert the driver CD, the autorun program
automatically starts. If you need to start the program manually, run
the Autorun.exe program from the Setup directory of the driver
CD.

Note: If driver CD version is not the same as the one shown on the Operation Manual,
please refer to the UserGuide file on the driver CD for the latest driver
installation action steps and sequence.

Installing Software Drivers

6-2

Install Device Driver for Windows 2000/Windows XP

To install the necessary driver, just click on the particular option and
follow the onscreen instructions to continue and complete installation.

Device Driver Press the “Device driver” button, the system will auto
install include VGA, Audio, Modem, LAN , Wireless
LAN, USB 2.0, DirectX 8.1, Chipset driver.

Installing Software Drivers

6-3

VGA Allows you to select high-resolution displays

with richer colors. It can drive CD displays as
well as CRT displays.

Audio Allows you to take full advantage of the audio
subsystem.

Modem The modem driver allows you to transmit
information over a standard telephone line
through RJ-11 port.

Speedstep Press the Speedstep button, the system will
auto install for Window 2000.

LAN/Wireless
LAN Allows you to use the network function of the
computer.

USB 2.0 Allows your system to connect to USB 2.0
devices.

DirectX 8.1 Allows you to take full advantage of the
multimedia applications.

Chipset Ensures the full function of the following drivers.
Install this main chipset driver installing the device drivers.

Touchscreen Allows you to use your fingers as a pointing device on the
LCD screen ( refer to the next section for further
instructions).

DOCKING DRV Click on the WIN2000/WINXP button to install
docking driver, the system will auto install USB To
COM Port.

Note: W130 can support USB 1.1 and USB 2.0 350K CCD

Installing Software Drivers

6-4

Install Touch Screen Driver for Windows 2000

1. Insert the driver CD into the drive.

2. Click on “TOUCH SCREEN” then “WIN2000”, and follow the

onscreen instructions to continue.

3. When finished installing, select “Yes” to reboot your system. The

driver should now be loaded.

4. After the system has finished rebooting, click on the “PenMount

Monitor” icon located on the taskbar to bring up the “PenMount
Control Panel.”

5. Select the “ Standard Calibrate” folder and click on “OK” button.

6. If you need 4,9,16,25 dot of the calibrate, we suggest select

“Advanced Calibrate” button to calibrate.

7. Click on the four sides (points) and the plus-sign “+” on the screen

to calibrate your touchscreen pen for use on the computer.

Installing Software Drivers

6-5

Installing Drivers for Windows XP

To set up the necessary drivers for Windows XP, click on “TOUCH
SCREEN ” on the initial screen. The following screen appears:

Installing Software Drivers

6-6

Install Touch Screen Driver for Windows XP

Hardware Install:
(1) Insert the driver CD to the CD drive, to bring up the following

screen. Select “WINXP”.

Installing Software Drivers

6-

7

(2) When the TSRC-XP.htm file appear, then select ”START” ->

“Control Panel” button.

Installing Software Drivers

6-8

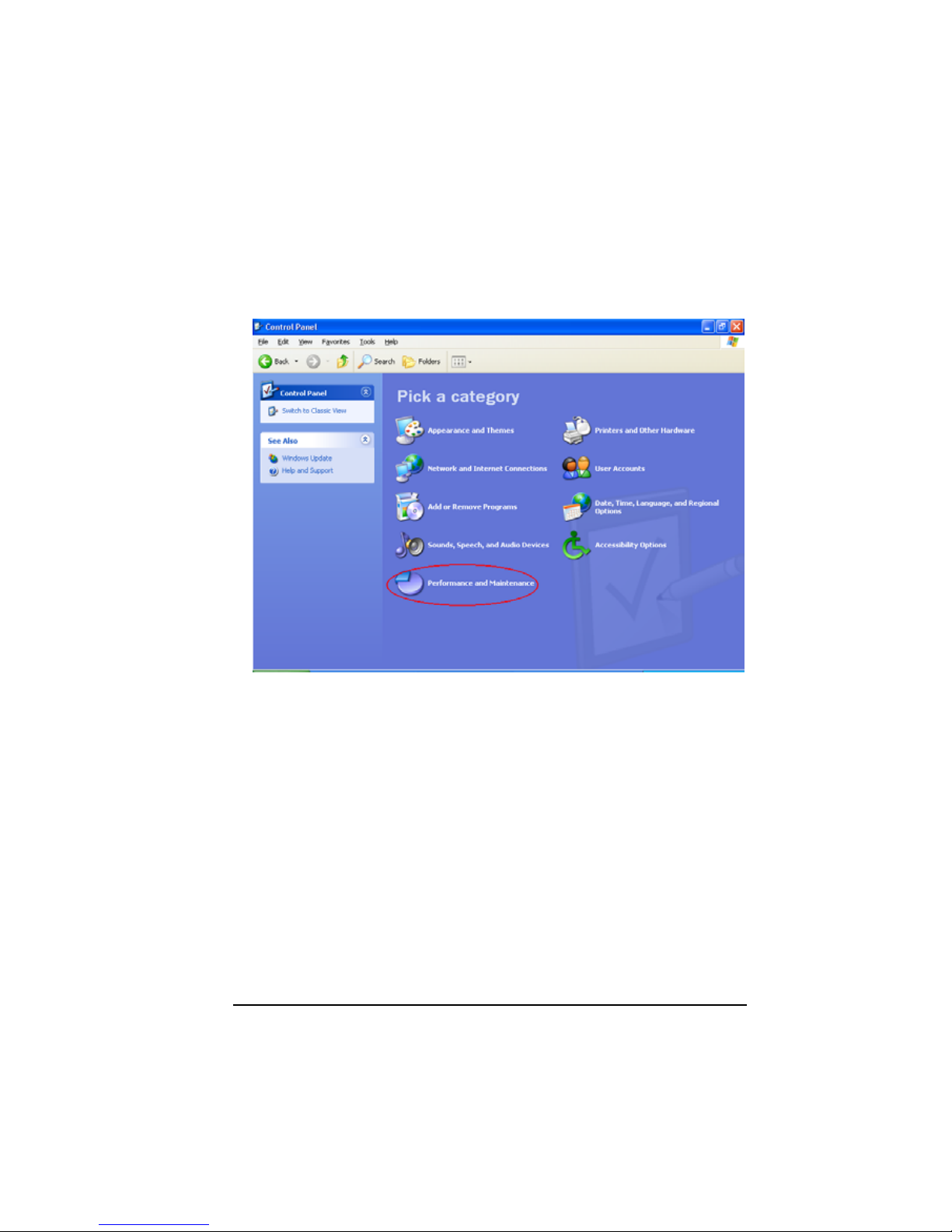

(3) When the “Control Panel “ screen appear, then click on

“ performance and Maintenance” button.

Installing Software Drivers

6-9

(4) When the “Performance and Maintenance” screen appear, and then

click on “System” button.

Installing Software Drivers

6-10

(5) When the “System Properties” screen appear, and then click on

“Hardware” and “Device Manager “ button.

Installing Software Drivers

6-11
