RD7000
Radiodetection’s general utility
cable and pipe locator.
Operation Manual l Issue 1 l July 2008
90/RD7K-OPMAN-ENG/01
Preface
Before you begin
Thank you for your interest in Radiodetection’s RD7000
cable and pipe locator.
The RD7000 delivers the very latest in cable and pipe
location technology in a powerful yet ergonomic and lightweight design.
Please read this user manual before attempting to use the
RD7000 system.
Radiodetection products, including this manual, are under
continuous development. The information contained
within is accurate at time of publication; however the
RD7000, this manual and all its contents are subject to
change.
Radiodetection Limited reserves the right to modify the
product without notice and some product changes may
have taken place after this user manual was published.
Contact your local Radiodetection dealer or visit
www.radiodetection.com for the latest information about
the RD7000 product family, including this manual.
Important notices
General
The performance of any cable and pipe locator may be
affected when used in close proximity to ferrous materials
such as manhole covers, steel-toe boots and nearby
vehicles. Keep a distance of one or two meters from
these objects when taking critical measurements such as
depth and current readings.
This instrument, or family of instruments, will not be
permanently damaged by reasonable electrostatic
discharge and has been tested in accordance with IEC
801-2. However, in extreme cases temporary malfunction
may occur. If this happens, switch off, wait and switch on
again. If the instrument still malfunctions, disconnect the
batteries for a few seconds.
Safety
This equipment should be used by fully qualied and
trained personnel only.
Radiodetection receivers detect almost all buried cables
and most conductors, but there are some which do not
radiate signals and which Radiodetection receivers cannot
detect. Radiodetection receivers do not indicate whether
a signal is from a single cable, several buried side by side
or one above another. Exercise caution and due diligence
when conducting any survey.
Making a direct connection to live power lines is extremely
dangerous to life. Do not attempt any direct connection
unless you are fully trained and qualied to do so.
WARNING! The transmitter is capable of
outputting potentially lethal voltages. Take care when
applying signals to any pipe or cable and be sure to
notify other technicians who may be working on the
line.
Reduce audio level before using headphones to avoid
damaging your hearing.
WARNING! This equipment is NOT approved for
use in areas where hazardous gases may be present.
WARNING! When using the transmitter, switch off
the unit and disconnect cables before removing the
battery pack.
WARNING! The RD7000 will detect almost all
buried conductors but there are some objects that
do not radiate any detectable signal. The RD7000,
or any other electromagnetic locator, cannot detect
these objects so proceed with caution. There are also
some live cables which the RD7000 will not be able to
detect in Power mode. The RD7000 does not indicate
whether a signal is from a single cable or from several
in close proximity.
Batteries
WARNING! Alkaline batteries can get hot after
prolonged use at full output power. Take care while
replacing or handling the batteries.
Battery disposal
Ni-Cad batteries should be disposed of in accordance
with your company’s work practice, and/or the relevant
laws or guidelines in your country or municipality.
FCC and Industry Canada statements
This device complies with part 15 of the FCC Rules.
Operation is subject to the following conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Changes or modications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment. To comply with the
FCC RD explore compliance requirements, this device
and its antenna must not be co-located or operated in
conjunction with any other antenna or transmitter.
RD7000 Operation Manual i
Training
Radiodetection provides training services for most
Radiodetection products. Our qualied instructors will
train equipment operators or other personnel at your
preferred location or at Radiodetection headquarters.
For more information go to www.radiodetection.com or
contact your local Radiodetection representative.
Trademarks
RD7000, RD8000, RD4000, eCAL, Centros, TruDepth,
SideStep, SideStepauto and StrikeAlert are trademarks of
Radiodetection Ltd.
Windows, Windows Vista and XP are registered
trademarks of Microsoft Corporation, all rights reserved.
Copyright statement
This manual is Copyright © 2008 Radiodetection LTD
– SPX Corporation. All rights reserved. Radiodetection
LTD is a subsidiary of SPX Corporation.
This manual may not be copied, reproduced or sold in
whole or in part without expressed written permission
by Radiodetection Ltd. Please direct all copyright
and publishing queries to your local Radiodetection
representative.
ii RD7000 Operation Manual
Table of contents
Preface
Before you begin i
Important notices i
General i
Safety i
Batteries i
FCC and Industry Canada statements i
Training ii
Trademarks ii
Copyright statement ii
Section 1. – Introduction
1.1 About this manual 1
1.1.1 Additional documentation 1
1.2 About the RD7000 1
1.3 Manual outline 1
1.4 Safety 1
Section 2. – System overview
2.1 RD7000 receiver 3
2.1.1 Receiver features 3
2.1.2 Receiver keypad 3
2.1.3 Receiver screen icons 3
2
.2 Tx1, Tx3 and Tx10 transmitters
2.2.1 Transmitter features 5
2.2.2 Transmitter keypad 5
2.2.3 Transmitter screen icons 5
Section 3. – Basic Operation
3.1 Starting the system 6
3.1.1 Batteries 6
3.2 System setup 6
3.2.1 Power frequency (receiver only) 6
3.2.2 Language 7
3.2.3 Units (receiver only) 7
3.2.4 Battery type 7
3.3 Using the menu 7
3.3.1 Navigating the receiver menu 7
3.3.2 Receiver menu options 7
3.4 Shutting down 8
3.5 Headphones 8
3.6 Frequencies 8
3.6.1 Passive frequencies 8
3.6.2 Active frequencies 8
3.6.3 Selecting frequencies 9
3.7 TruDepth™ measurement 9
i
3.8 SideStepauto™
3.8.1 Using SideStepauto
3.9 Dynamic overload protection 9
3.10 StrikeAlert™
3.10.1 Using StrikeAlert
3.11 Antenna modes 10
3.12 Backlight 10
3.13 Audio 10
3.14 Transmitter power output 11
3.14.1 Adjusting power output 11
1
3.14.2 Boost (Tx3 and Tx10 only) 11
Section 4. – Locating cables and pipes
4.1 Antenna modes 12
4.1.1 Peak mode 12
4.1.2 Null mode 12
4.1.3 Peak/Null mode 12
4.2 Trace 13
3
4.3 Pinpoint 13
4.4 Sweep and search 14
4.4.1 Passive Sweep 14
4.4.2 Inductive search 14
Section 5. – Depth and current readings
5
5.1 Depth readings 16
5.1.1 TruDepth and Compass 16
5.2 Verifying depth measurements 17
6
8.2.1 Rough depth calibration check 17
5.3 Current readings 18
5.3.1 Identication using current
measurements
5.3.2 About current measurements 18
5.3.3 Applying a transmitter signal 19
5.3.4 Signal current measurements 19
Section 6. – General Locating tips
6.1 Eliminating services 20
6.1.1 Induction 20
6.1.1 Unwanted signal coupling 20
6.2 Signal grounding 21
6.2.1 Manhole covers 21
6.2.2 Using lighting columns 21
6.2.3 Finding a good ground point 21
6.3 Double-ended connections 22
6.3.1 Making a double-ended connection 22
9
9
10
10
12
16
18
20
RD7000 Operation Manual iii
Section 7. – Using Accessories
7.1 About accessories 23
7.2 Receiver clamps 23
7.2.1 When to use clamps 23
7.2.2 Connecting a clamp 23
7.2.3 Available receiver clamps 24
7.3 Transmitter clamps 24
7.3.1 Connecting the clamp 24
7.3.2 Available transmitter clamps 25
7.4 Sondes 25
7.4.1 When to use a sonde 25
7.4.2 Choosing a suitable sonde 25
7.4.3 Preparation 25
7.4.4 Propelling a sonde 25
7.4.5 Locating and tracing a sonde 26
7.4.6 Checking sonde depth 26
7.4.7 Types and range of sondes 27
7.5 Stethoscopes 28
7.5.1 When to use a stethoscope 28
7.5.2 How to use a stethoscope 28
7.5.3 Types of stethoscope 28
7.6 Submersible antenna 28
7.6.1 When to use a submersible antenna 28
7.6.2 How to use a submersible antenna 28
Section 8. – Fault-Finding
8.1 About fault-nding 30
8.2 Preparation 30
8.2.1 Connecting the transmitter 30
8.2.2 Reference readings 30
8.3 How to nd a fault 31
Section 9. – Appendices
9.1 Care and maintenance 32
9.1.1 General 32
9.1.2 Batteries and power supply 32
9.1.3 Cleaning 32
9.1.4 Disassembly 32
9.1.5 Service and maintenance 32
9.2 Upgrading rmware 32
9.3 eCAL™ 32
9.4 Specications for the receiver and
transmitter
9.5 Supported frequencies 33
9.6 Supported accessories 34
23
30
32
33
Table of figures
Figure 2.1: RD7000 receiver 2
Figure 2.2: receiver keypad 2
Figure 2.3: receiver LCD 2
Figure 2.4 RD7000 transmitter 4
Figure 2.5: Rechargeable battery pack 4
Figure 2.6: transmitter keypad 4
Figure 2.7 transmitter LCD 4
Figure 4.1 Line tracing 13
Figure 4.2: Pinpointing a target line 13
Figure 4.3: Pinpointing with Peak/Null 13
Figure 5.1: Taking a depth reading 16
Figure 5.2: Depth readings 16
Figure 5.3: Current readings 18
Figures 5.4 – 5.6: Taking current readings 18
Figure 8.7: Current readings using transmitter
signals

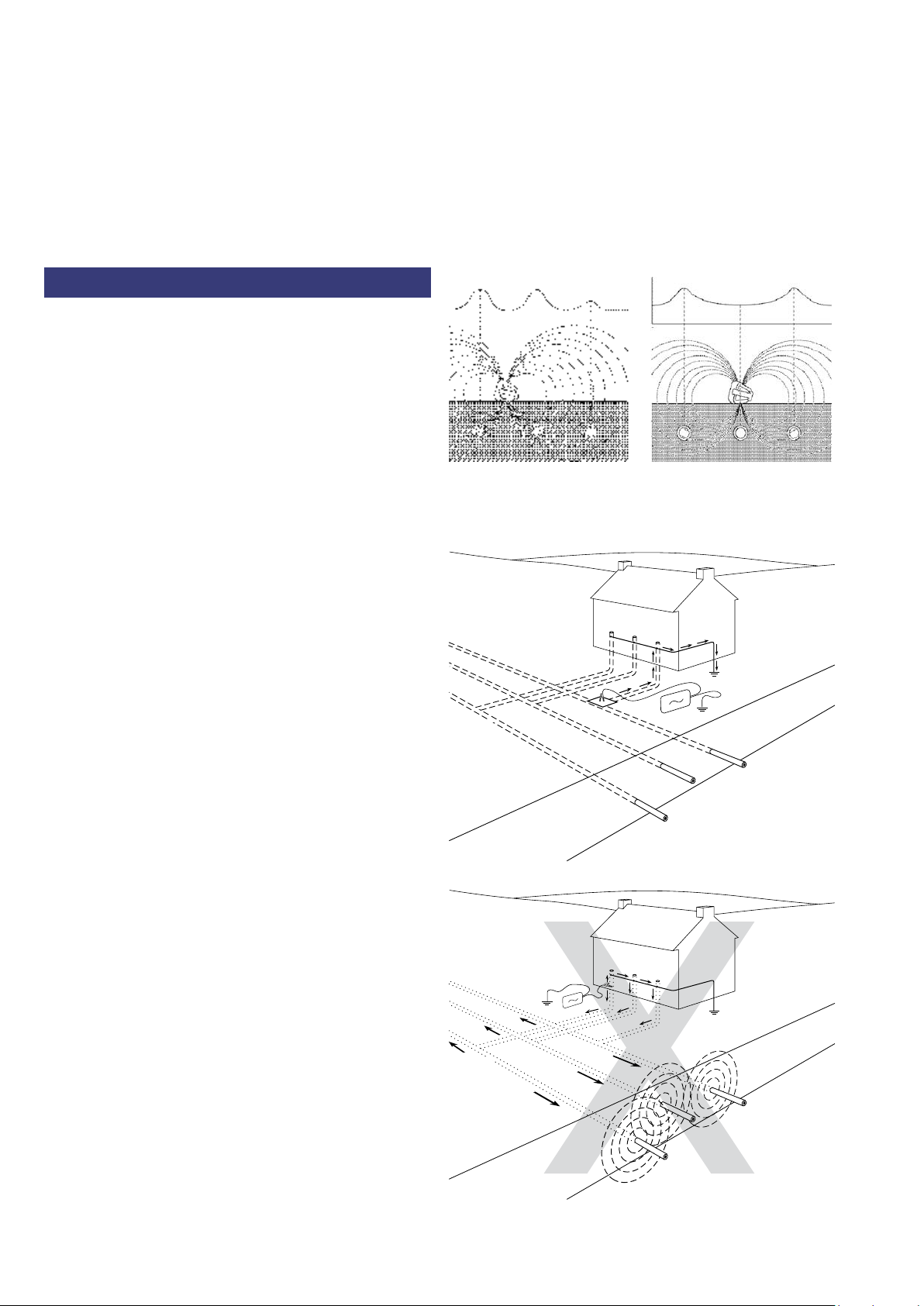

Figures 6.1 – 6.4: Interference from services 20
Figure 6.5: Making double-ended connections 22
Figure 7.1: Connecting a receiver clamp 23
Figure 7.2: Standard clamp 24
Figures 7.3 – 7.4: Connecting transmitter clamps 24
Figure 7.6: Sonde deployment 26
Figure 7.7: Locating a sonde 26
Figure 7.8: Calculating sonde depth 26
Figure 7.9: Standard sonde 27
Figure 7.10: Super small sondes 27
Figure 7.11: Sewer sonde 27
Figure 7.12: FlexiTrace 27

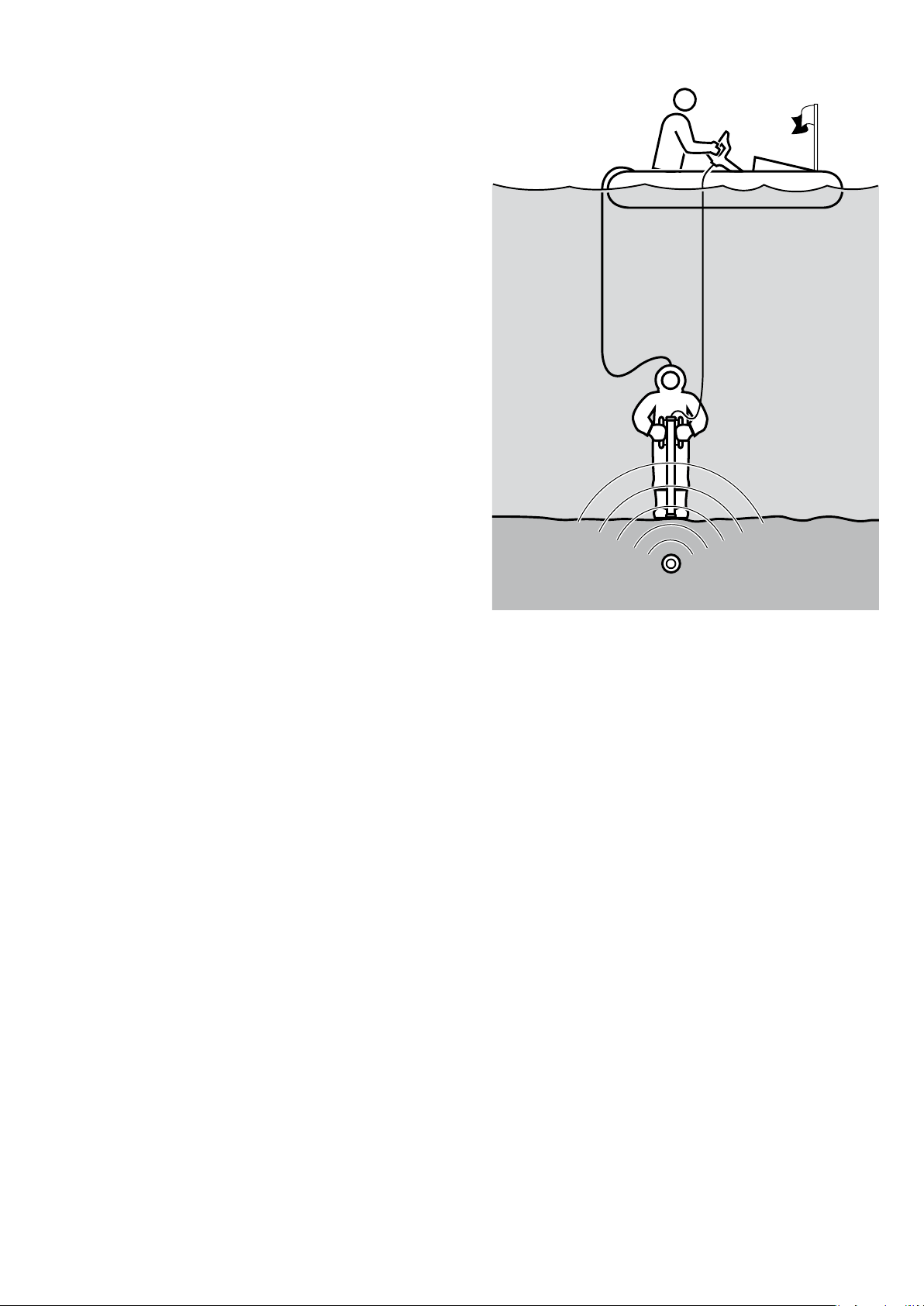

Figure 7.13: Using a submersible antenna 29
Figure 8.1: Cable sheath fault-nding 31
Figure 8.2: Locating cable sheath faults with the
receiver and A-frame
19
31
iv RD7000 Operation Manual
Section 1. – Introduction
1.1 About this manual
This manual provides cable and pipe survey professionals
with comprehensive operating instructions for the
RD7000 receiver and transmitter system. Before
operating the RD7000 system it is very important that you
read this manual, noting all safety warnings
and procedures.
1.1.1 Additional documentation
This manual introduces the Centros Manager software
suite but provides only limited installation and operating
instructions. The Centros Manager manual is available to
download from www.radiodetection.com.
1.2 About the RD7000
The RD7000 system provides cable and pipeline locators
with a fast, effective means of locating and mapping
buried utilities.
The RD7000 product family includes four powerful
receivers and three transmitters offering one, three or
ten watt power output. Each transmitter and receiver is
compatible with all RD4000 accessories.
The RD7000 receiver is ergonomically designed to
provide the operator with a balanced, light weight tool
that encourages extended use in most environments.
1.3 Manual outline
RD7000 TL and PL and an accessory A-frame.
Section 9 includes several appendices with reference
material and other technical information.
1.4 Safety
Please read this manual in its entirety before attempting to
operate the RD7000 receiver or transmitter. Note all safety
notices in the preface and throughout this manual.
Follow your company and national safety procedures
and or requirements when operating this equipment in
any environment or workplace. If you are unsure what
policies or procedures apply, contact your company or
site’s occupational health and safety ofcer or your local
government for more information.
Do not use this equipment if you suspect that any
component or accessory is damaged or faulty.
Use authorized accessories only. Incompatible
accessories may damage the equipment or give
inaccurate readings.
Keep this equipment clean and arrange for regular
services with an authorized Radiodetection service center.
More information can be found in the Appendix or from
your local Radiodetection representative.
Do not attempt to open or dismantle any part of this
equipment unless directed specically by this manual.
Doing so may render the equipment faulty and may void
the manufacturer’s warranty.
The rest of this section provides an overview of safety
procedures and notices. Please review them before
moving on to Section 2 and the rest of this manual
Section 2 provides an overview of the RD7000 system
with annotated diagrams of the receiver and transmitter
Section 3 introduces basic setup and operation using the
RD7000’s menu system.
Section 4 introduces the theory and practice of cable and
pipe location using the RD7000 receiver and transmitter.
Section 5 introduces depth and current readings.
Section 6 provides general locating tips.
Section 7 introduces the range of accessories that are
compatible with the RD7000.
Section 8 introduces cable sheath fault-nding using the
RD7000 Operation Manual 1
1
2
3
Figure 2.1: RD7000
receiver
7
8
5
9
14
16
11 12 1313
4
6
9 10
Figure 2.2: receiver keypad
15
17
18
24
25
19 20 21 22 23
Figure 2.3: receiver LCD
2 RD7000 Operation Manual
Section 2. – System overview
Accessory indicator: Indicates when an accessory
2.1 RD7000 receiver
2.1.1 Receiver features
Keypad.
1.
LCD with auto backlight.
2.
Speaker.
3.
Battery compartment.
4.
Accessory slot.
5.
Headphone jack.
6.
2.1.2 Receiver keypad
Power key : Switches the unit on and off.
7.
Opens the receiver menu.
19.
is connected.
A-Frame icon: Indicates when the A-Frame is
20.
connected.
Operating mode indicator.
21.
Null / Peak icon: Indicates antenna selection.
22.
Sonde icon: Indicates that the signal source is
23.
from a sonde.
Line icon: Indicates that the signal source is from
24.
a line.
Current / depth indicator.
25.
Frequency key : Selects frequency. Closes
8.
submenu.
Up and down arrows
9.
gain. Scrolls through the menu options.
Antenna key: Toggles peak, null (PL and TL only)
10.
and combined peak/null modes. Open submenu.
Prolonged keypress toggles between depth or
current display on the LCD.
: Adjusts the signal
2.1.3 Receiver screen icons
Indicates the signal strength and peak marker.
11.
Signal strength: Numeric indication of signal
12.
strength.
Peak arrows: Indicates the location of the line
13.
relative to the receiver.
Battery icon: Indicates the battery level.
14.
Volume icon: Displays the volume level.
15.
Fault-Find arrows (PL and TL only)
16.
Radio Mode: Indicates when Radio Mode
17.
is active.
Power Mode: Indicates when Power Mode
18.
is active.
RD7000 Operation Manual 3
Figure 2.4 RD7000
transmitter
3
2
1
5
6
Figure 2.6: transmitter
keypad
Figure 2.5: Rechargeable
battery pack
4
11 12 13
9
7
14
15
16
8
7
17
10
18
19
20
21
4 RD7000 Operation Manual
Figure 2.7 transmitter LCD
2.2 Tx1, Tx3 and Tx10 transmitters
2.2.1 Transmitter features
Keypad.
1.
LCD.
2.
Removable accessory tray.
3.
Rechargeable battery pack.
4.
2.2.2 Transmitter keypad
Power key : Switches the unit on and off.
5.
Opens the transmitter menu.
Frequency key : Selects frequency. Menu
6.
navigation key.
Up and down arrows
7.
signal. Scrolls through the menu options.
Measure key : Toggles measurement display
8.
between volts, current and impedance. Note:
displayed measurements are based on the
currently selected mode or the attached
accessory, if applicable. Opens a submenu.
: Adjusts the output
2.2.3 Transmitter screen icons
Battery icon: Indicates the battery level.
9.
Alphanumeric description of selected operation
10.
mode.
Standby icon: Appears when the transmitter is in
11.
Standby Mode.
Output level: Displays transmitter output power.
12.
Clamp icon: Indicates when a clamp or other plug
13.
is connected.
DC icon: Appears when the transmitter is
14.
powered from a DC source.
Induction indicator: Appears when the transmitter
15.
is in Induction Mode.
A-Frame (Tx3 and Tx10 only): Indicates when the
16.
transmitter is in Fault-Find Mode.
CD Mode indicator (Tx10 only): Indicates that the
17.
transmitter is in Current Direction Mode.
Voltage warning indicator: Indicates that the
18.
transmitter is outputting potentially hazardous
voltage levels.
Volume icon: Displays the volume level.
19.
Pairing icon (Tx3B and Tx10B only): For use with
20.
RD8000 receivers only.
Bluetooth® icon (Tx3B and Tx10B only). For use
21.
with RD8000 receivers only.
RD7000 Operation Manual 5
Section 3. – Basic Operation
3.1 Starting the system
The receiver and transmitter are battery powered.
Install good quality D-cell NiMH or Alkaline batteries
into the receiver and transmitter battery compartments.
Alternatively, you can power the transmitter from a mains
or vehicle power source using a Radiodetection supplied
adapter.
To switch the receiver or the transmitter on, press and
hold the keypad Power Key for two seconds. When you
switch the system on it will perform an LCD segment
check. It will then display the model number followed
by the rmware version. This information is important if
you need to contact Radiodetection technical support or
update your receiver to the latest rmware.
NOTE: Once the system is switched on, pressing the
Power Key momentarily will activate the receiver or
transmitter menu.
3.1.1 Batteries
The LCD provides a battery level indicator (refer to
the diagrams in Sections 2.1 and 2.2). When battery
replacement is necessary, the LCD shows a ashing
battery icon. The expected battery life under normal
working conditions is approximately 30 hours on the
receiver and 15 hours on the transmitter.
NOTE: Prolonged use of high power output on the
transmitter will reduce battery life.
To replace the batteries on the receiver, unlatch the
battery compartment cover, which is located above
the accessory panel, and lower the tray. Remove the
spent batteries and insert two D-Cell Alkaline or Ni-Cad
batteries.
To replace the batteries on the transmitter, unlatch the
accessory tray. The battery compartment is located
underneath the transmitter body. Use the turnkey to
unlatch the battery compartment. Remove the spent
batteries and insert eight D-Cell Alkaline or Ni-Cad
batteries.
NOTE: When installing batteries always observe the
correct battery polarity as indicated on the battery tray.
Rechargeable battery pack
An optional Lithium Ion rechargeable battery pack is
available for the RD7000 Tx1, Tx3 and Tx10 transmitters.
The rechargeable battery pack offers an 8-hour lifespan,
depending on use.
The pack is available in a kit that includes the
rechargeable battery pack, AC adapter and a vehicle
adapter.
The battery pack must be removed from the transmitter
before it is connected to a power source for recharging.
For more information, refer to the instructions that came
with your charger.
WARNING! Do not heat the rechargeable battery pack
above 60°C (140°F) as this will damage the battery’s
thermal fuses.
NOTE: The battery is designed to protect itself against
over discharge, overcharge and short circuit between
charge terminals.
Contact your local Radiodetection representative for
information on purchasing battery packs and chargers.
3.2 System setup
It is important that you set up the system according to
your personal preferences and operating requirements
before you conduct your rst survey. You can set the
system up using the RD7000 menu as described below.
NOTE: These procedures refer to both the transmitter
and receiver unless stated otherwise.
Before changing settings, ensure the receiver or
transmitter is switched on by pressing the key for two
seconds.
3.2.1 Power frequency (receiver only)
Select the correct frequency (50 or 60Hz) for your country
or region’s national power supply.
To change power frequency on the receiver:
Press the key momentarily to enter
1.
the menu.
Scroll to the POWER option using the arrow keys.
2.
Press the antenna key to enter the POWER
3.
submenu.
Scroll up or down using the or arrows to
4.
select the correct frequency.
6 RD7000 Operation Manual
Press the key to accept your selection and
5.
return to the main menu.
Press the key to return to the main operation
6.
screen.
3.2.2 Language
The receiver and transmitter support a number
of languages. You can specify your preferred language
using the menu system.
To select your preferred menu language:
Press the key momentarily to enter the menu.
1.
Scroll to the LANG option using the arrow keys.
2.
Press the antenna key ( on the transmitter) to
3.
enter the LANG submenu.
Scroll up or down using the or arrows to
4.
select your preferred language.
Press the key to accept your selection and
5.
return to the main menu.
Press the key to return to the main operation
6.
screen.
3.2.3 Units (receiver only)
The RD7000 allows you to work in Metric or Imperial (US
customary) units.
To select your preferred units of measurement:
Press the key momentarily to enter
1.
the menu.
To set your battery type:
Press the key momentarily to enter the menu.
1.
Scroll to the BATT option using the or
2.
arrows.
Press the antenna key ( on the transmitter) to
3.
enter the BATT submenu.
Scroll up or down to select the correct battery
4.
type.
Press the key to accept your selection and
5.
return to the main menu.
Press the key to return to the main operation
6.
screen.
The RD7000 is now ready to use.
3.3 Using the menu
The RD7000 receiver and transmitter menus allow you
to select or change system options. Once entered, the
menu is navigated using the arrow keys. Navigation
is consistent on both the transmitter and the receiver.
When in the menu, most on-screen icons will temporarily
disappear and the menu options will appear in the bottom
left-hand corner of the LCD. Note that when browsing
the receiver menu, the and antenna keys act as left
and right arrows. When browsing the transmitter menu
the and keys act as left and right arrows. The right
arrow enters a submenu and the left arrow returns to the
previous menu.
3.3.1 Navigating the receiver menu
Scroll to the UNIT option using the arrow keys.
2.
Press the antenna key to enter the UNIT
3.
submenu.
Scroll up or down using the or arrows to
4.
select Metric or Imperial units.
Press the key to accept your selection and
5.
return to the main menu.
Press the key to return to the main operation
6.
screen.
3.2.4 Battery type
The RD7000 receiver and transmitter support both
NiMH or Alkaline batteries. It is important that you set
the system to match the currently installed battery type
to ensure optimal performance and correct battery level
indication.
First power up the receiver.
1.
Press the key to enter the menu.
2.
Use the or arrows to scroll through the
3.
menu options.
Press the antenna key to enter the option’s
4.
submenu.
Press the key to return to the previous level.
5.
Press the key to return to the main operation
6.
screen.
3.3.2 Receiver menu options
Below is an annotated list of menu options that are
available under the main menu of the RD7000 receiver.
VOL: Adjust the speaker volume from 0 (mute) to 3
•
(loudest).
UNIT: Select metric or imperial units.
•
LANG: Select your preferred system language.
•
POWER: Select national power frequency: 50
•
or 60Hz.
RD7000 Operation Manual 7
FREQ: Enable or disable individual frequencies.
•
ALERT: Enable or disables StrikeAlert™.
•
BATT: Sets battery type. NiMH or ALK.
•
ANT: Enable of disable any antenna mode with the
•
exception of Peak.
3.3.4 Navigating the transmitter menu
First power up the transmitter.
1.
Press the key to enter the menu.
2.
Use the or arrows to scroll through the
3.
menu options.
Press the key to enter the option’s submenu.
4.
Press the key to return to the previous level or
5.
exit the menu.
Press the key to return to the main operation
6.
screen.
Transmitter menu options
VOL: Adjust the speaker volume from 0 (mute) to 3
•
(loudest).
BT: Enable, disable or pair Bluetooth® connections.
•
MAX V: Set the output voltage.
•
MODEL: Specify the model of your RD7000 receiver.
•
MAX P: Allows the transmitter to output its
•
maximum wattage.
BATT: Set battery type. NiMH or ALK.
•
OPT F: Enable or disable SideStepauto™.
•
LANG: Select the transmitter system language.
•
BOOST: Boost transmitter output for a specied
•
period of time (in minutes).
FREQ: Enable or disable individual frequencies.
•
3.4 Shutting down
To switch the receiver or the transmitter off, press and
hold the key for two seconds.
NOTE: The receiver will automatically power off if no
keys are pressed after a ve minute duration.
3.5 Headphones
NOTE: Before wearing headphones, lower the receiver’s
volume levels to help prevent damage to your hearing.
WARNING! Wearing headphones may impede
your awareness to dangers in the eld such as
moving trafc or other heavy machinery. Exercise
caution!
3.6 Frequencies
The RD7000 supports a very large range of locatable,
active and passive frequencies. For a complete list
of supported frequencies, please refer to the table in
Appendix 9.6.
3.6.1 Passive frequencies
Passive frequency detection takes advantage of signals
that are already present on buried metallic conductors.
The RD7000 supports three types of passive frequencies:
Power, Radio and CPS (DL only) signals. You can detect
these frequencies without the aid of a transmitter if they
are present on the utility you are surveying.
3.6.2 Active frequencies
Active frequencies are applied direct to a buried
conductor using the transmitter. The transmitter can
apply a signal using two methods: induction and direct
connection.
Induction
The transmitter is placed on the ground over or near the
survey area. You select the appropriate frequency. The
transmitter will then induce the signal indiscriminately to
any nearby metallic conductor. In induction mode, using
higher frequencies is generally recommended as they are
induced easier onto nearby conductors.
Direct connection
In direct connection, you connect the transmitter directly
to the pipe or cable you wish to survey. The transmitter
will then apply a discreet signal to the line, which you can
locate using the receiver. This method provides the best
signal on an individual line and enables the use of lower
frequencies, which can be traced for longer distances.
Radiodetection supplies an optional headphone set
for the RD7000 receiver. The headphones feature an
adjustable headband to ensure a tight t when used in
the eld. The accessory headphones also feature volume
adjustment for both left and right speakers.
Connect the 3.5mm headphone jack into the receiver’s
headphone socket, which is located next to the
accessory panel.
8 RD7000 Operation Manual
Connecting the transmitter to a pipe or line requires the
use of a direct connection lead or clamp and a ground
stake to complete the circuit. For more information about
signal clamps and other direct connection accessories,
please refer to Section 7.
WARNING! Direct connection to live wires is
POTENTIALLY LETHAL. Direct connections should be
attempted by fully qualied personnel only!
3.6.3 Selecting frequencies
3.8 SideStepauto™
It is important to select the correct or appropriate
frequency for your particular application. For more
information see Section 6 or refer to the ABC & XYZ of
locating buried pipes and cables, which is available as a
free download from www.radiodetection.com
To select a frequency on the receiver:
Switch the unit on by pressing the key,
1.
if you have not already done so.
Press the key to cycle through available
2.
frequencies.
Alternatively, hold down the key and press the
3.
up or down arrows to cycle up or down the range
of frequencies.
If using an active frequency you must also set your
transmitter to output the matching frequency. You can
change your transmitter’s output frequency manually
using your transmitter’s keypad or automatically using
iLOC (iLOC enabled receivers and transmitters only).
To manually select a transmitter output
frequency:
SideStepauto allows the transmitter to calculate the
optimum frequency based on ground impedance.
The transmitter uses this information to optimize the
active frequency. SideStepauto helps to improve locate
accuracy by determining the best signal. SideStepauto
can also help to prolong battery life.
NOTE: SideStepauto will only work in direct connection
mode. Inductive frequencies are not supported.
3.8.1 Using SideStepauto
To enable SideStepauto
Switch on the transmitter.
1.
Press the key to enter the menu.
2.
Scroll to the OPT F option using the or
3.
arrows.
Press the key to enter the OPT F menu.
4.
Scroll to the START option using the or
5.
arrows.
Press the key to start SideStepauto and exit
6.
the OPT F menu.
Switch the unit on by pressing the
1.
key, if you have not already done so.
Press the key to cycle through available
2.
frequencies.
NOTE: Some frequencies require that you connect
an accessory, for example an A-Frame, before the
frequency is available.
3.7 TruDepth™ measurement
The RD7000 uses TruDepth to automatically estimate
depth when a good reading is established.
NOTE: TruDepth only indicates a locate depth when
the receiver is correctly oriented directly above the
detected pipe or cable.
Depth readings are displayed according to your preferred
units of measurement as follows:
Less than 1 meter: depth is displayed in centimeters
•
Greater than 1 meter: depth is displayed in meters.
•
Less than 3 feet: depth is displayed in inches.
•
Greater than 3 feet: depth is displayed in feet.
•
For more information on measuring depth, please refer to
Section 5.
Press the key to exit the menu.
7.
To disable SideStepauto
Switch on the transmitter.
1.
Press the key to enter the menu.
2.
Scroll to the OPT F option using the or
3.
arrows.
Press the key to enter the OPT F menu.
4.
Scroll to the EXIT option using the or
5.
arrows.
Press the key to disable SideStepauto and exit
6.
the OPT F menu.
Press the key to exit the menu.
7.
3.9 Dynamic overload protection
The RD7000PL features dynamic overload protection
(DOP). DOP allows you to locate accurately in areas
with high levels of electromagnetic interference, such
as sub-stations and beneath high-voltage transmission
lines. DOP works by disregarding signal spikes that
would otherwise overwhelm the RD7000PL’s digital signal
processor. DOP is an integrated feature of the RD7000PL.
No action is required by the user.
RD7000 Operation Manual 9
3.10 StrikeAlert™
3.12 Backlight
StrikeAlert detects shallow power cables and warns the
operator with an audible alarm. The alarm is characterized
by a rapid warbling sound. StrikeAlert is enabled by
default; you can enable and disable StrikeAlert using the
procedure detailed below.
NOTE: StrikeAlert will not sound when the receiver’s
volume is muted.
To disable StrikeAlert
Switch on the receiver.
1.
Press the key to enter the menu.
2.
Scroll to the ALERT option using the or
3.
arrows.
Press the key to enter the ALERT menu.
4.
Scroll to the OFF option using the or
5.
arrows.
Press the key to disable StrikeAlert and exit
6.
the ALERT menu.
Press the key to exit the menu.
7.
To enable StrikeAlert
Switch on the receiver.
1.
Press the key to enter the menu.
2.
Scroll to the ALERT option using the or
3.
arrows.
Press the key to enter the ALERT menu.
4.
Scroll to the ON option using the or
5.
Press the key to enable StrikeAlert and exit the
6.
ALERT menu.
Press the key to exit the menu.
7.
arrows.
3.10.1 Using StrikeAlert
StrikeAlert works with passive power frequencies only.
When StrikeAlert is active, it will automatically sound when
a shallow power cable is detected.
3.11 Antenna modes
The transmitter and receiver feature a backlight to
improve LCD visibility when required. The receiver’s
backlight is controlled by an ambient light sensor and
does not require adjustment by the user.
The transmitter’s LCD backlight is activated whenever
you press a key. The backlight will automatically switch off
after a few minutes.
3.13 Audio
The transmitter and receiver feature an internal speaker
to provide critical warnings or assist with cable and pipe
location. The transmitter by default will also sound a
pulsing tone to indicate that it is transmitting correctly.
To adjust receiver audio:
WARNING! Muting audio on the receiver will
disable StrikeAlert.
Switch on the receiver.
1.
Press the key to enter the menu.
2.
Scroll to the VOL option using the or
3.
arrows.
Press the key to enter the VOL menu.
4.
Use the or arrows to select the desired
5.
volume level where 0 is mute and 3 is loudest.
Press the key to accept the change and exit.
6.
Press the key to exit the menu.
7.
To adjust transmitter audio levels:
Switch on the transmitter.
1.
Press the key to enter the menu.
2.
Scroll to the VOL option using the or
3.
arrows.
Press the key to enter the VOL menu.
4.
Use the or arrows to select the desired
5.
volume level where 0 is mute and 3 is loudest.
Press the key to accept the change and exit.
6.
Press the key to exit the menu.
7.
The RD7000 receiver supports up to three antenna
modes (depending on model) to suit your particular
application or the local environment. These modes are:
Peak mode (all models)
•
Null mode (PL and TL only).
•
Combined Peak/Null mode (all models).
•
For more information on selecting and using the various
antenna modes to assist with cable and pipe location,
please refer to Section 4.1.
10 RD7000 Operation Manual
3.14 Transmitter power output
The transmitter supports several power output modes to
help you select the optimal settings for your requirements
whilst helping to prolong battery life.
3.14.1 Adjusting power output
To adjust the power output:
Switch on the transmitter.
1.
Press the or
2.
power output.
keys to increase or decrease
3.14.2 Boost (Tx3 and Tx10 only)
Boost allows the transmitter to output its maximum
wattage for a specied period of time in minutes.
WARNING! The transmitter is capable of
outputting potentially lethal wattages. Exercise
extreme caution when using Boost.
To configure boost:
Switch on the transmitter.
1.
Press the key to enter the menu.
2.
Scroll to the BOOST option using the or
3.
arrows.
Press the key to enter the BOOST menu.
4.
Set the BOOST duration using the or
5.
arrows. You can choose 5, 10, 15 and 20 minute
periods.
Press the key to accept your changes and exit
6.
the BOOST menu.
Press the key to exit the menu.
7.
To enable boost:
First congure the boost duration using the
1.
procedure above.
Press and hold the arrow until BOOST
2.
appears on the transmitter LCD.
The transmitter will automatically exit boost mode
3.
after the allotted duration.
To disable boost
Press and hold the arrow to switch boost off.
1.
RD7000 Operation Manual 11
Section 4. – Locating cables and pipes
This section introduces the principals and techniques of
locating buried cable and pipe utilities with the RD7000
system. For more information on the theory of cable
and pipe location, please refer to ABC & XYZ of locating
buried pipes and cables, which is available from
www.radiodetection.com
4.1 Antenna modes
The RD7000 system supports three antenna modes to
suit your particular application or the local environment.
These modes are:
Peak mode (all models)
•
Null mode (TL and PL only).
•
Peak/Null mode (all models).
•
4.1.1 Peak mode
Peak mode provides the most sensitive and accurate
mode for location and depth measurement. It provides
a sharp peak response with a corresponding small
decrease in sensitivity. Peak mode cannot be disabled
using the menu.
In peak mode the following indicators are displayed by the
LCD:
Depth.
•
4.1.2 Null mode
Null mode is used to verify a locate signal in environments
with limited or no electromagnetic distortion.
In null mode the following indicators are displayed by the
LCD:
Signal strength.
•
Right and left arrows.
•
To select null mode:
Press and release the key to switch the
1.
receiver on.
Press the antenna key until the null mode icon
2.
is displayed on the LCD.
Null mode gives a null response when it is directly over
the line. The sharp, null response is easier to use than
the peak response but is vulnerable to interference and
should not be used for locating, except in areas where
there is no interference present (See 4.1.3 Combined
Peak/Null mode). In null mode, the receiver will indicate
line position but not its orientation.
4.1.3 Peak/Null mode
Peak/Null mode give you the advantages associated with
these modes simultaneously.
Current.
•
Signal strength.
•
To select a peak mode:
Press and release the key to switch the
1.
receiver on.
Press the antenna key until the peak mode icon
2.
is displayed on the LCD.
12 RD7000 Operation Manual
Use the proportional arrows to place the receiver above
the NULL point. If the peak response is not at a maximum
then this is evidence of a distorted eld. If the peak
response is at its maximum level where the NULL point is
located then there is no or very limited distortion present.
In Peak/Null mode the following indicators are displayed
by the LCD:
Proportional right and left arrows.
•
Signal strength.
•
Current
•
Depth
•
To select Peak/Null mode:
Peak
mode
Null
mode
True
Position
Peak
Position
Null
Position
4.3 Pinpoint
Press and release the key to switch the
1.
receiver on.
Press the antenna key until the Peak/Null mode
2.
icon is displayed on the LCD.
4.2 Trace
Line tracing can be accelerated by switching the receiver
to null response.
Move the receiver left and right while walking along the
path of the line to observe the null directly over the line
and a peak response to each side of the line. As you
move the receiver over the line, the left and right arrows
(and an accompanying tone) will indicate if the target line
is to the left or right of the receiver.
Periodically switch to peak mode, locate the target line,
and verify its exact position.
Pinpointing a target line in peak mode, denes the exact
position of a target line after it has been traced and its
position is approximately known. Start with medium
output power from the transmitter, medium frequency on
the transmitter and receiver, and peak mode on
the receiver.
Set the receiver sensitivity to approximately 50%.
NOTE: it may be necessary to adjust the sensitivity
level throughout the pinpointing to keep the bar graph
on scale.
Figure 4.2: Pinpointing a
target line
Figure 4.3: Pinpointing with
Figure 4.1 Line
Peak/Null
tracing
With the antenna perpendicular to the line, make
1.
traverses across the line. Dene the point of
maximum response.
Without moving the receiver, turn it round as if
2.
it is on a pivot. Stop at the point of maximum
response.
Hold the receiver vertical with the antenna just
3.
above the ground and move the receiver from
side to side across the line. Stop at the point of
maximum response.
With the end of the antenna close to the ground,
4.
repeat steps 2 and 3.
Mark the position and direction of the line.
5.
Repeat the steps of the procedure to increase pinpoint
accuracy.
RD7000 Operation Manual 13
Switch to null response mode and move the receiver to
nd the null position. If the position of the peak and the
null pinpoints correspond, it can be assumed that the
pinpoint is precise. The pinpoint is not precise if the marks
do not correspond, but both marks will show an error to
the same side. True line position will be close to
peak position.
The line lies half the distance to the other side of the peak
position as the distance between the peak and the
null positions.
4.4 Sweep and search
There are a number of techniques available for locating
unknown lines in an area. Using these techniques is
particularly important before conducting any excavation
work to ensure that buried lines are not damaged.
Stop when the receiver response rises to indicate the
presence of a line. Pinpoint the line and mark its position.
Trace the line out of the area being searched. Resume
grid search in the area.
In some areas there may be a confusing amount of
50/60Hz power signals. Lift the receiver 50mm from the
ground and continue the sweep.
Switch the receiver to Radio Mode if the receiver supports
this feature. Increase sensitivity to maximum and repeat
the above grid search procedure over the area. Pinpoint,
mark, and trace out any lines that are located.
In most, but not all areas, radio mode will locate lines that
do not radiate power signals and a grid search should be
made in both power and radio modes.
4.4.2 Inductive search
4.4.1 Passive Sweep
A passive sweep will locate any Power, Radio or CPS
(RD7000DL only) signals that may radiating from buried
conductors.
To perform a passive sweep:
Press and release the key to switch the
1.
receiver on.
Press the key to select the passive frequency
2.
you wish to locate. You can select from the
following passive frequencies:
Power.
a.
Radio.
b.
CPS.
c.
Adjust the sensitivity to maximum; reduce the
3.
sensitivity to keep the bar graph on scale when
there is a response.
Traverse the area in a grid search (Figure 7.6), at
4.
a steady walk, and hold the receiver comfortably
with the antenna in line with the direction of
movement and at right angles to any lines that
may be crossed.
An inductive search procedure is the most certain
technique for locating unknown lines. This type of search
requires a transmitter and receiver and two people. This
type of search is referred to as a ‘two person sweep’.
Before starting the sweep, dene the area of search and
the probable direction of lines crossing the area. Ensure
the transmitter is switched on in induction mode.
Figure 4.5: Inductive
search
Figure 4.4:
Passive sweep
14 RD7000 Operation Manual
The rst person operates the transmitter and the second
person operates the receiver. The transmitter induces a
signal onto lines as it passes over them and the lines are
then detected with the receiver 20 paces upstream or
downstream of the transmitter. Hold the transmitter with
its length aligned with the assumed direction of any lines.
The second person holds the receiver at the start of
the area to be searched and with the receiver antennae
at right angles to the probable direction of the buried
lines. Set the receiver sensitivity level as high as possible
without the receiver picking up any airborne signals
directly from the transmitter.
When the transmitter and receiver are in line both
operators start to move forward in parallel. The operator
with the receiver sweeps it backwards and forwards,
keeping the receiver vertical, as they proceed in parallel
with the transmitter. This method allows for misalignment
of the transmitter, receiver and buried line.
The transmitter applies the strongest signal to the lines
directly below it, which are then located with the receiver.
Move the transmitter from side to side to establish the
highest signal which indicates that the transmitter is also
directly above the line(s).
Mark the ground at the point of each peak signal detected
with the receiver. Repeat the search along any other
possible paths of lines.
Once the positions of any lines have been marked,
reverse positions, place the transmitter over and along
each line in turn, and trace the line out of the search area.
RD7000 Operation Manual 15
Section 5. – Depth and current
d
min 30 paces recommended
readings
5.1 Depth readings
The RD7000 can measure the depth of buried conductors
down to depths of approximately 6 meters (20 feet). The
depth measurement is to the center of the pipe or cable.
The best readings are detected from signals outputted by
a transmitter rather than from passive sources.
The RD7000 is capable of determining depth when
locating passive power signals. However passive signals
on lines are less suited for measuring depth because
accuracy is questionable due to the passive signal being
present on more than one line.
NOTE: The accuracy of depth measurement is subject
to a number of factors and is meant as a guide only.
Exercise caution when performing any excavation.
WARNING! Do not make depth measurements
near bends or tees in the line. Go at least 5 meters
from a bend for best accuracy.
5.1.1 TruDepth and Compass
It is important to note that the RD7000 will only display
depth when the receiver is correctly oriented above the
target line, cable or sonde.
To avoid signal distortion, do not apply the signal by
induction. If direct connection or signal clamping is not
possible, place the transmitter at least 15 meters from the
point of any depth measurements.
Depth measurements are not accurate if there is audible
interference or if part of the transmitter signal has coupled
to a nearby line.
Conrming the peak position coincides with a null position
indicates that the position is suitable for making a depth
estimate.
Figure 5.2: Depth readings
Pinpoint the target line accurately with the receiver.
•
Check the receiver is directly over the line, the
•
antennae are at right angles to it and the receiver is
vertical. Adjust sensitivity level to bring the bar graph
indication on scale.
16 RD7000 Operation Manual
Figure 5.1: Taking a depth
reading
Press the depth button to toggle between depth and
•
current readings.
If the ground appears to radiate a strong eld, perhaps
near a radio station, check depth by holding the bottom
of the antenna 50mm above the ground and subtract this
reading from the indicated depth.
5.2 Verifying depth measurements
Check a suspect or critical depth reading by lifting the
receiver 50mm (2 inches) above the ground and repeating
the measurement. If the measured depth increases by
the same amount it is a good indication that the depth
reading is correct.
Depth measurements should be accurate to ±2.5% if
conditions are suitable. However, you may not always
know if the conditions are suitable so the following
techniques should be used to check critical readings:
Check that the route of the line is straight for at least
•
2 meters (6’6”) to either side of the measurement
point.
Check that the signal response is reasonably
•
constant over the 15 meter distance to the
transmitter and make depth measurements to either
side of the original point.
Check that there are no adjacent lines carrying a
•
signicant signal within 1 to 2 meters of the target
line. This is the most common source of error of
depth measurements as a strong signal coupled to
an adjacent line can often introduce ± 50% error.
Switch the receiver on.
1.
Select the same induction frequency as is
2.
selected on the transmitter.
Select sonde mode on the receiver.
3.
Move the receiver from left to right and when the
4.
maximum signal is obtained place the receiver on
top of a non-metallic object, such as a cardboard
box, on the ground. Ensure that the blade is
horizontal and pointing towards the transmitter. To
reduce the effects of ground coupling the receiver
must be more than 500mm (18 inches) above the
ground when it is placed on the box.
Note the depth as indicated on the receiver.
5.
Measure the distance from the base of the
6.
receiver to the center of the transmitter using a
tape measure.
Compare this reading with the depth reading on
7.
the receiver.
The receiver can be considered accurate if the difference
between the depth reading on the receiver and the
distance measured with the tape is less than 10%.
Make several depth measurements at points slightly
•
displaced from the line’s apparent position. The
shallowest indication will be the most accurate and
will also indicate the line’s position most accurately.
8.2.1 Rough depth calibration check
This check is a quick and easy way of verifying that the
depth reading on the receiver is within acceptable limits. It
can be used if you are getting inaccurate depth readings
from a cable or pipe for which you know the approximate
depth. Inaccurate depth readings could be the result of
the receiver picking up a stronger signal such as another
cable or pipe running in close parallel to the target pipe or
cable.
There are two ways of checking the calibration of the
receiver in the eld. Both methods require the use of
a transmitter:
Method 1
Place the transmitter on top of a non-metallic object, such
as a cardboard box, on the ground and away from any
buried lines. Switch the transmitter on, ensuring that no
accessories are connected and that the transmitter is in
induction mode. To reduce the effects of ground coupling
the transmitter, when it is placed on the box, must be
more than 500mm above the ground
Method 2.
Apply a signal to a cable or pipe of known depth.
1.
Locate the cable or pipe; teh receiver will show
2.
depth automatically.
Compare the depth reading on the receiver with
3.
the actual depth.
Hold the receiver with the blade horizontal and pointing
towards the front of the transmitter and approximately ve
meters from the front of the transmitter.
RD7000 Operation Manual 17
5.3 Current readings
mA mA
0.6 1.0
m m
25 25
mA mA
90 30
% %
mA
mA
mA
5.3.1 Identication using current
measurements
Measuring current value on a line helps conrm the
identity of the line and provides information about the
condition of cable insulation or pipe coating.
5.3.2 About current measurements
The transmitter applies a signal or current onto a target
line. The current decreases in strength as the distance
from the transmitter increases. This rate of decrease
depends on the type of line and on soil conditions.
Regardless of the type of line and the frequency being
used the rate of decrease should be regular with no
sudden drops or changes. Any sudden or abrupt
current change indicates that the line or its condition has
changed.
In congested areas, where there is more than one line, the
receiver may sometimes detect a stronger signal from an
adjacent line to which the signal has coupled or shares
common grounding because it is nearer the surface.
Although current measurement compensates for depth,
signal response will be less as the depth increases.
Figures 5.4 – 5.6: Taking
current readings
The line with the highest current measurement, rather
than the line giving the strongest response, is the target
line to which the transmitter signal has been applied.
Measuring current provides useful information about the
position of bends and intersections. Measuring current
after a tee will indicate the main line that pulls more
current along its greater length.
Figure 5.3: Current readings
18 RD7000 Operation Manual
5.3.3 Applying a transmitter signal
mA mA mA
The transmitter signal can be connected, clamped or
induced to the target line in the same way as the signal
for line tracing is applied.
5.3.4 Signal current measurements
Pinpoint the line and conrm the accuracy of the peak
pinpoint with a null pinpoint. Check the receiver is directly
over the line, with the antennae at right angles to it and
vertical.
The receiver will automatically estimation and display the
depth reading on the LCD.
A signal coupled to a nearby line may distort the accuracy
of the measurement. If the accuracy of the reading is
suspect, sweep the area to check if other nearby lines
are radiating the signal. If other signals are causing
interference, it may be necessary to make the current
measurement at another point along the line.
Both antennae are needed to make a current
measurement and receiver accessory antennae such as
a normal clamp or stethoscope cannot be used. Because
current measurement is a function of depth, it is only
available in the locating modes.
Figure 8.7: Current readings
using transmitter signals
RD7000 Operation Manual 19
Section 6. – General Locating tips
6.1 Eliminating services
6.1.1 Induction
If several conductors are running parallel and it is not
possible to connect a transmitter, each line may be
located separately. Proceed as follows:
Perform a sweep of the area to nd the position
1.
and number of conductors in the area.
Map the direction in which the conductors
2.
are going.
To trace the lines:
Select induction mode on the transmitter.
1.
Figures 6.1 – 6.4: Interference
from services
Select the same frequency as on the receiver.
2.
Place the transmitter on its side and in line with a
3.
conductor.
Ensure the conductor is directly below the
4.
transmitter.
This will null the signal directly below the
5.
transmitter and, in addition, enable the other
conductors to be located.
Locate each conductor and mark its position.
6.
Move the transmitter down the route and continue
7.
locating and marking.
Trace each conductor out of the search area until
8.
the target line can be accurately located.
6.1.1 Unwanted signal coupling
Unwanted coupling of the signal from the target line to
another nearby line is one of the most common location
problems. It leads either to an error in the marked position
and depth of the target line or to marking the wrong
line. A certain degree of coupling is unavoidable in many
situations but there are ways in which a careful user can
reduce coupling and increase location reliability.
Avoid applying the signal by induction. The signal
•
may be coupling to more than one line directly from
the transmitter. Use the signal clamp where possible.
20 RD7000 Operation Manual
Identify points where lines may be bonded or in
•
close proximity to each other. Work toward these
points rather than away from them. For example, if
gas and water pipes are bonded within a building,
apply the signal at the valves or access points in the
road rather than in the building.
Reduce coupling to a parallel line by using a low
•
signal frequency where available.
Return signal owing on another line. Use a double-
•
ended connection to by-pass the ground return
if possible.
Choose a signal application point where the line is
•
furthest from other lines and not in a
congested area.
When using single-ended connection, site the
•
ground stake as far from the target line as possible
and away from other buried lines.
Avoid using existing structures for ground
•
connections; other buried lines may be bonded
to them.
A bad ground connection or just laying the ground lead
on the surface at right angles to the line may result in
less coupling than a good ground provided long distance
tracing is not required.
WARNING! The live cable connector is for use
only by operators licensed or permitted to work on
live cables.
When the cable is not grounded at the column, open the
inspection door and connect the live cable connector to
the live or neutral conductor.
The use of a street light column as a means of applying a
signal to other power cables on the same electric circuit
is a possibility. The signal may be weak using this method
because it may have travelled some distance back to
the sub-station and out again on the other system.
With the receiver used on a high sensitivity setting it is
often possible to locate a cable, which would otherwise
have been difcult or inconvenient to energize with the
transmitter signal.
6.2.3 Finding a good ground point
When using a direct connection, it is important to get the
best possible grounding for the transmitter. This provides
the lowest resistance ground path and the best output
signal. If it is not possible to use the ground stake the
following are examples of good alternative ground points:
Metal manhole covers.
•
Metal drainage grates.
•
6.2 Signal grounding
6.2.1 Manhole covers
Sometimes when locating, it is not possible to insert the
ground stake into the earth, for example, when locating
on hard ground such as roads. In this case, the ground
return can be made by attaching the ground lead to the
metal frame of a manhole.
6.2.2 Using lighting columns
Direct connecting to a metal, street-lamp column is
almost as effective as connecting to the cable sheath
itself. Normally the cable sheath is bonded to the metal
column, therefore a simple connection onto the column
enables the user to locate the street lighting quickly and
safely without having to call out a technician from the
lighting company.
If the lighting column is made from concrete make the
transmitter connection to the cable sheath unless the
cable is earthed to the inspection doorframe. Connection
to the cable sheath applies the transmitter signal for
a considerable distance enabling the receiver to trace
cables feeding illuminated street furniture as well as other
street lights.
Metal railings.
•
Metal fence posts.
•
RD7000 Operation Manual 21
6.3 Double-ended connections
Large diameter water pipes and gas distribution pipes
that are laid in sections sometimes have insulated joints
between the sections and can be difcult to locate using
a single ended connect. This is because when using a
single ended connection ground return, signals can often
cause confusion by returning to the transmitter along
other lines. The problem sometimes occurs when return
signals appear stronger than on the target line, usually
because the target line is deeper than the line carrying the
return signal, or the return path may be a better electrical
conductor than the target line.
Applying a double-ended transmitter connection is a
useful technique for positively tracing and identifying
a target line in a situation such as a heavily congested
industrial site, provided there are access points at each
end of the line.
6.3.1 Making a double-ended
connection
Connect the transmitter to an access point on the target
line. The transmitter ground is connected with a long
cable to another access point further along the line. A
complete circuit is achieved without using ground as
a current return path. The long cable should be kept
as far away as possible from the expected route of the
line. Radiodetection supplies 50 meter and 200 meter
extension cables for this purpose.
Figure 6.5: Making doubleended connections
This method of applying the transmitter signal is ideal for
positive identication of a target line. When a connection
has been made to two points on the same line, the same
level of current should be detectable all round the circuit.
The receiver display should remain constant if the depth
of the line does not change.
22 RD7000 Operation Manual
Section 7. – Using Accessories
100
40
30
7.1 About accessories
Both the transmitter and receiver are compatible with
a wide range of accessories, including most RD4000
accessories. Use clamps to help apply a signal to pipeline
or live wire. Use an A-Frame to provide the RD7000
receiver with advanced fault-nding capabilities.
When an accessory is connected, the receiver or
transmitter will instantly recognize it and will enable
the mode appropriate to the accessory. For example,
attaching an A-Frame to the RD7000 receiver will
automatically switch the receiver to fault-nd mode and
limit the number of available frequencies to those that are
compatible with the A-Frame. The LCD will also display
an icon of the accessory and will remove any nonessential icons from the screen.
For a full list of supported accessories, please refer to
Appendix 9.6
7.2 Receiver clamps
A receiver clamp is used to positively locate and identify a
cable when several cables are running close together.
7.2.2 Connecting a clamp
Put the clamp connector into the accessory
1.
socket on the front of the RD7000 receiver.
Place the clamp around the pipe or cable and
2.
switch the receiver on.
Set the frequency to the same as that on the
3.
transmitter.
Put the clamp around each cable in turn and note
4.
the bar graph response. Compare the strength
of response from each cable. The cable with a
substantially stronger response than the others
will be the cable to which the transmitter signal
has been applied.
A target cable can be identied in a chamber, on a tray or
other access point by tting a clamp to the receiver and
examining each cable in turn. Signal strength response
shown on the receiver display should be noted for each
cable.
7.2.1 When to use clamps
Clamps can be used where:
Several cables or pipes run in close proximity to
•
each other.
A cable or pipe is accessible at an inspection hole or
•
manhole.
Figure 7.1: Connecting a
receiver clamp
To ensure that the target cable has been correctly
identied, reverse the positions of the transmitter and
receiver and check that the strongest response is still
received from the target cable by the receiver in its new
position.
RD7000 Operation Manual 23
7.2.3 Available receiver clamps
7.3.1 Connecting the clamp
Standard clamp
The clamp plugs into the receiver accessory socket and is
used for cable identication at points where the cable can
be accessed. The standard clamp is suitable for cables
up to 100mm (4 inches) diameter.
Figure 7.2:
Standard clamp
Plug the clamp into the transmitter output socket.
Put the clamp around the pipe or cable and ensure that
the jaws are closed. Switch the transmitter on.
The line should be grounded (earthed) on each side of the
clamp for the signal to transfer to the line. Ground the line
if necessary. An insulated cable may be traced even if it
has no actual ground connection, providing a reasonable
length is buried either side of the clamp to provide
capacitive coupling to ground (earth).
Small clamp
The small clamp performs the same function as the
standard clamp but is useful in cramped situations where
there is insufcient access for the standard clamp.
The small clamp is suitable for cables up to 50mm
diameter.
7.3 Transmitter clamps
The transmitter clamp ts around a pipe or cable and
safely applies a signal to a live cable without interrupting
or disconnecting the supply. The clamp applies a very
discriminating signal to a target line with reduced coupling
to other lines. A clamp can sometimes be a more effective
method of applying the signal than direct connection.
The target line will carry the strongest signal. The other
lines will carry the weaker return signal. If the system
comprises only two conductors, they may carry equal
signals.
WARNING! When clamping around a power cable
ensure that the clamp is connected to the transmitter
at all times.
Figures 7.3 – 7.4: Connecting
transmitter clamps
NOTE: It is not necessary to make a ground connection
from the transmitter when using the clamp.
The clamp may buzz or vibrate if it is placed around a
power cable that has signicant net current ow. This is
normal and does not harm the equipment.
24 RD7000 Operation Manual
7.3.2 Available transmitter clamps
Although transmitter and receiver clamps look the same,
they have different internal windings. To prevent the wrong
clamp being connected, transmitters and receiver clamps
have plugs of a different orientation.
Standard signal clamp
The standard clamp applies the transmitter signal very
selectively and effectively to a target cable up to 100mm
diameter at 8/33kHz frequency or up to 75mm diameter
cable at 512Hz.
7.4 Sondes
7.4.1 When to use a sonde
A sonde transmitter is a small battery powered signal
transmitter that can be inserted into non-metallic ducts,
drains or sewers so they can be located and traced with a
receiver. A wide range of transmitting sondes is available
to suit different applications. Sondes can also be used
to pinpoint joints in iron gas pipes, locate blockages in
plastic water pipes and monitor the progress of horizontal
boring tools.
The standard and small clamps have a double spring
action for positive toroidal contact.
Small signal clamp
The small signal clamp is useful for applying an 8kHz and
33kHz signal to a target cable in a pedestal or other place
with limited space. The clamp is suitable for cables up to
50mm diameter.
WARNING!. The transmitter must only be
connected to live services using the appropriate
accessory such as a plug connector or live
cable connector.
7.4.2 Choosing a suitable sonde
Check that the sonde has sufcient range for the
application and is dimensionally small enough and
sufciently robust for the application. Ensure that the
frequency of the sonde corresponds with the receiver
frequency; the receiver will not locate the sonde unless
the frequencies are the same. Sondes are marked with
their transmitting frequency. Ensure that the means of
propelling the sonde is available together with the correct
ttings and couplings.
7.4.3 Preparation
Insert a new battery into the sonde. A new battery or a
freshly recharged battery should be used at the beginning
of each day and preferably at the start of each new job.
Before inserting the sonde, check that the sonde and
receiver are at the same frequency and working correctly.
To do this, place the sonde on the ground at a distance
from the receiver that is equal to the rated depth of the
sonde. Point the receiver at the sonde with the antenna
in line with the sonde (the opposite of using the receiver
to locate a line) and check that the bar graph reading
exceeds 50% at maximum sensitivity.
7.4.4 Propelling a sonde
Sondes have a male thread at one end for connecting to
drain rods, or to other devices for inserting and propelling
the sonde along a drain or duct. Sondes may be oated
along drains at the end of a tether and oats are available
for tting to the sewer sonde and super sonde. Sondes
can be strapped to high-pressure water jets or similar
devices used for cleaning, maintaining and inspecting
drains. Sondes used in underground drilling and boring
operations are normally housed in the boring or drill head
behind the boring or drill bit.
RD7000 Operation Manual 25
7.4.5 Locating and tracing a sonde
Ghost Ghost
A
B
d=0.7AB
d
Insert the sonde in the drain or duct access and locate
it while it is still just in view at the drain or duct entrance.
Hold the receiver vertical directly over the sonde with
the antenna in line with the sonde. Adjust the receiver
sensitivity so the bar graph reads between 60% and 80%.
The sonde radiates a peak eld from the center of its
axis with a ghost signal at each end of the peak. Move
the receiver a little way behind and then in front of the
axis of the sonde to detect the ghost signals. Finding the
two ghost signals positively conrms the locate. Reduce
the receiver sensitivity to lose the ghost signals but still
indicate a clear peak response directly over the sonde.
Receiver sensitivity is now set for tracing the duct or drain
unless the distance between sonde and receiver changes.
Propel the sonde three paces along the drain or duct and
stop. Place the receiver over the supposed position of the
sonde. Do not adjust the sensitivity level.
To locate a sonde:
Figure 7.6: Sonde deployment
Move the receiver backwards and forwards and
1.
stop when the bar graph indicates a peak. You
can use the LCD compass to orient the blade of
the receiver with the direction of the sonde.
Rotate the receiver as if the blade is a pivot. Stop
2.
when the bar graph indicates a peak.
Move the receiver from side to side until the bar
3.
graph indicates a peak.
Repeat 1, 2 and 3 with the antenna vertical and
4.
resting on or just above the ground. The receiver
should then be directly above the sonde with the
antenna inline with it. Mark the position of the
sonde and its direction.
Propel the sonde a further 1 or 2 meters, pinpoint,
5.
and mark the position. Repeat this pinpoint
procedure at similar intervals along the line of the
drain or duct until the survey is completed.
Figure 7.7: Locating a sonde
Figure 7.8: Calculating sonde
depth
7.4.6 Checking sonde depth
The RD7000 receiver will automatically display the depth
of a located sonde providing the receiver is correctly
oriented and positioned above the sonde.
Calculation method
Pinpoint the sonde. Move the receiver in front of the
sonde and still with the antenna in line with it, increase
sensitivity to nd the peak of the ghost signal. Move the
receiver to behind the sonde ensuring that the receiver
blade is always in line with the sonde. Find the null
positions A and B (See Figure 7.8). Measure the distance
between them and multiply by 0.7 to give an approximate
depth measurement.
26 RD7000 Operation Manual
105mm
Ø 39mm
173mm
Ø 18mm
82mm
Ø 18mm
168mm, 65/8 in
M10 male�
threaded�
studs
Ø 64mm, 21/2in
7.4.7 Types and range of sondes
Standard sonde
The standard sonde combines compact size with
a strong signal and is the standard sonde for most
applications unless a smaller size, greater depth or
rugged construction sonde is required.
Super small sonde
This is a specialized sonde particularly suitable for no-dig
applications. This type of sonde has an interchangeable
battery compartment so that the length of the sonde can
be altered. Shortening the length of the sonde means that
fewer batteries can be accommodated and this will affect
battery life.
Figure 7.9: Standard sonde
Figure 7.10: Super small
sondes
Sewer sonde
This sonde incorporates a very strong housing and makes
the sonde suitable for use in municipal sewer systems.
The sonde has a long life for daily use in all conditions.
Super sonde
A particularly rugged sonde for use in deep sewers.
FlexiTrace
The FlexiTrace is a traceable plastic covered berglass
rod incorporating wire conductors and is used for locating
small diameter, non-metallic pipes to a depth of to 3
meters. The FlexiTrace can be inserted into a pipe or
duct as small as 12 mm/0.5 inch internal diameter with
a minimum bend radius of 250mm. Batteries are not
required, as the FlexiTrace is powered by the RD7000
transmitter.
The FlexiTrace can be used in two modes: Sonde mode
or Line mode. In sonde mode only the tip of the FlexiTrace
is energized whilst in line mode its whole length is
energized.
Figure 7.11: Sewer sonde
Figure 7.12: FlexiTrace
To use as a sonde, connect both transmitter leads to the
FlexiTrace stud terminals. As the FlexiTrace terminals are
not color coded it does not matter to which terminals the
leads are connected. To use the FlexiTrace in line mode,
connect the red transmitter lead to a FlexiTrace terminal
and ground the black lead.
RD7000 Operation Manual 27
7.5 Stethoscopes
7.6 Submersible antenna
7.5.1 When to use a stethoscope
At times, it may not be possible to put a clamp around a
cable because of congestion or because of inaccessibility.
A stethoscope antenna should be used in the place of the
clamp to identify cables.
7.5.2 How to use a stethoscope
Plug the stethoscope into the receiver accessory socket.
Press the concave head against each cable in turn to
detect a maximum signal.
7.5.3 Types of stethoscope
Large stethoscope antenna
The large stethoscope antenna, which plugs into the
receiver accessory socket, is used for cable identication
in situations where the cable is exposed. It is particularly
useful for identifying heavy cables lying in a tray where
it is not possible to t a clamp. The concave detector
head on the end of the insulated, exible gooseneck is
placed rmly against the cable to be identied. If there
are a number of cables, the stethoscope antenna will
give the strongest response from the cable to which the
transmitter signal has been applied.
Small stethoscope antenna
7.6.1 When to use a submersible
antenna
Tracing buried pipes and cables across waterways and
estuaries are frequent and critical locating applications.
Less frequent but equally important is tracing and locating
lines between the mainland and offshore islands. When
locating pipes and cables the receiver sensing antennae
should be as close as possible to the target line so it
is not practical to locate lines buried under a river or
seabed from the surface. In most cases, it is necessary to
measure the depth of cover to ensure the line is protected
from dragging anchors or other underwater hazards.
The submersible, double depth antenna is suitable for use
under water for tracing pipes or cables. There is a weight
at the bottom of the antenna for stability and the unit has
been pressure tested to IP68 to a depth of 100m.
The antenna is supplied with 10m of submersible marine
umbilical cable as standard, but lengths of up to 100m
can be supplied. The extra length enables the antenna to
be carried by a diver on a riverbed or seabed while the
receiver is used in a surface vessel. It is crucial to have
effective communication between the operator with the
receiver and the diver with the antenna.
Alternatively the antenna can be fastened to the end of
a non-metallic boom from a barge and lowered to the
riverbed or seabed.
The small stethoscope antenna has a 25mm concave
head at the end of a 2m lead. The small stethoscope
can be screwed into an extension rod or used at the end
of several extension rods joined together for identifying
inaccessible small cables.
Miniature hi-gain stethoscope
The miniature stethoscope is similar to the small
stethoscope but has no handle or facility for extension
rods.
The miniature stethoscope can also be used as a
miniature antenna for locations where the bulk of the
receiver makes it inconvenient for use, such as locating
pipes or cables in walls.
7.6.2 How to use a submersible antenna
Apply the transmitter signal to the target line at an access
point on the shore. The submersible antenna line for
tracing the line underwater is plugged into the accessory
socket of the receiver. The receiver is used onboard a
boat, which should by positioned directly over the line.
The transmitting signal should be by direct connection
with the strongest possible signal and a low frequency
(less than 1kHz). Make a ground connection about 50m
from the transmitter. Test the quality of signal on the line
before locating on the water.
Note: The submersible antenna is calibrated to work at
one frequency.
28 RD7000 Operation Manual
Tips for using a submersible antenna
The user in the boat should be a specialist or have
considerable experience using a receiver so that they can
give concise instructions to the diver.
It is prudent for the pair to practice working together on
dry land before attempting to locate underwater. Using
the antenna the diver should locate and trace a known
line blindfolded receiving directions from the user with the
receiver out of sight of the line and the diver.
Because of rapid signal loss and a combination of large
surface area and very conductive soil there may be
problems applying a suitable signal for tracing a large
diameter pipe. It may be necessary to use a high power,
low frequency tracing signal.
It is necessary to dene a method of recording target line
position and depth before starting work in the boat or on
the seabed.
Figure 7.13: Using a
submersible antenna
RD7000 Operation Manual 29
Section 8. – Fault-Finding
8.1 About fault-nding
The RD7000TL and PL are capable of locating cable to
ground faults caused by damaged cable sheaths. This
process is known as 8K Fault-Finding as it uses an 8kHz
signal applied to a target line with a transmitter.
The accessory A-frame is used to locate cable sheath
faults on power and telecom cables. To use Fault-Find
you will need the following equipment:
RD7000TL or PL receiver
•
Tx3 or Tx10 transmitter
•
Accessory A-frame connection leads.
•
8.2 Preparation
Using RD7000 standard locating techniques locate the
cable for a short distance and trace and mark its route.
Remove all earth bonds from the line to be traced during
the fault-nding survey.
8.2.1 Connecting the transmitter
Switch the transmitter off.
1.
Push the connector plug into the transmitter
2.
accessory socket.
Clip the red connection lead to the cable or
3.
cable sheath ensuring that the area around the
connection is clean.
Extend the black connection lead as far away as
4.
possible and at 90° to the probable route of the
target cable and clip the connector to the ground
stake.
NOTE: Always connect the black connection lead to a
ground stake and not a water pipe or buried cable, as
these may carry the signal.
8.2.2 Reference readings
It is good practice to obtain a reference reading from
the ground stake before you attempt to locate a fault
on a target line. Reference readings help to provide the
following information:
Severity of fault.
•
Survey interval.
•
Before taking the reference reading set up the transmitter
and receiver as follows:
On the transmitter:
Switch the transmitter on by pressing
1.
the key.
Select a fault-nding frequency using the key.
2.
Use the or arrows to increase or decrease
3.
the 8kHz power output level.
If required you can use the BOOST setting if the
4.
fault is located on a high resistance cable or if the
cable is long.
WARNING! By selecting 8kHz output a high voltage
warning icon will appear on the transmitter’s LCD.
Move to the next step of the procedure.
On the receiver:
Switch the receiver on by pressing
1.
the key.
Connect one end of the connection lead to the
2.
A-frame socket.
Connect the other end to the receiver accessory
3.
socket.
The receiver will automatically recognize the A-
4.
frame and display the A-frame icon on the LCD.
Select a fault-nding frequency using the key.
5.
NOTE: If the receiver and transmitter are iLOC enabled
then you can remotely control the transmitter using the
receiver. See Section 6 for more information.
Obtaining a reference reading:
Position the receiver approximately 2m (6 feet) from
the ground stake and push the A-frame spikes into the
ground with the green spike towards the ground stake
Attach the receiver to the A-frame by the retention hook.
(If you are holding the receiver separately, make sure that
the receiver is in line with the A-frame and is pointing
towards the green spike.) The fault direction arrow should
be pointing away from the ground stake. If it is not, make
sure that the transmitter is connected correctly (red
connector to the cable and black to the ground stake)
30 RD7000 Operation Manual
Take the dB reading and keep it for reference. If there is a
Road
Path
Soil
Fault
line
single fault on the cable, it will be approximately the same
dB value as the reference reading.
NOTE. To establish how often to take readings on the
cable, move away from the ground stake and take
further readings until the arrow has difculty in locking
and the dB reading is low. Measure the distance that
the receiver is now away from the ground stake. This
is the distance that you can safely use between taking
readings on the cable to ensure that you do not miss
the fault.
8.3 How to nd a fault
Starting from the transmitter, walk along the cable route
pushing the A-Frame spikes into the ground with the
green spike pointing away from the transmitter. Where
there are no faults the dB reading will be low and the
direction arrow may icker forward and back.
NOTE: Flickering arrows may also indicate that you may
be too far away from the fault or ground stake (or both)
for the receiver to lock on.
Take readings at the survey intervals determined by the
reference reading. To locate the cable during a Fault-Find
survey, press the key once and the receiver will switch
to 8kHz null mode. Locate the cable using the normal
null mode technique. Press the key again to return to
Fault-Find mode.
As a fault is approached the Fault-Find direction arrow will
lock on to the fault signal and point forward and the dB
readings will increase. When the fault is passed the arrow
will point back towards the transmitter. Take readings at
smaller survey intervals to determine the exact point of
the fault.
When the A-frame is directly over the fault the dB reading
will drop as shown opposite.
NOTE: The values given are for illustration purposes
only and may not be the same as those obtained in
other situations.
To pinpoint the fault, turn the A-frame 90° to the cable
and Fault-Find until the exact point is found where the
arrow direction changes. The center line of the A-frame is
now directly over the fault.
Figure 8.1: Cable sheath faultfinding
If you are trying to locate high resistance faults or there is
a long distance between faults, carry on with the survey
and the receiver will lock on when you get closer to
the fault.
Mark the ground to show the position of the fault. Find
the maximum dB reading in front of the fault by pushing
the A-frame into the ground at small intervals. Note the
dB reading. If the reading is approximately the same as
the reference reading, you can assume that there is only
one fault. If the reading is less than the reference reading,
keep surveying the cable for other faults.
Replace the bonds between the sheath and ground at
each end of the line once the fault-nding survey has
been completed.
NOTE: If the cable runs under a road, use the
equipment as normal on the road surface as it can
sometimes detect signals when working on blacktop,
concrete, or paved surfaces. If necessary, try wetting
the road surface. Pouring a very small amount of
water around the bottom of the A-frame spikes before
each Fault-Find will generally ensure a good ground
connection.
NOTE: If the cable runs under a paved surface, the fault
can often be pinpointed by fault nding in the grass/soil
adjacent to the paving. Reduce the distance between
placing the A-frame spikes in the ground to allow for
the increased distance to the actual fault position.
Figure 8.2: Locating cable
sheath faults with the
receiver and A-frame
RD7000 Operation Manual 31
Section 9. – Appendices
9.1 Care and maintenance
The RD7000 receiver and transmitter is robust, durable
and weatherproof. However you can extend your
equipment’s life by following these care and maintenance
guidelines.
9.1.1 General
Store the equipment in a clean and dry environment.
Regularly validate your equipment using eCAL. Validation
ensures the equipment is valid according to its original
factory calibration. (See Appendix 13.3)
Ensure all terminals and connection sockets are clean,
free of debris and corrosion and are undamaged.
Do not use this equipment when damaged or faulty.
9.1.2 Batteries and power supply
Use good quality Alkaline or NiMH batteries only.
When using an AC adapter, use only Radiodetection
approved adapters.
9.1.3 Cleaning
WARNING! Do not attempt to clean this
equipment when it is powered or connected to any
power source, including batteries, adapters and live
cables.
Ensure the equipment is clean and dry whenever
possible.
Clean this equipment with soft, moistened cloth.
If using this equipment in foul water systems or other
areas where biological hazards may be present, use an
appropriate disinfectant.
Do not use abrasive materials or chemicals as they may
damage the casing, including the reective labels.
Disassembly may damage the equipment and or reduce
its performance and may void the manufacturer’s
warranty.
9.1.5 Service and maintenance
Radiodetection recommends that you service your
RD7000 receiver and transmitter regularly. Service
your equipment at Radiodetection headquarters or
Radiodetection authorized service centers.
NOTE: Service by non-approved service centers or
operators may void the manufacturer’s warranty.
9.2 Upgrading rmware
From time to time, Radiodetection will release rmware
upgrades to enhance features and improve performance.
You can upgrade your RD7000’s rmware by using
Centros™ Manager and your desktop or notebook
computer. Centros™ Manager is available from
www.radiodetection.com.
NOTE: You must rst register for an extended 3-year
warranty before you can upgrade your RD7000 receiver.
Registration is free.
For more information please visit www.radiodetection.com
9.3 eCAL™
eCAL is part of the Centros™ Manager suite. With eCAL
you can validate your RD7000 receiver against its original
factory calibration.
eCAL can issue a pass or fail certicate, which you can
print or save with your desktop or notebook computer.
NOTE: You must rst register for an extended 3-year
warranty and purchase a Validation key before you can
validate your RD7000 receiver.
For more information please visit www.radiodetection.com
Do not use high pressure hoses.
9.1.4 Disassembly
Do not attempt to disassemble this equipment under any
circumstances. The receiver and transmitter contain no
user serviceable parts.
32 RD7000 Operation Manual
9.4 Specications for the receiver and transmitter
Sensitivity 6E-15Tesla, 5µA at 1 meter (33kHz)
Dynamic range 140dB rms /√Hz
Selectivity 120dB/Hz
Depth accuracy Line: ± 2.5% tolerance 0.1m (4”) to 3m (10ft)
Sonde: ± 2.5% tolerance 0.1m (4”) to 7m (23ft)
Maximum Depth* Line 6m (20ft), Sonde 15m (50ft)
Fault-Finding (FF) Diagnose cable sheath faults from Short Circuit to 2MΩ using the A-frame
Batteries Rx: 2 x D-cells (LR20) Tx: 8 x D-cells (LR20)
Battery life Rx: 30 hours intermittent use
Tx: use dependent on signal conditions typically 15 hours
Warranty 36 Months upon registration
Dynamic overload protection 30dB (automatic)
Compliance FCC, RSS 310 RoHS, WEEE
Approvals CE
Weight Tx: = 2.84kg (6lbs) (including batteries) 4.2kg (9lbs) (including accessories)
Rx: =1.87kg (4lbs) (including batteries)
Environment IP54
9.5 Supported frequencies
SL DL PL TL
Power • • • •
Radio • • • •
CPS 100/120Hz •
Active LF
(512/640Hz)
Active 8kHz • • •
Active 9.8kHz
Active 33kHz • • • •
Active 65kHz • • • •
Active 83kHz •
Active 131kHz •
Active 200kHz •
Sonde 512Hz/640Hz • •
• • •
Sonde 8kHz •
Sonde 33kHz • • •
FF 8kHz (8kFF) • •
RD7000 Operation Manual 33
9.6 Supported accessories
Description Part Number
Transmitter Accessories
UK Plug Connector 10/AC1231-4KTX-LPC-UK
Euro Plug Connector 10/AC1231-4KTX-LPC-EUR
Live Cable Connector 10/AC1231-4KTX-LCC
2” (50mm) Transmitter Clamp 10/TC2136-4KTX
4” (100mm) Transmitter Clamp 10/TC1769-4KTX
Earth Reel 09/310-4KTX
Mains power AC transformer to 12V DC New 10/RD7K8KUMPSU
Tx Direct Connection Lead 17/TX2609E1
Earth Stake 04/PT1505N27
New Short Earth Stake 04/ET2980P8
8.5” (215mm) Transmitter Clamp 10/RD4GT0235
Signal Clamp Extension Rod 10/EXT
121 Transformer 10/RD2717-4KTX-ENG
12V Car Power Lead (with Isolation Transformer) New 10/RD7K8KDCI
Receiver accessories
High Gain Stethoscope 10/AC2645-4KRX
Small Stethoscope 10/AC2643-4KRX
Large Stethoscope 10/AC2644-4KRX
640/512Hz Submersible DD Antenna (10m Cable) 10/SM1099-640-4KRX
8kHz Submersible DD Antenna (10m Cable) 10/SM1099-8-4KRX
Additional Submersible Cable Length (Per Meter) 10/RD0246SUBCABL
Headphones 04/LP01
A Frame 10/AFRAME
A Frame Bag 10/RD4FFRXBAG
50mm (2”) Receiver Clamp 10/TC2136-4KRX
100mm (4”) Receiver Clamp 10/TC1769-4KRX
Soft Carry Bag 10/RD7K8KBAG
Soft Carry Bag with Wheels New 10/RD7K8KRBAG
Hard Case 10/RD7K8KCASE
Sondes and accessories
Standard Sonde 33kHz Depth 5m 10/SC0412-33R
Sewer Sonde 33kHz Depth 8m 10/SA0337-33R
Super Sonde 33kHz Depth 15m 10/SB0338-33R
Slim Sonde 33kHz Depth 3.5m 10/SD0322-33R
Slim Sonde Plain End Cap 10/SD0223
Slim Sonde Blank End Cap 10/SD0268
S18A Sonde 33kHz 10/S18/82-33-000
S18B Sonde 33kHz 10/S18/173-33-000
8kHz Sonde 10/SCO412-8
34 RD7000 Operation Manual
512Hz Sonde 10/SCO412-512
Spring Coupling M10 Male 10/SU0335
Flexrod Coupler (Joins two Flexrods together) 02/FR0818N1
Flexrod Blank for Machinery 02/FR0336
115mm (4.5”) Diameter Floats/Pair 10/SU0344
M10 Thread Protecting Nipple 02/P105O
External Shell for heavy-duty applications (Diameter as Sewer Sonde) 10/SC0963
Plastic or Cane Rod Connector, Male 02/SU0339
GD Rod Connector. 3/4” (19mm) x 12 BSF, Female 02/SU0340
Wards Rod Connector, 3/4” (19mm) x 10 BSW, Female 02/SU0341
Wards Rod Connector, 1/2” (13mm) x 12 BSW, Female 02/SU0342
Lockfast Connector, 3/4” (19mm) x 10 BSW 02/SU0676
Spring Coupling M10 Male 10/SU0335
FlexiTrace 50m 10/TRACE50
9mm 120m Flexrod 10/FLEXRODF120
9mm 60m Flexrod 10/FLEXRODF60
Batteries and rechargeables
Alkaline Battery for RD8000, RD7000, Tx-1, Tx-3, Tx-10 (LR20, MN1300) 04/MN1300
Transmitter Li-Ion rechargeable battery pack (Incl mains and 12V chargers and
10/TXRBATPACKKIT
leads)
Transmitter Li-Ion rechargeable battery pack 10/TXRBATPACK
RD7000 Operation Manual 35
World
leaders
Technical
support
Servicing
and repair
Training
Radiodetection products are under continuous development and are subject to change, we reserve the right to alter or amend any
published specification without notice.
Copyright 2008 Radiodetection Ltd. - SPX Corporation. All rights reserved. Radiodetection Ltd. is a subsidiary of SPX Corporation.
www.radiodetection.com
To see the full range of products and
services provided by Radiodetection visit:
Radiodetection is a proud member
of the SPX group of companies,
which provide technical products
and service solutions worldwide.
Radiodetection and its associated
companies specialize in the design
and manufacture of products for
the location and maintenance of
underground pipes and cables. Our
aim is to be viewed as the supplier
of choice of ‘high performance’
quality equipment using advanced
product technologies. We are
also committed to both design
innovation and customer support.
Radiodetection equipment
users have easy access to
technical support. A call to your
regional representative, or the
Radiodetection head office, will put
you in contact with our team of
field-experienced technical experts.
Radiodetection has a team of
factory-trained service technicians
and dedicated service facilities.
Turnaround is fast, and costs are
very competitive.
Product training for your
operators and training personnel
is available on your site, or at
Radiodetection’s headquarters.
Training is with qualified
instructors and each trainee
receives a certificate to confirm
they have received the training.
America
Radiodetection
154 Portland Road
Bridgton, ME 04009, USA
Tel: +1 (207) 647 9495
Toll Free: +1 (877) 247 3797
Fax: +1 (207) 647 9496
Email: rd.sales.us@spx.com
Web: www.radiodetection.com
Pearpoint
72055 Corporate Way
Thousand Palms CA 92276, USA
Tel: +1 800 688 8094
Tel: +1 760 343 7350
Fax: +1 760 343 7351
Email: pearpoint.sales.us@spx.com
Web: www.radiodetection.com
Radiodetection (Canada)
Unit 34, 344 Edgeley Blvd.
Concord, Ontario, Canada L4K 4B7
Tel: +1 (905) 660 9995
Toll Free: +1 (800) 665 7953
Fax: +1 (905) 660 9579
Email: rd.sales.ca@spx.com
Web: www.radiodetection.com
Europe
Radiodetection Ltd (UK)
Western Drive
Bristol BS14 0AF, UK
Tel: +44 (0) 117 976 7776
Fax: +44 (0) 117 976 7775
Email: rd.sales.uk@spx.com
Web: www.radiodetection.com
Radiodetection (France)
13 Grande Rue, 76220
Neuf Marché, France
Tel: +33 (0) 232 8993 60
Fax: +33 (0) 235 9095 58
Email: rd.sales.fr@spx.com
Web: http://fr.radiodetection.com
Radiodetection (Benelux)
Industriestraat 11
7041 GD ’s-Heerenberg, Netherlands
Tel: +31 (0) 314 66 47 00
Fax: +31 (0) 314 66 41 30
Email: rd.sales.nl@spx.com
Web: http://nl.radiodetection.com
Radiodetection (Germany)
Groendahlscher Weg 118
46446 Emmerich am Rhein, Germany
Tel: +49 (0) 28 51 92 37 20
Fax: +49 (0) 28 51 92 37 520
Email: rd.sales.de@spx.com
Web: http://de.radiodetection.com
Asia-Pacific
Radiodetection (Asia-Pacific)
Room 708, CC Wu Building
302-308 Hennessy Road, Wan Chai
Hong Kong SAR, China
Tel: +852 2110 8160
Fax: +852 2110 9681
Email: rd.sales.cn@spx.com
Web: www.radiodetection.com
Radiodetection (China)
Hongfu Mansion, Room 61622
Zheng Ge Zhuang, Bei Qi Jia Town,
Chang Ping District
Beijing 102209, China
Tel: +86 (0) 10 8975 5540
Fax: +86 (0) 10 8975 5640
Email: rd.service.cn@spx.com
Web: http://cn.radiodetection.com
Radiodetection (Australia)
Unit 14, 5-7 Prosperity Parade
Warriewood NSW 2102, Australia
Tel: +61 (0) 2 9979 8555
Fax: +61 (0) 2 9979 7733
Email: rd.sales.au@spx.com
Web: www.radiodetection.com
Loading...
