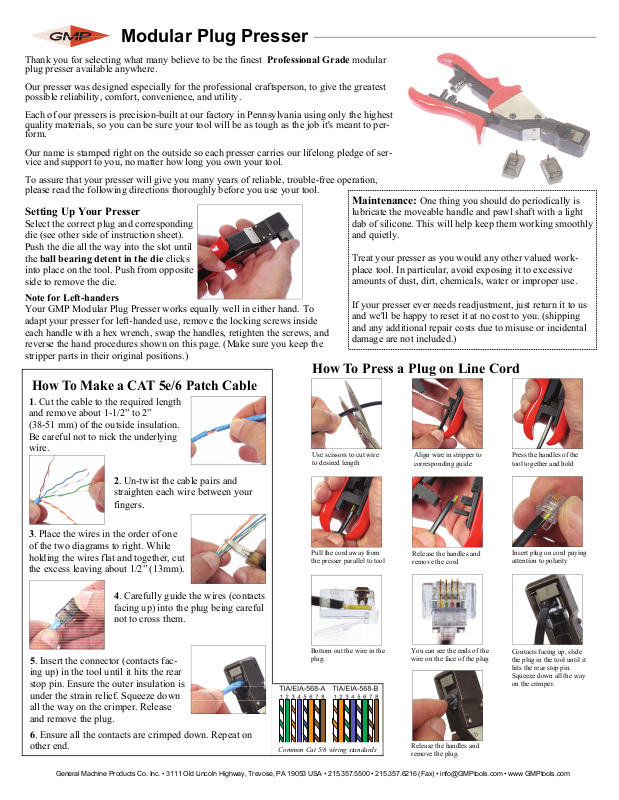

Modular Plug Presser

Thank you for selecting what many believe to be the finest Professional Grade modular
plug presser available anywhere.

Our presser was designed especially for the professional craftsperson, to give the greatest
possible reliability, comfort, convenience, and utility.

Each of our pressers is precision-built at our factory in Pennsylvania using only the highest
quality materials, so you can be sure your tool will be as tough as the job it's meant to per­form.

Our name is stamped right on the outside so each presser carries our lifelong pledge of ser­vice and support to you, no matter how long you own your tool.

To assure that your presser will give you many years of reliable, trouble-free operation,
please read the following directions thoroughly before you use your tool.

Maintenance: One thing you should do periodically is

Setting Up Your Presser

Select the correct plug and corresponding
die (see other side of instruction sheet).
Push the die all the way into the slot until
the ball bearing detent in the die clicks
into place on the tool. Push from opposite
side to remove the die.

Note for Left-handers

Your GMP Modular Plug Presser works equally well in either hand. To
adapt your presser for left-handed use, remove the locking screws inside
each handle with a hex wrench, swap the handles, retighten the screws, and
reverse the hand procedures shown on this page. (Make sure you keep the
stripper parts in their original positions.)

How To Press a Plug on Line Cord

How To Make a CAT 5e/6 Patch Cable

1. Cut the cable to the required length

and remove about 1-1/2” to 2”
(38-51 mm) of the outside insulation.
Be careful not to nick the underlying
wire.

Use scissors to cut wire
to desired length

lubricate the moveable handle and pawl shaft with a light
dab of silicone. This will help keep them working smoothly
and quietly.

Treat your presser as you would any other valued work­place tool. In particular, avoid exposing it to excessive
amounts of dust, dirt, chemicals, water or improper use.

If your presser ever needs readjustment, just return it to us
and we'll be happy to reset it at no cost to you. (shipping
and any additional repair costs due to misuse or incidental
damage are not included.)

Align wire in stripper to
corresponding guide

Press the handles of the
tool together and hold

2. Un-twist the cable pairs and
straighten each wire between your

fingers

.

3. Place the wires in the order of one
of the two diagrams to right. While
holding the wires flat and together, cut

Pull the cord away from
the presser parallel to tool

Release the handles and
remove the cord

the excess leaving about 1/2” (13mm).

4. Carefully guide the wires (contacts
facing up) into the plug being careful
not to cross them.

5. Insert the connector (contacts fac-

Bottom out the wire in the
plug.

You can see the ends of the
wire on the face of the plug

ing up) in the tool until it hits the rear
stop pin. Ensure the outer insulation is
under the strain relief. Squeeze down
all the way on the crimper. Release
and remove the plug.

6. Ensure all the contacts are crimped down. Repeat on
other end.

General Machine Products Co. Inc. • 3111 Old Lincoln Highway, Trevose, PA 19053 USA • 215.357.5500 • 215.357.6216 (Fax) • [e-mail] • www GMPtools.com

Common Cat 5/6 wiring standards

Release the handles and
remove the plug.

Insert plug on cord paying
attention to polarity

Contacts facing up, slide
the plug in the tool until it
hits the rear stop pin.
Squeeze down all the way
on the crimper.

Modular Plug Presser

GMP Plug & Die Compatibility

Modular Plugs & Dies

GMP Modular Plugs

P/N Description

GMP Presser Dies

17064 4 17065 6 17066 8 17097

B8

25547

S8

17100

10

Tinsel & Stranded Wire

17074 4x4 (4P4C) Handset 100/pkg.

Y

17078 2x6 (6P2C) Line Cord 100/pkg. N
17075 4x6 (6P4C) Line Cord 100/pkg. N
17076 6x6 (6P6C) Line Cord 100/pkg. N
17077 8x8 (8P8C) Line Cord 100/pkg. N N
17043 8x8 (8P8C) Keyed Right Line Cord 100/pkg. N N
25127 10x10 (10P10C) Non-Keyed Line Cord 25/pkg. N N N N N
25125 10x10 (10P10C) Keyed Left Line Cord 25/pkg. N N N N N
25126 10x10 (10P10C) Keyed Right Line Cord 25/pkg. N N N N N

Solid Wire

24061 3-Pair .038 in. Dia. (6P6C) (Gray Tint) 100/pkg. N
24062 4-Pair .038 in. Dia. (8P8C) (Gray Tint) 100/pkg. N N
17188 4-Pair .033 in. Dia. (8P8C) (Blue Tint) 100/pkg. N N
24042 4-Pair Shielded Twisted Pair 8x8 (8P8C) 25/pkg. N N N N
24065 4-Pair UTP Cat 6 Cable .042 in. Dia. Wire (8P8C) 1 100/pkg. N N N
17090 DEC Data Cable /DEC MMP 6x6 (6P6C) 100/pkg.

N

Y=Yes N=No 1 Supplied with Alignment Bar ** Requires DEC compatible presser; contact us for modification information

N N N N N

Y
Y
Y

Y

N N N N
N N N N
N N N N

Y
Y

N N N
N N N

N N N N

Y Y
Y Y

Y

**

N N N N

Y
Y
Y

N N
N N

Y

N

N N

Dies for AMP® Plugs

P/N Die # Description

25943
17095
17126

A6 For AMP 6 Position Modular Plugs
A8 For AMP 8 Position Modular Plugs
A6S For AMP 6 Position Shielded Modular Plugs

P/N 17074 - 4x4 (4P4C)

P/N 17078 - 2x6 (6P2C)

P/N 17075 - 4x6 (6P4C)

P/N 17043 Keyed Right - 8x8 (8P8C)

P/N 17077 8x8 (8P8C)

P/N 25127 - 10x10 (10P10C)

L to R: 25127 (clear), 24062 (gray), 17188 (blue), 24042 (shielded)

P/N 25126 Keyed Right -10x10 (10P10C)

P/N 24061 3 Pair .038 - 6x6 (6P6C) (Gray)

P/N 24062 4 Pair .038-8x8 (8P8C) (Gray)

P/N 24042 4 Pair Shielded Twisted Pair

8x8 (8P8C)

P/N 24065 4 Pair UTP Cat 6 Cable .042 Dia

8x8 (8P8C) With Alignment Bar

General Machine Products Co. Inc. • 3111 Old Lincoln Highway, Trevose, PA 19053 USA • 215.357.5500 • 215.357.6216 (Fax) • [e-mail] • www GMPtools.com

7/12/2011 AK

P/N 17076 - 6x6 (6P6C)

P/N 25125 Keyed Left -10x10 (10P10C)

P/N 17188 4 Pair .033 8x8 (8P8C) (Blue)

P/N 17090 DEC Data Cable /DEC MMP

6x6 (6P6C)
