General Machine Products 89910 User Manual

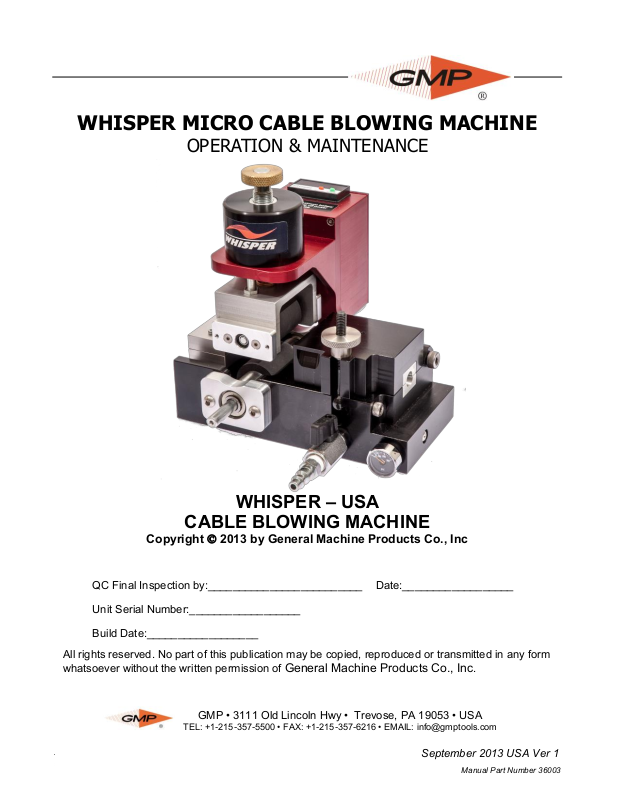

WHISPER MICRO CABLE BLOWING MACHINE
OPERATION & MAINTENANCE
WHISPER – USA
CABLE BLOWING MACHINE
Copyright 2013 by General Machine Products Co., Inc
QC Final Inspection by:_________________________ Date:__________________
Unit Serial Number:__________________
Build Date:__________________
All rights reserved. No part of this publication may be copied, reproduced or transmitted in any form
whatsoever without the written permission of General Machine Products Co., Inc.
GMP • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA
TEL: +1-215-357-5500 • FAX: +1-215-357-6216 • EMAIL: info@gmptools.com
Page 1
September 2013 USA Ver 1
General Machine Products Co., Inc.
Manual Part Number 36003
REVISION HISTORY
Rel.no Date Details Author
01 09/13 Original issue A KONSCHAK
Page 2
General Machine Products Co., Inc.
CONTENTS
1. Safety Instructions
2. Critical Points
3. General Description
4. Specification
5. Operating procedures
6. Maintenance
7. Monthly Service – check list
8. Service History Record
9. Tube integrity and Lubrication
10. Recommended Spares List
APPENDICES
Appendix 1 Cable and tube insert selection chart.
Appendix 2 Recommended torque control potentiometer settings
Appendix 3 Counter/Ratemeter Programming Instructions
GMP Limited Warranty
Page 3
General Machine Products Co., Inc.
1. SAFETY INSTRUCTIONS
This Equipment should be used only by personnel who have been given the appropri-
ate training and who are competent to use it.
These instructions are to be made available to operators of this equipment at all times.
Failure to observe these safety instructions could result in serious personal injury and/
or property damage.
WORK AREA AND GENERAL SAFETY
1. Read and understand the operation and maintenance manual supplied with this equip-
ment. Keep it in a convenient place for future reference.
2. Keep children and untrained personnel away from this equipment while in operation.
3. Keep all guards and safety devices in place. Do not operate this equipment with guards
removed or damaged.
4. Keep hands, feet and loose clothing away from moving parts, especially at cable entry
points.
5. Always stop the machine and isolate compressed air and electrical services to carry out
lubrication and servicing.
6. Check machine before starting for worn or damaged parts. Check for signs of loose nuts
and bolts etc.
7. If machine is left unattended, insure that unauthorized use is prevented.
8. Never leave the machine unattended while in use.
9. Consider the use of safety barriers, especially when used in public places, observe all
statutory requirements for working environments.
10. Beware of pinch points involved with rotating components.
11. Beware of hot surfaces, machine uses compressed air.
12. When operating machine always wear appropriate safety clothing, hearing protection, eye
protection, hard hat, safety shoes and leather gloves, machine operates with compressed
air at up to 220 psi.
13. Prior to installation insure the tube route is connected properly.
14. Beware of exposed electrical contacts. Do not touch, or allow metal objects to come into
contact.
15. Machine may cause additional fire hazard if involved in an existing fire due to com-
pressed air.
Page 4
General Machine Products Co., Inc.
16. No personnel are to be in manholes or ducts when the Cable Blowing Machine is being
operated.
17. The machine must be operated on firm ground.
18. Stay clear of cables or lines under tension.
19. Stay clear of pressurized air line and tube.
20. Only use the machine for its intended purpose. Do not use the roller drive without the air
chamber to push or to retrieve cable or blow air in the far end of tube to help cable
recovery.
21. Do not place cable drum too close to the Cable Blowing Machine.
22. Do not tamper with pressure relief valves or pressure reducing valves.
23. Ensure the cable drum rotates freely on its stand, the cable should leave from the top of
the drum.
24. The cable should enter the machine in a clean and dry condition. In damp, dusty atmos-
pheres, the cable should be cleaned continuously as it enters the machine.
FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY, AS THE CABLE
COULD BE EJECTED FROM THE CABLE BLOWING MACHINE WITH HIGH
FORCE AND VELOCITY.
Page 5
General Machine Products Co., Inc.
GENERAL PNEUMATIC SAFETY INSTRUCTIONS
The GMP Whisper Micro Cable Blowing Machine is a pneumatic device, using pressurized air
to project cable at high velocities. Please observe the following precautions when operating
the Cable Blowing Machine:
1. Compressed air can cause flying debris. This could cause personal injury. Always wear
personal protective equipment.
2. Ensure no personnel are in the manhole at the far end of the cable run. Severe personal
injury may result.
3. Never open the air chamber when pressurized.
4. Only authorized, fully trained personnel should operate the air compressor.
GENERAL ELECTRICAL SAFETY INSTRUCTIONS
The machine has electronic circuits. Observe the following precautions to avoid electrical
hazards:
1. Do not operate in water.
2. Do not expose the machine to rain.
3. Refer servicing to qualified service personnel.
Page 6
General Machine Products Co., Inc.
2. Critical points that dramatically affect the operation of the cable blowing
machine.
Pressure on the cable should be set as per the instructions.
Rollers to be closed at all times when cable is installed into machine.

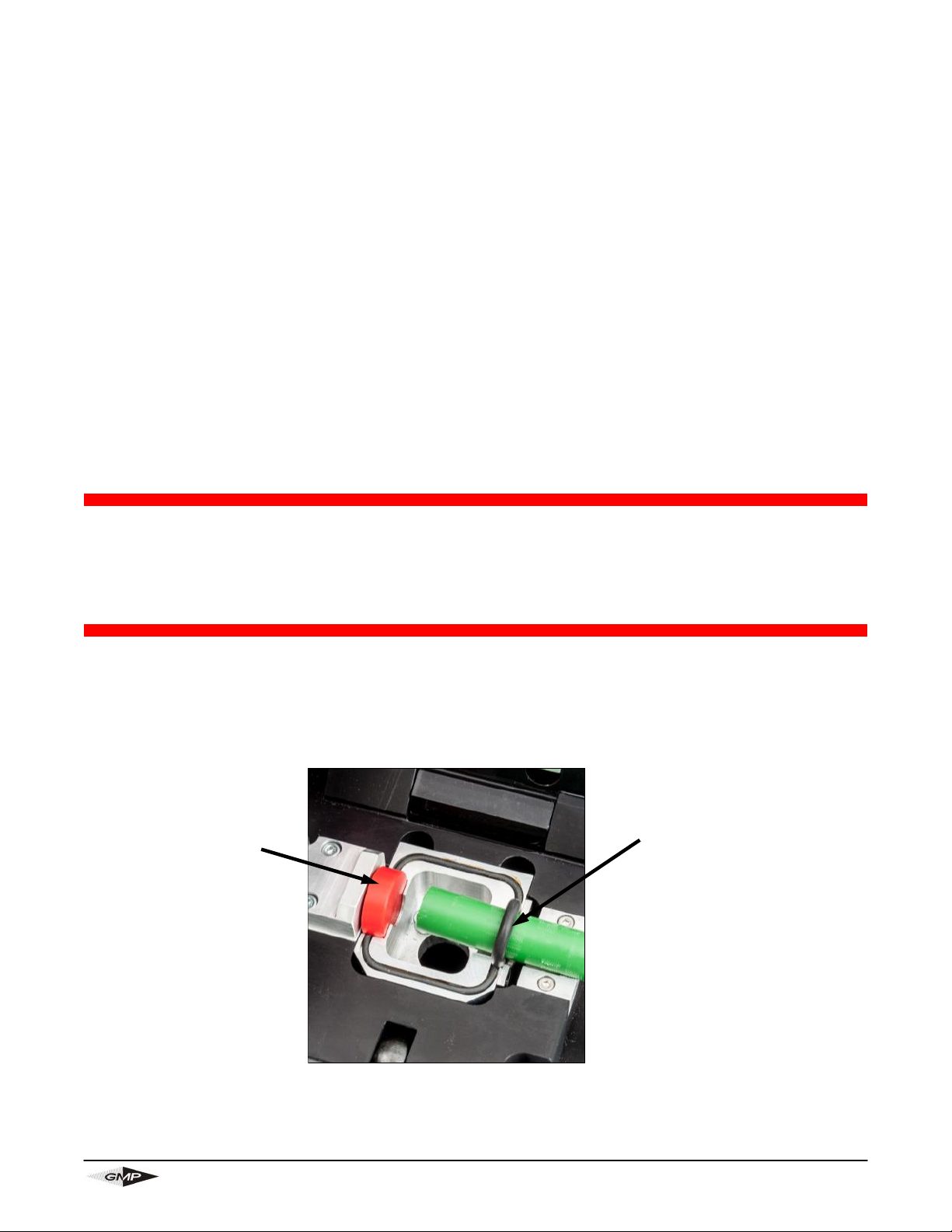

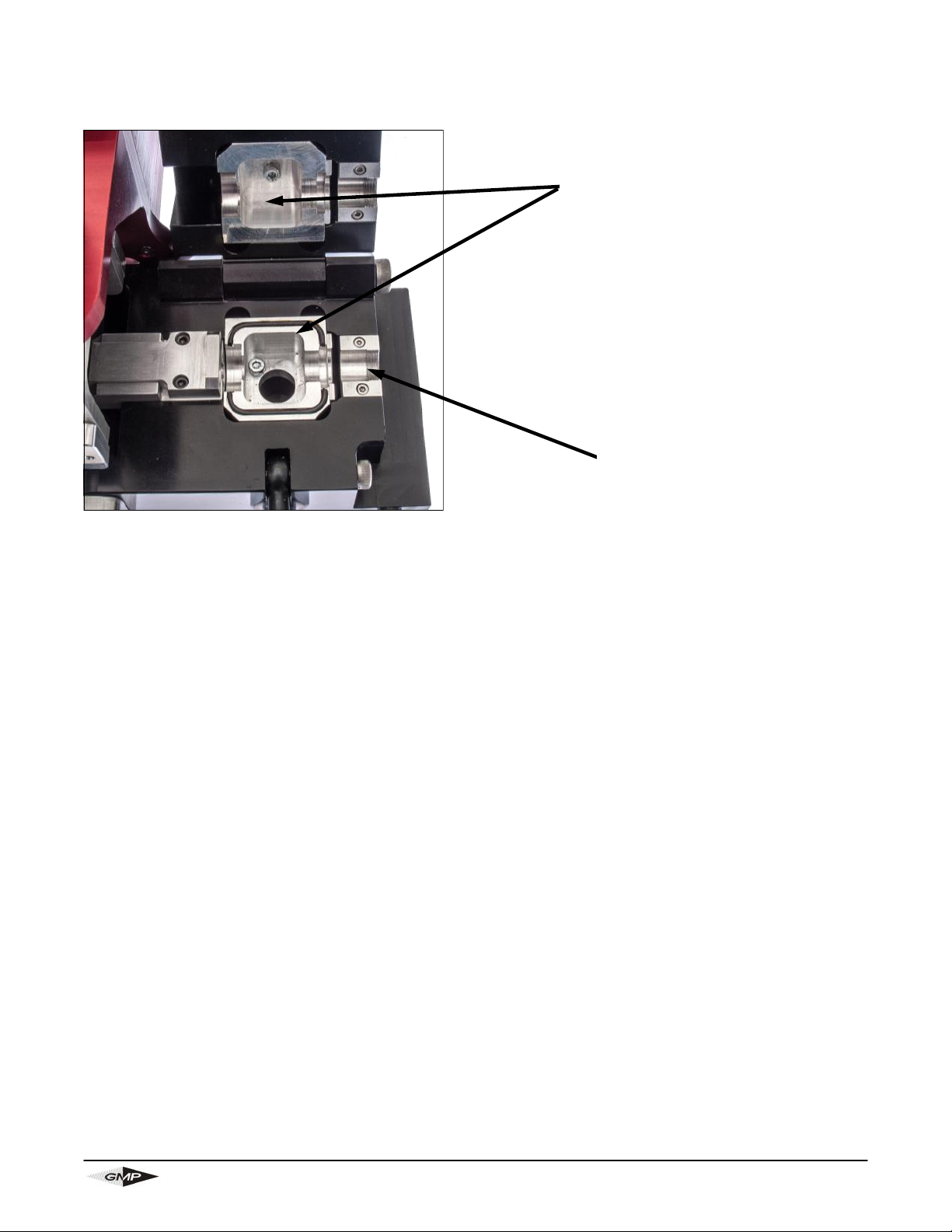

Cord seals in air chamber correctly fitted to provide good sealing.
Correct cable seal fitted.
Tube fully connected and pressure-tested.
Tube connecting fittings are suitable for operating at 220 PSI air pressure.
Tube clamp securely tightened.
Compressor capacity 220 PSI and suitable for size of tube being used.
Cable drum must be located directly behind and in line with the blowing machine.
Air chamber, drive rollers, cable guides, must be clean and free from debris, sludge, dirt,
water and lubricant.
The cable must be hand guided into the blowing machine through a dry clean cloth by the
operator wearing work gloves.
Ensure the compressed air supply is not applied to the cable until required amount of ca-
ble has been installed.

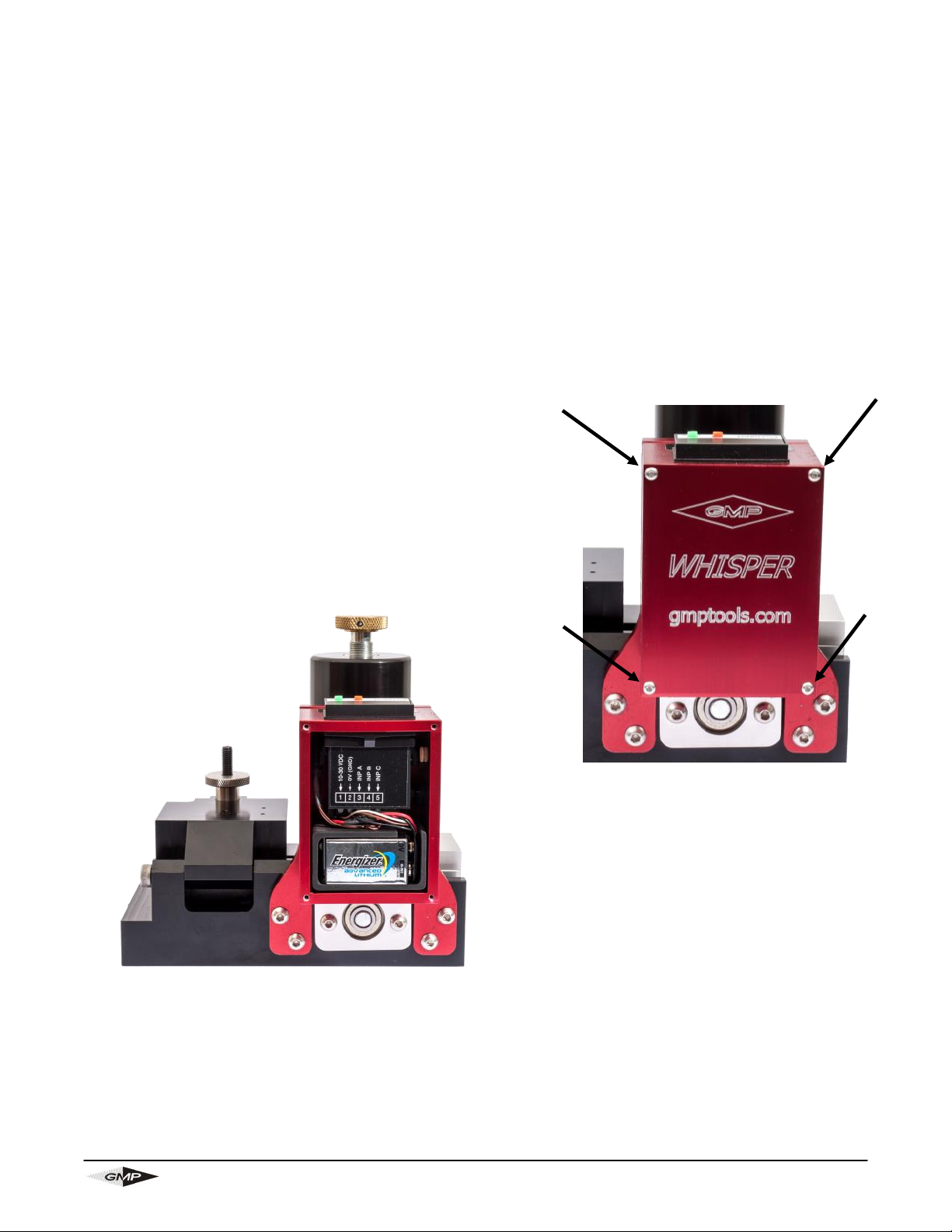

The counter/display is powered by (2) 9 volt batteries. To maximize battery life, turn dis-
play off by pressing power button on left side of display box when unit is not in use.
Page 7
General Machine Products Co., Inc.
DISCLAIMER
General Machine Products Co., Inc takes care in the design of its products to insure that the
cable is protected during installation. Due to the variety and different methods of cable manufacture the responsibility of checking the cable compatibility with the equipment lies with the
user. Therefore, GMP can not accept liability for any damage to the cable.
Page 8
General Machine Products Co., Inc.
3. GENERAL DESCRIPTION
The GMP Whisper Micro Cable Blowing Machine is
designed to install micro fiber cable into micro tubes.
The Whisper uses a user supplied variable speed drill
to drive a compliant roller.
The shaft is covered with a rubber roller to prevent
damage to the cable. The roller may be changed
quickly using one simple tool.
The pressure the rollers apply to the cable is adjusta-
ble.
A full range of accessories is available to allow the
machine to handle a wide range of cables and micro
tubes.
The Whisper may be placed on a stand or on the optional tripod kit to bring the cable to a suitable height. The Whisper is supplied with a reinforced soft case which will protect the ma-
chine from damage during transit and storage.
Page 9
On left is the Whisper assembled for a
typical blowing operation. Shown is the
unit with the optional Tripod Mounting Kit
(P/N 89945) and a user supplied variable
speed drill.
General Machine Products Co., Inc.
4. SPECIFICATIONS
Cable size:
Tube size: (OD)
Cable speed:
Maximum air pressure:
Power requirements:
Weight
Dimensions (ht x length x width)
0.08” to 0.335” 2.0 to 8.5 mm
0.158” to 0.709” 4 to 18 mm
0-300 ft/min 0-90 m/min
220 psi. 15 bar.
Variable Speed Drill
with adjustable torque
(not included)
12 lbs. approx. 5.4Kgs approx.
8.5” x 9.7” x 8.1” 216mm x 246mm x 206mm
Page 10
General Machine Products Co., Inc.
