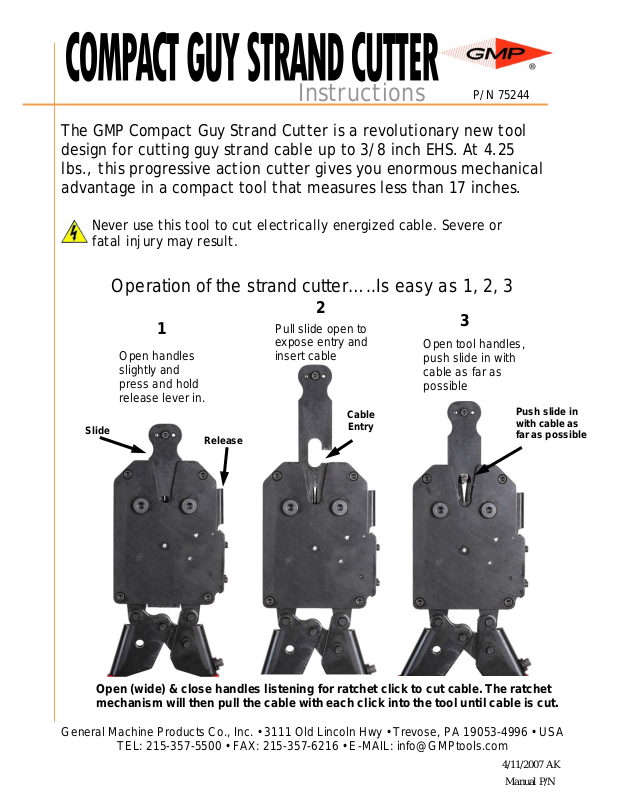

General Machine Products 75244 User Manual

Instructions

P/N 75244

The GMP Compact Guy Strand Cutter is a revolutionary new tool
design for cutting guy strand cable up to 3/8 inch EHS. At 4.25
lbs., this progressive action cutter gives you enormous mechanical
advantage in a compact tool that measures less than 17 inches.

Never use this tool to cut electrically energized cable. Severe or
fatal injury may result.

Operation of the strand cutter…..Is easy as 1, 2, 3

2

3

Push slide in
with cable as
far as possible

Slide

1

Open handles
slightly and
press and hold
release lever in.

Release

Pull slide open to
expose entry and
insert cable

Cable

Entry

Open tool handles,
push slide in with
cable as far as
possible

Open (wide) & close handles listening for ratchet click to cut cable. The ratchet
mechanism will then pull the cable with each click into the tool until cable is cut.

General Machine Products Co., Inc. • 3111 Old Lincoln Hwy • Trevose, PA 19053-4996 • USA

TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail]

4/11/2007 AK
