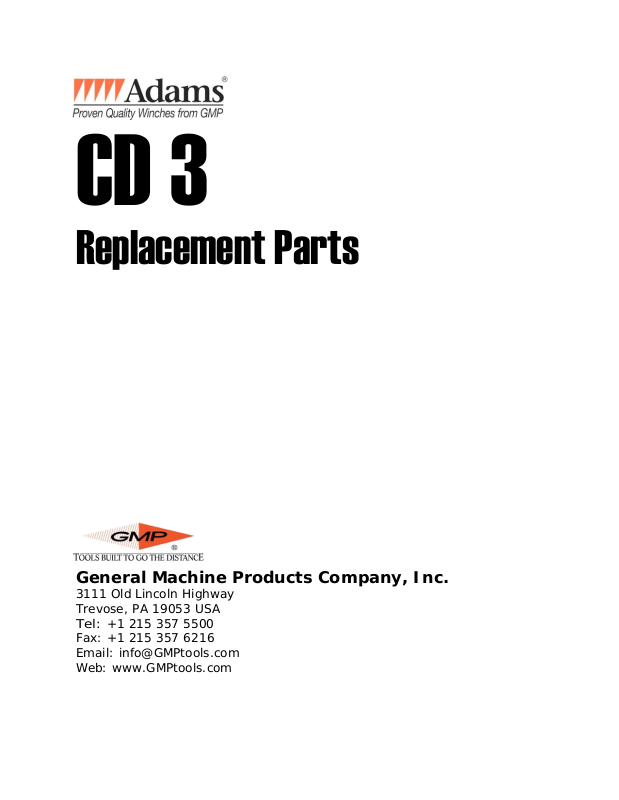

General Machine Products 70524 User Manual

CD 3

Replacement Parts

General Machine Products Company, Inc.

3111 Old Lincoln Highway
Trevose, PA 19053 USA
Tel:
Fax: [phone]
Email: [e-mail]
Web: www.GMPtools.com

[phone]

CD3 Main Gear Box Parts Identification

14863 (1) HELICAL GEAR

26278 (20)

# 10 SCREW

26059 (1) HELICAL

GEAR 1.75 WIDE

26060 (1) HELICAL

GEAR 1.25 WIDE

24119 (2)

BEARING CAP

26277 (1)

VENT

26082 (1)

SEAL CR 27625

26064 (2)

BEARING CAP

25977 (1) GEAR BOX

26161 (2)

O RING PLUG

25988 (1) SHAFT

IDLER 2"

26163 (1)

SIGHT WINDOW

25990 (1) SHAFT

IDLER 2.75"

26182 (1) COVER

26072 (1)

PINION

17540 (20)

1/2” SCREW

14861 (2)

THRUST WASHER

25997 (1)

BEARING 6310

16601 (2)

BEARING MI-44

16599 (2)

RETAINING
RING 5100-275

26098 (1)

BEARING 6310-RS1

26096 (2)

BEARING MR-52

26083 (2)

RETAINING
RING 5000-425

26081 (1)

RETAINING
RING 5000-433

26084 (2)

BEARING 72200C

16625 (2)

BEARING 49585

General Machine Products Co., Inc. • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA

25991 (1)

SPACER 4.140 LONG

26122(AR)

SHIM .020

26123(AR)

SHIM .005

26085 (1)

BEARING 72487

25989 (1)

SPACER 2.437 LONG

16620(AR)

SHIM .020

16622(AR)

SHIM .005

16626 (2)

BEARING 49520

Note:

Photos are not depicted to scale.
Quantity used are in parentheses.

TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail]

CD3 Winch Drum Area Parts Identification

26169 (2) 9/16
26257 (2) 1/2
26258 (2) 7/16
26259 (2) 3/8

WASHER ROPE
CLAMP

26172 (2)

CLAMP SCREW

26170 (1) DRUM ASSEMBLY

SLEEVE BUSHINGS

(INCLUDES 25820)

28460 (1) DRUM ASSEMBLY

BALL BEARING

(INCLUDES 25820)

26086 (1) OVERWIND
30593 (1) UNDERWIND

RETAINING RING

26078 (1) DRUM SHAFT FOR SLEEVE BUSHINGS

25820 (6) CLUTCH

DRIVE BOLT

INTERNAL WASHER (1 EACH)
.437 .405

BUSHING
BEARING

17918 (2)

BUSHING

26118 27449
28457 28366

26706 (2) DRUM

BALL BEARING

25828 (1)

CALIPER RING

26117 (1)

EXT. WASHER

28459 (1) DRUM SHAFT FOR BALL BEARING

28458 (2)

BEARING
SPACER

25827 (1)

SPROCKET

25654 (2)

FITTING LEFT

25817 (1) CLUTCH

PLATE

25658 (2)

FITTING RIGHT

26099 (1)

FAILSAFE BRAKE

25363 (3) SHUTTLE

CARTRIDGE

27044 (3)

1/8 NPT PLUG

26262 (1) DRUM

GUARD GEARBOX
SIDE

26100 (1) MOTOR

26281 (1) SHUTTLE

VALVE BLOCK

26105 (4) CROSS BAR 24”

26263 (1) DRUM

GUARD HANGER
SIDE

26534 (1)

BRACKET

25369 (5) 15-1/2

HOSE ASSEMBLY

26268 (1)

STUD

26157 (4) STUD

26265 (1)

GUARD BKT

26264 (2)

GUARD BKT

25695 (2)

FITTING 45°

26159 (4)

1/2x20 GR8

17683 (2)

3/8-16X5/8 SS
HEX BOLT

25365 (8)

FITTING 90°

25453 (6)

SCREW

17591 (1)

1/2x20

26097 (15)

SAFETY WA

26256 (1)

MOTOR BKT

26033 (6)

SCREW

09324 (6)

LOCK WA

16068 (1)

1/2X13

26094 (2) CROSS MEMBER

Note:

Photos are not depicted to scale.
Quantity used are in parentheses.

16967 (16)

1/2-20X1 1/4

16635 (8)

1/2-20-1 1/2

09794 (1)

FLAT WA

General Machine Products Co., Inc. • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA

TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail]

CD3 Hanger Area Parts Identification

25677 (1) AIR CYLINDER
27447 (1) BRACKET
03343 (4) SCREWS

26088 (1) HANGER

BEARING SB-22213SS

25984 (1) HANGER

27337 (6) BARB
27443 (3) ELBOW
27444 (3) ADAPTOR

16670 (1) RETANING

RING 5000-475

26087 (1) RING

RSN-255

25675 (1) REGULATOR

25690 (2)

8-32X1.5 SCREW

25767 (1) STUD

26858 (1) SENSOR

(OPTIONAL)

25626 (1) ELBOW
95039 (1) STEM
95044 (1) CAP

25333 (1) 1/2-20

LOCK NUT

26243 (1) SHIFTER

FORK

25332 (2) 1/4-20

LOCK NUT

25601 (2) BEARING

CF-5/8-S

17134 (1) CALIPER

BRAKE 02-515-025 (BRAKE FLUID)

27433 (1) CALIPER

BRAKE 02-515-030 (HYDRAULIC OIL)

09043 (2) NUT

5/8-18

09035 (2) SCREW
03267 (2) WASHER
17520 (2) FLAT WA

25634 (1) TERMINAL

STRIP

25868 (1) TERMINAL

STRIP (OPTIONAL)

25678 (1) VALVE
25691 (2) SCREW
03260 (2) LOCK WA

032 93

25612 (AR) 1/4” TUBE

General Machine Products Co., Inc. • 3111 Old Lincoln Hwy • Trevose, PA 19053 • USA

26199 (2) CALIPER BRAKE STUD

26874 (3) BOLT

1/4-20-1/2

27432 (1) COVER

Note:

Photos are not depicted to scale.
Quantity used are in parentheses.

TEL: [phone] • FAX: [phone] • E-MAIL: [e-mail]

CD3 Accessory Parts

26186 (1) MOUNTING BRACKET 26092 (1) MOUNTING BRACKET

OTHER MOUNTING BRACKET CONFIGURATIONS AVAILABLE

26283 (1) BOLT KIT

(20) 5/8-18X2 GRADE 8 BOLTS
(20) 5/8-18 GRADE 8 NUTS
(20) 5/8 MED LOCK WASHER

26270 (2)

BACKUP PLATE

25801 (3)

BACKUP PLATE

17137 (1) HOSE

17135 (1) ACTUATOR

02-460-093 (BRAKE FLUID)

27434 (1) ACTUATOR

03-460-028 (HYDRUALIC OIL)

26279 (4)

SAFETY WA

26280 (4)

1-8X2 3/4 BOLT

26808 (8)

SAFETY WA

DRUM SHAFT EXT.

CALL FACTORY FOR
PROPER SIZING

ALSO CONTAINS 15694 PIN
ASSEMBLY AND 15992
SPINDLE PIN

17136 (1) RESERVOIR

25807 (8)

3/4-10X2 3/4 BOLT

26294 (1) CONTROL VALVE

Note:

Photos are not depicted to scale.
Quantity used are in parentheses.
