Page 1
Copyright © 2014 ikeGPS
MapSight OS version 5.25 (Jan 2014)
MS-101-15-01-1.0
user manual
MapSight
! !
Thank you for purchasing this GE product.
In keeping with the GE ecomagination initiative, please consider the option to recycle
the packaging material and donate or recycle any product you are no longer using.
To read more about GE’s ecomagination commitment, visit:
www.ge.com/ecomagination
Page 2
!
620-02780 – GE MapSight User Manual
MS-101-14-12-34.0
!
MapSight™ is a trademark of General Electric Company.
ActiveSync, Excel, Internet Explorer, Microsoft, Outlook, PowerPoint, Visual Studio, Windows, Windows
Media, Windows Mobile, Windows Mobile Device Center, Windows XP, Windows Vista, Windows 7,
and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
The Bluetooth® word mark is owned by the Bluetooth SIG, Inc. and any use of such marks by
ikeGPS Ltd. is under license.
Acrobat and Reader are registered trademarks of Adobe Systems Incorporated in the United
States and/or other countries.
The names of actual companies and products mentioned herein may be the trademarks of
their respective owners.
Copyright © ike
GPS
. All rights reserved.
Customer Assistance
For customer assistance, visit our webpage www.gemapsight.com/support
About this User Manual
This User Manual provides a combined reference for the use of MapSight OS and its associated
features on MapSight products and Windows Mobile 6 operating system that is pre-installed on these
devices.
Note: This document has been optimized for A5 booklet printing. Any blank pages are
intentionally inserted to allow ideal back-to-back printing or relevant pages.
Notes on Text:
WARNING! Text set off in this manner indicates that failure to follow directions could
result in user injury or unexpected data results.
CAUTION: Text set off in this manner indicates that failure to follow directions could
result in damage to equipment or loss of information.
Note: Text set off in this manner (with the finger indicator) indicates information that
may be useful to the operation of your MapSight unit.
Page 3
!
620-02780 – GE MapSight User Manual
MS-101-14-12-34.0
!
WARNING! This device contains an eye safe Class 1 laser product. Invisible laser
radiation is emitted from (and received into) the front apertures. Avoid staring into the
laser beam. This product complies with 21CFR1040.10 and IEC60825-1:200.
WARNING! The MapSight unit contains a magnetic compass. Using the unit near
magnetic (e.g. objects containing ferrous substances) or electromagnetic fields (e.g.
electrical wires) may cause the compass bearing to be inaccurate.
Laser radiation emits
from this aperture.
Magnetic compass
located here.
Page 4
!
620-02780 – GE MapSight User Manual
MS-101-14-12-34.0
!
THIS PAGE INTENTIONALLY BLANK
Page 5
!
MapSight!User!Manual! Page!1! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Contents
Introduction!................................................................................................................................................!5!
Welcome to MapSight!............................................................................................................................!5!
Getting Started!........................................................................................................................................!6!
What’s in the box?!..............................................................................................................................!6!
Essential Accessories!..........................................................................................................................!6 !
Field Accessories!.................................................................................................................................!6!
Anatomy of the MapSight unit!...........................................................................................................!9!
MapSight Software and Licensing!...................................................................................................!11!
Turning your MapSight on for the first time!....................................................................................! 11!
Home screen and control buttons!...................................................................................................!13!
Before field use!.................................................................................................................................!14!
MapSight Data Capture Application!........................................................................................................!25!
Starting the MapSight application!.......................................................................................................!25!
MapSight Home screen!........................................................................................................................!26!
Viewing and changing the Settings!.....................................................................................................!26!

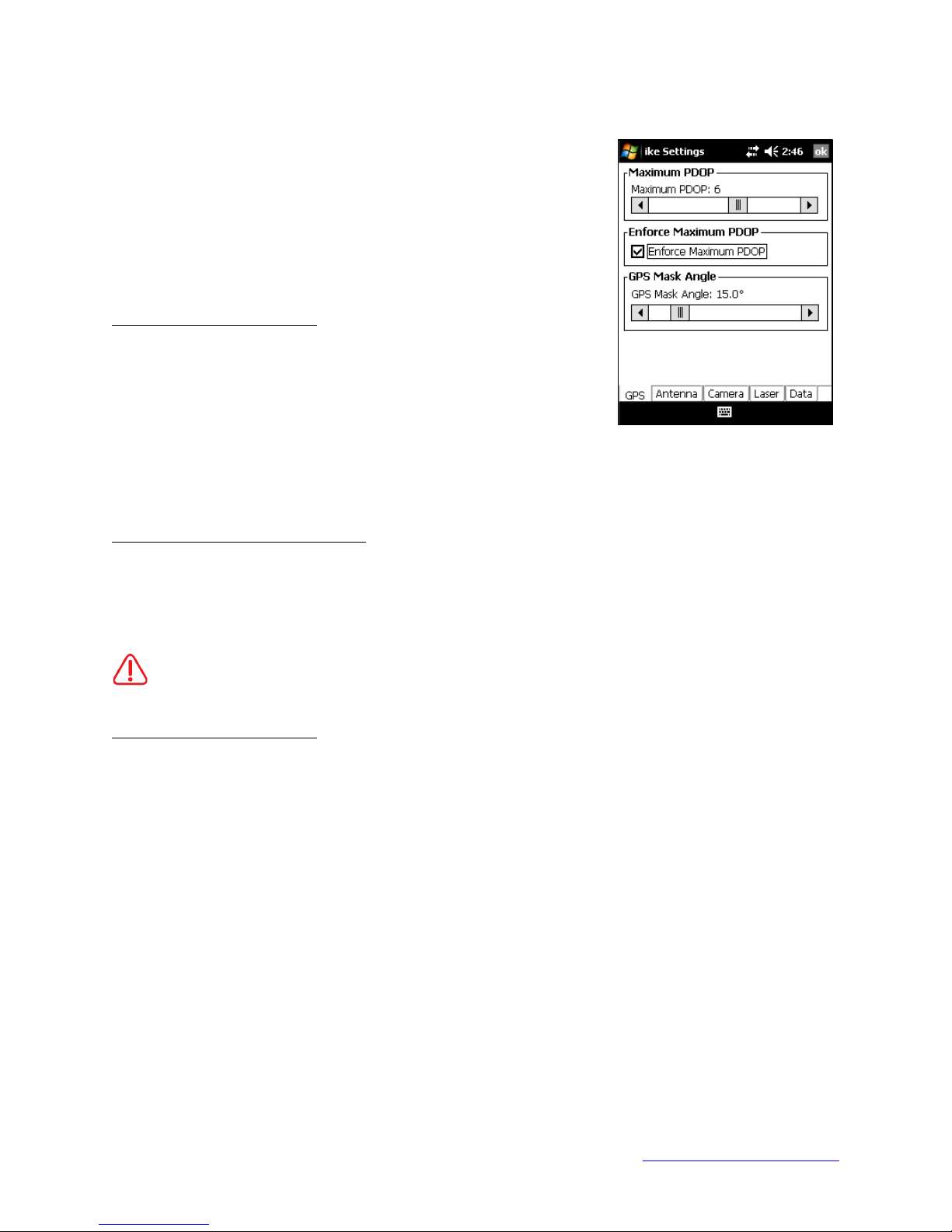

GPS Settings!......................................................................................................................................!27!

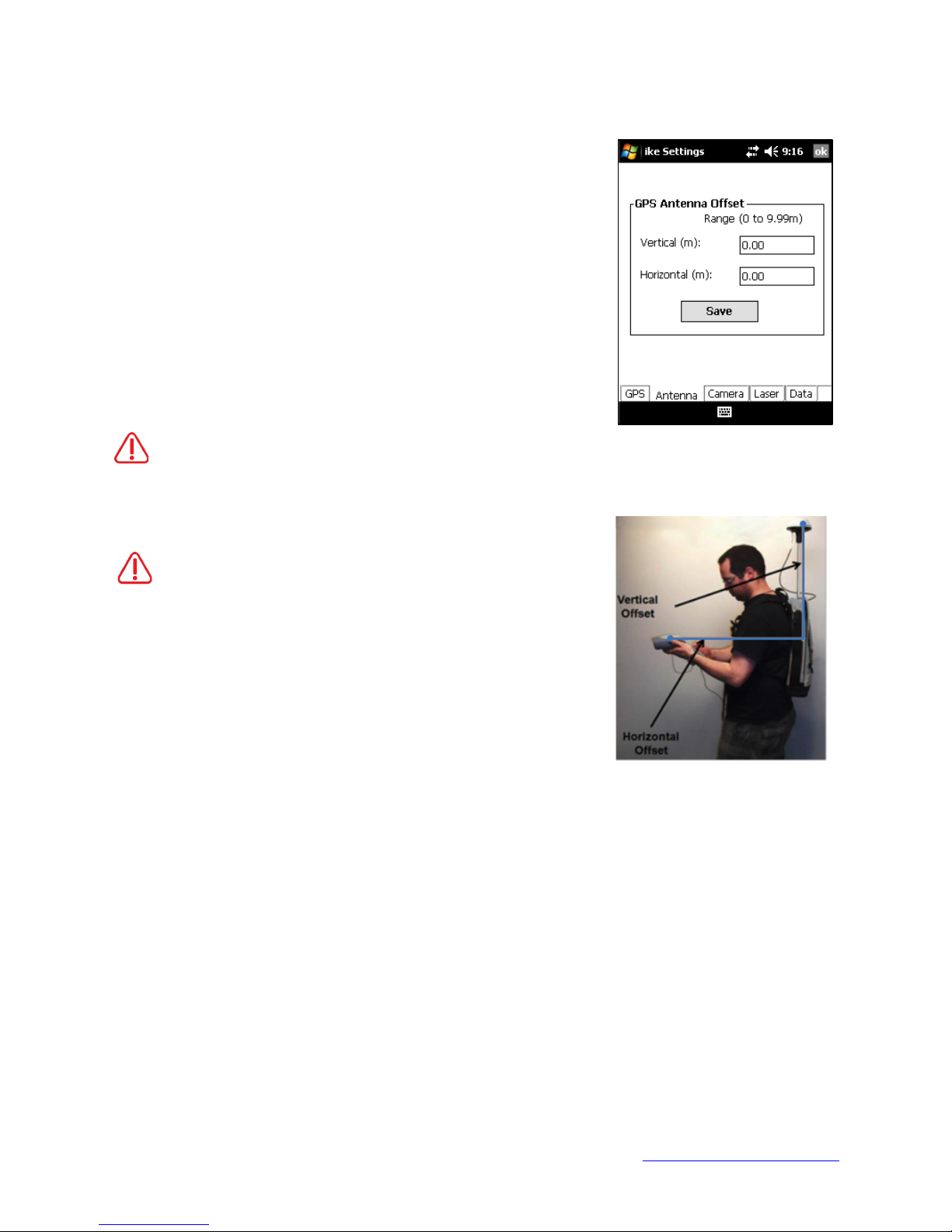

Antenna Settings!..............................................................................................................................!29!

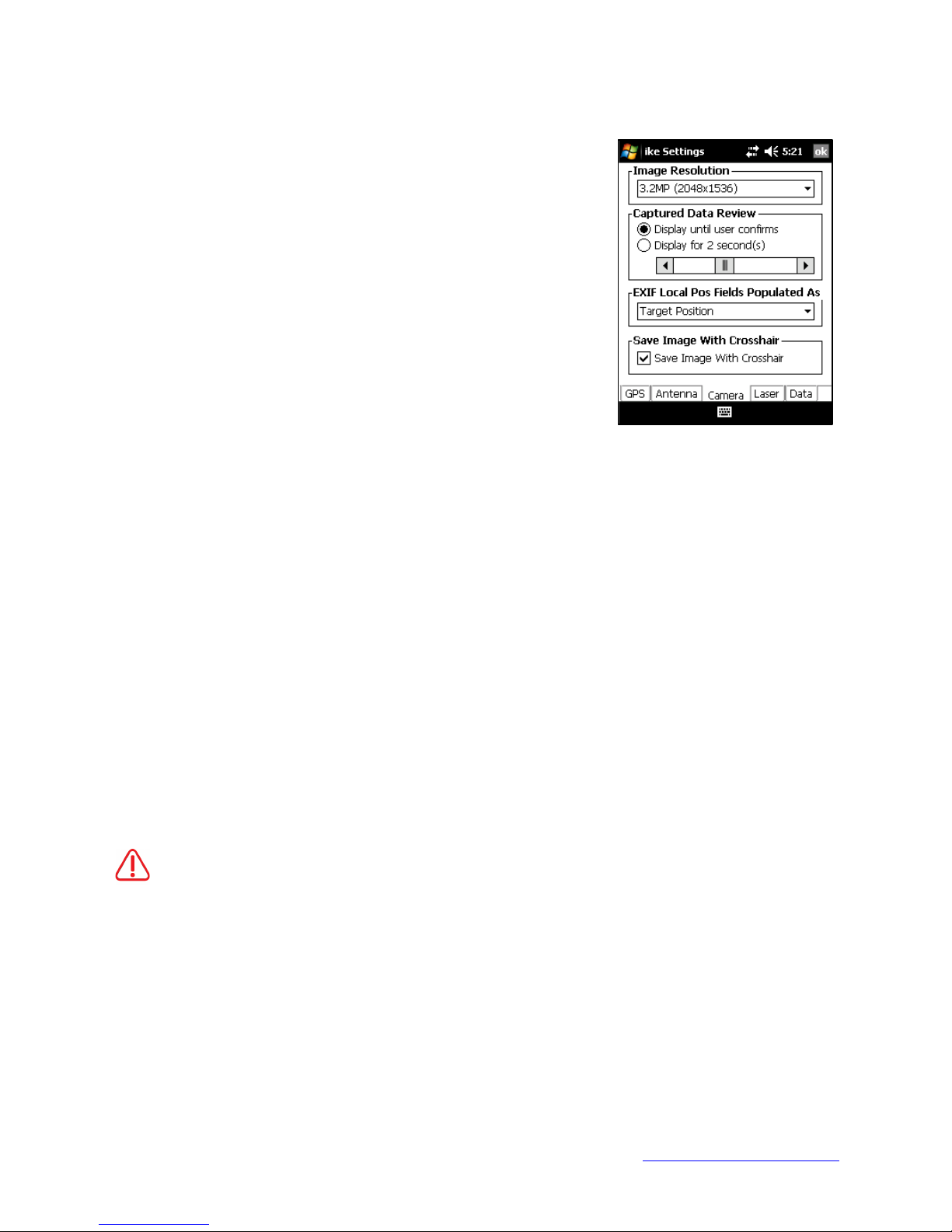

Camera Settings!...............................................................................................................................!30!

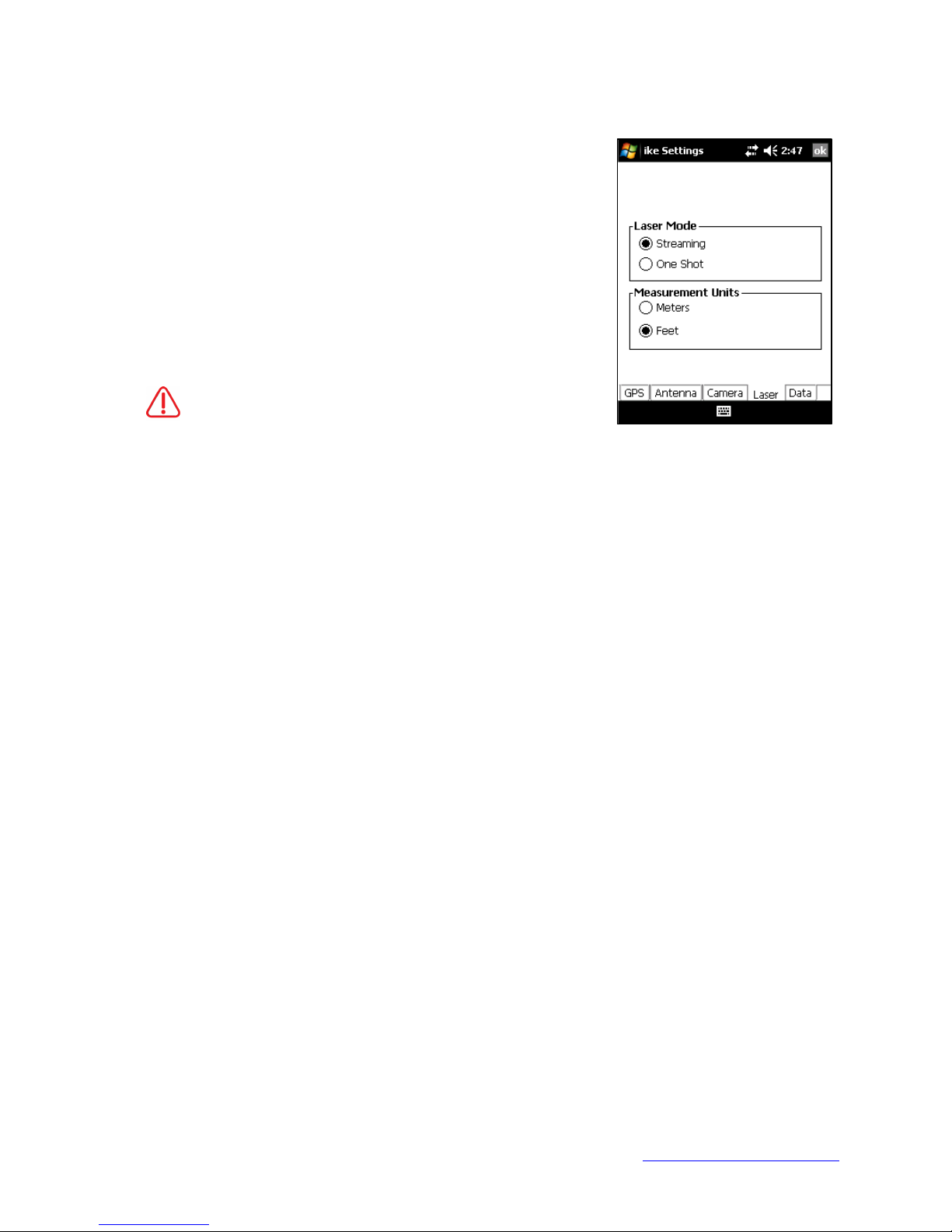

Laser Settings!...................................................................................................................................!31!

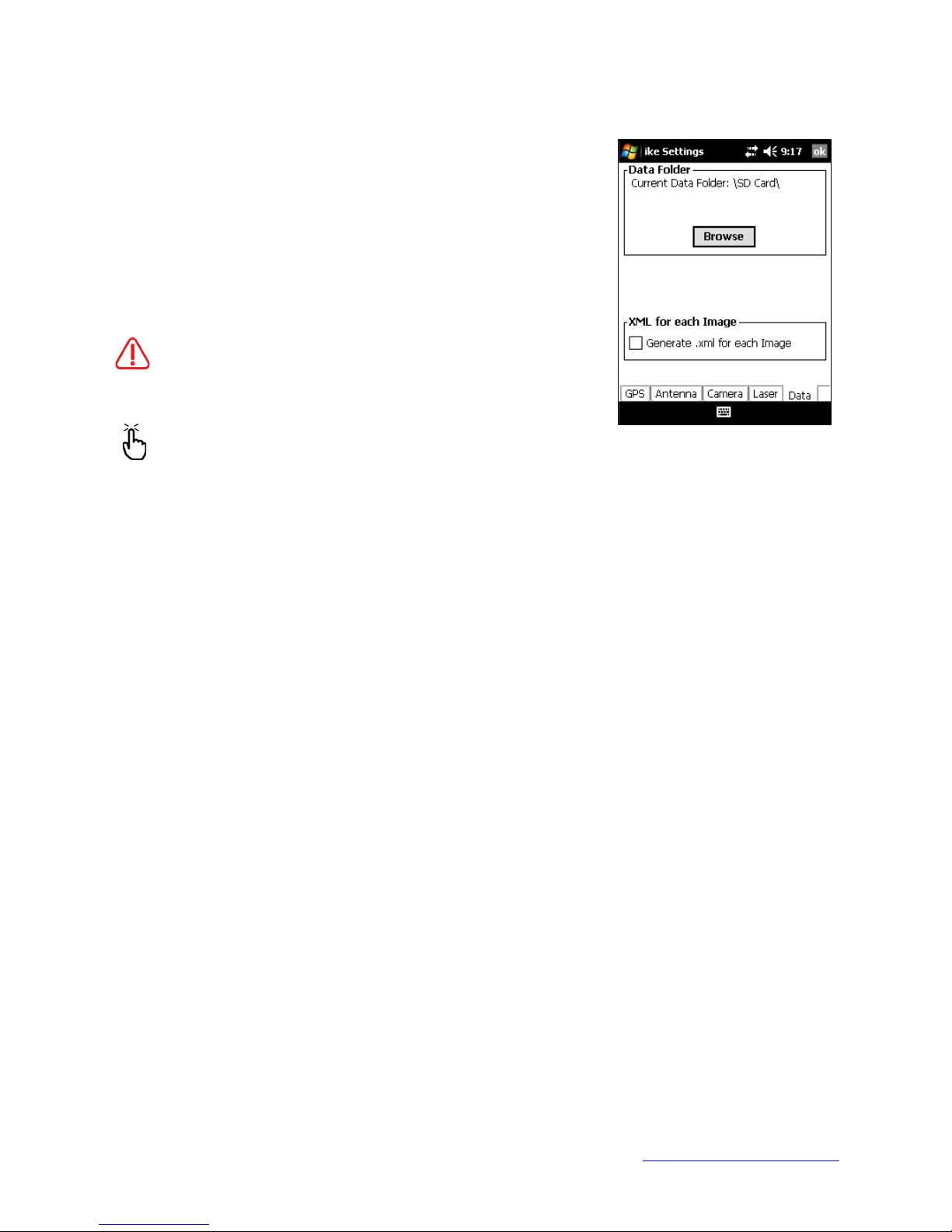

Data Settings!....................................................................................................................................!32!

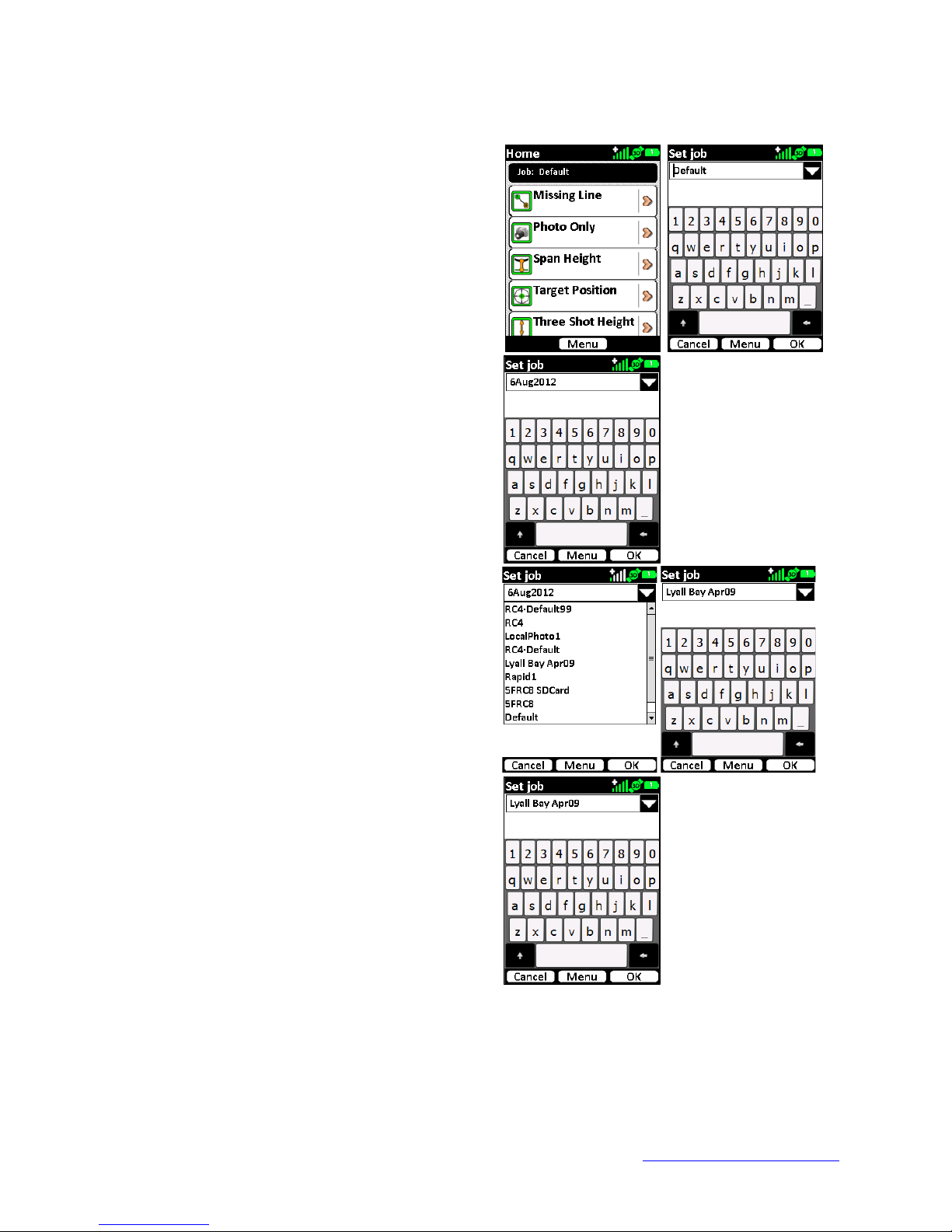

Changing the ‘Default’ Job name!.........................................................................................................!33!

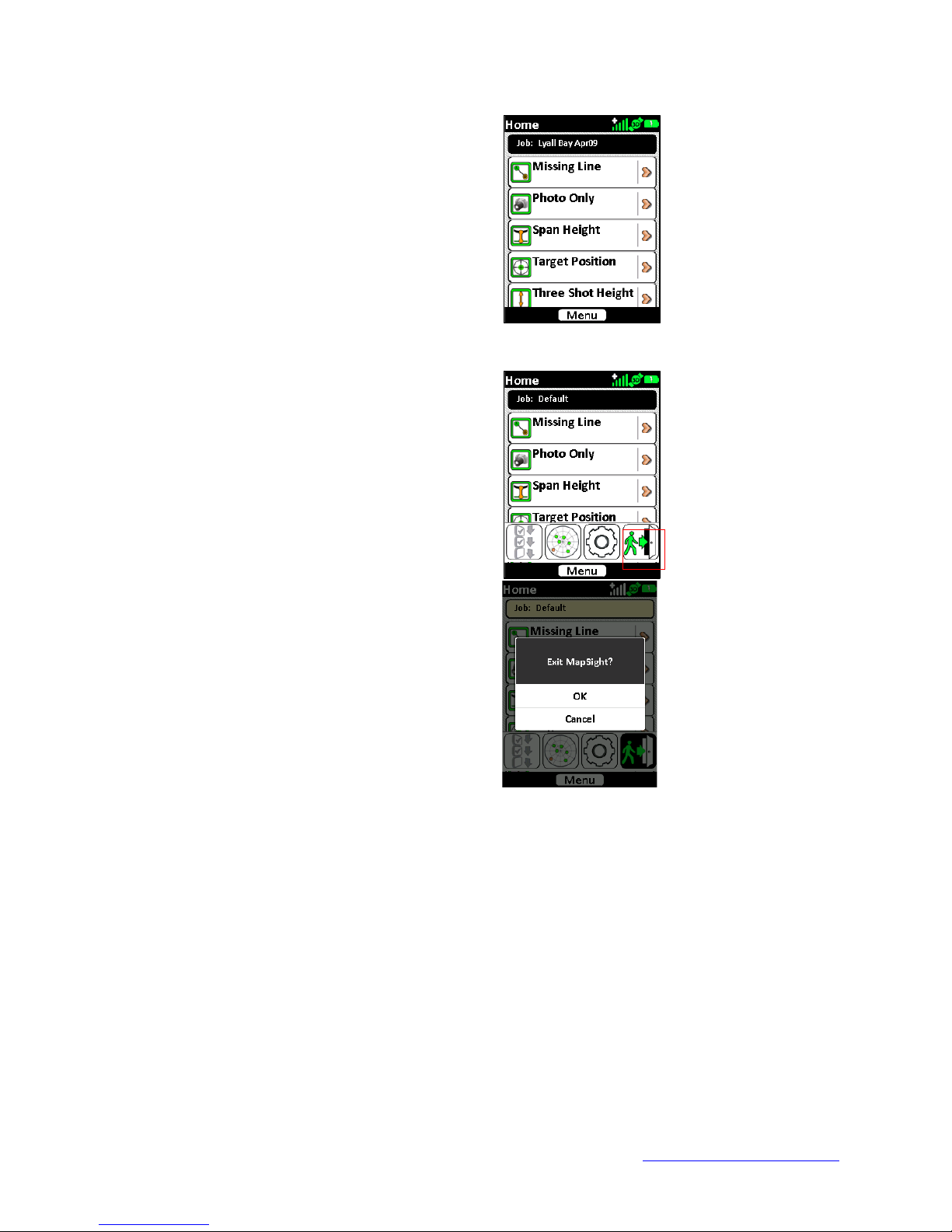

Exiting the MapSight application!.........................................................................................................!34!
MapSight Tools!......................................................................................................................................!35!
Introduction!.......................................................................................................................................!35!

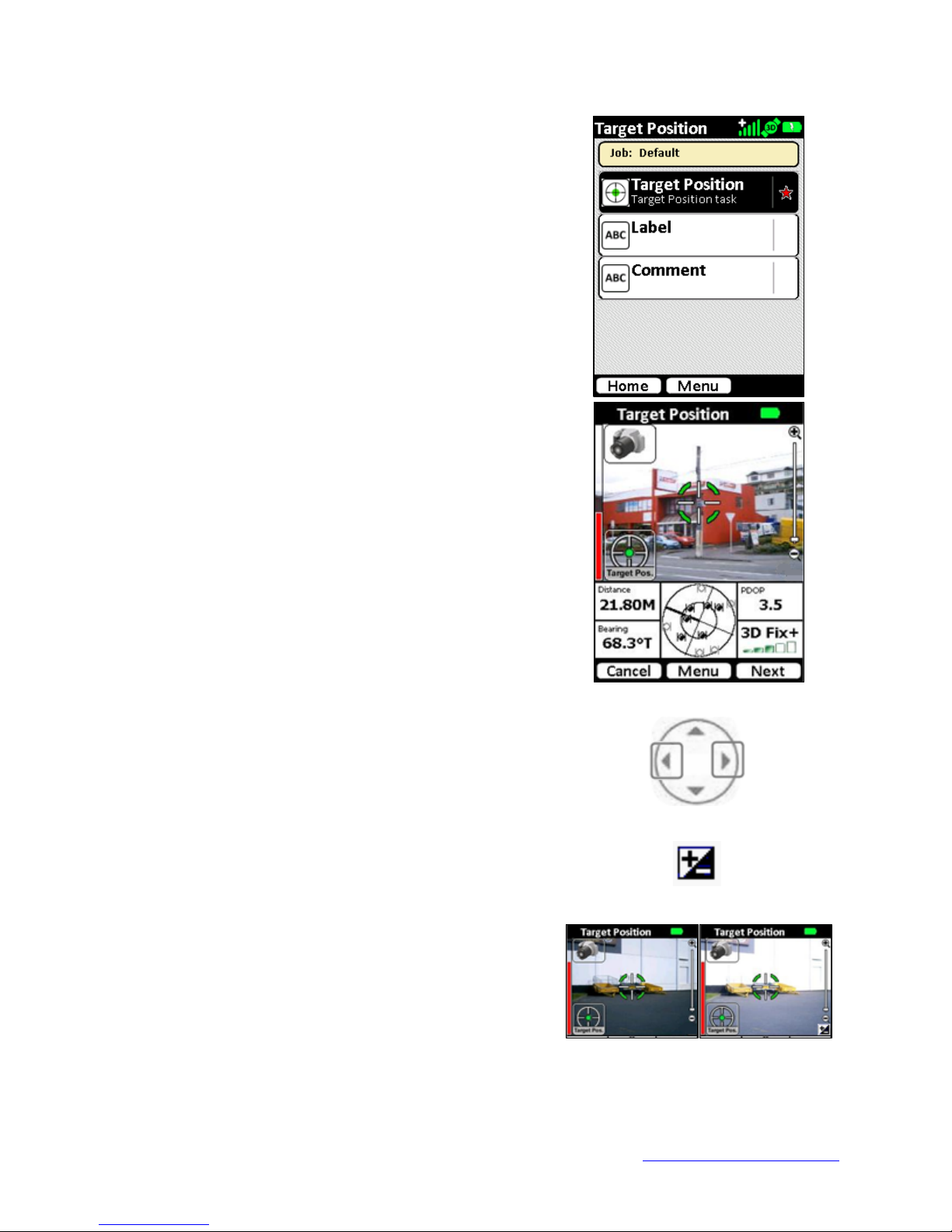

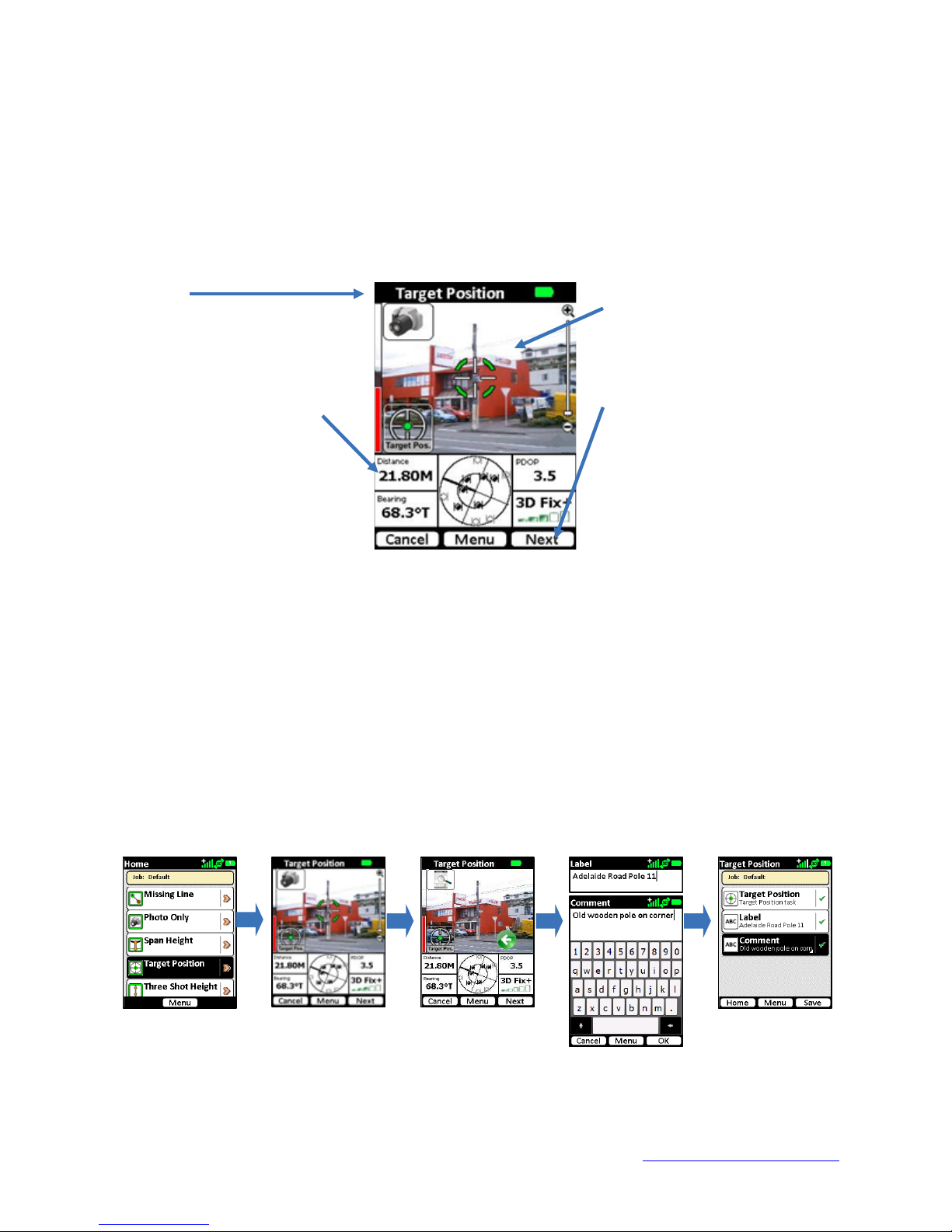

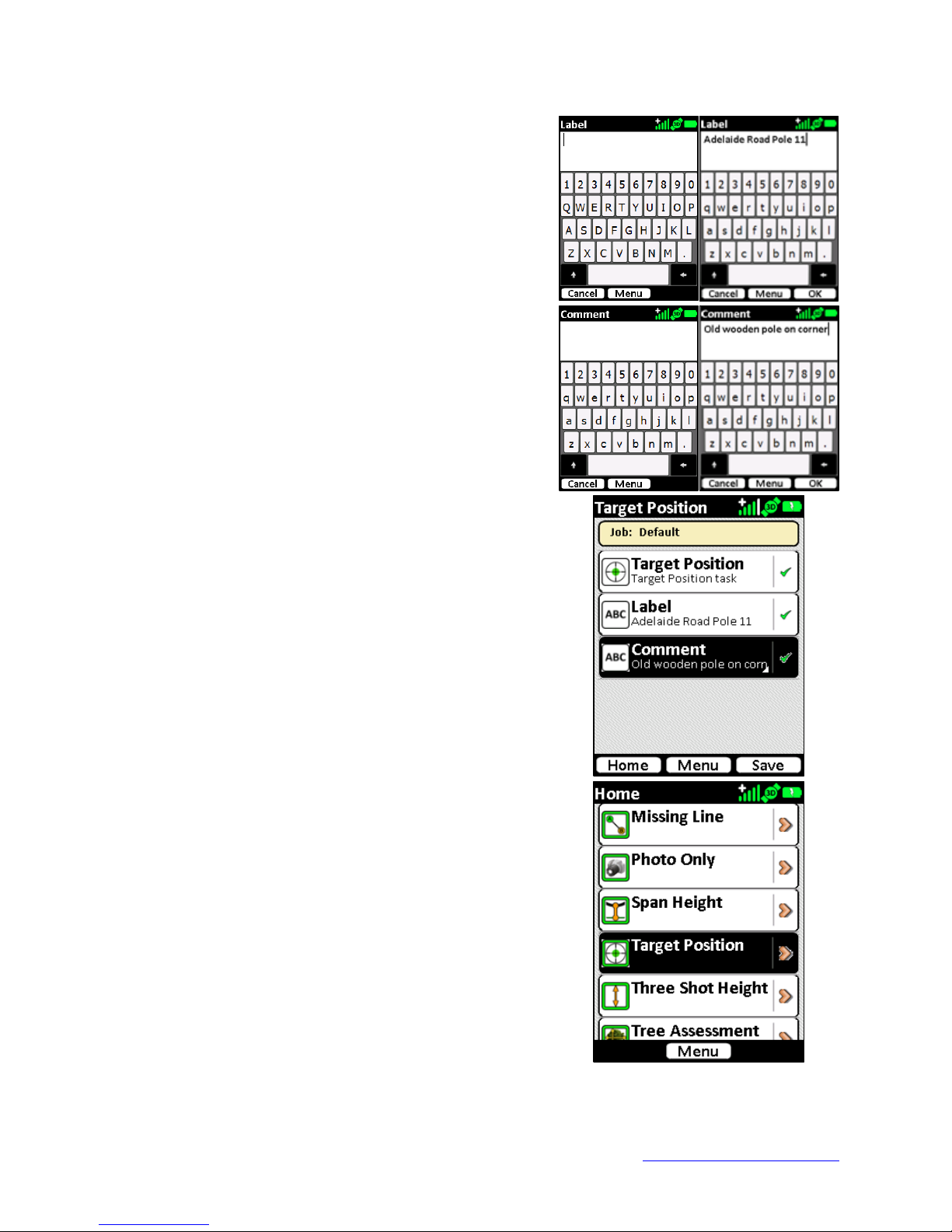

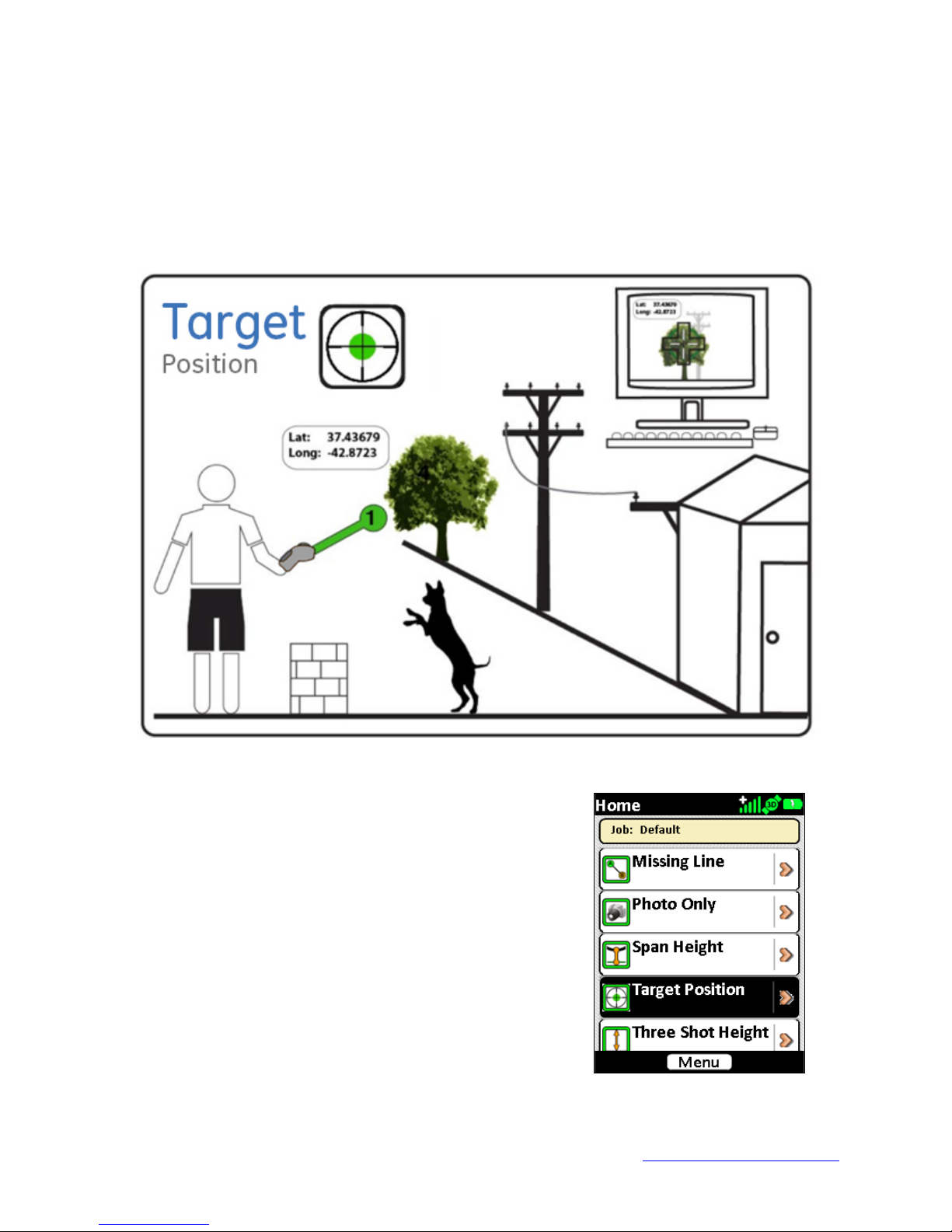

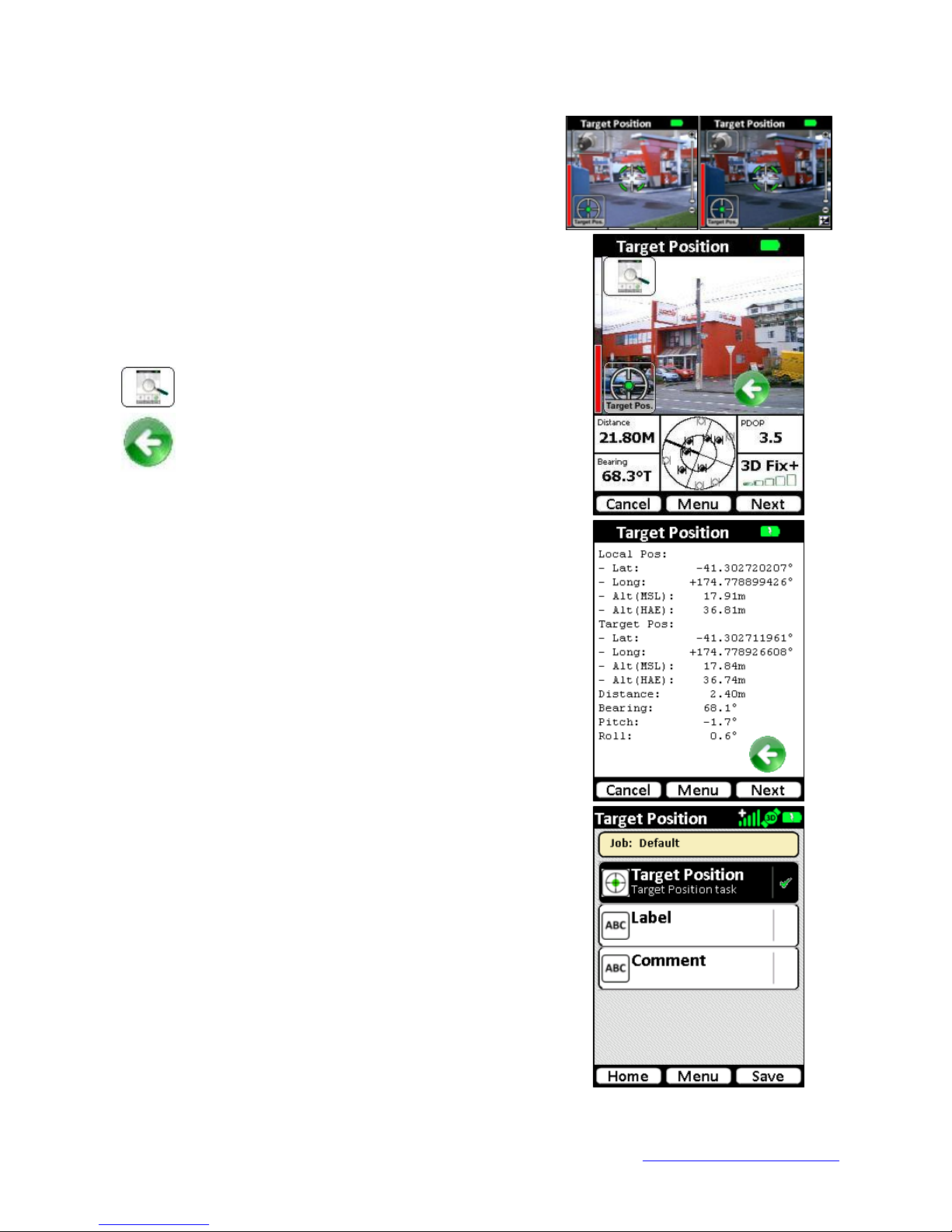

Target Position!..................................................................................................................................!36!

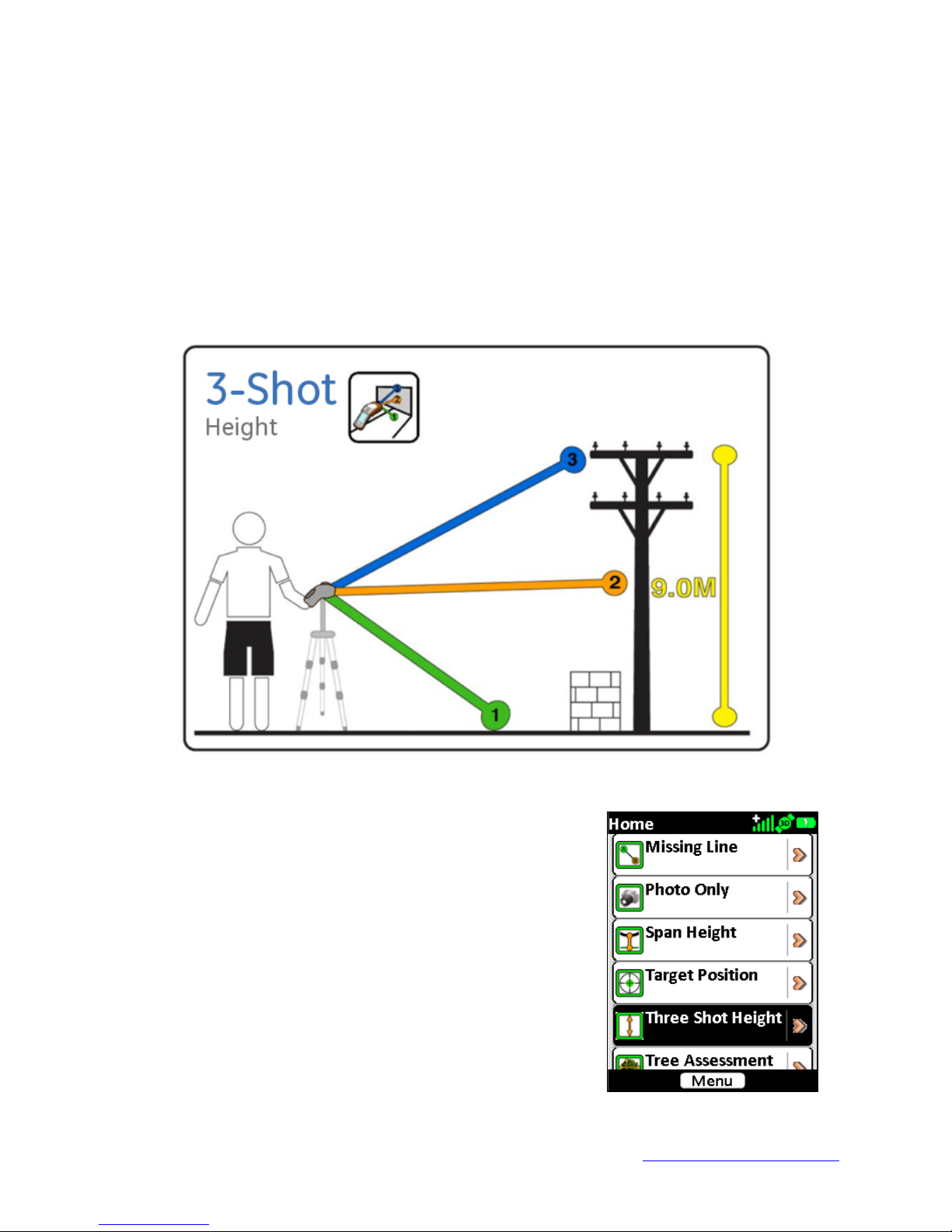

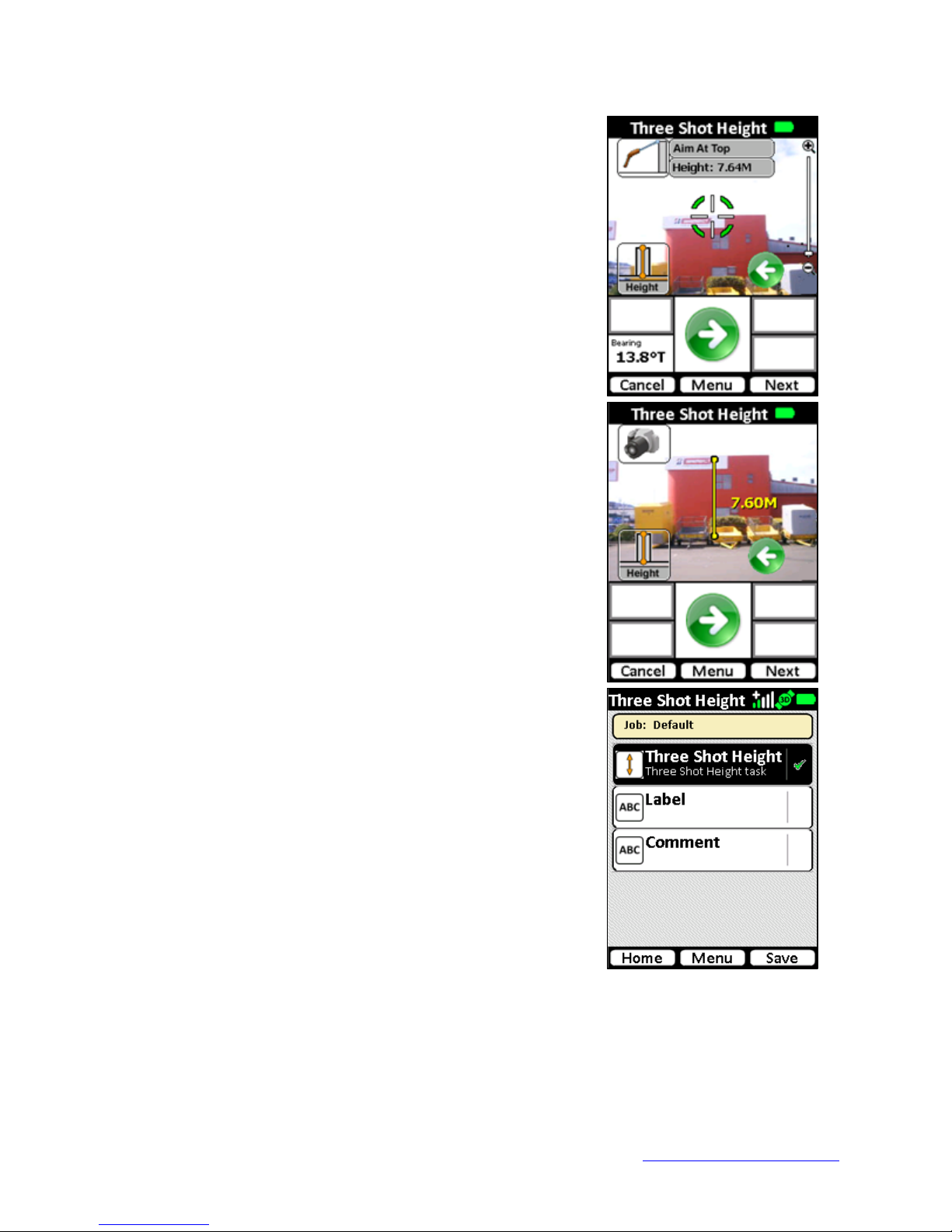

3-Shot Height!....................................................................................................................................! 40!
Missing Line!.......................................................................................................................................!43!

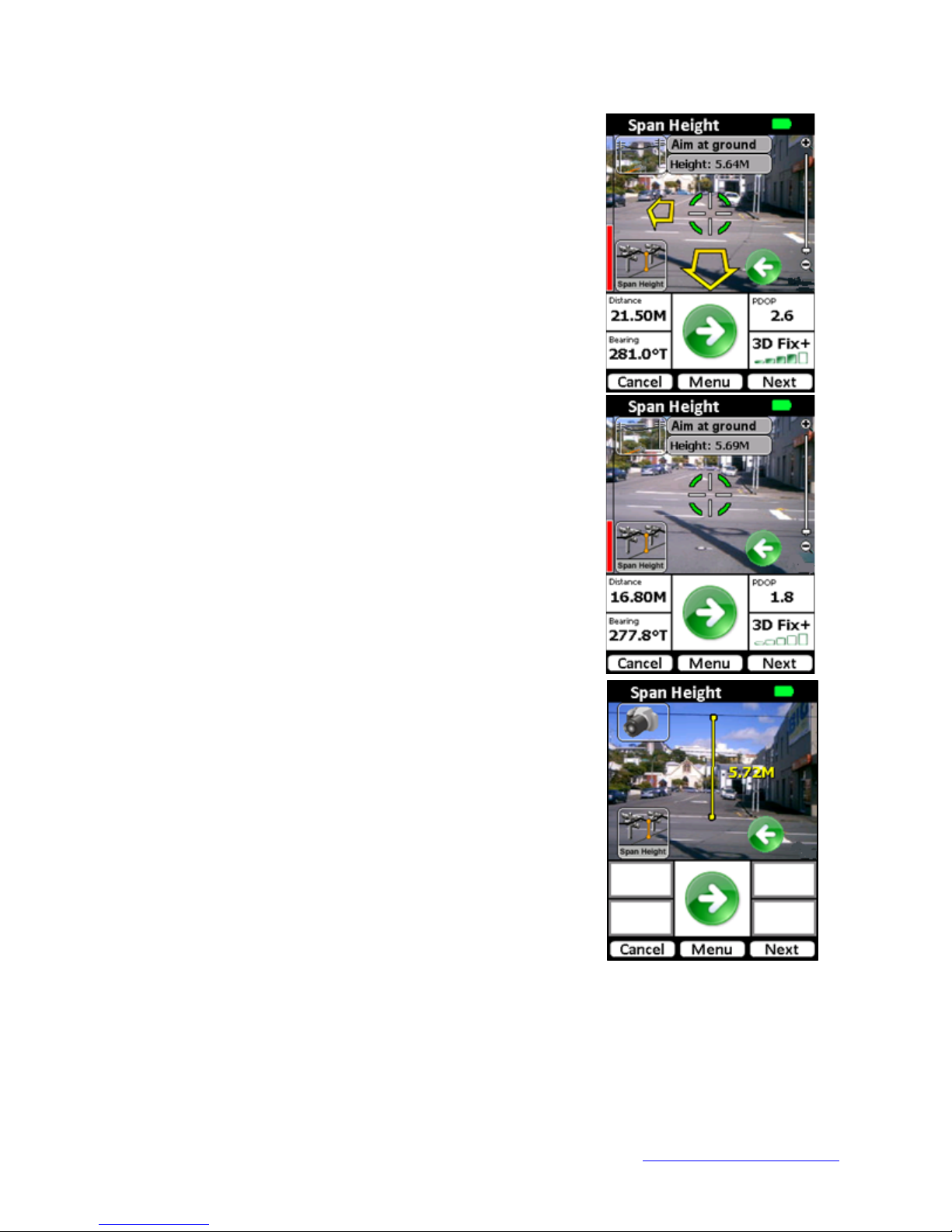

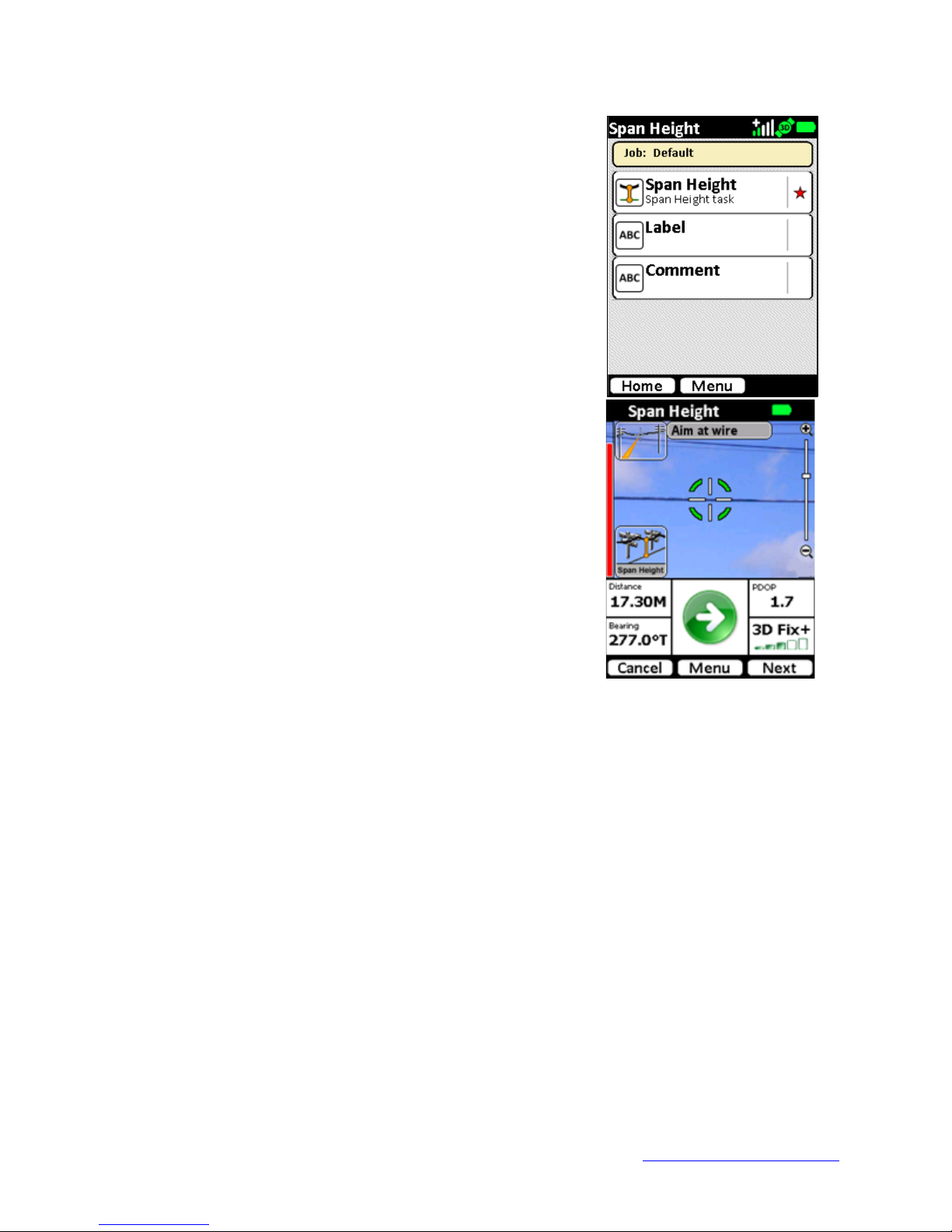

Span Height!......................................................................................................................................!46!

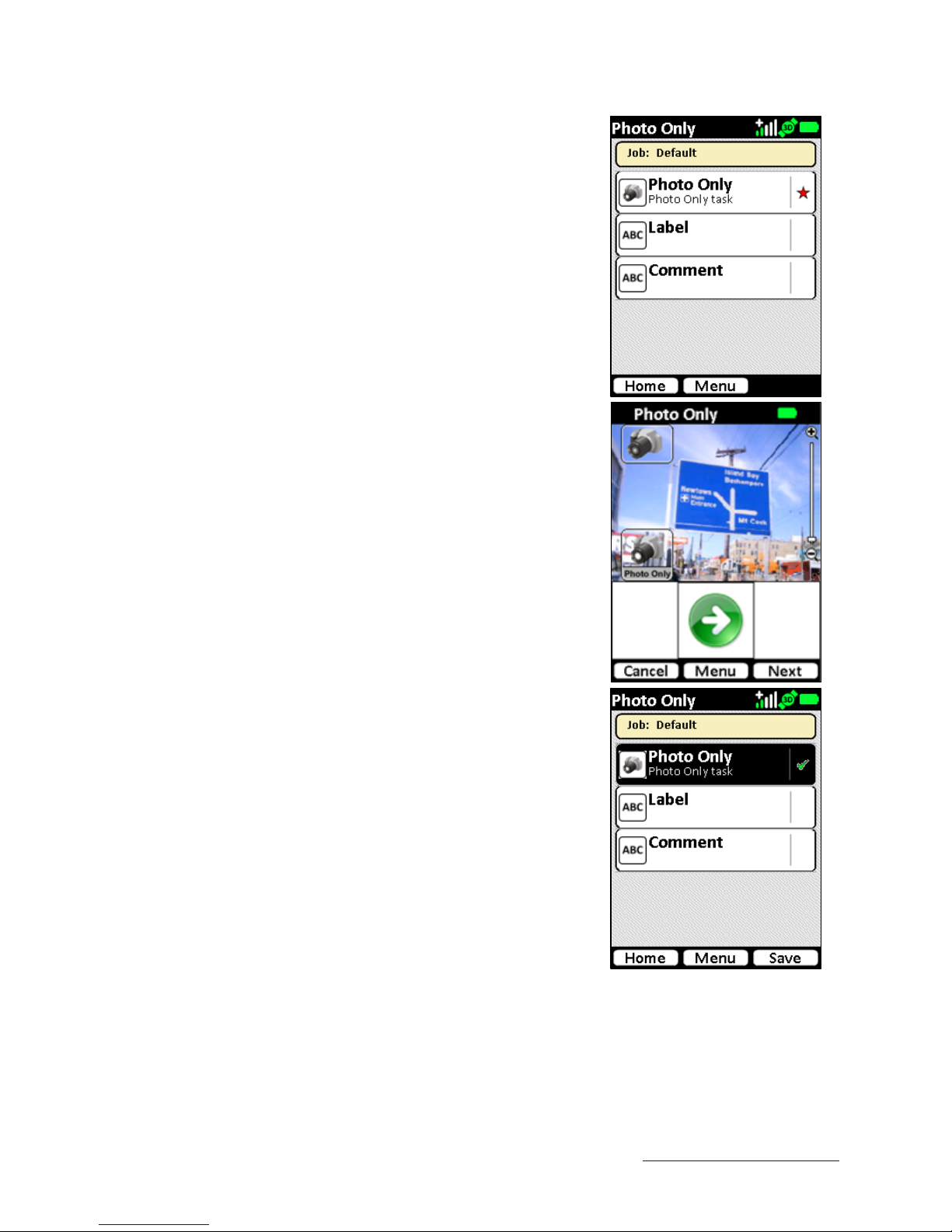

Photo Only!.........................................................................................................................................!50!

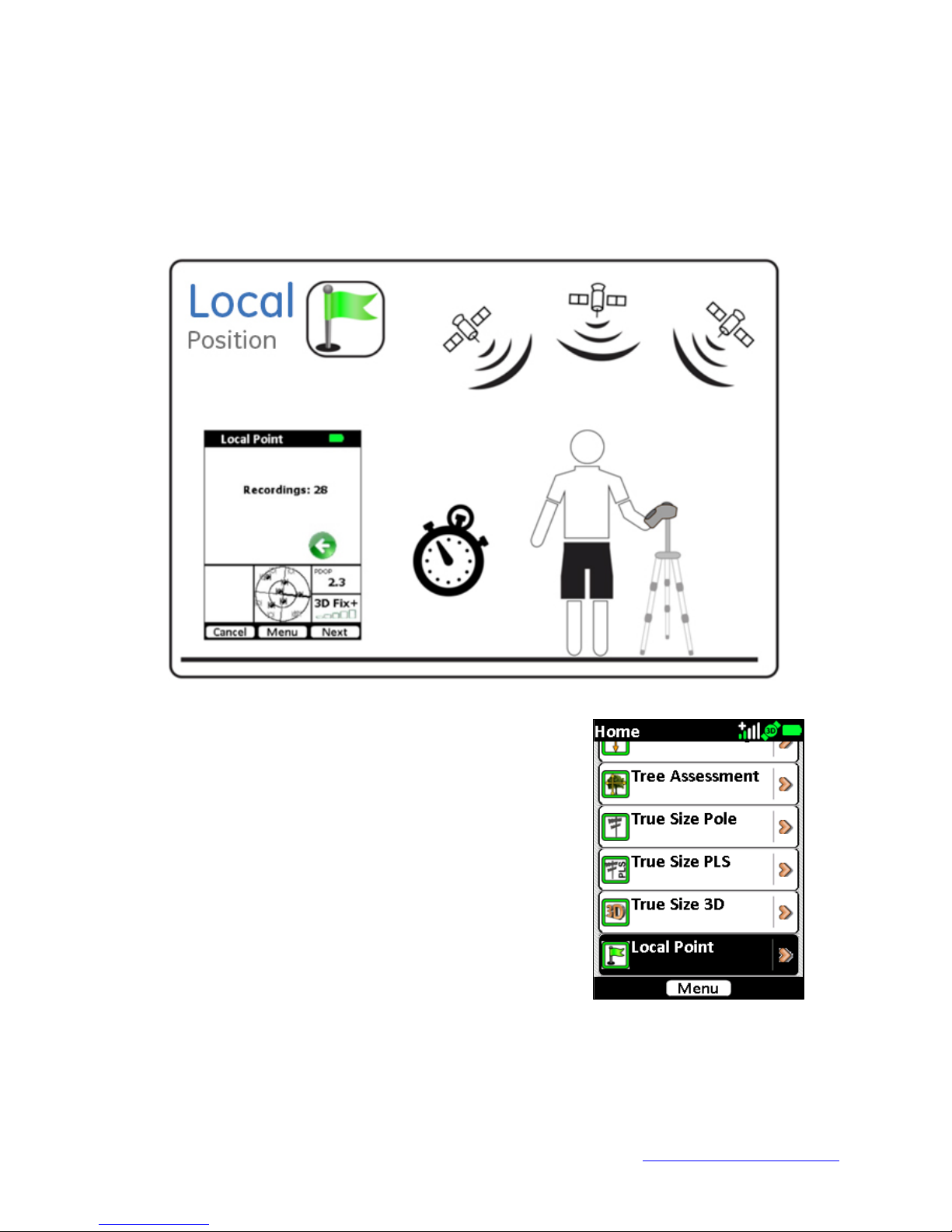

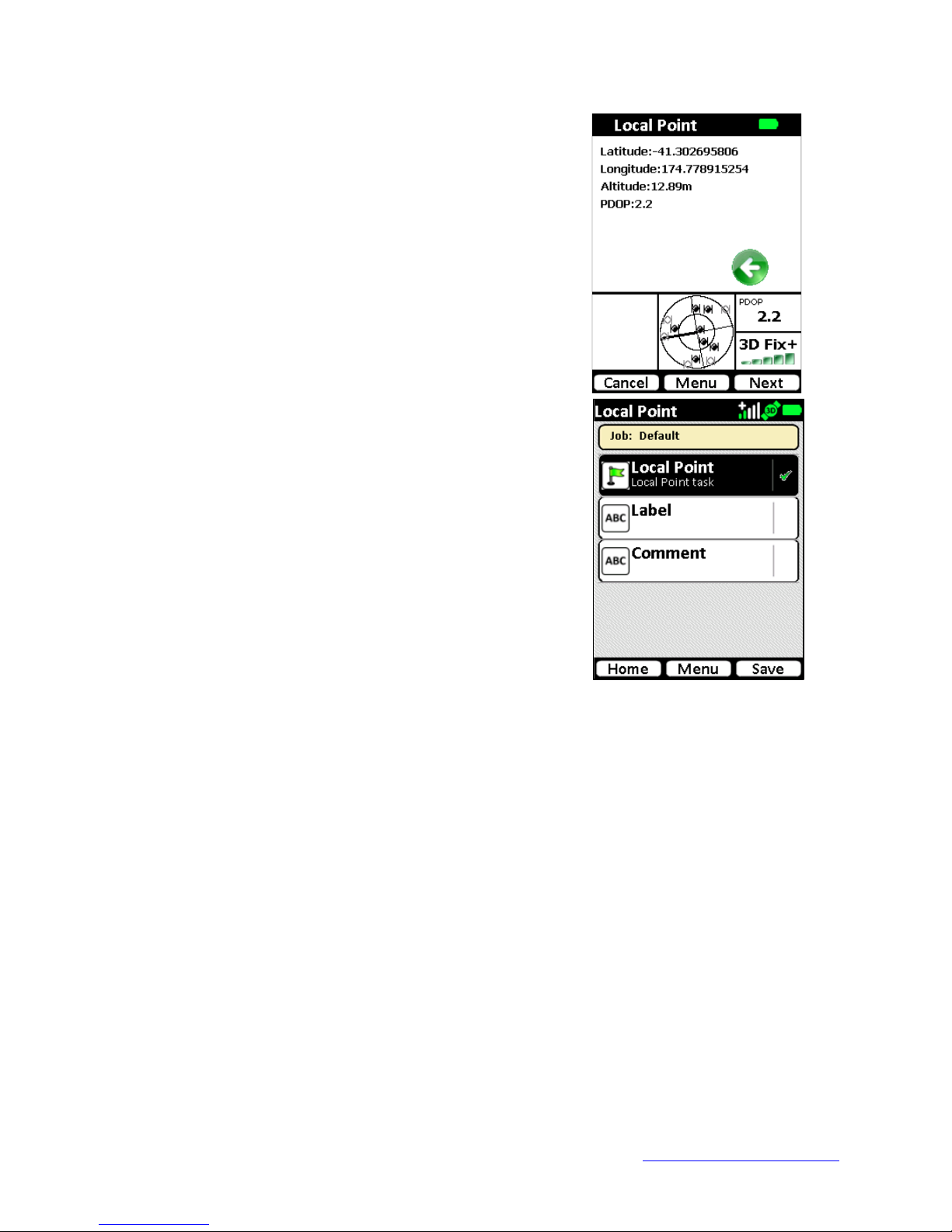

Local Point!.........................................................................................................................................!52!

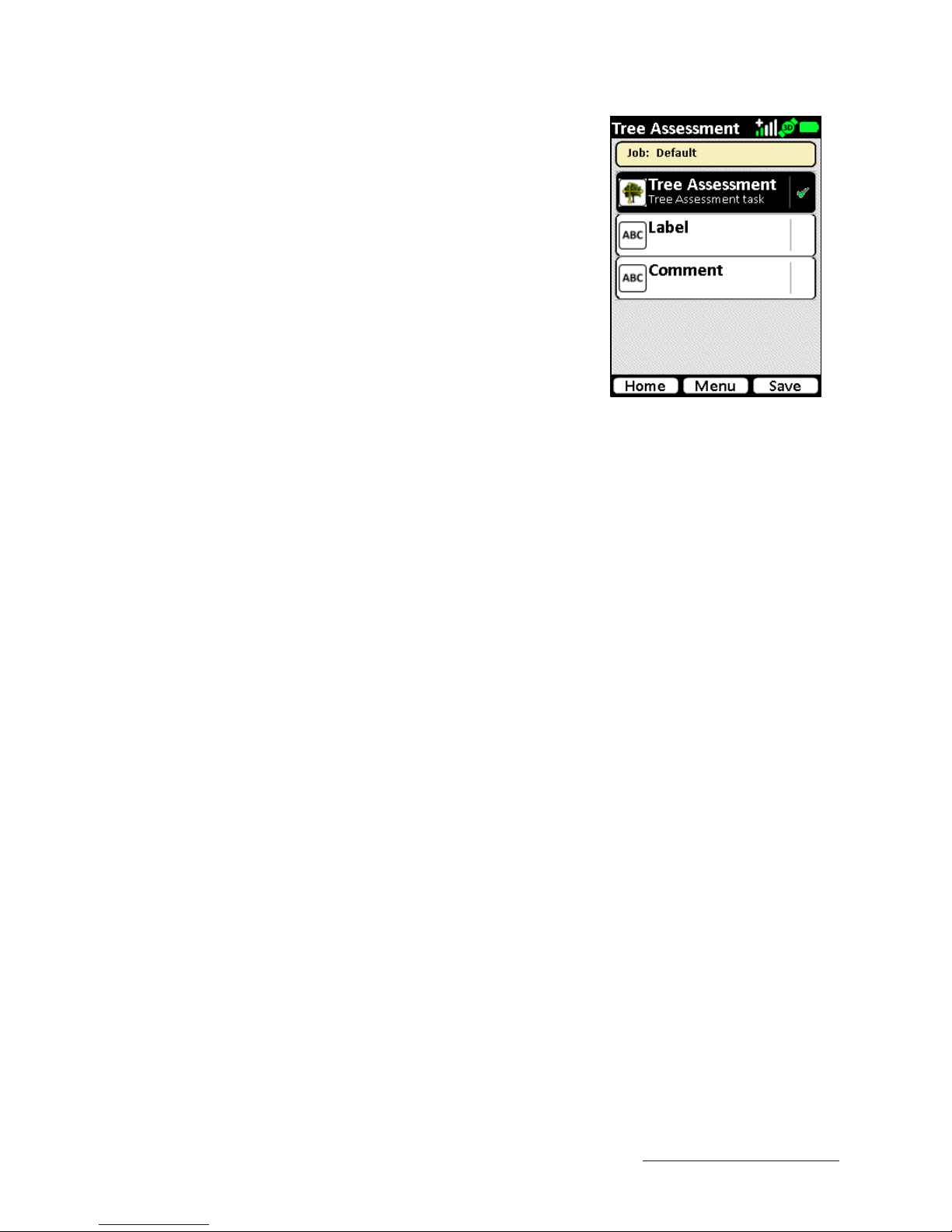

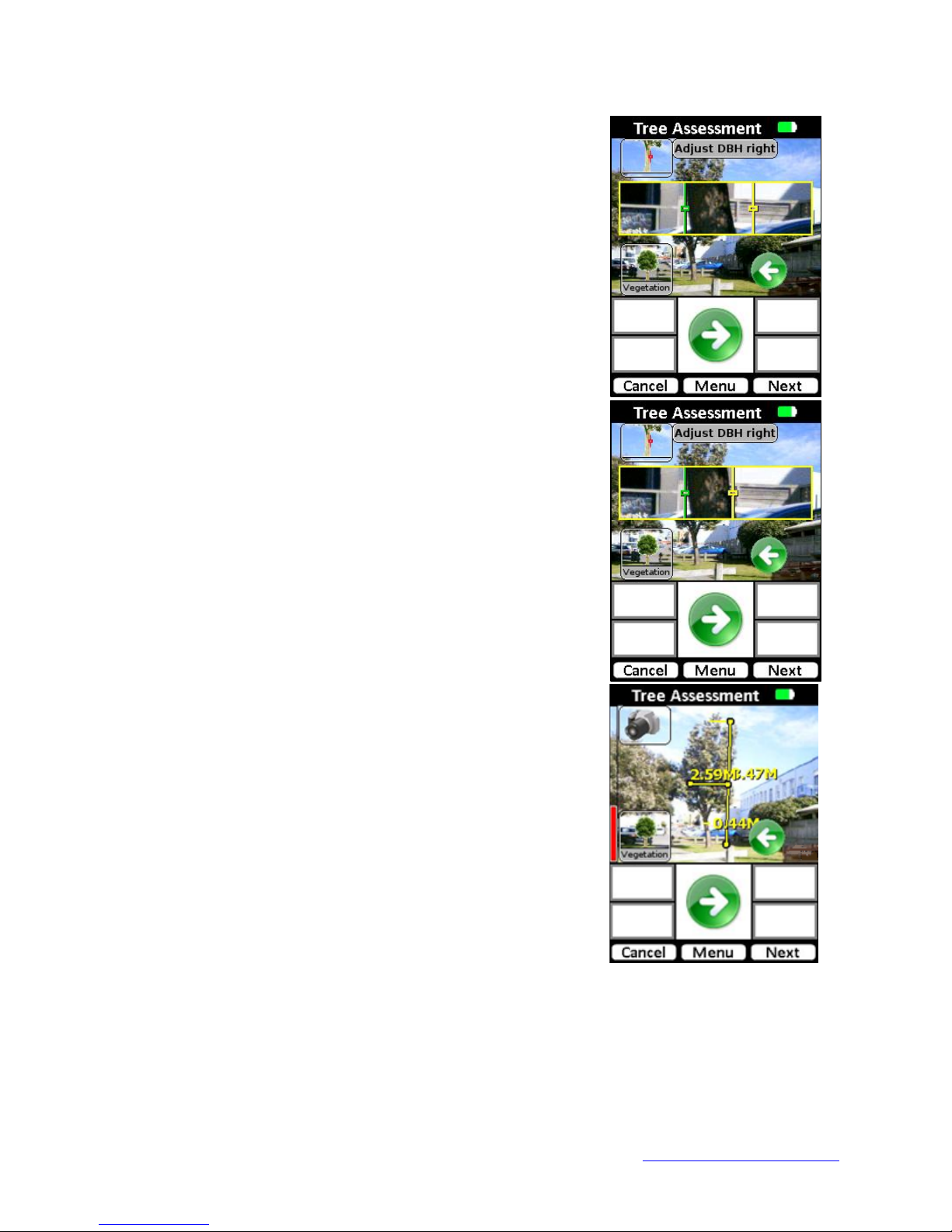

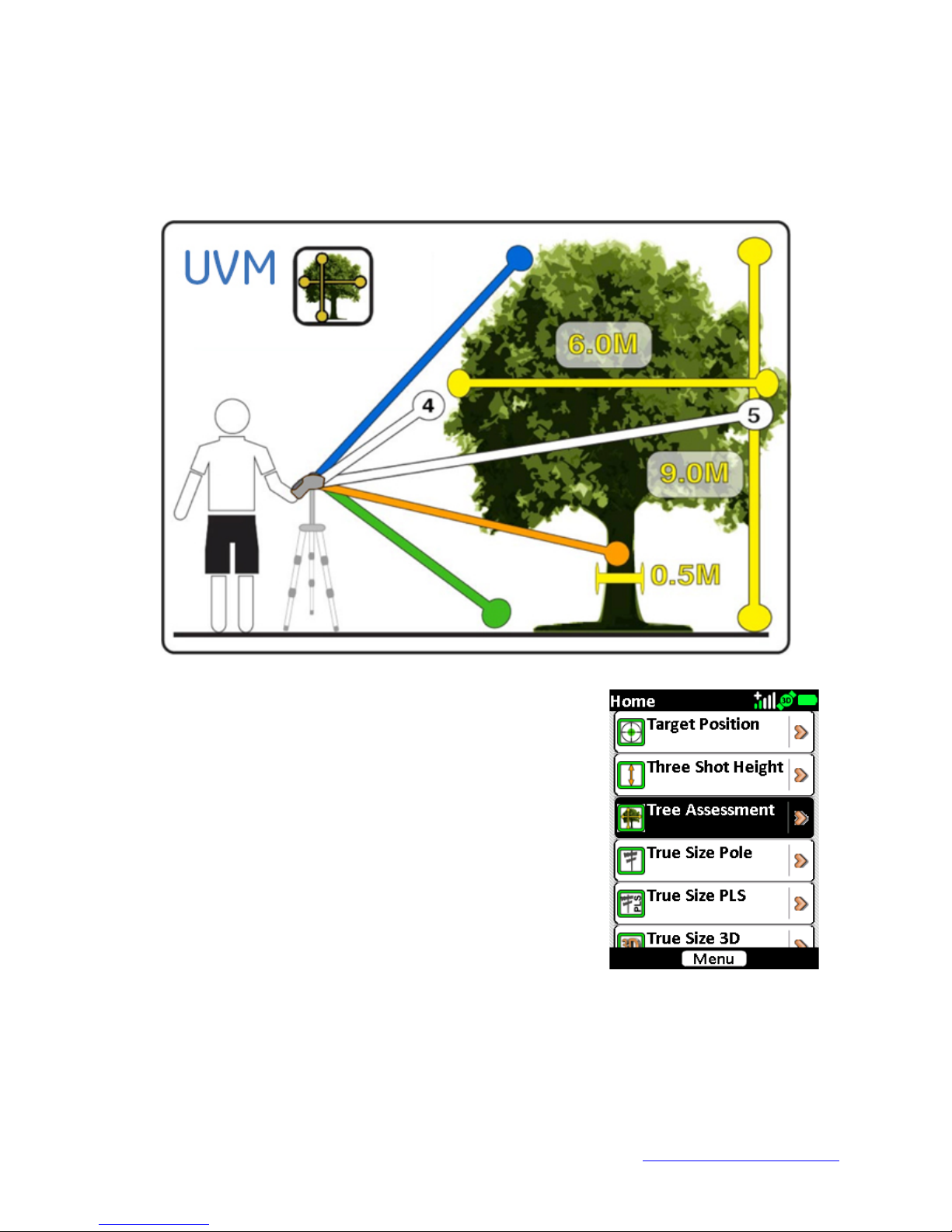

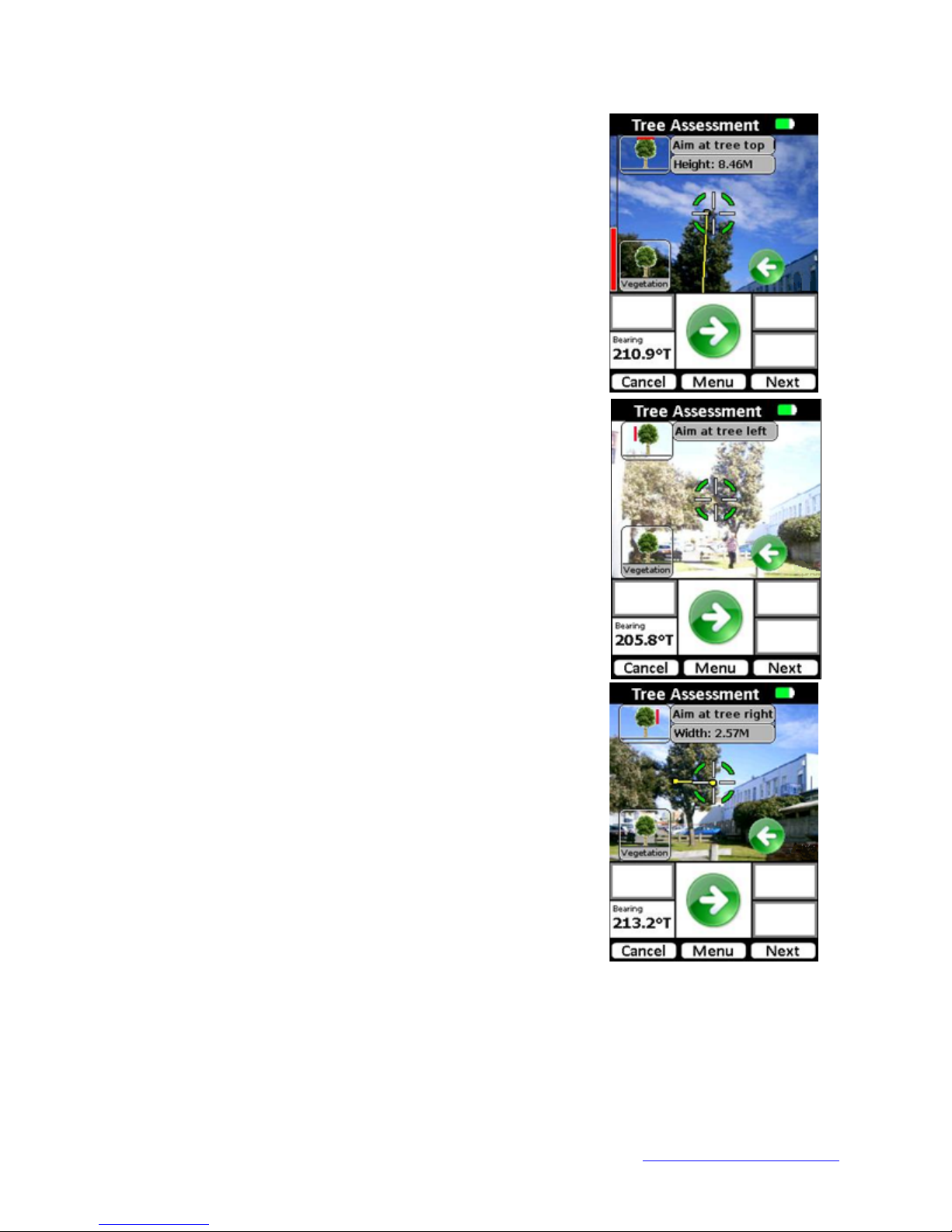

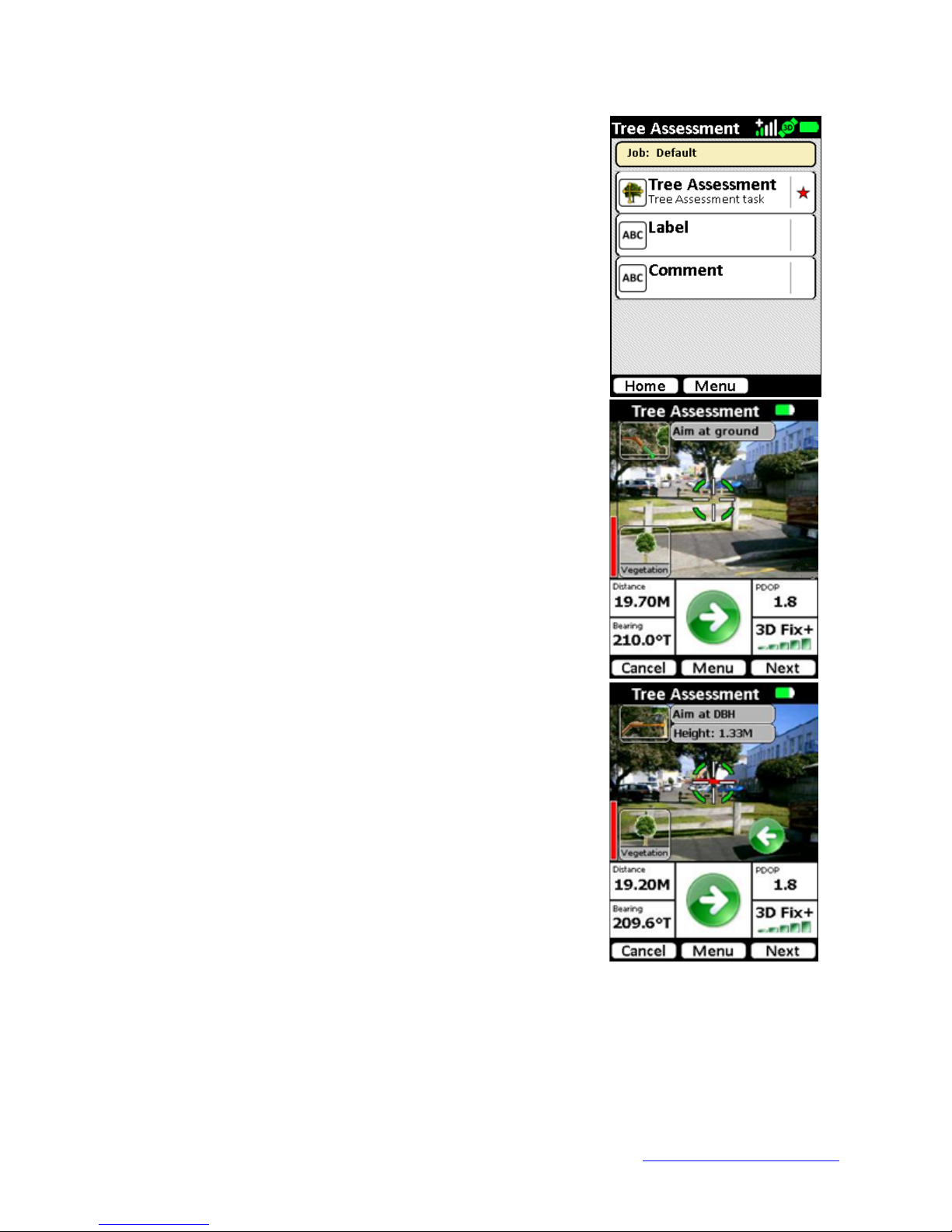

Tree Assessment!...............................................................................................................................!55!

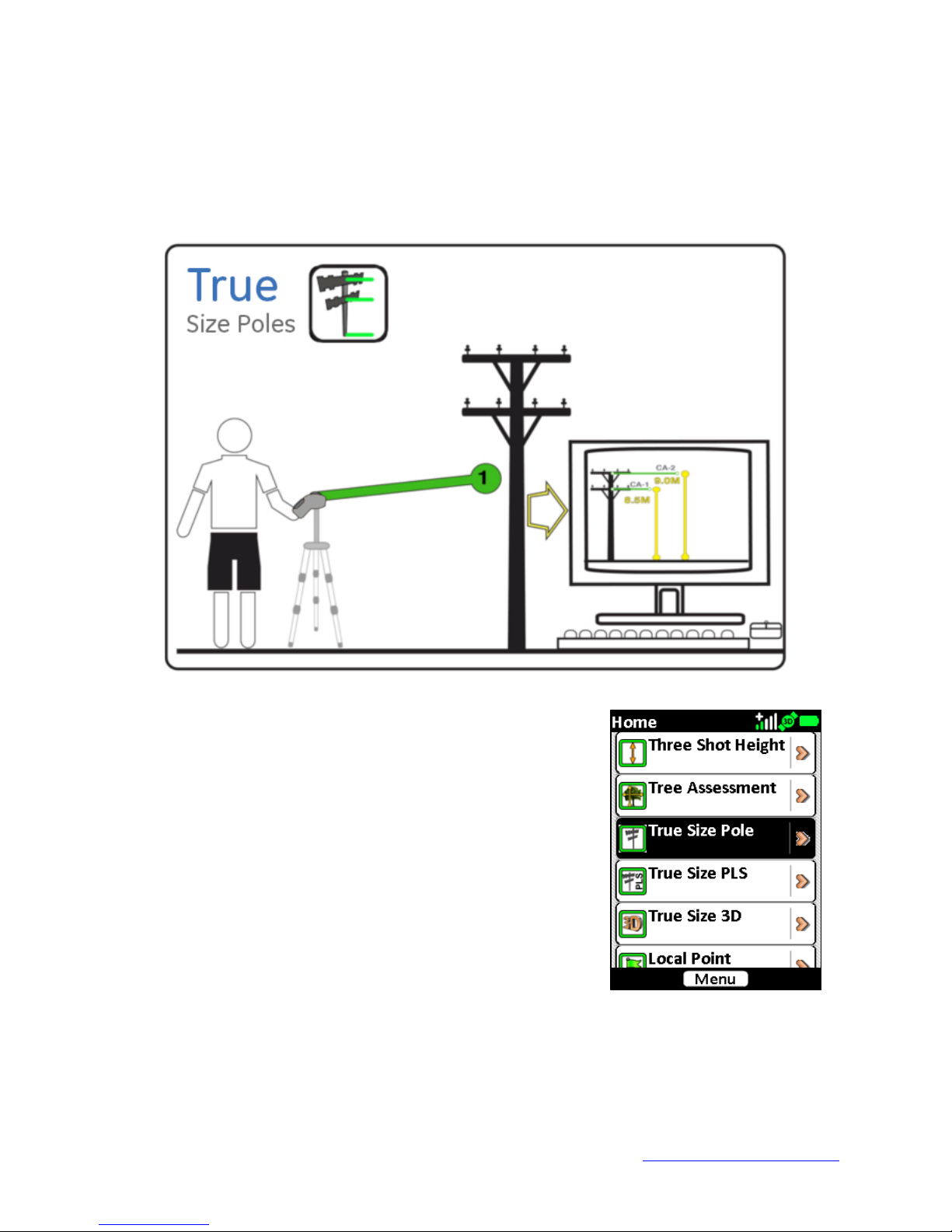

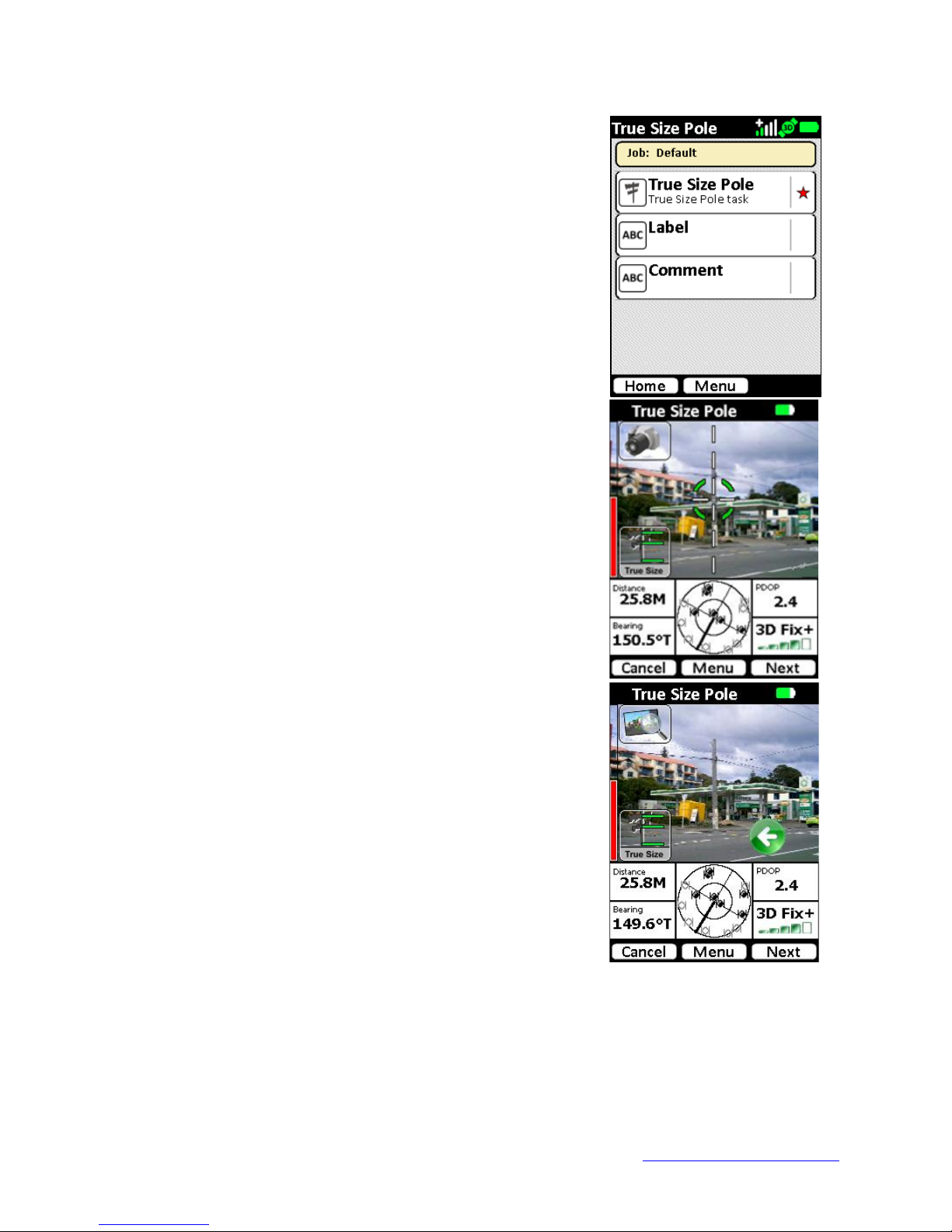

TrueSize Poles!...................................................................................................................................!61!
TrueSize PLS!......................................................................................................................................!64!
Data Transfer to Desktop!.....................................................................................................................!67!
MapSight Utilities!......................................................................................................................................!69!
Compass Calibration!............................................................................................................................!70!

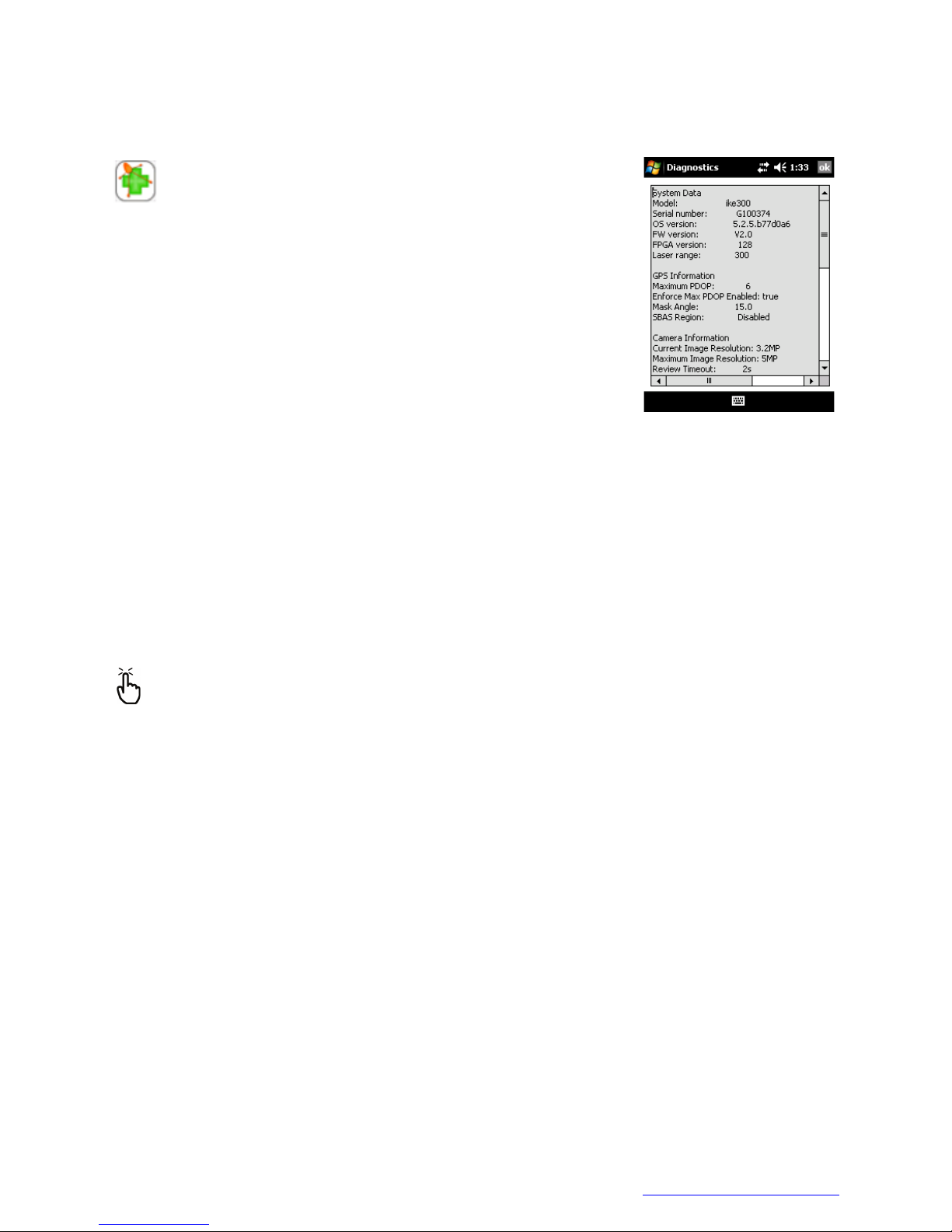

Diagnostics!............................................................................................................................................!71!

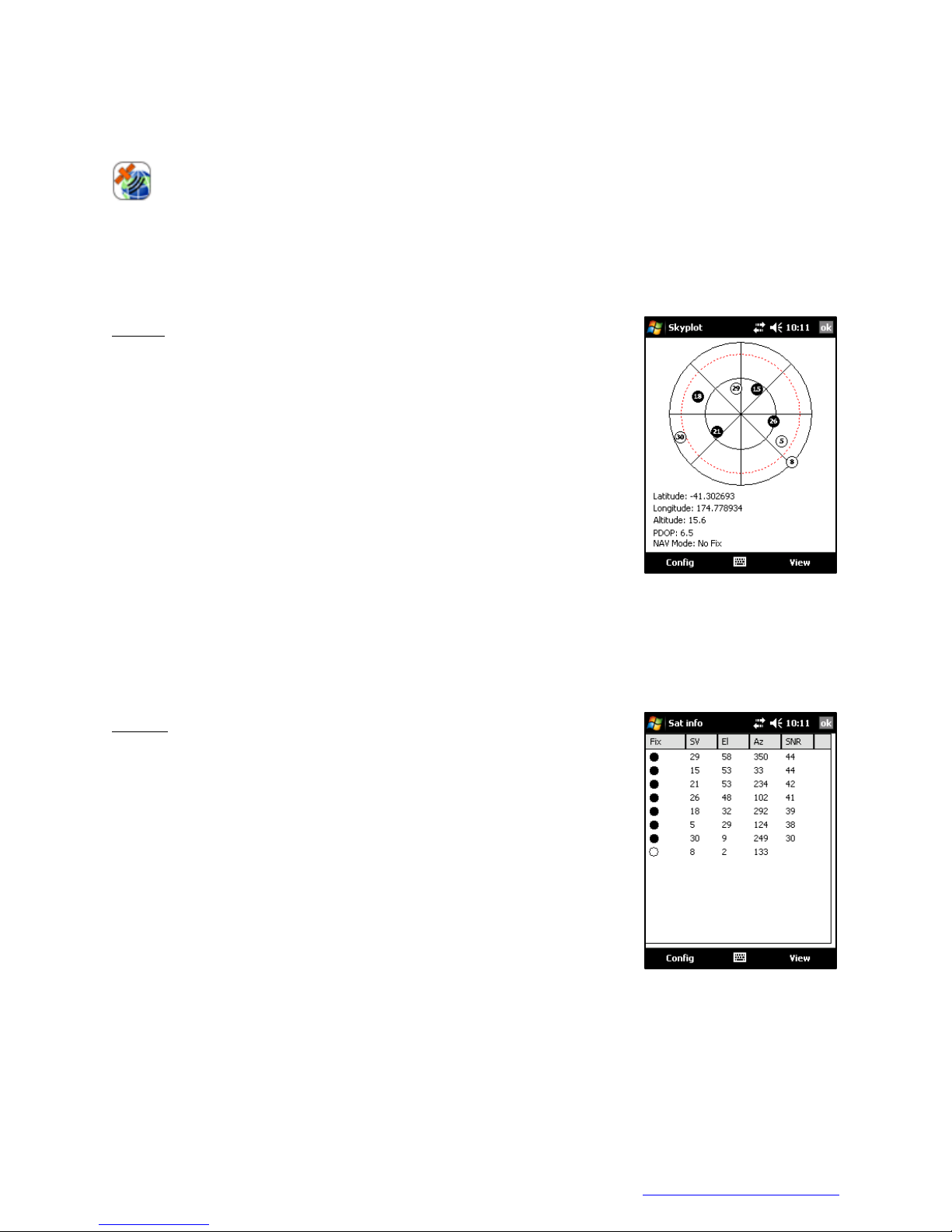

GPS Info!.................................................................................................................................................!72!
License Manager!...................................................................................................................................!74!
Zeroize!...................................................................................................................................................!75!
Appendix 1: MapSight Maintenance and Information!............................................................................!77!
Page 6
!
MapSight!User!Manual! Page!2! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Caring for your MapSight!.....................................................................................................................!77!
Storing your MapSight and battery packs!.......................................................................................!77!
Protecting the touchscreen!..............................................................................................................!78!
Protecting your MapSight against mechanical shock!....................................................................!78!
Equipment warnings!.........................................................................................................................!79!
Using your MapSight in extreme temperatures!..............................................................................!79!
Cleaning your MapSight!...................................................................................................................!79!
Repairing your MapSight!..................................................................................................................!80!
Troubleshooting and Service Tips!........................................................................................................!80!
Troubleshooting tips!.........................................................................................................................!81!
Product Specifications!..........................................................................................................................!82!
Accessory Information!..........................................................................................................................!83!
Tripod!................................................................................................................................................!83!
Batteries!............................................................................................................................................!83!
Travel Charger!..................................................................................................................................!83!
External Patch Antenna!....................................................................................................................!83!

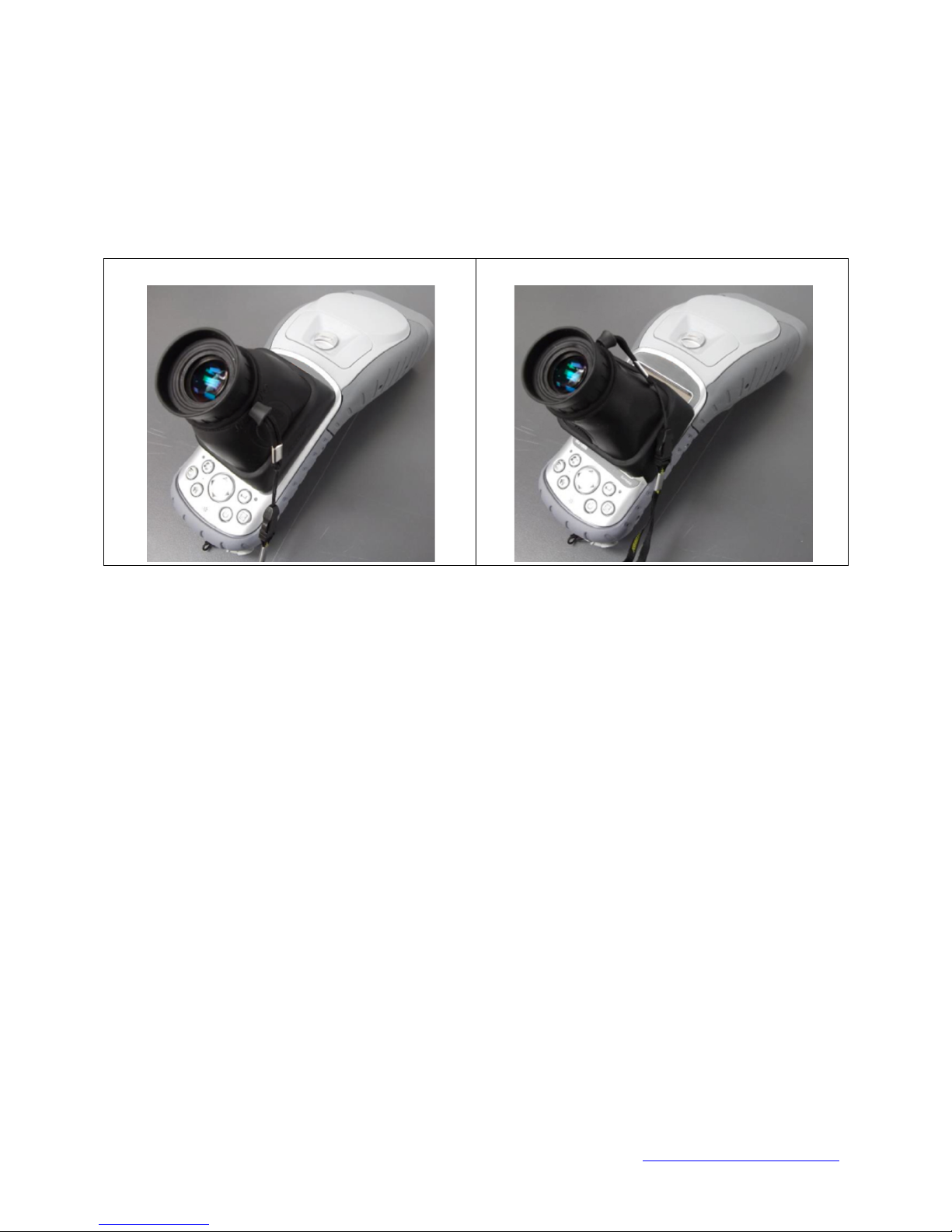

Glare Shield!.......................................................................................................................................!84!
External GPS Receivers!.....................................................................................................................!84!
Other Accessories!.............................................................................................................................!84!
Software Licensing!...............................................................................................................................!85!
MapSight Software!...........................................................................................................................!85!
Microsoft Software License Terms for Windows Mobile 6 Software!..............................................! 92!
Battery Safety!.......................................................................................................................................!96!
Battery warnings!..............................................................................................................................!96!
Transportation!..................................................................................................................................!96!
Disposing of your MapSight and battery packs!..............................................................................!96!
Hardware Warranty, Software Maintenance and Support!.................................................................!97!
Certifications and Classifications!.........................................................................................................!97!
Laser Classification!...........................................................................................................................!97!
Export Control Classification Number (ECCN) Certification!.............................................................!97!
Harmonized Tariff Schedule (HTS) Classification!.............................................................................!97!
Export and Trade Restrictions!..........................................................................................................!97!
Additional Support!................................................................................................................................!98!
Appendix 2: Windows Mobile 6.1 Field PC Operations!..........................................................................!100!
Introduction!.........................................................................................................................................!100!
Overview of Windows Mobile 6!..........................................................................................................!100!
Using the documentation!...................................................................................................................!101!
Getting Started!....................................................................................................................................!101!
Step 1: Install the battery!................................................................................................................!101!
Step 2: Charge the battery!.............................................................................................................!102!
Step 3: Establish basic settings on the device!...............................................................................!102!
Step 4: Connecting to a desktop computer!...................................................................................!103!
Step 5: Creating a connection to a desktop computer!.................................................................!103!
Page 7
!
MapSight!User!Manual! Page!3! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Using the Hardware!............................................................................................................................!104!
Identifying button functions!...............................................................................................................!104!
Customizing button functions!............................................................................................................!105!

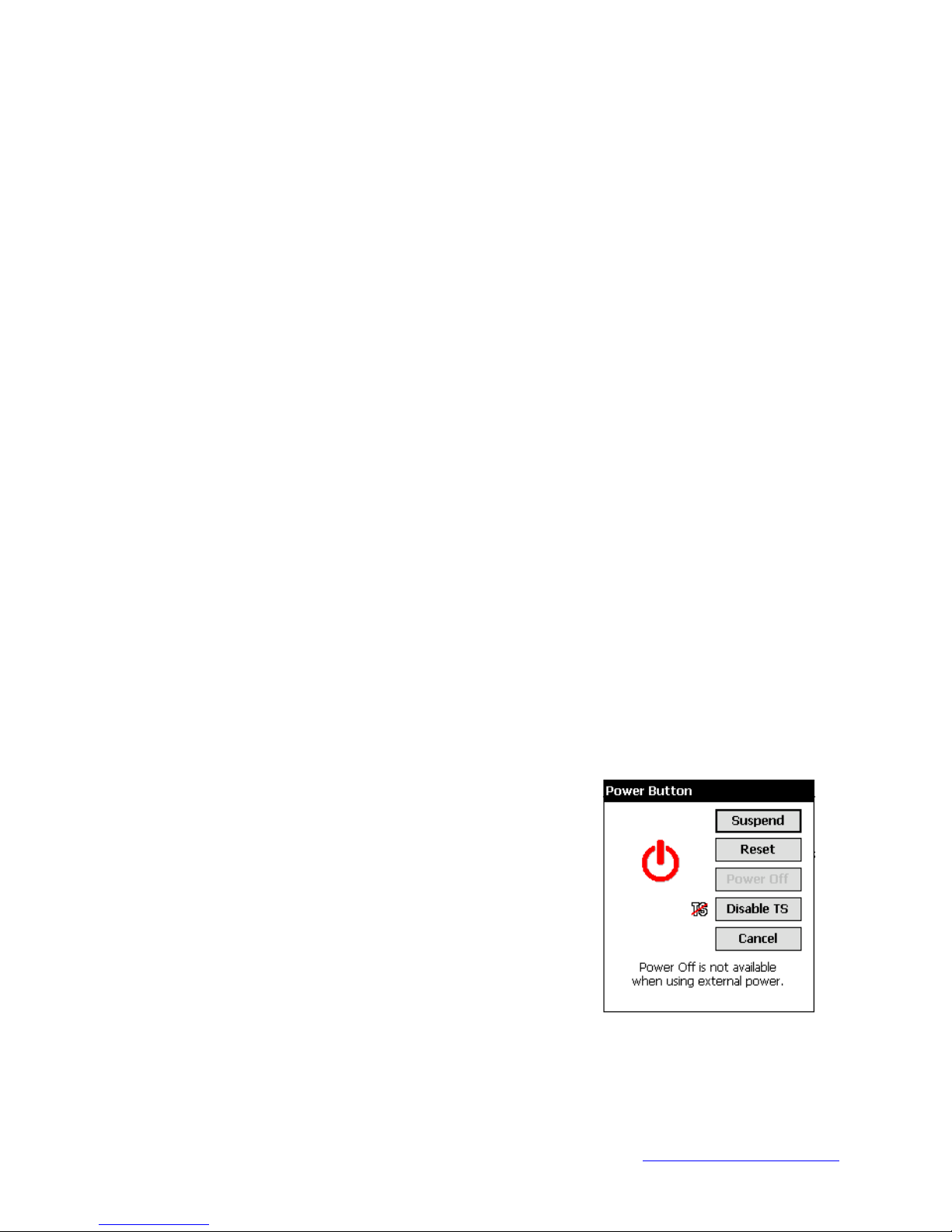

Suspending, powering off, resetting, and restoring factory defaults!...............................................!106!
Option A: MapSight OS Zeroize Utility!............................................................................................!107!
Option B: Hardware Restore!...........................................................................................................!107!
Using the stylus!...................................................................................................................................!108!
Using the touchscreen!........................................................................................................................!108!
Understanding LED signals!................................................................................................................!109!
Replacing the battery pack!............................................................................................................!109!
Using peripheral devices such as SD cards and USB flash drives!....................................................!110!
Using MapSight as a Field PC!.............................................................................................................!112!
Understanding the Today screen!...................................................................................................!112!
Using the Start menu!................................................................ ......................................................!112!
Entering information!.......................................................................................................................!113!
Recognizing status icons!................................................................................................................!114!
Recognizing soft keys!.....................................................................................................................!114!
Dimming or turning off the backlight!............................................................................................!115!
Adjusting the backlight timer!.........................................................................................................!115!
Power Settings!................................................................................................................................!116!
Exploring files!..................................................................................................................................!117!
Closing running programs!..............................................................................................................!118!
Switching between running programs!..........................................................................................!118!
Viewing memory allocation for programs!.....................................................................................!118!
Changing settings!...........................................................................................................................!119!
Using on-device help!......................................................................................................................!119!
Backing up data!..............................................................................................................................!120!
Copying data from a peripheral device!.........................................................................................!122!
Communicating with a Desktop Computer!................................................................................... !123!
Getting to Know Programs and Settings!...........................................................................................!124!
Understanding Start menu programs and utilities!.......................................................................!124!
Understanding applications in the Programs menu!.....................................................................!125!
Bluetooth drivers and profiles!........................................................................................................!127!
Identify the status of Bluetooth using Wireless Manager!.............................................................!127!
Create a Bluetooth partnership!.....................................................................................................!129!
Bluetooth virtual COM ports!...........................................................................................................!130!
Set up an outgoing Bluetooth COM port!........................................................................................!130!
Set up an incoming Bluetooth COM port!.......................................................................................!132!
Supported Bluetooth Profiles!.........................................................................................................!132!
Appendix 3: Release Updates from desktop 3.1.9 and tools 6.1.1!........................................................!139!
Sub Forms!...........................................................................................................................................!139!
Flag a feature!......................................................................................................................................!140!
Nested Lists!.........................................................................................................................................!141
Page 8
!
MapSight!User!Manual! Page!4! www.gemapsight.com/support!
MS-101-14-12-34.0
!
THIS PAGE INTENTIONALLY BLANK
Page 9
!
MapSight!User!Manual! Page!5! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Introduction
Welcome to MapSight
Thank you for purchasing MapSight. Your MapSight unit is a location-based measurement device
that integrates a digital camera, compass, laser rangefinder, mobile computer, and precision GPS.
This hardware combination makes the MapSight a powerful measuring device.
The MapSight is capable of in-field measurements, assisted with augmented reality instructions and
back office measurements performed straight from and MapSight photos.
For additional information in regards to unit/warranty registration, tutorial videos and software
downloads visit www.gemapsight.com/support
Introduction
!
Page 10
!
MapSight!User!Manual! Page!6! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Getting Started
What’s in the box?
Your GE MapSight kit will come with the selected colored MapSight unit with a number of ‘Essential’
and ‘Field’ accessories.
Item
Description
Unit
MapSight unit in Grey or Orange rubber protective trim
Documentation Pack
User documentation and resources
Essential Accessories
Refer Essential Accessories below
Field Accessories
Refer Field Accessories below
GPS+
GPS+ Positional Accuracy Enhancement
MapSight View
MapSight View desktop software
Essential Accessories
All MapSight kits are provided with a number of ‘Essential Accessories’.
Item
Description
Battery
Used to power the MapSight unit.
AC Charger and MultiCountry plug set
Multi-voltage wall charger with set of four international (US, Europe, UK and
Australasia) interchangeable plugs.
SD Card (fitted)
SD Card fitted to the MapSight unit. Can be removed/swapped-out by
unscrewing the SD Card access cover.
USB Cable
Cable to allow transfer of data between MapSight unit and Windows-based
PC.
Stylus and Handstrap
Stylus to allow accurate selection/tapping of on-screen buttons
Handstrap to allow safe grip of the MapSight unit.
Screen Protector
Recommended additional protection for the LCD screen.
Packed in ‘Documentation Pack’
Field Accessories
Also supplied are a number of additional ‘Field Accessories’ to enhance the use of your Mapsight
device in the field.
Item
Description
Hardcase
Protective hard plastic case with custom-cut foam fittings for MapSight
Essential and Field accessories
Softcase
Canvas cover to provide additional protection to the MapSight unit. Also
includes shoulder strap
Spare Battery
Additional Battery
Travel Charger
Charger adaptor to allow batteries to be charged independently of the
MapSight unit
Vehicle Charger Cable
Power cable to allow either MapSight unit or Travel Charger to be powered
from a standard vehicle ‘cigarette lighter’/accessory power socket
Glare Shield
Viewing loupe to reduce glare by shield the LCD from sunlight. Also includes
an in-built focusing ring.
Tripod
Low magnetic signature tripod and carry case
! !
Page 11
!
MapSight!User!Manual! Page!7! www.gemapsight.com/support!
MS-101-14-12-34.0
!
GPS+
The GPS+ option enhances the position by refining the outputs of the GPS instrument to increase the
accuracy of the position of the MapSight unit.
When operating, GPS+ appends a + symbol and reception
indicator to the targeting preview screen GPS status.

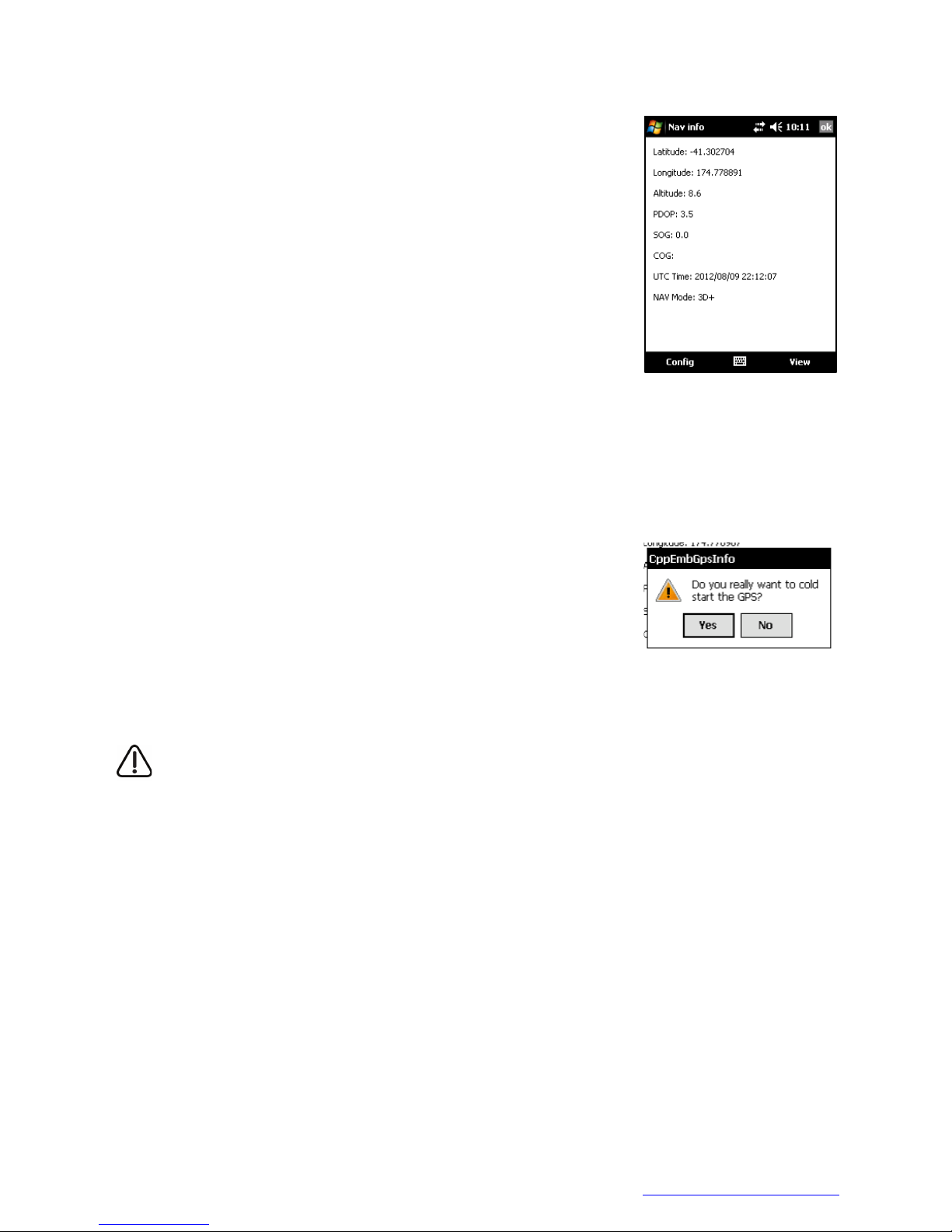

The + symbol is also added to NAV Mode: in the GPS
information utility
MapSight View
The MapSight View software allows you to build custom forms that allow capture of data that that
suits your day-to-day field collection needs. MapSight View also allows you to measure the height
and width of objects such as utility poles.
MapSight View allows MapSight Tools to be used together in custom workflows to capture readings
for the objects you are targeting. Combined with the ability to add custom forms, MapSight View can
create powerful workflows to allow consistent day-to-day data collection for any required job.
More details on the MapSight View software can be found in the MapSight View User Manual.
Page 12
!
MapSight!User!Manual! Page!8! www.gemapsight.com/support!
MS-101-14-12-34.0
!
An example configuration of a MapSight kit is depicted below.
Tripod
Page 13
!
MapSight!User!Manual! Page!9! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Anatomy of the MapSight unit
This section illustrates the different parts of MapSight.
1 Elastomer overmold
2 GPS Receiver and Antenna
3 Removable SD Card Slot Cover
4 Magnesium case front
5 MapSight model bezel label
6 Charge indicator (red LED)
7 Start menu button *
8 Task Manager button *
9 Microphone
10 Today screen button *
11 Speaker
12 Four-way directional button
13 Power button
14 Context menu button *
15 Notification indicator (green LED)
16 Enter button
17 Touchscreen/LCD display
18 Laser ‘Reference Plane’ – distance
measured from this surface
19 Battery door latch
20 Hand strap
21 Battery door
22 Body molding
23 Connector Protector
* Buttons 7, 8, 10 & 14 may be reprogrammed for alternate functions depending on application being used.
1 5 3 4 6 8 7
13
14
17
15
19
16
20
21
22
23
18
11
12
10 9 2
Page 14
!
MapSight!User!Manual! Page!10! www.gemapsight.com/support!
MS-101-14-12-34.0
!
24 Digital Camera
25 Laser Distance Range Finder
This Laser Distance Range Finder is
an eye safe Class 1 laser product
which emits invisible laser radiation
from the front apertures. Avoid
staring into the laser beam.
26 USB Client (mini B)
27 12V DC jack
28 9-pin serial port
29 USB Host (mini A)
32 3D Compass
As MapSight contains a magnetic
compass, using the unit near magnetic or
electromagnetic fields may cause the
compass bearing to be inaccurate.
32 External Antenna Port
32
24
25
26
27
29
28
Rear - Communications module
Front - Data capture module
33
Page 15
!
MapSight!User!Manual! Page!11! www.gemapsight.com/support!
MS-101-14-12-34.0
!

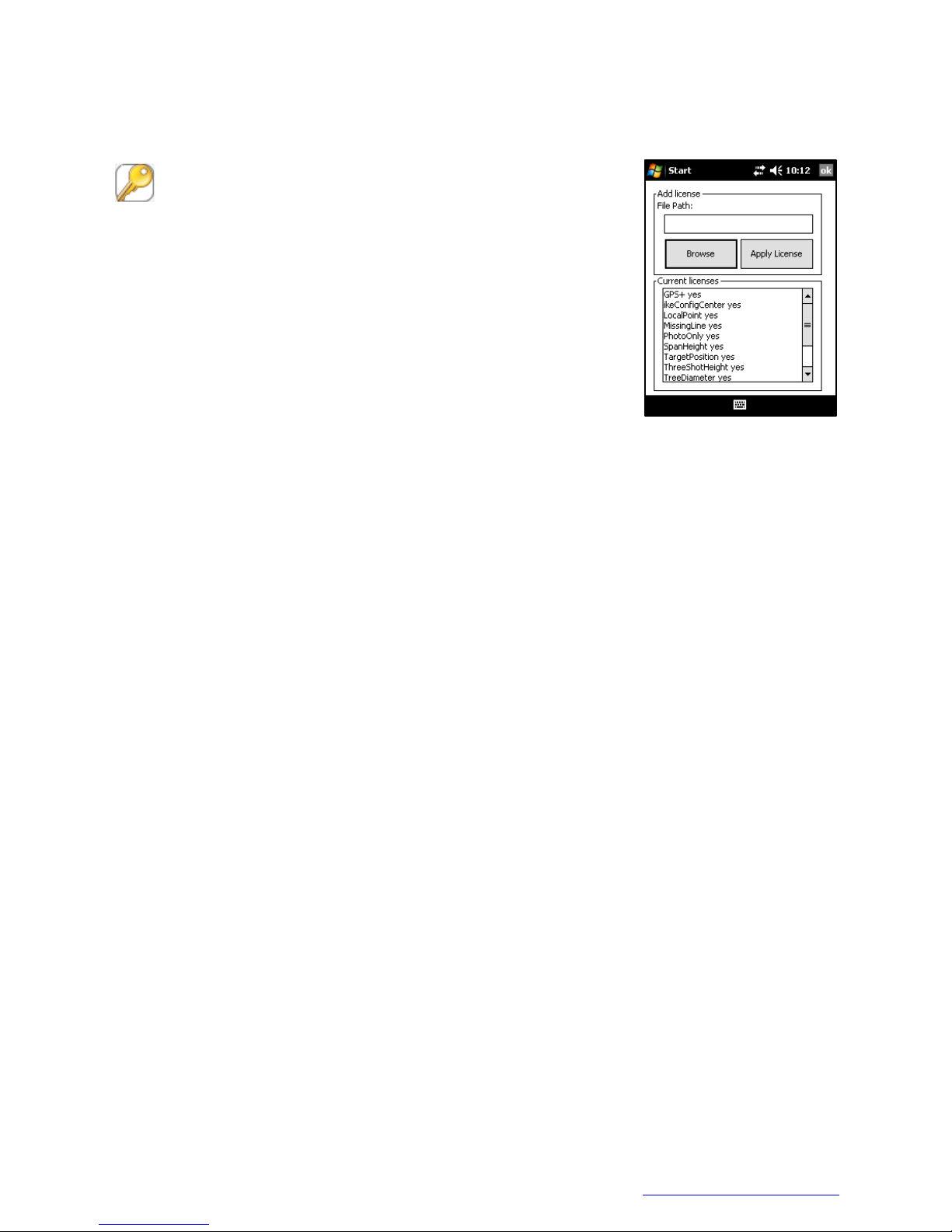

MapSight Software and Licensing
All MapSight units running the MapSight OS v5 software require a license applied to access the onboard MapSight Tools as part of the MapSight application. New MapSight units are pre-licensed,
prior to shipping, to shipping to ensure correct licensing is applied to the purchased MapSight
package.
Licensing controls access to MapSight Tools and the ability to access functionality of additional
MapSight enhancements and desktop software.
Additional licensing may be required for MapSight Tools that are not provided as part of the standard
MapSight configuration. More information about MapSight options and the solution-specific
MapSight Tools is available from your MapSight reseller.
Turning your MapSight on for the first time
To use your MapSight unit, you need to insert the battery and charge the unit for first use.
Remove the MapSight unit from its hardcase.
Turn the MapSight unit over and unhook the
connector protector and handstrap and fold
away from the battery cover.
Unlock the battery cover by sliding the lock to
the right.
Remove the battery cover
Note: You will need to open the protective
softcase’s Velcro flaps to access the battery
cover.
Place the battery into the battery cavity
Page 16
!
MapSight!User!Manual! Page!12! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Replace and secure (slide the lock to the left)
the battery cover
Refit the handstrap and connector protector
Fit the plug that is applicable to your operating
region to the AC charger.
Your AC charger comes with interchangeable
plugs for USA, UK, Europe and Australasia.
Connect the AC charger to the wall socket. (Turn
the wall socket on)
Connect the charger power tip to the MapSight
power socket.
Page 17
!
MapSight!User!Manual! Page!13! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The red power/charge LED should light/blink if
power is correctly applied
The MapSight unit may automatically power on.
If it does not, press the power button to turn the
unit on.
Allow the MapSight unit to fully power up past
any start-up screens and on to the MapSight
home screen
Home screen and control buttons
Whenever you reset your MapSight unit or return to the Home screen
Home screen
To top bar of the Home screen provides access to the Start menu
and contains icons notifying the status of system settings.
Tapping the [Start] button accesses the start menu and underlying
options.
The center part of the Home screen contains the touch buttons to
access MapSight applications and tools, e.g. MapSight and Calibrate
Compass.
The lower part of the screen contains soft-key buttons to access
common Windows Mobile functions.
Page 18
!
MapSight!User!Manual! Page!14! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Screen Control Buttons
Before field use

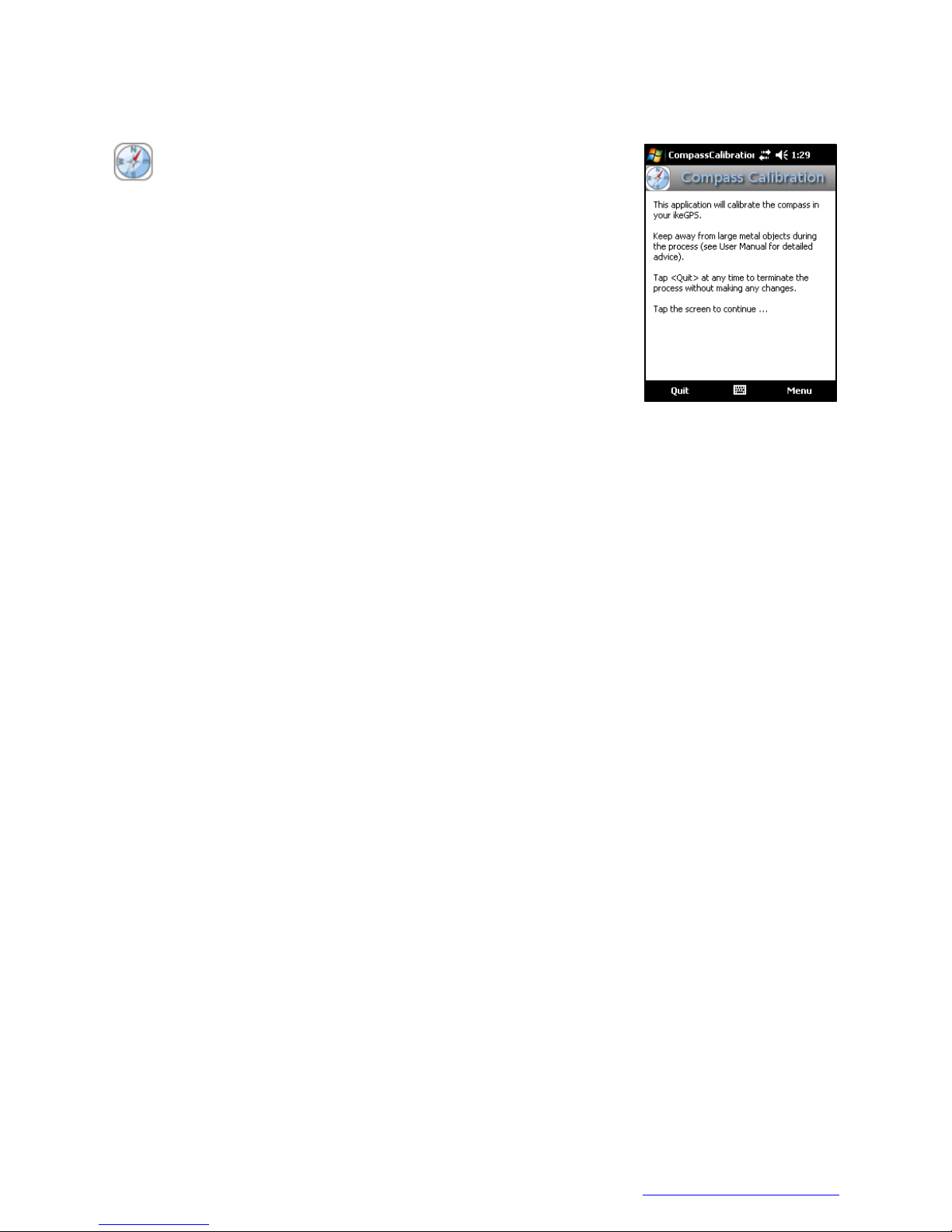

Once you have fully charged your MapSight unit we recommend that you fully charge the battery
and calibrate the compass to fine-tine the compass for your local operating area.
Installing and charging the battery
New batteries should always be fully charged in your MapSight units to ensure that they are
conditioned for optimal capacity.
Charging batteries in the MapSight unit ensure that their internal capacity gauge is correctly
calibrated to reflect the correct capacity of the battery.
With the battery securely in place, and external power applied, tap the
power icon (top-right of the Home screen) to access the Power settings.
Page 19
!
MapSight!User!Manual! Page!15! www.gemapsight.com/support!
MS-101-14-12-34.0
!
On the ‘Battery’ tab, the charge status of the battery is indicated as
follows:
• The charge bar (0 to 100) indicates the level of charge. The closer to
100 the fuller the charge
• The ‘mAH consumed:’ value indicates how much capacity is still to be
charged. The lower the number the fuller the charge.
The red power/charge LED will blink if the unit is charging.
If the power/charge LED stop blinking this indicates that the charge level
is around 98%.
The ‘mAH consumed:’ value may slowly decrease as the battery capacity
is calibrated for optimal use.
Once the charge indicator (red LED) stops blinking and the ‘mAH
consumed:’ value stops decreasing then the battery has been fully
charged.
For fully-charged new batteries the ‘mAH consumed:’ value will be near
zero. For older batteries the ‘mAH consumed:’ may be above zero due to
natural charge/discharge cycle capacity degradation.!
Press and hold the power button until the ‘Power Button’ options appear,
and then tap the [Reset] option. Resetting the MapSight unit will reset the
battery capacity
Page 20
!
MapSight!User!Manual! Page!16! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Allow the MapSight unit to fully power up past any start up screens and
return to the MapSight home screen.
If you have purchased/received any additional/spare batteries with your MapSight unit/kit, please
repeat the above process to ensure that the correct capacity levels are set.
Suspend the MapSight unit by pressing once on the Power button. This
should cause the LCD screen to dim.
WARNING! Changing batteries should only be performed when
the unit is suspended or disconnected from external power.
Similar to the Turning your MapSight on for the first time instructions, replace the battery by:
• releasing the lock,
• remove the battery cover
• remove the existing battery
• fit the new uncharged battery
• replace and relock the battery cover.
Un-suspend the MapSight unit by pressing once on the Power button.
This should cause the LCD screen to return to the last screen.
Fully charge the new battery using the previous steps to monitor the charge status until fully charged.
Page 21
!
MapSight!User!Manual! Page!17! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Travel Charger
The Travel Charger is an item, provided with MapSight kits, that lets you charge a spare battery pack
on the go. Use it in your vehicle or in your office so you always have a charged battery pack.
It is strongly recommended that all new batteries are initially fully charged in the MapSight unit
ensure that their internal capacity gauge is correctly calibrated to reflect the correct capacity of the
battery. After this initial full charge they can then be charged in the Travel Charger.
Device Features!
CAUTION: Only use authorized devices with the Travel Charger. Failure to do so may
damage your device and void your warranty.
Page 22
!
MapSight!User!Manual! Page!18! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Charging your Battery!
Charging Time
Charge a discharged battery pack from 4 to 6 hours or until the charge indicator LED turns green to
indicate full charge.
Charging temperatures
Only charge your battery pack in temperatures between 32°F and 113°F (0°C and 45°C). For best
results, charge the battery pack at room temperature (68°F or 20°C).
WARNING! Misusing the battery pack may cause it to overheat, rupture, or ignite and
cause serious injury. Be sure to follow these safety rules:
• Do not heat the battery pack or place it in fire or direct sunshine.
• Do not install the battery pack backwards.
• Do not connect the battery terminals with any metal object (such as wire). Do not solder
onto the battery pack.
• Do not disassemble or modify the battery pack.
• In the rare event that the battery pack leaks and fluid gets into the eye, do not rub the
eye. Rinse well with water and immediately seek medical care. Your MapSight will
naturally pick up a magnetic signature over time that may affect the accuracy
Page 23
!
MapSight!User!Manual! Page!19! www.gemapsight.com/support!
MS-101-14-12-34.0
!

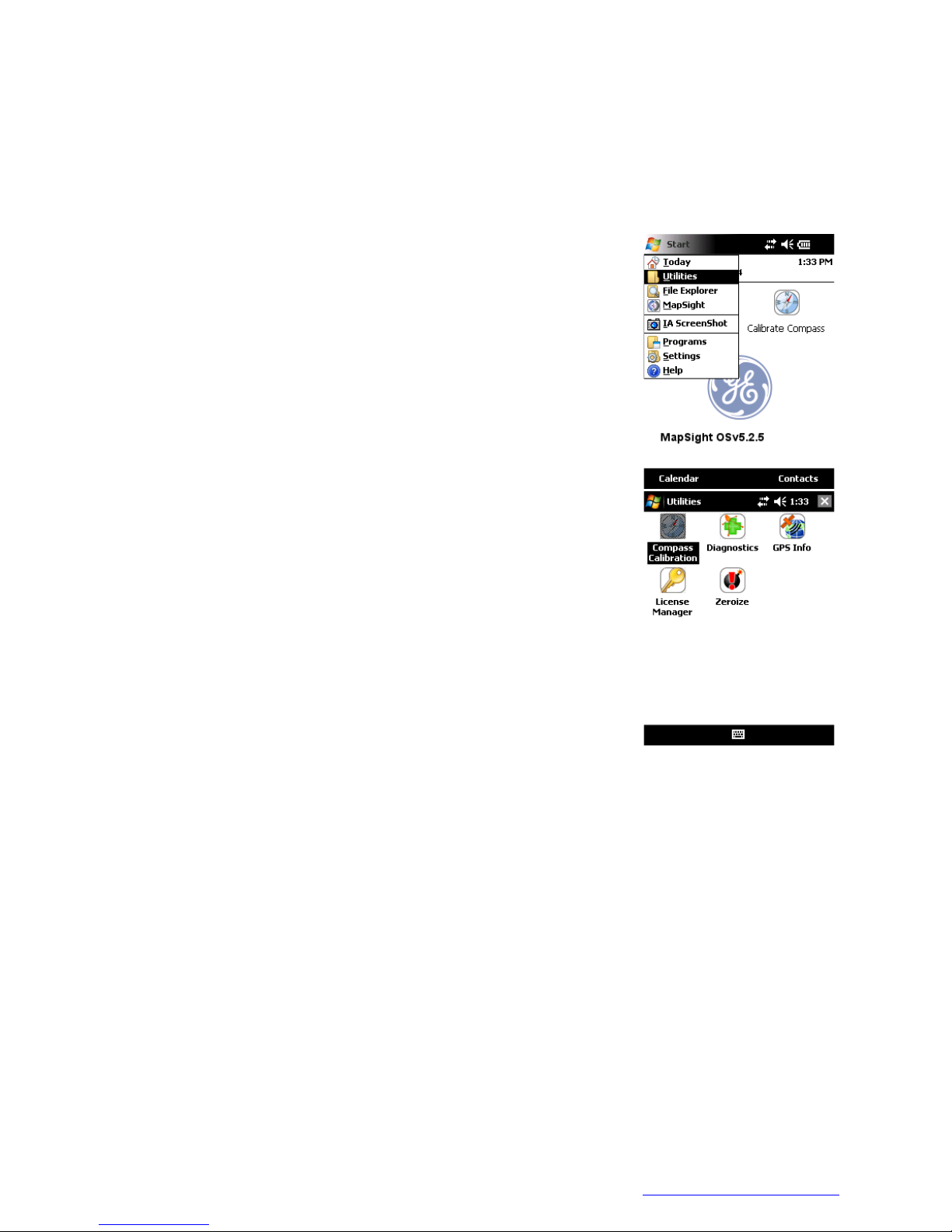

Compass calibration
Once you have fully charged your MapSight unit we recommend that you calibrate the compass to
fine-tune the compass for your local operating area.
The ‘Calibrate Compass’ utility guides the user through an in-field compass calibration process. A
video showing this process can be found at http://www.youtube.com/watch?v=KzxRBk9EjhI.
Why you should calibrate!
Your MapSight will naturally pick up a magnetic signature over time that may affect the accuracy of
the internal digital compass.
To maintain optimum performance, a Compass Calibration application is provided on your MapSight
that will guide you through the steps required to measure and compensate for this magnetic
signature.
When you should calibrate
You should recalibrate the compass when you first use the device and whenever your MapSight has
travelled a long distance (e.g. plane flights or shipping to a new location). To ensure the highest
possible compass accuracy, it is recommended that the MapSight be calibrated at least once per
month.
Where you should calibrate
The Compass Calibration application should be used in a clean magnetic free environment. This
means:
• Keep away from large metal objects (e.g. cars, steel poles, desk frames, filing cabinets etc.).
• Avoid wearing metallic objects (e.g. large metal watches etc.).
• Keep clear of electric wires, transformers, and other electronic devices that may generate a
magnetic field.
• In general, for any metallic object, position the MapSight unit at least twice its longest
dimension away from the object (e.g. keep at least twice the distance of the length of a 3 meter
car, approximately 6 meter. Smaller metal objects have significant less impact).
• Keep other magnetic objects away (e.g. sighting compasses / magnetic toys etc.).
The calibration may be performed indoors, but be aware of the cautions above. The ideal location to
perform the operation would be in the middle of a field away from any man-made structures.
Page 24
!
MapSight!User!Manual! Page!20! www.gemapsight.com/support!
MS-101-14-12-34.0
!
How to calibrate
• To start the calibration process, tap the ‘Calibrate Compass’
icon on the main screen.
• Review the ‘Compass Calibration’ welcome screen, and tap the
screen to continue.
Step 1 – North Orientation
• At the align screen, move your MapSight until the red line is
best aligned with the N.
Note: The bar indicator at the bottom of the screen will move
into the green zone when correctly aligned.
Page 25
!
MapSight!User!Manual! Page!21! www.gemapsight.com/support!
MS-101-14-12-34.0
!
• Note the direction that the MapSight is facing (e.g. identify a
recognizable object / landmark in this direction).
• During the steps on the following pages, try to keep the front
section of the MapSight aligned with your reference direction
as shown.
• Tap the screen to continue.
• In the rotation screen, review the video which illustrates the
movement required
o The videos are taken from the user’s perspective when
facing in the reference direction.
o Note that the movements required for the compass
calibration may take a couple of attempts to master. Don’t
worry if you get it wrong, the calibration application will
prompt you to repeat any step that was not completed
correctly.
o Aim to be halfway through the rotation when the count gets
to 5.
o For each rotation, the key is to keep the MapSight aligned
with the reference direction as shown.
• When you are ready, tap the screen to start.
• You will be given a countdown ‘Ready, Set, Go’ and a 10 second count will begin for each
required rotation.
• Rotate your MapSight smoothly in the manner shown during the 10 second count, maintaining
alignment with the direction reference noted earlier.
• If you move too far from alignment you will be warned with a tone. The faster the tone beeps,
the further the MapSight is from the correct alignment. Use the bar indicator on the bottom of
the screen to help guide you back to the correct alignment.
• Once the 10 second count has finished, the data collected will be assessed for alignment and
rotational quality.
• If the Compass Calibration was not rotated evenly through one
complete revolution, the error “The rotation was not even. One
full rotation should take 10 seconds.” will be displayed.
• Repeat the process for each of the three required orientations.
Page 26
!
MapSight!User!Manual! Page!22! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Step 2 – Rotation Orientation 1
Step 3 – Rotation Orientation 2
Step 4 – Rotation Orientation 3
Page 27
!
MapSight!User!Manual! Page!23! www.gemapsight.com/support!
MS-101-14-12-34.0
!
• Once you have successfully completed the three rotations,
new compass calibration parameters will be calculated and
stored.
Note: During the calculation phase the display will show
the final countdown time and this on-screen cursor will
change to the ‘working’ cursor.
• A summary will be presented indicating that the process is
complete.
• Tap ‘Quit’ to close the Compass Calibration application.
Page 28
!
MapSight!User!Manual! Page!24! www.gemapsight.com/support!
MS-101-14-12-34.0
!
MapSight Application
MapSight Tools
Data Transfer to Desktop
MapSight Data Capture Application
!
Page 29
!
MapSight!User!Manual! Page!25! www.gemapsight.com/support!
MS-101-14-12-34.0
!
MapSight Data Capture Application
The MapSight application provides access to the MapSight Tools data capture modes. All MapSight
units have MapSight installed, but MapSight Tools are accessible dependent on product license
purchased.
Starting the MapSight application
To start the MapSight application either tap the MapSight icon on the main Home screen, or from the
Start menu
Launch MapSight from Home screen
Launch MapSight from Start menu
The MapSight application will start and progress through the startup screen on to the Home screen
with a list of MapSight Tools.
→
→
Page 30
!
MapSight!User!Manual! Page!26! www.gemapsight.com/support!
MS-101-14-12-34.0
!
MapSight Home screen
The Home screen is split into four areas:
1. Status
The top of the screen will show
the screen name and any
applicable status icons. In the
top-right corner, the GPS icons
will indicate the GPS signal and
the battery icon will indicate the
charge status (or remaining life)
of the battery.
2. Job Name
The current job name will show
below the status icons
3. MapSight Tools and Custom
Forms
The scrollable list of MapSight
Tools and/or custom forms will
show in the main part of the
screen.
4. Action Buttons
At the bottom of the screen
action buttons will show.
Buttons will differ depending on
the options relevant to the onscreen display.
Viewing and changing the Settings
On the Home screen tap the [Menu] button to
display the available options.
Tap the settings icon to access the ‘MapSight
Settings’ options.
On any of the ‘MapSight Settings’ tabs, tapping
the [ok] button (in the top-right corner) will save
the selected settings and return to the previous
screen
Page 31
!
MapSight!User!Manual! Page!27! www.gemapsight.com/support!
MS-101-14-12-34.0
!

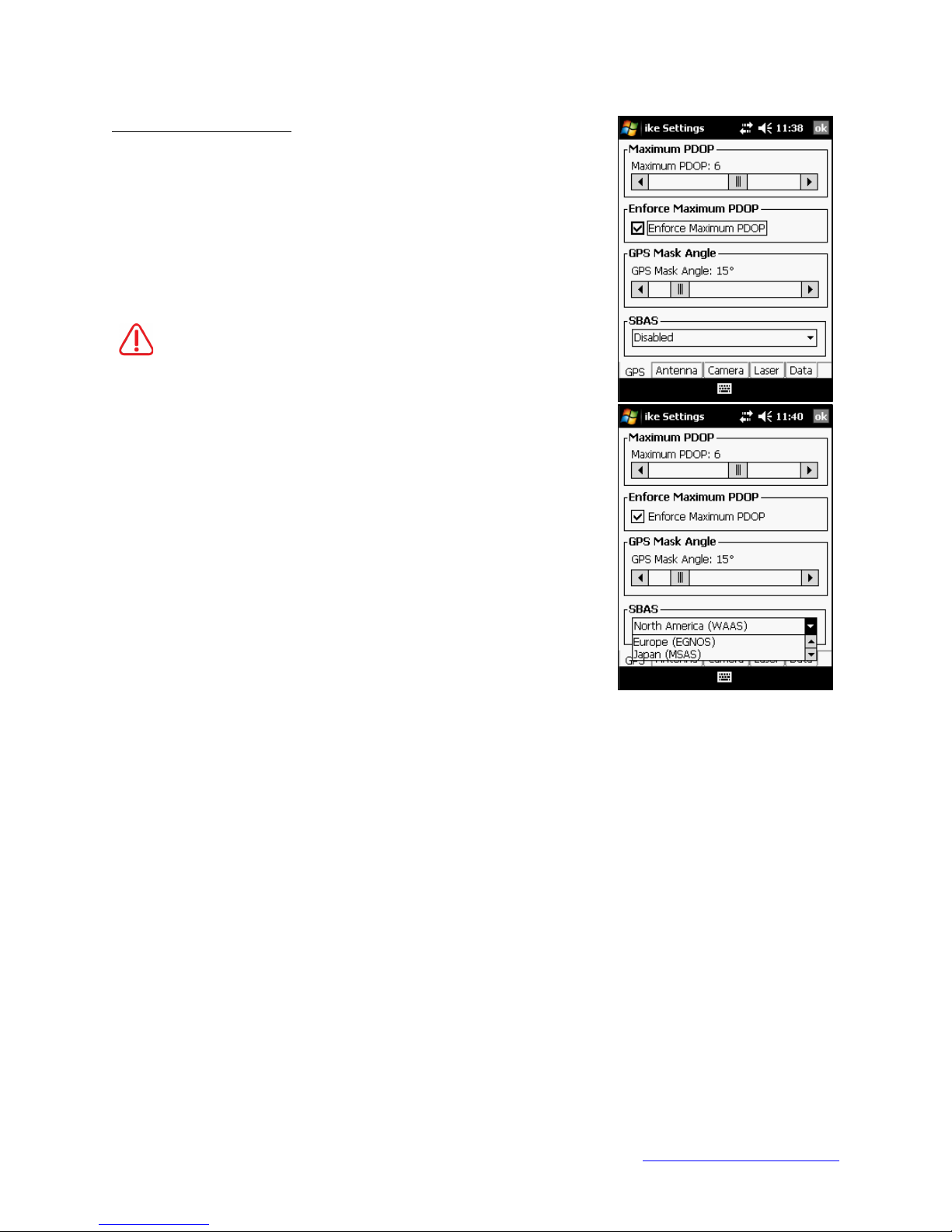

GPS Settings
This screen allows you to view and change the settings that affect
how MapSight operates with GPS satellites.
GPS Position Dilution of Precision (PDOP) value is a measure of the
overall accuracy of the current position. The lower this value is
then the more accurate your GPS position is likely to be. A value of
100.0 is displayed on the targeting preview screen when PDOP
cannot be calculated.
Maximum PDOP value slider
If the current PDOP reading is above the GPS Maximum PDOP
setting, a warning will be shown on the capture preview screen by
the display of an orange border around the PDOP reading. The
Maximum PDOP setting can be adjusted by sliding the level to the
left or right to lower or increase the Maximum PDOP. The default
Maximum PDOP value is 6. A lower value may result in more
accurate the fix, but this may increase the time to get a fix. A
higher Maximum PDOP may reduce the time to get a fix, but will
likely decrease the accuracy of the fix.
Enforce Maximum PDOP checkbox
When Enforce Maximum PDOP is enabled, data capture will not be
possible if the GPS readings exceed the Maximum PDOP. If Enforce
Maximum PDOP is unchecked, then an orange border will still show
around the on-screen PDOP value but positional readings can be
taken if the maximum is exceeded.
WARNING! If Enforce Maximum PDOP is unchecked,
positional detail of MapSight and target readings is may be
less accurate.
GPS Mask Angle value slider
The GPS Mask Angle default is set to 15o. Even if they are visible,
satellites that are at a lower elevation than the GPS mask angle will
not be used to calculate position. The GPS Mask Angle can be
adjusted by moving the slider bar left or right.
Page 32
!
MapSight!User!Manual! Page!28! www.gemapsight.com/support!
MS-101-14-12-34.0
!
SBAS drop-down options
Hardware Revision Two MapSight units
Hardware Revision Two users can select their SBAS system from
the following options:
• Disabled
• North America (WAAS)
• Europe (EGNOS)
• Japan (MSAS)
• India (GAGAN)
WARNING! Selecting the wrong SBAS system will make the
GPS less accurate. Anyone outside the regions specified
should set the SBAS option to ‘Disabled’.
Hardware Revision One MapSight units
This setting is not required Hardware Revision One MapSight units
as it is handled automatically.
Page 33
!
MapSight!User!Manual! Page!29! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Antenna Settings
This screen allows you to view and change the value settings in
relation to using MapSight used with an external antenna.
The GPS Antenna Offset is used in conjunction with a fixed-position
external antenna (on a pole or backpack) connected to the
MapSight units external antenna port.
• The ‘Vertical (m):’ value is the distance above the MapSight unit
that a connected external antenna is located.
• The ‘Horizontal (m):’ value is the distance to behind the
MapSight unit that a connected external antenna is located.
Tapping the [Save] button stores the Vertical and Horizontal values
to memory and adjusts GPS location and Laser range calculations
accordingly.
WARNING! When an external antenna is not connected to
the MapSight unit the GPS Antenna Offset Vertical and
Horizontal values should always be saved as 0.00
This example shows an external antenna mounted on a
backpack.
WARNING! To ensure best accuracy, it is not recommended
that a connected external antenna be secured forward or
beneath the MapSight unit. The Vertical offset should
always be above the MapSight unit, and the Horizontal
offset should always be behind the MapSight unit.
Page 34
!
MapSight!User!Manual! Page!30! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Camera Settings
This screen allows you to view and change the settings for the
photos taken with MapSight.
The Image Resolution drop-down list shows the number of
megapixels to be used for each photo. A higher resolution will give
more detailed photos, but take up more memory storage space.
The number of options available on the Image Resolution list
depends on the model of MapSight unit purchased. An Image
Resolution of 3.2MP is selected by default.
Captured Data Review provides options for post-capture review;
when the:
• ‘Display until user confirms’ option is selected the photo review
screen is presented until the user taps the [Save] button. When
this option is selected, the ‘Retry’ option is also available from
the Review screen to allow the user to discard the captured
photo and retry the capture. This option is enabled by default.
• ‘Display for X second(s)’ option is selected the photo review
screen is presented, briefly while the photo is saved, then for
the number of seconds selected on the slider. The display timeout ranges between 0 and 5 seconds.
EXIF Local Pos Fields Populated As options
The Exchangeable Image File Format (EXIF) fields are pieces of
information stored with each photo. These use the EXIF v2.2
standard format for digital photos, such as the time and date, but
also include fields for target positional data which MapSight
records. With each reading, MapSight records both the Local
position (where your MapSight is physically located) and the Target
position (the object that the crosshairs are targeting.) For some
applications, such as Google Earth, it is useful to record the GPS
coordinates for the target position in the EXIF Local Position field so
that map icons will show where the object actually is, but have an
attached picture that was taken from a distance. By default,
MapSight sets this field to store the target position data.
WARNING! Where the EXIF Local Position field is set as
‘Target Position’ the EXIF will record the same value in the
EXIF Latitude / Longitude and Destination Latitude /
Longitude fields.
The Save Image With Crosshair checkbox is checked by default to
allow presentation a crosshair on the captured target. If the Save
Image With Crosshair is not checked, the photo does not save a
crosshair on the target.
Page 35
!
MapSight!User!Manual! Page!31! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Laser Settings
This screen allows you to view and change the settings in relation
to the way the laser rangefinder functions.
The Laser Mode options controls the selection between always on
(Streaming) or single target (One Shot) mode.
• The ‘Streaming’ option is the default setting for where the laser
is continually firing and providing a live range distance to
target. This option is enabled by default.
• The ‘One Shot’ option causes the laser rangefinder to attempt
to determine a distance only when the ‘Capture’ button is press.
Where ‘One Shot’ Laser Mode has been selected, the capture
preview Distance value will be shown as ‘Single’.
WARNING! Regardless of which the Laser Mode is
selected the laser rangefinder emits a pulse that may
cause infrared transmission detectors (e.g. speed
camera detectors) to be activated.
The Measurement Units option controls the selection between
recording distance measurement units.
• ‘Feet’ option displays measured distance in feet and inches and
records in decimal feet (e.g. displayed 4’6” will record as 4.5).
This option is enabled by default.
• ‘Meters’ option displays and records measured distance in
decimal meters.
The capture preview and review screens will present the measured
range in the ‘Distance’ panel
Page 36
!
MapSight!User!Manual! Page!32! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Data Settings
This screen allows you to view and change the top-level Data
Folder where MapSight stores its Job sub-folders. The default
‘Current Data Folder:’ directory is \SD Card\
Data Folder shows the ‘Current Data Folder:’
Tap the [Browse] button in the Data Folder box to show the
directory browser dialog. Use the folder tree view to browse and
select the required folder. Tap [Save] or [ok] to update the data
folder, or tap [Cancel] to not change the ‘Current Data Folder:’
WARNING! The Data Folder path must be a valid existing
folder on your MapSight unit to correctly record captured
data.
Note: While it is possible to store captured data in MapSight
internal memory, it is recommended that data be stored on
an inserted SD card.
The XML for each Image setting allows the user to enable or
disable the generation of an XML file for each photo captured. This
option is not enabled by default.
Page 37
!
MapSight!User!Manual! Page!33! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Changing the ‘Default’ Job name
For new units the job name will be set as ‘Default’.
As you may be operating in different areas it may be
prudent to change the name of the job to reflect
something more meaningful for the task.
Tap the current ‘Job:’ name to select and access the
Set Job menu
The virtual keyboard will appear to allow data entry
of a new job name.
Using the keyboard to enter an alpha-numeric
description of the job.
Alternatively, a list of existing jobs can be shown by
tapping the drop-down arrow to the right of current
job name field.
Tapping an existing job name will update the job
name to the selected job.
Once the correct job name is created, or selected,
and tap the [OK] button to set the job.
Tapping the [Cancel] button will return to the Home
screen.
Page 38
!
MapSight!User!Manual! Page!34! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The application will return to the Home screen and
the Job name will be updated as selected.
Exiting the MapSight application
On the Home screen tap the [Menu] button to
display the available options.
Tap the exit icon to close the MapSight application.
At the ‘Exit MapSight?’ confirmation, either tap [OK]
to exit the application, or [Cancel] to return to the
Home screen
Page 39
!
MapSight!User!Manual! Page!35! www.gemapsight.com/support!
MS-101-14-12-34.0
!
MapSight Tools
Introduction
MapSight Tools are easy-to-use data capture modes. The specific MapSight Tools enabled on a
MapSight unit are restricted to those licensed for that individual MapSight unit.
The standard MapSight Tools have similar on-screen interfaces and start-to-finish workflows.
On-screen interface: Example data capture preview screen for Target Position
1. Status
The top of the screen shows the
task name any any relevant icons
(e.g. battery level).
2. Video Preview
A streaming feed from the camera.
Most MapSight Tools show a
central crosshair to allow
accuracte targetting of point-ofinterest.
3. Instrument Readings
The lower section of the screen
shows the instruments in use by
the selected MapSight Tool.
Where any instrument does not
have a useable reading a red
border will appear around that
reading.
4. Action Buttons
At the bottom of the screen action
buttons will show. Buttons may
differ depending on the options
relevant to the on-screen display.
Distance: The laser rangefinder distance from the MapSight unit to the targetted object
Bearing: The Compass bearing from the the MapSight unit towards the targetted object. This initially displays a
°M (Magentic) bearing, but as the GPS obtains a fix this will update to °T (True) to adjust for localised magnetic
declination/variance.
GPS Skyplot: Shows an overhead view of detected GPS satellites. The black icons indicate satellites in use for
you fix and the white icons indicate satellited available but not in use. The thicker black line indicates the
direction to north.
GPS PDOP: Shows a measure of the overall accuracy of the current position. The lower the PDOP the greater
the GPS positionmal accuracy is likey to be.
GPS Fix: This indicates the status of the GPS fix with respect to GPS coverage, PDOP and enabled MapSight
functionality. If the GPS+ option is installed a + symbol will be appended to the fix indicator and a position
quality graph will display.
Workflow: Example workflow for Target Position MapSight Tool.
Task Selection
Target Capture
Review
Additional Info
Save
Page 40
!
MapSight!User!Manual! Page!36! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Target Position
Summary
Target Position is the workhorse of MapSight. Point MapSight at a remote object such as a tree, pole
or building and capture its GPS location using the on-board GPS, laser range finder and compass.
One shot and you’re on to the next object. Target Position mode is the standard mode for capturing
a single geo-referenced target and associated photo.
Step-by-step
Select the Target Position MapSight Tool from the Home
menu
Page 41
!
MapSight!User!Manual! Page!37! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the Target Position MapSight Tool will
be shown. A red star will indicate the mandatory tasks.
Tap the Target Position task to start the video preview
screen
Move your MapSight until the crosshairs are centered on the
target object you wish to capture data on.
Check that the PDOP and GPS Fix readings are good. The
border around the instruments readouts will change in color
depending on the quality of the reading.
• A red border will indicates that that reading is outside
the limits of the instrument.
• An orange border indicates that the reading can be
used, but there may have been manual adjustments
made to allow capture outside the default
recommended settings.
Hold the MapSight unit steady, ensure you’re still on target
and tap the Next button or capture soft key.
Exposure Control
If lighting conditions are an issue, use the Exposure increase
/ decrease buttons (Right or Left arrow keys) to either
lighten or darken the target photo.
When the Right or Left arrow keys are pressed the Manual
Exposure icon will appear in the bottom-right of the Camera
Window.
Tapping the icon will return the Camera to Auto Exposure
mode and the icon will disappear.
If the photo is too dark and the target cannot be
distinguished, press the Right key to lighten the photo.
Page 42
!
MapSight!User!Manual! Page!38! www.gemapsight.com/support!
MS-101-14-12-34.0
!
If the photo is too light and the target cannot be
distinguished, press the Left key to darken the photo.
The camera will click, and depending on camera settings,
will either show the review screen or revert to the Target
Position task selection screen
With the review screen enabled the screen will display a
static image of the target photo and the instrument time at
time of capture. You can tap the:
Information icon (top-left) to access
geospatial data about the target
Green ‘back’ arrow (bottom-right) to retake
the target. This will return to the preview
screen.
The information screen will provide instrument readings in
regards to the local (MapSight) position, target position and
other instrument readings.
Tap the Next button to save the target and continue.
Where there is a successful recording a green tick will
appear alongside the task.
From here the information can be abandoned (tap the
Home button), retaken (tap Target Position again to delete
the photo and re-enter the video preview), and data entered
into non-mandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment
entry screen.
Tap the Save button to save the target without
Label/Comments recorded and return to the Home screen.
Tap the Home button to abandon the target and delete the
recorded data.
Page 43
!
MapSight!User!Manual! Page!39! www.gemapsight.com/support!
MS-101-14-12-34.0
!
On the Label screen, use the virtual keyboard to enter a
short description of the target.
Tap the Cancel button to exit the Label entry
Tap the OK button to store the Label text.
On the Comment screen, use the virtual keyboard to enter a
more detailed description of the target.
Tap the Cancel button to exit the Comment entry
Tap the OK button to store the Comment text.
Once all information is correct, tap Save to save the target
information.
Or tap Home to abandon the target and delete the recorded
data.
The Target Position MapSight Tool will return to the Home
menu
Page 44
!
MapSight!User!Manual! Page!40! www.gemapsight.com/support!
MS-101-14-12-34.0
!
3-Shot Height
Summary
Directly measure the height of an object, such as a pole, from a remote position, even when the base
of the object is obscured.
In 3-Shot Height mode, the user is guided through a series of steps to measure the vertical height of
an object, where the base of the object is not necessarily visible.
When performing 3-Shot Height measurements, the use of a MapSight low magnetic signature tripod
is strongly recommended as this will assist in minimizing potential error introduced due to changing
the hand-held height of the MapSight during the measurement.
Step-by-step
Select the Three Shot Height MapSight Tool from the Home
menu
Page 45
!
MapSight!User!Manual! Page!41! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the Three Shot Height MapSight Tool will
be shown. A red star will indicate the mandatory tasks.
Tap the Three Shot Height task to start the video preview
screen
Aim at the ground in front of the object.
Aim at a level, flat area in front of the object to be measured
and tap the Next button to proceed.
Aim at the vertical face of the object.
Tap the Next button to proceed or tap the Previous button to
return to the previous step.
Page 46
!
MapSight!User!Manual! Page!42! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Aim at the top.
Tap the Next button to proceed or tap the Previous button to
return to the previous step.
Take the photo. The measured height is overlaid on the photo.
Tap the Next button to capture the photo or tap the Previous
button to return to the previous step.
The camera will click, and depending on camera settings, will
revert to the Three Shot Height selection screen. Where there is
a successful recording a green tick will appear alongside the
task.
From here the information can be abandoned (tap the Home
button), retaken (tap Three Shot Height again to delete the
photo and re-enter the video preview), and data entered into
non-mandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded and return to the Home screen.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 47
!
MapSight!User!Manual! Page!43! www.gemapsight.com/support!
MS-101-14-12-34.0
!

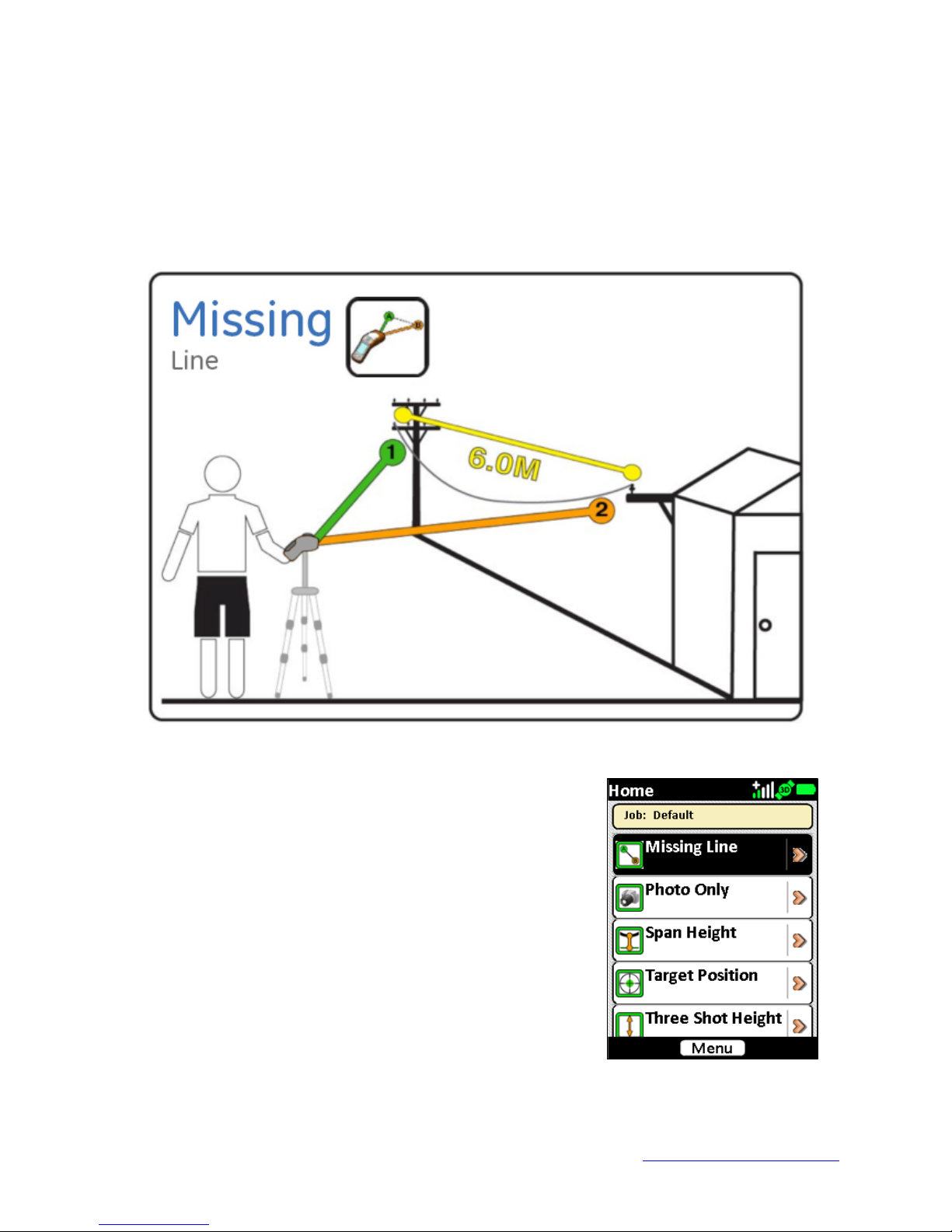

Missing Line
Summary
The Missing Line mode is used to calculate the horizontal distance between any two objects.
When performing Missing Line measurements, the use of a MapSight low magnetic signature tripod
is strongly recommended as this will assist in minimizing potential error introduced due to changing
the hand-held height of the MapSight during the measurement.
Step-by-step
Select the Missing MapSight Tool from the Home menu
Page 48
!
MapSight!User!Manual! Page!44! www.gemapsight.com/support!
MS-101-14-12-34.0
!

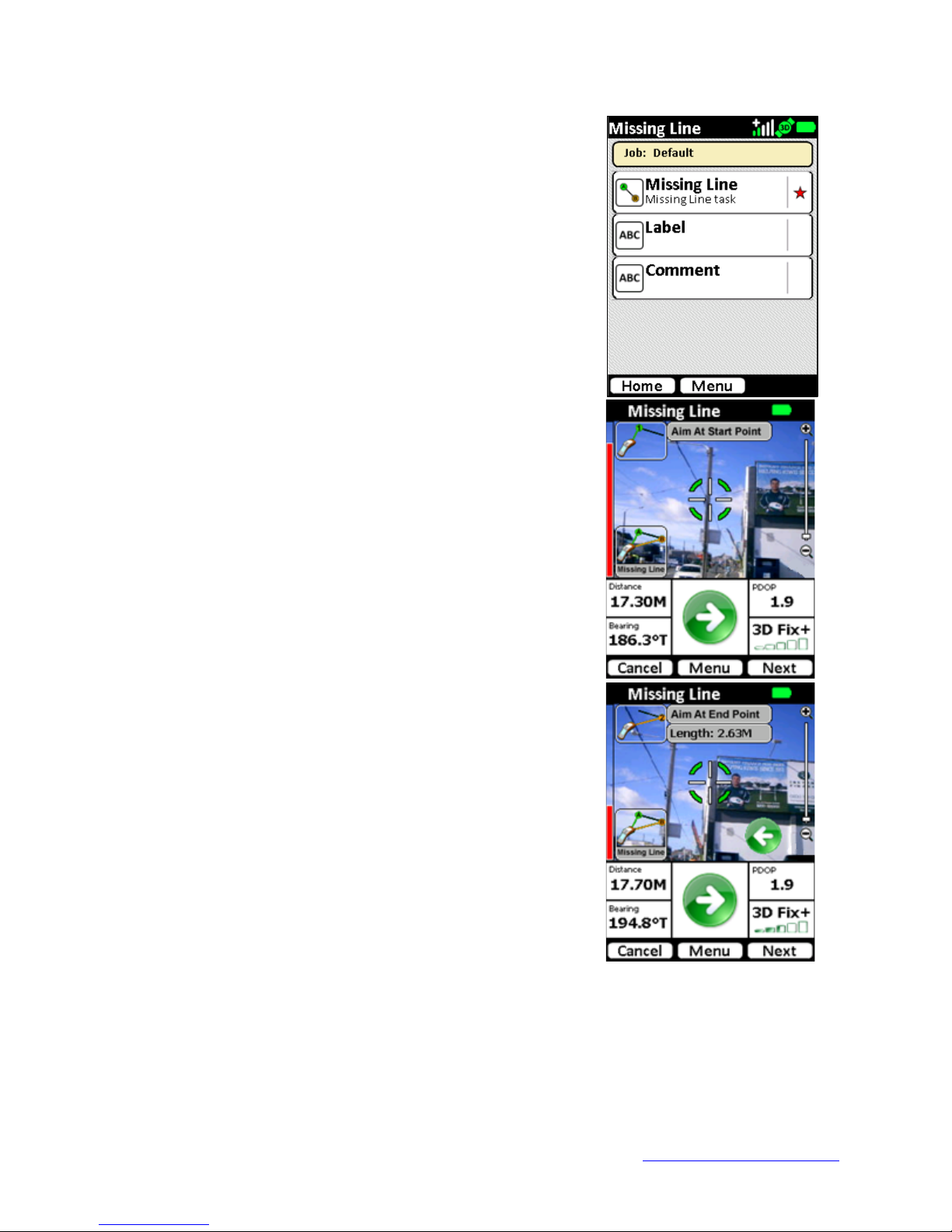

The default tasks for the Missing Line MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the Missing Line task to start the video preview screen
Aim at the start point
Confirm your targeting
Tap Next
Aim at the end point
Confirm your targeting
Tap Next
Page 49
!
MapSight!User!Manual! Page!45! www.gemapsight.com/support!
MS-101-14-12-34.0
!

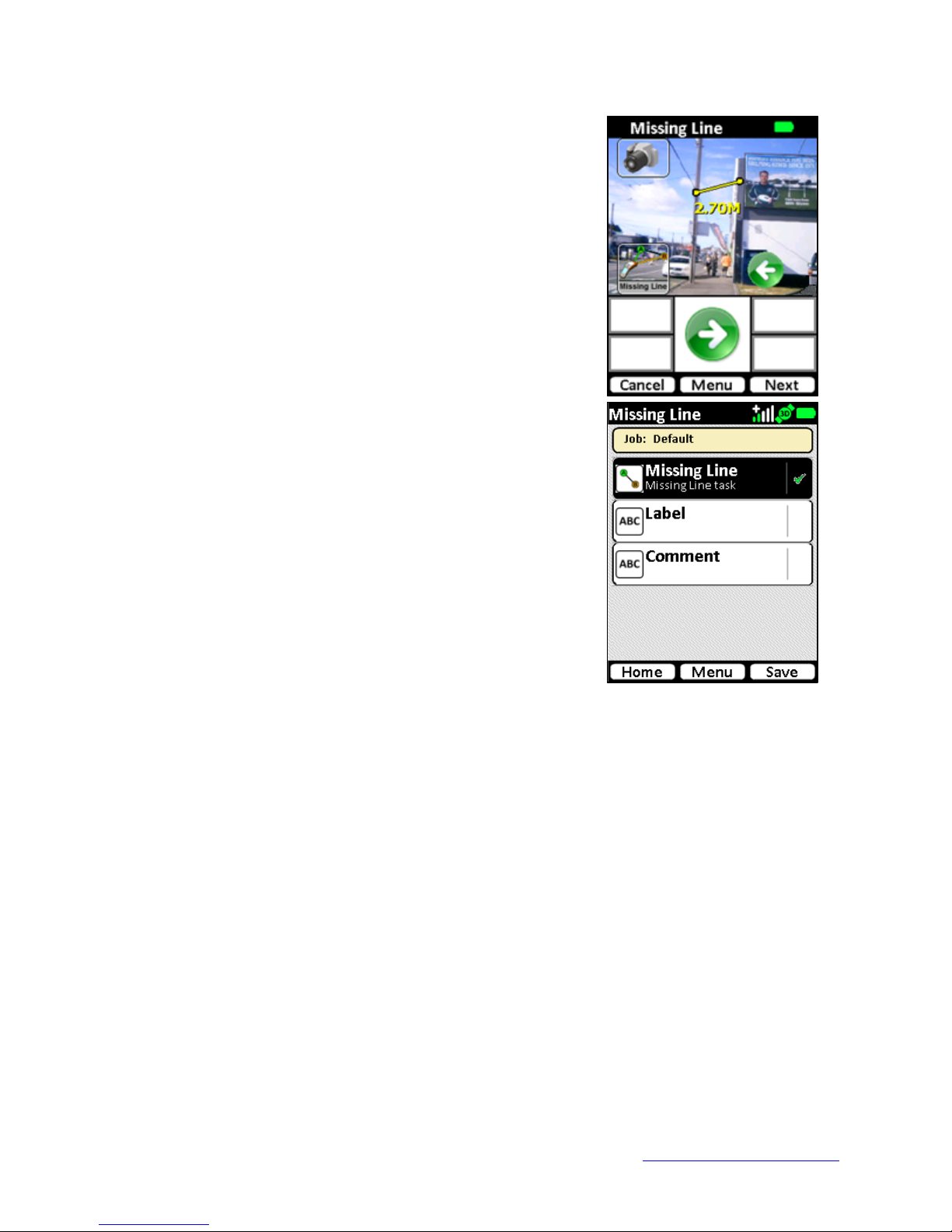

Recompose the scene so that the superimposed line is in the
center of the image.
Tap Next to continue.
The camera will click, and depending on camera settings, will
revert to the Three Shot Height selection screen. Where there is
a successful recording a green tick will appear alongside the
task.
From here the information can be abandoned (tap the Home
button), retaken (tap Missing Line again to delete the photo and
re-enter the video preview), and data entered into nonmandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded and return to the Home screen.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 50
!
MapSight!User!Manual! Page!46! www.gemapsight.com/support!
MS-101-14-12-34.0
!

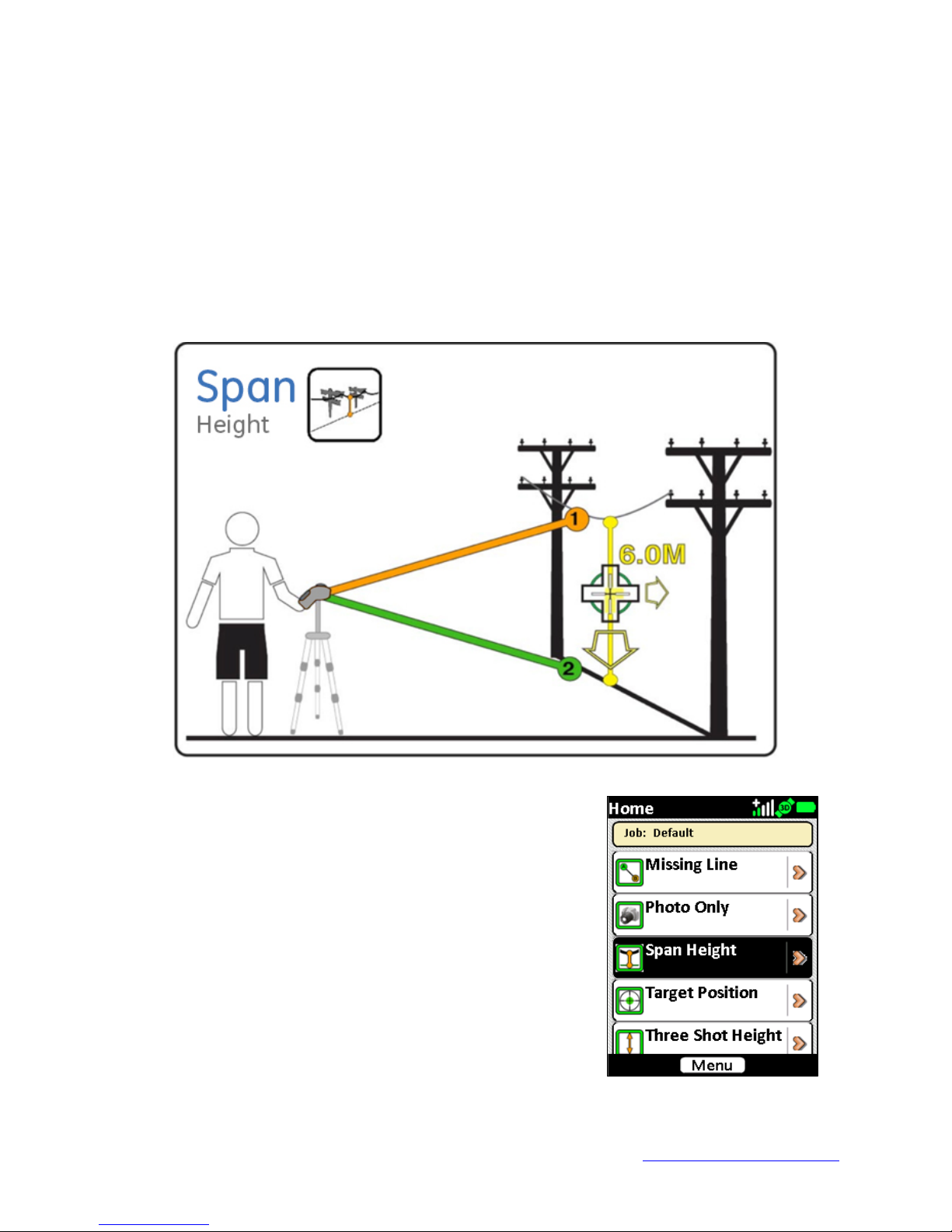

Span Height
Summary
In Span Height mode is used to calculate the vertical height above ground of a point on a span, for
example the mid-span height of a cable or wire.
The user is guided through a series of steps to allow a measurement of the vertical distance between
(for example) a suspended wire and the (reasonably level) ground below.
When performing span height measurements, the use of a MapSight low Magnetic Signature Tripod
is strongly recommended as this will assist in minimizing potential error introduced due to changing
the hand-held height of the MapSight during the measurement.
Step-by-step
Select the Span Height MapSight Tool from the Home menu
Page 51
!
MapSight!User!Manual! Page!47! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the Span Height MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the Span Height task to start the video preview screen
Aim at the wire. At this point in the process, your MapSight
needs a valid GPS position, along with the angle and distance to
the wire. Once these criteria are all satisfied, the Ready to
capture indicator will turn green to indicate that it is OK to
proceed. Tap the Next button when you are happy with the
distance measurement.
Tip: The distance measured in this step is critical to obtaining a
good height measurement. Observing the laser distance
measurement at this point to ensure that you get the expected
result will help to improve the overall accuracy.
Page 52
!
MapSight!User!Manual! Page!48! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Aim at the ground. The on screen indicators will guide you to the
spot directly below the Point of Interest on the wire.
Follow the arrows until your MapSight is aimed at the point on
the ground directly below the wire and the arrows disappear.
Once you are satisfied, Tap the Next button to continue.
Tip: If you are in a situation where you cannot see the point on
the ground directly below the wire, you can aim at a point on
the ground at the same height instead (only the vertical height
will be used at this stage).
Recompose your scene with the measurement superimposed,
and tap the Next button to finalize the measurement.
Page 53
!
MapSight!User!Manual! Page!49! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The camera will click, and depending on camera settings, will
revert to the Span Height selection screen. Where there is a
successful recording a green tick will appear alongside the task.
From here the target position information can be abandoned
(tap the Home button), retaken (tap Span Height again to delete
the photo and re-enter the video preview), and data entered
into non-mandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded.
Tap the Home button to abandon the target and delete the
recorded data and return to the Home screen.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 54
!
MapSight!User!Manual! Page!50! www.gemapsight.com/support!
MS-101-14-12-34.0
!

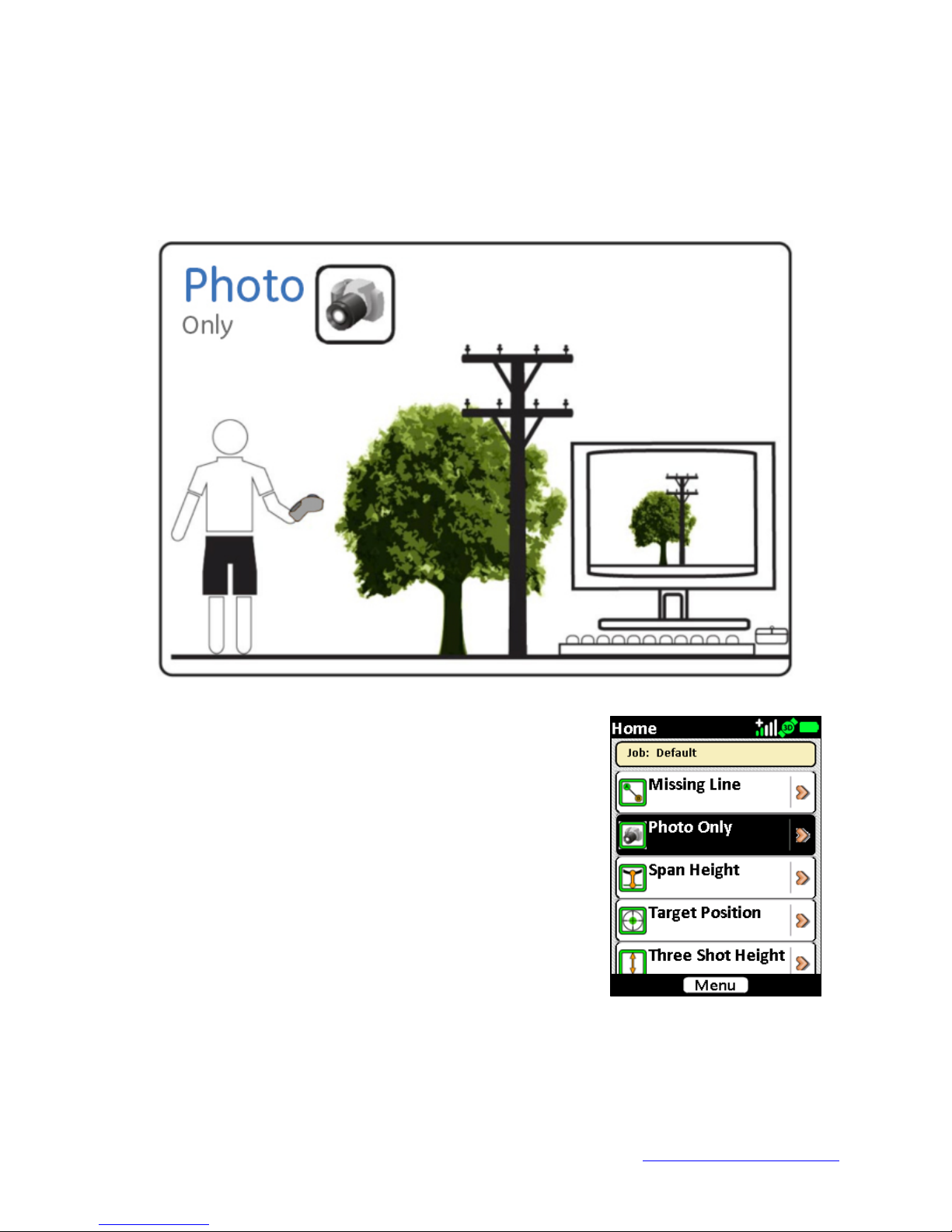

Photo Only
Summary
The Photo Only mode is used to capture a high resolution photo of an object. This is useful for
documenting the conditions of located or measured objects, for identifying hazards for field crews
and for including in assessments.
Step-by-step
Select the Photo Only MapSight Tool from the Home menu
Page 55
!
MapSight!User!Manual! Page!51! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the Photo Only MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the Photo Only task to start the video preview screen.
To use this mode, aim the MapSight to compose your scene as
required.
Tap the Next button.
The camera will click, and depending on camera settings, will
revert to the Photo Only selection screen. Where there is a
successful recording a green tick will appear alongside the task.
From here the information can be abandoned (tap the Home
button), retaken (tap Photo Only again to delete the photo and
re-enter the video preview), and data entered into nonmandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 56
!
MapSight!User!Manual! Page!52! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Local Point
Summary:
This MapSight Tool is used to capture an average GPS position over a series of 30 readings. When
used with a custom MapSight View form, the number of GPS readings can be adjusted to suit data
collection requirements.
Step-by-step
Select the Local Point MapSight Tool from the Home menu
Page 57
!
MapSight!User!Manual! Page!53! www.gemapsight.com/support!
MS-101-14-12-34.0
!

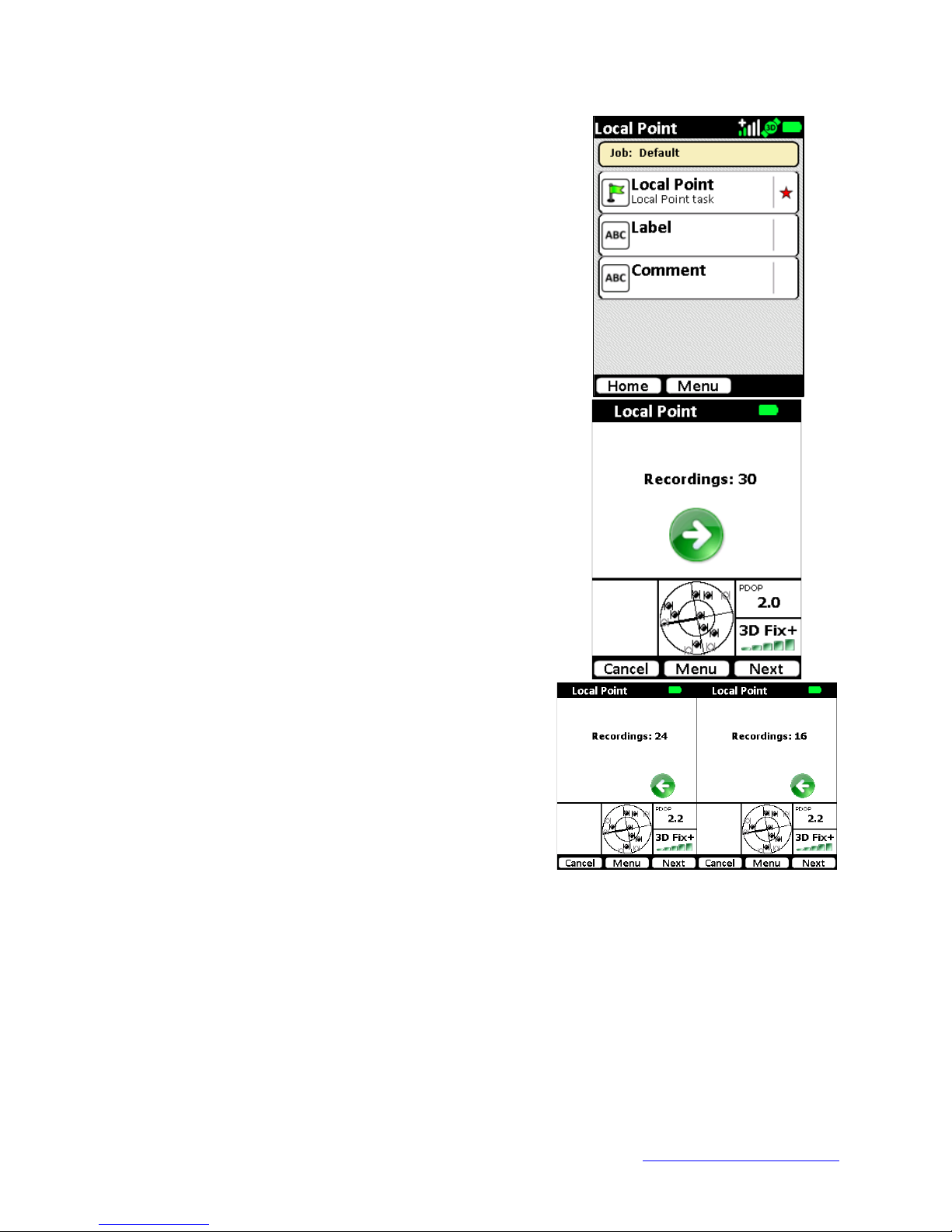

The default tasks for the Local Point MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the Local Point task to start the local point averaging
screen.
To use this mode, tap the start button to being calculating
an average position.
GPS readings will be counted down until all recordings are
completed.
Page 58
!
MapSight!User!Manual! Page!54! www.gemapsight.com/support!
MS-101-14-12-34.0
!
When all recordings a complete an average Latitude,
Longitude, Altitude and PDOP will be presented.
Tap Next to save the positional information
The screen will revert to the Local Point selection screen.
Where there is a successful recording a green tick will
appear alongside the task.
From here the information can be abandoned (tap the
Home button), retaken (tap Local Point again to delete the
reading and re-enter the countdown), and data entered
into non-mandatory Label and Comment fields.
Tap the Label task button to enter the Label entry
screen.
Tap the Comment task button to enter the Comment
entry screen.
Tap the Save button to save the reading without
Label/Comments recorded.
Tap the Home button to abandon the reading and delete
the recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 59
!
MapSight!User!Manual! Page!55! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Tree Assessment
Summary
This MapSight Tool is used to capture an annotated and geo-referenced 5MP photo for tree
assessments.
Step-by-step
Select the Tree Assessment MapSight Tool from the Home
menu
Page 60
!
MapSight!User!Manual! Page!56! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the Tree Assessment MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the Tree Assessment task to start the video preview
screen.
To use this mode, follow the onscreen instructions to capture
the required detail.
Aim the MapSight at the base of the tree and tap the Next
(green arrow) button.
Aim the MapSight at the truck of the tree to mark the DBH
(diameter at breast height) and tap the Next (green arrow)
button.
A temporary zoomed image of the selected DBH area will be
stored for later use.
Page 61
!
MapSight!User!Manual! Page!57! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Aim the MapSight at the tree and tap the Next (green arrow)
button.
Aim the MapSight at the left most extent of the foliage and tap
the Next (green arrow) button.
Aim the MapSight at the right most extent of the foliage and tap
the Next (green arrow) button.
Page 62
!
MapSight!User!Manual! Page!58! www.gemapsight.com/support!
MS-101-14-12-34.0
!

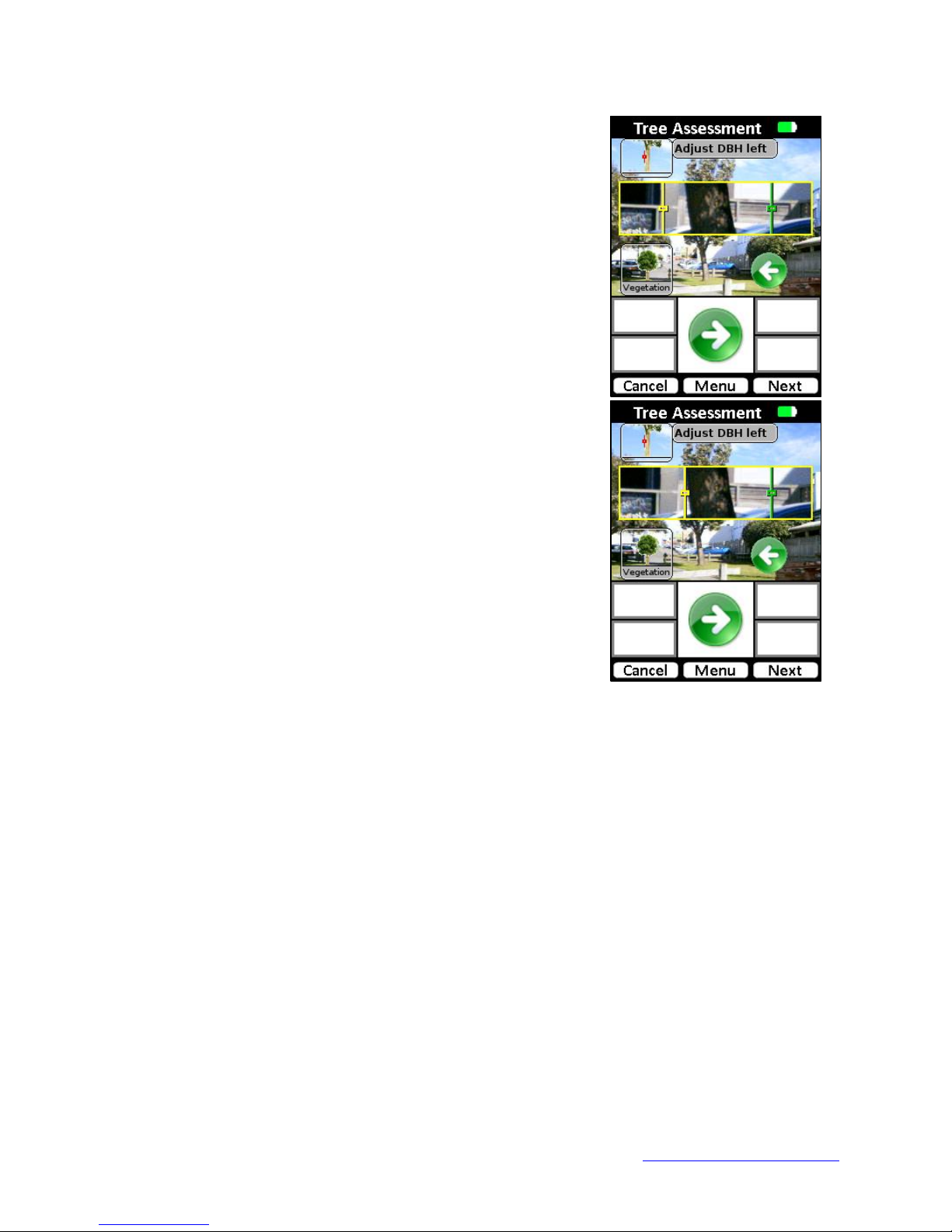

Adjust the left hand side of the DBH.
User the Left and Right hardware buttons to move the left DBH
marker to align with the left side of the tree trunk
Tap the Next (green arrow) button.
Page 63
!
MapSight!User!Manual! Page!59! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Adjust the right hand side of the DBH.
User the Left and Right hardware buttons to move the right
DBH marker to align with the sight side of the tree trunk
Tap the Next (green arrow) button.
Where enabled, the Review screen will show the captured
target photo with the marked-up tree height, width and DBH.
Tap the back button (green arrow) to abandon the image and
retake the target.
Tap the Next button to save the photo and move to the task
screen.
Page 64
!
MapSight!User!Manual! Page!60! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The camera will click, and depending on camera settings, will
revert to the Tree Assessment selection screen. Where there is
a successful recording a green tick will appear alongside the
task.
From here the information can be abandoned (tap the Home
button), retaken (tap Tree Assessment again to delete the photo
and re-enter the video preview), and data entered into nonmandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 65
!
MapSight!User!Manual! Page!61! www.gemapsight.com/support!
MS-101-14-12-34.0
!
TrueSize Poles
Summary
This MapSight Tool is used to capture a calibrated, geo-referenced 5MP photo of a
telecommunication or utility pole. The photo can then be transferred to the desktop for measurement
and annotation using the desktop MapSight Annotate Poles software.
Step-by-step
Select the True Size Pole MapSight Tool from the Home menu
Page 66
!
MapSight!User!Manual! Page!62! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The default tasks for the True Size Pole MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the True Size Pole task to start the video preview screen.
To use this mode, aim the MapSight to compose your scene
with the pole in the center of the preview.
The vertical part of the crosshair should align with the vertical
pole
Tap the Next button to capture the target. Depending on
settings, the camera click noise will be made and either the
Review or Task screen will be displayed
Where enabled, the Review screen will show the captured
target photo.
Tap the back button (green arrow) to abandon the photo and
retake the target.
Tap the Next button to save the photo and move to the task
screen.
Page 67
!
MapSight!User!Manual! Page!63! www.gemapsight.com/support!
MS-101-14-12-34.0
!
The camera will click, and depending on camera settings, will
revert to the True Size Poles selection screen. Where there is a
successful recording a green tick will appear alongside the task.
From here the information can be abandoned (tap the Home
button), retaken (tap True Size Poles again to delete the photo
and re-enter the video preview), and data entered into nonmandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 68
!
MapSight!User!Manual! Page!64! www.gemapsight.com/support!
MS-101-14-12-34.0
!

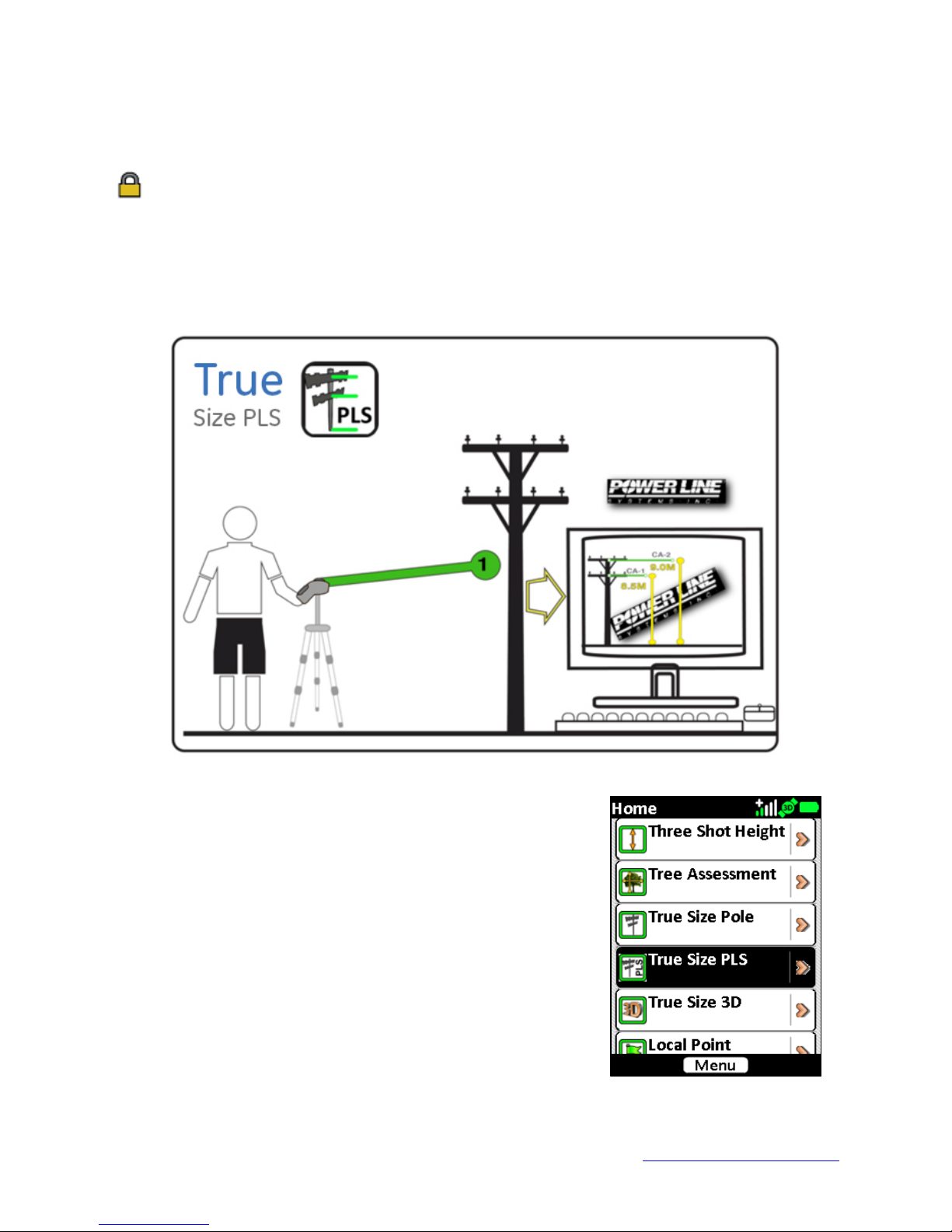

TrueSize PLS
Summary
TrueSize PLS mode is a MapSight Tool available to MapSight users who require integration with
Power Line Systems, Inc. (PLS) products. More information about the TrueSize PLS tool is
available from your MapSight reseller.
This MapSight Tool is used to capture a calibrated, geo-referenced 5MP photo of a
telecommunication or utility pole. The photo can then be transferred to the desktop for
measurement and annotation using the desktop MapSight Annotate PLS software. The annotated
image is then compatible for export into software products from Power Line Systems, Inc.
Step-by-step
Select the True Size PLS MapSight Tool from the Home menu
Page 69
!
MapSight!User!Manual! Page!65! www.gemapsight.com/support!
MS-101-14-12-34.0
!

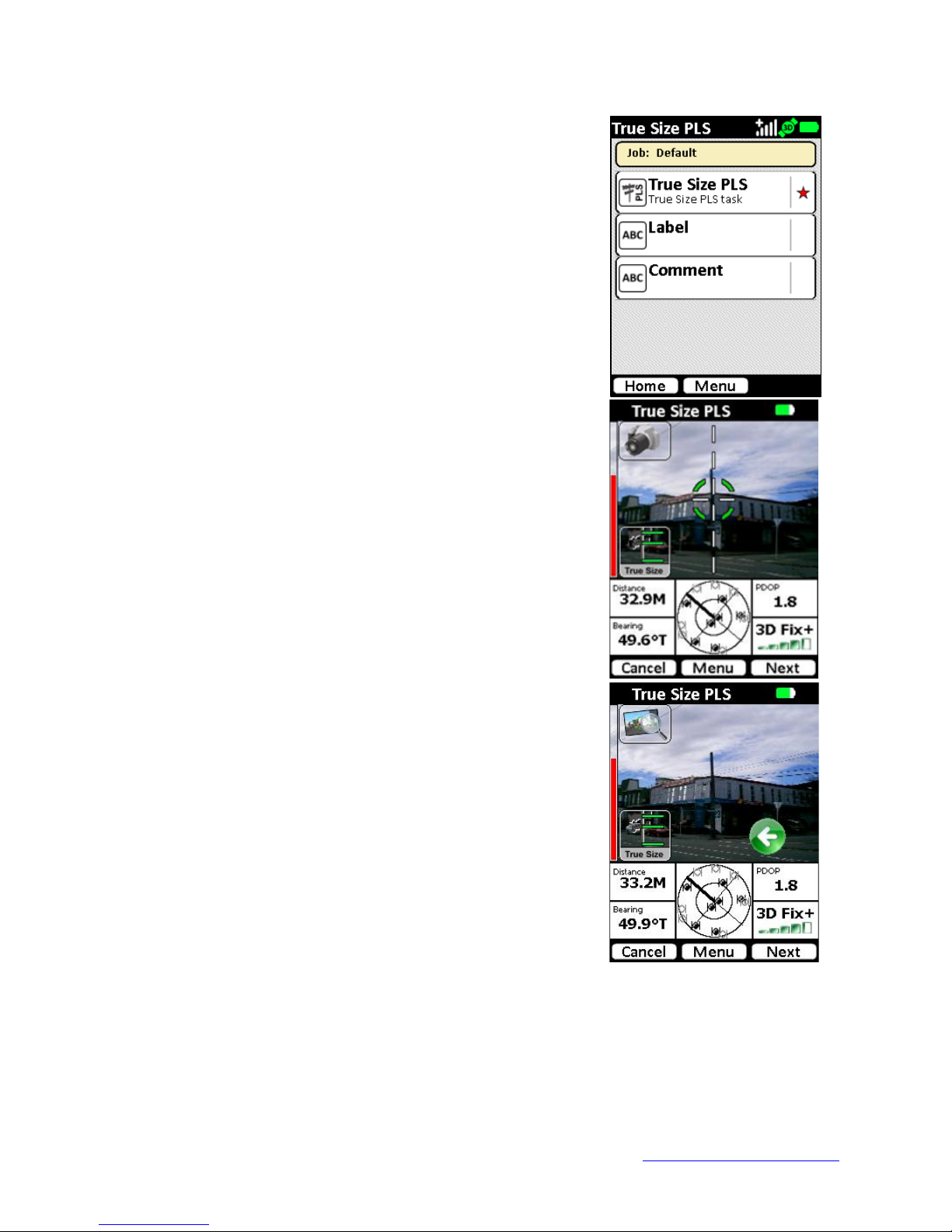

The default tasks for the True Size PLS MapSight Tool will be
shown. A red star will indicate the mandatory tasks.
Tap the True Size PLS task to start the video preview screen.
To use this mode, aim the MapSight to compose your scene
with the pole in the center of the preview.
The vertical part of the crosshair should align with the vertical
pole
Tap the Next button to capture the target. Depending on
settings, the camera click noise will be made and either the
Review or Task screen will be displayed
Where enabled, the Review screen will show the captured
target image.
Tap the back button (green arrow) to abandon the photo and
retake the target.
Tap the Next button to save the photo and move to the task
screen.
Page 70
!
MapSight!User!Manual! Page!66! www.gemapsight.com/support!
MS-101-14-12-34.0
!

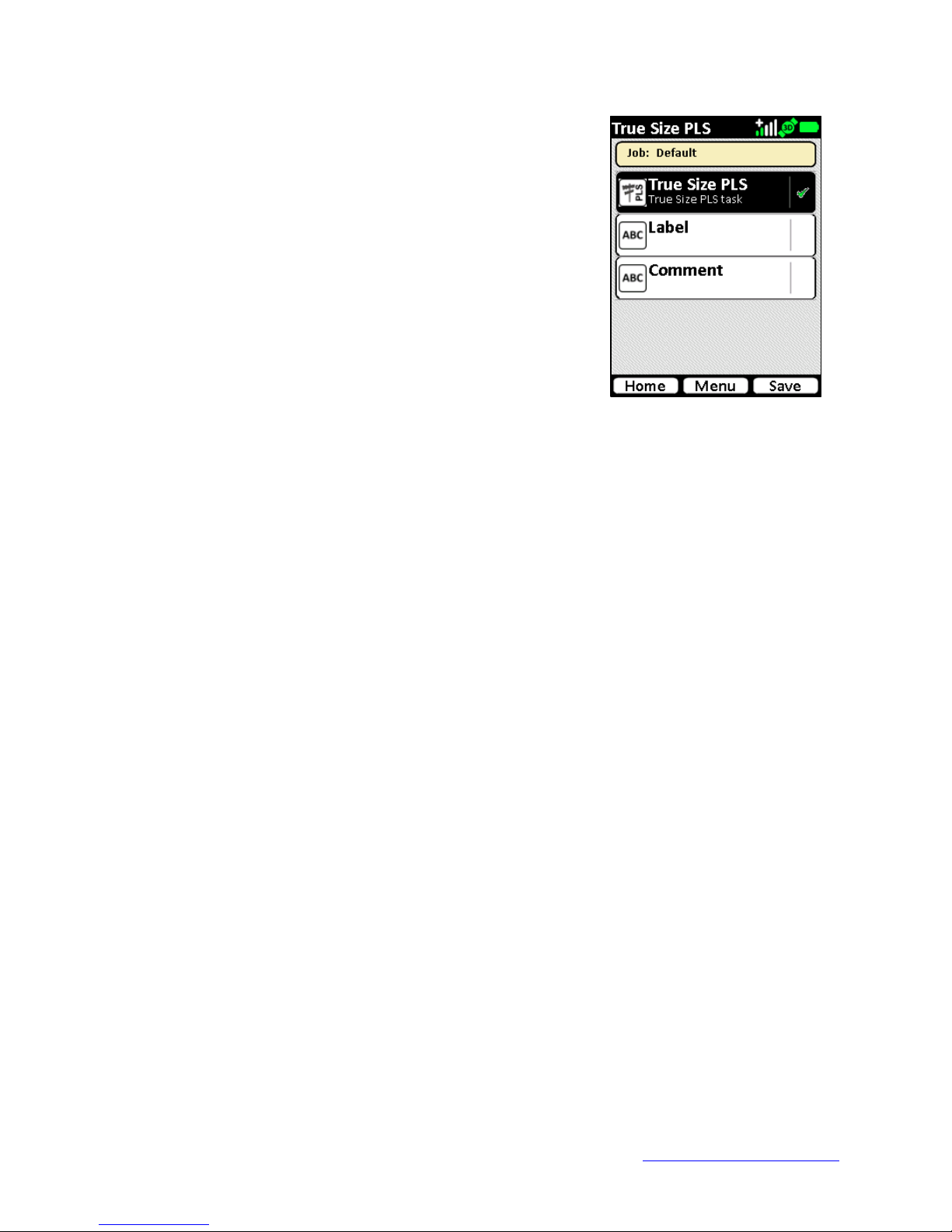

The camera will click, and depending on camera settings, will
revert to the True Size PLS selection screen. Where there is a
successful recording a green tick will appear alongside the task.
From here the information can be abandoned (tap the Home
button), retaken (tap True Size PLS again to delete the photo
and re-enter the video preview), and data entered into nonmandatory Label and Comment fields.
Tap the Label task button to enter the Label entry screen.
Tap the Comment task button to enter the Comment entry
screen.
Tap the Save button to save the target without
Label/Comments recorded.
Tap the Home button to abandon the target and delete the
recorded data.
Refer to the Target Position MapSight Tool for instruction on adding Label and Comment
Page 71
!
MapSight!User!Manual! Page!67! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Data Transfer to Desktop
The Microsoft Windows® based MapSight View application is used to transfer data from the
MapSight unit to the desktop via ActiveSync® / Windows® Mobile Device Center. Once the MapSight
data has been transferred to the desktop, various report formats can be generated from the
MapSight View Reports view.
More details on transferring data and report generation using MapSight View can be found in the
MapSight View User Manual.
Page 72
!
MapSight!User!Manual! Page!68! www.gemapsight.com/support!
Compass Calibration
Diagnostics
GPS Info
License Manager

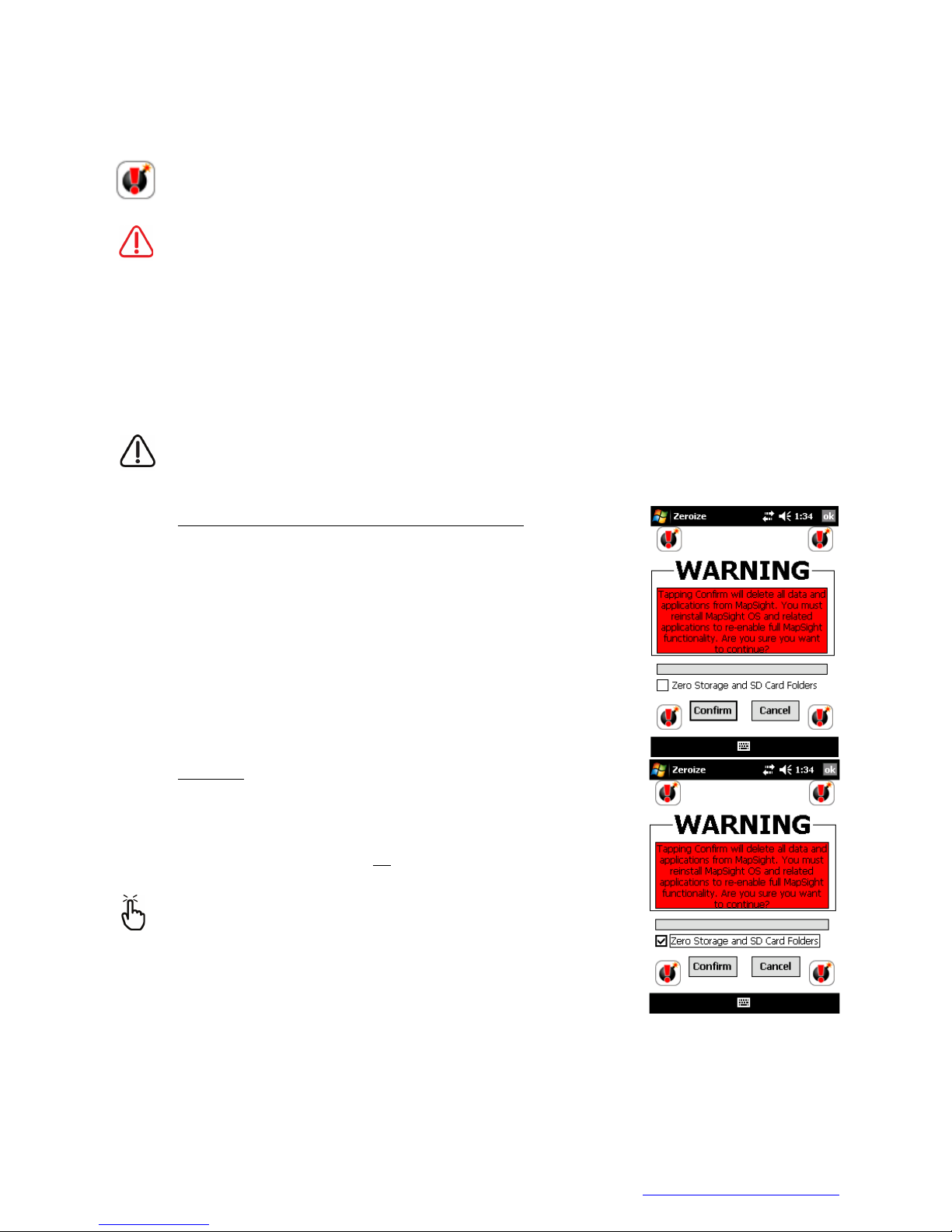

Zeroize
MapSight Utilities
!
Page 73
!
MapSight!User!Manual! Page!69! www.gemapsight.com/support!
MapSight Utilities
Your MapSight unit also comes with a number of on-board utilities to assist in use of and maintain
your MapSight unit.
These utilities are available from the Start menu on the Home screen.
Tap Start, then select the MapSight Utilities option
The list of installed MapSight Utilities will be shown.
!
Page 74
!
MapSight!User!Manual! Page!70! www.gemapsight.com/support!
Compass Calibration
Compass Calibration is an alternate method of accessing the
same utility that is available on the Home screen.
The same procedure as documented in the “Compass calibration”
section earlier in this manual is used for operating this utility.
Page 75
!
MapSight!User!Manual! Page!71! www.gemapsight.com/support!
Diagnostics
Diagnostics is an application that:
1. Shows system information in the following categories:
• System Data
• GPS Information
• Camera Information
• Data Storage Information
2. Tests communication with and reports on the following
instruments:
• Compass
• Laser
• GPS
3. Checks Battery levels
It is advisable to soft reset the device before running this application to
ensure that no running programs may affect the test. Please ensure
that you save all data before resetting the unit.
The information available in the Diagnostics screen will also be useful
should you need to contact your MapSight reseller or MapSight
Support for technical or user assistance with your MapSight unit.
When run, the Diagnostics application also stores a report (in plain text
format) in the root folder (\) of your MapSight unit.
Note: Diagnostics will not run if the MapSight application is
still running. Please ensure MapSight is exited before running
the Diagnostics application.
Page 76
!
MapSight!User!Manual! Page!72! www.gemapsight.com/support!
GPS Info
This GPS Info utility allows you to see information in regards to which GPS satellites are
accessible to your MapSight.
This information is available from the three options on the View menu.
• Skyplot
• Satellite Information (Sat info)
• Navigation Info (Nav info)
Skyplot
This is the default screen in GPSInfo. (If you have moved away
from it, you can return by selecting View > Skyplot.) It shows a map
of all the satellites that your MapSight is aware of, with
identification numbers. Solid circles mean that MapSight has an
active connection with the satellite.
This screen also gives information on the physical location of your
MapSight, based on data it receives from the GPS satellites.
The top of the screen is always North
Latitude and Longitude are the users geospatial coordinates.
Altitude is the height above sea level in meters.
PDOP is a measure of the positional accuracy of the GPS
reading.
Nav Mode is the navigational status of GPS Fix. A 2-D (two
dimensional) fix only includes latitude and longitude data. A 3-D
(three dimensional) fix also includes altitude data. The available
constellation of satellites available affects whether altitude can
be calculated.
Sat Info
This screen gives a table of all visible satellites, along with numeric
data about their location and accessibility. To access this screen,
select View > SatInfo.
Fix is a column showing which satellites are being used to
calculate the GPS position.
SV provides the Space Vehicle (or GPS satellite) identification
number.
El gives the elevation of the satellite in degrees.
Az gives the azimuth of the satellite, with true north defined as
0° and true south defined as 180°.
SNR gives the Signal-to-Noise Ratio of communication with the
satellite. A value between 40 and 50 is considered good.
Page 77
!
MapSight!User!Manual! Page!73! www.gemapsight.com/support!
Nav Info
This screen gives the navigational information of your MapSight.
Latitude and Longitude are the users geospatial coordinates.
Altitude is the height above sea level in meters.
PDOP is a measure of the positional accuracy of the GPS
reading.
SOG gives the Speed Over Ground in meters per second.
COG gives the Course Over Ground. This value is only
meaningful if your MapSight is physically moving.
UTC Time gives the current Universal Time Code date and time.
Nav Mode is the navigational status of GPS Fix. A 2-D (two
dimensional) fix only includes latitude and longitude data. A 3-D
(three dimensional) fix also includes altitude data. The available
constellation of satellites available affects whether altitude can
be calculated.
This GPS Info utility also has a Config menu that allows access to the following tools:
• Cold Start
• Settings
Cold Start
Should your MapSight unit be taking a long time to get a useable
GPS fix, the GPS can be forced to restart and require a completely
fresh almanac from available satellites. A full Cold Start and
almanac refresh can take up to 30 minutes depending on local
satellite coverage.
Tapping the [Yes] button at the ‘Do you really want to cold start
the GPS?’ prompt will flush all current information in the GPS and
force it to reacquire this data. Tapping [No] will cancel the Cold
Start request.
CAUTION: Cold starting the GPS will reset GPS position
reception and will not result in an accurate or useable GPS
position fix until the new fix is achieved.
Settings
This is a shortcut to the MapSight Settings ‘GPS’ tab.
Page 78
!
MapSight!User!Manual! Page!74! www.gemapsight.com/support!
License Manager
The License Manager utility manages access to licenses to
MapSight Tools and options available via the MapSight
application and other options available for use on your
MapSight unit.
MapSight License Files (ILF) are tailored to individual MapSight units – a
license file that has been generated for one unit will not function on
another unit.
The ‘Add license’ section relates to the functionality to apply another
license file to the MapSight unit. MapSight units are preinstalled with
licensing appropriate to the customer order at time of shipping.
If additional or a change to existing licensing is required, a new license
file with application instructions will be forwarded as appropriate.
The ‘Current licenses’ section shows the list of licenses and options
that are currently activated on the MapSight unit.
Depending on the original licensing of the device the list of ‘Current
licenses’ may vary from unit-to-unit
Page 79
!
MapSight!User!Manual! Page!75! www.gemapsight.com/support!
Zeroize
This utility is designed to remove all user-installed programs, settings and data,
including all MapSight application-specific data from the MapSight unit in preparation
for reinstalling or upgrading the MapSight OS Software.
WARNING! Zeroizing your MapSight unit will remove all software and data from the
unit and render it unusable as a MapSight unit until MapSight OS software is
installed.
Please ensure you have backed up all important data (captured information, personal data,
software registration codes, etc.), and you have an appropriate version of the MapSight OS
installation software before performing this function. There are no undelete utilities to
restore this data.
To Zeroize, select Start > MapSight Utilities > Zeroize.
You will see the WARNING screen and message, and a choice to Confirm or Cancel the operation.
When Confirm is tapped/selected there are no undelete utilities to restore this data.
Once the Zeroize process has begun data cannot be recovered.
The Zeroize application has two modes of for resetting the MapSight unit:
Mode 1: Delete Applications and ‘My Documents’ data
The default option is to delete only the MapSight OS system and all
other data and applications BUT will leave data in the ‘Storage’
folder, and optionally fitted SD Card, intact.
Tapping the [Confirm] button reset the MapSight unit to a factory
state but retains data in the Storage folder and on a fitted SD Card.
Tapping the [Cancel] button will close the Zeroize applet.
Mode 2: Clean All
Selecting the ‘Zero Storage and SD Card Folders’ checkbox will
delete all applications and data on the MapSight unit.
Tapping the [Confirm] button will reset the MapSight unit to a
factory state. This will also delete all contents of the \Storage folder
and any fitted SD Card.
Note: As this process deletes all data on a fitted SD card, a
Zeroize with ‘Zero Storage and SD Card Folders’ selected may
take some time depending on the size of the SD card
installed.
Tapping the [Cancel] button will close the Zeroize applet.
After Zeroize, MapSight OS must be re-installed to restore full MapSight functionality. Any
other applications that were previously installed on the MapSight unit must also then be
manually reinstalled to return that functionality.
Page 80
!
MapSight!User!Manual! Page!76! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Caring for your MapSight
Troubleshooting and Service Tips
Product Specification
Accessory Instructions
Software Licensing
Battery Safety
Hardware Warranty, Software Maintenance and Support
Certification and Classifications
Additional Support
Appendix 1: MapSight Maintenance and Information
!
Page 81
!
MapSight!User!Manual! Page!77! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Appendix 1: MapSight Maintenance and Information
Caring for your MapSight
This section how to store, clean, and protect your MapSight unit and battery packs. Specifically,
it provides guidelines for:
• storing your MapSight and battery packs
• protecting the touchscreen
• protecting your MapSight against mechanical shock
• battery pack warning
• equipment warnings
• using your MapSight in extreme temperatures
• cleaning your MapSight
• repairing your MapSight
• disposing of your MapSight and battery packs
Storing your MapSight and battery packs
This section describes what you need to know about storing your device and battery packs,
including:
• the storage temperature range of your MapSight
• how to store your MapSight for less than two weeks
• how to store the device for more than two weeks
• how to take your MapSight out of extended storage
Storage temperature range of your MapSight: Your MapSight can be stored at temperatures
between -22° F and 140° F (-30° C to 60° C).
Where possible, store your MapSight indoors out of direct sunlight, in a cool/non-humid location
and away from electric/magnetic materials. Doing so helps protect your device from extreme
temperature changes and helps your device run efficiently at start up.
Storing your MapSight for less than two weeks: If you plan
to store your device for less than two weeks, suspend the
device by following these steps:
1. As a precaution, back up your data onto a desktop
computer or an external storage device such as a SD
card. (See Using the Hardware for more instructions on
backing up your data.)!
2. Leave the battery pack in the device.
3. If you plan to store the device longer than a few days, it is a
good idea to leave the device connected to the wall
charger or to make sure the battery pack is fully charged.
4. Suspend the device.
Page 82
!
MapSight!User!Manual! Page!78! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Storing your MapSight for more than two weeks:
To store the device safely for longer than two weeks, follow these steps:
1. Back up your data.
2. Press the Task Manager button to close all running application programs.
3. Charge the battery pack to full capacity (100%).
4. Unplug the wall charger. Press the Power button until the Power Button menu appears.
5. Select Power Off from the menu, and then tap OK.
6. Place your MapSight in a safe, dry place.
Taking your MapSight out of extended storage: The battery pack discharges slightly during
extended storage periods. When you are ready to use your MapSight again, follow these steps so
your battery pack runs efficiently:
Plug your MapSight into a charger.
Charge the battery pack. (To check the battery power status, tap on the battery icon at
the top of the screen.)
Only charge the battery pack in temperatures between 32°F and 104°F (0°C and 40°C). For
best results, charge the battery pack at room temperature (68°F or 20°C)
Protecting the touchscreen
Protect the touchscreen from impact, pressure, or abrasive substances that could damage it.
To further protect the touchscreen, a tested screen protector accessory is available from your
MapSight reseller.
CAUTION: Be sure to replace the screen protector as often as the screen protector
manufacturer packaging directs.
To apply a screen protector, follow these steps:
1. Make sure your MapSight is free of oils and dirt. You can wipe it with a microfiber cloth.
2. Fit the screen protector onto your MapSight screen in accordance with the supplied installation
instructions.
3. Smooth the screen protector while peeling back the liner, working out air bubbles as you go.
Continue smoothing until the liner is removed.
Note: Some air bubbles may still be visible, but they fade away in a short time. You can
use a credit card to gently push out any excess air.
Protecting your MapSight against mechanical shock
MapSight is designed for protection from mechanical shock. It has been test-dropped from five
feet (1.524m) onto concrete. Shock protection is guaranteed only when the entire body molding
(including SD Card cover and Connector protector) is securely in place.
Page 83
!
MapSight!User!Manual! Page!79! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Equipment warnings
WARNING! To reduce the risk of personal injury, electrical shock, fire or damage to the
equipment:
• Plug the wall charger into an electrical outlet that is easily accessible at all times.
• Disconnect power from the equipment by unplugging the wall charger from the electrical
outlet or unplugging the synchronization cable from the host computer.
• Do not place anything on the wall charger cord or any of the other cables. Arrange them so
that no one may accidentally step on or trip over them.
• Do not pull on a cord or cable. When unplugging the wall charger from the electrical outlet,
pull on the plug, not the cord.
Use only wall chargers intended for your MapSight. Using any other external power source can
damage your product and void your warranty.
Using your MapSight in extreme temperatures
MapSight operates in ranges from -22°F to 122°F (-30°C to 50°C). To help your device function
properly, store the device indoors when possible.
Other tips:
• If your MapSight is exposed to temperatures below 14°F (-10°C), the device may slow down
or the display backlight may become dim to reduce the load on the battery power.
• Extremely low or high temperatures may prevent the battery pack from charging. Charge
the battery pack in temperatures between 32°F and 104°F (0° C and 40° C). For best results,
charge the battery pack at room temperature (68°F or 20°C)
Cleaning your MapSight
This section explains how to clean
• the touchscreen
• the communications module (area housing the USB port, DC jack, and serial port)
• the speaker or microphone
• the display bezel
• data capture module
Touchscreen: To clean the touchscreen, follow these steps:
1. Press the power button briefly to suspend the device.
2. If you applied a protector to the touchscreen, carefully remove it.
3. Apply water or a mild cleaning solution such as Windex® or 409® to a microfiber cloth and
gently wipe off the touchscreen. Other approved cleaners include Citrus Wonder® and Citrus
All Purpose Cleaner®.
CAUTION: Do not use tissues, paper towels, or harsh cleaning agents to clean the
touchscreen.
1. If you used a cleaning solution, rinse the touchscreen with water and dry it with a
microfiber cloth.
2. Press the power button to resume the device.
CAUTION: Long exposure to the following solutions may damage your device:
• pine oil
• oil based paint
Page 84
!
MapSight!User!Manual! Page!80! www.gemapsight.com/support!
MS-101-14-12-34.0
!
• automotive brake cleaner
• isopropyl alcohol
• carburetor cleaner
In case the device is exposed to one of these solutions, wipe it off with a mild cleaning solution.
Case overmolding: Clean the rubber overmolding that surrounds the case with a cloth and a
mild cleaning solution like 409 or Citrus Wonder. After you are done cleaning, rinse the device
with water.
Communications module (area housing the USB port, DC jack, serial port): To clean the
communications module, run it under a faucet. Use a soft toothbrush or toothpick to clean out
any remaining dirt.
Speaker and microphone: If debris gets in the speaker or microphone, use a soft bristle brush
to remove it. Do not insert any object into the speaker or microphone holes.
Display bezel. If the edge under the bezel gets dirty, use a microfiber cloth to remove the
debris. Do not remove the bezel.
Data capture module. If debris gets in the camera lens, use a soft bristle brush to remove it.
Use a soft bristle brush or microfiber cloth for removing debris or marks from the distance
finder lenses. Do not use any hard or sharp objects that may scratch the lenses.
Repairing your MapSight
If your MapSight unit is malfunctioning or in need of repair, contact your MapSight reseller or
service center for assistance.
Refer to sections Preparing for a support center call and Additional Support and your
warranty information for details on support options for your MapSight equipment.
WARNING! Do not attempt to repair the MapSight device yourself. This action voids
the warranty and may result in a chargeable repair.
If your MapSight reseller or service center deems that your MapSight unit needs to be returned
for repair assessment a Return Materials Authorization (RMA) reference will be issued. Where
RMA is issued, please ensure a printed copy of any RMA documentation is returned with the
faulty MapSight equipment to the address detailed in the RMA documentation.
Troubleshooting and Service Tips
This section includes some basic troubleshooting tips. It also explains what you need to do
before you call your service center for a repair.
Answers to questions about Windows Mobile may be available through the help files on your
device or on the Windows Mobile website from Microsoft. If you cannot find answers to your
questions through these methods, contact your service center. (See the section in called
Preparing for a service center call and Additional Support.)
Page 85
!
MapSight!User!Manual! Page!81! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Troubleshooting tips
This section provides solutions for the following issues:
1. The battery pack will not charge fully.
2. The touchscreen responds inaccurately to stylus taps.
3. The screen does not calibrate correctly or completely.
4. MapSight runs slowly.
5. MapSight drops its ActiveSync connection.
6. MapSight locks up.
Issue 1: The battery pack will not charge to 100% or to “0 mAH Consumed”.
Solutions: Try discharging the battery pack completely. You can turn off all auto-suspend and
auto-backlight timers to drain the battery pack more quickly. Once the battery pack is fully
discharged, try charging it again.
If the battery pack does not charge to full, try repeating the full discharge and charge cycle a
few more times.
If the battery pack still does not charge to full, try using a different battery pack to confirm that
the problem is specific to the original battery pack.
Only charge the battery pack in temperatures between 32°F and 104°F (0°C and 40°C). For best
results, charge the battery pack at room temperature (68°F or 20°C).
Issue 2: The touchscreen does not respond accurately to stylus taps.
Solutions: Try recalibrating the touchscreen. (See the section called Using the touchscreen.)
If the device is not responding to stylus taps at all and you are on the Today screen, look to see
if the device is locked. To unlock the device, press the Unlock soft key on the screen.
If the device is unlocked but the stylus continues to respond inaccurately, close all open
programs and reset the device.
Issue 3: During calibration, the screen does not respond to stylus strokes or does not complete
the calibration process.
Solutions: Check to see if there is damage or wear on any area of the touchscreen. In case of
damage, contact your service center.
Issue 4: MapSight runs slowly.
Solutions: It is possible that you have too many programs running. Try closing any programs
you are not using. To view and close running programs, follow these steps:
1. Press the Task Manager button. The Task Manager window appears.
2. Select the program(s) you want to close.
3. Tap End Task. This closes the program.
Issue 5: My MapSight quickly drops its ActiveSync connection to my desktop computer.
Solutions: Firewall programs sometimes cause ActiveSync connection problems. In these
cases, the firewall sees your MapSight as a strange and possibly hostile computer and prevents
the device from connecting to the desktop computer.
To allow the mobile device to connect to your desktop computer, follow these steps:
Page 86
!
MapSight!User!Manual! Page!82! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Use the serial cable to connect your device to the desktop computer. Follow the ActiveSync
wizard instructions.
If your firewall application brings up a warning message asking whether you want to allow a
connection, check the option to allow the connection and click “Yes”.
Note: If the warning message above does not appear when you try to connect to the
desktop computer but the device is still being dropped, contact your service center.
Issue 6: Your MapSight locks up.
Solution: To reset the device, press and hold the Power button for 10 seconds or until the screen
goes dark. The device turns on again after a few seconds.
Issue 7: Captured data is not writing to the fitted SD Card.
Solution: Check the MapSight Data settings (refer section Settings – Data Folder) to ensure that
the Current Data Folder: is pointing to the \SD Card\
Note: The required folder on the SD Card must be created (via File Explorer) before the
[Save] button is used to set the Data Folder.
Product Specifications
Full specifications of the individual instruments are available at http://www.gemapsight.com/
Basic specifications are as follows:
Model
MapSight
Laser Range (m)
300
Camera Resolution (MP)
5
Page 87
!
MapSight!User!Manual! Page!83! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Accessory Information
The MapSight comes with a number of standard essential or field accessories depending on the
model purchased. There are a variety of optional accessories or spare parts that can be purchased
to enhance you MapSight user experience.
Tripod
The MapSight low magnetic signature tripod has been tested to ensure that it does not cause
distortion to the in-built digital compass. For more information on use of the MapSight Tripod please
consult the material distributed with the MapSight Tripod and available on the MapSight website.
Batteries
MapSight batteries should only be charged in or with approved MapSight battery charging
accessories.
New batteries should always be charged in a MapSight unit to ensure optimal first-use calibration.
Additional information on MapSight batteries is available in the ‘Battery Safety’ section of this
document.
Should your MapSight battery not be reporting a correct charge level, please refer to the Battery
Recalibration instructions available from the Support section of the MapSight website.
Travel Charger
The Travel Charger is designed to be powered from either the standard MapSight AC Adaptor or
Vehicle Charger Cable.
It is recommended that new batteries not be charged in the Travel Charger as this will not correctly
set the optimal first-use calibration for a new battery. New batteries should be initially charged in a
MapSight unit. Subsequent charges can be completed in the Travel Charger.
External Patch Antenna
The External Patch Antenna provides an alternative reception GPS reception option to ensure a GPS
fix is maintained while the MapSight unit is travelling.
Page 88
!
MapSight!User!Manual! Page!84! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Glare Shield
The Glare Shield provides a method of reducing the effects of harsh light sources on the MapSight
units LCD screen.
This accessory is designed to be placed on the bezel area surrounding the LCD screen. The LCD
screen can then viewed through the Glare Shield lens. The Glare Shield lens can then be focused to
further improve the view of the LCD screen.
Correct placement of Glare Shield
Incorrect placement of Glare Shield
External GPS Receivers
External GPS receivers have been tested to function with the MapSight unit. For more details on use
of external GPS receivers with MapSight, please consult your MapSight Sales office or reseller.
Other Accessories
Other commonly used MapSight accessories are shown on the MapSight website. For more details
on these accessories, please consult your MapSight Sales office or reseller.
Page 89
!
MapSight!User!Manual! Page!85! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Software Licensing
MapSight Software
IMPORTANT: THIS IS A LEGAL AGREEMENT BETWEEN THE PERSON, COMPANY, OR ORGANIZATION
THAT HAS LICENSED THIS SOFTWARE ("YOU" OR "CUSTOMER") AND IKEGPS LTD. BY INSTALLING AND
USING THE SOFTWARE, CUSTOMER ACCEPTS THE SOFTWARE AND AGREES TO THE TERMS OF THIS
AGREEMENT. READ IT CAREFULLY BEFORE COMPLETING THE INSTALLATION PROCESS AND USING THE
SOFTWARE. BY INSTALLING AND/OR USING THE SOFTWARE, YOU ARE CONFIRMING YOUR
ACCEPTANCE OF THE SOFTWARE AND AGREEING TO BECOME BOUND BY THE TERMS OF THIS
AGREEMENT. IF YOU DO NOT AGREE TO BE BOUND BY THESE TERMS, OR DO NOT HAVE AUTHORITY
TO BIND CUSTOMER TO THESE TERMS, THEN DO NOT INSTALL AND/OR USE THE SOFTWARE AND
RETURN THE SOFTWARE TO YOUR PLACE OF PURCHASE FOR A FULL REFUND IN ACCORDANCE WITH
ITS REFUND POLICIES.
THIS EULA SHALL APPLY ONLY TO THE SOFTWARE SUPPLIED BY IKEGPS HEREWITH REGARDLESS OF
WHETHER OTHER SOFTWARE IS REFERRED TO OR DESCRIBED HEREIN.
1. Definitions
(a) "ikeGPS" means IKEGPS Ltd; its associated companies; and its licensors, if any.
(b) "ike" means Hardware and/or Software created and commercially sold by ikeGPS.
(c) All ikeGPS Software are software components manufactured and supplied by ikeGPS. These
software components may be required in order for any “End User Products” to be created.
(d) "Software" means only the ikeGPS software program(s) and third party software programs, in each
case, supplied by ikeGPS herewith, and corresponding documentation, associated media, printed
materials, and online or electronic documentation. Any updates to such Software which you are
entitled to receive and that have been provided to you by ikeGPS shall also mean Software for
purposes of this Agreement.
(e) "End User Product" means an Output File, which contains any output from any ikeGPS Software
product, generated by you. Examples of End User Products include the photos, CSV files; KML files
products and the like.
(f) "Output File" means an output file generated by you using the ikeGPS Software.
(g) "Not For Resale (NFR) Version" means a version, so identified, of the Software to be used to review
and evaluate the Software, only.
(h) "Demo Version" means a version of the Software, so identified, to be used only to review,
demonstrate and evaluate the Software for a limited time period. The Demo Version may have
limited features, may lack the ability for the end-user to save the end product, and may cease
operating after a predetermined amount of time due to an internal mechanism within the Demo
version.
(i) "Education Version" means a version of the Software, so identified, for use by students and faculty
of educational institutions, only.
2. License Grants
The licenses granted in this Section 2 are subject to the terms and conditions set forth in this EULA.
(a) You may install and use any GE MapSight View software on as many desktop computers within
your organization as required.
Page 90
!
MapSight!User!Manual! Page!86! www.gemapsight.com/support!
MS-101-14-12-34.0
!
(b) You may only install MapSight Tool licenses on a single MapSight unit. A MapSight Tool license on
a MapSight unit may not be shared, installed or used concurrently on different MapSight units.
(c) You shall only use and/or read the output file created from the Software only with programs
compatible of receiving output from the MapSight software. You shall not decrypt or reverse
engineer any output file created from the Software.
(d) Mandatory Product Activation. The license rights granted under this Agreement may be limited to
the first thirty (30) days after you first install the Software unless you supply information required to
activate your licensed copy in the manner described during the setup sequence of the Software. You
may need to activate the Software through the use of the Internet or telephone; toll charges may
apply. There are technological measures in this Software that are designed to prevent unlicensed or
illegal use of the Software. You agree that ikeGPS may use those measures and you agree to follow
any requirements regarding such technological measures. You may also need to reactivate the
Software if you modify your computer hardware or MapSight unit, alter the Software, or install the
Software on another computer. Product activation is based on the exchange of information between
your computer or MapSight unit and ikeGPS. None of this information contains personally
identifiable information nor can they be used to identify any personal information about you or any
characteristics of your computer configuration.
(e) You agree that ikeGPS may audit your use of the Software for compliance with these terms at any
time, upon reasonable notice. In the event that such audit reveals any use of the Software by you
other than in full compliance with the terms of this Agreement, you shall reimburse ikeGPS for all
reasonable expenses related to such audit in addition to any other liabilities you may incur as a result
of such non-compliance.
(f) ikeGPS maintains the rights to change, add, or remove products related to this EULA at our
discretion.
(g) Your license rights under this EULA are non-exclusive.
3. License Restrictions
(a) You may not alter, merge, modify, adapt or translate the Software, or decompile, reverse engineer,
disassemble, or otherwise reduce the Software to a human-perceivable form.
(b) Unless otherwise provided herein, you may not rent, lease, or sublicense the Software.
(c) Other than with respect to a Demo version or a Not For Resale Version of the Software, you may
permanently transfer all of your rights under this EULA only as part of a sale or transfer provided you
transfer all of the Software (including all component parts, the media and printed materials, any
upgrades, all platforms, this EULA, the serial numbers, and, if applicable, all other software products
provided together with the Software), and the recipient agrees to the terms of this EULA. If the copy
of the Software is licensed as part of the whole MapSight Software (as defined above), the Software
shall be transferred only with and as part of the sale or transfer of the whole MapSight software, and
not separately. You may not sell or transfer any Software purchased under a volume discount. You
may not sell or transfer any Demo version or Not For Resale Version of the Software. If the Software
is an Education Version, You may not sell or transfer any such Software to anyone except to another
entity or person who is otherwise qualified to purchase Education Versions of the Software.
(d) Unless otherwise provided herein, you may not modify the Software or create derivative works
based upon the Software.
(e) Education Versions may not be used for, or distributed to any party for, any commercial purpose.
(f) Unless otherwise provided herein, you shall not
Page 91
!
MapSight!User!Manual! Page!87! www.gemapsight.com/support!
MS-101-14-12-34.0
!
a. in the aggregate, install or use more than one copy of the Demo version Software,
b. download the Demo version Software under more than one username,
c. alter the contents of a hard drive or computer system to enable the use of the Demo version
Software for an aggregate period in excess of the trial period for one license to such Demo version,
d. disclose the results of software performance benchmarks obtained using the Demo version to
any third party without ikeGPS's prior written consent, or
e. use the Demo version of the Software for a purpose other than the sole purpose of determining
whether to purchase a license to a commercial or education version of the software; provided,
however, notwithstanding the foregoing, you are strictly prohibited from installing or using the
Demo version of the Software for any commercial training purpose.
(g) You may only use the Not for Resale Version of the Software to review and evaluate the Software.
(h) You may not export the Software into any country prohibited by New Zealand or United States law
and the regulations thereunder.
(i) You may receive the Software in more than one medium but you shall only install or use one
medium. Regardless of the number of media you receive, you may use only the medium that is
appropriate for the server or computer on which the Software is to be installed.
(j) You shall not use the Software to develop any product having the same primary function as the
Software.
(k) In the event that you fail to comply with this EULA, ikeGPS may terminate the license and you must
destroy all copies of the Software (with all other rights of both parties and all other provisions of this
EULA surviving any such termination).
4. Upgrades
If this copy of the Software is an upgrade from an earlier version of the Software, you must possess a
valid full license to a copy of an earlier version of the Software used to upgrade to this upgrade copy
in order to install and/or use this upgrade copy. You may continue to use each earlier version copy
of the Software to which this upgrade copy relates on your computer after you receive this upgrade
copy, provided that,
(a) the upgrade copy and the earlier version copy are installed and/or used on the same computer
only;
(b) you comply with the terms and conditions of the earlier version's end user license agreement with
respect to the installation and/or use of such earlier version copy;
(c) the earlier version copy or any copies thereof on any computer are not transferred to another
computer unless all copies of this upgrade copy on such computer are also transferred to such other
computer;
(d) the earlier version copy or any copies thereof are not transferred to any other party unless you
also transfer this upgrade copy and any copies thereof to such other party in accordance with
Section 3; and
(e) you acknowledge and agree that any obligation ikeGPS may have to support and/or offer support
for the earlier version of the Software may be ended upon availability of the upgrade.
5. Prior Same Version License and Exchanges
If this copy of the Software is licensed as part of the MapSight Software (as defined above), and you
have a prior license to the same version of the Software, and the MapSight software was licensed to
you with a discount based, in whole or in part, on your prior license to the same version, the Software
is provided to you on a license exchange basis. You agree by your installation and use of this copy of
Page 92
!
MapSight!User!Manual! Page!88! www.gemapsight.com/support!
MS-101-14-12-34.0
!
the Software to voluntarily terminate your EULA with respect to such prior license and that you will
not continue to install or use such prior license of the Software or transfer it to another person or
entity.
If this copy of the Software ("New License") has been acquired via a permitted exchange (other than
in connection with an upgrade) with a different type of Software license previously acquired by you
("Old License") (e.g. Education Version license for a Commercial Version license, where permitted),
you must possess a valid full license to a copy of such Old License in order to install and/or use this
New License, and the New License is provided to you on a license exchange basis. You agree by your
installation and/or use of such copy of the New License to voluntarily terminate your earlier EULA to
the Old License and uninstall, destroy and cease using the Old License. You agree to not transfer the
Old License to another person or entity.
6. Ownership
The foregoing license gives you limited license to use the Software. ikeGPS and its suppliers retain all
right, title and interest, including all copyright and intellectual property rights, in and to, the Software
(as an independent work and as an underlying work serving as a basis for any application you may
develop), and all copies thereof. All rights not specifically granted in this EULA, including International
Copyrights, are reserved by ikeGPS and its suppliers.
7. LIMITED WARRANTY AND DISCLAIMER
(a) Except with respect to any Sample Application Code, Demo version and Not For Resale Version of
the Software, ikeGPS warrants that, for a period of ninety (90) days from the date of delivery (as
evidenced by a copy of your receipt)
a. when used with a recommended hardware configuration, the Software will perform in
substantial conformance with the documentation supplied with the Software; and
b. the physical media on which the Software is furnished will be free from defects in materials and
workmanship under normal use.
(b) IKEGPS PROVIDES NO REMEDIES OR WARRANTIES, WHETHER EXPRESS OR IMPLIED, FOR ANY
SAMPLE APPLICATION CODE, DEMO VERSION AND THE NOT FOR RESALE VERSION OF THE
SOFTWARE. ANY SAMPLE APPLICATION CODE, DEMO VERSION AND THE NOT FOR RESALE
VERSION OF THE SOFTWARE ARE PROVIDED "AS IS".
(c) EXCEPT AS SET FORTH IN THE FOREGOING LIMITED WARRANTY WITH RESPECT TO SOFTWARE
OTHER THAN ANY SAMPLE APPLICATION CODE, DEMO VERSION AND NOT FOR RESALE VERSION,
IKEGPS AND ITS SUPPLIERS DISCLAIM ALL OTHER WARRANTIES AND REPRESENTATIONS,
WHETHER EXPRESS, IMPLIED, OR OTHERWISE, INCLUDING THE WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ALSO, THERE IS NO WARRANTY OF
NON-INFRINGEMENT AND TITLE OR QUIET ENJOYMENT. IKEGPS DOES NOT WARRANT THAT THE
SOFTWARE IS ERROR-FREE OR WILL OPERATE WITHOUT INTERRUPTION. NO RIGHTS OR
REMEDIES REFERRED TO IN THIS EULA WILL BE CONFERRED ON YOU UNLESS EXPRESSLY
GRANTED HEREIN. THE SOFTWARE IS NOT DESIGNED, INTENDED OR LICENSED FOR USE IN
HAZARDOUS ENVIRONMENTS REQUIRING FAIL-SAFE CONTROLS, INCLUDING WITHOUT
LIMITATION, THE DESIGN, CONSTRUCTION, MAINTENANCE OR OPERATION OF NUCLEAR
FACILITIES, AIRCRAFT NAVIGATION OR COMMUNICATION SYSTEMS, AIR TRAFFIC CONTROL, AND
LIFE SUPPORT OR WEAPONS SYSTEMS. IKEGPS SPECIFICALLY DISCLAIMS ANY EXPRESS OR
IMPLIED WARRANTY OF FITNESS FOR SUCH PURPOSES.
(d) IF APPLICABLE LAW REQUIRES ANY WARRANTIES WITH RESPECT TO THE SOFTWARE, ALL SUCH
WARRANTIES ARE LIMITED IN DURATION TO NINETY (90) DAYS FROM THE DATE OF DELIVERY.
Page 93
!
MapSight!User!Manual! Page!89! www.gemapsight.com/support!
MS-101-14-12-34.0
!
(e) NO ORAL OR WRITTEN INFORMATION OR ADVICE GIVEN BY IKEGPS, ITS DEALERS,
DISTRIBUTORS, AGENTS OR EMPLOYEES SHALL CREATE A WARRANTY OR IN ANY WAY INCREASE
THE SCOPE OF ANY WARRANTY PROVIDED HEREIN.
(f) (USA and EU only) SOME STATES OR COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED
WARRANTIES, SO THE ABOVE EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER LEGAL RIGHTS THAT VARY FROM STATE
TO STATE OR COUNTRY TO COUNTRY.
(g) Extended warranties, licensing, and maintenance beyond the initial established period, are
available for purchase from ikeGPS.
8. Exclusive Remedy
Your exclusive remedy under the preceding is to return the Software to the place you acquired it,
with a copy of your receipt and a description of the problem. Provided that any non-compliance with
the above warranty is reported in writing to ikeGPS no more than ninety (90) days following delivery
to you, ikeGPS will use reasonable commercial efforts to supply you with a replacement copy of the
Software that substantially conforms to the documentation, provide a replacement for defective
media, or refund to you your purchase price for the Software, at its option. ikeGPS shall have no
responsibility if the Software has been altered in any way, if the media has been damaged by misuse,
accident, abuse, modification or misapplication, or if the failure arises out of use of the Software with
other than a recommended hardware configuration. Any such misuse, accident, abuse, modification
or misapplication of the Software will void the warranty above. THIS REMEDY IS THE SOLE AND
EXCLUSIVE REMEDY AVAILABLE TO YOU FOR BREACH OF EXPRESS OR IMPLIED WARRANTIES WITH
RESPECT TO THE SOFTWARE AND RELATED DOCUMENTATION.
9. LIMITATION OF LIABILITY
(a) NEITHER IKEGPS NOR ITS SUPPLIERS SHALL BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, PUNITIVE, COVER OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, DAMAGES FOR THE INABILITY TO USE EQUIPMENT OR ACCESS DATA, LOSS
OF BUSINESS, LOSS OF PROFITS, BUSINESS INTERRUPTION OR THE LIKE), ARISING OUT OF THE USE
OF, OR INABILITY TO USE, THE SOFTWARE AND BASED ON ANY THEORY OF LIABILITY INCLUDING
BREACH OF CONTRACT, BREACH OF WARRANTY, TORT (INCLUDING NEGLIGENCE), PRODUCT
LIABILITY OR OTHERWISE, EVEN IF IKEGPS OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES AND EVEN IF A REMEDY SET FORTH HEREIN IS FOUND TO HAVE
FAILED OF ITS ESSENTIAL PURPOSE.
(b) IKEGPS'S TOTAL LIABILITY TO YOU FOR ACTUAL DAMAGES FOR ANY CAUSE WHATSOEVER WILL
BE LIMITED TO THE LESSER OF $1000 OR THE AMOUNT PAID BY YOU FOR THE SOFTWARE THAT
CAUSED SUCH DAMAGE.
(c) (USA and EU only) SOME STATES OR COUNTRIES DO NOT ALLOW THE LIMITATION OR
EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU AND YOU MAY ALSO HAVE OTHER LEGAL
RIGHTS THAT VARY FROM STATE TO STATE.
(d) THE FOREGOING LIMITATIONS ON LIABILITY ARE INTENDED TO APPLY TO THE WARRANTIES
AND DISCLAIMERS ABOVE AND ALL OTHER ASPECTS OF THIS EULA.
10. Basis of Bargain
The Limited Warranty and Disclaimer, Exclusive Remedies and Limited Liability set forth above are
fundamental elements of the basis of the agreement between ikeGPS and you. ikeGPS would not be
Page 94
!
MapSight!User!Manual! Page!90! www.gemapsight.com/support!
MS-101-14-12-34.0
!
able to provide the Software on an economic basis without such limitations. Such Limited Warranty
and Disclaimer, Exclusive Remedies and Limited Liability inure to the benefit of ikeGPS’s licensors.
11. New Zealand GOVERNMENT RESTRICTED RIGHTS LEGEND
This Software and the documentation are provided with "RESTRICTED RIGHTS" applicable to private
and public licenses alike. Without limiting the foregoing, use, duplication, or disclosure by the New
Zealand Government is subject to restrictions as set forth in this EULA. Manufacturer: IKEGPS Ltd,
Level One, 42 Adelaide Road, Wellington, New Zealand 6021.
12. Outside of New Zealand – Consumer End Users Only
The limitations or exclusions of warranties and liability contained in this EULA do not affect or
prejudice the statutory rights of a consumer, i.e., a person acquiring goods otherwise than in the
course of a business.
The limitations or exclusions of warranties, remedies or liability contained in this EULA shall apply to
you only to the extent such limitations or exclusions are permitted under the laws of the jurisdiction
where you are located.
13. Third Party Software
The Software may contain third party software which requires notices and/or additional terms and
conditions. Such required third party software notices and/or additional terms and conditions are
located at www.ikegps.com and are made a part of and incorporated by reference into this EULA. By
accepting this EULA, you are also accepting the additional terms and conditions, if any, set forth
therein.
14. General
This EULA shall be governed by the internal laws of the country of New Zealand, without giving effect
to principles of conflict of laws. You hereby consent to the exclusive jurisdiction and venue of the
courts sitting in New Zealand to resolve any disputes arising under this EULA. In each case this EULA
shall be construed and enforced without regard to the United Nations Convention on the
International Sale of Goods.
This EULA contains the complete agreement between the parties with respect to the subject matter
hereof, and supersedes all prior or contemporaneous agreements or understandings, whether oral or
written. You agree that any varying or additional terms contained in any purchase order or other
written notification or document issued by you in relation to the Software licensed hereunder shall be
of no effect. The failure or delay of ikeGPS to exercise any of its rights under this EULA or upon any
breach of this EULA shall not be deemed a waiver of those rights or of the breach.
No ikeGPS dealer, agent or employee is authorized to make any amendment to this EULA unless such
amendment is in writing and signed by a duly authorized representative of ikeGPS.
If any provision of this EULA shall be held by a court of competent jurisdiction to be contrary to law
that provision will be enforced to the maximum extent permissible and the remaining provisions of
this EULA will remain in full force and effect.
All questions concerning this EULA shall be directed to: IKEGPS Ltd, Level One, 42 Adelaide Road
Wellington, New Zealand 6021.
ikeGPS and other trademarks contained in the Software are trademarks or registered trademarks of
IKEGPS Ltd in New Zealand, United States and other countries. Third party trademarks, trade names,
product names and logos may be the trademarks or registered trademarks of their respective
owners. You may not remove or alter any trademark, trade names, product names, logo, copyright
Page 95
!
MapSight!User!Manual! Page!91! www.gemapsight.com/support!
MS-101-14-12-34.0
!
or other proprietary notices, legends, symbols or labels in the Software. This EULA does not authorize
you to use ikeGPS’s or its licensors' names or any of their respective trademarks.
Page 96
!
MapSight!User!Manual! Page!92! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Microsoft Software License Terms for Windows Mobile 6 Software
These license terms are a Third Party Branding Additional Rights Agreement between you, IKEGPS Ltd
(ike
GPS
) and Juniper Systems (JS). They apply to the Microsoft Windows Mobile software (the
‘software’) included on this MapSight device which includes JS technology.
The software on this device includes software sub-licensed by ike
GPS
from Microsoft Corporation or its
affiliate (JS).
The terms also apply to any
• updates,
• supplements,
• Internet-based services, and
• support services
For this software, unless other terms accompany those items. If so, those terms apply.
As described below, using some features also operates as your consent to the transmission of
certain standard computer information for Internet-based services.
By using the software, including use on this device, you accept these terms. If you do not accept
them, do not use the device or software. Instead, contact ike
GPS
to determine its return policy for
a refund or credit.
WARNING! If the software contains voice operated technologies, then operating this software
requires user attention. Diverting attention away from the road while driving can possibly
cause an accident or other serious consequence. Even occasional, short diversions of
attention can be dangerous if your attention is diverted away from your driving task at a
critical time. ike
GPS
, JS and Microsoft make no representations, warranties or other
determinations that ANY use of this software is legal, safe, or in any manner recommended or
intended while driving or otherwise operating a motor vehicle.
If you comply with these license terms, you have the rights below.
1. USE RIGHTS.
You may use the software on the device with which you acquired the software.
2. ADDITIONAL LICENSING REQUIREMENTS AND/OR USE RIGHTS.
a. Specific Use. ike
GPS
has designed this device for a specific use. You may only use the
software for that use.
b. Included Microsoft Programs and Additional Required Licenses. Except as provided below,
these license terms apply to all Microsoft programs included with the software. If the license
terms with any of those programs give you other rights that do not expressly conflict with
these license terms, you also have those rights.
i. This agreement does not grant you any rights with respect to the Windows Mobile
Device Center, Microsoft ActiveSync or Microsoft Outlook 2007 Trial which are subject to
the licenses accompanying those items.
c. Speech Recognition. If the software includes speech recognition component(s), you
understand that speech recognition is an inherently statistical process and that recognition
errors are inherent in the process. Neither ike
GPS
, JS nor Microsoft or their suppliers shall be
liable for any damages arising out of errors in the speech recognition process.
d. Phone Functionality. If the device software includes phone functionality, all or certain
portions of the device software may be inoperable if you do not have and maintain a service
account with a wireless telecommunication carrier (“Mobile Operator”), or if the Mobile
Operator’s network is not operating or configured to operate with the device.
Page 97
!
MapSight!User!Manual! Page!93! www.gemapsight.com/support!
MS-101-14-12-34.0
!
3. SCOPE OF LICENSE.
The software is licensed, not sold. This agreement only gives you some rights to use the
software. ike
GPS
, JS and Microsoft reserve all other rights. Unless applicable law gives you more
rights despite this limitation, you may use the software only as expressly permitted in this
agreement. In doing so, you must comply with any technical limitations in the software that
allow you to use it only in certain ways. You may not:
• work around any technical limitations in the software;
• reverse engineer, decompile or disassemble the software;
• make more copies of the software than specified in this agreement;
• publish the software for others to copy;
• rent, lease or lend the software; or
• use the software for commercial software hosting services.
Except as expressly provided in this agreement, rights to access the software on this device do
not give you any right to implement Microsoft patents or other Microsoft intellectual property in
software or devices that access this device.
You may use remote access technologies in the software such as Remote Desktop Mobile to
access the software remotely from a computer or server. You are responsible for obtaining any
licenses required for use of the protocols to access other software.
4. INTERNET-BASED SERVICES.
Microsoft provides Internet-based services with the software. Microsoft may change or cancel
them at any time.
a. Consent for Internet-Based Services. The software features described below connect to
Microsoft or service provider computer systems over the Internet. In some cases, you will not
receive a separate notice when they connect. You may switch off some of these features or
not use them. For more information about these features, visit
http://go.microsoft.com/fwlink/?LinkId=81931.
By using these features, you consent to the transmission of this information. Microsoft does
not use the information to identify or contact you.
Device Information. The following features use Internet protocols, which send to the
appropriate systems device information, such as your Internet protocol address, the type of
operating system, browser and name and version of the software you are using, and the
language code of the device where you installed the software. Microsoft uses this
information to make the Internet-based services available to you.
• Windows Mobile Update Feature. The Windows Mobile Update feature provides you
the ability to obtain and install software updates on your device if updates are available.
You may choose not to use this feature. ike
GPS
and/or JS may not support this feature or
an update for your device.
• Windows Media Digital Rights Management. Content owners use Windows Media
digital rights management technology (WMDRM) to protect their intellectual property,
including copyrights. This software and third party software use WMDRM to play and
copy WMDRM-protected content. If the software fails to protect the content, content
owners may ask Microsoft to revoke the software’s ability to use WMDRM to play or copy
protected content. Revocation does not affect other content. When you download
licenses for protected content, you agree that Microsoft may include a revocation list
with the licenses. Content owners may require you to upgrade WMDRM to access their
Page 98
!
MapSight!User!Manual! Page!94! www.gemapsight.com/support!
MS-101-14-12-34.0
!
content. Microsoft software that includes WMDRM will ask for your consent prior to the
upgrade. If you decline an upgrade, you will not be able to access content that requires
the upgrade.
b. Misuse of Internet-based Services. You may not use these services in any way that could
harm them or impair anyone else’s use of them. You may not use the services to try to gain
unauthorized access to any service, data, account or network by any means.
5. NOTICES ABOUT THE MPEG-4 VISUAL STANDARD.
The software may include MPEG-4 visual decoding technology. This technology is a format for
data compression of video information. MPEG LA, L.L.C. requires this notice:
USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL
STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION
(i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY
ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES
SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C.
If you have questions about the MPEG-4 visual standard, please contact MPEG LA, L.L.C., 250
Steele Street, Suite 300, Denver, CO 80206; www.mpegla.com.
6. DIGITAL CERTIFICATES.
The software uses digital certificates in X.509 format. These digital certificates are used for
authentication.
7. CONNECTIVITY SOFTWARE.
Your device package may include Windows Mobile Device Center or Microsoft ActiveSync
software. If it is included, then you may install and use it in accordance with the license terms
that are provided with it. If no license terms are provided, then you may install and use only one
(1) copy of the software on a single computer.
8. NETWORK ACCESS.
If you are using a network, such as an employer network, the network administrator may limit
features or functionality on your device.
9. PRODUCT SUPPORT.
Contact ike
GPS
for support options. Refer to the support information provided with the device.
10. LINKS TO THIRD PARTY WEBSITES.
If the software provides links to third party websites, those links are provided to you only as a
convenience, and the inclusion of any link does not imply an endorsement of the third party
website by Microsoft.
11. BACKUP COPY.
You may make one backup copy of the software. You may use it only to reinstall the software
on the device.
12. PROOF OF LICENSE.
If you acquired the software on the device, or on a disc or other media, a genuine Certificate of
Authenticity label with a genuine copy of the software identifies licensed software. To be valid,
this label must be affixed to the device, or included on or in ike
GPS
software packaging. If you
receive the label separately, it is not valid. You should keep the label on the device or packaging
to prove that you are licensed to use the software. To identify genuine Microsoft software, see
http://www.howtotell.com.
Page 99
!
MapSight!User!Manual! Page!95! www.gemapsight.com/support!
MS-101-14-12-34.0
!
13. TRANSFER TO A THIRD PARTY.
You may transfer the software only with the device, the Certificate of Authenticity label, and
these license terms directly to a third party. Before the transfer, that party must agree that
these license terms apply to the transfer and use of the software. You may not retain any copies
of the software including the backup copy.
14. NOT FAULT TOLERANT.
The software is not fault tolerant. ike
GPS
/JS installed the software on the device and is responsible
for how it operates on the device.
15. RESTRICTED USE.
The Microsoft software was designed for systems that do not require fail-safe performance. You
may not use the Microsoft software in any device or system in which a malfunction of the
software would result in foreseeable risk of injury or death to any person. This includes
operation of nuclear facilities, aircraft navigation or communication systems and air traffic
control.
16. NO WARRANTIES FOR THE SOFTWARE.
The software is provided “as is”. You bear all risks of using it. Microsoft gives no express
warranties, guarantees or conditions. Any warranties you receive regarding the device or the
software do not originate from, and are not binding on, Microsoft or its affiliates. When allowed
by your local laws, ike
GPS
JS and Microsoft exclude implied warranties of merchantability, fitness
for a particular purpose and non-infringement.
17. LIABILITY LIMITATIONS.
You can recover from Microsoft and its affiliates only direct damages up to fifty U.S. Dollars (U.S.
$50.00), or equivalent in local currency. You cannot recover any other damages, including
consequential, lost profits, special, indirect or incidental damages.
This limitation applies to:
• anything related to the software, services, content (including code) on third party internet
sites, or third party programs, and
• claims for breach of contract, breach of warranty, guarantee or condition, strict liability,
negligence, or other tort to the extent permitted by applicable law.
It also applies even if Microsoft should have been aware of the possibility of the damages. The
above limitation may not apply to you because your country may not allow the exclusion or
limitation of incidental, consequential or other damages.
18. EXPORT RESTRICTIONS.
The software is subject to United States export laws and regulations. You must comply with all
domestic and international export laws and regulations that apply to the software. These laws
include restrictions on destinations, end users and end use. For additional information, see
www.microsoft.com/exporting.
Page 100
!
MapSight!User!Manual! Page!96! www.gemapsight.com/support!
MS-101-14-12-34.0
!
Battery Safety
WARNING! This device comes with a user replaceable lithium-ion rechargeable battery.
To reduce the risk of fire or burns, do not disassemble, crush, puncture, short external
contacts, or expose the battery pack to fire.
Battery warnings
Follow these additional safety guidelines:
• Use only battery packs approved for use with this device.
• Do not store or leave your device or battery pack near a heat source such as a radiator,
fireplace, stove, electric heater, or other heat-generating appliance, or otherwise expose it to
temperatures in excess of 140° F (60° C).
• Do not try to open the battery pack.
• Do not carry a battery pack in your pocket, purse, or other container where metal objects
(such as car keys or paper clips) could short-circuit the battery pack terminals.
• Keep the battery pack contacts clean. If they get dirty, wipe them off with a soft cloth.
• Do not install the battery pack backwards so that the polarity is reversed.
• Do not connect the positive terminal and the negative terminal of the battery pack to each
other with any metal object (such as wire).
• Do not solder directly onto the battery pack.
• Do not place the battery pack in direct sunshine.
• In the rare event that the battery pack leaks and fluid gets into the eye, do not rub the eye.
Rinse well with water and immediately seek medical care.
• Dispose of the battery pack properly. See the section below, Disposing of your MapSight
and battery packs for instructions.
Transportation
All MapSight batteries can be shipped by air in with respect to International Civil Aviation
Organization (ICAO), Section II or International Air Transport Association (IATA), Section II
packing instructions (PI) 965 (Lithium Ion batteries packed separately), 966 (Lithium Ion
batteries packed with equipment), and/or 967 (Lithium Ion batteries contained in equipment) as
appropriate.
When shipping your MapSight unit by air it is recommended you power off the MapSight unit,
remove the battery and pack the battery safely before stowing your MapSight unit.
Disposing of your MapSight and battery packs
The lithium-ion battery packs for your MapSight are recyclable. This product
must not be disposed of with local or municipal waste. It is your responsibility to
dispose of your waste equipment by handing it over to a designated collection
point for the recycling of waste electrical and electronic equipment.
To find the nearest battery recycling center in the USA, visit the Call2Recycle
website at http://www.call2recycle.org or call 1-800-8-battery.
