GE CW9000SDSS Specification Sheet
CW9000SDSS
9"
Allow 5/8"
overlap on
all sides
23-1/2" min.
2" min.
Oven
cutout
9-1/4"
28-1/2"
2x2 or 2x4
anti-tip block
against rear
wall 9" from
floor to bottom
of block
1" min. above toekick
or adjust to oven
installation height
9"
Allow 5/8"
overlap on
all sides
23-1/2" min.
2" min.
Oven
cutout
9-1/4"
28-1/2"
2x2 or 2x4
anti-tip block
against rear
wall 9" from
floor to bottom
of block
1" min. above toekick
or adjust to oven
installation height
28-1/2"
9-1/4"
Locate electrical
outlet in adjacent
cabinet 16" from
left side or 42"
from right side
30"
24"
recommended
from floor
for under
countertop
installation
7
Install 2x4 or 2x2
anti-tip block against
rear cabinet wall 9" from
floor to bottom of block
Electrical outlet
flush with side of
cabinet 7" max.
Electrical outlet
42" max. from
right side
1-1/2"
Cabinet top
25"
Install a solid barrier
below a cooktop
9"
Allow 5/8"
overlap on
all sides
23-1/2" min.
2" min.
Oven
cutout
9-1/4"
28-1/2"
2x2 or 2x4
anti-tip block
against rear
wall 9" from
floor to bottom
of block
1" min. above toekick
or adjust to oven
installation height

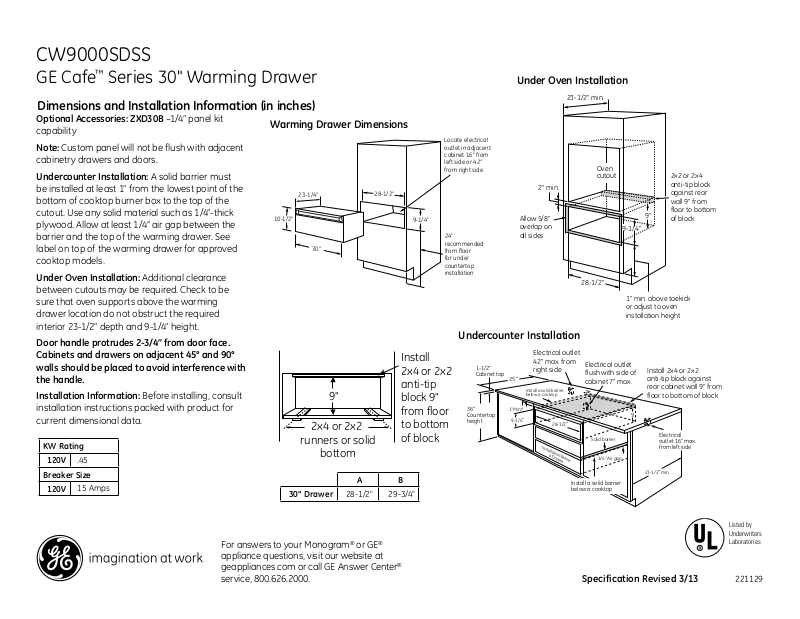

GE Cafe™ Series 30" Warming Drawer
Dimensions and Installation Information (in inches)
Optional Accessories: ZXD30B –1/4” panel kit
capability
Note: Custom panel will not be flush with adjacent
cabinetry drawers and doors.
Undercounter Installation: A solid barrier must
be installed at least 1” from the lowest point of the
bottom of cooktop burner box to the top of the
cutout. Use any solid material such as 1/4”-thick
plywood. Allow at least 1/4” air gap between the
barrier and the top of the warming drawer. See
label on top of the warming drawer for approved
cooktop models.
Under Oven Installation: Additional clearance
between cutouts may be required. Check to be
sure that oven supports above the warming
drawer location do not obstruct the required
interior 23-1/2” depth and 9-1/4” height.
Door handle protrudes 2-3/4” from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
KW Rating
.45
120V
Breaker Size
15 Amps
120V
For answers to your Monogram® or GE®
appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
Warming Drawer Dimensions
23-1/4"
10-1/2"
30"
2x4 or 2x2
runners or solid
30" Drawer
9"
bottom
28-1/2" 29-3/4"
28-1/2"
A B
Locate electrical
outlet in adjacent
cabinet 16" from
left side or 42"
from right side
9-1/4"
24"
recommended
from floor
for under
countertop
installation
Undercounter Installation
Install
2x4 or 2x2
anti-tip
block 9"
from floor
to bottom
of block
Under Oven Installation
Allow 5/8"
overlap on
all sides
Electrical outlet
25"
1" Min.*
9-1/4
"
42" max. from
right side
Install a solid barrier
below a cooktop
1-1/2"
Cabinet top
36"
Countertop
height
23-1/2" min.
Oven
cutout
2" min.
28-1/2"
Electrical outlet
flush with side of
cabinet 7" max.
7
28-1/2"
Solid barrier
1/4" Air gap
Install a solid barrier
below a cooktop
Specification Revised 3/13
2x2 or 2x4
anti-tip block
against rear
wall 9" from
floor to bottom
9"
9-1/4"
of block
1" min. above toekick
or adjust to oven
installation height
Install 2x4 or 2x2
anti-tip block against
rear cabinet wall 9" from
floor to bottom of block
9
Electrical
outlet 16" max.
from left side
23-1/2" min.
Listed by
Underwriters
Laboratories
221129
CW9000SDSS
GE Cafe™ Series 30" Warming Drawer
Features and Benefits
• Variable degree control - Provides temperature settings from 80 degrees
to 210 degrees to deliver flexible warming performance for a variety
of needs
• Variable humidity control - Customized warming from crisp to moist
• Frameless drawer front - Offers a smooth appearance
• “On” indicator light - Illuminates when warming drawer is operating
• Half rack - Maximizes drawer space
• Model CW9000SDSS – Stainless steel
Specification Revised 3/13
221129
