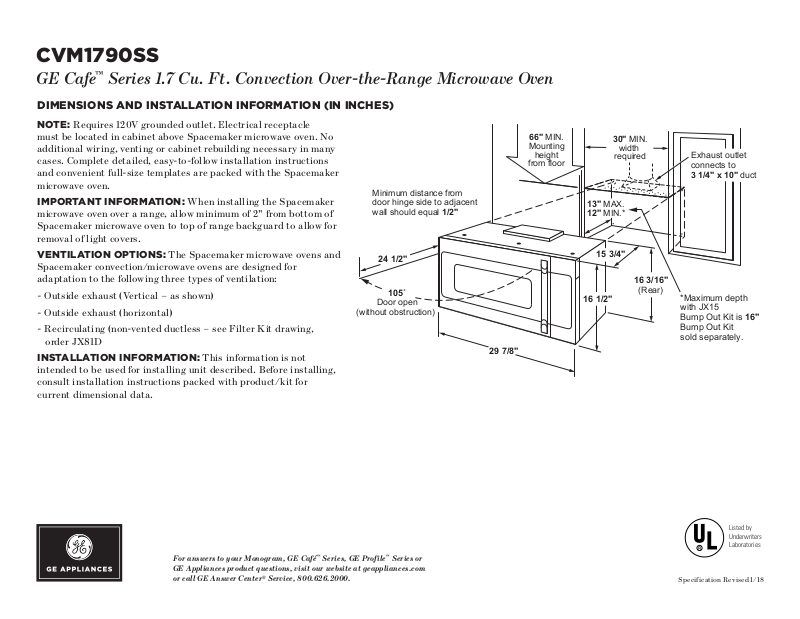

CVM1790SS
Over-the-Range Microwave Oven
Dimensions (in inches)
Minimum distance from
door hinge side to adjacent
wall should equal 1/2"
66" MIN.
Mounting
height
from floor
13"
MAX.
12"
MIN.*
Exhaust outlet
connects to
3 1/4" x 10" duct
29 7/8"
24 1/2"
16 3/16"
(Rear)
15 3/4"
16 1/2"
30" MIN.
width
required
105˚
Door open
(without obstruction)
*Maximum depth
with JX15
Bump Out Kit is 16"
Bump Out Kit
sold separately.
GE Cafe™ Series 1.7 Cu. Ft. Convection Over-the-Range Microwave Oven
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above Spacemaker microwave oven. No
additional wiring, venting or cabinet rebuilding necessary in many
cases. Complete detailed, easy-to-follow installation instructions
and convenient full-size templates are packed with the Spacemaker
microwave oven.
IMPORTANT INFORMATION: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom of
Spacemaker microwave oven to top of range backguard to allow for
removal of light covers.
VENTILATION OPTIONS: The Spacemaker microwave ovens and
Spacemaker convection/microwave ovens are designed for
adaptation to the following three types of ventilation:
- Outside exhaust (Vertical – as shown)
- Outside exhaust (horizontal)
- Recirculating (non-vented ductless – see Filter Kit drawing,
order JX81D
INSTA L L ATION IN F O RMATION : This information is not
intended to be used for installing unit described. Before installing,
consult installation instructions packed with product/kit for
current dimensional data.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 1/18
CVM1790SS
GE Cafe™ Series 1.7 Cu. Ft. Convection Over-the-Range Microwave Oven
OPTIONAL ACCESSORIES
(AVAILABLE AT ADDITIONAL COST)
HOOD EXHAUST DUCT: Outside ventilation requires a
HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been
designed to mate with a standard 3-1/4" x 10" rectangular
duct. If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than a
6" diameter duct.
REAR EXHAUST: If a rear or horizontal exhaust is to
be used, care should be taken to align exhaust with space
between studs, or wall should be prepared at the time it
is constructed by leaving enough space between the wall
studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air
movement, the total duct length of 3-1/4" x 10"
rectangular or 6" diameter round duct should not exceed
140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS:
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the total
duct length, add the equivalent length of all transitions
and adaptors plus the lengths of all straight duct sections.
The chart on the right shows the approximate feet of
equivalent length of some typical ducts.
Filler Panel Kits
JX36BSS-Stainless Steel
When replacing a 36" or
42" range hood, this kit fills
in the additional width to
provide a custom built-in
appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3"-wide filler panels.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
Filter Kits
JX81D–Recirculating
Charcoal Filter Kit
To be used when
the Spacemaker
microwave oven
cannot be vented
to the outside.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 1/18
CVM1790SS
GE Cafe™ Series 1.7 Cu. Ft. Convection Over-the-Range Microwave Oven
FEATURES AND BENEFITS
1.7 cu. ft. capacity, 1000 microwave watts (IEC test
procedure) and 1550 convection watts
Convection cooking - Choose this setting when baking
or browning is desired
Fast Bake - Enjoy oven-quality results up to 25% faster
than conventional cooking
Sensor cooking controls - Automatically adjusts time
and power for delicious cooking results
Warming oven - Warming oven mode keeps foods warm
until served
Auto Recipe™ Conversion - Just set the controls
according to the recipe and the oven automatically
converts standard recipe temperatures to proper
convection settings
Stainless steel interior - Stainless steel interior is both
stylish and easy to clean
POPCORN
TIME
COOK
CONVECTION
BAKE
CONVECTION
ROAST
COMBI
FAST BAKE
CLOCK
AM
17:90
AUTO
REHEAT
BEVERAGE
COOK
MICRO
POWER
DEFROST
EXPRESS
HELP
TURNTABLE
OPTIONS
WARM
ON/OFF
SURFACE
VENT
TIMER
LIGHT
FAN
/PM
Easy-set control dial - Enjoy how simple the control dial
makes setting the oven or selecting recipes
Three-speed, 300-CFM Vortex venting system - One
touch quickly removes smoke, steam and odors from the
cooktop area
Bilingual Scrolling Display - Provides helpful cooking
tips and oven use instructions in easy-to-read English
or Spanish
CVM1790SSSS – Stainless steel
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Revised 1/18
