Home Monitoring
Wireless Color
Camera with
Receiver
User Manual
www.jascoproducts.com
1-800-654-8483
45260 rev. 5/2/11
2
Thank you for purchasing the GE Wireless Color
Camera System with Receiver. Please review these
instructions carefully before attempting to operate
the unit.
PRODUCT FEATURES
• Wireless system won’t interfere with wireless
networks or cordless telephones
• View up to two cameras automatically
• Audio Detection & Notification feature—alerts
when sound is detected in a monitored area
• Night Vision feature for low or no light viewing
up to 10 ft. (images will appear in black
and white)
• Unique “axis-swivel” camera mount allows for
tabletop or wall installation
• Adjustable antenna for camera and receiver
• Wirelessly transmits audio and video up to
200 ft. (unobstructed line of sight).
• Receiver connects to any TV or monitor with
AV inputs
• Camera for Indoor/Outdoor use (outdoor use
requires protected location)
PACKAGE CONTENTS
Please check and identify all the parts before
proceeding with the installation.
1. Wireless Color Camera
2. Wireless Receiver
3. Wall plate and mounting hardware for camera
4. 2 AC adapters
5. AV cable
BEFORE YOU INSTALL
When choosing the best location for the placement
of the camera and receiver, it is best to avoid any
sources of possible RF interference such as
microwave ovens and cordless phones. Proximity
to these and other sources of RF interference can
inhibit the proper functioning of the receiver.
The 900MHz video signals pass easily through
your home’s interior walls, but the signal may be
reflected by power wires or plumbing inside those
walls. Usually a slight adjustment to the position of
the Receiver and/or Camera antenna will improve
reception. Position the antenna upwards to improve
sensitivity, and downwards to reduce sensitivity.
Take care not to force the antenna past its lock
positions.
3
4
CHOOSING A CAMERA MOUNTING LOCATION
The Wireless Color Camera can be positioned on
a tabletop, or mounted to a wall. It is suitable for
indoor or outdoor use (use in a protected location).
When choosing a mounting location, please be
advised:
• Do not use in wet locations. If using outside,
position camera in a sheltered location.
• Do not position the camera so that it points
directly into the sun or any bright light, as this
may cause damage to the camera.
• Avoid viewing areas where half the area is in
bright sunlight and the other half is dark, such
as in the shadow of a building. All types of
cameras have difficulty “seeing” into areas of
such divergent light levels.
• In low light conditions, the camera will
automatically activate the Infrared (IR) LED’s and
switch the camera to Night Vision mode. Night
Vision viewing distance is up to 10 feet.
• The AC adapter used to power the camera
cannot be positioned farther than 8 ft. from
an AC socket. Do not use the supplied adapter
outside or run the cable through walls. If you
need to extend the adapter cable, 15 ft.
extensions are available by contacting
Customer Service at 800-654-8483.
• The Camera has an unobstructed wireless
transmission range up to 200 ft. from the
receiver. Transmission distance indoors is
reduced due to interior walls, wiring, household
fixtures and metal plumbing.
CONNECTING TO A TV OR MONITOR
To prepare for installation of the system, we
recommend that you temporarily connect the
Receiver to a TV or Monitor to help you choose the
best location for installing the camera. The camera
connects wirelessly and automatically to the
receiver when both are powered on and within 200
ft (unobstructed view) of each other.
Power
TV
5
Shown with optional
rechargeable batte ry
(Sold separately)
Power
Video In
Audio In
Yellow White
6
This system will accommodate up to 2 cameras.
1. Connect one end of the cable (3.5mm male) to the
rear of the receiver, and the other end (white/yellow)
to your television’s A/V inputs. Match the yellow
plug to the yellow VIDEO IN jack and the white plug
to the white AUDIO IN jack.
2. Plug the AC adapter into the power jack (marked
on the back of the receiver, then into an AC outlet.
3. Rotate the antenna to a vertical position. Do not
over-tighten. Place the receiver either on top or
near to your TV.
4. Set your TV to monitor the VIDEO INPUT
designated for the Receiver.
Auto
Manual

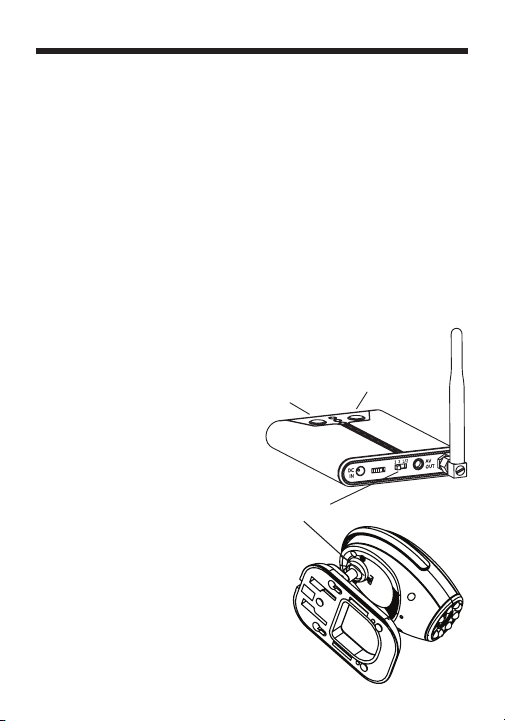

CHANNEL SELECTION
Manual Mode
To select one of the two
channels manually,
press the MANUAL button
on the top panel of the
Receiver. The green LED
will light for the
corresponding channel.
The receiver will switch to a
different channel (1 or 2)
each time the MANUAL button
is pressed. When you have
selected the channel with the
Channel
Selection
switch
1 2
active camera, that video will appear on the monitor/
TV screen. Each camera must be assigned to a specific
channel; both cameras cannot be on the same channel
or the signals will cancel out.
7
1 2
CAMERA 1
Channel Setting
1 2
CAMERA 2
Channel Setting
1 2 1/2
RECEIVER
Channel Setting
Multi-Camera Operation
This wireless surveillance system is designed to
work with up to 2 cameras. Additional cameras are
sold separately. IMPORTANT: When using more
than one camera, each camera must be assigned
to a specific channel using the channel selection
switch located on the underside of the camera
housing. Select either 1 or 2 for each camera. Each
camera must be assigned to a specific channel;
both cameras cannot be on the same channel or
the signals will cancel out. If using only one camera
you can select either Ch 1 or Ch 2, whichever
provides the best picture. The slide switch located
on the rear of the Receiver must be set to reflect the
channels in use.
8
Auto Mode (2 Camera Operation)
To have the receiver automatically switch between
two active channels, first check the receiver is set to
1/2 position. Next, press the AUTO button on the top
panel of the receiver. The green LED will light and
the receiver will automatically select between the
two active cameras. The monitor will display images
from both cameras alternately.
Cycle Time Setting (Time interval between
camera selections)
The default cycle time for the receiver is preset to
4 seconds. To change the cycle time, press both of
the buttons (Auto and Manual) on top of the receiver
simultaneously. The LED will flash; each flash adds
one extra second of cycle time. The cycle time can
be verified by the number of flashes the LED makes
when you release the buttons—one flash equals
one second. Cycle time can be set between 2-30
seconds.

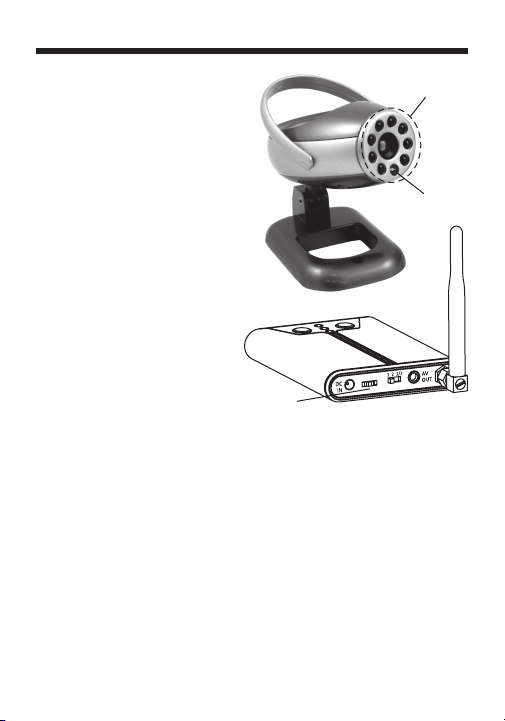

NIGHT VISION
The Wireless Color Camera features Night Vision
technology. Objects and images can be seen in little
or no light up to 10 ft. The camera uses a special
image sensor that automatically detects available
light levels. It turns on/off the Infra-Red (IR) LEDS on
the front of the camera. These LEDs provide artificial
light that allows the camera to ‘see’ in the dark.
9
Night Vision will
appear as a Black and
Infra-Red
(IR) LEDs
White image. When
the image sensor detects
enough light, color will
return to the images.
Sensor
AUDIO DETECTION AND
NOTIFICATION FEATURE
This feature allows the system
to emit an audio alert
whenever sound is
detected within a
monitored area.
When the camera
Sensitivit y
Control Wheel
detects a sound, the receiver will sound an alert
and a notification light will flash. The feature can be
turned ON/OFF by pressing the button on the front
panel of the receiver. The sensitivity for the level of
audio detection (when the receiver will sound an
alert) can be adjusted with the sensitivity control
located at the back of the receiver.
CAMERA INSTALLATION
Once your preferred camera mounting location
has been chosen, disconnect the AC adapter from
the camera and power off the TV/monitor before
proceeding.
10
Desktop Mount:
1. Place camera in desired location on a flat surface.
2. Set Channel switch on camera to 1 or 2.
3. Power ON the TV/monitor; reconnect AC adapter
to the camera.
4. Select the channel (1 or 2) on the receiver that
corresponds to the camera channel setting. (See
Channel Selection)
5. Adjust antenna and camera angle as needed for
the clearest picture. Positioning
the antenna upwards to
improve sensitivity, and
downwards to reduce
SENSITIVITY
MAX
sensitivity. Take care not
to force the antennas
past their lock positions.
MIN
Wall Mount:
1. To simplify the wall mount
process, you will find a custom
wall mounting plate included with
the mounting hardware.
Antenna pivots to
increase/decrease
signal strength
2. Select the ideal location. Using
the supplied mount as a template, drill two 3/16”
holes in the desired mounting location, and install
the two wall anchors (included) into the holes, or
screw directly into a wall stud. Secure the mounting
11
plate to the wall. Do not run the adapter cable
in walls; when securing the cable, do not cut or
puncture.
3. Set Channel switch on camera to 1 or 2. Slide the
camera onto the alignment and locking pins of the
mounting plate. Plug in AC adapter into camera.
4. Adjust antenna and camera angle as needed for
the clearest picture.
USING THE WIRELESS COLOR CAMERA SYSTEM
WITH A VCR or DVR
You can connect the camera system to a VCR or DVR
in order to record the images received from up to 2
cameras. The VCR or DVR must also be connected a
TV/Monitor in order to see live or recorded images.
See diagram on next page.
12
Audio
TV
Audio
Video
In
Video
In
In
VCR
White
Audio
Out
Power
Shown with optional
rechargeable batte ry
(Sold separately)
Power
Yellow
OPTIONAL WIRELESS
BATTERY PACK
AVAILABLE
(SOLD SEPARATELY)
A Rechargeable
Battery is available for
use with the 45233
Wireless Color Camera.
This 850mAh battery will
power the camera
for approximately 5
hours on a single charge.
To order this battery,
AC adapter
charges the
battery
Wall or
desktop
mount
please visit www.jascoproducts.com/
batteryoffer or call our Technical Support
department at 1-800-654-8483, Monday–Friday
8 a.m.–5 p.m. CST.
Video
Audio
In
Video
Out
13
TROUBLE SHOOTING
If you are having trouble operating this product,
please consult the guide below. If you have any
questions or feel the camera system is not
operating correctly, or you simply need additional
information, please visit our web site
www.jascoproducts.com, or contact our Technical
Support Group 1-800-654-8483.
No camera picture
1. Check all connectors. Make sure camera(s) and
receiver are powered ON.
2. Ensure camera(s) and receiver are set to correct
channel(s).
3. Make sure camera is within range of receiver.
4. Adjust the antenna for the camera, receiver or
both to obtain best image.
Blank monitor
1. Make sure receiver or monitor is switched ON,
and the correct video input has been selected
2. If using AC adapter, make sure it is plugged in.
3. If using a battery, make sure it is installed
correctly, and is fully charged.
14
Interference on camera picture
1. Make sure each camera (transmitter) is within
range, and that no large obstructions are blocking
the signal.
2. Try repositioning the camera, receiver or both to
improve the reception quality.
3. If a camera is positioned close to the receiver
point antenna away from the receiver.
4. Reposition other nearby equipment transmitting
on the 900MHz frequency.
5. Adjust the antenna for the camera, receiver or
both to obtain best image.
Audio problems
1. Ensure the volume is turned up sufficiently on the
Monitor (or TV).
2. Make sure the sound is within the microphone
range.
3. If the unit emits a loud wailing sound (feeds back),
try moving the camera away from the receiver or
angle the receiver differently.
SPECIFICATIONS (Subject to change w ithout notice.)
CAMERA
TV System .....................................................................................................NTSC
Integrated Lens ...................................................5.6mm, F1.8 fixed focus
Resolution .............................................................. 360 horizontal TV Lines
15
High-Speed Electronic Shutter ............................1/60 - 1/15,000 sec
Image Sensor .................................................................................. 1/3” CMOS
Min. Illumination ......................... 0 lux up to 3 feet, 0.5lux up to 10 ft
Voltage ...........................................................................................................9VDC
Current Consumption ..................................................150mA maximum
Overall Size .................................................................2.35”W x2.74Hx3.16D
Frequency Range ...................................................................902 - 928 MHz
Modulation ........................................................................................................ FM
Channel Selection ...............................................................................Manual
Case Finish ........................................................... UV resistant ABS plastic
RECEIVER
Voltage ...........................................................................................................9VDC
Current Consumption .................................................100 mA maximum
Frequency Range ...................................................................902 - 928 MHz
Output .............................................................................................Audio/Video
Overall Size .......................3.8” L x 2.8” W x 0.6” H (Without antenna)
GENERAL
Operating Temperature ........................14°F to 104°F (-10°C to 40°C)
Humidity ....................................................................................Less than 85%
WARRANTY
ONE-YEAR LIMITED WARRANTY: Jasco Products Company warrants this
product to be free from manufacturing defects for a period of one year
from the original date of consumer purchase. This warranty is limited
to the repair or replacement of this product only and does not extend
to consequential or incidental damage to other products that may be
used with this unit. This warranty is in lieu of all other warranties express
or implied. Some states do not allow limitations on how long an implied
warranty lasts or permit the exclusion or limitation of incidental or
consequential damages, so the above limitations may not apply to you.
This warranty gives you specific rights, and you may also have other
rights which vary from state to state. If unit should prove defective within
the warranty period, return prepaid with dated proof of purchase to:
Jasco Products Company,
10 E. Memorial Road,
Oklahoma City, OK 73114
16
WARNING
Risk of fire and shock
• Only use the supplied cUL listed AC to DC adapter.
• The supplied adapter is for indoor use only.
• Do not run the camera cable inside walls; when securing the
cable, do not cut or puncture
• Do not use in wet locations
FCC STATEMENT
This device complies with part
15 of the FCC rules. Operation
is subject to the following two
conditions:
(1) This device may not cause
harmful interference.
(2) This device must accept
any interference received, including interference that may cause undesired
operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user’s authority to operate the e quipment.
NOTE: This equipment has been tes ted and found to comply with the limit s
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limi ts
are designed to provide reasonable protection aga inst harmful interference
in a residential installa tion. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instruc tions, may cause harmful interference to radio communications.
However, there is no guarantee that interferen ce will not occur in a particular
installati on. If this equipment does cause harmful interferen ce to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correc t the interference by one or more of
the following
measures:
- Reorient or relocate the receiving ante nna.
- Increase the separatio n between the equipment and receiver.
- Connect the equipme nt into an outlet on a circuit different from tha t to which
the receiver is connected .
- Consult the dealer or an experience d radio/T V technician for help.
GE is a trad emark of Genera l Electric Co mpany
and is use d under license t o Jasco Produc ts Company LLC ,
10 E. Memor ial Road, Okla homa City, OK 73114
www.j ascoproduc ts.com
Loading...
