GE 45234 User Manual

www.jascoproducts.com

1-800-654-8483

45234

Home Monitoring

Wireless Color
Camera with
Receiver

User Manual

2

Thank you for purchasing the GE 45234 Wireless
Color Camera System with Receiver. Please review
these instructions carefully before attempting to
operate the unit.

PRODUCT FEATURES

• “Wi-Fi” internet friendly wireless system—won’t
interfere with home wireless networks

• View up to two cameras automatically

• Audio Detection & Notification feature—alerts
when sound is detected in a monitored area

• Night Vision feature for low or no light viewing
up to 10 ft.

• Unique “axis-swivel” camera mount allows for
desktop or wall installation

• Adjustable antenna for camera and receiver

• Wirelessly transmits audio and video up to
200 ft. (unobstructed line of sight).

• Receiver connects to any TV or monitor with
AV inputs

• Camera for Indoor/Outdoor use

PACKAGE CONTENTS

Please check and identify all the parts before
proceeding with the installation.

3

1. 45233 Wireless Color Camera

2. 45234 Wireless Receiver

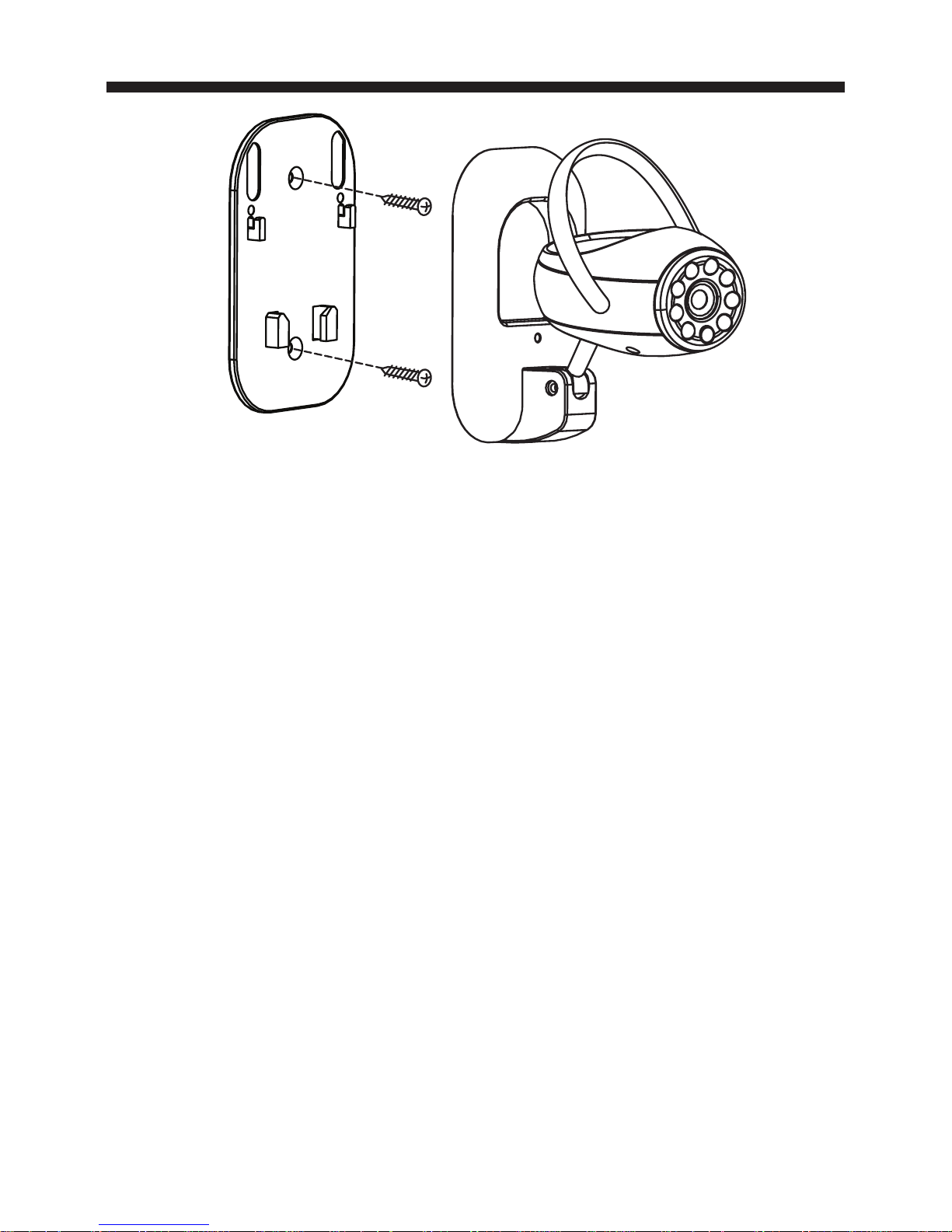

3. Wall plate and mounting hardware for camera

4. 2 AC adapters

5. AV cable

BEFORE YOU INSTALL

When choosing the best location for the placement
of the camera and receiver, it is best to avoid any
sources of possible RF interference such as
microwave ovens and cordless phones. Proximity
to these and other sources of RF interference can
inhibit the proper functioning of the receiver.

The 900MHz video signals pass easily through
your home’s interior walls, but the signal may be
reflected by power wires or plumbing inside those
walls. Usually a slight adjustment to the position of
the Receiver and/or Camera antenna will improve

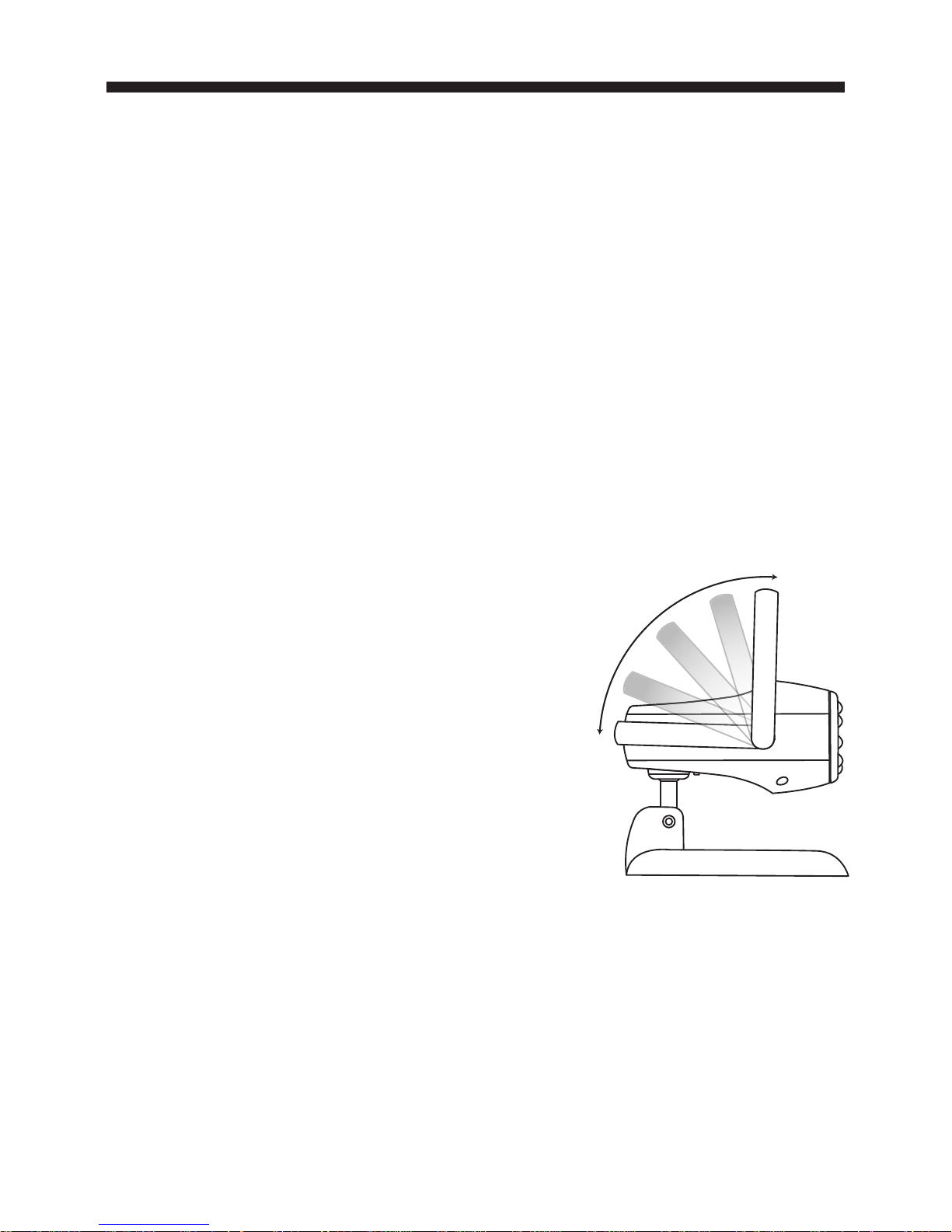

reception. Position the antenna upwards to improve
sensitivity, and downwards to reduce sensitivity.
Take care not to force the antenna past its lock
positions.

CHOOSING A CAMERA MOUNTING LOCATION

The 45233 Wireless Color Camera can be positioned
on a desktop, or mounted to a wall. It is suitable for

4

indoor or outdoor use. When choosing a mounting
location, please be advised:

• Do not use in wet locations. If using outside,
position camera in a sheltered location.

• Do not position the camera so that it points
directly into the sun or any bright light, as this
may cause damage to the camera.

• Avoid viewing areas where half the area is in
bright sunlight and the other half is dark, such
as in the shadow of a building. All types of
cameras have difficulty “seeing” into areas of
such divergent light levels.

• In low light conditions, the camera will
automatically activate the Infrared (IR) LED’s and
switch the camera to Night Vision mode. Night
Vision viewing distance is up to 10 feet.

• The AC adapter used to power the camera
cannot be positioned farther than 8 ft. from
an AC socket. Do not use the supplied adapter
outside or run the cable through walls. If you
need to extend the adapter cable, 15 ft.
extensions are available by contacting
Customer Service at 800-654-8483.

• The Camera has an unobstructed wireless
transmission range up to 200 ft. from the
receiver. Transmission distance indoors is

5

reduced due to interior walls, wiring, household
fixtures and metal plumbing.

CONNECTING TO A TV OR MONITOR

To prepare for installation of the system, we
recommend that you temporarily connect the
45234 Receiver to a TV or Monitor to help you
choose the best location for installing the camera.
The camera connects wirelessly and automatically
to the receiver when both are powered on and
within 200 ft (unobstructed view) of each other.
This system will accommodate up to 2 cameras.

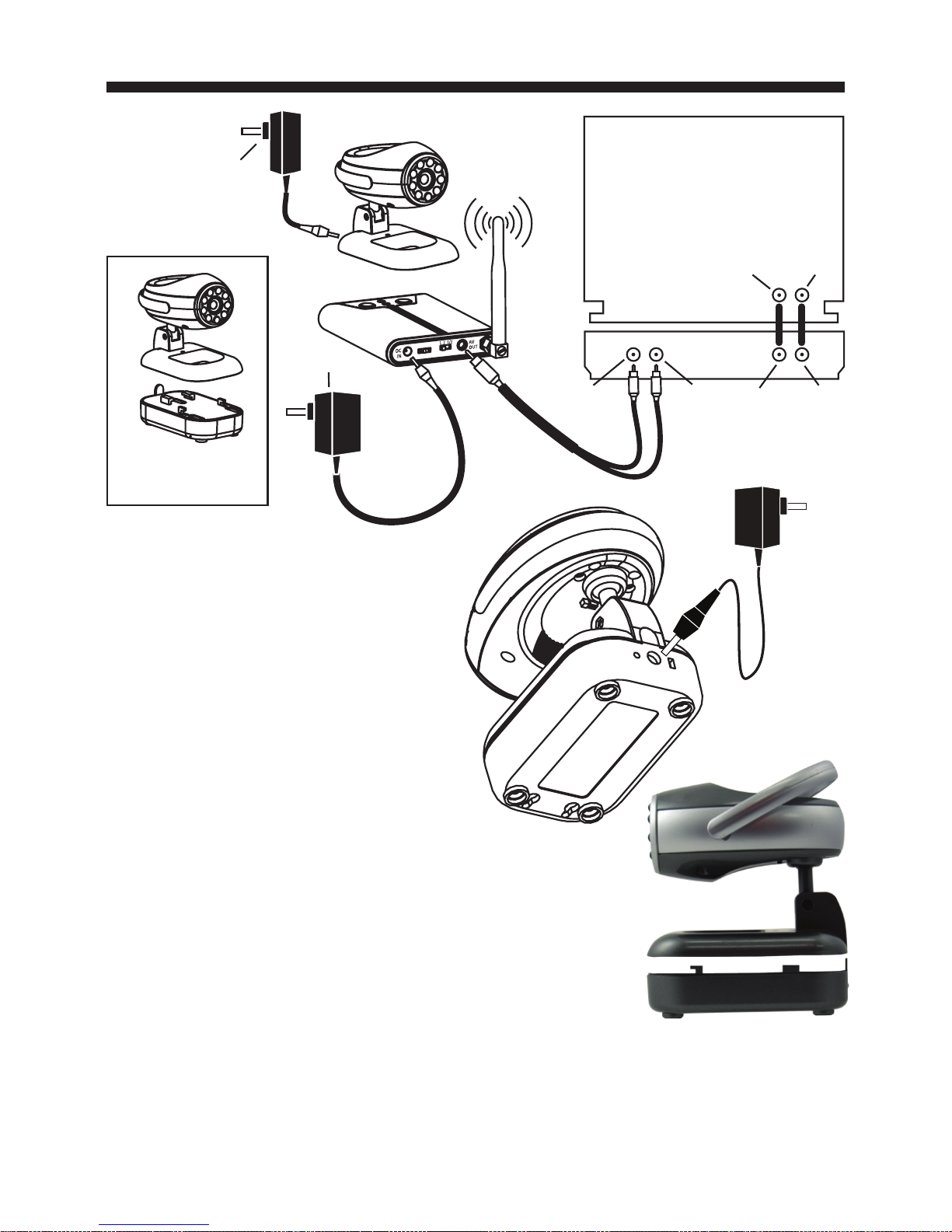

1. Connect one end of the cable (3.5mm male) to the
rear of the receiver, and the other end (white/yellow)
to your television’s A/V inputs. Match the yellow

Video In

Power

Audio In

TV

Power

Yellow White

Shown with optional
rechargeable battery
(Sold separately)
