Thank you for purchasing the GE 45232 B/W Wired
Camera System with Monitor. Please review these
instructions carefully before attempting to operate
the unit.

PRODUCT FEATURES

Night Vision feature for low or no light viewing

•
up to 10 ft.

View up to four cameras automatically

•

Small, unique camera design is simple and

•
easy to use

Wall or desk mount for camera

•

Wired Camera for Indoor/Outdoor use

•

PACKAGE CONTENTS

Please check and identify all the parts before
proceeding with the installation.

1. 5.5” B/W CRT monitor

2. B/W Camera with desktop mount

3. Wall mounting bracket for camera with mounting
hardware

4. AC adapter

5. 60 ft. camera cable (not rated for in-wall use)

CHOOSING A CAMERA MOUNTING LOCATION

The Camera included with the 45232 Monitor
system can be positioned on a desktop, or mounted
to a wall. It is suitable for indoor or outdoor use.
When choosing a mounting location, please be
advised:

Do not use in wet locations. If using outside,

•
position camera in a sheltered location.

Do not position the camera so that it points

•
directly into the sun or any bright light, as this
may cause damage to the camera.

Avoid viewing areas where half the area is in

•
bright sunlight and the other half is dark, such
as in the shadow of a building. All types of
cameras have diffi culty “seeing” into areas of
such divergent light levels.

In low light conditions, the camera will

•
automatically activate the Infrared (IR) LED’s
and switch the camera to Night Vision mode.
Night Vision viewing distance is up to 10 feet.

CONNECTING TO THE MONITOR

Before beginning installation, we recommend that
you temporarily connect the Camera to the 5.5”
Monitor to help familiarize yourself with the camera
system and select the best location for installing the

3

4

camera. The camera connects to any of the video
inputs (1-4) on the back of the monitor. This system
will accommodate up to 4 cameras. The monitor
supplies power to each of the cameras.

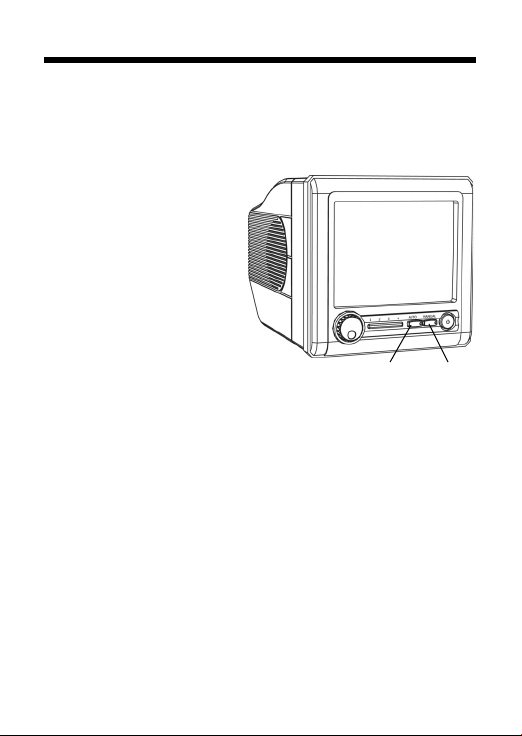

1. Plug the power adapter into the power jack on
the back of the monitor, then into an AC outlet.

2. Turn on the monitor by pressing the ‘Power’
button on the front of the unit and set the volume to
midpoint.

3. Select the appropriate “channel” (1-4) on the
monitor that corresponds to the input (1-4) the
camera lead is connected. (See Channel Selection).

4. Adjust the sound level at the front of the monitor
with the volume control knob. Brightness/Contrast
