GE 45231 User Manual

For indoor/outdoor use. Do not use in wet locations.

www.jascoproducts.com

1-800-654-8483

45231

Home Monitoring

Wired Color
Camera

User Manual

2

Thank you for purchasing the GE 45231 Wired
Color Camera. Please review these instructions
carefully before attempting to operate the unit.

PRODUCT FEATURES

Night Vision feature – can view up to 10 ft. in
low or no light

Connects to any video input for an “instant
monitoring system”

Small, unique design is simple to set up and
easy to use

Wall or desk mount

For Indoor/Outdoor use

PACKAGE CONTENTS

Please check and identify all the parts before
proceeding with the installation.

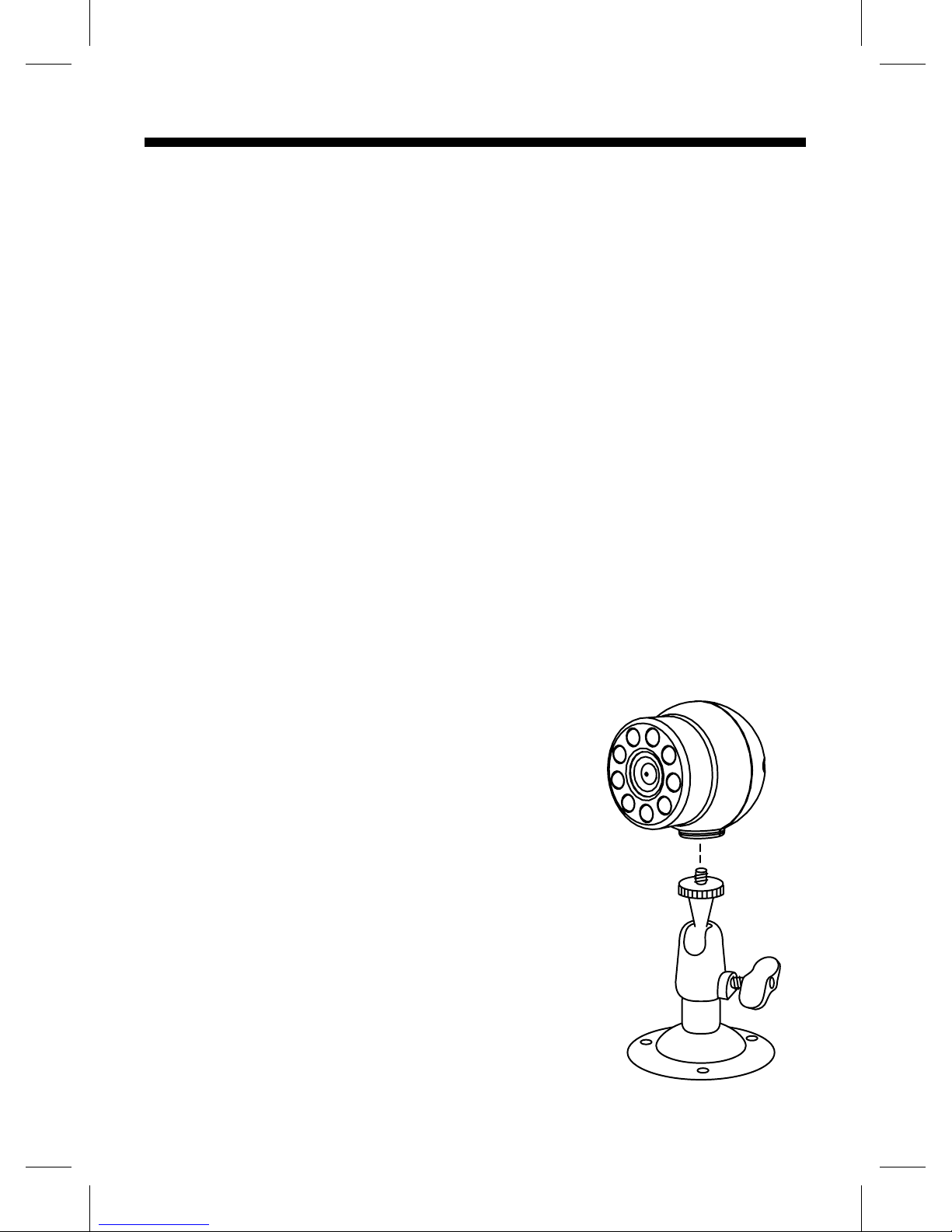

1. 45231 Color Camera with desktop mount

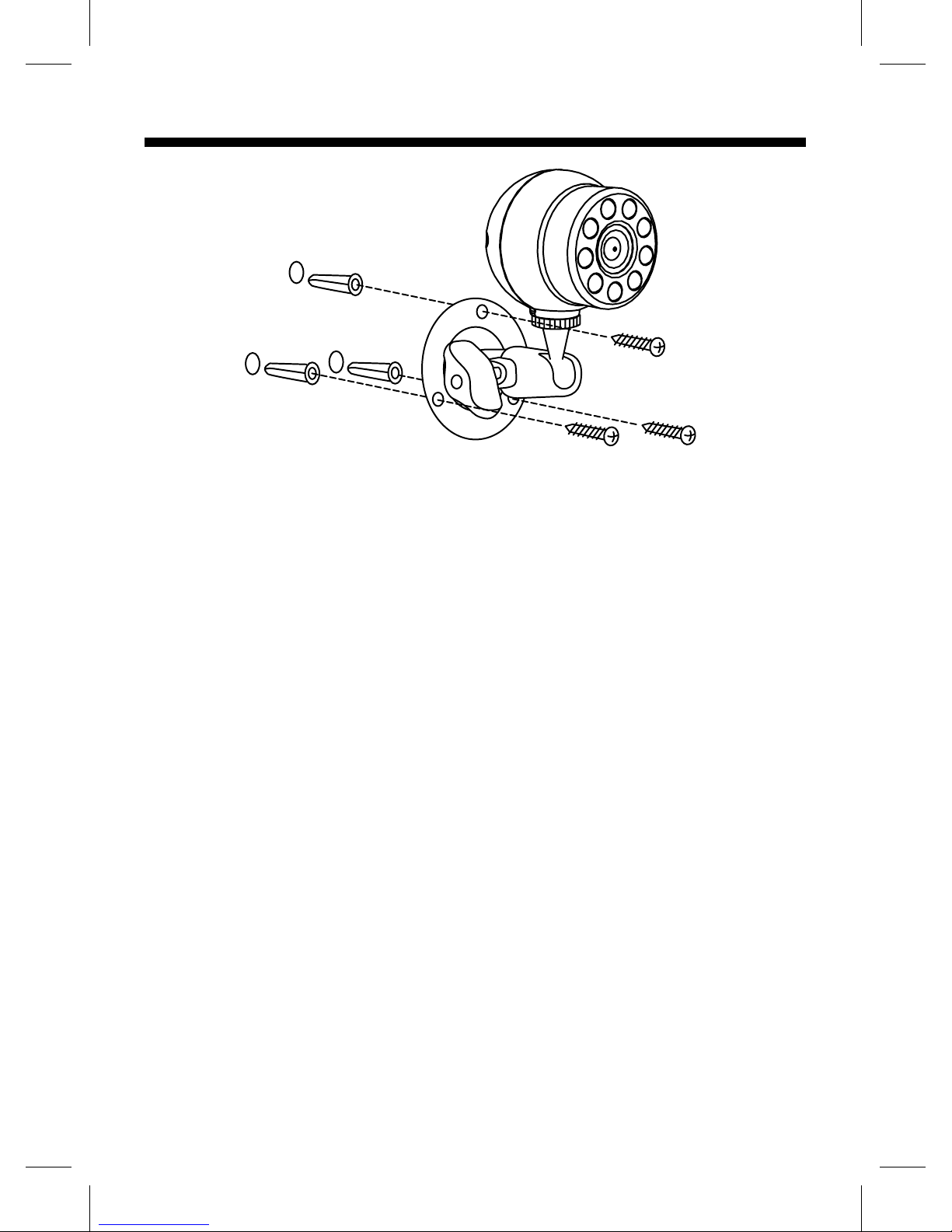

2. Wall mounting bracket with mounting hardware

3. AC adapter

4. 60 ft. camera cable (not rated for in-wall use)

5. 3-Wire Adapter cable

•

•

•

•

•

3

CHOOSING A CAMERA MOUNTING LOCATION

The 45231 Color Camera can be positioned on
a desktop, or mounted to a wall. It is suitable for
indoor or outdoor use. When choosing a mounting
location, please be advised:

Do not use in wet locations. If using outdoors,
position in sheltered location.

DO NOT position the camera so that it points
directly into the sun or any bright light, as this
may cause damage to the camera.

Avoid viewing areas where half the area is in
bright sunlight and the other half is dark, such
as in the shadow of a building. All types of
cameras have diffi culty “seeing” into areas of
such divergent light levels.

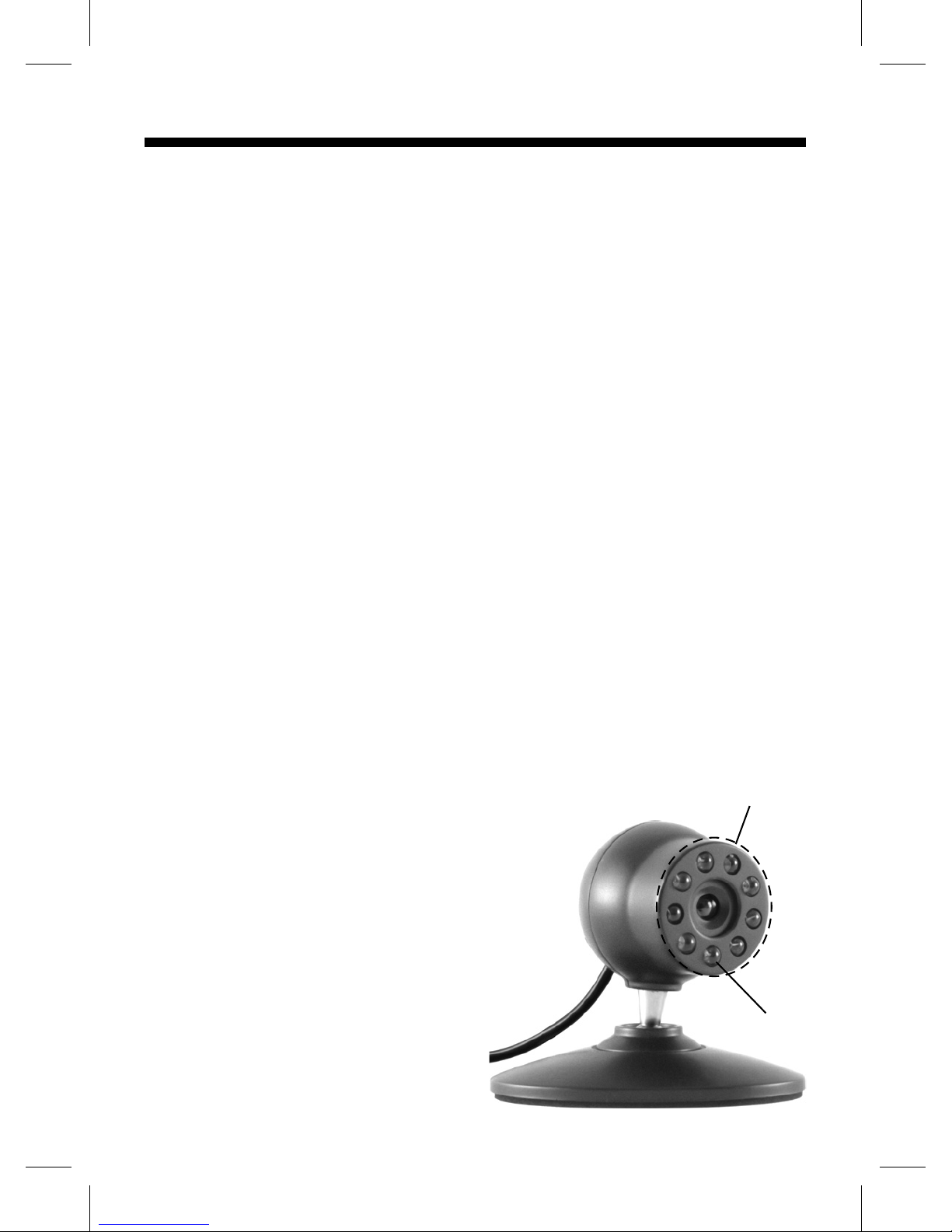

In low light conditions, the camera will
automatically activate the Infrared (IR) LED’s
and switch the camera to Night Vision mode.
Night Vision viewing distance is up to 10 feet.

TESTING THE SYSTEM

Before beginning installation, we recommend that
you connect the 45231 Color Camera to your TV,
VCR or DVR to help you familiarize yourself with the
camera system and choose the best location for
installing the camera.

•

•

•

•

4

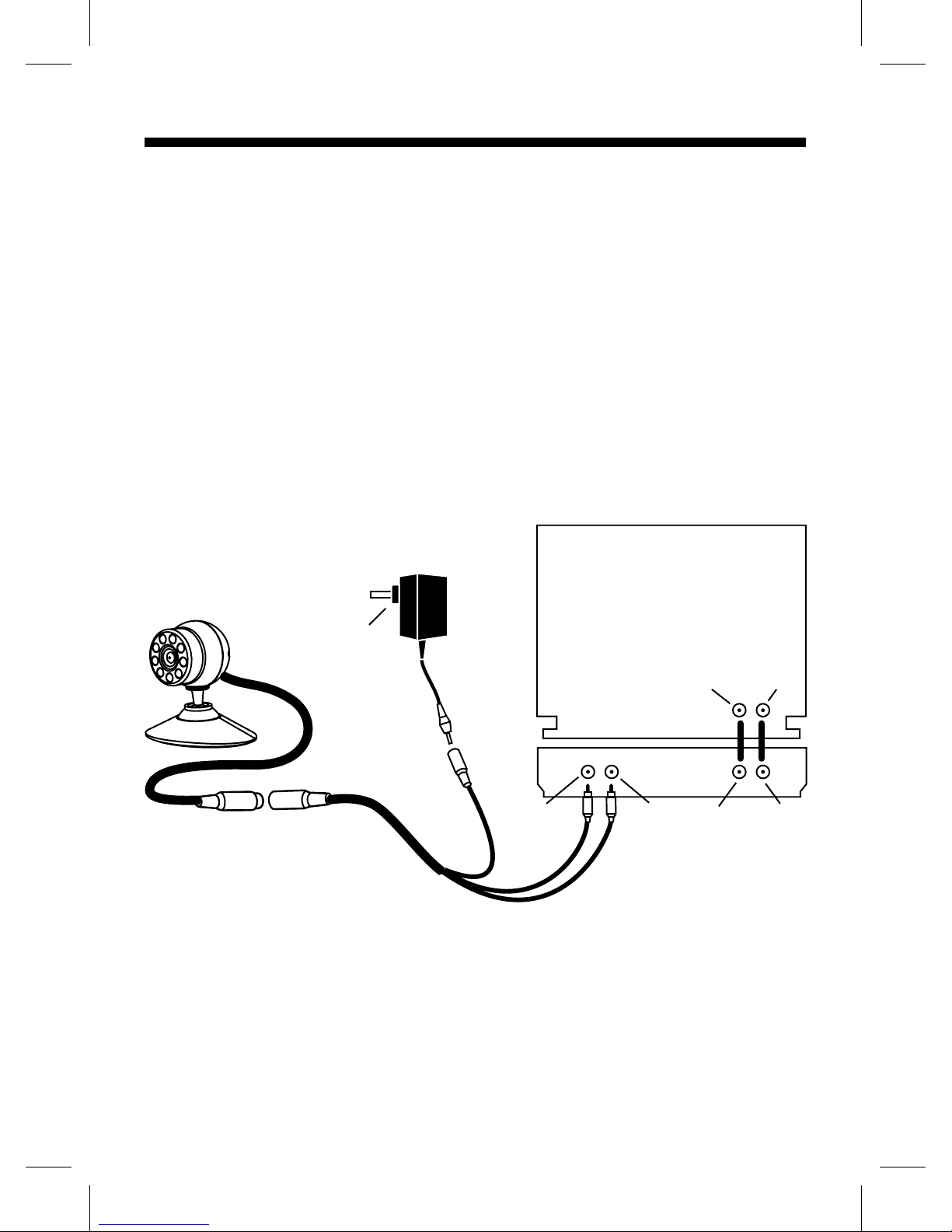

CONNECTING TO A TV

The 45231 connects to the video and audio input
jacks on the back of your TV, VCR or DVR. If you are
not using a VCR or DVR, connect the 45231 Color

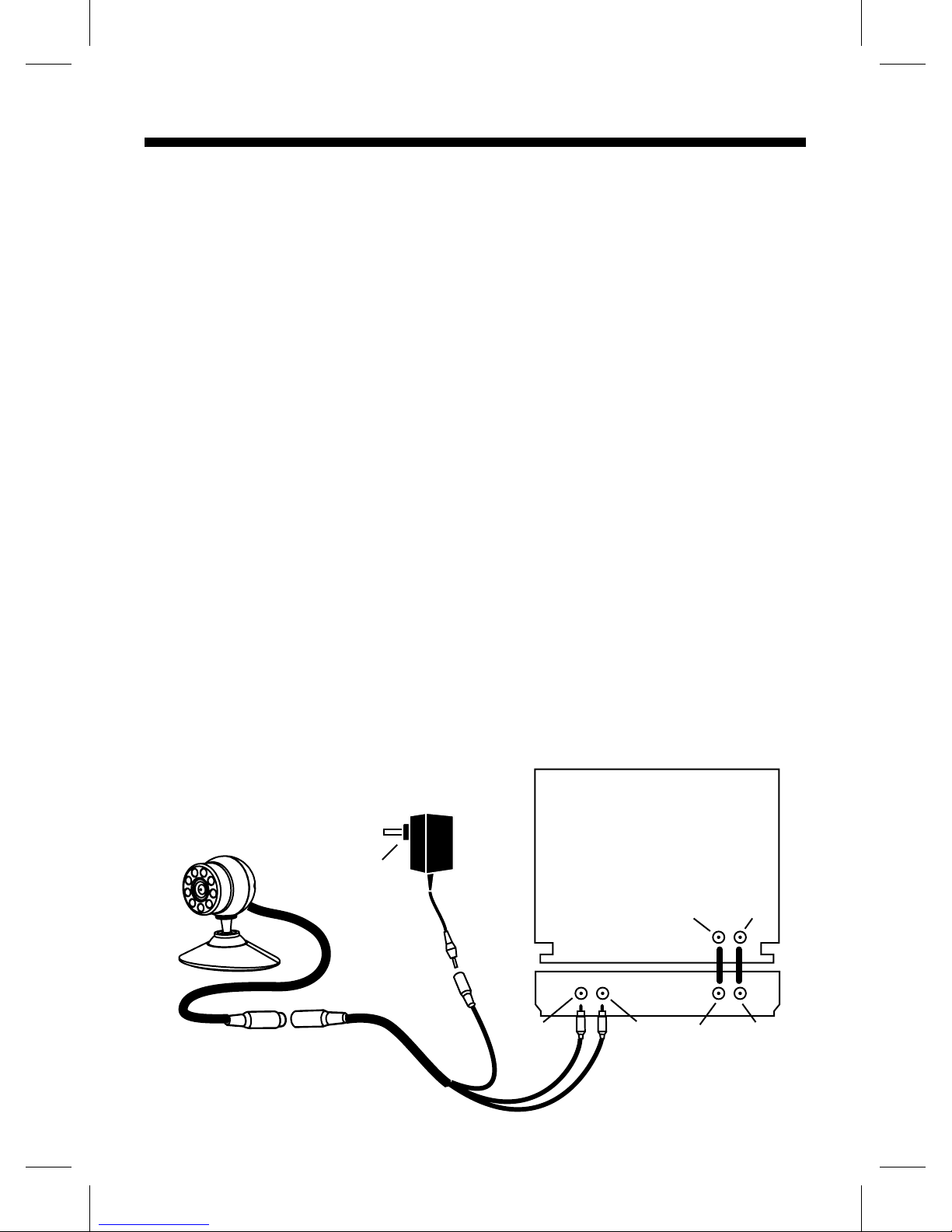

Camera to your TV as shown below.

To view:

1. Switch on the TV; set the volume to midpoint.
Connect to the 45231 Color Camera.

Note: For temporary installation you can connect the camera
to the TV, VCR or DVR without using the 60 ft. extension cable.
Simply connect the 3-Wire adapter cable directly to the end of
the 6 ft. cable coming from the camera.

2. Plug in the AC adapter and insert the yellow
cable to the video jack and the white cable to the
left/mono audio jack of the TV.

3. Select the AV input on your TV by pressing the
button labeled AV or VIDEO on either your TV or TV

Video In

Power

Audio In

TV
