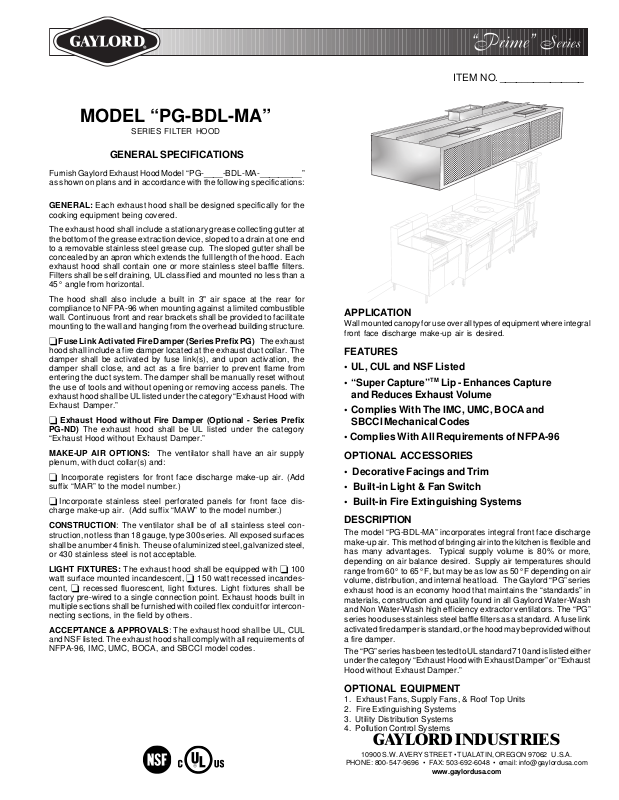

Gaylord PG-BDL-MA Specifications

MODEL “PG-BDL-MA”

SERIES FILTER HOOD

GENERAL SPECIFICATIONS

Furnish Gaylord Exhaust Hood Model “PG-____-BDL-MA-_________”
as shown on plans and in accordance with the following specifications:

GENERAL: Each exhaust hood shall be designed specifically for the
cooking equipment being covered.

The exhaust hood shall include a stationary grease collecting gutter at
the bottom of the grease extraction device, sloped to a drain at one end
to a removable stainless steel grease cup. The sloped gutter shall be
concealed by an apron which extends the full length of the hood. Each
exhaust hood shall contain one or more stainless steel baffle filters.
Filters shall be self draining, UL classified and mounted no less than a
45° angle from horizontal.

The hood shall also include a built in 3" air space at the rear for
compliance to NFPA-96 when mounting against a limited combustible
wall. Continuous front and rear brackets shall be provided to facilitate
mounting to the wall and hanging from the overhead building structure.

o Fuse Link Activated Fire Damper (Series Prefix PG) The exhaust
hood shall include a fire damper located at the exhaust duct collar. The
damper shall be activated by fuse link(s), and upon activation, the
damper shall close, and act as a fire barrier to prevent flame from
entering the duct system. The damper shall be manually reset without
the use of tools and without opening or removing access panels. The
exhaust hood shall be UL listed under the category “Exhaust Hood with
Exhaust Damper.”

o Exhaust Hood without Fire Damper (Optional - Series Prefix
PG-ND) The exhaust hood shall be UL listed under the category

“Exhaust Hood without Exhaust Damper.”

MAKE-UP AIR OPTIONS: The ventilator shall have an air supply
plenum, with duct collar(s) and:

o Incorporate registers for front face discharge make-up air. (Add
suffix “MAR” to the model number.)

o Incorporate stainless steel perforated panels for front face dis­charge make-up air. (Add suffix “MAW” to the model number.)

CONSTRUCTION: The ventilator shall be of all stainless steel con­struction, not less than 18 gauge, type 300 series. All exposed surfaces
shall be a number 4 finish. The use of aluminized steel, galvanized steel,
or 430 stainless steel is not acceptable.

LIGHT FIXTURES: The exhaust hood shall be equipped with o 100
watt surface mounted incandescent, o 150 watt recessed incandes­cent, o recessed fluorescent, light fixtures. Light fixtures shall be
factory pre-wired to a single connection point. Exhaust hoods built in
multiple sections shall be furnished with coiled flex conduit for intercon­necting sections, in the field by others.

ACCEPTANCE & APPROVALS: The exhaust hood shall be UL, CUL
and NSF listed. The exhaust hood shall comply with all requirements of
NFPA-96, IMC, UMC, BOCA, and SBCCI model codes.

ITEM NO. _______________

APPLICATION

Wall mounted canopy for use over all types of equipment where integral
front face discharge make-up air is desired.

FEATURES

• UL, CUL and NSF Listed

• “Super Capture”TM Lip - Enhances Capture
and Reduces Exhaust Volume

• Complies With The IMC, UMC, BOCA and
SBCCI Mechanical Codes

• Complies With All Requirements of NFPA-96

OPTIONAL ACCESSORIES

• Decorative Facings and Trim

• Built-in Light & Fan Switch

• Built-in Fire Extinguishing Systems

DESCRIPTION

The model “PG-BDL-MA” incorporates integral front face discharge
make-up air. This method of bringing air into the kitchen is flexible and
has many advantages. Typical supply volume is 80% or more,
depending on air balance desired. Supply air temperatures should
range from 60° to 65°F, but may be as low as 50°F depending on air
volume, distribution, and internal heat load. The Gaylord “PG” series
exhaust hood is an economy hood that maintains the “standards” in
materials, construction and quality found in all Gaylord Water-Wash
and Non Water-Wash high efficiency extractor ventilators. The “PG”
series hood uses stainless steel baffle filters as a standard. A fuse link
activated fire damper is standard, or the hood may be provided without
a fire damper.

The “PG” series has been tested to UL standard 710 and is listed either
under the category “Exhaust Hood with Exhaust Damper” or “Exhaust
Hood without Exhaust Damper.”

OPTIONAL EQUIPMENT

1. Exhaust Fans, Supply Fans, & Roof Top Units

2. Fire Extinguishing Systems

3. Utility Distribution Systems

4. Pollution Control Systems

GAYLORD INDUSTRIES

10900 S.W. AVERY STREET • TUALATIN, OREGON 97062 U.S.A.

PHONE: [phone] • FAX: [phone] • email: [e-mail]

www.gaylordusa.com

MODEL “PG - ___ -BDL - ___ - ___ - ___”

ND MAW

LOW

PROFILE

(LP)

OR

MAR

DEPTH

OF

HOOD

For exact model designation add appropriate suffixes.
For supply air option add one of the following suffixes to the
model number: £ MAW £ MAR.
Example: “PG-BDL-MAW-54”
If low profile add suffix “LP” after BDL.

**

LOW PROFILE MINIMUM HEIGHT AT FRONT:

Light & Medium Duty Equipment (400°F) 18" Min.
Heavy & Extra Heavy Duty Equipment (600° & 700°F) "LP"
Not Available

ITEM NO. _____________________ EST. WT. ________________________

LENGTH _____________ WIDTH ______________ HEIGHT ______________

EXHAUST - CFM ________________ DUCT SIZE ____________ S.P. ______

SUPPLY - CFM _________________ DUCT SIZE ____________ S.P. ______

LIGHTS VOLTAGE

qq

100W SURFACE INCANDESCENT

q

qq
qq

150W RECESSED INCANDESCENT

q

qq
q q

RECESSED FLUORESCENT

q

q q

q q

120 VOLTS

q

q q
q q

220/240 VOLTS

q

q q

The manufacturer reserves the right to
modify the materials and specifica­tions resulting from a continuing pro­gram of product improvement or the
availability of new materials

TYPICAL SECTION VIEW

ENGINEERING DATA

Mechanical Requirements

The amount of exhaust volume required is dependent upon the type of
cooking equipment and the type and volume of cooking. Refer to the Master
Engineering Data Sheet in the Engineering Data section of the Gaylord
catalog for the charts on determining exhaust volume, duct sizes, and static
pressure.

Electrical

A Gaylord stop/start switch, Model C-150, may be provided as an option for
each exhaust fan. Lights to be on separate circuit, 120 volt standard, 220/
240 volt optional.

Form No. PG-BDL-MA 0307 / 30717 © Copyright 2007, Gaylord Industries Litho USA

Ventilator Lengths

Maximum unit length 16'-0". For greater lengths, join two or more sections
together. Check to ensure that there is adequate access into building and
kitchen area.

Note: Ventilators manufactured outside North America; maximum unit length

*

10'-0".

Hanging Weight

Ventilator Width 48" 54" 60"
Wt. / Lineal ft. Lbs. 75 80 85
