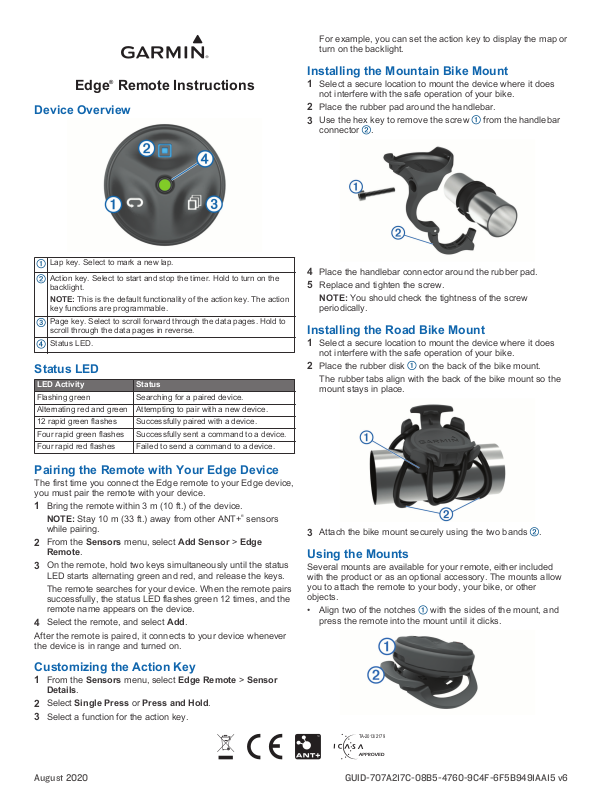

Edge® Remote Instructions

TA-2013/2179

Device Overview

For example, you can set the action key to display the map or turn on the backlight.

Installing the Mountain Bike Mount

Select a secure location to mount the device where it does

not interfere with the safe operation of your bike. Place the rubber pad around the handlebar.

Use the hex key to remove the screw from the handlebar

connector .

Lap key. Select to mark a new lap.

Action key. Select to start and stop the timer. Hold to turn on the backlight.

NOTE: This is the default functionality of the action key. The action key functions are programmable.

Page key. Select to scroll forward through the data pages. Hold to scroll through the data pages in reverse.

Status LED.

Status LED

LED Activity Status

Flashing green Searching for a paired device.

Alternating red and green Attempting to pair with a new device.

12 rapid green flashes Successfully paired with a device.

Four rapid green flashes Successfully sent a command to a device.

Four rapid red flashes Failed to send a command to a device.

Pairing the Remote with Your Edge Device

The first time you connect the Edge remote to your Edge device, you must pair the remote with your device.

Bring the remote within 3 m (10 ft.) of the device.

NOTE: Stay 10 m (33 ft.) away from other ANT+® sensors

while pairing. From the Sensors menu, select Add Sensor > Edge

Remote.

On the remote, hold two keys simultaneously until the status

LED starts alternating green and red, and release the keys. The remote searches for your device. When the remote pairs

successfully, the status LED flashes green 12 times, and the remote name appears on the device.

Select the remote, and select Add.

After the remote is paired, it connects to your device whenever the device is in range and turned on.

Place the handlebar connector around the rubber pad.

Replace and tighten the screw.

NOTE: You should check the tightness of the screw

periodically.

Installing the Road Bike Mount

Select a secure location to mount the device where it does

not interfere with the safe operation of your bike. Place the rubber disk on the back of the bike mount.

The rubber tabs align with the back of the bike mount so the mount stays in place.

Attach the bike mount securely using the two bands .

Using the Mounts

Several mounts are available for your remote, either included with the product or as an optional accessory. The mounts allow you to attach the remote to your body, your bike, or other objects.

• Align two of the notches with the sides of the mount, and press the remote into the mount until it clicks.

Customizing the Action Key

From the Sensors menu, select Edge Remote > Sensor

Details. Select Single Press or Press and Hold.

Select a function for the action key.

GUID-707A217C-08B5-4760-9C4F-6F5B9491AA15 v6August 2020

• Press gently on the release tab , and lift the remote from the mount.

Replacing the Battery

Before you can replace the battery, you must have a small Phillips screwdriver, a small flat screwdriver, and a CR2032 lithium coin-cell battery.

Using a Phillips screwdriver, remove the three screws from

the back plate .

Remove the back plate from the remote.

Wrap the end of a small flat screwdriver with tape.

The tape protects the battery, battery compartment, and contacts from damage.

Carefully pry the battery from the back plate.

This product is products and apps.

ANT+® certified. Visit www.thisisant.com/directory for a list of compatible

Install the new battery into the back plate with the positive

side facing down. Verify the gasket is fully seated in the groove.

Replace the backplate, aligning the post with the gap in

the circuit board . Replace and tighten the three screws.

NOTE: Do not overtighten.

Remote Specifications

Battery type User-replaceable CR2032 (3 V)

Battery life Up to 1.5 yr. (1 hr./day)

Operating temperature range

Radio frequency/ protocol

Water rating 5 ATMThe device withstands pressure

From -10° to 50°C (from 14° to 122°F)

2.4 GHz ANT+ wireless communications protocol

equivalent to a depth of 50 m. For more information, go to www.garmin.com/waterrating.

© 2014 Garmin Ltd. or its subsidiaries Garmin®, the Garmin logo, and Edge® are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. subsidiaries. These trademarks may not be used without the express permission of Garmin.

ANT+® is a trademark of Garmin Ltd. or its
