Garmin Astro with DC30 Owner's Manual

GPS-enabled dog tracking system

™

Astro

owner’s manual

© 2009 Garmin Ltd. or its subsidiaries

Garmin International, Inc.
1200 East 151st Street,
Olathe, Kansas 66062, USA
Tel. [phone] or [phone]
Fax [phone]

All rights reserved. Except as expressly provided herein, no part of this manual may be reproduced, copied, transmitted, disseminated, downloaded or
stored in any storage medium, for any purpose without the express prior written consent of Garmin. Garmin hereby grants permission to download a
single copy of this manual onto a hard drive or other electronic storage medium to be viewed and to print one copy of this manual or of any revision
hereto, provided that such electronic or printed copy of this manual must contain the complete text of this copyright notice and provided further that
any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Garmin reserves the right to change or improve its products and to make changes in
the content without obligation to notify any person or organization of such changes or improvements. Visit the Garmin Web site (www.garmin.com)
for current updates and supplemental information concerning the use and operation of this and other Garmin products.

Garmin®, AutoLocate®, TracBack®, BlueChart® g2, MotionBased®, City Navigator®, and MapSource® are registered trademarks and Astro™ is a
trademark of Garmin Ltd. or its subsidiaries and may not be used without the express permission of Garmin.

This product includes technology owned by SiRF Technology, Inc. SiRF’s technology is protected by U.S. and foreign patents pending and
issued. SiRF, SiRFstar and the SiRF logo are registered trademarks of SiRF Technology, Inc. SiRFstarIII and SiRF Powered are trademarks
of SiRF Technology, Inc.

Windows® is a registered trademark of Microsoft Corporation in the United States and/or other countries. Macintosh® is a registered trademarks of
Apple Computer, Inc. microSD™ is a trademark of The SD Card Association. TransFlash™ is a trademark of SanDisk Corporation. Other trademarks
and trade names are those of their respective owners.

March 2009 Part Number 190-00714-10 Rev. B Printed in Taiwan

Garmin (Europe) Ltd.
Liberty House
Hounsdown Business Park,
Southampton, Hampshire, SO40 9RB UK
Tel. [phone] (outside the UK)
0808 2380000 (within the UK)
Fax [phone]

Garmin Corporation
No. 68, Jangshu 2nd Road,
Shijr, Taipei County, Taiwan
Tel. [phone]
Fax [phone]

Introduction

Introduction

This manual provides user information for the Garmin
Astro™ 220 Dog Tracking System.

Contact Garmin

Contact Garmin if you have any questions while using

®

your Astro 220. In the USA contact Garmin Product
Support by phone: [phone] or [phone], or
go to www.garmin.com/support/.

Tips and Shortcuts

Press MENU twice to return to the Main Menu from

•
any page.

Press BACK to move backward through your steps.

•

•

To extend battery life of the Astro 220, turn the unit
off when you are not using it, and decrease the level of
the display backlight (page 4).

•

To extend the DC 30 battery life, turn the unit off
when you are not tracking a dog, or decrease the
update rate (page 13).

Product Registration

Help us better support you by completing our online
registration today! Connect to our Web site at

www.my.garmin.com. Keep the original sales receipt, or a

photocopy, in a safe place.

Astro Dog Tracking System Owner’s Manual i

In Europe, contact Garmin (Europe) Ltd. at +44 (0)

870.8501241 (outside the UK) or 0808 2380000 (within
the UK).

myGarmin

Go to www.my.garmin.com to access the latest services
for your Garmin products.

Subscribe to online services for Points of Interest

•
(POIs) and other useful items.

Unlock optional maps.

•

Access MotionBased® Web-based activity tracker

•
where you can view your saved tracks.

Download geocaches to your unit.

•

Introduction

Table of Contents

Introduction .............................................................i

Tips and Shortcuts ....................................................... i

Product Registration .................................................... i

Contact Garmin ........................................................... i

myGarmin .................................................................... i

DC 30 Battery Warnings ............................................ iv

Getting Started .......................................................1

Unit Overview ............................................................. 1

Installing the Batteries in the Astro 220 ...................... 2

Using the Astro 220 Keypad Functions ...................... 3

Turning the Astro 220 On ...........................................4

Charging the DC 30 .................................................... 4

Acquiring GPS Satellite Signals ................................. 5

Calibrating the Astro 220 Compass ............................ 6

Operating the Astro 220 ............................................. 6

Manual Conventions ................................................... 7

On-Screen Messages ................................................. 7

Dog Tracking ..........................................................8

Communicating with the DC 30 .................................. 8

Tracking a Dog ......................................................... 10

Main Menu ............................................................14

Mark Location ......................................................15

Averaging a Marked Location ................................... 16

Projecting a Location ................................................ 16

Map Page ..............................................................17

Map Page Options .................................................... 17

Data Fields ............................................................... 18

Measuring Distance .................................................. 19

Find Features .......................................................20

Item Information Page Options ................................. 22

Using Optional Detailed Maps .................................. 22

POI Loader and Custom Points of Interest ............... 23

GPS Applications ................................................24

Using the Trip Computer .......................................... 24

Using the Compass Page ......................................... 25

Using the Altimeter Page .......................................... 28

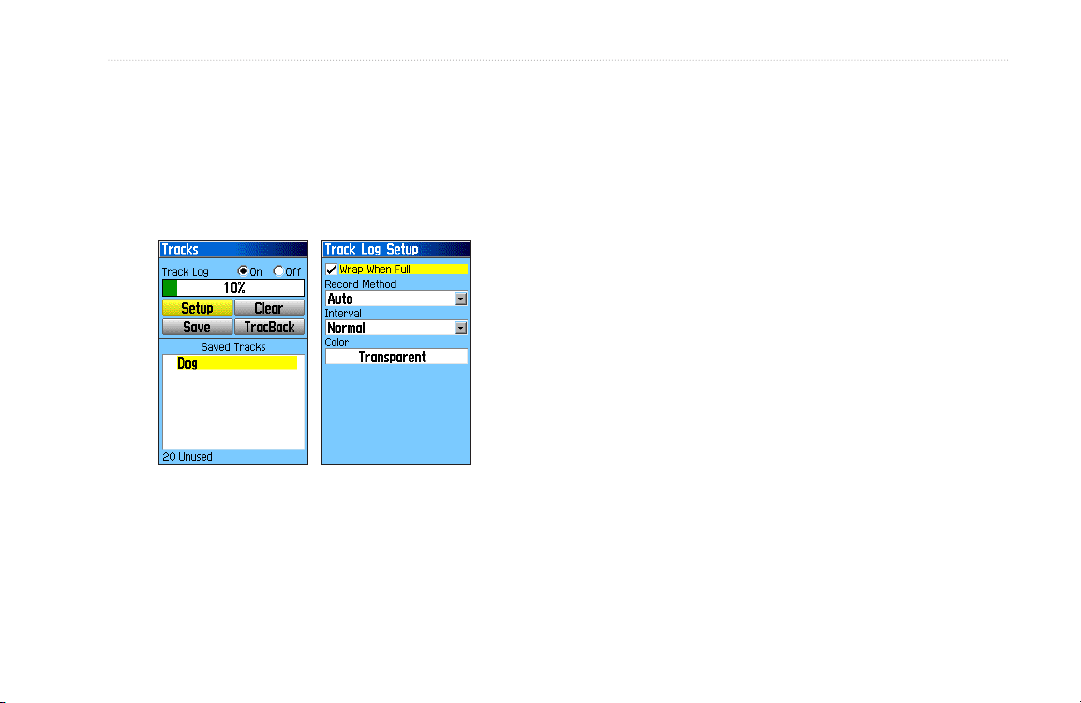

Using Tracks ............................................................. 30

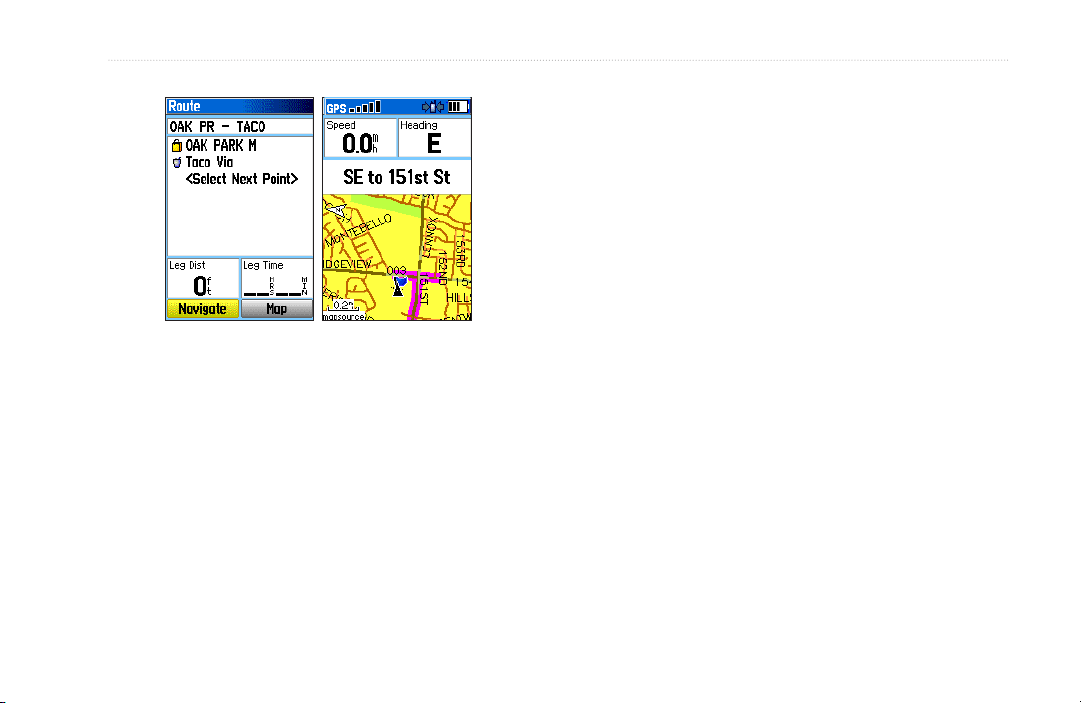

Creating Routes .......................................................34

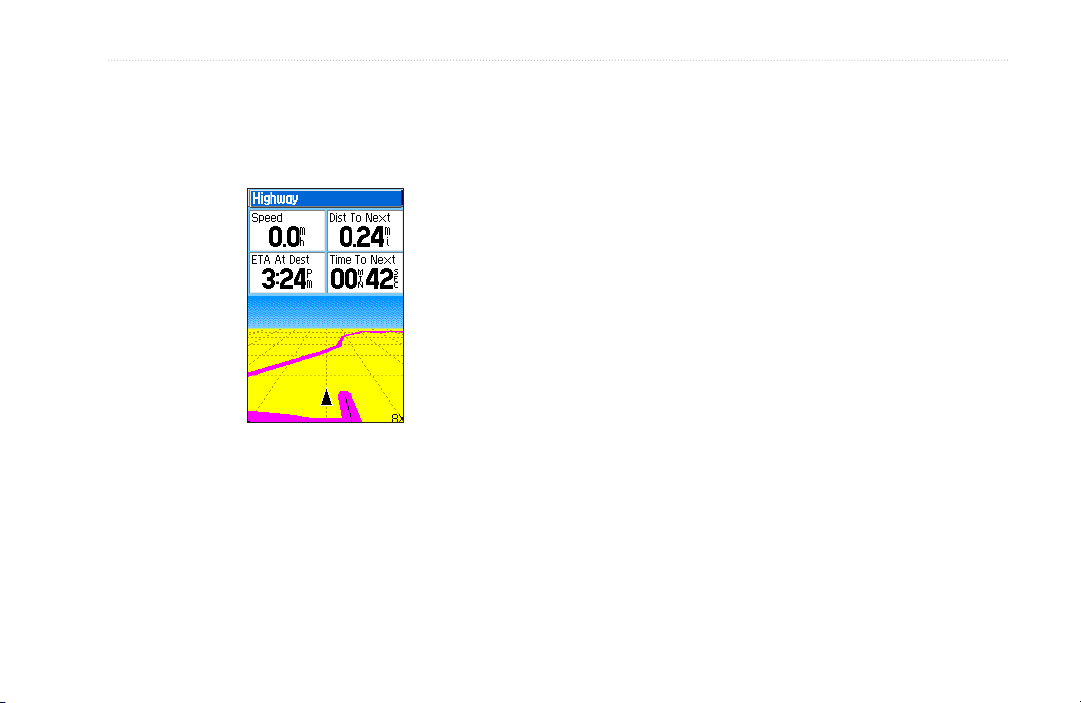

Using the Highway Page .......................................... 37

Using Proximity Locations ........................................ 37

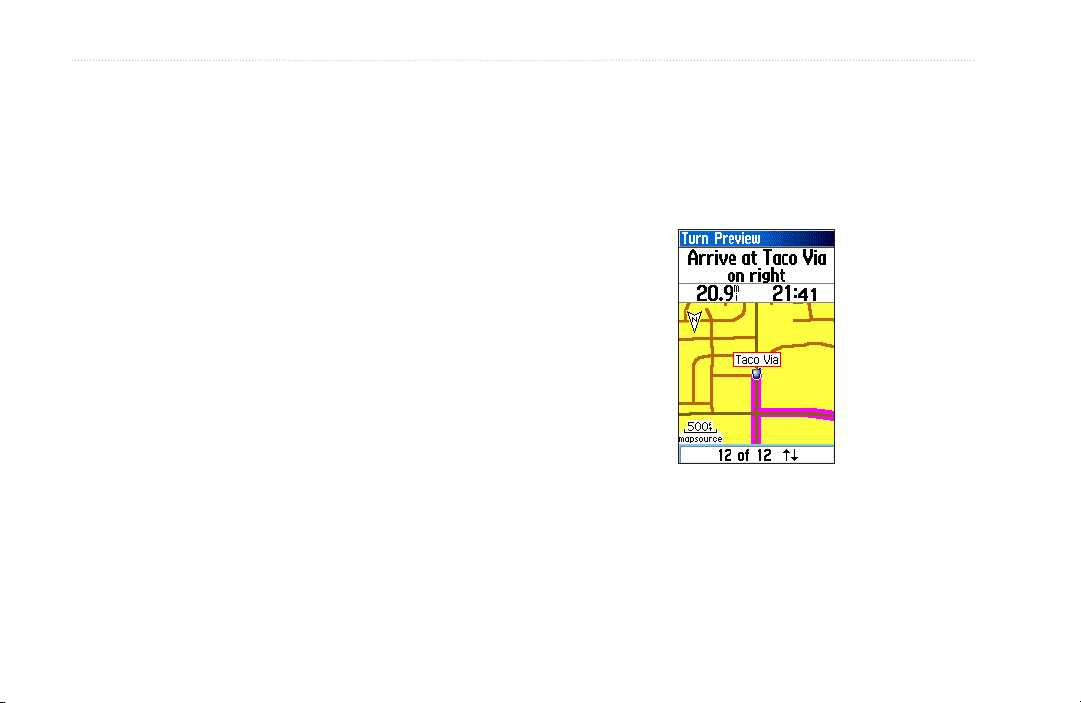

Using Turn Preview .................................................. 38

Using Active Route ................................................... 39

Using the Satellite Page ........................................... 39

ii Astro Dog Tracking System Owner’s Manual

Accessories .........................................................41

Calendar ................................................................... 41

Calculator ................................................................. 42

Stopwatch ................................................................. 42

Sunrise/Sunset ......................................................... 42

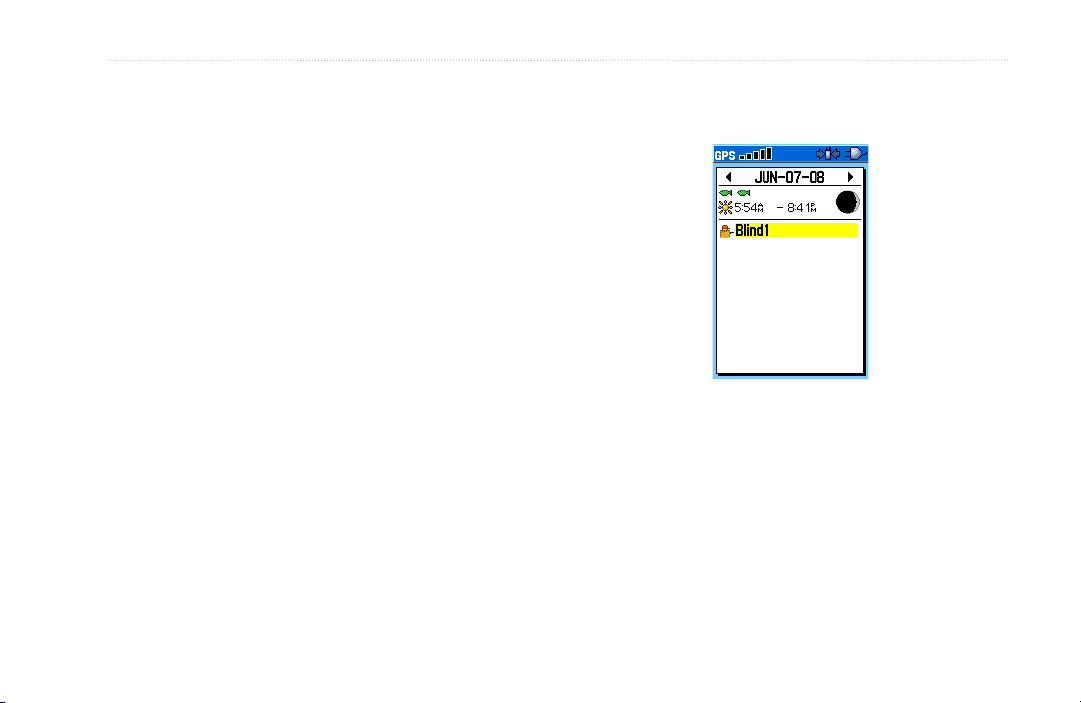

Hunting Almanac ...................................................... 43

Games ...................................................................... 43

Settings ................................................................44

System Setup ........................................................... 44

Dog List Setup .......................................................... 45

Dog Alerts Setup ...................................................... 45

Display Setup ........................................................... 45

Tones Setup .............................................................46

Main Menu Setup ..................................................... 46

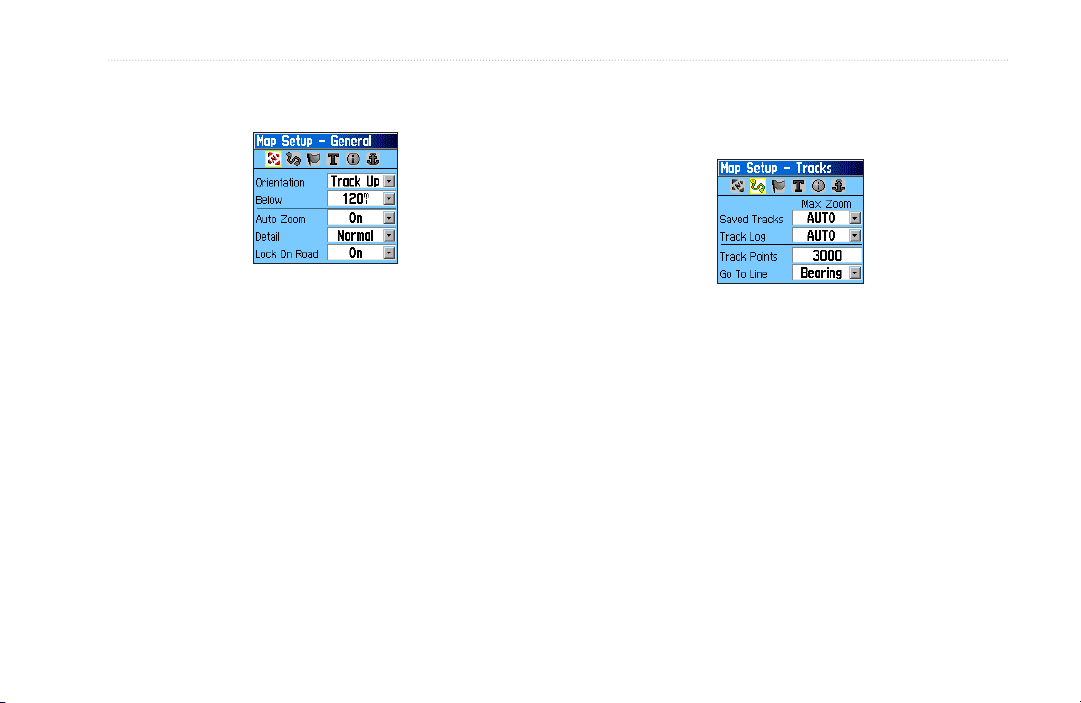

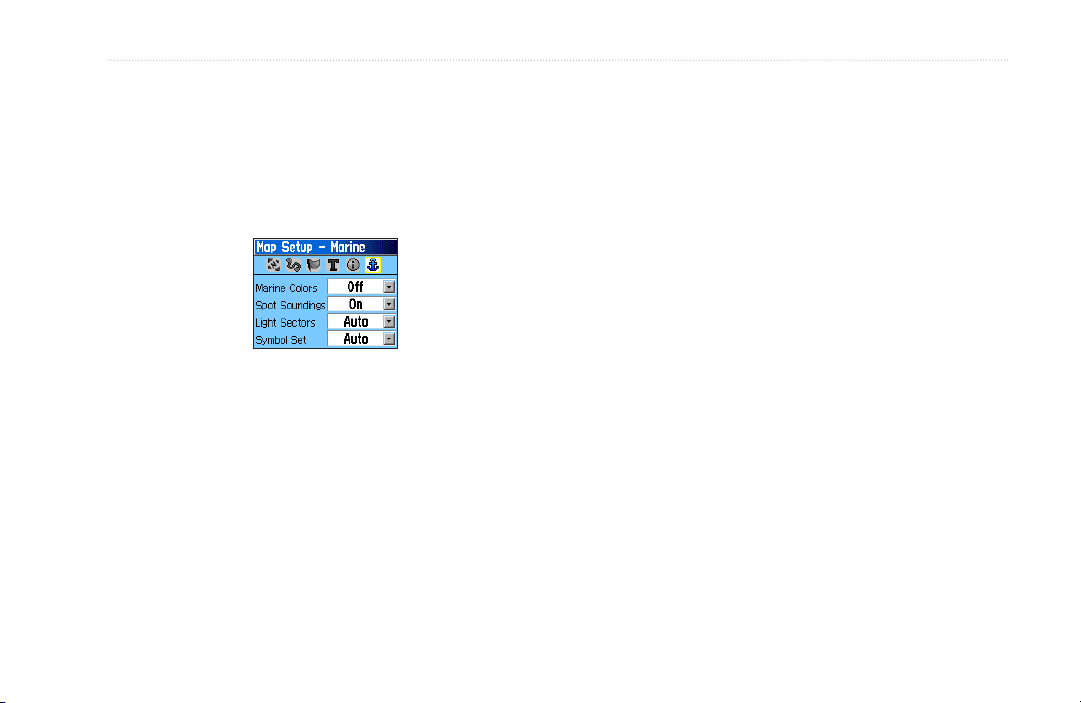

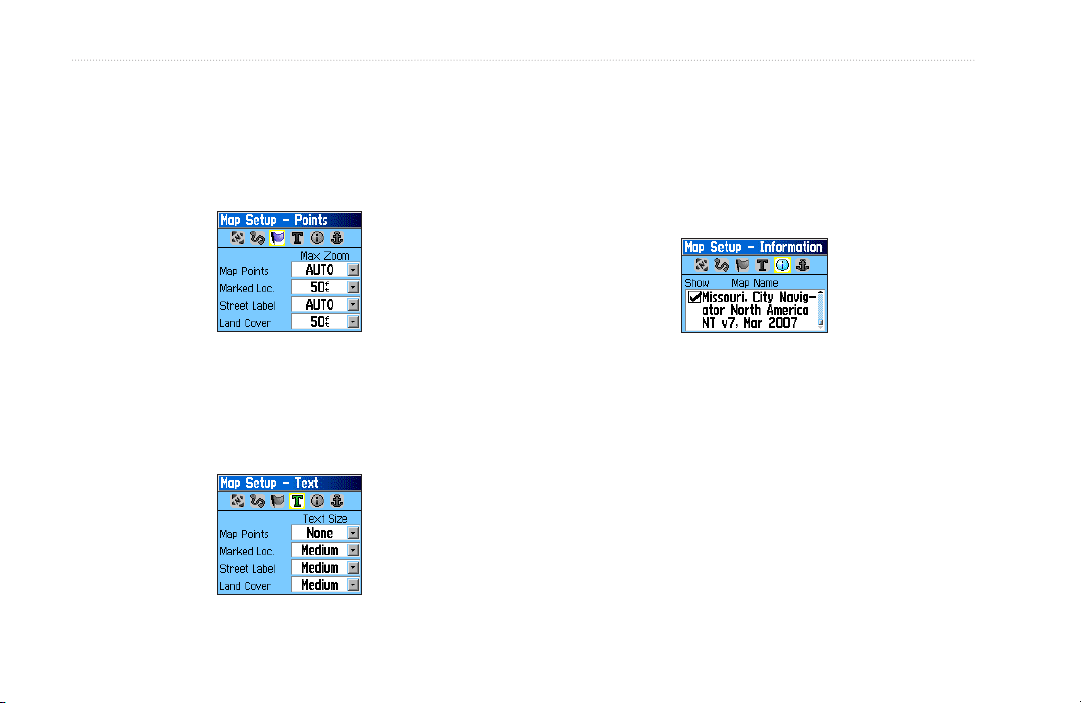

Map Setup ................................................................ 46

Routing Setup ........................................................... 49

Geocache Setup ....................................................... 51

Marine Alarms Setup ................................................ 51

Time Setup ............................................................... 51

Units Setup ............................................................... 52

Heading Setup .......................................................... 52

Calibration Setup ...................................................... 53

Altimeter Setup ......................................................... 53

Introduction

Appendix ..............................................................54

Specications ........................................................... 54

Optional Accessories ................................................ 56

Transferring Data ...................................................... 56

Caring for the Astro 220 System .............................. 60

Software License Agreement ................................... 61

Index .....................................................................64

Astro Dog Tracking System Owner’s Manual iii

Introduction

See the Important Safety and Product Information
guide in the product box for product warnings and
other important information.

NOTICE REGARDING LEGAL RESTRICTIONS; SPECIAL
NOTICE TO USERS IN CALIFORNIA AND ALASKA:
State law in California prohibits the use of GPS dog collars for
the pursuit of mammals. Alaska law prohibits guides from using
GPS devices to assist in the taking of big game animals. This is not
intended to be an exhaustive list of applicable laws and ordinances,
and Garmin makes no such guarantees or warranties that this list is
complete. Check your state and local laws and ordinances to ensure
you fully understand any restrictions applicable to this product in your
jurisdiction prior to purchase and/or use. Garmin does not assume any

responsibility for any nes, penalties, or damages that may be incurred

as a result of any state or local law or ordinance relating to use of the
product.

DC 30 Battery Warnings

If these guidelines are not followed, the internal lithium-ion battery
may experience a shortened life span or may present a risk of damage

to the DC 30, re, chemical burn, electrolyte leak, or injury.

Contact your local waste department to properly dispose of the

•
unit/battery.

Do not leave the unit exposed to a heat source or in a

•

iv Astro Dog Tracking System Owner’s Manual

high-temperature location, such as in the sun in an unattended
vehicle on a hot day. To prevent damage, remove the unit from the
vehicle or store it out of direct sunlight, such as in the glove box.

Do not incinerate the DC 30 or the battery.

•

•

When storing the unit for a limited length of time, store within

the following temperature range: from -4˚F to 104˚F (from -20˚ to
40˚C). When storing the unit for an extended time, store within the
following temperature range: from 32˚F to 77˚F (from 0˚ to 25˚C).

•

Do not operate the unit outside of the following temperature range:

from -4˚ to 140˚F (from -20˚ to 60˚C).

•

Recharge the unit within the following temperature range: from

32˚F to 113˚F (from 0˚ to 45˚C).

The DC 30 contains a replaceable, rechargeable lithium-ion battery,
the following warnings also apply:

•

Do not recharge the battery outside of the unit or disassemble the
battery.

•

Keep the used battery away from children. Do not disassemble,
puncture, or damage the battery.

•

Replace the battery with a Garmin lithium-ion battery pack. Using

another battery presents a risk of re or explosion. To purchase a

replacement battery, see your Garmin dealer or the Garmin Web site
(www.garmin.com).

•

Do not leave the DC 30 where a dog may attempt to chew on it. If
the battery cell is punctured, electrolyte can be released that can be
harmful to the dog.

Unit Overview

Getting Started

Getting Started

Belt clip button

attachment

Power

key

LCD

screen

Battery compartment

Battery compartment

Keypad

Astro Dog Tracking System Owner’s Manual 1

cover and access to

Wrist strap

attachment slot

locking D-ring

the microSD™ card

tray

VHF

antenna

GPS

antenna

USB port
(under
weather cap)

DC 30Battery

charging port

Getting Started

Battery

Compartment

Battery

Compartment

Installing the Batteries in the

2. Route the strap through the loop and pull the end of

Astro 220

The Astro 220 operates on two AA alkaline, lithium
or NiMH batteries (not included). See page 44 for
information on setting the battery type.

To install the batteries:

1. Turn the D-ring ¼ turn counter-

clockwise and remove the battery
cover.

2. Insert the batteries, observing the

proper polarity.

3. Reinstall the battery cover.

Remove the batteries from your
Astro 220 when you do not expect to use
the unit for several months. When you
remove the batteries, data is not lost.

To install the wrist strap:

1. Place the small loop of the wrist strap through the slot

on the back of the unit.

See page 57 to install or remove the microSD data card in
the battery compartment.

the strap.

Belt clip button
installation (tighten
the button securely
by turning it
clockwise)

Wrist strap
installation

Belt clip

2 Astro Dog Tracking System Owner’s Manual

Using the Astro 220 Keypad Functions

IN/OUT zoom–Press to zoom in or

out on the Map page. Press to scroll

up or down a list on any other page.

Getting Started

DOG–Press at any time to view

the Dog Tracker page.

MARK–Press to mark your

current location.

BACK–Press to cancel data entry or

move backward to the Main Menu.

Astro Dog Tracking System Owner’s Manual 3

MAP–Press to view the Map page.

Rocker–Press up, down, left, or right to

highlight options and to enter data, or to move
the map-panning arrow.

MENU–Press to view page options. Press
twice to view the Main Menu.

ENT (Enter)–Press to enter highlighted

options, select data, or conrm on‑screen

messages.

Getting Started

Turning the Astro 220 On

2. Press the

To turn the Astro 220 on, press and hold the Power
key.

The rst time you turn the Astro 220 on, a message

appears followed by a prompt. Thereafter, when you turn
the Astro 220 on, the Garmin Logo appears, followed by
the Dog Tracker page.

3. Press ENTER to select a brightness level.

See page 45 to change the display colors and backlight
timeout.

Charging the DC 30

Fully charge the DC 30 before using it on a hunt. DC 30
charging temperature range is 32°F-113°F (0°C-45°C).

To charge the DC 30:

1. Connect the vehicle power cable or the AC adapter to

2. Slide the connector into the battery charging port on

Garmin Logo Dog Tracker Page

To adjust the backlight level:

1. Press and quickly release the Power key.

Rocker up arrow or down arrow to adjust

the brightness levels. Or, press and quickly release
the Power key to cycle through the brightness
levels.

an appropriate electrical source.

the side of the DC 30.

Battery charging port

Blue LED

4 Astro Dog Tracking System Owner’s Manual

3. Charge the DC 30 until the blue LED on the bottom of
the unit turns off.

NOTE: Charging a fully-depleted DC 30 battery requires

4½ hours.

Acquiring GPS Satellite Signals

Before the Astro 220 can nd your current location and

the location of the DC 30, both units must acquire GPS
signals.

Getting Started

To turn the DC 30 on and off:

1. Press and hold the DC 30 Power key. The red
LEDs blink at a steady rate.

2. To turn the DC 30 off, press and hold the Power
key.

DC 30
Power key

NOTE: The DC 30 does not transmit its location to

the Astro 220, and the Astro 220 will not indicate the
location of the DC 30, until both units have acquired
satellite signals.

To acquire GPS satellite signals:

1. Go outdoors to an open area, away from tall buildings
and trees.

2. Turn the Astro 220 and DC 30 on. Acquiring satellite
signals can take a few minutes.

The bars on the Astro 220 indicate satellite

Battery

charging port

LEDs blink red
when power is on

strength. When the bars are black, the Astro 220 has
acquired satellite signals. The two red LEDs on the

DC 30 double blink at each pulse when a location x is

achieved.

Astro Dog Tracking System Owner’s Manual 5

Getting Started

Calibrating the Astro 220 Compass

•

Calibrate the Astro 220 electronic compass the rst

time you use it, after periods of storage, after you install
new batteries, or when the unit has been exposed to

•

temperature changes of greater than 20°F (11°C).

Calibrate the compass outdoors. Hold the compass level

•

and away from objects that generate magnetic elds, such

as cars or buildings.

Operating the Astro 220

The following terms are used throughout this manual:

“Just Right,” “Too Fast,” or “Too Slow” appears,
notifying you to adjust your turning speed. Hold the
unit level while turning.

When “Calibration Successful” appears, press
ENTER.

If “Calibration Failed” appears, repeat the process.

To calibrate the electronic compass:

1. On the Dog Tracker page (page 4), press MENU.

2. Select Calibrate Compass, and press ENTER.

3. Select Start, press ENTER, and follow the on-screen
directions.

Hold the unit

level and turn

slowly.

Select–move the highlighted area on the screen up, down,
left, or right with the Rocker to select individual elds.

Field–the location on a page where data or an option can

be shown and entered. A highlighted eld appears yellow.

On-screen button

–an option on the screen. Use the

Rocker to select a button, and press ENTER.

Scroll bar–a bar that appears on the right side of a list

that is too long to t on the screen. Use the Rocker to
scroll through a list. Press IN or OUT to scroll a set of
items.

6 Astro Dog Tracking System Owner’s Manual

Default–the saved factory settings. You can change the

Status Bar

settings, but you can revert to the factory settings by
selecting Restore Defaults.

Wizard–an on-screen guide to performing functions that
require multiple steps and options.

•

•

•

•

Manual Conventions

In this manual, small arrows (>) indicate that you
should highlight a series of items on the screen using the
Rocker, and press the ENTER key after each item. For
example, if you see “select Dog > Show Info,” highlight

Dog, press ENTER, highlight Show Info, and press

ENTER again.

Using the Status Bar

The status bar at the top of each Astro 220 page provides
status information.

On-Screen Messages

When an on-screen message appears, press ENTER to
acknowledge the message and close the window.

Messages also indicate temporary conditions, such as
“Calculating Route.” The message window closes as soon
as the process is completed.

Getting Started

–indicates the remaining battery power.

–appears when the Astro 220 is powered by an

external source.

–indicates the strength of acquired

satellite signals.

–blinks when the unit detects a signal (for

example, a DC 30) on the channel it is receiving.

Astro Dog Tracking System Owner’s Manual 7

Dog Tracking

Dog Tracking

This section describes communications between the
DC 30 and the Astro, tracking dogs on the map, and
adding dogs to the Dog List.

When communicating with the DC 30, the Dog Tracker
page indicates the direction of the dog, the distance away
from you, and the status of the dog. The Astro 220 can
keep track of ten dogs. Use the Rocker to scroll through
the list of dogs.

Communicating with the DC 30

The DC 30 that was packaged with your Astro 220

Dog pointer

(direction to

the dog)

System was linked with the Astro 220 at the factory. If
you are using a DC 30 that you ordered separately, follow
the instructions for adding a new dog on page 12 to
establish communications with the Astro 220.

To view communication status with the DC 30:
Press DOG to view the Dog Tracker page. The dog

name is listed in the Name eld.

NOTE: The DC 30 does not transmit its location to

the Astro 220, and the Astro 220 will not indicate the
location of the DC 30, until both units have acquired
satellite signals.

8 Astro Dog Tracking System Owner’s Manual

Dog status

icon

Dog Tracker Page

To view details about a selected dog:

1. Use the Rocker to select a dog on the list.

2. Press ENTER to view the Dog Information page.

Distance to
the dog

Dog status

elds

Position update

rate and dog

communication

ID number

(page 13)

DC 30 GPS

signal strength

Dog Information Page

Dog name

eld

DC 30 battery
capacity

DC 30
communication
signal strength

The Dog Information page displays the status of the dog
(Running, Sitting, Treed, On point, or Unknown?), the
distance from your location, the distance traveled, and the
average speed.

Naming the Dog

The Astro 220 assigns a name such as Dog or Dog 1 to
every Dog Unit (DC 30) linked to it.

To change the name of the dog:

1. On the Dog Information page, highlight the Name eld

and press ENTER.

2. Use the Rocker and ENTER to spell the name of the
dog.

3. Select OK > ENTER when you are nished.

Using Go To, Map, and Reset

Select Go To to navigate to your dog.

•

Select Map to view the location and movement of

•
your dog.

Select Reset to reset the dog statistics and the track

•
log (page 30) for that dog.

Dog Tracking

Astro Dog Tracking System Owner’s Manual 9

Dog Tracking

Dog Information Page Options

On the Dog Information page, press MENU to access
additional dog information options.

Stop (or Start) Tracking–stops (or starts) tracking the

•

dog.

Identify Dog Unit–displays the DC 30 software

•

version on the Astro and causes the DC 30 LEDs to
blink rapidly for ten seconds.

Change Comm. Settings–allows you to assign a new

•

ID number (page 13) to a dog to avoid conicting
signals and/or the rate of reporting (5, 10, or 30
seconds).

•

Transfer Dog Unit Track

from the DC 30 to a computer (page 60).

•

Delete Dog Unit Track

dog.

–transfers detailed tracks

–deletes the track log for the

Change Dog Unit Type–allows you to identify the

•
dog type so that the appropriate dog status symbols
are shown. Choose from Auto, Pointing Dog, Treeing
Dog, or Pet.

Upgrade Dog Unit–downloads software updates to

•
the DC 30 (page 59).

Tracking a Dog

Attach the DC 30 with the collar to your dog’s neck with
the VHF antenna (page 1) pointing up.

To ensure maximum compass accuracy, calibrate your
compass (page 6) and hold the Astro 220 level.

Tracking a Dog on the Dog Tracker Page

The Dog Tracker page shows the direction and distance
of the dog from the Astro 220, and the status of the dog.

10 Astro Dog Tracking System Owner’s Manual

To view the Dog Tracker page:

Press DOG.

The Map page indicates the following:

•

The dog you are tracking is identied and the dog pointer

indicates its direction from you. The dog pointer is most

•

accurate when you are holding the Astro 220 level and
the dog is farther than 30 feet (9.1 meters) away. At less
than that distance, a NEAR message appears, and the dog
pointer is shortened. When you are close to the dog, the
dog pointer may be inaccurate.

To change the color of your dog’s pointer, see page 31.

Dog Status Icons

Dog status icon

Dog Tracking

The location of the dog, its name, and a track
showing its movements

Your location and track

Marked

locations on

map

Dog track

Accuracy circle

Your position is
indicated by the
position pointer

Sitting TreedRunning On point Unknown

The Unknown status symbol [?], indicates that the DC 30
has not acquired a satellite signal and that the Astro 220
cannot determine the location of the dog.

To track a dog on the Map page:
Press MAP.

Astro Dog Tracking System Owner’s Manual 11

NOTE: When the Map page is in the Track Up

orientation mode, objects on the map appear to rotate
around your position. As you move, the entire map
reorients in the direction you are facing. To stabilize the
objects, set the orientation to North Up (page 47).

For more information about the Map page features and
custom settings, refer to page 46.

Dog Tracking

Dog Tracker Page Options Menu

To open the Dog Tracker page Options menu:
On the Dog Tracker page, press MENU.

Show Info–opens the Dog Information page for the

•

selected dog.

Pause (or Resume) All Tracking–pauses tracking

•

of all dogs.

Calibrate Compass–calibrates the compass

•

(page 6).

View Dog List–opens the Dog List to add or

•

remove dogs.

Small Numbers (or Big Numbers)–changes the

•

size of the dog descriptions on the Dog Tracker
page. Press the left or right arrows on the Rocker
to scroll through multiple dogs in the Big Numbers
mode.

Adding Dogs to the Dog List

If you purchase additional DC 30 units, you can link them
to the Astro 220 using the setup wizard in the Dog List.
To link, the Astro 220 must be close enough to the DC 30
to touch it, or you must know the DC 30 ID number.

To add a new dog to the list:

1. On the Dog Tracker page, press MENU > Dog List >

<Add New> > ENTER to open the setup wizard.

2. Use the Rocker and ENTER to select and conrm
options. By default, the new dog is named “Dog” and
an ID number is randomly assigned.

NOTE: The setup wizard may indicate that there is a

conict with the ID number of another dog. To resolve
the conict, follow the instructions in the setup wizard
and in “Conicting Dog Signals.”

Conicting Dog Signals

Each dog you track has its own ID number. If two dogs
within range of the Astro 220 have the same ID, the

Astro 220 warns you of a conicting ID signal. It then

opens a setup wizard to guide you through the process of

resolving the conict.

If necessary, you can manually assign a new ID number
to a dog. When possible, you should allow the Astro 220
to automatically assign IDs.

12 Astro Dog Tracking System Owner’s Manual

To assign a new ID number to a dog and change
the update rate:

1. On the Dog Information page, press MENU > Change

Comm. Settings.

2. Select an unassigned and nonconicting ID > OK.

3. Change the update rate, if desired. Both 10-second
and 30-second updates reduce battery drain, but
they create a less-detailed dog track and collected
statistics.

4. Ensure that the Astro 220 is within a few feet of the
DC 30.

5. Complete the setup wizard instructions.

Tips for Successful Tracking

Use a fully charged DC 30. A fully charged DC 30

•
operates for approximately 17 hours when using
5-second interval reporting.

•

Use line-of-sight radio communication. The Astro 220
and DC 30 use radio signals to communicate. Objects
in the path of radio signals degrade the quality of
the signals. Keeping an unobstructed line of sight

Dog Tracking

between you and your dog’s DC 30 produces the best
communication signal. Obstructed radio waves result
in a poor signal. To achieve the best line-of-sight
conditions, move to the highest elevation point in your
area (for example, on the top of a hill).

BEST

GOOD

POOR

Line-of-Sight Radio Communication

Astro Dog Tracking System Owner’s Manual 13

Main Menu

Main Menu

To open the Main Menu, press MENU > MENU.

NOTE: Items shown on the Main Menu can be moved,

deleted, or added as described on page 46.

•

•

View Hunting Almanac–provides predicted best times

for hunting and shing for a specic date and location.

•

•

Main Menu

Start New Hunt–resets dog statistics and track logs, and
marks your starting location.

Go To Marked Location

–provides directions to a

location you have marked (page 15).

View Sunrise/Sunset–shows the time of sunrise, sunset,
moonrise, and moonset, and current relative positions of

Advanced–displays advanced options.

•

•

•

•

the sun and moon.

To view the rise and set times for a different date or

location, select the Date eld to open the on-screen

keypad or select the New Location menu.

To view positions of the sun and moon at a different

time, select the Time eld.

To view predictions for a different date, select the

Date eld.

To view predictions for a different location, select the
Location eld > Use Map and select a point using
the Rocker. Select Use Find Menu to view locations
stored on the map.

Find (page 20)

GPS Applications (page 24)

Accessories (page 41)

Settings (page 44)

14 Astro Dog Tracking System Owner’s Manual

Mark Location

Locations are landmarks that you record and store in your
Astro 220.

To mark your vehicle location:

When beginning a hunt, select Start New Hunt

(page 14) while you are near your vehicle to mark the
location. After the hunt, you can use your Astro 220 to
navigate back to your starting location.

To mark your current location:

1. Press MARK > New to view the Mark Location page.

2. Select OK to mark the location.

To mark a specic hunting location:

1. Press MARK.

2. Select a name and hunting-related symbol to describe
the location, and press ENTER.

NOTE: The Mark Covey option allows you to enter the

estimated number of birds ushed and the number taken.

3. To edit location information, select the appropriate

eld, and press ENTER to open the on-screen
keypad. After entering and conrming your changes,

select OK (on the keypad).

4. Select OK to mark the location.

To mark a location using the Map page:

1. Press MAP. Use the Rocker to move the map pointer
to the map item you want to mark as a location.

2. Press ENTER. If the map item selected contains no
information, a “No map information at this point. Do
you want to mark a location here?” message appears.
Select Yes.

3. To edit location information, select the appropriate

eld, and press ENTER to open the on-screen
keypad. After entering and conrming your changes,

select OK (on the keypad).

4. Select OK to mark the location.

Mark Location

Astro Dog Tracking System Owner’s Manual 15

Mark Location

To edit a marked location:

1. Press MENU > MENU > Advanced > Find > Marked

Locations to open the Location page.

2. Select the location you want to edit.

3. Select the appropriate eld to open the on-screen
keypad. After entering and conrming your changes,

select OK (on the keypad).

To move a marked location on the Map page:

1. Press MENU > MENU > Advanced > Find > Marked

Locations.

2. Select the marked location you want to edit.

3. Select Map to show the marked location on the map.

4. Press ENTER to place a MOVE marker next to the
marked location.

5. Use the Rocker to move the marked location to a new
location on the map, and press ENTER.

Averaging a Marked Location

You can average a marked location for more accuracy.
When averaging, the Astro 220 takes several readings at
the same location and uses the average value to provide
more accuracy.

To calculate your current average location:

1. Press MARK > New > Avg to begin averaging.

2. When the Estimated Accuracy eld reaches the level

Projecting a Location

You can create a new location by projecting the distance
and bearing from a marked location to a new location.

To project a location:

1. Press MENU > MENU > Advanced > Find > Marked

2. Select the location > MENU > Project Location.

3. Enter the bearing and distance to the projected

of accuracy you want, select Save > OK.

Locations.

location in the appropriate elds at the bottom of the

page. To navigate to the location, select Go To.

16 Astro Dog Tracking System Owner’s Manual

Map Page

Press IN and OUT to change the map scale. An accuracy
circle represents the area containing your current location.

The Astro 220 includes a preloaded basemap that
includes cities, interstates, state and county highways,
exit information, and lake and river outlines. The standard
basemap can be enhanced using MapSource

®

detailed

mapping data as shown below.

Map orientation

arrow

Map details from

Garmin MapSource

City Navigator®

North America NT

Map scale

Map Page

Your current
location

Dog location

Map Page Options

Customize the Map page using the Map page Options
menu. On the Map page press MENU.

•

•

•

•

•

Press MAP to display the Map page. Use the Rocker to
move the map pointer away from your current location.
As you pan past the edge of the current map display, the

•

screen scrolls to provide continuous map coverage.

Map Page

Stop (or Resume) Navigation–stops or resumes
navigation.

Recalculate–recalculates an automotive route while
navigating.

Data Fields–congures up to four data elds at the

top of the page (page 18).

Change Data Fields–changes the type of data

displayed in the data elds (page 18).

Guidance Text

–displays useful information on
the screen above the map when navigating to a
destination.

Setup Map–customizes the map to your preferences
(page 47).

Astro Dog Tracking System Owner’s Manual 17
