Garmin AMP231 User Manual
Copyright ©2006. Dynastream Innovations Inc.
Features
Objective and accurate calculations of step count, activity class, distance, speed, and
caloric expenditure.
LCD screen displays immediate information and feedback.
Wireless download to your computer using ANT, the worldwide 2.4-GHz radio frequency.*
Breakdown of daily or weekly activity into 10-minute intervals.*
Versatile text output for further analysis of data.*
*Available with AMP USB Stick and AMP Ware
Components
The AMP 231 Monitoring System offers valid, objective activity data in real time display and
stores this data for further analysis. The system includes the monitoring pod, ankle sleeve,
USB stick, AMP Ware application and documentation.
AMP Activity Monitoring Pod
The pod is the central device that monitors, records, and displays activity data. It features
an easy-to-use four-button interface and a large LCD screen to provide immediate feedback.
AMP Ankle Sleeve
Made from washable, medical-grade, hypoallergenic materials, the comfortable sleeve
stabilizes the pod on the ankle for optimal measurements.
AMP USB Stick
The small USB stick uses the ANT wireless communication protocol to upload the data from
the pod to your computer.
AMP Ware
The AMP Ware software application controls the data uploads to your computer. The data
is formatted in a comma delimited text file for easy import into your preferred analysis
software.
AMP Documentation
The AMP Activity Monitoring System is supported by this User Guide, the AMP Quick Start
Guide, the Help files included on your AMP Ware CD, and information on the Dynastream
website (www.dynastream.com).
<<graphic – photo of complete system: pod, sleeve, USB stick, CD, help booklet? >>
Copyright ©2006. Dynastream Innovations Inc.
AMP Activity Monitoring Pod
The AMP Activity Monitoring Pod is the central device that monitors, records, and displays
daily activity.
Power On and Off
To turn the pod on or off, hold down the UP button for 2 seconds. AMP displays briefly as
the monitor powers up before moving to the three main modes. Note that the pod can be
turned off only when there is no active monitoring session. Powering off the pod will not
erase previously collected data.
Modes
The SETUP mode allows you to configure your AMP Activity Monitoring Pod.

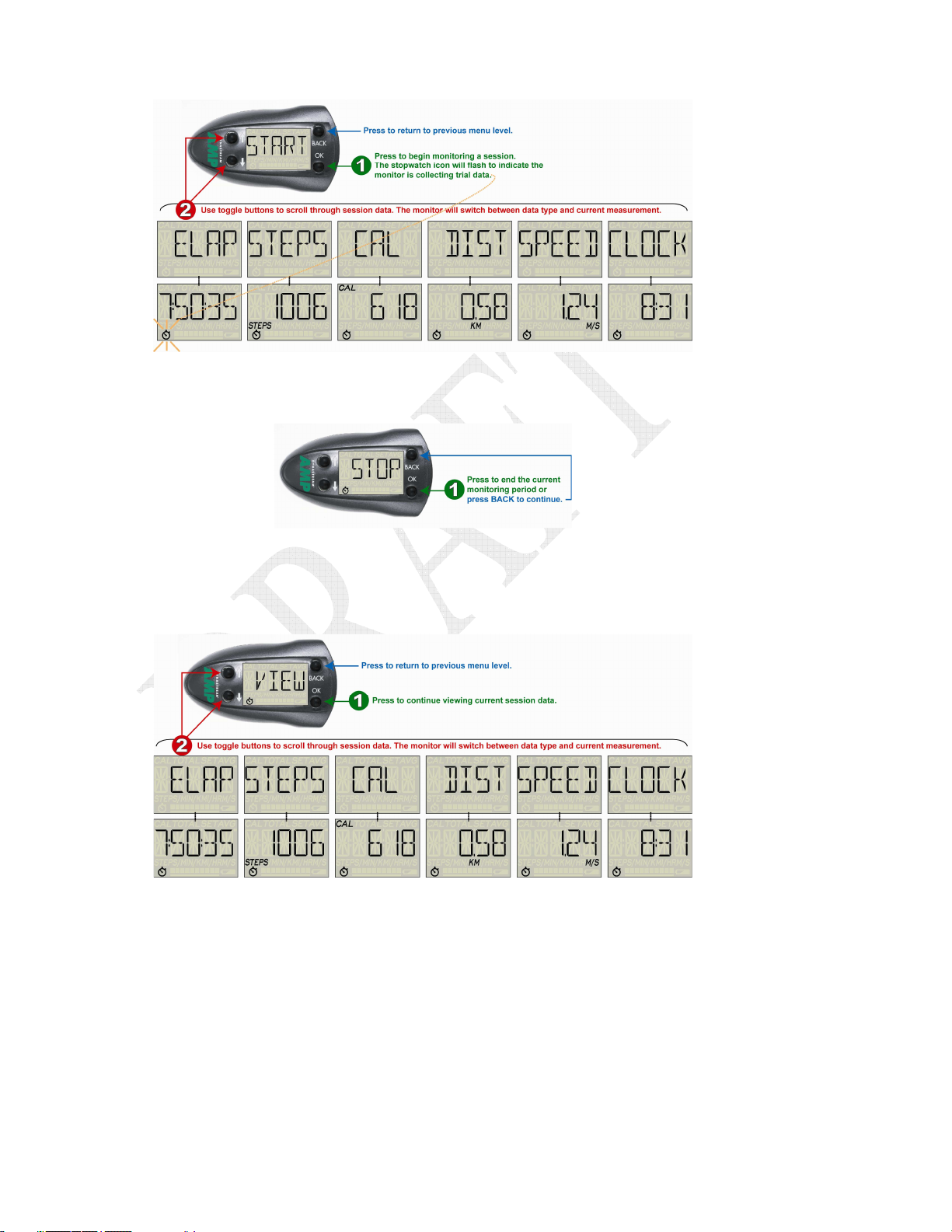

Use the TRIAL mode to manage a monitoring session. Data collected during a monitoring
session includes the amount of time spent in each of three activity classes (Inactive, Active,
and Locomotion), number of steps taken, caloric expenditure, distance traveled, and
locomotion speed.
Use the DATA mode to manage the collected data. View activity measurements from
previous days, upload data to your computer, or clear the collected data.
Copyright ©2006. Dynastream Innovations Inc.
Basic Navigation
To navigate the menus on your AMP Activity Monitoring Pod:
Use the arrow buttons to navigate through the menus and to adjust settings up or down.
Use the OK button to choose a mode (SETUP, TRIAL, DATA) or a menu item (under each
mode). The OK button is also used to accept and save a change. Changes are shown as
flashing text.
Press BACK to return to the previous menu level without saving changes.
Menus
Copyright ©2006. Dynastream Innovations Inc.
Setup
Date/time and user information must be entered before starting a trial. Once the monitor is
powered on, press the arrow buttons to scroll to SETUP mode. Press OK to enter the SETUP
mode to customize your pod. Use the arrow buttons to change settings. Press OK to accept
a setting and move to the next setting. You can also use the arrow buttons to move directly
to specific settings.
Clock
Set the current date and time in 24-hour format.

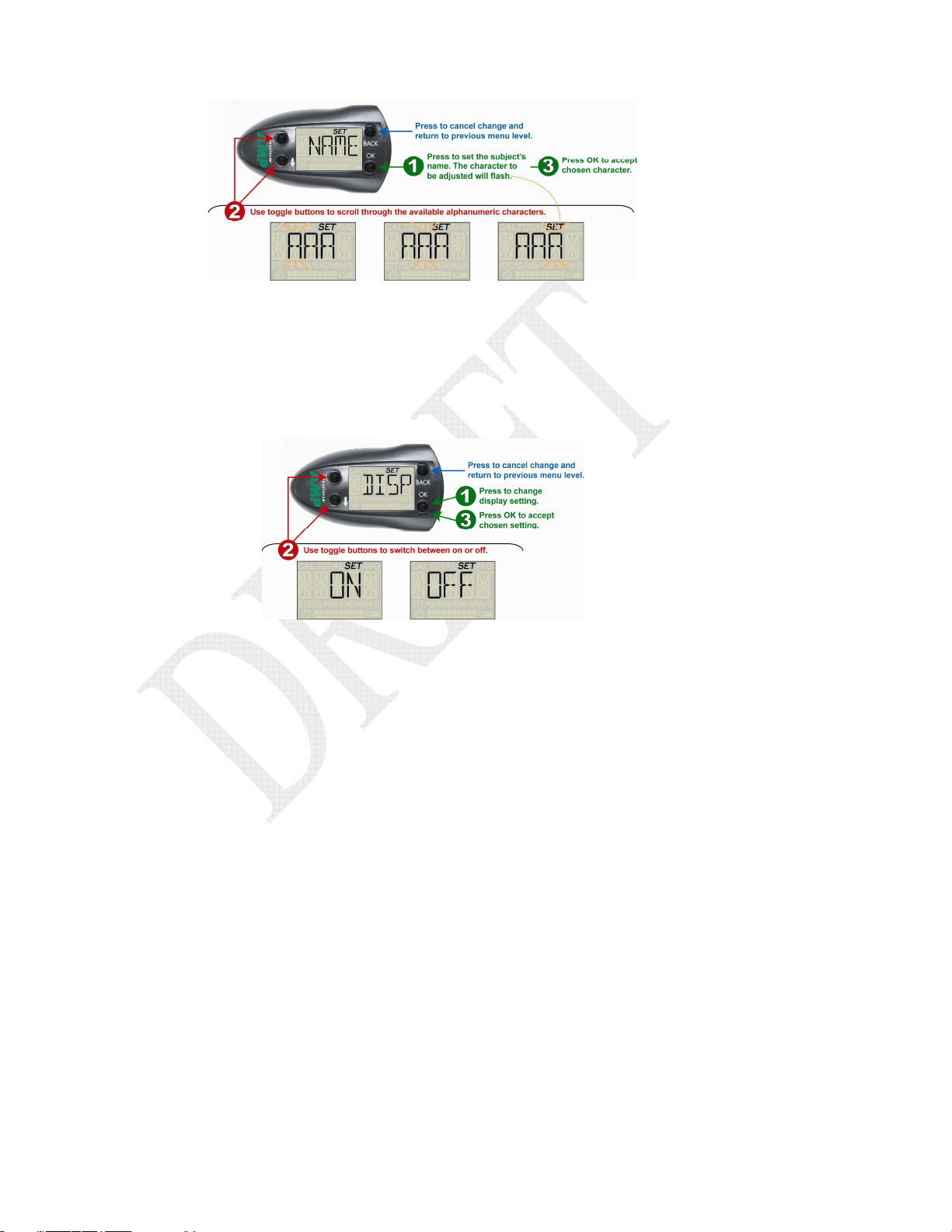

User Information
Enter settings for the user, including the gender, weight, height, birthday, and name/ID
(optional). Weight and height can be entered in either metric or imperial measure.
Copyright ©2006. Dynastream Innovations Inc.
