Garmin 02162 User Manual

Note: information below must appear in User Documentation and/or Packaging.

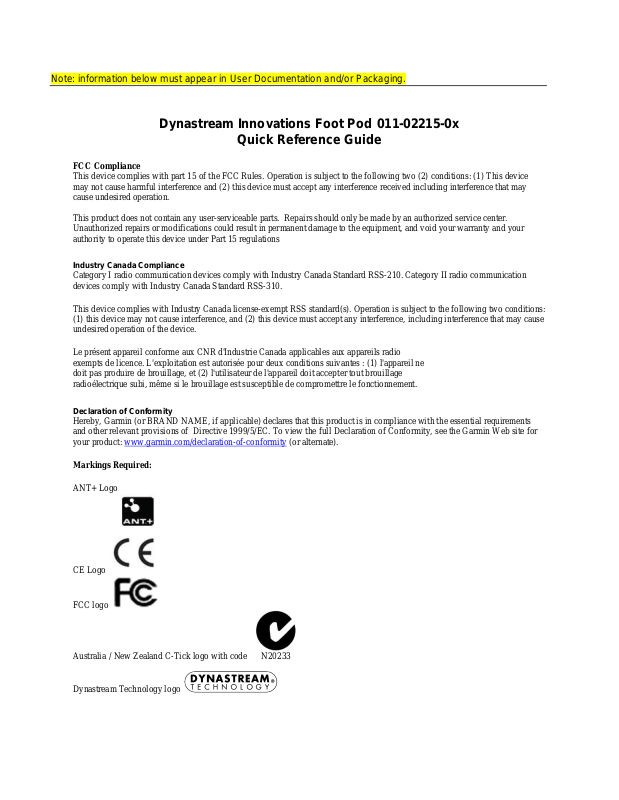

Dynastream Innovations Foot Pod 011-02215-0x

Quick Reference Guide

FCC Compliance

This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions: (1) This device
may not cause harmful interference and (2) this device must accept any interference received including interference that may
cause undesired operation.

This product does not contain any user-serviceable parts. Repairs should only be made by an authorized service center.
Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your
authority to operate this device under Part 15 regulations

Industry Canada Compliance

Category I radio communication devices comply with Industry Canada Standard RSS-210. Category II radio communication
devices comply with Industry Canada Standard RSS-310.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.

Le présent appareil conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée pour deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible de compromettre le fonctionnement.

Declaration of Conformity

Hereby, Garmin (or BRAND NAME, if applicable) declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, see the Garmin Web site for
your product: www.garmin.com/declaration-of-conformity (or alternate).

Markings Required:

ANT+ Logo

CE Logo

FCC logo

Australia / New Zealand C-Tick logo with code N20233

Dynastream Technology logo

WEEE Wheelie Bin

Optional Information:
Battery Information

WARNING: Do not use a sharp object to remove user replaceable batteries. Contact your local waste disposal department to
properly recycle the batteries. When the battery is low, a message appears on your receiver. Approximately five hours of foot
pod battery life remain.

Technical Specifications

Physical size: L × W × H: 35 mm × 25 mm × 8 mm (excluding clip)
Weight: 10 g (including battery)
Water Resistance: 10 m
Transmission range: Minimum 3 m (9.8 ft.)
Speed and distance accuracy: Uncalibrated 95%, calibrated 98%
Battery: User-replaceable CR2032 (3 volts) Perchlorate Material – special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate.

Battery life: 400 hours run time
Operating temperature: From -10°C to 60°C (From 14°F to 140°F)
Sensor Accuracy Range: From 0°C to 40°C (From 32°F to 104°F)
Radio frequency/protocol: 2.4 GHz ANT
System Compatibility: ANT+

™

™,
