Fusion L702B User Manual

Emperor L702B Pro
Thank you for purchasing this Fusion Emperor L702B Pro charger. We are sure you
will be pleased with its performance and features. In order to ensure that you obtain
OpErAting instructions
Please keep for Future Reference
CONTEN T S
Specifications ................................................................................................................. 2
General Operation ......................................................................................................... 3
Output Battery Connections ...................................................................................... 3
Turning On & Setting the Input Power ...................................................................... 4
The Display ................................................................................................................. 4
Menu Structure .......................................................................................................... 5
Battery Memory Screen ............................................................................................. 6
Lithium Functions and Parameters ............................................................................ 7
NiCd/NiMH Functions and Parameters ...................................................................... 9
Charging ....................................................................................................................... 11
Charging a Lithium Pack ........................................................................................... 11
Charging a NiCd/NiMH Pack .................................................................................... 12
Other Screens .............................................................................................................. 13
User Settings Screen ................................................................................................ 13
Data View Screen ..................................................................................................... 13
Cycle View ................................................................................................................ 13
Balancer View .......................................................................................................... 14
System Menu ........................................................................................................... 14
Factory Settings........................................................................................................ 14
Error Messages ............................................................................................................ 15
Safety Precautions ....................................................................................................... 15
Lithium Ion/Polymer Battery - Safety Warnings .......................................................... 16
1

SP E C I F I C A T I O N S

MODE
TYPE
SPEC
Power Supply
DC Input
11-28V DC
Battery Types
NiCd, NiMH, LiPo, LiIon, LiFe, Pb
Operating Modes NiCd, NiMH
Charge, Discharge, Cycle
LiPo, LiIon, LiFe, Pb
Charge, Discharge, Store
Operation function
Charge (NiCd, NiMH)
Automatic charge
Normal charge
Linear charge
RE-FLEX charge
Charge (LiPo,LiIon,LiFe,Pb)
CC-CV charge
Discharge
Automatic discharge (NiCd, NiMH)
Normal discharge (NiCd, NiMH)
Linear discharge
Store Mode
60% Capacity
Number of Cells
NiCd, NiMH
1 ~ 18 Cell
LiPo, LiIon, LiFe
1 ~ 7 Cell
Pb
1 ~ 12 Cell
Charge Current NiCd , NiMH
0.1A ~ 20.0A (max 300W)
LiPo, LiIon, LiFe
0.1A ~ 20.0A (max 300W)
Discharge Current
NiCd , NiMH, LiPo, LiIon, LiFe, Pb
0.1A ~ 10.0A (max 50W)
Discharge Voltage NiCd, NiMH
0.1 ~ 1.1V/cell
LiPo, LiIon, LiFe
2.5 ~ 3.7V/cell
Trickle Current
NiCd, NiMH Off ~ 500mA
Auto Mode (Charge Current/20)
Cycle Mode
Cycle time
1~10 Cycles
(NiCd/NiMH only)
Cycle delay
1~30 min
Cycle direction
C>D / D>C
Peak sensitivity NiCd
5 ~ 25mV/cell
NiMH
0, 3 ~ 15mV/cell
Temperature Sensor Centigrade
10 ~ 60°C
Fahrenheit
50 ~ 150°F
Max charge capacity
NiCd , NiMH
10 ~ 150%
(safety timer)
LiPo, LiIon, LiFe
10 ~ 120%
Start peak delay timer
NiCd , NiMH
1 ~ 20 min
Memory
Memory number
20 Memories (per channel)
Safety timer
NiCd , NiMH, LiPo, LiIon, LiFe, Pb
20 ~ 300mins & Off
Charge rate limit
LiPo, LiIon, LiFe
1 ~ 5C
TCS Capacity
LiPo, LiIon, LiFe
10 ~ 100%
TCS END action
LiPo, LiIon, LiFe
Continue, Stop
2

GENERAL OP E RATION

OUTPUT BATTERY CONNECTIONS

The Emperor L702B Pro has two sets of outputs on the front of the charger, channel 1 is on the left and channel 2 on the right. Each channel has two 4mm banana sockets, a 7 cell balance port and a temperature sensor input.
You will need an appropriate charge lead to suit the specific connector on your battery. Connect this charge lead to the 4mm output sockets on the charger channel you want to use, with the positive (+) lead connected to the red socket and the negative (-) lead to the black socket.
Only connect the battery to the charge lead AFTER the charge lead has been connected to the charger, as the connectors on the charge lead could touch together and cause the battery to short circuit.
When charging a Lithium pack, make sure that the balance lead is connected to the charger. The charger has a ‘JST-EH’ type balance port, but also comes with balance adaptor boards for JST-XH and Flight Power/Thunder Power. To use an adaptor board, connect the supplied balance adaptor board lead to the charger and then connect the board that works with your battery balance connector. Optional adaptor boards for Polyquest & 4/2mm plug car packs are also available.
If the main battery power leads ONLY are connected to the output banana sockets, without connecting the balancing connector to the balancing port on the charger, the charger will charge or discharge the connected Lithium pack without balancing it.
We always recommend balancing a Lithium pack, because some cells may retain more capacity than others, so over time the pack can become unbalanced. If an unbalanced pack is then used, some of the cells will exceed their maximum voltage when charged and others their minimum voltage when discharged, which causes damage to the cells. When a Lithium cell is overcharged, it can cause damage and in extreme cases can cause a fire.
3

TURNING ON & SETTING THE INPUT POWER

11]LiPo 3S 2200mAh
CHG. : 2.1A 4.20V/C DCHG. :10.0A 3.0V/C STORE MODE START
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C CYCLE : CD 1X 10m
11]LiPo 3S 2200mAh
CHG. : 2.1A 4.20V/C DCHG. :10.0A 3.0V/C
STORE MODE START
Channel
Ch1 Selected CH2 Selected
Power
On
<INPUT POWER SETTING>
VOLTAGE : 12.0V
CURRENT : 20.0A 1OUTPUT RATE: 50% 2OUTPUT RATE: 50%
ESC
Emperor L702B Pro v1
www.LogicRC.com
The input power leads on the Emperor are supplied with 4mm gold banana type connectors (with optional crocodile clips) that should be connected directly to a suitable 11-28V DC power source, ensuring that the black connector is connected to the negative (–) and the red to the positive (+).
When the charger is initially connected to a power source, it will ask you to confirm the maximum input power available from the power source and allow you to adjust the percentage of this power available to each output on the charger. This allows the Emperor L702B Pro to deliver the highest available power to each of the charger outputs (channels), without overloading the power source.
Each line is selected by pressing the ‘Inc’ and ‘Dec’ buttons to
move the selection arrow up and down.
To edit a value press the ‘Enter’ button to highlight the selected value. To increase or decrease the highlighted value, press the ‘Inc’ or ‘Dec’ buttons. Once the desired value has been selected, press the ‘Enter’ button again to store this value.
Once the correct parameters have been entered press the ‘Esc’ button to continue to
the main screens.

THE DISPLAY

The display is broken up into 2 halves. The top half of the display shows the first channel (Ch1) and the bottom shows the second (Ch2).
The selected channel is shown in normal text and the other in reversed out text.
Pressing the ‘Channel’ button (at any time) selects the other channel (charger).
4

MENU STRUCTURE

Press and hold
the Mode button
whilst connecting
the power.
Power
On
LCD CONTRAST: 10
LCD BACKLIT : ON <www.LogicRC.com > ABCDEFGHIJKLMNOPQ RSTUVWXYZ abcdefg hijklmnopqrstuvwx yz 0123456789 -.
<INPUT POWER SETTING>
VOLTAGE : 12.0V
CURRENT : 20.0A 1OUTPUT RATE: 50% 2OUTPUT RATE: 50%
11]LiPo 3S 2200mAh
CHG. : 2.1A 4.20V/C DCHG. :10.0A 3.0V/C STORE MODE START
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
TEMP.MODE : °C
BUTTON SOUND : ON FINISH SOUND : 5sec MELODY : 1
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
INPUT VOLT: 13.200V
OUTPUT VOLT: 11.123V BAT. TEMP. : No.Sens PEAK TEMP. : 0.0°C
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
[ 1]CAPACITY VOLTAGE C: 0mAh 0.000V D: 0mAh 0.000V
1
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
Mode
ESC
Mode
ESC
Mode
ESC
Mode
ESC
Emperor L702BP v1 www.LogicRC.com
Memory Screen User Settings Data View Cycle View
3S=11.845V 1S=3.944V
33.95V
13.94V 8mV
3 1
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
Mode
ESC
Balancer View
1
CUT.TEMPER. : 55°C
MAX.CAPACITY: 120% SAFETY TIMER: 120min CHARGE RATE : 2C
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
INC
DEC
Power
On
System Menu
ESC
TCS CAPACITY: 100%
TCS END ACT : CONTI.
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
INC
DEC
Press the ‘Inc’ or ‘Dec’ button
to view the charge/discharge
statistics for previous cycles
INC
DEC
[ 1]CAPACITY VOLTAGE C: 0mAh 0.000V D: 0mAh 0.000V
2
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
3S=11.845V 1S=3.952V
33.95V
13.94V 8mV
3 1
0]NiMH 6S 3300mAh
CHG. : 3.3A 5mV/C DCHG. : 5.0A 0.8V/C
CYCLE : CD 1X 10m
INC
DEC
3
Press the ‘Inc’ or ‘Dec’
button to change the
cell number.

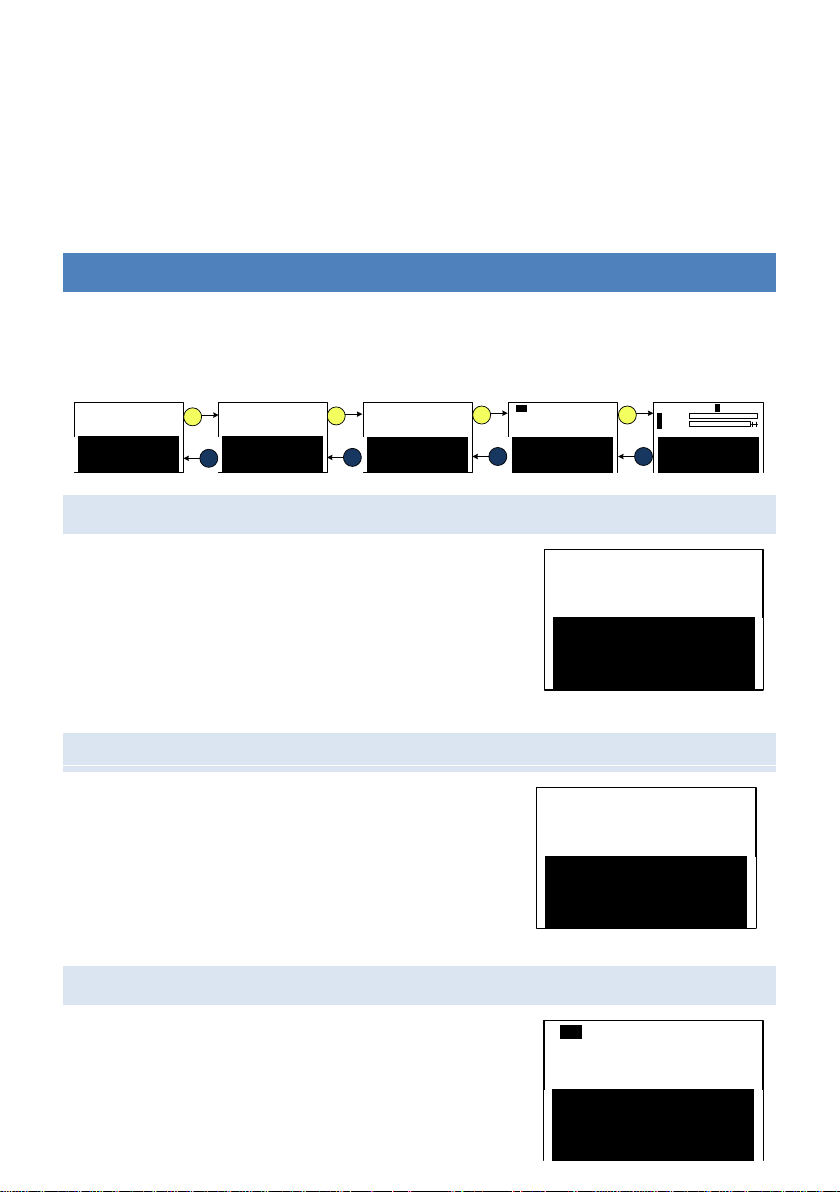

The menu system in the Emperor L702B is summarized in the flow chart below. To move around the screens press the buttons as shown on the flow chart.
Where a line selection arrow is shown on the left of a line, the ‘Inc’ and ‘Dec’ buttons
can be used to move the selection arrow up or down. Pressing the ‘Enter’ button highlights each value on a line so that it can be changed. Pressing the ‘Esc’ button
whilst a value is highlighted exits the editing and moves back to the line selection again.
5
