Funai LC320EM9 Schematic

TM

EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS
OF EMERSON RADIO CORP., PARSIPPANY, NEW JERSEY, U.S.A.

SERVICE MANUAL

32″ COLOR LCD TELEVISION

LC320EM9

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all
Funai Equipment. The service procedures recommended by Funai and
described in this service manual are effective methods of performing
service operations. Some of these service special tools should be used
when and as recommended.

It is important to note that this service manual contains various CAUTIONS
and NOTICES which should be carefully read in order to minimize the risk
of personal injury to service personnel. The possibility exists that improper
service methods may damage the equipment. It also is important to
understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE.
Funai could not possibly know, evaluate and advice the service trade of all
conceivable ways in which service might be done or of the possible
hazardous consequences of each way. Consequently, Funai has not
undertaken any such broad evaluation. Accordingly, a servicer who uses a
service procedure or tool which is not recommended by Funai must first
use all precautions thoroughly so that neither his safety nor the safe
operation of the equipment will be jeopardized by the service method
selected.

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Important Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Standard Notes for Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Cabinet Disassembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Electrical Adjustment Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

How to initialize the LCD Television . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Schematic Diagrams / CBA’s and Test Points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

Mechanical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Electrical Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

The LCD panel is manufactured to provide many years of useful life.
Occasionally a few non active pixels may appear as a tiny spec of color.
This is not to be considered a defect in the LCD screen.

SPECIFICATIONS

< TUNER / NTSC >

ANT. Input ---------------------- 75 Ω Unbal., F type

Description Condition Unit Nominal Limit

1. AFT Pull-in Range --- MHz ±2.3 ±2.1
20

20
23

2. Syncronizing Sens.

TV.ch.4
CA.ch.31
CA.ch.87

dBµ
dBµ
dBµ

---

---

---

< TUNER / ATSC >

Description Condition Unit Nominal Limit

1. Received Freq. Range (-28dBm) --- kHz --- ±100

2. ATSC Dynamic Range (min / max)

ch.4
ch.10
ch.41

dBm
dBm
dBm

---

---

---

-76/0

-76/0

-74/+4

< LCD PANEL >

Description Condition Unit Nominal Limit

1. Native Pixel Resolusion

2. Brightness --- cd/m

3. Viewing Angle

Horizontal

Vert ical

Horizontal

Vert ical

pixels
pixels

°
°

1366

768

2

320 ---

-88 to +88

-88 to +88

---

---

---

---

< VIDEO >

Description Condition Unit Nominal Limit

1. Over Scan

2. Color Temperature

3. Resolution (composite video)

Horizontal

Vert ical

--­x
y

Horizontal

Vert ical

%
%

°K

---

---

line
line

5
5

12000

0.272

0.278
400

350

5±5
5±5

--­±3%
±3%

---

---

1-1 A8AF0SP

< AUDIO >

All items are measured across 8 Ω load at speaker output terminal with L.P.F.

Description Condition Unit Nominal Limit

1. Audio Output Max Power
(ATSC 0dBfs)

2. Audio Distortion (NTSC) 500mW: Lch/Rch % 0.5/0.5 2.0/2.0

3. Audio Freq. Response (NTSC)

Note: Nominal specifications represent the design specifications. All units should be able to approximate these.

Some will exceed and some may drop slightly below these specifications. Limit specifications represent
the absolute worst condition that still might be considered acceptable. In no case should a unit fail to meet
limit specifications.

Lch/Rch W 10.0/10.0 9.0/9.0

-

6dB: Lch

-

6dB: Rch

Hz
Hz

70 to 10 k
70 to 10 k

---

---

1-2 A8AF0SP

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical
codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally
important to implement the following precautions when a set is being serviced.

Safety Precautions for LCD TV
Circuit

1. Before returning an instrument to the

customer, always make a safety check of the

entire instrument, including, but not limited to, the
following items:

a. Be sure that no built-in protective devices are

defective and have been defeated during
servicing. (1) Protective shields are provided
on this chassis to protect both the technician
and the customer. Correctly replace all missing
protective shields, including any removed for
servicing convenience. (2) When reinstalling
the chassis and/or other assembly in the
cabinet, be sure to put back in place all
protective devices, including but not limited to,
nonmetallic control knobs, insulating
fishpapers, adjustment and compartment
covers/shields, and isolation resistor/capacitor
networks. Do not operate this instrument or

permit it to be operated without all
protective devices correctly installed and
functioning. Servicers who defeat safety
features or fail to perform safety checks
may be liable for any resulting damage.

b. Be sure that there are no cabinet openings

through which an adult or child might be able to
insert their fingers and contact a hazardous
voltage. Such openings include, but are not
limited to, (1) spacing between the Liquid
Crystal Panel and the cabinet mask, (2)
excessively wide cabinet ventilation slots, and
(3) an improperly fitted and/or incorrectly
secured cabinet back cover.

c. Antenna Cold Check - With the instrument AC

plug removed from any AC source, connect an
electrical jumper across the two AC plug
prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter
to the AC plug prongs tied together and touch
the other ohmmeter lead in turn to each tuner
antenna input exposed terminal screw and, if
applicable, to the coaxial connector. If the
measured resistance is less than 1.0 megohm
or greater than 5.2 megohm, an abnormality
exists that must be corrected before the
instrument is returned to the customer. Repeat
this test with the instrument AC switch in the off
position.

d. Leakage Current Hot Check - With the

instrument completely reassembled, plug the
AC line cord directly into a 120 V AC outlet. (Do
not use an isolation transformer during this
test.) Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI) C101.1
Leakage Current for Appliances and
Underwriters Laboratories (UL) 1410, (50.7).
With the instrument AC switch first in the on
position and then in the off position, measure
from a known earth ground (metal water pipe,
conduit, etc.) to all exposed metal parts of the
instrument (antennas, handle brackets, metal
cabinet, screw heads, metallic overlays, control
shafts, etc.), especially any exposed metal
parts that offer an electrical return path to the
chassis. Any current measured must not
exceed 0.5 milli-ampere. Reverse the
instrument power cord plug in the outlet and
repeat the test.

READING SHOULD
NOT BE ABOVE 0.5 mA

LEAKAGE

DEVICE

BEING

TESTED

TEST ALL EXPOSED
METAL SURFACES

ALSO TEST WITH
PLUG REVERSED
USING AC
ADAPTER PLUG
AS REQUIRED

ANY MEASUREMENTS NOT WITHIN THE
LIMITS SPECIFIED HEREIN INDICATE A
POTENTIAL SHOCK HAZARD THAT MUST
BE ELIMINATED BEFORE RETURNING THE
INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING THE ANTENNA OR
ACCESSORIES.

2. Read and comply with all caution and safety-

related notes on or inside the receiver cabinet, on
the receiver chassis, or on the Liquid Crystal
Panel.

CURRENT

TESTER

+

EARTH
GROUND

_

2-1 LTVN_ISP

3. Design Alteration Warning - Do not alter or add
to the mechanical or electrical design of this TV
receiver. Design alterations and additions,
including, but not limited to circuit modifications
and the addition of items such as auxiliary audio
and/or video output connections, might alter the
safety characteristics of this receiver and create a
hazard to the user. Any design alterations or
additions will void the manufacturer's warranty and
may make you, the servicer, responsible for
personal injury or property damage resulting
therefrom.

4. Hot Chassis Warning ­a. Some TV receiver chassis are electrically

connected directly to one conductor of the AC
power cord and maybe safety-serviced without
an isolation transformer only if the AC power
plug is inserted so that the chassis is
connected to the ground side of the AC power
source. To confirm that the AC power plug is
inserted correctly, with an AC voltmeter,
measure between the chassis and a known
earth ground. If a voltage reading in excess of

1.0 V is obtained, remove and reinsert the AC
power plug in the opposite polarity and again
measure the voltage potential between the
chassis and a known earth ground.

b. Some TV receiver chassis normally have 85V

AC(RMS) between chassis and earth ground
regardless of the AC plug polarity. This chassis
can be safety-serviced only with an isolation
transformer inserted in the power line between
the receiver and the AC power source, for both
personnel and test equipment protection.

c. Some TV receiver chassis have a secondary

ground system in addition to the main chassis
ground. This secondary ground system is not
isolated from the AC power line. The two
ground systems are electrically separated by
insulation material that must not be defeated or
altered.

5. Observe original lead dress. Take extra care to
assure correct lead dress in the following areas: a.
near sharp edges, b. near thermally hot parts-be
sure that leads and components do not touch
thermally hot parts, c. the AC supply, d. high
voltage, and, e. antenna wiring. Always inspect in
all areas for pinched, out of place, or frayed wiring.
Check AC power cord for damage.

6. Components, parts, and/or wiring that appear to
have overheated or are otherwise damaged
should be replaced with components, parts, or
wiring that meet original specifications.
Additionally, determine the cause of overheating
and/or damage and, if necessary, take corrective
action to remove any potential safety hazard.

7. Product Safety Notice - Some electrical and
mechanical parts have special safety-related
characteristics which are often not evident from
visual inspection, nor can the protection they give
necessarily be obtained by replacing them with
components rated for higher voltage, wattage, etc.
Parts that have special safety characteristics are
identified by a # on schematics and in parts lists.
Use of a substitute replacement that does not
have the same safety characteristics as the
recommended replacement part might create
shock, fire, and/or other hazards. The product's
safety is under review continuously and new
instructions are issued whenever appropriate.
Prior to shipment from the factory, our products
are strictly inspected to confirm they comply with
the recognized product safety and electrical codes
of the countries in which they are to be sold.
However, in order to maintain such compliance, it
is equally important to implement the following
precautions when a set is being serviced.

2-2 LTVN_ISP

Precautions during Servicing

A. Parts identified by the # symbol are critical for

safety.
Replace only with part number specified.

B. In addition to safety, other parts and assemblies

are specified for conformance with regulations
applying to spurious radiation. These must also be
replaced only with specified replacements.
Examples: RF converters, RF cables, noise
blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors.

E. When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of
wires securely about the terminals before
soldering.

F. Observe that the wires do not contact heat

producing parts (heat sinks, oxide metal film
resistors, fusible resistors, etc.)

G. Check that replaced wires do not contact sharp

edged or pointed parts.

H. When a power cord has been replaced, check that

5~6 kg of force in any direction will not loosen it.

I. Also check areas surrounding repaired locations.
J. Use care that foreign objects (screws, solder

droplets, etc.) do not remain inside the set.

K. When connecting or disconnecting the internal

connectors, first, disconnect the AC plug from the
AC supply outlet.

L. When installing parts or assembling the cabinet

parts, be sure to use the proper screws and
tighten certainly.

2-3 LTVN_ISP

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and
wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified
values in order to verify compliance with safety standards.

1. Clearance Distance

When replacing primary circuit components, confirm
specified clearance distance (d) and (d') between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)

Table 1: Ratings for selected area

Chassis or Secondary Conductor

Primary Circuit

AC Line Voltage Region

110 to 130 V

Note: This table is unofficial and for reference only. Be

sure to confirm the precise values.

U.S.A. or

Canada

Clearance

Distance (d), (d’)

≥ 3.2 mm

(0.126 inches)

2. Leakage Current Test

Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.

Measuring Method: (Power ON)

Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across both terminals of load Z.
See Fig. 2 and following table.

d' d

Fig. 1

Exposed Accessible Part

Z

AC Voltmeter
(High Impedance)

Earth Ground

B

Power Cord Plug Prongs

Fig. 2

Table 2: Leakage current ratings for selected areas

AC Line Voltage Region Load Z Leakage Current (i) Earth Ground (B) to:

110 to 130 V

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

U.S.A. or

Canada

0.15 µF CAP. & 1.5 kΩ

RES. Connected in parallel

2-4 LTVN_ISP

i ≤ 0.5 mA rms

Exposed accessible

parts

STANDARD NOTES FOR SERVICING

Circuit Board Indications

1. The output pin of the 3 pin Regulator ICs is
indicated as shown.

Top View

Out

2. For other ICs, pin 1 and every fifth pin are
indicated as shown.

Pin 1

3. The 1st pin of every male connector is indicated as
shown.

Pin 1

Input

In

Bottom View

5

10

Pb (Lead) Free Solder

Pb free mark will be found on PCBs which use Pb
free solder. (Refer to figure.) For PCBs with Pb free
mark, be sure to use Pb free solder. For PCBs
without Pb free mark, use standard solder.

Pb free mark

How to Remove / Install Flat Pack-IC

1. Removal

With Hot-Air Flat Pack-IC Desoldering Machine:

1. Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

2. Remove the flat pack-IC with tweezers while
applying the hot air.

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

CAUTION:

1. The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.

2. Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)

3-1 TVN_SN

3. The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.

With Soldering Iron:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

CBA

Masking
Tape

Tweezers

Hot-air
Flat Pack-IC
Desoldering
Machine

Flat Pack-IC

Fig. S-1-2

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

2. Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)

Sharp
Pin

Fine Tip
Soldering Iron

3. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

4. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Fig. S-1-4

3-2 TVN_SN

With Iron Wire:

1. Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)

2. Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.

3. While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.

4. Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)

5. Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)

Note: When using a soldering iron, care must be

taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.

Hot Air Blower

2. Installation

1. Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.

2. The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)

3. Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC
is indicated by a " " mark.

Fig. S-1-7

To Solid
Mounting Point

CBA

Tweezers

Iron Wire

Soldering Iron

Fig. S-1-5

Fine Tip
Soldering Iron

Flat Pack-IC

or

Presolder

Flat Pack-IC

CBA

Fig. S-1-8

Fig. S-1-6

3-3 TVN_SN

Instructions for Handling Semi­conductors

Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.

<Incorrect>

<Correct>

1MΩ

CBA

Grounding Band

1MΩ

CBA

Conductive Sheet or
Copper Plate

3-4 TVN_SN

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps for the
cabinet parts, and the CBA in order to gain access to
item(s) to be serviced. When reassembling, follow the
steps in reverse order. Bend, route and dress the
cables as they were.

[16] Function CBA

[17] Speaker
Holder (L,R)

[18] Speaker(s)

[14] Junction-A
CBA

[15] IR Sensor
CBA

[12] Stand Holder

[4] Rear Cabinet

[5] Shield (T)

[6] Shield Box

[7] Digital Main
CBA Unit

[8] Power Supply
CBA

[9] Inverter CBA

[11] PCB Holder
(L,R)

[13] LCD Module
Assembly

[19] Front Cabinet

[1] Stand Base
Plate

[2] Stand Cover

[3] Stand Hinge

[10] Junction-B
CBA

2. Disassembly Method

Removal

Step/

Loc.

Part

No.

Stand Base

[1]

Plate
Stand

[2]

Cover
Stand

[3]

Hinge
Rear

[4]

Cabinet

[5] Shield (T) D2 (S-7), (S-8), (N-1) ---

[6] Shield Box D2

Digital Main

[7]

CBA UnitD2D5

Power

[8]

Supply
CBA

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

D1 4(S-1), 3(S-2), 4(S-3) ---

D1 --------------- ---

D1 --------------- ---

D1 12(S-4), 2(S-5), 2(S-6) ---

2(S-9), 3(S-10),
4(S-11)

*CN3601, *CN3701,
*CN3704, *CN4501,
*CN4502

7(S-12), *CN102,

D2

*CN501, *CN801,

D5

*CN802, *CN1901

---

---

---

Removal

Step/

Loc.

No.

Part

Remove/*Unhook/

Fig.

No.

Unlock/Release/

Unplug/Unclamp/

Note

Desolder

7(S-13), *CN1050,

D3

*CN1100, *CN1150,

D5

*CN1200, *CN1250

D3

Desolder ---

D5

---

D3 4(S-14) ---

D3 2(S-15), 2(S-16) ---

[9]

[10]

[11]

[12]

Inverter
CBA

Junction-B
CBA

PCB Holder
(L,R)

Stand
Holder

LCD

[13]

Module

D4 4(S-17) ---

Assembly

[14]

[15]

[16]

Junction-A
CBA

IR Sensor
CBA

Function
CBA

D4

Desolder ---

D5
D4

2(S-18), *CL102A ---

D5
D4

2(S-19) ---

D5

Speaker

[17]

Holder

D4 4(S-20) ---

(L,R)

[18] Speaker(s) D4 --------------- ---

Front

[19]

↓

(1)

Cabinet

↓

(2)

D4 --------------- ---

↓

(3)

↓

(4)

↓

(5)

Note:

(1) Order of steps in procedure. When reassembling,

follow the steps in reverse order. These numbers
are also used as the Identification (location) No. of
parts in figures.

(2) Parts to be removed or installed.
(3) Fig. No. showing procedure of part location
(4) Identification of parts to be removed, unhooked,

unlocked, released, unplugged, unclamped, or
desoldered.
N = Nut, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)

(5) Refer to the following "Reference Notes in the

Table."

4-1 A8AF1DC

[4] Rear Cabinet

(S-4)

[3] Stand Hinge

[2] Stand Cover

(S-4)

(S-6)

(S-4)

(S-5)

(S-6)

(S-1)

(S-4)

(S-4)

[1] Stand Base Plate

4-2 A8AF1DC

(S-3)

(S-3)

(S-2)

Fig. D1

[7] Digital Main
CBA Unit

(S-9)

[6] Shield Box

(S-10)

(S-11)

(S-11)

(S-10)

(N-1)

[8] Power Supply CBA

(S-7)

(S-12)

(S-12)

(S-12)

[5] Shield (T)

(S-8)

(S-7)

Fig. D2

4-3 A8AF1DC

(S-16)

[12] Stand Holder

(S-15)

(S-13)

(S-14)

(S-14)

(S-14)

[11] PCB Holder (L,R)

[9] Inverter CBA

(S-13)

Desolder

(S-14)

[10] Junction-B CBA

(S-13)

Fig. D3

4-4 A8AF1DC

[19] Front Cabinet

[18] Speaker

(S-19)

[16] Function
CBA

[18] Speaker

(S-20)

(S-20)

Desolder

[14] Junction-A
CBA

(S-18)

[15] IR Sensor
CBA

(S-20)

[17] Speaker
Holder (L,R)

[13] LCD Module Assembly

(S-20)

[17] Speaker
Holder (L,R)

(S-17)

Fig. D4

4-5 A8AF1DC

TV Cable Wiring Diagram

To LCD
Module
Assembly

Junction-B
CBA

To LCD Module
Assembly

Digital Main
CBA Unit

CN1000CL1000B

CN4501 CN4502

Inverter CBA

CN1050

CN1100

CN1150

CN1200

CN1250

Function CBA

CL102B

CL1000A

CN1901

AC CORD

CN3601 CN3701

Power Supply
CBA

CN501

CN601

CN802

Junction-A
CBA

IR Sensor CBA

CL101A

CL102A

CN3704

CN301 CN302 CN303

CN102

CN101
CL101B

To Speaker

CN801

Fig. D5

4-6 A8AF1DC

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: “CBA” is abbreviation for
“Circuit Board Assembly.”

Note: Electrical adjustments are required after

replacing circuit components and certain
mechanical parts. It is important to perform
these adjustments only after all repairs and
replacements have been completed.
Also, do not attempt these adjustments unless
the proper equipment is available.

Test Equipment Required

1. DC Voltmeter

2. NTSC Pattern Generator (Color Bar W/White
Window, Red Color, Dot Pattern, Gray Scale,
Monoscope, Multi-Burst)

3. Remote control unit

4. Color Analyzer

How to make the Service remote
control unit:

Cut “A” portion of the attached remote control unit as
shown in Fig. 1.

How to set up the service mode:

Service mode:

1. Use the service remote control unit.

2. Turn the power on.

3. Press the service button on the service remote
control unit. The following screen appears.

"*" differs depending on the models.

Code :
Boot :
System : Push 0 key
SubCPU :
Pic Code :
Picture :

Panel :
Other :
Safety :
Tuner :
HDMI1 Block0 :
Block1 :
HDMI2 Block1 :

**********-***

Push 0 key

****
**-***-**-****-***
****

***
**
******-***
*****-*******
**
**
**

service button

A

Fig. 1

5-1 A8AF0EA

1. Purity Check Mode

2. VCOM Adjustment.

This mode cycles through full-screen displays of red,
green, blue, and white to check for non-active pixels.

1. Enter the Service mode.

2. Each time pressing [7] button on the service
remote control unit, the display changes as
follows.

Purity Check Mode

White mode

[7] button

[7] button

Black mode

[7] button

Red mode

[7] button

Green mode

Test Point

Screen

Adj. Point

[CH o/p]

buttons

M. EQ. Spec.

Color analyzer

See below

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Set the color analyzer and bring the optical
receptor to the center on the LCD-Panel surface
after zero point calibration as shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

3. Enter the Service mode.

4. Press [2] button on the service remote control unit.

5. Press [CH o / p] buttons on the service remote
control unit so that the color analyzer value
becomes minimum.

[7] button

Blue mode

Note:

When entering this mode, the default setting is White mode.

5-2 A8AF0EA

The following adjustment normally are not attempted in
the field. Only when replacing the LCD Panel then adjust
as a preparation.

3. White Balance Adjustment

Purpose: To mix red, green and blue beams correctly

for pure white.
Symptom of Misadjustment: White becomes bluish

or reddish.

Test Poi nt

Screen

Adj. Point Mode Input

[CH o/p]

buttons

[VIDEO1]

C/D

M. EQ. Spec.

White Raster

(APL 70%)

or

(APL 25%)

5. [CUTOFF]
Press [3] button to select “COB” for Blue Cutoff
adjustment. Press [1] button to select “COR” for
Red Cutoff adjustment.

[DRIVE]

Press [6] button to select “DB” for Blue Drive
adjustment. Press [4] button to select “DR” for Red
Drive adjustment.

6. In each color mode, press [CH o / p] buttons to
adjust the values of color.

7. Adjust Cutoff and Drive so that the color
temperature becomes 12000°K (x

=

0.272 / y

=

0.278 ±0.005).

Pattern Generator,

Color analyzer

x= 0.272 ± 0.005
y= 0.278 ± 0.005

Figure

It carries out in a darkroom.

Perpendicularity

L = 3 cm

INPUT: WHITE 70%, 25%

Color Analyzer

1. Operate the unit for more than 20 minutes.

2. Input the White Raster(70%=70IRE, 25%=25IRE).

INPUT SIGNAL

25%=25IRE

70%=70IRE

3. Set the color analyzer to the CHROMA mode and
bring the optical receptor to the center on the
LCD-Panel surface after zero point calibration as
shown above.
Note: The optical receptor must be set
perpendicularly to the LCD Panel surface.

4. Enter the Service mode. Press [VOL. n] button on
the service remote control unit and select “C/D”
mode.

5-3 A8AF0EA

HOW TO INITIALIZE THE LCD TELEVISION

How to initialize the LCD television:

1. Turn the power on.

2. To enter the service mode, press the service
button on the service remote control unit. (Refer to
page 5-1.)

- To cancel the service mode, press [POWER]

button on the remote control unit.

3. Press [INFO] button on the service remote control
unit to initialize the LCD television.

4. "INITIALIZED" will appear in the upper right of the
screen. "INITIALIZED" color will change to green
from red when initializing is complete.

6-1 A8AF0INT

BLOCK DIAGRAMS

System Control Block Diagram

REMOTE

RCV101

AL+3.3V

D102

STANDBY

D101

SENSOR

CL101A

REMOTE22

CL101B

CN101

REMOTE52

CN102

CN301CN3601

POWER

LED144

P-ON-H155

KEY-IN166KEY-IN116

JUNCTION-A

LED134

P-ON-H125

CN302

CBA

CL102A

KEY-IN111

CL102B

KEY SWITCH

TO POWER

SUPPLY

BLOCK

DIAGRAM

P-ON-H1

P-ON-H2

TO

INVERTER

BLOCK

DIAGRAM

PROTECT3 1

CN1000 CL1000B

PROTECT3
41233

CN501

CN301CN3601

2

2

BACKLIGHT-SW

3

BACKLIGHT-SW

(CL1000A)

BACKLIGHT-ADJ3BACKLIGHT-SW

JUNCTION-B CBA

BACKLIGHT-ADJ

BACKLIGHT-ADJ

22221

TO POWER

SUPPLY

BLOCK

DIAGRAM

PROTECT1

IR SENSOR CBAFUNCTION CBA

PROTECT2

POWER SUPPLY CBA

CN302CN3701

PROTECT2

PROTECT3

PROTECT1

22 2

21 3

23 1

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

SDA

SCL

WP

IC3102 (MEMORY)

5

6

7

VCOM-PWM

4MHz

OSC

X3101

6

8

XIN

POWER SUPPLY CBA

XOUT

2

19

20

SCL

SDA

21

WP

VCOM-PWM

22

PROTECT1

PROTECT223PROTECT3

4

TO AUDIO-2

BLOCK

DIAGRAM

IC3301

(MAIN MICRO CONTROLLER)

SCL

AE13

CN3704CN303

SCL15 9

25

SCL

REMOTE20 4

P-ON-H1222

P-ON-H2123

SDA

AF13

SDA16 8

27

SDA

KEY-IN123 1

LED111 13

CN3701

14

SCL

RESET

KEY-IN1

LED1

REMOTE

RXD

P-ON-H1

(SUB MICRO CONTROLLER)

IC3101

15

SDA

P-ON-H2

24

13

12

TXD

RESET-MAIN

5

11

14

15

16

P22

V24

N22

R22

TXD1

RXD1

REMOTE

RESET-MAIN

INPUT0

INPUT1

A11

E12

INPUT0

INPUT1

RESET

AMP-MUTE-SUB

3

18

C12

AMP-MUTE-MAIN

IC3706 (MEMORY)

SPI-CLK

SPI-DO

Y25

Y24

652

SPI-DI

SPI-CLK

SPI-DI

SPI-CS0

W25

W24

1

SPI-DO

SPI-CS0

SPI-CS1SPI-CS1

W26

3

AMP-MUTE

CLKOUT

CLKIN

U25

U26

25MHz

OSC

X3301

B3

BACKLIGHT-SW

AC24

BACKLIGHT-ADJ

DIGITAL MAIN CBA UNIT

IC7001

(VIDEO/AUDIO SELECTOR)

TU1 (TUNER UNIT)

POWER SUPPLY CBA

TO AUDIO-1

BLOCK

DIAGRAM

7-1

A8AF1BLS

Video Block Diagram

TO DIGITAL

SIGNAL

AUDIO SIGNAL

PROCESS

BLOCK

DIAGRAM

TO DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

VIDEO SIGNAL

DIGITAL MAIN CBA UNIT

WF1WF2WF3

VIDEO

S-VIDEO-Y

S-VIDEO-C

153108

S-VIDEO-Y19

VIDEO23

CN302 CN3701

2824261820

VIDEO-Y

VIDEO-Pb

S-VIDEO-C21

VIDEO-Y14

VIDEO-Pr

7

VIDEO-Pb16

VIDEO-Pr17

22

WF4WF5WF6

DIF-OUT1

DIF-OUT2

DIF-OUT1

22 2

CN303 CN3704

IF-AGC

TU-CVBS

IF-AGC18 6

DIF-OUT2

TU-CVBS11 13

20 4

IC7001

(VIDEO SELECTOR)

POWER SUPPLY CBA

56

JK7702

4

6

VIDEO-IN1

10

2

JK7704

VIDEO

SELECTOR

8

VIDEO-IN2

4034383236

30

CY

JK7701

S-VIDEO

-IN1

CY

JK7703

S-VIDEO

-IN2

S-SW19S-SW2

3

JK7711

COMPONENT

-Y-IN1

COMPONENT

-Pb-IN1

COMPONENT

-Pr-IN1

JK7713

COMPONENT

-Y-IN2

COMPONENT

-Pb-IN2

COMPONENT

-Pr-IN2

DIF-OUT1 20

TU1

(TUNER UNIT)

BUFFER

Q3

4

21

18

IF-AGC

DIF-OUT2

VIDEO-OUT

7-2 A8AF1BLV

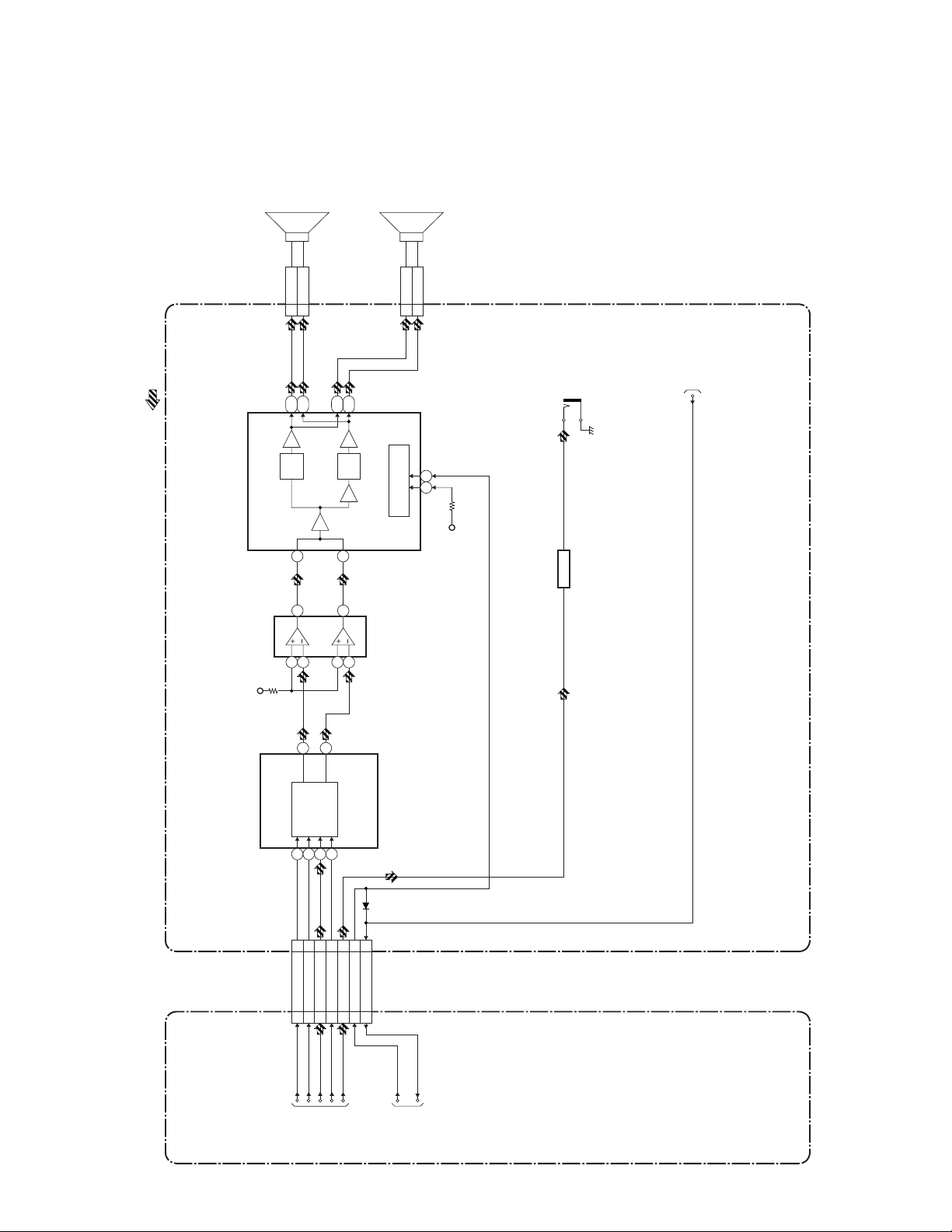

Audio-1 Block Diagram

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

TO

SYSTEM

CONTROL

BLOCK

DIAGRAM

TO

DIGITAL

SIGNAL

PROCESS

BLOCK

DIAGRAM

AUDIO SIGNAL

DIGITAL MAIN CBA UNIT

BCLK

(L-CH)

IC3702

(AUDIO A/D CONVERTER)

CN3704CN303

WF7

IC7301

(INPUT SELECT)

ACLK

LRCLK

AUX-ADATA

111015

12

A/D

CONVERTER

(R-CH)

1

2

AUDIO(L)321

AUDIO(R)420

3

4

5

INPUT1

CN3704CN303

13

109

SW CTL

11

14

Q7302

Q7301

SIF

INPUT0

INPUT1717

INPUT0816

SIF915

IC7001

(AUDIO SELECTOR)

53

JK7702

AUDIO(L)

45

AUDIO

51

-IN1

SELECTOR

49

AUDIO(R)

47

JK7704

AUDIO(L)

-IN2

AUDIO(R)

-IN1

-IN2

POWER SUPPLY CBA

AUDIO

545250

JK7712

COMPONENT

AUDIO(L)

-IN1

7-3

44

SELECTOR

48

COMPONENT

AUDIO(R)

-IN1

JK7714

COMPONENT

AUDIO(L)

-IN2

COMPONENT

AUDIO(R)

-IN2

JK7705

HDMI

AUDIO(L)-IN

HDMI

TU1

AUDIO(R)-IN

BUFFER

Q4,Q5

3

SIF-OUT

(TUNER UNIT)

A8AF1BLA1

Audio-2 Block Diagram

SP801

SPEAKER

L-CH

SP802

SPEAKER

R-CH

AUDIO SIGNAL

IC801 (AUDIO POWER AMP)

IC702

(AMP)

P-ON+9V

CL801

SP(L)+2

CN801

8,9

PWM

SP(L)-1

18,19

GEN.

2

3

215

44,45

51

7

34,35

PWM

-1

6

GEN.

CL802

SP(R)-1

SP(R)+2

CN802

48 50

MUTE/STANDBY

CONTROL

P-ON+5V

DIGITAL

JK7715

BUFFER

Q7201

AUDIO-OUT

(COAXIAL)

TO POWER

SUPPLY

RESET

BLOCK

DIAGRAM

IC701

(AUDIO D/A CONVERTER)

15

(L-CH)

8

CN302CN3701

LRCLK14 10

BCLK

LRCLK

TO

D/A

BCLK15 9

AD ATA

DIGITAL

SIGNAL

14

(R-CH)

CONVERTER

AD ATA16 8

ACLK

PROCESS

BLOCK

567

ACLK17 7

SPDIF

DIAGRAM

RESET20 4

AMP-MUTE12 12

SPDIF18 6

RESET

AMP-MUTE

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

7-4

DIGITAL MAIN CBA UNIT POWER SUPPLY CBA

A8AF1BLA2

Digital Signal Process Block Diagram

LCD MODULE

ASSEMBLY

BRSB2(+)52

CN4501

AUDIO SIGNAL

757473727170666564

VIDEO SIGNAL

IC4201(LCD DRIVE)

BRSB2(-)51

BRSB1(+)50

BRSB1(-)49

BRSB0(+)48

BRSB0(-)47

BRSG2(+)46

BRSG2(-)45

BRSG1(+)44

BRSG1(-)43

BRSG0(+)42

BRSG0(-)41

BRSR2(+)17

63

62616059585756556968907778

D-RSDS

OUTPUT

LVDS

RX

242522232021161718

AF20

AE20

AD19

AD20

AE19

AF19

AF18

AE18

BRSR2(-)16

AE21

BRSR1(+)15

19

AF21

BRSR1(-)14

BRSR0(+)13

BRSR0(-)12

BRSCLK(+)22

BRSCLK(-)21

V-COM7

STH-S11

TP119

POL18

STV5

81

LVD S

FRSB2(+)53

FRSB2(-)52

FRSB1(+)51

FRSB1(-)50

FRSB0(+)49

FRSB0(-)48

FRSG2(+)47

FRSG2(-)46

FRSG1(+)45

V-COM9

CN4502

52515049484744434140393837363534333246

DATA

MAPPING

TX

FRSG1(-)44

D-RSDS

OUTPUT

LVDS

RX

9107856123

AF25

AF24

AE25

AD25

AD26

FRSG0(+)43

AE24

FRSG0(-)42

AD23

FRSR2(+)18

AD24

FRSR2(-)17

AF26

FRSR1(+)16

4

AE26

FRSR1(-)15

FRSR0(+)14

FRSR0(-)13

FRSCLK(+)23

FRSCLK(-)22

STH-F55

CPV6

OE15

STV7

TP120

POL19

VDDG2

145

808284

IC4202 (MEMORY)

SCL

87

6

SCL

SWITCHING

Q4501,Q4516

83

(SDRAM)

IC3201

SDA

88

5

SDA

IC4511,Q4511,

Q4512,Q4513

TO SYSTEM

DATA(0-15)

H1,H3,H7,H9

B1,B9,C2,C8,

F1,F9,G2,G8,

M2,M3,M7,M8,

D1,D3,D7,D9,

A13-15,A18,

A21-23,B13-15,

B17,B19-23

C15,C17-19,

DRIVE

VCOM-PWM

CONTROL

BLOCK

DIAGRAM

ADDESS(0-12)

N2,N3,N7,N8,

P2,P3,P7,P8,R2

C23,C24,D14,

D15,D17-19,

D22,D23

IC3301 (DIGITAL SIGNAL PROCESS)

DIGITAL MAIN CBA UNIT

T4

Y3

TU-CVBS

T3

U4

VIDEO-Y

VIDEO-Pb

TO VIDEO

V4

VIDEO-Pr

BLOCK

DIAGRAM

W3

VIDEO

S-VIDEO-Y

A/D

CONVERTER

SW

V3

U3

S-VIDEO-C

DEMODULATOR

/MPEG DECODER

AF2

AE2

DIF-OUT1

DIF-OUT2

IF-AGC

TO VIDEO

BLOCK

DIAGRAM

IF-AGC

AF7

DIGITAL

SIGNAL

PROCESS

AUDIO I/F

DEMODULATOR

AF5

SIF

AUX-ADATA

AD15

BCLK

TO AUDIO-1

AE15

AE16

LRCLK

BLOCK

DIAGRAM

AF15

AF16

AD16

SPDIF

ACLK

BCLK

LRCLK

AD ATA

TO AUDIO-2

BLOCK

ACLK

DIAGRAM

TMDS-D0(+)

JK4001

AUDIO

DECODER

A9

B9

C8

C9

TMDS-D0(-)

TMDS-D1(+)

TMDS-D1(-)

79461

B8

A8

B10

TMDS-CLOCK(+)

TMDS-D2(+)

TMDS-D2(-)

3

101216

HDMI-IN1

VIDEO

HDMI

E9

A10

C10

Q4001

BUFFER

Q4002

BUFFER

TMDS-CLOCK(-)

SDA

SCL

15

DECODER

I/F

A5

TMDS-D0(+)

TMDS-D0(-)

JK4002

79461

B5

C4

C5

TMDS-D1(+)

TMDS-D1(-)

B4A4B6

TMDS-D2(+)

TMDS-D2(-)

TMDS-CLOCK(+)

3

101216

HDMI-IN2

A6D7B7

Q4003

BUFFER

Q4004

BUFFER

TMDS-CLOCK(-)

SDA

SCL

15

7-5

A8AF1BLD

Inverter Block Diagram

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

BACK

LIGHT

LCD MODULE

ASSEMBLY

CN1050

T1050

Q1100,

Q1101

1

2

786

3

2

DRIVE

1

2

CN1100

5

4

1

T1100

Q1102,

Q1103

2

DRIVE

4

786

3

5

1

1

2

CN1150

5

4

23

2

T1150

2

786

3

1

1

2

CN1200

5

4

T1200

2

13

786

3

12

16

1

1

2

CN1250

IS

VS

OVP

5

4

T1250

2

786

3

5

4

1

Q1020

IC1001

10

11

23457

T1951

ACL

HOT-GND

TO

POWER

SUPPLY

BLOCK

HOT CIRCUIT. BE CAREFUL.

DIAGRAM

DRIVE

DRIVE

DRIVE

(INVERTER CONTROL)

15

8

IC1930

SWITCHING

Q1930

14

14

DRIVE

3 2

Q1932

Q1970

IC1931

14

Q1931

LOGICLOGIC

213

11

4

VCC

IC1500 (COMPARATOR)

CONTROL

INVERTER

19

3 2

HOT

COLD

13

Q1971

6

5

12

7

14

Q1972

4

VCC

IC1550 (COMPARATOR)

9

10

8

Q1002

CL1000A

PROTECT31

TO SYSTEM

CONTROL

BLOCK

7

BACKLIGHT-ADJ3BACKLIGHT-SW

2

DIAGRAM

(CL1000B)

5

13

12

INVERTER CBA

14

213

6

7-6

A8AF1BLINV

Power Supply Block Diagram

LCD+13V

LCD+24.5V

LCD-6.8V

LCD+3.3V

AL+3.3V

P-ON+2.0V

+1.8V

+1.1V

P-ON+5V

TO SYSTEM

CONTROL

BLOCK

DIAGRAM

AL+13V

P-ON+9V

+40V

P-ON+5V

AL+3.3V

TO AUDIO-2

BLOCK

DIAGRAM

DIGITAL MAIN CBA UNIT

16

14

18

17

LCD-6.8V8

LCD+3.3V10

LCD+24.5V6

NOTE:

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

For continued protection against risk of fire,

replace only with same type 4 A, 125V fuse.

LCD+13V7

CN301 CN3601

Q646

JS652

SW-6.8V

Q632,Q634

IC3601

+1.8V REG.

+2.0V REG.

IC3302

IC3603

8

12

9,10

P-ON+3.3V

+3.0V16

AL+3.3V12

14,15

Q502

SWITCHING

+1.1V REG.

4

5,6

+3.0V(1)

P-ON+5V20

18,19

P-ON-H1

P-ON-H2

PROTECT2

PROTECT1

SW+13V

Q645,D648

Q801

SW+9V

SW+3.3V

Q638,D634

SWITCHING

Q639,Q671

RESET

Q501

RESET

Q633

Q637

SW+5V

IC637

23

+3.3V

JS651

REG.

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

4A/125V

11

14

3

T601

CN601

HOT-GND 3

ACL 1

2

1

CN1901

BRIDGE

RECTIFIER

D1901 - D1904

LINE

FILTER

L1902

LINE

FILTER

L1901

F1901

4A/125V

HOT CIRCUIT. BE CAREFUL.

ACL

HOT-GND

TO INVERTER

BLOCK DIAGRAM

4A/125V

Q650

+5V REG.

FEED

12

17

18

13

16

5

7

19

15

14

9

8

IC603

BACK

Q631

COLD

3 2

HOT

HOT

SWITCHING

Q601

INVERTER CBA

Q602

SWITCHING

CONTROL

POWER SUPPLY CBA

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.

If Main Fuse (F1901) is blown , check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

AC1901

AC CORD

7-7

A8AF1BLP

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes

WARNING

Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.

Notes:

1. Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.

2. All resistance values are indicated in ohms
(K = 10

3. Resistor wattages are 1/4W or 1/6W unless
otherwise specified.

4. All capacitance values are indicated in µF
(P = 10

5. All voltages are DC voltages unless otherwise
specified.

3

, M = 106).

-6

µF).

8-1 A8AF0_SC

LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:

1. CAUTION:

CAUTION: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME

TYPE_A,_V FUSE.

ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MÊME TYPE DE_A,_V.

2. CAUTION:

Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.

3. Note:

1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.

4. Voltage indications on the schematics are as shown below:

Plug the TV power cord into a standard AC outlet.:

2

(Unit: Volt)

1

5.0 5.0

3

Power on mode

5. How to read converged lines

1-D3
Distinction Area

Line Number
(1 to 3 digits)

Examples:

1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".

2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".

6. Test Point Information

: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.

Voltage

Indicates that the voltage
is not consistent here.

3

2

1

AREA D3

1-B1

AREA B1

1-D3

ABCD

8-2 A8AF0_SC

Power Supply 1/3 Schematic Diagram

CN301

13.3

23.2

33.2

43.3
50
6 23.5
7 13.1
8-6.9

90
10 3.4
11 0
12 3.4
13 0
14 3.4
15 3.4
16 3.3
17 0
18 3.4
19 3.4
20 5.2
21 0
22 3.3
23 3.2

VOLTAGE CHART

Pin No. Voltage

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

8-3

A8AF1SCP1

Power Supply 2/3 Schematic Diagram

CN303

1---

20

32.6

42.6

50

6---

70

80

92.0
10 0
11 1.7
12 0.8
13 0
14 --­15 4.9
16 4.9
17 0
18 3.3
19 0
20 1.6
21 0
22 1.6
23 0

VOLTAGE CHART

Pin No. Voltage

8-4

A8AF1SCP2

Power Supply 3/3 Schematic Diagram

CN302

13.4

20

33.4

43.3

50

61.7

71.6

81.3

91.7
10 1.7
11 0
12 3.4
13 0.6
14 2.5
15 0
16 2.6
17 2.5
18 0
19 0
20 0
21 0
22 0
23 0

VOLTAGE CHART

Pin No. Voltage

8-5

A8AF1SCP3

Inverter & Junction-B Schematic Diagram

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

8-6

A8AF1SCINV

Function Schematic Diagram

8-7

A8AF1SCF

IR Sensor & Junction-A Schematic Diagram

8-8

A8AF1SCIR

Digital Main 1/4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

8-9

A8AF1SCD1

Digital Main 2/4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

8-10

A8AF1SCD2

Digital Main 3/4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

8-11

A8AF1SCD3

Digital Main 4/4 Schematic Diagram

1 NOTE:

The order of pins shown in this diagram is different from that of actual IC3301.
IC3301 is divided into four and shown as IC3301 (1/4) ~ IC3301 (4/4) in this Digital Main Schematic Diagram Section.

8-12

A8AF1SCD4

Power Supply CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

8-13

BA8AF0F01022-1

Power Supply CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

WF7

PIN 3 OF
CN303

WF1

PIN 23 OF
CN302

WF3

PIN 21 OF
CN302

WF2

PIN 19 OF
CN302

WF6

PIN 17 OF
CN302

WF5

PIN 16 OF
CN302

WF4

PIN 14 OF
CN302

8-14

BA8AF0F01022-1

Inverter CBA Top View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

8-15

BA8AF0F01031

Inverter CBA Bottom View

NOTE:

The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Because a hot chassis ground is present in the power
supply circuit, an isolation transformer must be used.
Also, in order to have the ability to increase the input
slowly,when troubleshooting this type power supply
circuit, a variable isolation transformer is required.

CAUTION !

Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1901) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

4A/125V

CAUTION ! :

ATTENTION : Utiliser un fusible de rechange de même type de 4A, 125V.

For continued protection against risk of fire,
replace only with same type 4 A, 125V fuse.

8-16

BA8AF0F01031

Function CBA Top View

IR Sensor CBA Top View

Function CBA Bottom View

IR Sensor CBA Bottom View

BA8AF0F01022-3 BA8AF0F01022-4

8-17

Junction-A CBA

Junction-A CBA

Top View

Bottom View

BA8AF0F01022-5

Junction-B CBA

Top View

Junction-B CBA

Bottom View

BA8AF0F01031

8-18

WAVEFORMS

WF1 ~ WF7 = Waveforms to be observed at

Waveform check points.
(Shown in Schematic Diagram.)

Input: NTSC Color Bar Signal (with 1kHz Audio Signal)

WF1

WF2

Pin 23 of CN302

CVBS 0.2V 20µs

Pin 19 of CN302

S-VIDEO-Y 0.2V

20µs

WF5

WF6

Pin 16 of CN302

VIDEO-Pb 0.2V 20µs

Pin 17 of CN302

VIDEO-Pr 0.2V 20µs

WF3

WF4

Pin 21 of CN302

S-VIDEO-C 0.2V

Pin 14 of CN302

VIDEO-Y 0.2V 20µs

20µs

WF7

Pin 3 of CN303

AUDIO 1V 0.5ms

A8AF0WF9-1

WIRING DIAGRAM

STH-F54GND53FRSB2(+)52FRSB2(-)51FRSB1(+)50FRSB1(-)49FRSB0(+)48FRSB0(-)47FRSG2(+)46FRSG2(-)45FRSG1(+)44FRSG1(-)43FRSG0(+)42FRSG0(-)41GND40GMA1439GMA1338GMA1237GMA1136GMA1035GMA934GMA833VDDA32VDDA31GMA730GMA629GMA528GMA427GMA326GMA225GMA124GND23FRSCLK(+)22FRSCLK(-)21GND20TP119POL18FRSR2(+)17FRSR2(-)16FRSR1(+)15FRSR1(-)14FRSR0(+)13FRSR0(-)12GND11VDDD10VDDD9VCOM8VEEG7STV6CPV5OE14XAO3GND2VDDG1GND

55

CN4502

DIGITAL MAIN CBA UNIT

CN4501

55

GND

54

VEEG

POWER SUPPLY CBA

53

52

51

GND

BRSB2(-)49BRSB1(-)

BRSB2(+)50BRSB1(+)

48

47

BRSB0(-)

BRSB0(+)

46

45

44

BRSG2(-)

BRSG2(+)

BRSG1(+)

43

BRSG1(-)

BACK

1

CN1050

42

41

BRSG0(-)

BRSG0(+)

LIGHT

2

40

GND

39

GMA1438GMA1337GMA1236GMA1135GMA10

CN1100

CN1901

1

ACLNUHOT-GND

1

CN601

34

GMA933GMA8

BACK

LIGHT

2

1

2

3

2

32

30

VDDA31VDDA

GMA729GMA628GMA527GMA426GMA325GMA224GMA1

BACK

LIGHT

2

1

CN1150

BACK

1

CN1200

SP801

2

CN801

SP(L)+

23

GND

LIGHT

2

SPEAKER

L-CH

CL801

1

SP(L)-

22

21

20

GND

BRSCLK(-)

BRSCLK(+)

CN1250

19

TP1

BACK

1

CN802

18

17

POL

BRSR2(+)

LIGHT

2

SP802

SPEAKER

CL802

2

SP(R)+

16

BRSR2(-)

R-CH

1

SP(R)-

15

14

13

BRSR1(-)

BRSR1(+)

BRSR0(+)

AC1901

12

11

STH-S

BRSR0(-)

AC CORD

10

GND

9

VDDD8VDDD

7

VCOM

6

GND

5

STV

4

GND3GND2GND1GND

CL1000A

1

2

PROTECT3

BACKLIGHT-SW

1

2

CL1000B

CN1000

1

2

PROTECT3

BACKLIGHT-SW

4

3

CN501

3

BACKLIGHT-ADJ

3

3

BACKLIGHT-ADJ

2

4

GND

4

4

GND

1

LCD MODULE ASSEMBLY

CL102B

2

3

1

AL+3.3V

GND

KEY-IN1

2

3

1

CL102A

INVERTER CBA

CL101A

6

4

5

3

2

1

KEY-IN1

LED1

P-ON-H1

AL+3.3V

REMOTE

4

5

4

5

LED1

P-ON-H1

3

2

3

2

3

2

AL+3.3V

REMOTE

4

5

GND

1

1

GND

6

JUNCTION-A CBA IR SENSOR CBA FUNCTION CBA

6

CL101B

CN101

JUNCTION-B CBA

6

KEY-IN1

1

CN102

HDMI-

CONNECTOR-2

HDMI-

CONNECTOR-1

CN301CN3601

KEY-IN1

23

COMPONENT

2

BACKLIGHT-ADJ

22

-Y-IN1

BACKLIGHT-SW

21

6

7

513

4

REMOTE

GND

LCD+24.5V

LCD+13V

17

18

19

20

COMPONENT

-Pb-IN1

COMPONENT

8

LCD-6.8V

16

-Pr-IN1

9

11

GND

LCD+3.3V

GND

15

14

13

COMPONENT

-Y-IN2

15

141012

13

AL+3.3V

GND

P-ON+3.3V

P-ON+3.3V

9

12

11

10

COMPONENT

-Pb-IN2

COMPONENT

16

+3.0V

8

-Pr-IN2

172220

18

GND

+3.0V

+3.0V

513

6

7

COMPONENT-

AUDIO(L)-IN1

P-ON+5V

GND

P-ON-H1

2

4

COMPONENT-

AUDIO(R)-IN1

CN303CN3704

231921

P-ON-H2

CN3701CN302

COMPONENT-

AUDIO(L)-IN2

COMPONENT-

2

NU

GND

AUDIO(L)

23

21

22

23

21

22

PROTECT1

PROTECT2

PROTECT3

2

VIDEO-IN1

AUDIO(R)-IN2

6

7

513

4

AUDIO(R)

GNDNUINPUT1

17

19

201816

17

19

201816

RESET

GND

SPDIF

ACLK

6

7

513

4

AUDIO(L)

-IN1

8

9

INPUT0

SIF

15

15

ADATA

BCLK

8

9

11

GND

TU-CVBS

14

13

14

13

LRCLK

GND

11

AUDIO(R)

-IN1

141012

13

AFT-IN(NU)

GNDNUSCL

12

11

10

12

11

10

AMP-MUTE

LED1

VIDEO-Y

141012

13

S-VIDEO

-IN1

15

172220

16

SDA

GND

9

8

7

9

8

7

GND

VIDEO-Pb

VIDEO-Pr

15

172220

16

VIDEO-IN2

18

IF-AGC

GND

513

6

513

6

GND

S-VIDEO-Y

18

AUDIO(L)

-IN2

DIF-OUT2

GND

4

4

GND

S-VIDEO-C

AUDIO(R)

-IN2

231921

DIF-OUT1

GND

2

2

GND

VIDEO

231921

S-VIDEO

-IN2

HDMI-

AUDIO(L)-IN2

HDMI-

AUDIO(R)-IN2

DIGITAL

AUDIO-OUT

(COAXIAL)

TU1 TUNER UNIT

A8AF1WI10-1

Cabinet

EXPLODED VIEWS

A7

A3

Function CBA

A1

A26

CL801

SP801

B11

L2

A11

L6

L6

IR Sensor CBA

See Electrical Parts List
for parts with this mark.

CL802

B12

L2

B22

Junction-A
CBA

B11

LCD1

B22

SP802

L2

B12

L2

L2

L2

L2

B9

L15

Inverter CBA

L13

CL4502

CL4501

B30

L10

L2

L13

L13

B1

Junction-B CBA

L17

Power Supply CBA

Digital Main CBA Unit

B3

L9

B2

L10

L13

L13

B40

L9

L10

L17

B16

L7

L18

L17

L17

B17

L7

L6

L9

B4

B10

L17

L6

L2

L2

B7

A12

L2

A4

L2

L15

L6

L15

B8

A9

L2

L15

A10

L2

A6

S5

A12

L17

B40

L7

L4

L15

B18

AC1901

L4

11-1 A8AF1CEX

Packing

6

S2

Some Ref. Numbers are
not in sequence.

Packing Tape

S1

X2

X6

X1

Tape

L15

Tape

S4

X5

S3

Packing Tape

X3

X4

Packing Tape

S5

FRONT

S1

11-2 A8AF0PEX

MECHANICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTE: Parts that are not assigned part numbers
(---------) are not available.

Ref. No. Description Part No.

A1 FRONT CABINET A8AF1UH 1EM022265
A3 CONTROL PLATE A8AF0UH 1EM323600
A4 REAR CABINET A8AF1UH 1EM022266
A6# RATING LABEL A8AF1UH ---------­A7 FUNCTION KNOB A8AF0UH 1EM122273
A9 STAND COVER A8AF1UH 1EM122413
A10 REAR COVER A8AF0UH 1EM323717
A11 LED LENS A8AF1UH 1EM323799
A12 STAND RUBBER FOOT L5001CB 1EM423855
A26 LOGO LABEL A8AF1UH ---------­B1 PCB HOLDER (L) A8AF0UH 1EM122274
B2 PCB HOLDER (R) A8AF0UH 1EM122275
B3 SHIELD BOX A8AF0UH 1EM222004
B4 SHIELD (T) A8AF0UH 1EM323599
B7 STAND BASE PLATE A8AF0UH 1EM122276
B8 STAND HINGE A8AF0UH 1EM323598
B9 STAND HOLDER 32V A8AF0UH 1EM222005
B10 STAND HOLDER A81N0UH 1EM322709
B11 SPEAKER HOLDER (L) A8AF1UH 1EM323480
B12 SPEAKER HOLDER (R) A8AF1UH 1EM323800
B22 CLOTH(10X180XT0.5) L0336JG 0EM408827
B30 GASKET A8AF0UH 1EM425861
B40 WASHER(D17) A73F2FP 1EM425638
CL801 WIRE ASSEMBLY 005 2PIN / 170MM / AWG24 WX1A8AF0-005
CL802 WIRE ASSEMBLY 005 2PIN / 170MM / AWG24 WX1A8AF0-005
CL4501 WIRE ASSEMBLY 010 55PIN / 60MM WX1A8AF0-010
CL4502 WIRE ASSEMBLY 010 55PIN / 60MM WX1A8AF0-010
L2 SCREW P-TIGHT M4X14 BIND HEAD+BLK GBHP4140
L4 SCREW P-TIGHT M3X12 DISH HEAD+ GDJP3120
L6 SCREW P-TIGHT 3X10 BIND HEAD+ GBHP3100
L9 SCREW S-TIGHT M3X4 BIND HEAD+BLK GBHS3040
L10 SCREW S-TIGHT M3X6 BIND HEAD+ GBJS3060
L13 DOUBLE SEMS SCREW M4X6 M4X6 FPJ34060
L15 DOUBLE SEMS SCREW M4X10 + BLK FPH34100
L17 ASSEMBLED SCREW ( D9 M3X6 ) A71F0UH 1EM424392A
L18 NUT 3/8-32UNEF 0EM401451A
LCD1 32INCH LCD MODULE LCD 32INCH UG320XA
SP801 SPEAKER MAGNETIC S0412F06A DSD0809XQ006
SP802 SPEAKER MAGNETIC S0412F06A DSD0809XQ006

PACKING

S1 CARTON A8AF1UH 1EM425737
S2 STYROFOAM TOP A8AF1UH 1EM022366
S3 STYROFOAM BOTTOM A8AF1UH 1EM022367
S4 SET BAG A71FCUH 1EM323657
S5 RFID LABEL P7100UM ---------­S16 STAND BAG A71FCUH 1EM425338

ACCESSORIES

X1 BAG POLYETHYLENE 235X365XT0.03 0EM408420A

Ref. No. Description Part No.

X2# OWNERS MANUAL A8AF1UH 1EMN22959
X3 REMOTE CONTROL NF027UD 170/

X4 DRY BATTERY(SUNRISE) R6SSE/2S XB0M451MS002
X5 SCREW BAG A81N0UH 1EM424596A
X6 QUICK SETUP GUIDE A8AF1UH 1EMN22999A

ECNLC6.501/NF027

NF027UD

20080213 12-1 A8AF1CA

ELECTRICAL PARTS LIST

PRODUCT SAFETY NOTE: Products marked with a

# have special characteristics important to safety.
Before replacing any of these components, read
carefully the product safety notice in this service
manual. Don't degrade the safety of the product
through improper servicing.

NOTES:

1. Parts that are not assigned part numbers (---------)
are not available.

2. Tolerance of Capacitors and Resistors are noted
with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

DIGITAL MAIN CBA UNIT

Ref. No. Description Part No.

DIGITAL MAIN CBA UNIT 1ESA16685

MPS CBA

Ref. No. Description Part No.

MPS CBA
Consists of the following

POWER SUPPLY CBA(MPS-1)
FUNCTION CBA(MPS-3)
IR SENSOR CBA(MPS-4)
JUNCTION-A CBA(MPS-5)

POWER SUPPLY CBA

Ref. No. Description Part No.

POWER SUPPLY CBA(MPS-1)
Consists of the following:

CAPACITORS

C1 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C2 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220
C3 CHIP CERAMIC CAP.(1608) CH J 22pF/50V CHD1JJ3CH220
C4 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C5 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C6 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C8 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C9 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C10 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C11 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C12 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C13 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C14 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C15 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C17 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C18 ELECTROLYTIC CAP. 330µF/10V M CE1AMASDL331
C19 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C21 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C22 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C23 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C24 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C501 ELECTROLYTIC CAP. 1µF/50V M CE1JMASDL1R0

1ESA16506

----------

----------

----------

----------

----------

Ref. No. Description Part No.

C601# ELECTROLYTIC CAPACITOR 270µF/200V CA2D271DYG05
C602 CERAMIC CAP. HR 470pF/2KV CCD3DKA0R471
C603 CAP CERAMIC (AX) 560pF/50V/B/K CA1J561TU061
C604 POLYESTER FILM CAP. (PB FREE) 0.047µF/

C605 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C606 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT018

C607# SAFTY CAP. 2200pF/250V KX CA2E222MR101
C608 SAFTY CAP. 2200pF/250V KX CA2E222MR101
C633 ELECTROLYTIC CAP. 470µF/25V M CE1EMASDL471
C634 ELECTROLYTIC CAP 3300µF/10V CE1AMZNDL332
C635 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C636 CERAMIC CAP. R K 1500pF/2KV(HR) CCD3DKA0R152
C638 ELECTROLYTIC CAP. 1000µF/35V M CE1GMZADL102
C639 ELECTROLYTIC CAP. 220µF/50V M CE1JMASDL221
C640 CAP CERAMIC (AX) 0.01µF/50V/B/K CA1J103TU061
C642 CAP ELE STD-85 4700µF 6.3V SL CE0KMZNDL472
C643 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102
C644 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C647 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C650 ELECTROLYTIC CAP. 220µF/16V M CE1CMASDL221
C651 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C652 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C653 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C654 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102
C655 ELECTROLYTIC CAP. 1000µF/10V M CE1AMASDL102
C656 ELECTROLYTIC CAP. 1000µF/6.3V M CE0KMASDL102
C657 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C658 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C659 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C660 ELECTROLYTIC CAP. 22µF/50V M CE1JMASDL220
C661 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C662 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C663 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C664 ELECTROLYTIC CAP 3300µF/6.3V M CE0KMZNDL332
C666 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C668 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C669 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C670 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C671 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C701 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C702 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C703 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C704 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C705 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471
C706 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C707 CHIP CERAMIC CAP. B K 470pF/50V CHD1JK30B471
C708 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C709 CHIP CERAMIC CAP.(1608) CH J 68pF/50V CHD1JJ3CH680
C712 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C713 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C714 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C801 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C802 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C803 ELECTROLYTIC CAP. 1000µF/25V M CE1EMZNDL102
C804 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C805 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C806 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2

100V J

100V J

100V J

CA2A473DT018

CA2A222DT018

CA2A222DT018

20080213 13-1 A8AF1EL

Ref. No. Description Part No.

C807 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C808 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C809 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C810 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C811 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C812 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C813 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C814 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C815 ELECTROLYTIC CAP. 2.2µF/50V M CE1JMASDL2R2
C816 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C817 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C818 CHIP CERAMIC CAP.(1608) B K 0.47µF/16V CHD1CK30B474
C819 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C820 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C821 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C824 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C825 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C826 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C827 CHIP CERAMIC CAP.(1608) B K 3300pF/50V CHD1JK30B332
C7001 ELECTROLYTIC CAP. 47µF/25V M CE1EMASDL470
C7002 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C7003 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C7004 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7005 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7006 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7007 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7008 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7009 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7010 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7012 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7013 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7101 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C7102 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C7109 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7110 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7111 ELECTROLYTIC CAP. 220µF/10V M CE1AMASDL221
C7201 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C7202 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
C7203 ELECTROLYTIC CAP. 10µF/16V M H7 CE1CMAVSL100
C7204 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C7301 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7302 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7303 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7304 ELECTROLYTIC CAP. 100µF/10V M CE1AMASDL101
C7305 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7306 CHIP CERAMIC CAP.(1608) F Z 0.1µF/25V CHD1EZ30F104
C7307 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7308 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7401 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7402 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7602 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7605 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7608 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7611 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7615 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7618 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7621 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7624 CHIP CERAMIC CAP. F Z 2.2µF/10V CHD1AZ30F225
C7701 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7702 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7705 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7706 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7709 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101

Ref. No. Description Part No.

C7710 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7714 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7715 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C7718 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7719 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7723 CHIP CERAMIC CAP.(1608) CH J 100pF/50V CHD1JJ3CH101
C7724 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C7729 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7730 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7733 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7734 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7738 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7739 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7743 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7744 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7747 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7748 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7751 CHIP CERAMIC CAP. CH J 39pF/50V CHD1JJ3CH390
C7752 CHIP CERAMIC CAP. F Z 0.47µF/16V CHD1CZ30F474
C7801 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101
C7802 ELECTROLYTIC CAP. 100µF/16V M CE1CMASDL101

CONNECTORS

CN102 242 SERIES CONNECTOR 224202106W1 J322C06TG001
CN301 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001
CN302 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001
CN303 TWG CONNECTOR 23P TWG-P23P-A1 J3TWA23TG001
CN501 242 SERIES CONNECTOR 224202104W1 J322C04TG001
CN601 WIRE ASSEMBLY 004 2PIN / 100MM / AWG18 WX1A8AF0-004
CN801 PH CONNECTOR TOP 2P B2B-PH-K-S

CN802 PH CONNECTOR TOP 2P B2B-PH-K-S

(LF)(SN)

(LF)(SN)

J3PHC02JG029

J3PHC02JG029

DIODES

D2 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D3 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D502 ZENER DIODE MTZJT-775.6A QDTA0MTZJ5R6
D503 DIODE FR104-B NDLZ000FR104
D504 ZENER DIODE MTZJT-7710B QDTB00MTZJ10
D505 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D506 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D507 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D508 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D509 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D510 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D511 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D513 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D514 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D602# ZENER DIODE MTZJT-7739B QDTB00MTZJ39
D603 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D604# ZENER DIODE MTZJT-7727B QDTB00MTZJ27
D606 ZENER DIODE MTZJT-774.3B QDTB0MTZJ4R3
D607 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D631 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D632 SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***
D633 DIODE FR154 NDLZ000FR154
D634 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D635 ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D636 DIODE FR154 NDLZ000FR154
D637 DIODE FR154 NDLZ000FR154
D638 SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009
D639 SCHOTTKY BARRIER DIODE ERC84-009 QDLZERC84009
D640 SCHOTTKY BARRIER DIODE SB340 NDQZ000SB340
D641 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20080213 13-2 A8AF1EL

Ref. No. Description Part No.

D642 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D644 DIODE 1ZC43(Q) QDLZ001ZC43Q
D645 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D646 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D647 SCHOTTKY BARRIER DIODE ERB81-004 AERB81004***
D648 IC SHUNT REGULATOR KIA431-AT/P NSZBA0TJY036
D649 ZENER DIODE MTZJT-7733B QDTB00MTZJ33
D650 ZENER DIODE MTZJT-776.2C QDTC0MTZJ6R2
D651 DIODE FR104-B NDLZ000FR104
D652 ZENER DIODE MTZJT-7724A QDTA00MTZJ24
D654 DIODE FR154 NDLZ000FR154
D655 ZENER DIODE MTZJT-776.8C QDTC0MTZJ6R8
D656 ZENER DIODE MTZJT-7716B QDTB00MTZJ16
D657 DIODE FR154 NDLZ000FR154
D658 ZENER DIODE MTZJT-775.6C QDTC0MTZJ5R6
D660 ZENER DIODE MTZJT-776.8B QDTB0MTZJ6R8
D667 SCHOTTKY BARRIER DIODE SB140 NDWZ000SB140
D668 PCB JUMPER D0.6-P5.0 JW5.0T
D669 SCHOTTKY BARRIER DIODE ERA81-004Q QDLZRA81004Q
D670 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D671 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D676 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D801 ZENER DIODE MTZJT-7710B QDTB00MTZJ10
D802 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D804 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D805 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D811 ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D812 ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D813 ZENER DIODE MTZJT-7720B QDTB00MTZJ20
D814 ZENER DIODE MTZJT-7720B QDTB00MTZJ20

ICS

IC603# PHOTO COUPLER LTV817MCF NPECLTV817MF
IC637 IC LD1117V NSZBA0SSS046
IC701 IC(AUDIO D/A) PCM1782DBQR NSZBA0TTY192
IC702 IC OP AMP NJM4558M(TE1)-#ZZZB QSZBA0TJR089
IC801 IC POWER AMP R2A15108SN QSZBA0THT074
IC7001 IC VIDEO ANALOG INTERFACE R2A11011FP

IC7301 IC SWITCHING TC4052BF(ELNF) QSZBA0TTS162

QFP 56PIN

QSZBA0RHT066

COILS

L1 CHOKE COIL 22µH-K LLBD00PKV021
L801 COIL RADIAL LHLP10NB220M 22µH LLF2200TU003
L802 COIL RADIAL LHLP10NB220M 22µH LLF2200TU003
L803 COIL RADIAL LHLP10NB220M 22µH LLF2200TU003
L804 COIL RADIAL LHLP10NB220M 22µH LLF2200TU003
L7802 PCB JUMPER D0.6-P5.0 JW5.0T
L7803 PCB JUMPER D0.6-P5.0 JW5.0T

TRANSISTORS

Q2 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q3 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q4 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q5 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q501 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q502 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q601# FET MOS 2SK3563(Q) QFWZ2SK3563Q
Q602# TRANSISTOR 2SC2120-O(TE2 F T) QQS02SC2120F
Q631 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q632 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q633 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q634 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q637 NPN TRANSISTOR POWER 2SC4881F HFE

MAX320

QQWZ2SC4881F

Ref. No. Description Part No.

Q638 NPN TRANSISTOR POWER 2SC4881F HFE

Q639 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q645 TRANSISTOR 2SD400(E) QQUE002SD400
Q646 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q650 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q671 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q801 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q7201 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q7301 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q7302 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

MAX320

QQWZ2SC4881F

RESISTORS

R1 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R2 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R5 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R6 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7 CHIP RES. 1/10W J 150k Ω RRXAJR5Z0154
R8 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R11 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R12 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R13 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R14 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224
R16 CHIP RES. 1/10W J 750 Ω RRXAJR5Z0751
R17 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R18 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R19 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561
R20 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R21 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R22 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152
R24 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R25 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R26 CHIP RES. 1/10W J 82 Ω RRXAJR5Z0820
R301 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R302 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R303 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R501 PCB JUMPER D0.6-P5.0 JW5.0T
R502 CHIP RES. 1/10W F 7.50 k Ω RRXAFR5H7501
R504 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R505 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R506 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R507 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R509 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R510 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R512 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R514 PCB JUMPER D0.6-P5.0 JW5.0T
R516 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R517 PCB JUMPER D0.6-P5.0 JW5.0T
R519 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R521 PCB JUMPER D0.6-P5.0 JW5.0T
R523 CHIP RES. 1/10W J 51k Ω RRXAJR5Z0513
R524 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R526 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R527 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R601# METAL RES. 2W J 0.39 Ω RN02JZPZ0R39
R603 PCB JUMPER D0.6-P5.0 JW5.0T
R604 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R605 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R606 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R607 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R609 CARBON RES. 1/4W J 5.6k Ω RCX4JATZ0562
R610 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R611 CARBON RES. 1/4W J 820 Ω RCX4JATZ0821
R612 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181

20080213 13-3 A8AF1EL

Ref. No. Description Part No.

R613 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R620 METAL OXIDE FILM RES. 1W J 1 Ω RN011R0DP003
R622 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R631 METAL OXIDE FILM RES. 1W J 3.3 Ω RN013R3DP003
R632 CHIP RES. 1/10W F 4.7k Ω RRXAFR5H4701
R633 PCB JUMPER D0.6-P5.0 JW5.0T
R634 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R635 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R636 CHIP RES. 1/10W F 4.7k Ω RRXAFR5H4701
R637 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R638 CHIP RES. 1/10W J 1.5k Ω RRXAJR5Z0152
R639 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R640 CHIP RES. 1/10W F 2.2k Ω RRXAFR5H2201
R641 CARBON RES. 1/4W J 1.2k Ω RCX4JATZ0122
R642 CARBON RES. 1/4W J 2.7k Ω RCX4JATZ0272
R643 PCB JUMPER D0.6-P15.0 JW15.0T
R644 PCB JUMPER D0.6-P5.0 JW5.0T
R645 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R646 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R647 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R648 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R649 METAL OXIDE FILM RES. 1W 470 Ω RN01471DP003
R651 CARBON RES. 1/4W J 3.3k Ω RCX4JATZ0332
R652 CARBON RES. 1/4W J 27k Ω RCX4JATZ0273
R653 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R654 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R655 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001
R656 CARBON RES. 1/4W J 68 Ω RCX4JATZ0680
R658 CHIP RES. 1/10W F 620 Ω RRXAFR5H6200
R660 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R662 CARBON RES. 1/4W J 4.7k Ω RCX4JATZ0472
R663 METAL OXIDE FILM RES. 1W J 0.27 Ω RN01R27DP003
R664 CHIP RES. 1/10W F 10k Ω RRXAFR5H1002
R666 CARBON RES. 1/4W J 270 Ω RCX4JATZ0271
R667 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R668 CHIP RES. 1/10W F 3.3k Ω RRXAFR5H3301
R670 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R671 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R672 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R673 CARBON RES. 1/4W J 1.8k Ω RCX4JATZ0182
R674 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R675 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R676 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R677 CARBON RES. 1/4W J 22k Ω RCX4JATZ0223
R684 CHIP RES. 1/10W J 56k Ω RRXAJR5Z0563
R685 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R687 CARBON RES. 1/4W J 12k Ω RCX4JATZ0123
R688 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R689 CARBON RES. 1/4W J 8.2k Ω RCX4JATZ0822
R692 CARBON RES. 1/4W J 10k Ω RCX4JATZ0103
R694 PCB JUMPER D0.6-P15.0 JW15.0T
R695 PCB JUMPER D0.6-P15.0 JW15.0T
R701 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R702 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R703 CHIP RES. 1/10W J 6.8k Ω RRXAJR5Z0682
R704 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R705 CHIP RES. 1/10W J 30k Ω RRXAJR5Z0303
R706 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R710 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R713 CHIP RES. 1/10W J 30k Ω RRXAJR5Z0303
R714 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R717 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R718 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103

Ref. No. Description Part No.

R719 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R720 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R802 CHIP RES. 1/10W J 4.7k Ω RRXAJR5Z0472
R803 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R804 CARBON RES. 1/4W J 470 Ω RCX4JATZ0471
R805 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R806 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R807 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561
R808 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R809 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R811 CHIP RES. 1/10W J 560 Ω RRXAJR5Z0561
R813 CHIP RES. 1/10W J 39k Ω RRXAJR5Z0393
R814 CHIP RES. 1/10W J 18k Ω RRXAJR5Z0183
R819 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R821 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R7101 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7102 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7103 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7104 CARBON RES. 1/4W J 75 Ω RCX4JATZ0750
R7105 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R7106 CHIP RES.(1608) 1/10W 0 Ω RRXAZR5Z0000
R7111 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7112 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7201 CHIP RES. 1/10W J 47 Ω RRXAJR5Z0470
R7202 CHIP RES. 1/10W J 24 Ω RRXAJR5Z0240
R7204 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7207 CHIP RES. 1/10W J 56 Ω RRXAJR5Z0560
R7301 CARBON RES. 1/4W J 10 Ω RCX4JATZ0100
R7302 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R7303 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R7304 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7305 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7306 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R7307 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R7316 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R7317 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R7318 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R7319 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R7402 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R7403 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7405 CHIP RES. 1/10W J 12k Ω RRXAJR5Z0123
R7406 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7601 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7602 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7604 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7605 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7607 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7608 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7610 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7611 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7613 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7614 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7616 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7617 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7619 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7620 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7622 CHIP RES. 1/10W J 33k Ω RRXAJR5Z0333
R7623 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R7701 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7702 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7708 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7709 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7715 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750

20080213 13-4 A8AF1EL

Ref. No. Description Part No.

R7716 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7723 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7724 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7730 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7731 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7738 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7739 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7747 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7748 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7755 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7756 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7763 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7764 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7771 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7772 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7779 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7780 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R7787 CHIP RES. 1/10W J 75 Ω RRXAJR5Z0750
R7788 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101

MISCELLANEOUS

B16 POW HEAT SINK A7120UH 1EM423993
B17 MODULE HEAT SINK PMC P7150UT 1EM423968
BC1 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC2 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC3 PCB JUMPER D0.6-P5.0 JW5.0T
BC4 CHIP INDUCTOR BK1608HS601-T LLC601NTU017
BC601 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC701 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC702 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC801 PCB JUMPER D0.6-P5.0 JW5.0T
BC802 PCB JUMPER D0.6-P5.0 JW5.0T
BC803 PCB JUMPER D0.6-P5.0 JW5.0T
BC804 PCB JUMPER D0.6-P5.0 JW5.0T
BC7206 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
JK7701 Y/C JACK YKF51-5646N JYEJ040JC001
JK7702 JACK SW RCA PCB S RCA-347HDT-02 JYRJ030YUQ01
JK7703 Y/C JACK YKF51-5646N JYEJ040JC001
JK7704 JACK SW RCA PCB S RCA-347HDT-02 JYRJ030YUQ01
JK7705 JACK RCA PCB S RCA-228H(NI)-01 JXRJ020YUQ07
JK7711 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01
JK7712 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02
JK7713 JACK RCA PCB S 03 RCA-347HT-03 JXRJ030YUQ01
JK7714 JACK SW RCA PCB S RCA-228H(2)NI-01 JYRJ020YUQ02
JK7715 JACK RCA PCB S ORANGE 01/RCA-101H(OR) JXRJ010YUQ06
JS641 PCB JUMPER D0.6-P15.0 JW15.0T
JS651 PCB JUMPER D0.6-P5.0 JW5.0T
JS652 PCB JUMPER D0.6-P5.0 JW5.0T
L7 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080
T601# TRANS POWER 8709 LTT2PC0KT032
TU1 TUNER UNIT UA023AF UTUNATSSP006

FUNCTION CBA

Ref. No. Description Part No.

FUNCTION CBA(MPS-3)
Consists of the following:

CAPACITORS

C109 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104
C110 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

DIODE

D108 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6

RESISTORS

R120 CARBON RES. 1/4W G 6.8k Ω RCX4GATZ0682

----------

Ref. No. Description Part No.

R121 CARBON RES. 1/4W G 4.7k Ω RCX4GATZ0472
R122 CARBON RES. 1/4W G 2.7k Ω RCX4GATZ0272
R123 CARBON RES. 1/4W G 2.2k Ω RCX4GATZ0222
R124 CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152
R125 CARBON RES. 1/4W J 220 Ω RCX4JATZ0221
R126 CARBON RES. 1/4W G 1.5k Ω RCX4GATZ0152

SWITCHES

SW108 TACT SWITCH SKQSAB SST0101AL038
SW109 TACT SWITCH SKQSAB SST0101AL038
SW110 TACT SWITCH SKQSAB SST0101AL038
SW111 TACT SWITCH SKQSAB SST0101AL038
SW112 TACT SWITCH SKQSAB SST0101AL038
SW113 TACT SWITCH SKQSAB SST0101AL038
SW114 TACT SWITCH SKQSAB SST0101AL038

IR SENSOR CBA

Ref. No. Description Part No.

IR SENSOR CBA(MPS-4)
Consists of the following:

----------

CAPACITORS

C101 ELECTROLYTIC CAP. 47µF/16V M H7 CE1CMAVSL470
C107 CHIP CERAMIC CAP.(1608) F Z 0.1µF/50V CHD1JZ30F104

DIODES

D101 LED L-53HT NP4Z000L53HT
D102 LED 333GT/E NPHZ00333GTE

RESISTORS

R101 CARBON RES. 1/4W J 100 Ω RCX4JATZ0101
R102 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R103 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R104 CHIP RES. 1/10W J 220 Ω RRXAJR5Z0221
R105 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102

MISCELLANEOUS

CL101 WIRE ASSEMBLY 002 6PIN / 350MM / AWG26 WX1A8AF0-002
CL102 WIRE ASSEMBLY 003 3PIN / 140MM / AWG26 WX1A8AF0-003
RCV101 PHOTO LINK MODULE KSM-712TH2E USESJRSKK044

JUNCTION-A CBA

Ref. No. Description Part No.

JUNCTION-A CBA(MPS-5)
Consists of the following:

----------

CONNECTOR

CN101 242 SERIES CONNECTOR TUC-P06X-B1 WHT STJCTUB06TG002

MUT CBA

Ref. No. Description Part No.

MUT CBA
Consists of the following

INVERTER CBA
JUNCTION-B CBA

INVERTER CBA

Ref. No. Description Part No.

INVERTER CBA
Consists of the following:

CAPACITORS

C1000 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1001 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1002 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1003 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102

1FSA10452

----------

----------

----------

20080213 13-5 A8AF1EL

Ref. No. Description Part No.

C1004 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1005 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1006 CHIP CERAMIC CAP.(1608) B K 0.047µF/50V CHD1JK30B473
C1007 CHIP CERAMIC CAP. CH J 330pF/50V CHD1JJ3CH331
C1008 CHIP CERAMIC CAP.(1608) B K 2.2µF/10V CHD1AK30B225
C1009 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1010 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1011 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C1012 CHIP CERAMIC CAP.(1608) B K 0.47µF/10V CHD1AK30B474
C1014 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1015 ELECTROLYTIC CAP. 470µF/35V M CE1GMZNDL471
C1016 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1017 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1018 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1019 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1020 CHIP CERAMIC CAP.(1608) B K 0.1µF/50V CHD1JK30B104
C1021 CHIP CERAMIC CAP. F Z 1µF/10V CHD1AZ30F105
C1022 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1023 CHIP CERAMIC CAP.(1608) CH J 1000pF/50V CHD1JJ3CH102
C1032 ELECTROLYTIC CAP. 47µF/35V M CE1GMASDL470
C1040 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1044 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1046 CHIP CERAMIC CAP.(1608) B K 1µF/25V CHD1EK30B105
C1061 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1062 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1063 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1064 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1065 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1066 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1067 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1101 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1103 CHIP CERAMIC CAP.(1608) B K 1000pF/50V CHD1JK30B102
C1104 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1105 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1106 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1107 CHIP CERAMIC CAP. CH J 220pF/50V CHD1JJ3CH221
C1111 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1112 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1113 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1114 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1115 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1116 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1117 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1161 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1162 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1163 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1164 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1165 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1166 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1167 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1211 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1212 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1213 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1214 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1215 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1216 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1217 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1261 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1262 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1263 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222
C1264 CAP CERAMIC HV 15pF/3.15KV/SL/J CCD3FJASL150
C1265 CHIP CERAMIC CAP. B K 1500pF/50V CHD1JK30B152
C1266 CHIP CERAMIC CAP. B K 2200pF/50V CHD1JK30B222

Ref. No. Description Part No.

C1267 CHIP CERAMIC CAP.(1608) B K 0.01µF/50V CHD1JK30B103
C1500 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1502 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1550 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1552 CHIP CERAMIC CAP.(1608) F Z 0.22µF/50V CHD1JZ30F224
C1701 ELECTROLYTIC CAP. 10µF/50V M CE1JMASDL100
C1901# METALIZED FILM CAP. 0.47µF/250V CT2E474MS037
C1902# METALIZED FILM CAP. 0.47µF/250V CT2E474MS037
C1910 CAP ELE LS 470µF/200V/M/85 CA2D471V8006
C1930 CERAMIC CAP. BN 1000pF/2KV CCD3DKA0B102
C1931 POLYESTER FILM CAP. (PB FREE) 0.001µF/

C1932 POLYESTER FILM CAP. (PB FREE) 0.027µF/

C1933 POLYESTER FILM CAP. (PB FREE) 0.1µF/100V JCA2A104DT018

C1941 CERAMIC CAP. B K 0.01µF/1KV CCD3AKP0B103
C1970 POLYESTER FILM CAP. (PB FREE) 0.0022µF/

C1980 CHIP CERAMIC CAP. F Z 0.01µF/50V CHD1JZ30F103
C1981 ELECTROLYTIC CAP. 0.47µF/50V M CE1JMASDLR47
C1990 CERAMIC CAP. B K 3300pF/500V CCD2JKS0B332
C1991# CAP ELE STD-85 4700µF/35V SL CE1GMZNDL472

100V J

100V J

100V J

CA2A102DT018

CA2A273DT018

CA2A222DT018

CONNECTORS

CN1050 CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001
CN1100 CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001
CN1150 CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001
CN1200 CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001
CN1250 CONNECTOR PRINT OSU KW05-120-02-00 J30502KET001
CN1901 CONNECTOR B2P3-VH(LF)(SN) J3VH020JG001

DIODES

D1000 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1001 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1002 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1003 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1004 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1005 ZENER DIODE MTZJT-776.2B QDTB0MTZJ6R2
D1006 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1008 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D1021 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1042 ZENER DIODE MTZJT-7724B QDTB00MTZJ24
D1043 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1045 ZENER DIODE MTZJT-7724B QDTB00MTZJ24
D1046 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1060 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1061 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1062 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1063 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1064 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1065 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1066 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1067 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1068 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1110 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1111 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1112 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1113 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1114 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1115 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1116 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1117 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1118 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1160 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1161 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133

20080213 13-6 A8AF1EL

Ref. No. Description Part No.

D1162 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1163 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1164 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1165 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1166 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1167 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1168 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1210 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1211 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1212 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1213 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1214 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1215 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1216 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1217 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1218 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1260 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1261 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1262 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1263 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1264 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1265 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1266 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1267 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1268 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1501 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1502 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1503 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1550 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1551 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1552 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1553 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1702 ZENER DIODE MTZJT-773.3B QDTB0MTZJ3R3
D1901# DIODE 1N5406 NDLZ001N5406
D1902# DIODE 1N5406 NDLZ001N5406
D1903# DIODE 1N5406 NDLZ001N5406
D1904# DIODE 1N5406 NDLZ001N5406
D1930 ZENER DIODE MTZJT-7727B QDTB00MTZJ27
D1931 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D1932 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1933 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1934 DIODE 1ZC36(Q) QDLZ001ZC36Q
D1940 DIODE FAST RECOVERY FR157 NDLZ000FR157
D1970 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D1971 ZENER DIODE MTZJT-775.6B QDTB0MTZJ5R6
D1980 ZENER DIODE MTZJT-7736B QDTB00MTZJ36
D1981 PCB JUMPER D0.6-P5.0 JW5.0T
D1982 SWITCHING DIODE 1SS133(T-77) QDTZ001SS133
D1990# DIODE SCHOTTKY FD867-15L QDWZFD86715L
D1991# DIODE SCHOTTKY FD867-15L QDWZFD86715L
D1992# DIODE SCHOTTKY FD867-15L QDWZFD86715L
D1994 DIODE 1ZC36(Q) QDLZ001ZC36Q

ICS

IC1001 IC INVERTER CONTROLLER OZ9966SN-B1-0-

IC1500 IC BA10324AF-E2 QSZBA0TRM032
IC1550 IC BA10324AF-E2 QSZBA0TRM032
IC1930# PHOTO COUPLER LTV817MCF NPECLTV817MF
IC1931# PHOTO COUPLER LTV817MCF NPECLTV817MF

TR/SSO

NSZBA0TTMC06

COILS

L1901# FILTER LLBG00ZY2015 LLBG00ZY2015
L1902# FILTER LLBG00ZY2015 LLBG00ZY2015

TRANSISTORS

Ref. No. Description Part No.

Q1002 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1020 TRANSISTOR KTA1267-GR-AT/P NQS1KTA1267P
Q1100 FET POWER MOS SMD NP22N055SLE-E1-AZ QF2ZNP22N055
Q1101 FET POWER MOS SMD NP22N055SLE-E1-AZ QF2ZNP22N055
Q1102 FET POWER MOS SMD NP22N055SLE-E1-AZ QF2ZNP22N055
Q1103 FET POWER MOS SMD NP22N055SLE-E1-AZ QF2ZNP22N055
Q1930# FET MOS 2SK3561(Q) IDSS100UA QFWZ2SK3561Q
Q1931 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1932 TRANSISTOR 2SC2120-Y(TE2 F T) QQSY2SC2120F
Q1970 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1971 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P
Q1972 TRANSISTOR KTC3199-GR-AT/P NQS4KTC3199P

RESISTORS

R1000 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1001 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1002 CARBON RES. 1/4W J 5.1k Ω RCX4JATZ0512
R1003 CHIP RES. 1/10W J 220k Ω RRXAJR5Z0224
R1005 CHIP RES. 1/10W F 160 k Ω RRXAFR5H1603
R1006 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1007 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1008 CHIP RES. 1/10W J 51k Ω RRXAJR5Z0513
R1009 CHIP RES. 1/10W F 1M Ω RRXAFR5H1004
R1010 CHIP RES. 1/10W F 120 k Ω RRXAFR5H1203
R1011 CHIP RES. 1/10W F 130k Ω RRXAFR5H1303
R1012 CHIP RES. 1/10W J 68k Ω RRXAJR5Z0683
R1013 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1014 CARBON RES. 1/4W J 51k Ω RCX4JATZ0513
R1015 CHIP RES.(1608) 1/10W F 5.1k Ω RRXAFR5H0512
R1020 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1041 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1045 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1046 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R1047 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1048 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1050 CHIP RES. 1/10W J 47k Ω RRXAJR5Z0473
R1051 CARBON RES. 1/4W J 6.8k Ω RCX4JATZ0682
R1052 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1053 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1060 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1061 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1062 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1063 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1064 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1065 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1066 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1067 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1068 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1069 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1070 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1071 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1100 CHIP RES. 1/10W J 33 Ω RRXAJR5Z0330
R1101 CHIP RES. 1/10W J 33 Ω RRXAJR5Z0330
R1102 CHIP RES. 1/10W J 33 Ω RRXAJR5Z0330
R1103 CHIP RES. 1/10W J 33 Ω RRXAJR5Z0330
R1110 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1111 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1112 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1113 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1114 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1115 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1116 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1117 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512

20080213 13-7 A8AF1EL

Ref. No. Description Part No.

R1118 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1119 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1120 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1121 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1160 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1161 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1162 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1163 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1164 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1165 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1166 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1167 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1168 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1169 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1170 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1171 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1210 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1211 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1212 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1213 CHIP RES. 1/10W J 5.1k Ω RRXAJR5Z0512
R1214 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1215 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1216 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1217 CARBON RES. 1/4W J 5.1k Ω RCX4JATZ0512
R1218 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1219 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1220 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1221 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1260 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1261 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1262 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1263 CARBON RES. 1/4W J 5.1k Ω RCX4JATZ0512
R1264 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1265 CHIP RES. 1/10W J 20k Ω RRXAJR5Z0203
R1266 CHIP RES. 1/10W F 750 Ω RRXAFR5H7500
R1267 CARBON RES. 1/4W J 5.1k Ω RCX4JATZ0512
R1268 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1269 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1270 CHIP RES. 1/10W J 1M Ω RRXAJR5Z0105
R1271 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1500 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702
R1501 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001
R1504 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1506 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1507 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1508 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1509 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1510 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1511 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1550 CHIP RES. 1/10W F 47.0 k Ω RRXAFR5H4702
R1551 CHIP RES. 1/10W F 1.0k Ω RRXAFR5H1001
R1554 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1555 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1556 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1557 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1558 CARBON RES. 1/4W J 100k Ω RCX4JATZ0104
R1559 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1560 CHIP RES. 1/10W J 100k Ω RRXAJR5Z0104
R1561 CHIP RES. 1/10W J 10k Ω RRXAJR5Z0103
R1703 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222
R1901# RES CARBON 1/2W J 1M Ω RCX2105DP006
R1902# CEMENT RESISTOR 5W K 2.2 Ω RW052R2PAK11
R1904# CEMENT RESISTOR 5W K 2.2 Ω RW052R2PAK11

Ref. No. Description Part No.

R1930 CARBON RES. 1/4W J 47 Ω RCX4JATZ0470
R1931 CARBON RES. 1/4W J 47k Ω RCX4JATZ0473
R1932 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1933 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1934 CARBON RES. 1/4W J 1.5k Ω RCX4JATZ0152
R1936 CARBON RES. 1/4W J 180 Ω RCX4JATZ0181
R1937 METAL OXIDE FILM RES. 2W J 0.27 Ω RN02R27ZU001
R1939 CARBON RES. 1/4W J 2.2k Ω RCX4JATZ0222
R1940 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1941 CARBON RES. 1/4W J 470k Ω RCX4JATZ0474
R1942 CARBON RES. 1/4W J 180k Ω RCX4JATZ0184
R1943 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R1944 CARBON RES. 1/4W J 820k Ω RCX4JATZ0824
R1945 CARBON RES. 1/4W J 390k Ω RCX4JATZ0394
R1946 METAL OXIDE FILM RES. 2W J 47k Ω RN02473ZU001
R1947 METAL OXIDE FILM RES. 2W J 47k Ω RN02473ZU001
R1948 METAL OXIDE FILM RES. 2W J 47k Ω RN02473ZU001
R1949 CARBON RES. 1/4W J 120 Ω RCX4JATZ0121
R1970 CARBON RES. 1/4W J 150 Ω RCX4JATZ0151
R1971 CARBON RES. 1/4W J 3.9k Ω RCX4JATZ0392
R1973 CARBON RES. 1/4W G 150 Ω RCX4GATZ0151
R1974 CHIP RES. 1/10W F 5.6k Ω RRXAFR5H5601
R1975 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1976 CHIP RES. 1/10W F 6.8k Ω RRXAFR5H6801
R1977 CHIP RES. 1/10W F 8.2k Ω RRXAFR5H8201
R1980 CHIP RES. 1/10W J 100 Ω RRXAJR5Z0101
R1981 CHIP RES. 1/10W J 1k Ω RRXAJR5Z0102
R1983 CARBON RES. 1/4W J 1k Ω RCX4JATZ0102
R1984 PCB JUMPER D0.6-P5.0 JW5.0T
R1985 CHIP RES. 1/10W J 22k Ω RRXAJR5Z0223
R1986 CHIP RES. 1/10W J 3.3k Ω RRXAJR5Z0332
R1987 CHIP RES. 1/10W J 2.2k Ω RRXAJR5Z0222

MISCELLANEOUS

AC1901# AC CORD LP-11W&PT218P-K90A&S WAC0172LW020
B18 HEAT SINK PMP ASSEMBLY A8AF0UH 1EM425500
BC1001 PCB JUMPER D0.6-P5.0 JW5.0T
BC1931 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
BC1932 BEADS INDUCTOR FBR07HA121SB-00 LLBF00STU030
CL1000 WIRE ASSEMBLY 4PIN / 90MM / AWG26 WX1A8AF0-001
F1901# FUSE STC4A125V U/CT PAGE20CW3402
FH1901 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
FH1902 FUSE HOLDER MSF-015 LF (B110) XH01Z00LY002
L7 SCREW B-TIGHT D3X8 BIND HEAD+ GBJB3080
SA1901# SURGE ABSORBER 470V+-10PER NVQZ10D471KB
T1050 TRANS INVERTER HVT-133 LTZ3PC0XB004
T1100 TRANS INVERTER HVT-133 LTZ3PC0XB004
T1150 TRANS INVERTER HVT-133 LTZ3PC0XB004
T1200 TRANS INVERTER HVT-133 LTZ3PC0XB004
T1250 TRANS INVERTER HVT-133 LTZ3PC0XB004
TM1901 EYELET TYPE D-1 0VM406868
TM1902 EYELET TYPE D-1 0VM406868
T1951# TRANS POWER 8708 LTT3PC0KT041

JUNCTION-B CBA

Ref. No. Description Part No.

JUNCTION-B CBA
Consists of the following:

CONNECTOR

CN1000 242 SERIES CONNECTOR TUC-P04X-B1 WHT STJCTUB04TG002

----------

20080213 13-8 A8AF1EL

© 2008 Funai Electric Co., Ltd.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed,
downloaded or stored in any storage medium, in any form or for any purpose without the express prior written
consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto
is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content
herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way
without the express written consent of Funai. All other trademarks used herein remain the exclusive property of
their respective owners. Nothing contained in this manual should be construed as granting, by implication or
otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any
other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights
to the fullest extent of the law.

LC320EM9

A8AF1UH

2008-02-21
