Owner’s Manual

Please read before using this unit.

DVD/CD Player with Video Cassette Recorder

CSV205DT

Supplied Accessory

• Remote control

• RF cable

(NB183UD)

(WPZ0901TM002)

with two AA batteries



If you need additional operating assistance after reading this owner’s manual, please call

TOLL FREE : 1-800-518-1180

or visit our web site at http://www.funai-corp.com

Table of Contents

Precautions

Laser Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Avoid the Hazards of Electrical Shock and Fire . . . . . . . . . . . . . . 4

Moisture Condensation Warning . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

About the Video Cassettes and Discs . . . . . . . . . . . . . . . . . . . 5

Playable Video Cassettes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unplayable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Setup

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

RF Output Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Hint for Cable Box or Satellite Box . . . . . . . . . . . . . . . . . . . . . . . 6 Connection to an Audio System . . . . . . . . . . . . . . . . . . . . . . . . . 6 Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Front & Rear Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Preparation for Use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Turn On the Unit for the First Time . . . . . . . . . . . . . . . . . . . . . . . 8 To Add/Delete Channels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Function Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Front Panel Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 VCR/DVD Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the Batteries for the Remote Control . . . . . . . . . . . . . 10

VCR Functions

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Other Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Time Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Auto Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Audio/Video cables (WPZ0102TM015 or WPZ0102LTE01)

Owner’s Manual (1VMN21146)

Owner's Manual

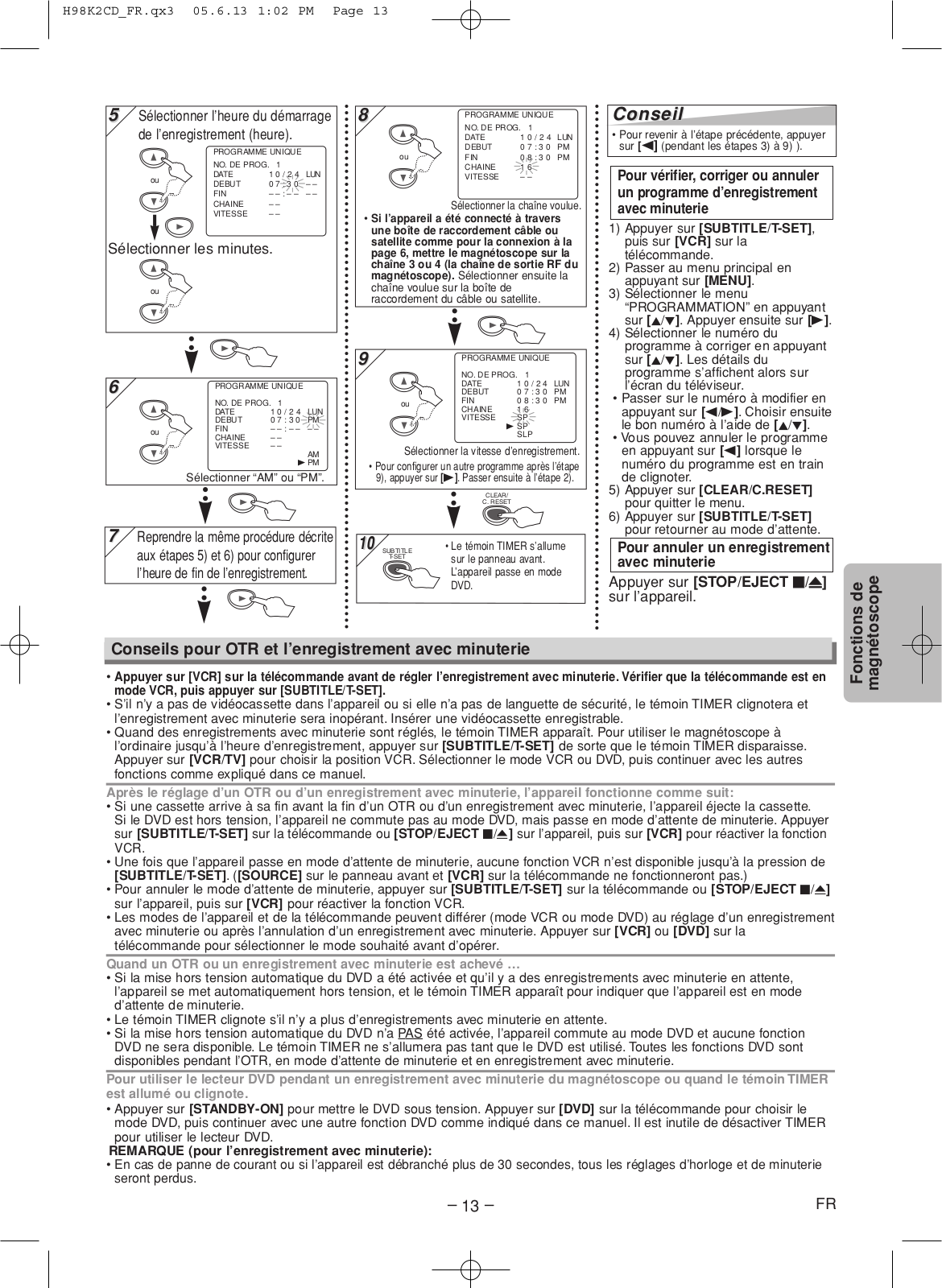

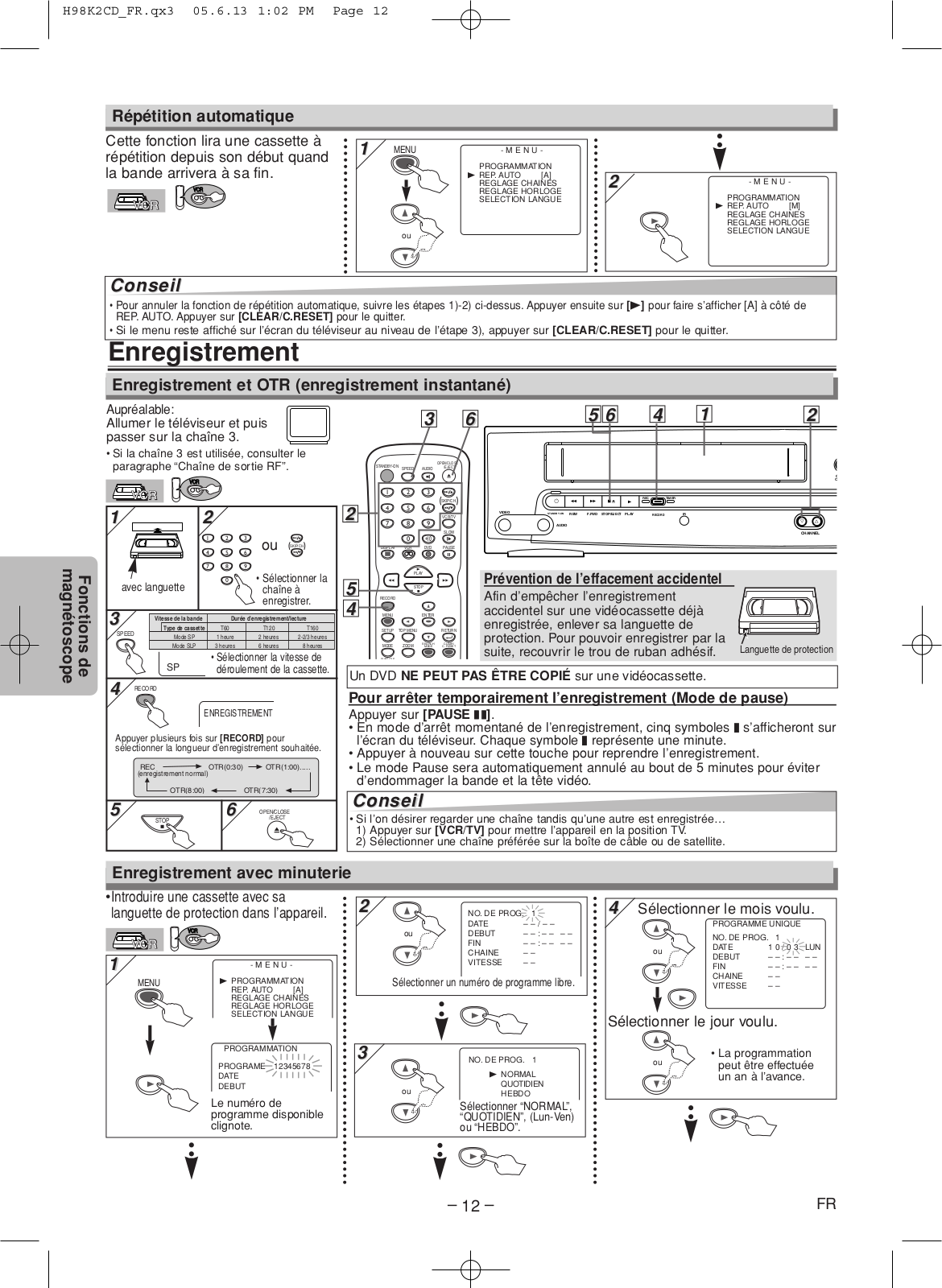

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Recording & OTR (One Touch Recording) . . . . . . . . . . . . . . . . 12 Timer Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Hints for OTR and Timer Recording . . . . . . . . . . . . . . . . . . . . . 13 Copying a Video Tape. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DVD Functions

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Search Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Track Search / Title/Chapter Search / Time Search . . . . . . . . . 17

Marker Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Repeat / Random / Programmed Playback . . . . . . . . . . . . . . 18

Repeat Playback / Repeat A-B Playback /

Random Playback / Programmed Playback. . . . . . . . . . . . . . . . 18

Special Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Subtitle Language / Audio Language / Camera Angle /

Black Level Setting / Stereo Sound Mode / Virtual Surround . . . . . . . 19

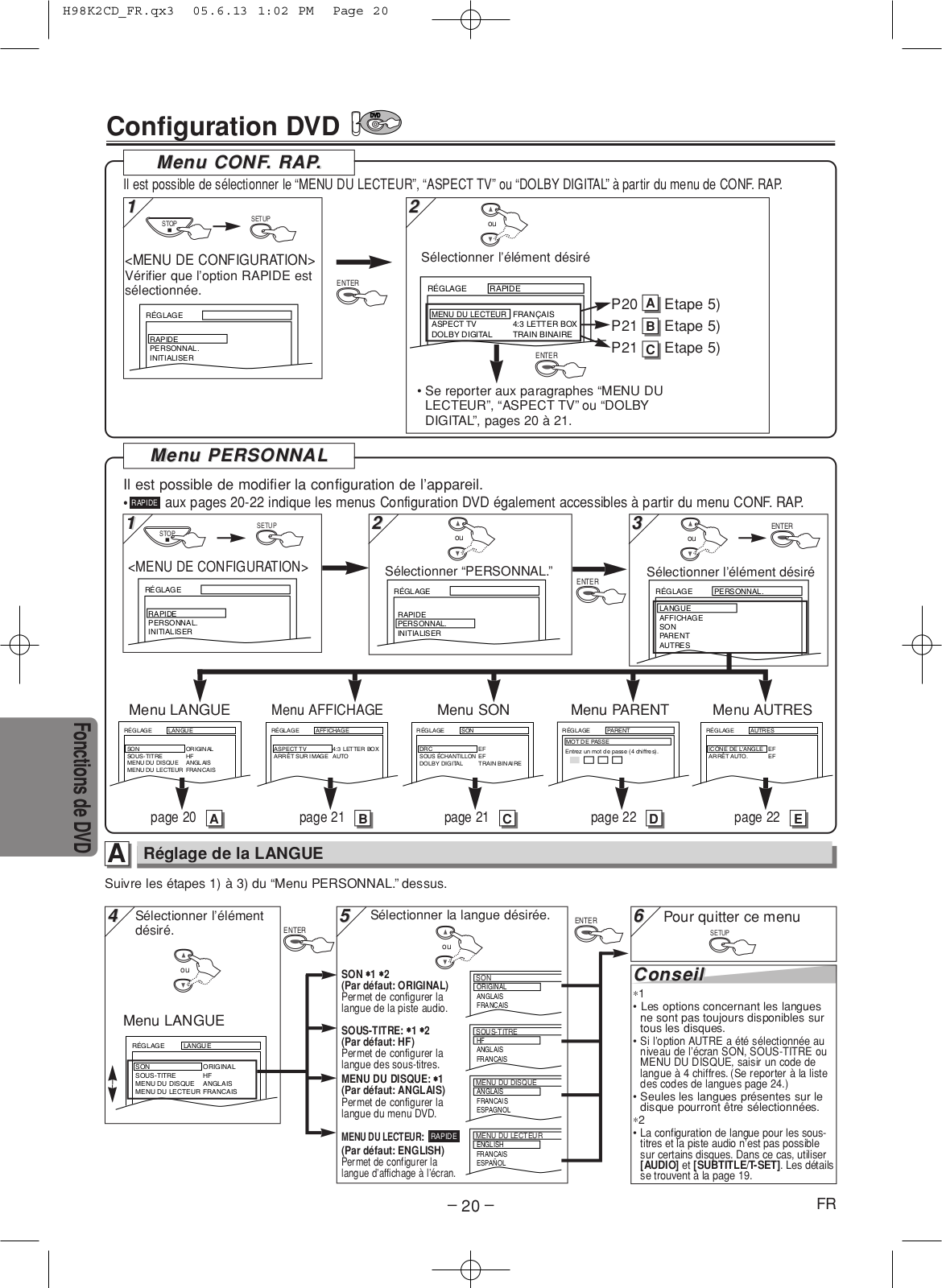

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

LANGUAGE Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Reset to the Default Setting (Except for PARENTAL Setting) . . . 23

Information

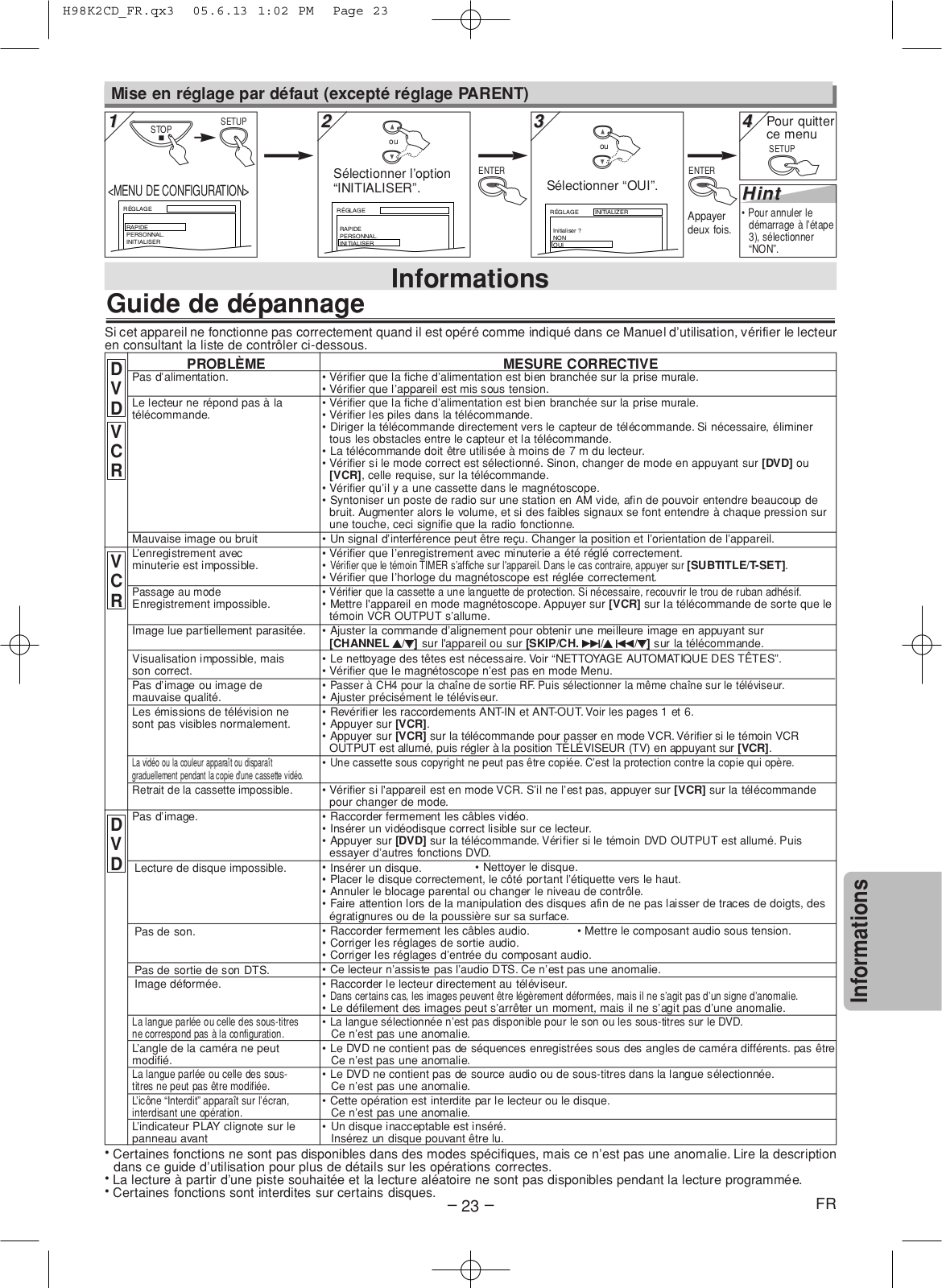

Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Language List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

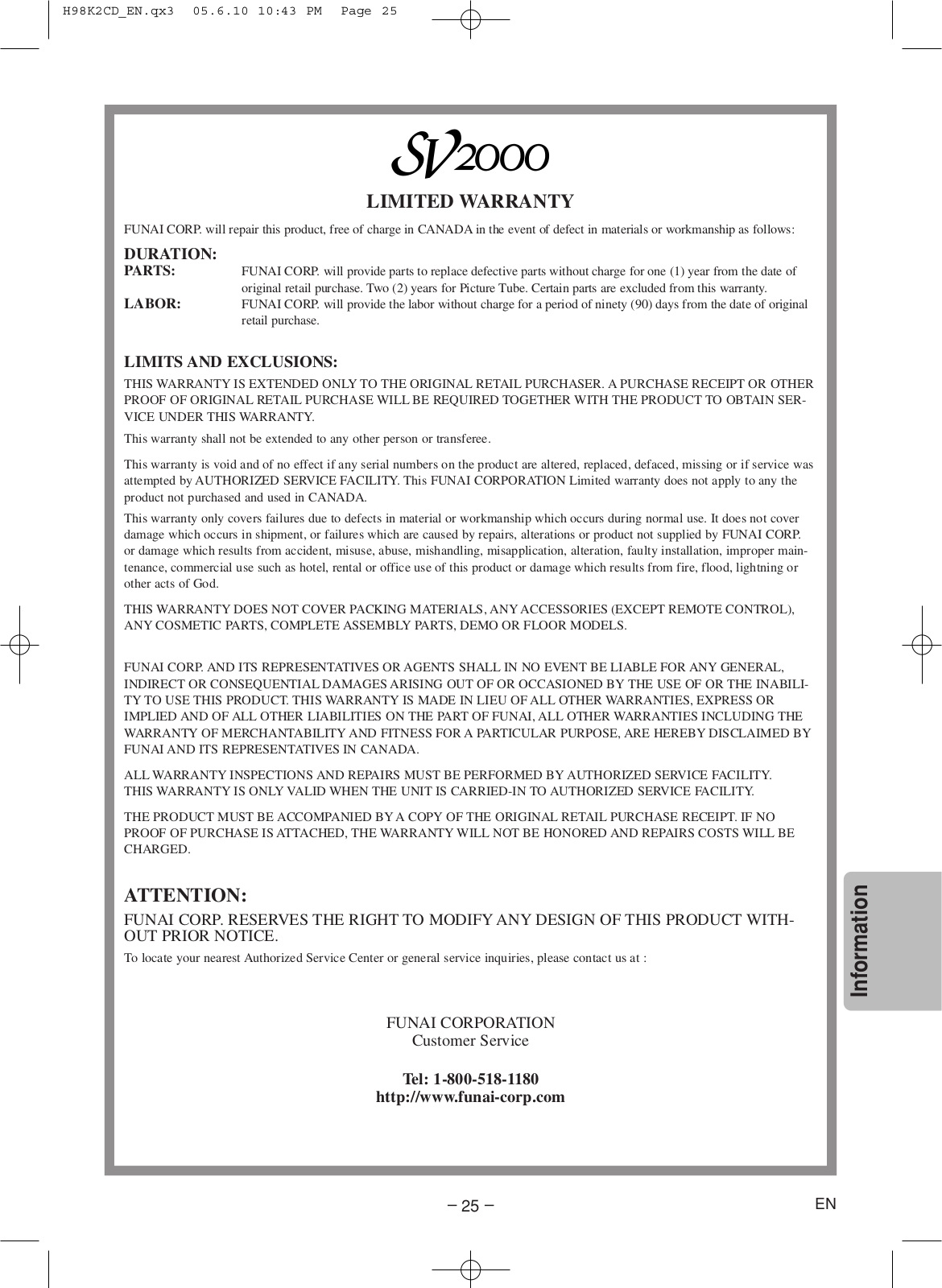

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Quick Use Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Basic TV Connection













Cable TV

Antenna

Cable TV

Antenna

(Back of DVD/VCR)





signal

or

signal

or



(Back of TV)



4







AC



(Back of TV)













2





outlets







ANT-IN

3



Plug in

Disconnect



Connect

ANT-OUT



From DVD/VCR

Connect

From TV

RF cable (supplied)

5 Please refer to “Connections” on page 6.

Precautions

Information DVD Functions VCR Functions Setup

Precautions

Precautions

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Laser Safety

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK DEFEATED. DO NOT STARE INTO BEAM.

LOCATION: INSIDE, NEAR THE DECK MECHANISM.

FCC WARNING- This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1)Reorient or relocate the receiving antenna.

2)Increase the separation between the equipment and receiver.

3)Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4)Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

A NOTE ABOUT RECYCLING

This product’s packaging materials are recyclable and can be reused. Please dispose of any materials in accordance with your local recycling regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Make your contribution to the environment!!!

Used up batteries do not belong in the dust bin.

You can dispose of them at a collection point for used up batteries or special waste. Contact your council for details.

For Customer Use:

Read carefully the information located at the back of this unit and enter below the Serial No. Retain this information for future reference.

Model No. _____________________

Serial No. _____________________

– 2 –

EN

IMPORTANT SAFEGUARDS

1.Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2.Retain InstructionsThe safety and operating instructions should be retained for future reference.

3.Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4.Follow Instructions - All operating and use instructions should be followed.

5.Cleaning - Unplug this video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6.Attachments - Do not use attachments not recommended by the video product manufacturer as they may cause hazards.

7.Water and MoistureDo not use this video product near water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8.Accessories - Do not place this video product on an unstable cart, stand, tripod, bracket, or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufactur-

er, or sold with the video product. Any mounting of the appliance should follow the manufactur-

er's instructions and should use a mounting accessory recommended by

the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

9.Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug, or other similar surface. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10.Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

11.Grounding or Polarization - This video product is equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12.Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with regard to

proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-dis- charge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

FIGURE A



EXAMPLE OF ANTENNA GROUNDING

ANTENNA

LEAD

AS PER NATIONAL ELECTRICAL CODE

WIRE

GROUND



CLAMP





ANTENNA



DISCHARGE UNIT



(NEC SECTION 810-20)

ELECTRIC



SERVICE



EQUIPMENT

GROUNDING CONDUCTORS



(NEC SECTION 810-21)



GROUND CLAMP

NEC – NATIONAL ELECTRICAL CODE

POWER SERVICE GROUNDING

S2898A

ELECTRODE SYSTEM



(NEC ART 250, PART H)

14.Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power-line surges.

15.Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.Overloading - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.Object and Liquid Entry - Never push objects of any kind into this video product through any openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

18.Servicing - Do not attempt to service this video product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.Damage Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a.When the power-supply cord or plug is damaged.

b.If liquid has been spilled, or objects have fallen into the video product.

c.If the video product has been exposed to rain or water.

d.If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

e.If the video product has been dropped or damaged in any way.

f.When the video product exhibits a distinct change in performance this indicates a need for service.

20.Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

21.Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine that the video product is in proper operating condition.

22.Heat - This video product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Precautions

– 3 –

EN

Precautions

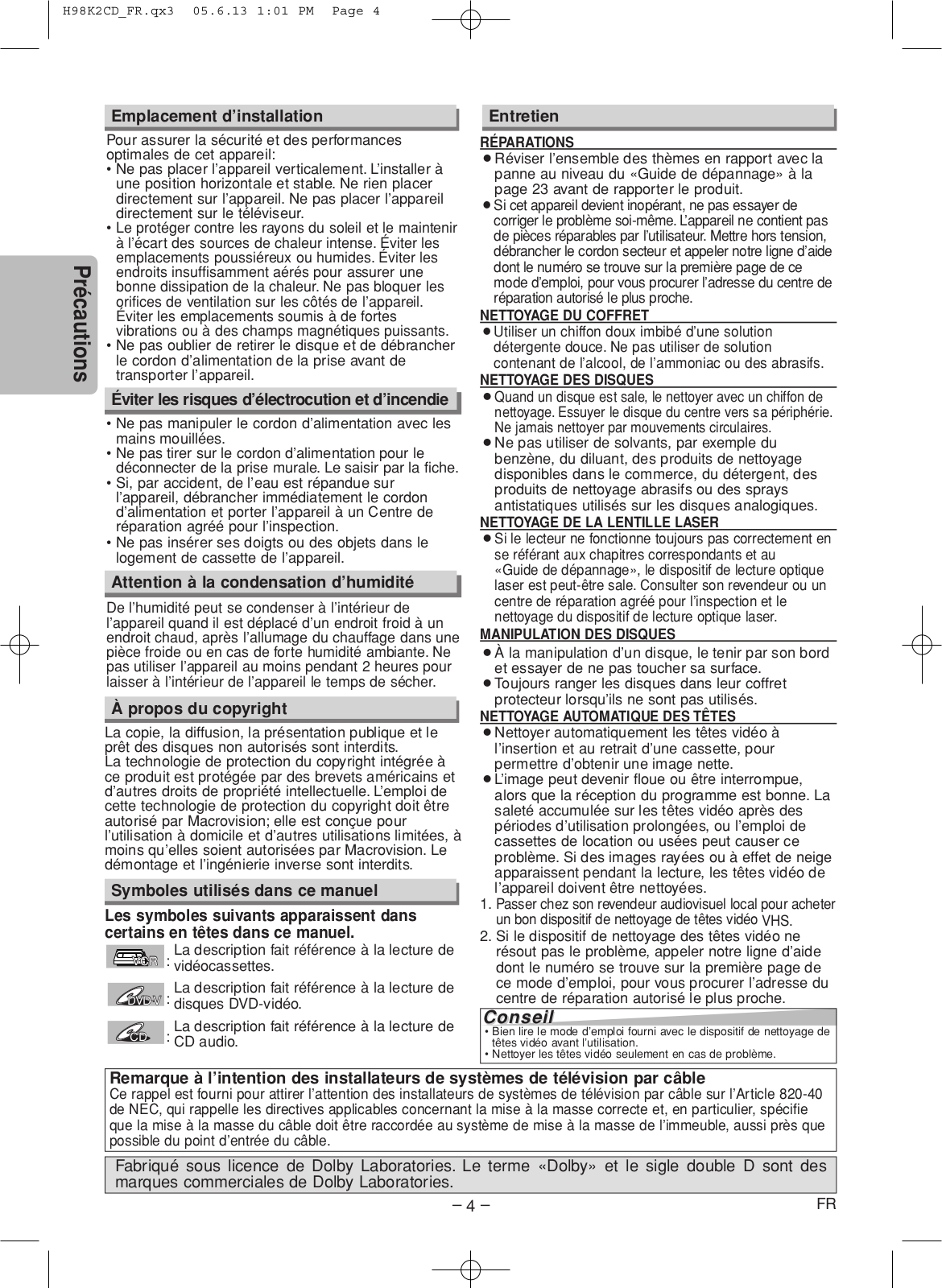

Installation Location

For safety and optimum performance of this unit:

Do not stand the unit up vertically. Install the unit in a horizontal and stable position. Do not place anything directly on top of the unit. Do not place the unit directly on top of the TV.

Shield it from direct sunlight and keep it away from sources of intense heat. Avoid dusty or humid places. Avoid places with insufficient ventilation for proper heat dissipation. Do not block the ventilation holes on the sides of the unit. Avoid locations subject to strong vibration or strong magnetic fields.

Be sure to remove a disc and unplug the AC power cord from the outlet before carrying the unit.

Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

Do not pull on the power cord when disconnecting it from AC wall outlet. Grasp it by the plug.

If, by accident, water is spilled on this unit, unplug the power cord immediately and take the unit to our Authorized Service Center for servicing.

Do not put your fingers or objects into the unit cassette holder.

Moisture Condensation Warning

Moisture condensation may occur inside the unit when it is moved from a cold place to a warm place, or after heating a cold room or under conditions of high humidity. Do not use this unit at least for 2 hours until its inside gets dry.

About Copyright

Maintenance

SERVICING

¡Please refer to relevant topics on the “Troubleshooting Guide” on page 23 before returning the product.

¡If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-service- able parts inside. Turn off, unplug the power plug, and please call our help line mentioned on the front page to locate an Authorized Service Center.

CLEANING THE CABINET

¡Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasive.

CLEANING DISCS

¡When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular motion.

¡Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

CLEANING THE DISC LENS

¡If this unit still does not perform properly although you refer to the relevant sections and to “Troubleshooting Guide” in this Owner’s Manual, the laser optical pickup unit may be dirty. Consult your dealer or an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

DISC HANDLING

¡When you handle a disc, hold it by its edge and try

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Symbols Used in This Manual

The following symbols appear in some headings in this manual.

VCR : Description refers to playback or recording of video cassette tapes.

DVD-V : Description

discs.

CD : Description refers to playback of Audio CDs.

Hint

Remember to read the instructions along with the video head cleaner before use.

Clean video heads only when problems occur.

Note to CATV system installer

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building, as close to the point of cable entry as practical.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

– 4 –

EN

About the Video Cassettes and Discs

Playable Video Cassettes

Use only cassettes marked with this unit.

Playable Discs

Playable

Mark (logo)

Region code

Recorded

Disc size

discs

signals







DVD-Video

or

* 1, 2, 4, 6,10

DVD-RW







12 cm

DVD-R

-

Digital video





or

* 1, 3, 4, 5,



(MPEG2)







8 cm

6, 7, 8, 9, 10









DVD+RW









DVD+R

-





* 1, 3, 4, 5,











6, 8, 9, 10











Audio CD









* 4, 6, 10





















12 cm

CD-RW

-

Digital audio

or







8 cm

CD-R



















* 4, 5, 6,











9, 10



































Disc types

Example

Title 1

Title 2



Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 1 Chapter 2

Example

Track 1 Track 2 Track 3 Track 4

Track 5

Track 6

Precautions

is a trademark of DVD Format/Logo Licensing Corporation.

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This unit conforms to the NTSC color system. Discs recorded in other color systems such as PAL cannot be played back. *2: Certain DVD-Video discs do not operate as described in this manual due to the intentions of the disc’s producers.

*3: Discs recorded in the VR (Video Recording) format cannot be played back. *4: Scratched or stained discs may not be played back.

*5: Some discs cannot be played back because of incompatible recording conditions, characteristics of the recorder or special properties of discs.

*6: You can play back discs which bear the marks above. If you use nonstandardized discs, this unit may not play them back. Even if they are played back, the sound or video quality will be compromised.

*7: You may play back the unfinalized DVD-R/RW disc recorded in the video format on our brand’s DVD recorder. However, depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.). In this case, you need to finalize the disc with the DVD recorder. Refer to the manual accompanying the DVD recorder.

*8: Only the discs recorded in the video format and finalized can be played back.

Unfinalized discs cannot be played back. Depending on the recording status of a disc, the disc may not be played back at all or normally (the picture or sound may not be smooth, etc.).

*9: If there is too much recording space left on a disc (the used portion is less than 55 mm across), it may not play back properly. *10: Do not glue paper or put stickers on to the disc. These may damage the disc, and the unit may not read it correctly.

Unplayable Discs

¡NEVER play back the following discs. Otherwise, malfunction may result!

DVD-RAM / CD-I / Photo CD / Video CD / DVD with region codes other than 1 or ALL / DTS-CD / DVD-ROM for personal computers / CD-ROM for personal computers

¡On the following disc, the sound MAY NOT be heard.

Super Audio CD

NOTE: Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

¡Any other discs without compatibility indications

– 5 –

EN

Setup

Setup

Connections

Please refer to “Basic TV Connection” on the front page before you use this unit.

RF Output Channel

If channel 3 is already occupied for broadcasting,

1)Set your TV to channel 4.

2)Insert a pre-recorded tape into this unit.

3)Press [SOURCE] on the unit so that the VCR OUTPUT light is lit.

If noise appears on the TV screen, press [VCR/TV] on the remote control.

4) Press [PLAY B] once.

5)After a few seconds, hold [PLAY the unit for 3 seconds.

The RF output channel will change to channel 4 from channel 3 and you will see a playback picture.

When a picture does not appear on the TV screen, repeat step 4).

6) Press [STOP C] to stop playback.

Hint

The RF output channel may not change when you adjust tracking during playback. In this case, stop the playback, and start the playback again. After that, hold [PLAY B] on the unit for 3 seconds again.

Hint for Cable Box or Satellite Box

Satellite or

(Cable box or



(Back of DVD/VCR)

Satellite box)

ANT-IN



Cable TV



IN







signal

OUT

OUT

RF cable









(supplied)

(Back of TV)

Select this connection when you want to view or record a scrambled channel. With this connection, channels cannot be changed on the unit. You can view or record ONLY the channels you have selected on the cable box or the satellite box.

• While you are recording, only the recorded channel can be

To select channels of the cable box or satellite box

1)Turn on the unit by pressing [STANDBY-ON], then press [VCR/TV].The “POWER” light on the front panel will appear, then press [SKIP/CH. G/KH/L] to select channel 3 or 4 (the same channel as the output channel of the cable box or satellite box).

If you use the channel 4, you need to change the unit’s RF output to channel 4. Refer to “RF Output Channel”.

2)At the TV, select channel 3 or 4 (the same channel as you have selected at step 1).

3)On the cable box or satellite box, select the channel you want to view or record.

Hint

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

Method 2

Dolby Digital decoder,

MD deck or DAT deck



COAXIAL

Digital audio





input jack

Audio Coaxial







Digital cable







(commercially







available)











DVD





DIGITAL

AUDIO S-VIDEO

COMPONENT



VIDEO OUT

AUDIO OUT

OUT OUT



DIGITAL

COAXIAL





AUDIO OUT











Connection

Setting

SETUP > QUICK >





DOLBY DIGITAL

Connecting to a Dolby Digital decoder

BITSTREAM

for Dolby Digital audio output.







Connecting to the other equipment (an MD deck

PCM

or DAT deck etc.) without Dolby Digital decoder.



* To complete these settings, refer to pages 20-21.

Hint

The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.

By hooking this unit up to a Multi-channel Dolby Digital

high-quality Dolby Digital 5.1

as heard in the movie theaters.

Playing a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

– 6 –

EN

Connection to a TV

Basic Audio

TV

AUDIO IN



L R

Audio cable



(supplied)



DVD/VCR

DVD/VCR

VCR



AUDIO OUT





or







DVD





DIGITAL

AUDIO

S-VIDEO

COMPONENT

VIDEO OUT

AUDIO OUT

OUT

OUT

Y









L





AUDIO OUT





CB/

R



PB

(Analog)









CR/







PR

Method 1

Method 2

Method 3

Good picture

Better picture

Best picture





COMPONENT





VIDEO IN

VIDEO IN

S-VIDEO IN

Y





CB





CR

Video

S-Video



cable



cable



(supplied)



(commercially





Component Video cables



available)



(commercially available)





DVD/VCR

VCR

DVD







DVD









DIGITAL

AUDIO

S-VIDEO COMPONENT



DIGITAL

AUDIO

S-VIDEO

COMPONENT



VIDEO OUT

AUDIO OUT

OUT

OUT

OUT



AUDIO OUT

OUT

OUT















Y



















COAXIAL







COAXIAL





CB

VIDEO OUT



























































CR

VIDEO OUT

S-VIDEO OUT

COMPONENT VIDEO OUT

Setup

Hint

Connect this unit directly to the TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.

The COAXIAL, DVD AUDIO OUT, S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

After you have completed connections

Press the input selector button (usually TV/VIDEO, INPUT or AUX) on your TV to switch an appropriate external input channel (usually near channel 0) for viewing the picture from this unit.

If the picture does not appear, also refer to the manual accompanying your TV.

Input modes for common TV brands (Example)

• Listed below are inputs for common brand name TV’s.

Admiral:

AUX

Panasonic:

TV/VIDEO

Curtis Mathis:

LINE1, LINE2, 00, 90, 91, 92, 93

RCA:

INPUT, TV/VCR, 00, 90, 91, 92, 93

GE:

INPUT, TV/VCR, 00, 90, 91, 92, 93

Samsung:

TV/VIDEO

Hitachi:

INPUT, AUX

Sanyo:

VIDEO

JVC:

A/V CHANNEL, INPUT1, SVIDEO, INPUT2

Sharp:

00

Kenwood:

AUX

Sony:

VIDEO1, VIDEO2, VIDEO3

LXI-Series:

00

Toshiba:

TV/GAME

Magnavox:

AUX CHANNEL

Zenith:

00

















DVD AUDIO OUT (analog) jacks

DVD/VCR AUDIO OUT jacks

AUDIO IN jack





Connect the supplied audio

Connect the supplied audio

Connect an audio cable com-





cables here through the Audio

cable here through the audio

ing from the audio out jack of a

ANT-IN jack

In jacks of a television or other

In jacks of a television or other

camcorder, another VCR or an

audio equipment. (DVD only)

audio equipment.



audio source here.

Connect your antenna













or cable box here.

DIGITAL AUDIO OUT COAXIAL jack











Connect an optional coaxial digital













audio cable here through the coaxial













digital audio in jack of a decoder or













audio receiver. (DVD only)





[Rear Panel]



[Front Panel]























S-VIDEO OUT jack









VIDEO IN jack



ANT-OUT jack

Connect an optional











Connect the









Connect a cable coming

S-Video cable here

COMPONENT VIDEO OUT jacks DVD/VCR VIDEO OUT jack

supplied RF

from the video out jack of

through the S-video

Connect optional component

Connect the supplied video

a camcorder, another VCR

cable to the

in jack of a televi-

video cables here through the

cable here through the TV’s

or an audio-visual source

antenna input

sion. (DVD only)

component video in jacks of a

video in jack.



(laser disc player, video

jack on your TV.



television. (DVD only)





disc player, etc.) here.



Preparation for Use

Turn On the Unit for the First Time

VCR

VCR

1

Turn on the TV and set it to channel 3.

If channel 3 is already occupied for broadcasting, see“RF Output Channel” section.

To Add/Delete Channels

1

MENU

- M E N U -







TIMER PROGRAMMING





AUTO REPEAT [OFF]





B CHANNEL SET UP





CLOCK SET





LANGUAGE SELECT





• If the clock is not set, the



or

“CLOCK SET” screen



appears when you press

[MENU]. In this case, press [MENU] again.

2

STANDBY-ON

Remote Control

TV Screen











2

CHANNEL SET UP





LANGUAGE SELECT









B ENGLISH

[ON]

AUTO SET UP







B MANUAL SET UP







FRANCAIS



Setup



or





ESPAÑOL















or









3





3

MANUAL SET UP





CH 01

CHANNEL 30

(CATV)

















ADD







AUTO SET UP

or











Select the channel to be added or deleted.

Do you connect the cable from the cable box or the satellite box to the unit’s ANT-IN jack?

YES

Yes Press [MENU] to exit.

• Refer to “Hint for Cable Box or

Satellite Box” section on page 6. NO

No Please wait for a few minutes.

After scanning...

The tuner stops on the lowest memorized channel.

You can select only the channels memorized in this unit by using [SKIP/CH. G/KH/L]

(or [CHANNEL K/L]).

If "AUTO SET UP" appears on the TV screen again, check the cable connections. Then, press [B] once again.

Hint

Repeat these steps only if either there was a power failure or this unit has been unplugged for more than 30 seconds.

To Select a Channel

You can select a channel by using the Number buttons or

[SKIP/CH. G/KH/L].

Notes for using the Number buttons:

When selecting cable channels which are higher than 99, enter channel numbers as a three-digit number. (For example: 117, press [1], [1], [7])

You must precede single-digit channel numbers with a zero (for example: 02, 03, 04 and so on).

4



MANUAL SET UP





CHANNEL 30 (CATV)



or

DELETE









Select “ADD” or “DELETE”.

5

To exit the

CLEAR/



menu

C. RESET





To Preset the Channel Again

1)Press [MENU] until the main menu appears.

2)Select CHANNEL SET UPby pressing [K/L], then press [B].

3)Select AUTO SET UPby pressing [K/L], then press [B]. After scanning, the tuner stops on the lowest memorized channel.

To Change the On-Screen Language

1)Press [MENU] until the main menu appears.

2)Select LANGUAGE SELECTby pressing [K/L], then press [B].

3)Select “ENGLISH” , “FRANCAIS” or “ESPAÑOL” by pressing [K/L] , then press

[CLEAR/C.RESET].

Hint

If you accidentally select Spanish or French and need English: Press [MENU] and choose SELEC. IDIOMA or SELECTION LANGUE. Press [B] and select ENGLISH. Finally, press [CLEAR/C.RESET].

Clock Setup

VCR



VCR



1

MENU

- M E N U -



TIMER PROGRAMMING

AUTO REPEAT [OFF]

CHANNEL SET UP

BCLOCK SET LANGUAGE SELECT



• If the clock is not set, the

or

CLOCK SET screen

appears when you press



[MENU]. In this case, go



to step 2).



2



CLOCK SET



MONTH DAY

YEAR



1 0

/ – –

– – – –

or

HOUR MINUTE

AM/PM



– –

: – –

– –



Select the current month.

3



CLOCK SET



MONTH DAY

YEAR



1 0

/ 0 3

– – – –

or

HOUR MINUTE

AM/PM



– –

: – –

– –



Select the current day.

4



CLOCK SET



MONTH DAY

YEAR



1 0

/ 0 3

2 0 0 5

or

HOUR MINUTE

AM/PM



– –

: – –

– –

Select the current year.

5



CLOCK SET





MONTH DAY

YEAR



1 0

/ 0 3 MON 2 0 0 5

or

HOUR MINUTE

AM/PM





0 5

: – –

– –

Select the current hour.

– 8 –

EN

6



CLOCK SET

7



CLOCK SET





MONTH DAY

YEAR



MONTH DAY

YEAR



1 0

/ 0 3 MON 2 0 0 5



1 0 / 0 3 MON 2 0 0 5

or

HOUR MINUTE

AM/PM

or

HOUR MINUTE

AM/PM



0 5

: 4 0

– –



0 5 : 4 0

P M AM













BPM



Select the current minute.



Select “AM” or “PM”.

8To exit the CLOCK SET screen

Hint

To go back one step, press [s] (during steps 2) to 7) ).

Your clock setting will be lost if either there is a power failure or this unit has been unplugged for more than 30 seconds.

Function Overview

Front Panel Indicator

Lights up when power is on.

Lights up during a recording.

Flashes when a recording is paused.



y

E

D

C A

REC



TIMER





B







VIDEO

STANDBY-ON

REW

F.FWD

STOP/EJECT

PLAY

RECORD

IR





AUDIO











Y

X

















CHANNEL

A

OPEN/

CLOSE

VCR DVD

X

Y

H

SOURCE PREV

Lights up when the disc is inserted.

Lights up when the inserted disc is being played back. Flashes when an unacceptable disc is installed.

DISC IN

PLAY

C

B

G

STOP

PLAY

NEXT

Setup

Lights up when the Timer Recording or an OTR recording has been set.

VCR/DVD Switching

Because this product is a combination of a VCR and



a DVD player, you must select first which compo-



nent you wish to operate with [SOURCE].

y E D C A B

A

X

Y

YX

H C B G

VCR MODE

Press [VCR] on the remote control. (Verify that the VCR OUTPUT light is lit.)

DVD MODE

Press [DVD] on the remote control. (Verify that the DVD OUTPUT light is lit.)

Hint

Pressing only [SOURCE] on the front panel DOES NOT switch the mode of the remote control. You MUST select the correct mode on the remote control.

VCR DVD

X

Y

SOURCE

VCR button

DVD button

VCR OUTPUT light

DVD OUTPUT H light

SOURCE button

STANDBY-ON SPEED



OPEN/CLOSE

AUDIO

/EJECT

1

2

3









SKIP/CH.

4

5

6









VCR/TV

7

8

9









SLOW



0

+10



DISPLAY

VCR

DVD

PAUSE



PLAY





STOP



RECORD







MENU



ENTER



SETUP

TOP MENU



RETURN

MODE

ZOOM

SEARCH

CLEAR/

MODE

C. RESET

SUBTITLE

T-SET ANGLE REPEAT A-B

– 9 –

EN

Setup

Remote Control















DVD mode

VCR mode









Button

Disc/Tape

































(Alphabetical order)















1

2

3





To select channel.







OPEN/CLOSE

4

5

6

To select chapter or title directly.

To select track directly.

STANDBY-ON

SPEED

AUDIO

/EJECT







The +10 button has no effect









7

8

9





in VCR mode.



















1

2

3





0

+10

To search forward/backward













To search forward/backward



4

5

6

SKIP/CH.







To forward/backward a tape.









through a disc.







VCR/TV







To begin slow forward/reverse

through a disc.

7

8

9









playback during the pause mode.



To select an item







SLOW













0

+10





ENTER







on the VCR Menu.

DISPLAY

VCR

DVD

PAUSE





To move the cursor and

To move the cursor and

To advance to the next





















determine its position.

determine its position.

VCR Menu.



















To go back one step during



PLAY









To repeat between your

To repeat between your

clock and timer setting.











A-B







STOP

























chosen point A and B.

chosen point A and B.



RECORD









ANGLE



To select camera angles on







































MENU



ENTER









a disc.















AUDIO



To select audio languages on

To select STEREO,



SETUP

TOP MENU



RETURN























a disc.

L-ch or R-ch.



MODE

ZOOM

SEARCH

CLEAR/







To clear the markers.

To clear the markers.



MODE

C. RESET









SUBTITLE









C. RESET



To clear the numbers

To remove status number in

To exit the VCR Menu.











CLEAR/







T-SET

ANGLE

REPEAT

A-B







entered incorrectly.

program input.















To reset the tape counter.















To cancel the point for A-B

To clear the numbers entered incorrectly.















repeat.

To cancel the point for A-B repeat.













DISPLAY



To display the current disc

To display the current disc

To display the current time,





























mode.

mode.

tape counter, and channel.











DVD



To select the DVD output

To select the DVD output

















mode.

mode.

















To activate the remote control

To activate the remote control

















in DVD mode.

in DVD mode.













MENU



To call up the Menu



To call up the VCR Menu.

















Installing the Batteries







on a disc.

To arrange the playing





MODE



To set black level on/off.



for the Remote Control







To set virtual surround on/off.

order or play randomly.









To set virtual surround on/off.



Install two AA batteries (supplied) match-

OPEN/CLOSE

To open or close the disc

To open or close the disc

To eject the video cassette

/EJECT

ing the polarity indicated inside battery



tray.

tray.

from the VCR.



To pause disc playback.



To pause tape playback or

compartment of the remote control.

PAUSE

To pause disc playback.



recording.





To advance playback

To advance playback

1



one frame at a time.









one frame at a time.











PLAY

To begin disc playback.

To begin disc playback.

To begin tape playback.



RECORD





To start a recording or

















One Touch Recording.



REPEAT

To play a chapter or title

To play a track or disc









2



repeatedly.

repeatedly.



RETURN

To return to the previous

To return to the previous







operation in menu.

operation in menu.



MODE

To search chapter, title or time.

To search track.

To call up the index or time

SEARCH



To search time.





To set or search the markers.

search menu.





To set or search the markers.





SETUP



To call up the DVD setup

To call up the DVD setup



3





menu.

menu.



SKIP/CH.

SKIP/CH.

To skip chapters.

To skip tracks.

To change channels.







To adjust the tracking manually











during playback.





SLOW





To view the tape











in slow motion.





SPEED





To select the recording

Keep in mind the following when using













speed.

the remote control:



STANDBY-ON

To turn the unit on or off.

To turn the unit on or off.

To turn the unit on or off.

• Make sure that there is no obsta-



cle between the remote control









and the remote sensor on the unit.

STOP

To stop playback.

To stop playback.

To stop playback or recording.

• The maximum operable ranges









To put the VCR into standby

from the unit are as follows.

T-SET









SUBTITLE

To select subtitles on a disc.





- Beeline: approx. 23 feet (7m)





mode for a Timer Recording.

- Either side of center:



To call up the Top Menu





approx. 16 feet (5m) within 30°

TOP MENU











- Above: approx. 16 feet (5m)



on a disc.



To select the VCR output

within 15°



VCR





- Below: approx. 10 feet (3m)





mode.







within 30°









To activate the remote control









in VCR mode.







To select DVD position or

To select CD position or TV





VCR/TV

To select VCR position or













TV position.

position.

TV position.

y

X Y



To magnify part of a picture.









ZOOM





















(x2/x4)





– 10 –

EN

VCR Functions

Playback

Before:

Turn on the TV and set it to channel 3.

If channel 3 is already occupied for broadcasting, see “RF Output Channel” section.

VCR

VCR

1



2

To start







playback







PLAY

3

To stop

4

To eject



playback



OPEN/CLOSE







/EJECT



STOP





4

STANDBY-ON





OPEN/CLOSE





4 3 2



1

SPEED AUDIO

/EJECT







1

2

3























SKIP/CH.















4

5

6























VCR/TV















7

8

9























SLOW

















0

+10

















DISPLAY

VCR

DVD

PAUSE























y

E

D

C A

REC



TIMER









B





2

PLAY



VIDEO

STANDBY-ON

REW

F.FWD

STOP/EJECT

PLAY

RECORD

IR

















STOP



3

AUDIO































RECORD



















Hint

When a tape without record tab is inserted, the unit will start playback automatically.

Tracking will be automatically adjusted upon playback. To adjust the tracking manually, press

[SKIP/CH. G/K H/L] (or [CHANNEL K/L]).

Other Operations

To cue or review picture during playback (Picture Search)

Press [g / h]([F.FWD g] or [REW h] ).

Press it again and the unit will search in super high speed. (in the SLP mode only)

To freeze the picture on TV screen during playback (Still mode)

Press [PAUSE k]. Each time you press the button, the picture will be forwarded by one frame.

If the picture begins to vibrate vertically during the still mode, stabilize the picture by pressing

[SKIP/CH. G/KH/L] (or [CHANNEL K/L]).

If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV if equipped.

Counter Reset

Press [CLEAR/C.RESET].

To play back in slow motion

Press [SLOW] during playback or the still mode.

If the noise bars appear on the TV screen, you can reduce it by pressing [SKIP/CH. G/K H/L](or

[CHANNEL K/L]).

Auto Rewind

When a tape reaches its end during playback, fast-for- ward or recording (except Timer Recording and One Touch Recording), the tape will automatically rewind to the beginning. After rewinding finishes, the unit will eject the tape.

Hint

Still/Slow mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.

To return to playback from the Picture Search/Still/ Slow mode, press [PLAY B].

Index Search

3



1

SEARCH











MODE

You can skip the program backward

To rewind





TIME SEARCH





– : – –

and forward by the Index Mark.



ss







VCR







Press twice.



VCR

To fast forward













• Insert a tape into this unit.



BB





1

SEARCH









MODE











INDEX SEARCH





2 Select the desired length of



– –



After searching,









time for fast forwarding or













Press once.







rewinding.











2



INDEX SEARCH









or



0 3



















01 ~ 20

CURRENT PROGRAM



Beginning







End of

of the tape







the tape

Pro.1

Pro.2

Pro.3

Pro.4

Pro.5

02

01

01

02

03







INDEX MARK

PLAYB

Hint

The Index Mark will be made automatically at the beginning of each recording.

The time gap between Index Marks should be greater then 1 minute for SP mode, 2 minutes for LP mode and 3 minutes for SLP mode.

Time Search

You can search backward and forward a specific length of time on a tape.

VCR

VCR

• Insert a tape into this unit.

TIME SEARCH

2 : 5 0

or

0:01~ 9:59 (1 minute~9 hours and 59 minutes)

3

To rewind

ss

To fast forward

BB

Hints for Index Search & Time Search



After searching,

• These functions are not available during recording.



• Press [STOP C] to stop the search.

4



• If a tape ends during a search, your search will be cancelled and the tape will rewind to the

PLAYB

beginning.







VCR Functions

– 11 –

EN

Auto Repeat

This function will playback a tape

1

MENU







repeatedly from the beginning

- M E N U -













when the tape reaches to the end.





TIMER PROGRAMMING









B AUTO REPEAT [OFF]

2

- M E N U -

VCR





CHANNEL SET UP







CLOCK SET



TIMER PROGRAMMING

VCR





LANGUAGE SELECT











B AUTO REPEAT [ON]











CHANNEL SET UP











CLOCK SET





or





LANGUAGE SELECT











Functions VCR

Hint

To cancel Auto Repeat, follow steps 1)-2) above. Then, press [B], so that [OFF] appears beside AUTO REPEAT. Press [CLEAR/C.RESET] to exit.

If menu remains on the TV screen at step 3), press [CLEAR/C.RESET] to exit.

Recording

Recording & OTR (One Touch Recording)

Before:

Turn on the TV and set it to channel 3.

If channel 3 is already occupied for broadcasting, see “RF Output Channel” section.

VCR

VCR

1





2













1

2

3













or

SKIP/CH.







4

5

6





with tab

7

8

9







0

• Select the chan-











nel to record.

3



Tape Speed

Recording/Playback Time

SPEED

Type of tape

T60

T120

T160

SP

mode

1hour

2hours

2-2/3hours









SLP mode

3hour

6hour

8hour





SP

• Select the desired





tape speed.



4 RECORD









Press [RECORD] repeatedly to select the

desired recording length.









REC

OTR(0:30)

OTR(1:00).....





(Normal recording)











OTR(8:00)



OTR(7:30)



5







6

OPEN/CLOSE







STOP





/EJECT





















3



6





5 6

4

1

2



STANDBY-ON





OPEN/CLOSE

















SPEED

AUDIO

/EJECT





































OP























CL



1

2

3

















2







SKIP/CH.



y



REC

TIMER





4

5

6





E

D C A B





























VCR/TV

VIDEO

STANDBY-ON

REW

F.FWD STOP/EJECT PLAY

RECORD

IR





7

8

9











AUDIO







Y

X









SLOW







































0

+10













CHANNEL























DISPLAY

VCR

DVD

PAUSE





















PLAY



Accidental erasure prevention





5



STOP







4

RECORD







To prevent accidental recording on a













MENU



ENTER



recorded cassette, remove its record tab.





SETUP

TOP MENU

RETURN

To record on it later, cover the hole with





MODE

ZOOM

SEARCH

CLEAR/

adhesive tape.





Record tab





MODE

C. RESET















You CAN NOT copy a DVD to a videotape.

To stop recording temporarily (Pause mode)

Press [PAUSE k].

During the rec-pause mode, five C marks appear on the TV screen. Each C mark represents one minute.

Press it again to resume recording.

Pause mode will be automatically cancelled after 5 minutes to prevent damage to the tape and the video head.

Hint

If you want to watch one channel while recording another...

1)Press [VCR/TV] to put the unit in TV position.

2)Select a channel you want to watch with the cable box or the satellite box.

Timer Recording

•Insert a tape with its record tab into the unit.



VCR

VCR



1

- M E N U -

MENU

B TIMER PROGRAMMING



AUTO REPEAT [OFF]



CHANNEL SET UP



CLOCK SET



LANGUAGE SELECT

REC SPEED – –

Select an empty program number.

TIMER PROGRAMMING

3





PROG

12345678



PROGRAM NUMBER 1





B ONCE

DATE







START TIME



or

DAILY

END

TIME



WEEKLY





CHANNEL







Available program num-





Select “ONCE”, “DAILY”

REC SPEED





ber flashes.





(Mon-Fri), or “WEEKLY”.









START TIME

– – : – –

– –

END TIME

– – : – –

– –

CHANNEL

– –



REC SPEED

– –



Select the desired day.

or

• You can program one

year in advance.



– 12 –

EN

5 Select the desired start time

(hour).











ONE TIME PROGRAM





PROGRAM NUMBER

1

or

DATE



1 0 / 2 4

MON

START TIME

0 7 : 3 0

– –





END

TIME

– – : – –

– –



CHANNEL

– –





REC SPEED

– –



Select the minute.







or









6



ONE TIME PROGRAM







PROGRAM NUMBER

1





DATE

1 0 / 2 4

MON





START TIME

0 7 : 3 0

PM



or

END TIME

– – : – –

– –



CHANNEL

– –













REC SPEED

– –

AM















BPM

Select “AM” or “PM”.

8

ONE TIME PROGRAM









PROGRAM NUMBER

1



DATE

1 0 / 2 4

MON

or

START TIME

0 7 : 3 0

PM

END TIME

0 8 : 3 0

PM



CHANNEL

1 6





REC SPEED

– –



Select the desired channel.

If you have connected the unit to a cable box or satellite box as the Connection on page 6, select the VCR to channel 3 or 4 (the RF output channel of the VCR). Then, select the desired channel at the cable box or satellite box. Leave the cable box or satellite box on for timer recording.

9



ONE TIME PROGRAM







PROGRAM NUMBER

1





DATE

1 0 / 2 4

MON





START TIME

0 7 : 3 0

PM



or

END TIME

0 8 : 3 0

PM



CHANNEL

1 6













REC SPEED

SP







B SP









SLP



Select the desired recording speed.

To set another program after step 9), press [B]. Then, continue with step 2).

CLEAR/

C. RESET

7

Repeat the procedure in steps

10

SUBTITLE

• The TIMER light on the



5) and 6) to set the end time.





T-SET

front panel appears.









The unit will change to









the DVD mode.

Hint

To go back one step, press [s] (during steps 3) to 9) ).

To Check, Correct or Cancel a Timer Program

1)Press [SUBTITLE/T-SET] then,

[VCR] on the remote control.

2)Select main menu by pressing

[MENU].

3)Select TIMER PROGRAMMINGby pressing [K/L]. Then, press [B].

4)Select the program number which you want to check by pressing [K/L]. The details of the program you selected will appear on the TV screen.

Go to the digit you want to change by pressing [s/B]. Then, enter correct numbers by pressing [K/L].

You may cancel the entire program by pressing [s] while the program number flashes.

5)Press [CLEAR/C.RESET] to exit.

6)Press [SUBTITLE/T-SET] to return to timer stand-by mode.

To cancel a Timer Recording in progress

Press [STOP/EJECT C/A] on the unit.

Hints for OTR and Timer Recording

Press [VCR] on the remote control before you set Timer Recording. Make sure the remote control is in the VCR mode, then press [SUBTITLE/T-SET].

If a tape is not in the unit or does not have the record tab, the TIMER light flashes and Timer Recording cannot be performed. Please insert a recordable tape.

When Timer Recordings are set, the TIMER light will appear. To use the VCR as usual until the time for the recording, Press [SUBTITLE/T-SET] so that the TIMER light disappears. Press [VCR/TV] to choose the VCR position. Select either VCR or DVD mode, then continue with the other features as described in this manual.

After an OTR or a Timer Recording has been set, this unit operates as follows:

If a tape runs out before an OTR or a Timer Recording is finished, the unit ejects the tape. If the DVD power is off, the unit does not switch to the DVD mode but goes into the timer standby mode. Press [SUBTITLE/T-SET] on the remote control or [STOP/EJECT C/A] on the unit, then press [VCR] to activate the VCR function again.

Once the unit turns to the timer standby mode, no VCR functions are available until [SUBTITLE/T-SET] is pressed. ([SOURCE] on the front panel and [VCR] on the remote control will not function.)

To cancel the timer standby mode, press [SUBTITLE/T-SET] on the remote control or [STOP/EJECT C/A] on the unit, then press [VCR] to activate the VCR function again.

The mode of the unit and the remote control may differ (VCR mode or DVD mode) when you set Timer Recording or after you cancelled Timer Recording. Press [VCR] or [DVD] on the remote control to select your desired mode before you operate.

When an OTR or a Timer Recording is completed...

If Auto Power Off for DVD has been activated and there are Timer Recordings on standby, the unit turns off automatically, and the TIMER light appears to indicate the unit is in the timer standby mode.

The TIMER light flashes if there are no more Timer Recordings on standby.

If Auto Power Off for DVD has NOT been activated, the unit switches to the DVD mode and all the VCR function will be unavailable. The TIMER light will not appear as long as the DVD is in use. All the DVD functions are available during OTR, timer standby mode and Timer Recording.

If you want to use the DVD player during a Timer Recording or while the TIMER light appears or flashes.

Press [STANDBY-ON] to turn on the DVD. Press [DVD] on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual. You don’t need to set the TIMER off to use the DVD player.

NOTE (for Timer Recording) :

• If there is a power failure or the unit is unplugged for more than 30 seconds, clock and all timer settings will be lost.

VCR Functions

– 13 –

EN

Copying a Video Tape

Warning: Unauthorized recordings of copyrighted video tapes may be an infringement of copyright laws.

(Back of TV)

(Back of another source)

(Back of Recording DVD/VCR*)

or

DVD/VCR

VCR

1

DVD



DVD/VCR

VCR

AUDIO OUT

AUDIO IN



AUDIO OUT

AUDIOS-VIDEO COMPONENT

AUDIO OUT



L

L

OUTOUT

VIDEO OUTY

L



R

R

Connect

L





AUDIO IN













VIDEO OUT

VIDEO IN





CB

R





COAXIAL







VIDEO OUT





VIDEO OUT









R







CR

Audio/Video cables

(not supplied)

2

ANT-IN Connect

ANT-OUT

RF cable

(supplied)

*Front input jacks are also available

Functions

1)Insert a pre-recorded tape into the playing VCR.

2)Insert a tape with its record tab into the recording unit.

3)Press [SPEED] on the remote control of the recording unit to select the desired recording speed (SP/SLP).

4)Select the “L1”or “L2” position on the recording unit.

To use the input jacks on the back of this unit, select “L1” position by pressing [0], [0], [1] on the remote control or

[CHANNEL K/L].

To use the input jacks on the front of this unit, select “L2” position by pressing [0], [0], [2] on the remote control or

[CHANNEL K/L].

5)Press [RECORD] on the recording unit.

6)Begin playback of the tape in another source.

7)To stop recording, press [STOP/EJECT C/A] on the recording unit, then stop playback of the tape in another source.

Hint

• For best results during dubbing, use the front panel controls whenever possible. The remote control might affect another source’s operation.

Always use video-quality shielded cables with RCA-type connectors. Standard audio cables are not recommended.

You can use a video disc player, satellite receiver or other audio/video component with A/V outputs.

“L1” or “L2” is found before the lowest memorized channel. (Example: CH02)

“L2” input jacks are on the front of this unit.

– 14 –

EN

DVD Functions

Playback

Before: Turn on the TV, amplifier and any other components which are connected to this unit. Make sure the TV and audio receiver (commercially available) are set to the correct channel.





DVD











1







1



4 3

2

































DVD-V



CD





















































A

































OPEN/























OPEN/CLOSE









CLOSE















1

STANDBY-ON

SPEED

AUDIO

/EJECT









VCR

DVD

DISC IN PLAY



1



2







1

y E

REC

TIMER





X Y















D C A B







H C

B

G









VIDEO



















1

2

3

AUDIO REW

F.FWD STOP/EJECT PLAY

RECORD

IR

Y X

SOURCE

PREV STOP

PLAY

NEXT



















CHANNEL























SKIP/CH.



















OPEN/CLOSE



























STANDBY-ON



4

5

6























/EJECT



































VCR/TV



























































7

8

9





























DISPLAY

VCR

DVD

SLOW

Hint

























PAUSE



























0

+10

























Insert a disc with

3









• A “prohibited icon” may appear at the top-right on the TV screen









label facing up.





















PLAY



when the operation is prohibited by the disc or this unit.









3



4

4



STOP



• Some DVDs may be played from title 2 or 3 due to specific pro-







RECORD

























grams.

















To start



To stop































MENU



ENTER



During the playback of a two-layered disc, pictures may stop for a

playback

playback





















moment. This happens while the 1st layer is being switched to the 2nd

















PLAY



STOP











layer. This is not a malfunction.



























TIP:

































































You can change the on-screen language for DVD function in



















“PLAYER MENU” setting. (Refer to page 20.)









DVD menu

Some discs contain menus which allow you to customize DVD playback. Press [K / L / s / B] to select an item, then press [ENTER] (or [PLAY B]), to select.

Calling up a Menu Screen during Playback

Press [MENU] to call up the DVD menu.

Press [TOP MENU] to call up the title menu.

Hint

Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for details.

Resume

DVD

DVD-V CD

Press [STOP C] during playback.







Resume message will appear on







the TV screen.









Resume ON









Press [PLAY B], playback will

Press 'PLAY' to play from here.

resume from the point at which

To play the beginning,

press 'STOP' first and then 'PLAY'.

playback was stopped.















Hint

To cancel resume, press [STOP C] one more time during the Stop mode.

The resume information stays on even when the power is turned off.

Paused and Step-by-Step Playback

DVD

DVD-V CD

Press [PAUSE k] during playback.

To continue playback, press [PLAY B].

DVD-V

The disc goes forward by one frame each time [PAUSE k] is pressed during the pause mode.

To continue playback, press [PLAY B].

Hint

On DVDs, set “STILL MODE” to “FIELD” in the Display menu if pictures in the pause mode are blurred. (Refer to pages 20-21.)

To use [PREV j], [NEXT i] on the Main Unit

DVD-V CD

Press once to skip chapters or tracks to a desired point. Press and hold to change forward or reverse playback speed.

Fast Forward/Reverse Search

DVD

DVD-V CD

Press [h] or [g] repeatedly during playback



to select the required forward or reverse speed.

E 1



To continue playback, press [PLAY B].



Hint

For DVDs, fast forward or reverse search speed is different depending on the disc. Approximate speed is 1(x2), 2(x8), 3(x20), 4(x50), 5(x100).

For Audio CDs, approximate speed is 1(x2), 2(x8), 3(x30).

Hint

Slow forward or reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8), 3(1/2).

Set “STILL MODE” to “FIELD” in the Display menu if pictures in the slow playback mode are blurred. (Refer to pages 20-21.)

Zoom

DVD

DVD-V

1)Press [ZOOM] during playback.

2)Press [ZOOM] repeatedly to select the required zoom factor: x2, x4 or OFF.

x2

x4

3)Press [K / L / s / B] to slide the zoomed picture across the screen.

4)To exit zoom mode, press [ZOOM] to select OFF.

Hint

Zooming function does not work while the disc menu is showing up.

x4 zoom is not available on some discs.

The picture may be distorted when you press [PAUSE k] or [h] repeatedly in the zoom mode.

It may take several seconds to slide the zoomed picture.

DVD Functions

– 15 –

EN

Functions DVD

On-Screen Display

You can check the information about the current disc by pressing [DISPLAY] on the remote control.

DVD

DVD-V

DISPLAY

Angle icon, appears only when avail-

able on the DVD



1



Current playback status

11/16

0:00:00 - 0:03:30





Remaining time of the current chapter

DISPLAY

2

1/3 0:00:00 - 1:23:45

DISPLAY

3

T L1

DISPLAY

4

Elapsed time of the current chapter

CH(Chapter):

Current chapter number / Total chapters

Remaining time of the current title

Elapsed time of the current title

TT(Title):

Current title number / Total titles

Layer numbers, appears only when playing a two-layered Disc

L0: Layer 0 is playing L1: Layer 1 is playing

Current repeat setting appears only when the repeat setting is active

C: Chapter repeat / T: Title repeat / AB: A-B repeat

BIT RATE: The amount of audio and video data currently being read





DVD





CD













DISPLAY





1





Current playback status



- 0:02:15

T









Remaining time of the current track







Elapsed time of the current track





DISPLAY

TR(Track):





Current track number / Total tracks













ALL:

2

4/12

0:13:45 - 0:45:40

Current track number / Total tracks

T













Current repeat setting appears only







when the repeat setting is active









T: Track repeat







A

A: All Tracks repeat







B: A-B repeat







Remaining time of the entire disc





DISPLAY

Elapsed time of the entire disc









3









Hint









When you are playing a disc in PROGRAM or RANDOM mode,

PROGRAM (or RANDOM) will be displayed instead of 2 .

– 16 –

EN

Search Function

Track Search

DVD

CD

Using [SEARCH MODE]

1 SEARCH MODE

/29

2 1 2 3

4

5

6

/29



7 8 9

0

Within 30 seconds

For the disc with less than 10 tracks, press the track number directly.

For discs with more than 10 but less than 99 tracks, to play a single-digit track, press [0] first, then the track number (e.g. for track 3, press [0], [3]). To play a double-digit track, press the track number.

Hint

[+10] button can also bring the Track Search display, except for the disc with less than 10 tracks. For such a disc, track search can be done by just pressing the track number.

Marker Setup

Title / Chapter Search

DVD

DVD-V

Using [SEARCH MODE]

1

PLAY

/12

SEARCH

MODE

2

1

2

3



4

5

6



7

8

9





0



Press once for the Chapter Search. Press twice for the Title Search.

/12

Within 30 seconds

Using [SKIP H , G]

1

Current Chapter



(CH)

PLAY

CH 1 CH 2 CH 3 CH 4

SKIP

SKIP



or



Current Title



(TT)

SKIP/CH.

TT 1 TT2 TT3 TT4

SKIP

SKIP

(If the disc has no chapters)

Hint

Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons. Refer to the manual accompanying the disc.

For CDs, Track Search is not available for Programmed or Random Playback.

Time Search

DVD-V

1





PLAY







SEARCH







MODE



2

1

2

3



4

5

6



7

8

9





0



DVD

CD

TOTAL 1:29:00

Press repeatedly until the Time Search display appears.

TOTAL 1:29:00

Within 30 seconds

Hint

When there is no need to enter a number, “0” appears automatically.

For example, “0: 0_: __” appears in the Time Search display if the total time of the title or track is less than 10 minutes.

Press [CLEAR/C.RESET] to erase the incorrect input at step 2).

DVD

DVD-V CD

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

1

PLAY

SEARCH Press repeatedly until

MODE

this marker display appears.

2

or

3

ENTER

To return to the marker later

1

PLAY

SEARCH Press repeatedly until

MODE

this marker display appears.

2

or

3 ENTER

at the desired marker

Playback will restart from the specific point which you set.

To exit the marker screen

1

RETURN

Hint

The Marker display will disappear in about 30 seconds when there is no output.

To clear a marker, select the marker to be cleared at step 2) in the section “To set a marker” or “To return to the marker later” and then press [CLEAR/C.RESET].

Opening the disc tray or turning off the power will erase all markers.

Selecting “AC” at step 2) in the section “To set a marker” or “To return to the marker later” will also erase all markers.

DVD Functions

– 17 –

EN

+ 39 hidden pages
