FUNAI CSF420G User Manual

FEATURES

●

MTS/SAP Tuner

●

Flat Screen Picture Tube

●

181 Channel Selection- All VHF/UHF channels plus up to 125 cable channels.

●

PLL Frequency Synthesized Tuning- Provides free and easy channel selection and lets you tune directly to any channel using the channel number buttons on the remote control.

●

Sleep Timer

●

Closed Caption Decoder

●

Auto Shut Off Function- If there is no signal input from the antenna terminal and no user operation for 15 minutes, the TV will turn itself off automatically.

●

Resume Function- If the power fails or is disconnected while the TV is on, the TV will turn on automatically when the power resumes.

●

V-CHIP- Enables parents to prevent their children from watching inappropriate material on TV.

●

Full-Function Remote Control

●

On-Screen Function Display

●

S-VIDEO Input- Allows you to get better picture detail and clarity.

●

Front AV Input

●

Rear Audio Input

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.

FCC WARNING - This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

Owner’s Manual

1EMN21832 Printed in Malaysia

L3315WR* * * * *

CSF420G

20 INCH COLOR TELEVISION

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFEGUARDS

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.

The important note is located on the rear of the cabinet.

1. READ INSTRUCTIONS - All the safety and operat-

ing instructions should be read before the appliance is operated.

2. RETAIN INSTRUCTIONS - The safety and operat-

ing instructions should be retained for future reference.

3. HEED WARNINGS - All warnings on the appliance

and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS - All operating and use instructions should be followed.

CLEANING - Unplug TV from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. EXCEPTION: A product that is meant for uninterrupted service and, that for some specific reason, such as the possibility of the loss of an authorization code for a CATV converter, is not intended to be unplugged by the user for cleaning or any other purpose, may exclude the reference to unplugging the appliance in the cleaning description otherwise required in item 5.

6. ATTACHMENTS - Do not use attachments not rec-

ommended by the TV manufacturer as they may cause hazards.

7. WATER AND MOISTURE - Do not use this TV near

water, for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

8. ACCESSORIES - Do not place this

TV on an unstable cart, stand, tripod, bracket, or table. The TV may fall, causing serious injury to someone, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the TV. Any mounting of the appliance should follow the manufacturer’s instructions and should use a mounting accessory recommended by the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

VENTILATION - Slots and openings in the cabinet and the back or bottom are provided for ventilation and to ensure reliable operation of the TV and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the TV on a bed, sofa, rug, or other similar surface. This TV should never be placed near or over a radiator or heat register. This TV should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

10. POWER SOURCES - This TV should be operated

only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For TVs intended to operate from battery power, or other sources, refer to the operating instructions.

11. GROUNDING OR POLARIZATION - This TV is

equipped with a polarized alternating-current line plug(a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

12. POWER-CORD PROTECTION - Power-supply

cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

13.

OUTDOOR ANTENNA GROUNDING - If an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast

and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. (Fig. A)

14. LIGHTNING - For added protection for this TV

receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning and power-line surges.

15.

POWER LINES - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light of power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

16.

OVERLOADING - Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

17.

OBJECT AND LIQUID ENTRY - Never push objects of any kind into this TV through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the TV.

18. SERVICING - Do not attempt to service this TV

yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

19.

DAMAGE REQUIRING SERVICE - Unplug this TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power supply cord or plug is damaged or

frayed.

b. If liquid has been spilled, or objects have fallen into

the TV. c. If the TV has been exposed to rain or water. d. If the TV does not operate normally by following the

operating instructions. Adjust only those controls that

are covered by the operating instructions, as improper

adjustment of other controls may result in damage and

will often require extensive work by a qualified techni-

cian to restore the TV to its normal operation. e. If the TV has been dropped or damaged in any way. f. When the TV exhibits a distinct change in perfor-

mance, this indicates a need for service.

20.

REPLACEMENT PARTS - When replacement parts

are required, be sure the service technician uses

replacement parts specified by the manufacturer that

have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric

shock, injury to persons or other hazards.

21. SAFETY CHECK - Upon completion of any service

or repairs to this TV, ask the service technician to per-

form routine safety checks to determine that the TV is

in proper operating condition.

22. HEAT - This TV product should be situated away

from heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers) that

produce heat.

FIGURE A

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ELECTRIC SERVICE EQUIPMENT

GROUND CLAMP

NEC - NATIONAL ELECTRICAL CODE POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

S2898A

GROUND CLAMPS

GROUNDING CONDUCTORS (NEC SECTION 810-21)

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

ANTENNA LEAD IN WIRE

PRECAUTIONS

●

Place your TV in a room with adequate ventilation.

●

Keep your TV set away from sources of direct heat, such as heat registers or direct sunlight.

●

Do not place your TV on soft surfaces, such as rugs or blankets.

●

Leave enough room for air to circulate around the bottom, top and back of the set.

The serial number of this product may be found on the back of the TV. No others have the same serial number as yours. You should record the number and other vital information here and retain this book as a permanent record of your purchase to aid identification in case of theft.

IF YOU NEED ADDITIONAL ASSISTANCE WITH SET-UP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-242-7158 OR VISIT OUR WEB SITE AT http://www.Symphonic.us

FUNAI CORPORATION

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in Canada in the event of defect in materials or workmanship as follows:

DURATION:

PAR TS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from

the date of original retail purchase. Two (2) years for Picture Tube. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date

of original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee. This warranty is void and of no effect if any serial numbers on the product are altered, replaced, defaced, missing or

if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in Canada.

This warranty only covers failures due to defects in material or workmanship which occurs during normal use. It does not cover damage which occurs in shipment, failures which are caused by repairs, alterations or product not supplied by FUNAI CORP., or damage which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or office use of this product or damage which results from fire, flood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN CANADA.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER.

THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIRS COSTS WILL BE CHARGED.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging affording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at :

FUNAI CORPORATION

Customer Service

Tel :1-800-242-7158

http://www.Symphonic.us

19900 Van Ness Avenue, Torrance, CA 90501

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Date of Purchase Dealer Purchase from Dealer Address

Dealer Phone No. Model No. Serial No.

PORTABLE CART WARNING

S3126A

Note:

●

If some digits appear in the corner of the screen when the unit is turned on for the first time, press [POWER] without unplugging the power cord.

Notes:

●

When you disconnect the unit from the AC outlet or when you have a power failure, the sleep time will be lost.

●

To cancel the sleep timer, press [SLEEP] repeatedly until “SLEEP 0” is displayed.

●

The Sleep Timer Setting display will disappear automatically after 10 seconds of the operation.

INSTALLING THE BATTERIES

Install two AA batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

[BATTERY PRECAUTIONS]

• Be sure to follow the correct polarity as indicated in the battery compartment. Reversed batteries may cause damage to the device.

• Do not mix different types of batteries together (e.g. Alkaline and Carbon-Zinc) or old batteries with fresh ones.

• If the device is not to be used for a long period of time, remove the batteries to prevent damage or injury from possible battery leakage.

• Do not try to recharge batteries not intended to be recharged; they can overheat and rupture.

PREPARATION FOR USE

CONNECTIONS

AUDIO IN

S-VIDEO

SELECTING AUDIO/VIDEO INPUT

When you use the AUDIO/VIDEO input jacks, select “VIDEO1” or “VIDEO2” mode by pressing [INPUT SELECT] on the remote control. The input mode changes by pressing the button as follows:

•To use the jacks on the rear of the TV, select “VIDEO1”.

•To use the jacks on the front of the TV, select “VIDEO2”.

TV channel VIDEO1 (Rear) VIDEO2 (Front)

VIDEO2 input (Front)

VIDEO

AUDIO RL

SLEEP TIMER SETTING

Audio Cable (not supplied)

S-Video Cable (not supplied)

Video Cassette Recorder

Video Cable (not supplied)

Audio Cable (not supplied)

Video GameVideo Camera

Front of this TV

Rear of this TV

VIDEO1 input (Rear)

ex.

The time increases by 10 minutes up to 90.

repeatedly

(IN)(OUT)

(IN)

(OUT)

(IN)

(OUT)

(IN)

(OUT)

Note:

●

The AUDIO L jack is for mono input. The sound is heard from both speakers. Use this jack for connecting monaural audio equipment.

[EXTERNAL CONNECTION]

VIDEO

HEADPHONE

MENU VOLUME CHANNEL

POWER

AUDIO RL

VIDEO

HEADPHONE

MENU VOLUME CHANNEL

POWER

AUDIO RL

Infrared Sensor Window

POWER button

To turn TV on/off

CHANNEL ▲ /▼ buttons

To select channels

VOLUME XX/YYbuttons

To adjust volume

MENU button

To view on-screen menu

AUDIO L/R input jacks

VIDEO input jack

HEADPHONE jack

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Note:

●

For your safety and to avoid damages to the unit, unplug the antenna cable from the ANT. IN jack before moving the unit.

ANT. IN

OUT

Plug the incoming cable into the ANT. IN jack on the rear of the TV.

*Note (DO NOT DISCONNECT FROM BOX) Some cable TV systems use scrambled signals and require a special converter to receive these channels. Consult your local cable company.

Incoming cable from home Antenna / Cable Company (No Cable Box)

Incoming cable from Cable Company or Satellite Antenna

Cable Box or Satellite Box*

Cable

TV signal

Antenna

UHF/VHF Rod Antenna

(Not supplied)

Rear of this TV

Note:

●

The AUDIO L jack is for mono input. The sound is heard from both speakers. Use this jack for connecting monaural audio equipment.

Cables not included

123

456

789

0 +100

DISPLAY

VOL

SLEEP

CHANNEL

RETURN

MUTE

GAME

POWER

INPUT

SELECT

OPERATIONS

REMOTE CONTROL AND FRONT PANEL FUNCTION

Note:

●

You can test if the remote control sends out the infrared signal with an AM radio. (Refer to “TROUBLESHOOTING GUIDE”.)

POWER button

To turn TV on/off

CH(ANNEL) KK/ LLbuttons

To select channels and move

up/down through menu items

GAME button

Press to set the Game mode

DISPLAY button

To display CH No./Audio Status

CHANNEL RETURN button

To return previous channel

VOL(UME) KK/ LLbuttons

To adjust volume To decide the command of settings

IR transmitter

To send infrared ray (IR) signal

Channel number buttons

Press two digits to directly access the

desired channel. Remember to press

a "0" before a single digit channel.

MENU button

To view on-screen menu

MUTE button

To mute sound

SLEEP button

To set Sleep Timer

INPUT SELECT button

To select TV or external input

INPUT

SELECT

SLEEP

SLEEP 0

SLEEP

SLEEP 10

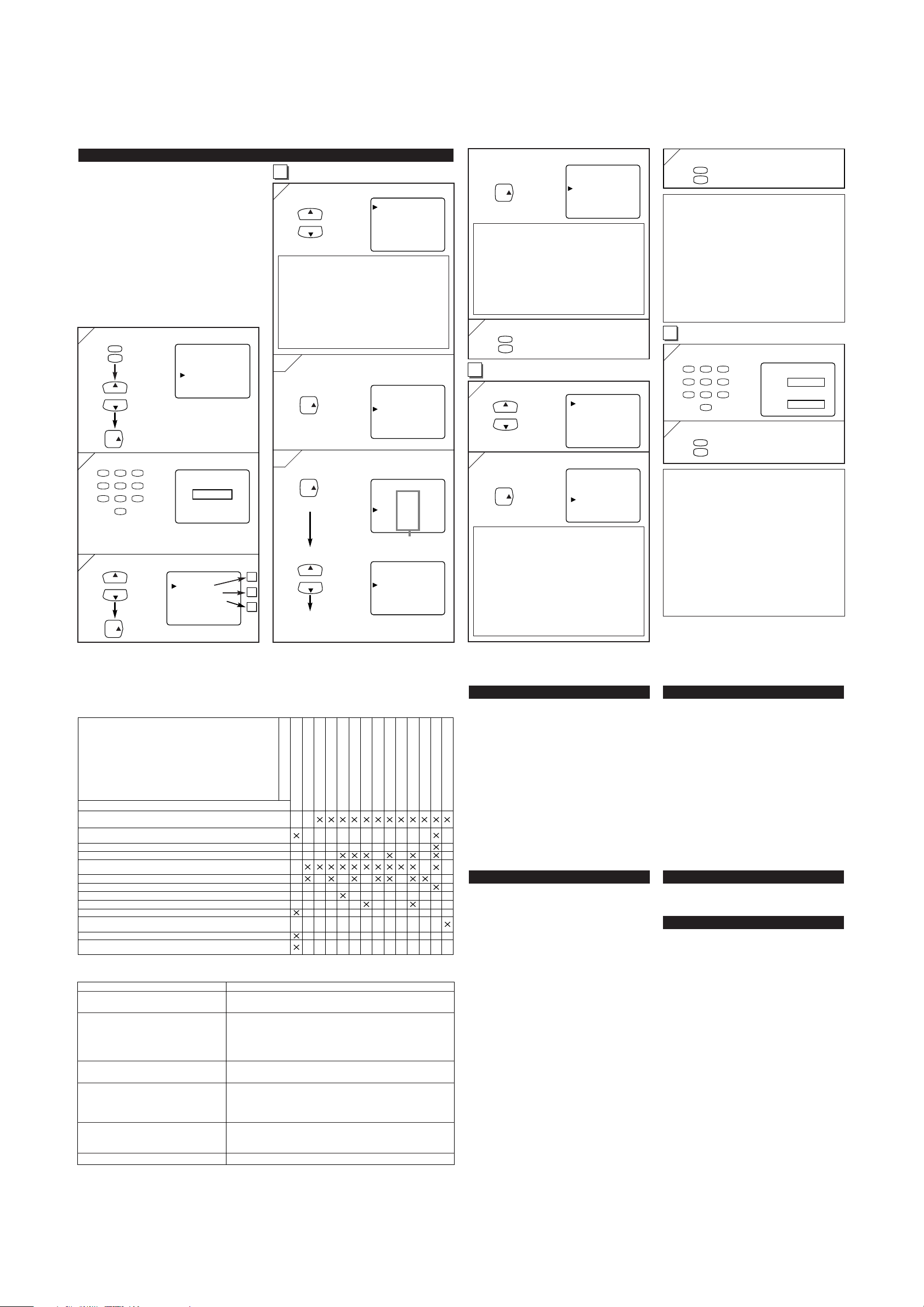

OPERATIONS (Continued)

OPTIONAL SETTINGS

PICTURE ADJUSTMENT

Select an item to adjust

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

Notes:

●

The display will disappear automatically after 10 seconds unless you press any buttons.

●

Magnetism from nearby appliances and speakers might affect the color of the TV picture. If this happens, press [POWER] to turn off the TV and turn it on again after about 30 minutes.

This feature is helpful for playing video games. By pressing [GAME], you can set Game mode (suitable picture setting for games) and TV selects automatically front A/V input.

CHANNEL SETTING

The tuner starts scanning automatically.

Select the desired language

To exit the menu

Notes:

●

The TV distinguishes between standard TV channels and cable (CATV) channels.

●

The TV may recognize TV channels as CATV channels if reception condition is poor. If this happens, check the antenna connections and try steps 2 to 3 again when reception conditions are better.

●

If there is no TV signal input, “NO TV SIGNALS” will appear on the display after the completion of channel scanning.

GAME MODE

Notes:

●

If you press [GAME] when the TV is off, the TV turns on and will be in Game mode and external input mode automatically.

●

If you adjust another picture control while in Game mode, this mode will automatically be canceled.

LANGUAGE SELECTION

When the scanning is completed, the lowest memorized channel appears on the TV screen.

Select the channel you wish

Note:

●

The menu will disappear automatically after about 10 seconds.

Notes:

●

If closed captioning is not broadcasted, you cannot receive it and nothing is displayed.

●

When your TV receives a special effects playback signal (i.e., Search, Slow and Still) from a VCR’s video output channel (CH3 or CH4), the TV may not display the correct caption or text.

●

Captions and texts may not match the TV voice exactly.

●

Interference may cause the closed caption system not to function properly.

●

The caption or text characters will not be displayed while the menu display or functions display is shown.

●

If a black box appears on the screen, this means that the TV is set to TEXT mode. To clear screen, select CAPTION [C1], [C2] or [OFF].

Add: light blue Delete: light red

Select “PICTURE”

[

GAME MODE

][

BRIGHT

][

CONTRAST

]

[

SHARPNESS

] [TINT] [COLOR]

To use video games

Picture: GAME Input: Front (VIDEO2)

VIDEO1

To watch another input (TV or Rear Input)

repeatedly

Select “[ENG] / ESP / FRA”

[ENG(lish)] [ESP(añol)]

[FRA(nçais)]

Select “CHANNEL SET”

Select “ADD/DELETE”

Select “AUTO PRESET CH”

ADD/DELETE

Add or delete the channel

Select the desired caption mode

To exit the menu

[OFF] [C1] [C2]

[T2] [T1]

Select “CAPTION”

[CAPTION MODE (C1, C2)]

●

CAPTION1 (C1) displays standard closed captions (what a character is saying).

●

CAPTION2 (C2) displays foreign language closed captions (foreign language words showing what a character is saying).

●

There are three ways of displaying text (which depend on the format the broadcaster is using): Paint-on mode: Displays input characters

on the screen immediately.

Pop-on mode : Once characters are stored

in memory, they are displayed all at once.

Roll-up mode : Displays the characters con-

tinuously by scrolling (max. 4 lines).

[TEXT MODE (T1, T2)]

●

TEXT1 (T1) and TEXT2 (T2) display half-screen text by scrolling (such as a channel guide, schedule or announcement).

To cancel Game mode only

Select “PICTURE”

After 10 seconds

VIDEO2

Picture: Customized Input: Front (VIDEO2)

*Second Audio Program (SAP) :

Sometimes broadcasters add another channel of audio to the programs they air. This is usually a secondary language or perhaps a radio station.

Typ e of

broadcast

Regular

-None-

Stereo

broadcast

STEREO

SAP

Selection

MAIN

MONO

SAP*

-None- -None-

MONO

STEREO

SAP

MAIN

Note:

●

If you select [SAP] when second audio channel is not available, the TV will receive normal audio.

Select the desired sound mode

[MAIN] [MONO] [SAP]

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

Select “TV SOUND”

To exit the menu

GAME

Adjust the setting

...

–

GAME MODE

Set to the most suitable position for video games.

[-] : OFF [+] : ON

BRIGHT

Adjust until the darkest parts of the picture are as bright as you prefer.

[-] : decrease brightness [+] : increase brightness

CONTRAST

Adjust to increase or decrease contrast.

[-] : decrease contrast [+] : increase contrast

COLOR

Adjust to be brilliant or pale color.

[-] : be pale color [+] : be brilliant color

TINT

Adjust to obtain natural skin tones.

[-] : add red [+] : add green

SHARPNESS

Adjusts the detail of the picture.

[-] : less clearer [+] : more clearer

[AUTO PRESET CHANNELS]

Channel presetting is necessary at the start or in case you moved the TV to a different area. This feature automatically scans and memorizes all available channels in your area and lets you easily select with [CH ▲ /▼].

[ADDING/DELETING CHANNELS]

You can add channels that was not memorized by AUTO PRESET CH due to the bad reception status and also delete channels you no longer receive or seldom watch.

You may view specially labeled (cc) TV programs, movies, news and prerecorded tapes, etc. with either a dialogue caption or text display added to the program.

MULTI-CHANNEL TELEVISION SOUND (MTS

)

CLOSED CAPTION

123

456

789

0 +100

VOL

VOL VOL

VOL

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

ADD/DELETE AUTO PRESET CH

NO TV SIGNALS

[-]

BRIGHT

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

VOL

ADD/DELETE

VOL

AUTO PRESET CH

VOL VOL

[+]

[–] OFF ON

GAME

VOL

INPUT

SELECT

VOL VOL

PICTURE CHANNEL SET [ENG] / ESP / FRA V-CHIP SET UP CAPTION [OFF] TV SOUND [MAIN]

VOL VOL

GAME MODE

[+]

+ 5 hidden pages
