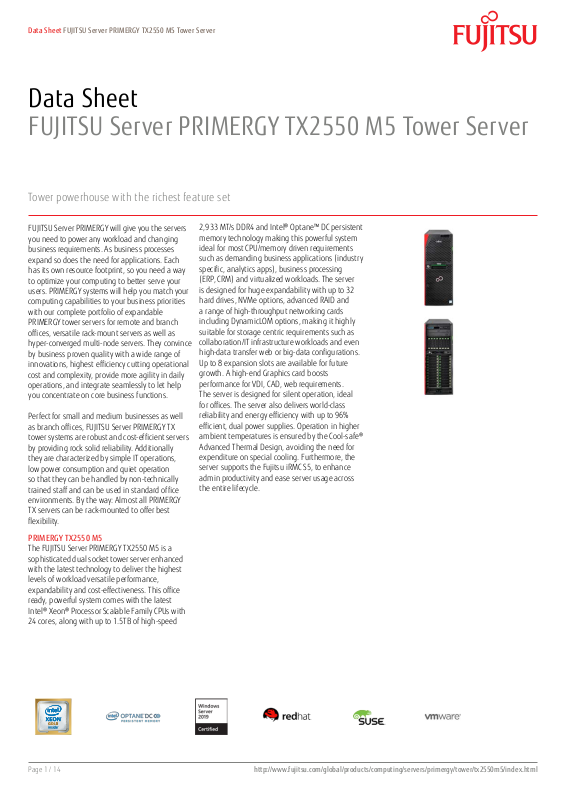

Data Sheet FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Data Sheet
FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Tower powerhouse with the richest feature set
FUJITSU Server PRIMERGY will give you the servers
you need to power any workload and changing
business requirements. As business processes
expand so does the need for applications. Each
has its own resource footprint, so you need a way
to optimize your computing to better serve your
users. PRIMERGY systems will help you match your
computing capabilities to your business priorities
with our complete portfolio of expandable
PRIMERGY tower servers for remote and branch
ofces, versatile rack-mount servers as well as
hyper-converged multi-node servers. They convince
by business proven quality with a wide range of
innovations, highest efciency cutting operational
cost and complexity, provide more agility in daily
operations, and integrate seamlessly to let help
you concentrate on core business functions.
Perfect for small and medium businesses as well
as branch ofces, FUJITSU Server PRIMERGY TX
tower systems are robust and cost-efcient servers
by providing rock solid reliability. Additionally
they are characterized by simple IT operations,
low power consumption and quiet operation
so that they can be handled by non-technically
trained staff and can be used in standard ofce
environments. By the way: Almost all PRIMERGY
TX servers can be rack-mounted to offer best
exibility.
2,933 MT/s DDR4 and Intel® Optane™ DC persistent
memory technology making this powerful system
ideal for most CPU/memory driven requirements
such as demanding business applications (industry
specic, analytics apps), business processing
(ERP, CRM) and virtualized workloads. The server
is designed for huge expandability with up to 32
hard drives, NVMe options, advanced RAID and
a range of high-throughput networking cards
including DynamicLOM options, making it highly
suitable for storage centric requirements such as
collaboration/IT infrastructure workloads and even
high-data transfer web or big-data congurations.
Up to 8 expansion slots are available for future
growth. A high-end Graphics card boosts
performance for VDI, CAD, web requirements.
The server is designed for silent operation, ideal
for ofces. The server also delivers world-class
reliability and energy efciency with up to 96%
efcient, dual power supplies. Operation in higher
ambient temperatures is ensured by the Cool-safe®
Advanced Thermal Design, avoiding the need for
expenditure on special cooling. Furthermore, the
server supports the Fujitsu iRMC S5, to enhance
admin productivity and ease server usage across
the entire lifecycle.
PRIMERGY TX2550 M5
The FUJITSU Server PRIMERGY TX2550 M5 is a
sophisticated dual socket tower server enhanced
with the latest technology to deliver the highest
levels of workload versatile performance,
expandability and cost-effectiveness. This ofce
ready, powerful system comes with the latest
Intel® Xeon® Processor Scalable Family CPUs with
24 cores, along with up to 1.5TB of high-speed
Page 1 / 14 http://www.fujitsu.com/global/products/computing/servers/primergy/tower/tx2550m5/index.html
Data Sheet FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Features & Benefits
Main Features Benefits
Power packed performance across workloads
Intel® Xeon® Processor Scalable family CPUs with up to 24
cores (code named “Cascade Lake”) relying on Intel® UltraPath
Interconnect for an increased data rate between the CPUs. Up to
1.5TB memory (12 DIMM slots) including a mix of DDR4 @ 2,933
MT/s and Intel® Optane™ DC persistent memory.
Highly expandable and exible storage
Up to 32x hot plug 2.5“HDD/SSD including up to 4xNVMe PCIe SSD,
or up to 12x hot plug 3.5” HDD/SSD + 2x non-hp 2.5” HDD/SSD
and up to 3x 1.6” drive bays for ODD or backup. Advanced RAID
controllers (RAID 0,1,1E,10,5,50,6,60) with up to 8GB cache for
enhanced data protection and reliability beyond embedded basic
RAID capability.
Powerful and cost-effective networking congurations
Onboard LAN for basic requirements, DynamicLoM via OCP for
extended requirements. Range of additional high throughput
networking cards (100/40/25/10Gb) also available.
Designed to keep pace with your business
8 Expansion slots (in maximal optional conguration; 7x PCIe and
1xPCI-32). Rack Form factor available from the factory and as an
upgrade option.
Versatile Graphics support
Up to 1x GFX card support (FPGA also on roadmap). Improve capability for Graphics intensive apps; get more from your
Go green, with cost savings and reliability improvements
Power supply units with 96% energy efciency, plus Fujitsu’s Cool-
safe® Advanced Thermal Design for higher ambient temperatures in
the data center.
Secure, Efcient Administration across the server lifecycle
Fujitsu ServerView Suite including tools for installation and
deployment, permanent status monitoring and control, The
server also has regular, free updates of BIOS, rmware and
selected software. The onboard iRMC S5 comes with interactive
web UI and conforms to Redsh providing unied API support for
heterogeneous environment. Furthermore, 2x Internal M.2 devices
support hypervisor installations or mirroring while TPM2.0 modules
enhance security.
Enhanced Dual-socket compute plus high bandwidth DDR4 and
Intel® Optane™ DC persistent memory - optimal for demanding
enterprise and SME requirements. Intel® Optane™ DC persistent
memory is an innovative memory technology which delivers a
unique combination of affordable large capacity and non-volatile
persistence. It revolutionizes the data center memory-storage
hierarchy of the past and brings massive data sets closer to the
CPU for faster time to insight. As such, the TX2550 M5 is capable
of handling a range of diverse tasks: Demanding Industry and
Analytics apps, Business processing and enterprise applications as
well as virtualized workloads.
Ideal for securely managing extremely large datasets and exible
enough to be matched to a range of storage centric requirements
such as IT infrastructure, database or collaboration workloads.
Drives and RAID controllers can be tailored to specic business
needs and budgets.
Range of Ethernet congurations depending on your business
need and budget. Combination of Basic capabilities via onboard
LAN, plus higher performance, optional DynamicLoM via OCP
offers excellent exibility and cost effective growth capability.
High throughput cards enable growth for the highest data rate
requirements.
Versatile PCIe slots offer exible expandability for the integration
of existing and new storage controllers, networking cards, Graphics
capability. Add capabilities per your business needs. Rack upgrade
kit allows you to invest in a system designed for scalability to match
your business growth.
display infrastructure.
High efciency redundant power supplies deliver energy cost
savings and enhanced reliability, while the Cool-safe® Advanced
Thermal Design allows you to operate your equipment without
having to invest in expensive cooling equipment.
ServerView enables ease of administration: IT Staff can focus on
high-value tasks and business requirements versus transactional
tasks. With BIOS upgrades, your server remains up-to-date
consistently, without extra expenses, great for your budget and IT
admin productivity. The onboard iRMC S5, is optimized for both:
data centers and SMEs can rely on the latest generation server
management by Fujitsu. M.2 devices are perfect for hassle-free
hypervisor /operating system start-up, while TPM 2.0 provides ease
of mind for administrators with the latest hardware and Software
driven security features to address emerging threats and cybercrime
challenges.
Page 2 / 14 http://www.fujitsu.com/global/products/computing/servers/primergy/tower/tx2550m5/index.html
Data Sheet FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Technical details
PRIMERGY TX2550 M5
Base unit TX2550 M5 Tower
LFF
Housing types Tower Tower Tower Tower Tower Tower
Storage drive architecture 4x 3.5-inch SAS/
SATA expandable
Power supply Hot-plug Hot-plug Hot-plug Hot-plug Hot-plug Hot-plug
Product Type Dual Socket Tower
Server
Mainboard
Mainboard type D3386-B
Chipset Intel® C624
Processor quantity and type 1 - 2 x Intel® Xeon® Processor Scalable Family
Intel® Xeon® Bronze Processor Intel® Xeon® Bronze 3204 (6C, 1.90 GHz, TLC: 8.25 MB, Turbo: 1.90 GHz, 9.6 GT/s, Mem bus: 2,133 MHz, 85 W, AVX
Base 1.50 GHz, AVX Turbo 1.50 GHz)
TX2550 M5 Tower
LFF
8x 3.5-inch SAS/
SATA expandable
Dual Socket Tower
Server
TX2550 M5 Tower
SFF
8x 2.5-inch SAS/
SATA/PCIe
Dual Socket Tower
Server
TX2550 M5 Tower
SFF
16x 2.5-inch SAS/
SATA/PCIe
Dual Socket Tower
Server
TX2550 M5 Tower
SFF
8x 2.5-inch
SAS/SATA/PCIe
expandable
Dual Socket Tower
Server
TX2550 M5 Tower
SFF
24x 2.5-inch
SAS/SATA/PCIe
expandable
Dual Socket Tower
Server
Intel® Xeon® Silver Processor Intel® Xeon® Silver 4208 (8C, 2.10 GHz, TLC: 11 MB, Turbo: 2.50 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX Base
1.60 GHz, AVX Turbo 2.00 GHz)
Intel® Xeon® Silver 4210 (10C, 2.20 GHz, TLC: 13.75 MB, Turbo: 2.70 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX
Base 1.90 GHz, AVX Turbo 2.30 GHz)
Intel® Xeon® Silver 4214 (12C, 2.20 GHz, TLC: 16.5 MB, Turbo: 2.70 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX
Base 1.80 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Silver 4214Y (12C, 2.20 GHz, TLC: 16.5 MB, Turbo: 2.70 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX
Base 1.80 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Silver 4215 (8C, 2.50 GHz, TLC: 11 MB, Turbo: 3.00 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX Base
2.00 GHz, AVX Turbo 2.60 GHz)
Intel® Xeon® Silver 4216 (16C, 2.10 GHz, TLC: 22 MB, Turbo: 2.70 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 100 W, AVX
Base 1.40 GHz, AVX Turbo 2.30 GHz)
Page 3 / 14 http://www.fujitsu.com/global/products/computing/servers/primergy/tower/tx2550m5/index.html
Data Sheet FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Intel® Xeon® Gold Processor Intel® Xeon® Gold 5215 (10C, 2.50 GHz, TLC: 13.75 MB, Turbo: 3.00 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 85 W, AVX
Base 2.00 GHz, AVX Turbo 2.60 GHz)
Intel® Xeon® Gold 5217 (8C, 3.00 GHz, TLC: 11 MB, Turbo: 3.40 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 115 W, AVX
Base 2.50 GHz, AVX Turbo 3.00 GHz)
Intel® Xeon® Gold 5218 (16C, 2.30 GHz, TLC: 22 MB, Turbo: 2.80 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 125 W, AVX
Base 1.80 GHz, AVX Turbo 2.30 GHz)
Intel® Xeon® Gold 5218B (16C, 2.30 GHz, TLC: 22 MB, Turbo: 2.80 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 125 W, AVX
Base 1.80 GHz, AVX Turbo 2.30 GHz)
Intel® Xeon® Gold 5220 (18C, 2.20 GHz, TLC: 24.75 MB, Turbo: 2.70 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 125 W, AVX
Base 1.80 GHz, AVX Turbo 2.50 GHz)
Intel® Xeon® Gold 5220S (18C, 2.70 GHz, TLC: 24.75 MB, Turbo: 2.70 GHz, 10.4 GT/s, Mem bus: 2,666 MHz, 125 W,
AVX Base 1.80 GHz, AVX Turbo 2.20 GHz)
Intel® Xeon® Gold 5222 (4C, 3.80 GHz, TLC: 16.5 MB, Turbo: 3.90 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 105 W, AVX
Base 3.80 GHz, AVX Turbo 3.80 GHz)
Intel® Xeon® Gold 6209U (20C, 2.10 GHz, TLC: 27.5 MB, Turbo: 2.80 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 125 W, AVX
Base 1.60 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Gold 6210U (20C, 2.50 GHz, TLC: 27.5 MB, Turbo: 3.20 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W, AVX
Base 1.90 GHz, AVX Turbo 2.80 GHz)
Intel® Xeon® Gold 6212U (24C, 2.40 GHz, TLC: 33 MB, Turbo: 3.10 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 165 W, AVX
Base 1.90 GHz, AVX Turbo 2.60 GHz)
Intel® Xeon® Gold 6222V (20C, 1.80 GHz, TLC: 27.5 MB, Turbo: 2.40 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 115 W, AVX
Base 1.60 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Gold 6226 (12C, 2.70 GHz, TLC: 19.25 MB, Turbo: 3.50 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 125 W, AVX
Base 2.30 GHz, AVX Turbo 3.10 GHz)
Intel® Xeon® Gold 6230 (20C, 2.10 GHz, TLC: 27.5 MB, Turbo: 2.80 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 125 W, AVX
Base 1.60 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Gold 6234 (8C, 3.30 GHz, TLC: 24.75 MB, Turbo: 4.00 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 130 W, AVX
Base 2.8 GHz, AVX Turbo 3.70 GHz)
Intel® Xeon® Gold 6238 (22C, 2.10 GHz, TLC: 30.25 MB, Turbo: 3.70 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 140 W, AVX
Base 1.70 GHz, AVX Turbo 2.50 GHz)
Intel® Xeon® Gold 6240 (18C, 2.60 GHz, TLC: 24.75 MB, Turbo: 3.30 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W, AVX
Base 2.00 GHz, AVX Turbo 2.80 GHz)
Intel® Xeon® Gold 6240Y (18C, 2.60 GHz, TLC: 24.75 MB, Turbo: 3.30 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W,
AVX Base 2.00 GHz, AVX Turbo 2.80 GHz)
Intel® Xeon® Gold 6242 (16C, 2.80 GHz, TLC: 22 MB, Turbo: 3.50 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W, AVX
Base 2.30 GHz, AVX Turbo 3.10 GHz)
Intel® Xeon® Gold 6248 (20C, 2.50 GHz, TLC: 27.5 MB, Turbo: 3.20 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W, AVX
Base 1.90 GHz, AVX Turbo 2.80 GHz)
Intel® Xeon® Gold 6252 (24C, 2.10 GHz, TLC: 35.75 MB, Turbo: 2.80 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 150 W, AVX
Base 1.70 GHz, AVX Turbo 2.40 GHz)
Intel® Xeon® Gold 6262V (24C, 1.90 GHz, TLC: 33 MB, Turbo: 2.50 GHz, 10.4 GT/s, Mem bus: 2,933 MHz, 135 W, AVX
Base 1.60 GHz, AVX Turbo 2.80 GHz)
Memory slots 12 (6 DIMMs per CPU, 6 channels with one DIMM per channel)
Memory slot type DIMM (DDR4 / DDR-T for non-volatile memory modules)
Memory capacity (min. - max.) 8 GB - 1.5 TB
Memory protection Advanced ECC
SDDC
Memory notes Possibility to populate 2 slots with DCPMM modules per CPU, please see relevant system congurator for details
Memory Mirroring Mode with identical modules in both channel pairs of a bank (4 or 6 modules per bank) per CPU.
Standard memory modules (for use in
combination with non-volatile memory
modules)
Non-volatile memory modules 256 GB (2 module(s) 128 GB) DDR-T, registered, ECC, 2,666 MT/s, NVM, DCPMM, 1Rx4
Page 4 / 14 http://www.fujitsu.com/global/products/computing/servers/primergy/tower/tx2550m5/index.html
64 GB (4 module(s) 16 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 1Rx4
128 GB (4 module(s) 32 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 2Rx4
256 GB (4 module(s) 64 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, LRDIMM, 4Rx4
512 GB (2 module(s) 256 GB) DDR-T, registered, ECC, 2,666 MT/s, NVM, DCPMM, 2Rx4
Data Sheet FUJITSU Server PRIMERGY TX2550 M5 Tower Server
Standard memory modules 8 GB (1 module(s) 8 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 1Rx8
16 GB (1 module(s) 16 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 1Rx4
16 GB (1 module(s) 16 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 2Rx8
32 GB (1 module(s) 32 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 2Rx4
64 GB (1 module(s) 64 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, DIMM, 2Rx4
64 GB (1 module(s) 64 GB) DDR4, registered, ECC, 2,933 MT/s, PC4-2933, LRDIMM, 4Rx4
Interfaces
USB 2.0 ports 1 x USB 2.0 internal for backup devices
USB 3.0 ports 7 x USB 3.0 (2x front, 4 x rear, 1x internal (type A)
Graphics (15-pin) 1 x VGA
Serial 1 (9-pin) 1 x optional serial RS-232-C (9 pin)
LAN / Ethernet (RJ-45) 2 x RJ45 (additional 2x RJ45 are optional available)
Management LAN (RJ45) 1 x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s)
Management LAN trafc can be switched to shared onboard LAN port
Onboard or integrated Controller
RAID controller All hardware storage controller options are described under Components
SATA Controller Intel® C624, 9-port SATA (8 x for internal hard disks, 1 x for accessible drives)
SATA controller type notes On board SATA controller supports RAID levels 0, 1, 10
LAN Controller 2 x 1 Gbit/s onboard
Optional 2x 10Gb T or 2x 10Gb SFP+ interface card onboard with OCP carrier card (OCP carrier card blocks PCIe slot 8).
Remote management controller IPMI 2.0 compatible
Integrated Remote Management Controller (iRMC S5, 512 MB attached memory incl. graphics controller)
Trusted Platform Module (TPM) optional TPM
Slots
PCI-Express 3.0 x8 5 x Full height Note: 2 of the slots become available via optional riser card. Refer to congurator for details
PCI-Express 3.0 x16 3 x Full height Note: One x16 PCIe slot is available with the rst CPU, can be occupied by the optional Riser card.
Second CPU adds two more x16 PCIe slots. Refer to congurator for details.
PCI-slots 1 x PCI 32Bit, available via optional riser card. Refer to congurator for details
Slot Notes in SAS conguration 1x PCI-Express occupied by modular RAID controller
Drive bays
Storage drive bays 3.5-inch or 2.5-inch hot-plug SAS/SATA
Accessible drive bays 3 x 5.25/1.6-inch
Notes accessible drives All possible options described in relevant system congurator.
Drive bays (Base unit specic)
Storage drive bays 4 x 3.5-inch hot-
plug SAS/SATA
Storage drive bay conguration optional
expandable up to
8 storage drives
Optional accessible drives 3x 1.6x5.25” bays
for an optical and/
or backup drives
Fan Conguration
Number of fans 3
Fan conguration 3x120mm high power fans (optional non-hot plug redundant or single hot plug red.)
Fan notes Fans with optimized blades and fan control for silent and safe operation
8 x 3.5-inch hot-
plug SAS/SATA
optional
expandable up to
12 storage drives
3x 1.6x5.25” bays
for an optical and/
or backup drives
8 x 2.5-inch hot-
plug SAS/SATA
not expandable not expandable optional
3x 1.6x5.25” bays
for an optical and/
or backup drives
16 x 2.5-inch hot-
plug SAS/SATA
3x 1.6x5.25” bays
for an optical and/
or backup drives
8 x 2.5-inch hot-
plug SAS/SATA
expandable up to
24 storage drives
3x 1.6x5.25” bays
for an optical and/
or backup drives
24 x 2.5-inch hot-
plug SAS/SATA
optional
expandable up to
32 storage drives
3x 1.6x5.25” bays
for an optical and/
or backup drives
Operating panel
Operating buttons On/off switch
NMI button
Reset button
Page 5 / 14 http://www.fujitsu.com/global/products/computing/servers/primergy/tower/tx2550m5/index.html
Loading...
