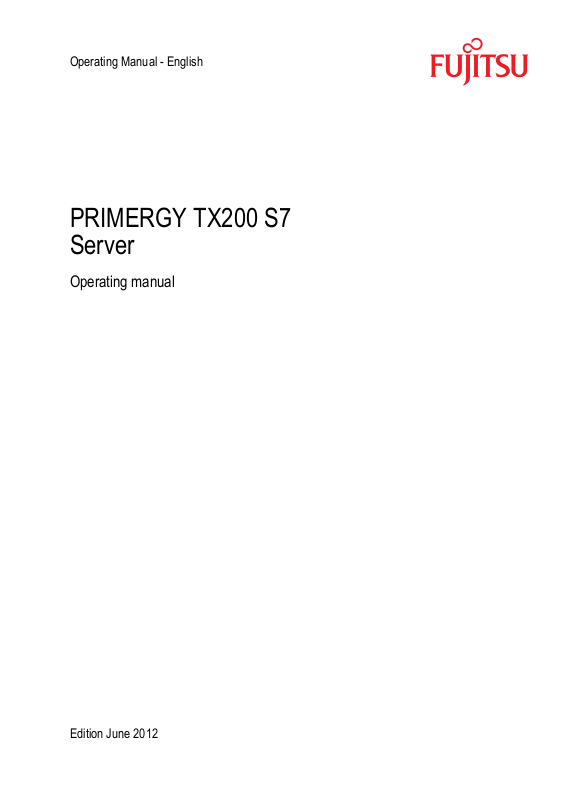

Fujitsu TX200 S7 User Manual

Operating Manual - English

PRIMERGY TX200 S7
Server

Operating manual

Edition June 2012

Comments… Suggestions… Corrections…

The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.

Feel free to send us your comments by e-mail to

[e-mail].

Certified documentation
according to DIN EN ISO 9001:2008

To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2008.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Copyright and Trademarks

Copyright © 2012 Fujitsu Technology Solutions GmbH.

All rights reserved.
Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

– The contents of this manual may be revised without prior notice.

– Fujitsu assumes no liability for damages to third party copyrights or other rights arising from

the use of any information in this manual.

– No part of this manual may be reproduced in any without the prior written permission of

Fujitsu.

Microsoft, Windows, Windows Server, and Hyper V are trademarks or registered trademarks of
Microsoft Corporation in the USA and other countries.

Intel and Xeon are trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the USA and other countries.

Before reading this manual

For your safety

This manual contains important information for safely and correctly using this
product.

Carefully read the manual before using this product. Pay particular attention to
the accompanying manual "Safety Notes and Regulations" and ensure these
safety notes are understood before using the product. Keep this manual and the
manual "Safety Notes and Regulations" in a safe place for easy reference while
using this product.

Radio interference

This product is a "Class A" ITE (Information Technology Equipment). In a
domestic environment this product may cause radio interference, in which case
the user may be required to take appropriate measures. VCCI-A

Aluminum electrolytic capacitors

The aluminum electrolytic capacitors used in the product's printed circuit board
assemblies and in the mouse and keyboard are limited-life components. Use of
these components beyond their operating life may result in electrolyte leakage
or depletion, potentially causing emission of foul odor or smoke.

As a guideline, in a normal office environment (25°C) operating life is not
expected to be reached within the maintenance support period (5 years).
However, operating life may be reached more quickly if, for example, the
product is used in a hot environment. The customer shall bear the cost of
replacing replaceable components which have exceeded their operating life.
Note that these are only guidelines, and do not constitute a guarantee of
trouble-free operation during the maintenance support period.

High safety use

This product has been designed and manufactured to be used in commercial
and/or industrial areas as a server.

When used as visual display workplace, it must not be placed in the direct field
of view to avoid incommoding reflections (applies only to TX server systems).

The device has not been designed or manufactured for uses which demand an
extremely high level of safety and carry a direct and serious risk of life or body
if such safety cannot be assured.

TX200 S7 Operating Manual

These uses include control of nuclear reactions in nuclear power plants,
automatic airplane flight control, air traffic control, traffic control in mass
transport systems, medical devices for life support, and missile guidance
control in weapons systems (hereafter, "high safety use"). Customers should
not use this product for high safety use unless measures are in place for
ensuring the level of safety demanded of such use. Please consult the sales
staff of Fujitsu if intending to use this product for high safety use.

Measures against momentary voltage drop

This product may be affected by a momentary voltage drop in the power supply
caused by lightning. To prevent a momentary voltage drop, use of an AC
uninterruptible power supply is recommended.

(This notice follows the guidelines of Voltage Dip Immunity of Personal
Computer issued by JEITA, the Japan Electronics and Information Technology
Industries Association.)

Technology controlled by the Foreign Exchange and Foreign Trade
Control Law of Japan

Documents produced by Fujitsu may contain technology controlled by the
Foreign Exchange and Foreign Trade Control Law of Japan. Documents which
contain such technology should not be exported from Japan or transferred to
non-residents of Japan without first obtaining authorization in accordance with
the above law.

Harmonic Current Standards

This product conforms to harmonic current standard JIS C 61000-3-2.

Only for the Japanese market:
About SATA hard disk drives

The SATA version of this server supports hard disk drives with SATA / BC-SATA
storage interfaces. Please note that the usage and operation conditions differ
depending on the type of hard disk drive used.

Please refer to the following internet address for further information on the
usage and operation conditions of each available type of hard disk drive:

http://jp.fujitsu.com/platform/server/primergy/harddisk/

Operating Manual TX200 S7

Only for the Japanese market:

I Although described in this manual, some sections do not apply to the

Japanese market. These options include:

– CSS (Customer Self Service)

TX200 S7 Operating Manual

Operating Manual TX200 S7

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

1.1 Concept and target groups for this manual . . . . . . . . . 11

1.2 Documentation overview . . . . . . . . . . . . . . . . . . . 12

1.3 Notational conventions . . . . . . . . . . . . . . . . . . . . 14

2 Functional overview . . . . . . . . . . . . . . . . . . . . . . 15

2.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.2 Server specification . . . . . . . . . . . . . . . . . . . . . . 25

3 Installation steps, overview . . . . . . . . . . . . . . . . . . 33

4 Important information . . . . . . . . . . . . . . . . . . . . . 35

4.1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . 35

4.2 CE conformity . . . . . . . . . . . . . . . . . . . . . . . . . 43

4.3 FCC Class A Compliance Statement . . . . . . . . . . . . . 44

4.4 Transporting the server . . . . . . . . . . . . . . . . . . . . 45

4.5 Notes on installing the server in the rack . . . . . . . . . . . 46

4.6 Environmental protection . . . . . . . . . . . . . . . . . . . 47

5 Hardware installation . . . . . . . . . . . . . . . . . . . . . . 49

5.1 Unpacking the server . . . . . . . . . . . . . . . . . . . . . 50

5.2 Setting up the floorstand model . . . . . . . . . . . . . . . . 51

5.2.1 Mounting the anti-tilt bracket . . . . . . . . . . . . . . . . . . . 51

5.3 Installing/removing the rack model . . . . . . . . . . . . . . 52

5.4 Connecting devices to the server . . . . . . . . . . . . . . . 54

5.5 Connecting the server to the mains . . . . . . . . . . . . . . 56

TX200 S7 Operating Manual

Contents

5.5.1 Using cable ties . . . . . . . . . . . . . . . . . . . . . . . . . . 57

5.6 Notes on connecting/disconnecting cables . . . . . . . . . . 58

6 Starting up and operation . . . . . . . . . . . . . . . . . . . . 61

6.1 Access to the drives (floorstand model) . . . . . . . . . . . . 61

6.1.1 Enabling access to the accessible drives . . . . . . . . . . . . . 61

6.1.2 Access to the HDD modules (floorstand model) . . . . . . . . . 63

6.2 Controls and indicators . . . . . . . . . . . . . . . . . . . . . 64

6.2.1 Front of server . . . . . . . . . . . . . . . . . . . . . . . . . . 64

6.2.1.1 ID card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

6.2.1.2 Control elements . . . . . . . . . . . . . . . . . . . . . . . 66

6.2.1.3 Indicators on the control panel . . . . . . . . . . . . . . . . 67

6.2.1.4 Indicators on the drives . . . . . . . . . . . . . . . . . . . . 69

6.2.2 Rear of server . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

6.3 Switching the server on and off . . . . . . . . . . . . . . . . 75

6.4 Configuring the server . . . . . . . . . . . . . . . . . . . . . 78

6.4.1 Configuring the onboard SAS/SATA controller . . . . . . . . . . 78

6.4.2 Configuring the SAS/SATA RAID controller . . . . . . . . . . . . 79

6.4.3 Configuring the server and installing the operating system

with the ServerView Installation Manager . . . . . . . . . . . . . 80

6.4.4 Configuring the server and installing the operating system

without the ServerView Installation Manager . . . . . . . . . . . 81

6.5 Cleaning the server . . . . . . . . . . . . . . . . . . . . . . . 82

7 Property and data protection . . . . . . . . . . . . . . . . . . 83

7.1 BIOS Setup security functions . . . . . . . . . . . . . . . . . 83

8 Troubleshooting and tips . . . . . . . . . . . . . . . . . . . . 85

8.1 Power-on indicator remains unlit . . . . . . . . . . . . . . . . 85

8.2 Server switches itself off . . . . . . . . . . . . . . . . . . . . 86

8.3 Screen remains blank . . . . . . . . . . . . . . . . . . . . . . 86

8.4 Flickering stripes on monitor screen . . . . . . . . . . . . . 87

Operating Manual TX200 S7

Contents

8.5 No screen display or display drifts . . . . . . . . . . . . . . 87

8.6 No mouse pointer displayed on screen . . . . . . . . . . . . 87

8.7 Incorrect date and time . . . . . . . . . . . . . . . . . . . . 88

8.8 Hard disk drive error messages at system boot . . . . . . . 88

8.9 Added drive reported as defective . . . . . . . . . . . . . . 89

8.10 Error message on screen . . . . . . . . . . . . . . . . . . . 89

8.11 Expansion cards or onboard devices not recognized . . . . 89

8.12 Temperature warning . . . . . . . . . . . . . . . . . . . . . . 90

8.13 No effect of keyboard or mouse . . . . . . . . . . . . . . . . 90

8.14 Optical drive cannot read data . . . . . . . . . . . . . . . . 90

TX200 S7 Operating Manual

Contents

Operating Manual TX200 S7

1 Introduction

The PRIMERGY TX200 S7: a perfect server for SMEs, branch offices or
virtualized environments in an attractive design. It offers dual processor
performance combined with expandability and energy efficiency. With up to 16

2.5-inch hard disk drives, you can save on an external storage unit. The high
energy efficiency minimizes costs.

Moreover, a maximum of 192 GB of memory, redundancy features, and the
Intel® Xeon® E5-2400 processor family performance allow you to make a great
start into virtualization. The PRIMERGY TX200 S7 also lends itself as a
database or communication server. A tower to rack conversion kit protects your
investment's lifetime. This great system strikes the right balance between price
and performance.

The rack model occupies 4 height units in the rack.

1.1 Concept and target groups for this manual

This operating manual describes how to install, set up and operate your server.

This operating manual is intended for those responsible for installing the
hardware and ensuring that the system runs smoothly. It contains all the
information you need to put your PRIMERGY TX200 S7 into operation.

To understand the various expansion options, you will need to be familiar with
the fields of hardware and data transmission and you will require a basic
knowledge of the underlying operating system.

TX200 S7 Operating Manual 11

Introduction

1.2 Documentation overview

More information on your PRIMERGY TX200 S7 can be found in the following
documents:

– "Quick Start Hardware - PRIMERGY TX150 S8 / TX200 S7" leaflet

(only included as a printed copy)

– "Quick Start Software - Quick Installation Guide" DVD booklet

(only included with the ServerView Suite as a printed copy)

– "Safety Notes and Regulations" manual

" 安全上のご注意 " for the Japanese market

– "Warranty" manual

" 保証書 " for the Japanese market

– "ServerView Suite Local Service Concept - LSC" manual

– "Returning used devices" manual and "Service Desk" leaflet

" サポート＆サービス " for the Japanese market

– "PRIMERGY TX150 S8 / TX200 S7 Server Upgrade and Maintenance

Manual"

– "D3099 BIOS Setup Utility for PRIMERGY TX200 S7 Reference Manual"

– "Integrated RAID for SAS User Guide"

– "LSI MegaRAID - SAS Software User Guide"

– "Modular RAID Controller / Modular SAS HBA Installation Guide"

12 Operating Manual TX200 S7

I PRIMERGY manuals are available in PDF format on the

ServerView Suite DVD 2. The ServerView Suite DVD 2 is part of the
ServerView Suite supplied with every server.

If you no longer have the ServerView Suite DVDs, you can obtain the
relevant current versions using the order number U15000-C289 (the
order number for the Japanese market: please refer to the configurator
of the server http://jp.fujitsu.com/platform/server/primergy/system/).

The PDF files of the manuals can also be downloaded free of charge
from the Internet. The overview page showing the online documentation
available on the Internet can be found using the URL (for EMEA market):

http://manuals.ts.fujitsu.com. The PRIMERGY server documentation can

be accessed using the Industry standard servers navigation option.

For the Japanese market:

Please refer to the following URL for the latest product manuals:

http://jp.fujitsu.com/platform/server/primergy/manual/

Before using the product, please check for additional information that
may be available under the following URL:

http://jp.fujitsu.com/platform/server/primergy/products/note/

Further sources of information:

Introduction

– ServerView Suite Glossary on the ServerView Suite DVD 2
– Manual for the monitor
– Documentation for the boards and drives
– Operating system documentation
– Information files in your operating system

TX200 S7 Operating Manual 13

Introduction

1.3 Notational conventions

The following notational conventions are used in this manual:

Text in italics indicates commands or menu items.

"Quotation marks" indicate names of chapters and terms that are being

emphasized.

Ê describes activities that must be performed in the order

shown.

V CAUTION! pay particular attention to texts marked with this symbol.

Failure to observe this warning may endanger your life,
destroy the system or lead to the loss of data.

I indicates additional information, notes and tips.

14 Operating Manual TX200 S7

2 Functional overview

This section provides information on the features and technical data of the
PRIMERGY TX200 S7 server. For information on key characteristics and layout
of the system board, see the "PRIMERGY TX150 S8 / TX200 S7 Server
Upgrade and Maintenance Manual".

2.1 Features

Customer Self Service (CSS)

The PRIMERGY Customer Self Service (CSS) concept enables you to identify
and replace the affected component yourself in the case of certain error
scenarios.

In the CSS concept, you can replace the following components yourself in the
event of an error:

– Hot-plug hard disk drives

– Hot-plug power supply units

– Memory modules

– System fans

– Expansion cards

For information on replacing these components, see the "PRIMERGY
TX150 S8 / TX200 S7 Server Upgrade and Maintenance Manual".

CSS indicators on the control panel and on the back of the PRIMERGY server
provide you with information if a CSS event arises.

You can also fit your server with a ServerView Local Service Panel, which
enables you to identify the type of component affected by the error directly on
the server.

In addition, CSS errors are displayed in the ServerView Operations Manager,
the server management software from Fujitsu.

In the event of errors, the ServerView Operations Manager refers you directly
to the affected component and its order information in the Illustrated Spares
catalog of the server in question. (This feature is not available for the Japanese
market.)

TX200 S7 Operating Manual 15

Functional overview

I Further information on the CSS concept is provided in the "PRIMERGY

ServerView Suite Local Service Concept - LSC" manual on the
ServerView Suite DVD 2.

For the latest information on optional products provided for the TX200 S7
see the configurator of the server:

http://ts.fujitsu.com/products/standard_servers/index.html

(for the EMEA market)

http://jp.fujitsu.com/platform/server/primergy/system/

(for the Japanese market)

System board

The features of the system board are described in the "PRIMERGY TX150 S8
/ TX200 S7 Server Upgrade and Maintenance Manual", the setup possibilities
are described in the "D3099 BIOS Setup Utility for PRIMERGY TX200 S7
Reference Manual".

Trusted Platform Module (TPM)

A Trusted Platform Module (TPM) for safer storage of keys can be implemented
as an option. This module enables programs from third party manufacturers to
store key information (e.g. drive encryption using Windows Bitlocker Drive
Encryption).

The TPM is activated via the BIOS system (for more information, refer to the
“D3099 BIOS Setup Utility for PRIMERGY TX200 S7 Reference Manual").

V CAUTION!

– When using the TPM, note the program descriptions provided by the

third party manufacturers.

– You must also create a backup of the TPM content. To do this, follow

the third party manufacturer's instructions. Without this backup, if the
TPM or the system board is faulty you will not be able to access your
data.

– If a failure occurs, please inform your service about the TPM

activation before it takes any action, and be prepared to provide them
with your backup copies of the TPM content.

16 Operating Manual TX200 S7

Functional overview

Hard disk drives

For the server is available in two chassis variants:

● For up to eight 3.5-inch SAS/SATA HDD

Up to four SAS/SATA HDD modules can be used in the standard HDD cage.
Each HDD module can accommodate a SAS/SATA HDD with a maximum
height of 1 inch. The module is connected to the SAS/SATA backplane
wirelessly. This allows HDD modules to be plugged in and pulled out easily.

Optionally, you can also install one of the following hard disk expansion
boxes:

– 4 x 3.5-inch HDD extension box for up to four additional 3.5-inch

SAS/SATA HDD modules and a slimline optical disk drive

– 2 x 3.5-inch HDD extension box for up to two additional 3.5-inch

SAS/SATA HDD module and a slimline optical disk drive

● For up to sixteen 2.5-inch SAS/SATA HDD/SSD:

Up to eight SAS/SATA HDD/SSD modules can be used in the standard HDD
cage. Each HDD/SSD module can accommodate an SAS/SATA HDD/SSD
with a 2.5-inch format. The module is connected to the SAS/SATA
backplane wirelessly. This allows HDD/SSD modules to be plugged in or
pulled out easily.

Optionally, you can also install an HDD extension box (with up to eight 2.5­inch SAS/SATA HDD/SSD modules). An additional SAS controller must be
installed in order to control the hard disk drives in this expansion box. The
HDD in this expansion box are controlled by a SAS expansion card or by a
second 8-Port RAID Controller.

I Mixed configurations with Eco SATA drives and SAS drives are not

allowed. 2.5-inch SAS drives and 2.5-inch BC SATA drives can be mixed,
but not used in one logical RAID volume.

Onboard SAS/SATA controller

A SAS/SATA controller is integrated on the system board; up to four SAS or
SATA hard disk drives can be connected to the controller. The LSI Embedded
MegaRAID software (Software RAID) supports RAID levels 0, 1 and 10. The
SAS functionallity needs to be enabled separately by using a ROM1 SCU Key.

For more information on configuring the controller, see section "Configuring the

onboard SAS/SATA controller" on page 78.

TX200 S7 Operating Manual 17

Functional overview

SAS/SATA RAID controller

The server is available with the following SAS/SATA RAID controllers for
operating the internal SAS/SATA hard disk drives:

– Modular RAID 0/1 controller with "MegaRAID functionality"

(SAS MegaRAID) for SAS1.0 and SAS2.0

RAID levels 0, 1,10 and 1E are supported for internal hard disk drive
configurations.

– Modular RAID 5/6 controller with "MegaRAID functionality"

(SAS MegaRAID) for SAS1.0 and SAS2.0

RAID levels 0, 1, 10, 1E, 5, 50, 6 and 60 are supported for internal hard disk
drive configurations. As an option, a battery backup unit (BBU) or a flash
backup unit (FBU) can save the memory content even if the power fails.
Cache memory size of 512 Mbyte or 1 Gbyte is available.

I For more information on configuring the controller, see section

"Configuring the SAS/SATA RAID controller" on page 79.

Further information on SAS/SATA RAID controllers is provided in the
"Modular RAID Controller Installation Guide" (on ServerView Suite
DVD 2 under Industry Standard Servers - Expansion Cards - Storage Adapters

- LSI SAS / SCSI RAID Controllers).

Further information on other SAS/SATA RAID controllers (e.g. for
operating external SAS/SATA hard disk drives or tape drives) is available
on ServerView Suite DVD 2 under Industry Standard Servers - Expansion
Cards - Storage Adapters - LSI SAS / SCSI RAID Controllers.

18 Operating Manual TX200 S7

Functional overview

Accessible drives / components

The server has three 5.25-inch bays.You can use these bays as follows:

– Optical disk drives or backup drives.

– Multibay for a slimline optical disk drive and a Server View Local Service

Display (LSD); occupies one bay.

– 4 x 3.5-inch HDD extension box for up to four additional 3.5-inch SAS/SATA

HDD modules and a slimline optical disk drive; occupies three bays.

– 2 x 3.5-inch HDD extension box for up to two additional 3.5-inch SAS/SATA

HDD modules and a slimline optical disk drive; occupies two bays.

– 8 x 2.5-inch HDD extension box for up to eight additional 2.5-inch SAS/SATA

HDD modules; occupies two bays.

Power supply units (PSUs)

The power supply configuration depends on the base unit:

– a standard PSU (800 W)

– one hot-plug PSU (450 W or 800 W)

– two hot-plug PSUs for redundancy

The PSUs adjust automatically to any mains voltage in the range of 100 V ­240 V.

A mix of 450 W and 800 W hot-plug PSUs is not allowed. If one of two hot-plug
PSU is defective, the other guarantees unimpaired operation. The defective
power supply module can be replaced during operation (see the "PRIMERGY
TX150 S8 / TX200 S7 Server Upgrade and Maintenance Manual").

I Redundancy is only guaranteed, if the total maximum power of all low

power versions gets not exceeded. Power sharing under mix mode
operation is not guaranteed.

TX200 S7 Operating Manual 19

Functional overview

High level of availability and data security

When memory data is accessed, 1-bit errors are identified in the main memory
and automatically corrected with the error correcting code (ECC) method. The
patented memory scrubbing function regularly starts up the EDC mechanism,
ensuring continuous data integrity.

The memory modules used support SDDC technology (Chipkill™), which
further increases the effectiveness of memory error monitoring and correction.

Support is likewise provided for hot-spare memory technology, in which a
memory bank is used like a replacement bank. If a memory module fails, the
bank with the defective memory is automatically deactivated and the
replacement bank is activated (provided it has been configured for appropriately
in the BIOS). The deactivated memory bank is no longer used and the faulty
memory module can be replaced at the next opportunity. In order to be able to
use the hot-spare memory function, all occupied memory banks should be
equipped with identical memory modules.

Memory modules can be protected against failure by mirroring (Memory
Mirroring). Memory Mirroring is roughly comparable to RAID level 1 for hard
disk arrays. The basic configuration requires two identical memory modules in
two different banks.

ASR&R (Automatic Server Reconfiguration and Restart) restarts the system in
the event of an error and automatically "hides" the defective system
components.

The PDA (Prefailure Detection and Analysis) technology from Fujitsu analyzes
and monitors all components that are critical for system reliability.

The SAS/SATA RAID controller supports different RAID levels and increase the
availability and data security of the system.

20 Operating Manual TX200 S7

Functional overview

iRMC S3 with integrated management LAN connector

The iRMC S3 (integrated Remote Management Controller) is a Baseboard
Management Controller (BMC) with integrated management LAN connector
and expanded functionality that was previously only available with additional
plug-in cards. In this way, the iRMC S3 enables complete control of PRIMERGY
servers, regardless of system status, and thus particularly the control of
PRIMERGY servers that are in the "out-of-band" system status.

Major functions supported by the iRMC S3 include the following:

● Browser access via iRMC S3´s own Web server

● Secure communication (SSH, SSL)

● Power Management for the managed server (depending on its system

status)

● Power Consumption Management

● Connecting virtual drives as remote storage

● Text-based and graphic console bypass (Advanced Video Redirection)

● Remote Storage

● Command Line Interface (CLI)

● Simple, interactive or script-based iRMC S3 configuration

● Customer Self Service (CSS)

● iRMC S3´s own user management

● Multi-computer, global iRMC S3 user administration using an LDAP

Directory Service

● Automatic network configuration via DNS / DHCP

● Power supply of the iRMC S3 via the system standby supply

● Full-coverage alarm management

● System Event Log (SEL) reading and processing

More information about the iRMC S3 can be found in the "iRMC S2/3 ­integrated Remote Management Controller" user guide (on the
ServerView Suite DVD 2 under Industry Standard Servers - Software -
ServerView Suite - Out-Of-Band Management).

TX200 S7 Operating Manual 21

Functional overview

Server management

Server management is implemented using the ServerView Operations Manager
supplied and the PDA (Prefailure Detection and Analysis) technology from
Fujitsu. PDA reports the threat of a system error or overload at an early stage,
allowing preventive measures to be taken.

The ServerView Operations Manager enables the management of all
PRIMERGY servers in the network via a central console. The ServerView
Operations Manager supports the following functions:

● Round-the-clock monitoring, regardless of server status

● High-performance, graphical console bypass (AVR) protected by

HTTPS/SSL (128 bit)

● Remote storage via USB

● Remote power on

● Intrusion detection in the floorstand model

● Temperature monitoring of the CPU and the surrounding area

● Detailed status and error reports for processors and main memory

● Watchdog timer for Automatic Server Reconfiguration and Restart (ASR&R)

in the event that memory modules or processors fail

● Power monitoring

● End-of-life monitoring of fans with prompt notification before failure

● Watchdog timer for monitoring the operating system with ASR&R

Further information on the ServerView Operations Manager is provided in the
associated documentation.

ServerView Installation Manager

You can configure the PRIMERGY server quickly and precisely with the
ServerView Installation Manager software provided. User-guided menus are
available for installing the server operating system (for further details see
section "Configuring the server" on page 78).

22 Operating Manual TX200 S7

Functional overview

Service and support

PRIMERGY servers are easy to maintain and modular, thus enabling quick and
simple maintenance.

The handles and locks (touch points) used to exchange components are
colored green to ensure simple and immediate recognition.

In order to prevent the components from being damaged by incorrect handling
when they are being installed and removed, the areas of all components that
can be touched without damaging them are also marked green.

PRIMERGY diagnostic LEDs fitted on the system board indicate which
component (memory module, processor, fan or expansion card) is not
functioning properly.

The Flash EPROM program supplied with the Fujitsu utilities supports a fast
BIOS update.

With the iRMC S3 (integrated Remote Management Controller) on the system
board, the PRIMERGY TX200 S7 server can also be maintained and serviced
remotely. This enables remote diagnosis for system analysis, remote
configuration and remote restart should the operating system or hardware fail.

TX200 S7 Operating Manual 23

Functional overview

ServerView Remote Management

ServerView Remote Management is the remote management solution from
Fujitsu for PRIMERGY servers. ServerView Remote Management and the
relevant hardware components integrated on the system board allow remote
monitoring and maintenance as well as fast restoration of operation in the event
of errors.

Remote monitoring and maintenance avoids time-consuming and costly on-site
repairs and reduces service costs. This leads to a reduction in the total cost of
ownership and an excellent return on investment for the remote management
solution.

The administrator can access all system information and information from the
sensors such as fan speeds or voltages via the iRMC S3's Web interface (see
section "iRMC S3 with integrated management LAN connector" on page 21).
You can also start the text-based or graphic console bypass (Advanced Video
Redirection, AVR) and connect virtual drives as remote storage.

I More information about the iRMC S3 can be found in the "iRMC S2/3 -

integrated Remote Management Controller" user guide (on the
ServerView Suite DVD 2 under Industry Standard Servers - Software -
ServerView Suite - Out-Of-Band Management).

24 Operating Manual TX200 S7

Functional overview

2.2 Server specification

This section explains the specifications for the server. The specifications for this
server are liable to be updated without any notice. Please be forewarned.

System Board

System board type D3099

®

Chipset Intel

Processor

C602

Processor quantity and

1or 2 Intel

®

Xeon® E5-2400 family processors

type

Memory Modules Configuration

Memory slots 12 (6 DIMMs per CPU, 3 channels with 2 slots per

channel)

Memory slot type DIMM (DDR3)

Memory capacity

2 GB - 192 GB

(min. - max.)

Memory protection Advanced ECC; Memory Scrubbing; SDDC

(Chipkill™); Hot-spare memory support
Memory Mirroring support

Memory notes Max.192 GB registered; min. 2 GB unbuffered;

Memory Mirroring with identical modules in both
channel pairs of a bank (2 modules per bank), Rank
Sparing with identical modules within the same
channel, Performance Mode with identical modules
in all channels of each bank per CPU.

TX200 S7 Operating Manual 25

Functional overview

Interfaces

USB connectors 9 x USB 2.0 (2 x front, 4 x rear, 3 x internal for backup

devices, UFM, and internal USB)

Graphics (15-pin) 1 x VGA

Serial 1 (9-pin) 1 x serial RS-232C, usable for iRMC S3 or system or

shared

LAN / Ethernet (RJ45) 2 x 1 Gbit/s Ethernet

Management LAN
(RJ45)

1 x dedicated management LAN connector for
iRMC S3 (10/100/1000 Mbit/s).
Service LAN traffic can be switched to shared
onboard Gbit LAN connector.

26 Operating Manual TX200 S7

Functional overview

Onboard or integrated controllers

RAID Controller RAID 5/6 Ctrl., HDD SAS 6 Gb, LSI, 8 ports ext.

RAID level: 0, 1, 10, 5, 50, 6, 60; 512 MB Cache;
Optional BBU (based on LSI SAS2108).

Integrated RAID 5/6 Ctrl., HDD SAS 6 Gb, Fujitsu,
8 ports int.
RAID level: 0, 1, 10, 5, 50, 6, 60; 1024 MB Cache,
Optional FBU (based on LSI SAS2208).

Integrated RAID 5/6 Ctrl., HDD SAS 6 Gb, Fujitsu,
8 ports int.
RAID level: 0, 1, 10, 5, 50, 6, 60, 512 MB Cache,
Optional BBU (based on LSI SAS2108).

Integrated RAID 0/1 Ctrl., SAS/SATA 6 Gb, Fujitsu,
8 ports int.
RAID level: 0, 1, 10, No BBU support (based on LSI
SAS2008).

RAID 5/6 Ctrl., HDD SAS 6 Gb, LSI, 8 ports ext.
RAID level: 0, 1, 10, 5, 50, 6, 60; 1024 MB Cache;
Optional FBU (based on LSI SAS2208).

SATA / SAS RAID
Controller

Intel C602, 6-port SATA (4x for internal HDDs, 2x for
accessible drives). On board SATA controller
supports RAID levels 0, 1, 10.

With SAS enabling key (optional): 4 x internal SAS
HDDs or 1x SAS backup drive; supports RAID levels
0, 1, 10.

LAN Controller Intel Ethernet Controller 82574L, 2 x 10/100/1000

Mbit/s Ethernet (I/O acceleration) as default.
Modular On-Board LAN with upgrade options to 2 x
1 Gbit/s, 4 x 1 Gbit/s or 2 x 10 Gbit/s.
PXE-Boot via LAN from PXE server, iSCSI boot (also
diskless).

Remote Management
Controller

Integrated Remote Management Controller
(iRMC S3, 32 MB attached memory incl. graphics
controller), IPMI 2.0 compatible

Trusted Platform

Infineon TCG V1.2 compliant (option)

Module (TPM)

TX200 S7 Operating Manual 27
