SERVICE MANUAL

TF1560GH C383 S383FA-V151

P/N : 41A50-137

TABLE OF CONTENTS

3

5

6

7

9

11

45

46

51

52

53

54

PAGE

1. SPECIFICATIONS ....................................................................................................

1-1 GENERAL SPECIFICATIONS ...................................................….............. 3

1-2 LCD MONITOR DESCRIPTION .................................................................. 4

1-3 INTERFACE CONNECTOR .................................................................……. 4

2. PRECAUTION AND NOTICES ................................................................................

2-1 ASSEMBLY PRECAUTION ......................................................................... 5

2-2 OPERATIONG PRECAUTION ..................................................................... 5

2-3 STORAGE PRECAUTION …........................................................................ 5

2-4 HIGH VOLTAGE WARNING ....................................................................... 5

3. OPERATING INSTRUCTIONS ................................................................................

4. ADJUSTMENT ..........................................................................................................

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS ............................... 7

4-2 ADJUSTMENTS METHOD ...........................................................................

4-3 FRONT PANEL CONTROL KNOBS ............................................................ 8

5. CIRCUIT DESCRIPTION ..........................................................................................

5-1 THE DIFFERENT BETWEEN EACH PANEL ……………………………. 9
5-2 SPECIAL FUNCTION WITH PRESS KEY ……………………………….. 9
5-3 SIMPLE INTRODUCTION ABOUT LM500 CHIPSET …………………... 10

7-8

6. TROUBLE SHOOTING CHART ..............................................................................

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY......................................

8. PARTS LISTING .........................................................................................………...

9. POWER SYSTEM AND CONSUMPTION CURRENT............................................

9-1 HARDWARE BLOCK DIAGRAM …………………………………………

10. PCB LAYOUT .....................................................................………………………...

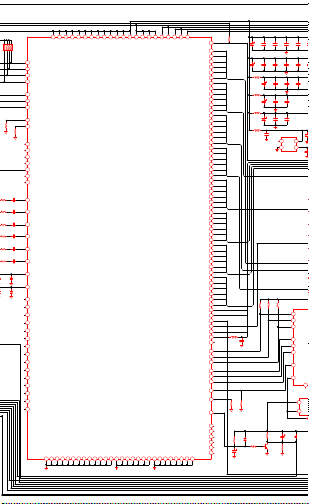

11. SCHEMATIC DIAGRAM ….....................................................................................

1. SPECIFICATIONS FOR LCD MONITOR

1-1 General specifications

1. LCD-PANEL :

Active display area 15 inches diagonal

Pixel pitch 0.298 mm x 0.298 mm
Pixel format 1024 x 768 RGB vertical stripe arrangement

2. Display Color :

6-bit, 262144 colors

3. External Controls :

Power On/Off, Auto key, Rotary-knob, Contrast, Brightness, Focus, Clock,

H-position, V-position, Language, Recall-7800, Recall-6500, Reset,

Exit-osd, Red, Green, Blue

4. Input Video Signal :

Analog-signal 0.7Vpp

Video signal termination impedance 75 OHM

5. Scanning Frequencies :

Horizontal: 29 KHz - 61 KHz
Vertical: 55 Hz – 75 Hz
Pixel clock: 80 MHz

6. Factory Preset Timing : 18

User Timings : 19
Input signal tolerance : H tolerance 1 K, V tolerance

7. Power Source :

Switching Mode Power Supply
AC 100 – 240 V, 50/60 Hz Universal Type

8. Operating Temperature : 0 - 50 Ambient

Non-operating Temperature : -20 - 60

9. Humidity :

Operating : 20% to 80% RH (non-condensing)
Non Operating : 5% to 95%RH (38.7 maximum wet bulb temperature)

10. Weight :

4.6 kg

11. External Connection : 15Pin D-type Connector, AC power-Cord

12. View Angle : x-axis right/left = 60, y-axis up/down = 45

13. Outside dimension : Width x Height x Thickness = 398mm x 401mm x 250mm

14. Plug and Play : VESA DDC1/DDC2B

15. Power saving : VESA DPMS

AC-IN

1-2 LCD MONITOR DESCRIPTION

The LCD MONITOR will contain an main board, an inverter board, a power switch board and a keyboard. The
main board will house the flat panel control logic, brightness control logic, DDC and DC-DC conversion to
supply the appropriate power to the whole board and LCD panel, and transmitting TTL level signals into LCD
Module to drive the LCD display circuit.

The inverter board will drive the two CCFLs (Cold Cathode Fluorescent Tube).
The switching power board will provides the power ON/OFF control over the whole monitor and control for
DPMS LED indicator.
The function keyboard will provides the OSD control signal to the Main Board.

Inverter Flat Panel

CCFT Drive.

ADAPTER

1-3 Interface Connectors

(A) Power Cable
(B) Video Signal Connectors and Cable

Monitor Block Diagram

Main Board

Keyboard

HOST Computer

RS232 Connector

Video signal, DDC

2. PRECAUTIONS AND NOTICES

2-1 ASSEMBLY PRECAUTION

(1) Please do not press or scratch LCD panel surface with anything hard. And do not soil LCD panel surface

by touching with bare hands (Polarizer film, surface of LCD panel is easy to be flawed)

In the LCD panel, the gap between two glass plates is kept perfectly even to maintain display

characteristic and reliability. If this panel is subject to hard pressing, the following occurs :

(a) Uniform color (b) Orientation of liquid crystal becomes disorder
(2) Please wipe out LCD panel surface with absorbent cotton or soft cloth in case of it being soiled.
(3) Please wipe out drops of adhesive like saliva and water in LCD panel surface immediately.

They might damage to cause panel surface variation and color change.

(4) Do not apply any strong mechanical shock to the LCD panel.

2-2 OPERATING PRECAUTIONS

(1) Please be sure to unplug the power cord before remove the back-cover. (be sure the power is turn-off)
(2) Please do not change variable resistance settings in MAIN-BOARD, they are adjusted to the most suitable

value. If they are changed, it might happen LUMINANCE does not satisfy the white balance spec.

(3) Please consider that LCD backlight takes longer time to become stable of radiation characteristic in low

temperature than in room temperature.

(4) Please pay attention to displaying the same pattern for very long-time. Image might stick on LCD.

2-3 STORAGE PRECAUTIONS

(1) When you store LCD for a long time, it is recommended to keep the temperature between 0 without

the exposure of sunlight and to keep the humidity less than 90% RH.

(2) Please do not leave the LCD in the environment of high humidity and high temperature such as 60

90%RH.

(3) Please do not leave the LCD in the environment of low temperature; below -15 .

2-4 HIGH VOLTAGE WARNING

The high voltage was only generated by INVERTER module, if carelessly contacted the transformer on this
module, can cause a serious shock. (the lamp voltage after stable around 600V, with lamp current around 8mA,
and the lamp starting voltage was around 1500V, at Ta=25 )

3. OPERATING INSTRUCTIONS

5

This procedure gives you instructions for installing and using the LM500 LCD monitor display.

1. Position the display on the desired operation and plug the power cord into a convenient AC outlet. Three-

wire power cord must be shielded and is provided as a safety precaution as it connects the chassis and
cabinet to the electrical conduct ground. If the AC outlet in your location does not have provisions for the
grounded type plug, the installer should attach the proper adapter to ensure a safe ground potential.

2. Connect the 15-pin color display shielded signal cable to your signal system device and lock both screws
on the connector to ensure firm grounding. The connector information is as follow:

PIN NO.

DESCRIPTION

1. RED 9. 5V power from VGA-card

2. GREEN 10. GND

3. BLUE 11. SYNC. GND

4. GND 12. SDA

5. GND 13. HORIZ. SYNC

6. GND-R 14. VERT. SYNC

7. GND-G 15. SCL

8. GND-B

3. Apply power to the display by turning the power switch to the "ON" position and allow about thirty
seconds for Panel warm-up. The Power-On indicator lights when the display is on.

4. With proper signals feed to the display, a pattern or data should appear on the screen, adjust the brightness
and contrast to the most pleasing display, or press auto-key to get the best picture-quality.

5. This monitor has power saving function following the VESA DPMS. Be sure to connect the signal cable
to the PC.

6. If your LM500 LCD monitor requires service, it must be returned with the power cord.

1

6

11 15

10

15 - Pin Color Display Signal Cable

PIN NO.

DESCRIPTION

4. ADJUSTMENT

4-1 ADJUSTMENT CONDITIONS AND PRECAUTIONS

1. Approximately 30 minutes should be allowed for warm up before proceeding.

2. Adjustments should be undertaken only on following function : contrast, brightness focus, clock, h-position,

v-position, red, green, blue since 6500 color & 7800 color &VR501 have been carefully preset at the
factory.

4-2 ADJUSTMENT METHOD

Press MENU key to show OSD window or select function, and Left/Right key to switch the function controls or
done the adjustment.

1. White-Balance, Luminance adjustment

Before started adjust white balance ,lets setting the Chroma-7120 MEM. Channel 3 to 7800 color and
MEM. channel 4 to 6500 color, how to setting MEM.channel you can reference to chroma 7120 user
guide or simple use “ SC” key and “ NEXT” key to modify xyY value and use “ID” key to modify your
own description

Following is the step to do white-balance adjust

Press MENU key for 2 seconds at power on (replug power cord) will be in factory mode, and the OSD
screen will located at left top of panel.

I. Bias (Low luminance) adjustment :

Press “ AUTO” key , and wait for message “ Pass” appear then set OSD contrast and brightness
To maximal, RGB to “50” . then adjust VR501 until Y=210 cd/m2 cd/m2

II. Gain (High light) adjustment :
a. adjust 7800 color-temperature

Set OSD contrast = 15, Brightness = -10
Switch the chroma-7120 to RGB-mode(with press “MODE” )
,and selected the MEM.channel to Channel 03
The lcd-indicator will show x = 296 , y = 311 , Y = 135 cd/m2
Adjust RGB until R=100, G=100, B=100, and then switch the chroma-7120 to xyY mode
(With press “MODE” )
Adjust contrast until Y= 150 cd/m2
Press osd-78 to save in 7800 factory mode

b. adjust 6500 color-temperature

Set OSD contrast = 15, Brightness = -10 Switch the chroma-7120 to RGB-mode(with press
“MODE” ),and selected the MEM.channel to Channel 04
The lcd-indicator will show x = 313 , y = 329 , Y = 135 cd/m2
Adjust RGB until R=100, G=100, B=100, and then switch the chroma-7120 to xyY mode
Adjust contrast until Y= 150 cd/m2 ,Press osd-65 to save in 6500 factory mode

Press POWER-key off-on to quit from factory mode ( in USER-mode, the OSD location was
placed at middle of screen)

2. Clock adjustment
Set the Chroma at pattern 63 (cross-talk pattern) or WIN98/95 shut-down mode (dot-pattern).
Adjust until the vertical-shadow as wide as possible or no visible.
This function is adjust the PLL divider of ADC to generate an accurate pixel clock
Example : Hsyn = 31.5KHz Pixel freq. = 25.175MHz (from VESA spec)

The Divider number is (N) = (Pixel freq. x 1000)/Hsyn

From this formula, we get the Divider number, if we fill this number in ADC register (divider register),
the PLL of ADC will generate a clock which have same period with above Pixel freq.(25.175MHz) the
accuracy of this clock will effect the size of screen.(this clock was called PIXEL-CLOCK)

3. Focus adjustment
Set the Chroma at pattern 63 (cross talk pattern) or WIN98/95 shut down mode (dot-pattern).
Adjust the horizontal interference as less as possible
This function is adjust the phase shift of PIXEL-CLOCK to acquire the right pixel data .
If the relationship of pixel data and pixel clock not so match, we can see the horizontal interference at
screen only at crosstalk pattern and dot pattern we can find this phenomena, other pattern the affect is very
light

4. H/V-Position adjustment
Set the Chroma at pattern 1 (crosshatch pattern) or WIN98/95 full-white pattern confirm above 2
functions (clock & focus) was done well, if that 2 functions failed, the H/V position will be failed too.
Adjust the four edge until all four-edges are visible at the edge of screen.

5. MULTI-LANGUAGE function
There have 5 language for selection, press “MENU” to selected and confirm , press “ LEFT” or “ RIGHT”
to change the kind of language.

6. Reset function
Clear each old status of auto-configuration and re-do auto-configuration ( for all mode)
This function also recall 7800 color-temperature , if the monitor status was in “ Factory-mode” this reset
function will clear Power-on counter too.

7. OSD-LOCK function
Press Left & Right key during switching on the monitor, the access to the OSD is locked, user only has
access to “ Contrast, Brightness, Auto-key “.
If the operator pressed the Left & Right during switching on the monitor again , the OSD is unlocked.

8. View Power-on counter and reset the Power-on counter( if not necessary , not suggest to entry factory
mode)
The Power-on counter was used to record how long the backlight of panel already working, the backlight
life time was guarantee minimal 25000 hours, the maintainer can check the record only in factory mode.
Press MENU key for 2 seconds at power on (replug power cord) will be in factory mode, and the OSD
screen will located at left top of panel but take cautions don’t press icon “78” & “65”, if you press
78/65 , your white-balance data will overlap with the new-one, and you must perform the white-balance
process again.
The result of counter was place at top of OSD, the maximal of record memory was 65000 hours, if exceed
65000 hours the counter will keep in 65000 hours until press “ RESET” at osd-menu in factory mode.
The “ RESET” function in factory mode will execute following function :

1. clear the Power-on counter to zero hours

2. clear old auto-configuration status for all mode , so the monitor will automatically re-do auto-config

when change to next mode or power on-off

4-3 MAIN ADJUSTMENTS

Power Key : Press to turn on or off the monitor.
Auto Key : Press to perform automatic calculated CLOCK, FOCUS, H/V POSITION, but no affect the color-

temperature
Left/Right Key : press to perform select function or adjustment.
MENU Key : press to show the OSD menu at the monitor or to confirm your function selection

5. CIRCUIT-DESCRIPTION

5-1 THE DIFFERENT between LG-Panel & Samsung-Panel & CPT-Panel & Hannstar- Panel in

ELECTRICAL Charateristic

LG-Panel 1. Two CCFL (Cold Cathode Fluorescent Tube)

2. Single Pixel, 6 bit color (262144 colors)

3. Panel Vdd = 3.3V (in JP202 select 3.3V)

Samsung-Panel 1. Four CCFL (Cold Cathode Fluorescent Tube)

2. Double Pixel, 6 bit color (262144 colors)

3. Panel Vdd = 5V (in JP201 select 5V)

Chung-Hwa Panel 1. Two CCFL (Cold Cathode Flourescent Tube)

2. Double Pixel, 8 bit color (16.7 Million colors)

3. Panel Vdd = 5V (in JP201 select 5V)

Hannstar Panel 1. Two CCFL (Cold Cathode Flourescent Tube)

2. Double Pixel, 6 bit color (262144 colors)

3. Panel Vdd = 3.3V (in JP202 select 3.3V)

5-2 SPECIAL FUNCTION with PRESS-KEY

press ENTER-key 2 seconds, at POWER-ON: set to FACTORY-mode, when we want to adjust white-balance

with rs232-port or view Power-on-timer. In this mode, OSD­screen will locate in left top of screen.

Press POWER-key off-on : CANCEL above function(quit from factory mode) and set to user-mode.

Press both Left & Right key and switching on-off key : Enable/ Disable OSD-LOCK function

OSD-INDEX EXPLANATION

1. CABLE NOT CONNECTED : Signal-cable not connected.

2. INPUT NOT SUPPORT :

a. INPUT frequency out of range : H > 62kHz, v > 75Hz or H < 28kHz, v < 55Hz
b. INPUT frequency out of VESA-spec. (out of tolerance too far)

3. UNSUPPORT mode, try different Video-card Setting :

Input frequency out of tolerance, but still can catch-up by our system (if this message show, that means, this
is new-user mode, AUTO-CONFIG will disable)

5-3 SIMPLE-INTRODUCTION about LM500 chipset

1. GMZAN1 (Genesis all-in-one solution for ADC, OSD, scalar and interpolation) :

USE for computer graphics images to convert analog RGB data to digital data for interpolation process,
zooming, OSD font & overlay and generate drive-timing for LCD-PANEL,

2. M6759 (ALI- MCU, type 8052 series with 64k Rom-size and 512 byte ram) :

Use for calculate frequency, pixel-dot , detect change mode, rs232-communication, power-consumption
control, OSD-index warning…etc.

3. 24LC21 (MicroChip IC) :

EePROM type, 1K ROM-SIZE, for saving DDC-CONTENT.

4. 24C04 (ATMEL IC) :

EePROM type, 4K ROM-SIZE, for saving AUTO-config data, White-balance data, and Power-key status
and power on –counter data.

5. LM2569S( NS brand swintching regulator 12V to 5V with 3A load current) :

6. AIC 1084-33CM (AIC brand linear regulator 5V to 3.3V)

MODULE-TPYE COMPONENT :

1. ADAPTER : CONVERSION-module to convert AC 110V-240V to 12VDC, with 3.5 AMP

2. INVERTER : CONVERSION-module to convert DC 12V to High-Voltage around 1600V, with frequency

30K-50Khz, 7mA-9mA

**Use the PC Win 98/95 white pattern, with some icon on it, and Change the Resolution to 640x480 60 Hz / 31

Check INVERTER

-

module

OK, screen is normal

NG

NG

OK

R215= 50M Hz ? U302 pin 20= 20 M Hz ?

Check Power

-

Block

OK

NG, led in dark

KHz

**NOTICE : This system free-running freq. is 48 KHz / 60 Hz, so you better use another frequency to do

trouble shooting(ex:31kHz 60Hz) this trouble shooting is proceed with 640x480 @60Hz 31Khz

I. NO SCREEN APPEAR

OK, led in green-state
But still no screen

Replace INVERTER to new-one, and
Check the screen is normal ??

Check the FPC cable from CN201,CN202
was tight enough?, check the FPC of
panel side too

Measured all power path if have had
power?

C309, C310= 5V ?, C312=3.3V ?,U302
MCU pin 44=5V ?

Check crystal & oscillator if keep normal?
(for MCU crystal 20MHz, for GMZAN1
oscillator 50MHz)

NG, led in orange

If LED in ORANGE-state, check your
signal-cable

OK, still no screen
But led is in Green

Re-plug power cord & make sure LED was in
green-state? If led is in off-state(dark), press
POWER-button to power-on the monitor

OK

6. Trouble-Shooting

NG, still in led
ORANGE

GMZAN1-BLOCK

RE-assemble the FPC cable for both side
(Cn201,202 & panel-side)

NG

Check Oscillator & crystal relative circuit
Or replace

If LED in DARK-state, check the key­Button ,it could be stuck by mechanical

Check Keyboard circuit and check
Mechanical key button, why be stuck?

White-balance

OK

NG, no transition

NG OK

C313, R313, D301 !!

OK

NG

Check

GMZAN1

-

BLOCK

Check

PERIPHERAL PANEL BLOCK

OK NG

END

OK

Check MCU reset circuit if normal ?
U302 pin 10 = low to high when
Power-on??

Check R229 reset for GMZAN1= high to
Low twice when power-on ??

Measured PCLK(pin 44 from CN201)
PVS,PHS (pin 40,38 from CN201)
Is there has any transition?
Pclk =31.25MHZ ,PVS=60.09Hz , PHS
=50.4KHz ??(for input signal=31K 60 Hz)

OK,there have
transition

NG

Check MCU relative reset circuit

Check GMZAN1 relative reset circuit
R326,C314,D302,R229

Check input connector CN200 is loose??
Measure R212,R211= 31K & 60 hz??
Measure R200,R201,R202 (RGB input )
had signal??

Tighten CN200 Cable & check
Relative Circuit

Screen normal & appear?

PERIPHERAL PANEL BLOCK

NG OK

OK

NG

OK

NG

NG

OK

Note: “Panel vdd “ and “backlight on-off ” can be direct control by :

GMZAN1 or MCU
Some panel can direct control by GMZAN1 ,if the relative timing between panel-vdd and backlight on-off
is short ( under 80 ms) , otherwise, will be control by MCU
If J211 be connected, that means Panel-VDD control was by GMZAN1 ,otherwise by MCU( JP212)
If J300 be connected, that means Backlight control was by GMZAN1 ,otherwise by MCU ( JP301)

BUT Hannstar panel & CPT panel still control by J211 & J300

Press on-off key once, make-sure Led is in
Green state .check panel-VDD = 3.3V for
HANNSTAR
And 5V for CPT-panel , measured Panel-p
(pin 4,5 from CN201)??

Check CN303 pin 3 = 5 V ? ( that is
Backlight controller, On-state= 5V)

Check CN303 pin 4 4.6V ??(that VR is for
Backlight luminance control)

FOR HANNSTAR-PANEL , there is the relative timing between input resolution to output timing for panel
( output timing from GMZAN1 chip) as follow :

RESOLUTION( from PC or chroma) PCLK(U200.44) PHS ( U200.74) PVS (U200.73)
640X480 @60 Hz 31.25MHz 50.4 KHz 60.09 Hz
640X480 @70 Hz 35.56MHz 55.93KHz 69.83 Hz
640X480 @72 Hz 36.76MHz 57.64KHz 71.94 Hz
640X480 @75 Hz 37.71MHz 60.12KHz 74.96 Hz
800X600 @60 Hz 28.65MHz 48.45KHz 60.39 Hz
800X600 @70 Hz 32.94MHz 56.05KHz 70.03 Hz
800X600 @72 Hz 34.25MHz 57.61KHz 72.04 Hz
800X600 @75 Hz 35.71MHz 60.10KHz 75.08 Hz
1024x768@60 Hz 28.57MHz 48.36KHz 60.09 Hz
1024x768@70 Hz 32.77MHz 56.05KHz 70.03 Hz
1024x768 @72 Hz 33.97MHz 57.60KHz 71.84 Hz
1024x768@75 Hz 35.41MHz 60.24KHz 74.96 Hz

TURN VR until CN303

Pin 4= 4.7 V??

NG,still no
screen

If JP211 was connected, check PPWR relative circuit
( R400,R401,Q250,R223,Q200,R224,R225,C245,Q201
cold-solder or open loop)?? make-sure LED in
Green-state, and PPWR (U200.pin 76)= high 3.3V
If JP212 was connected, check Backlight_En relative circuit
(R223,Q200,R224,R225,Q201,C245), make sure
Backlight_En = low 0V ??

If JP300 was connected ,check Pbias relative circuit( R314,R309,R315,
Q303,Q304,R311 cold-solder or open loop)?? make-sure LED in
Green-state, and Pbias (U200.pin 75)= high 3.3V
If JP301 was connected, check Panel-en relative circuit( R315,Q304
R311 cold-solder or open loop ??) make-sure LED in green-state
And Panel-en= low 0V ??

If JP300 was connect, replace GMZAN1
Chip, if JP301 was connect , replace MCU

Replace PANEL, maybe the lamp or
Driver board was bad

GMZAN1 BLOCK check

OK

State?

OK

NG

OK

OK

NG

Note : set the input signal ( PC or CHROMA) to 640x480 31k 60 hz

Check input connector CN200 is loose??
Measure R212,R211= 31K & 60 hz ?
Measure R200,R201,R202 (RGB input )
had signal??

NG

Tighten CN200 cable & check relative circuit

Measure U201 oscillator 50MHz is normal??
(you can measure R215)

NG

Set chroma or PC to power-save mode
Check LED in ORANGE state ?

Set chroma or PC to 640x480 @60Hz or
Other frequency, check LED in GREEN

Measured PCLK(pin 44 from CN201)
PVS,PHS (pin 40,38 from CN201)
Is there has any transition?
Pclk=31.25MHZ ,PVS=60.09Hz ,PHS=50.
4KHz ??(for input signal=31K 60 Hz)

Re-plug power-cord, and check again
Previous function, if still no screen, then
Replace GMZAN1 chip

OK, partial of Gmzan1 is good

NG

Replace U201 oscillator 50 MHz

Replace GMZAN1

Check Peripheral-panel block

OK

OK

OK

NG

NG

OK

NG

NG

R300,R301 cold solder

OK

OK, no keep transition

KEYBOARD BLOCK check

Check U302 MCU pin 43,42,41,40,39 at
High state(5V)? without press any key

Press power key and check U302 pin 43
= low (0V) ?

Check U302 pin 38 (LED green) will have
transition from hi to low or low to hi when we
press the power key??

Check U302 pin 20= 20MHz ? and pin 44
(VDD)=5V ? and pin 10 (reset)=0V ? at normal
condition

Without press key and change mode, Check U302
pin 16,17(sda,scl)= hi 5V ? or keep transition ?

Replace U302 MCU

NG, MCU no response

NG

Keep transition, that means eeprom no response

Mechanical was stuck, Check !

Replace Tact-switch SW105 at keyboard if still
no work replace U302 MCU at main-board and
check MCU relative reset circuit, and crystal

If still no Led green indicator, check Q102,
R106 & LED at keyboard !! cold solder or bad

If one of this item was NG, check the relative
circuit

Check U300 eeprom 24LC04 relative circuit,
check U300 pin 7 = low?

Check JP202 is
connect ?

Check U300 pin 8
(vdd)= 5V, and check

Replace eeprom

OK

OK

pulse

NG

OK, unstable wave

POWER-BLOCK check
**Note : the waving of U304 pin 2 can determined the power situation

1. stable rectangle wave with equal duty, freq around 150K-158KHz

that means all power of this interface board is in normal operation
,all status of 5V & 3.3V is normal working

2. unstable rectangle wave without same duty, that means ABNORMAL operation was happened

check 3.3V or 5V ,short-circuit or bad component

3. rectangle wave with large spike & harmonic pulse on front side of rectangle wave, that means all 3.3v is

no load, Gmzan1 was shut-down, and only MCU still working ,the monitor is in power saving state

Measure input power at U304 LM2596 pin 1=
12V ?

NG

Check ADAPTER and connector if loose?

Check U304 pin 2 is a stable rectangle wave?
Around 150k-158kHz stable rectangle wave
with equal duty without any spike or harmonic
pulse?

The interface board power is good

Check U304 pin 2 is a unstable rectangle wave ?

Check all 3.3V & 5V power, there is
short circuit or bad component was
happened

NG,with
harmonic

The interface board is in power­saving state, press power key to wake
up & check your signal input

END

OK OK

NG, interferences still exist

NG

taipei)

NO, all mode

II.ALL SCREEN HAS INTERFERENCES OR NOISE, CAN’T BE FIXED BY AUTO KEY

** NOTE: There is so many kind of interferences, 1). One is cause by some VGA-CARD that not meet VESA spec or

power grounding too bad that influence our circuit

2).other is cause by external interferences, move the monitor far from electronic equipment.( rarely
happened)

Use DOT-pattern, or win98/99 shut-down
mode pattern, press “AUTO” key, was the
interferences disappear ??

Adjust “FOCUS” step by step, until the
horizontal interferences disappear

Does your signal-cable have an additional
cable for extension ??

Does your noise only exist in one mode only?
(ex: only at 1024x768 @ 75 Hz, other is normal)

That was cause by you VGA-CARD setting, your VGA
card timing backporch/frontporch exceed vesa timing too
far, for some new AGP-VGA-CARD such situation
always happened
So in your control-panel icon ,select monitor ,setting ,

advance ,screen-adjust,at
Size icon, increase step by step slowly, press “”AUTO”

key every step you increase the SIZE . repeat the
procedure( increase/decrease SIZE one-step and press
AUTO) until the interferences disappear, press “APPLY”
to save in your VGA

Yes, has extension

NO additional extension cable

END

Put away the additional cable
May be the additional cable grounding is
not quite well

Change the Signal-cable to new-one or
Try other brand VGA-CARD
(make sure just only that brand VGA­CARD has this problem ,contact RD-

each pin

or Pure

array LP201~LP206, both side of

Yes

No

Yes

No

III. DOS MODE has jitter

NOTE :the rule of doing AUTO-CONFIGURATION : must be a full-size screen, if the screen not full , the auto­configuration will fail. So in dos mode ,just set your “CLOCK” in OSD-MENU to zero or use some full screen edit
file (ex: PE2, HE) and press “AUTO”

I? . THERE WAS SNOW PHENOMENA or BRIGHT NOISE ON THE SCREEN

When use pattern 32 Gray-scale / or 16 Gray scale, there is a snow phenomena on the screen (like a noise spread
inside) that means some output bit to panel was bad, may be cause by FPC loose, or bead-array cold-solder
There were some panel (ex :LG),also have this phenomena too, the noise will reduce or increase depend on the
contrast/brightness value, this kind of problem was cause by Panel-driver-board it self, we can’t fix it ,the only way to
do was find the best-point of brightness/contrast, that the noise is more light

Use following pattern :

1. pure-white 2. Pure Red 3. Pure Green

4. Pure Blue 5. Pure White 6. Character
repeat measure GMZAN1 (U200) all output pins must have some transition pulse, but notice

1. For LG panel and HANNSTAR panel , only 6 bit has output, (PD0~ PD17 , PD36 ~ PD41) the

corresponding beads was LP201 ~ LP206

2. For Chung-hwa panel or other’s 8 bit panel, all output are available (PD0-PD47 ), the corresponding beads

was LP201-LP212

Ex : HANNSTAR Panel 6 bits

With 16 gray-scale, adjust contrast /brightness slowly

and observe the noise was increase or reduce or no-

influence at all ?especially at low luminance scale

That was the panel noise, no solution,
Just set the brightness to the best point

which noise is more light

Set pattern to full-white, adjust contrast to 50

Check U200 GMZAN1
Pin 71,70,69,68,67,66 ( Red, Pd0 -Pd5)
Pin 64,63,62,57,56,55 (Green ,Pd6-Pd11)
Pin 54,53,52,51,50,48 (Blue, Pd12- Pd17)
There must be have some transition pulse in

All pins has transition

Denotes U200 GMZAN1 work well

Set pattern to Pure-Red or Pure Green
Blue repeat above-step until all pins had
transition

Some pins no transition

Check bead­bead must have the same transition signal

All 5 pattern already change yet??

Check FPC cable for
loose, or FPC bad, if
FPC bad, replace it

Replace the
correpondens beads
array and check the
capacitor arrays too

If all pattern already change but still had some pins no
transition. That means GMZAN1 (U200) fail, replace
U200

V. THE PANEL LUMINANCE WAS DOWN

NG NG

OK OK

±

±

GMZAN1

The gmZAN1device utilizes Genesis’ patented third-generation Advanced Image Magnification technology as well as
a proven integrated ADC/PLL to provide excellent image quality within a cost effective SVGA/XGA LCD monitor
solution.
As a pin-compatible replacement for the gmB120, the gmZAN1 incorporates all of the gmB120 features plus many
enhanced features; including 10-bit gamma correction, Adaptive Contrast Enhancement (ACE) filtering, Sync On
Green (SOG), and an enhanced OSD.

1.1 Features

? Fully integrated 135MHz 8-bit triple-ADC, PLL, and pre-amplifier
? GmZ2 scaling algorithm featuring new Adaptive Contrast Enhancement (ACE)
? On-chip programmable OSD engine
? Integrated PLLs
? 10-bit programmable gamma correction
? Host interface with 1 or 4 data bits
? Pin-compatible with gmB120

Integrated Analog Front End

? Integrated 8-bit triple ADC
? Up to 135MHz sampling rates
? No additional components needed
? All color depths up to 24-bits/pixel are supported

High-Quality Advanced Scaling

? Fully programmable zoom
? Independent horizontal / vertical zoom
? Enhanced and adaptive scaling algorithm for optimal image quality
? Recovery Mode / Native Mode

Input Format

? Analog RGB up to XGA 85Hz
? Support for Sync On Green (SOG)
? Support for composite sync modes

Output Format

? Support for 8 or 6-bit panels (with high quality dithering)
? One or two pixel output format

Built In High-Speed Clock Generator

? Fully programmable timing parameters
? On-chip PLLs generate clocks for the on-chip ADC and pixel clock from a single reference oscillator

Auto-Configuration / Auto-Detection

? Phase and image positioning
? Input format detection

Operation Modes

? Bypass mode with no filtering
? Multiple zoom modes:

? With filtering
? With adaptive (ACE) filtering

Integrated On-Screen Display

? On-chip character RAM and ROM for better customization
? External OSD supported for greater flexibility
? Supports both landscape and portrait fonts
? Many other font capabilities including: blinking, overlay and transparency

1.3 Pin Description

Digital power for ADC encoding logic. Must be bypassed with 0.1uF capacitor to

igital

Digital power for ADC clocking circuit. Must by passed with 0.1uF capacitor to

Digital GND for ADC clocking circuit. Must be directly connected to the digital

Dedicated pin for substrate guard ring that protects the ADC reference system.

Analog ground for ADC analog blocks that are shared by all three channels.

gap reference, master biasing and full scale adjust. Must be directly

Analog power for ADC analog blocks that are shared by all three channels.

adjust. Must be

Analog ground for the blue channel. Must be directly connected to the analog

Analog power for the blue channel. Must be bypassed with 0.1uF capacitor to pin

nel. Must be directly connected to the analog

Analog power for the green channel. Must be bypassed with 0.1uF capacitor to

Analog ground for the red channel. Must be directly connected to the analog

Analog power for the red channel. Must be bypassed with 0.1uF capacitor to pin

Unless otherwise stated, unused input pins must be tied to ground, and unused output pins left open.

Table 1 : Analog-to-Digital Converter

PIN #

77 ADC_VDD2

78 ADC_GND2

79 ADC_VDD1

80 ADC_GND1

81 SUB_GNDA

82 ADC_GNDA

84 ADC_VDDA

83 Reserved
85 ADC_BGNDA

88 ADC_BVDDA

86 BLUE- I
87 BLUE+ I
89 ADC_GGNDA

92 ADC_GVDDA

90 GREEN- I
91 GREEN+ I
93 ADC_RGNDA

96 ADC_RVDDA

94 RED- I
95 RED+ I

Name I/O Description

pin 78 (ADC_GND2)
Digital GND for ADC encoding logic. Must be directly connected to the d
system ground plane.

pin 80 (ACD_GND1).

system ground plane.

Must be directly connected to the analog system ground plane.

Includes band
connected to analog system ground plane.

Includes bandgap reference, master biasing and full scale
bypassed with 0.1uF capacitor to pin 82 (ADC_GNDA).
For internal testing purpose only. Do not connect.

system ground plane.

85(BGNDA).
Negative analog input for the Blue channel.

Positive analog input for the Blue channel.
Analog ground for the green chan

system ground plane.

pin 89 (ADC_GGNDA).
Negative analog input for the Green channel.

Positive analog input for the Green channel.

system ground plane.

93 (ADC_RGNDA).
Negative analog input for the Red channel.

Positive analog input for the Red channel.

Table 2 : Host Interface (HIF) / External On-Screen Display

Displays data from external OSD

When externally pulled down (sampled at reset ) the host

interface is configured for 4 bits wide. In this configuration, MFB9:7 are used as

When externally pulled down (sampled at reset ) the chip

uses an external crystal resonator across pins 141 and 142, instead of an

PIN #

98 HFS I

103 HCLK I

99 HDATA I/O
100 RESETn I
101 IRQ O
115 OSD-HREF O
116 OSD-VREF O
117 OSD-Clk O
118 OSD-Data0 I
119 OSD-Data1 I
120 OSD-Data2 I
121 OSD-Data3 I
122 OSD-FSW I

123 MFB11 I/O
124 MFB10 I/O
102 MFB9 I/O

104 MFB8 I/O

105 MFB7 I/O

106 MFB6 I/O

Name I/O Description

Host Frame Sync. Frames the packet on the serial channel.
Clock signal input for the 3-wire serial communication.
Data signal for the 3-wire serial communication.
Resets the gmZAN1 chip to a known state when low.
Interrupt request output.
HSYNC output for an external OSD controller chip.
VSYNC output for an external OSD controller chip.
Clock output for an external OSD controller chip.
Data input 0 from an external OSD controller chip.
Data input 1 from an external OSD controller chip.
Data input 2 from an external OSD controller chip.
Data input 3 from an external OSD controller chip.

External OSD window display enable.
controller when high.

Multi-Function Bus 11. One of twelve multi-function signals MFB[11:0].
Multi-Function Bus 10. One of twelve multi-function signals MFB[11:0].

Multi-Function Bus 9. One of twelve multi-function signals MFB[11:0].
Also used as HDATA3 in a 4-bit host interface configuration.
Multi-Function Bus 8. One of twelve multi-function signals MFB[11:0].
Also used as HDATA2 in a 4-bit host interface configuration.
Multi-Function Bus 7. One of twelve multi-function signals MFB[11:0].
Also used as HDATA1 in a 4-bit host interface configuration.
Multi-Function Bus 6. One of twelve multi-function signals MFB[11:0].
Internally pulled up.

HDATA 3:1.

107 MFB5 I/O

109 MFB4 I/O
110 MFB3 I/O
111 FMB2 I/O
112 MFB1 I/O
113 MFB0 I/O

Multi-Function Bus 5 One of twelve multi-function signals MFB[11:0].
Internally pulled up.

oscillator.
Multi-Function Bus 4. One of twelve multi-function signals MFB[11:0].

Multi-Function Bus 3. One of twelve multi-function signals MFB[11:0].
Multi-Function Bus 2. One of twelve multi-function signals MFB[11:0].
Multi-Function Bus 1. One of twelve multi-function signals MFB[11:0].
Multi-Function Bus 0. One of twelve multi-function signals MFB[11:0].

Digital power for Destination DDS (direct digital synthesizer). Must be bypassed

Analog ground for Destination DDS DAC. Must be directly connected to the

Analog power for Destination DDS DAC. Must be bypassed with a 0.1uF

Analog power for the Destination DDS PLL. Must be bypassed with a 0.1uF

ted to the

Dedicated pin for the substrate guard ring that protects the Destination DDS.

at protects the Source DDS. Must be

Analog ground for the Source DDS PLL. Must be directly connected to the

Analog power for the Source DDS DAC. Must be bypassed with a 0.1uF

Analog power for the Source DDS DAC. Must be by passed with a 0.1uF

g power for the Source DDS DAC. Must be directly connected to the

Digital power for the Source DDS. Must be bypassed with a 0.1uF capacitor to

If using an external oscillator, leave this pin floating. If using an external crystal,

d with a 0.1uF

Analog ground for the Reference DDS PLL. Must be directly connected to the

r the substrate guard ring that protects the Reference DDS. Must

PIN #

125 DVDD

127 DAC_DGNDA

128 DAC_DVDDA

129 PLL_DVDDA

130 Reserved

131 PLL_DGNDA

132 SUB_DGNDA

133 SUB_SGNDA

134 PLL_SGNDA

135 Reserved

136 PLL_SVDDA

Name I/O Description

Table 3 : Clock Recovery / Time Base Conversion

with a 0.1uF capacitor to digital ground plane.

analog system ground plane.

capacitor to pin 127 (DAC_DGNDA).

capacitor to pin 131 (PLL_DGNDA).
For testing purposes only. Do not connect.
Analog ground for the Destination DDS PLL. Must be directly connec

analog system ground plane.

Must be directly connected to the analog system ground plane.
Dedicated pin for the substrate guard ring th
directly connected to the analog system ground plane.

analog system ground.
For testing purposes only. Do not connect.

capacitor to pin 134 (PLL_SGNDA)

137 DAC_SVDDA

138 DAC_SGNDA

139 SVDD

141 TCLK I Reference clock(TCLK) input from the 50 MHz crystal oscillator

142 XTAL O

143 PLL_RVDDA Analog power for the Reference DDS PLL. Must be bypasse

144 PLL_RGNDA

145 Reserved For testing purposes only. Do not connect.

146 SUB_RGNDA Dedicated pin fo

148 VSYNC I CRT Vsync input. TTL Schmitt trigger input.

149 SYN_VDD Digital power for CRT Sync input.

150 HSYNC/CSYNC

capacitor to pin 138 (DAC_SGNDA)
Analo
analog system ground.

digital ground plane.

connect crystal between TCLK(141) and XTAL(142). See MFB5(pin 107).

capacitor to pin 144(PLL_RGNDA)

analog system ground plane.

be directly connected to the analog system ground plane.

I CRT Hsync or CRT composite sync input. TTL Schmitt trigger input.

Table 4. TFT Panel Interface

PIN # Name I/O

6 PD47 O OB1 - - ­7 PD46 O OB0 - - -

9 PD45 O OG1 - - ­10 PD44 O OG0 - - ­13 PD43 O OR1 - - ­14 PD42 O OR0 - - ­15 PD41 O EB1 - B1 ­16 PD40 O EB0 - B0 ­17 PD39 O EG1 - G1 ­19 PD38 O EG0 - G0 ­20 PD37 O ER1 - R1 ­22 PD36 O ER0 - R0 ­23 PD35 O OB7 OB5 - ­24 PD34 O OB6 OB4 - ­25 PD33 O OB5 OB3 - ­26 PD32 O OB4 OB2 - ­27 PD31 O OB3 OB1 - ­28 PD30 O OB2 OB0 - ­29 PD29 O OG7 OG5 - ­31 PD28 O OG6 OG4 - ­32 PD27 O OG5 OG3 - ­34 PD26 O OG4 OG2 - ­35 PD25 O OG3 OG1 - ­36 PD24 O OG2 OG0 - ­37 PD23 O OR7 OR5 - ­38 PD22 O OR6 OR4 - ­39 PD21 O OR5 OR3 - ­42 PD20 O OR4 OR2 - ­46 PD19 O OR3 OR1 - ­47 PD18 O OR2 OR0 - ­48 PD17 O EB7 EB5 B7 B5
50 PD16 O EB6 EB4 B6 B4
51 PD15 O EB5 EB3 B5 B3
52 PD14 O EB4 EB2 B4 B2
53 PD13 O EB3 EB1 B3 B1
54 PD12 O EB2 EB0 B2 B0
55 PD11 O EG7 EG5 G7 G5
56 PD10 O EG6 EG4 G6 G4
57 PD9 O EG5 EG3 G5 G3
62 PD8 O EG4 EG2 G4 G2

2pxl/clk 2pxl/clk 1pxl/clk 1pxl/clk

8bit 6-bit 8-bit 6-bit TFT

Description

Enable automatic PCB assembly test. When this input is pulled high, the

down resistor

PIN # Name I/O

63 PD7 O EG3 EG1 G3 G1
64 PD6 O EG2 EG0 G2 G0
66 PD5 O ER7 EG5 R7 R5
67 PD4 O ER6 ER4 R6 R4
68 PD3 O ER5 ER3 R5 R3
69 PD2 O ER4 ER2 R4 R2
70 PD1 O ER3 ER1 R3 R1
71 PD0 O EG2 ER0 R2 R0
43 PdispE O This output provides a panel display enable signal that is active when flat panel

74 PHS O This output provides the panel line clock signal.
73 PVS O This output provides the frame start signal.
44 PCLKA O This output is used to drive the flat panel shift clock.
45 PCLKB O Same as PCLKA above.

75 Pbias O This output is used to turn on/off the panel bias power or controls backlight.
76 Ppwr O This output is used to control the power to a flat panel.

2pxl/clk 2pxl/clk 1pxl/clk 1pxl/clk

8bit 6-bit 8-bit 6-bit TFT

data is valid.

The polarity and the phase of this signal are independently programmable.

Description

Table 5. Test Pins

PIN #

3 PSCAN I

155 SCAN_IN1 I
157 SCAN_IN2 I
159 SCAN_OUT1 O
160 SCAN_OUT2 O
153 Reserved
154 Reserved

Name I/O Description

automatic PCB assembly test mode is entered. An internal pull­drives this input low for normal operation.

Scan input 1 used for automatic PCB assembly tesing.
Scan input 2 used for automatic PCB assembly tesing.
Scan output 1 used for automatic PCB assembly tesing.
Scan output 2 used for automatic PCB assembly tesing.

Table 6. VDD / VSS for Core Circuitry, Host Interface, and Panel/Memory Interface

PIN # Description

65, 40, 33, 12

149, 108, 58, 21, 11

158, 151, 140, 126, 114, 72, 61,
49, 41, 30, 18, 8, 1

PVDD4~PVDD1 for panel / memory interface. Connect to +3.3V.
Must be the same voltage as the CVDD’s
SRVDD2-1, CVDD4, CVDD2-1 for core circuitry. Connect to +3.3V.
Must be the same voltage as the PVDD’s.

Digital grounds for core circuiry and panel / memory interface.

1.4 System-level Block Diagram

ADC_VDD

gmZAN1 Core

CVDD

RVDDA

Video Connector

ADC_GND

L1
L2

R1RR1RR1

R

Red
Blue
Green

R1RR1
R

RVDDA

Hsync
Vsync

C1
C

C2
C

ADC

ADC

To Clock
Generator

Clock Generator

TCLK

RGNDA

OSC

SVDDA

SGNDA

DVDDA

Even Data

24

PCLKA

24

Power

Power
Switching

Switching
Module

Module

DGNDA

PHS
PVS
PDISPE

Odd Data

TFT Panel

+12V

+5/3.3V

On-Screen
Display
Controller

MPU with
EPROM

MFBs

RESETn

R+,G+,B+

4

OSD-FSW OSD-FSW
OSD-CLK

OSD-HREF
OSD-VREF

IRQ
HES
HCLK

HDATA

12

Host Interface

Pbias

Panel Interface

Pbias

CVSS

Figure 2. Typical Stand-alone Configuration

1.5 Operating Modes

The Source Clock (also called SCLK in this document) and the Panel Clock are defined as follows:
? The Source Clock is the sample clock regenerated from the input Hsync timing (called clock recovery) by

SCLK DDS (direct digital synthesis) and the PLL.

? The Panel Clock is the timing clock for panel data at the single pixel per clock rate. The actual PCLK to the

panel may be one-half of this frequency for double-pixel panel data format. When its frequency is different from
that of source clock, the panel clock is generated by Destination Clock (or DCLK) DDS/PLL.

There are six display modes: Native, Slow DCLK, Zoom, Downscaling, Destination Stand Alone, and Source Stand
Alone.
Each mode is unique in terms of:

? Input video resolution vs. panel resolution
? Source Clock frequency / Panel Clock frequency ratio
? Source Hsync frequency / Panel Hsync frequenc ratio
? Data source (analog RGB, panel background color, on-chip pattern generator

1.5.1 Native

Panel Clock frequency = Source Clock frequency
Panel Hsync frequency = Input Hsync frequency
Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is the same as the panel resolution and the input data clock frequency is
within the panel clock frequency specification of the panel being used.

1.5.2 Slow DCLK

Panel Clock frequency < Source Clock frequency
Panel Hsync frequency = Input Hsync frequency
Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is the same as the panel resolution, but the input data clock frequency is
exceeds the panel clock frequency specification of the panel being used. The panel clock is scaled to the Source Clock,
and the internal data buffers are used to spread out the timing of the input data by making use of the large CRT
blanking time to extends the panel horizontal display time.

1.5.3 Zoom

Panel Clock frequency > Source Clock frequency
Panel Hsync frequency > Input Hsync frequency
Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is less than the panel resolution. The input data clock is then locked to the
pnael clock, which is at a higher frequency. The input data is zoomed to the panel resolution.

1.5.4 Downscaling

Panel Clock frequency < Source Clock frequency
Panel Hsync frequency < Input Hsync frequency
Panel Vsync frequency = Input Vsync frequency

This mode is used when the input resolution is greater than the panel resolution, to provide enough of a display to
enable the user to recover to a supported resolution. The input clock is operated at a frequency less than that of the
input pixel rate(under-sampled horizontally) and the scaling filter is used to drop input lines. In this mode, zoom
scaling must be disabled

1.5.5 Destination Stand Alone

Panel Clock = DCLK in open loop (not locked)
Panel Hsync frequency = DCLK frequency / (Destination Htotal register value)
Panel Vsync frequency = DCLK frequency / (Dest. Htotal register value * Dest. Vtotal register
value)

This mode is used when the input is changing or not available. The OSD may still be used as in all other display
modes and stable panel timing signals are produced. This mode may be automatically set when the gmZAN1 detects
input timing changes that could cause out- of-spec operation of the panel.

1.5.6 Source Stand Alone

Panel Clock = DCLK in open loop (not locked to input Hsync)
Panel Hsync frequency = SCLK frequency / (Source Htotal register value)
Panel Vsync frequency = SCLK frequency / (Source Htotal register value *Source Vtotal
register value)

This mode is used to display the pattern generator data. This mode may be useful for testing an LCD panel on the
manufacturing line (color temperature calibration, etc.).

2. FUNCTIONAL DESCRIPTION

Pixel

Reference

Figure 3 below shows the main functional blocks inside the gmZAN1

2.1 Overall Architecture

Figure 3. Block Diagram for gmZAN1

On-Screen
Display
Control

Analog
RGB

Triple
ADC

Source
Timing
Measurement
/ Generation

Scaling
Engine

Gamma
Control
(CLUT)
+
Dither

Panel
Timing
Control

MCU

Host
Interface

Clock
Recovery

Clock
Generator

Clock

2.2 Clock Recovery Circuit

The gmZAN1 has a built-in clock recovery circuit. This circuit consists of a digital clock synthesizer and an analog
PLL. The clock recovery circuit generates the clock used to sample analog RGB data (SCLK or source clock). This
circuit is locked to the HSUNC of the incoming video signal. The RCLK generated from the TCLK input is used as a
reference clock.

The clock recovery circuit adjusts the SCLK period so that the feedback pulse generated every SCLK period
multiplied by the Source Horizontal Total value (as programmed into the registers) locks to the rising edge of the
Hsync input. Even though the initial SCLK frequency and the final SCLK frequency are as far apart as 60MHz ,
locking can be achieved in less than 1ms across the operation voltage/temperature range.

Panel

The SCLK frequency (1/SCLK period) can be set to the range of 10-to-135 MHz. Using the DDS (direct digital

Output

synthesis) technology the clock recovery circuit can generate any SCLK clock frequency within this range.

The pixel clock (DCLK or destination clock) is used to drive a panel when the panel clock is different from SCLK (or
SCLK/2). It is generated by a circuit virtually identical to the clock recovery circuit. The difference is that DCLK is
locked to SCLK while SCLK is locked to the Hsync input. DCLK frequency divided by N is locked to SCLK
frequency divided by M. The value M and N are calculated and programmed in the register by firmware. The value M
should be close to the Source Htotal value.

Figure 4. Clock Recovery Circuit

Hsync

Sample

Phase

Delay

DDS Digital

Clock

Synthesis

Course

Adjust

DDS Output

Analog

PLL & VCO

VCO

Clock

Divider

÷ n

Fine

Adjust

PLL

Divider

Prescaler

÷ 2 (or 1)

Source

Horizontal

Total Divider

TCLK

Analog

PLL & VCO

Post Scale

÷ 2 (or 1)

PLL Divider

PLL Divider

SCLK

RCLK

The table below summarizes the characteristics of the clock recovery circuit.

Table 7. Clock Recovery Characteristics

Minimum Typical Maximum

SCLK Frequency 10MHz 135 MHz
Sampling Phase Adjustment

0.5 ns/step, 64 steps

Patented digital clock synthesis technology makes the gmZAN1 clock circuits very immune to temperature/voltage
drift.

2.2.1 Sampling Phase Adjustment

The ADC sampling phase is adjusted by delaying the Hsync input at the programmable delay cell inside the gmZAN1.
The delay value can be adjusted in 64 steps, 0.5 ns/step. The accuracy of the sampling phase is checked by the
gmZAN1 and the “score” can be read in a register. This feature will enable accurate auto-adjustment of the ADC
sampling phase.

2.2.2 Source Timing Generator

The STG module defines a capture window and sends the input data to the data path block. The figure below shows
how the window is defined.
For the horizontal direction, it is defined in SCLKs (equivalent to a pixel count). For the vertical direction, it is
defined in lines.
All the parameters in the figure that begin with “Source” are programmed into the gmZAN1 registers.
Note that the vertical total is solely determined by the input.
The reference point is as follows:

? The first pixel of a line: the pixel whose SCLK rising edge sees the transition of the HSYNC polarity from low

to high.

? The first line of a frame: the line whose HSYNC rising edge sees the transition of the VSYNC polarity from low

to high.

The gmZAN1 also supports the use of analog composite sync and digital sync signals as described in Section 2.3.2

Figure 5. Capture Window

Reference
Point

Source
Hstart

Source

Vstart

Source Height

Source Vertical Total (lines)

Source Horizontal Total (pixels)

Source Width

Capture Window

2.3 Analog-to-Digital Converter

2.3.1 Pin Connection

The RGB signals are to be connected to the gmZAN1 chip as described in Table 8 and Table 9.

Table 8. Pin Connection for RGB Input with Hsync/Vsync

GmZAN1 Pin Name (Pin Number) CRT Signal Name

Red+(#95) Red
Red- (#94) N/A (Tie to Analog GND for Red on the board)
Green+(#91) Green
Green- (#90) N/A (Tie to Analog GND for Green on the board)
Blue+(#87) Blue
Blue- (#86) N/A (Tie to Analog GND for Blue on the board)
HSYNC/CS (#150) Horizontal Sync
VSYNC (#148) Vertical Sync

Table 9. Pin Connection for RGB Input with Composite Sync

GmZAN1 Pin Name (Pin Number) CRT Signal Name

Red+(#95) Red
Red- (#94) N/A (Tie to Analog GND for Red on the board)
Green+(#91) Green

When using Sync-On-Green this signal also carries the sync pulse.
Green- (#90) N/A (Tie to Analog GND for Green on the board)
Blue+(#87) Blue
Blue- (#86) N/A (Tie to Analog GND for Blue on the board)
HSYNC/CS (#150) Digital composite sync. Not applicable for Sync-On-Green

The gmZAN1 chip has three ADC’s (analog-to-digital converters), one for each color (red, green, and blue). Table 10
summarizes the characteristics of the ADC.

Table 10. ADC Characteristics

MIN TYP MAX NOTE

RGB Track & Hold Amplifiers

Band Width 160MHz
Settling Time to 1/2% 8.5ns Full Scale Input = 0.75V, BW=160MHz(*)
Full Scale Adjust Range @ R,G,B Inputs 0.45V 0.95V
Full Scale Adjust Sensitivity +/-1 LSB
Zero Scale Adjust Range For a larger DC offset from an external

Zero Scale Adjust Sensitivity +/-1 LSB

ADC+RGB Track & Hold Amplifiers

Sampling Frequency (fs) 20MHz 110MHz
DNL +/- 0.9LSB fs = 80 MHz
INL +/- 1.5LSB
Channel to Channel Matching +/- 0.5LSB
Effective Number of Bits (ENOB) 7 Bits fin = 1MHz, fs=80 MHz Vin= -1db below

Power Dissipation 400mW fs=110 MHz, Vdd=3.3V
Shut Down Current 100uA
(*) Guaranteed by design (**) Independent of full scale R,G,B input

The gmZAN1 ADC has a built-in clamp circuit. By inserting series capacitors (about 10 nF) the DC offset of an
external video source can be removed. The clamp pulse position and width are programmable.

Measured @ ADC Output (**)

video source, the AC coupling feature is
used to remove the offset.

Measured @ ADC Output

fs = 80 MHz

full scale=0.75V

2.3.2 Sync. Signal Support

period delta to the previous line / frame exceeds the

The gmZAN1 chip supports digital separate sync (Hsync/Vsync), digital composite sync, and analog composite sync
(also known as sync-on-green). All sync types are supported without external sync separation / extraction circuits.

Digital Composite Sync

The types of digital composite sync inputs supported are:

? OR/AND type: No Csync pulses toggling during the vertical sync period
? XOR type: Csync polarity changes during the vertical sync period

The gmZan1 provides enough sync status information for the firmware to detect the digital composite sync type.

Sync-On-Green (Analog Composite Sync)

The voltage level of the sync tip during the vertical sync period can be either –0.3V or 0V

2.3.3 Display Mode Support

A mode calculation utility (MODECALC.EXE) provided by Genesis Microchip may be run before compilation of the
firmware to determine which input modes can be supported. Refer to firmware documents for more details.

2.4 Input Timing Measurement

As described in section 2.2.2 above, input data is sent from the analog-to-digital converter to the source timing
generator (STG) block. The STG block defines a capture window (Figure5).

The input timing measurement block consists of the source timing measurement (STM) block and interrupt request
(IRQ) controller. Input timing parameters are measured by the STM block and stored in registers. Some input
conditions will generate an IRQ to an external micro-controller. The IRQ generating conditions are programmable.

2.4.1 Source Timing Measurement

When it receives the active CRT signal (R,G,B and Sync signals) the Source Timing Measurement unit begins
measuring the horizontal and vertical timing of the incoming signal using the sync signals and TCLKi as a reference.
Horizontal measurement occurs by measuring a minimum and a maximum value for each parameter to account for
TCLKi sampling granularity. The measured value is updated every line. Vertical parameters are measured in terms of
horizontal lines. The trailing edge of the Hsync input is used to check the polarity of the Vsync input.
The table below lists all the parameters that may be read in the source timing measurement (STM) registers of the
gmZAN1.

Table 11. Input Timing Parameters Measured by the STM Block

Parameter Unit Updated at:

HSYNC Missing N/A Every 4096 TCLKs and every 80ms (2-bits)
VSYNC Missing N/A Every 80ms
HSYNC/VSYNC Timing Change N/A When the horizontal period delta or the vertical

HSYNC Polarity Positive/Negative After register read
VSYNC Polarity Positive/Negative Every frame
Horizontal Period Min/Max TCLKs and SCLKs After register read
HSYNC High Period Min/Max TCLKs After register read
Vertical Period Lines Every frame
VSYNC High Period Lines Every frame
Horizontal Display Start SCLKs Every frame
Horizontal Display End SCLKs Every frame
Vertical Display Start Lines Every frame
Vertical Display End Lines Every frame
Interlaced Input Detect N/A Every frame
CRC Data/Line Data N/A Every frame
CSYNC Detect N/A Every 80ms

threshold value (programmable).

The display start/end registers store the first and the last pixels/lines of the last frame that have RGB data above a

Panel

S

S

S

8 10

8 or 6

programmed threshold.
The reference point of the STM block is the same as that of the source timing generator (STG) block:

? The first pixel: the pixel whose SCLK rising edge sees the transition of the HSYNC polarity from low to high.
? The first line: the line whose HSYNC rising edge sees the transition of the VSYNC polarity from low to high.

The CRC data and the line data are used to detect a test pattern image sent to the gmZAN1 input port.

2.4.2 IRQ Controller

Some input timing conditions can cause the gmZAN1 chip to generate an IRQ. The IRQ-generating conditions are
programmable, as given in the following table.

Table 12. IRQ-Generation Conditions

IRQ Event Remark

Timing Event One of the three events:

? Leading edge of Vsync input,
? Panel line count (the line count is programmable),
? Every 10ms

Only one event may be selected at a time.

Timing Change Any of the following timing changes:

? Sync loss,
? DDS tracking error beyond threshold,
? Horizontal/vertical timing change beyond threshold

Threshold values are programmable.

Reading the IRQ status flags will not affect the STM registers.
Note that if a new IRQ event occurs while the IRQ status register is being read, the IRQ signal will become inactive
for minimum of one TCLK period and then get re-activated. The polarity of the IRQ signal is programmable.

2.5 Data Path

The data path block of gmZAN1 is shown in Figure 6.

Figure 6. gmZAN1 Data Path

Sampled Data

(or from

pattern

generator

8

Scaling

Filter

Gamma

Table

RGB

Offset

Data

Dither

Background

Color

Internal

OSD

External

OSD

8 or 6

1

0

1

0

1

0

Panel
Data

2.5.1 Scaling Filter

The gmZAN1 scaling filter uses an advanced adaptive scaling technique proprietary to Genesis Microchip Inc. and
provides high quality scaling of real time video and graphics images. This is Genesis’ third generation scaling
technology that benefits from the expertise and feedback gained by supporting a wide range of solutions and
applications.

2.5.2 Gamma Table

The gamma table is used to adjust the RGB data for the individual display characteristics of the TFT panel. The
overall gamma of the display may be set, as well as separate corrections for each of the three display channels. In
addition, the gamma table may be used for contrast, brightness, and white balance (temperature) adjustments. The
lookup table has an 8-bit input (256 different RGB entries) and produces a 10-bit output.

2.5.3 RGB Offset

The RGB offsets provide a simple shift (positive or negative) for each of the three color channels. This may be used as
a simple brightness adjustment within a limited range. The data is clamped to zero for negative offsets, and clamped to
FFh for positive offsets. This adjustment is much faster than recalculating the gamma table, and could be used with
the OSD user controller to provide a quick brightness adjust. An offset range of plus 127*4 to minus 127*4 is
available.

2.5.4 Panel Data Dither

For TFT panels that have fewer than eight bits for each R,G,B input, the gmZAN1 provides ordered and random
dithering patterns to help smoothly shade colors on 6-bit panels.

2.5.5 Panel Background Color

A solid background color may be selected for a border around the active display area. The background color is most
often set to black.

2.6 Panel Interface

The gmZAN1 chip interfaces directly with all of today’s commonly used active matrix flat panels with 640x480,
800x600 and 1024x768 resolutions. The resolution and the aspect ratio are NOT limited to specific values.

2.6.1 TFT Panel Interface Timing Specification

The TFT panel interface timing parameters are listed in Table 13 below. Refer to three timing diagrams of Figure 7
and Figure 8 for the timing parameter definition. All aspects of the gmZAN1 interface are programmable. For
horizontal parameters, Horizontal Display Enable Start, Horizontal Display Enable End, Horizontal Sync Start and
Horizontal Sync End are programmable. Vertical Display Enable Start, Vertical Display Enable End, Vertical Sync
Start and Vertical Sync End are also fully programmable.
In order to maximize panel data setup and hold time, the panel clock (PCLKA, PCLKB) output skew is programmable.
In addition, the current drive strength of the panel interface pins is programmable.

Table 13. gmZAN1 TFT Panel Interface Timing

Signal Name Min Typical Max Unit

PVS

Period t1 0 16.67 2048

-

lines

ms
Frequency 60 - Hz
Front porch t2 0 2048 lines
Back porch t3 0 2048 lines
Pulse width t4 0 2048 lines
PdispE t5 0 Panel height 2048 lines
Disp. Start from VS t6 0 2048 lines
PVS set up tp PHS t18 1 2048 PCLK *1
PVS hold from PHS t19 1 2048 PCLK *1

PHS

Period t7 0 2048 [1024 PCLK *1
Front porch t8 0 2048 PCLK *1
Back porch t9 0 2048 PCLK *1
Pulse width t10 0 2048 PCLK *1
PdispE t11 0 Panel width 2048 [1024] PCLK *1
Disp. Start fom HS t12 0 2048 PCLK *1

PCLKA,
PCLKB*4

Frequency t13 120 [60] MHz
Clock (H) *2 t14 DCLK/2-3 [DCLK-3] DCLK/2-2 [DCLK-2] ns
Clock (L) *2 t15 DCLK/2-3 [DCLK-3] DCLK/2-2 [DCLK-2] ns
Type - One pxl/clock

-

[two pxl/clock]

Data

Set up *3 t16 DCLK/2-5 [DCLK-5] DCLK/2-2 [DCLK-2] ns
Hold *3 t17 DCLK/2-5 [DCLK-5] DCLK/2-2 [DCLK-2] ns
width 3 bits 18 bits [36 bits] 24 bits [48 bits] bits/pixel

NOTE: Numbers in [ ] are for two pixels/clock mode.
NOTE: The drive current of the panel interface signals is programmable as shown in Table 1. The drive current is to be

programmed through the API upon chip initialization. Output current is programmable from 2 mA to 20mA in increments of 2 mA.
Drive strength should be programmed to match the load presented by the cable and input of the panel. Values shown are based on a
loading of 20pF and a drive strength of 8 mA.

NOTE *1: The PCLK is the panel shift clock.
NOTE *2: The DCLK stands for Destination Clock (DCLK) period. Is equal to:

-PCLK period in one pixel/clock mode,

-twice the PCLK period in two pixels/clock mode.
NOTE *3: The setup/hold time spec. for PCLK also applies to PHS and PdispE. The setup time (t16) and the hold time (t17) listed

in this table are for the case in which no clock-to-data skew is added. The PVS/PHS/PdispE/Pdata signals are asserted on
the rising edge of the PCLK. The polarity of the PCLK and its skew are programmable. Clock to Data skew can be
adjusted in sixteen 800-ps increments. In combination with the PCLK polarity inversion, the clock-to-data phase can be
adjusted in total of 31 steps.

NOTE *4: The polarity of the PCLKA and the PCLKB are independently programmable.

The microcontroller must have all the timing parameters of the panel used for the monitor. The parameters are to be
stored in a non-volatile memory. As can be seen from this table, the wide range of timing programmability of the
gmZAN1 panel interface makes it possible to support various kinds of panels known today:

Figure 7. timing Diagrams of the TFT Panel Interface (One pixel per clock)

(a) Vertical size in TFT

PVS

PHS

PDE

(b) Vsync width and display position in TFT

PVS

PHS

t18

t4

t19

t1

t5t3

t2

RGBs

(c) Horizontal size in TFT

PHS

PCLK

PDE

RGB data from
data paths

t12

(d) Hsync width in TFT

t6

t7

t11

Panel Background Color Displayed

t10

t8

t10

t9

t14

t13

t15

t16

t16

Figure 8. Data latch timing of the TFT Panel Interface

G0

PDE

t14B0t15

t16R0PCLK

t13

t17

t16R1B(n:0)

G(n:0)

R(n:0)

(a) Two pixel per clock mode in TFT

PDE

PCLK

ER

EG

EB

OR

OG

OB

t16

R0,(N:0)

G0,(N:0)

B0,(N:0)

R1,(N:0)

G1,(N:0) G3,(N:0)

B1,(N:0)

(b) One pixel per clock mode in TFT

t14

R2,(N:0)

G2,(N:0)

B2,(N:0)

R3,(N:0)

B3,(N:0)

t13

t15

t16

R4,(N:0)

t17

2.6.2 Power Manager

LCD panels require logic power, panel bias power, and control signals to be sequenced in a specific order, otherwise
severe damage may occur and disable the panel permanently. The gmZAN1 has a built in power sequencer (Power
Manager) that prevents this kind of damage.
The Power Manager controls the power up/down sequences for LCD panels within the four states described below.
See the timing diagram Figure 9.

2.6.2.1 State 0 (Power Off)

The Pbias signal and Ppower signal are low (inactive). The panel controls and data are forced low. This is the final
state in the power down sequence. PM is kept in state 0 until the panel is enabled.

2.6.2.2 State 1 (Power On)

Intermediate step 1. The Ppower is high (active), the Pbias is low (inactive), and the panel interface is forced low
(inactive).

2.6.2.3 State 2 (Panel Drive Enabled)

Intermediate step 2. The Ppower is high (active), the Pbias is low (inactive), and the panel interface is active.

2.6.2.4 State 3 (Panel Fully Active)

This is the final step in the power up sequence, with Ppower and Pbias high (active), and the panel interface active.
PM is kept in this state until the internal TFT_Enable signal controlled by Panel Control register is disabled. The panel
can be disabled through either an API call under program control or automatically by the gmZAN1 to prevent damage
to the panel.

Figure 9. Panel Power Sequence

In Figure 9 above, t2=t6 and t3=t5. t1,t2,t3 and t4 are independently programmable from one to eight steps in length.
The length of each step is in the range of 511 * X* (TCLKi cycle) or (TCLKi cycle) * 32193 *X, where X is any
positive integer value equal to or less than 256. TCLKi is the reference clock to the gmZAN1 chip, and ranges from

14.318 MHz to 50 MHz in frequency. This programmability provides enough flexibility to meet a wide range of
power sequencing requirements by various panels.

TFT_EN Bit
(register bit)

PPWR Output

Data/Controls Signals

PBias Output

t1

t4

t6

t2

t5

t3

<State3> <State2>

<State1><State2><State0>

<State0><State1>

2.6.3 Panel Interface Drive Strength

As mentioned previously, the gmZAN1 has programmable output pads for the TFT panel interface. Three groups of
panel interface pads (panel clock, data, and control) are independently controllable and are programmed using API
calls. See the API reference manual for details.

Table 14. Panel Interface Pad Drive Strength

Value (4 bits) Drive Strength in mA

0 Outputs are in tri-state condition
1 2mA
2 4mA
3 6mA
4 8mA
5 10mA
6 12mA
7 14mA
8 16mA
9 18mA
10,11,12,13,14,15 20mA

2.7 Host Interface

The host microcontroller interface of the gmZAN1 has two modes of operation: gmB120 compatible mode, and a 4­bit serial interface mode.
? GmB120 compatible mode-Four signals consisting of 1 data bit, a frame synchronization signal, a clock signal

and an Interrupt Request signal (IRQ). This mode is entered when a pull-down resistor is not connected to
MFB6(pin number 106).

? 4-bit serial interface mode-Same as gmB120 compatible mode with the addition of three data bits so that four

data bits are transferred on each clock edge. This mode is entered when a (10K ohm) pull-down resistor is
connected to MFB6(pin number 106).

When the chip is configured for 4-bit host interface, MFB9:7 are used as HDATA3:1 and HDATA is used as
HDATA0. For instruction, Read Data, or Write Data, the data order is D3:0, D7:4, D11:8, The burst mode operation
then uses three clocks (instead of twelve) for each 12-bit data (or address) transmission.

In both modes, a reset pin sets the chip to a known state when the pin is pulled low. The RESETn pin must be low for
at least 100ns after the CVDD has become stable (between +3.15V and +3.45V) in order to reset the chip to a known
state.

The gmZAN1 chip has an on-chip pull-down resistor in the HFS input pad. No external pull-up is required. The signal
stays low until driven high by the microcontroller.

2.7.1 Serial Communication Protocol

In the serial communication between the microcontroller and the gmZAN1, the microcontroller always acts as an
initiator while the gmZAN1 is always the target. The following timing diagram describes the protocol of the serial
channel of the gmZAN1 chip.

Figure 10. Timing Diagram of the gmZAN1 Serial Communication

Table 15 summarizes the serial channel specification of the gmZAN1. Refer to Figure 10 for the timing parameter
definition.

Table 15. gmZAN1 Serial Channel Specification

Parameter Min. Typ. Max.

Word Size (Instruction and Data) --- 12 bits --­HCLK low to HFS high (t1) 100 ns
HFS low to HCLK inactive (t2) 100 ns
HDATA Write to Read Turnaround Time (t3) 1 HCLK cycle 1 HCLK cycle
HCLK cycle (t4) 100 ns
Data in setup time (t5) 25 ns
Data in hold time (t6) 25 ns
Data out valid (t7) 5 ns 10

In the read operation, the microcontroller (Initiator) issues an instruction lasting 12 HCLKs. After the last bit of the
command is transferred to the gmZAN1 on the 12th clock, the microcontroller must stop driving data before the next
rising edge of HCLK at which point the gmZAN1 will start driving data. At the 13th rising edge of HCLK, the
gmZAN1 will begin driving data.

Figure 11. Serial Host Interface Data Transfer Format

2 bits 10 bits 12 bits

Command Address Data

Command: 01 Write 00 = Read 1x = Reserved

Note that when the chip is configured for a 4-bit host interface, MFB9:7 are used as HDATA 3:1 and HDATA is used
as HDATA0. The command and address information are transferred as Address 1:0+Command1:0, Address5:2 and
Address9:6. The data information is transferred as Data3:0,Data 7:4, Data 11:8. Thus, in this mode the HDATA pin
carries Command0, Address2, Address6, Data0, Data4 and Data8.
On the gmZAN1 reference design board, the microcontroller toggles the HCLK and HDATA lines under program
control. Genesis Microchip provides API calls to facilitate communication between the microcontroller and the
gmZAN1. Refer to the API reference manual for details.

2.7.2 Multi-Function Bus (MFB)

The Multi-Function Bus provides additional 12 pins that are used as general purpose input and output (GPIO) pins.
Each pin can be independently configured as input or output.
MFB pins 9 through 5 have special functions:
? When a 10K ohm pull-down resistor is connected to MFB6 (MFB6 has an internal pull-up resistor) MFB9:7 are

used as host data bits HDATA3:1.

? When a 10K ohm pull-down resistor is connected to MFB5 (MFB5 has an internal pull-up resistor) a crystal can

be placed between XTAL and TCLK instead of using an external oscillator for the TCLK input.

Note that all pins on the multi-function bus MFB11:0 are internally pulled-up.

2.8 On-Screen Display Control

The gmZAN1 chip has a built-in OSD (On-Screen Display) controller with an integrated font ROM. The chip also
supports an external OSD controller for monitor vendors to maintain a familiar user interface.
The internal and external OSD windows may be displayed anywhere the panel Display Enable is active, regardless of
whether the panel would otherwise display panel background color or active data.

2.8.1 OSD Color Map

Both the internal and external OSD display use a 16 location SRAM block for the color programming. Each color
location is a twelve-bit value that defines the upper four bits of each of the 8 bit Red, Blue and Green color
components as follows:

? D3:0 Blue; D7:4 of blue component of color
? D7:4 Green; D7:4 of green component of color
? D11:8 Red; D7:4 of red component of color

To extend the 4-bit color value programmed to the full 8 bits the following rule is applied: if any of the upper four
color bits are a “1”, then R (G, B) data 3:0=1111b, otherwise R (G, B) data 3:0=0000b

2.8.2 On-Chip OSD Controller

The internal OSD uses a block of SRAM of 1536x12 bits and a ROM of 1024x12 bits. The SRAM is used for both the
font data and the character-codes while the ROM is used to store the bit data for 56 commonly used characters. The
font data is for 12 pixel x 18 line characters, one bit per pixel. The font data starts at address zero. The character-codes
start at any offset (with an address resolution of 16) that is greater than the last location at which font data has been
written . It is the programmer’s responsibility to ensure that there is no overlap between fonts and character-codes.
This implementation results in a trade-off between the number of unique fonts on-screen at any one time and the total
number of characters displayed. For example, one configuration would be 98 font maps (56 fonts in ROM and 42
fonts in SRAM) and 768 characters (e.g. in a 24x32 array).

The on-chip OSD of the gmZAN1 can support a portrait mode (in which the LCD monitor screen is rotated 90
degrees). In this portrait mode, all the fonts must be loaded in the SRAM, because the ROM stores fonts for a
landscape mode (typical orientation) only. The font size in the portrait mode is 12 pixels by 12 lines. As is the case in
landscape mode, the SRAM is divided into a font storage area and a character code storage area. For example, 64
fonts can be stored in RAM and an OSD window of 768 characters (such as 24x32) can still be displayed.

The first address of SRAM to be read for the first character displayed (upper left corner of window)is also
programmable, with an address resolution of 16 (8-bits as the top bits of the 12-bit SRAM address). The character­code is a 12-bit value used as follows:

? D6:0 font-map select, this is the top seven bits of the address for the first line of font bits
? D8:7 Background color, 00=bcolor0, 01=bcolor1, 10=bcolor2, 11=transparent background
? D10:9 Foreground color (0, 1, 2 or 3)
? D11 Blink enable if set to 1, otherwise no blink

Although the OSD color map has room for sixteen colors, only seven are used by the internal OSD: three background
colors and four foreground colors.

The blink rate is based on either a 32 or 64 frame cycle and the duty cycle may be selected as 25/75/50/50% or
75/25%. The 2-bit foreground and background attributes directly select the color (there is no indirect “look-up”, i.e.
there is no TMASK function). The 2560 addresses of the ROM/SRAM are mapped as 10 segments of 256 contiguous
addresses each, to the OSD memory page of 100h-1FFh in the host interface. A 4-bit register value selects the
segment to map to the host R/W page.

The character cell height and width are programmable from 5-66 pixels or 2-65 lines. The X/Y offset of the font bit­map upper-left pixel relative to the upper-left pixel of the character cell is also programmable from 0-63 (pixels or
lines). The OSD window height and width in characters/rows is programmable from 1-64.

The Start X/Y position for the upper left corner of the OSD window is programmable (in panel pixels and lines) from
0-2047. There is an optional window border (equal width on all four sides of the window) or a window shadow (the
window bottom and right side) the border is a solid color that is selected by an SRAM location as RGB444. The
border width may be set as 1, 2, 4 or 8 pixels/lines. These parameters are summarized in Figure 12 and Table 16.
The Font Data D11:0 for each line is displayed with bit D11 first (leftmost) and D0 last.
The reference point for the OSD start is always the upper left corner of the Panel display, which is the start (leading
edge) of Panel Display Enable for both Horizontal and Vertical timing.

The OSD Window start position sets the location of the first pixel of the OSD to display, including any border. That is;
if the border is enabled, the start of the character display of the OSD is offset from the OSD start position by the
width/height of the border.

To improve the appearance and make it easy to find the OSD window on the screen, the user may select optional
shadowing (3D effect). The “Shadow” feature operates in the same manner as in the B120; that is, it produces a region
of half intensity (scaler data) pixels of the same width and height as the OSD window, but offset to the right and down
by 8 pixels/lines (the border width setting has no effect). OSD foreground and background colors always cover the
OSD window region of the “shadow”, but transparent background pixels in the OSD will show the half intensity panel
data. Therefore, it is not recommended to use both the “shadow” feature and transparent background OSD pixels
together. The ”shadow” does not change the intensity of any panel background color over which it may be located.
The border and shadow are mutually exclusive, only one may be selected at a time.

The OSD window is not affected by the scaling operation. The size will stay the same whether the source input data is
scaled or not.

2.9 TCLK Input

The source timing is measured by using the TCLK input as a reference. Also, the reference clock to the on-chip PLLs
are derived from the TCLK. It is therefore crucial to have a jitter-free clock reference.
Table 19 shows the requirements for the TCLK signal.

Table 19. TCLK Specification

Frequency 20 MHz to 50 MHz
Jitter 250 ps maximum
Rise Time (10% to 90%) 5 ns
Duty Cycle 40-60

There is also an option to use a crystal (instead of an oscillator) for the TCLK input. This option is selected by pulling
down MFB5 and connecting the crystal between XTAL and TCLK.

3. ELECTRICAL CHARACTERISTICS

Table 20. Absolute Ratings

Parameter Min. Typ. Max. Note

PVDD 5.6 volts
CVDD 5.6 volts
Vin Vss-0.5 volt Vcc+0.5V
Operating temperature 0 degree C 70 degree C
Storage temperature -65 degree C 150 degree C
Maximum power consumption ~2W

Table 21. DC Electrical Characteristic

Parameter Min. Typ. Max. Note

PVDD 3.15 volts 3.3 volts 3.47 volts
CVDD 3.15 volts 3.3 volts 3.47 volts
Vil (COMS inputs)
Vil (TTL inputs)
Vih (COMS inputs)
Vih (TTL inputs)
Voh 2.4 volts CVDD
Vol 0.2 volts 0.4 volts
Input Current -10 uA 10 uA
PVDD operating supply current 0 mA 20 mA/pad @ 10pF (2)
CVDD operating supply current 0 mA 500 mA (3)
NOTE 1:5V-Tolerent TTL Input pads are as follows:

? CRT Interface: HSYNC (pin #150), VSYNC (#148)
? Host Interface: HFS (#98), HCLK (#103), HDATA (#99), RESETN (#100), MFB[11:0]: MFB11 (#123),

MFB10 (#124), MFB9 (#102), MFB8 (#104), MFB7 (#105), MFB6 (#106), MFB5 (#107), MFB4 (#109),
MFB3 (#110), MFB2 (#111), MFB1 (#112), MFB0 (#113)

? OSD Interface: OSD_DATA3 (#121), OSD_DATA2 (#120), OSD_DATA1 (#119), OSD_DATA0 (#118),

OSD_FSW (#122)

? Non-5V-Tolerant TTL Input Pad is: TCLK(#141)
NOTE 2: When the panel interface is disabled, the supply current is 0 mA. The drive current of each pad can be
programmed in the range of 2 mA to 20 mA (@capacitive loading = 10 pF)
NOTE 3: When all circuits are powered down and TCLK is stopped, the CVDD supply current becomes 0 mA.

0.3*CVDD

0.8 volts

0.7 * CVDD

2.0 volts

1.1*CVDD

5.0+0.5 volts

(1)

7. MECHANICAL OF CABINET FRONT DIS-ASSEMBLY

INVERTER BOARD

INVERTER SHIELD

79AL15-6-S

Q1A1030-12-128X4

EARTH CLIP

TURN BASE

BASE SHIELD

BASE HOLDER

15A5688 X 4

SCREW

Q1A340-16-128X4

SCREW

Q1A1030-10-128 X 4

Q1A1030-10-128 X 4

SCREW

RUBBER FOOT

12A385-1 X 4

REAR COVER

34A675

SHIELD

85A548

MAIN BOARD

MAIN FRAME

15A5683(HANNSTAR)

SCREW

LCD PANEL

750ALCDX41-1

KEY PAD

33A4095

FRONT BEZEL

34A785

KEPC

KEPC560EKMN

POWER LENS
33A3782

SHIELD
85A580

SUPPORT(FRONT)

34E676

BASE

34A787

34A786

85A577

HINGE

37A442

SUPPORT(BACK)

34A677

ADAPTER BOARD

80AL15-2-L1

85A562

SCREW

15A5687

PLASTIC GEAR
11A144-1

Q1A1020-6-120

1

1

1

2

1

1

1

2

1

1

3

2

2

1

1

1

1

2

1

1

1

2

4

1

5

6

1

1

1

7

3

2

1

1

1

1

2

6

2

5

5

8

6

6

LOCATION

11A 144­ 12A 385­ 15A 5674­ 15A 5683­ 15A 5687­ 15A 5688­ 15A 5689­ 19A 550­ 33A 3782­ 33A 4095­ 34A 675­ 34A 676­ 34A 677­ 34A 785­ 34A 786­ 34A 787­ 37A 442­ 40A 152- 27
40A 152- 28
40A 154- 501 - 1

!

!

!

40A 155- 182
40A 581- 26 - 668
41A 68- 622 - 1C
41A 401- 929
44A 3138­ 44A 3145­ 44A 3146­ 44A 3229­ 44A 3229­ 44A 3229­ 44A 3231­ 44A 3231­ 44A 3231­ 45A 113­ 45A 116­ 45A 120­ 70A L15­ 71A 100- 14
85A 548­ 85A 557­ 85A 562­ 85A 580­ 85A 581­ 85A 583­ 85A 583­ 79A L15­ 80A L15­ 89A 404A- 15N - IS
89A 173- L15 - 6
89A 178- 60 - 1
95A 8014­ B1A 1030­ B1A 1030­ M1A 330­ M1A 1030- 10 - 128
M1A 1740- 12 - 128
Q1A 340- 12 - 128
Q1A 340- 16 - 128
Q1A 1020­ Q1A 1030- 10 - 128
Q1A 1030- 12 - 128
750A LCD- X14 - 1

TF1560GH SPECIFICATION

CBPC560GHMN CONVERSION BOARD
KEPC560EKMN KEY BOARD

DAMPER GEAR
RUBBER FOOT
CABLE CLAMP
MAIN FRAME
SHIELD-BASE
HOLDER-BASE
GND. CABLE CLAMP
EARTH SPRING
POWER LED LENS
KEY PAD

- AL

- AT

- AT

- AL

- AL

- AL

- SM

- S

- LI

- 4

- 128

- 128

- 128

- 120

BACK COVER
SUPPORT FRONT
SUPPORT BACK
BEZEL
TURN BASE
BASE
LCD HINGE
SERIAL No.
REV. No.
HI/POT LABEL
ID LABEL
BAR-CODE
WARRANTY CORD
MANUAL
CORNER PAD
WOODEN FLAT PALLETS
WOODEN FLAT PALLETS
EPS (L)
EPS (R)
CARTON
EVA
EVA
EVA(DOUBLE)
PROTECT COVER
PROTECT COVER
PE-LD BAG
DRIVE DISK SIEMENS
CORD
SHIELD CBPC
SHIELD INVERTORY
EARTH CLIP
SHIELD INVERTORY
PANED SHILED
SOFT-SHIELD
SOFT-SHIELD
INVERTER BY SAMPO
ADAPTOR BY LINEARITY
POWER CORD UL/CSA
SIGNAL CABLE
FPC CABLE
HARNESS
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
SCREW
LCD PANEL HSD150MX41

PARTS LIST OF CONVERSION BOARD

8

1

7

4

4

4

4

1

1

LOCATION CBPC1560GHMN SPECIFICATION

CN303 33A 3802- 5H
CN302 33A 3802- 9H
CN202 33A 3804- 30
CN201 33A 3804- 45
CN200 33A 8013- 14 - H
40A 152- 26
U200 56A 562­U304 56A 563­U305 56A 563­U302 56A 1125- 61 - H
U203 56A 1133- 16
U300 56A 1133- 17
Q200 57A 417­Q250 57A 417­Q303 57A 417­Q304 57A 417­Q201 57A 748­D211 57A 754­RP300 61A 125- 103 - 8
JP202 61A 0603- 000
JP211 61A 0603- 000
JP222 61A 0603- 000
JP300 61A 0603- 000
L204 61A 0603- 000
L205 61A 0603- 000
L206 61A 0603- 000
R200 61A 0603- 000
R201 61A 0603- 000
R202 61A 0603- 000
R203 61A 0603- 000
R207 61A 0603- 000
R208 61A 0603- 000
R317 61A 0603- 000
R319 61A 0603- 000
R211 61A 0603- 101
R212 61A 0603- 101
R218 61A 0603- 101
R219 61A 0603- 101
R220 61A 0603- 101
R227 61A 0603- 101
R213 61A 0603- 102
R214 61A 0603- 102
R216 61A 0603- 103
R217 61A 0603- 103
R223 61A 0603- 103
R300 61A 0603- 103
R301 61A 0603- 103
R309 61A 0603- 103
R311 61A 0603- 103
R313 61A 0603- 103
R314 61A 0603- 103
R315 61A 0603- 103
R326 61A 0603- 103
R327 61A 0603- 103
R328 61A 0603- 103
R319 61A 0603- 103
R400 61A 0603- 103
R401 61A 0603- 103
R224 61A 0603- 104
R225 61A 0603- 104

WAFER 5P PLUG RIGHT ANELE
WAFER 9P PLUG RIGHT ANELE
WAFER FH12-30S-0.5SH
WAFER FH12-45S-0.5SH
13P PLUG RIGHT ANGLE
LABEL
ZAN1 POFP-160
IC TF1560E NS
AIC1084-33M
M6759
IC
IC
NPN GENERAL PURPOSE TRAN
NPN GENERAL PURPOSE TRAN
NPN GENERAL PURPOSE TRAN
NPN GENERAL PURPOSE TRAN
MOSFET
BAT54C-GS08
CHIP ARRAY 10K OHM 1/16W 8P4R
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 0 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 100 OHM 1/10W
CHIP 1KOHM 1/10W
CHIP 1KOHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 10K OHM 1/10W
CHIP 100K OHM 1/10W
CHIP 100K OHM 1/10W

LOCATION CBPC1560GHMN SPECIFICATION

R209 61A 0603- 202
R210 61A 0603- 202
R226 61A 0603- 302
R229 61A 0603- 511
R204 61A 0603- 750
R205 61A 0603- 750
R206 61A 0603- 750
CP301 65A 600- 102 - 8T
CP302 65A 600- 102 - 8T
CP201 65A 600- 220 - 8T
CP202 65A 600- 220 - 8T
CP203 65A 600- 220 - 8T
CP204 65A 600- 220 - 8T
CP205 65A 600- 220 - 8T
CP206 65A 600- 220 - 8T
CP207 65A 600- 220 - 8T
CP208 65A 600- 220 - 8T
CP209 65A 600- 220 - 8T
CP210 65A 600- 220 - 8T
CP211 65A 600- 220 - 8T
CP212 65A 600- 220 - 8T
C235 65A 0603- 101 - 32
C236 65A 0603- 101 - 32
C229 65A 0603- 103 - 32
C230 65A 0603- 103 - 32
C231 65A 0603- 103 - 32
C232 65A 0603- 103 - 32
C233 65A 0603- 103 - 32
C234 65A 0603- 103 - 32
C251 65A 0603- 103 - 32
C201 65A 0603- 104 - 12
C202 65A 0603- 104 - 12
C204 65A 0603- 104 - 12
C205 65A 0603- 104 - 12
C207 65A 0603- 104 - 12
C208 65A 0603- 104 - 12
C209 65A 0603- 104 - 12
C210 65A 0603- 104 - 12
C211 65A 0603- 104 - 12
C212 65A 0603- 104 - 12
C213 65A 0603- 104 - 12
C215 65A 0603- 104 - 12
C217 65A 0603- 104 - 12
C218 65A 0603- 104 - 12
C219 65A 0603- 104 - 12
C220 65A 0603- 104 - 12
C221 65A 0603- 104 - 12
C222 65A 0603- 104 - 12
C223 65A 0603- 104 - 12
C225 65A 0603- 104 - 12
C226 65A 0603- 104 - 12
C227 65A 0603- 104 - 12
C228 65A 0603- 104 - 12
C237 65A 0603- 104 - 12
C244 65A 0603- 104 - 12
C245 65A 0603- 104 - 12
C246 65A 0603- 104 - 12
C261 65A 0603- 104 - 12
C300 65A 0603- 104 - 12
C304 65A 0603- 104 - 12
C308 65A 0603- 104 - 12

CHIP 2K OHM 1/10W
CHIP 2K OHM 1/10W
CHIP 3K OHM 1/10W
CHIP 510 OHM 1/10W
CHIP 75 OHM 1/10W
CHIP 75 OHM 1/10W
CHIP 75 OHM 1/10W

CHIP ARRAY 1000PF 8P
CHIP ARRAY 1000PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP ARRAY 22PF 8P
CHIP 100PF 100PF 50V
CHIP 100PF 100PF 50V
CHIP 0.01UF 50V
CHIP 0.01UF 50V
CHIP 0.01UF 50V
CHIP 0.01UF 50V
CHIP 0.01UF 50V
CHIP 0.01UF 50V

CHIP 0.01UF 50V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V
CHIP 0.1UF 10V

1

2

2

1

LOCATION CBPC1560GHMN SPECIFICATION

C311 65A 0603- 104 - 12
C250 65A 0603- 330 - 31
C262 65A 0603- 330 - 31
C303 65A 0603- 330 - 31
C306 65A 0603- 330 - 31
C307 67A 305- 331 - 6
C309 67A 305- 331 - 6
C310 67A 305- 331 - 6
C312 67A 305- 331 - 6
C200 67A 312- 220 - 3
C203 67A 312- 220 - 3
C206 67A 312- 220 - 3
C214 67A 312- 220 - 3
C216 67A 312- 220 - 3
C224 67A 312- 220 - 3
C305 67A 312- 220 - 3
C313 67A 312- 220 - 3
C314 67A 312- 220 - 3
FB301 71A 55- 28
R215 71A 56­LP201 71A 56A- 121 - 8T
LP202 71A 56A- 121 - 8T
LP203 71A 56A- 121 - 8T
LP204 71A 56A- 121 - 8T
LP205 71A 56A- 121 - 8T
LP206 71A 56A- 121 - 8T
LP207 71A 56A- 121 - 8T
LP208 71A 56A- 121 - 8T
LP209 71A 56A- 121 - 8T
LP210 71A 56A- 121 - 8T
LP211 71A 56A- 121 - 8T
LP212 71A 56A- 121 - 8T
L207 71A 56G- 151 - A
L200 71A 57G- 601
L201 71A 57G- 601
L202 71A 57G- 601
L203 71A 57G- 601
L300 73A 253- 108 - LI
VR501 75A 335- 103

87A 202- 44
90A 372­X300 93A 22- 55
U201 93A 22- 57
D200 93A 39- 139
D201 93A 39- 139
D208 93A 39- 139
D209 93A 39- 139
D210 93A 39- 139
D300 93A 60- 209
D202 93A 64- 32
D203 93A 64- 32
D204 93A 64- 32
D205 93A 64- 32
D206 93A 64- 32
D207 93A 64- 32
D301 93A 64- 32
D302 93A 64- 32
95A 3261­ 715A 763-

-

24

CHIP 0.1UF 10V

33PF 50V NPO
33PF 50V NPO
33PF 50V NPO

33PF 50V NPO
330UF +-20% 35V
330UF +-20% 35V
330UF +-20% 35V
330UF +-20% 35V

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE

SMD EC 22uF 16V 85CC SIZE
BEAD TECST
BEAD TECSTAR
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD ARRAY 120 OHM
CHIP BEAD 150 OHM
CHIP BEAD 600 OHM
CHIP BEAD 600 OHM
CHIP BEAD 600 OHM
CHIP BEAD 600 OHM
CHOKE COIL
10K OHM +-30%
SMT PLCC CONN
HEAT SINK
CRYSTAL 20MHz HC-49US
OSCILATOR 50MHz
ZENER DIODE TF1560E FCI
ZENER DIODE TF1560E FCI
ZENER DIODE TF1560E FCI
ZENER DIODE TF1560E FCI
ZENER DIODE TF1560E FCI
DIODE
DIODE FCI
DIODE FCI
DIODE FCI
DIODE FCI
DIODE FCI
DIODE FCI
DIODE FCI
DIODE FCI
HARNESS
COVERSION BOARD

PARTS LIST OF KEY PC BOARD

1

1

1

1

1

1

5

9

1

LOCATION

40A 152- 25
Q101 57A 419- PP - T
Q102 57A 419- PP - T
R101 61A 602- 103 - 52T
R102 61A 602- 103 - 52T
R103 61A 602- 103 - 52T
R104 61A 602- 103 - 52T
R105 61A 602- 103 - 52T
R107 61A 602- 103 - 52T
R108 61A 602- 221 - 52T
C101 65A 450- 104 - 7T
SW1 77A 600­SW2 77A 600­SW3 77A 600­SW4 77A 600­SW5 77A 600­T101 77A 700­LED1 81A 10­J101 95A 90- 23
J102 95A 90- 23
95A 8014­ 715A 707-

KEPC560EKMN

- G

- G

- G

- G

- G

- BH

- 5

SPECIFICATION

KEPC560EEKMN-A LABEL
TR. 2PC945P
TR. 2PC945P
10K OHM +-5% 1/6W
10K OHM +-5% 1/6W
10K OHM +-5% 1/6W
10K OHM +-5% 1/6W
10K OHM +-5% 1/6W
10K OHM +-5% 1/6W
220 OHM +-5% 1/6W

0.1uF +80-20% Y5V 50V
WITH GROUND
WITH GROUND
WITH GROUND
WITH GROUND
WITH GROUND
EC11B20244 ENCODER RORW
BICOLOR LED LAMPS
TIN COATED
TIN COATED
HARNESS 265mm 9P
KEY BOARD

9. POWER SYSTEM AND CONSUMPTION CURRENT

ADAPTER MODULE
Input AC 110V, 60Hz/240V, 50Hz
Output DC 12V 3.5A

Main board power system

LM2596S-5, 12V to 5V (3A SPEC)

INVERTER MODULE
Input DC 12V
Output AC 1500V/30K-50KHz
Current 9mA

5V

AIC1084, 5V to 3.3V (5A SPEC)

3.3V

To Hannstar – Panel (consumption current arround 363mA MAX) and GMZAN1

To CPU, Eeprom, 24c21, control-inverter-on.off
860mA when Cable not Connected
841mA when Normal operation

800mA when Cable not Connected
760mA when Normal operation

CN302

(Panel-Select)

R320 R322 R324

10K
(NC)

(NC)

0

1 2 3 4

C304

8 7 6 5

R217

10K

D209

R216

5.5V
10K

D208

5.5V

R101 R102 R103 R104 R105

1/4W

10K

R318

10K
(NC)

R319

KEY

10K

SW101 SW102

AUTO
KEY

KEY PAD

1 2 3 4 5 6 7 8 9

+3.3V

U200

+5V

87 65

RP300

10K

+5V

10K
(NC)

R325R323R321

(NC)0(NC)0(NC)

+5V

0

+5V

R329R328

10K10K

1 2 3 4

CP302CP301

10001000

8 7 6 5

R220

100

R219

100

VCC

10K

10K

10K

10K

1/4W

1/4W

1/4W

1/4W

SW104 SW105

SW103

KEY

KEY

LCD

2SC945

C101

KEY

ENTER

LEFT

ON/OFF

RIGHT

0.1

R107 R106

10K
1/4W

4321

R317

0

MFB2

VDDA

D202

1N4148

R200

L204

R206

C229

C247

D203

0

0.15uH

75

10nF

22

1N4148

(NC)

R203

VDDA

VDDA

D206

1N4148

D207

1N4148

Q101

DP101

C232

0

10nF

D204

1N4148

R201

L205

R205

C230

D205

0

0

C248

75

10nF

1N4148

(NC)

R207

C233

0

10nF

R202

L206

R204

C231

0

0

C249

75

10nF

(NC)

+3.3V

R208

C234

0

R210

10nF

2K

R214

R212

R209

R218

1K

C236

D201

100

2K

100

5.6V100

R213

R211

1K

100

C235

D200

100 5.6V

JP101

1

VCC

2

LCD ON/OFF

3

KEY LEFT

4

KEY RIGHT

5

KEY ENTER

6

AUTO KEY

7

LED ORANGE

8

LED GREEN

Q102

9

2SC945

10K
1/4W

DUAL

LED1

R108

220
1/4W

RVDD2

RVDD1

SRVDD2

SRVDD1

HDATA0

99

HDATA

MFB7

105

MFB7

MFB8

104

MFB8

MFB9

102

MFB9

HCLK

103

HCLK

IRQ

101

IRO

HFS

98

HFS

107

MFB5

106

MFB6

R316

NC

124

MFB10

123

MFB11

109

MFB4

110

MFB3

111

MFB2

112

MFB1

113

MFB0

95

RED+

94

RED-

91

GREEN+

GREEN-

90

87

BLUE+

86

BLUE-

150

HSYNC/CS

148

VSYNC

2

Reserved

3

PSCAN

4

Reserved

5

Reserved

59

Reserved

60

Reserved

83

Reserved

97

NC

130

Reserved

135

Reserved

142

XTAL(Reserved)

145

Reserved

147

Reserved

152

Reserved

153

STI_TM1

RVSS3

CVSS2

RVSS2

SRVSS1

RVSS1

CVSS1

1 8 18 30 41 49 61 72 114 126 140 151 158 78 80 81 82 85 89 93 131 132 133 134 127 138 144 146

GND

VDDA

RVDDA

DVDDA

SVDDA

TCLK1

+3.3V

R230

14313713612912896928884149139125108797765584033211211

0

TCLK

(NC)

C206

141

SVDD

DVDD

CVDD4

RVDD3

CVDD2

CVDD1

SYN_VDD

ADC_VDDA

ADC_VDD1

ADC_VDD2

ADC_BVDDA

ADC_BGNDA

ADC_GNDA

SUB_GNDA

ADC_GND1

ADC_GND2

SRVSS2

SYN_VSS

SVSS

DVSS

CVSS4

CVSS3

RVSS4

TCLK

PD47

PLL_RVDDA

DAC_SVDDA

PLL_SVDDA

PLL_DVDDA

DAC_DVDDA

ADC_RVDDA

ADC_GVDDA

PD46

PD45
PD44

PD43
PD42
PD41

PD40

PD39
PD38

PD37
PD36
PD35

PD34

PD33
PD32

PD31
PD30
PD29

PD28

PD27
PD26

PD25
PD24
PD23

PD22

PD21
PD20

PD19
PD18
PD17

PD16

PD15
PD14

PD13
PD12
PD11

PD10

PD9
PD8

PD7
PD6
PD5

PD4

PD3
PD2

PD1
PD0
PVS

PHS

PBIAS

PPWR

PDISPE
PCLKA
PCLKB

OSD_CLK

OSD_VREF

OSD_HREF

OSD_DATA2

OSD_DATA1
OSD_DATA0

OSD_FSW

OSD_DATA3

RESETn

STI_TM2

SCAN_IN1
Reserved

SCAN_IN2
SCAN_OUT1

SCAN_OUT2

SUB_RGNDA

PLL_RGNDA

DAC_SGNDA

DAC_DGNDA

PLL_SGNDA

SUB_SGNDA

SUB_DGNDA

PLL_DGNDA

ADC_RGNDA

ADC_GGNDA

PLL_GNDAADC_AGND

6

7

9
10

13
14
15

16

17
19

20
22
23

24

25
26

27
28
29

31

32
34

35
36
37

38

39
42

46
47
48

50

51
52

53
54
55

56

57
62

63
64
66

67

68
693

70
71
73

74

75
76

43
44
45

117

116

115

120

119
118

122

121

100

154

155
156

157
159

160

PD47

PD46

PD45
PD44
PD43

PD42
PD41

PD40
PD39

PD38
PD37

PD36
PD35

PD34
PD33

PD32
PD31

PD30
PD29

PD28
PD27

PD26
PD25

PD24
PD23

PD22
PD21

PD20
PD19

PD18
PD17

PD16
PD15

PD14
PD13

PD12
PD11

PD10

PD9

PD8
PD7

PD6
PD5

PD4
PD3

PD2
PD1

PD0
PVS

PHS
PBIAS

PPWR

PDISPE

PCLKA

PCLK

L207

C262

120

33

R305 R306

10K

10K

(NC)

(NC)

R326

D302

10K

1N4148

R307

C314

10K

22UF

(NC)

C207 C208 C209 C210 C211 C212 C213

22UF

0.1 0.1 0.1 0.1 0.1 0.1 0.1

C216

22UF

L203

C224

1UH

C225 C226 C227 C228

22UF

0.1 0.1 0.1 0.1

L200

C200

1UH

C202C201

22UF

0.10.1

L201

C203

1UH

C205C204

22UF

0.10.1

L202

U201

C237

1UH 50MHz

0.1

1

8

VCC

SB

4 5

OUT

GND

+5V

R303 R304

R302

270

270

270

(NC)

(NC)

(NC)

2

OSD_CLK

10

VREF

5

HREF

15

R

14

G

13

B

12

FBKG

6

SSB

2

1

+5V

R312

C313

10K

D301

22UF

(NC)

1N4148

Q300

R313

MMBT3904

10K

(NC)

RST

PD13-1
PD12-1
PD41-1
PD40-1

1

2

3

CP202

22

8

7

6

PD7-1
PD6-1
PD39-1
PD38-1

1

2

3

CP204

22

8

7

6

PD1-1
PD0-1
PD37-1
PD36-1

1

2

3

CP206

22

8

7

6

R401

10K

JP201

0

Q250 R223

JP202

MMBT3904 10K

PANLE_EN

PD31-1
PD30-1
PD47-1
PD46-1

CP208

22

PD25-1
PD24-1
PD45-1
PD44-1

1

2

3

CP210

22

8

7

6

PD19-1
PD18-1
PD43-1
PD42-1

1

2

3

CP212

22

8

7

6

R309

R311

10K

10K

Q304

MMBT3904

R315

10K

1 2 3 12345

JP301

0

LP201

120

1

8

PD14

2

7

PD15

3

6

PD16

4

5

PD17

1

2

3

4

8

7

6

5

LP203

120

PD8

1

8

2

7

PD9

3

6

PD10

4

5

PD11

1

2

3

4

8

7

6

5

LP205

120

PD2

1

8

2

7

PD3

3

6

PD4

4

5

PD5

1

2

3

4

8

7

6

5

+12V

R224

100K

R225

100K

Q201

MGSF1N03

C245

Q200

0.1

MMBT3904

R226

C426

3K

0.1

LP207LP208

120120

PD32

11

88

22

77

PD33

33

66

PD34

44

55

PD35

11

22

33

44

88

77

66

55

LP209

120

PD26

1

8

2

7

PD27

3

6

PD28

4

5

PD29

1

2

3

4

8

7

6

5

LP211

120

PD20

1

8

2

7

PD21

3

6

PD22

4

5

PD23

1

2

3

4

8

7

6

5

R522

10K7

VR501

10K

R523

10K7

+12V

CN303

LP202

120

PD13

1

8

2

7

PD12

C223C222C221C220C219C218C217

3

6

PD41

0.10.10.10.10.10.10.1

4

5

PD40

VDDA

DVDDA

SVDDA

RVDDA

C214

C215

22UF

0.1

TCLK

R215

C250

120

0.1

U301

MTV121

(NC)

11

HTOME

4

VDD1

9

VDD2

C301 C302

0.1
(NC)

1

VSS1

16

VSS2

SDA

7

SDA

SCL

8

SCL

NC

3

U303

DS1813
(NC)

VCC

3

GND

RST

R229

510

4

5

LP204

120

PD7

1

8

2

7

PD6

3

6

PD39

4

5

PD38

4

5

LP206

120

PD1

1

8

2

7

PD0

3

6

PD37

4

5

PD36

4

5

PPWR

R400

10K

PD31
PD30
PD47
PD46

LP210

120

PD25

1

8

2

7

PD24

3

6

PD45

0.1

4

5

PD44

(NC)

4

5

LP212

120

PD19

1

8

2

7

PD18

3

6

PD43

4

5

PD42

4

5

+5V

PBIAS

Q303

MMBT3904

R314

10K

BACKLIGH

JP300

CN201

45

PCLK

44
43

PDISPE

42
41

PVS

40
39

PD14-1

PHS

PD15-1

38

PD16-1

37

PD17-1

36
35

CP201

PD17-1

22

34

PD16-1

33

PD15-1

32

PD14-1

31
30

PD13-1

29

PD12-1

28

PD41-1

27

PD8-1

PD40-1

PD9-1

26

PD10-1

25

PD11-1

PD11-1

24

PD10-1

CP203

23

22

PD9-1

22

PD8-1

21
20

PD7-1

19

PD6-1

18

PD39-1

17

PD38-1

16

PD2-1

15

PD3-1

PD5-1

PD4-1

14

PD5-1

PD4-1

13

PD3-1

12

CP205

PD2-1

22

11
10

PD1-1

9

PD0-1

8

PD37-1

7

PD36-1

6
5

+5V

R526

R528

10K

4

10K

JP201

3

0

+3.3V

2

JP202

R529 R527

1

0 0

PANEL_P

PD32-1
PD33-1
PD34-1

CN202

PD35-1

30

PD35-1

29

CP207

PD34-1

22

28

PD33-1

27

PD32-1

26
25

PD31-1

24

PD30-1

23

PD47-1

22

PD46-1

21

PD26-1

20

PD27-1

PD29-1

PD28-1

19

PD29-1

PD28-1

18

PD27-1

17

CP209

PD26-1

22

16
15

PD25-1

14

PD24-1

13

PD45-1

12

PD44-1

11
10

PD23-1

PD20-1

9

PD22-1

PD21-1

8

PD22-1

PD21-1

7

PD23-1

PD20-1

6

CP211

5

22

PD19-1

4

PD18-1

3

PD43-1

2

PD42-1

1

C383FA-1

U302

8XC51/PLCC

HDATA0

2

24

P2.0/A8

T2/P1.0

MFB7

3

25

P2.1/A9

T2EX/P1.1

MFB8

4

26

P2.2/A10

P1.2

MFB9

5

27

P2.3/A11

P1.3

HCLK

6

28

P2.4/A12

P1.4

HFS

7

29

P2.5/A13

P1.5

BACKLIGHT_EN

8

30

P2.6/A14

P1.6

PANLE_EN

9

31

P2.7/A15

P1.7

RST

10

32

PSEN

RST

33

ALE/PROG

RXD

11

RXD/P3.0

WP

TXD

13

36

P0.7/AD7

TXD/P3.1

IRQ

14

37

P0.6/AD6

INT0/P3.2

MFB2

15

38

P0.5/AD5

INT1/P3.3

SDA

16

39

P0.4/AD4

T0/P3.4

SCL

17

40

P0.3/AD3

T1/P3.5

R327

10K

R227

100

C251

D210

1nF

5.6V

CN200

RXD

14

TXD

13
12
11

VGA_VSYNC

10

VGA_HSYNC

9

/VGA_CON

8
7
6
5

GREEN

4
3

RED

2
1

CN301

POWER+12V

FB301

+12V

C308

C307

330UF 0.1

35V

COREPOWER

10/24/2000

RST1

18

41

P0.2/AD2

WR/P3.6

/VGA_CON

19

42

P0.1/AD1

RD/P3.7

43

P0.0/AD0

XTAL2

TCLK1

20

XTAL2

R222

0

(NC)

C303

33

U304

LM2596S-5.0

+5V

TO263

4

FBK

1

VIN

2

Vout

GND

/ON

D300

5 3

B320

44

VCC
X300

20MHz

35

EA/VP

21

XTAL1

GNDNCNCNCNC

C305
C306

33

24LC04

R301R300

10K10K

5

SI

6

SCK

L300 C309

33uH

22UF 0.1

22 1 12 23 34

+5V

U300

R330

8

VCC

10K

C300

0.1

JP221

WP

0

7

WP

JP222

1

A0

2

A1

3

A2

4

VSS

2 1

+5V

D211

BAT54

3

U203

24LC21A3

8

VCC

1

5

SDANC

2

6

SCL

NC

C244

0.1

3

7

VCLK

NC

GND

4

+3.3V

U305

AIC1084

312

VoutVin

C312

C310

GND

330UF

C311

330UF

0.1 35V

35V

330UF
35V

CN302

(Panel-Select)

R320 R322 R324

10K

10K

(NC)

(NC)

0

KEY

1 2 3 4

C304

8 7 6 5

R217

10K

D209

R216

5.5V
10K

D208

5.5V

R101 R102 R103 R104 R105

10K

1/4W

KEY PAD

R318

10K
(NC)

R319

SW101 SW102

AUTO
KEY

1 2 3 4 5 6 7 8 9

+3.3V

U200

+5V

87 65

RP300

10K

+5V

10K
(NC)

R325R323R321

(NC)0(NC)0(NC)

+5V

0

+5V

R329R328

10K10K

1 2 3 4

CP302CP301

10001000

8 7 6 5

R220

100

R219

100

VCC

10K

10K

10K

10K

1/4W

1/4W

1/4W

1/4W

SW104 SW105

SW103

KEY

KEY

LCD

2SC945

C101

KEY

ENTER

LEFT

ON/OFF

RIGHT

0.1

R107 R106

10K
1/4W

4321

HDATA0

99

HDATA

MFB7

105

MFB7

MFB8

104

MFB8

MFB9

102

MFB9

HCLK

103

HCLK

IRQ

101

IRO

HFS

98

HFS

107

MFB5

R317

0

106

MFB6
R316

NC

124

MFB10

123

MFB11

109

MFB4

110

MFB3

MFB2

111

MFB2

112

MFB1

113

VDDA

D202

1N4148

L204

D203

0.15uH

1N4148

VDDA

D204

1N4148

L205

D205

1N4148

VDDA

D206

1N4148

L206
D207

1N4148

+3.3V

R209

R218

2K

100

R213

1K

Q102

Q101

2SC945

DUAL

DP101

LED1

R108

220
1/4W

MFB0

95

RED+

R200

R206

C229

C247

0

75

10nF

22

(NC)

94

RED-

R203

C232

0

10nF

91

GREEN+

R201

R205

C230

0

0

C248

75

10nF

(NC)

GREEN-

90

R207

C233

0

10nF

87

BLUE+

R202

R204

C231

0

0

C249

75

10nF

(NC)

86

BLUE-

R208

C234

0

R210

10nF

2K

150

HSYNC/CS

R214

R212

1K

C236

D201

100

5.6V100

148

VSYNC
R211

100

C235

D200

100 5.6V

2

Reserved

3

PSCAN

4

Reserved

5

Reserved

59

Reserved

60

Reserved

83

Reserved

97

NC

130

Reserved

135

Reserved

142

XTAL(Reserved)

145

Reserved

147

Reserved

152

Reserved

153

STI_TM1

JP101

1

VCC

2

LCD ON/OFF

3

KEY LEFT

4

KEY RIGHT

5

KEY ENTER

6

AUTO KEY

7

LED ORANGE
LED GREEN

10K
1/4W

CVSS1

1 8 18 30 41 49 61 72 114 126 140 151 158 78 80 81 82 85 89 93 131 132 133 134 127 138 144 146

8
9

GND

C383FA-1

U302

8XC51/PLCC

HDATA0

2

24

P2.0/A8

T2/P1.0

MFB7

3

25

P2.1/A9

T2EX/P1.1

MFB8

4

26

P2.2/A10

P1.2

MFB9

5

27

P2.3/A11

P1.3

HCLK

6

28

P2.4/A12

P1.4

HFS

7

29

P2.5/A13

P1.5

BACKLIGHT_EN

8

30

P2.6/A14

P1.6

PANLE_EN

9

31

P2.7/A15

P1.7

RST

10

32

PSEN

RST

33

ALE/PROG

RXD

11

RXD/P3.0

WP

TXD

13

36

P0.7/AD7

TXD/P3.1

IRQ

14

37

P0.6/AD6

INT0/P3.2

MFB2

15

38

P0.5/AD5

INT1/P3.3

SDA

16

39

P0.4/AD4

T0/P3.4

SCL

17

40

P0.3/AD3

T1/P3.5

R327

10K

R227

100

C251

D210

1nF

5.6V

CN200

RXD

14

TXD

13
12
11

VGA_VSYNC

10

VGA_HSYNC

9

/VGA_CON

8
7
6
5

GREEN

4
3

RED

2
1

CN301

POWER+12V

FB301

+12V

C308

C307

330UF 0.1
35V

COREPOWER

10/24/2000

RST1

18

41

P0.2/AD2

WR/P3.6

/VGA_CON

19

42

P0.1/AD1

RD/P3.7

43

P0.0/AD0

XTAL2

TCLK1

20

XTAL2

R222

0

(NC)

C303

33

U304

LM2596S-5.0

+5V

TO263

4

FBK

1

VIN

2

Vout

GND

/ON

D300

5 3

B320

44

VCC
X300

20MHz

35

EA/VP

21

XTAL1

GNDNCNCNCNC

C305
C306

33

R301R300

10K10K

5

SI

6

SCK

L300 C309

33uH

22UF 0.1

22 1 12 23 34

+5V

U300

24LC04

R330

8

VCC

10K

C300

0.1

JP221

WP

0

7

WP

JP222

1

A0

2

A1

3

A2

4

VSS

2 1

+5V

D211

BAT54

3

U203

24LC21A3

8

VCC

1

5

SDANC

2

6

SCL

NC

C244

0.1

3

7

VCLK

NC

GND

4

+3.3V

U305

AIC1084

312

VoutVin

C312

C310

GND

330UF

C311

330UF

0.1 35V

35V

330UF

35V

+3.3V

U200

87 65

RP300

10K

4321

HDATA0

99

MFB7

105

MFB8

104

MFB9

102

HCLK

103

IRQ

101

HFS

98

107

R317

0

106

R316

NC

124

123

109

110

MFB2

111

112

113

95

R200

C229

0

10nF

94

R203

C232

0

10nF

91

R201

C230

0

10nF

90

R207

C233

0

10nF

87

R202

C231

0

10nF

86

R208

C234

0

10nF

150

C236

D201

5.6V100

148

C235

D200

100 5.6V

2

3

4

5

59

60

83

97

130

135

142

145

147

152

153

CVDD2

CVDD1

RVDD2

RVDD1

SRVDD2

SRVDD1

HDATA

MFB7

MFB8

MFB9

HCLK

IRO

HFS

MFB5

MFB6

MFB10

MFB11

MFB4

MFB3

MFB2

MFB1

MFB0

RED+

RED-

GREEN+

GREEN-

BLUE+

BLUE-

HSYNC/CS

VSYNC

Reserved

PSCAN

Reserved

Reserved

Reserved

Reserved

Reserved

NC

Reserved

Reserved

XTAL(Reserved)

Reserved

Reserved

Reserved

STI_TM1

CVSS3

RVSS4

RVSS3

CVSS2

RVSS2

SRVSS1

RVSS1

CVSS1

1 8 18 30 41 49 61 72 114 126 140 151 158 78 80 81 82 85 89 93 131 132 133 134 127 138 144 146

GND

VDDA

RVDDA

DVDDA

SVDDA

TCLK1

+3.3V

R230

14313713612912896928884149139125108797765584033211211

0

TCLK

(NC)

C206

141

SVDD

DVDD

CVDD4

RVDD3

SYN_VDD

ADC_VDDA

ADC_VDD1

ADC_VDD2

ADC_BVDDA

ADC_BGNDA

ADC_GNDA

SUB_GNDA

ADC_GND1

ADC_GND2

SRVSS2

SYN_VSS

SVSS

DVSS

CVSS4

TCLK

PD47

PLL_RVDDA

DAC_SVDDA

PLL_SVDDA

PLL_DVDDA

DAC_DVDDA

ADC_RVDDA

ADC_GVDDA

PD46

PD45
PD44

PD43
PD42
PD41

PD40

PD39
PD38

PD37
PD36
PD35

PD34

PD33
PD32

PD31
PD30
PD29

PD28

PD27
PD26

PD25
PD24
PD23

PD22

PD21
PD20

PD19
PD18
PD17

PD16

PD15
PD14

PD13
PD12
PD11

PD10

PD9
PD8

PD7
PD6
PD5

PD4

PD3
PD2

PD1
PD0
PVS

PHS

PBIAS

PPWR

PDISPE
PCLKA
PCLKB

OSD_CLK

OSD_VREF

OSD_HREF

OSD_DATA2

OSD_DATA1
OSD_DATA0

OSD_FSW

OSD_DATA3

RESETn

STI_TM2

SCAN_IN1
Reserved

SCAN_IN2
SCAN_OUT1

SCAN_OUT2

SUB_RGNDA

PLL_RGNDA

DAC_SGNDA

DAC_DGNDA

PLL_SGNDA

SUB_SGNDA

SUB_DGNDA

PLL_DGNDA

ADC_RGNDA

ADC_GGNDA

PLL_GNDAADC_AGND

6

7

9
10

13
14
15

16

17
19

20
22
23

24

25
26

27
28
29

31

32
34

35
36
37

38

39
42

46
47
48

50

51
52

53
54
55

56

57
62

63
64
66

67

68
693

70
71
73

74

75
76

43
44
45

117

116

115

120

119
118

122

121

100

154

155
156

157
159

160

PD47

PD46

PD45
PD44
PD43

PD42
PD41

PD40
PD39

PD38
PD37

PD36
PD35

PD34
PD33

PD32
PD31

PD30
PD29

PD28
PD27

PD26
PD25

PD24
PD23

PD22
PD21

PD20
PD19

PD18
PD17

PD16
PD15

PD14
PD13

PD12
PD11

PD10

PD9

PD8
PD7

PD6
PD5

PD4
PD3

PD2
PD1

PD0
PVS

PHS
PBIAS

PPWR

PDISPE

PCLKA

PCLK

L207

C262

120

33

R305 R306

10K

10K

(NC)

(NC)

R326

D302

10K

1N4148

R307

C314

22UF

(NC)

C207 C208 C209 C210 C211 C212 C213

22UF

0.1 0.1 0.1 0.1 0.1 0.1 0.1

C216

22UF

L203

C224

1UH

C225 C226 C227 C228

22UF

0.1 0.1 0.1 0.1

L200

C200

1UH

C202C201

22UF

0.10.1

L201

C203

1UH

C205C204

22UF

0.10.1

L202

U201

C237

1UH 50MHz

0.1

1

8

VCC

SB

4 5

OUT

GND

+5V

R303 R304

R302

270

270

270

(NC)

(NC)

(NC)

2

OSD_CLK

10

VREF

5

HREF

15

R

14

G

13

B

12

FBKG

6

SSB

+5V

R312

C313

10K

22UF

(NC)

1N4148

Q300

R313

MMBT3904

10K

(NC)

10K

RST

U301

MTV121
(NC)

NC

3

U303

DS1813
(NC)

2

VCC

GND

1

RST

R229

510

D301

CN201

TCLK1

+3.3V

R230

0

TCLK

(NC)

C206

141

TCLK

PD47

PD46

PD45
PD44

PD43
PD42
PD41

PD40

PD39
PD38

PD37
PD36
PD35

PD34

PD33
PD32

PD31
PD30
PD29

PD28

PD27
PD26

PD25
PD24
PD23

PD22

PD21
PD20

PD19
PD18
PD17

PD16

PD15
PD14

PD13
PD12
PD11

PD10

PD9
PD8

PD7
PD6
PD5

PD4

PD3
PD2

PD1
PD0
PVS

PHS

PBIAS

PPWR

PDISPE

PCLKA
PCLKB

OSD_CLK

OSD_VREF

OSD_HREF

OSD_FSW

RESETn

STI_TM2

SCAN_IN1
Reserved

SCAN_IN2

6

7

9
10

13
14
15

16

17
19

20
22
23

24

25
26

27
28
29

31

32
34

35
36
37

38

39
42

46
47
48

50

51
52

53
54
55

56

57
62

63
64
66

67

68
693

70
71
73

74

75
76

43
44
45

117

116

115

120

119
118

122

121

100

154

155
156

157
159

160

PD47

PD46

PD45
PD44
PD43

PD42
PD41

PD40
PD39

PD38
PD37

PD36
PD35

PD34
PD33

PD32
PD31

PD30
PD29

PD28
PD27

PD26
PD25

PD24
PD23

PD22
PD21

PD20
PD19

PD18
PD17

PD16
PD15

PD14
PD13

PD12
PD11

PD10

PD9

PD8
PD7

PD6
PD5

PD4
PD3

PD2
PD1

PD0
PVS

PHS
PBIAS

PPWR
PDISPE

PCLKA

22UF

C216

22UF

L203

1UH

L200

1UH

L201

1UH

L202

1UH 50MHz

PCLK

L207

C262

120

33

R305 R306

10K

10K

(NC)

(NC)

R326

D302

10K

1N4148

R307

C314

10K

22UF

(NC)

C207 C208 C209 C210 C211 C212 C213

0.1 0.1 0.1 0.1 0.1 0.1 0.1

C224

C225 C226 C227 C228

22UF

0.1 0.1 0.1 0.1

C200

C202C201

22UF

0.10.1

C203

C205C204

22UF

0.10.1

U201

C237

0.1

1

8

VCC

SB

4 5

OUT

GND

+5V

R303 R304

U301

R302

270

270

MTV121

270

(NC)

(NC)

(NC)

(NC)

2

OSD_CLK

10

VREF

5

HREF

15

R

14

G

13

B

12

FBKG

6

SSB

NC

3

U303

DS1813

(NC)

2

VCC

GND

1

RST

R229

510

+5V

R312

C313

10K

D301

22UF

(NC)

1N4148

Q300

R313

MMBT3904

10K

(NC)

RST

PD13-1
PD12-1
PD41-1
PD40-1

1

2

3

CP202

22

8

7

6

PD7-1
PD6-1
PD39-1
PD38-1

1

2

3

CP204

22

8

7

6

PD1-1
PD0-1
PD37-1
PD36-1

1

2

3

CP206

22

8

7

6

R401

10K

JP201

0

Q250 R223

JP202

MMBT3904 10K

PANLE_EN

PD31-1
PD30-1
PD47-1
PD46-1

CP208

22

PD25-1
PD24-1
PD45-1
PD44-1

1

2

3

CP210

22

8

7

6

PD19-1
PD18-1
PD43-1
PD42-1

1

2

3

CP212

22

8

7

6

R309

R311

10K

10K

Q304

MMBT3904

R315

10K

1 2 3 12345

JP301

0

LP201

120

1

8

PD14

2

7

PD15

3

6

PD16

4

5

PD17

2

3

4

7

6

5

LP203

120

PD8

1

8

2

7

PD9

3

6

PD10

4

5

PD11

2

3

4

7

6

5

LP205

120

PD2

1

8

2

7

PD3

3

6

PD4

4

5

PD5

2

3

4

7

6

5

+12V

R224

100K

R225

100K

Q201

C245

Q200

0.1

MMBT3904

R226

C426

0.1

LP207LP208

120120

PD32

11

88

22

77

PD33

33

66

PD34

44

55

PD35

22

33

44

77

66

55

LP209

120

PD26

1

8

2

7

PD27

3

6

PD28

4

5

PD29

2

3

4

7

6

5

LP211

120

PD20

1

8

2

7

PD21

3

6

PD22

4

5

PD23

2

3

4

7

6

5

R522

10K7

VR501

10K

R523

10K7

+12V

CN303

LP202

120

PD13

1

8

2

7

PD12

C223C222C221C220C219C218C217

3

6

PD41

0.10.10.10.10.10.10.1

4

5

PD40

VDDA

DVDDA

SVDDA

RVDDA

C214

C215

22UF

0.1

TCLK

R215

C250

120

0.1

11

HTOME

4

VDD1

9

VDD2

C301 C302

0.1
(NC)

1

VSS1

16

VSS2

SDA

7

SDA

SCL

8

SCL

3

4

5

LP204

120

PD7

1

8

2

7

PD6

3

6

PD39

4

5

PD38

4

5

LP206

120

PD1

1

8

2

7

PD0

3

6

PD37

4

5

PD36

4

5

PPWR

R400

10K

PD31
PD30
PD47
PD46

LP210

120

PD25

1

8

2

7

PD24

3

6

PD45

0.1

4

5

PD44

(NC)

4

5

LP212

120

PD19

1

8

2

7

PD18

3

6

PD43

4

5

PD42

4

5

+5V

PBIAS

Q303

MMBT3904

R314

10K

BACKLIGH

JP300

45

PCLK

44
43

PDISPE

42
41

PVS

40
39

PD14-1

PHS

PD15-1

38

PD16-1

37

PD17-1

36

1

35

CP201

PD17-1

22

34

8

PD16-1

33

PD15-1

32

PD14-1

31
30

PD13-1

29

PD12-1

28

PD41-1

27

PD8-1

PD40-1

PD9-1

26

PD10-1

25

PD11-1

PD11-1

24

1

PD10-1

CP203

23

22

PD9-1

22

8

PD8-1

21
20

PD7-1

19

PD6-1

18

PD39-1

17

PD38-1

16

PD2-1

15

PD3-1

PD5-1

PD4-1

14

PD5-1

PD4-1

13

1

PD3-1

12

CP205

PD2-1

22

11

8

10

PD1-1

9

PD0-1

8

PD37-1

7

PD36-1

6
5

+5V

R526

R528

10K

4

10K

JP201

3

0

+3.3V

2

JP202

R529 R527

1

0 0

MGSF1N03

PANEL_P

3K

PD32-1
PD33-1
PD34-1

CN202

PD35-1

30

11

PD35-1

29

CP207

PD34-1

22

28

88

PD33-1

27

PD32-1

26
25

PD31-1

24

PD30-1

23

PD47-1

22

PD46-1

21

PD26-1

20

PD27-1

PD29-1

PD28-1

19

PD29-1

PD28-1

18

1

PD27-1

17

CP209

PD26-1

22

16

8

15

PD25-1

14

PD24-1

13

PD45-1

12

PD44-1

11
10

PD23-1

PD20-1

9

PD22-1

PD21-1

8

PD22-1

PD21-1

7

PD23-1

PD20-1

1

8

6

CP211

5

22

PD19-1

4

PD18-1

3

PD43-1

2

PD42-1

1
