Table of Contents
Table of Contents
1
PREFACE
Preface
About This Guide . . . . . . . . . . . . . . . . . . . . . . . . .3
Fujitsu Contact Information . . . . . . . . . . . . . . . . .3
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2
GETTING TO KNOW
YOUR COMPUTER
Overview
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Locating the Controls
and Connectors
Top and Front Components . . . . . . . . . . . . . . . . .8
Left-Side Panel Components. . . . . . . . . . . . . . . .10
Right-Side Panel Components . . . . . . . . . . . . . .11
Back Panel Components. . . . . . . . . . . . . . . . . . .12
Bottom Components . . . . . . . . . . . . . . . . . . . . .13
Status Display Indicators
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . .14
Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . .14
Media Player Access Indicator . . . . . . . . . . . . . .14
Hard Drive Access Indicator. . . . . . . . . . . . . . . .15
Floppy Drive Access Indicator . . . . . . . . . . . . . .15
NumLk Indicator . . . . . . . . . . . . . . . . . . . . . . . .15
CapsLock Indicator . . . . . . . . . . . . . . . . . . . . . .15
ScrLk Indicator. . . . . . . . . . . . . . . . . . . . . . . . . .15
Keyboard
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . .16
Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . .16
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . .16
Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Function Keys. . . . . . . . . . . . . . . . . . . . . . . . . . .17
Volume Control
Controlling the Volume . . . . . . . . . . . . . . . . . . .18
Touchpad Pointing Device
Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . .19
Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Scrolling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Application Launch Buttons
Configuring your Application Launch Buttons. . .21
3
GETTING STARTED
Power Sources
Connecting the Power Adapters . . . . . . . . . . . . .25
Display Panel
Opening the Display Panel . . . . . . . . . . . . . . . . .26
Adjusting Display Panel Brightness . . . . . . . . . . .26
Closing the Display Panel . . . . . . . . . . . . . . . . . .26
Starting Your LifeBook Notebook
Power On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Boot Sequence . . . . . . . . . . . . . . . . . . . . . . . . . .27
BIOS Setup Utility. . . . . . . . . . . . . . . . . . . . . . . .27
Booting the System. . . . . . . . . . . . . . . . . . . . . . .28
Windows Product Activation
(Windows XP Only) . . . . . . . . . . . . . . . . . . .29
Registering Your LifeBook notebook. . . . . . . . . .29
Power Management
Suspend/Resume/Power On Button . . . . . . . . . .30
Suspend Mode . . . . . . . . . . . . . . . . . . . . . . . . . .30
Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . .30
Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . .30
Windows Power Management . . . . . . . . . . . . . .30
Restarting the System. . . . . . . . . . . . . . . . . . . . .30
Power Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LifeBook A Series
4
USER-INSTALLABLE
FEATURES
Lithium ion Battery
Recharging the Batteries. . . . . . . . . . . . . . . . . . .35
Replacing the Battery. . . . . . . . . . . . . . . . . . . . . 36
Internal Floppy Disk Drive
Loading a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Ejecting a Disk . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Preparing a Disk for Use. . . . . . . . . . . . . . . . . . . 37

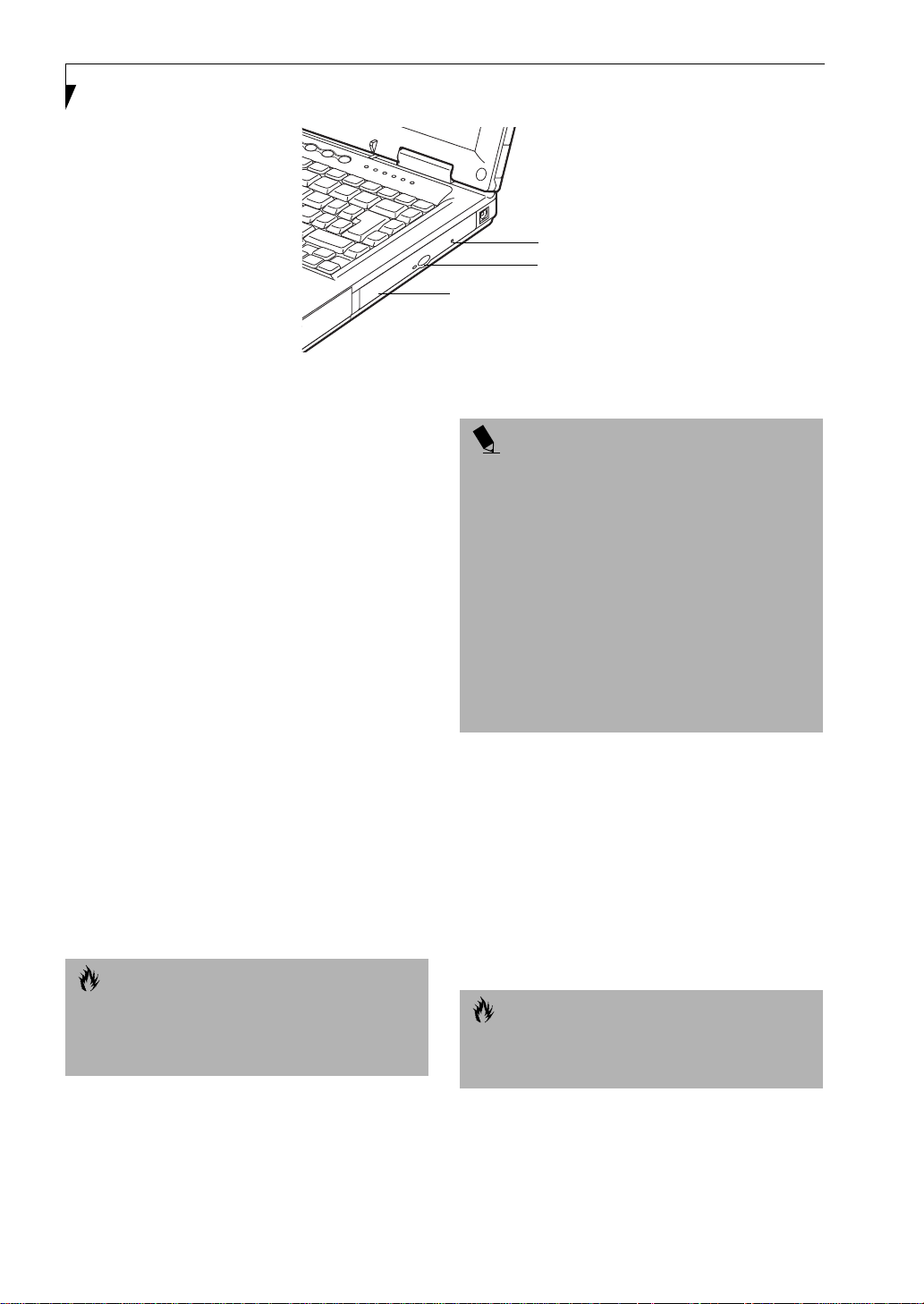

Media Player Drive
Media Player Software . . . . . . . . . . . . . . . . . . . . 38

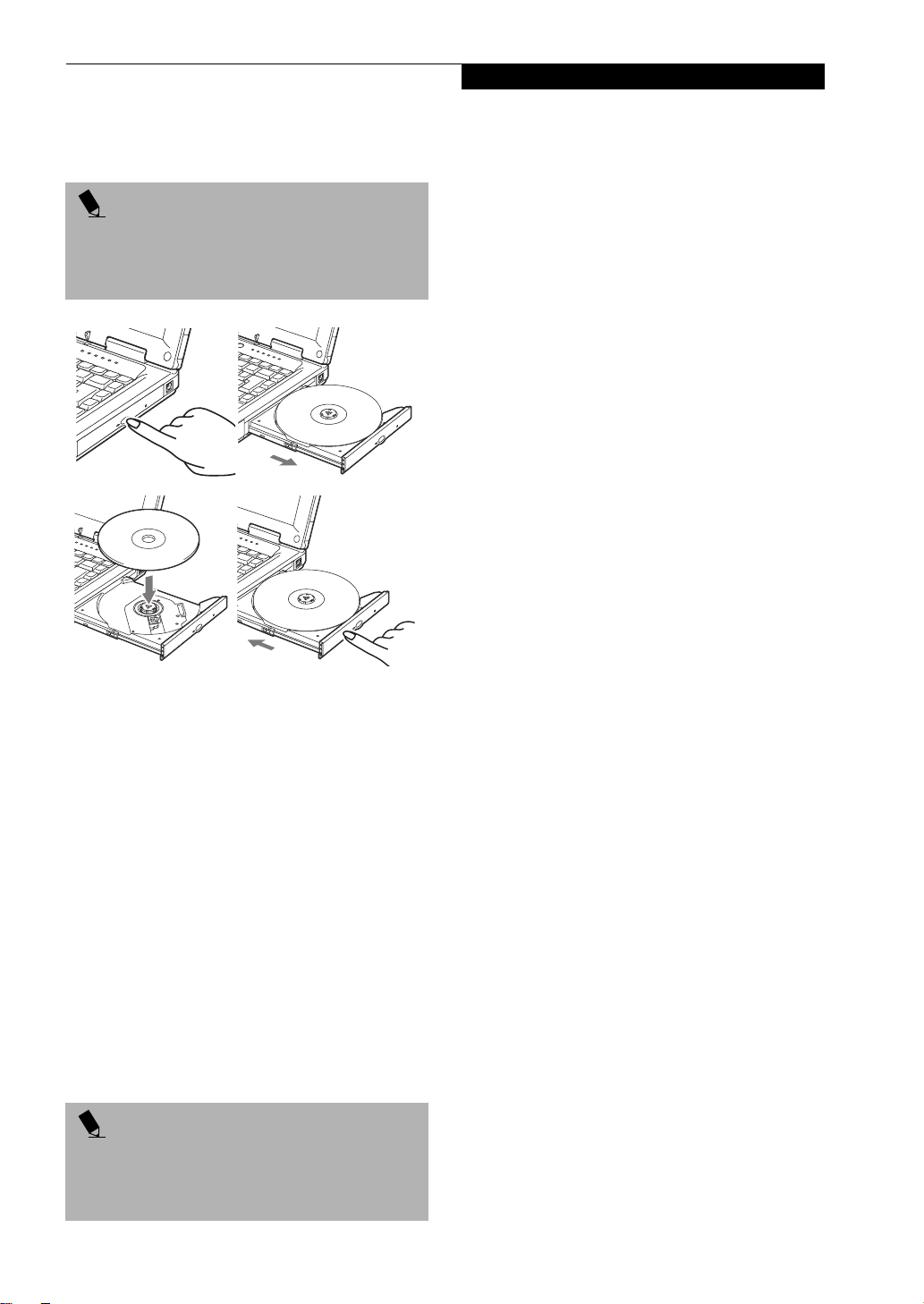

Loading a CD, DVD, CD-R,
or CD-RW Disc (“Media”) . . . . . . . . . . . . . . 38
Removing Media . . . . . . . . . . . . . . . . . . . . . . . . 39
Emergency Tray Release. . . . . . . . . . . . . . . . . . .39
Using the Media Player Software . . . . . . . . . . . . 39
Using Dolby™ Headphone. . . . . . . . . . . . . . . . . 39
Using the Media Player on Battery Power . . . . . 40
Auto Insert Notification Function . . . . . . . . . . . . 40
PC Cards
Installing PC Cards. . . . . . . . . . . . . . . . . . . . . . . 42
Removing PC Cards . . . . . . . . . . . . . . . . . . . . . . 42
Device Ports
Modem (RJ-11) Telephone Jack . . . . . . . . . . . . . 44
Internal LAN (RJ-45) Jack. . . . . . . . . . . . . . . . . . 44
IEEE 1394 Port . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Universal Serial Bus Ports . . . . . . . . . . . . . . . . . . 44
Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Serial Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Port Replicator Interface. . . . . . . . . . . . . . . . . . .45
PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . 45
Infrared Port. . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Headphone Jack. . . . . . . . . . . . . . . . . . . . . . . . . 45
External Monitor Port. . . . . . . . . . . . . . . . . . . . . 45
Memory Upgrade Module
Installing a Memory Upgrade Module . . . . . . . . 46
Removing a Memory Upgrade Module . . . . . . . 47
Checking the Computer Recognition
of New Memory Capacity. . . . . . . . . . . . . . . 47
5
TROUBLESHOOTING
Troubleshooting
Fujitsu Service Assistant . . . . . . . . . . . . . . . . . . . 51
Identifying the Problem . . . . . . . . . . . . . . . . . . . 51
Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . 51
Troubleshooting Table . . . . . . . . . . . . . . . . . . . . 52
Power On Self Test Messages . . . . . . . . . . . . . . 59
Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Emergency Media Player Tray Release . . . . . . . . 62
Modem Result Codes. . . . . . . . . . . . . . . . . . . . . 62
Driver and Applications Restore CD . . . . . . . . . . 62
Drive Image Special Edition (DISE) . . . . . . . . . . . 62
Using DISE with Windows 2000/XP. . . . . . . . . . 62
Installing and Using DISE
with Windows 98 Systems . . . . . . . . . . . . . . 63
6
CARE AND MAINTENANCE
Care and Maintenance
Fujitsu LifeBook Notebook . . . . . . . . . . . . . . . . . 67
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Floppy Disks . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Media Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
7
SPECIFICATIONS
Specifications
Microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . 73
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Audio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Mass Storage Device Options . . . . . . . . . . . . . . 73
Integrated Pointing Device. . . . . . . . . . . . . . . . . 73
Communications . . . . . . . . . . . . . . . . . . . . . . . . 73
Application Launch Buttons . . . . . . . . . . . . . . . . 73
Theft Prevention Lock Slot . . . . . . . . . . . . . . . . . 73
Device Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Dimensions and Weight . . . . . . . . . . . . . . . . . . .74
Environmental Requirements . . . . . . . . . . . . . . .74
Pre-Installed Software . . . . . . . . . . . . . . . . . . . .74
8
GLOSSARY
Glossary
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Regulatory Information
Regulatory Information . . . . . . . . . . . . . . . . . . .81
Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Table of Contents
LifeBook A Series
1
Preface
1
LifeBook A Series
2
Preface
Preface
ABOUT THIS GUIDE
The LifeBook® A Series notebook from Fujitsu is a
powerful computer. It is powered by an AMD Athlon
microprocessor, has a built-in color display, and brings
the computing power of desktop personal computers
(PCs) to a portable environment.
This manual explains how to operate your Fujitsu LifeBook notebook’s hardware and built-in system software.
Your LifeBook notebook comes with Microsoft®
Windows® 98 Second Edition, Windows 2000
Professional, or Windows XP Professional pre-installed.
The Fujitsu LifeBook notebook is a completely selfcontained unit with an active-matrix (TFT) color LCD
display. It has a powerful interface that enables it to
support a variety of optional features.
Conventions Used in the Guide
Keyboard keys appear in brackets.
Example: [Fn], [F1], [ESC], [ENTER] and [CTRL].
Pages with additional information about a specific topic
are cross-referenced within the text.
Example: (See page xx.)
On screen buttons or menu items appear in bold
Example: Click OK to restart your notebook computer.
DOS commands you enter appear in Courier type.
Example: Shut down the computer?
FUJITSU CONTACT INFORMATION
Service and Support
You can contact Fujitsu Service and Support in the
following ways:
■
Toll free: 1-800-8Fujitsu (1-800-838-5487)
■
Fax: 1-901-259-5700
■
E-mail: 8fujitsu@fujitsupc.com
■
Website: http://www.fujitsupc.com
Before you place the call, you should have the
following information ready so that the customer
support representative can provide you with the
fastest possible solution:
■
Product name
■
Product configuration number
■
Product serial number
■
Purchase date
■
Conditions under which the problem occurred
■
Any error messages that have occurred
■
Hardware configuration
■
Type of device connected, if any
Fujitsu Online
You can go directly to the online Fujitsu product catalog
for your LifeBook notebook by clicking on the LifeBook
Accessories website URL link, located in the Windows
Start menu.
You can also reach Fujitsu Service and Support on-line
by clicking on the Fujitsu Service and Support website
URL link, located in the Service and Support Software
folder of the Windows Start menu.
POINT
The point icon highlights information that will enhance
your understanding of the subject material.
CAUTION
The caution icon highlights information that is
important to the safe operation of your computer, or to
the integrity of your files. Please read all caution
information carefully.
WARNING
The warning icon highlights information that can be
hazardous to either you, your LifeBook notebook, or
your files. Please read all warning information carefully.
POINT
You must have an active internet connection to
use the online URL links.
WARRANTY
Your LifeBook notebook is backed by a one year International Limited Warranty. Check the service kit that came
with your LifeBook notebook for warranty terms and
conditions.
3
LifeBook A Series – Section One
4
2
Getting to Know Your Computer
5
LifeBook A Series – Section Two
6
Figure 2-1 Fujitsu LifeBook A Series notebook
Overview
This section describes the components of your Fujitsu
LifeBook notebook. We strongly recommend that you
read it before using your notebook – even if you are
already familiar with notebook computers.
Overview
POINT
Detailed specifications about your LifeBook notebook
can be found in the chapter entitled “Specifications”
on page 73.
UNPACKING
When you receive your LifeBook notebook, unpack it
carefully, and compare the parts you have received with
the items listed below.
For a Pre-configured model you should have:
n
LifeBook A Series notebook from Fujitsu (Figure 2-1)
n
Lithium ion battery, pre-installed
n
AC adapter with AC power cord (Figure 2-2)
n
Phone/Modem (RJ-11) telephone cable
n
Driver and Applications CD
n
Fujitsu Service Assistant CD
n
Getting Started Guide
n
User’s Guide (this document)
n
Premium Care registration card and envelope
n
International Limited Warranty Brochure
n
Microsoft-associated product materials
Depending upon the configuration of your notebook,
you may have also received the following items:
n
DVD Application CD
n
CD-RW Application CD
Once you have checked and confirmed that your
LifeBook notebook system is complete, read through the
following pages to learn about all of your notebook’s
components.
Figure 2-2 Typical AC Adapter
7
LifeBook A Series – Section Two
Stereo
Speaker
Battery
Indicator
Power
Indicator
Scroll Button
Wireless LAN Button
(wireless LAN
configurations only)
Suspend/Resume/
Power On Button
Stereo
Speaker
Figure 2-3 LifeBook A Series notebook with display open
Display
Panel
Latch
Display
Panel
Application
Launch
Buttons
Status
Display
Indicators
Keyboard
Touchpad
Pointing Device
Locating the Controls and Connectors
TOP AND FRONT COMPONENTS
The following is a brief description of your LifeBook
notebook’s top and front components. (Figure 2-3)
Display Panel Latch
The display panel latch locks and releases the display
panel.
Display Panel
The display panel is a color LCD panel with back
lighting for the display of text and graphics. (See Display
Panel on page 26 for more information.)
Application Launch Buttons
The Application LAunch buttons allow you to launch
your favorite applications with the touch of a button.
(See Configuring your Application Launch Buttons on
page 21 for more information.)
Status Display Indicators
The Status display indicator lights correspond to specific
components of your LifeBook notebook. (See Status
Display Indicators on page 14 for more information.)
Suspend/Resume/Power On Button
The Suspend/Resume/Power On button allows you to
suspend notebook activity without powering off, resume
your notebook from suspend mode, and power on your
notebook when it has been shut down from Windows.
(See Suspend/Resume/Power On Button on page 30 for
more information.)
Stereo Speakers
The built-in dual speakers allow for stereo sound.
Keyboard
A full-size keyboard with dedicated Windows keys.
(See Keyboard on page 16 for more information.)
Touchpad Pointing Device
The Touchpad pointing device is a mouse-like cursor
control with three buttons (left, right, and scroll
buttons). (See Touchpad Pointing Device on page 19 for
more information.)
Wireless LAN Button
(On Wireless LAN-configured models only)
The Wireless LAN button activates and deactivates the
Wireless LAN device in you LifeBook notebook.
8
Power Indicator
The power LED on the front of the unit allows you to
monitor power states while the system is closed. (See
Power Indicator on page 14 for more information.)
Battery Indicator
The battery LED on the front of the unit allows you to
monitor battery states while the system is closed. (See
Battery Indicator on page 14 for more information.)
Locating the Controls and Connectors
9
LifeBook A Series – Section Two
Modem
Port (RJ-11)
Microphone
Jack
Anti-Theft Lock Slot
LAN Port (RJ-45)
Figure 2-4 LifeBook notebook left-side panel
Headphone Jack
LEFT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s left-side components. (Figure 2-4)
Anti-theft Lock Slot
The anti-theft lock slot allows you to attach an optional
physical lock-down device.
Modem (RJ-11) Telephone Jack
The Modem (RJ-11) telephone jack is for attaching a
telephone line to the internal 56K modem. (See Modem
(RJ-11) Telephone Jack on page 44 for more information.)
POINT
n
The internal modem is designed to the ITU-T V.90
standard. Its maximum speed of 53000bps is the
highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
n
The internal modems on all Fujitsu LifeBook notebooks from are certified for use in the United States
and Canada. The modem may be certified in other
countries.
PC Card
Eject Button
PC Card Slot
Internal Floppy
Disk Drive
Floppy Disk
Eject Button
Microphone Jack
The microphone jack allows you to connect an external
mono microphone. (See Microphone Jack on page 45 for
more information.)
PC Card Slot
The PC Card Slot allows you to install one Type I, Type
II or Type III PC Card. (See PC Cards on page 42 for more
information.)
Internal Floppy Disk Drive
A standard floppy disk drive to accommodate 3.5”
floppy disks. ((See Internal Floppy Disk Drive on page 37
for more information.)
Headphone Jack
The headphone jack allows you to connect headphones
or powered external speakers. (See Headphone Jack on
page 45 for more information.)
LAN Jack (RJ-45)
The LAN jack is designed to accept a Local Area
Network (LAN) RJ-45 plug. (See Internal LAN (RJ-45)
Jack on page 44 for more information.)
WARNING
The internal modem is not intended for use with Digital
PBX systems. Do not connect the internal modem to a
Digital PBX as it may cause serious damage to the internal modem or your entire LifeBook notebook. Consult
your PBX manufacturer’s documentation for details.
Some hotels have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
10
Locating the Controls and Connectors
Media Player
Eject Button
Lithium ion Battery Bay
Media Player
Figure 2-5 LifeBook notebook right-side panel
RIGHT-SIDE PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s right-side components. (Figure 2-5)
POINTS
n
The media player that your LifeBook notebook uses
is determined by the configuration of your system.
n
The terms “media” and “media disc” in this document refer to any of the possible media drives or
media discs available for your notebook (i.e., DVD,
CD-ROM, CD-R, or CD-RW).
Media Player
The media player allows you to play back a media disc.
(See Media Player Drive on page 38 for more information.)
Media Player Eject Button
The Media Player Eject Button allows you to open the
media player tray to remove or install a DVD, CD-R, or
CD-ROM. (See Media Player Drive on page 38 for more
information.)
Emergency Media
Player Tray Release
Emergency Media Player Tray Release
The Emergency Media Player Tray Release allows you to
open the media player tray without powering on your
LifeBook notebook.
Lithium ion Battery Bay
The internal battery pack can be removed for installation
of a fully charged battery pack. (See Lithium ion Battery
on page 35 for more information.)
11
LifeBook A Series – Section Two
Infrared PS/2
Port
Port
DC
Power
Jack
USB
Ports
IEEE
1394
Port
External
Monitor
Port
Serial
Port
Figure 2-6 LifeBook notebook back panel
BACK PANEL COMPONENTS
The following is a brief description of your LifeBook
notebook’s back panel components. (Figure 2-6)
Infrared Port
The fast IrDA compatible port allows you to communicate wirelessly with another IrDA-compatible infrared
device without a cable.
DC Power Jack
The DC power jack allows you to plug in the AC adapter
or the optional Auto/Airline adapter to power your
LifeBook notebook and charge the internal Lithium ion
battery.
PS/2 Port
The PS/2 port allows you to connect an external PS/2
keyboard, mouse or numeric keypad. (See PS/2 Port on
page 65 for more information.)
Parallel
Port
External Monitor Port
The external monitor port allows you to connect an
external monitor. (See External Monitor Port on page 45
for more information.)
Parallel Port
The parallel port allows you to connect parallel devices,
such as a printer. (This is also sometimes referred to as
an LPT port.) (See Parallel Port on page 44 for more infor-
mation.)
IEEE 1394 Port
The 1394 port is used to connect between your LifeBook
and a peripheral such as a digital video camera.(See IEEE
1394 Port on page 44 for more information.)
USB Ports
The two USB ports allow you to connect Universal Serial
Bus devices. (See Universal Serial Bus Ports on page 44 for
more information.)
Serial Port
The serial port allows you to connect serial (RS-232C)
devices. (This is also sometimes referred to as a COMM
port.) (See Serial Port on page 44 for more information.)
12
Main Unit and
Configuration
Label (approximate
location)
Certificate of
Authenticity Label
(approximate
location)
Lithium ion
Battery Bay
Locating the Controls and Connectors
Port Replicator Interface
Memory
Compartment
Hard Disk Drive Bay
Figure 2-7 LifeBook notebook bottom panel
BOTTOM COMPONENTS
The following is a brief description of your LifeBook
notebook’s bottom panel components. (Figure 2-7)
Main Unit and Configuration Label
The configuration label shows the model number and
other information about your LifeBook notebook. In
addition, the configuration portion of the label has the
serial number and manufacturer information that you
will need to give your support representative. It identifies
the exact version of various components of your LifeBook notebook. (See Microprocessor on page 73 for more
information.)
Lithium ion Battery Bay
The battery bay contains the internal Lithium ion battery.
It can be opened for the removal of the battery when
stored over a long period of time or for swapping
a discharged battery with a charged Lithium ion battery.
(See Lithium ion Battery on page 35 for more information.)
Memory Compartment
The memory compartment contains the system RAM.
The RAM can be expanded according to the information
contained in the chapter entitled “Memory Upgrade
Module” on page 46.
13
LifeBook A Series – Section Two
Battery
Indicator
Power
Indicator
Status Display Indicators
The Status Display Indicator LEDs correspond to
specific components of your Fujitsu LifeBook notebook.
These lights (when visible) tell you whether those
components are operating. There are two additional
lights on the front edge of the system to indicate battery
and power states.
POWER INDICATOR
The Power indicator symbol states whether your system
is powered on. It has three different states, each of which
tells you what mode your LifeBook notebook is in at that
time.
n
Steady On: This means that there is power to your
LifeBook notebook and that it is ready for use.
n
Flashing: This means that your LifeBook notebook is
in Suspend mode.
n
Steady Off (not visible): This means that your LifeBook notebook has been turned off.
If you are charging your battery, the Power indicator will
not be on, but the Battery indicator will be (even if your
LifeBook notebook is shut off). The Power indicator will
be off if you have an adapter connected and are shut
down from Windows, but have not turned off the power.
BATTERY INDICATOR
The Battery indicator displays the state of the primary
Lithium ion battery.
n
Steady Green: This means that the battery is fully
charged.
14
Figure 2-8 Status Indicator Panel
n
Steady Amber: This means that the battery is
charging.
n
Blinking Red: This indicates the low battery mode.
n
Solid Red: This indicates a battery alarm, meaning the
battery is overheated.
n
Off: This indicates that the battery is completely
discharged.
POINT
If there is no battery activity or the power adapters are
not connected, the Battery indicator will also be off.
CAUTION
Batteries subjected to shocks, vibration or extreme
temperatures can be permanently damaged.
MEDIA PLAYER ACCESS INDICATOR
The Media Player Access indicator tells you that the
media player drive is being accessed. If the Auto Insert
Notification function is active, the indicator will flash
periodically when your system is checking the media
player drive. If the Auto Insert Notification function is
not active, the indicator will only flash when you access
the media player drive. The default setting is the Auto
Insert Notification function active.
(See Auto Insert Notification Function on page 40 for more
information)
NumLkCapsLk ScrLk
Floppy
Drive
Access
Hard
Drive
Access
Media
Player
Access
HARD DRIVE ACCESS INDICATOR
The Hard Drive Access indicator states whether your
internal hard drive is being accessed.
FLOPPY DRIVE ACCESS INDICATOR
The Floppy Drive Access indicator states whether the
internal floppy disk drive is being accessed. This indicator will flash if your software tries to access a disk even
if no floppy disk drive is installed. (See Internal Floppy
Disk Drive on page 37 for more information)
NUMLK INDICATOR
The NumLk indicator states that the internal keyboard is
set in ten-key numeric keypad mode.
POINT
If you are using the optional external numerical keypad,
pressing the [NumLk] key will activate the external
keypad. The indicator will come on, however it will not
change any of the functionality of your keyboard keys.
Status Display Indicators
CAPSLOCK INDICATOR
The CapsLock indicator states that your keyboard is set
to type in all capital letters.
SCRLK INDICATOR
The ScrLk indicator states that your scroll lock is active.
15
LifeBook A Series – Section Two
X
Function Keys
Fn Key
Start Key
Numeric Keypad
Figure 2-9 Keyboard
Keyboard
USING THE KEYBOARD
Your Fujitsu LifeBook notebook has an integral 88-key
keyboard. The keys perform all the standard functions of
a 101-key keyboard, including the Windows keys and
other special function keys. This section describes the
following keys.
■
Numeric keypad
■
Cursor keys
■
Function keys
■
Windows keys
NUMERIC KEYPAD
Certain keys on the keyboard perform dual functions as
both standard character keys and numeric keypad keys.
NumLk can be activated by pressing the [NumLk] keys.
Turning off the NumLk feature is done the same way.
Once this feature is activated you can enter numerals 0
through 9, perform addition ( + ), subtraction ( - ),
multiplication ( * ), or division ( / ), and enter decimal
points ( . ) using the keys designated as ten-key function
keys. The keys in the numeric keypad are marked on the
front edge of the key to indicate their secondary functions.
Start Key
Application Key
Cursor Keys
POINT
If you are using the optional external numerical keypad,
pressing the [NumLk] key will activate the external keypad. The indicator will come on, however it will not
change any of the functionality of your keyboard keys.
WINDOWS KEYS
Your LifeBook notebook has three Windows keys,
consisting of two Start keys and an Application key. The
two Start keys display the Start menu. This button functions the same as your on-screen Start menu button. The
Application key functions the same as your right mouse
button and displays shortcut menus for the selected
item. (Please refer to your Windows documentation for
additional information regarding the Windows keys.)
CURSOR KEYS
The cursor keys are the four arrow keys on the keyboard
which allow you to move the cursor up, down, left and
right in applications. In programs such as Windows
Explorer, it moves the “focus” (selects the next item up,
down, left, or right).
16
FUNCTION KEYS
Your LifeBook notebook has 12 function keys, F1
through F12. The functions assigned to these keys differ
for each application. You should refer to your software
documentation to find out how these keys are used.
The [Fn] key provides extended functions for the
LifeBook notebook and is always used in conjunction
with another key.
■
[Fn+F3]: Pressing [F3] while holding [Fn] will toggle
the Audio Mute on and off.
■
[Fn+F4]: Pressing [F4] while holding down [Fn]
allows you to toggle between an internal mouse
(touchpad) and an external mouse (PS/2-type).
■
[Fn+F5]: Pressing [F5] while holding [Fn] allows
you to toggle between video compensation and no
compensation. (Video compensation controls spacing
on the display. When it is enabled, displays with less
than 1024 x 768 pixel resolution will still cover the
entire screen.)
■
[Fn+F6]: Pressing [F6] repeatedly while holding [Fn]
will lower the brightness of your display.
■
[Fn+F7]: Pressing [F7] repeatedly while holding [Fn]
will increase the brightness of the display.
■
[Fn+F8]: Pressing [F8] repeatedly while holding [Fn]
will decrease the volume of your LifeBook notebook.
■
[Fn+F9]: Pressing [F9] repeatedly while holding [Fn]
will increase the volume of your LifeBook notebook.
■
[Fn+F10]: Pressing [F10] while holding [Fn] allows
you to change your selection of where to send your
display video. Each time you press the combination
of keys you will step to the next choice. The choices,
in order, are: built-in display panel only, both built-in
display panel and external monitor or external monitor only.
Keyboard
17
LifeBook A Series – Section Two
Volume Control
Your Fujitsu LifeBook notebook has multiple volume
controls which interact with each other.
POINT
Any software that contains audio files will also contain
a volume control of its own. If you install an external
audio device that has an independent volume control,
the hardware volume control and the software volume
control will interact with each other. It should be noted
that if you set your software volume to Off, you will
override the external volume control setting.
CONTROLLING THE VOLUME
The volume can be controlled in several different ways:
■
Volume can be set from within the Volume Control on
the Taskbar.
■
Volume can be controlled with the [F8] and [F9]
functions keys. Pressing [F8] repeatedly while holding
[Fn] will decrease the volume of your notebook. Pressing [F9] repeatedly while holding [Fn] will increase
the volume of your notebook.
■
Volume can be controlled by many volume controls
that are set within individual applications.
■
Certain external audio devices you might connect to
your system may have hardware volume controls.
Each source discussed above puts an upper limit on the
volume level that must then be followed by the other
sources.
We recommend that you experiment with the various
volume controls to discover the optimal sound level
18
Touchpad Pointing Device
Touchpad
Figure 2-10 Touchpad pointing device
Touchpad Pointing Device
The Touchpad pointing device comes built into your
Fujitsu LifeBook notebook. It is used to control the
movement of the pointer to select items on your display
panel. The Touchpad is composed of a cursor control, a
left and right button, and a scrolling button. The cursor
control works the same way a mouse does, and moves
the cursor around the display. It only requires light pressure with the tip of your finger. The left and right
buttons function the same as mouse buttons. The actual
functionality of the buttons may vary depending on the
application that is being used. The scrolling button
allows you to navigate quickly through pages, without
having to use the scroll bars.
CLICKING
Clicking means pushing and releasing a button.
To left-click, move the cursor to the item you wish
to select, press the left button once, and then immediately release it. To right-click, move the mouse cursor to
the item you wish to select, press the right button once,
and then immediately release it. You also have the option
to perform the clicking operation by tapping lightly on
the Touchpad once. (Figure 2-11)
Left Button
Scroll Button
Figure 2-11 Clicking
DOUBLE-CLICKING
Double-clicking means pushing and releasing the left
button twice in rapid succession. This procedure does
not function with the right button. To double-click,
move the cursor to the item you wish to select, press
the left button twice, and then immediately release it.
You also have the option to perform the double-click
operation by tapping lightly on the Touchpad twice.
(Figure 2-12)
Right
Button
Figure 2-12 Double-clicking
19
LifeBook A Series – Section Two
POINTS
■
If the interval between clicks is too long, the
double-click will not be executed.
■
Parameters for the Touchpad can be adjusted from
the Mouse Properties dialog box located in the
Windows Control Panel.
DRAGGING
Dragging means pressing and holding the left button,
while moving the cursor. To drag, move the cursor to
the item you wish to move. Press and hold the left
button while moving the item to its new location and
then release it. Dragging can also be done using the
Touchpad. First, tap the Touchpad twice over the item
you wish to move making sure to leave your finger on
the pad after the final tap. Next, move the object to its
new location by moving your finger across the
Touchpad, and then release your finger. (Figure 2-13)
Figure 2-13 Dragging
SCROLLING
Using the Scrolling button allows you to navigate
through a document quickly without using the window’s
scroll bars. This is particularly useful when you are
navigating through on-line pages. To use the Scrolling
button, press the top or bottom of the button to scroll up
or down a page. When you have reached the desired
section of the page, release the button. (Figure 2-14)
Figure 2-14 Scrolling
20
Application Launch Buttons
Application Launch Buttons
Figure 2-15 Application Launch Buttons
Application
Launch Buttons
A unique feature of your Fujitsu LifeBook notebook is
the Application Launch buttons. These buttons allow
you to launch applications with the touch of a button.
POINT
Application LAunch buttons use the date and time
settings of your LifeBook notebook. If the date and time
are incorrect, you can adjust this setting in the Windows
Control Panel.
Your LifeBook notebook is pre-installed with software
utilities that let you operate and configure your Application Launch buttons. These utilities are found under the
Start menu, under Programs, then under Swift-Button.
They include a Configuration utility and Onscreen
Display. The Application Launch button feature makes
your LifeBook notebook more than just another notebook computer.
The panel consists of four buttons. Pressing any of the
buttons will launch a user-defined application. The
default applications that are pre-defined are:
Button A: Notepad
Button B: Calculator
WWW Button: Launches Web Browser
Mail Button: Launches Outlook Express
CONFIGURING YOUR
APPLICATION LAUNCH BUTTONS
When you start your system, the Application Launch
buttons are automatically activated. The Application
Launch buttons are very flexible, giving you a variety of
options. To set up the buttons to best suit your needs, we
have provided the Swift-Button Configuration utility
that quickly and easily helps you make the most of this
valuable feature.
To configure your Application Launch Buttons with
the Configuration Utility:
1. Click on Start.
2. Click on Programs.
3. Click on Swift-Button.
4. Click on Configuration.
The Keyboard Properties window will appear. If the
Swift-Button tab is not active, click it to select it.
On the Swift-Button screen, there are buttons that correspond with the application launch buttons. When you
receive your LifeBook notebook, these buttons are preconfigured to launch specific programs. (See Application
Launch Buttons on page 73 for more information).
To change an application associated with one of the
buttons:
1. Click on the label for the button on the Swift-Button
screen.
2. Check either “Open a document, application, or
folder on your computer” or “Open a web site
(URL)”, depending on what you want the button to
activate.
3. Click on Browse... from the Start Menu, scroll down
the list of applications, click on the application you
wish to launch with this button, and click Open.
4. When the Swift-Button screen reappears, click OK.
The button will now launch the new application.
This procedure can be used to change any of the four
buttons -- including the WWW and Email buttons --to
21
LifeBook A Series – Section Two
launch a different application.
If you want to return to launching your default applications, you need only click on [Default] from the SwiftButton screen. Be aware that you will erase the settings
for the “other application”. If you wish to go back to
launching the “other application” from this button, you
will need to reconfigure it as described above.
When you have finished with Swift-Button Configuration utility, click [OK], and the new settings will take
effect. You can reconfigure your application launch
buttons as often as you like.
22
3
Getting Started
23
LifeBook A Series – Section Three
24
DC Power Jack
DC Output Cable
AC Cable
Figure 3-1 Connecting the AC Adapter
Power Sources
Your Fujitsu LifeBook notebook has three possible
power sources: a primary Lithium ion battery, an AC
adapter or an optional Auto/Airline adapter.
CONNECTING THE POWER ADAPTERS
The AC adapter or optional Auto/Airline adapter
provides power for operating your LifeBook notebook
and charging the batteries.
Power Sources
AC Adapter
POINT
The Lithium ion battery is not charged upon purchase.
Initially, you will need to connect either the AC adapter
or the Auto/Airline adapter to use your LifeBook
notebook.
Connecting the AC Adapter
1. Plug the DC output cable into the DC power jack
of your LifeBook notebook.
2. Plug the AC adapter into an AC electrical outlet.
Connecting the Optional Auto/Airline Adapter
1. Plug the DC output cable into the DC power jack
on your LifeBook notebook.
2. Plug the Auto/Airline adapter into the cigarette
lighter of an automobile with the ignition key in
the On or Accessories position.
OR
3. Plug the Auto/Airline adapter into the DC power
jack on an airplane seat.
Switching from AC Adapter Power or the
Auto/Airline Adapter to Battery Power
1. Be sure that you have at least one charged
battery installed.
2. Remove the AC adapter or the Auto/Airline adapter.
Your notebook will automatically switch from DC
power to battery power.
25
LifeBook A Series – Section Three
Display
Panel
Latch
Figure 3-2 Opening the Display Panel
Display Panel
Your Fujitsu LifeBook notebook contains a display panel
that is backlit for easier viewing in bright environments
and maintains top resolution through the use of activematrix technology.
OPENING THE DISPLAY PANEL
1. Slide the latch located at the top of the display panel
to the right. This releases the locking mechanism
and raises the display slightly.
2. Lift the display backwards, being careful not to
touch the screen, until it is at a comfortable
viewing angle.
ADJUSTING DISPLAY PANEL BRIGHTNESS
Once you have turned on your LifeBook notebook, you
may want to adjust the brightness level of the screen to a
more comfortable viewing level. There are two ways to
adjust the brightness, keyboard and power management
utility.
POINT
If using AC power, your brightness setting is set to its
highest level by default. If using battery power, your
brightness settings is set to approximately mid-level by
default.
CLOSING THE DISPLAY PANEL
1. Holding the edge of your display panel, pull it
forward until it is flush with the body of your
LifeBook notebook.
2. Push down until you hear a click. This will engage
the locking mechanism and prevent your display
panel from opening unexpectedly.
POINT
The higher the brightness level, the more power the
LifeBook notebook will consume and the faster your
batteries will discharge. For maximum battery life, set
the brightness to as low a level as possible.
Keyboard
Adjusting the brightness using the keyboard changes the
setting only temporarily.
■
[Fn+F6]: Pressing repeatedly will lower the
brightness of your display.
■
[Fn+F7]: Pressing repeatedly will increase the
brightness of the display.
26
Starting Your LifeBook Notebook
Starting Your
LifeBook Notebook
POWER ON
Suspend/Resume/Power On Button
The suspend/resume/power on switch is used to turn on
your LifeBook notebook from its off state. Once you
have connected your AC adapter or charged the internal
Lithium ion battery, you can power on your LifeBook
notebook. (See figure 2-3 on page 8 for location)
POINT
When you turn on your LifeBook notebook be sure you
have a power source. This means that at least one battery is installed and charged, or that the AC or Auto/
Airline adapter is connected and has power.
To turn on your LifeBook notebook from its off state,
press the suspend/resume/on button, located above the
keyboard. When you are done working you can either
leave your LifeBook notebook in Suspend mode, (See
Suspend Mode on page 30 for more information), or you
can turn it off. (See Power Off on page 31 for more infor-
mation)
CAUTION
Do not carry your LifeBook notebook around with the
power on or subject it to shocks or vibration, as you risk
damaging your notebook.
When you power on your LifeBook notebook, it will
perform a Power On Self Test (POST) to check the
internal parts and configuration for correct functionality.
If a fault is found, your LifeBook notebook will emit an
audio warning and/or an error message will be displayed.
(See Power On Self Test Messages on page 59 for more
information) Depending on the nature of the problem,
you may be able to continue by starting the operating
system or by entering the BIOS setup utility and revising
the settings.
After satisfactory completion of the Power On Self Test
(POST), your LifeBook notebook will load your operating
system.
POINT
Never turn off your LifeBook notebook during the
Power On Self Test (POST) or it will cause an error
message to be displayed when you turn your LifeBook
notebook on the next time.
Messages on page 59 for more information)
(See Power On Self Test
BOOT SEQUENCE
The procedure for starting-up your Fujitsu LifeBook
notebook is termed the Bootup sequence and involves
your LifeBook notebook’s BIOS. When your LifeBook
notebook is first turned on, the main system memory is
empty, and it needs to find instructions to start up your
LifeBook notebook. This information is in the BIOS
program. Each time you power up or restart your LifeBook notebook, it goes through a boot sequence which
displays a Fujitsu logo until your operating system is
loaded. During booting, your LifeBook notebook is
performing a standard boot sequence including a Power
On Self Test (POST). When the boot sequence is
completed without a failure and without a request for
the BIOS Setup Utility, the system displays the operating
system’s opening screen.
The boot sequence is executed when:
■
You turn on the power to your LifeBook notebook.
■
You restart your LifeBook notebook from the
Windows Shut Down dialog box.
■
The software initiates a system restart.
Example: When you install a new application.
BIOS SETUP UTILITY
The BIOS Setup Utility is a program that sets up the
operating environment for your LifeBook notebook.
Your BIOS is set at the factory for normal operating
conditions, therefore there is no need to set or change
the BIOS’ environment to operate your LifeBook notebook.
The BIOS Setup Utility configures:
■
Device control feature parameters, such as changing
I/O addresses and boot devices.
■
System Data Security feature parameters, such
as passwords.
Entering the BIOS Setup Utility
To enter the BIOS Setup Utility do the following:
1. Turn on or restart your LifeBook notebook.
2. Press the [F2] key once the Fujitsu logo appears
on the screen. This will open the main menu
of the BIOS Setup Utility with the current
settings displayed.
3. Press the [RIGHT ARROW] or [LEFT ARROW] key
to scroll through the other setup menus to review or
alter the current settings. When you have the menu
you wish to view selected, press the [Enter] key.
BIOS Guide
A guide to your LifeBook notebook’s BIOS is available
online. Please visit our service and support website at
www.fujitsupc.com. Once there, click on the Support
link, then select Notebooks under User’s Guides in the
27
LifeBook A Series – Section Three
side bar. Select LifeBook BIOS Guides from the pulldown menu for your LifeBook model.
POINT
If your data security settings require it, you may be
asked for a password before the BIOS main menu
will appear.
BOOTING THE SYSTEM
We strongly recommend that you not attach any external
devices and do not put a DVD/CD in your drive until
you have gone through the initial power on sequence.
When you turn on your LifeBook notebook for the first
time, it will display a Fujitsu logo on the screen. If you
do nothing the system will load the operating system,
and then the Windows Welcome will begin.
Designed to accommodate the needs of many users, in
many different countries, Windows needs to be configured the first time you use them. Windows has three
parts:
■
Getting Started: You have the opportunity to enter
custom information for your configuration file and
setup your modem so that your LifeBook notebook
will be prepared to dial out.
■
Registration: Easy online registration for Windows
with Microsoft, and for your LifeBook notebook with
Fujitsu.
■
Windows License Agreement and Final Settings:
You have the opportunity to review the Windows
License Agreement.
POINT
You may click Cancel at any time within this process to
shut down Windows. You may restart this process at
any time in the future, but you must complete it in
order to use your computer.
Getting Started
Read the instructions on the screens carefully and fill
in the information as directed. You will be asked for such
items as the language you wish to use, the country in
which you live, your first and last name, and about
how you dial out from where you will be using your LifeBook notebook. For the modem settings, enter your
current location information where you will be using
your LifeBook notebook. If you are not connected to a
phone line and plan to register at a later time, you may
click the Skip button, and you will go directly to the
condition of use page.
Once you have set up your LifeBook notebook to dial
out, Windows will make a free telephone call to test the
settings. If the call is unsuccessful, you will be returned
28
to the phone settings page where you may try to fix
them. If you are unable to fix the settings please contact
Fujitsu Service and Support. (See Fujitsu Contact Infor-
mation on page 3 for more information) If you would
simply like to move on, and register at a later time, you
may click the Skip button, and you will go directly to the
Condition of Use page.
Registration
If your connection is successful, you will go to the
Registration Confirmation page. On this page simply
enter the requested information, and then check the box
at the bottom to register your copy of Windows with
Microsoft. Once you have finished, click the Next button
to continue.
POINT
If you do not register at this time you can do it later
simply by double-clicking on the LifeBook Registration
icon on your desktop and following the instructions.
You will then go through the Fujitsu registration process.
Follow the instructions on the screens, and enter all of
the necessary information. Be as specific as possible so
that if you need help the service and support team will
be able to serve you better.
Final Settings
The first part of your final settings is the Windows End
User License Agreement. Read the agreement carefully.
When you finish reading you must accept or reject the
terms of the agreement and then click on the Next button.
POINTS
■
If you reject the terms of the license agreement you
will be asked to review the license agreement for
information on returning Windows or to shut down
your LifeBook notebook.
■
You cannot use your LifeBook notebook until you
have accepted the License Agreement. If you stop
the process your notebook will return to the beginning of the Windows Welcome Process, even if you
shut your notebook down and start it up again.
Starting Your LifeBook Notebook
WINDOWS PRODUCT ACTIVATION
(WINDOWS XP ONLY)
If your system has Windows XP as an operating system,
it has already been pre-installed and pre-activated when
you receive the system.
In the event you need to re-install Windows XP (e.g.,
after making significant configuration changes), it may
be necessary to reactivate the operating system. To do so,
use the following information.
■
After re-installing Windows XP, you have thirty days to
activate it. Product activation ensures that you are the
authorized owner of the Windows XP operating system.
■
Until you activate the product, you will be prompted
whenever you turn on the system that activation is
required. Follow the on-screen directions to activate
your operating system. The product only needs to be
activated once, unless significant hardware changes are
made to your system.
■
Note that Product Activation and Registration are not
the same thing. Registration is optional, whereas Product Activation is a required procedure.
REGISTERING YOUR LIFEBOOK NOTEBOOK
What are the benefits of registering?
You will receive an identification label for your LifeBook
notebook, which, if your notebook is ever lost, may help
in getting it returned to you. You will also receive technical support access and useful product mailings.
How do I register?
To register Windows, just follow the on-screen instructions during the Welcome process.
POINT
Make sure you have connected a phone line to your
modem before you use E-Registration.
You may also complete the pre-printed registration form
and either:
■
Fax to 1-800-577-9989
■
Mail to:
Fujitsu PC Corporation
750 139th Ave.
San Leandro, CA 94578
Attn: Warranty Department
You may also register on our website:
■
www.fujitsupc.com/support
You will need to be set up with an Internet Service
Provider (ISP) to use this option.
29
LifeBook A Series – Section Three
Power Management
Your Fujitsu LifeBook notebook has many options and
features for conserving battery power. Some of these
features are automatic and need no user intervention,
such as those for the internal modem. However, others
depend on the parameters you set to best suit your operating conditions, such as those for the display brightness. Internal power management for your LifeBook
notebook may be controlled from settings made in your
operating system, pre-bundled power management
application, or from settings made in BIOS setup utility.
Besides the options available for conserving battery
power, there are also some things that you can do to
prevent your battery from running down as quickly.
For example, you can create an appropriate power saving
profile, put your LifeBook notebook into Suspend mode
when it is not performing an operation, and you can
limit the use of high power devices. As with all mobile,
battery powered computers, there is a trade-off between
performance and power savings.
SUSPEND/RESUME/POWER ON BUTTON
When your LifeBook notebook is active, the Suspend/
Resume/Power On button can be used to manually put
your LifeBook notebook into Suspend mode. Push the
Suspend/Resume/Power On button when your LifeBook
notebook is active, but not actively accessing anything,
and immediately release the button. You will hear two
short beeps and your system will enter Suspend mode.
If your LifeBook notebook is suspended, pushing the
Suspend/Resume/Power On button will return your
LifeBook notebook to active operation. You can tell
whether or not your system is in Suspend mode by
looking at the Power LED. (See Status Display Indicators
on page 14 for more information) If the indicator is
visible and not flashing, your LifeBook notebook is fully
operational. If the indicator is both visible and flashing,
your LifeBook notebook is in Suspend mode.
■
Timing out from lack of activity.
■
Allowing the battery to reach the Dead Battery
Warning condition.
Your LifeBook notebook’s system memory typically
stores the files on which you are working, opens applications information, and any other data required to
support the operations in progress. When you resume
operation from Suspend mode, your LifeBook notebook
will return to the point where it left off. You must use the
Suspend/Resume/Power On button to resume operation,
and there must be an adequate power source available, or
your LifeBook notebook will not resume.
POINT
If you are running your LifeBook notebook on battery
power, be aware that the battery continues to discharge
while your LifeBook notebook is in Suspend mode,
though not as fast as when fully operational.
DISPLAY TIMEOUT
The Video Timeout is one of the power management
parameters. This feature saves power by turning off the
display if there is no keyboard or pointer activity for the
user selected timeout period. Any keyboard or pointer
activity will cause the display to restart automatically.
This feature is independent of the Suspend/Resume/
Power On button and can be enabled and disabled in
Windows.
HARD DISK TIMEOUT
The Hard Disk Timeout is another one of the power
management parameters. This feature saves power by
turning off the hard drive if there is no hard drive
activity for the user selected timeout period. Any
attempt to access the hard drive will cause it to restart
automatically. This feature is independent of the
Suspend/Resume/Power On button and can be enabled
and disabled in Windows.
SUSPEND MODE
Suspend mode in Windows 98 Second Edition saves the
contents of your LifeBook notebook’s system memory
during periods of inactivity by maintaining power to
critical parts. This mode will turn off the CPU, the
display, the hard drive, and all of the other internal
components except those necessary to maintain system
memory and allow for restarting. Your LifeBook notebook can be put in Suspend mode by:
■
Pressing the Suspend/Resume /Power On button when
your system is turned on.
■
Selecting Standby from the Windows Shut Down menu.
30
WINDOWS POWER MANAGEMENT
The Power Management icon located in the Windows
Control Panel allows you to configure some of the power
management settings. For example, you can use the
Power Management to set the timeout values for turning
off the display and hard disks whether you are running
the LifeBook notebook on battery power or one of the
adapters. (See Pre-Installed Software on page 74 for more
information)
RESTARTING THE SYSTEM
If your system is on and you need to restart it, be sure
that you use the following procedure.
1. Click the Start button, and then click Shut Down.
2. Select the Restart option from within the Windows
Shut Down dialog box.
3. Click OK to restart your LifeBook notebook. Your
notebook will shut down and then reboot.
POINT
Turning off your LifeBook notebook without exiting
Windows or turning on your notebook within 10 seconds of the notebook being shut off may cause an error
when you start the next time.
POWER OFF
Before turning off the power by choosing Shut Down
from Windows, check that the Hard Drive, media player
drive, and Floppy Disk Drive Access indicators are all
Off. (See figure 2-8 on page 14) If you turn off the power
while accessing a disk or PC Card there is a risk of data
loss. To ensure that your LifeBook notebook shuts down
without error, use the Windows shut down procedure.
CAUTION
Never turn your LifeBook notebook off while an application is running. Be sure to close all files, exit all applications, and shut down your operating system prior to
turning off the power. If files are open when you turn
the power off, you will lose any changes that have not
been saved, and may cause disk errors.
Power Management
Using the correct procedure to shut down from Windows,
allows your LifeBook notebook to complete its operations
and turn off power in the proper sequence to avoid errors.
The proper sequence is:
1. Click the Start button, and then click Shut Down.
2. Select the Shut Down option from within the
Windows Shut Down dialog box.
3. Click OK to shutdown your LifeBook notebook.
If you are going to store your LifeBook notebook for a
month or more see Care and Maintenance Section.
31
LifeBook A Series – Section Three
32
4
User-Installable Features
33
LifeBook A Series – Section Four
34
Lithium ion Battery
Lithium ion Battery
Your Fujitsu LifeBook notebook has a Lithium ion
battery that provides power for operating your LifeBook
notebook when no external power source is available.
The battery is durable and long lasting, but should not
be exposed to extreme temperatures, high voltages,
chemicals or other hazards.
The Lithium ion battery operating time may become
shorter if it is used under the following conditions:
■
When used at temperatures that exceeds a low of 41°F
(5°C) or a high of 95°F (35°C). Extreme temperatures
not only reduce charging efficiency, but can also cause
battery deterioration.
■
When using a high current device such as a modem,
DVD, or hard drive, using the AC adapter will
conserve your battery life.
CAUTIONS
■
Do not leave a faulty battery in your LifeBook notebook. It may damage your AC adapter, optional
Auto/Airline adapter, a second battery or your LifeBook notebook itself. It may also prevent operation of
your LifeBook notebook by draining all available current into the bad battery.
■
Under federal, state, or local law it may be illegal to
dispose of batteries by putting them in the trash.
Please take care of our environment and dispose of
batteries properly. Check with your local government
authority for details regarding recycling or disposing
of old batteries. If you cannot find this information
elsewhere, contact your support representative at 1800-8Fujitsu (1-800-838-5487).
POINT
Actual battery life will vary based on screen brightness,
applications, features, power management settings,
battery condition and other customer preferences.
Media player drive or hard drive usage may also have a
significant impact on battery life. The battery charging
capacity is reduced as the battery ages. If your battery is
running low quickly, you should replace it with a new
one.
RECHARGING THE BATTERIES
If you want to know the charge condition of the primary
Lithium ion battery, double-click the Battery indicator
located on the system tray, located at the bottom right of
your screen. (The icon looks like a battery).
The Lithium ion battery is recharged internally using
the AC adapter or Auto/Airline adapter. To recharge the
battery, make sure the battery that needs to be charged
is installed in your LifeBook notebook and connect the
AC or Auto/Airline adapter. The Lithium ion battery can
also be charged using an external battery charger, available from Fujitsu.
There is no memory effect on the Lithium ion battery,
therefore you do not need to discharge the battery
completely before recharging. The charge times will be
significantly longer if your LifeBook notebook is in use
while the battery is charging. If you want to charge the
battery more quickly, put your LifeBook notebook into
Suspend mode, or turn it off while the adapter is
charging the battery. (See Power Management on page 30
for more information on Suspend mode and shutdown
procedure)
POINT
Using heavy current devices such as a Modem or
frequent media player accesses may prevent charging
completely.
Low Battery State
When the battery is running low, a low battery notification message will appear. If you do not respond to the
low battery message, the batteries will continue to
discharge until they are too low to operate. When this
happens, your LifeBook notebook will go into Suspend
mode. There is no guarantee that your data will be saved
once the notebook reaches this point.
CAUTIONS
■
Once the low battery notification message appears,
you need to save all your active data and put your
LifeBook notebook into Suspend mode until you can
provide a new power source. You should provide a
charged battery, an AC power adapter, or Auto/
Airline adapter as soon as possible.
■
When you are in Suspend mode there must always
be at least one power source active. If you remove
power while your LifeBook notebook is in Suspend
mode, any data that has not been saved to the hard
drive will be lost.
Once your LifeBook notebook goes into Dead Battery
Suspend mode you will be unable to resume operation
until you provide a source of power either from an
adapter, or a charged battery. Once you have provided
power, you will need to press the Suspend/Resume
button to resume operation. In the Dead Battery
Suspend mode, your data can be maintained for some
time, but if a power source is not provided promptly, the
Power indicator will stop flashing and go out, meaning
that you have lost the data that was not stored. Once you
35
LifeBook A Series – Section Four
provide power, you can continue to use your LifeBook
notebook while an adapter is charging the battery.
REPLACING THE BATTERY
With the purchase of an additional battery, you can have
a fully charged spare to swap with one that is not
charged. (Figure 4-1)
1. Have a charged battery ready to install.
2. Shut down your LifeBook notebook and disconnect
the AC adapter.
3. Slide the battery release latch while pulling the
battery from the bay.(Figure 4-1)
4. Remove the battery from the bay.
5. Slide the new battery into the bay. The pins will
automatically align with the connector.
6. Press the battery in until the battery release latch
snaps into place.
7. Plug in the AC adapter and turn the power on.
Battery Latch
Figure 4-1 Replacing the Battery
POINT
If the Lithium ion battery connector is not fully seated,
you may not be able to use your LifeBook notebook or
charge your battery.
36
Figure 4-2 Loading a 3.5” Floppy Disk
Internal Floppy Disk Drive
Your LifeBook notebook has an internal floppy disk
drive which can read and write information on removable 1.44MB and 720KB floppy disks.
LOADING A DISK
To load a disk into your disk drive, follow these easy
steps:
1. Position the disk so that its label is facing upwards
and the shutter side is pointing towards the drive.
(Figure 4-2)
2. Push the disk into the drive until the Eject button
pops out and you hear a click.
POINT
When there is no disk in the drive, the Eject button is
flush with your LifeBook notebook.
Internal Floppy Disk Drive
PREPARING A DISK FOR USE
Before you can use a new disk, it needs to be prepared
so your LifeBook notebook knows where to store information. This preparation is called formatting or initializing a disk. You will need to format new disks, unless
they are preformatted. (Please refer to your operating
system manual for step-by-step instructions on formatting a
disk)
To prevent accidental erasure of the data stored on a
disk, slide the “write protect” tab until a small hole is
exposed. This sets the disk into a protected state where
nothing can be added or removed. If you want to add or
remove data on a protected disk, slide the “write
protect” tab to close the small hole. (Figure 4-3)
Write Enabled
EJECTING A DISK
To eject a disk from the disk drive, follow these easy
steps:
1. Check that the Floppy Disk Drive Access indicator
is inactive.
2. Press the Eject button. This will push your disk
partially out of the drive.
3. Remove the disk.
CAUTION
If you eject the disk while the Floppy Disk Drive Access
indicator is active, there is a risk of damaging the data
on the disk, the disk itself or even the disk drive.
Write Protected
Figure 4-3 Floppy Disk Write Protect
CAUTION
Formatting a floppy disk that already contains data will
erase all of the information on the disk.
37
LifeBook A Series – Section Four
Figure 4-4 Media Player Drive
Media Player Drive
Depending upon the configuration of your Fujitsu LifeBook notebook, you may have one of the following
drives:
■
CD-ROM
■
DVD/CD-RW combo
A CD-ROM drive allows you to access software, data, or
audio CDs. A DVD/CD-RW player gives you access to
movie, software, data, and audio DVD/CDs and to
access software, data, or audio CDs, and to write data
onto recordable CDs.
MEDIA PLAYER SOFTWARE
DVD/CD-RW Model only: With the media player drive
and Media Player software you can play DVD movies on
your LifeBook notebook. The media player includes
controls which allow you to take full advantage of the
features of a DVD movie, as well as standard features
such as fast forward, fast reverse, pause, etc.
In addition to the DVD capabilities, you can read audio
CDs, and write data onto a recordable CD-R or CD-RW
disc and burn CDs.
If you should need to install your Media Player software,
refer to the applicable readme file on the Driver Applica-
tions CD-ROM.
CAUTION
Do not operate your media player drive unless your
LifeBook notebook is sitting on a flat surface. Using a
drive when the system is not level may damage the
drive or prevent proper operation.
Emergency Media
Player Tray Release Button
Media Player Eject Button
Media Holder Tray
POINTS
■
Prolonged use of the media player drive, such as
watching a DVD movie, will substantially reduce the
battery life if no other power source is attached.
■
You should periodically check the Fujitsu website at
www.fujitsupc.com for current updated drivers.
■
All Fujitsu notebook DVD players are set to play
DVD titles with region code number 1 which is specified for the North American market. The region
number is a regional restriction code defined by the
DVD Forum acting on the requirements of Hollywood. Different region codes are recorded on video
DVD titles for publication in different areas of the
world. If the regional code of the DVD player does
not match the regional codes on the titles, then
playback is impossible.
LOADING A CD, DVD, CD-R, OR CD-RW
DISC (“MEDIA”)
To load a disc into your media player drive, follow these
steps:
1. Push and release the eject button on the front of the
media player drive to open the holder tray. The tray
will come out of the LifeBook notebook a short
distance.
2. Gently pull the tray out until a media disc can easily
be placed in the tray.
CAUTION
There may be a protective sheet in the tray from when it
was shipped; please make sure it is removed before
operating the drive.
3. Place the media into the tray, label side up, with the
hole in the center of the disc. Snap the disc onto the
raised circle in the center of the tray.
38
Media Player Drive
4. Gently push the holder tray back in until you hear a
click. (Figure 4-5)
POINT
If you have disabled the Auto Insert Notification
Function, you will have to start the drive from your
desktop, since your LifeBook notebook will not automatically recognize that media has been loaded.
Figure 4-5 Loading/Ejecting Media
REMOVING MEDIA
1. Push and release the eject button on the front of
the media player drive. This will stop the drive and
the holder tray will come out of the LifeBook notebook a short distance.
2. Gently pull the tray out until the disc can easily be
removed from the tray.
3. Carefully remove the media disc from the holder
tray.
4. Gently push the holder tray back in until you hear a
click.
EMERGENCY TRAY RELEASE
In the event the media tray does not open after pressing
the Media Player Eject button, it may be necessary to use
the emergency tray
USING THE MEDIA PLAYER SOFTWARE
POINT
Depending upon its configuration, your system may not
have the media player software pre-installed. If it is not
installed, reference the documentation that
accompanies the media application.
Starting a DVD Movie (DVD Models only)
1. Insert the DVD movie into the media player drive of
your LifeBook notebook. If the CD AutoRun feature
activates, skip Step 2.
2. From the Start menu, select Programs, then select
InterVideo WINDVD and click InterVideo
WINDVD or double-click on the InterVideo
WINDVD icon on the desktop. This will launch
the DVD movie.
3. Click OK to close the About DVD Player
Performance dialog box and the movie will begin.
Opening the Media Player Control Panel
With most DVD-ROMs, you have the option of altering
how the movie should play and what you wish to view.
You can do this by using the media player control panel
and the mouse.
1. Right-click on the movie screen to open a
dropdown menu for options.
2. Select View, then Player for all the controls available.
This will open the control panel into the bottom of
the screen.
Using the Media Player Control Panel
The media player software allows you to watch the
movie much like a VCR player. You have the option to
pause, rewind, fast-forward and stop the movie at any
point.
1. To Pause the movie, click the on-screen! button.
2. To Rewind the movie, click the " button to rewind
to a specific portion of the movie, or the # button
to return to the opening screen.
3. To Fast-forward the movie, click the $ button to
forward to a specific portion of the movie, or the%
button to jump to the ending credits.
4. To Stop the movie, click the & button.
Exiting the Media Player
1. Click on the ' located in the upper right corner of
the title bar. This will open a media player dialog
box.
2. Click Ye s to stop and exit the movie, or No to close the
media player dialog box and return to the movie.
™
USING DOLBY
HEADPHONE
The Dolby Headphone utility lets you enjoy multichannel sound sources, such as DVD movies, with realistic virtual surround sound using conventional stereo
headphones. The Dolby Headphone is a utility that is
available in the InterVideo WinDVD application.
Dolby Headphone is a signal processing system that
enables your stereo headphones to realistically emulate
the sound of a five-speaker playback system.
39
LifeBook A Series – Section Four
POINTS
■
Media discs which do not have the Dolby Surround
5:1 symbol will not support Dolby Headphone.
■
After making changes to the Dolby Headphone
feature and clicking OK, wait at least ten seconds
before making another change in order to allow the
system to stabilize.
To use the Dolby Headphone feature, perform the
following steps:
1. Double click the InterVideo WinDVD icon on your
desktop.
2. On the toolbar that appears, click the Properties
button (the fourth button from the left, with the
image of a wrench).
3. On the Properties window, select the Dolby Headphone tab.
4. To enable Dolby Headphone, check the Enable
Dolby Headphone box. To change the type of
surround sound, select one of the radio buttons
listed under Room Filter Setting.
5. Click OK. The Dolby Headphone feature will now
be enabled until you disable it by unchecking Enable
Dolby Headphone.
USING THE MEDIA PLAYER ON
BATTERY POWER
Since media player drives consume a lot of power, your
overall battery life will be significantly shorter when operating the media player drive continuously (such as
watching a DVD movie) than during standard operation.
Many movies run-times are longer than your LifeBook
notebook can support on a single charged battery. If you
are watching a DVD movie on battery power you may
need to swap in an additional, charged battery or attach
AC power during the movie to view it in its entirety.
POINT
An additional fully-charged battery is highly
recommended if you will be watching DVD movies on
battery power. If you don’t have an additional battery,
you may purchase one either online at
www.fujitsupc.com or by calling 1-877-372-3473.
To Watch a Movie on Battery Power:
1. Have an additional full-charged battery or your
AC adapter ready for use.
2. Start watching your DVD movie.
3. When the low battery warning occurs (i.e., when the
battery light on the front edge of the system starts
blinking red), immediately stop the movie and exit
the media player.
POINT
If you do not stop the media player quickly and the
LifeBook notebook attempts to auto-suspend (critical
battery low state) the LifeBook notebook will shut
down improperly. If this occurs, you will need to
perform a hard reset and follow the instruction, if any,
presented to you before the system will reboot.
4. Manually place your LifeBook notebook into
suspend mode by depressing the Suspend button
and attaching AC power as soon as you see the low
battery warning (i.e., when the battery light on the
front edge of the system starts blinking red).
5. Resume your LifeBook notebook by pressing the
Suspend button again. This step is not required if
you attached AC power without entering suspend
mode.
6. Restart your media player, locate and skip to the
chapter of the movie you were last watching.
7. Continue watching your DVD movie.
POINT
Prolonged use of the media player drive, such as
watching a DVD movie, will substantially reduce your
LifeBook notebook’s battery life.
Many movie run-times are longer than your system can
support on a single battery. If you are watching a DVD
movie on battery power you may need to swap in an
additional, charged battery or attach AC power during
the movie to view it in its entirety.
40
POINT
Some shorter DVD movies may not require you to
swap batteries or attach AC power to complete them.
However, it is best to be prepared since actual battery life
while operating the media player drive cannot be
guaranteed.
AUTO INSERT NOTIFICATION FUNCTION
The Auto Insert Notification function allows your LifeBook notebook to automatically start a DVD/CD as soon
as it is inserted in the media player drive and the tray is
closed. Your LifeBook notebook will begin playing an
audio DVD/CD or will start an application if the DVD/CD
includes an auto run file.
Disabling Auto Insert Notification Function
(Windows 98 models only)
To disable the Auto Insert Notification function in a
Windows 98 system, follow these easy steps:
1. Save all data and close all open applications.
2. From the Start menu, select Settings, and then select
Control Panel.
3. Double-click the System icon. This will open the
System Properties dialog box.
4. Select the Device Manager tab to display the device
lists for your LifeBook notebook.
5. Click on the
+ to the left of the CD player drive icon.
The treeview will expand to show the media player
drive manufacturer’s name and model number.
6. Double-click on the media player drive manufac-
turer’s name and model number. This will open the
media player drive manufacturer’s name and model
number dialog box.
7. Select the Settings tab and then remove the check
mark in the Auto Insert Notification box to turn it
off.
8. Click OK.
9. Click Close in the System Properties dialog box, then
click Ye s in the System Settings Change pop-up
window when it asks you to restart your machine
and activate this change.
Media Player Drive
The Auto Insert Notification function can be re-activated
by repeating this process and placing a check mark in the
Auto Insert Notification box to turn it back on.
41
LifeBook A Series – Section Four
Eject Button
PC Card
PC Card Slot
Figure 4-6 Installing/Removing PC Cards
PC Cards
Your Fujitsu LifeBook notebook supports Type I, Type II
and Type III PC Cards, which can perform a variety of
functions depending on which type of PC Card you
install. You can install one PC Card at a time in your
LifeBook notebook.
Some available PC Cards:
■
Fax/data modem cards (Type II).
■
Local area network (LAN) cards (Type II).
■
IDE solid-state disk cards (Type II).
■
SCSI cards (Type II).
■
Wireless LAN (802.11b) cards (Type II)
■
Hard Drive (ATA) cards (Type III).
■
Other PC Cards that conform to PCMCIA 2.1 or
CardBus standards.
For further information, refer to the instructions
supplied with your PC Card.
INSTALLING PC CARDS
PC Cards are installed in the PC Card slot. To install a
PC Card, follow these easy steps:
CAUTIONS
■
Installing or removing a PC Card during your LifeBook
notebook’s shutdown or bootup process may damage
the card and/or your LifeBook notebook.
■
Do not insert a PC Card into a slot if there is water or
any other substance on the card as you may permanently damage the card, your LifeBook notebook, or
both.
POINT
You may be required to log on as an Administrator or a
member of the Administrator’s Group to complete this
procedure. If your computer is connected to a network,
network policy settings may also prevent you from
completing this procedure.
1. See your PC Card manual for specific instructions
on the installation of your card. Some PC Cards
may require your LifeBook notebook to be Off while
installing them.
2. Make sure there is no PC Card currently in the slot.
If there is, see Removing PC Cards (below).
3. If the eject button is extended, press it in until it
clicks.
4. Insert your PC Card into the slot with the product
label facing up.
5. Push the card firmly into the slot until it is seated in
the connector.
REMOVING PC CARDS
To remove a PC Card, follow these easy steps:
1. See your PC Card manual for specific instructions
on removing your card. Some PC Cards may require
your LifeBook notebook to be in Suspend Mode or
Off while removing them.
POINT
If the dialog box states that the device cannot be
removed, you must save all of your open files, close
any open applications and shut down your notebook.
42
2. Unlock the PC Card from the slot by first pressing
the eject button. When pressed, the button will pop
out.
3. Firmly press the button again until it is flush with
the LifeBook notebook. This will eject the card
slightly out of the slot allowing you to remove the
card.
CAUTION
If the PC Card has an external connector and cable, do
not pull the cable when removing the card, or you may
damage the connector and/or cable.
PC Cards
43
LifeBook A Series – Section Four
Device Ports
Your Fujitsu LifeBook notebook and the optional Port
Replicator come equipped with multiple ports to which
you can connect an external device including: disk
drives, keyboards, modems, printers, etc.
MODEM (RJ-11) TELEPHONE JACK
The modem (RJ-11) telephone jack is used for an
internal modem. To connect the telephone cable follow
these easy steps: (See Figure 2-4 on page 10 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Plug the other end of the telephone cable into a
telephone outlet.
WARNING
The internal modem is not intended for use with Digital
PBX systems. Do not connect the internal modem to a
Digital PBX as it may cause serious damage to the internal modem or your entire LifeBook notebook. Consult
your PBX manufacturer’s documentation for details.
Some hotels have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
POINTS
■
The internal modem is designed to the ITU-T V.90
standard. Its maximum speed of 53000bps is the
highest allowed by FCC, and its actual connection
rate depends on the line conditions. The maximum
speed is 33600bps at upload.
■
The internal modem on all Fujitsu LifeBook notebooks are certified for use in the United States and
Canada. The modem may be certified in other
countries.
3. Plug the other end of the cable into a LAN outlet.
IEEE 1394 PORT
The 4-pin 1394 port allows you to connect digital
devices that are compliant with IEEE 1394 standard. The
IEEE 1394 standard is easy to use, connect, and disconnect. This port can allow up to 400 Mbps transfer rate. A
third-party application is required to operate your
digital device with the 1394 port.
POINT
The IEEE 1394 port accommodates a 4-pin connector. If
the device you wish to connect has a 6-pin connector,
you will need to attach a 4-pin to 6-pin adapter.
In order to connect a 1394 device, follow these steps:
(See Figure 2-6 on page 12 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
UNIVERSAL SERIAL BUS PORTS
The two Universal Serial Bus ports (USB) allow you to
connect USB devices such as external game pads,
pointing devices, keyboards and/or speakers. In order
to connect a USB device follow these easy steps: (See
Figure 2-6 on page 12 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
POINT
Due to the ongoing changes in USB technology and
standards, not all USB devices and/or drivers are
guaranteed to work.
INTERNAL LAN (RJ-45) JACK
The RJ-45 jack is used to connect the internal Fast
Ethernet (10/100 Base-T/Tx) to a Local Area Network
(LAN) in your office or home, or broadband devices such
as a cable modem, DSL, or satellite internet. If your notebook has been configured with internal LAN capability
you will need to configure your notebook to work with
your particular network. (To properly set up your LAN
environment, consult with a networking professional.
Please refer to your network administrator for information on your network configuration.) To connect the LAN
cable follow these easy steps: (See Figure 2-4 on page 10
for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
44
PARALLEL PORT
The parallel port, or LPT port, allows you to connect
parallel devices, such as a printer to your notebook. In
order to connect a parallel interface device, follow these
steps: (See Figure 2-6 on page 12 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Tighten the two hold-down screws, located on each
end of the connector.
SERIAL PORT
The serial port, or COMM port, allows you to connect
serial devices, such as printers or scanners. In order to
connect a serial interface device follow these easy steps:
(See Figure 2-6 on page 12 for location)
Device Ports
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Tighten the two hold-down screws, located on each
end of the connector.
PORT REPLICATOR INTERFACE
The port replicator interface is used for the connection
of your notebook to an optional port replicator or
docking station. In order to connect your notebook to
one of these devices follow the instructions that came
with your docking port. (See Figure 2-7 on page 13 for
location).
PS/2 PORT
The PS/2 port allows you to connect an external
keyboard, and/or numeric keypad and mouse. (See
Figure 2-6 on page 12 for location). In order to connect a
PS/2 interface device follow these easy steps:
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
POINT
A mouse, keyboard, or keypad may be installed and
automatically recognized by your notebook without
restarting or changing setups.
MICROPHONE JACK
The microphone jack allows you to connect an external
mono microphone. Your microphone must be equipped
with a 1/8”(3.5 mm) mono mini-plug in order to fit into
the microphone jack of your LifeBook notebook. In
order to connect a microphone follow these easy steps:
(See Figure 2-4 on page 10 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
INFRARED PORT
The Infrared IrDA (4Mbps) port allows for wireless data
transfer between your notebook and other IrDAcompatible devices, such as another computer or a
printer, without the use of a cable. (See Figure 2-6 on
page 12 for location)
It is important to keep in mind that while carrying out
this form of communication, both devices must be
placed so their infrared ports are directly facing each
other without obstruction. The devices must also be
separated by at least 6" but no more than 36" for
maximum performance.
The following conditions may interfere with infrared
communications:
■
A television, radio remote control unit, or a wireless
headphone is being used nearby.
■
Direct sunlight, fluorescent light, or incandescent light
shines directly on the port.
POINTS
■
Do not move either device while communication is
active as it may interrupt data transmission.
■
Be careful not to scratch the infrared port lens. Dirt,
scratches, or other surface marks can degrade
operation.
■
With Windows 98 Second Edition, you can use the
Infrared Recipient application for infrared file transfers.
HEADPHONE JACK
The headphone jack allows you to connect headphones
or powered external speakers to your LifeBook notebook. Your headphones or speakers must be equipped
with a 1/8” (3.5 mm) stereo mini-plug. In order to
connect headphones or speakers follow these easy steps:
(See Figure 2-4 on page 10 for location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
POINT
If you plug headphones into the headphone jack, you
will disable the built-in stereo speakers.
EXTERNAL MONITOR PORT
The external monitor port allows you to connect an
external monitor. In order to connect an external monitor
follow these easy steps: (See Figure 2-6 on page 12 for
location)
1. Align the connector with the port opening.
2. Push the connector into the port until it is seated.
3. Tighten the two hold-down screws, located on
each end of the connector.
POINT
Pressing the [Fn] + [F10] keys allows you to change
your selection of where to send your display video. Each
time you press the key combination, you will
step to the next choice, starting with the built-in display
panel only, moving to the external monitor only, finally
moving to both the built-in display panel and an
external monitor.
45
LifeBook A Series – Section Four
Memory Upgrade Module
Your Fujitsu LifeBook notebook comes with either
128MB or 256MB of high speed Synchronous Dynamic
RAM (SDRAM), 133MHz factory installed. To increase
your LifeBook notebook’s memory capacity, you may
install an additional memory upgrade module. The
memory upgrade must be a dual-in-line (DIMM)
SDRAM module. To ensure 100% compatibility,
purchase the SDRAM module only from the Fujitsu web
store at www.fujitsupc.com.
Figure 4-8 Installing a new memory module
WARNINGS
■
Do not remove any screws from the memory upgrade
module compartment except the one specifically
shown in the directions for installing and removing
the memory upgrade module.
■
You must turn off power before installing the memory
upgrade module.
INSTALLING A MEMORY UPGRADE
MODULE
To install a memory upgrade module follow these steps:
1. Turn off power to your LifeBook notebook and
remove any power adapter (AC or auto/airline).
2. Place your LifeBook notebook upside-down on a
clean work surface.
3. Open the top cover all the way, so that it is lying flat
on the work surface.
4. Remove the screw holding the memory
compartment cover (Figure 4-7)
5. Align the connector edge of the memory upgrade
module, chip side up, with the connector slot in the
compartment. (Figure 4-8)
o
6. Insert the memory upgrade module at a 45
angle
and press it firmly onto the connector.
7. Press the memory upgrade module down into the
compartment until it locks underneath the retaining
clip. You will hear a click when it is properly in place.
8. Replace the cover and screw that were removed
previously (Figure 4-9). Installation of the new
memory module is now complete.
Figure 4-9 Replacing the memory compartment cover.
Figure 4-7 Removing the memory compartment cover
CAUTION
The memory upgrade module can be severely damaged
by electrostatic discharge (ESD). Be sure you are properly
grounded when handling and installing the module.
46
POINT
The memory upgrade module is not something you
routinely remove from your LifeBook notebook. Once it
is installed, you should leave it in place unless you want
to increase system memory capacity.
REMOVING A MEMORY UPGRADE MODULE
1. Perform steps 1 through 4 of Installing a Memory
Upgrade Module.
2. Pull the clips sideways away from each side of the
memory upgrade module at the same time.
(Figure 4-10)
Memory Upgrade Module
POINT
If the total memory displayed is incorrect, check that
your memory upgrade module is properly installed. (If
the module is properly installed and the capacity is still
not correctly recognized, see the Troubleshooting section starting on page 51)
Figure 4-10 Removing a memory module
3. While holding the clips out, remove the module
from the slot by lifting it up and pulling towards the
back of your LifeBook notebook.
4. Store the memory upgrade module in a static
guarded sleeve.
5. Replace the memory compartment cover by
following step 8 of Installing a Memory Upgrade
Module.
CHECKING THE COMPUTER RECOGNITION
OF NEW MEMORY CAPACITY
Once you have changed the system memory capacity
by either adding or removing a memory upgrade
module, be sure to check that your LifeBook notebook
has recognized the change.
Displayed by
Operating System
*System Memory
112MB
240MB
368MB
624MB
240MB
496MB
752MB
496MB
1008MB
Slot 1
128MB
128MB
128MB
128MB
256MB
256MB
256MB
512MB
512MB
Installed
Slot 2
0
128MB
256MB
512MB
0
256MB
512MB
0
512MB
Total RAM
Installed
128MB
256MB
384MB
640MB
256MB
512MB
768MB
512MB
1024MB
* Video shares 8MB, 16MB, or 32MB of main memory;
16MB is the default.
You can check the memory capacity by looking at the
main menu of the BIOS setup:
1. Turn on the power to your LifeBook notebook.
2. Allow the system to start booting and press the F2
key once the Fujitsu logo appears on the screen. This
will open the main menu of the BIOS setup with the
current settings displayed. (See BIOS Setup Utility on
page 27 for more information).
The memory capacities, as detected by your LifeBook
notebook during the Power On Self Test (POST), are
displayed in the bottom corner of the screen. The chart
below shows you the possible displays that can be shown
on the main menu screen.
47
LifeBook A Series – Section Four
48
5
Troubleshooting
49
LifeBook A Series – Section Five
50
Troubleshooting
Your Fujitsu LifeBook notebook is sturdy and subject to
few problems in the field. However, you may encounter
simple setup or operating problems that you can solve
on the spot, or problems with peripheral devices, that
you can solve by replacing the device. The information
in this section helps you isolate and resolve some of these
straightforward problems and identify failures that
require service.
Troubleshooting
POINTS
■
If you keep notes about what you have tried, your
support representative may be able to help you
more quickly by giving additional suggestions
over the phone.
■
Do not return a failed LifeBook notebook to your
supplier until you have talked to a support representative.
FUJITSU SERVICE ASSISTANT
Select models of the LifeBook notebook include a
sophisticated, full-featured troubleshooting utility that
can assist you in solving most problems you might
encounter. The Fujitsu Service Assistant is an interactive
support tool that provides automated diagnosis and
solutions for your hardware and software problems. To
use this tool, load the Fujitsu Service Assistant CD that
was included with your system’s accessories, and follow
the instructions after the Fujitsu Service Assistant CD
launches.
New support information for the Fujitsu Service Assistant tool may be available after the purchase of your
notebook. You should periodically connect to the
Internet while using the Fujitsu Service Assistant tool to
ensure that you are using the most current version.
IDENTIFYING THE PROBLEM
If you encounter a problem, go through the following
procedure before pursuing complex troubleshooting:
1. Turn off your LifeBook notebook.
2. Make sure the AC adapter is plugged into your LifeBook notebook and to an active AC power source.
3. Make sure that any card installed in the PC Card slot
is seated properly. You can also remove the card
from the slot, thus eliminating it as a possible cause
of failure.
4. Make sure that any devices connected to the external
connectors are plugged in properly. You can also
disconnect such devices, thus eliminating them as
possible causes of failure.
5. Turn on your LifeBook notebook. Make sure it has
been off at least 10 seconds before you turn it on.
6. Go through the boot sequence.
7. If the problem has not been resolved, refer to the
Troubleshooting Table, that follows, for more
detailed troubleshooting information.
8. If you have tried the solutions suggested in the Troubleshooting Table without success, contact your
support representative:
Toll free: 1-800-8Fujitsu (1-800-838-5487)
Fax: 1-901-259-5700
E-mail: 8fujitsu@fujitsupc.com
Website: http://www.fujitsupc.com.
Before you place the call, you should have the following
information ready so that the customer support representative can provide you with the fastest possible solution:
■
Product name
■
Product configuration number
■
Product serial number
■
Purchase date
■
Conditions under which the problem occurred
■
Any error messages that have occurred
■
Hardware configuration
■
Type of device connected, if any
See the Configuration Label on the bottom of your
LifeBook notebook for configuration and serial
numbers. (See figure 2-7 on page 13 for location)
SPECIFIC PROBLEMS
Using the Troubleshooting Table
When you have problems with your LifeBook notebook,
try to find the symptoms under the Problem column of
the troubleshooting table for the feature giving you difficulty. You will find a description of common causes for
that symptom under the column Possible Cause and
what, if anything, you can do to correct the condition
under Possible Solutions. All possible causes or solutions
may not apply to your LifeBook notebook.
51
LifeBook A Series – Section Five
TROUB LE S HO OT IN G TAB L E
Problem Page
Audio Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 52
Media Player Drive Problems . . . . . . . . . . . . . . . page 52
Floppy Disk Drive Problems . . . . . . . . . . . . . . . . page 53
Hard Drive Problems . . . . . . . . . . . . . . . . . . . . . . page 53
Keyboard or Mouse Problems. . . . . . . . . . . . . . . page 53
Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54
Modem Problems . . . . . . . . . . . . . . . . . . . . . . . . . page 54
Problem Possible Cause Possible Solutions
Audio Problems
Problem Page
USB Device Problems . . . . . . . . . . . . . . . . . . . . . page 54
PC Card Problems . . . . . . . . . . . . . . . . . . . . . . . . page 54
Power Failures . . . . . . . . . . . . . . . . . . . . . . . . . . . page 55
Shutdown and Startup Problems . . . . . . . . . . . . page 56
Video Problems . . . . . . . . . . . . . . . . . . . . . . . . . . page 57
Miscellaneous Problems . . . . . . . . . . . . . . . . . . . page 58
There is no sound
The volume is turned too low. Adjust the volume control on your LifeBook notecoming from the built-in
speakers.
The software volume control is
set too low.
Headphones are plugged into
your LifeBook notebook.
Software driver is not configured
correctly.
Media Player Drive Problems
LifeBook notebook fails
to recognize media discs.
The disc is not pushed down onto
raised center circle of the drive.
Media player tray is not latched
shut.
Wrong drive designator was used
for Media Player in the
application.
Windows Media Player auto
insert notification function is
disabled.
Media disc is dirty or defective. Wipe the disc with a non-abrasive CD cleaning cloth
The Media Player Access
indicator on the Status
Indicator Panel blinks at
regular intervals when
The Windows Media Player auto
insert notification function is
active and is checking to see if a
media disc is ready to run.
no disc is in the tray or
the media drive is not
installed.
book.
Adjust the sound volume control settings in your
software, operating system and applications.
Plugging in headphones disables the built-in
speakers, remove the headphones.
Refer to your application and operating system
documentation for help.
Open media player tray and re-install the media disc
properly.
Push on the front of the media player tray until it
latches.
Verify the drive designator used by the application is
the same as the one used by the operating system.
When the operating system is booted from a media
player, drive designators are automatically adjusted.
Start the Media Player from the desktop or application software or re-enable the Windows Media
Player auto insert notification function. (See Auto
Insert Notification Function on page 40 for more
information)
and reinsert. It if still will not work try another
media disc in the drive.
This is normal. However, you may disable this
feature. (See Auto Insert Notification Function on
page 40 for more information)
52
Problem Possible Cause Possible Solutions
The Media Player will
not play international
DVD titles
The notebook fails to
Auto-Play a DVD movie.
Floppy Disk Drive Problems
You cannot access your
floppy disk.
The region code for the DVD
does not match that of the Media
Player.
The Media Player software has
not been installed.
You tried to write to a write
protected floppy disk.
Floppy disk is not loaded
correctly.
BIOS setup utility is incorrectly
set up.
Troubleshooting
All Fujitsu notebook DVD players are set to play
DVD titles with region code number 1, which is
specified for the North American market. The
region number is a regional restriction code defined
by the DVD Forum acting on the requirements of
Hollywood. Different region codes are recorded on
video DVD titles for publication in different areas of
the world. If the regional code of the DVD player
does not match the regional codes on the titles, then
playback is impossible.
Locate and install the DVD-ROM Applications CD.
Eject the floppy disk and set it to write enable. (See
Internal Floppy Disk Drive on page 37 for more information)
Eject floppy disk, check orientation and re-insert.
(See Internal Floppy Disk Drive on page 37 for more
information)
Verify in the BIOS that “Internal FDC” option is
checked under the Disks menu. (If unchecked, the
FD Controller is disabled.) (See BIOS Setup Utility
on page 27 for more information)
Security is set to protect access to
floppy disk data.
Hard Drive Problems
You cannot access your
hard drive.
The setup utility is incorrectly set
for your internal or optional
second hard drive.
The wrong drive designator was
used by an application when a
bootable CD-ROM was used to
start the LifeBook notebook.
Security is set so your operating
system cannot be started without
a password.
Keyboard or Mouse Problems
The built-in keyboard
does not seem to work.
The LifeBook notebook has gone
into Suspend mode.
Your application has locked out
your keyboard.
Verify your password and security settings.
Verify in the BIOS that “Internal HDC” option is
checked under the Disks menu. (If unchecked, the
HD Controller is disabled.) (See BIOS Setup Utility
on page 27 for more information)
Verify drive designator used by application is in
use by the operating system. When the operating
system is booted from a CD, drive designations
are automatically adjusted.
Verify your password and security settings.
Push the Suspend/Resume button.
Try to use your intergrated pointing device to restart
your system. If this fails, turn your LifeBook notebook off, wait 10 seconds or more, and then turn it
back on.
53
LifeBook A Series – Section Five
Problem Possible Cause Possible Solutions
You have installed an
external keyboard or
mouse, and it does not
seem to work.
Your external device is not
properly installed.
Your operating system software is
not set up with the correct
software driver for that device.
Re-install your device. (See Device Ports on page 44
for more information)
Check your device and operating system documentation and activate the proper driver.
You have connected an
external keyboard or a
mouse and it seems to be
locking up the system.
Your operating system software is
not set up with the correct
software driver for that device.
Your system has crashed. Try to restart your LifeBook notebook. If that fails,
Memory Problems
You r Po w er On sc re en ,
or Main menu of the
Your memory upgrade module is
not properly installed.
BIOS setup utility information, does not show
the correct amount of
You have a memory failure. Check for Power On Self Test (POST) messages.
installed memory.
Modem Problems
Messages about modem
operation.
Messages about modem opera-
tion are generated by whichever
modem application is in use.
USB, Parallel, or IR Device Problems
You have installed a
USB, parallel, or IR
device. Your LifeBook
notebook does not
recognize the device, or
the device does not seem
to work properly.
The device is not properly
installed.
The device may have been
installed while an application was
running, so your LifeBook is not
aware of its installation.
Your software may not have the
correct software driver active.
You may have the wrong I/O
address selected for your device.
Check your device and operating system
documentation and activate the proper driver.
turn off the power, wait at least 10 seconds, and then
power on.
Remove and re-install your memory upgrade
module. (See Memory Upgrade Module on page 46
for more information)
(See Power On Self Test Messages on page 59 for more
information)
See your application software documentation for
additional information.
Remove and re-install the device. (See Device Ports
on page 44 for more information)
Close the application and restart your LifeBook
notebook.
See your software documentation and activate the
correct driver.
See your device documentation and software documentation to determine the required I/O address.
Change the settings in the BIOS setup utility. (See
figure on page 27 for location)
PC Card Problems
A card inserted in the PC
Card slot doesn’t work
or locks up the system.
54
Your device and another device
are assigned the same I/O
address.
Check all I/O addresses located within the BIOS
setup utility and any other installed hardware or
software to make sure there are no duplications.
Parallel port is set to output only. Check parallel (LPT) port setting in the BIOS and
set to bi-directional or ECP.
The card is not properly installed. Remove and re-install the card. (See PC Cards on
page 42 for more information)
Problem Possible Cause Possible Solutions
A card inserted in the PC
Card slot doesn’t work
or locks up the system.
(continued)
The card may have been installed
while an application was running,
so your LifeBook notebook is not
aware of its installation.
Your software may not have the
correct software driver active.
Troubleshooting
Close the application and restart your LifeBook
notebook.
See your software documentation and activate the
correct driver.
Power Failures
You turn on your
LifeBook notebook and
nothing seems to
happen.
You may have the wrong I/O
address selected for your PC Card
device.
See your PC Card documentation to determine
the required I/O address. Change the settings in
the BIOS. (See BIOS Setup Utility on page 27 for
more information)
Your PC Card device and another
device are assigned the same I/O
address.
The installed primary battery is
completely discharged, there is no
optional second battery installed
or there is no Power adapter (AC
Check all I/O addresses located within the BIOS
setup utility and any other installed hardware or
software to make sure there are no duplications.
Check the Status Indicator Panel to determine the
presence and condition of the batteries. (See Status
Display Indicators on page 14 for more information)
Install a charged battery or a Power adapter.
or Auto/Airline) installed.
The primary battery is installed
but is faulty.
Use the Status Indicator panel to verify the presence
and condition of the batteries. (See Status Display
Indicators on page 14 for more information) If a
battery is indicating a short, remove that battery and
operate from another power source or replace that
battery.
The battery or batteries are low. Check the Status Indicator Panel to determine the
presence and condition of the batteries. (See Status
Display Indicators on page 14 for more information)
Use a Power adapter to operate until a battery is
charged or install a charged battery.
Your LifeBook notebook
turns off all by itself.
The power adapter (AC or auto/
airline) is not plugged in properly.
The Power adapter (AC or auto/
airline) has no power from the
AC outlet, airplane seat jack, or
the car’s cigarette lighter.
The Power adapter (AC or auto/
airline) is faulty.
The power management parame-
ters are set for auto timeouts
which are too short for your
operating needs.
Verify that your adapter is connected correctly. (See
Power Sources on page 25 for more information)
Move the AC cord to a different outlet, check for
a line switch or tripped circuit breaker for the AC
outlet. If you are using an auto/airline adapter in
a car make sure the ignition switch is in the On or
Accessories position.
Try a different Power adapter or install a charged
optional second battery.
Press any button on the keyboard, or move the
mouse to restore operation. If that fails, push the
Suspend/Resume button. Check your power
management settings, or close your applications and
go to the Power Savings menu of the setup utility to
adjust the timeout values to better suit your
operation needs.
55
LifeBook A Series – Section Five
Problem Possible Cause Possible Solutions
Your LifeBook notebook
turns off all by itself.
(continued)
You are operating on battery
power only and have ignored a
low battery alarm until the
batteries are all at the dead battery
state and your machine has gone
into Dead Battery Suspend mode.
You have a battery failure. Verify the condition of the batteries using the
Your power adapter has failed or
lost its power source.
Install a power adapter and then push the Suspend/
Resume button. (See Power Sources on page 25 for
more information)
Status Indicator panel, and replace or remove
any batteries that are shorted. (See Status Display
Indicators on page 14 for more information)
Make sure the adapter is plugged in and the outlet
has power.
Your LifeBook notebook
will not work on battery
alone.
The batteries seem to
discharge too quickly.
The installed batteries are dead. Replace the battery with a charged one or install a
Power adapter.
No batteries are installed. Install a charged battery.
The batteries are improperly
installed.
Verify that the batteries are properly connected by
re-installing them.
Your installed batteries are faulty. Verify the condition of the batteries using the
Status Indicator panel and replace or remove
any batteries that are shorted. (See Status Display
Indicators on page 14 for more information)
You are running an application
that uses a great deal of power
due to frequent hard drive or
Use both the primary battery and an optional
second battery and/or use a power adapter for this
application when at all possible.
media player drive access, use of a
modem card or a LAN PC card.
The power savings features may
be disabled.
Check the power management and/or setup utility
settings in the Power Savings menu and adjust
according to your operating needs.
The brightness is turned all
the way up.
Turn down the brightness adjustment. The higher
the brightness the more power your display uses.
The batteries are very old. Replace the batteries.
The batteries have been exposed
Replace the batteries.
to high temperatures.
The batteries are too hot or too
cold.
Restore the LifeBook notebook to normal operating
temperature. The Charging icon on the Status Indi-
cator panel will flash when the battery is outside its
operating range.
Shutdown and Startup Problems
The Suspend/Resume
button does not work.
You did not hold the button in
long enough.
There may be a conflict with the
application software.
56
Hold the button longer. This may need to be a few
seconds if your application is preventing the CPU
from checking for button pushes.
Close all applications and try the button again.
Problem Possible Cause Possible Solutions
The system powers up,
and displays power on
information, but fails to
load the operating
system.
The boot sequence settings of the
setup utility are not compatible
with your configuration.
Troubleshooting
Set the operating source by pressing the [ESC] key
while the Fujitsu logo is on screen or use the [F2]
key and enter the setup utility and adjust the source
settings from the Boot menu. (See BIOS Setup
Utility on page 27 for more information)
An error message is
displayed on the screen
during the LifeBook
notebook (boot)
sequence.
Your LifeBook notebook
appears to change setup
parameters when you
start it.
Video Problems
The built-in display is
blank when you turn on
your notebook.
You have a secured system
requiring a password to load your
operating system.
Internal hard drive was not
detected.
Power On Self Test (POST) has
detected a problem.
BIOS setup changes were not
saved when you made them and
exited the BIOS setup utility
returning it to previous settings.
The BIOS CMOS hold-up battery
has failed.
Something is pushing on the
Closed Cover switch.
The LifeBook notebook is set for
an external monitor only.
Make sure you have the right password. Enter the
setup utility and verify the Security settings and
modify them as accordingly. (See BIOS Setup Utility
on page 27 for more information)
Use the BIOS setup utility to try to auto detect the
internal hard drive.
See the Power On Self Test (POST) messages to
determine the meaning and severity of the problem.
Not all messages are errors; some are simply status
indicators. (See Power On Self Test Messages on
page 59 for more information)
Make sure you select Save and Reboot when exiting
the BIOS setup utility.
Contact your support representative for repairs.
This is not a user serviceable part but has a normal
life of 3 to 5 years.
Clear the Closed Cover switch. (See figure 2-3 on
page 8 for location)
Press [F10] while holding down the [Fn] key to
change your selection of where to send your display
video. Each time you press the key combination you
step to the next choice. The choices, in order are:
built-in display only, external monitor only, both
built-in display and external monitor.
The LifeBook notebook
turned on with a series
of beeps and your builtin display is blank.
The angle of the display and the
brightness settings are not
adequate for your lighting
conditions.
The power management timeouts
may be set for very short intervals
and you failed to notice the
display come on and go off again.
Power On Self Test (POST) has
detected a failure which does not
allow the display to operate.
Move the display and the brightness control until
you have adequate visibility.
Press any button the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. (The display may be shut off by
Standy mode, Auto Suspend or Video Timeout)
Contact your support representative.
57
LifeBook A Series – Section Five
Problem Possible Cause Possible Solutions
The display goes blank
by itself after you have
been using it.
The LifeBook notebook has gone
into Video timeout or Suspend
mode because you have not used
it for a period of time.
Something is pushing on the
Closed Cover switch.
Press any button on the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. Check the power management
settings, or close your applications and go to the
Power Savings menu of the setup utility to adjust the
timeout values to better suit your needs. (See BIOS
Setup Utility on page 27 for more information)
Check the Closed Cover switch. (See figure 2-3 on
page 8 for location)
The Built-in Display
does not close.
The Built-in Display has
bright or dark spots.
The application display
uses only a portion of
your screen.
You have connected an
external monitor and it
does not display any
information.
The power management timeouts
may be set for very short intervals
and you failed to notice the
display come on and go off again.
A foreign object, such as a paper
clip, is stuck between the display
and the keyboard.
If the spots are very tiny and few,
this is normal for a large display.
If the spots are numerous or large
enough to interfere with your
operation needs.
You are running an application
that does not support 800 x 600/
1024 x 768 pixel resolution
display and display compression
is enabled.
Your BIOS setup is not set to
enable your external monitor.
Press any button on the keyboard, or move the mouse
to restore operation. If that fails, push the Suspend/
Resume button. (The display may be shut off by
Suspend Mode, Auto Suspend or Video Timeout)
Remove all foreign objects from the keyboard.
This is normal; do nothing.
Display is faulty; contact your support representative.
Display compression gives a clearer but smaller
display for applications that do not support 800 x
600/1024 x 768 pixel resolution. You fill the screen
but have less resolution by changing your display
compression setting, (See Display Device submenu,
located under the Startup menu of the BIOS. (See
BIOS Setup Utility on page 27 for more information)
Toggle the video destination by pressing [Fn] + [F10],
or check your BIOS setup and enable your external
monitor. (See the Display Device submenu, located
within the Startup menu of the BIOS. (See BIOS
Setup Utility on page 27 for more information)
You have connected an
external monitor and it
does not come on.
Miscellaneous Problems
An error message is
displayed on the screen
during the operation of
an application.
58
Your external monitor is not
properly installed.
Your operating system software is
not setup with the correct software driver for that device.
Your external monitor is not
compatible with your LifeBook
notebook.
Application software often has its
own set of error message displays.
Reinstall your device. (See External Monitor Port on
page 45 for more information)
Check your device and operating system
documentation and activate the proper driver.
See your monitor documentation and the External
Monitor Support portions of the Specifications
section.
See your application manual and help displays
screens for more information. Not all messages are
errors some may simply be status.
Troubleshooting
POWER ON SELF TEST MESSAGES
Each time the system boots, the BIOS performs diagnostic testing of the various system components. During
a standard implementation, if the BIOS detects an error,
one of the following events occurs:
■
A message with the prefix “WARNING” is displayed
informing the user where the error occurred. Following the message, the prompt “Press F1 to continue” is
displayed. The system pauses until the user presses F1.
■
A message with the prefix “FATAL” is displayed
informing the user where the error occurred. Following the message, the system emits a series of beeps. The
system then halts execution.
■
The system emits a series of beeps. The system then
halts execution.
Warning messages are considered “non-fatal” errors,
indicating that a potential problem exists such as a
system configuration error. When F1 is pressed, the
system should resume execution. Non-fatal errors can be
corrected by the user.
Fatal errors (those that emit a beep and may also display
a “FATAL” message) indicate that the BIODS has
stopped the system from continuing operation due to a
severe problem such as a hardware failure. Fatal errors
do not allow the system to resume execution. All fatal
errors generate a series of beeps whether a message is
displayed or not. See “Beep Codes” later in this section
for more information.
The following section lists the messages that may appear
while using the BIOS. Where applicable, possible solutions are included. Each fatal error message also includes
the corresponding beep code.
Warning Messages
Message Description
CLOCK NOT TICKING CORRECTLY The real time clock is not ticking.
COLOR/MONO SWITCH INCORRECT
CMOS CHECKSUM INVALID - RUN SCU
CMOS FAILURE - RUN SCU
FLOPPY CONTROLLER FAILED
FLOPPY DISK TRACK 0 FAILED
FLOPPY INFORMATION INVALID - RUN SCU
HARD DISK CONTROLLER ERROR
HARDWARE INFO DOES NOT MATCH VIDEO CARD RUN SCU
KEYBOARD CONTROLLER FAILURE
KEYBOARD FAILURE
The Color/Mono switch on the system board is incorrect
for the installed hardware.
CMOS RAM information has been corrupted and needs to
be reinitialized via the System Configuration Utility.
CMOS RAM has lost power and needs to be reinitialized
via the System Configuration Utility.
The floppy controller failed to respond to the reset command. Power down the system and check all appropriate
connections. If the floppy controller continues to fail, you
may need to replace it.
The floppy drive cannot read track 0 of the floppy disk in
the drive. Try another diskette. If the problem persists, you
may need to replace the floppy disk drive.
The drive parameters stored in CMOS do not match the
floppy drives detected in the system.
The hard disk controller failed to respond to the reset command. Possible solutions: 1) Check the drive parameters.
2) Power down the system and check all appropriate connections. If the problem persists, you may need to replace
the hard disk controller.
The video adapter type specified in CMOS RAM does not
match the installed hardware.
The keyboard failed the self-test command. Check to see if
the keyboard controller is properly installed. If the problem
persists, replace the controller.
The keyboard failed to respond to the RESET ID Command.
59
LifeBook A Series – Section Five
Warning Messages
Message Description
No bootable floppy drive was detected. Possible solutions:
1) Power down the system and check all appropriate con-
NO BOOTABLE FLOPPY DRIVE 0 INSTALLED
NO INTERRUPTS FROM TIMER 0 The periodic timer interrupt is not occurring.
RAM PARITY ERROR AT LOCATION xxxx
ROM AT xxxx (LENGTH yyyy) WITH NON-ZERO CHECKSUM (zz)
TIME/DATE CORRUPT - RUN SCU
UNEXPECTED AMOUNT OF MEMORY - RUN SCU
nections, cables, etc. 2) In configurations where no floppy
drive is installed, run the System Configuration Utility and
make sure the diskette drive configuration item is set to
“None”. 3) Replace the diskette drive if necessary.
A ARM parity error occurred at the specified (hexadecimal)
location.
An illegal adapter ROM was located at the specified
address. An external adapter (such as a video card) may be
causing a conflict.
The time and date stored in the real time clock have been
corrupted, possibly by a power loss.
The amount of memory detected by POST does not match
the amount specified in CMOS RAM.
Message Description Beep Code
CMOS RAM TEST FAILED
DMA CONTROLLER FAULTY
FAULTY DMA PAGE REGISTERS
FAULTY REFRESH CIRCUIT
INTERRUPT CONTROLLER FAILED
ROM CHECKSUM INCORRECT
Fatal Messages
A walking bit test of CMOS RAM locations
0E (Hex) - 3F (Hex) failed.
A sequential read/write of the transfer count and
transfer address registers within the primary and
secondary DNMA controllers failed.
A walking bit read/write of the 16 DMA controller
page registers starting at location 80 Hex failed.
A continuous read/write test of port 61h found that
bit 4 (Refresh Detect) failed to toggle within an
allotted amount of time.
A sequential read/write of various Interrupt Controller registers failed.
A checksum of the ROM BIOS does not match the
byte value at F000:FFFF.
3
4
0
1
5
2
60
Troubleshooting
BEEP CODES
Beep codes provide a way to debug the system prior to
video initialization. The BIOS supports two types of
beep codes.
The first type consists of a series of beeps which are
emitted either as a long or short beep. These codes are
broken into eight segments with the 4th and 8th
segments generating a pause.
The second type produces a known number of beeps.
For example, Beep Code 10 produces one short beep,
Beep Code 11 produces 2 short beeps, etc.
The BIOS supports up to sixteen type 1 beep codes and
nine type 2 beep codes. Please note that type 1 beep
codes 0 - 8 have a pre-determined function. Type 1 codes
9 - F and all type 2 beep codes are modifiable by developers. The following table lists the beep codes along with
the beep sequence and meaning.
Type 1 Beep Codes
Beep Code Beep Sequence Meaning
0 S-S-S-P-S-S-L-P The DMA page registers are faulty.
1 S-S-S-P-S-L-S-P The refresh circuitry is faulty.
2 S-S-S-P-S-L-L-P The ROM checksum is incorrect.
3 S-S-S-P-L-S-S-P The CMOS RAM test failed.
4 S-S-S-P-L-S-L-P The DMA controller is faulty.
5 S-S-S-P-L-L-S-P The interrupt controller failed.
6 S-S-S-P-L-L-L-P The 8042 keyboard controller failed.
7 S-S-L-P-S-S-S-P No video adapter was found.
8 S-S-L-P-S-S-L-P No RAM is installed. No message is displayed.
9 S-S-L-P-S-L-S-P Modifiable - Can be used for any purpose.
A S-S-L-P-S-L-L-P Modifiable - Can be used for any purpose.
B S-S-L-P-L-S-S-P Modifiable - Can be used for any purpose.
C S-S-L-P-L-S-L-P Modifiable - Can be used for any purpose.
D S-S-L-P-L-L-S-P Modifiable - Can be used for any purpose.
E S-S-L-P-L-L-L-P Modifiable - Can be used for any purpose.
F S-S-L-P-S-S-S-P Modifiable - Can be used for any purpose.
S = Short, L = Long, P = Pause
Type 2 Beep Codes
Beep Code
10 * 15 ******
11 ** 16 *******
12 *** 17 ********
13 **** 18 *********
14 *****
Beep Sequence - Each (*) represents
one beep
61
LifeBook A Series – Section Five
EMERGENCY MEDIA PLAYER TRAY RELEASE
If for some reason the eject button fails, you can open
the media player tray with a paper clip or similar tool
inserted into the eject hole in the far right side of the
front of the tray. Straighten one side of a paper clip and
push it gently into the hole. The tray will pop out.
MODEM RESULT CODES
The operating system and application software that is
factory installed detects the modem characteristics and
provides the necessary command strings to operate the
modem. The internal modem operation is controlled by
generic AT commands from the operating system and
application software. The standard long form result
codes may, in some cases, be displayed on your screen to
keep you informed of the actions of your modem. The
operating system and application software may suppress
display of the result codes.
Examples of result codes are:
■
OK
■
NO CARRIER
■
NO DIALTONE
■
CONNECT 53000 (Connection complete at 53kbps.)
■
ERROR
■
FAX
■
RING (This means an incoming call.)
■
BUSY
■
NO ANSWER
When using the internal modem with applications that
are not factory installed refer to the application documentation.
DRIVER AND APPLICATIONS RESTORE CD
The Drivers and Application Restore CD contains:
■
Sets of device drivers and Fujitsu utilities (in specific
directories) that are unique to your LifeBook notebook configuration for use as documented below.
■
Read-me files that provide additional use information
for items on this CD-ROM.
POINT
If you have access to the internet, visit the Fujitsu
Support website at www.fujitsupc.com to check for the
most current information, drivers and hints on how to
perform recovery and system updates.
DRIVE IMAGE SPECIAL EDITION (DISE)
PowerQuest Drive Image Special Edition® (DISE)
provides a way to restore your computer if you experience a hard disk crash or o ther system failure. Fu jitsu h as
used DISE to create an image of everything installed on
the computer at the time you purchased it. The image is
saved on a separate partition on the hard disk. You can
62
use DISE to restore the factory image and return your
computer to the state in which it shipped from Fujitsu.
NOTE: Systems with the Windows 98 operating system
installed have the DISE directory structure in place, but
without the disk image or the DISE software installed.
(See Installing and Using DISE With Windows 98 Systems
on page 63 for more information)
Although it is not necessary, you can use DISE to store
additional image files that you create. For example, if
you install several applications and save data files on
your hard disk, you can create a new image file that
includes them and then save that image file on the hard
disk. Then, in the event of a hard disk failure, you can
restore the image that includes the applications and data
files you use.
Fujitsu recommends that you create a DISE disk as a
“rescue disk.” If your computer fails, you can boot and
run DISE from the rescue disk.
POINT
Using the DISE feature will reduce the amount of usable
disk space on your hard disk drive.
USING DISE WITH WINDOWS 2000/XP
Creating a Drive Image SE Diskette
You can use a DISE disk to boot your machine and run
DISE if your machine is unbootable or if you do not
have access to Windows.
Insert a formatted floppy disk in your machine.
From the Drive Image Special Edition main window,
click Options > Create Drive Image SE Diskette.
Running DISE from Diskettes
1. Insert the Drive Image SE Disk 1 in the floppy drive.
2. Reboot your computer.
3. Insert Disk 2, type DISE, then press <Enter>.
Creating a Backup Image
You can create a backup image of your C:\ drive at any
time. The C:\ partition must be a FAT, FAT32, or NTFS
partition, and it must be directly before the backup
partition on your hard disk.
1. At the Drive Image Special Edition main screen,
click Options> Create New Backup.
There is also a button on the main DISE screen that
performs the same function.
2. You will be prompted to type a password. Type a
password (or leave the password fields blank), then
click OK. DISE displays a warning that it must go to
DOS to create the image.
3. Click Ye s .
Troubleshooting
DISE creates an image file in the backup partition. If
you created a backup image previously, the new
image overwrites the old one.
Enlarging the Backup Partition
If there is not enough unused space in the backup partition on your hard disk, DISE will resize the partition.
DISE will display the minimum, maximum, and recommended sizes for the backup partition. You choose the
size you want.
DISE takes the space from the FAT, FAT32, or NTFS
partition that you are backing up. If there is not enough
unused space in that partition to take, you will not be
able to resize the backup partition and create an image
file. You can delete files from the FAT, FAT32, or NTFS
partition to create more unused space on the hard disk.
Restoring a Backup Image
You can restore either a factory image or a backup image
you created. Be aware that restoring a backup image will
replace the contents of the C:\ partition with the image
you restore.
1. Disable virus protection software. If virus protection
software is enabled, DISE will hang.
2. From the DISE main window, click Options >
Restore Backup to restore an image you created, or
click Options > Restore Factory Backup to restore
the factory image.
DISE shuts down to DOS and restores the image file.
Drivers and Applications Restore CD
The Drivers and Application CD can be used to selectively re-install drivers and/or applications that may have
been un-installed or corrupted. Please refer to installation instructions located in the Drivers and Applications
Restore CD.
POINT
Look for and open files with the extensions.WRI, .DOC,
.PDF and/or .TXT.
INSTALLING AND USING DISE WITH
WINDOWS 98 SYSTEMS
Systems with Windows 98 installed have the DISE directory structure in place, but without the disk image or the
DISE software installed.
When DISE is completely installed, the DISE backup
partition requires approximately 1.8GB of hard disk
space in Windows 98 systems. This number reflects the
size of the original Fujitsu Factory Image; if additional
applications are added by the reseller, the amount of
space required will be proportionately greater.
Factory Backup Image: This is the image that is originally delivered from the factory or the reseller.
User Backup Image: This is the modified Factory Image
containing any applications or changes that have been
added by the user.
This document outlines the procedure for creating the
Factory Backup Image on the hard drive using the DISE
utility. (The User Backup Image is designed for the enduser, and can be invoked from the desktop using the
DISE icon.)
POINT
If a DISE backup partition is not created for Master and/
or User backups, the Factory Backup Image may not be
recoverable.
Creating the Backup Partition
and Installing DISE on Windows 98
In order to provide a dedicated area on the hard disk to
store the image, you must first partition the disk.
1. Go to the C:\FUJITSU\POWERQUEST DISE directory and double-click on SETUP.EXE. The Welcome
screen appears.
2. Click Next.
3. Depending upon whether you are creating a Factory
Backup Image, a User Backup Image, or both, check
the applicable box(es). Be aware that the numbers
displayed represent Megabytes of disk space that will
be reserved to store the image. The following list
indicates the approximate size of the partition
required for Windows 98 systems:
One image - 1024MB
Two images - 1.8GB
4. Click [Next]. If the information displayed is correct,
click Finish to create the partition. The system will
automatically reboot and complete the operation.
5. When the message “The operation completed
successfully” appears, click [OK]. The system will
reboot.
Creating a Factory Backup Image
To create a Factory Backup Image, first partition the
disk, as outlined above. After the disk is partitioned,
proceed with the following steps.
POINT
The following step may require a bootable DOS
diskette.
1. Boot the system up into DOS.
2. From the DISE directory, type and enter the
following command (Note the spaces after “DISE”,
“.TXT”, and “.PQI”):
DISE /CMD=CREATE.TXT /IMG=FACTORY.PQI /SEC
63
LifeBook A Series – Section Five
3. After the Factory Backup Image is created, an
“Operation completed successfully” message
appears. Click [OK]. The system will reboot automatically.
Creating Drive Image SE Diskettes
It is recommended that you create DISE diskettes for the
system. You can use a DISE disk to boot the machine and
run DISE in the event the machine is unbootable or if
you do not have access to Windows.
1. Insert a formatted floppy disk in the drive.
2. From the Drive Image Special Edition main window,
click Options > Create Drive Image SE Diskette.
Follow the instructions displayed.
3. After diskettes have been created, label them Disk 1
and Disk 2.
Running Drive Image SE from Diskettes
1. Insert Drive Image SE Disk 1 in the drive.
2. Reboot the computer.
3. Insert Disk 2, type DISE, then press <Enter>.
Additional information about DISE is contained in the
following location on the hard drive:
C:\DISE\dise_end.pdf. There is also a shortcut icon on
the desktop to access the DISE readme file.
64
6
Care and Maintenance
65
LifeBook A Series – Section Six
66
Care and Maintenance
If you use your Fujitsu LifeBook notebook carefully, you
will increase its life and reliability. This section provides
some tips for looking after the LifeBook notebook and
its devices.
WARNING
Electrical equipment may be hazardous if misused. Operations of this product or similar products, must always be
supervised by an adult. Do not allow children access to
the interior of any electrical products and do not permit
them to handle any cables.
FUJITSU LIFEBOOK NOTEBOOK
Caring for your Fujitsu notebook
■
Your Fujitsu LifeBook notebook is a durable but sensitive electronic device. Treat it with respect and care.
■
Make a habit of transporting it in a suitable carrying
case.
■
Do not attempt to service the computer yourself.
Always follow installation instructions closely.
■
Keep it away from food and beverages.
■
If you accidentally spill liquid on your LifeBook
notebook:
1. Turn it off.
2. Position it so that the liquid can run out.
3. Let it dry out for 24 hours, or longer if needed.
4. If your LifeBook notebook will not boot after it
has dried out, call your support representative.
■
Do not use your Fujitsu LifeBook notebook in a wet
environment (near a bathtub, swimming pool).
■
Always use the AC adapter and batteries that are
approved for your LifeBook notebook.
■
Avoid exposure to sand, dust and other
environmental hazards.
■
Do not expose your Fujitsu LifeBook notebook to
direct sunlight for long periods of time as temperatures above 140° F (60° C) may damage your notebook.
■
Keep the covers closed on the connectors and slots
when they are not in use.
■
Do not put heavy or sharp objects on the computer.
■
If you are carrying your Fujitsu LifeBook notebook in
a briefcase, or any other carrying case, make sure that
there are no objects in the case pressing on the lid.
■
Never position your LifeBook notebook such that the
media player drive is supporting the weight of the
notebook.
■
Do not drop your Fujitsu LifeBook notebook.
Care and Maintenance
■
Do not touch the screen with any sharp objects.
Cleaning your Fujitsu notebook
■
Always disconnect the power plug. (Pull the plug, not
the cord.)
■
Clean your Fujitsu LifeBook notebook with a damp,
lint-free cloth. Do not use abrasives or solvents.
■
Use a soft cloth to remove dust from the screen.
Never use glass cleaners.
Storing your Fujitsu notebook
■
If storing your LifeBook notebook for a month or
longer, turn your Fujitsu LifeBook notebook off and
remove all Lithium ion batteries.
■
Store your Fujitsu LifeBook notebook and batteries
separately. If you store your LifeBook notebook with a
battery installed, the battery will discharge, and battery life will be reduced. In addition, a faulty battery
might damage your LifeBook notebook.
■
Store your Fujitsu LifeBook notebook in a cool, dry
location. Temperatures should remain between 13ºF
(-25ºC) and 140ºF (60ºC).
Traveling with your Fujitsu notebook
■
Do not transport your Fujitsu LifeBook notebook
while it is turned on.
■
Do not check your Fujitsu LifeBook notebook as baggage. Carry it with you.
■
When traveling with the hard drive removed, wrap the
drive in a non-conducting materials (cloth or paper). If
you have the drive checked by hand, be ready to install
the drive if needed. Never put your hard drive through a
metal detector. Have your hard drive hand-inspected by
security personnel. You can however, put your hard
drive through a properly tuned X-ray machine.
■
Take the necessary plug adapters if you're traveling
overseas. Check the following diagram to determine
which plug adapter you'll need or ask your travel agent.
67
LifeBook A Series – Section Six
Outlet Type Location
United States, Canada,
parts of Latin America,
Japan, Korea, Mexico,
the Philippines, Taiwan
Russia and the Commonwealth
of Independent States (CIS),
most of Europe, parts of Latin
America, the Middle East, parts
of Africa, Hong Kong, India,
most of South Asia
United Kingdom, Ireland,
Malaysia, Singapore,
parts of Africa
China, Australia,
New Zealand
BATTERIES
Caring for your Batteries
■
Always handle batteries carefully.
■
Do not short-circuit the battery terminals (that is, do
not touch both terminals with a metal object). Do not
carry lose batteries in a pocket or purse where they
may mix with coins, keys, or other metal objects.
Doing so may cause an explosion or fire.
■
Do not drop, puncture, disassemble, mutilate or incinerate the battery.
■
Recharge batteries only as described in this manual
and only in ventilated areas.
■
Do not leave batteries in hot locations for more than a
day or two. Intense heat can shorten battery life.
■
Do not leave a battery in storage for longer than 6
months without recharging it.
Increasing Battery Life
■
Power your Fujitsu LifeBook notebook through the
AC or optional auto/airline adapter whenever possible.
■
If your Fujitsu LifeBook notebook is running on battery power all day, connect it to the AC adapter overnight to recharge the battery.
■
Keep brightness to the lowest level comfortable.
■
Set the power management for maximum battery life.
■
Put your Fujitsu LifeBook notebook in Suspend mode
when it is turned on and you are not actually using it.
■
Limit your media drive access.
■
Disable the Media Player auto insert notification
function.
■
Always use fully charged batteries.
■
Eject PCMCIATM cards when not in use.
FLOPPY DISKS
Caring for your Floppy Disks
■
Avoid using the floppy disks in damp and dusty
locations.
■
Never store a floppy disk near a magnet or
magnetic field.
■
Do not use a pencil or an eraser on a disk or disk label.
■
Avoid storing the floppy disks in extremely hot or cold
locations, or in locations subject to severe temperature
changes. Store at temperatures between 50º F (10ºC)
and 125ºF (52ºC).
■
Do not touch the exposed part of the disk behind the
metal shutter.
MEDIA CARE
Caring for your Media (DVD/CD/CD-R)
Media discs are precision devices and will function reliably if given reasonable care.
■
Always store your media disc in its case when it is not
in use.
■
Always handle discs by the edges and avoid touching
the surface.
■
Avoid storing any media discs in extreme temperatures.
■
Do not bend media discs or set heavy objects on them.
■
Do not spill liquids on media discs.
■
Do not scratch media discs.
■
Do not put a label on media discs.
■
Do not get dust on media discs.
■
Never write on the label surface with a ballpoint pen
or pencil. Always use a felt pen.
■
If a media disc is subjected to a sudden change in temperature, cold to warm condensation may form on the
surface. Wipe the moisture off with a clean, soft, lint
free cloth and let it dry at room temperature. DO NOT
use a hair dryer or heater to dry media discs.
■
If a disc is dirty, use only a DVD/CD cleaner or wipe it
with a clean, soft, lint free cloth starting from the inner
edge and wiping to the outer edge.
68
Caring for your Media Player Drive
Your media player drive is durable but you must treat it
with care. Please pay attention to the following points:
■
The drive rotates the compact disc at a very high
speed. Do not carry it around or subject it to shock
or vibration with the power on.
■
Avoid using or storing the drive where it will be
exposed to extreme temperatures.
■
Avoid using or storing the drive where it is damp
or dusty.
■
Avoid using or storing the drive near magnets or
devices that generate strong magnetic fields.
■
Avoid using or storing the drive where it will be
subjected to shock or vibration.
■
Do not disassemble or dismantle the media player
drive.
PC CARDS
Caring for your PC Cards
PC Cards are durable, but you must treat them with
care. The documentation supplied with your PC Card
will provide specific information, but you should
pay attention to the following points:
■
To keep out dust and dirt, store PC Cards in their
protective sleeves when they are not installed in
your LifeBook notebook.
■
Avoid prolonged exposure to direct sunlight or
excessive heat.
■
Keep the cards dry.
■
Do not flex or bend the cards, and do not place heavy
objects on top of them.
■
Do not force cards into the slot.
■
Avoid dropping cards, or subjecting them to
excessive vibration.
Care and Maintenance
69
LifeBook A Series – Section Six
70
7
Specifications
71
LifeBook A Series – Section Seven
72
Specifications
Specifications
This section provides the hardware, software, and environmental specifications for your LifeBook notebook.
Specifications of particular configurations will vary.
MICROPROCESSOR
Mobile Athlon 4 - 1.2 GHz processor.
MEMORY
System Memor y
133MHz SDRAM memory module.
128MB or 256MB pre-installed in one DIMM slot;
one open DIMM slot available for upgrade.
Upgradeable to 1GB of total memory (512MB x 2)
Cache Memory
256KB on-die L2 cache.
BIOS Memory
512KB Flash ROM
128 Bytes CMOS RAM
VIDEO
Built-in color flat-panel TFT active matrix LCD display
with simultaneous display capability.
Video chipse t
VIA ProSavage4™ KN133 graphics with integrated S3
graphics and Savage4 AGP 4x graphics core.
Floppy Disk Drive
Internal 3. 5" Floppy Disk Drive, which accommodates
1.44MB or 720KB floppy disks.
INTEGRATED POINTING DEVICE
Touch pad pointing device with scrolling buttons
COMMUNICATIONS
■
Modem: Internal multinational V.90 standard 56K*
fax/modem (ITU V.90, 56K data, 14.4K fax.)
■
LAN: 10/100 Base-Tx Ethernet
■
Optional Wireless LAN, Wi-Fi-compliant (IEEE
802.11b)
* Actual speeds over U.S. telephone lines vary and are
less than 56Kbps due to the current FCC regulations
and line conditions. The internal modems on all
Fujitsu LifeBook notebooks are only qualified for use
with telephone systems inside the United States and
Canada and may not operate in other countries.
APPLICATION LAUNCH BUTTONS
The Application Launch Buttons are pre-set with the
following defaults assigned to each button:
Application A Notepad
Application B Calculator
WWW Internet Browser
E-Mail Outlook Express
Video Color and Resolution
■
Internal: 1024 x 768 pixel resolution, 16M colors.
■
External: 1600 x 1200 pixel resolution, 64k colors.
■
Simultaneous Video: 1024 x 768
Video RAM
Embedded Single Memory Architecture (SMA) with
three settings: 8MB, 16MB, and 32MB.
AUDIO
■
Conexant AC97 codec
■
16-bit stereo
■
Stereo headphone jack, 1 Vrms, or less, minimum
impedance 32 Ohms
■
Mono microphone jack, 125 mVp-p or less, minimum
impedance 10K Ohms
■
Two built-in speakers, (Stereo, boxless)
MASS STORAGE DEVICE OPTIONS
Hard Drive
30GB or 40GB fixed hard drive
Media Player Drive
(one of the following devices, depending upon the
configuration of your system).
■
8x(CDR)8x(CDRW)24x(CD) plus 8x DVD combo
drive
■
24x max CD-ROM
THEFT PREVENTION LOCK SLOT
Lock slot for use with physical restraining security
systems. The Kensington lock system is recommended.
DEVICE PORTS
■
Combination PC Card slot for one Type I, Type II or
Type III card: PCMCIA Standard with CardBus
support
■
One 15-pin D-SUB connector for VGA external
monitor (see Display specifications).
■
Two connectors for USB (Universal Serial Bus) Ver. 1.1
input/output devices.
■
One modular modem (RJ-11) connector.
■
One modular Ethernet (RJ-45) jack
■
One 4-pin IEEE 1394 jack
■
One 25-pin D-SUB connector for parallel input/
output devices (bi-directional output only for ECP)
■
One stereo headphone jack. (See Audio specifications)
■
One mono microphone jack. (See Audio specifications)
■
One IrDA (infrared) port
■
Optional wireless LAN (802.11b) with on/off switch.
KEYBOARD
Built-in keyboard with all functions of 101 key PS/2
compatible keyboards.
■
Total number of keys: 88
73
LifeBook A Series – Section Seven
■
Function keys: 12, F1 through F12
■
Feature extension key: Fn
■
Three Windows keys: two Start keys, one application
key
■
Key pitch: 19 mm
■
Key stroke: 3 mm
■
Built-in touchpad with scroll button
■
Built-in Palm Rest
External Keyboard Support
USB-compatible
External Numeric Keypad Support
USB-compatible
External Mouse Support
USB-compatible
POWER
Batteries
One 8-cell Lithium ion Battery, rechargeable, 14.8V,
4000 mAh
AC Adapter
Autosensing 100-240V AC, 80W, supplying 19Vdc,
4.22 A to the LifeBook notebook, Fujitsu Model
FPCAC33AP which includes an AC cable.
Power Management
Conforms to ACPI (Advanced Configuration and Power
Interface).
Electrostatic Discharge (ESD)
9 kV
DIMENSIONS AND WEIGHT
Overall Dimensions
12.56” (w) x 10.24” (d) x 1.34”/1.96” (h)
(319 x 260 x 34mm)
We i gh t
Approximately 6.4 lbs. (2.9 kg) with battery
ENVIRONMENTAL REQUIREMENTS
Te mp e r at u re
Operating: 41° to 95° F (5° to 35° C).
Non-operating: 5° to 140° F (–15° to 60° C).
Humidity
Operating: 20% to 85%, relative, non-condensing.
Non-operating; 8% to 85%, relative, non-condensing.
PRE-INSTALLED SOFTWARE
Your Fujitsu LifeBook Series notebook comes with
pre-installed software for playing audio and video files
of various formats. In addition there is file transfer
software, virus protection software, and Power
Management software.
■
Tutorials
All operating systems and most application software
have tutorials built-into them upon installation. We
highly recommend that you step through the tutorial
before you use an application.
■
Manuals
Included with your notebook you will find manuals for
your installed operating system and other pre-installed
software. Any manuals that are not included, are available online through the help system of the software. We
recommend that you review these manuals for general
information on the use of these applications.
■
Microsoft Windows
Depending upon the configuration of your LifeBook
notebook, Microsoft Windows 98 Second Edition,
Microsoft Windows 2000 Professional, or Microsoft
Windows XP Professional is installed as your operating
system.
■
Microsoft Internet Explorer
Internet Explorer is installed as your default internet
browser.
■
Drive Image Special Edition (DISE) by PowerQuest
DISE by PowerQuest provides a way to restore your
computer if you experience a hard disk crash or other
system failure. DISE is used to restore the factory image
and restore the system to its original state. Note that on
systems with Windows 98 installed, the DISE directory
structure is in place, but the drive image and DISE software have not yet been installed. (See Installing and
Using DISE With Windows 98 Systems on page 63 for
more information)
■
McAfee.com Scan for Virus
Scan for Virus, by McAfee.com, is an antivirus program
that can be run after loading data or programs onto your
LifeBook notebook. It assists in the protection of the
data currently residing on your hard disk from destruction or contamination. (See your Scan for Virus online
help or manual for more information on how and when to
run this program)
■
Adobe Acrobat Reader by Adobe Systems, Inc.
The Adobe Acrobat Reader, located in the Service and
Support Software folder, allows you to view, navigate,
and print PDF files from across all of the major
computing platforms.
■
Swift-Button Panel Software
Your notebook is pre-installed with software utilities that
let you operate and configure your application launch
buttons. These utilities are found under the Start menu,
under Programs, then under Swift-Button Panel. They
include a Media Player, Application Panel Setup. Application Panel Guide, Activate Panel and Deactivate Panel.
74
8
Glossary
75
LifeBook A Series – Section Eight
76
Glossary
Glossary
1394
A fast external bus that allows transfer rates of up to 400
Mbps.
AC Adapter
A device which converts the AC voltage from a
wall outlet to the DC voltage needed to power
your LifeBook notebook.
ACPI
A power management specification that allows the operating system to determine the amount of power given to
each connected device.
Active-Matrix Display
A type of technology for making flat-panel displays
which has a transistor or similar device for every pixel
on the screen.
APM
Advanced Power Management.
Auto/Airline Adapter
A device which converts the DC voltage from an automobile cigarette lighter or aircraft DC power outlet to
the DC voltage needed to power your LifeBook notebook.
in specially structured ways to make your overall data
handling time faster.
CardBus
A faster, 32-bit version of the PC Card interface
which offers performance similar to the 32-bit
PCI architecture.
CD-ROM
Compact disc read only memory. This is a form of
digital data storage which is read optically with a laser
rather than a magnetic head. A typical CD-ROM can
contain about 600MB of data and is not subject to heads
crashing into the surface and destroying the data when
there is a failure nor to wear from reading.
CMOS RAM
Complementary metal oxide semiconductor random
access memory. This is a technology for manufacturing
random access memory which requires very low levels of
power to operate.
COMM Port
Abbreviation for communication port. This is your
serial interface connection.
Command
An instruction which you give your operating
system. Example: run a particular application or
format a floppy disk.
BIOS
Basic Input-Output System. A program and set of
default parameters stored in ROM which tests and
operates your LifeBook notebook when you turn it on
until it loads your installed operating system from disk.
Information from the BIOS is transferred to the installed
operating system to provide it with information on
the configuration and status of the hardware.
Bit
An abbreviation for binary digit. A single piece of
information which is either a one (1) or a zero (0).
bps
An abbreviation for bits per second. Used to describe
data transfer rates.
Boot
To start-up a computer and load its operating system
from disc, ROM or other storage media into RAM.
Bus
An electrical circuit which passes data between the CPU
and the sub-assemblies inside your LifeBook notebook.
Byte
8 bits of parallel binary information.
Cache Memory
A block of memory built into the micro-processor which
is much faster to access than your system RAM and used
Configuration
The combination of hardware and software that makes
up your system and how it is allocated for use.
CRT
Cathode Ray Tube. A display device which uses a beam
of electronic particles striking a luminescent screen. It
produces a visual image by varying the position and
intensity of the beam.
Data
The information a system stores and processes.
DC
Direct current. A voltage or current that does not
fluctuate periodically with time.
Default Value
A pre programmed value to be used if you fail to
set your own.
DIMM
Dual-in-line memory module.
disk
A spinning platter of magnetic data storage media. If the
platter is very stiff it is a hard drive, if it is highly flexible
it is a floppy disk, if it is a floppy disk in a hard housing
with a shutter it is commonly called a diskette.
77
LifeBook A Series – Section Eight
Disk Drive
The hardware which spins the disk and has the heads
and control circuitry for reading and writing the data
on the disk.
Diskette
A floppy disk in a hard housing with a shutter.
DMA
Direct Memory Access. Special circuitry for memory
to memory transfers of data which do not require
CPU action.
DMI
Desktop Management Interface. A standard that
provides PC management applications with a common
method of locally or remotely querying and configuring
PC computer systems, hardware and software components, and peripherals.
DOS
Disk Operating System (MS-DOS is a Microsoft Disk
Operating System).
Driver
A computer program which converts application and
operating system commands to external devices into the
exact form required by a specific brand and model of
device in order to produce the desired results from that
particular equipment.
DVD
Digital Video Disc. A type of CD-ROM that holds a
minimum of 4.7GB, enough for a full-length movie.
DVDs are backward-compatible with CD-ROMs, so that
DVD players can play old CD-ROMs, video CDs, and
new DVD-ROMs.
ECP
Extended Capability Port. A set of standards for high
speed data communication and interconnection
between electronic devices.
ESD
Electro-Static Discharge. The sudden discharge of electricity from a static charge which has built-up slowly.
Example: the shock you get from a doorknob on a dry day
or the sparks you get from brushing hair on a dry day.
Extended Memory
All memory more than the 640KB recognized by
MS-DOS as system memory.
FCC
Federal Communication Commission.
Floppy Disk
A spinning platter of magnetic data storage media which
is highly flexible.
GB
Gigabyte.
Hard drive
A spinning platter of magnetic data storage media where
the platter is very stiff.
Hexadecimal
A decimal notation for the value of a 4 bit binary
number. (0-9, A, B, C, D, E, F) Example: 2F in hexadecimal = 00101111 in binary = 47 in decimal.
I/O
Input/Output. Data entering and leaving your LifeBook
notebook in electronic form.
I/O Port
The connector and associated control circuits for data
entering and leaving your LifeBook notebook in electronic form.
IDE
Intelligent Drive Electronics. A type of control interface
for a hard drive which is inside the hard drive unit.
IEEE 1394
A type of data transfer protocol that allows for fast
transfer of digital files and data with devices such as
digital cameras.
Infrared
Light just beyond the red portion of the visible light
spectrum which is invisible to humans.
IR
An abbreviation for infrared.
IrDA
Infrared Data Association. An organization which
produces standards for communication using infrared
as the carrier.
IRQ
Interrupt Request. An acronym for the hardware signal
to the CPU that an external event has occurred which
needs to be processed.
KB
Kilobyte.
LAN
Local Area Network. An interconnection of computers
and peripherals within a single limited geographic
location which can pass programs and data amongst
themselves.
LCD
Liquid Crystal Display. A type of display which makes
images by controlling the orientation of crystals in a
crystalline liquid.
78
Glossary
Lithium ion Battery
A type of rechargeable battery which has a high powertime life for its size and is not subject to the memory
effect as Nickel Cadmium batteries.
LPT Port
Line Printer Port. A way of referring to parallel
interface ports because historically line printers were the
first and latter the most common device connected to
parallel ports.
MB
Megabyte.
Megahertz
1,000,000 cycles per second.
Memory
A repository for data and applications which is readily
accessible to your LifeBook notebook CPU.
MHz
Megahertz.
MIDI
Musical Instrument Digital Interface. A standard
communication protocol for exchange of information
between computers and sound producers such
as synthesizers.
Modem
A contraction for MOdulator-DEModulator. The
equipment which connects a computer or other data
terminal to a communication line.
Monaural
A system using one channel to process sound from
all sources.
MPU-401
A standard for MIDI interfaces and connectors.
NTSC
National TV Standards Commission. The standard for
TV broadcast and reception for the USA.
Operating System
A group of control programs that convert application
commands, including driver programs, into the exact
form required by a specific brand and model of microprocessor in order to produce the desired results from
that particular equipment.
Parallel Port
A connection to another device through which data is
transferred as a block of bits simultaneously with a wire
for each bit in the block and with other wires only for
control of the device not for transfer of data.
Partition
A block of space on a hard drive which is set aside and
made to appear to the operating system as if it were a
separate disk, and addressed by the operating system
accordingly.
PCMCIA
PCMCIA is a trademark of the Personal Computer
Memory Card International Association. The Personal
Computer Memory Card International Association is an
organization that sets standards for add-in cards for
personal computers.
Peripheral Device
A piece of equipment which performs a specific function
associated with but not integral to a computer. Examples: a printer, a modem, a CD-ROM.
Pitch (keyboard)
The distance between the centers of the letter keys
of a keyboard.
Pixel
The smallest element of a display, a dot of color on your
display screen. The more pixels per area the clearer your
image will appear.
POST
Power On Self Test. A program which is part of the BIOS
which checks the configuration and operating condition
of your hardware whenever power is applied to your
LifeBook notebook. Status and error messages may be
displayed before the operating system is loaded. If the
self test detects failures that are so serious that operation
can not continue, the operating system will not be
loaded.
Program
An integrated set of coded commands to your
computers telling your hardware what to do and how
and when to do it.
RAM
Random Access Memory. A hardware component of
your LifeBook notebook that holds binary information
(both program and data) as long as it has the proper
power applied to it.
RAM Module
A printed circuit card with memory and associated
circuitry which allows the user to add additional
memory to the computer without special tools.
Reset
The act of reloading the operating system. A reset erases
all information stored in RAM.
Restart
See Reset.
Resume
To proceed after interruption. In your LifeBook notebook this refers to returning to active operation after
having been in one of the suspension states.
79
LifeBook A Series – Section Eight
ROM
Read Only Memory. A form of memory in which information is stored by physically altering the material. Data
stored in this way can not be changed by your LifeBook
notebook and does not require power to maintain it.
SDRAM
Synchronous Dynamic Random Access Memory.
Serial Port
A connection to another device through which data is
transferred one bit at a time on a single wire with any
other wires only for control of the device not for transfer
of data.
Shadow RAM
A technique of copying data or applications stored in
ROM (Read Only Memory) into RAM (Random Access
Memory) for access during actual operation. RAM is
much faster to access than ROM, however ROM
contents are not lost when power is removed.
Shadowing allows permanently stored information
to be rapidly accessed.
SRAM
Static random access memory. A specific technology
of making RAM which does not require periodic
data refreshing.
Status Indicator
A display which reports the condition of some portion
of your hardware. On your LifeBook notebook this is an
LCD screen just above the keyboard.
Stereo (audio)
A system using two channels to process sound from two
different sources.
Stroke (keyboard)
The amount of travel of a key when it is pressed from
resting to fully depressed.
Suspend
To make inoperative for a period of time. Your LifeBook
notebook uses various suspension states to reduce power
consumption and prolong the charge of your battery.
SVGA
Super VGA.
TFT
Thin Film Transistor – A technology for flat display
panels which uses a thin film matrix of transistors to
control each pixel of the display screen individually.
UL
Underwriters Laboratories – An independent organization that tests and certifies the electrical safety of devices.
USB
Universal Serial Bus. The USB specification is a peripheral bus standard for connecting external devices. Some
features of the standard include support for up to 127
concurrent USB devices, dynamic insertion and removal
of devices, and self-identifying peripheral configuration.
VGA
Video Graphics Array. A video display standard
originally introduced by IBM with the PS/2 series of
personal computers.
VRAM
Video Random Access Memory. A memory dedicated to
video display data and control.
WFM
Wired for Management is Intel’s broad-based initiative
to reduce the total cost of ownership (TCO) of business
computing without sacrificing power and flexibility.
Wi-Fi
Wireless Fidelity
Term given to the IEEE 802.11b standard for wireless
interoperability. Wi-Fi- enabled devices link together
wirelessly to form local area networks.
Write Protect
Prevent alteration of the binary state of all bits in a
storage media. Example: all information on a device
such as a floppy diskette; a block of space in a storage
media such as a partition of a hard drive; a file or directory of floppy diskette or hard drive.
XGA
Extended VGA.
S-Video
Super Video. A component video system for driving a
TV or computer monitor.
System Clock
An oscillator of fixed precise frequency which synchronizes the operation of the system and is counted to
provide time of day and date.
80
Regulatory Information
Regulatory Information
NOTICE
Changes or modifications not expressly approved by
Fujitsu could void this user’s authority to operate the
equipment.
FCC NOTICES
Notice to Users of Radios and Television
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
n
Reorient or relocate the receiving antenna.
n
Increase the separation between the equipment and
receiver.
n
Connect the equipment into an outlet that is on a
different circuit than the receiver.
n
Consult the dealer or an experienced radio/TV
technician for help.
Shielded interconnect cables must be employed with this
equipment to ensure compliance with the pertinent RF
emission limits governing this device.
Notice to Users of the US Telephone Network
Your Fujitsu LifeBook notebook may be supplied with
an internal modem which complies with Part 68 of the
FCC rules. On this notebook is a label that contains the
FCC Registration Number and the Ringer Equivalence
Number (REN) for this equipment among other information. If requested, the user must provide their telephone company with the following information:
1. The telephone number to which the LifeBook notebook is connected.
2. The Ringer Equivalence Number (REN) for this
equipment.
3. That the equipment requires a standard FCC Part
68-compliant modular jack type USOC RJ-11C.
4. The FCC Registration Number.
This equipment is designed to be connected to the telephone network or premises wiring using a standard
modular jack type USOC RJ-11C which is FCC Part 68
compliant and a line cord between the modem and the
telephone network with a minimum of 26AWG.
The REN is used to determine the number of devices
you may connect to your telephone line and still have all
of those devices ring when your number is called. Too
many devices on one line may result in failure to ring in
response to an incoming call. In most, but not all, areas
the sum of the RENs of all of the devices should not
exceed five (5). To be certain of the number of devices
you may connect to your line, as determined by the
RENs, contact your local telephone company.
If this equipment causes harm to the telephone network,
your telephone company may discontinue your service
temporarily. If possible, they will notify you in advance.
If advance notice is not practical they will notify you as
soon as possible. You will also be advised of your right to
file a complaint with the FCC.
This fax modem also complies with fax branding
requirements per FCC Part 68.
Your telephone company will probably ask you to
disconnect this equipment from the telephone network
until the problem is corrected and you are sure that the
equipment is not malfunctioning. This equipment may
not be used on coin-operated telephones provided by
your telephone company. Connection to party lines is
subject to state tariffs. Contact your state’s public utility
commission, public service commission or corporation
commission for more information.
This equipment includes automatic dialing capability.
When programming and/or making test calls to
emergency numbers:
n
Remain on the line and briefly explain to the
dispatcher the reason for the call.
n
Perform such activities in off-peak hours, such as early
morning or late evening.
FCC rules prohibit the use of non-hearing aid compatible
telephones in the following locations or applications:
n
All public or semi-public coin-operated or credit card
telephones.
n
Elevators, highways, tunnels (automobile, subway,
railroad or pedestrian) where a person with impaired
hearing might be isolated in an emergency.
n
Places where telephones are specifically installed to
alert emergency authorities such as fire, police or
medical assistance personnel.
n
Hospital rooms, residential health care facilities,
convalescent homes and prisons.
n
Workstations for the hearing impaired.
n
Hotel, motel or apartment lobbies.
n
Stores where phones are used to order merchandise.
n
Public transportation terminals where telephones are
used to call taxis or to reserve lodging or rental cars.
n
In hotel and motel rooms. At least 10% of the rooms
must contain hearing aid compatible phones or jacks
for hearing aid compatible telephones which will be
provided to hearing impaired customers on request.
81
LifeBook A Series
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment
Regulations.
CET appareil numérique de la class B respecte toutes les
exigence du Réglement sur le matérial brouilleur du
Canada.
Notice to Users of the Canadian Telephone Network
The Canadian Industry Canada label identifies certified
equipment. This certification means that the equipment
meets certain telecommunications network protective,
operational, and safety requirements. The Department
does not guarantee the equipment will operate to the
user’s satisfaction.
Fujitsu LifeBook computers are supplied with an
internal modem which complies with the Industry
Canada certification standards for telecommunication
network protection and safety requirements. Before
connecting this equipment to a telephone line the user
should ensure that it is permissible to connect this
equipment to the local telecommunication facilities.
The user should be aware that compliance with the
certification standards does not prevent service
degradation in some situations.
Repairs to telecommunication equipment should be
made by a Canadian authorized maintenance facility.
Any repairs or alterations not expressly approved by
Fujitsu or any equipment failures may give the telecommunication company cause to request the user to
disconnect the equipment from the telephone line.
The connecting arrangement code for this equipment
is CA11A.
The Load Number assigned to each telephone terminal
device denotes the percentage of the total load to be
connected to a telephone loop or circuit which is used by
the device to prevent overloading. The termination on a
loop may consist of any combination of devices such
that the total of the load numbers of all devices does not
exceed 100.
CAUTION
For safety, users should ensure that the electrical
ground of the power utility, the telephone lines and
the metallic water pipes are connected together.
Users should NOT attempt to make such connections
themselves but should contact the appropriate electric
inspection authority or electrician. This may be
particularly important in rural areas.
Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien
L’étiquette canadienne Industrie Canada identifie
l’équipement certifié. Cette certification signifie que
l’équipement satisfait certaines normes de protection,
d’exploitation et de sécurité des réseaux de télécommunications. Le département ne garantit pas le fonctionnement de l’équipement à la satisfaction de l’utilisateur.
®
La série LifeBook
possède un modem interne conforme
aux normes de certification d’Industrie Canada pour
protéger les réseaux de télécommunications et satisfaire
aux normes de sécurité. Avant de connecter cet équipement à une ligne téléphonique, l’utilisateur doit vérifier
s’il est permis de connecter cet équipement aux installations de télécommunications locales. L’utilisateur est
averti que même la conformité aux normes de certification ne peut dans certains cas empêcher la dégradation
du service.
Les réparations de l’équipement de télécommunications
doivent être eVectuées par un service de maintenance
agréé au Canada. Toute réparation ou modification, qui
n’est pas expressément approuvée par Fujitsu, ou toute
défaillance de l’équipement peut entraîner la compagnie
de télécommunications à exiger que l’utilisateur déconnecte l’équipement de la ligne téléphonique.
Le code d’arrangement de connexion de cet équipement
est CA11A.
Le numéro de charge assigné à chaque terminal téléphonique indique le pourcentage de la charge totale pouvant
être connecté à une boucle ou à un circuit téléphonique,
utilisé par ce périphérique afin de prévenir toute
surcharge. La terminaison d’une boucle peut être constituée de n’importe quelle combinaison de périphériques
de sorte que le total de numéros de charge de tous les
périphériques n’excède pas 100.
AVERTISSEMENT
Pour assurer la sécurité, les utilisateurs doivent vérifier
que la prise de terre du service d’électricité, les lignes
télphoniques et les conduites d’eau métalliques sont
connectées ensemble. Les utilisateurs NE doivent PAS
tenter d’établir ces connexions eux-mêmes, mais
doivent contacter les services d’inspection d’installations
électriques appropriés ou un électricien. Ceci peut être
particulièrement important en régions rurales.
82
UL Notice
This unit requires an AC adapter to operate. Use only UL
Listed adapters with an output rating of 19 Vdc, with a
current of 4.22 A.
AC Adapter output polarity:
+
WARNING
n
To reduce the risk of fire, use only #26 AWG or larger
telecommunication line cord.
n
Always disconnect all telephone lines from the wall
outlet before servicing or disassembling this equipment.
n
Do not use this product near water, e.g., near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet
basement or near a swimming pool.
n
Avoid using a modem (other than a cordless type)
during an electrical storm to avoid risk of electric
shock from lightning.
n
Do not use the modem to report a gas leak in the
vicinity of the leak.
n
Use only the power cord and batteries indicated in
this manual. Do not dispose of batteries in a fire; they
may explode. Check with local codes for possible
special disposal instructions.
Regulatory Information
For Authorized Repair Technicians Only
WARNING
n
For continued protection against risk of fire, replace
only with the same type and rating fuse.
n
Danger of explosion if Lithium (clock) battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose
of used batteries according to the manufacturer’s
instruction.
83
LifeBook A Series
84
Index
Index
A
AC
adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
plug adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Anti-theft Lock Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Application Launch Buttons . . . . . . . . . . . . . . 8, 21, 73
configuring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Auto Insert Notification . . . . . . . . . . . . . . . . . . . . . . . 40
Auto/Airline Adapter . . . . . . . . . . . . . . . . . . . . . . 25, 77
B
Battery
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
conserving power . . . . . . . . . . . . . . . . . . . . . . . . . . 30
dead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
faulty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
increasing life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
lithium ion battery . . . . . . . . . . . . . . . . . . . . . . 35, 79
low . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
recharging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
suspend mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Battery Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
BIOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
setup utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Booting the System . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
C
Cache Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
CapsLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Caring for your Fujitsu notebook . . . . . . . . . . . . . . . 67
Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
COMM Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Conventions Used in the Guide . . . . . . . . . . . . . . . . . .3
Cursor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Cursor Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
D
DC Output Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
DC Power Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .12, 25
device ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Disk
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Display Panel Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Display Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Docking Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Dolby Headphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Double-Clicking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Dragging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Drive Image Special Edition . . . . . . . . . . . . . . . . . . . .62
Drivers and Application CD . . . . . . . . . . . . . . . . . . . .63
E
Emergency Media Player Tray Release . . . . . . . . . . . .11
Extended Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . .78
External Monitor Port . . . . . . . . . . . . . . . . . . . . . .12, 45
F
Floppy Disk
ejecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
formatting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
preparing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
write protect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
LifeBook A Series
Floppy Disk Drive
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fujitsu Contact Information . . . . . . . . . . . . . . . . . . . . 3
Fujitsu LifeBook
storing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
traveling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Fujitsu Service Assistant . . . . . . . . . . . . . . . . . . . . . . . 51
Function Key
F10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
F9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
G
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
H
Hard Disk Drive
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Hard Disk Timeout . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 45
I
IEEE 1394 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Infrared Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 45
Internal Floppy Disk Drive . . . . . . . . . . . . . . . . . . 10, 37
Internal LAN Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
IrDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
K
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8, 16
cursor keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
function keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
windows keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
L
LAN Jack (RJ-45) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Lithium ion Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lithium ion Battery Bay . . . . . . . . . . . . . . . . . . . . . . . 11
M
Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
access indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38, 39
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Media player
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
tray release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Media Player Eject Button . . . . . . . . . . . . . . . . . . . . . .11
Media Player Software . . . . . . . . . . . . . . . . . . . . . . . . .38
Memory
capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Memory Upgrade Module . . . . . . . . . . . . . . . . . . . . . .46
Microphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 45
Modem (RJ-11) Telephone Jack . . . . . . . . . . . . . . . . .10
Modem Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Modem Result Codes . . . . . . . . . . . . . . . . . . . . . . . . . .62
N
Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
NumLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
P
Parallel Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12, 79
PC Card
care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
PC Card Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
PC Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Pointing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Port Replicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Port Replicator Interface . . . . . . . . . . . . . . . . . . . . . . .45
POST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Power
AC adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Auto/Airline adapter . . . . . . . . . . . . . . . . . . . . . . . .25
failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Index
power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Power Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Power On Self Test Messages . . . . . . . . . . . . . . . . . . . 59
Pre-Installed Software . . . . . . . . . . . . . . . . . . . . . . . . . 74
manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
PS/2 Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 45
R
Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29
Restarting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
RJ-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
RJ-45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
S
ScrLk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 44, 80
Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Application Launch Buttons . . . . . . . . . . . . . . . . . 73
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Communications . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Device Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Environmental Requirements . . . . . . . . . . . . . . . . 74
Integrated Pointing Device . . . . . . . . . . . . . . . . . . 73
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Mass Storage Device Options . . . . . . . . . . . . . . . . 73
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
microprocessor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Theft Prevention Lock . . . . . . . . . . . . . . . . . . . . . . 73
Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Starting Your LifeBook . . . . . . . . . . . . . . . . . . . . . . . . 27
Status Display Indicators . . . . . . . . . . . . . . . . . . . . . . . 8
Status Indicator Panel . . . . . . . . . . . . . . . . . . . . . . . . . 14
Stereo Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Suspend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Suspend Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
