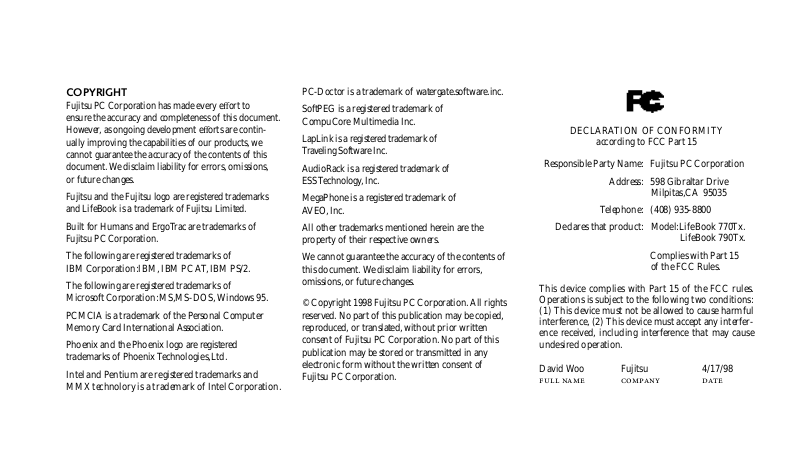

Fu j i t su PC Corpora ti on has made every effort to
en su re the acc u racy and com p l eteness of this doc u m en t .
However,as on going devel opm ent efforts are con ti n u a lly improving the capabi l i ties of our produ ct s ,we
cannot guara n tee the acc u racy of the con tents of t h i s
doc u m en t .We disclaim liabi l i ty for errors ,om i s s i on s ,
or futu re ch a n ge s .
Fu j i t su and the Fu j i t su logo are regi s tered tradem a rk s
and Life Book is a tradem a rk of Fu j i t su Limited .
Built for Humans and Ergo Trac are tradem a rks of
Fu j i t su PC Corpora ti on .
The fo ll owing are regi s tered tradem a rks of
IBM Corpora ti on :I B M ,IBM PC AT,IBM PS/2.
The fo ll owing are regi s tered tradem a rks of
Mi c ro s oft Corpora ti on :M S ,M S - DO S ,Wi n dows 95.
PCMCIA is a tradem a rk of the Pers onal Com p uter
Mem ory Ca rd In tern a ti onal As s oc i a ti on .
P h oenix and the Phoenix logo are regi s tered
tradem a rks of P h oenix Tech n o l ogi e s ,L td .
Intel and Pentium are registered trademarks and
MMX technolory is a trademark of Intel Corporation.
P C - Doctor is a tradem a rk of w a ter ga te . s of t w a re . i n c .
Sof t PEG is a regi s tered tradem a rk of
Com p u Core Mu l ti m edia In c .
LapLink is a regi s tered tradem a rk of
Traveling Sof t w a re In c .
Au d i o Rack is
ESS Tech n o l ogy, In c .
Mega P h one is a regi s tered tradem a rk of
AV E O,In c .
All other tradem a rks men ti on ed herein are the
property of t h eir re s pective own ers .
We cannot guara n tee the acc u racy of the con tents of
this doc u m en t .We disclaim liabi l i ty for errors ,
om i s s i on s ,or futu re ch a n ge s .
This devi ce complies with Pa rt 15 of the FCC ru l e s .
Opera ti ons is su bj ect to the fo ll owing two con d i ti on s :
(1) This devi ce must not be all owed to cause harm f u l
i n terferen ce , (2) This devi ce must accept any interferen ce received , i n cluding interferen ce that may cause
u n de s i red opera ti on .
D avid WooFu j i t su4 / 1 7 / 9 8
C A U T I O N
Changes or modification not expressly appro v e d
by Fujitsu PC Corporation could void this user’s
authority to operate the equipment.
FCC NOTICES
Notice to Users of Radios and Television
These limits are de s i gn ed to provi de re a s on a ble pro tecti on against harmful interferen ce in a re s i den tial install a ti on . This equ i pm ent gen era te s ,u s e s ,and can rad i a te
radio frequ ency en er gy and,i f not install ed and used
in accord a n ce with the instru cti on s ,m ay cause harm f u l
i n terferen ce to radio com mu n i c a ti on s . However,t h ere
is no guara n tee that interferen ce wi ll not occur in a
p a rticular install a ti on .If this equ i pm ent does cause
h a rmful interferen ce to radio or tel evi s i on recepti on ,
wh i ch can be determ i n ed by tu rning the equ i pm ent
off and on ,the user is en co u ra ged to try to correct the
i n terferen ce by one or more of the fo ll owing measu re s :
■
Reori ent or rel oc a te the receiving anten n a .
■
In c rease the sep a ra ti on bet ween the equ i pm ent
and receiver.
■
Con n ect the equ i pm ent into an out l et that is on
a different circuit than the receiver.
■
Consult the dealer or an experienced radio/TV
technician for help.
S h i el ded intercon n ect cables must be em p l oyed wi t h
this equ i pm ent to en su re com p l i a n ce with the pertin ent RF em i s s i on limits governing this devi ce .
Notice to Users of the US Telephone Network
The LifeBook™700 Series notebook computers are
supplied with an internal modem which complies
with Part 68 of the FCC rules.On this notebook is
a label that contains the FCC Registration Number
and the Ringer Equivalence Number (REN) for this
equipment among other information. If requested,
the user must provide their telephone company with
the following information:
1. The telephone number to which the notebook
is connected.
2. The Ringer Equivalence Number (REN) for
this equipment.
3. That the equipment requires a standard modular
jack type USOC RJ-11C which is FCC
Part 68 compliant.
4. The FCC Registration Number.
This equ i pm ent is de s i gn ed to be con n ected to the
tel eph one net work or premises wi ring using a standard
m odular jack type USOC RJ-11C wh i ch is FCC Pa rt 68
compliant and a line cord bet ween the modem and the
tel eph one net work with a minimum of2 6 AWG .
The REN is used to determine the nu m ber of devi ce s
that you may con n ect to your tel eph one line and sti ll
h ave all of those devi ces ring wh en your nu m ber is
c a ll ed .Too many devi ces on one line may re sult in
f a i lu re to ring in re s ponse to an incoming call . In most,
but not all ,a r eas the sum of the RENs of a ll of t h e
devi ces should not exceed five (5.0).To be certain of
the nu m ber of devi ces you may con n ect to your line,
as determ i n ed by the RENs,con t act your local
tel eph one com p a ny.
If this equipment causes harm to the telephone network, your telephone company may discontinue your
service temporarily.If possible,they will notify you
in advance. If advance notice is not practical they will
notify you as soon as possible. You will also be advised
of your right to file a complaint with the FCC.
This fax modem also complies with fax branding
requirements per FCC Part 68.
Your telephone company will probably ask you to disconnect this equipment from the telephone network
until the problem is corrected and you are sure that
the equipment is not malfunctioning.This equ i pm en t
m ay not be used on coin servi ce tel eph ones provi ded
by your tel eph one com p a ny.Con n ecti on to party lines
is su bj ect to state tariffs .Con t act your state’s publ i c
uti l i ty com m i s s i on ,p u blic servi ce com m i s s i on or
corpora ti on com m i s s i on for more inform a ti on .
This equ i pm ent inclu des autom a tic dialing capabi l i ty.
Wh en programming and/or making test calls to
em er gency nu m bers :
■
Remain on the line and briefly explain to the
dispatcher the reason for the call.
■
Perform such activities in off-peak hours,such
as early morning or late evening.
FCC rules pro h i bit the use of n on - h e a ring aid
com p a ti ble tel eph ones in the fo ll owing loc a ti ons
or app l i c a ti on s :
■
All public or semipublic coin-operated or credit
card telephones.
■
E l eva tors ,h i ghw ays ,tu n n els (autom obi l e ,su bw ay,
ra i l road or pede s trian) wh ere a pers on wi t h
i m p a i red hearing might be isolated in an em er gen c y.
■
Places where telephones are specifically installed
to alert emergency authorities such as fire, police
or medical assistance personnel.
■
Hospital rooms,residential health care facilities,
convalescent homes and prisons.
■
Workstations for the hearing impaired.
■
Hotel,motel or apartment lobbies.
■
Stores where telephones are used by patrons
to order merchandise.
■
Public transportation terminals where telephones
are used to call taxis or to reserve lodging or
rental cars.
■
In hotel and motel rooms as at least ten percent
of the rooms must contain hearing aid compatible
telephones or jacks for plug-in hearing aid compatible telephones which will be provided to hearing
impaired customers on request.
DOC (INDUSTRY CANADA) NOTICES
Notice to Users of Radios and Television
This Class B digital app a ra tus meets all requ i rem ents
of the Ca n adian In terferen ce - Causing Equ i pm en t
Reg u l a ti on s .
CET app a reil nu m é ri que de la class B re s pecte to utes
les ex i gen ce du Régl em ent sur le matérial bro u i ll eur
du Ca n ad a .
Notice to Users of the Canadian
Telephone Network
The Canadian Industry Canada label identifies certified equipment. This certification means that the
equipment meets certain telecommunications network protective,operational and safety requirements.
The Department does not guarantee the equipment
will operate to the user’s satisfaction.
The Life Book 700 Series notebook com p uters are
su pp l i ed with an internal modem wh i ch complies
with the In du s try Ca n ada certi fi c a ti on standards for
tel ecom mu n i c a ti on net work pro tecti on and safety
requ i rem en t s .Before con n ecting this equ i pm ent to
a tel eph one line the user should en su re that it is perm i s s i ble to con n ect this equ i pm ent to the local tel e com mu n i c a ti on fac i l i ti e s .The user should be aw a re
that com p l i a n ce with the certi fi c a ti on standards doe s
not prevent servi ce degrad a ti on in some situ a ti on s .
Rep a i rs to tel ecom mu n i c a ti on equ i pm ent should be
m ade by a Ca n adian aut h ori zed mainten a n ce fac i l i ty. Any
rep a i rs or altera ti ons not ex pre s s ly approved by Fu j i t su
™
PC Corpora ti on or any equ i pm ent failu res may give the
tel ecom mu n i c a ti on com p a ny cause to request the user to
d i s con n ect the equ i pm ent from the tel eph one line.
The con n ecting arra n gem ent code for this equ i pm ent
is CA11A.
The Load Nu m ber is 3.
The Load Nu m ber assign ed to each tel eph one term i n a l
devi ce den o tes the percen t a ge of the total load to be
con n ected to a tel eph one loop or circuit wh i ch is used
by the devi ce to prevent overl oad i n g.The term i n a ti on
on a loop may consist of a ny com bi n a ti on of devi ce s
su ch that the total of the load nu m bers of a ll devi ce s
does not exceed 100.
C A U T I O N
For safety, users should ensure that the
electrical ground of the power utility, the
telephone lines and the metallic water
pipes are connected together. Users should
NOT attempt to make such connections
themselves but should contact the
a p p ropriate electric inspection authority
or electrician. This may be part i c u l a r l y
i m p o rtant in rural are a s .
Avis Aux Utilisateurs Du Réseau
Téléphonique Canadien
L’étiquette canadienne Industrie Canada identifie
l’équipement certifié. Cette certification signifie
que l’équipement satisfait certaines normes de
protection,d’exploitation et de sécurité des réseaux
de télécommunications. Le département ne garantit
pas le fonctionnement de l’équipement à la
satisfaction de l’utilisateur.
La série Life Boo k
i n terne con forme aux normes de certi fi c a ti on
d ’ In du s trie Ca n ada pour pro t é ger les réseaux
de télécom mu n i c a ti ons et sati s f a i re aux normes
de sécuri t é .Avant de con n ecter cet équ i pem ent à une
l i gne téléph on i qu e ,l ’ uti l i s a teur doit véri fi er s’il est
permis de con n ecter cet équ i pem ent aux install a ti on s
de télécom mu n i c a ti ons loc a l e s .L’ uti l i s a teur est averti
que même la con formité aux normes de certi fi c a ti on
ne peut dans certains cas em p ê ch er la dégrad a ti on
du servi ce .
Les répara ti ons de l’équ i pem ent de télécom mu n i c a ti on s
doivent être effectuées par un servi ce de mainten a n ce
a gréé au Ca n ad a .To ute répara ti on ou mod i fi c a ti on , qu i
n’est pas ex pre s s é m ent appro uvée par Fu j i t su PC Corp. ,
T M
700 po s s è de un modem
ou to ute défaill a n ce de l’équ i pem ent peut en tra î n er
la com p a gnie de télécom mu n i c a ti ons à ex i ger que
l ’ uti l i s a teur décon n ecte l’équ i pem ent de la ligne
t é l é ph on i qu e .
Le code d’arra n gem ent de con n ex i on de cet
é qu i pem ent est CA11A.
Le nu m é ro de ch a r ge est 3.
Le nu m é ro de ch a r ge assigné à ch a que terminal
t é l é ph on i que indique le po u rcen t a ge de la ch a r ge
totale po uvant être con n ecté à une bo u cle ou à un
c i rcuit téléph on i qu e , utilisé par ce péri ph é ri que afin de
pr é venir to ute su rch a r ge .La term i n a i s on d’une bo u cl e
peut être con s ti tuée de n’ i m porte qu elle com bi n a i s on
de péri ph é ri ques de sorte que le total de nu m é ros de
ch a r ge de tous les péri ph é ri ques n’ exc è de pas 100.
A V E R T I S S E M E N T
Pour assurer la sécurité, les utilisateurs
doivent vérifier que la prise de terre du
s e rvice d’électricité, les lignes télphoniques
et les conduites d’eau métalliques sont
connectées ensemble. Les utilisateurs NE
doivent PAS tenter d’établir ces connexions
eux-mêmes, mais doivent contacter
les services d’inspection d’installations
électriques appropriés ou un électricien.
Ceci peut être part i c u l i è rement import a n t
en régions ru r a l e s .
UL NOTICE (FOR AUTHORIZED REPAIR TECHNICIANS ONLY)
C AU T I O N : For con ti nu ed pro t ecti on against risk of fi re , rep l ace on ly
with the same type and ra ting fuse.
C AU T I O N :D a n ger of ex p l o s i on if CMOS battery is incorrect ly
rep l aced .Rep l ace on ly with the same or equ iva l ent type recom m en ded
by the manu f actu rer. Di s pose of u s ed batteries according to the
m a nu f actu rer ’s instru cti on .
WA R N I N G :CMOS and NiCAD batteries may ex p l ode ifm i s tre a ted .
Do not rech a r ge ,d i s a s s em ble or dispose of in fire .
L i feB o o k 7 0 0 Se ri e s f r o m F u j i t s u
P r e f a c e
P r e f a c e
vi
PREFACE
The LifeBook 700 Series from Fujitsu PC
Corporation is a powerful notebook computer.
It is powered by an Intel Pentium microprocessor with MMX technology,has a built-in
color display,a CD-ROM drive and brings
the computing power of desktop personal
computers (PCs) to a portable environment.
This manual explains how to operate your
LifeBook 700 Series’ hardware and built-in
system software. The LifeBook 700 Series is
compatible with the IBM®PC AT.It comes
with Windows 95 pre-installed.
A LifeBook 700 Series is a completely selfcontained unit with an active-matrix (TFT)
color LCD display. It has a powerful interface
that enables it to support a variety of optional
features. (Figure P-1.)
CONVENTIONS USED IN THE GUIDE
Screen examples in this manual are intended as
examples only,and screen and file names may
differ in actual use.
Messages displayed by the LifeBook 700 Series
appear in Courier type.
Example: Shutdown the computer?
Keyboard keys are shown in boldface
Helvetica type.
Example: Fn,F1, Esc, and Ctrl.
Pages with additional information about a specific topic are cross-referenced within the text.
Example: (See page xx.)
P O I N T
The point icon highlights information
that will enhance your understanding of
the subject material.
C A U T I O N
The caution icon highlights information
that is important to your safety, to the
safe operation of your computer, or to
the integrity of your files. Please read all
caution information carefully.
L i f e B o o k 7 0 0 S e r i e s f r o m F u j i t s u
vii
L i f e B o o k 7 0 0 S e r i e s f r o m Fuj i t su
Figure P-1 LifeBook 700 Series
with Both Fujitsu and
Third Party Options
S e t t ing U p Your L i f eB o o k 7 0 0 Ser ie s
This section describes how to set up your
LifeBook 700 Series from Fujitsu.We strongly
recommend that you read it before using your
notebook – even if you are already familiar with
notebook computers.
UNPACKING
When you receive your notebook,unpack it
carefully, and compare the parts you have
received with the items listed below.
For a standard configuration you should have:
■
LifeBook 700 Series from Fujitsu.
(Figure 1-1.)
■
AC adapter with AC power cord (located in
the accessories box). (Figure 1-2.)
■
Modular Lithium ion battery.(Already
installed in Multi-function Bay 1 of
your notebook.)
■
Modular 20-speed maximum CD-ROM
drive.(Already installed in Multi-function
Bay 2 of your notebook.)
■
Modular 3.5" floppy disk drive (located in the
accessories box). (Figure 1-4.)
■
Device adapter for Multi-function Bay 2
(located in the accessories box.) (Figure 1-3.)
■
RJ-11 cable (located in the accessories box).
■
Getting Started Guide.
■
User’s Guide.
■
Microsoft Windows 95 Manual.
■
Registration card and customer
information pack.
■
Recovery CD-ROM
(located in the accessories box).
■
LANdesk Client Manager 3.2 CD-ROM
(located in the accessories box).
Figure 1-1 LifeBook 700 Series Notebook
Figure 1-2 AC Adapter Unit
3
Once you have checked and confirmed that
your notebook system is complete, connect the
AC adapter and follow the instructions on page
12-14 to accept the conditions for using the
LifeBook 700 Series. When you have completed
the Conditions of Use process please register
your notebook. (See page 15.)
Figure 1-3 Device Adapter for Multi-function Bay 2
Figure 1-4 Floppy Disk Drive
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
S e c t i o n O n e
4
C A U T I O N
The internal modem is not intended for
use with Digital PBX systems. Do not
connect the internal modem to a digital
PBX as it may cause serious damage to
the internal modem or your entire notebook. Consult your PBX manufacturer’s
documentation for details. Some hotels
have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
OVERVIEW OF LIFEBOOK
700 SERIES FEATURES
The LifeBook 700 Series is a compact, yet
powerful notebook computer available with
standard features including: (See Appendix A,
pages 170-177, for detailed information on
individual models.)
■
200MHz or 266MHz Intel Pentium processor
with MMX technology.
■
32MB SDRAM standard, expandable
to 96MB.
■
12.1" active-matrix
800 x 600 resolution.
■
2MB EDO video RAM.
■
DMI 2.0 compliant.
■
Built-in 3.2GB or 4.0GB hard drive.
■
Multi-function Bays which support
the following:
■
3.5" floppy disk drive
( i n clu ded with all model s ) .
(TFT) color display with
■
20-speed maximum CD-ROM drive
(included with all models) (for Bay 2 only).
■
Optional second 3.2GB hard drive
(for Bay 2 only).
■
Optional Zip drive.
■
Lithium ion battery
(one included with all models).
■
Optional second Lithium ion battery.
■
Internal 56K fax/data/voice modem with
built-in telephony and DSVD support.
C A U T I O N
Your internal modem is designed to
allow faster downloads from K56flex
compliant digital sources. Maximum
achievable download transmission rates
may not reach 56kbps and will vary
with line conditions.
P O I N T
The Multi-function bays are warmswappable with the Tioman ProSwap
software. (see page 50)
5
■
“No re-learning”,full-size keyboard with
three dedicated Windows 95 keys.
■
Hot swap connection for an external
keyboard or an external mouse.
■
USB device support.
■
Bridge battery for warm-swapping
capabilities for batteries.
■
Standard pre-installed software:
■
Microsoft Windows 95 operating system.
■
LapLink for file transfer via modem,cable
or infrared port.
■
PowerPanel for system power management.
■
Agate Tioman ProSwap for warm-swapping
functionality in Multi-function bays.
■
PC-Doctor for system diagnostics.
■
SoftPEG from CompCore,an MPEG-1
video player.
■
McAfeeVirusScan for virus protection.
■
Full audio and video features:
■
16-bit SoundBlaster-compatible
sound chip.
■
3D-Stereo for multiple speaker effect.
■
Zoomed Video support for full motion
video acceleration.
■
Built-in stereo speakers.
■
Built-in mono microphone.
■
Stereo line in jack.
■
Stereo headphone jack.
■
Microphone jack.
■
Two Type II/one Type III PC Card slot.
■
Fast IrDA (4Mbps) compatible infrared port
for wireless data transfer.
■
Integrated ErgoTrac™pointing device for
superb comfort and cursor control.
■
External monitor support with simultaneous
display capabilities.
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
Display Latch
Multi-function Bay
■
ESS AudioRack for 3D-Stereo,audio CD
PS/2 Port
Figure 1-5 Top and Front Panel
and other audio controls.
■
MegaPhone for telephone applications
including fax,dialing, and speakerphone.
■
Standard user-install software:
■
AT&T WorldNet Service.
■
AOL 3.0.
■
Netscape Communicator 4.04.
■
Internet Explorer 4.01.
Power Port
Power Switch
S e c t i o n O n e
6
Figure 1-6 LifeBook 700 Series with Display Open
COMPONENT IDENTIFICATION
For detailed specifictions on each model refer
to Appendix A on pages 170–177.
Status Indicator Panel
Keyboard
ErgoTracTMpointing device
Multi-function Bay 1
Multi-function Bay 2
Display Panel Latch
Display Panel
Brightness Control
Built-in Microphone
Suspend/Resume Button
Closed Cover Switch
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
7
TOP AND FRONT COMPONENTS
Display Panel Latch
This latch locks and releases the display panel.
When the display panel is released it pops up
slightly to make it easier to open.(Figure 1-6.)
Display Panel
This is a color LCD panel with back lighting for
the display of text and graphics.(Figure 1-6.)
Brightness Control
The brightness control adjusts the overall
intensity of the display panel back lighting.
(Figure 1-6.)
Built-in Microphone
The built-in microphone allows mono audio
input to your notebook. (Figure 1-6.)
Status Indicator Panel
An LCD display of the status of the power state
and source, Suspend mode,battery charge (battery in either Multi-function Bay), floppy disk
drive activity,hard drive or zip drive activity,
CD-ROM drive activity,PC Card activity,
CapsLock, NumLk and Scr Lk. (Figure 1-6.)
Suspend/Resume Button
The Suspend/Resume button allows you to suspend notebook activity without turning off the
notebook power,and to return it to an active
state.This feature saves power,and is particularly useful when the notebook is running only
on battery power.(See pages 38-46 and 95-102
for more information on power management.)
(Figure 1-6.)
Closed Cover Switch
The closed cover switch turns off the LCD back
lighting when the display panel is closed, thus
saving power.This switch also behaves as a
Suspend/Resume button,when the closed
cover switch is set to Suspend/Resume in the
BIOS Setup Utility.(see pages 95-102 for more
information on the BIOSSetup Utility)
(Figure 1-6.)
Keyboard
A full-size keyboard with dedicatedWindows
95 keys for input into the notebook.
(Figure 1-6.)
ErgoTrac Pointing Device
The ErgoTrac pointing device is a joystick-like
cursor control system with two click buttons.
(Figure 1-6.)
Multi-function Bay One
This bay accommodates:
■
Lithium ion battery.
■
Optional Zip Drive
■
3.5" floppy disk drive.
C A U T I O N
Be sure you know which settings are
active for your Suspend/Resume button
before you use it because misuse can
result in data loss. (See the Power
Savings Menu of the BIOS setup utility,
pages 95-102, for more information.)
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
S e c t i o n O n e
8
LEFT-SIDE PANEL COMPONENTS
PC Card Slot
The PC Card Slot allows you to install two Type
I or Type II PC Cards or one Type III PC Card.
(See pages 124-126 for more information on PC
Cards.) The button to the left of the card slot
locks the card(s) in place,and the buttons
to the right of the slot eject the card(s) from
the slot. (Figure 1-7.)
Left Speaker
The built-in dual speakers output
stereo sound from the notebook.
(Figure 1-7 and Figure 1-8.)
RIGHT-SIDE PANEL COMPONENTS
Theft Prevention Lock Slot
This is a slot that allows you to attach
a physical lock down device.(Figure 1-8.)
USB Port
This port allows you to connect Universal
Serial Bus devices,such as external game pads,
pointing devices, keyboards and speakers.
(Figure 1-8.)
DC Power Jack
The DC power jack allows you to plug in the
AC adapter or the optional auto/airline adapter.
(Figure 1-8.)
Multi-function Bay Two
This bay accommodates:
■
20-speed maximum CD-ROM drive.
■
Optional Zip drive mounted in the device
adapter for Multi-function Bay 2.
■
Lithium ion battery mounted in the
device adapter for Multi-function Bay 2
(a second battery can be purchased separ-
ately for a dual battery configuration).
■
Optional second 3.2GB hard drive
(which must be purchased separately).
■
3.5" floppy disk drive mounted in the device
adapter for Multi-function Bay 2.
C A U T I O N
Do not use your notebook with either of
the Multi-function bays empty. It may
damage your notebook.
PC Card Eject Buttons
Left SpeakerPC Card SlotsPC Card Lock
Figure 1-7 LifeBook 700 Series Left-side Panel
Headphone Jack
Volume
Control
PS/2
Port
Stereo Line
In Jack
Microphone
Jack
Figure 1-8 LifeBook 700 Series Right-side Panel
External Floppy
Disk Drive Port
Power Switch
DC Power JackRight SpeakerPort Cover
Theft Prevention
Lock Slot
USB
Port
9
Power Switch
This switch is the main power switch for your
notebook. (Figure 1-8.)
Right Speaker
The built-in dual speakers output stereo sound
from the notebook. (Figure 1-7 and Figure 1-8.)
External Floppy Disk Drive Port
A port for attaching an optional external floppy
disk drive. This allows you to connect an
optional floppy disk drive when the Multifunction bays are being used for other
purposes. (Figure 1-8.)
PS/2 Port
The port allows you to connect an external
PS/2 keyboard,mouse, or numeric keypad.
(Figure 1-8.)
Microphone Jack
The microphone jack allows you to connect an
external mono microphone. (Figure 1-8.)
Stereo Line In Jack
The stereo line in jack allows you to connect an
external audio source to your notebook,like an
audio cassette player.This jack will not support
an external microphone. (Figure 1-8.)
Headphone Jack
You can connect headphones or powered
external speakers to the headphone jack.
(Figure 1-8.)
Volume Control
The volume control is a knob which provides
manual control of the sound level of all audio
output from your notebook. (Figure 1-8.)
REAR PANEL COMPONENTS
RJ-11 Jack
This is the jack for attaching a telephone line to
the internal modem. This jack can be used with
the connector cover closed and the sliding panel
in the connector cover slightly opened for
added convenience.(Figure 1-9.)
C A U T I O N
There are also software volume controls.
The knob setting and the software
settings will interact. Software volume
off will override the knob setting and
the software volume setting will control
the maximum knob setting. (See VolumeControl on page 34 for more information.)
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
RJ-11 Jack
Docking Port
Serial Port
Parallel Port
External
Monitor Port
Slide Panel
Connector Cover
Infrared Port
Figure 1-9 LifeBook 700 Series Rear Panel
S e c t i o n O n e
10
Serial Port
The serial port allows you to connect serial
RS-232C devices, such as serial printers or
serial scanners. (This is also sometimes
referred to as a COM port.) (Figure 1-9.)
Parallel Port
The parallel port allows you to connect
parallel devices, such as a parallel printer
to your notebook. (This is also sometimes
referred to as a LPT port.) (Figure 1-9.)
External Monitor Port
This port allows you to connect an external
VGA or SVGA CRT monitor.(Figure 1-9.)
Infrared Port
The fast IrDA (4Mbps) compatible port
allows you to communicate with another IrDA
compatible infrared device without a cable.
(See page 47 for more information.)
(Figure 1-9.)
C A U T I O N
The cover – which closes over the ports
on the rear of the notebook – can be
damaged if it is left open when the
notebook is moved around.
C A U T I O N
The internal modem is not intended for
use with Digital PBX systems. Do not
connect the internal modem to a digital
PBX as it may cause serious damage to
the internal modem or your entire notebook. Consult your PBX manufacturer’s
documentation for details. Some hotels
have Digital PBX systems. Be sure to find
out BEFORE you connect your modem.
Docking Port
This port is for connection to an optional port
replicator or docking station. The connector
cover must be closed and the sliding panel fully
opened to reveal the docking port and the
RJ-11 jack when connecting a port replicator
or a docking station. (Figure 1-9.)
Docking Alignment
Receptacle
Multi-function Bay 2
Release Button
Memory
Upgrade
Compartment
Multi-function
Bay 2
Tilt
Adjustment
Feet
Figure 1-10 LifeBook 700 Series Bottom
Docking Alignment
Main Unit
and
Configuration
Label
Multi-function
Bay 1
Multi-function Bay 1
Release Button
Receptacle
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
11
BOTTOM COMPONENTS
Tilt Adjustment Feet
These are a pair of feet which flip down and
hold the back of the notebook approximately
6° higher than the front when resting on a flat
surface. They are designed to make using your
notebook keyboard more comfortable.
(Figure 1-10.)
Main Unit and Configuration Label
This label shows the model number and other
information about your notebook. In addition
the configuration portion of the label has the
serial number and manufacturer information
that you will need to give your support representative so that he or she can help you. It identifies the exact version of various components
of your notebook. (Figure 1-10.)
Memory Upgrade Compartment
This compartment houses the memory upgrade
module which allows you to expand the system
memory capacity of your notebook.(See pages
129-130 for more information on installing
added memory capacity.) (Figure 1-10.)
Multi-function Bay 1 Release Button
This is the release to allow removal and installation of devices in Multi-function Bay 1.
(Figure 1-10.)
Multi-function Bay 1
This compartment is accessed from the front of
your notebook. (See Figure 1-6 on page 6.)
Multi-function Bay 2 Release Button
This is the release to allow removal and installation of devices in Multi-function Bay 2.
(Figure 1-10.)
Multi-function Bay 2
This compartment is accessed from the front of
your notebook. (See Figure 1-6 on page 6.)
POWER SOURCES
Your notebook has four possible power sources:
the primary Lithium ion battery; an optional
dual Lithium ion battery configuration;the AC
adapter; or an optional auto/airline adapter.
Connecting the Power Adapters
The AC adapter or an optional auto/airline
adapter provides power for operating your
notebook and charging the batteries.
(Figure 1-11.)
To Connect the AC Adapter
1. Plug the DC Output cable of the AC
adapter into the DC Power jack on the
right-side panel of your notebook.
2. Plug the AC adapter into an AC
electrical outlet.
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
Figure 1-11 Connecting the AC Adapter
S e c t i o n O n e
12
DATA SECURITY
Your LifeBook 700 Series has a built-in hardware control password security feature that
allows you to protect the data stored in the
notebook from unauthorized access.Your
operating system and some applications have
software control password security features that
allow you to protect all or portions of the data
stored in the notebook from unauthorized access.
Hardware Data Security Features
When you are using your notebook built-in
hardware control password to gain access to the
notebook the actual password will not appear
on the screen. This is a safety precaution.The
hardware control security parameters are set
from the BIOS setup utility. (See Security Menu
on pages 89-94 for more information on setting
and clearing passwords and enabling and
disabling built-in security features.)
Software Data Security Features
The operating system and some applications
have security features that are independent of
the built-in hardware protection features that
are controlled from the BIOS. See your software
documentation for more information about
these features.
C A U T I O N
The primary Lithium ion battery is not
charged when you purchase your notebook. Initially you will need to connect
the AC adapter or the auto/airline adapter
to use it. If you purchase a second Lithium
ion battery it will not be charged when
you get it. You will need to charge it prior
to use. It can take up to three (3) hours to
charge a single battery if your notebook
is turned off or is in Suspend mode. If
your notebook is in use it can take up
to nine (9) hours or more to charge a
single battery.
To Connect the Optional Auto/airline Adapter
1. Plug the DC Output cable into the DC
Power jack on the right-side panel of
your notebook.
2. Plug the auto/airline adapter plug into the
cigarette lighter of a car or other vehicle
with the ignition key in the On or the
Accessories position or into the DC
Power jack on an airplane seat.
To Switch From AC Adapter Power
To Battery Power
1. Be sure that you have at least one charged
battery installed.
2. Remove the AC or auto/airline adapter.
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
13
C A U T I O N
Make sure you memorize your passwords, both hardware and software.
If you forget, you may not be able to use
the notebook, and you will have to contact your service provider and arrange to
have them reset the hardware system
password. See your software documentation for what to do if you forget your
software security password(s).
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
C A U T I O N
Software security feature passwords may
not be the same as the hardware security
passwords. Be sure you know which
features are controlled from software
and which from hardware or you may
lock yourself out of your own data or
lock up your hardware and not be able
to operate your notebook.
STARTING YOUR NOTEBOOK
FOR THE FIRST TIME
Booting the System
The first time that you turn on your notebook
you will need to attach your AC adapter
because the battery is not charged when you
get your machine. We strongly recommend
that you not attach any other external devices
and do not put any CD or floppy disk in your
drives until you have gone through the initial
power on sequence.
When you turn on your notebook for the first
time it will display a Fujitsu logo on the screen.
If you do nothing the system will read the hard
drive for the operating system software, flash
the notebook configuration information on the
screen,and then the Windows 95 Setup Wizard
Screen will appear. (See Power On on pages 23-24 for additional help.) You will then be stepped
through the condition of use process.You must
complete this initial process before you will be
able to use your notebook.(If you wish to
access the BIOS setup utility before you go
through the condition of use process you must
press the F2 key while the Fujitsu logo is still
visible. If you press the Esc key while the
Fujitsu logo is still present you will get a dialog
box which will allow you to select which drive
is to be used for finding the operating system.)
If you turn off the power without using the on
screen Cancel button you will get an error
message when you start your notebook again.
Conditions of Use Process
The first time you start your notebook you
must confirm your acceptance of the copyright
limitations for your pre-installed software.
After you complete the Condition of Use
process these screens will not appear again.
There are 6 screens to read carefully and
respond to.
You cannot use your notebook until this
Condition of Use process is completed. The
bottom of each screen has a <Back button, aNext> Button and a Cancel button which
are activated by the integrated ErgoTrac cursor
control and button click. The <Back button
will return you to the previous screen.The
Next> button activates any choices or
S e c t i o n O n e
14
move the text one screen at a time. When you
finish reading you must point and click to
accept or reject the terms of the agreement and
then click on the Next> button.
Start Wizard
The Start Wizard screen will appear if you have
entered a valid product code. When you click
on the Finish button the display will flash various screens as the system identifies what hardware is installed and runs a virus check.
Time Zone
When your notebook has completely identified
all of the installed hardware it will display a
dialog box for entering which time zone you
wish to set the clock to.
Windows Messaging
Once you have selected a time zone you will see
a screen announcing that Windows messaging
is being set up.
Printer Setup
When the messaging setup is complete a dialog
box will appear for selecting which printer is to
be attached to your notebook.You do not have
to select a printer at this time. If you do not
wish to select a printer, click on the Cancel
button.If you do wish to select a printer click
on the Next button and answer the questions.
P O I N T
If you reject the terms of the license
agreement you will be asked to review
the license agreement for information on
returning Windows 95 or to shut down
your notebook.
information you have entered and takes you on
to the next screen. The Cancel button allows
you to stop the setup process.
If you stop the process your notebook will
start up at the beginning of the Windows 95
Setup Wizard.
The screens you will be required to respond to
are described with the required action.
User Information
Fill in your name and your company name as
you want the software licensed. To step from the
name blank to the company blank press the Tab
key.When the information has been entered
click on the Next> button.You will not be
allowed to continue until you make an entry.
License Agreement
Read the agreement carefully.You can scroll
through the text using the integrated ErgoTrac
pointing device to activate the scroll bar or use
the up arrow Õ and down arrow Ô keys to
move up and down the text one line at a time,
or use the Page Up and Page Down keys to
Certificate of Authenticity
Look in the box that your notebook came in
and you will find a Windows 95 Certificate of
Authenticity shrink wrapped with the Windows
95 Users manual.On the certificate you will
find a bar-code with a number above it. This is
your product code and the number you should
enter on the Certificate of Authenticity screen.
When you have entered the number exactly as
shown then click on the Next> button.
S e t t i n g U p Y o u r L i f e B o o k 7 0 0 S e r i e s
15
Windows 95 Setup
Once you have completed the printer setup, or
if you have chosen not to set up a printer at this
time, you will see the Windows 95 Setup screen.
This screen lets you set up Internet Explorer 4.0
with Active Desktop on your Lifebook. Follow
the on-screen direction to complete installation
of IE 4.0
How do I register?
By modem,fax,mail or telephone.To register
your system by modem, with your system up
and running, click on the Fujitsu Welcome
Center Icon.Complete the electronic form and
click on the “send registration”button.Your
registration information will be transmitted via
phone lines to the Fujitsu Registration Center
and you will receive registration confirmation
in one week to 10 days.You may also print your
completed registration form and fax it to
1-714-450-9140 or mail it to:
Fujitsu PC Corporation
15355 Barranca Pkwy, Irvine,CA 92618-9520
Alternately you may call:
1-800-8fujitsu (1-800-838-5487)
P O I N T
You will find a Recovery CD-ROM packet
in your accessories box. Please store the
packet in a safe place in case there is a
loss of data, and it becomes necessary
to re-install your operating system and/
or application programs. (See Restoring
Your Pre-installed Software from the
R e c o v e ry CD-ROM on pages 161-164.)
L i f e B o o k 7 00 S e r i e s f r o m Fujitsu
P O I N T
If you would like to skip the installation
of Internet Explorer 4.0, go the the Start
Menu on the desktop, select Shutdown
and Restart the computer. After returning
to Windows, you can install Internet
Explorer 4.0 at any time by selecting
the icon Setup for Internet Explorer 4.0
in the Internet Starts Here folder
on the desktop.
REGISTERING YOUR LIFEBOOK
What are the benefits of registering?
You will receive an identification label for your
LifeBook, which,if your LifeBook is ever lost,
may help in getting it returned to you.You also
receive priority Personal Identification Number
(PIN) technical support access and useful prod-
uct mailings. Proof of purchase is not required
if you register within 30 days of your purchase.
S e c t i o n O n e
16
LEARNING ABOUT YOUR OPERAT I N G
SYSTEM AND APPLICATION SOFTWA R E
Tutorials
All operating systems and most application
software have tutorials built-in.We highly recommend that you step through your tutorial
before you use an application even if you are
familiar with the same application on a different machine,an earlier version of the application, or a similar product.
Manuals
In the accessories box you will find manuals for
Windows 95 and other pre-installed software.
Software manuals of pre-installed software
that are not in the accessories box are available
online. See the help screens of your preinstalled software. We recommend that you
review these manuals for general information
on the use of these applications and to get a
basic understanding of what is covered in the
manual, and how it is organized, should
questions arise as you use the applications.
This section describes the indicators,buttons,
connections and operating modes of your
LifeBook 700 Series and their use.
DISPLAY PANEL
Opening the Display Panel
Lifting the latch releases the top of the display
panel from the front of the notebook body.
When the display panel is released it pops up
slightly to make it easier to open.Lift the display panel backward until the screen is at a
comfortable viewing angle. (Figure 2-1.)
Adjusting the Display Panel
When you turn on your notebook, you may
want to adjust the brightness level of the screen
for best visibility. To do this, adjust the brightness control slider on the right side of the
display panel. (Figure 2-2.)You may need to
adjust the brightness periodically for different
operating environments.
Figure 2-1 Opening the Display Panel
P O I N T
The higher the brightness level, the more
power the notebook will consume and
the faster your batteries will discharge.
For maximum battery life, make sure that
the brightness is set as low as possible.
Brightness Control
Brighter
Less Bright
Figure 2-2 Display Adjustments
19
ADJUSTING THE KEYBOARD ANGLE
On the bottom of your notebook,near the
back,are a pair of feet which flip down and
hold the back of the notebook about 6° higher
than the front when resting on a flat surface.
They are designed to make it more comfortable
to use the keyboard with your notebook.The
feet must be folded flat against the bottom
of the notebook when opening or using the
CD-ROM drive or it will not open or operate
properly. (Figure 1-10 on page 10)
C A U T I O N
When you are not using the adjustment
feet be sure that they are folded flat
against the bottom of the notebook.
They could be broken off or injure
someone if not used properly.
C A U T I O N
Do not operate your CD-ROM drive
or attempt to open the tray unless your
notebook is sitting on a flat surface and
the adjustment feet are folded against
the bottom of the notebook. Using a
CD-ROM drive when it is not level
may damage the drive or prevent
proper operation.
U s i n g Y o u r L i f e B o o k 7 0 0 S e r i e s
STATUS INDICATOR PANEL
The Status Indicator panel is located in the
recess just above the keyboard. (Figure 2-3 onpage 20.) The appropriate indicators become
visible as you use your notebook.
Power Indicator
The Power indicator tells you when the system
is operational. It is on steady when there is
power to your notebook,and blinks when the
system is in Suspend mode. It goes off when
the system has entered Save-to-Disk mode,has
entered the Windows 95 pseudo-off state, or
the power is turned off from the power switch.
L i f e B o o k 7 0 0 Se r i e s f r o m Fuj i t su
P O I N T
When your notebook has been shut
down from Windows 95, it is not the
same as turned off from the power
switch. It is in a pseudo-off state, with
all applications closed, but can be turned
on by pressing the Suspend/Resume
button. It is drawing some current in
the pseudo-off state.
C A U T I O N
Your notebook’s power switch must be
turned off to prevent all current draw.
