Frymaster h50 User Manual

Major Components Manual

x H50/55
x OPEN BURNER
x DECATHLON
x 24G
x DEAN MILLIVOLT

24-Hour Service Hotline [phone]

Frymaster, a member of the Commercial Food Equipment Service Asso­ciation, recommends using CFESA-certified technicians.

Essential Parts For

x ELECTRIC/RE
x 2836
x 1721/18UE
x PUMPS
x GSMS

x 8SMS
x UHC-P
x UHC
x SINBAD
x HLZ

NOV 07

*8196321*

NOTICE

IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS ENODIS

EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART PURCHASED DIRECTLY

FROM FRYMASTER DEAN, OR ANY OF ITS AUTHORIZED SERVICE CENTERS, AND/OR THE

PART BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY WILL

BE VOID. FURTHER, FRYMASTER DEAN AND ITS AFFILIATES WILL NOT BE LIABLE FOR ANY

CLAIMS, DAMAGES OR EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY OR

INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART

AND/OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER.

DANGER

Copper wire suitable for at least 167°F (75°C) must be used for power connections.

DANGER

The electrical power supply for this appliance must be the same as indicated on the

rating and serial number plate located on the inside of the fryer door.

DANGER

This appliance must be connected to the voltage and phase as specified on the rating

and serial number plate located on the inside of the fryer door.

DANGER

All wiring connections for this appliance must be made in accordance with the wiring

diagrams furnished with the equipment. Wiring diagrams are located on the inside of

the fryer door.

DANGER

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this

or any other appliance.

WARNING

Do not attach accessories to this fryer unless fryer is secured from tipping. Personal

injury may result.

WARNING

Frymaster fryers equipped with legs are for permanent installations. Fryers fitted with
legs must be lifted during movement to avoid damage and possible bodily injury. For a
moveable or portable installation, Frymaster optional equipment casters must be used.

Questions? Call 1-800-551-8633

WARNING

Do not use water jets to clean this equipment.

DANGER

All wiring connections for this appliance must be made in accordance with the wiring

diagrams furnished with the equipment. Wiring diagrams are located on the inside of

the fryer door.

WARNING

This equipment is intended for indoor use only. Do not install or operate this

equipment in outdoor areas.

Overview

The model number of a Dean or Frymaster fryer reveals a lot: number and size of vats,
presence of filtration. The complete model number, although not always provided,
reveals the type of controller, the presence of splits, and the finish of the cabinet.

This parts manual provides the essential components for a host of fryers. Some have
similar model numbers, such as the D50 and the H50, while the fryer designs are quite
different. For example, an FPPH350 is a footprint-filter equipped H50 fryer with three
frypots. A FPD450 is a filter-equipped Dean Decathlon fryer with four frypots.

Consult this matrix to determine type of fryer in question.

Model # Style Fryer Manufacturer Fuel Restaurant Use Millivolt

D50, D60, D65
Exp:SCFD460.

Tube fryer Dean Gas

Church’s,
Popeye’s, Chili’s

No

H50 or H55.
Exp: FPPH350

35, 45, CF
Exp: FP345

24G
Exp: 2424G

SR
Exp: SR 42

Pro Electric Electric Frymaster Elec

RE Electric Frymaster Elec McDonald’s N/A

2836 Electric Frymaster Elec Walmart N/A

Open pot,
sealed burner

Open burner Frymaster Gas

Flatbottom Dean Gas

Tube fryer Dean Gas Mom and Pop Yes

Frymaster Gas

McDonald’s,
Burger King

Burger King,
independents,
bone-in chicken
stores

LJS, Captain
Dee’s,
independent fish
stores

McDonald’s,
Burger King

No

Can be

No

N/A

Frymaster and Dean Major Components

TABLE OF CONTENTS

Chapter Content Page

GAS FRYERS
1
2
3
4
5

6
7
8
9

10
11

12
13
14
15
REPAIR ACCESSORIES
16

H50/52/55
Open Burner
Decathlon Series
24G Flatbottom
Dean Millivolt Fryers

ELECTRIC FRYERS

Pro Series/RE Electric Fryers
2836 Series
1721/18UE
Filter Motors and Pumps

WATER BATH UNITS

GSMS
8SMS Series

CABINETS/WARMERS/DISPENSERS

UHC-P
UHC
Sinbad
HLZ

Tools

1-1
2-1
3-1
4-1
5-1

6-1
7-1
8-1
9-1

10-1
11-1

12-1
13-1
14-1
15-1

16-1

H50/55

The H50/55 series fryer is Frymaster’s flagship gas fryer.

Unique physical characteristic:

x Closed burner with blowers to enhance efficiency of

combustion.

Where Used:

x McDonald’s, Burger King, and other large fast-food

restaurants.

Common Model Numbers

x FPPH355

1-1

Burners are attached to either side of
the frypot. See arrow.

H50/55

1 3 2

MNOPQ

JC

VW

STU

YZ

-

R

-

X

*

1 1 2

2

1234567890

ABC DEF GHI JKL

Controllers

Item **Standard

Part #

1

826-2287 826-2380 Dual-vat
826-2286 826-2324 Full-vat

2

826-2365 106-3492 Dual-vat
826-2364 106-3503 Full-vat

3

826-2312 106-3580 Dual-vat
826-2311 826-2385 Full-vat

4

806-3008 106-3375 Dual-vat (use 106-3398 for Foodmaker units)

106-6023 106-6022 Full-vat (use 106-6027 for Foodmaker units)
* 806-2071 806-2071 15-pin Wiring Harness, Computer-to-Interface Board
* 807-4199 807-4199 SMT Wiring Harness, Computer-to-Interface Board
* 826-2278 826-2278 Remote Computer, Burger King
* 807-4397 807-4397 Remote Computer Adapter

5 826-2346 826-2343 M2000 Full Vat Domestic
* 826-1739 M100 to M2000 Conversion Kit

* Not illustrated.

**Euro-look

Part #

Component

Computer Magic III.5

Digital Controller

Basket Lift Timer

Solid State (Analog) Controller (controller knob is 810-0387)

McDonald’s Computer

4

SOLID STATE

5

** Pro H50/55-Series cabinets were manufactured with standard cabinets with the 90º-edge
topcap and the Euro-Look cabinets with the rounded topcap.

1-2

Gas Control Box Components

H50/55

Item Part # Component

1 826-2264 Interface Board
2 807-3366† Ignition Module, Dual-spark Full-vat
* 807-3365† Ignition Module, Single-spark Dual-vat
* 807-1006 Ignition Module for Pre-August 2000 units
3 807-3484 Connector, Rajah
4 807-0833 Relay, DPDT 5A 12VDC Latch
* 807-0834 Relay, SPDT 15A 12VDC Basket Lift (See Note 2 below)
5 826-2024 Cable, 21-inch Ignition (comes with Rajah connector)
6 806-6085 Flame Sensor wire assembly
* 826-1721 Ignition Cable (2 ignition cables, 2 rajah connectors)
* 807-1200 Ignition Wires, 27-inch (used with 807-1006)
* 807-1878 Ignition Wires, 19-inch (used with 807-1006)
* 806-3660 Sound Device, High Output
* 826-2458 Speaker, McDonald’s

* Not illustrated.

† For dual-vat units, use 807-3365 Single-Spark Ignition Module (see NOTE 1).

NOTE 1: Dual-vat units use two 807-3365 Single-Spark Ignition Modules. Full-vat units use one
807-3366 Dual-spark ignition module. Also, in full-vat units, only one latch relay is used, located
in the lower right socket.

NOTE 2: Basket lift relays are present only on units equipped with basket lifts.

1-3

H50/55

Transformer/Relays

Item Part # Component

1 807-0012 4-Terminal Relay, Filter Only
* 807-2434 5-Terminal Relay, Filter Only
2 807-0800 Transformer, 100-120V/24VAC 50/60Hz 50VA
3 807-2176 Transformer, 100-120V V/F Dual Voltage
* 807-0855 Transformer, 120V/12V
* 807-1683 Relay, 12V (Hood Relay, McDonald’s only. Can be located in transformer box.)
* 807-0012 Pump Relay, 24V Coil, 18A
* 807-2434 Pump/Heater Relay, 24V Coil, 18A
* 807-0154 115V Power Cord

* Not illustrated.

High-Limit Thermostat and Temperature Probe

1

2

Item Part # Component

1 826-1177

2 806-4206 Temperature Probe

3 210-0681 Probe Guard

High Limit Thermostat - 425qF/218qC

3

1-4

H50/55

Gas Supply and Combustion System Components

Item Part # Component

1 Igniter (includes gasket 816-0059, which may be ordered separately)

826-0981 Natural Gas
826-0982 Propane

2 826-1072 Universal Burner

Blower Assembly, Combustion Air (includes harness )

3 106-2997SP 115V 50/60 Hz. (Right)
4 106-2994SP 115V 50/60 Hz (Left)
5 Gas Valve

826-1122 Natural Gas
826-1123 Propane

*

826-1145 Natural Gas to Propane/Butane, Full-vat
826-1146 Propane/Butane to Natural Gas, Full-vat
826-1147 Natural Gas to Propane/Butane, Dual-vat
826-1148 Propane/Butane to Natural Gas, Dual-vat

*

826-0931 Burner Insulation Kit, Full Vat
826-0932 Burner Insulation Kit, Split Vat

* Not illustrated.

Conversion Kits

Insulation Kits

1-5

Frypots

H50/55

Item Part # Component

1

* 106-1049SP Frypot, Complete Assembly, Natural Gas

* 106-1050SP Frypot, Complete Assembly, Propane

2

* 106-1079SP Frypot, Complete Assembly, Natural Gas

* 106-1080SP Frypot, Complete Assembly, Propane

* Not illustrated.

Frypot, Full Vat, Complete Assembly

Frypot, Dual Vat, Complete Assembly

1-6

Open Burner

The open burner, or Master Jet, family of fryers
includes the 35, 45, CF, and J1C series at the
upper end and the GF14 and GF40 at the lower
end.

Unique physical characteristic:

x A U-shaped burner manifold surrounds the

frypot, supplying flame to metal
deflectors, or targets, which direct the heat
to the frypot.

Where used:

x Burger King uses 45’s. The other models will be found in smaller restaurants.

Common Model Numbers: FPP235, FMP245, PMJ145, MJ1CF, KJ3FC, J1C,

2-1

An open burner surrounds the frypot of the MJ
series of fryers. Orifices secure the deflectors.

Open Burner

GF40Controller Assemblies (Other than Thermostat Controllers)

1 2 3

Item Part # Component

1

826-2285 Built-In 45
106-7248 Remote On-Hood
826-2280 Remote In-Hood
826-2294 Built-in CF (Standard) CMIII.5
826-2392 CF (Euro look)
826-2327 FPP 35/45 FV CMIII.5 (except Buffalo Wild Wings**)
826-2390 FPP 34/45 DV CMIII.5 (except Buffalo Wild Wings**)

2

106-2079SP Controller, Basket Lift Timer, MJ45
106-3373 CF (Euro look) BL Controller
106-4170 FPP 34/45 FV Basket lift Controller
106-4171 FPP 34/45 DV Basket Lift Controller

3

826-2302 Controller, Digital
106-4174 FPP 34/45 FV Digital Controller
106-4175 FPP 34/45 DV Digital Controller

4

806-3559 Controller, Solid State (controller knob is 810-0387)
106-6022 FPP 34/45 FV Analog Controller
106-3375 FPP 34/45 DV Analog Controller

--- Buffalo Wild Wings **

* Not illustrated.
** Call 1-800-551-8633.

Computer Magic III, MJ45, FM45 Series

Basket Lift Timers

Digital Controllers

Solid State Controllers

4

SOLID STATE

2-2

Open Burner

Component Parts

Item Part # Component

1

806-3548 Universal Replacement: MJ, FM, 45, CF
826-2425 Interface Board, FPP/FMP 35/45 with Standing Pilot
806-5857 Interface Board, FPP/FMP 35/45 with electronic ignition

2

807-0833 Heat relay
807-0834 Basket Lift Relay
807-0670 24V Relay, Lockout Electronic Ignition units

3 807-0855 100-120V 50/60 Hz Primary, 12V Secondary
4 807-0800 100-120V 50/60 Hz Primary 24V Secondary
5 826-1546 Kit, Melt Cycle Timer, replaces electromechanical timer
* 826-2117 Ignition Module, Electronic Ignition units

* Not illustrated.

Interface Boards

Relays

Transformers

Item Part # Component

1 807-0012 Relay, 18 Amp, SPST, Filter
2 807-0800 Transformer, 100-120V Primary/24V Secondary 50/60 Hz 50VA
3 807-2103 Micro Switch

2-3

Open Burner

Controller Assemblies (Thermostat Controllers)

Item Part # Component

1 810-0334 Knob, Operating Thermostat
* 810-0110 Knob, MJ35 Operating Thermostat
2 807-1525 Light, White Melt Cycle Indicator, 24V
3 807-3498 Switch, 24V, Used for ON/OFF or Melt Cycle

* Not illustrated.

Temperature Probe, Thermostats, and Related Components

Item Part # Component

1 806-4206 Temperature Probe, Minco

2 826-1177

3 806-0183 Thermostat Assembly, Operating, MJ45/MJCF/MJ47

4 807-0280 Hi-limit Adapter

* 806-0184 Thermostat Assembly, MJ, FM, J1C with Robertshaw Gas Valve

* 806-5816

* 807-1692 Thermostat, GF14, GF40

* Not illustrated.

Thermostat, 425°F High-Limit (see NOTE)

Thermostat Assembly, MJ, FM, FPP, FMP, J1C, GF14 Sysco, 35 with
Honeywell Gas Valve

NOTE: Kit 826-1177 (Item 2) contains high-limit thermostat 806-7545 and an assortment of
connectors to allow it to be configured for use on several different Robertshaw valves.

2-4

Open Burner

Burner Assembly Component Parts

Item Part # Component

1

230-1177 45 Deflector, Side
230-1206 45 Deflector, Rear
230-1178 35/CF Deflector, Side
230-1180 35/CF Deflector, Rear
230-1568 JIC Deflectors, all

Deflectors

2-5

Open Burner

Item Part # Component

2 826-1155 Igniter Kit, Optional Piezo

807-1906 Electrode Assembly
810-1001 Trigger

3 Pilot Assembly

806-8688SP Propane or Butane Gas, w/Thermopile (w/co-axial lead)
810-1830 Natural Gas, w/Thermopile (w/twin-leads)
810-0426 Natural Gas, w/o Thermopile or Thermocouple
810-0616 Propane or Butane Gas, w/Thermopile (w/co-axial lead)
810-1773 Propane or Butane Gas, w/Thermopile (w/twin leads)
810-0427 Propane or Butane Gas, w/o Thermopile or Thermocouple)

4 Thermopile/Thermocouple

810-1873 Thermopile w/push-on terminals

5 Valve, Gas (see Note 1 below)

810-0975 Knob, Gas Valve
807-3294 Natural Gas (for 240V, use 807-0025)
807-3295 Propane/Butane Gas (for 240V, use 807-0759)

NOTE: A gas valve capacitor (P/N 806-4781) is required on gas valves used on units with
Thermostat Controllers.

2-6

Decathlon

The Decathlons are large tube fryers often used for bone-in
chicken. Flame passes through tubes in the frypot, which
transfer heat to the oil. Decathlon is indicated in the model
name with a D: D50’s, D60’s and D65’s are all models of the
Decathlon family.

Unique physical characteristics:

x Burner tubes rest on a gas manifold at the front of the

fryer, transferring heat to tubes in the frypot.

Where used:

x The Decathlon is common in Chili’s.

Common Model numbers:

x SCFHD250, SCFHD350, SCFHD460, HD160

3-1

Decathlon

Common Primary Components and Controllers

Item

1 826-2013 Thermostat, Sunne
2 810-2035 Knob, Thermostat
* 826-2413 Computer, Compu-Fry III.5
* 826-2414 Computer, Compu-Fry, Dual vat
* 806-8308 Computer, CM4-S (FPD65) Popeye’s
* 806-8305 Computer, CM4-S
* 106-3028 Computer, CM4-S, with HD Bezel
* 806-5139 Computer, remote
* 106-6025 Analog Controller, Boston Market
* 806-4803 Cable Assembly, Compu-Fry to Interface Board
* 826-2269 Potentiometer, Thermatron

*

* Not illustrated.

Part # Component

Computers/Controllers/Thermostats

816-0534 Knob, Control, Thermatron

Pilot Components

3-2

Decathlon

Item

4 807-3485 Thermopile
* 807-3550 Thermocouple
5 807-1311 Pilot Assembly- Natural Gas- Electronic Ignition
* 812-1676 Pilot Assembly- LP Gas- Electronic Ignition

6 826-2117 Spark Module
* 807-1315 Ignition Cable, D
* 106-7535 Ignition Cable, HD
7 810-1001 Piezo Ignitor (Trigger)
* 807-3540 Electrode, Piezo

8 807-3551 Transformer, Honeywell 120/24 VAC
* 807-0855 Transformer, 120/12 VAC
* 807-0800 Transformer, 120/24 VAC
* 807-3551 Transformer, 120/208/240/24VAC

9 826-2423 Probe Assembly (RTD), Temperature, Dean Computer
* 106-5419 Probe Assembly, Temperature- Thermatron- D20 & D50
* 106-1976 Probe Assembly, Temperature- D60 & D80 (New Design)

10 807-3680 High-Limit Thermostat- Manual Reset 450° F

11 826-2425 Interface Board, Dean Computer Only. Manual pilot

* 826-2434 Interface Board for Electronic Ignition
* 106-3287 Interface Board, Thermatron- 24 VAC
* 826-2086 Interface Board, Thermatron- 12/208-240
* 826-2031 Interface Board, Thermatron- 115/220V

* 807-3577 Circuit Breaker, 7 amp
* 807-3592 Fuse, 2 amp, Slo Blo
* 807-3750 Fuse, 5 amp

12 807-0834 Relay, 12VDC 15A 1PDT (Basketlift)
13 807-0833 Relay, 12VDC 5A 1PDT (Latching)

* 807-3611 Relay, Filter Pump
* 807-3640 Relay, Boil Out

* 807-2104 Microswitch
14 807-3574 Switch, Power- Green Lens
15 807-3580 Switch, Rocker- Manual Filter Power
16 807-3579 Switch, Boil-Out- 6-Terminal
17 807-3576 Switch, Fryer Reset (Momentary)

* 807-3552 Gas Valve, Natural Gas, Electronic Ignition 24 VAC D20-D50-D60-D80

* 807-3628 Gas Valve, LP Gas, Electronic Ignition 24 VAC D20-D50-D60-D80

* 810-2156 Gas Valve, Natural Gas 120 VAC D20-D50-D60-D80

* 810-2323 Gas Valve, LP Gas 120 VAC D20-D50-D60-D80

* 810-2158 Pilot Burner- Natural Gas, D20

* 810-2526 Pilot Burner- LP Gas, D20

* 810-2032 Pilot Burner- Natural Gas, D50-D60-D80 (Primary and Trailing)

* 810-2155 Pilot Burner- LP Gas, D50-D60-D80 (Primary and Trailing)

* Not illustrated.

Part # Component

Ignition Components

Transformers

Probe Assemblies

High Limit

Interface Boards

Fuses/ Circuit Breaker

Relays

Switches

Gas Valves

Pilot Burners

3-3

Decathlon

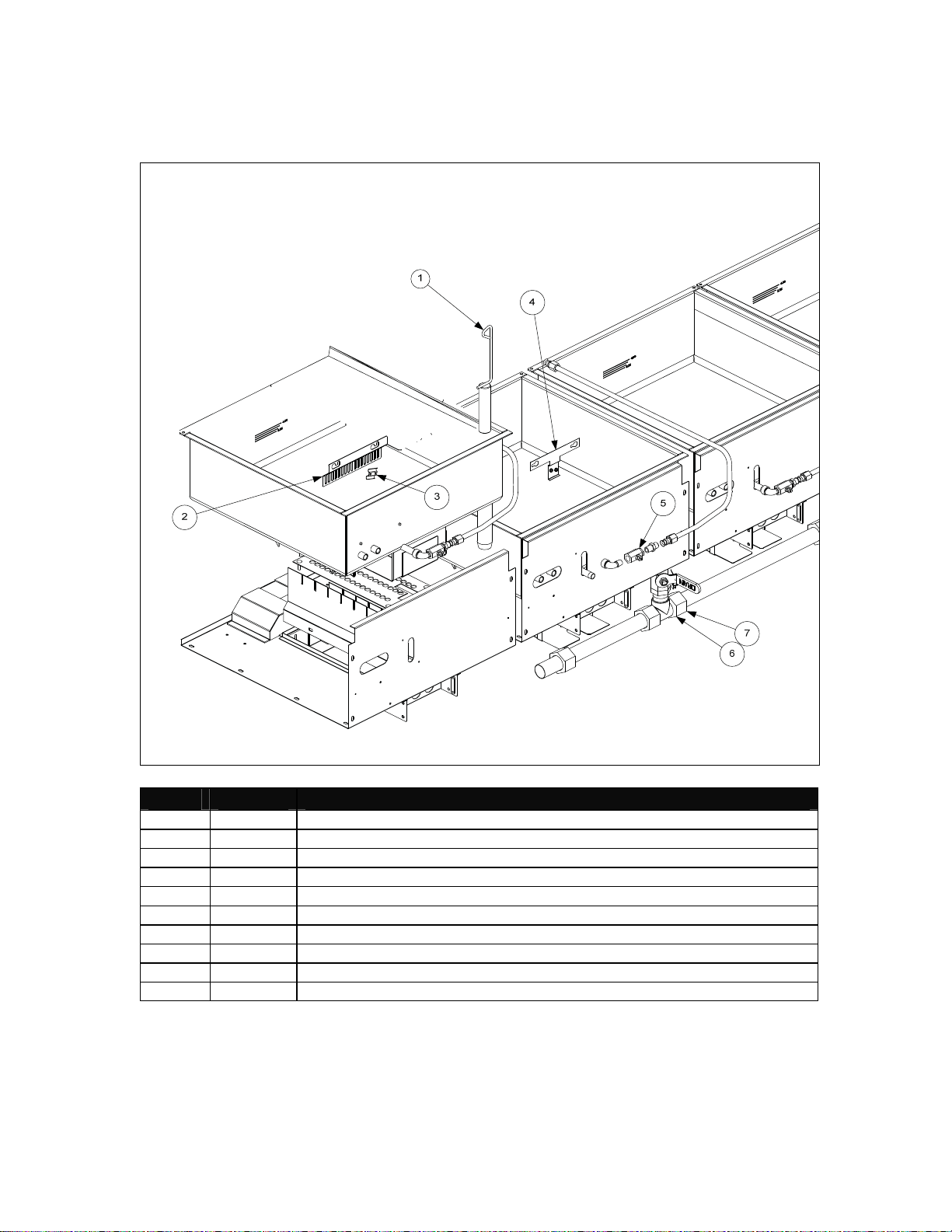

Decathlon Frypot Components

1

Item

1 Diffusers

230-2593 Diffuser Assembly D20
210-5175 Diffuser Assembly D50
210-8387 Diffuser Assembly D60
210-5177 Diffuser Assembly D80
230-1342 Diffuser Assembly HD50
230-1431 Diffuser Assembly HD60 and FPHD65

Part # Component

3-4

24G

The 24G is a large flatbottom fryer with draft
induction system, which draws heated air across the
bottom of the fryer. Baffles welded to the pot impede
the flow of the air and increase temperature transfer.

Unique physical characteristic:

x Rear draft system

Where used:

x KFC, LJS, Captain D’s and other fish chains

Common Model Numbers:

x 1824G, 2424G, KSCF42424G

4-1

Heated air is drawn across the bottom of the
24G frypot with a blower-driven draft system.

Electrical Components

1

24G

3

2

5

4

6

11

7

10

7

9

8

ITEM PART # COMPONENT

1 106-2607SP Thermatron Probe, 20” wires
* 106-0882 Thermatron Probe, 62 1/2” wires
2 807-3559 High-Limit Thermostat, 435°F with manual reset
3 807-0800 Transformer, 120V/24V 50/60Hz 50VA
4 807-3640 Relay, 120V Coil (Right Relay)
5 807-3611 Relay, 24VAC Coil (Latch or filter, plug-in style)
* 807-4114 Relay, 24VAC (left relay) Latch or Filter, used after Sept. 04
6 826-2086 Thermatron Board, 115V
7 807-3574 Switch, Power ON/OFF Rocker
8 807-3576 Switch, Momentary Reset

9 807-3580 Switch, Boil-Out
10 807-3577 7-amp Circuit Breaker
11 807-2103 Oil-return Microswitch

* 106-1978 Lamp Assembly, red 120V (106-4730, white 24V)

* 106-4686 Lamp Assembly, green 120V (106-4729, 24V)

* 807-3577 7-amp Circuit Breaker

* Not illustrated.

4-2

24G

ITEM PART # COMPONENT

1

807-3555 24V Natural
807-3690 24V Propane (LP)
810-2156 120V Natural
810-2323 120V Propane (LP)

2 807-3556 Igniter and Flame Sensor Assembly
* 106-1645SP Flame Sensor Wire
3 106-1644SP Ignition Cable
4 807-0918 Module, Ignition (11-second spark module)
* 807-3551 Transformer, Electronic Ignition

5 Pilot Burner

810-2403 Natural Gas
810-2403 Propane (LP) Gas (Use 810-2400 LP burner orifice)

6 807-3550 Thermocouple, 120V

* 807-3294 24V gas valve, Honeywell
* 807-3295 24V propone gas valve, Honeywell
* 807-3485 Thermopile generator with adapter
* 807-0800 Transformer, 120/24V 50/60Hz 50VA (gas valve transformer)

* Not illustrated.

Valve, Gas

Electronic Ignition Components

Pilot Ignition Components

Post Fall 2005 24V Gas Valve-equipped Fryers

4-3

24G

Blower Assembly, Combustion Air

ITEM PART # COMPONENT

1 Motor, Blower Assembly

807-3573 120V

2 807-3746 Switch, Sail (Air Prover Switch)

4-4

Drain, Oil-Return Frypot Kits

24G

ITEM PART # COMPONENT

1 823-3174 Drain Plug, frypot
2 200-4725 Guard, probe and high-limit
3 210-1433 Clamp, probe and high limit bulb
4 823-4548 Retainer, probe
5 810-2125 Oil return valve, 3/8”
6 809-0884 Nut, slip joining
7 816-0544 O-ring (2 required per slip joint nut)
* 826-1823 Frypot Kit, 1824G (Front Drain, Front Return) (use 826-1821 for 2424G)
* 826-1822 Frypot Kit, 1824G (Front Drain, w/o Filtration) (use 826-1820 for 2424G)
* 826-1828 Frypot Kit, 1824G (Rear Drain, Front Return) (use 826-1842 for 2424G)

* Not illustrated.

4-5

Dean Millivolt

The SR and SM-series of Dean fryers are millivolt-powered units.

Unique Physical Characteristics:

x A no-frills millivolt fryer.

Where used:

x IHOP uses SM fryers with filtration, small restaurants, bars, catering vehicles use

the SR series.

Common Model Numbers:

SR42, SR52, SR62, SM250, SM150, SCFSM250

5-1

Dean Millivolt

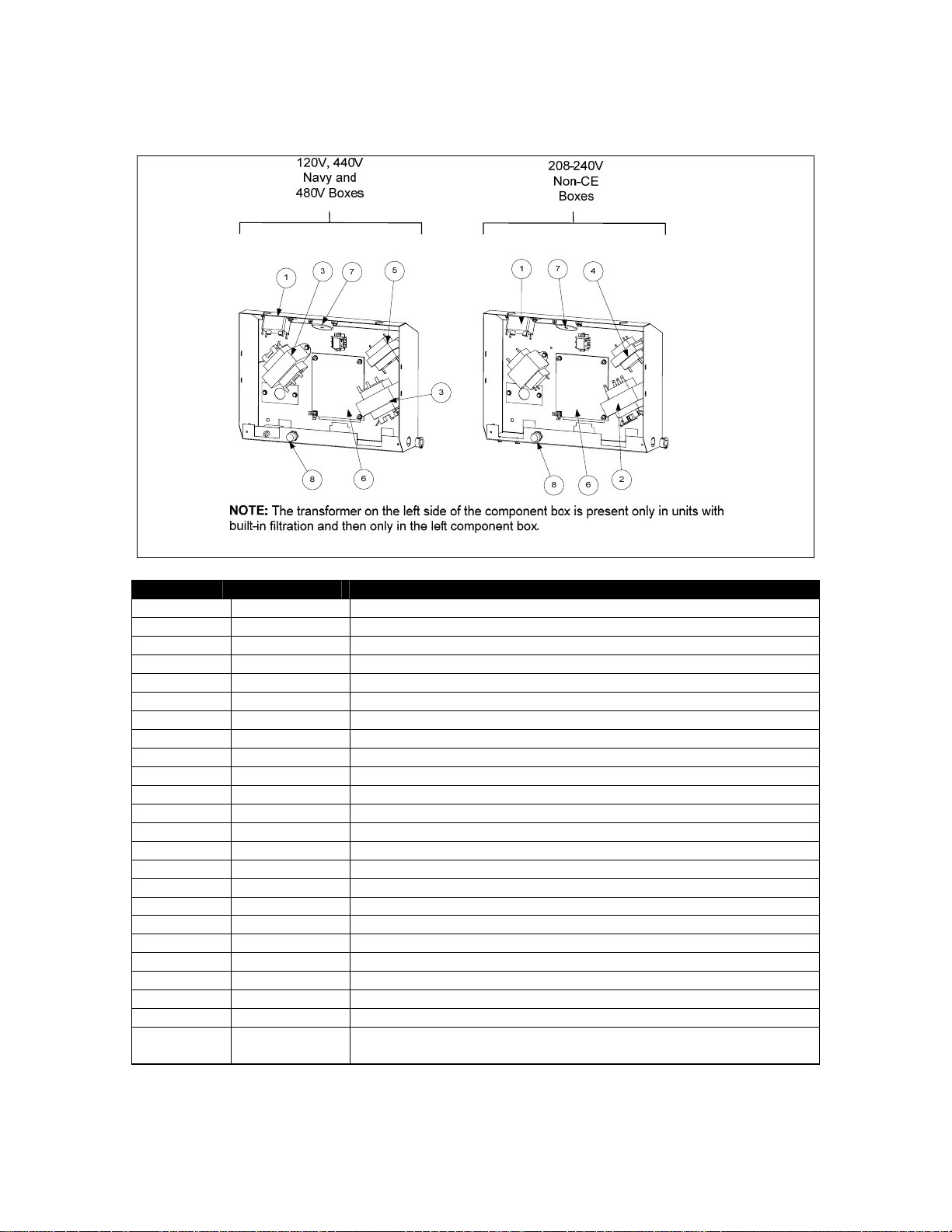

Component Box Components and Related Components

Item

1 826-2013 Thermostat, Sunne
2 807-3485 Thermopile
3 810-1001 Piezo Ignitor (Trigger) (Wire Lead-807-3650) (Assembly-44970SP)
4 807-0800 Transformer, 120/24 VAC- Filtration System
5 807-3580 Switch, Rocker- Manual Filter Power
6 807-3516 High-Limit Thermostat- Automatic Reset 435° F SM20/35,SR40/42
* 807-3680 High-Limit Thermostat- Manual Reset 450° F
7 807-1321 Fuse Holder, Buss
* 807-3750 Fuse 5A (120V Systems)
* 826-1392 O-Rings (Pkg. of 5)
* 807-3611 Relay, Filter 24A DPDT
* 807-2103 Microswitch, Straight Lever

* Not illustrated.

Part # Component

5-2

Dean Millivolt

Frypots and Related Components

Tab

210-5175

2

1

5

3

230-2593

Item Part # Description

1

810-2689 Pilot Assembly Honeywell w/ Piezo- Natural (Use 810-2690 for LP) SM20G

106-4968 Pilot Assembly w/ Piezo-Natural SM20G

810-2158 Pilot Burner- SM20G- Natural(0.18 Orifice) (Use 810-2526 for LP)

810-2690 Pilot assembly, LP, SM20

810-2032

106-0692 Burner, Pilot Assembly- Natural & MFG SM60G, SR62G, SM80G

810-2155

2

210-5197 Diffuser, Burner Tube- SM80G

210-5215 Diffuser, Burner Tube- SM60G, SR62G

230-2593 Diffuser, Burner Tube- SR52G, SM/D50, SM/D20

210-5175 Diffuser, Burner Tube- SM50G, SM20 (with tab)

230-2592 Diffuser, Burner Tube- SR38G, SR42G, SM35G, SM40G

3

3

4

4 810-2038 Burner, Center- SR38G, SR42G, SM35G, SM40G

810-2150 Burner, Right- SM60G, SM80G, SR62G, SM20, SR52G, SM50G

810-2039 Burner, Right- SR38G, SR42G, SM35G, SM40G

810-2149 Burner, Center- SM60G, SM80G, SR62G, SR52G, SM50G

Pilot Assemblies

Burner, Pilot- Natural & MFG (Also Used For Main Pilot) SM60G, SR62G,
SM80G, 50G

Burner, Pilot- LP (Also Used For Main Pilot) SM60G, SR62G, SM80G,
SM50

Diffusers

Burners

6

4

5-3

Dean Millivolt

Item Part # Description

5 810-2151 Burner, Left- SM60G, SM80G, SR62G, SM20G, SR52G, SM50G

5 810-2037 Burner, Left- SR38G, SR42G, SM35G, SM40G

6

807-1603 Valve, Gas- Natural, Honeywell- ½” in x ½” out Started using Feb. 2003

807-3648 Valve, Gas- Natural, Honeywell- ¾” in x ¾” out Started using Feb. 2003

807-3645

826-2267

826-2276

826-2268 Valve, gas, LP, Honeywell, SM35, SM40, SM50, SR62, SM60, SM80,

807-3553 Valve, gas, LP, Honeywell, 1/2" x 1/2", SR series, SM35, SM40, SM50

807-1604

810-2138 Valve, Trailing Pilot- SM60G, SM80G, SR62G adjustment valve

*

826-1817 Natural to LP, SR42

826-2017 LP to Natural, SR42

826-2018 Natural to LP, SR52/SM50 (with Honeywell valve)

826-2019 LP to Natural, SR52/SM50 (with Honeywell valve)

826-2020 Natural to LP, SR62/SM60 (with Honeywell valve)

826-2021 LP to Natural, SR62/SM60 (with Honeywell valve)

807-1846 Valve kit, Nat to Pro, SR 52,62, SM35, SM40, SM50

* Not illustrated.

Valves

SM50G, SM20, SR, SM35, SM40, SM50

Export SM50G
Valve, gas, nat. Robertshaw, 1/2" x 3/4", SR, SM20, SM35, SM40, SM50,

SR62, SM60, SM80
Valve, gas, nat. Honeywell, 1/2" x 3/4" SR, SM20, SM35, SM40, SM50
SR62, SM60, SM80

Valve, Gas- LP, Robertshaw MV SM60G, SR62G, SM80G, SM20G (Valve
with LP kit)

Valve, gas, LP, Honeywell 1/2" x 1/2" use started 2/03, SR series, SM35,
SM40, SM50, SM20

Conversion Kits

5-4

Pro Electric/RE

RE

Pro Electric

The Pro Electric fryer, which introduced a new filter pan
and a large drain manifold among other design changes,
was followed by the RE, which introduced a unique
rotating element. The units share many common electrical
components.

Unique physical characteristics:

Pro Electric — 3-inch drain manifold, filter pan redesign
RE — Recessed rotating element mounting mechanism,
repositioned and redesigned contactor boxes

Where used:

All major chains

Common Model numbers:

x Pro Electric — FPPH214, FPPH217, FMPH214; McDonald’s: BIPH214,

BIPH314

x RE — FPRE317, FPRE 217, FPRE214; McDonald’s: BIRE314, BIRE414,

BIRE214

The RE fryer has a recessed tubular
mounting point for the elements which
rotates. This is the most obvious
difference between the RE and the Pro
Electric.

6-1

Controllers

Pro Electric/RE

Standard

Item

1

826-2333 826-2332 Full-Vat
826-2334 826-2405 Dual-Vat
826-2335 826-2397 Full-Vat (Triac/Solid State)
826-2336 826-2398 Dual-Vat (Triac/Solid State)

2

826-2303 826-2329 Full-Vat
826-2362 106-4340 Dual-Vat

3

106-2088SP 106-4363 Full-Vat
106-2089SP 106-4364 Dual-Vat

4

806-7422 106-7987 Full-Vat
806-7423 106-4334 Dual-Vat
810-0387 810-0387 Knob

5

826-2346 826-2343 M2000

Part #

Euro-look

Part # Component

Computer Magic III.5

Digital Controller

Basket Lift Timer

Solid-State (Analog) Controller

McDonald’s Replacement Controllers (No bezel)

Interface Board to Controller Wiring Harness – 15-Pin

806-2071SP

6-2

For SMT
computer

Component Boxes

Pro Electric/RE

Item Part # Component

1 807-0012 Relay, 18 Amp ѿ HP 24V Coil
2 807-2180 Transformer, 208-240V 50VA
3 807-2181 Transformer, 100-120V/24V 60VA
4 807-0680 Transformer, 208-240V/24V 20VA
5 807-0855 Transformer, 100-120V/12V 20VA
* 807-0979 Transformer, 208-240V/12V 43VA
6

826-2256 Standard (Non-Triac), Full- or Dual-Vat
826-2257 Triac, Full- or Dual-Vat
106-5335 Fast Computer, Full- or Dual-Vat

6

826-2260 Standard, Full or Dual Vat
106-6501 Fallback Controller Assembly

807-3932 Relay, Heat and Latch 12 VDC SPDT 12A
7 806-7179SP Sound Device
* 826-2458 Speaker, McDonald’s
8 807-0069 Circuit Breaker, 10 Amp
*

807-2192 100-120V/12V
807-0680 208/240V/24V (no fuse)
807-0800 120V 50VA/24V (no wires)
807-1999 208/220/230/240V 20/50 VA 12/24
807-4036 Switch (used on RE control box)
826-2249 RE Hood/Ansul Interlock Kit (includes terminal block, wires,

* Not illustrated.

Pro Series Interface Board

RE Interface Boards

24 Volt Transformers Used in Common Electric Units

connectors

6-3

Contactor Boxes

Pro Electric/RE

Item Part # Component

1 807-1071 Contactor, 24V 30 Amp Mercury
2 807-0884 Contactor, 24V 35-50 Amp Mercury
3 807-2284 Contactor, 24V 50 Amp Mechanical (only in 14 & 17kW Navy units)
4 807-2283 Contactor, 24V 63 Amp Mechanical (only in 22kW Navy units)
5 810-1202 Contactor, 24V 40 Amp 3-Pole
6 807-0012 Relay, 18 Amp ѿ HP 24V Coil
7 807-0064 Transformer, 480V/120V 150VA
8 807-1683 Relay, 12VDC

** 826-1562 Relay, Solid State 50 Amp 280V

* 807-0331 250V transformer

* Not illustrated.
** Dual-vat Assembly has six relays (826-1562); full-vat Assembly has three relays.

6-4

Pro Electric/RE

Heating Element Assemblies and Associated Parts

NOTE: Pro-series

elements have flat
mounting flanges and
will not fit on newer RE­series fryers.

1

2

1

3

Item Part # Component

1

Element

826-2149 208V 17.0 kW
826-2150 208V 18.5 kW
826-2172 208V 11.0 kW
826-2154 240V 17.0 kW
826-2155 240V 18.5 kW
826-2166 240V 11.0 kW
826-2159 440V 17.0 kW
826-2160 440V 18.5 kW
826-2169 440V 11.0 kW
826-2161 480V 17.0 kW
826-2162 480V 18.5 kW

826-2170 480V 11.0 kW
2 826-1526 Probe, Temperature
3

Hi-limit

826-2454 Full Vat 425°F (218°C) (Color-coded, black)

826-2456 Dual Vat 435°F (224°C) (Color-coded, red)

6-5

Pro Electric/RE

RE Heating Element Assemblies and Associated Parts

NOTE: RE-series

elements have a curved
mounting flange and will
not fit on earlier Pro­series models.

Item Part # Component

1 Element Kits – includes gaskets, grommets, tie wraps, screws and nuts.

826-2192 208V 17.0 kW
826-2197 208V 18.5 kW
826-2210 208V 11.0 kW
826-2194 240V 17.0 kW
826-2207 240V 11.0 kW
826-2195 440V 17.0 kW
826-2202 440V 18.5 kW
826-2211 440V 11.0 kW
826-2196 480V 17.0 kW
826-2203 480V 18.5 kW
826-2209 480V 11.0 kW

Probes

2 826-2212 Probe, Temperature RE – includes tie wraps and grommet.

807-4324 Probe, Temperature Fast Ready

*

826-2454 Full Vat 425°F (218°C) (Color Coded Black)
826-2456 Dual Vat 435°F (224°C) (Color Coded Red)

* Not Illustrated.

Hi Limit

6-6

2836

The 2836 is a large electric fryer used principally in Wal-Mart
kitchens to prepare chicken in large quantities. The original
design used a round-bar element and had float switches; later
units have flat-bar elements and no float switch.

Unique Physical Characteristics:

x The unit is big. Wal-Mart cooks 100 pieces of chicken

at a time in the 36Kw frypot. The amp draw demands
special wiring for the store. The unit is also sold in a
two 28Kw frypot configuration.

Where Used:

x Wal-Mart, however, it is not marketed exclusively to Wal-Mart.

Common Model Numbers:

x FP128/236, FP228

The earlier 2836 units have round
heating elements and a float switch,
which is visible in the left corner above.

7-1

2836

Computer and Related Components

Item Part Number

1 826-2389 Computer, Standard CM3.5
* 826-2388 Computer, FP28 SMT FV
* 826-2387 Computer, FP36 SMT FV
* 106-7177 Computer, FP28SV/SPR with Bezel SMT

* Not illutstrated.

Description

7-2

2836

Contactor and Power Cord Box Assembly

Item Part # Description

1 807-0884 Contactor Mercury 240V 50A
2 810-1202 Contactor, 40 Amp 3 Pole
* 807-4017 Fuse, 50-amp 480V, 300VDC

* Not illustrated.

7-3

Component Box Assembly

2836

Item Part # Description

1 806-3660 Sound Device, High Output
2 826-2256 PCB Assembly, Interface (FV) Common Elect
3 807-0012 Relay 18 Amp 1/3 Hp 24V Coil (On LT Only)
4 807-0670 Relay, Midtex DPDT 24V
5 807-0800 Transformer 120 50/60-24V 50VA
6 807-0855 Transformer 120 50/60-12V 20VA
7 807-2278 Fuse, 20 Amp

7-4

2836

Elements (round) and related components for float-switch model

3

2

1

Item Part # Description

1 807-4009 Element, FP28/36S 480V 9.533 kW
* 807-4011 Element, FP28/36S 11.9 kW
2 809-0567 Tie Wrap, Metal
3 806-6849SP Switch, Tilt Safety
* 826-2104 Probe, 28 kW Temperature
* 826-2105 Probe, 36kW, Temperature

* KIT6078SP

* Not illustrated.

Float Switch Kit FP28 (Use KIT6079SP for FP36) - Both kits include
covers.

7-5

2836

Elements (flat) and related components for non float-switch model

2

1

3

Item Part # Description

1 807-4038 Element, FP28, 480V

807-4051 Element, FP36, 480V

2 826-2106 Probe kit, FP28, temperature

826-2107 Probe kit, FP36, temperature

3 806-6849 Tilt switch assembly

7-6

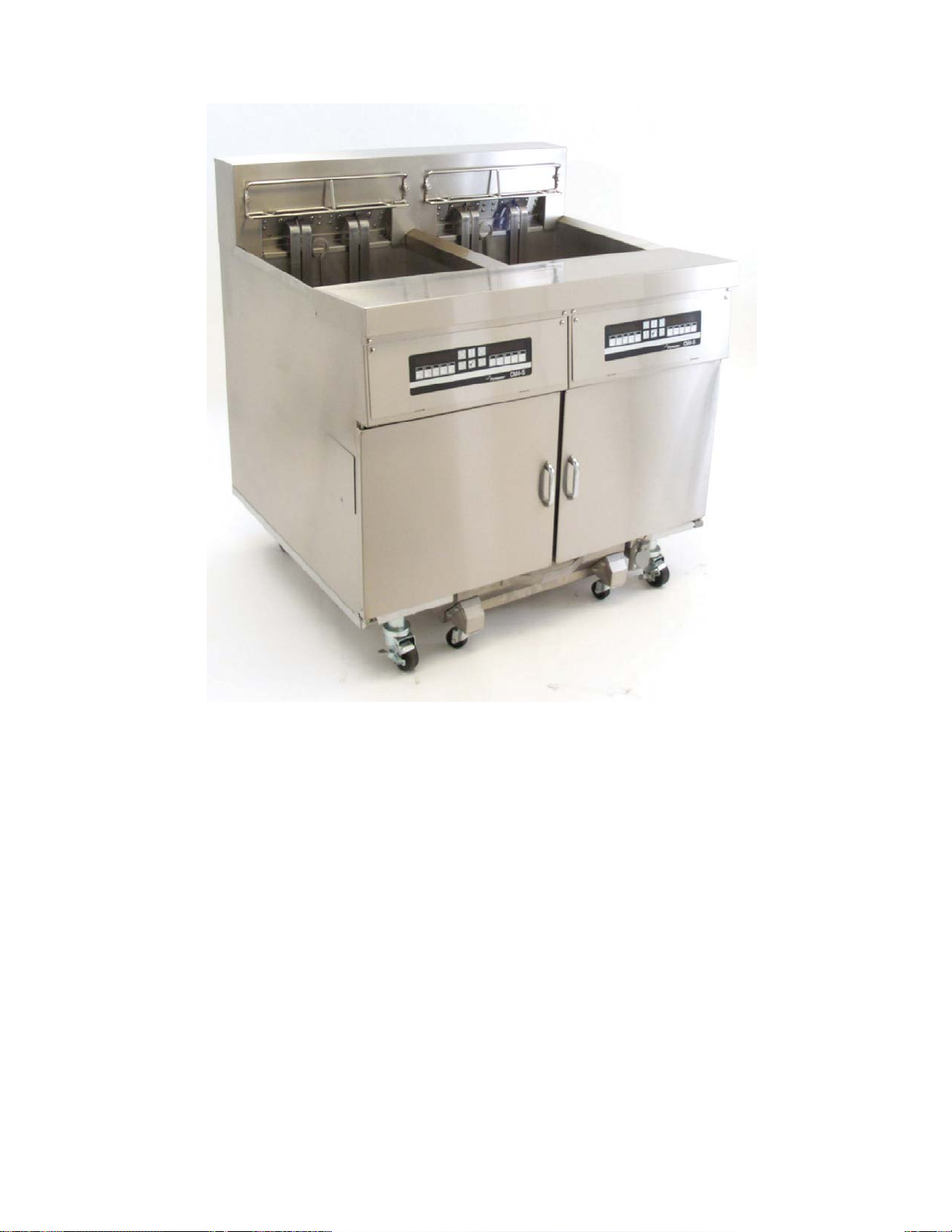

1721/18UE

The 18UE and the 1721 are Dean and Frymaster versions of very similar electric fryers.
Many components in the running gear are the same.

Unique Physical Characteristics:

x Large-capacity chicken fryer.

Where Used:

x The Frymaster 1721 is used in Church’s and Popeye’s.

Common Model Numbers:

x EH1724, SCF318UE, CF118UE

8-1

1721/18UE

Computers, Controllers and Related Components

Item Part # Description

1 826-2310 Computer, CM-III Full-Vat
2 826-2303 Controller, Digital- Full-Vat
3 106-0063 Computer, KFC-1 Electric (Non-CE)
4 106-3028 Computer, CM4-S (Segmented Programming)
5 806-7422 Controller, Analog- Solid State (3 On, 12 Off)

8-2

Electronics

1721/18UE

Item Part Number Description

1 826-2256

2 826-2031

3 807-0855 Transformer, 120V, 50/60 Hz –12V 20VA (480V Units)
* 807-0979 Transformer, 208-240V, 50/60Hz –12V 20VA
4 807-0800 Transformer, 120V 50/60 Hz –24V 50VA (480V Units)
* 807-0680 Transformer, 208-240V, 50/60Hz –24V 20VA
5 807-3611 Relay, 24VAC
6 807-1071 Contactor, Mercury- 240VAC 30-Amp (17 kW Units)
* 807-0884 Contactor, Mercury- 240VAC 50-Amp (21 kW Units)
7 810-1202 Contactor, Latching- 40-Amp, 3-Pole
* 807-2278 Fuse, 20-Amp
8 806-3660 Sound Device- All Except KFC18E
9 806-5974SP Speaker, Sound- KFC18E Only
* 807-3577 Breaker, Circuit 7 amp (120V Filter Circuit)
* 807-2104 Microswitch
* 807-3932 Relay, 12VDC

* Not illustrated.

Interface Board- (All Except Electronic Thermostat
Controller)
Thermatron Board- (Electronic Thermostat Controllers
Only)

8-3

1721/18UE

Probes, High-Limits, Elements and Related Components

1

2

3

4

Item Part # Description

1 807-3652 Element- 208V 8.5 kW

807-3675 Element- 480V 10.25 kW
807-3655 Element- 240V 8.5 kW
807-3657 Element- 208V 9.0 kW
807-3658 Element- 240V 9.0 kW
807-2557 Element- 208V 10.25 kW
807-3655 Element- 240V 8.5 kW (USE FOR 220V 7 kW)

807-2637 Element- 240V 10.25 kW
2 826-1791 Probe, Temperature- 15" (With Ty Wrap)- All Except Thermatron
* 807-3653 Probe, Temperature- Thermatron Only
3 910-5022 Bracket, Probe Guard
4 826-2456 High-Limit Thermostat- 435°F

* Not illustrated.

8-4

1721/18UE

Tilt Safety Switch Components

1

2

Item Part # Description

1 806-6849SP Switch, Tilt Safety
* 809-0874 Ty Wrap, Plastic- 4" (Operating Temperature 265°F)
2 807-1570 Clip, Tilt Switch

* Not illustrated.

8-5

Pumps/Motors

Frymaster fryers use Viking pumps; Dean units have Haight
pumps. The 4 GPM pump used in Frymaster fryers will fit in
most units. The same can be said for Dean pumps, although
4GPM, 5GPM, and an 8 GPM pump are available.

What to Watch For:

x Pumps are easily clogged. Don’t replace a pump/motor

assembly without cleaning the pump.

How to Order:

x Frymaster doesn’t sell pump/motor assemblies,

essentially to deter needless replacement of both components. Pumps and motors
are listed separately, each with a gasket.

It doesn't take much debris
to clog a pump. The one
above was believed failed
and replaced. All it needed
was cleaning. Warranty
claims for functioning
pumps are rejected.

9-1

Pumps/Motors

Item # Part # Component

1 810-2100 Motor, 120-230 1/3 HP used in 24G, Decathlon
2 810-2098 Pump, 8GPM, used in 24G, Decathlon
* 810-2252 Pump, 5GPM, used in Decathlon
3 826-1712 100-120V motor with gasket, used in 45-series, 52/55 , Pro/RE
* 826-1756 208V with gasket, used in Pro/RE
4 826-1264 Pump, 4 GPM, used in 45, 52/55, Pro/RE
* 816-0093
* 810-3071 Pump, 8 GPM, used in Dean Common Cabinet
* 826-1392 O-Rings, .739" I.D. (pkg. of 5) [816-0596]
* 826-1051 O-Ring Kit, for FMII or FPII Filter Systems
* 816-0597 O-Rings, 1.36" I.D., for Footprint III Filter Pan Check Valve

* Not illustrated.

Gasket, used in Frymaster filters/pumps, part of Items 3 & 4

9-2

GSMS

The GSMS is a gas pasta cooker.

Unique Physical Characteristics:

The GSMS has a flat-bottom tank with sealed burners attached.

Where Used:

Carrabba’s and other pasta restaurants

Common Model Numbers:

GSMS

10-1

GSMS

Combustion System Components

ITEM PART # COMPONENT

1 Igniter

826-1714 Natural Gas
826-1715 Propane Gas

2 Burner Assembly

810-1382 Natural or Propane Gas Burner w/o Orifice
* 812-0357 Burner Insulation
3 Motor, Blower

807-1564 120VAC/60 Hz

* Not illustrated.

10-2

GSMS

Control Box and Related Components

ITEM PART # COMPONENT

1 807-1396 Relay, 24VDC SPDT (Basket Lift Relay – GSMS and GBC units only)
2 Transformer

807-0800 120VAC/24VAC, 50/60 Hz, 50VA

807-0680 208-240VAC/24VAC, 50/60 Hz, 43VA
3 807-3366 Module, Honeywell Dual-Spark FV Ignition (See NOTE below.)
4 807-0670 Relay, 24V DPDT (Heat Relay – all units)
5 106-0676SP Cable, Ignition (used with Item 3 – also requires Item 8)
6 807-1709 Cable, Ignition (used with 807-1006 Ignition Modules)
7 806-5316SP Wire Assembly, 20-inch High Temperature (Flame Sensor Wire)
8 807-3484 Connector, RAJAH (two required for each 807-3366 Ignition Module)

NOTE: Control box assemblies on units manufactured before October 2000 were built with
two single-spark ignition modules (P/N 807-1006). If an 807-1006 module fails, the control
box may be retrofitted with one dual-spark ignition module (P/N 807-3366) and two RAJAH
connectors (P/N 807-3484). If this option is chosen, the earlier style ignition cables (P/N 807-

1709) must also be replaced with the new ignition cables (P/N 106-0676SP).

10-3

GSMS

Controllers and Control Panel Components

ITEM PART # COMPONENT

1 Controller, SMS III - GSMS

106-0376 Full Featured
106-0379 w/o Autoskim
106-0380 w/o Autofill or Autoskim

Controller, SMS III - GSMS
106-0376 Full Featured
106-0379 w/o Autoskim
106-0380 w/o Autofill or Autoskim

Water Sensors

ITEM PART # COMPONENT

1 823-1920 Sensor, Low Water Level
2 823-1921 Sensor, Normal Water Level
3 806-4764 Probe Assembly, Temperature
* 809-0193 Washer, ¼” Nylon, flat

* Not illustrated.

10-4

GSMS

Gas Valves

ITEM PART # COMPONENT

1 Valve, Honeywell Gas (Non-CE)

826-1122 Natural or Manufactured Gas
826-1123 Propane Gas

10-5

8SMS

The 8SMS is an 8Kw electric pasta cooker.

Unique Physical Characteristics:

Has basket lifts, rinse tank and a faucet.

Where Used:

Fazoli’s and other pasta restaurants

Common Model Numbers:

8SMS

11-1

8SMS

ITEM PART # COMPONENT

1 810-1697 Block, Probe
* 826-1081 Kit, Probe Block (old style with pins and cover)
* 823-2791 Cover, Probe Block
* 823-1942 Cover, Probe (old style with holes for pins)
2 823-1920 Sensor, Lower Water Level (approximately 7 inches long)
3 823-1921 Sensor, Upper Water Level (approximately 4¼ inches long)
4 910-1804 Bracket, Temperature Probe Retaining
5 806-4764 Temperature Probe (with connectors)
6 900-5675 Bracket, High-Limit Thermostat Mounting
7 826-1601 Thermostat, High-Limit (includes high-limit, gasket, and tie wrap)
* 809-0193 Washer, ¼” Nylon, Flat
8 Element, 8kW, 1- or 3-Ø (includes mounting washer and nut and standoff)

807-1345 208VAC
807-1347 240VAC

* Not illustrated.

11-2

8SMS

4

3

2

1

5

ITEM PART # COMPONENT

1 807-1396 Relay, 24VDC
2 807-0680 Transformer, 208/240VAC – 24VAC
3 806-4770 Valve Assembly, Solenoid
4 810-1202 Contactor, 40 Amp 3 Pole
* 806-4702 Cable, 8SMS Controller
* WIR0013SP Wire Assembly, SMSII 208/240V
5 807-1308 Fuse Holder
* 807-1555 Fuse
* Controller, 8SMS (Use smaller bezels)

106-0371 AutoFill and AutoSkim
106-0373 AutoFill but without AutoSkim
106-0374 Without Autofill or Autoskim

* Not illustrated.

11-3

UHC-P

The UHC-P is the second generation of the holding cabinet, which, until recently, was
made exclusively for McDonald’s. This cabinet is programmed with a Palm Pilot.

Unique Physical Characteristics:

• Dark IR port on top right of the cabinet. Programming is beamed to the cabinet

through this port from a Palm Pilot. The unit is offered in four-slot (shown
above), two-slot and narrow configurations. There is no parts interchangeability
between the UHC-P and the earlier UCH.

Where Used:

• McDonald’s. A generic version called the Holdmaster is just being brought to

market. The bezels and heater plates are different on the generic model.

Common Model Numbers: UHC-P4, UHC-P2 and UHC-P Narrow

12-1

UHC-P

ITEM PART # COMPONENT

1 807-4204 Distribution board
2 106-7956 Power supply board
3 807-4203 Communication board
4 807-4024 Transformer
5 807-4036 Switch
6 807-4202 Display, narrow (equipped with ribbon cab le)
7 807-4201 Display, full (equipped wit h ribbon cable)
* 807-3918 Communication cable
* 826-2034 Palm Zire 22 with UHC-P software
* 807-2819 Fuse, 20 amp
* 819-6048 UHC-P software CD

* Not illustrated.

12-2

UHC

The UHC is the first generation holding cabinet. This unit was built exclusively for
McDonald’s.

Unique Physical Characteristics:

x This unit is programmed with buttons on the bezel. There is no IR port. There is

no part interchangeability between the UHC and the newer UHC-P.

Where Used:

x McDonald’s only

Common Model Number:

x UHC

13-1

UHC

ITEM PART # COMPONENT

1 807-2443 UHC Motherboard
2 807-2444 UHC Driver board
3 807-2460 Transformer
4 807-3308 Switch
5 807-3490 Relay, power
* 826-1718 Switch Kit with relay ( includes switch, relay, bracket and wiring)
6 807-3309 Front Display Assembly
* 807-3310 Rear display Assembly
* 807-3311 Front Membrane Switch
* 807-3312 Rear Membrane Switch
* 807-2448 CN1 and CN2 Harnesses
* 807-2665 Blower
* 807-2770 1.5 amp fuse
* 807-2819 20 amp fuse

* Not illustrated.

13-2

Sinbad

The Sinbad is a single-basket fry dispenser. It is used almost exclusively by Burger King.

Unique Physical Characteristics:

x The Sinbad uses a load cell to measure fries awaiting dispensing in the hopper.

Where Used:

x Burger King and a few in McDonald’s.

Common Model Number

x Sinbad

14-1

Sinbad

ITEM PART # COMPONENT

1 106-1277 Sinbad II Controller (Burger King)
* 826-1571 Sinbad 1 Controller, (Burger King)
* 106-1480 Sinbad Controller, (McDonald’s
2 807-3436 Drum Motor
3 810-1571 Drum Rotator Arm
4 806-9258 Load Cell
5 106-6715 Motor Interface Board
6 807-3004 Dispense Motor
7 807-2943 Transformer
8 807-2734 ON/OFF Switch, Lighted, Green
9 806-8969SP Position Sensor Assembly, Hall Effect

10 106-0503SP Proximity Sensor Assembly

* 816-0568 Sight Glass, Sinbad II ( Tapered, wider at top)
* 816-0324 Sight Glass, Sinbad I (Parallel sides, not tapered)

* Not illustrated.

14-2

HLZ

The HLZ, or Heated Landing Zone, is a warming station sold exclusively to McDonald’s.

Unique Physical Characteristics:

x Supplies heat with a plate and heated air.

Where Used:

x McDonald’s

Common Model Number:

x HLZ

15-1

HLZ

2

3

1

5

6

7

8

4

ITEM PART # COMPONENT

1 826-1549 Air heater kit, 208V
2 807-0979 Transformer 208/240/12V
3 807-3036 Air RTD Probe
4 807-3631 Hi-limit
5 807-3021 Latch, relay
6 826-2038 Air Relay Kit, 50-amp
* 826-1958 5-amp Plate relay kit
7 106-6713 Computer
8 826-1551 Blower kit

* Not illustrated.

15-2

Tools

Part # Description

806-4855 Pin-pusher screwdriver
806-5023 Transformer mtb-310a 120v/12v
806-5093 MTB/310a test box 120v
806-5094 MTB/310A TEST BOX 240v
806-5095 5 ft. Ext remote cable assy
807-0928 Tool extract/pin pusher
807-1391 Multitester digital dm50a
826-1746 Load-Cell Simulator for Sinbad
810-0504 Fuse puller
810-0765 1" conduit wrench
810-0766 1.25" conduit wrench
230-4028 Spanner, element nut (used on RE elements)
815-0385 Socket 1" 6pt mld slot
815-0386 Socket 7/8" deep 6pt mld slot
815-0810 1 1/2"carbide-tipped hl cutter
817-0001 Tool roll Xcelite
817-0002 Gas pressure gauge
817-0003 Gas pressure gauge case
817-0005 Tool mini amp pin pusher
230-2345 Extractor pin, SMT, Micro amp

Frymaster sells a number of
tools for working on our
equipment. The complete list
is below. Not all tools
illustrated above are available
from Frymaster.

16-1

Frymaster, a member of the Commercial Food Equipment Service Association,
recommends using CFESA-certified technicians.

Frymaster, L.L.C., 8700 Line Avenue, PO Box 51000, Shreveport, Louisiana 71135-1000

Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106

TEL [phone] FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135

PRINTED IN THE UNITED STATES

SERVICE HOTLINE

1-800-551-8633

819-6321

NOV 2007
