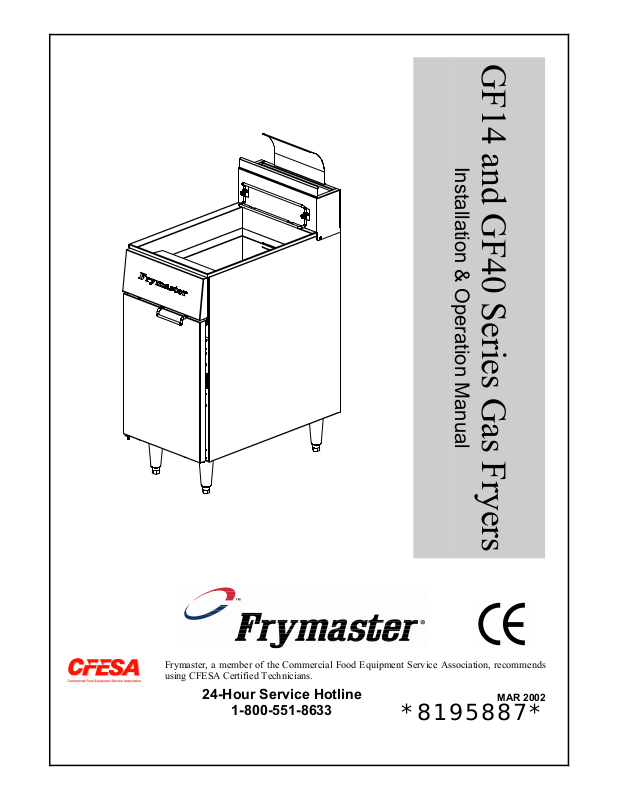

Frymaster GF40, GF14 User Manual
GF14 and GF40 Series Gas Fryers
Installation & Operation Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline
1-800-551-8633
*8195887*
MAR 2002
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Frymaster DEAN Factory Authorized Service Center (FASC) or other qualified
professional should perform installation, maintenance, and repairs. Installation, maintenance,
or repairs by unqualified personnel may void the manufacturer’s warranty. See Chapter 1 of
this manual for definitions of qualified personnel.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of
the country and/or region in which the appliance is installed. See NATIONAL CODE
REQUIREMENTS in Chapter 2 of this manual for specifics.
NOTICE TO U.S. CUSTOMERS
This equipment is to be installed in compliance with the basic plumbing code of the Building
Officials and Code Administrators International, Inc. (BOCA) and the Food Service Sanitation
Manual of the U.S. Food and Drug Administration.
NOTICE
Drawings and photos used in this manual are intended to illustrate operational, cleaning and
technical procedures and may not conform to onsite management operational procedures.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH COMPUTERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesired operation. While
this device is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set
out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A
et B prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER
Improper installation, adjustment, maintenance or service, and unauthorized alterations or
modifications can cause property damage, injury, or death. Read the installation, operating,
and service instructions thoroughly before installing or servicing this equipment. Only qualified
service personnel may convert this appliance to use a gas other than that for which it was
originally configured.
DANGER
No structural material on the fryer should be altered or removed to accommodate placement of
the fryer under a hood. Questions? Call the Frymaster Dean Service Hotline at 1-800-551-8633.
DANGER
Adequate means must be provided to limit the movement of this appliance without depending
upon the gas line connection. Single fryers equipped with legs must be stabilized by installing
anchor straps. All fryers equipped with casters must be stabilized by installing restraining
chains. If a flexible gas line is used, an additional restraining cable must be connected at all
times when the fryer is in use.
DANGER
The front ledge of the fryer is not a step! Do not stand on the fryer. Serious injury can result
from slips or contact with the hot oil.
DANGER
Do not store or use gasoline or other flammable liquids or vapors in the vicinity of this or any
other appliance.
DANGER
Instructions to be followed in the event the operator smells gas or otherwise detects a gas leak
must be posted in a prominent location. This information can be obtained from the local gas
company or gas supplier.
DANGER
This product contains chemicals known to the state of California to cause cancer and/or birth
defects or other reproductive harm.
Operation, installation, and servicing of this product could expose you to airborne particles of
glasswool or ceramic fibers, crystalline silica, and/or carbon monoxide. Inhalation of airborne
particles of glasswool or ceramic fibers is known to the State of California to cause cancer.
Inhalation of carbon monoxide is known to the State of California to cause birth defects or other
reproductive harm.
NOTICE
The Commonwealth of Massachusetts requires any and all gas products to be installed by a
licensed plumber or pipe fitter.
GF14 and GF40 SERIES GAS FRYERS
TABLE OF CONTENTS
CHAPTER 1: General Information
1.1 Parts Ordering and Service Information .............................................................. 1-1
1.2 Safety Information ............................................................................................... 1-2
1.3 Equipment Description ........................................................................................ 1-2
1.4 Installation, Operating, and Service Personnel....................................................1-3
1.5 Definitions............................................................................................................ 1-3
1.6 Shipping Damage Claim Procedure..................................................................... 1-4
CHAPTER 2: Installation Instructions
2.1 General Installation Requirements....................................................................... 2-1
2.2 Caster/Leg Installation.........................................................................................2-2
2.3 Pre-Connection Preparations ............................................................................... 2-2
2.4 Connection to Gas Line ....................................................................................... 2-3
2.5 Converting to Another Gas Type......................................................................... 2-4
CHAPTER 3: Operating Instructions
3.1 Start-Up Procedures............................................................................................. 3-1
3.2 Boiling Out the Frypot......................................................................................... 3-2
3.3 Filling with Cooking Oil or Shortening ............................................................... 3-3
3.4 Shutting the Fryer Down...................................................................................... 3-3
3.5 Thermostat Operation .......................................................................................... 3-3
3.6 Draining and Filtering.......................................................................................... 3-4
CHAPTER 4: Preventive Maintenance and Operator Troubleshooting
4.1 Daily Checks and Services................................................................................... 4-1
4.2 Quarterly Checks and Services ............................................................................ 4-1
4.3 Semi-Annual Checks and Services ...................................................................... 4-3
4.4 Operator Troubleshooting.................................................................................... 4-4
i
GF14 and GF40 SERIES GAS FRYERS
CHAPTER 1: GENERAL INFORMATION
1.1 Parts Ordering and Service Information
In order to assist you as quickly as possible, the Frymaster Factory Authorized Service Center
(FASC) or Service Department representative requires certain information about your equipment.
Most of this information is printed on a data plate affixed to the inside of the fryer door. A typical
data plate is illustrated below.
GF14SD 0201FM0208 AF NAT
1050 4.00 10000
1.65 000 .00
Parts orders must be placed directly with your local FASC or distributor. Included with fryers when
shipped from the factory is a list of Frymaster FASCs. If you do not have access to this list, contact
the Frymaster Technical Service Department at 1-800-551-8633 or 1-318-865-1711.
When ordering parts, the following information is required:
Model Number:
Serial Number:
Type of Gas:
Item Part Number:
Quantity Needed:
Service information may be obtained by contacting your local FASC. Information may also be
obtained by calling the Frymaster Technical Service Department at 1-800-551-8633 or 1-318-865-
1711.
When requesting service, please have the following information ready:
Model Number:
Serial Number:
Type of Gas:
In addition to the model number, serial number, and type of gas, please be prepared to describe the
nature of the problem and have ready any other information that you think may be helpful in solving
your problem.
RETAIN AND STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE USE.
1-1
1.2 Safety Information
Before attempting to operate your unit, read the instructions in this manual thoroughly.
Throughout this manual, you will find notations enclosed in double-bordered boxes similar to the
ones below.
CAUTION
boxes contain information about actions or conditions that may cause or result in a
malfunction of your system.
CAUTION
Example of a CAUTION box.
WARNING
boxes contain information about actions or conditions that may cause or result in dam-
age to your system, and which may cause your system to malfunction.
WARNING
Example of a WARNING box.
DANGER boxes contain information about actions or conditions that may cause or result in injury to
personnel, and which may cause damage to your system and/or cause your system to malfunction.
DANGER
Hot cooking oil or shortening causes severe burns. Never attempt to move a fryer
containing hot cooking oil/shortening or to transfer hot cooking oil/shortening from
one container to another.
1.3 Equipment Description
The GF14 and GF40 Series gas fryers are designed for all-purpose frying. Other than the capacity of
the frypot, both fryers are virtually identical. The GF14 model holds up to 40 lbs. (20 liters) of
cooking oil or shortening. GF40 fryers hold up to 50 lbs. (25 liters). Both models must be manually
filtered or filtered with a portable filtration unit such as the Frymaster PF50 portable filter.
These fryers use a millivolt temperature control circuit, which requires no external power.
Both models use an open-pot design with no tubes and have a hand-sized opening into the deep cold
zone, which makes cleaning the frypot quick and easy.
The fryers require installation of legs or optional casters at point of use. All fryers are shipped with
a package of standard accessories. Each fryer is adjusted, tested, and inspected at the factory before
crating for shipment.
Frypots are constructed of welded, heavy-gauge stainless steel or cold-rolled steel. Heat is supplied
by a burner assembly having multiple gas jets, which are focused on deflectors (commonly referred
to as “targets”) located around the lower side of the frypot. The deflectors concentrate the heat
produced by the burners on the bottom of the frypot.
1-2
The burner assembly can be configured for natural gas, propane, or manufactured gas, as required by
the customer. A drain is tapped into the center of the frypot, with a front-controlled manual ball
valve.
Each fryer is equipped with a thermostat for precise temperature control. The thermostat is located
near the centerline of the frypot for rapid response to changes in loads and to provide the most
accurate temperature measurement.
A high temperature thermostat (hi-limit) shuts off gas to the burner assembly if the controlling
thermostat fails.
1.4 Installation, Operating, and Service Personnel
Operating information for Frymaster equipment has been prepared for use by qualified and/or authorized personnel only, as defined in Section 1.5.
All installation and service on Frymaster equipment must be performed by qualified, certified,
licensed, and or/authorized installation or service personnel, as defined in Section 1.5.
1.5 Definitions
QUALIFIED AND/OR AUTHORIZED OPERATING PERSONNEL
Qualified/authorized operating personnel are those who have carefully read the information in this
manual and have familiarized themselves with the equipment functions, or who have had previous
experience with the operation of the equipment covered in this manual.
QUALIFIED INSTALLATION PERSONNEL
Qualified installation personnel are individuals, or firms, corporations, or companies which, either in
person or through a representative, are engaged in and are responsible for the installation of gasfired appliances. Qualified personnel must be experienced in such work, be familiar with all gas
precautions involved, and have complied with all requirements of applicable national and local
codes.
QUALIFIED SERVICE PERSONNEL
Qualified service personnel are those that are familiar with Frymaster equipment and who have been
authorized by Frymaster to perform service on Frymaster equipment. All authorized service
personnel are required to be equipped with a complete set of service and parts manuals and stock a
prescribed minimum amount of Frymaster equipment parts.
A list of Frymaster Factory Authorized Service Centers (FASC) is included with the fryer when it
ships from the factory. Failure to use qualified service personnel will void the Frymaster
Warranty on your equipment.
1-3
1.6 Shipping Damage Claim Procedure
Your Frymaster equipment was carefully inspected and packed before leaving the factory. The
transportation company assumes full responsibility for safe delivery upon acceptance of the
equipment for transport.
What to do if your equipment arrives damaged:
1. File a claim for damages immediately, regardless of the extent of damages.
2. Inspect for and record all visible loss or damage, and ensure that this information is noted on
the freight bill or express receipt and is signed by the person making the delivery.
3. Concealed loss or damage that was unnoticed until the equipment was unpacked should be
recorded and reported to the freight company or carrier immediately upon discovery. A
concealed damage claim must be submitted within 15 days of the date of delivery. Ensure that
the shipping container is retained for inspection.
Frymaster DOES NOT ASSUME
RESPONSIBILITY FOR DAMAGE OR LOSS
INCURRED IN TRANSIT.
1-4
