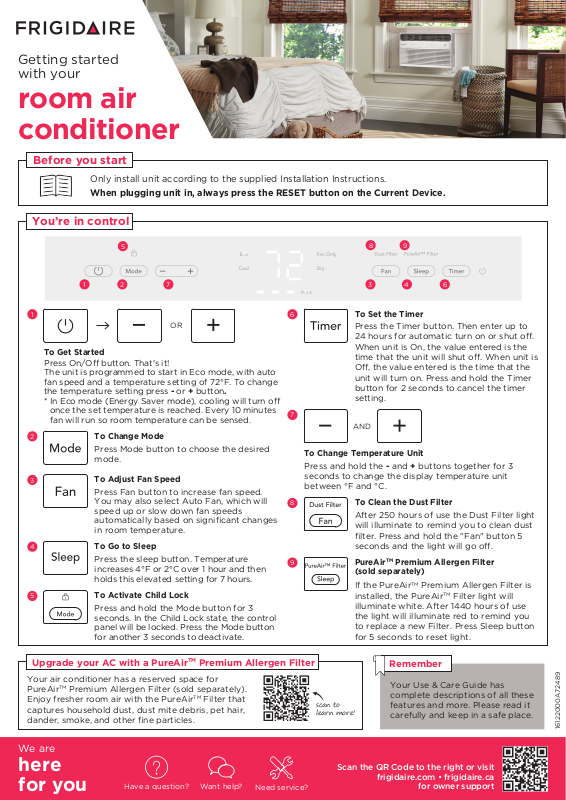

Getting started
with your
room air
conditioner
Before you start
Only install unit according to the supplied Installation Instructions.
When plugging unit in, always press the RESET button on the Current Device.
You’re in control
5
1 2
1
To Get Started
Press On/O button. That's it!
The unit is programmed to start in Eco mode, with auto
fan speed and a temperature setting of 72°F. To change
the temperature setting press - or + button.
* In Eco mode (Energy Saver mode), cooling will turn o
once the set temperature is reached. Every 10 minutes
fan will run so room temperature can be sensed.
2
3
4
5
To Change Mode
Press Mode button to choose the desired
mode.
To Adjust Fan Speed
Press Fan button to increase fan speed.
You may also select Auto Fan, which will
speed up or slow down fan speeds
automatically based on significant changes
in room temperature.
To Go to Sleep
Press the sleep button. Temperature
increases 4°F or 2°C over 1 hour and then
holds this elevated setting for 7 hours.
To Activate Child Lock
Press and hold the Mode button for 3
seconds. In the Child Lock state, the control
panel will be locked. Press the Mode button
for another 3 seconds to deactivate.
7 3 4 6
OR
8 9
6
7
To Change Temperature Unit
Press and hold the - and + buttons together for 3
seconds to change the display temperature unit
between °F and °C.
8
9
To Set the Timer
Press the Timer button. Then enter up to
24 hours for automatic turn on or shut o.
When unit is On, the value entered is the
time that the unit will shut o. When unit is
O, the value entered is the time that the
unit will turn on. Press and hold the Timer
button for 2 seconds to cancel the timer
setting.
AND
To Clean the Dust Filter
After 250 hours of use the Dust Filter light
will illuminate to remind you to clean dust
filter. Press and hold the "Fan" button 5
seconds and the light will go o.
PureAirTM Premium Allergen Filter
(sold separately)
TM
If the PureAir
installed, the PureAir
illuminate white. After 1440 hours of use
the light will illuminate red to remind you
to replace a new Filter. Press Sleep button
for 5 seconds to reset light.
Premium Allergen Filter is
TM
Filter light will
Upgrade your AC with a PureAirTM Premium Allergen Filter
Your air conditioner has a reserved space for
PureAir
Enjoy fresher room air with the PureAir
captures household dust, dust mite debris, pet hair,
dander, smoke, and other fine particles.
TM
Premium Allergen Filter (sold separately).
TM
Filter that
We are
here
for you
Have a question?
Want help?
Need service?
Remember
Your Use & Care Guide has
scan to
learn more!
Scan the QR Code to the right or visit
complete descriptions of all these
features and more. Please read it
carefully and keep in a safe place.
frigidaire.com • frigidaire.ca
for owner support
16122000A72489
