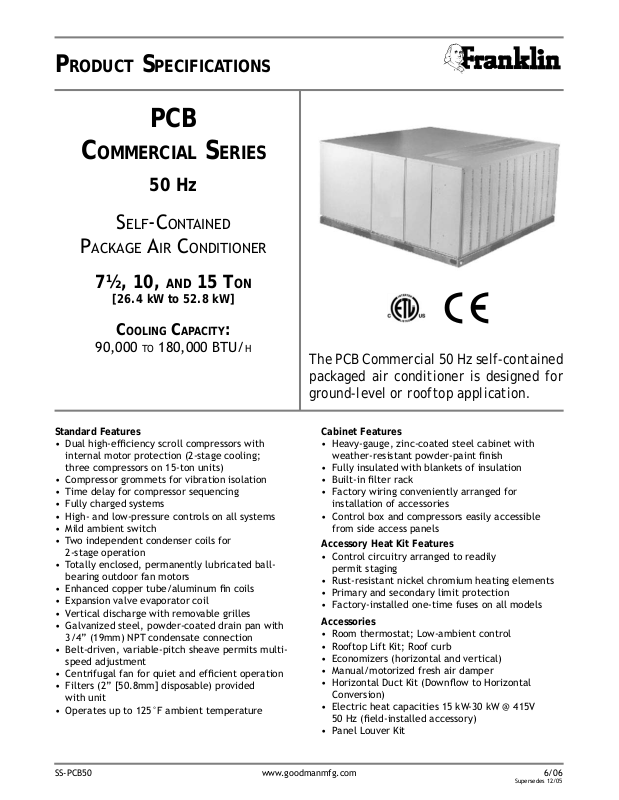

Franklin SS-PCB50 User Manual
PRODUCT SPECIFICATIONS
PCB
COMMERCIAL SERIES
50 Hz
SELF-CONTAINED
PACKAGE AIR CONDITIONER
7½, 10, AND 15 TON
[26.4 kW to 52.8 kW]
COOLING CAPACITY:
90,000 TO 180,000 BTU/H
The PCB Commercial 50 Hz self-contained
packaged air conditioner is designed for
ground-level or rooftop application.
Standard Features
Dual high-effi ciency scroll compressors with
•
internal motor protection (2-stage cooling;
three compressors on 15-ton units)
Compressor grommets for vibration isolation
•
Time delay for compressor sequencing
•
Fully charged systems
•
High- and low-pressure controls on all systems
•
Mild ambient switch
•
Two independent condenser coils for
•
2-stage operation
Totally enclosed, permanently lubricated ball-
•
bearing outdoor fan motors
Enhanced copper tube/aluminum fi n coils
•
Expansion valve evaporator coil
•
Vertical discharge with removable grilles
•
Galvanized steel, powder-coated drain pan with
•
3/4” (19mm) NPT condensate connection
Belt-driven, variable-pitch sheave permits multi-
•
speed adjustment
Centrifugal fan for quiet and effi cient operation
•
Filters (2” [50.8mm] disposable) provided
•
with unit
Operates up to 125°F ambient temperature
•
Cabinet Features
Heavy-gauge, zinc-coated steel cabinet with
•
weather-resistant powder-paint fi nish
Fully insulated with blankets of insulation
•
Built-in fi lter rack
•
Factory wiring conveniently arranged for
•
installation of accessories
Control box and compressors easily accessible
•
from side access panels
Accessory Heat Kit Features
Control circuitry arranged to readily
•
permit staging
Rust-resistant nickel chromium heating elements
•
Primary and secondary limit protection
•
Factory-installed one-time fuses on all models
•
Accessories
Room thermostat; Low-ambient control
•
Rooftop Lift Kit; Roof curb
•
Economizers (horizontal and vertical)
•
Manual/motorized fresh air damper
•
Horizontal Duct Kit (Downfl ow to Horizontal
•
Conversion)
Electric heat capacities 15 kW-30 kW @ 415V
•
50 Hz (fi eld-installed accessory)
Panel Louver Kit
•
SS-PCB50 www.goodmanmfg.com 6/06
Supersedes 12/05
P
RODUCT
S
PECIFICATIONS
SPECIFICATIONS
PCB090-5 PCB120-5 PCB180-5
Total Cooling - BTU/h (kW) 88,400 (25.9) 118,600 (34.8) 172,000 (50.4)
Sensible Cooling - BTU/h¹ (kW) 67,100 (19.7) 89,200 (26.1) 131,000 (38.4)
EER² 8.9 9.7 8.5

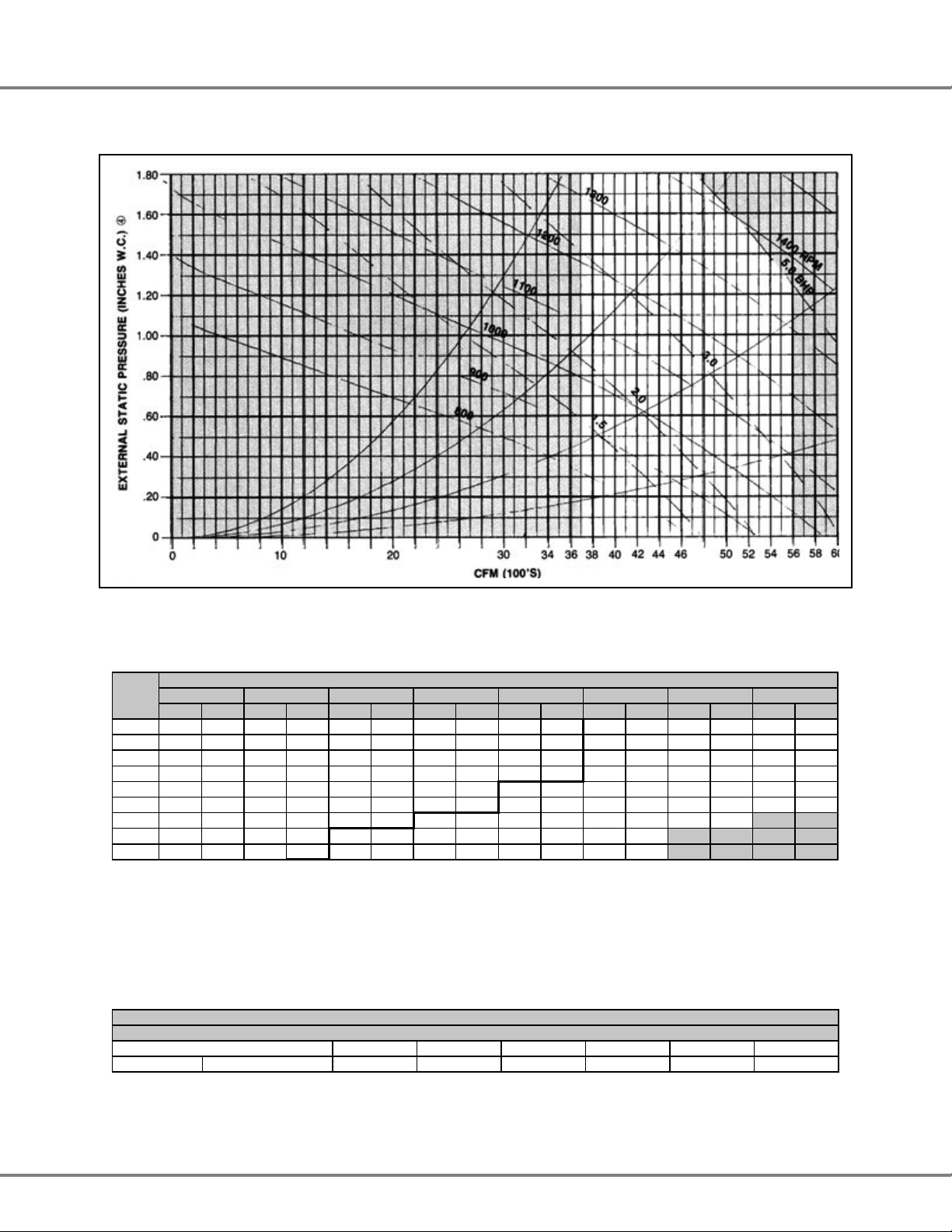

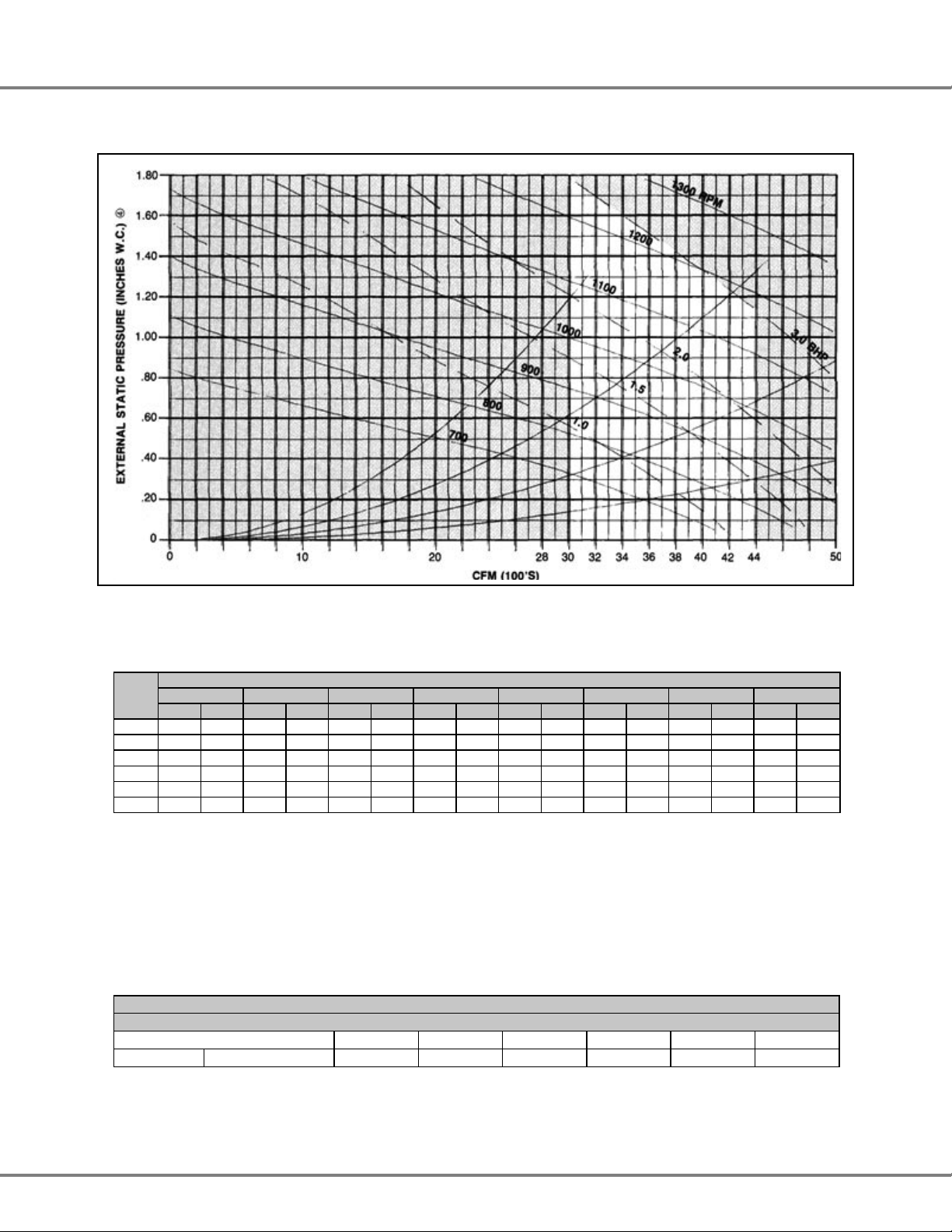

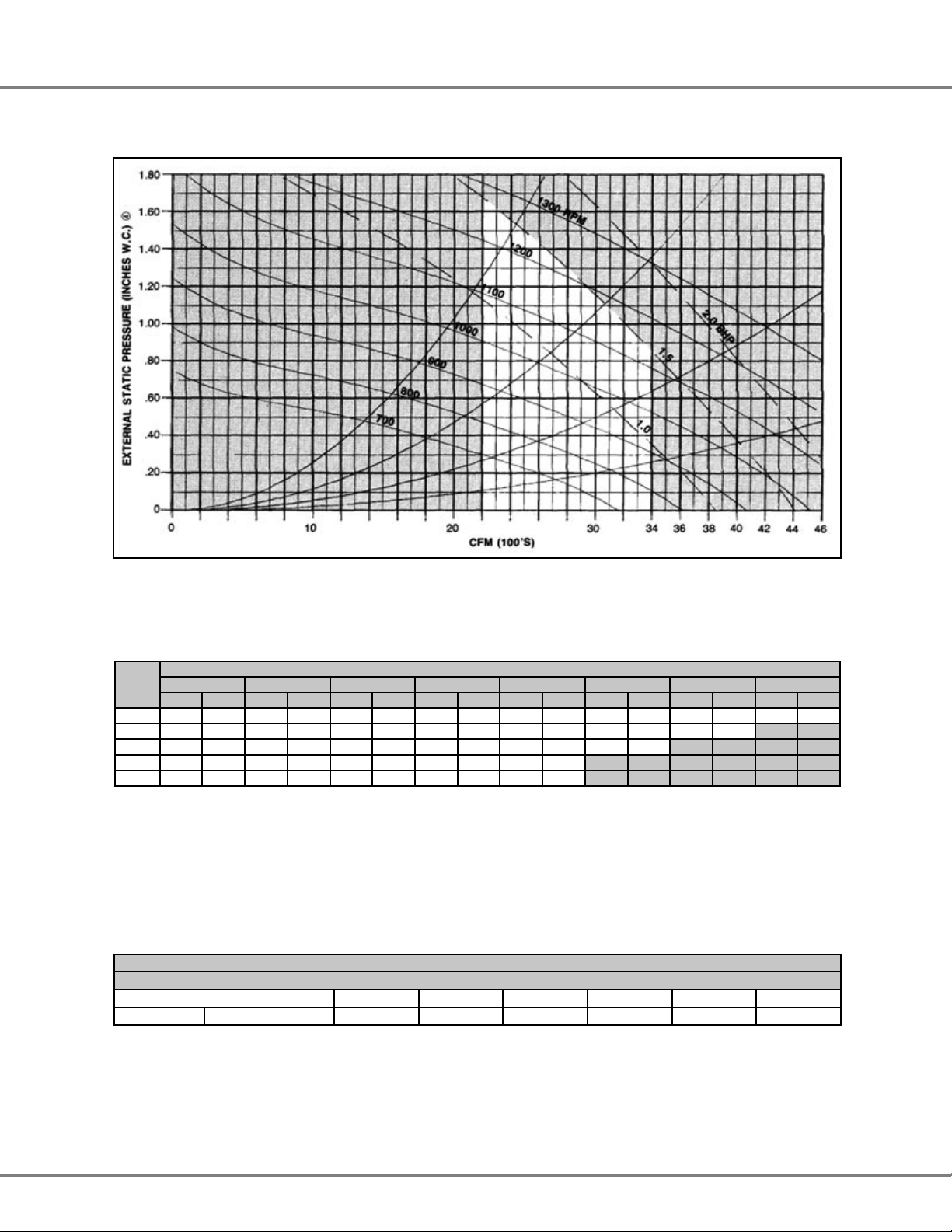

Indoor Blower (Qty.) 2 2 2
Type Belt Belt Belt
Size - D x W (mm) 12 x 12 (305 x 305) 12 x 15 (305 x 381) 12 x 15 (305 x 381)
Motor Horsepower (kW) 2 (1.49) 3 (2.24) 5 (3.73)
Indoor CFM Nominal (L/S) 3000 (1416) 4000 (1888) 5600 (2643)
Evaporator Coil (Qty.) 1 1 1
Face Area - Ft.² (m²) 9.3 (0.86) 14.0 (1.3) 14.0 (1.3)
Rows/FPI (FPM) 3/16 (630) 3/16 (630) 3/16 (630)
Tube Diameter (mm)/Material 3/8” (9.5)/Copper 3/8” (9.5)/Copper 3/8” (9.5)/Copper
16” x 25” x 2”
Filter Size/Qty. (mm)
Outdoor Fan (Qty.) 2 2 4
Fan Diameter (mm) 24” (610) 24” (610) 22” (559)
Motor Horsepower (kW) 1/2 (0.37) 1/2 (0.37) 1/2 (0.37)
Outdoor CFM Nominal (L/S) 4300 (2030) 6100 (2880) 7000 (3300)
Condenser Coil (Qty.) 1 1 1
Face Area Total - Ft.² (m²) 15.6 (1.45) 23.8 (2.21) 23.8 (2.21)
Rows/FPI (FPM) 2/21 (827) 2/21 (827) 3/16 (630)
Tube Diameter (mm)/Material 3/8 (9.5)/Copper 3/8 (9.5)/Copper 3/8 (9.5)/Copper
Number of Compressors 2 2 3
Volts-Phase 380-415-3 380-415-3 380-415-3
Compressor RLA/LRA 6.7/47.5 9.5/73.0 9.5/73.0
Blower FLA - Indoor/Outdoor 3.4/1.7 4.2/1.7 7.3/1.7
Minimum Circuit Ampacity³ 23.6 31.3 49.5
Maximum Fuse Size 30 50 60
Ship Weight - lbs. (kg) 990 (449.5) 1215 (551.6) 1460 (662.8)
¹ Sensible capacity is gross, with no deduction for indoor motor heat
² BTU/Watt @ 80/67°F (26.7/19.4°C) inside - 95°F (35°C) outside air
³ Wire size should be in accordance with Local Electrical Codes. Extensive wire runs will require larger wire sizes.
25” x 25” x 2”
(635 x 635 x 8.51)/3
(406 x 635 x 51)/3
20” x 25” x 2”
(508 x 635 x 51)/3
16” x 25” x 2”
(406 x 635 x 51)/3
20” x 25” x 2”
(508 x 635 x 51)/3
NOMENCLATURE
PCB 090 - 5
2 SS-PCB50
E
LECTRICAL DESIGNATOR
5 - 380/415 VAC, 3ph, 50Hz
OMINAL COOLING CAPACITY
N
090 - 90,000 BTU/h
120 - 120,000 BTU/h
180 - 180,000 BTU/h
U
NIT TYPE
PCB - Package Cool
DIMENSIONS
All dimensions in inches and millimeters. Drawings are not to scale.
FIGURE 1. VERTICAL DISCHARGE
See curb details for connection of duct work to
curb. Duct work is not intended to be connected
to unit.
P
RODUCT
S
PECIFICATIONS
FIGURE 2. HORIZONTAL DISCHARGE
Note: The Horizontal Conversion Kit is required to convert
a factory duct confi guration (downfl ow) to a horizontal
duct confi guration, as shown in Figure 2.
UNIT SIZE A - HEIGHT B - SUPPLY AIR C - RETURN AIR
090 36” (914 mm) 12½” (318 mm) 179/16” (446 mm)
120,180 52” (1321 mm) 20¼” (514 mm) 2513/16” (656 mm)
SS-PCB50 3
P
RODUCT
S
PECIFICATIONS
ELECTRICAL CONNECTIONS
Main power entrance location (with electric heat
1–
installed)
Control wiring entrance location
2–
Main power entrance location (without electric heat
3–
installed)
Note: Single-point wiring is available at location #1
when heat kit is installed. See installation instructions
for heat kits.
FIGURE 3. ELECTRICAL HEAT UNITS
MODEL B
PCB090-5 7⅞” (200 mm)
PCB120-5 23⅞” (606 mm)
PCB180-5 23⅞” (606 mm)
ELECTRIC HEAT
ELECTRIC HEAT AIR TEMPERATURE RISE @ NOMINAL VOLTAGE
Heater Model HKCB20 HKCB30 HKCB40
No. Stages 2 2 2
Output MBH (W) 67.5 (19.8) 101.3 (29.7) 135.0 (39.6)
2600 (1227) 24.2 (13.4) 36.2 (20.1) -
2800 (1320) 22.5 (12.5) 33.6 (18.7) -
3000 (1415) 21.0 (11.7) 31.4 (17.4) -
3200 (1510) 19.7 (10.9) 29.4 (16.3) 39.3 (21.8)
3400 (1605) 18.5 (10.3) 27.7 (15.4) 37.0 (20.6)
3600 (1700) 17.5 (9.7) 26.2 (14.6) 34.9 (19.4)
3800 (1793) 16.5 (9.2) 24.8 (13.8) 33.1 (18.4)
4000 (1888) 15.7 (8.7) 23.5 (13.1) 31.4 (17.4)
CFM
4200 (1982) 15.0 (8.3) 22.4 (12.4) 29.9 (16.6)
&
4400 (2076) 14.3 (7.9) 21.4 (11.9) 28.6 (15.9)
(L/S)
4600 (2171) 13.7 (7.6) 20.5 (11.4) 27.3 (15.2)
4800 (2265) 13.1 (7.3) 19.6 (10.9) 26.2 (14.6)
5000 (2360) 12.6 (7.0) 18.8 (10.4) 25.2 (14.0)
5200 (2454) 12.1 (6.7) 18.1 (10.1) 24.2 (13.4)
5400 (2548) 11.6 (6.4) 17.4 (9.7) 23.3 (12.9)
5600 (2643) 11.2 (6.2) 16.8 (9.3) 22.5 (12.5)
5800 (2737) 10.8 (6.0) 16.2 (9.0) 21.7 (12.1)
6000 (2832) 10.5 (5.8) 15.7 (8.7) 21.0 (11.7)
Notes:
1. Maximum air temperature rise of 40°F (22.2°C) must not be
exceeded.
2. See Electric Heater Availability table for various unit sizes.
3. Air temperature rise is for total heating capacity: Temperature rises
at other conditions may be calculated by using the formula:
Temperature Rise = Output Capacity - BTU/h
1.08 x ft³/min. Airfl ow
Note: Temperature rises must be calculated in other than nominal volt-
age conditions.
4. For altitudes over 2,000’, air temperature rise must be calculated
using the formula:
Temperature Rise = Output Capacity - BTU/h
14.4 x ft³/Min. Airfl ow x Specifi c Weight of Air
5. Operation at less than nominal voltages must be de-rated by the
following factors: 415 volt-0.75; 380 volt-0.63.
NOMINAL VOLTAGE FOR HKCB
@ 480V @ 415V @ 380V
HKCB20-4 19.8 kW 14.9 kW 12.5 kW
HKCB30-4 29.7 kW 22.3 kW 18.7 kW
HKCB40-4 39.6 kW 29.7 kW 25.0 kW
ELECTRIC HEATER AVAILABILITY
Unit Size HKCB20 HKCB30 HKCB40
7½XXX
10XXX
15XXX
4 SS-PCB50
