Ford F 250 1 2015 Owner's Manual

2015 SUPER DUTY Owner’s Manual

ford.cafordowner.com

November 2014

Third Printing

Owner’s Manual

Super Duty

Litho in U.S.A.

FC3J 19A321 AB

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: 20141017192716

Introduction

About This Manual...........................................7

Symbols Glossary.............................................7

Data Recording..................................................9

California Proposition 65..............................11

Perchlorate.........................................................11

Ford Credit..........................................................11

Replacement Parts

Recommendation.......................................12

Special Notices................................................12

Mobile Communications

Equipment.....................................................13

Export Unique Options.................................14

Child Safety

General Information.......................................15

Installing Child Seats.....................................16

Booster Seats..................................................24

Child Seat Positioning..................................26

Child Safety Locks..........................................27

Safety Belts

Principle of Operation..................................28

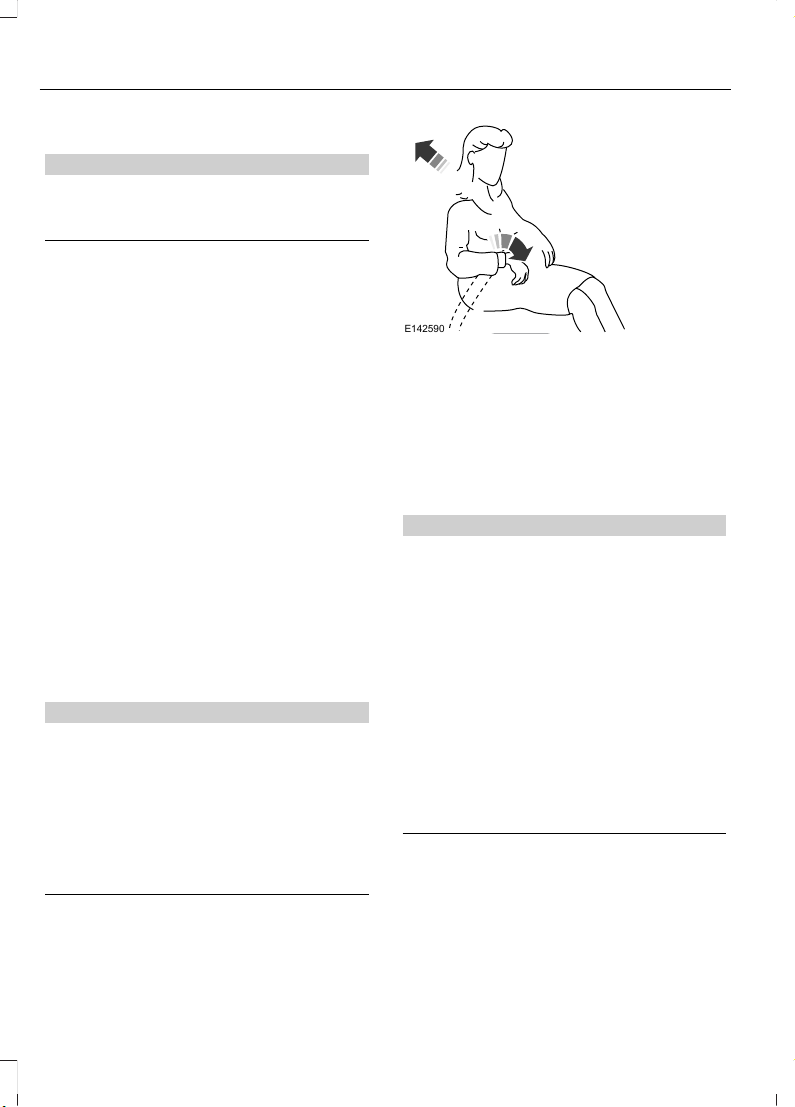

Fastening the Safety Belts..........................29

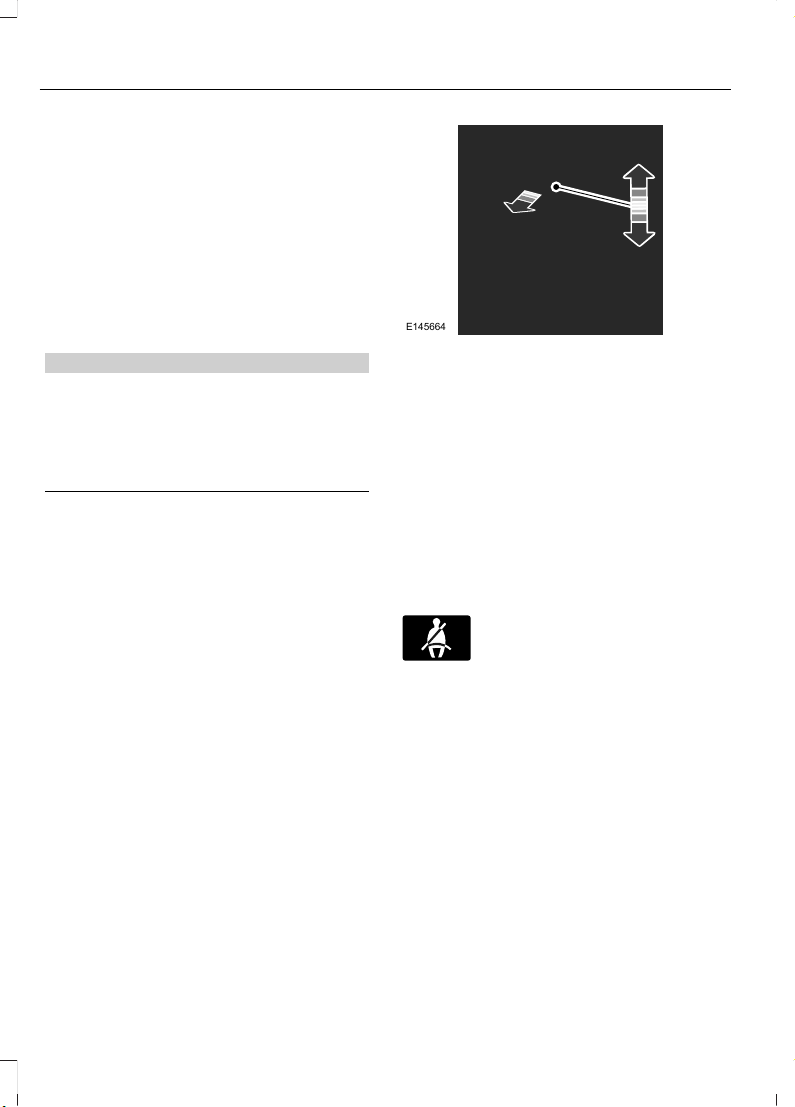

Safety Belt Height Adjustment.................32

Safety Belt Warning Lamp and Indicator

Chime..............................................................32

Safety Belt Minder.........................................33

Child Restraint and Safety Belt

Maintenance................................................35

Supplementary Restraints

System

Principle of Operation..................................36

Driver and Passenger Airbags....................37

Side Airbags.....................................................43

Safety Canopy™............................................44

Crash Sensors and Airbag Indicator.......45

Airbag Disposal..............................................46

Keys and Remote Controls

General Information on Radio

Frequencies..................................................47

Remote Control...............................................47

Replacing a Lost Key or Remote

Control...........................................................50

MyKey™

Principle of Operation...................................51

Creating a MyKey.............................................51

Clearing All MyKeys.......................................53

Checking MyKey System Status...............53

Using MyKey With Remote Start

Systems.........................................................55

MyKey Troubleshooting...............................55

Locks

Locking and Unlocking.................................56

Keyless Entry....................................................57

Security

Passive Anti-Theft System........................60

Anti-Theft Alarm.............................................61

Steering Wheel

Adjusting the Steering Wheel....................62

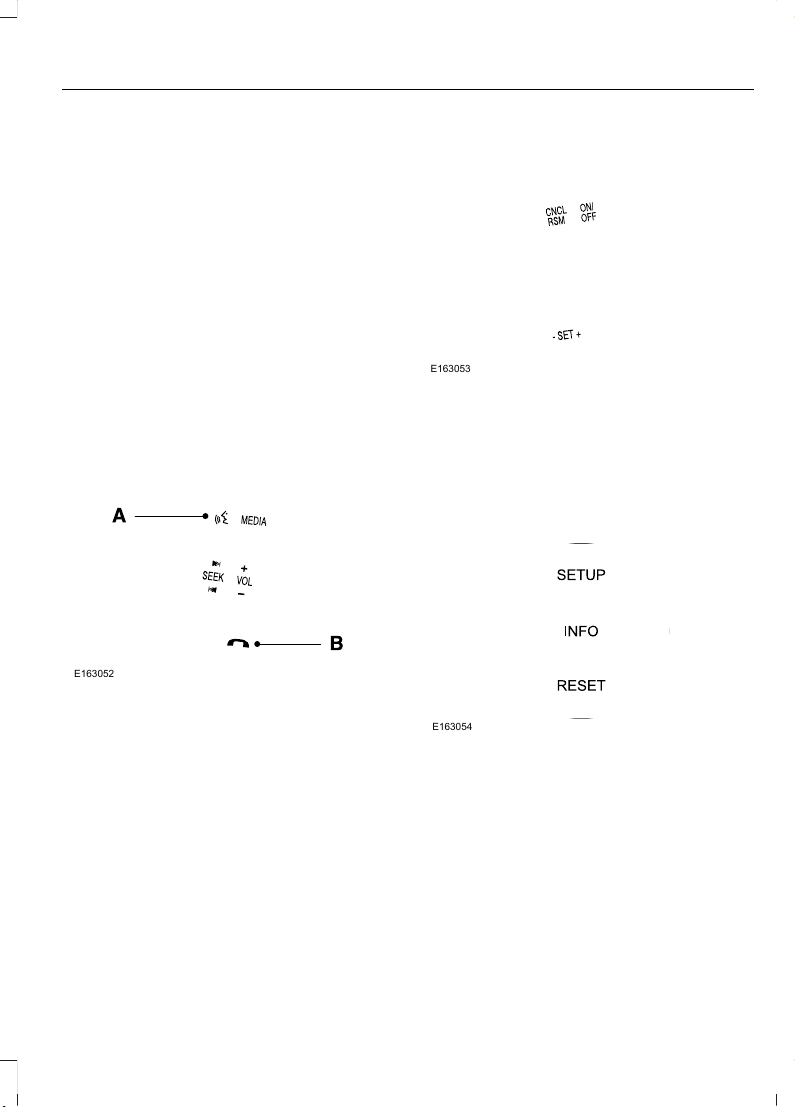

Audio Control...................................................62

Voice Control...................................................63

Cruise Control..................................................63

Information Display Control.......................63

Heated Steering Wheel...............................64

Pedals

Adjusting the Pedals.....................................65

Wipers and Washers

Windshield Wipers........................................66

Windshield Washers.....................................66

Super Duty (), enUSA

Table of Contents

Lighting

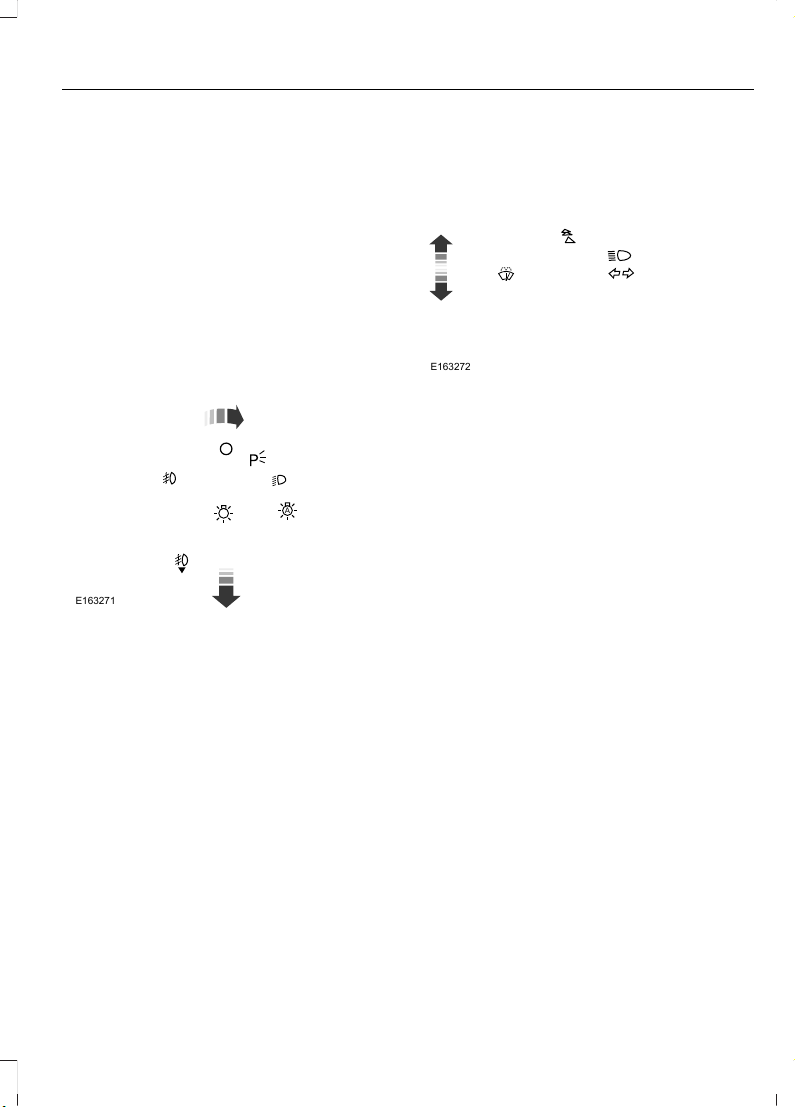

Lighting Control..............................................67

Autolamps........................................................67

Instrument Lighting Dimmer.....................68

Daytime Running Lamps............................68

Front Fog Lamps............................................69

Direction Indicators.......................................69

Interior Lamps.................................................69

Windows and Mirrors

Power Windows...............................................71

Global Opening...............................................72

Exterior Mirrors.................................................72

Interior Mirror....................................................74

Sun Visors..........................................................75

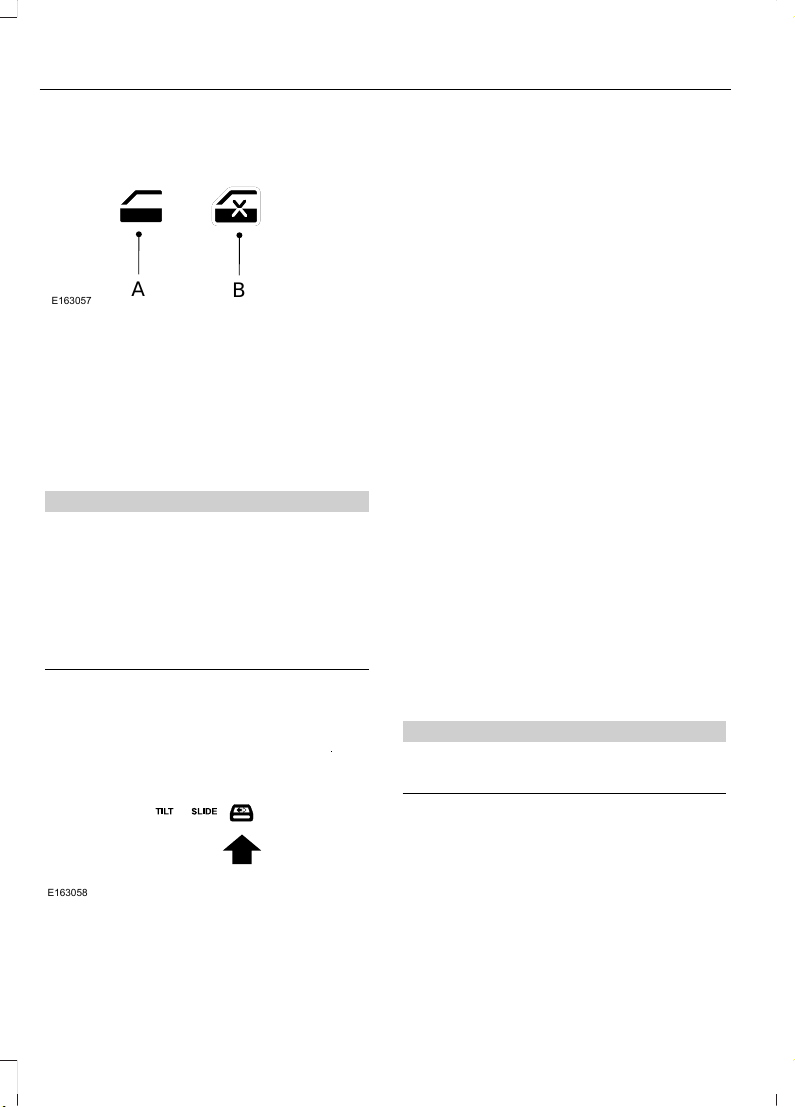

Moonroof...........................................................75

Instrument Cluster

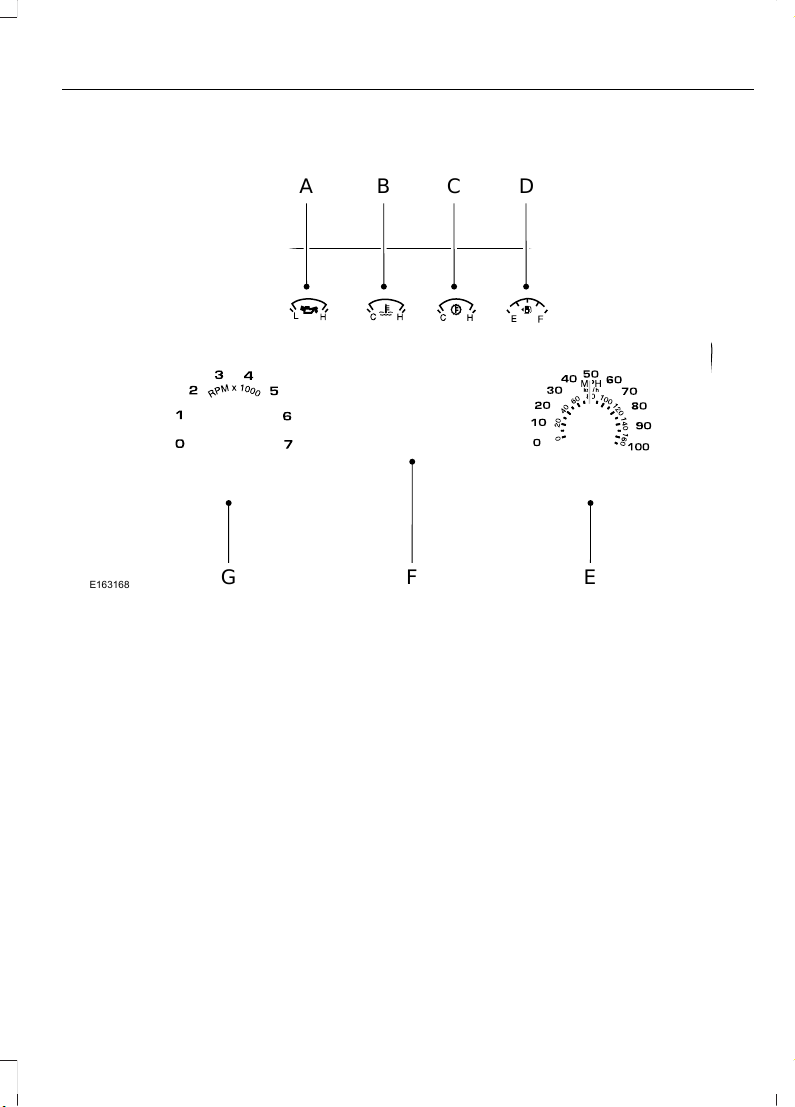

Gauges................................................................77

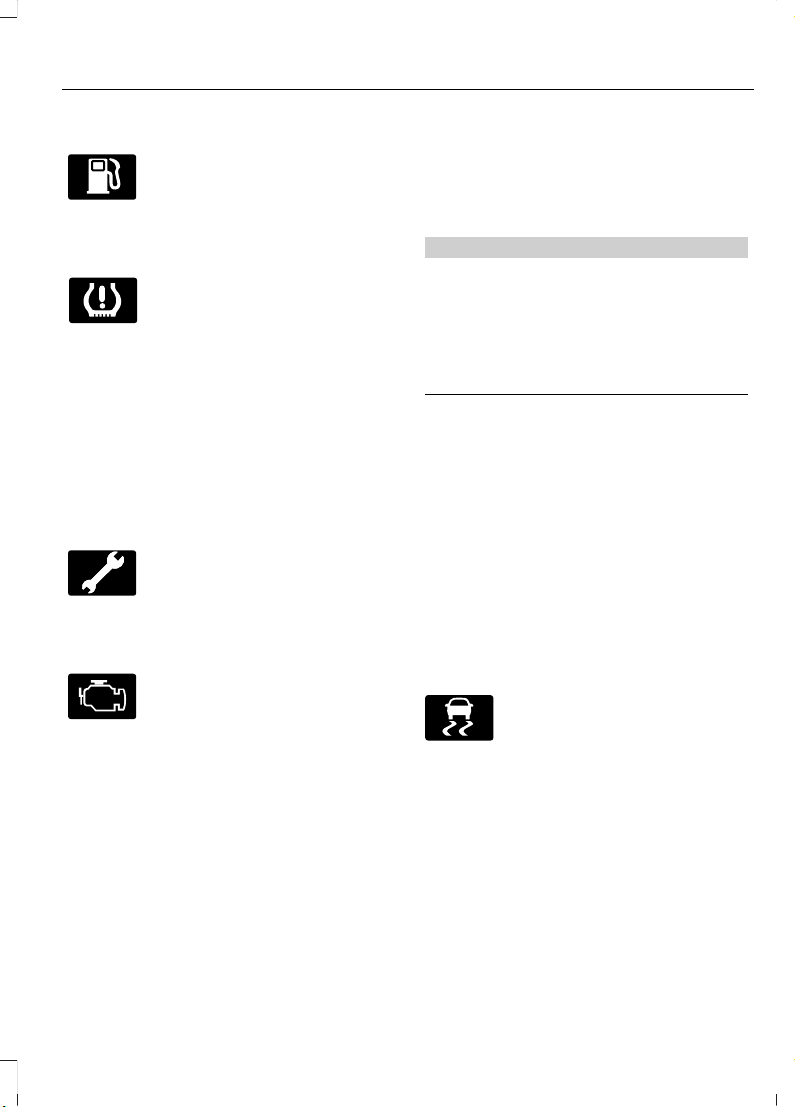

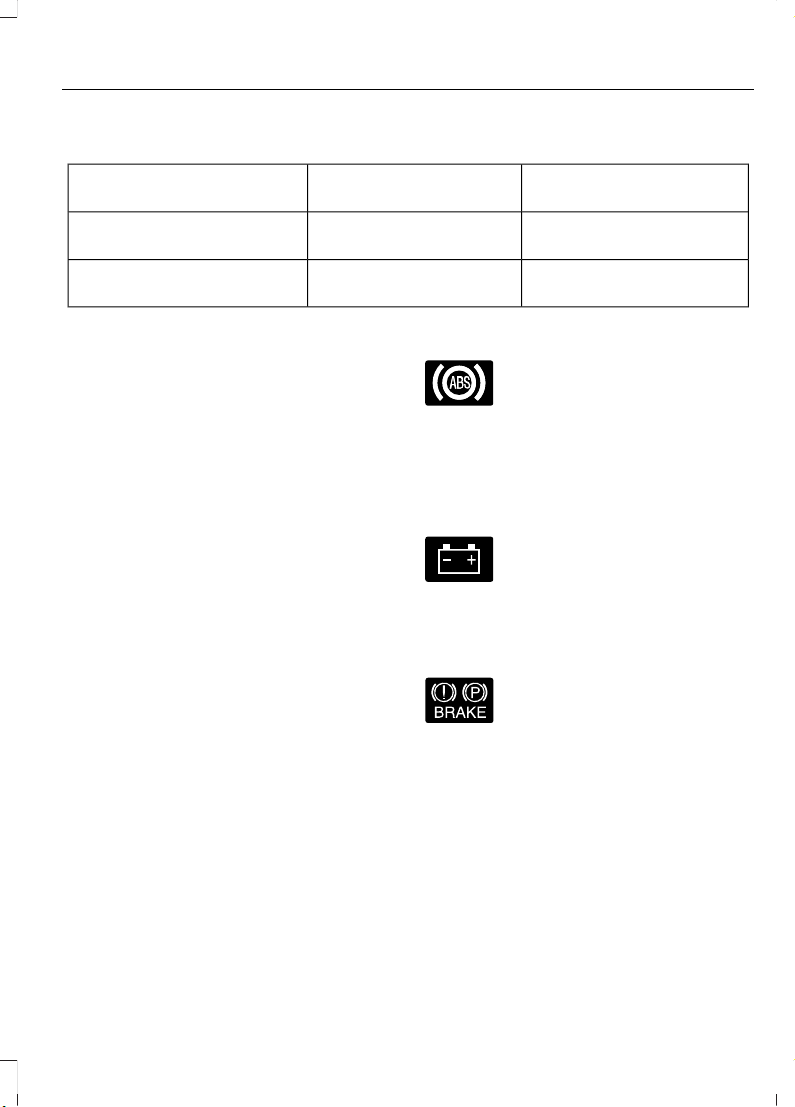

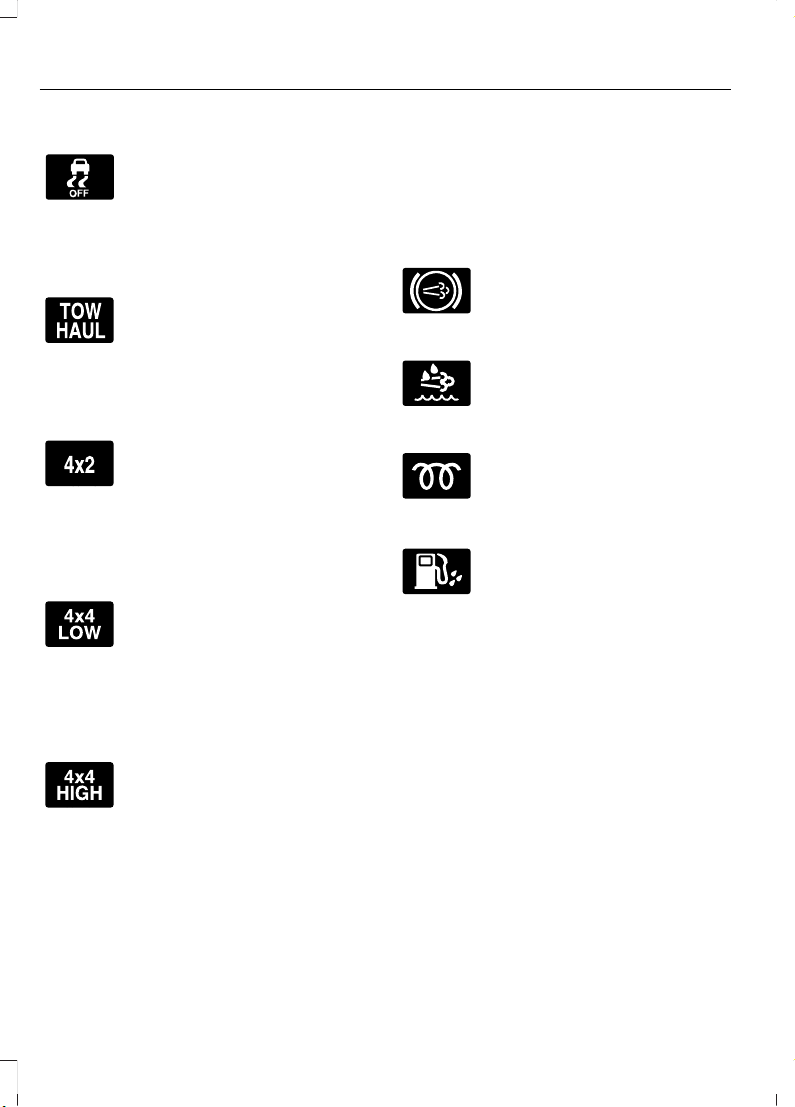

Warning Lamps and Indicators.................79

Audible Warnings and Indicators.............82

Information Displays

General Information.....................................84

Information Messages.................................95

Climate Control

Manual Climate Control............................106

Automatic Climate Control.......................107

Hints on Controlling the Interior

Climate........................................................109

Heated Windows and Mirrors....................111

Remote Start...................................................112

Seats

Sitting in the Correct Position...................113

Head Restraints..............................................113

Manual Seats..................................................115

Power Seats....................................................116

Memory Function..........................................116

Rear Seats.........................................................117

Heated Seats..................................................119

Climate Controlled Seats...........................121

Front Seat Armrest.......................................122

Rear Seat Armrest........................................123

Universal Garage Door

Opener

Universal Garage Door Opener...............124

Auxiliary Power Points

Auxiliary Power Points................................132

Storage Compartments

Center Console..............................................134

Overhead Console........................................134

Starting and Stopping the

Engine

General Information....................................135

Ignition Switch...............................................135

Starting a Gasoline Engine.......................136

Engine Block Heater.....................................137

Fuel and Refueling

Safety Precautions......................................139

Fuel Quality....................................................140

Running Out of Fuel......................................141

Refueling...........................................................141

Fuel Consumption........................................143

Emission Control System..........................144

Transmission

Automatic Transmission............................147

Power Take-Off.............................................152

Four-Wheel Drive

Using Four-Wheel Drive.............................153

Super Duty (), enUSA

Table of Contents

Rear Axle

Limited Slip Differential.............................162

Electronic Locking Differential................162

Brakes

General Information....................................164

Hints on Driving With Anti-Lock

Brakes...........................................................164

Parking Brake.................................................165

Hill Start Assist..............................................165

Traction Control

Principle of Operation.................................167

Using Traction Control................................167

Stability Control

Principle of Operation................................169

Using Stability Control...............................169

Terrain Response

Principle of Operation.................................172

Using Hill Descent Control.........................172

Parking Aids

Parking Aid......................................................174

Rear View Camera........................................175

Cruise Control

Principle of Operation.................................178

Using Cruise Control....................................178

Driving Aids

Steering............................................................179

Load Carrying

Load Limit.......................................................180

Tailgate.............................................................187

Towing

Towing a Trailer..............................................191

Trailer Sway Control....................................192

Recommended Towing Weights............192

Essential Towing Checks...........................195

Towing Points...............................................203

Transporting the Vehicle..........................204

Towing the Vehicle on Four Wheels......205

Driving Hints

Breaking-In.....................................................207

Economical Driving.....................................207

Driving Through Water..............................208

Floor Mats......................................................208

Snowplowing................................................209

Roadside Emergencies

Roadside Assistance...................................212

Hazard Warning Flashers...........................213

Fuel Shutoff....................................................213

Jump Starting the Vehicle.........................214

Post-Crash Alert System...........................216

Customer Assistance

Getting the Services You Need................217

In California (U.S. Only).............................218

The Better Business Bureau (BBB) Auto

Line Program (U.S. Only)......................219

Utilizing the Mediation/Arbitration

Program (Canada Only)........................219

Getting Assistance Outside the U.S. and

Canada........................................................220

Ordering Additional Owner's

Literature......................................................221

Reporting Safety Defects (U.S.

Only)..............................................................221

Reporting Safety Defects (Canada

Only).............................................................222

Fuses

Fuse Specification Chart...........................223

Super Duty (), enUSA

Table of Contents

Changing a Fuse............................................231

Maintenance

General Information....................................232

Opening and Closing the Hood..............232

Under Hood Overview - 6.2L...................233

Under Hood Overview - 6.8L..................234

Engine Oil Dipstick......................................235

Engine Oil Check..........................................235

Engine Coolant Check...............................236

Automatic Transmission Fluid

Check...........................................................240

Transfer Case Fluid Check........................242

Brake Fluid Check........................................243

Power Steering Fluid Check.....................243

Washer Fluid Check....................................243

Fuel Filter........................................................243

Changing the 12V Battery.........................244

Checking the Wiper Blades.....................246

Changing the Wiper Blades.....................246

Adjusting the Headlamps........................246

Removing a Headlamp.............................248

Changing a Bulb..........................................249

Bulb Specification Chart............................251

Changing the Engine Air Filter.................253

Vehicle Care

General Information...................................255

Cleaning Products.......................................255

Cleaning the Exterior..................................255

Waxing.............................................................256

Cleaning the Engine....................................256

Cleaning the Windows and Wiper

Blades..........................................................257

Cleaning the Interior....................................257

Cleaning the Instrument Panel and

Instrument Cluster Lens........................257

Cleaning Leather Seats.............................258

Repairing Minor Paint Damage..............259

Cleaning the Alloy Wheels.......................260

Vehicle Storage............................................260

Wheels and Tires

General Information...................................263

Tire Care..........................................................265

Using Snow Chains.....................................282

Tire Pressure Monitoring System...........283

Changing a Road Wheel...........................288

Technical Specifications..........................299

Capacities and Specific-

ations

Engine Specifications.................................301

Motorcraft Parts..........................................302

Vehicle Identification Number................303

Vehicle Certification Label.......................303

Transmission Code Designation............304

Technical Specifications..........................305

Audio System

General Information....................................310

Audio Unit - Vehicles With: AM/FM........311

Audio Unit - Vehicles With: AM/FM/CD/

SYNC.............................................................312

Audio Unit - Vehicles With: Sony AM/FM/

CD...................................................................315

Digital Radio...................................................316

Satellite Radio...............................................318

Audio Input Jack............................................321

USB Port...........................................................321

Media Hub......................................................322

SYNC™

General Information...................................323

Using Voice Recognition...........................325

Using SYNC™ With Your Phone.............327

SYNC™ Applications and Services......338

Using SYNC™ With Your Media

Player...........................................................345

SYNC™ Troubleshooting.........................353

Super Duty (), enUSA

Table of Contents

MyFord Touch™

General Information...................................362

Settings...........................................................369

Entertainment...............................................379

Phone..............................................................396

Information....................................................402

Climate..............................................................411

Navigation.......................................................414

MyFord Touch™ Troubleshooting.........422

Accessories

Accessories....................................................429

Auxiliary Switches.......................................430

Appendices

End User License Agreement..................433

Extended Service Plan

(ESP)

Extended Service Plan (ESP).................455

Scheduled Maintenance

General Maintenance Information........457

Normal Scheduled Maintenance.........460

Special Operating Conditions Scheduled

Maintenance..............................................461

Scheduled Maintenance Record...........466

Super Duty (), enUSA

Table of Contents

Super Duty (), enUSA

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any handheld device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options not fitted to your vehicle.

Note: Some of the illustrations in this manual may show features as used in different models, so may appear different to you on your vehicle. However, the essential information in the illustrations is always correct.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.

Note: Either Ford Motor Company or an authorized Ford dealer may have originally sold this incomplete vehicle to a vehicle modifier who upfitted it. As a result, some of the options and features on this vehicle may differ from what we describe in this manual.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

E154903

Right-hand sideA Left-hand sideB

Protecting the Environment

You must play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

SYMBOLS GLOSSARY

These are some of the symbols you may see on your vehicle.

Safety alert

See Owner's Manual

Super Duty (), enUSA

Introduction

Air conditioning system

Anti-lock braking system

Avoid smoking, flames or sparks

Battery

Battery acid

Brake fluid - non petroleum based

Brake system

Cabin air filter

Check fuel cap

Child safety door lock or unlock

Child seat lower anchor

Child seat tether anchor

E71340

Cruise control

Do not open when hot

Engine air filter

Engine coolant

Engine coolant temperature

Engine oil

Explosive gas

Fan warning

Fasten safety belt

Front airbag

Front fog lamps

Fuel pump reset

Fuse compartment

Hazard warning flashers

Heated rear window

Heated windshield

Interior luggage compartment release

Super Duty (), enUSA

Introduction

Jack

Keep out of reach of children

Lighting control

Low tire pressure warning

Maintain correct fluid level

Note operating instructions

Panic alarm

E139213

Parking aid

Parking brake

Power steering fluid

Power windows front/rear

Power window lockout

Service engine soon

Side airbag

Shield the eyes

E138639

Stability control

Windshield wash and wipe

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, when your vehicle is in for service or repair, Ford Motor Company, Ford of Canada, and service and repair facilities may access or share among them data for vehicle improvement purposes. For U.S. only (if equipped), if you choose to use the SYNC Vehicle Health Report, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used for any purpose. See SYNC™ (page 323).

Super Duty (), enUSA

Introduction

Event Data Recording

This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle; this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The event data recorder in this vehicle is designed to record such data as:

• How various systems in your vehicle were operating;

• Whether or not the driver and passenger safety belts were buckled/fastened;

• How far (if at all) the driver was depressing the accelerator and/or the brake pedal; and

• How fast the vehicle was traveling; and

• Where the driver was positioning the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: Event data recorder data is

recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Super Duty (), enUSA

Introduction

Note: Including to the extent that any

law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See SYNC™ (page 323).

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want Ford or its vendors to receive this information, do not activate the service. For more information, see Traffic, Directions and Information, Terms and Conditions. See SYNC™

(page 323).

CALIFORNIA PROPOSITION 65

WARNING

Some constituents of engine exhaust, certain vehicle components,

certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE

Certain components in your vehicle such as airbag modules, safety belt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal. For more information visit:

Web Address

www.dtsc.ca.gov/hazardouswaste/

perchlorate

FORD CREDIT

(U.S. Only)

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

For your convenience we offer a number of ways to contact us, as well as to help manage your account.

Phone: 1-800-727-7000 For more information regarding Ford Credit,

as well as to access Account Manager, please go to www.fordcredit.com.

Super Duty (), enUSA

Introduction

REPLACEMENT PARTS RECOMMENDATION

Your vehicle has been built to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. Damage caused to your vehicle as a result of the failure of non-Ford parts may not be covered by the Ford Warranty. For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual.

Special Instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

WARNINGS

You risk death or serious injury to yourself and others if you do not

follow the instruction highlighted by the warning symbol. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child

or infant seats should NEVER be

placed in front of an active passenger airbag.

On-board Diagnostics (OBD-II)

Your vehicle’s On-board Diagnostics (OBD-II) system has a data port for diagnostics, repair and reprogramming services with diagnostic scan tools. Installing a non-Ford-approved aftermarket OBD plug-in device that uses the port during normal driving, for example

Super Duty (), enUSA

Introduction

remote insurance company monitoring, remote vehicle diagnostics, telematics or engine reprogramming, may cause interference or damage to vehicle systems. We do not recommend or endorse the use of any non-Ford-approved aftermarket OBD plug-in devices. The vehicle Warranty may not cover damage caused by any non-Ford-approved aftermarket OBD plug-in device.

Using your Vehicle With a Snowplow

More information and guidelines for using your vehicle with a snowplow in this Owner's Manual. See Snowplowing (page

209).

Using your Vehicle as an Ambulance

If your light truck is equipped with the Ford Ambulance Preparation Package, it may be utilized as an ambulance. Ford urges ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at http://www.fleet.ford.com/truckbbas/ and then by selecting Contact Us or by phone at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the emissions warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

If your vehicle is equipped with the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is located on the driver’s side door pillar or on the rear edge of the driver’s door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. Ford Ambulance Preparation Package is only available on certain Diesel engine equipped vehicles.

Using your Vehicle as a Stationary Power Source

Information and guidelines for operating a vehicle equipped with an aftermarket power take-off system can be found in this Owner's Manual. See Power Take-Off (page 152).

MOBILE COMMUNICATIONS EQUIPMENT

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

Super Duty (), enUSA

Introduction

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

EXPORT UNIQUE OPTIONS

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s

Manual for all other required information and warnings.

Super Duty (), enUSA

Introduction

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNINGS

Always make sure your child is secured properly in a device that is

appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

All children are shaped differently.

The recommendations for safety

restraints are based on probable child height, age and weight thresholds from National Highway Traffic Safety Administration and other safety organizations, or are the minimum

WARNINGS

requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consult your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in your vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll free at 1-888-327-4236 or go to http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, locate your local St. John Ambulance office by searching for St. John Ambulance on the internet, or Transport Canada at 1-800-333-0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.

Super Duty (), enUSA

Child Safety

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or ageChild

Use a child safety seat

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four and less than age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

Use a vehicle safety belt having the lap belt snug and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat back

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster seat (generally children who are at least 4 ft. 9 in. (1.45 m) tall or greater than 80

lb (36 kg) or 100 lb (45 kg) if recom-

mended by child restraint manufacturer).

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

INSTALLING CHILD SEATS

Child Seats

E142594

Super Duty (), enUSA

Child Safety

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 pounds (18 kilograms) or less (generally age four or younger).

Using Lap and Shoulder Belts

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Airbags can kill or injure a child in a

child seat. Children 12 and under

should be properly restrained in the rear seat whenever possible.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain safety belt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, occupants should only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct safety belt buckle for

that seating position.

• Insert the belt tongue into the proper

buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button

pointing up and away from the safety seat, with the tongue between the child seat and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child seat will be installed in the upright position.

• This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child seat with combination lap and shoulder belts:

Note: Although the child seat illustrated is a forward facing child seat, the steps are the same for installing a rear facing child seat.

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E142529

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Super Duty (), enUSA

Child Safety

E142530

3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer's instructions. Be sure the belt webbing is not twisted.

E142531

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

E142875

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until all of the belt is pulled out.

6. Allow the belt to retract to remove slack. The belt will click as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that will exist once the extra

Super Duty (), enUSA

Child Safety

weight of the child is added to the child restraint. It also helps to achieve the proper snugness of the child seat to your vehicle. Sometimes, a slight lean toward the buckle will help to remove remaining slack from the belt.

9. Attach the tether strap (if the child seat is equipped).

E142534

10. Before placing the child in the seat,

forcibly move the seat forward and back to make sure the seat is securely held in place.

To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with your local St. John Ambulance office for referral to a Certified Passenger Seat Technician.

Using Cinch Tongue Lap and Shoulder Belts (All Front Center, Super Cab and Crew Cab Rear Center Positions)

WARNINGS

Airbags can kill or injure a child in a child seat. If you must use a

forward-facing child seat in the front seat, move seat upon which the child seat is installed all the way back.

Rear facing child seats should never

be placed in front of an active airbag.

Always use both lap and shoulder

safety belt in the Regular Cab center

seating position if applicable.

The belt webbing below the tongue is the lap portion of the combination lap and shoulder belt, and the belt webbing above the tongue is the shoulder belt portion of the combination lap and shoulder belt.

E142528

1. Position the child safety seat in the

front center seat.

Super Duty (), enUSA

Child Safety

E162708

2. Slide the tongue up the webbing.

E142530

3. While holding both shoulder and lap portions next to the tongue, route the tongue and webbing through the child seat according to the child seat manufacturer's instructions. Be sure that the belt webbing is not twisted.

E142531

E142533

5. While pushing down with your knee on the child seat pull up on the shoulder belt portion to tighten the lap belt portion of the combination lap and shoulder belt.

6. Allow the safety belt to retract and remove any slack in the belt to securely tighten the child safety seat in the vehicle.

7. Attach the tether strap (if the child seat is equipped).

E142534

Super Duty (), enUSA

Child Safety

8. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 inch (2.5 centimeters) of movement for proper installation.

9. Check from time to time to be sure that there is no slack in the lap and shoulder belt. The shoulder belt must be snug to keep the lap belt tight during a crash.

Using Lower Anchors and Tethers for CHildren (LATCH)

The LATCH system is composed of three vehicle anchor points: two lower anchors located where the vehicle seatback and seat cushion meet (called the seat bight) and one top tether anchor located behind that seating position. Your vehicle is not equipped with the lower anchor points in the seat bight. For this vehicle, use the vehicle safety belt and upper tether to secure a child seat.

Using Tether Straps

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child seat for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

The passenger seats of your vehicle may be equipped with built-in tether strap anchors located behind the seats as described below.

The tether anchors in your vehicle may be straps on the seat back or an anchor bracket mounted to the body shell on the back panel.

The SuperCab rear seat has three straps behind the top of the seatback that function as both routing loops for the tether straps and anchor loops.

The tether strap anchors in your vehicle are in the following positions (shown from top view):

E162709

Super Duty (), enUSA

Child Safety

F-Series Regular Cab

E162710

F-Series SuperCab

E162711

F-Series Crew Cab Attach the tether strap only to the

appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

Once the child safety seat has been installed using the safety belt, you can attach the top tether strap.

Tether Strap Attachment

1. Route the child safety seat tether strap over the back of the seat.

Note: For vehicles with adjustable head restraints, route the tether strap under the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seat back. If the top of the safety seat hits the head restraint, raise the head restraint to let the child seat fit further rearward.

2. Locate the correct anchor for the selected seating position.

3. You may need to pull the seatback forward to access the tether anchors. Make sure the seat is locked in the upright position before installing the child seat.

Super Duty (), enUSA

Child Safety

E162712

4. Remove the tether cover.

5. Clip the tether strap to the anchor as shown.

E162713

Front seats (Regular Cab) and Rear seats (Crew Cab)

If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.

6. Tighten the child safety seat tether strap

according to the manufacturer's instructions.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system is equipped with a tether strap, and the child restraint manufacturer recommends its use, Ford also recommends its use.

Tether Strap Attachment (Rear SuperCab Only)

There are three loops of webbing just above the back of the rear seat (along the bottom edge of the rear window) in the SuperCab. Use these loops as both routing loops and anchor loops for up to three child safety seat tether straps.

You can secure these straps below the back of the seat with rubber bands. To access, reach below the back of the seat and pull the tether loop out of the rubber band securing it.

Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child seat. To provide a tight tether strap:

E162714

1. Route the tether strap through the loop directly behind the child seat.

E162715

Super Duty (), enUSA

Child Safety

2. Attach the strap hook onto the loop behind an adjacent seating position.

E162716

3. Install the child safety seat tightly using the vehicle belts. Follow the instructions in this chapter.

4. Tighten the tether strap according to the child seat manufacturer's instructions.

You can use a single loop to route and anchor more than one child seat. For example, use the center loop as a routing loop for a child safety seat in the center rear seat and as an anchoring loop for child seats installed in the outboard rear seats.

BOOSTER SEATS

WARNING

Never place, or allow a child to place, the shoulder belt under a child's arm

or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 4 feet 9 inches (1.45 meters) tall, are greater than age four (4) and less than age twelve (12), and between 40 pounds (18 kilograms) and

80 pounds (36 kilograms) and upward to 100 pounds (45 kilograms) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 pounds (36 kilograms).

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

E142595

• Can the child sit all the way back against their vehicle seat back with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the

hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Super Duty (), enUSA

Child Safety

Types of Booster Seats

E68924

• Backless booster seats If your backless booster seat has a

removable shield, remove the shield. If a vehicle seating position has a low seat back or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat back or head restraint and lap and shoulder belts, or consider using a high back booster seat.

E70710

• High back booster seats If, with a backless booster seat, you cannot

find a seating position that adequately supports your child's head, a high back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.

E142596

Super Duty (), enUSA

Child Safety

E142597

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.

CHILD SEAT POSITIONING

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

Always carefully follow the

instructions and warnings provided

by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in conjunction with the instructions and

WARNINGS

warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

Never let a passenger hold a child on his or her lap while your vehicle is

moving. The passenger cannot protect the child from injury in a crash, which may result in serious injury or death.

Never use pillows, books, or towels

to boost a child. They can slide

around and increase the likelihood of injury or death in a crash.

Always restrain an unoccupied child

seat or booster seat. These objects

may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.

Never place, or allow a child to place,

the shoulder belt under a child's arm

or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

To avoid risk of injury, do not leave

children or pets unattended in your

vehicle.

Super Duty (), enUSA

Child Safety

Recommendations for attaching child safety restraints for children

Use any attachment method as indicated below by XCombined

child and

seat

weight

Restraint

Type

Safety belt

only

Safety belt and LATCH

(lower

anchors

and top

tether

anchor)

Safety belt

and top

tether

anchor

LATCH

(lower

anchors

only)

LATCH (lower

anchors

and top

tether

anchor)

XUp to 65 lb

(29 kg)

Rear facing

child seat

XOver 65 lb

(29 kg)

Rear facing

child seat

XUp to 65 lb

(29 kg)

Forward

facing

child seat

XOver 65 lb

(29 kg)

Forward

facing

child seat

Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Head Restraints (page 113).

CHILD SAFETY LOCKS

When these locks are set, the rear doors cannot be opened from the inside.

E162719

The childproof locks are located on the rear edge of each rear door. You must set the lock separately for each door.

Move the lock control up or down to engage or disengage the childproof lock.
