2018 SUPER DUTY Owner’s Manual

owner.ford.com

ford.ca

January 2018

Second Printing

Owner’s Manual

Super Duty

Litho in U.S.A.

JC3J 19A321 AA

Page 2

The information contained in this publication was correct at the time of going to print. In the interest of continuous development, we reserve the right to change specifications, design or equipment at any time without notice or obligation. No part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means without our written permission. Errors and omissions excepted.

Part Number: 201709 20171220012136

Page 3

Page 4

Introduction

About This Manual ..........................................7

Symbols Glossary ............................................8

Data Recording ...............................................10

California Proposition 65 .............................12

Perchlorate ........................................................12

Ford Credit ........................................................12

Replacement Parts Recommendation

............................................................................12

Special Notices ...............................................13

Mobile Communications Equipment

...........................................................................14

Export Unique Options ................................15

Environment

Protecting the Environment .......................16

At a Glance

Instrument Panel Overview ........................17

Child Safety

General Information ......................................19

Installing Child Restraints ..........................20

Booster Seats .................................................32

Child Restraint Positioning ........................34

Child Safety Locks ........................................35

Seatbelts

Principle of Operation ..................................37

Fastening the Seatbelts .............................38

Seatbelt Height Adjustment .....................42

Seatbelt Warning Lamp and Indicator

Chime ............................................................42

Seatbelt Reminder .......................................43

Child Restraint and Seatbelt

Maintenance ...............................................44

Seatbelt Extension .......................................45

Supplementary Restraints

System

Principle of Operation .................................46

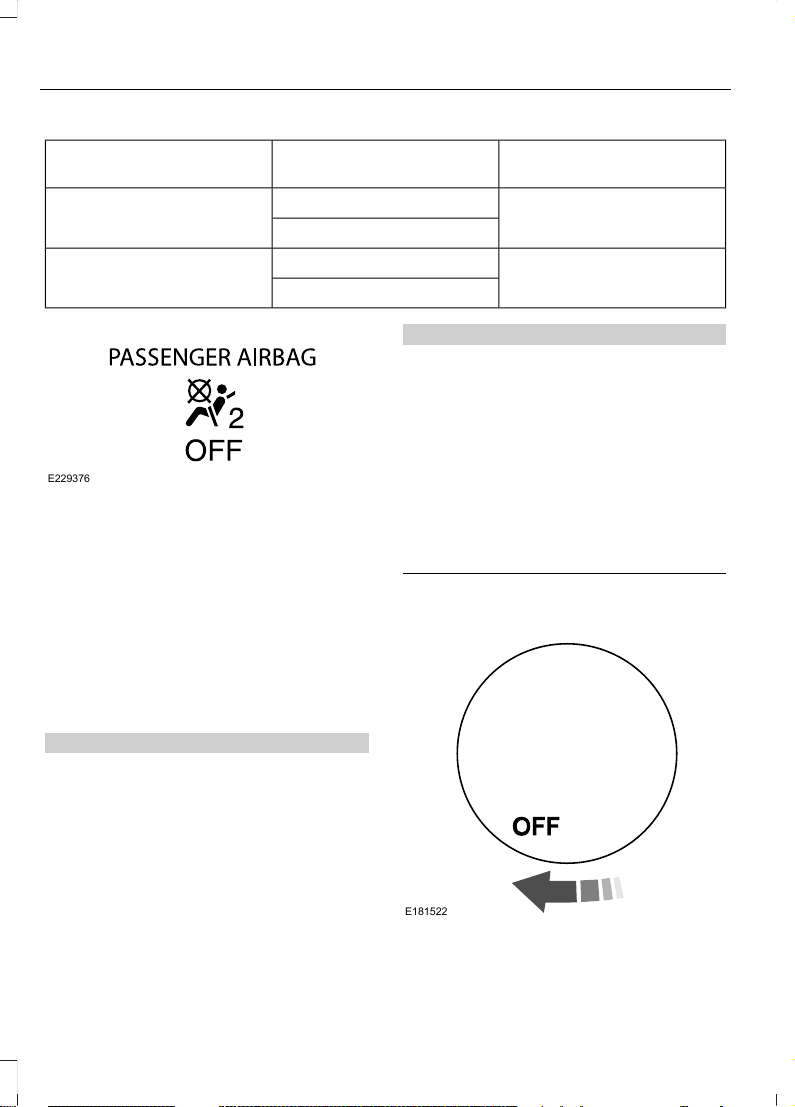

Driver and Passenger Airbags ...................47

Side Airbags ....................................................52

Safety Canopy™ ............................................53

Crash Sensors and Airbag Indicator .......54

Airbag Disposal ..............................................55

Keys and Remote Controls

General Information on Radio

Frequencies .................................................56

Remote Control .............................................56

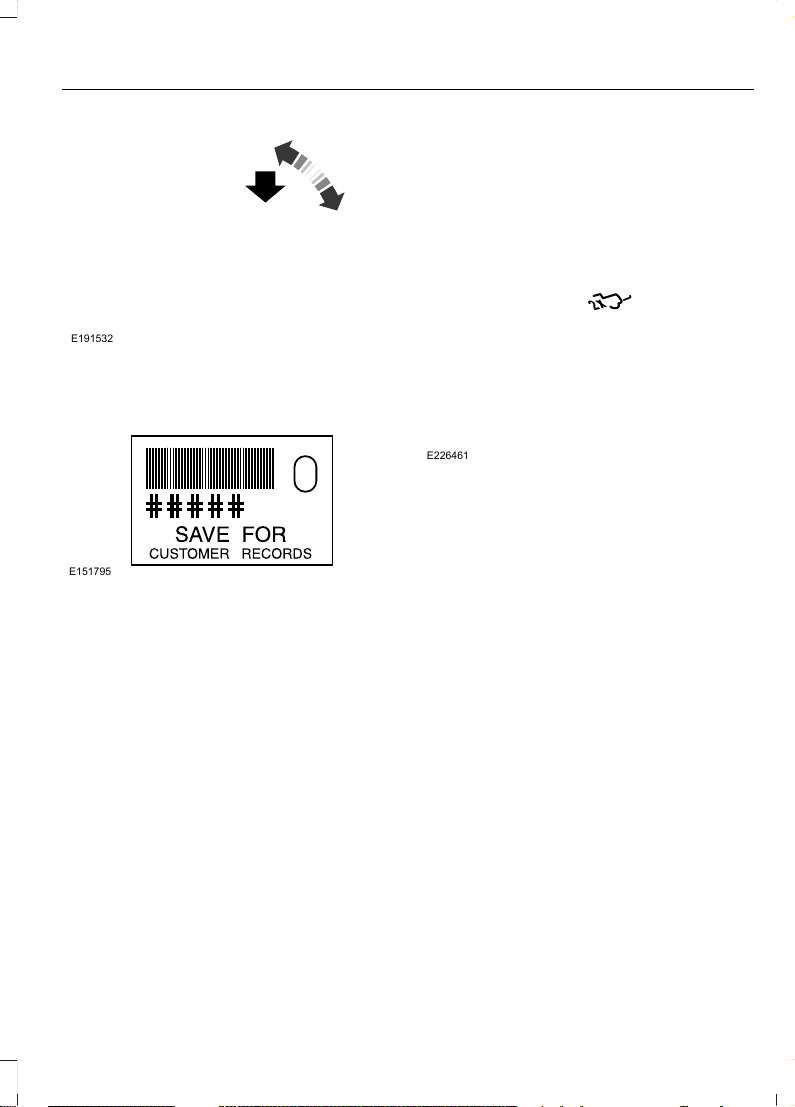

Replacing a Lost Key or Remote Control

..........................................................................62

MyKey™

Principle of Operation .................................63

Creating a MyKey ..........................................64

Clearing All MyKeys ......................................65

Checking MyKey System Status ..............65

Using MyKey With Remote Start

Systems ........................................................65

MyKey Troubleshooting ..............................65

Doors and Locks

Locking and Unlocking ................................67

Keyless Entry ...................................................70

Tailgate

Tailgate Lock ....................................................72

Removing the Tailgate .................................72

Tailgate Step ...................................................73

Bed Extender ...................................................74

Security

Passive Anti-Theft System ........................76

Anti-Theft Alarm ...........................................78

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 5

Power Running Boards

Using Power Running Boards ..................80

Steering Wheel

Adjusting the Steering Wheel - Vehicles

With: Manual Adjustable Steering

Column .........................................................82

Adjusting the Steering Wheel - Vehicles

With: Power Adjustable Steering

Column .........................................................82

Audio Control ..................................................83

Voice Control ..................................................84

Cruise Control ................................................84

Information Display Control ......................85

Heated Steering Wheel ..............................85

Pedals

Adjusting the Pedals ...................................86

Wipers and Washers

Windshield Wipers ........................................87

Autowipers .......................................................87

Windshield Washers ....................................88

Lighting

General Information ....................................89

Lighting Control .............................................89

Autolamps .......................................................90

Instrument Lighting Dimmer ....................90

Daytime Running Lamps .............................91

Automatic High Beam Control .................92

Front Fog Lamps ...........................................93

Direction Indicators ......................................93

Spot Lamps .....................................................93

Interior Lamps ................................................94

Ambient Lighting ...........................................97

Cargo Lamps ...................................................97

Windows and Mirrors

Power Windows ............................................98

Global Opening .............................................99

Exterior Mirrors ...............................................99

Interior Mirror ..................................................101

Sliding Windows ..........................................102

Sun Visors .......................................................102

Moonroof ........................................................103

Instrument Cluster

Gauges ............................................................105

Warning Lamps and Indicators ..............108

Audible Warnings and Indicators ............112

Information Displays

General Information ....................................113

Information Messages ...............................129

Climate Control

Manual Climate Control ...........................146

Automatic Climate Control ......................147

Hints on Controlling the Interior Climate

.........................................................................149

Heated Rear Window .................................152

Heated Exterior Mirrors ..............................152

Cabin Air Filter ...............................................152

Remote Start .................................................152

Seats

Sitting in the Correct Position .................154

Head Restraints ...........................................154

Manual Seats ................................................156

Power Seats ...................................................157

Memory Function ........................................159

Rear Seats .......................................................161

Heated Seats .................................................162

Climate Controlled Seats .........................163

Front Seat Armrest .....................................164

Rear Seat Armrest .......................................165

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 6

Universal Garage Door Opener

Universal Garage Door Opener ..............166

Auxiliary Power Points

Auxiliary Power Points ...............................170

Storage Compartments

Center Console ..............................................172

Overhead Console .......................................172

Under Seat Storage .....................................172

Starting and Stopping the

Engine

General Information ....................................175

Ignition Switch ..............................................175

Keyless Starting ............................................176

Starting a Gasoline Engine - 6.2L/6.8L

.........................................................................176

Starting a Diesel Engine - 6.7L Diesel

.........................................................................178

Switching Off the Engine - 6.7L Diesel

.........................................................................183

Engine Idle Shutdown ................................183

Engine Block Heater ...................................183

Fuel and Refueling

Safety Precautions .....................................185

Fuel Quality - E85 .......................................186

Fuel Quality - Diesel ...................................187

Fuel Quality - Gasoline .............................189

Running Out of Fuel ...................................190

Refueling - Gasoline ...................................190

Refueling - Diesel .........................................191

Fuel Consumption .......................................193

Engine Emission Control

Emission Law ................................................195

Catalytic Converter .....................................196

Selective Catalytic Reductant System -

Diesel ...........................................................198

Diesel Particulate Filter ............................202

Transmission

Automatic Transmission .........................208

Power Take-Off ............................................213

Four-Wheel Drive

Using Four-Wheel Drive ............................214

Rear Axle

Limited Slip Differential ............................223

Electronic Locking Differential ...............223

Brakes

General Information ..................................225

Hints on Driving With Anti-Lock Brakes

.........................................................................227

Parking Brake ................................................227

Hill Start Assist .............................................227

Traction Control

Principle of Operation ...............................229

Using Traction Control ..............................229

Stability Control

Principle of Operation ...............................230

Using Stability Control ...............................231

Terrain Control

Principle of Operation ...............................233

Using Hill Descent Control ......................233

Parking Aids

Principle of Operation ...............................235

Rear Parking Aid ..........................................235

Rear View Camera ......................................236

360 Degree Camera ..................................239

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 7

Cruise Control

Principle of Operation ...............................243

Using Cruise Control ..................................243

Using Adaptive Cruise Control ..............244

Driving Aids

Lane Keeping System ...............................250

Blind Spot Information System .............252

Cross Traffic Alert ........................................257

Steering ..........................................................259

Collision Warning System ........................261

Load Carrying

Load Limit .....................................................264

Bed Ramps ...................................................268

Towing

Towing a Trailer ............................................272

Trailer Reversing Aids ................................274

Trailer Sway Control ...................................281

Recommended Towing Weights ..........282

Essential Towing Checks .........................286

Towing the Vehicle on Four Wheels .....295

Driving Hints

Breaking-In ...................................................298

Economical Driving ....................................298

Driving Through Water .............................299

Floor Mats .....................................................299

Snowplowing ...............................................300

Roadside Emergencies

Roadside Assistance .................................303

Hazard Flashers ..........................................304

Fuel Shutoff .................................................304

Jump Starting the Vehicle .......................305

Post-Crash Alert System .........................307

Transporting the Vehicle ..........................307

Towing Points ..............................................308

Customer Assistance

Getting the Services You Need ..............310

In California (U.S. Only) ..............................311

The Better Business Bureau (BBB) Auto

Line Program (U.S. Only) ......................312

Utilizing the Mediation/Arbitration

Program (Canada Only) .......................313

Getting Assistance Outside the U.S. and

Canada ........................................................313

Ordering Additional Owner's Literature

.........................................................................314

Reporting Safety Defects (U.S. Only)

.........................................................................315

Reporting Safety Defects (Canada Only)

.........................................................................315

Fuses

Fuse Specification Chart ...........................317

Changing a Fuse .........................................326

Maintenance

General Information ..................................328

Opening and Closing the Hood .............328

Under Hood Overview - 6.2L ..................329

Under Hood Overview - 6.7L Diesel .....330

Under Hood Overview - 6.8L ...................331

Engine Oil Dipstick - 6.2L/6.8L ..............333

Engine Oil Dipstick - 6.7L Diesel ............333

Engine Oil Check - 6.2L/6.8L ..................333

Engine Oil Check - 6.7L Diesel ...............334

Changing the Engine Oil and Oil Filter

........................................................................335

Changing the Crankcase Vent Filter

Element ......................................................336

Oil Change Indicator Reset ......................337

Engine Coolant Check - 6.2L/6.8L .......338

Engine Coolant Check - 6.7L Diesel ......342

Automatic Transmission Fluid Check

........................................................................346

Transfer Case Fluid Check ......................349

Brake Fluid Check .......................................349

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 8

Power Steering Fluid Check ...................350

Washer Fluid Check ...................................350

Draining the Fuel Filter Water Trap - 6.7L

Diesel ............................................................351

Fuel Filter - 6.2L/6.8L ................................352

Changing the 12V Battery ........................353

Checking the Wiper Blades .....................355

Changing the Wiper Blades ....................355

Adjusting the Headlamps ........................355

Changing a Bulb ..........................................357

Bulb Specification Chart .........................360

Changing the Engine Air Filter - 6.2L/6.8L

........................................................................362

Changing the Engine Air Filter - 6.7L

Diesel ..........................................................363

Changing the Engine-Mounted and

Diesel Fuel Conditioner Module Fuel

Filters - 6.7L Diesel .................................365

Vehicle Care

General Information ..................................370

Cleaning Products ......................................370

Cleaning the Exterior .................................370

Waxing ..............................................................371

Cleaning the Engine ...................................372

Cleaning the Exhaust - 6.7L Diesel .......372

Cleaning the Windows and Wiper Blades

........................................................................373

Cleaning the Interior ...................................373

Cleaning the Instrument Panel and

Instrument Cluster Lens .......................375

Cleaning Leather Seats .............................375

Repairing Minor Paint Damage ..............377

Cleaning the Wheels ..................................377

Vehicle Storage ............................................377

Wheels and Tires

General Information ..................................380

Tire Care .........................................................382

Using Snow Chains ...................................400

Tire Pressure Monitoring System .........400

Changing a Road Wheel .........................408

Technical Specifications ..........................418

Capacities and Specifications

Engine Specifications - 6.2L ..................420

Engine Specifications - 6.7L Diesel ......420

Engine Specifications - 6.8L ....................421

Motorcraft Parts - 6.2L .............................422

Motorcraft Parts - 6.7L Diesel ................423

Motorcraft Parts - 6.8L .............................424

Vehicle Identification Number ...............425

Vehicle Certification Label ......................426

Transmission Code Designation ...........426

Capacities and Specifications - 6.2L

........................................................................427

Capacities and Specifications - 6.7L

Diesel ...........................................................432

Capacities and Specifications - 6.8L

........................................................................439

Audio System

General Information ..................................445

Audio Unit - Vehicles With: AM/FM .....446

Audio Unit - Vehicles With: AM/FM/CD/

SYNC ..........................................................448

Audio Unit - Vehicles With: AM/FM/CD/

Touchscreen Display .............................453

Digital Radio .................................................454

Satellite Radio .............................................456

USB Port ........................................................459

SYNC™

General Information .................................460

Using Voice Recognition ..........................462

Using SYNC™ With Your Phone ..........464

SYNC™ Applications and Services ......476

Using SYNC™ With Your Media Player

.........................................................................481

SYNC™ Troubleshooting ........................490

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 9

SYNC™ 3

General Information .................................498

Home Screen ...............................................509

Using Voice Recognition ...........................510

Entertainment ...............................................517

Climate ............................................................527

Phone ..............................................................529

Navigation .....................................................535

Apps ................................................................543

Settings ..........................................................546

SYNC™ 3 Troubleshooting ....................560

Accessories

Accessories ...................................................574

Auxiliary Switches ......................................575

Ford Protect

Ford Protect ..................................................579

Scheduled Maintenance

General Maintenance Information .......581

Normal Scheduled Maintenance .........584

Special Operating Conditions Scheduled

Maintenance ............................................589

Scheduled Maintenance Record ..........598

Appendices

Electromagnetic Compatibility ............609

End User License Agreement ..................611

Type Approvals ............................................637

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Table of Contents

Page 10

ABOUT THIS MANUAL

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this manual. The more that you know about your vehicle, the greater the safety and pleasure you will get from driving it.

WARNING

Driving while distracted can result in loss of vehicle control, crash and

injury. We strongly recommend that you use extreme caution when using any device that may take your focus off the road. Your primary responsibility is the safe operation of your vehicle. We recommend against the use of any hand-held device while driving and encourage the use of voice-operated systems when possible. Make sure you are aware of all applicable local laws that may affect the use of electronic devices while driving.

Note: This manual describes product features and options available throughout the range of available models, sometimes even before they are generally available. It may describe options that are not on your vehicle. It is possible that either Ford Motor Company or an authorized Ford dealer may have originally sold an incomplete vehicle to a vehicle modifier who upfitted it. As a result, some of the options and features on this vehicle may differ from what we describe in this manual.

Note: Some of the illustrations in this manual may show features as used in different models, so they may appear differently to you on your vehicle.

Note: Always use and operate your vehicle in line with all applicable laws and regulations.

Note: Pass on this manual when selling your vehicle. It is an integral part of the vehicle.

Note: Your vehicle’s powertrain control systems can detect and store information about vehicle modifications that increase horsepower and torque output such as whether or not performance-enhancing powertrain components commonly referred to as performance chips have been used. This information will stay in the system’s memory and cannot be erased even if the modification is removed. Ford Motor Company, Ford of Canada, Ford of Mexico and service or repair facilities can retrieve this information when servicing your vehicle. Ford Motor Company may use this information to determine if your warranty covers any needed repairs.

Note: Some aftermarket products may cause severe engine, transmission and exhaust system damage. See your warranty information for more details.

Your new diesel engine may feel, drive and function somewhat differently than a gasoline engine. Therefore, it is very important that you read and thoroughly familiarize yourself and others operating the vehicle with this guide. There is a special procedure for turning off the diesel engine. See Starting a Diesel Engine (page 178). It is important to read and understand this material in order to maintain the best service life for your engine.

Ford may discontinue models or change specifications without any notice and without incurring obligations.

This manual may qualify the location of a component as left-hand side or right-hand side. The side is determined when facing forward in the seat.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 11

E154903

Right-hand sideA Left-hand sideB

Note: Throughout this guide, you will find warnings identified by the warning symbol. Warnings remind you to be especially careful to reduce the risk of personal injury.

SYMBOLS GLOSSARY

These are some of the symbols you may see on your vehicle.

Air conditioning system

E231157

Air conditioning system lubricant type

Anti-lock braking system

Avoid smoking, flames or sparks

Battery

Battery acid

Brake fluid - non petroleum based

E270480

Brake system

Cabin air filter

Check fuel cap

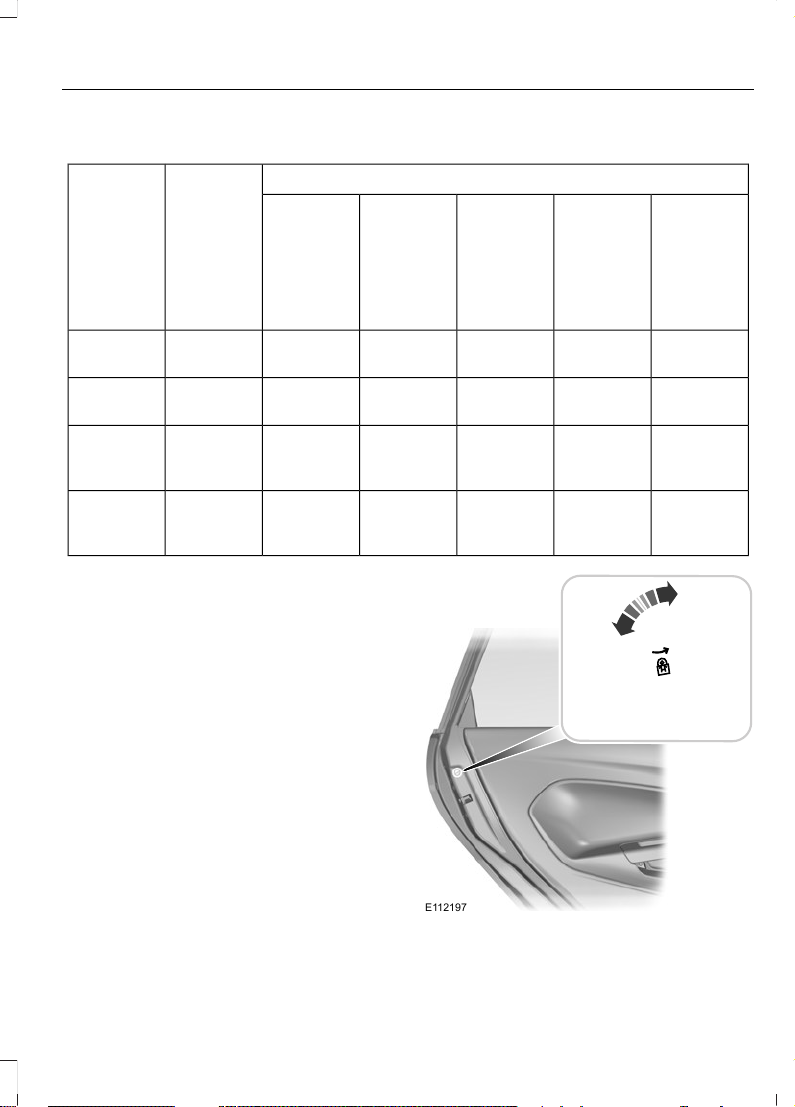

Child safety door lock or unlock

Child seat lower anchor

Child seat tether anchor

E71340

Cruise control

Do not open when hot

Engine air filter

Engine coolant

Engine coolant temperature

Engine oil

Explosive gas

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 12

Fan warning

Fasten seatbelt

E231160

Flammable

Front airbag

Front fog lamps

Fuel pump reset

Fuse compartment

Hazard flashers

Heated rear window

Windshield defrosting system

Interior luggage compartment release

Jack

Keep out of reach of children

Lighting control

Low tire pressure warning

Maintain correct fluid level

Note operating instructions

E270945

Horn control

Panic alarm

E139213

Parking aid

Parking brake

Power steering fluid

Power windows front/rear

Power window lockout

E231159

Requires registered technician

Safety alert

See Owner's Manual

E231158

See Service Manual

Service engine soon

Passenger airbag activated

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 13

Passenger airbag deactivated

Side airbag

Shield the eyes

E138639

Stability control

Windshield wiping system

Windshield wash and wipe

DATA RECORDING

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company (Ford of Canada in Canada), and service and repair facilities may access or share among them vehicle diagnostic information received through a direct connection to your vehicle when diagnosing or servicing your vehicle. Additionally, Ford Motor Company (Ford of Canada, in Canada) may, where permitted by law, use vehicle diagnostic information for vehicle improvement or with other information we may have about you, (for example, your contact information), to offer you products or services that may interest you. Data may be provided to our service providers such

as part suppliers that may help diagnose malfunctions, and who are similarly obligated to protect data. We retain this data only as long as necessary to perform these functions or to comply with law. We may provide information where required in response to official requests to law enforcement or other government authorities or third parties acting with lawful authority or court order, and such information may be used in legal proceedings. For U.S. only (if equipped), if you choose to use connected apps and services, such as SYNC Vehicle Health Report or MyFord Mobile App, you consent that certain diagnostic information may also be accessed electronically by Ford Motor Company and Ford authorized service facilities, and that the diagnostic information may be used to provide services to you, personalizing your experience, troubleshoot, and to improve products and services and offer you products and services that may interest you, where permitted by law. For Canada only, for more information, please review the Ford of Canada privacy policy at www.ford.ca, including our U.S. data storage and use of service providers in other jurisdictions who may be subject to legal requirements in Canada, the United States and other countries applicable to them, for example, lawful requirements to disclose personal information to governmental authorities in those countries. See SYNC™ (page 460).

Event Data Recording

This vehicle is equipped with an event data recorder. The main purpose of an event data recorder is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle;

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 14

this data will assist in understanding how a vehicle’s systems performed. The event data recorder is designed to record data related to vehicle dynamics and safety systems for a short period of time, typically 30 seconds or less.

The event data recorder in this vehicle is designed to record such data as:

• How various systems in your vehicle

were operating;

• Whether or not the driver and

passenger safety belts were buckled/fastened;

• How far (if at all) the driver was

depressing the accelerator and/or the brake pedal; and

• How fast the vehicle was traveling;

and

• Where the driver was positioning

the steering wheel.

This data can help provide a better understanding of the circumstances in which crashes and injuries occur.

Note: Event data recorder data is

recorded by your vehicle only if a non-trivial crash situation occurs; no data is recorded by the event data recorder under normal driving conditions and no personal data or information (e.g., name, gender, age, and crash location) is recorded (see limitations regarding 911 Assist and Traffic, directions and Information privacy below). However, parties, such as law enforcement, could combine the event data recorder data with the type of personally identifying data routinely acquired during a crash investigation.

To read data recorded by an event data recorder, special equipment is required, and access to the vehicle or the event data recorder is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have such special equipment, can read

the information if they have access to the vehicle or the event data recorder. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

Note: Including to the extent that any

law pertaining to Event Data Recorders applies to SYNC or its features, please note the following: Once 911 Assist (if equipped) is enabled (set ON), 911 Assist may, through any paired and connected cell phone, disclose to emergency services that the vehicle has been in a crash involving the deployment of an airbag or, in certain vehicles, the activation of the fuel pump shut-off. Certain versions or updates to 911 Assist may also be capable of being used to electronically or verbally provide to 911 operators the vehicle location (such as latitude and longitude), and/or other details about the vehicle or crash or personal information about the occupants to assist 911 operators to provide the most appropriate emergency services. If you do not want to disclose this information, do not activate the 911 Assist feature. See SYNC™ (page 460).

Additionally, when you connect to Traffic, Directions and Information (if equipped, U.S. only), the service uses GPS technology and advanced vehicle sensors to collect the vehicle’s current location, travel direction, and speed (“vehicle travel information”), only to help provide you with the directions, traffic reports, or business searches that you request. If you do not want

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 15

Ford or its vendors to receive this information, do not activate the service. For more information, see Traffic, Directions and Information, Terms and Conditions. See SYNC™

(page 460).

CALIFORNIA PROPOSITION 65

WARNINGS

Some constituents of engine exhaust, certain vehicle components,

certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals and related

accessories contain lead and lead

compounds, chemicals known to the State of California to cause cancer and reproductive harm. Batteries also contain other chemicals known to the State of California to cause cancer. Wash your hands after handling.

PERCHLORATE

Certain components in your vehicle such as airbag modules, seatbelt pretensioners and remote control batteries may contain perchlorate material. Special handling may apply for service or vehicle end of life disposal.

For more information visit:

Web Address

www.dtsc.ca.gov/hazard-

ouswaste/perchlorate

FORD CREDIT

US Only

Ford Credit offers a full range of financing and lease plans to help you acquire your vehicle. If you have financed or leased your vehicle through Ford Credit, thank you for your business.

We offer a number of convenient ways for you to contact us, and to manage your account.

Call 1-800-727-7000. For more information about Ford Credit

and access to Account Manager, go to www.ford.com/finance.

REPLACEMENT PARTS RECOMMENDATION

We have built your vehicle to the highest standards using quality parts. We recommend that you demand the use of genuine Ford and Motorcraft parts whenever your vehicle requires scheduled maintenance or repair. You can clearly identify genuine Ford and Motorcraft parts by looking for the Ford, FoMoCo or Motorcraft branding on the parts or their packaging.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 16

Scheduled Maintenance and Mechanical Repairs

One of the best ways for you to make sure that your vehicle provides years of service is to have it maintained in line with our recommendations using parts that conform to the specifications detailed in this Owner’s Manual. Genuine Ford and Motorcraft parts meet or exceed these specifications.

Collision Repairs

We hope that you never experience a collision, but accidents do happen. Genuine Ford replacement collision parts meet our stringent requirements for fit, finish, structural integrity, corrosion protection and dent resistance. During vehicle development we validate that these parts deliver the intended level of protection as a whole system. A great way to know for sure you are getting this level of protection is to use genuine Ford replacement collision parts.

Warranty on Replacement Parts

Genuine Ford and Motorcraft replacement parts are the only replacement parts that benefit from a Ford Warranty. The Ford Warranty may not cover damage caused to your vehicle as a result of failed non-Ford parts. For additional information, refer to the terms and conditions of the Ford Warranty.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, see the Warranty Guide that is provided to you along with your Owner’s Manual.

Special Instructions

For your added safety, your vehicle has sophisticated electronic controls.

WARNINGS

You risk death or serious injury to yourself and others if you do not

follow the instruction highlighted by the warning symbol. Failure to follow the specific warnings and instructions could result in personal injury.

Never place front seat mounted

rear-facing child or infant seats in

front of an active passenger airbag.

On Board Diagnostics Data Link Connector

WARNING

Do not connect wireless plug-in

devices to the data link connector.

Unauthorized third parties could gain access to vehicle data and impair the performance of safety related systems. Only allow repair facilities that follow our service and repair instructions to connect their equipment to the data link connector.

Your vehicle has an OBD Data Link Connector (DLC) that is used in conjunction with a diagnostic scan tool for vehicle diagnostics, repairs and reprogramming services. Installing an aftermarket device that uses the DLC during normal driving for purposes such as remote insurance company monitoring, transmission of vehicle data to other devices or entities, or altering the performance of the vehicle, may cause interference with or even damage to vehicle systems. We do not recommend or endorse the use of aftermarket plug-in devices unless approved by Ford. The vehicle Warranty will not cover damage caused by an aftermarket plug-in device.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 17

Using your Vehicle With a Snowplow

More information and guidelines for using your vehicle with a snowplow are in this Owner's Manual. See Snowplowing (page

300).

Using a Slide-In Camper

For information regarding the use of slide-in campers, consult the Truck Camper Loading document supplied with your vehicle.

Using your Vehicle as an Ambulance

If your light truck has the Ford Ambulance Preparation Package, it may be utilized as an ambulance. We urge ambulance manufacturers to follow the recommendations of the Ford Incomplete Vehicle Manual, Ford Truck Body Builder’s Layout Book and the Qualified Vehicle Modifiers (QVM) Guidelines as well as pertinent supplements. For additional information, please contact the Truck Body Builders Advisory Service at http://www.fleet.ford.com/truckbbas/ and then by selecting Contact Us or by phone at 1–877–840–4338.

Use of your Ford light truck as an ambulance, without the Ford Ambulance Preparation Package voids the Ford New Vehicle Limited Warranty and may void the emissions warranties. In addition, ambulance usage without the preparation package could cause high underbody temperatures, overpressurized fuel and a risk of spraying fuel which could lead to fires.

If your vehicle has the Ford Ambulance Preparation Package, it will be indicated on the Safety Compliance Certification Label. The label is on the driver side door pillar or on the rear edge of the driver door. You can determine whether the ambulance manufacturer followed Ford’s recommendations by directly contacting that manufacturer. The Ford Ambulance Preparation Package is only available on certain diesel engine equipped vehicles.

Using your Vehicle as a Stationary Power Source

Information and guidelines for operating a vehicle with an aftermarket power take-off system are in this Owner's Manual. See

Power Take-Off (page 213).

MOBILE COMMUNICATIONS EQUIPMENT

WARNING

Driving while distracted can result in loss of vehicle control, crash and

Using mobile communications equipment is becoming increasingly important in the conduct of business and personal affairs. However, you must not compromise your own or others’ safety when using such equipment. Mobile communications can enhance personal safety and security when appropriately used, particularly in

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 18

emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits. Mobile communication equipment includes, but is not limited to, cellular phones, pagers, portable email devices, text messaging devices and portable two-way radios.

EXPORT UNIQUE OPTIONS

For your particular global region, your vehicle may be equipped with features and options that are different from the features and options that are described in this Owner’s Manual. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Manual is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for export. Refer to this Owner’s

Manual for all other required information and warnings.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Introduction

Page 19

PROTECTING THE ENVIRONMENT

You should play your part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps toward this aim.

For details about Ford Motor Company's sustainability progress and initiatives visit:

Web Address

www.sustainability.ford.com

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Environment

Page 20

INSTRUMENT PANEL OVERVIEW

E251634

Direction indicators. See Direction Indicators (page 93).

Wiper lever. See Wipers and Washers (page 87).

Information display controls. See Information Displays (page 113).

Instrument cluster. See Instrument Cluster (page 105).

Navigation, media, phone.E Entertainment display.F Hazard flasher switch. See

Hazard Flashers (page 304).

Audio. See Audio System (page 445).

Climate control. See Climate Control (page 146).

Rear defrost.J Start button. See Keyless

Starting (page 176).

Voice control. See Voice Control (page 84).

Horn.M Cruise control. See Cruise

Control (page 243).

Steering wheel adjustment. See

Adjusting the Steering Wheel

(page 82).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

At a Glance

Page 21

Parking brake release. See Brakes (page 225).

Lighting control. See Lighting Control (page 89).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

At a Glance

Page 22

GENERAL INFORMATION

See the following sections for directions on how to properly use safety restraints for children.

WARNINGS

Always make sure your child is secured properly in a device that is

appropriate for their height, age and weight. Child safety restraints must be bought separately from your vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.

All children are shaped differently.

The National Highway Traffic Safety

Administration and other safety organizations, base their recommendations for child restraints on probable child height, age and weight thresholds, or on the minimum requirements of the law. We recommend that you check with a NHTSA Certified Child Passenger Safety

WARNINGS

Technician (CPST) to make sure that you properly install the child restraint in your vehicle and that you consult your pediatrician to make sure you have a child restraint appropriate for your child. To locate a child restraint fitting station and CPST, contact NHTSA toll free at 1-888-327-4236 or go to www.nhtsa.dot.gov. In Canada, contact Transport Canada toll free at 1-800-333-0371 or go to www.tc.gc.ca to find a Child Car Seat Clinic in your area. Failure to properly restrain children in child restraints made especially for their height, age and weight, may result in an increased risk of serious injury or death to your child.

On hot days, the temperature inside the vehicle can rise very quickly.

Exposure of people or animals to these high temperatures for even a short time can cause death or serious heat related injuries, including brain damage. Small children are particularly at risk.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 23

Recommendations for Safety Restraints for Children

Recommended restraint

type

Child size, height, weight, or ageChild

Use a child safety seat

(sometimes called an

infant carrier, convertible

seat, or toddler seat).

Children weighing 40 lb (18 kg) or less

(generally age four or younger).

Infants or

toddlers

Use a belt-positioning

booster seat.

Children who have outgrown or no longer

properly fit in a child safety seat (gener-

ally children who are less than 4 ft. 9 in.

(1.45 m) tall, are greater than age four and less than age 12, and between 40 lb (18 kg) and 80 lb (36 kg) and upward to

100 lb (45 kg) if recommended by your

child restraint manufacturer).

Small children

Use a vehicle seatbelt having the lap belt snug and low across the hips,

shoulder belt centered

across the shoulder and

chest, and seatback

upright.

Children who have outgrown or no longer

properly fit in a belt-positioning booster

seat (generally children who are at least

4 ft. 9 in. (1.45 m) tall or greater than 80 lb (36 kg) or 100 lb (45 kg) if recommended by child restraint manufacturer).

Larger children

• You are required by law to properly use safety seats for infants and toddlers in the United States and Canada.

• Many states and provinces require that small children use approved booster seats until they reach age eight, a height of 4 feet 9 inches (1.45 meters) tall, or 80 lb (36 kg). Check your local and state or provincial laws for specific requirements about the safety of children in your vehicle.

• When possible, always properly restrain children 12 years of age and under in a rear seating position of your vehicle. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in a front seating position.

INSTALLING CHILD RESTRAINTS

Child Seats

E142594

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 24

Use a child safety seat (sometimes called an infant carrier, convertible seat, or toddler seat) for infants, toddlers, or children weighing 40 lb (18 kg) or less (generally age four or younger).

Using Lap and Shoulder Belts (Except Front Center Position of Super Cab and Crew Cab)

WARNINGS

Do not place a rearward facing child restraint in front of an active airbag. Failure to follow this instruction

could result in personal injury or death.

Even with advanced restraints systems, properly restrain children

12 and under in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

Depending on where you secure a

child restraint, and depending on the

child restraint design, you may block access to certain seatbelt buckle assemblies and LATCH lower anchors, rendering those features potentially unusable. To avoid risk of injury, make sure occupants only use seating positions where they are able to be properly restrained.

When installing a child safety seat with combination lap and shoulder belts:

• Use the correct seatbelt buckle for that

seating position.

• Insert the belt tongue into the proper

buckle until you hear a snap and feel it latch. Make sure the tongue is securely fastened in the buckle.

• Keep the buckle release button

pointing up and away from the safety seat, with the tongue between the child restraint and the release button, to prevent accidental unbuckling.

• Place the vehicle seat upon which the child restraint will be installed in the upright position.

• Put the seatbelt in the automatic locking mode. This vehicle does not require the use of a locking clip.

Perform the following steps when installing the child restraint with combination lap and shoulder belts:

Note: Although the child restraint illustrated is a forward facing child restraint, the steps are the same for installing a rear facing child restraint.

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E142529

2. Pull down on the shoulder belt and then grasp the shoulder belt and lap belt together.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 25

E142530

3. While holding the shoulder and lap belt portions together, route the tongue through the child restraint according to the child restraint manufacturer's instructions. Be sure the belt webbing is not twisted.

E142531

4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until you hear a snap and feel the latch engage. Make sure the tongue is latched securely by pulling on it.

E142875

5. To put the retractor in the automatic locking mode, grasp the shoulder portion of the belt and pull downward until you pull all of the belt out.

Note: The automatic locking mode is available on the front passenger and rear seats. This vehicle does not require the use of a locking clip.

6. Allow the belt to retract to remove slack. The belt clicks as it retracts to indicate it is in the automatic locking mode.

7. Try to pull the belt out of the retractor to make sure the retractor is in the automatic locking mode (you should not be able to pull more belt out). If the retractor is not locked, unbuckle the belt and repeat Steps 5 and 6.

E142533

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 26

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling up on the shoulder belt in order to force slack from the belt. This is necessary to remove the remaining slack that exists once you add the extra weight of the child to the child restraint. It also helps to achieve the proper snugness of the child restraint to your vehicle. Sometimes, a slight lean toward the buckle helps to remove remaining slack from the belt.

9. Attach the tether strap (if the child restraint is equipped).

E142534

10. Before placing the child in the seat,

forcibly move the seat forward and back to make sure the seat is securely held in place.

To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 in (2.5 cm) of movement for proper installation.

We recommend checking with a NHTSA Certified Child Passenger Safety Technician to make certain the child restraint is properly installed. In Canada, check with Transport Canada for referral to a Child Car Seat Clinic.

Using Lap and Shoulder Belts (Front Center Position of Super Cab and Crew Cab)

WARNINGS

Do not place a rearward facing child restraint in front of an active airbag. Failure to follow this instruction

could result in personal injury or death.

Always use both the lap and shoulder portion of the seatbelt in the center seating position.

The belt webbing below the tongue is the lap portion of the combination lap and shoulder belt. The belt webbing above the tongue is the shoulder belt portion of the combination lap and shoulder belt.

E142528

1. Position the child safety seat in the front center seat.

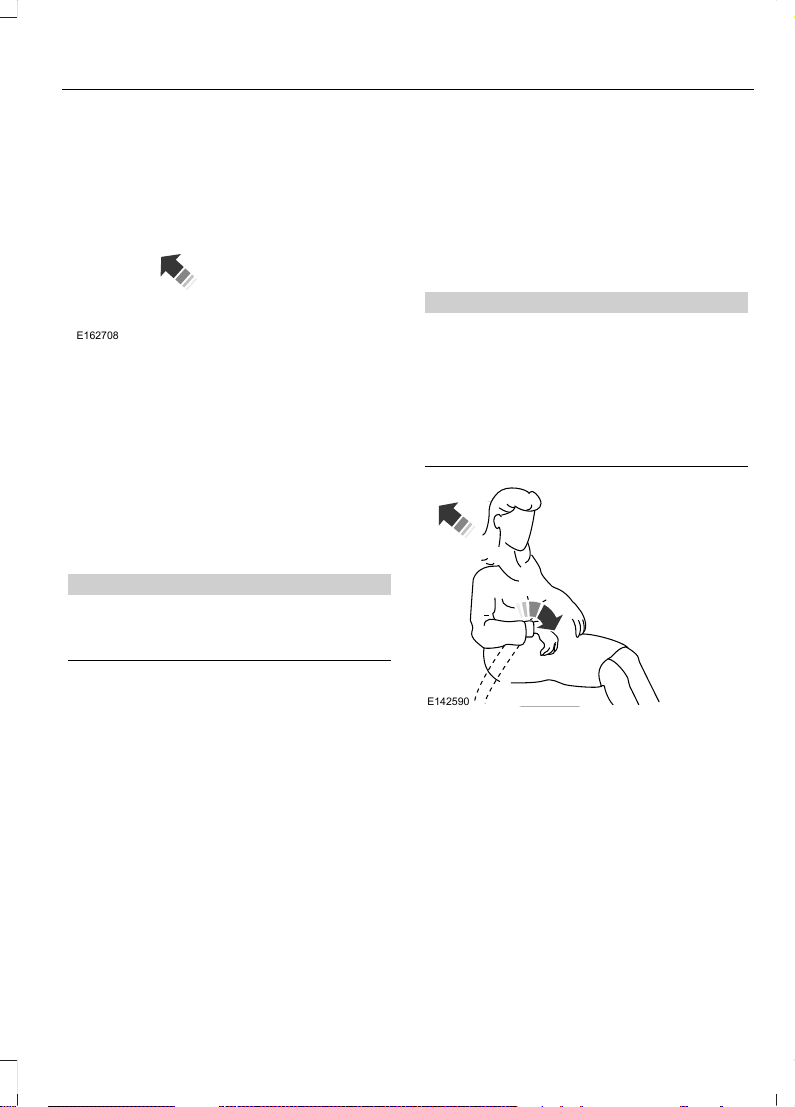

E162708

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 27

2. Slide the tongue up the webbing.

E142530

3. While holding both shoulder and lap portions next to the tongue, route the tongue and webbing through the child restraint according to the child restraint manufacturer's instructions. Be sure that the belt webbing is not twisted.

E142531

E142533

5. While pushing down with your knee on the child restraint, pull up on the shoulder belt portion to tighten the lap belt portion of the combination lap and shoulder belt.

6. Allow the seatbelt to retract and remove any slack in the belt to securely tighten the child safety seat in the vehicle.

7. Attach the tether strap (if the child restraint is equipped).

E142534

8. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 in (2.5 cm) of movement for proper installation.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 28

9. Check from time to time to be sure that there is no slack in the lap and shoulder belt. The shoulder belt must be snug to keep the lap belt tight during a crash.

Using Inflatable Seatbelts (Rear Seat Outboard Positions) (If Equipped)

E142528

1. Position the child safety seat in a seat with a combination lap and shoulder belt.

E146522

2. After positioning the child safety seat in the proper seating position, grasp the shoulder belt and lap belt together behind the belt tongue.

E142530

E146523

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 29

E146524

5. To put the retractor in the automatic locking mode, grasp the lap portion of the inflatable seatbelt and pull upward until you pull all of the belt out.

Note: The automatic locking mode is available on the front passenger and rear seats.

Note: Unlike the standard seatbelt, the inflatable seatbelt's unique lap portion locks the child restraint for installation. The ability for the shoulder portion of the belt to move freely is normal, even after the lap belt has been put into the automatic locking mode.

Note: The lock-off device on some child restraints may not accommodate the shoulder portion of the inflatable seatbelt. Follow all instructions provided by the manufacturer of the child restraint regarding the necessary and proper use of the lock-off device. In some instances, these devices have been provided only for use in vehicles with seatbelt systems that would otherwise require a locking clip.

6. Allow the belt to retract to remove slack. The belt clicks as it retracts to indicate it is in the automatic locking mode.

E146525

8. Remove remaining slack from the belt. Force the seat down with extra weight, for example, by pressing down or kneeling on the child restraint while pulling down on the lap belt in order to force slack from the belt. This is necessary to remove the remaining slack that exists once you add the extra weight of the child to the child restraint. It also helps to achieve the proper snugness of the child restraint to your vehicle. Sometimes, a slight lean toward the buckle will additionally help to remove remaining slack from the belt.

9. Attach the tether strap (if the child restraint is equipped).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 30

E142534

10. Before placing the child in the seat, forcibly move the seat forward and back to make sure the seat is securely held in place. To check this, grab the seat at the belt path and attempt to move it side to side and forward and back. There should be no more than 1 in (2.5 cm) of movement for proper installation.

Using Lower Anchors and Tethers for CHildren (LATCH)

WARNINGS

Do not attach two child safety restraints to the same anchor. In a

crash, one anchor may not be strong enough to hold two child safety restraint attachments and may break, causing serious injury or death.

WARNINGS

Depending on where you secure a child restraint, and depending on the

The LATCH system is composed of three vehicle anchor points: two lower anchors where the vehicle seat backrest and seat cushion meet (called the seat bight) and one top tether anchor behind that seating position.

LATCH compatible child safety seats have two rigid or webbing mounted attachments that connect to the two lower anchors at the LATCH equipped seating positions in your vehicle. This type of attachment method eliminates the need to use seatbelts to attach the child restraint. However, you can still use the seatbelt to attach the child restraint if the lower anchors are not used. For forward-facing child restraints, you must also attach the top tether strap to the proper top tether anchor if a top tether strap has been provided with your child restraint.

Your vehicle has LATCH lower anchors for child restraint installation at the following seating positions (LATCH is not available on Regular Cab):

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 31

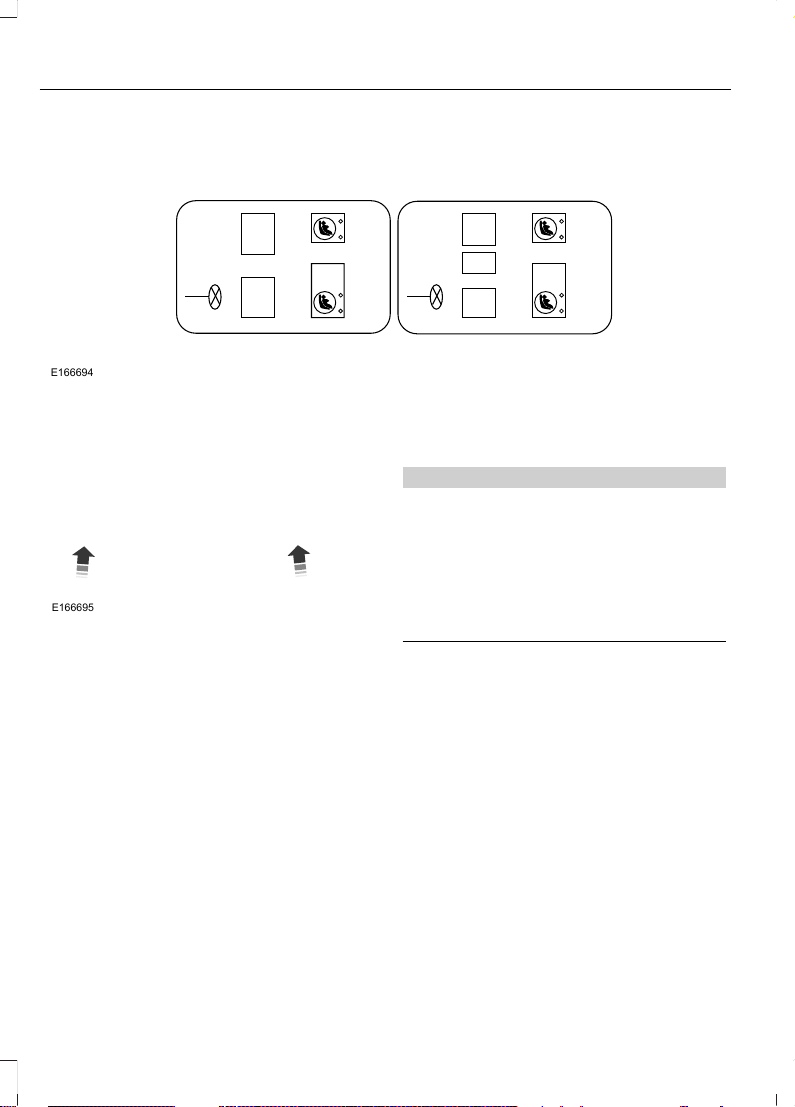

Crew Cab and Super Cab

E166694

E166695

The lower LATCH anchors are at the rear section of the rear seat between the cushion and seat backrest. Follow the child restraint manufacturer's instructions to properly install a child restraint with LATCH attachments.

Follow the instructions later in this chapter on attaching child safety seats with tether straps.

Attach LATCH lower attachments of the child restraint only to the anchors shown.

Use of Inboard Lower Anchors from the Outboard Seating Positions (Center Seating Use)

WARNING

The standardized spacing for LATCH lower anchors is 11 in (280 mm)

center to center. Do not use LATCH lower anchors for the center seating position unless the child restraint manufacturer's instructions permit and specify using anchors spaced at least as far apart as those in this vehicle.

The lower anchors at the center of the second row rear seat are spaced 26 in (652 mm) apart. The standardized spacing for LATCH lower anchors is 11 in (280 mm) center to center. You cannot install a child restraint with rigid LATCH attachments at the center seating position. LATCH compatible child restraints (with attachments on belt webbing) can only be used at this seating position provided that the child restraint manufacturer's instructions permit use with the anchor spacing stated. Do not attach a child restraint to any lower anchor if an adjacent child restraint is attached to that anchor.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 32

Each time you use the safety seat, check that the seat is properly attached to the lower anchors and tether anchor, if applicable. Tug the child restraint from side to side and forward and back where it is secured to the vehicle. The seat should move less than 1 in (2.5 cm) when you do this for a proper installation.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Combining Seatbelt and LATCH Lower Anchors for Attaching Child Safety Seats

When used in combination, either the seatbelt or the LATCH lower anchors may be attached first, provided a proper installation is achieved. Attach the tether strap afterward, if included with the child restraint.

Using Tether Straps

Many forward-facing child safety seats include a tether strap which extends from the back of the child safety seat and hooks to an anchoring point called the top tether anchor. Tether straps are available as an accessory for many older safety seats. Contact the manufacturer of your child restraint for information about ordering a tether strap, or to obtain a longer tether strap if the tether strap on your safety seat does not reach the appropriate top tether anchor in the vehicle.

The passenger seats of your vehicle may have built-in tether strap anchors behind the seats as described below.

The tether anchors in your vehicle may be loops of webbing above the seat backrest or an anchor bracket behind the seat on the rear edge of the seat cushion.

The rear seat in the Crew Cab and Super Cab has three straps along the top of the seat backrest that function as both routing loops for the tether straps and anchor loops.

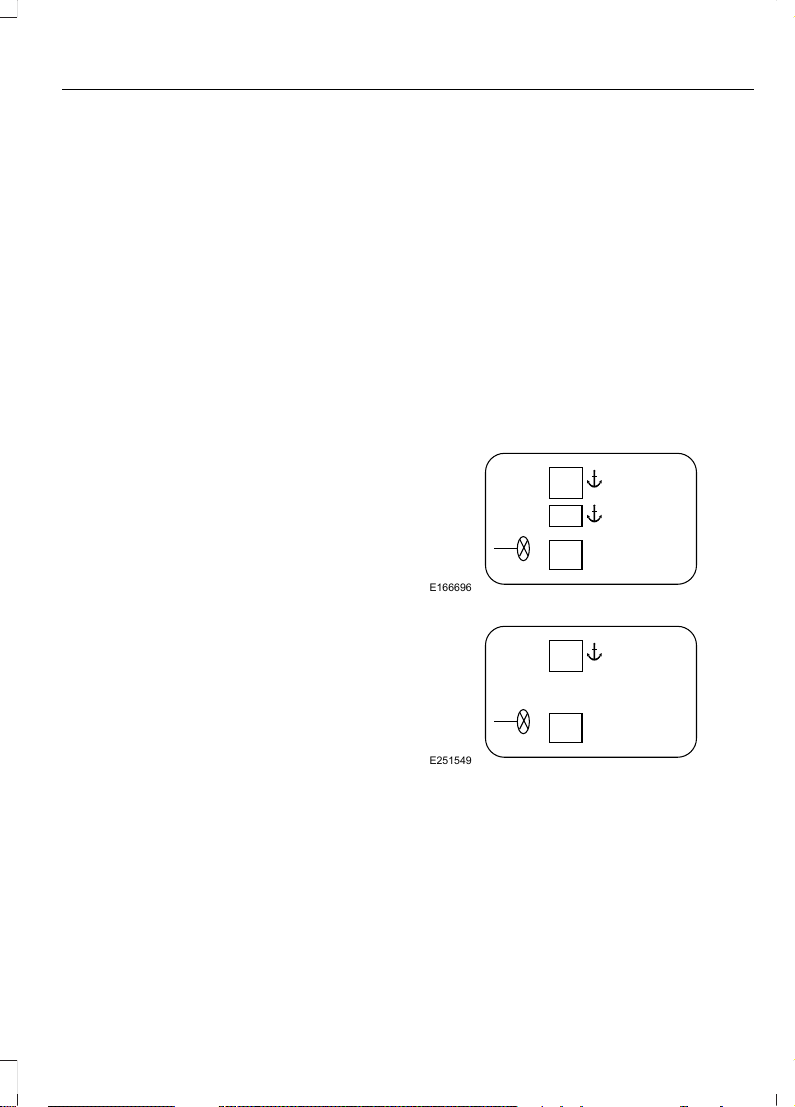

The tether strap anchors in your vehicle are in the following positions (shown from top view):

Regular Cab

E166696

E251549

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 33

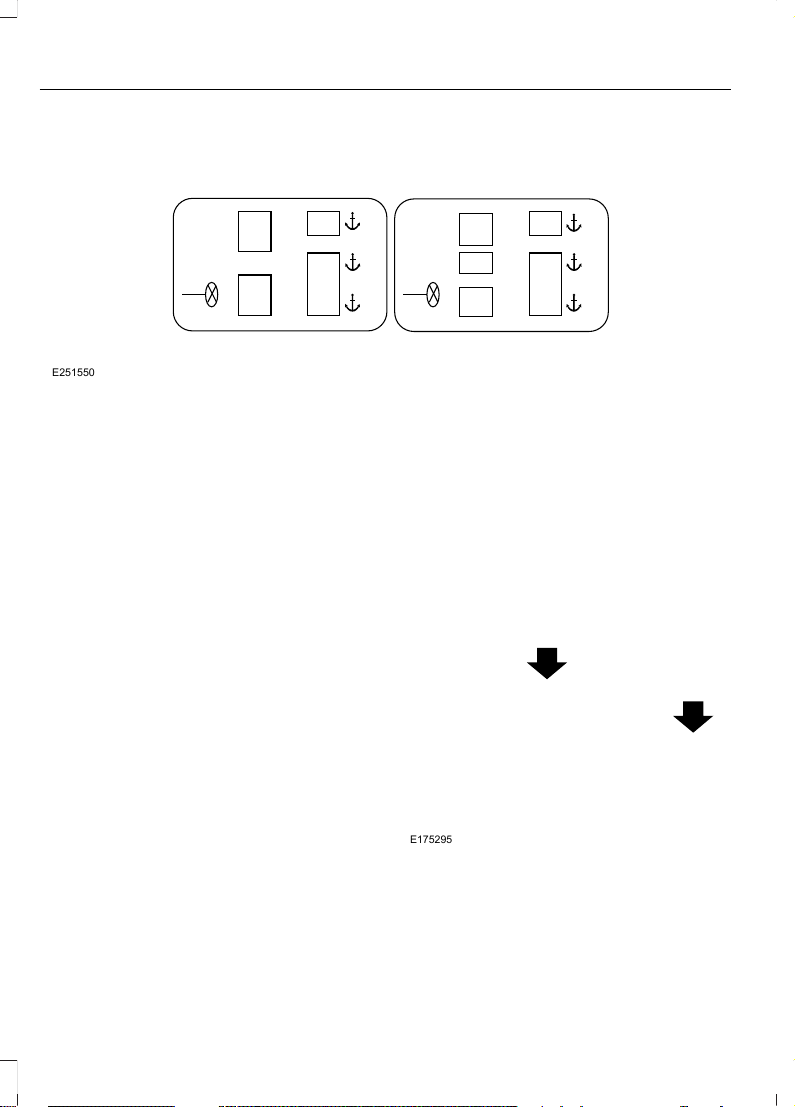

Crew Cab and Super Cab

E251550

Attach the tether strap only to the appropriate tether anchor as shown. The tether strap may not work properly if attached somewhere other than the correct tether anchor.

If you install a child restraint with rigid LATCH attachments, do not tighten the tether strap enough to lift the child restraint off the vehicle seat cushion when the child is seated in it. Keep the tether strap just snug without lifting the front of the child restraint. Keeping the child restraint just touching the vehicle seat gives the best protection in a severe crash.

Once the child safety seat has been installed using either the seatbelt, the lower anchors of the LATCH system, or both, you can attach the top tether strap.

Front Seat Tether Strap Attachment (Regular Cab)

Note: For vehicles with adjustable head

restraints, route the tether strap under the head restraint and between the head restraint posts, otherwise route the tether strap over the top of the seatback.

1. Route the child safety seat tether strap over the back of the seat and under the head restraint.

2. Locate the correct anchor for the selected seating position. You may need to pull the seat backrest forward to access the tether anchors. Make sure the seat is locked in the upright position before installing the child restraint.

3. Clip the tether strap to the anchor.

4. Tighten the child safety seat tether strap according to the manufacturer's instructions.

Regular Cab passenger and center seats (located on back panel)

E175295

If the tether strap is clipped incorrectly, the child safety seat may not be retained properly in the event of a crash.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 34

If your child restraint system has a tether strap, and the child restraint manufacturer recommends its use, we also recommend its use.

Rear Seat Tether Strap Attachment (Crew Cab and Super Cab)

E167009

There are three loops of webbing just above the back of the rear seat (along the bottom edge of the rear window). Use these loops as both routing loops and anchor loops for up to three child safety seat tether straps.

For example, you can use the center loop as a routing loop for a child safety seat in the center rear seat and as an anchoring loop for child restraints installed in the outboard rear seats.

Many tether straps cannot be tightened if the tether strap is hooked to the loop directly behind the child restraint.

To provide a tight tether strap:

E162715

1. Route the vehicle tether loop between the head restraint posts, then route the child seat tether strap through the loop, forward of the head restraint.

2. Hook the strap to the vehicle tether anchor loop in the adjacent seating position. If using the driver side, pass the strap behind the shoulder belt for the center seat. Always put the tether strap through the routing loop. The head restraint support post holds the child restraint tightly, but the head restraint post is not strong enough to hold the child restraint during a crash.

3. Tighten the tether strap according to the child restraint manufacturer's instructions.

If the safety seat is not anchored properly, the risk of a child being injured in a crash greatly increases.

If your child restraint system has a tether strap, and the child restraint manufacturer recommends its use, we also recommend its use.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 35

BOOSTER SEATS

WARNING

Do not put the shoulder section of the seatbelt or allow the child to put

the shoulder section of the seatbelt under their arm or behind their back. Failure to follow this instruction could reduce the effectiveness of the seatbelt and increase the risk of injury or death in a crash.

Note: Some booster seat seatbelt guides may not accommodate the shoulder portion of the inflatable seatbelt.

Use a belt-positioning booster seat for children who have outgrown or no longer properly fit in a child safety seat (generally children who are less than 57 in (1.45 m) tall, are greater than age four (4) and less than age twelve (12), and between 40 lb (18 kg) and 80 lb (36 kg) and upward to 100 lb (45 kg) if recommended by your child restraint manufacturer). Many state and provincial laws require that children use approved booster seats until they reach age eight, a height of 57 in (1.45 m) tall, or 80 lb (36 kg).

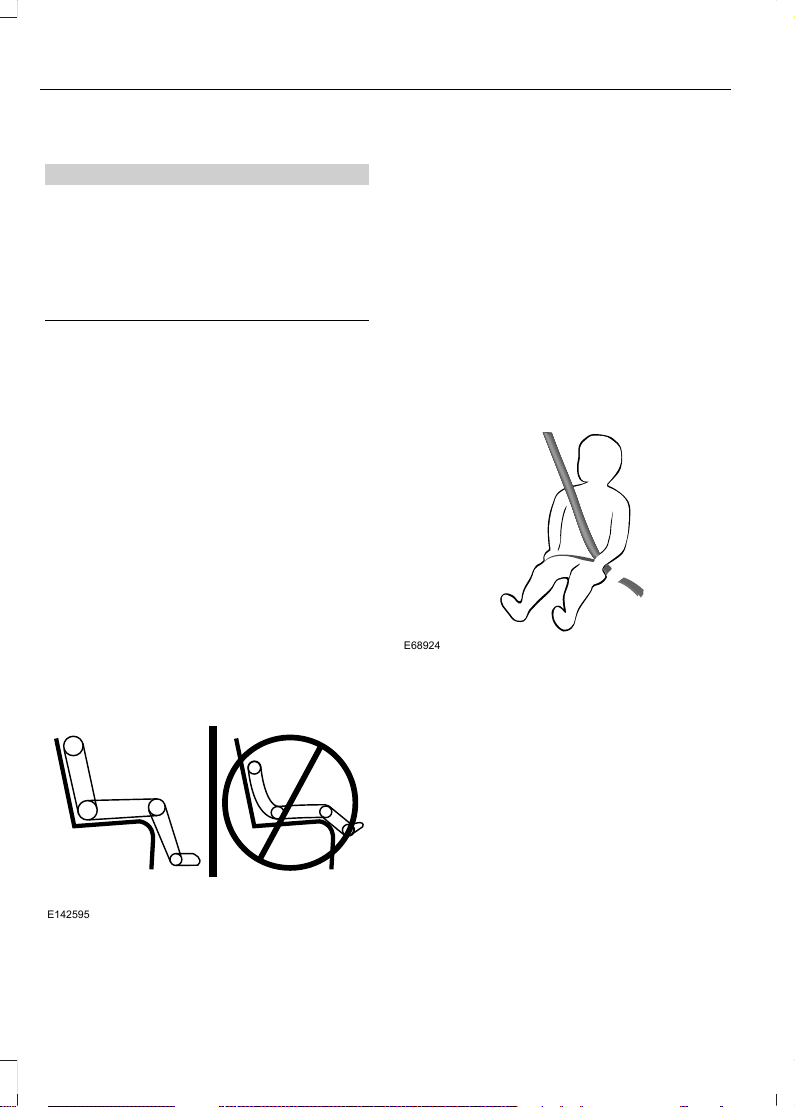

Booster seats should be used until you can answer YES to ALL of these questions when seated without a booster seat:

E142595

• Can the child sit all the way back against their vehicle seat backrest with knees bent comfortably at the edge of the seat cushion?

• Can the child sit without slouching?

• Does the lap belt rest low across the

hips?

• Is the shoulder belt centered on the shoulder and chest?

• Can the child stay seated like this for the whole trip?

Always use booster seats in conjunction with your vehicle lap and shoulder belt.

Types of Booster Seats

E68924

• Backless booster seats

If your backless booster seat has a removable shield, remove the shield. If a vehicle seating position has a low seat backrest or no head restraint, a backless booster seat may place your child's head (as measured at the tops of the ears) above the top of the seat. In this case, move the backless booster to another seating position with a higher seat backrest or head restraint and lap and shoulder belts, or consider using a high back booster seat.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 36

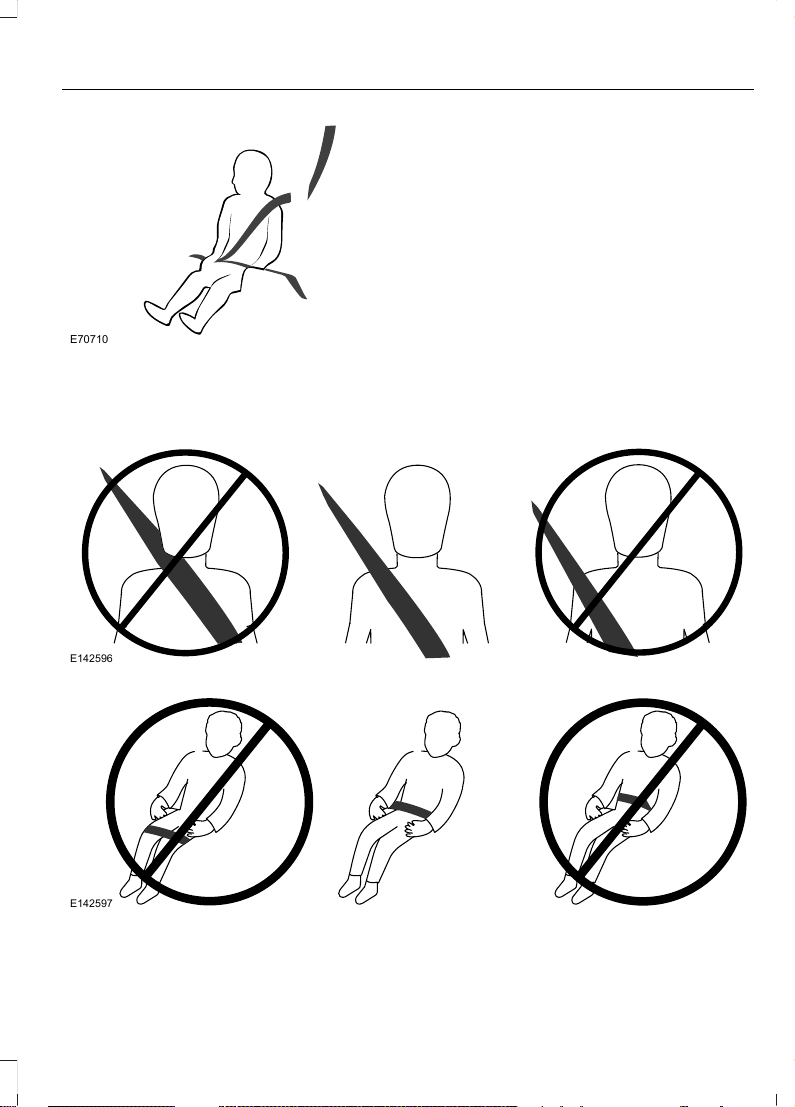

E70710

• High back booster seats

If, with a backless booster seat, you cannot find a seating position that adequately supports your child's head, a high back booster seat would be a better choice.

Children and booster seats vary in size and shape. Choose a booster that keeps the lap belt low and snug across the hips, never up across the stomach, and lets you adjust the shoulder belt to cross the chest and rest snugly near the center of the shoulder. The following drawings compare the ideal fit (center) to a shoulder belt uncomfortably close to the neck and a shoulder belt that could slip off the shoulder. The drawings also show how the lap belt should be low and snug across the child's hips.

E142596

E142597

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 37

If the booster seat slides on the vehicle seat upon which it is being used, placing a rubberized mesh sold as shelf or carpet liner under the booster seat may improve this condition. Do not introduce any item thicker than this under the booster seat. Check with the booster seat manufacturer's instructions.

CHILD RESTRAINT POSITIONING

WARNINGS

Airbags can kill or injure a child in a child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the vehicle seat upon which the child seat is installed all the way back. When possible, all children age 12 and under should be properly restrained in a rear seating position. If all children cannot be seated and restrained properly in a rear seating position, properly restrain the largest child in the front seat.

Always carefully follow the

instructions and warnings provided

by the manufacturer of any child restraint to determine if the restraint device is appropriate for your child's size, height, weight, or age. Follow the child restraint manufacturer's instructions and warnings provided for installation and use in

WARNINGS

conjunction with the instructions and warnings provided by your vehicle manufacturer. A safety seat that is improperly installed or utilized, is inappropriate for your child's height, age, or weight or does not properly fit the child may increase the risk of serious injury or death.

Never let a passenger hold a child on his or her lap while your vehicle is

moving. The passenger cannot protect the child from injury in a crash, which may result in serious injury or death.

Never use pillows, books, or towels

to boost a child. They can slide

around and increase the likelihood of injury or death in a crash.

Always restrain an unoccupied child

seat or booster seat. These objects

may become projectiles in a crash or sudden stop, which may increase the risk of serious injury.

Never place, or allow a child to place,

the shoulder belt under a child's arm

or behind the back because it reduces the protection for the upper part of the body and may increase the risk of injury or death in a crash.

To avoid risk of injury, do not leave

children or pets unattended in your

vehicle.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 38

Recommendations for attaching child safety restraints for children

Use any attachment method as indicated below by X

Combined

weight of child and child seat

Restraint

Type

Safety belt

only

Safety belt and LATCH

(lower

anchors

and top

tether

anchor)

Safety belt

and top

tether

anchor

LATCH

(lower

anchors

only)

LATCH (lower

anchors

and top

tether

anchor)

Up to 65 lb

(29.5 kg)

Rear facing

child seat

Over 65 lb

(29.5 kg)

Rear facing

child seat

XXX

Up to 65 lb

(29.5 kg)

Forward

facing

child seat

Over 65 lb

(29.5 kg)

Forward

facing

child seat

Note: The child seat must rest tightly against the vehicle seat upon which it is installed. It may be necessary to lift or remove the head restraint. See Seats (page

154).

CHILD SAFETY LOCKS

When these locks are set, the rear doors cannot be opened from the inside.

E112197

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 39

The childproof locks are located on the rear edge of each rear door and must be set separately for each door.

Left-Hand Side

Turn counterclockwise to lock and clockwise to unlock.

Right-Hand Side

Turn clockwise to lock and counterclockwise to unlock.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Child Safety

Page 40

PRINCIPLE OF OPERATION

WARNINGS

Always drive and ride with the seatback upright and the lap belt snug and low across the hips.

To reduce the risk of injury, make sure children sit where they can be properly restrained.

Never let a passenger hold a child on his or her lap while your vehicle is

moving. The passenger cannot protect the child from injury in a crash which may result in serious injury or death.

All occupants of the vehicle,

including the driver, should always

properly wear their seatbelts, even when an airbag supplemental restraint system is provided. Failure to properly wear your seatbelt could seriously increase the risk of injury or death.

It is extremely dangerous to ride in a

cargo area, inside or outside of a

vehicle. In a crash, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and seatbelts. Be sure everyone in your vehicle is in a seat and using a seatbelt properly.

In a rollover crash, an unbelted

person is significantly more likely to

die than a person wearing a seatbelt.

Each seating position in your vehicle

has a specific seatbelt assembly

which is made up of one buckle and one tongue that are designed to be used as a pair. 1) Use the shoulder belt on the outside shoulder only. Never wear the shoulder belt under the arm. 2) Never swing the seatbelt around your neck over the inside shoulder. 3) Never use a single belt for more than one person.

WARNINGS

When possible, all children 12 years old and under should be properly

restrained in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

Seatbelts and seats can become hot

in a vehicle that has been closed up

in sunny weather; they could burn a small child. Check seat covers and buckles before you place a child anywhere near them.

Front and rear seat occupants,

including pregnant women, should

wear seatbelts for optimum protection in an accident.

All seating positions in this vehicle have lap and shoulder belts. All occupants of the vehicle should always properly wear their seatbelts, even when an airbag supplemental restraint system is provided.

The seatbelt system consists of:

• Lap and shoulder seatbelts.

• Shoulder seatbelt with automatic

locking mode, (except driver seatbelt).

• Height adjuster at the front outboard

seating positions.

• Seatbelt pretensioner at the front

outboard seating positions.

• Seatbelt warning light and chime.

• Crash sensors and monitoring system

with readiness indicator.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 41

The seatbelt pretensioners at the front seating positions are designed to tighten the seatbelts when activated. In frontal and near-frontal crashes, the seatbelt pretensioners may be activated alone or, if the crash is of sufficient severity, together with the front airbags. In side crashes and rollovers, the seatbelt pretensioners activate when the Safety Canopy is activated.

FASTENING THE SEATBELTS

Standard belts shown, inflatable belts similar

The front outboard and rear safety restraints in the vehicle are combination lap and shoulder belts.

E142587

1. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) until you hear a snap and feel it latch. Make sure you securely fasten the tongue in the buckle.

E142588

2. To unfasten, press the release button and remove the tongue from the buckle.

Using the Seatbelt with Cinch Tongue (Front Center Seat on Super Cab and Crew Cab)

The cinch tongue slides up and down the belt webbing when you stow the belt or while putting seatbelts on. When you buckle the lap and shoulder seatbelt, the cinch tongue allows you to shorten the lap portion, but pinches the webbing to keep the lap portion from getting longer. The cinch tongue is designed to slip during a crash, so always wear the shoulder belt properly and do not allow any slack in either the lap or shoulder portions.

Before you can reach and latch a lap and shoulder belt having a cinch tongue into the buckle, you may have to lengthen the lap belt portion of it.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 42

E162708

1. To lengthen the lap belt, pull some webbing out of the shoulder belt retractor.

2. While holding the webbing below the tongue, grasp the tip (metal portion) of the tongue so that it is parallel to the webbing and slide the tongue upward.

3. Provide enough lap belt length so that the tongue can reach the buckle.

Fastening the Cinch Tongue

WARNING

Always drive and ride with your seatback upright and the lap belt snug and low across the hips.

1. Pull the lap and shoulder belt from the retractor so that the shoulder belt portion of the seatbelt crosses your shoulder and chest.

2. Be sure the belt is not twisted. If the belt is twisted, remove the twist.

3. Insert the belt tongue into the proper buckle for your seating position until you hear a snap and feel it latch.

4. Make sure you securely fasten the tongue to the buckle by pulling on the tongue.

While you are fastened in the seatbelt, the lap and shoulder belt with a cinch tongue adjusts to your movement. However, if you brake hard, turn hard, or if your vehicle receives an impact of 5 mph (8 km/h) or more, the seatbelt will become locked and help reduce your forward movement.

Using Seatbelts During Pregnancy

WARNING

Always ride and drive with your seatback upright and properly fasten

your seatbelt. Fit the lap portion of the seatbelt snugly and low across the hips. Position the shoulder portion of the seatbelt across your chest. Pregnant women must follow this practice. See the following figure.

E142590

Pregnant women should always wear their seatbelt. Position the lap belt portion of a combination lap and shoulder belt low across the hips below the belly and worn as tight as comfort allows. Position the shoulder belt to cross the middle of the shoulder and the center of the chest.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 43

Seatbelt Locking Modes

WARNING

If your vehicle is involved in a crash, have the seatbelts and associated

components inspected as soon as possible. Failure to follow this instruction could result in personal injury or death.

All safety restraints in the vehicle are combination lap and shoulder belts. The driver seatbelt has the first type of locking mode, and the front outboard passenger and rear seat seatbelts have both types of locking modes described as follows:

Vehicle Sensitive Mode

This is the normal retractor mode, which allows free shoulder belt length adjustment to your movements and locking in response to vehicle movement. For example, if the driver brakes suddenly, turns a corner sharply, or the vehicle receives an impact of about 5 mph (8 km/h) or more, the combination seatbelts lock to help reduce forward movement of the driver and passengers.

In addition, the retractor is designed to lock if you pull the webbing out too quickly. If the seatbelt retractor locks, slowly lower the height adjuster to allow the seatbelt to retract. If the retractor does not unlock, pull the seatbelt out slowly then feed a small length of webbing back toward the stowed position. For rear seatbelts, recline the rear seat backrest or push the seat backrest cushion away from the seatbelt. Feed a small length of webbing back toward the stowed position.

Automatic Locking Mode

In this mode, the shoulder belt automatically pre-locks. The belt still retracts to remove any slack in the shoulder belt. The automatic locking mode is not available on the driver seatbelt.

When to Use the Automatic Locking Mode

Use this mode any time you install a child safety seat in a front outboard passenger seating position in a Regular Cab, SuperCab, SuperCrew or any rear seating position of a SuperCab or SuperCrew. The optional front seat's center seatbelt has a cinch mechanism. Properly restrain children 12 years old and under in a rear seat whenever possible. See Child Safety (page 19).

How to Use the Automatic Locking Mode

Non-inflatable seatbelts

E142591

1. Buckle the combination lap and shoulder belt.

2. Grasp the shoulder portion and pull downward until you pull the entire belt out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the seatbelt is now in the automatic locking mode.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 44

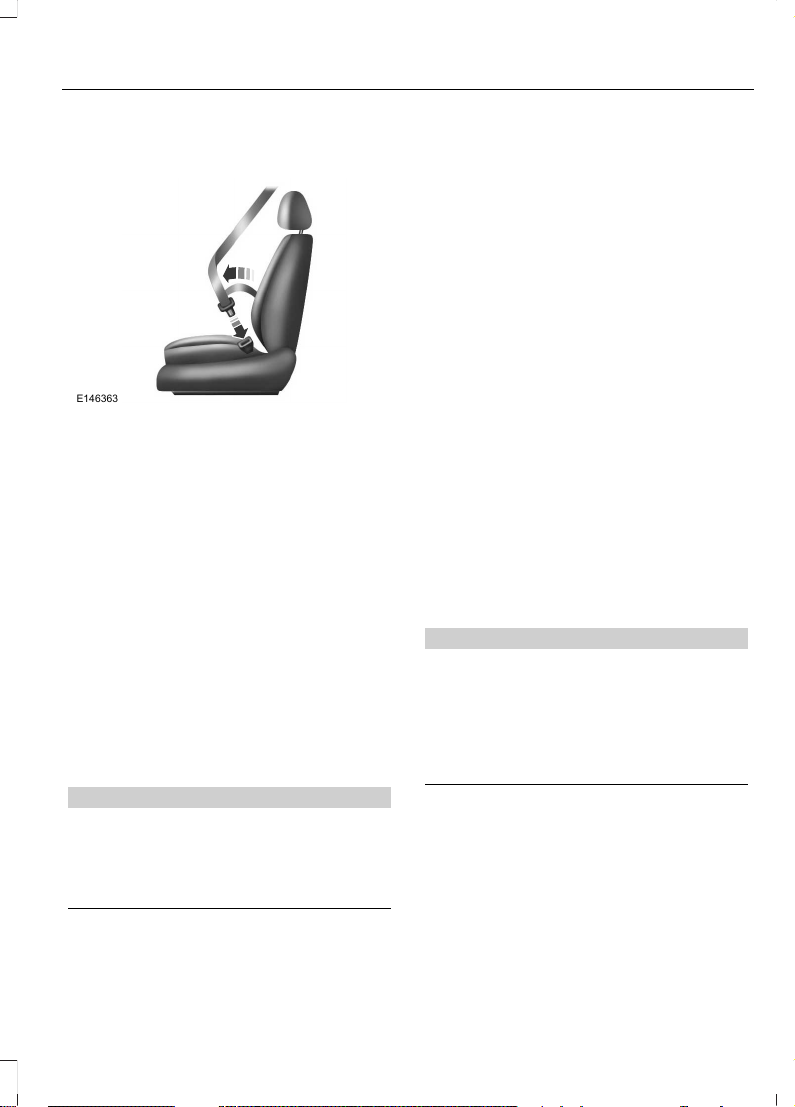

Rear outboard inflatable seatbelts (second row only– if equipped)

E146363

1. Buckle the combination lap and shoulder belt.

2. Grasp the lap portion of the belt and pull upward until you pull the entire belt out.

3. Allow the belt to retract. As the belt retracts, you will hear a clicking sound. This indicates the seatbelt is now in the automatic locking mode.

How to Disengage the Automatic Locking Mode

Unbuckle the combination lap and shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode.

Rear Inflatable Seatbelt (If Equipped)

WARNING

Do not attempt to service, repair, or modify the supplementary restraint

system or associated components. Failure to follow this instruction could result in personal injury or death.

The rear inflatable seatbelts are in the shoulder portion of the seatbelts of the second-row outboard seating positions.

Note: The rear inflatable seatbelts are compatible with most infant and child safety car seats and belt positioning booster seats when properly installed. This is because they are designed to fill with a cooled gas at a lower pressure and at a slower rate than traditional airbags. After inflation, the shoulder portion of the seatbelt remains cool to the touch.

The rear inflatable seatbelt consists of the following:

• An inflatable bag in the shoulder seatbelt webbing.

• Lap seatbelt webbing with automatic locking mode.

• The same warning light, electronic control and diagnostic unit as used for the front seatbelts.

• Impact sensors in various parts of the vehicle.

How does the rear inflatable seatbelt system work?

WARNING

If a supplementary restraint system component has deployed, it will not

function again. Have the system and associated components inspected as soon as possible. Failure to follow this instruction could result in personal injury or death.

The rear inflatable seatbelts function like standard restraints in everyday usage.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 45

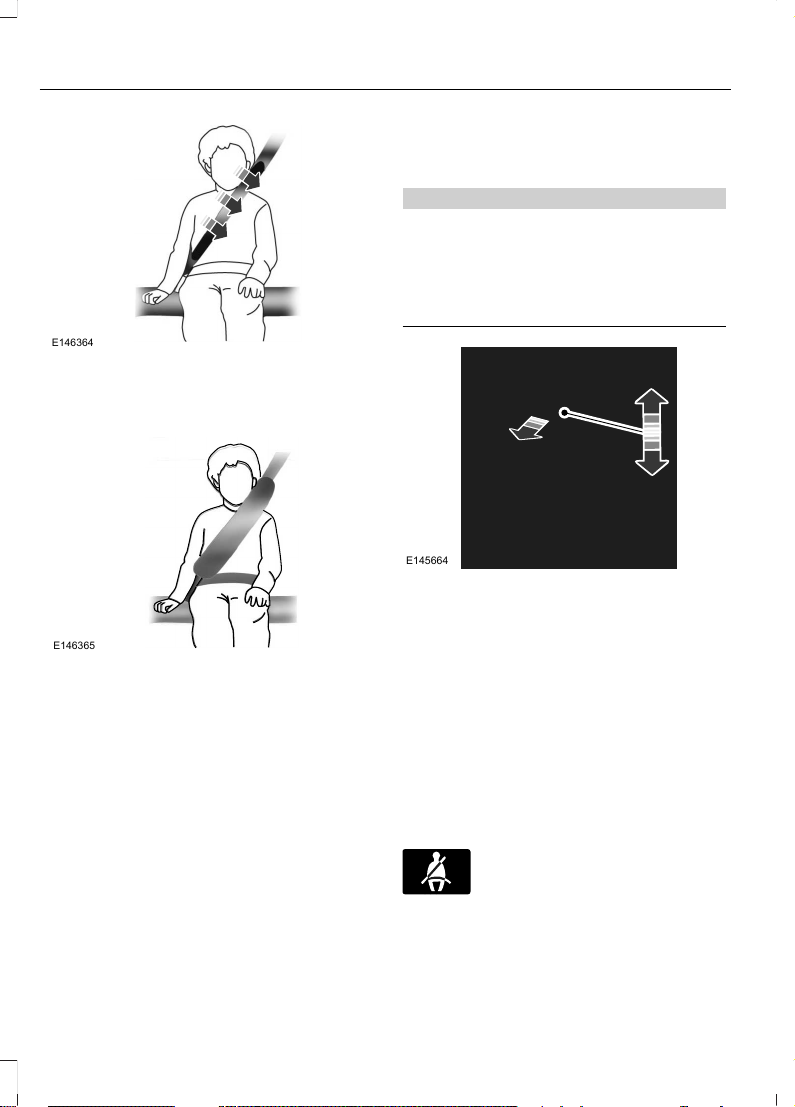

E146364

During a crash of sufficient force, the inflatable belt inflates from inside the webbing.

E146365

The fully inflated belt's increased diameter more effectively holds the occupant in the appropriate seating position, and spreads crash forces over more area of the body than regular seatbelts. This helps reduce pressure on the chest and helps control head and neck motion for passengers.

The rear inflatable seatbelts are designed to inflate in frontal or near-frontal crashes, rollovers and some side impact crashes. The fact that the rear inflatable seatbelt did not inflate in a crash does not mean that something is wrong with the system. Rather, it means the forces were not of the type sufficient to cause activation.

SEATBELT HEIGHT ADJUSTMENT

WARNING

Position the safety belt height adjuster so that the belt rests across

the middle of your shoulder. Failure to adjust the safety belt properly could reduce the effectiveness of the safety belt and increase the risk of injury in a crash.

E145664

Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder.

To adjust the shoulder belt height:

1. Pull the button and slide the height

adjuster up or down.

2. Release the button and pull down on

the height adjuster to make sure it is locked in place.

SEATBELT WARNING LAMP AND INDICATOR CHIME

This lamp illuminates and an audible warning will sound if the

driver seatbelt has not been fastened when the vehicle's ignition is turned on.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 46

Conditions of operation

ThenIf

The seatbelt warning light illuminates and

the warning chime sounds for a few

seconds.

The driver seatbelt is not buckled before

the ignition switch is turned to the on posi-

tion...

The seatbelt warning light and warning

chime turn off.

The driver seatbelt is buckled while the

indicator light is illuminated and the

warning chime is sounding...

The seatbelt warning light and indicator

chime remain off.

The driver seatbelt is buckled before the

ignition switch is turned to the on position...

SEATBELT REMINDER

Belt-Minder™

This feature supplements the seatbelt warning function. It provides additional reminders by intermittently sounding a chime and illuminating the seatbelt warning light when you are in the driver seat and a seatbelt is unbuckled.

Then...If...

The Belt-Minder feature will not activate.

You buckle your seatbelt before you switch

the ignition on or less than 1-2 minutes

elapse after you switch the ignition on...

The Belt-Minder feature activates - the

seatbelt warning light illuminates and a

warning tone sounds for six seconds every

25 seconds, repeating for about five

minutes or until you buckle your seatbelt.

You do not buckle your seatbelt before your

vehicle reaches at least 6 mph (9.7 km/h)

and 1-2 minutes elapse after you switch the

ignition on...

The Belt-Minder feature activates - the

seatbelt warning light illuminates and the

warning tone sounds for six seconds every

25 seconds, repeating for about five

minutes or until you buckle your seatbelt.

The driver seatbelt is unbuckled for about

one minute while the vehicle is traveling at

least 6 mph (9.7 km/h) and more than 1-2

minutes elapse after you switch the ignition

on...

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 47

Deactivating and Activating the Belt-Minder Feature (Driver only)

WARNING

While the system allows you to deactivate it, this system is designed

to improve your chances of being safely belted and surviving an accident. We recommend you leave the system activated for yourself and others who may use the vehicle. To reduce the risk of injury, do not deactivate or activate the system while driving the vehicle.

Note: If you are using MyKey, you cannot disable the Belt-Minder. Also, if the Belt-Minder has been previously disabled, it will be re-enabled during the use of MyKey. See MyKey™ (page 63).

Read Steps 1 - 4 thoroughly before proceeding with the programming procedure.

Before following the procedure, make sure that:

• The parking brake is set.

• The transmission is in park (P).

• The ignition is off.

• All vehicle doors are closed.

• The driver seatbelt is unbuckled.

1. Switch the ignition on. Do not start the

engine.

2. Wait until the seatbelt warning light

turns off (about one minute). You must complete Step 3 within 30 seconds after the seatbelt warning light turns off.

3. Buckle then unbuckle the seatbelt

three times at a moderate speed, ending with the seatbelt in the unbuckled state. After Step 3, the seatbelt warning light turns on.

4. While the seatbelt warning light is on, buckle then unbuckle the seatbelt. After Step 4, the seatbelt warning light flashes for confirmation.

• This will switch the feature off if it is currently on.

• This will switch the feature on if it is currently off.

CHILD RESTRAINT AND SEATBELT MAINTENANCE

Inspect the vehicle safety belts and child safety seat systems periodically to make sure they work properly and are not damaged. Inspect the vehicle and child seat safety belts to make sure there are no nicks, tears or cuts. Replace if necessary. All vehicle safety belt assemblies, including retractors, buckles, front safety belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seat back (if equipped), child safety seat LATCH and tether anchors, and attaching hardware, should be inspected after a crash. Read the child restraint manufacturer's instructions for additional inspection and maintenance information specific to the child restraint.

Ford Motor Company recommends that all safety belt assemblies in use in vehicles involved in a crash be replaced. However, if the crash was minor and an authorized dealer finds that the belts do not show damage and continue to operate properly, they do not need to be replaced. Safety belt assemblies not in use during a crash should also be inspected and replaced if either damage or improper operation is noted.

Properly care for safety belts. See Vehicle Care (page 370).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 48

SEATBELT EXTENSION

WARNINGS

Persons who fit into the vehicle's seatbelt should not use an extension.

Unnecessary use could result in serious personal injury in the event of a crash.

Only use extensions provided free of

charge by Ford Motor Company

dealers. The dealer will provide an extension designed specifically for this vehicle, model year and seating position. The use of an extension intended for another vehicle, model year or seating position may not offer you the full protection of your vehicle’s seatbelt restraint system.

Never use seatbelt extensions to

install child restraints.

Do not use a seatbelt extension with

an inflatable seatbelt.

Do not use extensions to change the

fit of the belt across the torso, over

the lap or to make the seatbelt buckle easier to reach.

If, because of body size or driving position, it is not possible to properly fasten the seatbelt over your lap and shoulder, an extension that is compatible with the seatbelts is available free of charge from Ford Motor Company dealers. Only Ford seatbelt extensions made by the original equipment seatbelts manufacturer should be used with Ford seatbelts. Ask your authorized dealer if your extension is compatible with your Ford vehicle restraint system.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Seatbelts

Page 49

PRINCIPLE OF OPERATION

WARNINGS

Airbags do not inflate slowly or gently, and the risk of injury from a deploying airbag is the greatest close

to the trim covering the airbag module.

All occupants of your vehicle, including the driver, should always

properly wear their safety belts, even when an airbag supplemental restraint system is provided. Failure to properly wear your safety belt could seriously increase the risk of injury or death.

Always transport children 12 years

old and under in the back seat and

always properly use appropriate child restraints. Failure to follow this could seriously increase the risk of injury or death.

Never place your arm over the airbag

module as a deploying airbag can

result in serious arm fractures or other injuries.

Airbags can kill or injure a child in a

child seat. Never place a rear-facing

child seat in front of an active airbag. If you must use a forward-facing child seat in the front seat, move the seat upon which the child seat is installed all the way back.

Do not attempt to service, repair, or

modify the airbag supplemental

restraint systems or its fuses as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

Several airbag system components

get hot after inflation. To avoid risk

of injury, do not touch them after inflation.

If the airbag has deployed, the airbag

will not function again and must be

replaced immediately. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags do not inflate slowly; there is a risk of injury from a deploying airbag.

Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag) or sodium compounds (for example, baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present which may irritate the skin and eyes, but none of the residue is toxic.

While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.

Routine maintenance of the airbags is not required.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 50

DRIVER AND PASSENGER AIRBAGS

WARNINGS

Never place your arm over the airbag module as a deploying airbag can result in serious arm fractures or

other injuries.

Airbags can kill or injure a child in a child restraint. Never place a

rear-facing child restraint in front of an active airbag. If you must use a forward-facing child restraint in the front seat, move the seat upon which the child seat is installed all the way back.

E151127

The driver and front passenger airbags deploy during significant frontal and near frontal crashes.

The driver and passenger front airbag system consists of:

• Driver and passenger airbag modules.

· Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag

Indicator (page 54).

Passenger Airbag On and Off Switch (If Equipped)

WARNINGS

Even with advanced restraints systems, properly restrain children

12 and under in a rear seating position. Failure to follow this could seriously increase the risk of injury or death.

The front passenger airbag is not

designed to offer protection to an

occupant in the center seating position.

Your vehicle may have an airbag

deactivation switch. Before driving,

always look at the switch to make sure it is in the appropriate position. Failure to put the switch in the proper position can increase the risk of serious injury or death in a crash.

E181984

High-series vehicles (if equipped)

The front passenger airbag on and off switch has indicators that illuminate, indicating that the front passenger frontal airbag is either on or off. The indicator lamp is near the center of the instrument panel.

Note: The passenger airbag status indicator OFF and ON lamps illuminate for a short period of time when you switch the ignition on to confirm it is functional.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 51

Passenger airbagPassenger airbag status

indicator

Switch position

DisabledOFF: LitOff

ON: Unlit

EnabledOFF: UnlitOn

ON: Lit

E229376

Low-series vehicles (if equipped)

The front passenger airbag on and off switch has an indicator that illuminates and stays lit to remind you that the front passenger frontal airbag is off. The indicator lamp is near the center of the instrument panel.

Note: The indicator lamp illuminates for a short period of time when you switch the ignition on to confirm it is functional.

Turning the Passenger Airbag Off

WARNINGS

If the light does not illuminate when the passenger airbag switch is off

and you switch the ignition on, have the passenger airbag switch serviced immediately by a qualified technician.

To avoid switching on the airbag,

always remove the ignition key with

the switch in the off position.

WARNINGS

If your vehicle has rear seats, always transport children who are 12 and

younger in the rear seat. Always use seatbelts and child restraints properly. Do not place a child in a rear facing infant seat in the front seat unless your vehicle is equipped with an airbag on and off switch and the passenger airbag is turned off. This is because the back of the infant seat is too close to the inflating airbag and the risk of a fatal injury to the infant when the airbag inflates is substantial.

The passenger airbag on and off switch is in the glovebox.

E181522

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 52

1. Insert the ignition key, turn the switch to OFF and hold in OFF while removing the key.

2. When you switch the ignition on, the passenger airbag off light illuminates briefly, momentarily shuts off and then turns back on. This indicates that the passenger airbag is deactivated.

Turning the Passenger Airbag Back On

WARNINGS

The seatbelts for the driver and right front passenger seating positions are

specifically designed to operate together with the airbags in certain types of crashes. When you switch off your airbag, you not only lose the protection of the airbag, you also may reduce the effectiveness of your seatbelt system. If the passenger does not meet the requirements stated in the National Highway Traffic Safety Administration or Transport Canada deactivation criteria, switching off the airbag can increase the risk of serious injury or death in a crash.

If your vehicle has rear seats, always

transport children who are 12 and

If the passenger airbag off light is

illuminated when the passenger

airbag switch is on and the ignition is on, have the passenger airbag switch serviced immediately by a qualified technician.

The passenger airbag remains off until you turn it back on.

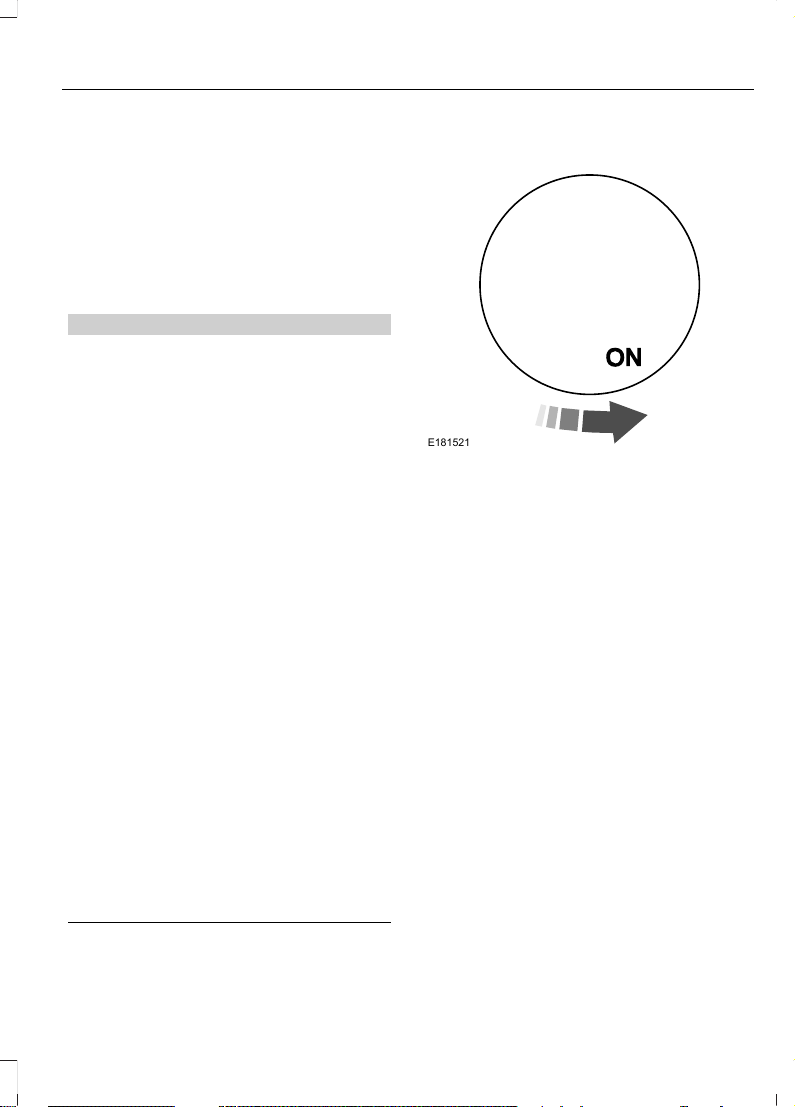

E181521

1. Insert the ignition key and turn the switch to ON.

2. The passenger airbag off light will briefly illuminate when you switch the ignition on. This indicates that the passenger airbag is operational.

The passenger side airbag should always be on (the passenger airbag off light should not be illuminated) unless the passenger is a person who meets the requirements stated either in Category 1, 2 or 3 of the National Highway Traffic Safety Administration or Transport Canada deactivation criteria which follows.

The vast majority of drivers and passengers are much safer with an airbag than without. To do their job and reduce the risk of life threatening injuries, airbags must open with great force, and this force can pose a potentially deadly risk in some situations, particularly when a front seat occupant is not properly buckled up. The most effective way to reduce the risk of unnecessary airbag injuries without reducing the overall safety of the vehicle is to make sure all occupants are properly restrained in the vehicle, especially in the

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 53

front seat. This provides the protection of seatbelts and permits the airbags to provide the additional protection they were designed to provide. If you choose to deactivate your airbag, you are losing the very significant risk reducing benefits of the airbag and you are also reducing the effectiveness of the seatbelts, because seatbelts in modern vehicles are designed to work as a safety system with the airbags.

National Highway Traffic Safety Administration Deactivation Criteria (Excluding Canada)

WARNING

This vehicle has special energy management seatbelts for the driver

and right front passenger. These particular seatbelts are specifically designed to work with airbags to help reduce the risk of injury in a crash. The energy management seatbelt gives or releases additional seatbelt webbing in some accidents to reduce the concentration of force on an occupant's chest and to reduce the risk of certain bone fractures and injuries to underlying organs. In a crash, if the airbag is off, this energy management seatbelt might permit the passenger wearing the seatbelt to move forward enough to have a serious or fatal injury. The more severe the crash, and the heavier the occupant, the greater the risk. Make sure the airbag is on for any passenger who does not qualify under the National Highway Traffic Safety Administration deactivation criteria.

1. Infant. An infant (less than 1 year old) must ride in the front seat because:

• The vehicle has no rear seat;

• The vehicle has a rear seat too small

to accommodate a rear-facing infant seat; or

• The infant has a medical condition which, according to the infant's physician, makes it necessary for the infant to ride in the front so that the driver can constantly monitor the child's condition.

2. Child age 1 to 12. A child age 1 to 12 must

ride in the front seat because:

• The vehicle has no rear seat;

• Although children ages 1 to 12 ride in

the rear seat(s) whenever possible, children ages 1 to 12 sometimes must ride in the front because no space is available in the rear seat(s) of the vehicle; or

• The child has a medical condition which, according to the child's physician, makes it necessary for the child to ride in the front seat so that the driver can constantly monitor the child's condition.

3. Medical condition. A passenger has a

medical condition which, according to his or her physician:

• Causes the passenger airbag to pose a special risk for the passenger;

• Makes the potential harm from the passenger airbag in a crash greater than the potential harm from turning off the airbag and allowing the passenger, even if belted, to hit the dashboard or windshield in a crash.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 54

Transport Canada Deactivation Criteria (Canada Only)

WARNING

This vehicle has special energy management seatbelts for the driver

1. Infant: An infant (less than 1 year old) must ride in the front seat because:

• My vehicle has no rear seat;

• The rear seat in my vehicle cannot

accommodate a rear-facing infant seat;

• The infant has a medical condition

which, according to the infant's physician, makes it necessary for the infant to ride in the front seat so that the driver can monitor the infant's condition.

2. Child age 12 or under: A child age 12 or under must ride in the front seat because:

• My vehicle has no rear seat;

• Although children age 12 and under ride

in the rear seat whenever possible, children age 12 and under have no option but to sometimes ride in the front seat because rear seat space is insufficient;

• The child has a medical condition that, according to the child's physician, makes it necessary for the child to ride in the front seat so that the driver can monitor the child's condition.

3. Medical condition: A passenger has a

medical condition that, according to his or her physician:

• Poses a special risk for the passenger if the airbag deploys; and

• Makes the potential harm from the passenger airbag deployment greater than the potential harm from turning off the airbag and experiencing a crash without the protection offered by the airbag

Proper Driver and Front Passenger Seating Adjustment

WARNING

National Highway Traffic Safety Administration (NHTSA)

recommends a minimum distance of at least 10 in (25 cm) between an occupant’s chest and the driver airbag module.

To properly position yourself away from the airbag:

• Move your seat to the rear as far as you

can while still reaching the pedals comfortably.

• Recline the seat slightly (one or two

degrees) from the upright position.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 55

After all occupants have adjusted their seats and put on seatbelts, it is very important that they continue to sit properly. Properly seated occupants sit upright, lean against the seat back, and center themselves on the seat cushion, with their feet comfortably extended on the floor. Sitting improperly can increase the chance of injury in a crash event. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash greatly increases.

Children and Airbags

WARNING

Airbags can kill or injure a child in a child restraint. Never place a

rear-facing child restraint in front of an active airbag. If you must use a forward-facing child restraint in the front seat, move the seat upon which the child seat is installed all the way back.

E142846

Children must always be properly restrained. Accident statistics suggest that children are safer when properly restrained in the rear seating positions than in the front seating position. Failure to follow these instructions may increase the risk of injury in a crash.

If two adults and a child occupy a Regular Cab, properly restrain the child in the center front unless doing so would interfere with driving your vehicle. This provides lap and shoulder belt protection for all occupants, and airbag protection for the adults. A child or infant properly restrained in the center front seat should not incur risk of serious injury from the airbags.

SIDE AIRBAGS

WARNINGS

Do not place objects or mount equipment on or near the airbag

cover, on the side of the seatbacks (of the front seats), or in front seat areas that may come into contact with a deploying airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

Do not use accessory seat covers.

The use of accessory seat covers

may prevent the deployment of the side airbags and increase the risk of injury in an accident.

Do not lean your head on the door.

The side airbag could injure you as it

deploys from the side of the seatback.

Do not attempt to service, repair, or

modify the airbag, its fuses or the

seat cover on a seat containing an airbag as you could be seriously injured or killed. Contact your authorized dealer as soon as possible.

If the side airbag has deployed, the

airbag will not function again. The

side airbag system (including the seat) must be inspected and serviced by an authorized dealer. If the airbag is not replaced, the unrepaired area will increase the risk of injury in a crash.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 56

The side airbags are located on the outboard side of the seatbacks of the front seats. In certain sideways crashes, the airbag on the side affected by the crash will be inflated. The airbag was designed to inflate between the door panel and occupant to further enhance the protection provided occupants in side impact crashes.

E152533

The system consists of the following:

• A label or embossed side panel indicating that side airbags are found on your vehicle.

• Side airbags located inside the seatback of the driver and front passenger seats.

·Crash sensors and monitoring system with readiness indicator. See Crash Sensors and Airbag

Indicator (page 54).

The design and development of the side airbag system included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags.

SAFETY CANOPY™

WARNINGS

Do not place objects or mount equipment on or near the headliner

at the siderail that may come into contact with a deploying curtain airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash.

Do not lean your head on the door.

The curtain airbag could injure you

as it deploys from the headliner.

Do not attempt to service, repair, or

modify the supplementary restraint

system or associated components. Failure to follow this instruction could result in personal injury or death.

All occupants of your vehicle,

including the driver, should always

properly wear their seatbelts, even when an airbag supplemental restraint system is provided. Failure to properly wear your seatbelt could seriously increase the risk of injury or death.

To reduce risk of injury, do not

obstruct or place objects in the

deployment path of the airbag.

If a supplementary restraint system

component has deployed, it will not

function again. Have the system and associated components inspected as soon as possible. Failure to follow this instruction could result in personal injury or death.

The Safety Canopy deploys during significant side crashes or when a certain likelihood of a rollover event is detected by the rollover sensor. The Safety Canopy is mounted to the roof side rail sheet metal, behind the headliner, above each row of seats. In certain sideways crashes or rollover events, the Safety Canopy will be

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 57

activated, regardless of which seats are occupied. The Safety Canopy is designed to inflate between the side window area and occupants to further enhance protection provided in side impact crashes and rollover events.

E75004

The system consists of the following:

• Safety Canopy curtain airbags above the trim panels over the front and rear side windows identified by a label or wording on the headliner or roof-pillar trim.

• A flexible headliner which opens above the side doors to allow air curtain deployment

· Crash sensors and monitoring system with a readiness indicator. See Crash Sensors

and Airbag Indicator (page 54).

Properly restrain children 12 years old and under in the rear seats. The Safety Canopy will not interfere with children restrained using a properly installed child or booster seat because it is designed to inflate downward from the headliner above the doors along the side window opening.

The design and development of the Safety Canopy included recommended testing procedures that were developed by a group of automotive safety experts known as the Side Airbag Technical Working Group. These recommended testing procedures help reduce the risk of injuries related to the deployment of side airbags (including the Safety Canopy).

CRASH SENSORS AND AIRBAG INDICATOR

WARNING

Modifying or adding equipment to the front end of the vehicle (including

frame, bumper, front end body structure and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of the vehicle.

Your vehicle has a collection of crash and occupant sensors which provide information to the restraints control module which deploys (activates) the front safety belt pretensioners, driver airbag, passenger airbag, seat mounted side airbags, and the Safety Canopy®. Based on the type of crash (frontal impact, side impact or rollover), the restraints control module will deploy the appropriate safety devices.

The restraints control module also monitors the readiness of the above safety devices plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working. See Instrument Cluster (page

105). Routine maintenance of the airbag is not required.

A difficulty with the system is indicated by one or more of the following:

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 58

The readiness light will not illuminate immediately after the ignition is turned on.

• The readiness light will either flash or stay lit.

• A series of five beeps will be heard. The tone pattern will repeat periodically until the problem, the light or both are repaired.

If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a crash.

The fact that the safety belt pretensioners or front airbags did not activate for both front seat occupants in a crash does not mean that something is wrong with the system. Rather, it means the restraints control module determined the accident conditions (crash severity, belt usage) were not appropriate to activate these safety devices.

• The design of the front airbags is to activate only in frontal and near-frontal crashes (not rollovers, side impacts or rear impacts) unless the crash causes sufficient frontal deceleration.

• The design of the safety belt pretensioners is to activate in frontal, near-frontal and side crashes, and in rollovers.

• The design of the side airbags is to inflate in certain side impact crashes. Side airbags may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation.

• The design of the Safety Canopy is to inflate in certain side impact crashes or rollover events. The Safety Canopy may activate in other types of crashes if the vehicle experiences sufficient sideways motion or deformation, or a certain likelihood of rollover.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as possible. Airbags must be disposed of by qualified personnel.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Supplementary Restraints System

Page 59

GENERAL INFORMATION ON RADIO FREQUENCIES

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

The typical operating range for your transmitter is approximately 33 ft (10 m). Vehicles with the remote start feature will have a greater range. One of the following could cause a decrease in operating range:

• Weather conditions.

• Nearby radio towers.

• Structures around the vehicle.

• Other vehicles parked next to your

vehicle.

Other short-distance radio transmitters, such as amateur radios, medical equipment, wireless headphones, remote controls and alarm systems may operate on the same frequency as your remote control. If other transmitters are operating on those frequencies, you may not be able to use your remote control. Using your remote control near some types of electronic equipment, such as USB devices, computers or cell phones can interfere with remote operation. Operating your remote control near metal or metallic-finished purses, bags or clothing can interfere with remote operation. You can lock and unlock the doors with the key.

Note: Make sure to lock your vehicle before leaving it unattended.

Note: If you are in range, the remote control still operates if you press any button unintentionally.

Intelligent Access (If Equipped)

The system uses a radio frequency signal to communicate with your vehicle and authorize your vehicle to unlock when one of the following conditions are met:

• You touch the inside of the front exterior door handle within 3 ft (1 m) proximity of an intelligent access key.

• You press the tailgate release button.

• You press a button on the remote

control.

If excessive radio frequency interference is present in the area or if the remote control battery is low, you may need to mechanically unlock your door. You can use the mechanical key blade in your intelligent access key to open the driver door in this situation. See Remote Control (page 56).

REMOTE CONTROL

Integrated Keyhead Transmitter (If

Equipped)

Use the key blade to start your vehicle and unlock or lock the driver door from outside your vehicle. The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts your vehicle, as well as a remote control.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 60

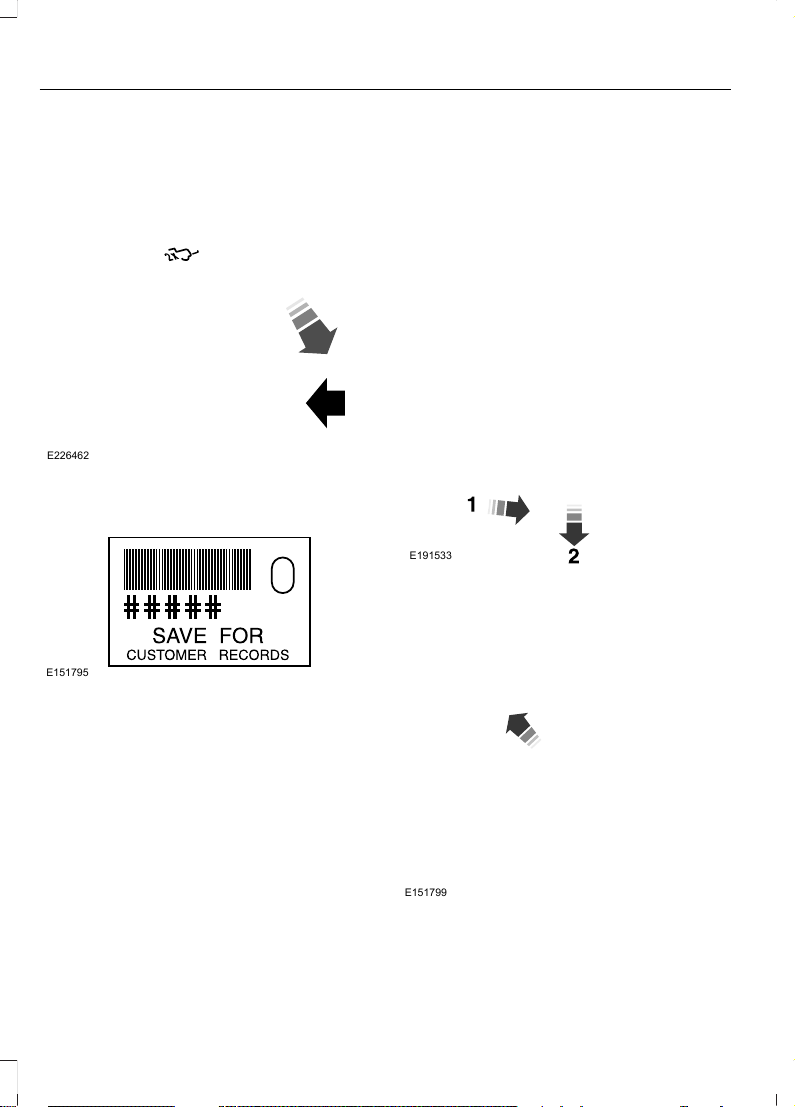

E191532

Press the button to release the key blade. Press and hold the button to fold the key blade back in when not in use.

E151795

Note: Your vehicle keys came with a security label that provides important key cut information. Keep the label in a safe place for future reference.

Intelligent Access Key (If Equipped)

Note: You may not be able to shift out of

park (P) unless the intelligent access key is inside your vehicle.

E226461

The intelligent access keys operate the power locks and the remote start system. The key must be in your vehicle to use the push button start.

Removable Key Blade

The intelligent access key also contains a removable key blade that you can use to unlock your vehicle.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 61

E226462

Press the release button and pull the key blade out.

E151795

Note: Your vehicle keys came with a security label that provides important key cut information. Keep the label in a safe place for future reference.

Replacing the Battery

Note: Refer to local regulations when

disposing of transmitter batteries. Note: Do not wipe off any grease on the

battery terminals or on the back surface of the circuit board.

Note: Replacing the battery does not erase the programmed key from your vehicle. The transmitter should operate normally.

A message appears in the information display when the remote control battery is low. See General Information (page

113).

Integrated Keyhead Transmitter

The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

Press the button to release the key blade before beginning the procedure.

E191533

1. Insert a suitable tool, for example a screwdriver, in the position shown and gently push the clip.

2. Press the clip down to release the battery cover.

E151799

3. Carefully remove the cover.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 62

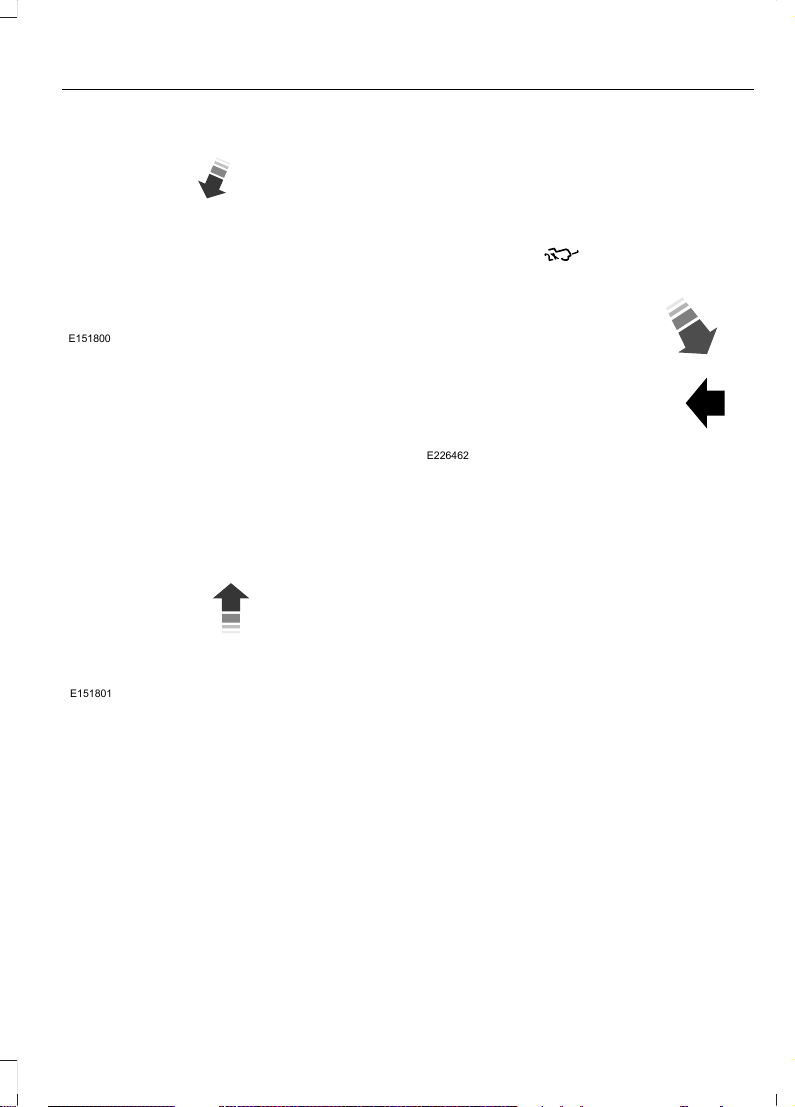

E151800

Note: Do not touch the battery contacts or the printed circuit board with the screwdriver.

4. Insert a suitable tool, for example a screwdriver, in the position shown to release the battery.

E151801

5. Remove the battery.

6. Insert a new battery with the + facing upward.

7. Reinstall the battery housing cover onto the transmitter.

Intelligent Access Key

The remote control uses one coin-type three-volt lithium battery CR2032 or equivalent.

E226462

1. Press the release button and pull the key blade out.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 63

E218401

2. Twist a thin coin under the tab hidden behind the key blade head to remove the battery cover.

E218402

3. Insert a suitable tool, for example a screwdriver, in the position shown and carefully remove the battery.

4. Insert a new battery with the + facing upward.

5. Reinstall the battery housing cover onto the transmitter and install the key blade.

Memory Feature (If Equipped)

You can use the remote control to recall memory positions.

Press the unlock button on a linked remote control to recall memory positions. If you enable the easy entry and exit feature, the seat moves to the easy entry position. The seat moves to the driver memory position when you switch the ignition on.

Linking a Preset Position to your Remote Control

See Memory Function (page 159).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 64

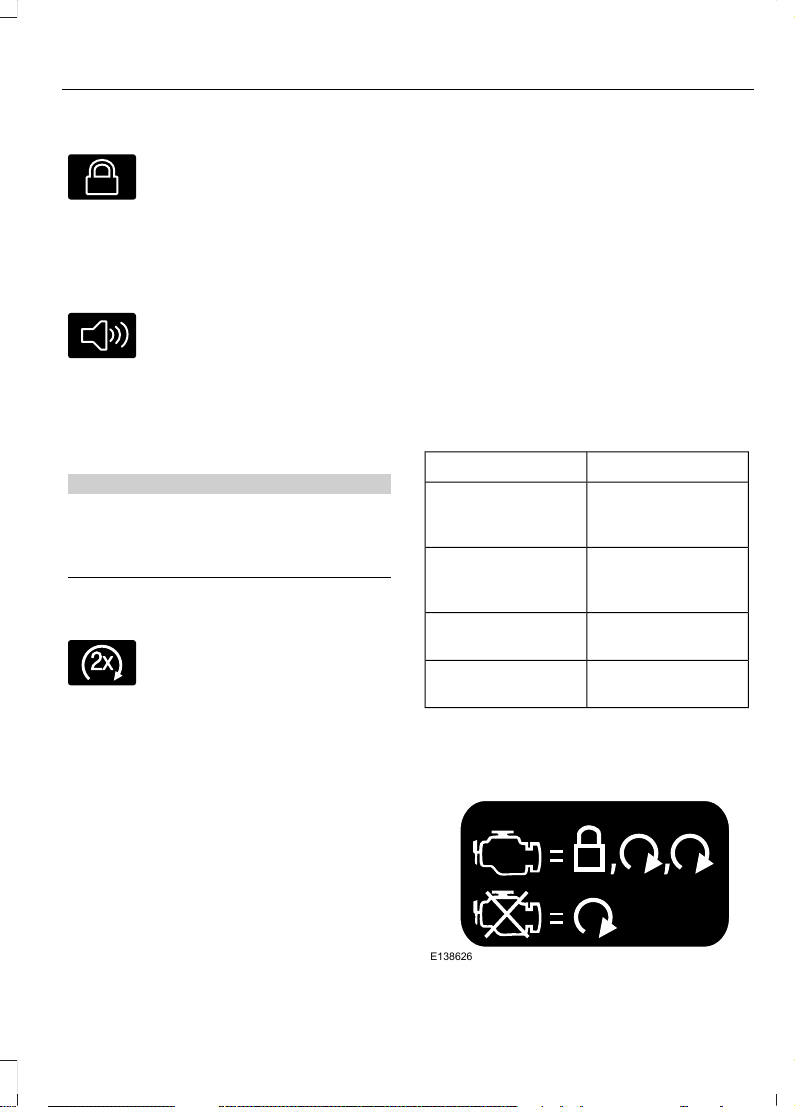

Car Finder

E138623

Press the button twice within three seconds. A tone sounds

and the direction indicators flash. We recommend you use this method to locate your vehicle, rather than using the panic alarm.

Sounding the Panic Alarm

E138624

Press the button to sound the

panic alarm. Press the button

again or switch the ignition on to turn it off.

Note: The panic alarm only operates when the ignition is off.

Remote Start (If Equipped)

WARNING

To avoid exhaust fumes, do not use remote start if your vehicle is parked indoors or in areas that are not well

ventilated.

Note: Do not use remote start if your fuel level is low.

E138625

The remote start button is on the

transmitter.

This feature allows you to start your vehicle from the outside. The transmitter has an extended operating range.

You can configure vehicles with automatic climate control to turn on the automatic climate control when you remote start your vehicle. See Automatic Climate Control (page 147). A manual climate control system runs at the setting you set it to when you switched your vehicle off.

Many states and provinces restrict the use of remote start. Check your local and state or provincial laws for specific requirements regarding remote start systems.

The remote start system does not work if any of the following occur:

• The ignition is on.

• The anti-theft alarm triggers.

• You switch off the feature.

• The hood is open.

• The transmission is not in park (P).

• The battery voltage is below the

minimum operating voltage.

• The service engine soon light is on.

Remote Control Feedback

An LED on the remote control provides status feedback of remote start or stop commands.

StatusLED

Remote start or

extension

successful

Solid green

Remote stop

successful; vehicle

off

Solid red

Remote start or

stop failed

Blinking red

Waiting for status

update

Blinking green

Remote Starting Your Vehicle

Note: You must press each button within

three seconds of each other.

E138626

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 65

The label on your transmitter details the starting procedure.

To remote start your vehicle:

1. Press the lock button.

2. Press the remote start button twice. The exterior lamps flash twice.

The horn sounds if the system fails to start, unless quiet start is on. Quiet start runs the blower fan at a slower speed to reduce noise. You can switch it on or off in the information display. See General

Information (page 113). Note: If you do not follow this sequence,

your vehicle does not start remotely, the direction indicators do not flash twice and the horn does not sound.

Note: If you remote start your vehicle with an integrated keyhead transmitter, you must switch on the ignition before driving your vehicle. If you remote start your vehicle with an intelligent access transmitter, you must press the push button ignition switch on the instrument panel once while applying the brake pedal before driving your vehicle.

The power windows do not work during remote start and the radio does not turn on automatically.

The parking lamps remain on and your vehicle runs for 5, 10 or 15 minutes depending on the setting.

Extending the Engine Running Time

To extend the engine running time duration of your vehicle during remote start, repeat steps 1 and 2 while the engine is running. If the duration is set to 10 minutes, the duration extends by another 10 minutes. For example, if your vehicle had been running from the first remote start for 5 minutes, your vehicle continues to run now for a total of 20 minutes. You can extend the remote start up to a maximum of 35 minutes.

Wait at least five seconds before remote starting after the engine stops running.

Turning Your Vehicle Off After Remote Starting

E138625

Press the button once. The parking lamps turn off.

You may have to be closer to the vehicle than when starting due to ground reflection and the added noise of the running vehicle.

You can turn the remote start system on or off using the information display. See

General Information (page 113).

REPLACING A LOST KEY OR REMOTE CONTROL

Replacement keys or remote controls can be purchased from an authorized dealer. Authorized dealers can program remote controls for your vehicle. See Passive Anti-Theft System (page 76).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Keys and Remote Controls

Page 66

PRINCIPLE OF OPERATION

MyKey allows you to program keys with restricted driving modes to promote good driving habits. You can program the restrictions to all keys but one. Any keys that you did not program are administrator keys or admin keys.

You can use admin keys to:

• Create a MyKey with certain vehicle restrictions.

• Program certain MyKey settings.

• Clear all MyKey restrictions.

After you program a MyKey, you can view the following information through the information display:

• The total number of admin keys and MyKeys for your vehicle.

• The total distance a MyKey driver traveled with your vehicle.

Note: Every MyKey receives the same restrictions and settings. You cannot program them individually.

Note: For vehicles equipped with a push-button start switch: When both a MyKey and an admin key are present when you start your vehicle, the system recognizes the admin key only.

Standard Settings

Not every vehicle includes the features listed below. If your vehicle has this equipment, then you cannot change the following settings when using a MyKey:

• Seatbelt reminder or Belt-Minder™. MyKey mutes the audio system until drivers, and in some instances, passengers, fasten their seatbelts.

• Earlier low-fuel warning. The low-fuel warning activates earlier for MyKey drivers, giving them more time to refuel.

• Certain driver alerts, stability systems or parking aids turn on automatically when you use the MyKey system. For example, Blind Spot Information System (BLIS), cross traffic alert, lane departure warning or forward collision warning.

• Restricted touchscreen operation in some markets. For example, MyKey may prevent manual navigation destination input while the vehicle is in any gear other than park (P) or when the vehicle reaches a certain rate of speed.

• Satellite radio adult content restrictions, if this feature is available in your market.

Note: MyKey drivers may be able to switch the lane departure warning feature off, but this feature turns back on automatically with every new key cycle.

Note: MyKey drivers can turn on the forward collision warning when it is turned off by an admin key.

Note: If your vehicle includes an AM/FM radio or a very basic audio system, then the radio may not mute.

Optional Settings

You can configure certain vehicle feature settings when you first create a MyKey. You can also change the settings afterward with an admin key.

Note: Not every feature applies to every vehicle in every market. When they are available for your vehicle, then they appear in your information display, providing choices to switch them on or off, or to select a more specific setting.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

MyKey™

Page 67

• Various vehicle speed limits so the MyKey driver cannot exceed certain speeds. The information display shows warnings followed by an audible tone when the MyKey driver reaches the set speed. You cannot override the set speed by fully depressing the accelerator pedal.

WARNING

Do not set MyKey maximum speed limit to a limit that will prevent the

driver from maintaining a safe speed considering posted speed limits and prevailing road conditions. The driver is always responsible to drive in accordance with local laws and prevailing conditions. Failure to do so could result in accident or injury.

• Various vehicle speed reminders so

MyKey drivers know when their vehicle speed approaches the limits. Warnings appear in your information display and a tone sounds when the MyKey drivers exceed the set vehicle speed.

• The audio system's maximum volume

limits to 45% so MyKey drivers can concentrate on the road. A message appears in the information display when MyKey drivers attempt to exceed the limited volume. MyKey also disables the automatic volume control.

• Always on setting. This setting forces

certain features to remain on and active for MyKey drivers. For example, E911 or emergency assistance and the do not disturb features stay on even if a MyKey driver uses the feature's control to switch it off.

Note: If your vehicle includes an AM/FM radio or a very basic audio system, then the radio may not mute.

CREATING A MYKEY

Use the information display to create a MyKey.

1. Switch the ignition on using the key or the transmitter you want to program. If your vehicle has a push-button start, place the transmitter into the backup slot. See Passive Anti-Theft System (page 76).

2. Access the main menu in the information display and then scroll through the menus to begin programming your MyKey. See Information Displays (page 113).

3. Follow the instructions in the display.

4. A confirmation message appears in the display after you finish programming your MyKey. The programmed restrictions apply when you key off, open and close driver door and restart your vehicle with the programmed key or transmitter.

Note: Make sure you label the programmed MyKey so you can distinguish it from the admin keys.

You can also program the optional MyKey settings.

Programming or Changing Configurable Settings

Use the information display to program or change your optional MyKey settings.

1. Switch the ignition on using the key or the transmitter you want to program.

2. Access the main menu in the information display and then scroll through the menus to change the settings of your MyKey. See Information Displays (page 113).

3. Follow the instructions in the display.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

MyKey™

Page 68

4. A confirmation message appears in the display after you finish programming your MyKey. The programmed restrictions apply when you key off, open and close the driver door and restart your vehicle with the programmed key or transmitter.

Note: You can clear or change your MyKey settings at any time during the same key cycle as you created the MyKey. If you switch the engine off, you must use an admin key to change or clear your optional MyKey settings.

CLEARING ALL MYKEYS

When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status at once. To clear all MyKeys of all MyKey settings, use the information display.

1. Switch the ignition on using an admin key.

2. Access the main menu in the information display and then scroll through the menus to begin clearing your MyKey programming. See Information Displays (page 113).

3. Follow the instructions in the display.

4. A confirmation message appears in the display after you finish clearing your MyKeys.

Note: When you clear your MyKeys, you remove all restrictions and return all MyKeys to their original admin key status. You cannot remove the MyKey restrictions individually.

CHECKING MYKEY SYSTEM STATUS

You can find information about your programmed MyKeys by using the information display. See Information

Displays (page 113).

MyKey Distance

Tracks the distance when drivers use a MyKey. The only way to delete the accumulated distance is by using an admin key to clear all MyKeys. If the distance does not accumulate as expected, then the intended user is not using the MyKey, or an admin key user recently cleared and then recreated a MyKey.

Number of MyKeys

Indicates the number of MyKeys programmed to your vehicle. Use this feature to detect how many MyKeys you have for your vehicle and determine when all MyKeys have been deleted.

Number of Admin Keys

Indicates how many admin keys are programmed to your vehicle. Use this feature to determine how many admin keys you have for your vehicle, and detect if an additional MyKey has been programmed.

USING MYKEY WITH REMOTE START SYSTEMS

MyKey is not compatible with non Ford-approved, aftermarket remote start systems. If you choose to install a remote start system, see an authorized dealer for a Ford-approved remote start system.

MYKEY TROUBLESHOOTING

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

MyKey™

Page 69

Potential causesCondition

· The key or transmitter used to start the vehicle does not have admin privileges.

I cannot create a MyKey.

· Vehicles with keyless start: Make sure you place the transmitter into the backup slot. See Passive Anti-Theft System (page

76).

· The key or transmitter used to start the vehicle is the only admin key. There always has to be at least one admin key.

· SecuriLock passive anti-theft system is disabled or in unlimited mode.

· The key or transmitter used to start the vehicle does not have admin privileges.

I cannot program the configurable settings.

· There are no MyKeys programmed to the vehicle. See Creating a MyKey (page 64).

· An admin transmitter is present when you started your vehicle.

For vehicles with keyless start: No MyKey restrictions are available when starting the vehicle. · There are no MyKeys programmed to the

vehicle. See Creating a MyKey (page 64).

· The key or transmitter used to start the vehicle does not have admin privileges.

I cannot clear the MyKeys.

· No MyKeys are created. See Creating a MyKey (page 64).

· Purchase a new key or transmitter from your authorized dealer.

I lost the only admin key.

· Program a spare key or transmitter. You may need to see your authorized dealer. See Passive Anti-Theft System (page

76).

I lost a key.

· The MyKey user is not using the MyKey.MyKey distances do not accumulate.

· An admin key holder cleared the MyKeys and created new MyKeys.

· The key system has been reset.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

MyKey™

Page 70

LOCKING AND UNLOCKING

You can use the power door lock control or the remote control to lock and unlock your doors and tailgate. See Tailgate (page 72).

Power Door Locks (If Equipped)

The power door lock control is on the driver and front passenger door panels.

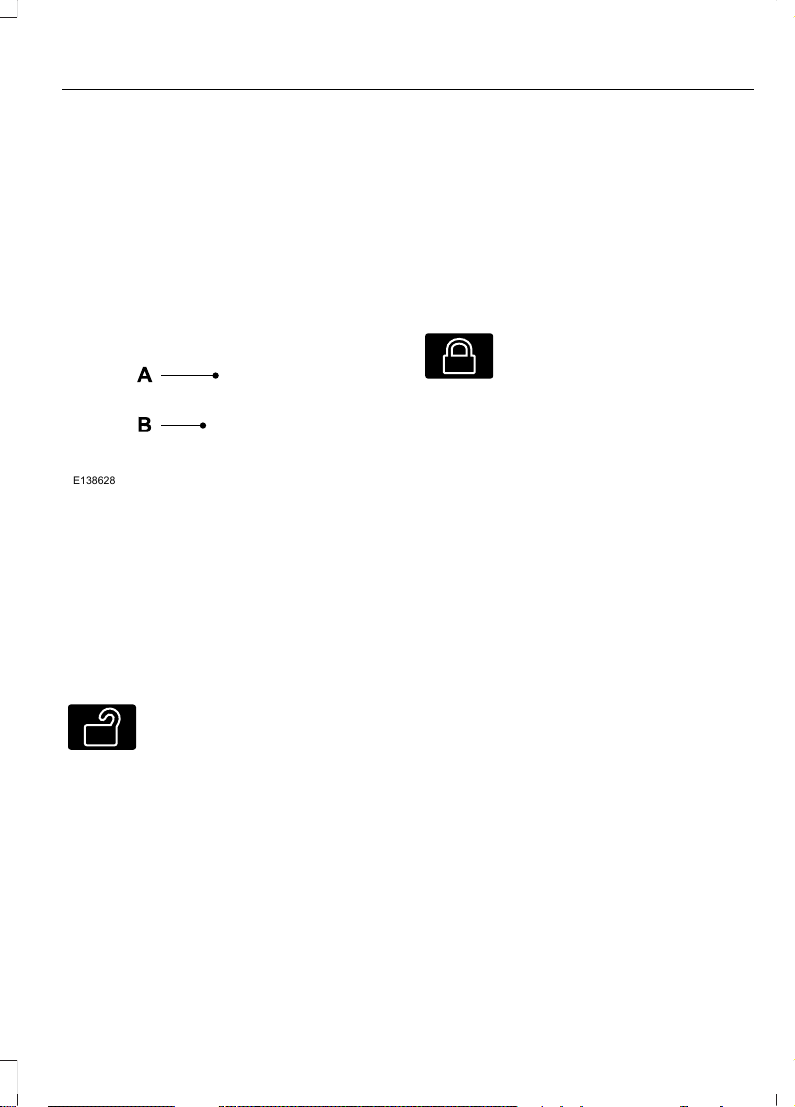

E138628

Unlock.A Lock.B

Remote Control (If Equipped)

You can use the remote control at any time your vehicle is not running.

Unlocking the Vehicle (Two-Stage Unlock)

E138629

Press the button to unlock the driver door. Press the button

again within three seconds to unlock all doors. The direction indicators flash. The direction indicators flash twice to confirm the change. The unlocking mode applies to the remote control, keyless entry keypad and intelligent access.

Press and hold both the lock and unlock buttons on the remote control for four seconds to disable or enable two-stage unlocking. Disabling two-stage unlocking allows your entire vehicle to unlock with one press of the button.

Intelligent access at the driver door unlocks your entire vehicle when you disable two-stage unlocking.

Locking the Vehicle

E138623

Press the button to lock all doors. The direction indicators flash.

Press the button again within three seconds to confirm that all the doors are closed. The doors lock again, the horn sounds and the direction indicators flash if all the doors are closed.

Mislock

If any door is open, or if the hood is open on vehicles with an anti-theft alarm or remote start, the horn sounds twice and the direction indicators do not flash.

Activating Intelligent Access (If

Equipped)

General Information

You can unlock and lock the vehicle without taking the keys out of your pocket or purse when your intelligent access key is within 3 ft (1 m) of your vehicle. Intelligent access uses a sensor on the back of the door handle for unlocking and a separate sensor on the face of each door handle for locking.

The system does not function if:

• Your vehicle battery has no charge.

• The key battery has no charge.

• The key frequencies are jammed.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Doors and Locks

Page 71

Note: The system may not function if the key is close to metal objects or electronic devices, for example keys or a cell phone.

Note: If the system does not function, use the key blade to lock and unlock your vehicle. See Remote Control (page 56).

Unlocking Using Intelligent Access

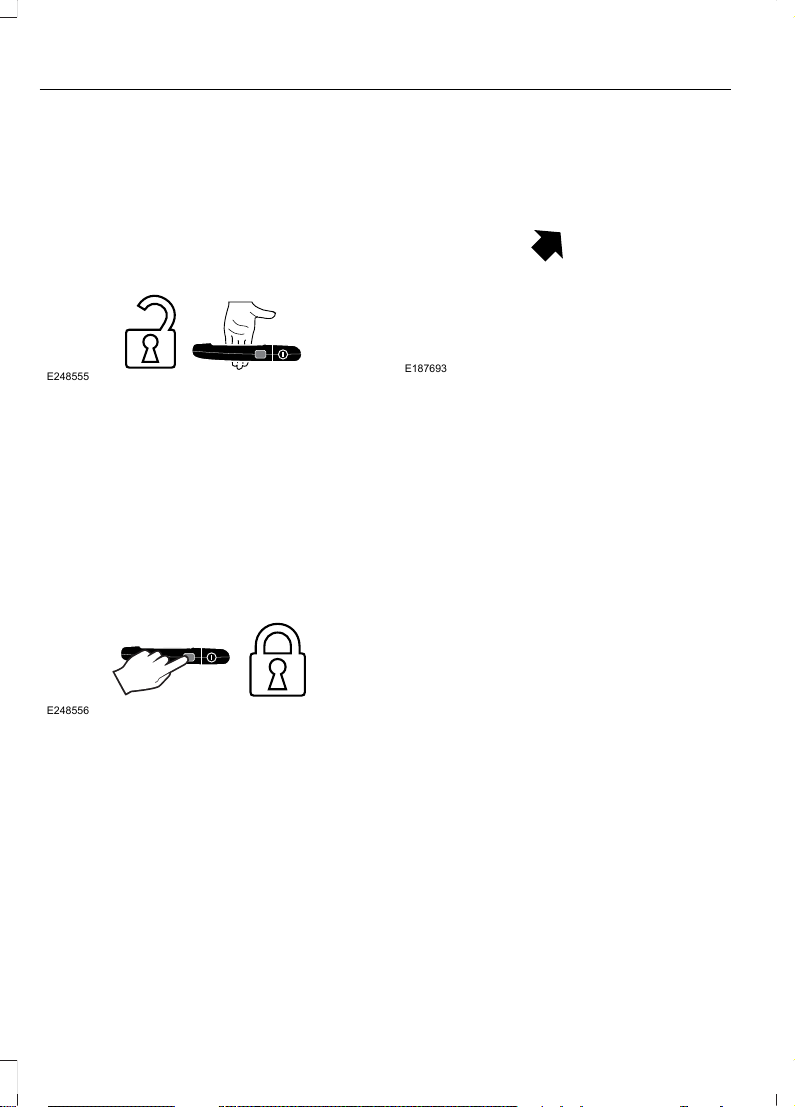

E248555

With your intelligent access key within 3 ft (1 m) of your vehicle, touch the unlock sensor on the back of the door handle for a brief period and then pull on the door handle to unlock, being careful to not touch the lock sensor at the same time or pulling the door handle too quickly. The intelligent access system requires a brief delay to authenticate your intelligent access key fob.

Locking Using Intelligent Access

E248556

With your intelligent access key within 3 ft (1 m) of your vehicle, touch the outer door handle lock sensor for approximately one second to lock, being careful to not touch the unlock sensor on the back of the door handle at the same time. After locking, you can immediately pull on the door handle to confirm locking occurred without inadvertently unlocking.

Note: Do not use the outside door handle as a roof cargo strap.

At the Electronic Tailgate (If Equipped)

E187693

Press the exterior tailgate release button inside of the tailgate handle. The tailgate unlocks and opens. See Tailgate Lock (page 72).

Smart Unlock (If Equipped)

This feature helps to prevent you from locking your intelligent access key inside your vehicle’s passenger compartment or rear cargo area.

If you leave your key in the ignition, when you open the driver door and lock your vehicle with the power door lock control, the doors lock then unlock.

You can still lock your vehicle with the key in the ignition by:

• Using the manual lock on the inside of the door.

• Locking the driver door with a key.

• Using the keyless entry keypad.

• Using the lock button on the remote

control.

Smart Unlocks for Intelligent Access Keys (If Equipped)

This feature helps to prevent you from locking your intelligent access key inside your vehicle’s passenger compartment or rear cargo area.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Doors and Locks

Page 72

When you lock your vehicle using the power door lock control (with the door open, vehicle in park and ignition off), your vehicle searches for an intelligent access key in the passenger compartment after you close the door. If your vehicle finds a key, all of the doors immediately unlock.

In order to override the smart unlock feature and intentionally lock the intelligent access key inside your vehicle, you can lock your vehicle after all doors are closed by using the keyless entry keypad, pressing the lock button on another intelligent access key or touching the locking area on the handle with another intelligent access key in your hand.

When you open one of the front doors and lock your vehicle using the power door lock control, all doors lock then unlock if the ignition is on.

Autolock (If Equipped)

Autolock locks all the doors when:

• All doors are closed.

• The ignition is on.

• You shift into any gear putting your

vehicle in motion.

• Your vehicle reaches a speed greater than 12 mph (20 km/h).

Autolock repeats when:

• You open then close any door while the ignition is on and your vehicle speed is 9 mph (15 km/h) or lower.

• Your vehicle reaches a speed greater than 12 mph (20 km/h).

Autounlock

Autounlock unlocks all the doors when:

• The ignition is on, all the doors are closed, and your vehicle has been moving at a speed greater than 12 mph (20 km/h).

• Your vehicle comes to a stop and you switch the ignition off or to the accessory position.

• You open the driver door within 10 minutes of switching the ignition off or to accessory.

Note: The doors do not autounlock if you electronically lock your vehicle after you switch the ignition off and before you open the driver door.

Enabling or Disabling Autounlock

You can enable or disable the autounlock feature in the information display or an authorized dealer can do it for you. See

General Information (page 113).

Illuminated Entry

The interior lamps and select exterior lamps illuminate when you unlock the doors with the remote entry system.

The illuminated entry system turns off the lights if:

• The ignition is on.

• You press the remote control lock

button.

• After 25 seconds of illumination.

The dome lamp does not turn on if the control is set to the off position.

The lights do not turn off if:

• You switch them on with the dimmer control.

• Any door is open.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Doors and Locks

Page 73

Battery Saver

The battery saver turns off the interior lamps 30 minutes after you switch off the ignition if a door is open and the dome lamp switch is on. It turns off the interior lamps after 10 minutes if the dome lamp switch is off.

Accessory Mode Battery Saver for Intelligent Access Keys (If Equipped)

If you leave the ignition on after leaving your vehicle, it turns off 15 minutes after you close all of the doors.

KEYLESS ENTRY (If Equipped)

SECURICODE™ KEYLESS ENTRY KEYPAD

The keypad is near the driver window and illuminates when you touch it.

Note: If you enter your entry code too fast on the keypad, the unlock function may not work. Re-enter your entry code more slowly.

You can use the keypad to:

• Lock or unlock the doors and liftgate.

• Program and erase user codes.

• Arm and disarm the anti-theft alarm.

You can operate the keypad with the factory-set five-digit entry code. The code is located on the owner’s wallet card in the glove box and is available from an authorized dealer. You can also create up to five of your own five-digit personal entry codes.

Programming a Personal Entry Code

To create your own personal entry code:

1. Enter the factory-set code.

2. Press 1·2 on the keypad within five seconds.

3. Enter your personal five-digit code. You must enter each number within five seconds of each other.

4. Press 1·2 on the keypad to save personal code one.

The doors will lock then unlock to confirm that programming was successful.

To program additional personal entry codes, repeat Steps 1-3, then for Step 4:

• Press 3·4 to save personal code two.

• Press 5·6 to save personal code three.

• Press 7·8 to save personal code four.

• Press 9·0 to save personal code five.

Tips:

• Do not set a code that uses five of the same number.

• Do not use five numbers in sequential order.

• The factory-set code will work even if you have set your own personal code.

Erasing a Personal Code

1. Enter the factory-set five-digit code.

2. Press and release 1·2 on the keypad within five seconds.

3. Press and hold 1·2 for two seconds. This must be done within five seconds of completing Step 2.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Doors and Locks

Page 74

All personal codes erase and only the factory-set five-digit code will work.

Anti-Scan Feature

The keypad will go into an anti-scan mode if you enter the wrong code seven times (35 consecutive button presses). This mode disables the keypad for one minute and the keypad lamp will flash.

The anti-scan feature will turn off after:

• One minute of keypad inactivity.

• Pressing the unlock button on the

remote control.

• Switching the ignition on.

• Unlocking the vehicle using intelligent

access.

Unlocking and Locking the Doors

To Unlock the Driver Door

Enter the factory-set five-digit code or your personal code. You must press each number within five seconds of each other. The interior lamps illuminate.

Note: All doors unlock if you disable the two-stage unlocking feature. See General

Information (page 113).

To Unlock All Doors

Enter the factory-set code or your personal code, then press 3·4 control within five seconds.

To Lock All Doors

Press and hold 7·8 and 9·0 at the same time with the driver door closed. You do not need to enter the keypad code first.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Doors and Locks

Page 75

TAILGATE LOCK (If Equipped)

The tailgate lock can help prevent theft of the tailgate.

E224958

Insert the ignition key into the tailgate lock. Turn it to the left to lock the tailgate. Turn it to the right to unlock the tailgate.

REMOVING THE TAILGATE

WARNING

Always properly secure cargo to prevent shifting cargo or cargo falling

from the vehicle. Failure to do so could result in compromised vehicle stability and serious personal injury to vehicle occupants or others.

You can remove the tailgate for more loading room.

1. Obtain the tailgate removal kit from

the glove box.

E248384

2. Locate and disconnect the frame connections. They are on the left-hand side of the vehicle.

Note: Your vehicle may have up to three frame connections.

3. Install the caps from the tailgate removal kit on the in-line connectors that remain on the vehicle.

Note: If you do not install the caps on the connectors, some features may not operate as intended.

4. Partially lower the tailgate. Carefully feed the tailgate harness up through the bumper and place it out of the way.

5. Lower the tailgate.

E163092

6. Use a screwdriver to gently pry the spring clip on each connector past the head of the support screw. Disconnect the cable.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Tailgate (If Equipped)

Page 76

7. Disconnect the other cable.

8. Lift the tailgate to a 45 degree angle from horizontal.

9. Lift the right side off its hinge.

10. Lift the tailgate to an 80 degree angle

from horizontal.

11. Remove the tailgate from the left side

hinge by sliding it to the right.

Reverse the steps to reinstall the tailgate.

TAILGATE STEP (If Equipped)

Use the step to make entering the truck bed easier.

To reduce the risk of falling:

• Only operate the step when your vehicle is on a level surface.

• Only operate the step in areas with sufficient lighting.

• Always open the step panel to widen the step.

• Always use the grab handle when climbing on the step.

• Do not use the step with bare feet.

• Make sure the step is clean before use.

• Keep the step load, you plus the load,

below 350 lb (159 kg).

Opening the Step

Note: Make sure to close and fully latch the

step before moving your vehicle. Do not drive with the step or grab handle open.

1. Lower the tailgate.

2. Push the button in the center of the step molding. The step pops out slightly.

E187718

3. Pull the step out fully. Lower the step to its lowest position.

E189557

4. Pull the yellow handle stop backward out of the tailgate until it fully extends.

5. Rotate the handle up from horizontal to vertical until you hear a click. You have locked the handle in place.

Note: Do not tow with the step or grab handle.

Replace the slip resistance tape or grab handle molding if it appears as worn or damaged.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Tailgate (If Equipped)

Page 77

Closing the Step

1. Press the yellow button on the telescoping handle to lower the handle, then press the yellow lever at the bottom of the handle to unlock the handle. Rotate the handle down from vertical to horizontal and push it into the tailgate.

2. Rotate the step up until it is horizontal, then push it back into the tailgate until the step is secure.

BED EXTENDER (If Equipped)

Note: Do not use the bed extender when

driving off road. Note: Make sure to engage the locking pins

and knobs fully before driving your vehicle.

Note: Make sure to secure all cargo. Note: Do not exceed 150 pounds (68

kilograms) on the tailgate when your vehicle is moving.

Note: Do not keep the bed extender in the tailgate mode when you are not using it for restraining cargo. Always keep the bed extender in the grocery mode or the stowed position with the tailgate closed.

Tailgate mode

E163095

1. Pull the locking pin toward the center of your vehicle.

E163096

2. Open the latches to release the panels.

E163097

3. Rotate the panels toward the tailgate. Repeat Steps 1-3 on the other side of your vehicle.

E163098

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Tailgate (If Equipped)

Page 78

4. Connect the two panels. Rotate both knobs one-quarter turn clockwise to secure the panels.

E163099

5. Make sure to insert the latch rod into the tailgate hole. Make sure to engage both sides of the locking pins into their holes in the pick-up box.

Reverse the steps to store the bed extender.

Grocery mode

E163100

Follow Steps 1-4 of the tailgate mode instructions by rotating the panels away from the tailgate. Close the tailgate.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Tailgate (If Equipped)

Page 79

PASSIVE ANTI-THEFT SYSTEM

Note: The system is not compatible with

non-Ford aftermarket remote start systems. Use of these systems may result in engine starting problems and a loss of security protection.

Note: Metallic objects, electronic devices or a second coded key on the same key chain may result in vehicle starting problems, especially if they are too close to the key when starting your vehicle. Prevent these objects from touching the coded key when starting your vehicle. Switch the ignition off, move all objects on the key chain away from the coded key and restart your vehicle if a problem occurs.

Note: Do not leave a duplicate coded key in your vehicle. Always take your keys and lock all doors when leaving your vehicle.

SecuriLock®

The system helps prevent the engine from starting unless you use a coded key programmed to your vehicle. Using the wrong key may prevent your vehicle from starting. A message may appear in the information display.

If you are unable to start your vehicle with a coded key, it is not operating correctly. A message may appear in the information display.

Automatic Arming

The system arms when you switch the ignition off.

Automatic Disarming

The system disarms when you switch the ignition on with a coded key.

Replacement Keys

Note: Your vehicle comes with two keys.

The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts your vehicle, as well as a remote control.

The intelligent access key functions as a programmed key that operates the driver door lock and turns on the intelligent access with push button start system, as well as a remote control.

If your coded keys are lost or stolen and you do not have an extra coded key, you need to erase the key codes from your vehicle and program new coded keys. Contact an authorized dealer.

Store an extra programmed key away from your vehicle in a safe place. You can purchase replacement keys or remote controls from an authorized dealer.

Programming a Spare Integrated Keyhead Transmitter

Note: You can program a maximum of four

keys to your vehicle. All six can be integrated keyhead transmitters.

You can program your own integrated keyhead transmitter or standard SecuriLock coded keys to your vehicle. This procedure programs both the vehicle immobilizer keycode and the remote control to your vehicle.

Only use integrated keyhead transmitters or standard SecuriLock keys.

You must have two previously programmed coded keys and the new unprogrammed key readily accessible. Contact an authorized dealer to have the spare key programmed if two previously programmed keys are not available.

Read and understand the entire procedure before you begin.

1. Insert the first previously programmed coded key into the ignition.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Security

Page 80

2. Switch the ignition from off to on. Keep the ignition on for at least 3 seconds, but no more than 10 seconds.

3. Switch the ignition off and remove the first coded key from the ignition.

4. After at least 3 seconds but within 10 seconds of switching the ignition off, insert the second previously coded key into the ignition.

5. Switch the ignition from off to on. Keep the ignition on for at least 3 seconds, but no more than 10 seconds.

6. Switch the ignition off and remove the second previously programmed coded key from the ignition.

7. After at least 3 seconds but within 10 seconds of switching the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.

8. Switch the ignition from off to on. Keep the ignition on for at least six seconds.

9. Remove the newly programmed coded key from the ignition.

If you have successfully programmed the new integrated keyhead transmitter, it will start your vehicle and operate the remote entry system.

If programming was unsuccessful, wait 10 seconds and repeat steps 1 through 9. If you are still unsuccessful, take your vehicle to your authorized dealer.

Programming a Spare Intelligent Access Key

Note: Do not place the device on the

wireless accessory charging area when programming intelligent access keys.

Note: You can program a maximum of six keys to your vehicle. All six must be intelligent access keys.

This procedure programs both the vehicle immobilizer keycode and the remote control to your vehicle.

You must have two previously programmed intelligent access keys inside your vehicle and the new unprogrammed intelligent access key readily accessible. Contact an authorized dealer to have the spare key programmed if two previously programmed keys are not available.

Make sure that the ignition is switched off before beginning this procedure. Make sure that you close all the doors before beginning and that they remain closed throughout the procedure. Carry out all steps within 30 seconds of starting the sequence. Stop and wait for at least one minute before starting again if you carry out any steps out of sequence.

Read and understand the entire procedure before you begin.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Security

Page 81

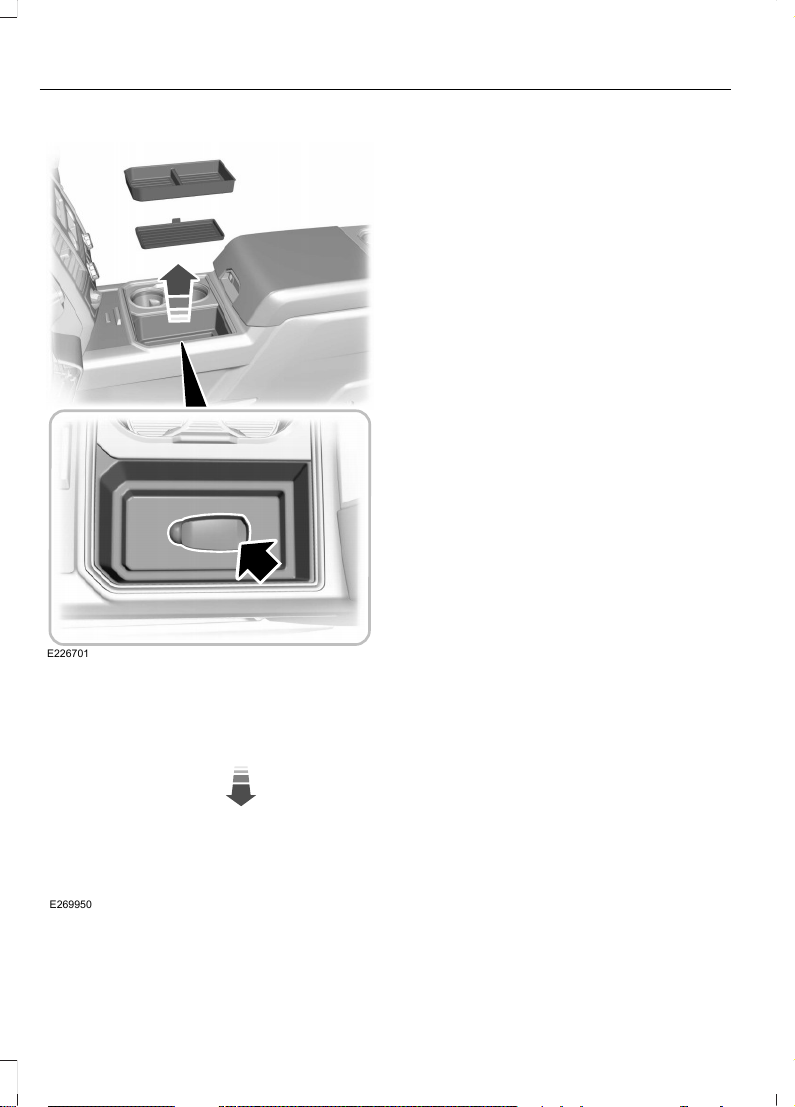

Type One

E226701

Type Two

E269950

1. Remove the key blade from the transmitter.

2. Remove the tray and the cover from the center console. With the buttons facing upward, place the first intelligent access key in the backup slot.

3. Press the push button ignition switch.

4. Wait five seconds and then press the push button ignition switch again.

5. Remove the intelligent access key.

6. Within 10 seconds, place a second programmed intelligent access key in the backup slot and press the push button ignition switch.

7. Wait five seconds and then press the push button ignition switch again.

8. Remove the intelligent access key.

9. Wait five seconds, then place the unprogrammed intelligent access key in the backup slot and press the push button ignition switch.

Programming is now complete. Check that the remote control functions operate and your vehicle starts with the new intelligent access key.

If programming was unsuccessful, wait 10 seconds and repeat steps 1 through 7. If you are still unsuccessful, take your vehicle to your authorized dealer.

ANTI-THEFT ALARM

The active anti-theft system is designed to warn you in the event of unauthorized vehicle entry and is also designed to help prevent unwanted towing of your vehicle. You can choose what is monitored by arming the system in different ways. See Information Displays (page 113).

The direction indicators flash and the horn sounds if the system triggers while the alarm is armed.

Take all remote controls to an authorized dealer if there is any potential alarm problem with your vehicle.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Security

Page 82

Using the System

You can select two levels of alarm security. You can change the level of security through the information display. See

General Information (page 113).

Reduced Guard (If Equipped)

Reduced guard monitors the following:

• Doors.

• Hood.

Full Guard (If Equipped)

Full guard monitors the following:

• Doors.

• Hood.

• Movement inside your vehicle.

• Change in vehicle inclination, for

example, unwanted towing.

Note: Do not choose full monitor mode when the vehicle is in transport or if movement within the vehicle is likely to occur.

Note: For correct operation of the interior motion detection system, make sure you close all the windows prior to arming the system. This helps prevent accidental alarm activation due to external influences. Additionally, the interior motion sensing system does not arm if any door is ajar.

Arming the Alarm

The alarm is ready to arm when there is not a key in the ignition. Lock your vehicle using the remote control or keyless entry keypad. You can also lock your vehicle using the lock sensor on the exterior door handle if your vehicle is equipped with intelligent access. See Locking and Unlocking (page 67).

The direction indicators flash once after you lock your vehicle. This indicates the alarm is in the pre-armed mode. It fully arms after 20 seconds.

Disarming the Alarm

Disarm the alarm by any of the following actions:

• Press the power door unlock button within the 20-second pre-armed mode.

• Unlock the doors with the remote control or keyless entry keypad. If equipped with intelligent access, you can use the unlock sensor on the exterior door handle. See Locking and Unlocking (page 67).

• Switch the ignition on or start your vehicle.

• Use a key in the driver door lock cylinder to unlock your vehicle, then switch the ignition on within 12 seconds.

Note: Pressing the panic button on the remote control stops the horn and direction indicators, but does not disarm the system.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Security

Page 83

USING POWER RUNNING BOARDS

WARNINGS

In extreme climates, excessive ice buildup may occur, causing the

running boards not to deploy. Make sure that the running boards have deployed, and have finished moving before attempting to step on them. The running boards will resume normal function once the blockage is cleared.

Switch off the running boards before

jacking or placing any object under

your vehicle. Never place your hand between the extended running board and your vehicle. A moving running board may cause injury.

Note: Do not use the running boards, front and rear hinge assemblies, running board motors, or the running board underbody mounts to lift your vehicle when jacking. Always use proper jacking points.

Note: The running boards may operate more slowly in cool temperatures.

Note: The running board mechanism may trap debris such as mud, dirt, snow, ice and salt. This may cause unwanted noise. If this happens, manually set the running boards to the deployed position. Then, wash the system, in particular the front and rear hinge arms, with a high-pressure car wash wand.

Automatic Power Deploy

E166682

The running boards automatically extend down and out when you open the door. This can help you enter and exit your vehicle.

Automatic Power Stow

When you close the doors, the running boards return to the stowed position after a two-second delay.

Manual Power Deploy

You can manually operate the running boards in the information display.

1. Select Settings.

2. Select Advanced Settings.

3. Select Vehicle.

4. Select Power Running Boards.

5. Select your desired power running board setting.

Set the running boards in the deployed position to access the roof.

The running boards return to the stowed position and enter automatic mode when the vehicle speed exceeds 3 mph (5 km/h).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Power Running Boards (If Equipped)

Page 84

Enabling and Disabling

You can enable and disable the power running board feature in the information display.

• When disabled, the running boards move to the stowed position regardless of the door position.

• When enabled, the running boards move back to the correct positions based on the door position.

Bounce-back

The running board will reverse direction and move to the end of travel if it encounters an object while moving.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Power Running Boards (If Equipped)

Page 85

ADJUSTING THE STEERING WHEEL - VEHICLES WITH: MANUAL ADJUSTABLE STEERING COLUMN

WARNING

Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 154).

E261502

1. Unlock the steering column.

2. Adjust the steering wheel to the desired position.

E261503

3. Lock the steering column.

ADJUSTING THE STEERING WHEEL - VEHICLES WITH: POWER ADJUSTABLE STEERING COLUMN

WARNING

Do not adjust the steering wheel when your vehicle is moving.

Note: Make sure that you are sitting in the correct position. See Sitting in the Correct Position (page 154).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Steering Wheel

Page 86

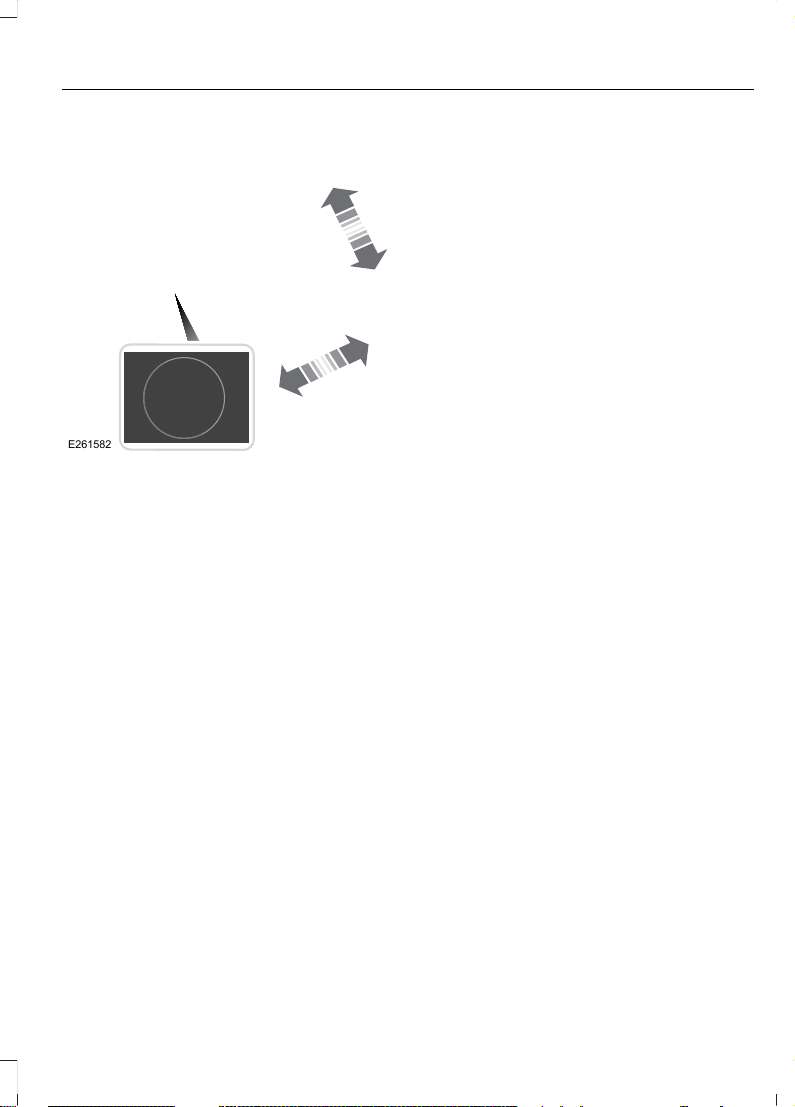

E261582

Use the control on the side of the steering column to adjust the position.

To adjust:

• Tilt: Press the top or bottom of the control.

• Telescope: Press the front or rear of the control.

End of Travel Position

The steering column sets a stopping position just short of the end of the column position to prevent damage to the steering column. A new stopping position sets if the steering column encounters an object when tilting or telescoping.

To reset the steering column to its normal stopping position:

1. Confirm there is nothing obstructing the motion of the steering column.

2. Press and hold the steering column control until the steering column stops moving.

3. Press the steering column control again.

Note: The steering column may begin to move again.

4. When the steering column stops, continue holding the control for a few seconds.

5. Repeat for each direction as necessary.

A new stopping position sets. The next time you tilt or telescope the steering column, it stops just short of the end of the column position.

Memory Feature

You can save and recall the steering column position with the memory function. See Memory Function (page 159).

Pressing the adjustment control during a memory recall cancels the operation.

Easy Entry and Exit Feature

The column moves up when you switch the ignition off. Switch the ignition on to return the system to its previous settings. You can switch this feature on or off in the information display. See Information

Displays (page 113). Note: Depending on your vehicle, the

column may move up and in.

AUDIO CONTROL

You can operate the following functions with the control:

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Steering Wheel

Page 87

E191327

Volume up.A Media.B Seek up or next.C Volume down.D Seek down or previous.E

Media

Press repeatedly to scroll through available audio modes.

Seek, Next or Previous

Press the seek button to:

• Tune the radio to the next or previous stored preset.

• Play the next or previous track.

Press and hold the seek button to:

• Tune the radio to the next station up or down the frequency band.

• Seek through a track.

VOICE CONTROL (If Equipped)

E191328

Mute.A Voice recognition.B End call.C Answer or make a call.D

See your SYNC information.

CRUISE CONTROL (If Equipped)

Type One

E191329

See Using Cruise Control (page 243).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Steering Wheel

Page 88

Type Two

E191337

See Using Adaptive Cruise Control (page 244).

INFORMATION DISPLAY CONTROL

E191336

See Information Displays (page 113).

HEATED STEERING WHEEL (If

Equipped)

Switch the heated steering wheel on and off using the touchscreen.

Touch the button to switch the heated steering wheel on and off.

Note: You can use the heated steering wheel only when the engine is running.

Note: The system uses a sensor and is designed to control the temperature of the steering wheel and to prevent it from overheating.

Note: In warm temperatures, the steering wheel quickly reaches its maximum temperature and the system reduces the current to the heating element. This could cause you to think that the system has stopped working but it has not. This is normal.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Steering Wheel

Page 89

ADJUSTING THE PEDALS

WARNING

Never use the pedal adjustment controls when your feet are on the accelerator or brake pedal when the

vehicle is moving.

Note: Adjust the pedals only when your vehicle is in park (P).

Depending on your vehicle and equipment level, the shape and location of your power-adjustable pedal control can vary.

• If your control is vertical, then it is to the left of the steering column and on the instrument panel.

• If your control is horizontal, then it is on the left side of the steering column.

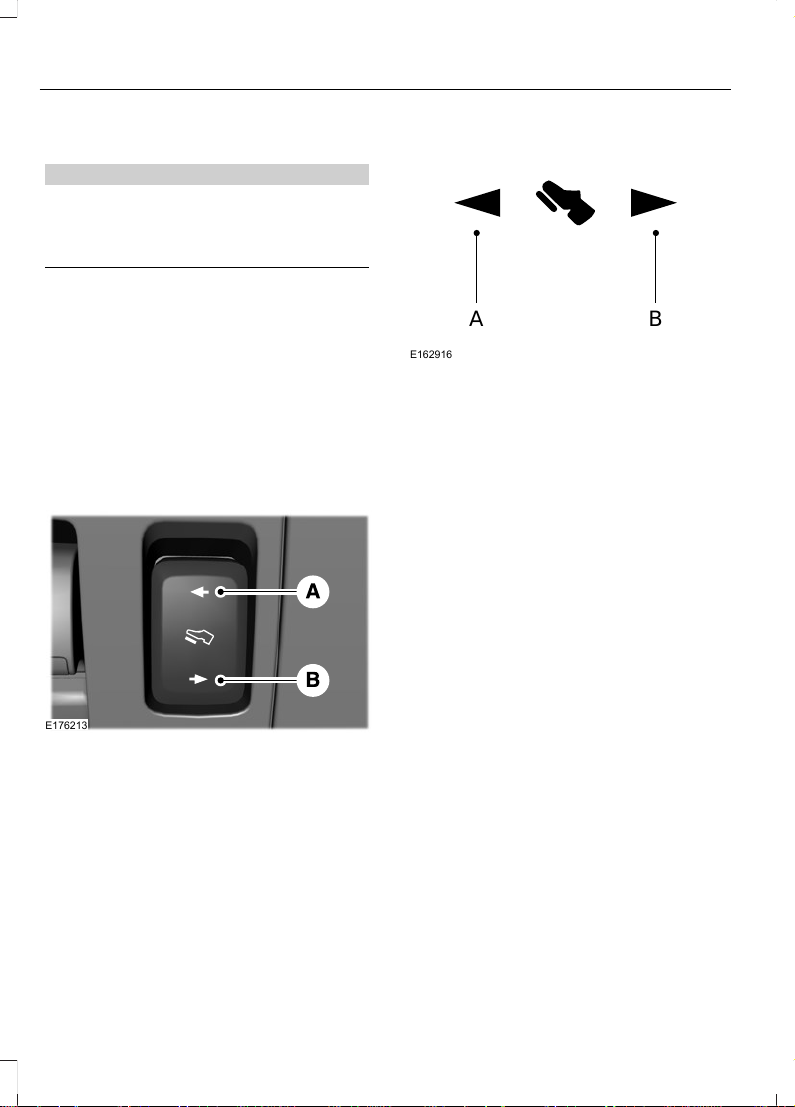

Vertical Control

E176213

Farther.A. Closer.B.

Horizontal Control

A B

E162916

Farther.A. Closer.B.

Both horizontal and vertical controls operate the same way:

1. Press and hold A to move the pedals away from you.

2. Press and hold B to move the pedals closer to you.

You can save and recall the pedal positions with the memory feature. See Memory Function (page 159).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Pedals (If Equipped)

Page 90

WINDSHIELD WIPERS

Note: Fully defrost the windshield before

you switch the windshield wipers on. Note: Make sure you switch the windshield

wipers off before entering a car wash. Note: If streaks or smears appear on the

windshield, clean the windshield and the wiper blades. If that does not resolve the issue, install new wiper blades.

Note: Do not operate the wipers on a dry windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washers before wiping a dry windshield.

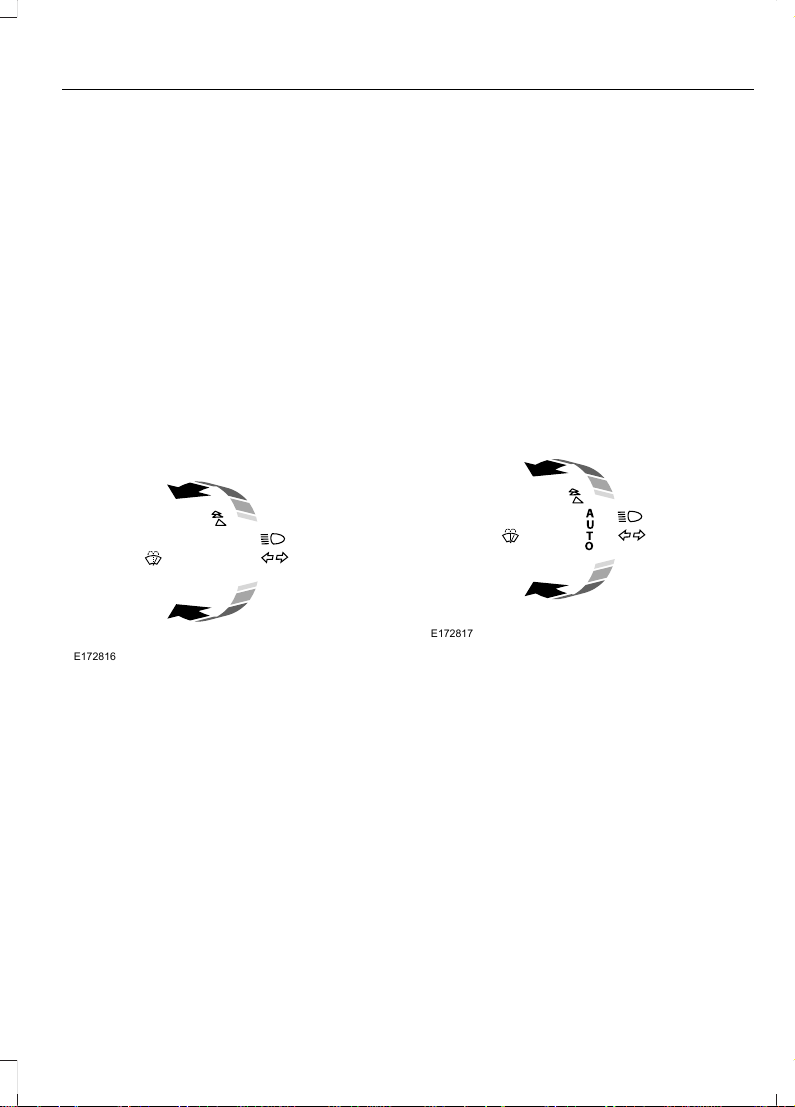

E172816

• Rotate away from you for a long wipe interval.

• Rotate toward you for a short wipe interval.

Speed Dependent Wipers

When your vehicle speed increases, the interval between wipes decreases.

AUTOWIPERS (If Equipped)

Note: Fully defrost the windshield before

you switch the windshield wipers on.

Note: Make sure you switch the windshield wipers off before entering a car wash.

Note: If streaks or smears appear on the windshield, clean the windshield and the wiper blades. If that does not resolve the issue, install new wiper blades.

Note: The courtesy wipe feature turns on after using the windshield washers to remove any excess washer fluid and debris. You can adjust the courtesy wipe settings in the instrument display.

Wet or winter driving conditions with ice, snow or salty road mist can cause inconsistent and unexpected wiping or smearing.

E172817

Use the rotary control to adjust the sensitivity of the autowipers. When you select low sensitivity, the wipers operate when the sensor detects a large amount of water on the windshield. When you select high sensitivity, the wipers operate when the sensor detects a small amount of water on the windshield.

Keep the outside of the windshield clean. The rain sensor is very sensitive and the wipers may operate if dirt, mist or insects hit the windshield.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Wipers and Washers

Page 91

In these conditions, you can do the following:

• Lower the sensitivity of the autowipers to reduce the amount of smearing on the windshield.

• Switch to normal or high-speed wipe.

• Switch autowipers off.

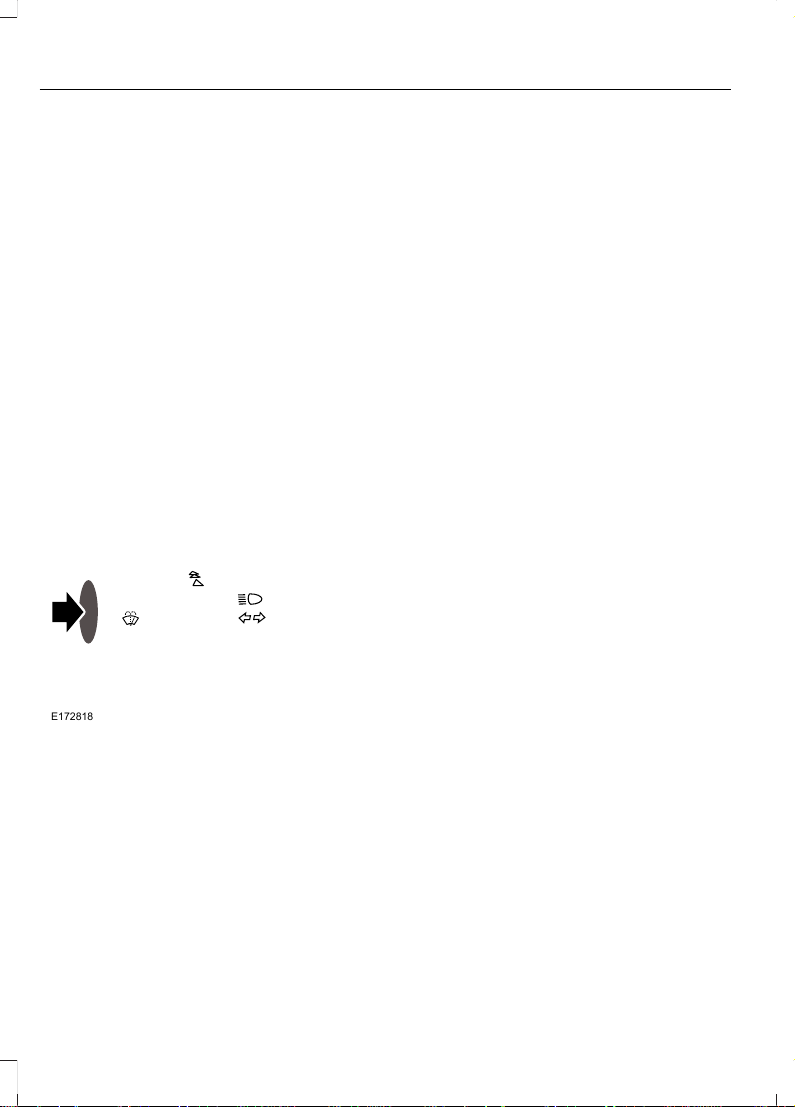

WINDSHIELD WASHERS

Note: Do not operate the wipers on a dry

windshield. This may scratch the glass, damage the wiper blades or cause the wiper motor to burn out. Always use the windshield washer before wiping a dry windshield.

Note: Do not operate the washers when the washer reservoir is empty. This may cause the washer pump to overheat.

E172818

• A brief press causes a single wipe without washer fluid.

• A brief press and hold causes the wipers to swipe three times with washer fluid.

• A long press and hold turns on the wipers and washer fluid for up to 10 seconds.

A wipe occurs a few seconds after washing to clear any remaining washer fluid. You can switch this feature on or off in the information display.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Wipers and Washers

Page 92

GENERAL INFORMATION

Condensation in the Exterior Front Lamps and Rear Lamps

Exterior front lamps and rear lamps have vents to accommodate normal changes in air pressure.

Condensation can be a natural by-product of this design. When moist air enters the lamp assembly through the vents, there is a possibility that condensation can occur when the temperature is cold. When normal condensation occurs, a fine mist can form on the interior of the lens. The fine mist eventually clears and exits through the vents during normal operation.

Clearing time may take as long as 48 hours under dry weather conditions.

Examples of acceptable condensation are:

• The presence of a fine mist (no streaks, drip marks or large droplets).

• A fine mist covers less than 50% of the lens.

Examples of unacceptable condensation are:

• A water puddle inside the lamp.

• Streaks, drip marks or large droplets

present on the interior of the lens.

If you see any unacceptable condensation, have your vehicle checked by an authorized dealer.

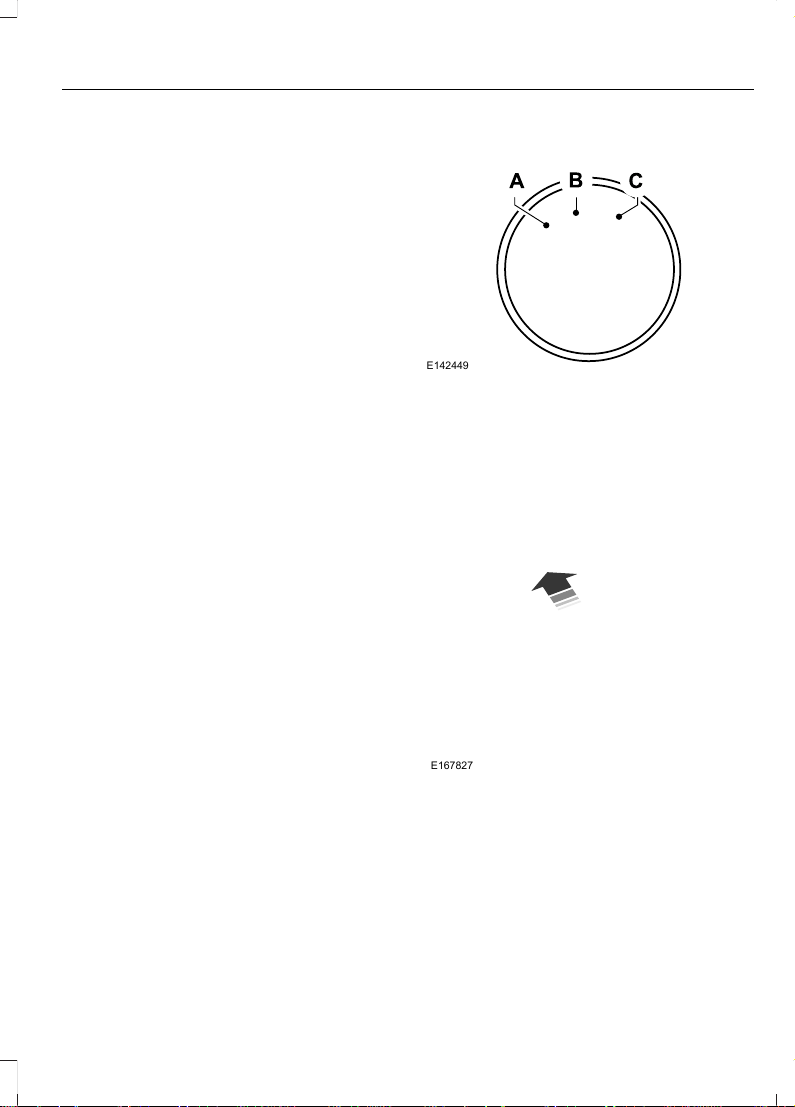

LIGHTING CONTROL

E142449

Off.A Parking lamps, instrument panel

lamps, license plate lamps and rear lamps.

Headlamps.C

Headlamp High Beam

E167827

Push the lever away from you to switch the high beam on.

Push the lever forward again or pull the lever toward you to switch the high beams off.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 93

Headlamp Flasher

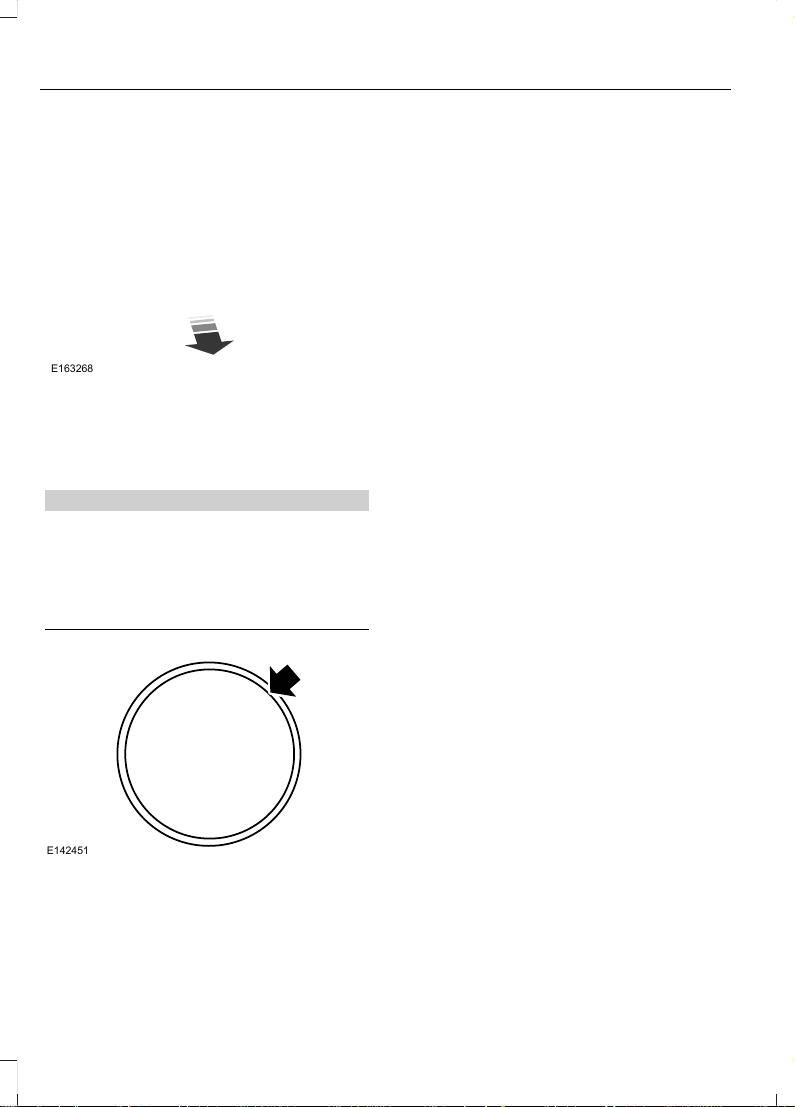

E163268

Slightly pull the lever toward you and release it to flash the headlamps.

AUTOLAMPS (If Equipped)

WARNING

The system does not relieve you of your responsibility to drive with due

care and attention. You may need to override the system if it does not turn the headlamps on in low visibility conditions, for example daytime fog.

E142451

When the lighting control is in the autolamps position, the headlamps turn on in low light situations, or when the wipers turn on.

The headlamps remain on for a period of time after you switch the ignition off. Use the information display controls to adjust the period of time that the headlamps remain on.

Note: If you switch the autolamps on, you cannot switch the high beams on until the system turns the low beams on.

Windshield Wiper Activated Headlamps

When you switch the autolamps on, the headlamps turn on within 10 seconds of switching the wipers on. They turn off approximately 60 seconds after you switch the windshield wipers off.

The headlamps do not turn on with the wipers:

• During a single wipe.

• When using the windshield washers.

• If the wipers are in intermittent mode.

Note: If you switch the autolamps and the autowipers on, the headlamps turn on when the windshield wipers continuously operate.

INSTRUMENT LIGHTING DIMMER

Note: When disconnecting the battery or

when it runs out of charge, the illuminated components turn to the maximum setting.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 94

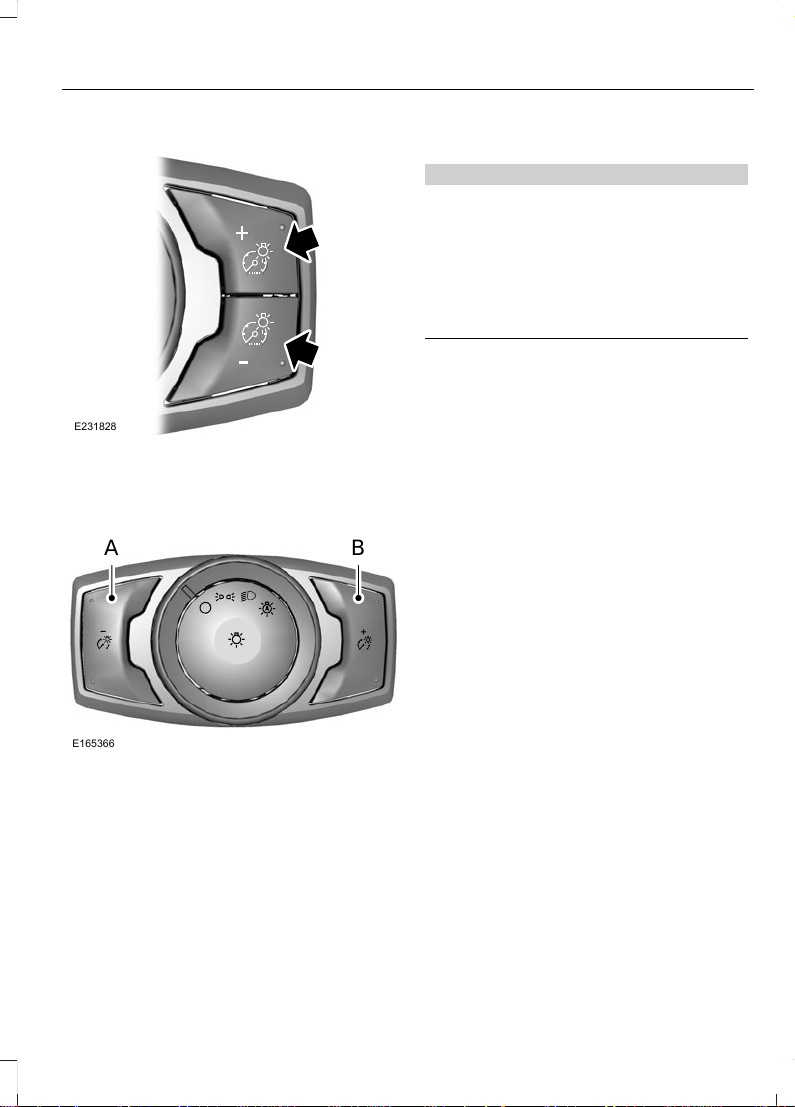

Vehicles With Front Fog Lamps

E231828

Press repeatedly or press and hold until you reach the desired level.

Vehicles Without Front Fog Lamps

A B

E165366

Press repeatedly or press and hold to dim.

Press repeatedly or press and hold to brighten.

DAYTIME RUNNING LAMPS

WARNING

The daytime running lamps system does not activate the rear lamps and

may not provide adequate lighting during low visibility driving conditions. Make sure you switch the headlamps on, as appropriate, during all low visibility conditions. Failure to do so may result in a crash.

Type One - Conventional (NonConfigurable)

The daytime running lamps turn on when:

1. Switching the ignition on.

2. The transmission is not in park (P) for

vehicles with automatic transmissions, or releasing the parking brake for vehicles with manual transmissions.

3. The lighting control is in the off, parking

lamp or autolamps positions.

4. The headlamps are off.

Type Two - Configurable

Switch the daytime running lamps on or off using the information display. See Information Displays (page 113).

The daytime running lamps turn on when:

1. The lamps are on in the information

display.

2. Switching the ignition on.

3. The transmission is not in park (P) for

vehicles with automatic transmissions, or releasing the parking brake for vehicles with manual transmissions.

4. The lighting control is in the autolamps

position.

5. The headlamps are off. The other lighting control switch positions

do not turn on the daytime running lamps.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 95

If the daytime running lamps are off in the information display, the lamps stay off in all switch positions.

AUTOMATIC HIGH BEAM CONTROL (If Equipped)

WARNING

The system does not relieve you of your responsibility to drive with due

care and attention. You may need to override the system if it does not turn the high beams on or off.

The system turns on high beams if it is dark enough and no other traffic is present. If it detects an approaching vehicle’s headlamps or tail lamps, or street lighting ahead, the system turns off high beams before they can distract other road users. Low beams remain on.

Note: The system may not operate properly if the sensor is blocked. Keep the windshield free from obstruction or damage.

Note: The system may not operate properly in cold or inclement conditions. You can switch on the high beams by overriding the system.

Note: If the system detects a blockage, for example bird droppings, bug splatter, snow or ice, the system goes into low beam mode until you clear the blockage. A message may appear in the information display if the camera is blocked.

Note: Using much larger tires or equipping vehicle accessories such as snowplows can modify your vehicle's ride height and degrade automatic high beam control performance.

A camera sensor, centrally mounted behind the windshield of your vehicle, continuously monitors conditions to turn the high beams on and off.

Once the system is active, the high beams turn on if:

• The ambient light level is low enough.

• There is no traffic in front of your

vehicle.

• The vehicle speed is greater than approximately 32 mph (51 km/h).

The high beams turn off if:

• The ambient light level is high enough that high beams are not required.

• The system detects an approaching vehicle's headlamps or tail lamps.

• The vehicle speed falls below approximately 27 mph (44 km/h).

• The system detects severe rain, snow or fog.

• The camera is blocked.

Switching the System On and Off

Switch the system on using the information display. See Information Displays (page

113).

E142451

Switch the lighting control to the autolamps position. See Autolamps (page 90).

Overriding the System

When you switch on the high beams, pushing or pulling the stalk provides a temporary override to low beam.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 96

Automatic High Beam Indicator (If

Equipped)

The indicator lamp illuminates to confirm when the system is ready to assist.

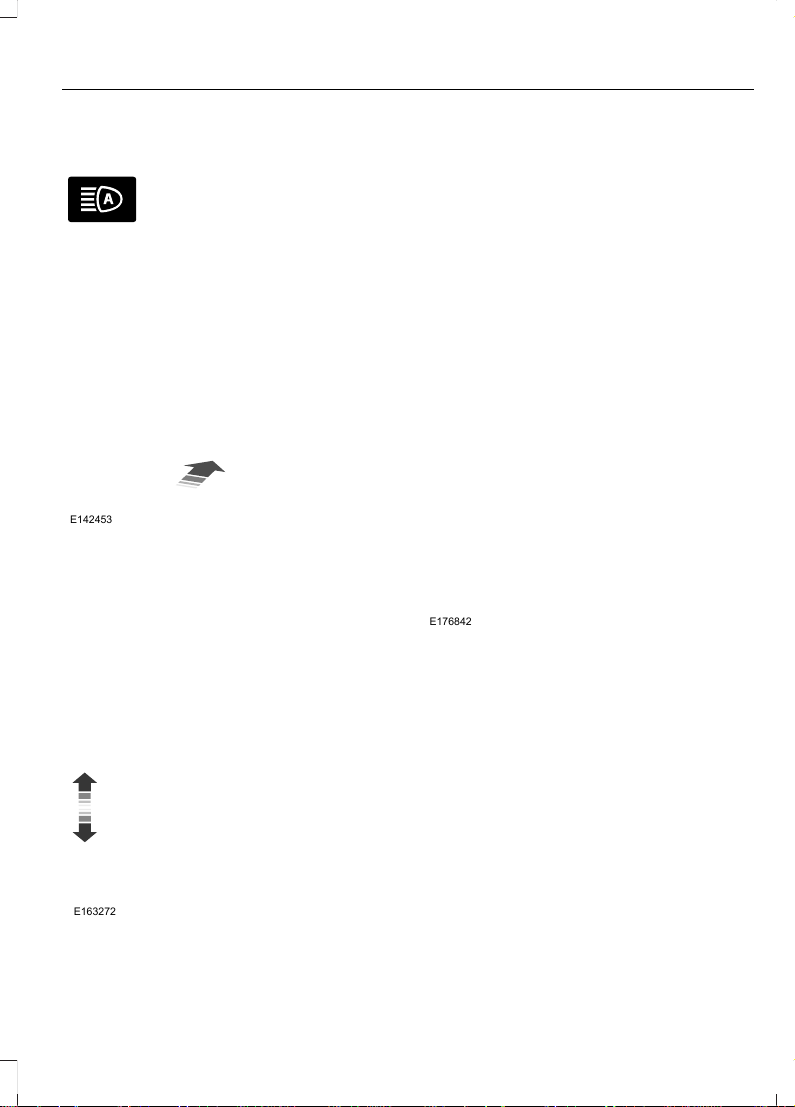

FRONT FOG LAMPS (If Equipped)

E142453

Press the control to switch the fog lamps on or off.

You can switch the fog lamps on when the lighting control is in any position except Off and the high beams are not on.

DIRECTION INDICATORS

E163272

• To operate the left direction indicator, push the lever down until it stops.

• To operate the right direction indicator, push the lever up until it stops.

Note: Tap the lever up or down to make the direction indicators flash three times.

SPOT LAMPS (If Equipped)

The spot lamps are on the forward-facing side of the exterior mirrors. Switch on the spot lamps by pressing the buttons above the lighting control with the parking lamps on.

E176842

When switching on the spot lamps, the area in front of and to the side of your vehicle illuminates.

Adjust the aim of the spot lamps by moving the position of the exterior mirrors.

For manual folding mirrors, adjust the aim of the lamps by folding the exterior mirrors into or away from the windows. For power-folding mirrors, use the switch on the driver-side door.

Note: The spot lamps turn off when you reach a speed of 6 mph (10 km/h).

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 97

Cargo and Trailer Hookup Lamps

(If Equipped)

The cargo lamps are in the central high mounted stop lamp, and to either side of the cargo box.

The trailer hookup lamp is on the tailgate next to the handle.

Pressing the button in the lighting control panel or the button in the cargo box near the

lamp turns on both of these lamps.

E190880

If you switch on the cargo lamps, the cargo and trailer hitch area illuminate.

Note: The cargo and trailer hookup lamps turn off when you reach a speed of 3 mph (5 km/h). They also turn off after 10 minutes, fading gradually to off.

INTERIOR LAMPS

The lamps turn on under the following conditions:

• You open any door.

• You press a remote control button.

Front Interior Lamps

Note: The front interior lamp switches are

on the overhead console. The exact location of each button on the overhead console depends upon your vehicle features.

Note: Press the button to switch the door function off when you open any door. When the door function is off and you open a door, the courtesy and door lamps stay off. The indicator lamp lights amber when the door function is off.

Note: Press the button again to switch the door function back on. When the door function is on and you open a door, the courtesy and door lamps turn on. The indicator lamp lights blue when the door function is on.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 98

Type One

E199032

C C

Door function.A. All lamps on.B. Map lamps.C.

Type Two

E192153

D D

All lamps on.A. Door function.B. All lamps off.C. Map lamps.D.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 99

Type Three

E201073

A D

Map lamp.A. Door function.B. All lamps off.C. Map lamp.D.

E187342

All lamps on.A. Door function.B.

Rear Interior Lamps (If Equipped)

Type One

E182517

Individual lamp.A. Individual lamp.B.

Type Two

E187343

Type Three

E187345

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting

Page 100

Press the button to switch the lamps on or off.

AMBIENT LIGHTING (If Equipped)

Adjust the ambient lighting using the touchscreen. See your SYNC information.

CARGO LAMPS

Press the button in the lighting control panel or in the rear cargo box to switch on the lamps.

E190880

The cargo lamps are in the following areas:

• Either side of the cargo box.

• Next to the tailgate handle.

Note: The cargo lamps turn off when you reach a speed of 3 mph (5 km/h). They also turn off after 10 minutes, fading gradually to off.

Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 201709, Second Printing

Lighting
