Ford Explorer Sport 2008 Owners Manual

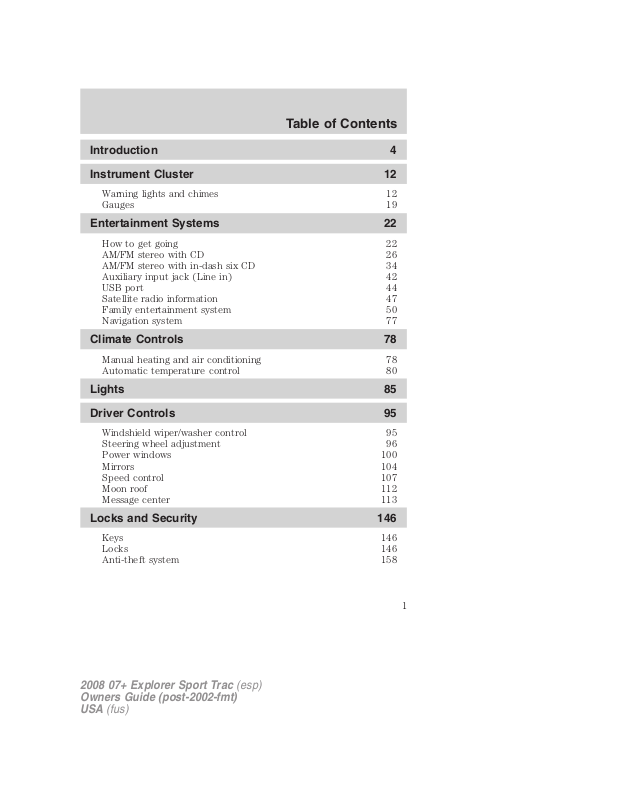

Table of Contents

Introduction 4

Instrument Cluster 12

Warning lights and chimes 12 Gauges 19

Entertainment Systems 22

How to get going 22 AM/FM stereo with CD 26 AM/FM stereo with in-dash six CD 34 Auxiliary input jack (Line in) 42 USB port 44 Satellite radio information 47 Family entertainment system 50 Navigation system 77

Climate Controls 78

Manual heating and air conditioning 78 Automatic temperature control 80

Lights 85

Driver Controls 95

Windshield wiper/washer control 95 Steering wheel adjustment 96 Power windows 100 Mirrors 104 Speed control 107 Moon roof 112 Message center 113

Locks and Security 146

Keys 146 Locks 146 Anti-theft system 158

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Seating and Safety Restraints 161

Seating 161 Safety restraints 168 Airbags 183 Child restraints 198

Tires, Wheels and Loading 212

Tire information 214 Tire inflation 217 Tire Pressure Monitoring System (TPMS) 229 Vehicle loading 234 Trailer towing 241 Recreational towing 247

Driving 248

Starting 248 Brakes 253 Traction Control™/AdvanceTrac威 256 Transmission operation 261

Roadside Emergencies 280

Getting roadside assistance 280 Hazard flasher switch 281 Fuel pump shut-off switch 282 Fuses and relays 283 Changing tires 290 Lug nut torque 298 Jump starting 299 Wrecker towing 304

Customer Assistance 305

Reporting safety defects (U.S. only) 311 Reporting safety defects (Canada only) 312

Cleaning 313

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Table of Contents

Maintenance and Specifications 321

Engine compartment 323 Engine oil 326 Battery 331 Engine coolant 333 Fuel information 340 Air filter(s) 353 Part numbers 354 Maintenance product specifications and capacities 355 Engine data 358

Accessories 361

Index 363

All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company. Ford may change the contents without notice and without incurring obligation.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

CALIFORNIA Proposition 65 Warning

WARNING: Engine exhaust, some of its constituents, and

certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

PERCHLORATE MATERIAL

Certain components of this vehicle such as airbag modules, seat belt pretensioners, and button cell batteries may contain Perchlorate Material – Special handling may apply for service or vehicle end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

CONGRATULATIONS

Congratulations on acquiring your new Ford. Please take the time to get well acquainted with your vehicle by reading this handbook. The more you know and understand about your vehicle, the greater the safety and pleasure you will derive from driving it.

For more information on Ford Motor Company and its products visit the following website:

• In the United States: www.ford.com

• In Canada: www.ford.ca

• In Australia: www.ford.com.au

• In Mexico: www.ford.com.mx

Additional owner information is given in separate publications. This Owner’s Guide describes every option and model variant available

and therefore some of the items covered may not apply to your particular vehicle. Furthermore, due to printing cycles it may describe options before they are generally available.

Remember to pass on this Owner’s Guide when reselling the vehicle. It is an integral part of the vehicle.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Fuel pump shut-off switch: In the event of an accident the

safety switch will automatically cut off the fuel supply to the engine. The switch can also be activated through sudden vibration (e.g. collision when parking). To reset the switch, refer to the Fuel pump shut-off switch in the Roadside Emergencies chapter.

SAFETY AND ENVIRONMENT PROTECTION

Warning symbols in this guide

How can you reduce the risk of personal injury to yourself or others? In this guide, answers to such questions are contained in comments highlighted by the warning triangle symbol. These comments should be read and observed.

Warning symbols on your vehicle

When you see this symbol, it is imperative that you consult the relevant section of this guide before touching or attempting adjustment of any kind.

Protecting the environment

We must all play our part in protecting the environment. Correct vehicle usage and the authorized disposal of waste, cleaning and lubrication materials are significant steps towards this aim. Information in this respect is highlighted in this guide with the tree symbol.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

BREAKING-IN YOUR VEHICLE

Your vehicle does not need an extensive break-in. Try not to drive continuously at the same speed for the first 1,000 miles (1,600 km) of new vehicle operation. Vary your speed frequently in order to give the moving parts a chance to break in.

Drive your new vehicle at least 500 miles (800 km) before towing a trailer. For more detailed information about towing a trailer, refer to Trailer towing in the Tires, Wheels and Loading chapter.

Do not add friction modifier compounds or special break-in oils since these additives may prevent piston ring seating. See Engine oil in the Maintenance and Specifications chapter for more information on oil usage.

SPECIAL NOTICES

New Vehicle Limited Warranty

For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Guide that is provided to you along with your Owner’s Guide.

Special instructions

For your added safety, your vehicle is fitted with sophisticated electronic controls.

Please read the section Airbag supplemental restraint system

(SRS) in the Seating and Safety Restraints chapter. Failure to follow the specific warnings and instructions could result in personal injury.

Front seat mounted rear-facing child or infant seats should

NEVER be placed in front of an active passenger airbag.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Service Data Recording

Service data recorders in your vehicle are capable of collecting and storing diagnostic information about your vehicle. This potentially includes information about the performance or status of various systems and modules in the vehicle, such as engine, throttle, steering or brake systems. In order to properly diagnose and service your vehicle, Ford Motor Company, Ford of Canada, and service and repair facilities may access vehicle diagnostic information through a direct connection to your vehicle when diagnosing or servicing your vehicle.

Event Data Recording

Other modules in your vehicle — event data recorders — are capable of collecting and storing data during a crash or near crash event. The recorded information may assist in the investigation of such an event. The modules may record information about both the vehicle and the occupants, potentially including information such as:

• how various systems in your vehicle were operating;

• whether or not the driver and passenger seatbelts were buckled;

• how far (if at all) the driver was depressing the accelerator and/or the

brake pedal;

• how fast the vehicle was traveling; and

• where the driver was positioning the steering wheel.

To access this information, special equipment must be directly connected to the recording modules. Ford Motor Company and Ford of Canada do not access event data recorder information without obtaining consent, unless pursuant to court order or where required by law enforcement, other government authorities or other third parties acting with lawful authority. Other parties may seek to access the information independently of Ford Motor Company and Ford of Canada.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Notice to owners of pickup trucks and utility type vehicles

Utility vehicles have a significantly higher rollover rate than

other types of vehicles.

Before you drive your vehicle, please read this Owner’s Guide carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury or death.

Using your vehicle with a snowplow

Do not use this vehicle for snowplowing.

Your vehicle is not equipped with a snowplowing package.

Using your vehicle as an ambulance

Do not use this vehicle as an ambulance.

Your vehicle is not equipped with the Ford Ambulance Preparation Package.

Cell phone use

The use of Mobile Communications Equipment has become increasingly important in the conduct of business and personal affairs. However, drivers must not compromise their own or others’ safety when using such equipment. Mobile Communications can enhance personal safety and security when appropriately used, particularly in emergency situations. Safety must be paramount when using mobile communications equipment to avoid negating these benefits.

Mobile Communication Equipment includes, but is not limited to cellular phones, pagers, portable email devices, in-vehicle communications systems, telematics devices and portable two-way radios.

Driving while distracted can result in loss of vehicle control,

accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The drivers primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

Export unique (Non–United States/Canada) vehicle specific information

For your particular global region, your vehicle may be equipped with features and options that are different from the ones that are described in this Owner’s Guide. A market unique supplement may be supplied that complements this book. By referring to the market unique supplement, if provided, you can properly identify those features, recommendations and specifications that are unique to your vehicle. This Owner’s Guide is written primarily for the U.S. and Canadian Markets. Features or equipment listed as standard may be different on units built for Export. Refer to this Owner’s Guide for all other required

information and warnings.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Introduction

These are some of the symbols you may see on your vehicle.

Vehicle Symbol Glossary

Safety Alert

Fasten Safety Belt Airbag - Front

Airbag - Side

Child Seat Tether Anchor

Anti-Lock Brake System Parking Brake System

Brake Fluid Non-Petroleum Based

Stability Control System Speed Control

Master Lighting Switch Hazard Warning Flasher

Fog Lamps-Front Fuse Compartment

See Owner’s Guide

Child Seat Lower Anchor

Brake System

Parking Aid System

Fuel Pump Reset Windshield Wash/Wipe

Windshield Defrost/Demist

Rear Window Defrost/Demist

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Vehicle Symbol Glossary

Introduction

Power Windows Front/Rear

Child Safety Door Lock/Unlock

Power Window Lockout

Interior Luggage Compartment Release

Panic Alarm Engine Oil

Engine Coolant

Engine Coolant Temperature

Do Not Open When Hot Battery

Avoid Smoking, Flames, or Sparks

Battery Acid

Explosive Gas Fan Warning

Power Steering Fluid

Maintain Correct Fluid Level

Service Engine Soon Engine Air Filter

MAX

MIN

Passenger Compartment Air Filter

Check Fuel Cap

Jack

Low Tire Pressure Warning

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

WARNING LIGHTS AND CHIMES

Standard instrument cluster

Optional instrument cluster

Warning lights and gauges can alert you to a vehicle condition that may become serious enough to cause expensive repairs. A warning light may illuminate when a problem exists with one of your vehicle’s functions. Many lights will illuminate when you start your vehicle to make sure the bulb works. If any light remains on after starting the vehicle, refer to the respective system warning light for additional information.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Note: Some Warning Lights will display in the Message Center as words and function the same as the warning light.

Note: Depending on which options your vehicle has, some indicators may not be present in your vehicle.

Service engine soon: The Service engine soon indicator light

illuminates when the ignition is first turned to the ON position to check the bulb and to indicate whether the vehicle is ready for Inspection/Maintenance (I/M) testing. Normally, the ⬙Service engine soon⬙ light will stay on until the engine is cranked, then turn itself off if no malfunctions are present. However, if after 15 seconds the ⬙Service engine soon⬙ light blinks eight times, it means that the vehicle is not ready for I/M testing. See the Readiness for Inspection/Maintenance (I/M) testing in the Maintenance and Specifications chapter.

Solid illumination after the engine is started indicates the On Board Diagnostics System (OBD-II) has detected a malfunction. Refer to On board diagnostics (OBD-II) in the Maintenance and Specifications chapter. If the light is blinking, engine misfire is occurring which could damage your catalytic converter. Drive in a moderate fashion (avoid heavy acceleration and deceleration) and have your vehicle serviced immediately by your authorized dealer.

If the light remains ON while driving, the temperature of the engine may be too high, refer to Engine coolant in the Maintenance and Specifications chapter.

Under engine misfire conditions, excessive exhaust temperatures

could damage the catalytic converter, the fuel system, interior floor coverings or other vehicle components, possibly causing a fire.

Powertrain malfunction indicator: Illuminates when a powertrain or a 4x4 fault has been detected. Contact your authorized dealer as soon as possible.

• Standard instrument cluster

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

• Optional instrument cluster

Brake system warning light: To confirm the brake system warning light is functional, it will momentarily illuminate when the ignition is turned to the ON position when the engine is not running, or in a position between ON and START, or by applying the parking brake when the ignition is turned to the ON position. If the brake system warning light does not illuminate at this time, seek service immediately from your authorized dealer. Illumination after releasing the parking brake indicates low brake fluid level and the brake system should be inspected immediately by your authorized dealer.

Driving a vehicle with the brake system warning light on is

dangerous. A significant decrease in braking performance may occur. It will take you longer to stop the vehicle. Have the vehicle checked by your authorized dealer. Driving extended distances with the parking brake engaged can cause brake failure and the risk of personal injury.

Anti-lock brake system: If the ABS light stays illuminated or continues to flash, a malfunction has been detected, have the system serviced immediately by your authorized dealer. Normal braking is still functional unless the brake warning light also is illuminated.

Airbag readiness: If this light fails to illuminate when the ignition is turned to ON, continues to flash or remains on, have the system serviced immediately by your authorized dealer. A chime will also sound when a malfunction in the supplemental restraint system has been detected.

BRAKE

ABS

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Safety belt: Reminds you to fasten your safety belt. A Belt-Minder威 chime will also sound to remind you to fasten your safety belt. Refer to the Seating and safety restraints chapter to activate/deactivate the Belt-Minder威 chime feature,

Charging system: Illuminates when the battery is not charging properly.

• Standard instrument cluster

• Optional instrument cluster

Engine oil pressure: Illuminates when the oil pressure falls below the normal range. Check the oil level and add oil if needed. Refer to Engine oil in the Maintenance and Specifications chapter.

If the light remains ON while driving, the temperature of the engine may be too high, refer to Engine coolant in the Maintenance and Specifications chapter.

Engine coolant temperature: Illuminates when the engine coolant temperature is high. Stop the vehicle as soon as possible, switch off the engine and let cool. Refer to Engine coolant in the Maintenance and Specifications chapter.

• Standard instrument cluster

• Optional instrument cluster

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Never remove the coolant reservoir cap while the engine is

running or hot.

Low tire pressure warning:

Illuminates when your tire pressure is low. If the light remains ON at start up or while driving, the tire pressure should be checked. Refer to Inflating Your Tires in the Tires, Wheels and Loading chapter. When the ignition is first turned to ON, the light will illuminate for 3 seconds to ensure the bulb is working. If the light does not turn ON, have the system inspected by your authorized dealer. For more information on this system, refer to Understanding Your Tire Pressure Monitoring System in the Tires, Wheels and Loading chapter.

Check fuel cap: Illuminates when the fuel cap may not be properly installed. Continued driving with this light on may cause the Service engine soon warning light to come on. Refer to Fuel filler cap in the Maintenance and Specifications chapter.

• Standard instrument cluster

• Optional instrument cluster

Speed control: Illuminates when the speed control is activated. Turns off when the speed control system is deactivated.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

O/D off: Illuminates when the overdrive function of the transmission has been turned off, refer to the Driving chapter.

AdvanceTrac威: Flashes when the AdvanceTrac威 with RSC system is active. Illuminates solid when the system has been disabled (by the driver or as a result of a system failure), refer to the Driving chapter for more information.

If “SERVICE RSC NOW” is displayed in the message center, refer to Message Center in the Driver Controls chapter for more information.

Four wheel drive low (if equipped): Illuminates when

four-wheel drive low is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer.

Four wheel drive high (if equipped): Illuminates when

four-wheel drive is engaged. If the light fails to illuminate when the ignition is turned ON, or remains on, have the system serviced immediately by your authorized dealer.

Door ajar: Illuminates when the ignition is in the ON position and any door is open.

O/D

OFF

4x4

LOW

4x4

Low fuel (if equipped):

Illuminates when the fuel level in the fuel tank is at or near empty (refer to Fuel gauge in this chapter).

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Low washer fluid (if equipped):

Illuminates when the windshield washer fluid is low.

Turn signal: Illuminates when the left or right turn signal or the hazard lights are turned on. If the indicators stay on or flash faster, check for a burned out bulb.

High beams: Illuminates when the high beam headlamps are turned on.

Key-in-ignition warning chime: Sounds when the key is left in the ignition in the OFF/LOCK or ACCESSORY position and the driver’s door is opened.

Headlamps on warning chime: Sounds when the headlamps or parking lamps are on, the ignition is off (the key is not in the ignition) and the driver’s door is opened.

Turn signal warning chime: Sounds when the turn signal lever has been activated to signal a turn and not turned off after the vehicle is driven more than 2 miles (3.2 km).

Parking brake ON warning chime: Sounds when the parking brake is set, the engine is running and the vehicle is driven more than 3 mph (5 km/h).

Message center activation chime: Sounds when the following warnings; DOOR AJAR, LOW FUEL LEVEL or LOW TIRE PRESSURE appear in the message center display for the first time.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

GAUGES

Speedometer: Indicates the current vehicle speed.

Engine coolant temperature gauge: Indicates engine coolant

temperature. At normal operating temperature, the needle will be in the normal range (between “H” and “C”). If it enters the red section, the engine is overheating, refer to

Engine coolant in the Maintenance and Specifications chapter. Stop the vehicle as soon as

safely possible, switch off the engine and let the engine cool.

Never remove the coolant reservoir cap while the engine is

running or hot.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Odometer: Registers the total miles (kilometers) of the vehicle.

• Standard instrument cluster

• Optional instrument cluster

Refer to Message center in the Driver Controls chapter on how to

switch the display from English to Metric.

Trip odometer: Registers the miles (kilometers) of individual journeys.

• Standard instrument cluster Press the SELECT/RESET control

once to switch from the odometer to the TRIP A feature. Press the control again to select the TRIP B feature. To reset the trip, press and hold the control again until the trip reading is 0.0 miles.

• Optional instrument cluster Press and release the message

center INFO button until TRIP A mode appears in the display. Press the control again to select the TRIP B feature. Press the RESET button to reset.

Note: Outside air temperature will only be displayed in the instrument cluster message center on vehicles with manual climate control.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Instrument Cluster

Tachometer: Indicates the engine speed in revolutions per minute. Driving with your tachometer pointer continuously at the top of the scale may damage the engine.

Fuel gauge: Indicates approximately how much fuel is left in the fuel tank (when the ignition is in the ON position). The fuel gauge may vary slightly when the vehicle is in motion or on a grade.

Refer to Filling the tank in the

Maintenance and Specifications

chapter for more information. The FUEL icon and arrow indicates which side of the vehicle the fuel

door is located.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AUDIO SYSTEMS Quick start — How to get going

Driving while distracted can result in loss of vehicle control,

Listening to the radio

1. If the audio system is off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AM/FM repeatedly to choose between AM/FM1/FM2 frequency bands.

3. Press up/down the frequency band.

/ to manually go

Press down/up the chosen frequency band

for the next strongest station. To disengage SEEK mode,

press

4. Once you are tuned to the desired station, press and hold a memory preset (1–6) to save the station. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six stations in each frequency band — six in AM, six in FM1 and six in FM2.

To access your saved stations, press the corresponding memory preset. The memory preset # and the station frequency will appear on the display.

SEEK to search

/ .

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Listening to satellite radio (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press AUX repeatedly to cycle through auxiliary audio sources. Select SAT1, SAT2 or SAT3 to listen to satellite radio.

3. Press access the previous or next satellite

channel. You may also seek by music

category. For further information, refer to CATEGORY listing under the MENU control on your specific audio system.

4. Once you are tuned to the desired channel, press and hold a memory preset (1–6) to save the channel. PRESET SAVED will appear on the display and the sound will return signifying the station has been saved. You can save up to six channels in each — six in SAT1, six in SAT2, and six in SAT3.

To access your saved channels, press the corresponding memory preset. The memory preset # and the channel name will appear on the display.

SEEK, SEEK to

Listening to a CD/MP3 (if equipped)

1. If the audio system is turned off, press VOL-PUSH to turn the radio on. Turn VOL-PUSH to adjust the volume.

Note: The system may take a few moments to turn on.

2. Press CD to enter CD mode. If a disc is already loaded into the system, CD play will begin where it ended last.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

For a single CD system, if a disc is not already loaded, insert only one, label side up into the CD slot. LOADING CD and READING DISC will appear in the display. The first track on the disc will begin playing.

For an in-dash six CD system, if a disc is not already loaded, press LOAD. Select a slot number using memory presets 1–6. When the display reads LOAD CD#, load the desired disc, label side up. If you do not choose a slot within 5 seconds, the system will choose for you. Once loaded, the first track will begin to play. To auto load up to 6 discs, press and hold LOAD until the display reads AUTOLOAD#. Load the desired disc, label side up. The system will prompt you to load discs for the remaining available slots. Insert the discs, one at a time, label side up, when prompted. Once loaded, the last loaded disc will begin to play.

Note: An MP3 disc with folders will show F001 (folder #) T001 (track #) in the display. An MP3 disc without folders will show T001 (track#) in the display. Refer to MP3 folder structure later in this chapter for further information.

3. In CD/MP3 mode, you can access the following features:

Press access the previous/next tracks.

SEEK, SEEK to

Press and hold REW to manually reverse in a CD/MP3 track.

Press and hold FF to manually advance in a CD/MP3 track.

While in folder mode, press FOLDER to access the previous folder on MP3 discs, if available.

While in folder mode, press FOLDER folder on MP3 discs, if available.

to access the next

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

Press SHUFFLE to engage shuffle mode. SHUFFLE ON will appear in the display. If you wish to engage shuffle mode right away, press SEEK to begin random play. Otherwise, random play will begin when the current track is finished playing. CD SHUF will appear in the display. To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the display.

Note: In track mode, all tracks on the current disc will shuffle in random order. In MP3 folder mode, the system will randomly play all tracks within the current folder.

Press CD/MP3 is playing to pause the disc.

CD PAUSE will appear in the display. Press again to resume play.

4. For a single cd system, press The display will read CD EJECT.

For an in-dash six CD system,

press number using memory presets 1–6. When ready, the system will eject the disc and the display will read REMOVE CD. If the disc is not removed in 15 seconds, the system will reload the disc. To auto eject up to 6 discs, press and hold begins ejecting all loaded discs. If the discs are not removed, the system will reload the discs.

/ (play/pause) when a

to eject the current disc.

. Select the correct slot

until the system

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

AM/FM Single CD/MP3 satellite compatible sound system (if equipped)

Driving while distracted can result in loss of vehicle control,

Accessory delay: Your vehicle is equipped with accessory delay. With this feature, the window switches, radio and moon roof (if equipped) may be used for up to ten minutes after the ignition is turned off or until either front door is opened.

/ (Tuner): Press to

1. manually go up or down the radio

frequency. Also use in menu mode to select various settings.

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

In satellite radio mode (if equipped), press / to tune to the next/previous channel. In CATEGORY MODE, press available SIRIUS channel Categories (Pop, Rock, News, etc.). Refer to

Category Mode under Menu for further information. Satellite radio is available only with a valid SIRIUS subscription. Check with your authorized dealer for availability.

(Phone): If your vehicle is equipped with SYNC (late availability), press to access SYNC PHONE features. Refer to the SYNC supplement for further information. If your vehicle is not equipped with SYNC, the display will read NO PHONE.

3. MENU: Press repeatedly to access the following settings:

SATELLITE RADIO MENU (if equipped): Press MENU when satellite radio mode is active to access. Press OK to enter into the satellite radio

menu. Press

• CATEGORY: Press OK to enter category mode. Press / to

scroll through the list of available SIRIUS channel Categories (Pop, Rock, News, etc.) Press OK when the desired category appears in the display. After a category is selected, press SEEK to search for that specific category of channels only (i.e. ROCK). You may also select CATEGORY ALL to seek all available SIRIUS categories and channels. Press OK to close and return to the main menu.

• SAVE SONG: Press OK to save the currently playing song’s title in

the system’s memory. (If you try to save something other than a song, CANT SAVE will appear in the display.) When the chosen song is playing on any satellite radio channel, the system will alert you with an audible prompt. Press OK while SONG ALERT is in the display and the system will take you to the channel playing the desired song. You can save up to 20 song titles. If you attempt to save more than 20 titles, the display will read REPLACE SONG? Press OK to access the

saved titles and press the song appears in the display that you would like to replace, press

OK. SONG REPLACED will appear in the display.

/ to cycle through the following options:

/ to scroll through the list of

/ to cycle through the saved titles. When

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

• DELETE SONG: Press OK to delete a song from the system’s

memory. Press song appears in the display that you would like to delete, press OK.

The song will appear in the display for confirmation. Press OK again and the display will read SONG DELETED. If you do not want to

delete the currently listed song, press RETURN or CANCEL.

Note: If there are no songs presently saved, the display will read NO SONGS.

• DELETE ALL SONGS: Press OK to delete all songs from the

system’s memory. The display will read ARE YOU SURE ? Press OK to confirm deletion of all saved songs and the display will read ALL DELETED. Note: If there are no songs presently saved, the display will read NO SONGS.

• ENABLE ALERTS / DISABLE ALERTS: Press OK to enable/disable

the satellite alert status which alerts you when your selected songs are playing on a satellite radio channel. (The system default is disabled.) SONG ALERTS ENABLED/DISABLED will appear in the display. The menu listing will display the opposite state. For example, if you have chosen to enable the song alerts, the menu listing will read DISABLE as the alerts are currently on, so your other option is to turn them off.

Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

Setting the clock: Press MENU until SET HOURS or SET MINUTES is displayed. Use to disengage clock mode. Press OK to close and return to the main

menu. AUTOSET: Press MENU until the display reads AUTOSET. Autoset

allows you to set the strongest local radio stations without losing your original manually set preset stations for AM/FM1/FM2. Use turn on/off.

When the six strongest stations are filled, the station stored in preset 1 will begin playing. If there are less than six strong stations, the system will store the last one in the remaining presets. Press OK to close and return to the main menu.

RBDS: Available only in FM mode. This feature allows you to search RBDS-equipped stations for a certain category of music format: CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.

/ to cycle through the saved songs. When the

/ to select either

/ to manually increase/decrease. Press MENU again

/ to

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

To activate, press MENU repeatedly until RBDS (ON/OFF) appears in the display. Use RBDS is OFF, you will not be able to search for RBDS equipped stations

or view the station name or type. Press OK to close and return to the main menu.

To search for specific RBDS music categories: When the desired category appears in the display, press

then press and release begin the search.

To view the station name or type: When the desired category appears in the display, press TEXT/SCAN to toggle between displaying the station type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYT, etc.).

BASS: Press MENU to reach the bass setting. Use Press OK to close and return to the main menu.

TREB (Treble): Press MENU to reach the treble setting. Use adjust. Press OK to close and return to the main menu. Press OK to

close and return to the main menu.

BAL (Balance): Press MENU to reach the balance setting. Use to adjust the audio between the left (L) and right (R) speakers. Press

OK to close and return to the main menu.

FADE: Press MENU to reach the fade setting. Use audio between the back (B) and front (F) speakers. Press OK to close

and return to the main menu. SPEED VOL (Speed sensitive volume, if equipped): Press MENU to

reach the SPEEDVOL setting. Radio volume automatically gets louder with increasing vehicle speed to compensate for road and wind noise.

Use

The default setting is off; increasing your vehicle speed will not change the volume level.

Adjust 1–7: Increasing this setting from 1 (lowest setting) to 7 (highest setting) allows the radio volume to automatically change slightly with vehicle speed to compensate for road and wind noise.

Recommended level is 1–3; SPEED OFF turns the feature off and level 7 is the maximum setting.

/ to adjust. Press OK to close and return to the main menu.

/ / SEEK to toggle RBDS ON/OFF. When

/ to find the desired type,

SEEK, SEEK or press and hold SCAN to

/ to adjust.

/ to

/ to adjust the

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

Entertainment Systems

TRACK/FOLDER MODE: Available only on MP3 discs in CD mode. In track mode, press the disc In folder mode, press within the selected folder. Press available).

Press OK to close and return to the main menu. COMPRESS (Compression): Available only in CD/MP3 mode. Press MENU until COMPRESS ON/OFF appears in the display. Use

system will bring the soft and loud CD passages together for a more consistent listening level. Press OK to close and return to the main menu.

SINGLE PLAY/DUAL PLAY (if equipped): If SINGLE PLAY is ON, press Play/Dual Play, please refer to the Family Entertainment DVD system

later in this chapter.

4. AUX: Press repeatedly to cycle through FES/DVD (if equipped), LINE IN (auxiliary audio mode), SYNC (late availability - if equipped) and SAT1, SAT2 and SAT3 modes (satellite radio, if equipped). For location and further information on auxiliary audio mode, refer to

Auxiliary input jack later in this chapter. Satellite radio is available only with a valid SIRIUS radio subscription. Check with your authorized dealer for availability.

If your vehicle is equipped with a Family Entertainment System (FES) please refer to the Family Entertainment DVD system later in this chapter.

If your vehicle is equipped with SYNC, please refer to the SYNC supplement for further information.

5. SEEK: In radio mode, press

previous/next strong station.

In CD mode, press access the previous/next CD track.

In satellite radio mode (if equipped), press seek to the previous/next channel. If a specific category is selected,

FOLDER, FOLDER to access the previous/next folder (if

SEEK, SEEK to toggle ON/OFF. When COMPRESS is ON, the

/ for DUAL PLAY. For further information on Single

/ to access the

SEEK, SEEK to scroll through all tracks on

SEEK, SEEK to scroll through tracks

/ /

/ to

SEEK, SEEK to

2008 07+ Explorer Sport Trac (esp) Owners Guide (post-2002-fmt) USA (fus)

+ 338 hidden pages
