Ford C-Max 2011 User Manual

Feel the difference

FordC-MAX Owner's handbook

The information contained in this publication was correct at the time of going to print. In the interest of development the right is reserved to change specifications, design or equipment at any time without notice and without incurring any obligations. This publication, or part thereof, may not be reproduced nor translated without our approval. Errors and omissions excepted.

Part number: (CG3567en) 09/2010 20100924084019

E108837

Introduction

About this handbook................................7

Symbols glossary.......................................7

Parts and accessories..............................7

Quick start

Quick start.................................................10

Child safety

Child seats................................................18

Booster cushions.....................................19

Child seat positioning.............................20

ISOFIX anchor points..............................23

Child safety locks....................................25

Occupant protection

Principle of operation..............................27

Fastening the seat belts........................29

Seat belt height adjustment..................32

Seat belt reminder..................................32

Using seat belts during pregnancy......32

Disabling the passenger airbag............33

Keys and remote controls

General information on radio

frequencies..........................................35

Programming the remote control........35

Changing the remote control

battery...................................................35

Locks

Locking and unlocking...........................38

Keyless entry...........................................42

Global opening and closing...................44

Engine immobiliser

Principle of operation..............................46

Coded keys.............................................46

Arming the engine immobiliser.............46

Disarming the engine immobiliser........46

Alarm

Principle of operation..............................47

Arming the alarm.....................................48

Disarming the alarm................................49

Steering wheel

Adjusting the steering wheel.................50

Audio control...........................................50

Voice control.............................................51

Wipers and washers

Windscreen wipers.................................52

Autowipers...............................................52

Windscreen washers.............................53

Rear window wiper and washers.........53

Adjusting the windscreen washer

jets.........................................................54

Headlamp washers................................54

Checking the wiper blades...................55

Changing the wiper blades...................55

Technical specifications.........................56

Lighting

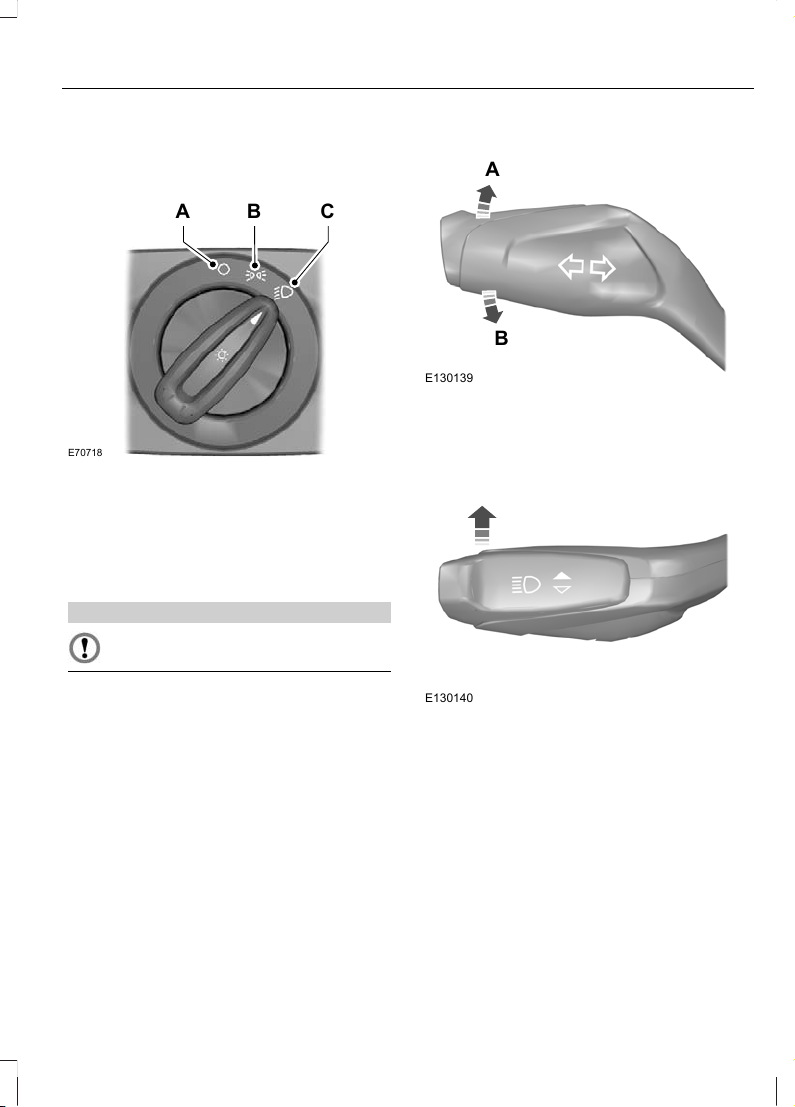

Lighting control........................................57

Autolamps................................................58

Front fog lamps.......................................58

Rear fog lamps........................................58

Headlamp levelling..................................59

Hazard warning flashers........................59

Direction indicators.................................60

Cornering lamps......................................60

Interior lamps............................................61

Removing a headlamp............................61

Changing a bulb......................................62

Bulb specification chart..........................69

Windows and mirrors

Electric windows......................................71

Exterior mirrors........................................72

Table of contents

Electric exterior mirrors..........................73

Auto-dimming mirror..............................74

Blind spot monitor...................................74

Instruments

Gauges......................................................77

Warning lamps and indicators...............79

Audible warnings and indicators...........81

Information displays

General information................................83

Trip computer..........................................89

Personalised settings.............................89

Information messages...........................90

Climate control

Principle of operation............................100

Air vents..................................................100

Manual climate control..........................101

Automatic climate control....................103

Heated windows and mirrors..............106

Auxiliary heater.......................................106

Seats

Sitting in the correct position...............109

Manual seats..........................................109

Head restraints.......................................110

Electric seats...........................................111

Rear seats...............................................112

Heated seats..........................................121

Convenience features

Sun blinds...............................................122

Instrument lighting dimmer..................123

Clock.......................................................123

Cigar lighter............................................123

Auxiliary power sockets.......................124

Cup holders............................................125

Storage compartments........................125

Glasses holder.......................................126

Childminder mirror.................................126

Auxiliary input (AUX IN) socket............127

USB port..................................................127

Satellite navigation unit holder.............128

Floor mats...............................................128

Starting the engine

General information..............................129

Ignition switch........................................129

Steering wheel lock...............................129

Starting a petrol engine........................130

Starting a diesel engine.........................131

Keyless starting......................................131

Diesel particulate filter (DPF)................133

Switching off the engine.......................133

Fuel and refuelling

Safety precautions................................134

Fuel quality - Petrol................................134

Fuel quality - Diesel...............................134

Catalytic converter................................134

Fuel filler flap...........................................135

Refuelling................................................136

Fuel consumption..................................136

Technical specifications........................136

Transmission

Manual transmission.............................139

Automatic transmission........................139

Brakes

Principle of operation............................142

Hints on driving with ABS.....................142

Parking brake.........................................142

Stability control

Principle of operation............................143

Using stability control............................143

Table of contents

Hill start assist

Principle of operation............................145

Using hill start assist..............................145

Parking aid

Principle of operation............................147

Using the parking aid - Vehicles With:

Rear Parking Aid.................................147

Using the parking aid - Vehicles With:

Front and Rear Parking Aid..............148

Active park assist

Principle of operation.............................151

Using active park assist.........................151

Rear view camera

Principle of operation............................154

Using the rear view camera.................154

Cruise control

Principle of operation............................157

Using cruise control...............................157

Speed limiter

Principle of operation............................159

Using the speed limiter.........................159

Load carrying

General information..............................160

Luggage anchor points.........................161

Luggage covers....................................162

Rear under floor storage......................162

Cargo nets..............................................162

Roof racks and load carriers...............164

Towing

Towing a trailer.......................................167

Retractable tow ball..............................167

Driving hints

Running-in................................................171

Cold weather precautions....................171

Driving through water............................171

Emergency equipment

First aid kit...............................................172

Warning triangle.....................................172

Emergency exit......................................172

Fuses

Fuse box locations................................173

Changing a fuse.....................................173

Fuse specification chart........................174

Vehicle recovery

Towing points.........................................182

Towing the vehicle on four wheels.....182

Maintenance

General information..............................184

Opening and closing the bonnet........184

Engine compartment overview - 1.6L

Duratec-16V (Sigma)/1.6L

Duratec-16V Ti-VCT (Sigma)............186

Engine compartment overview - 1.6L

Duratorq-TDCi (DV) Diesel................187

Engine compartment overview - 2.0L

Duratorq-TDCi (DW) Diesel..............188

Engine oil dipstick - 1.6L Duratec-16V

Ti-VCT (Sigma)...................................189

Engine oil dipstick - 1.6L Duratorq-TDCi

(DV) Diesel/2.0L Duratorq-TDCi (DW)

Diesel...................................................189

Engine oil check.....................................190

Engine coolant check...........................190

Brake and clutch fluid check................191

Washer fluid check.................................191

Technical specifications........................192

Table of contents

Vehicle care

Cleaning the exterior............................194

Cleaning the interior..............................194

Repairing minor paint damage............195

Vehicle battery

Using booster cables............................196

Battery connection points....................197

Wheels and tyres

General information..............................198

Changing a road wheel........................198

Tyre repair kit.........................................203

Tyre care................................................206

Using winter tyres.................................207

Using snow chains................................207

Tyre pressure monitoring system......207

Technical specifications.......................208

Vehicle identification

Vehicle identification plate....................213

Vehicle identification number (VIN).....213

Technical specifications

Technical specifications........................214

Navigation introduction

General information..............................218

Road Safety............................................218

Navigation Quick start

Navigation Quick start..........................220

Navigation unit overview

Navigation unit overview.....................223

Loading the navigation data...............228

System settings

System settings....................................229

Navigation system

Route options menu............................232

Route displays.......................................233

Traffic Message Channel

Principle of operation...........................234

Using TMC.............................................234

Map updates

Map updates.........................................235

Audio introduction

Important audio information...............236

Audio unit overview

Audio unit overview..............................237

Audio system security

Security code........................................243

Audio unit operation

On/off control........................................244

Sound button........................................244

Waveband button.................................244

Station tuning control...........................244

Station preset buttons.........................245

Autostore control..................................245

Traffic information control....................245

Audio unit menus

Automatic volume control...................247

Digital signal processing (DSP)...........247

News broadcasts.................................247

Alternative frequencies........................247

Regional mode (REG)..........................248

Compact disc player

Compact disc playback.......................249

Track selection......................................249

Table of contents

Fast forward/reverse...........................249

Shuffle/random.....................................249

Repeat compact disc tracks..............249

Compact disc track scanning............250

MP3 file playback..................................250

MP3 display options.............................252

Ending compact disc playback..........252

Auxiliary input (AUX IN)

socket

Auxiliary input (AUX IN) socket...........253

Audio troubleshooting

Audio troubleshooting.........................254

Telephone

General information..............................255

Bluetooth setup....................................255

Telephone setup...................................255

Telephone controls..............................256

Using the telephone.............................257

Voice control

Principle of operation...........................259

Using voice control...............................259

Audio unit commands.........................260

Telephone commands.........................267

Climate control commands................272

Connectivity

General information..............................275

Connecting an external device..........276

Connecting an external device -

Vehicles With: Bluetooth..................276

Using a USB device..............................277

Using an iPod.........................................278

Appendices

Type approvals......................................280

Type approvals......................................281

Electromagnetic compatibility.............281

Table of contents

ABOUT THIS HANDBOOK

Thank you for choosing Ford. We recommend that you take some time to get to know your vehicle by reading this handbook. The more that you know about it, the greater the safety and pleasure you will get from driving it.

WARNING

Always drive with due care and attention when using and operating the controls and features on your

vehicle.

Note:

This handbook describes product features and options available throughout the range, sometimes even before they are generally available. It may describe options not fitted to your vehicle.

Note:

Always use and operate your vehicle in line with all applicable laws and regulations.

Note:

Pass on this handbook when selling your vehicle. It is an integral part of the vehicle.

SYMBOLS GLOSSARY

Symbols in this handbook

WARNING

You risk death or serious injury to yourself and others if you do not follow the instructions highlighted

by the warning symbol.

CAUTION

You risk damaging your vehicle if you do not follow the instructions highlighted by the caution symbol.

Symbols on your vehicle

When you see these symbols, read and follow the relevant instructions in this handbook before touching or attempting adjustment of any kind.

PARTS AND ACCESSORIES

Now you can be sure that your Ford parts are Ford parts

Your Ford has been built to the highest standards using high quality Ford Original Parts. As a result, you can enjoy driving it for many years.

Should the unexpected occur and a major part needs replacing, we recommend that you accept nothing less than Ford Original Parts.

The use of Ford Original Parts ensures that your vehicle is repaired to its pre-accident condition and maintains its maximum residual value.

Ford Original Parts match Ford's stringent safety requirements and high standards of fit, finish and reliability. Quite simply, they represent the best overall repair value, including parts and labour costs.

Now it is easier to tell if you have really been given Ford Original Parts. The Ford logo is clearly visible on the following parts if they are Ford Original Parts. If your vehicle has to be repaired, look for the clearly visible Ford branding and make sure that only Ford Original Parts have been used.

Introduction

Look for the Ford logo on the following parts

Sheet metal

•

Bonnet

•

Wings

•

Doors

•

Luggage compartment lid or tailgate

E130165

Bumper and radiator grille

•

Radiator grille

•

Front and rear bumper

E130166

Exterior mirror

E130167

Glass

•

Rear window

•

Side glass

•

Windscreen

Introduction

E130168

Lighting

•

Rear lamps

•

Headlamp

E130169

Introduction

QUICK START

Instrument panel overview

Left-hand drive

H IGFEDCBA

W V U T S R P O

LM JK

Quick start

Right-hand drive

E130099

HI G B DC FE

RT SUVK

N MOJ

Air vents. See Air vents (page 100).

Direction indicators. See Direction indicators (page 60). Main beam. See Lighting control (page 57).

Information display control (all vehicles except right-hand drive vehicles with voice control). See Information displays (page 83).

Information and entertainment display control (right-hand drive vehicles with voice control only).

Instrument cluster. See Gauges (page 77). See Warning lamps and indicators (page 79).

Audio control (all vehicles without voice control). See Information displays (page 83).

Quick start

Information and entertainment display control (left-hand drive vehicles with voice control only). See Audio control (page 50).

Information display control (right-hand drive vehicles with voice control only). See Information displays (page 83).

Wiper lever. See Wipers and washers (page 52).

Information and entertainment display.G

Audio unit. See Audio unit overview (page 237).

Door lock button. See Locking and unlocking (page 38).

Hazard warning flasher switch. See Hazard warning flashers (page 59).

Power liftgate switch. See Locking and unlocking (page 38).

Parking aid switch. See Parking aid (page 147).

Active park assist switch. See Active park assist (page 151).

Heated rear window switch. See Heated windows and mirrors (page

106).

Heated windscreen switch. See Heated windows and mirrors (page

106).

Climate controls. See Climate control (page 100).

Start button. See Keyless starting (page 131).

Ignition switch. See Ignition switch (page 129).

Audio control. See Audio control (page 50). Voice control. See Voice control (page 51).

Steering wheel adjustment. See Adjusting the steering wheel (page 50).

Horn.U

Cruise control switches. See Cruise control (page 157). Speed limiter switches. See Speed limiter (page 159).

Lighting control. See Lighting control (page 57). Front fog lamps. See Front fog lamps (page 58). Rear fog lamp. See Rear fog lamps (page

58). Headlamp levelling control. See Headlamp levelling (page 59). Instrument lighting dimmer. See Instrument lighting dimmer (page 123).

Power liftgate

WARNINGS

Do not operate the luggage compartment lid unless it is free from obstruction.

WARNINGS

Careless opening and closing of the luggage compartment lid can override the protection function and

cause injuries.

Quick start

The luggage compartment lid can be operated using the remote control, the centre console switch, the luggage compartment lid switch or the luggage compartment lid release handle.

See Locking and unlocking (page

38).

Keyless entry

E78276

Passive locking and unlocking requires a valid passive key to be located within one of the three external detection ranges.

Unlocking the vehicle

E87384

Open any door.

Note:

A valid passive key must be located within the detection range of that door.

One long flash of the direction indicators confirms that all the doors and the luggage compartment lid have been unlocked and that the alarm has been disarmed.

Locking the vehicle

E87384

Touch a front door handle lock sensor to lock the vehicle.

See Keyless entry (page 42).

Adjusting the steering wheel

WARNING

Never adjust the steering wheel when the vehicle is moving.

E95178

Quick start

E95179

See Adjusting the steering wheel (page 50).

Autowipers

E128445

High sensitivityA

O nB

Low sensitivityC

Autolamps

E70719

The headlamps will come on and go off automatically depending on the ambient light.

See Autolamps (page 58).

Electric windows

Note:

To reduce wind noise or buffeting when just one window is open, open the opposite window slightly.

See Electric windows (page 71).

Electric folding mirrors

E72623

Quick start

See Electric exterior mirrors (page

73).

Information displays

E130248

Use the arrow buttons to navigate through the menus and press OK to make a selection.

See General information (page 83).

Manual climate control

Heating the interior quickly

E129884

Cooling the interior quickly

E129887

Defrosting and demisting the windscreen

E129888

See Manual climate control (page

101).

Automatic climate control

E91391

See Automatic climate control (page 103).

Keyless starting

E85766

Press the start button.

Quick start

Stopping the engine when the vehicle is moving

WARNING

Switching off the engine when the vehicle is still moving will result in a

loss of brake and steering assistance. The steering will not be locked, but higher effort will be required. When the ignition is switched off some electrical circuits, warning lamps and indicators may also be OFF.

Press and hold the start button for two seconds, or press three times within three seconds.

Press the start button.

See Keyless starting (page 131).

Diesel particulate filter (DPF)

WARNING

Do not park or idle your vehicle over

dry leaves, dry grass or other

combustible materials. The DPF regeneration process creates very high exhaust gas temperatures and the exhaust will radiate a considerable amount of heat during and after DPF regeneration, and after you have switched the engine off. This is a potential fire hazard.

See Diesel particulate filter (DPF) (page 133).

Fuel filler flap

E86613

Press the flap to open it. Open the flap fully until it engages.

E119080

Insert the fuel nozzle up to and including the first notch on the nozzle. Keep it resting on the cover of the fuel pipe opening.

WARNING

We recommend that you wait at least 10 seconds before removing the fuel nozzle to allow any residual

fuel to drain into the fuel tank.

Quick start

E119081

Slightly raise the fuel nozzle to remove it.

See Fuel filler flap (page 135).

Manual transmission

Selecting reverse gear

E99067

On some vehicles it is necessary to raise the collar whilst selecting reverse gear.

See Manual transmission (page 139).

Automatic transmission

WARNING

Apply the brakes before moving the selector lever and keep them applied until you are ready to move

off.

E80836

ParkP

ReverseR

NeutralN

DriveD

Sport mode and manual shiftingS

See Automatic transmission (page

139).

Speed limiter

The system allows you to set a speed, to which the vehicle then becomes limited.

See Speed limiter (page 159).

Towing the vehicle on four wheels

CAUTION

For certain engine and transmission combinations, it is recommended not to tow the vehicle with the drive

wheels on the ground.

See Towing the vehicle on four wheels (page 182).

Quick start

CHILD SEATS

E68916

WARNINGS

Secure children that are less than

150 centimetres tall or less than 12

years of age in a suitable, approved child restraint, in the rear seat.

Original text according to ECE

R94.01: Extreme Hazard! Do not use

a rearward facing child restraint on a seat protected by an air bag in front of it!

Read and follow the manufacturer’s

instructions when you are fitting a

child restraint.

Do not modify child restraints in any

way.

Do not hold a child on your lap when

the vehicle is moving.

Do not leave unattended children in

your vehicle.

If your vehicle has been involved in

an accident, have the child restraints

checked by properly trained technicians.

Note:

Mandatory use of child restraints

varies from country to country.

Only child restraints certified to ECE-R44.03 (or later) have been tested and approved for use in your vehicle. A choice of these are available from your Dealer.

Child restraints for different mass groups

Use the correct child restraint as follows:

Baby safety seat

E68918

Secure children that weigh less than 13 kilograms in a rearward facing baby safety seat (Group 0+) in the rear seat.

Child safety

Child safety seat

E68920

Secure children that weigh between 13 and 18 kilograms in a child safety seat (Group 1) in the rear seat.

BOOSTER CUSHIONS

WARNINGS

Do not install a booster seat or a booster cushion with only the lap strap of the seat belt.

Do not install a booster seat or a booster cushion with a seat belt that is slack or twisted.

Do not put the seat belt under your child’s arm or behind its back.

Do not use pillows, books or towels to boost your child’s height.

Make sure that your children sit in an upright position.

Secure children that weigh more than 15 kilograms but are less than 150 centimetres tall in a booster

seat or a booster cushion.

CAUTION

When using a child seat on a rear seat, make sure that the child seat rests tightly against the vehicle seat.

It may be necessary to lift or remove the head restraint. See Head restraints (page 110).

Booster seat (Group 2)

E70710

We recommend that you use a booster seat that combines a cushion with a backrest instead of a booster cushion only. The raised seating position will allow you to position the shoulder strap of the adult seat belt over the centre of your child’s shoulder and the lap strap tightly across its hips.

Child safety

Booster cushion (Group 3)

E68924

CHILD SEAT POSITIONING

WARNINGS

Please consult your Dealer for the

latest details relating to Ford

recommended child seats.

Original text according to ECE

R94.01: Extreme Hazard! Do not use

a rearward facing child restraint on a seat protected by an air bag in front of it!

WARNINGS

When you are using a child restraint with a support leg on a second row

seat, make sure that you locate the support leg securely on the under floor storage compartment lid. Make sure that you install the foam spacer correctly inside the storage compartment and that you position the lid correctly.

When using a child seat with a seat

belt, make sure that the seat belt is

not slack or twisted.

CAUTION

The child seat must rest tightly against the vehicle seat. It may be necessary to lift or remove the head

restraint. See Head restraints (page

110).

Note:

Always adjust the front passenger seat to its fully rearwards position. If it proves difficult to tighten the lap section of the seat belt without slack remaining, adjust the seatback to the fully upright position and raise the height of the seat. See Seats (page 109).

Child seat positions

Mass group categories

Seating positions

IIIIII0+0

22 - 36 kg15 - 25 kg9 - 18 kg

Up to 13

Up to 10

Booster seat or

cushion

Child

safety

seat

Baby safety seat

UF¹UF¹UF¹XX

Front passenger seat with airbag ON

Child safety

Mass group categories

Seating positions

IIIIII0+0

22 - 36 kg15 - 25 kg9 - 18 kg

Up to 13

Up to 10

Booster seat or

cushion

Child

safety

seat

Baby safety seat

U¹U¹U¹U¹U¹

Front passenger seat with airbag OFF

UUUUU

Second row seats Grand C-MAX

UUUUU

Second row seats - CMAX

UUUUU

Third row seats - Grand C-MAX

X Not suitable for children in this mass group.

U Suitable for universal category child seats approved for use in this mass group.

U¹ Suitable for universal category child seats approved for use in this mass group.

However, we recommend that you secure children in a government approved child seat, in the rear seat.

UF¹ Suitable for universal category forward facing child seats approved for use in this mass group. However, we recommend that you secure children in a government approved child seat, in the rear seat.

ISOFIX child seats

Mass group categories

Seating positions

10+

Forward facingRear facing

9 - 18 kgUp to 13 kg

Vehicle seating position not ISOFIX equipped

Size classFront seat

Seat type

A, B, B1, C, D

C, D, E

Size class

Second row outboard seat ISOFIX - Grand C-MAX

IL**, IUF

***

Seat type

Child safety

Mass group categories

Seating positions

10+

Forward facingRear facing

9 - 18 kgUp to 13 kg

A, B, B1, D

D, E

Size class

Second row outboard seat ISOFIX - C-MAX

IL**, IUF

***

Seat type

Vehicle seating position not ISOFIX equipped

Size classSecond row centre seat

Seat type

Vehicle seating position not ISOFIX equipped

Size classThird row seat ISOFIX -

Grand C-MAX

Seat type

IL Suitable for particular ISOFIX child restraints systems of the semi-universal category. Please consult child restraints systems suppliers' vehicle recommendation lists.

IUF Suitable for ISOFIX forward facing child restraints systems of universal category approved for use in this mass group and ISOFIX size class.

The ISOFIX size class for both universal and semi-universal child restraints systems

is defined by the capital letters A to G. These identification letters are displayed on ISOFIX child restraints.

At time of publishing the recommended Group O+ ISOFIX baby safety seat is the Britax Romer Baby Safe. Please consult your Dealer for the latest details relating to Ford recommended child seats.

***

At time of publishing the recommended Group 1 ISOFIX child seat is the Britax Romer Duo. Please consult your Dealer for the latest details relating to Ford recommended child seats.

Child safety

ISOFIX ANCHOR POINTS

WARNING

Use an anti-rotation device when using the ISOFIX system. We recommend the use of a top tether

or support leg.

Note:

When you are purchasing an ISOFIX restraint, make sure that you know the correct mass group and ISOFIX size class for the intended seating locations. See Child seat positioning (page 20).

Your vehicle is fitted with ISOFIX anchor points that accommodate universally approved ISOFIX child restraints.

The ISOFIX system comprises two rigid attachment arms on the child restraint that attach to anchor points on the outboard rear seats, where the cushion and backrest meet. Tether anchor points are fitted behind the outboard rear seats for child restraints with a top tether.

Top tether anchor points - All vehicles

E133892

Child safety

Top tether anchor points - CMAX

E132100

Top tether anchor points Grand C-MAX

E130125

Attaching a child seat with top tethers

WARNINGS

If your vehicle is equipped with the comfort seat system, install the

ISOFIX seat only when the outboard seat is in the forward position. After installing the ISOFIX seat, do not move the seat to the comfort position as it could interfere with the tether strap routing.

Do not attach a tether strap to

anything other than the correct

tether anchor point.

Note:

Where applicable, remove the

luggage cover to ease installation. See

Luggage covers (page 162).

WARNING

Make sure that the top tether strap

is not slack or twisted and is

properly located on the anchor point.

1. Route the tether strap to the anchor

point.

E75531

2. Push the child seat back firmly to

engage the ISOFIX lower anchor points.

Child safety

3. Tighten the tether strap in line with the child seat manufacturer's instructions.

CHILD SAFETY LOCKS

WARNING

You cannot open the doors from inside if you have put the child safety locks on.

Manual child safety locks

Note:

On vehicles with keyless entry, use

the spare key. See Keyless entry (page

42).

C-MAX

E112197

Grand C-MAX

E130124

Left-hand side

Turn anti-clockwise to lock and clockwise to unlock.

Right-hand side

Turn clockwise to lock and anti-clockwise to unlock.

Electric child safety locks

Note:

Pressing the switch will also disable

the rear electric window switches.

Child safety

E124779

Child safety

PRINCIPLE OF OPERATION

Airbags

WARNINGS

Do not modify the front of your vehicle in any way. This could adversely affect deployment of the

airbags.

Original text according to ECE R94.01: Extreme Hazard! Do not use

a rearward facing child restraint on a seat protected by an airbag in front of it!

Wear a seat belt and keep sufficient

distance between yourself and the

steering wheel. Only when you use the seat belt properly, can it hold you in a position that allows the airbag to achieve its optimum effect. See Sitting in the correct position (page 109).

Have repairs to the steering wheel,

steering column, seats, airbags and

seat belts carried out by a properly trained technician.

Keep the areas in front of the

airbags free from obstruction. Do

not affix anything to or over the airbag covers.

Do not poke sharp objects into

areas where airbags are fitted. This

could damage and adversely affect deployment of the airbags.

Use seat covers designed for seats

with side airbags. Have these fitted

by a properly trained technician.

Note:

You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.

Note:

Only wipe airbag covers with a damp cloth.

Driver and front passenger airbags

E74302

The driver and front passenger airbags will deploy during significant frontal collisions or collisions that are up to 30 degrees from the left or the right. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus cushioning forward body movement. During minor frontal collisions, overturns, rear collisions and side collisions, the driver and front passenger airbags will not deploy.

Side airbags

E72658

Side airbags are fitted inside the seatback of the front seats. A label indicates that side airbags are fitted to your vehicle.

Occupant protection

The side airbags will deploy during significant lateral collisions. Only the airbag on the side affected by the collision will deploy. The airbags will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the chest and shoulder areas. During minor lateral collisions, overturns, front collisions and rear collisions, the side airbags will not deploy.

Curtain airbags

E75004

Curtain airbags are fitted inside the trim panels over the front and rear side windows. Moulded badges in the B-pillar trim panels indicate that curtain airbags are fitted to your vehicle.

The curtain airbags will deploy during significant lateral collisions. Only the airbag on the side affected by the collision will deploy. The airbag will inflate within a few thousandths of a second and deflate on contact with the occupants, thus providing protection for the head. During minor lateral collisions, front collisions, rear collisions, or overturns the curtain airbags will not deploy.

Seat belts

WARNINGS

Wear a seat belt and keep sufficient distance between yourself and the

steering wheel. Only when you use the seat belt properly, can it hold you in a position to achieve its optimum effect. See Sitting in the correct position (page 109).

Never use a seat belt for more than

one person.

Use the correct buckle for each seat

belt.

Do not use a seat belt that is slack

or twisted.

Do not wear thick clothing. The seat

belt must fit tightly around your body

to achieve its optimum effect.

Position the shoulder strap of the

seat belt over the centre of your

shoulder and position the lap strap tightly across your hips.

Seat belt pretensioners have a lower deployment threshold than the airbags. During minor collisions, it is possible that only the seat belt pretensioners will deploy.

All vehicles

The driver and front passenger seat belt systems are fitted with a seat belt pretensioner.

Grand C-MAX

The second row centre seat belt system is also fitted with a seat belt pretensioner.

Occupant protection

Status after a collision

WARNINGS

Seat belts subjected to strain, as a result of an accident, should be renewed and the anchorages

checked by a properly trained technician.

If a seat belt pretensioner has been deployed the seat belt must be renewed.

FASTENING THE SEAT BELTS

WARNINGS

Insert the tongue into the buckle until you hear a distinct click. You have not fastened the seat belt

properly if you do not hear a click.

In order to ensure that the centre belt works properly, the rear seatback must be correctly

engaged.

Note:

The seat belt tongues are designed so that you can only insert them into the correct buckle.

E74124

E129521

Pull the belt out steadily. It may lock if you pull it sharply or if the vehicle is on a slope.

Press the red button on the buckle to release the belt. Let it retract completely and smoothly.

C-MAX only

E130033

When in use, the rear seat belts should be placed in the belt guides on the outboard seatbacks.

Occupant protection

Second row centre seat belt C-MAX

E129522

The retractor for the rear centre seat belt is located in the roof.

To fasten the seat belt:

1. Pull the belt out steadily. It may lock if you pull it sharply or if the vehicle is on a slope.

2. Insert the smaller tongue into the black buckle to the left of the centre seat.

3. Pull the larger tongue across the lap and insert it into the buckle to the right of the centre seat.

Note:

If in constant use, you can leave the belt buckled in the black buckle. When it is not in use, or when you fold or move the rear seats, you should release the belt from the black buckle.

E129523

Press the red button on the right buckle to release the belt. Let it retract.

Press the button on the side of the black buckle to release the belt. Let it retract completely and smoothly to the retractor in the roof.

Stow the larger tongue flat against the roof trim.

Occupant protection

Second row centre seat belt Grand C-MAX

Centre seat belt anchor point

E130029

E129522

The retractor for the rear centre seat belt is located in the roof.

To fasten the seat belt:

1. Pull the belt out steadily. It may lock if you pull it sharply or if the vehicle is on a slope.

2. Securely attach the spring hook to the anchor point.

3. Pull the tongue across the lap and insert it into the buckle to the right of the centre seat.

Note:

If in constant use, you can leave the belt attached to the anchor point. When it is not in use, or when you fold or move the rear seats, you should release the spring hook from the anchor point.

E129524

Press the red button on the right buckle to release the belt. Let it retract.

Unclip the spring hook to release the belt. Let it retract completely and smoothly to the retractor in the roof.

Stow the tongue securely flat against the roof trim.

WARNING

Always replace the rubber cover when stowing the belt assembly.

Occupant protection

SEAT BELT HEIGHT ADJUSTMENT

E87511

Note:

Lifting the slider slightly while pressing the locking button makes it easier to release the locking mechanism.

To raise or lower, press the locking button on the adjuster and move as necessary.

SEAT BELT REMINDER

WARNING

The occupant protection system will only provide optimum protection when you use the seat belt properly.

The seat belt reminder warning lamp illuminates and an audible

warning will sound if the driver's or front seat passenger's seat belt has not been fastened and the vehicle exceeds a relatively low speed. It will also illuminate if the driver's or front seat passenger's seat belt is unfastened when the vehicle is moving. The audible warning and warning lamp will go off after seven minutes.

Deactivating the seat belt reminder

See your dealer.

Grand C-MAX only

Rear seat belt reminder

WARNING

If multiple belts are unfastened within a few seconds of each other, only one audible chime will sound.

Note:

Press the OK button on the

steering wheel control to confirm the message.

A visual reminder of the seat belt status will be shown on the instrument display once the engine is started, and once again if any are unfastened when the vehicle is moving.

Fastened seat belts are indicated by a tick symbol.

If a belt is unfastened when the vehicle is moving, the seat belt status screen will be displayed and the relevant seats will be highlighted by an exclamation mark. An audible chime will also sound.

USING SEAT BELTS DURING PREGNANCY

E68587

Occupant protection

WARNING

Position the seat belt correctly for your safety and that of your unborn child. Do not use only the lap strap

or the shoulder strap.

Position the lap strap comfortably across your hips and low beneath your pregnant abdomen. Position the shoulder strap between your breasts, above and to the side of your pregnant abdomen.

DISABLING THE PASSENGER AIRBAG

WARNING

Make sure that the passenger airbag is disabled when using a rearward facing child restraint on the

front passenger seat.

E71313

Fitting the passenger airbag deactivation switch

WARNING

If you need to fit a child restraint on a seat protected by an operational

airbag in front of it, have a passenger airbag deactivation switch fitted. Ask your dealer for further information.

Note:

The key switch is located at the end of the instrument panel on the side of the glove compartment. The airbag deactivation lamp is located between the sun visors.

E130110

If the airbag warning lamp illuminates or flashes when you are driving, this indicates a malfunction. See Warning lamps and indicators (page 79). Remove the child restraint and have the system checked immediately.

Disabling the passenger airbag

A B

E71312

DisabledA

EnabledB

Turn the switch to position A.

When you switch the ignition on, check that the passenger airbag deactivation warning lamp illuminates.

Occupant protection

Enabling the passenger airbag

WARNING

Make sure that the passenger airbag is enabled when you are not using a child restraint on the front

passenger seat.

Turn the switch to position B.

Occupant protection

GENERALINFORMATIONON RADIO FREQUENCIES

CAUTION

The radio frequency used by your remote control can also be used by

other short distance radio transmissions (e.g. amateur radios, medical equipment, wireless headphones, remote controls and alarm systems). If the frequencies are jammed, you will not be able to use your remote control. You can lock and unlock the doors with the key.

Note:

You could unlock the doors if you press the buttons on the remote control unintentionally.

The operating range between your remote control and your vehicle varies depending on the environment.

PROGRAMMING THE REMOTE CONTROL

You can programme a maximum of eight remote controls to use with your vehicle (including any supplied with your vehicle).

Programming a new remote control

1. Insert the key in the ignition.

Cycle the key from position 0 to II and then back to 0 four times within six seconds.

Leave the key in position 0 and press any button on the remote control within 10 seconds. You will receive confirmation via a chime or LED that programming has been successful.

Note:

Further remote controls may be programmed at this stage.

4. Press any button on each additional remote control within 10 seconds of each other.

Reprogramming the unlocking function

Note:

When you press the unlock button either all the doors are unlocked or only the driver’s door is unlocked. Pressing the unlock button again unlocks all the doors.

Press and hold the unlock and lock buttons on the remote key simultaneously for at least four seconds with the ignition off. The direction indicators will flash twice to confirm the change.

To return to the original unlocking function, repeat the process.

CHANGING THE REMOTE CONTROL BATTERY

E107998

Make sure that you dispose of old batteries in an

environmentally friendly way. Seek advice from your local authority regarding recycling.

Remote control with a folding key blade

E128809

1. Insert a screwdriver in the position

shown and gently push the clip.

Keys and remote controls

2. Press the clip down to release the battery cover.

E128810

3. Carefully remove the cover.

E128811

4. Turn the remote control over to remove the battery.

5. Install a new battery (3V CR 2032) with the + facing upwards.

6. Replace the battery cover.

Remote control without a folding key blade

E87964

1. Press and hold the pushbuttons on the edges to release the cover. Carefully remove the cover.

2. Remove the key blade.

E105362

3. Twist a flat bladed screwdriver in the position shown to separate the two halves of the remote control.

Keys and remote controls

E119190

4. Carefully insert the screwdriver in the position shown to open the remote control.

E125860

CAUTION

Do not touch the battery contacts or the printed circuit board with the screwdriver.

5. Carefully prise out the battery with the screwdriver.

6. Install a new battery (3V CR 2032) with the + facing downwards.

7. Assemble the two halves of the remote control.

8. Install the key blade.

Keys and remote controls

LOCKING AND UNLOCKING

Note:

Do not leave your keys in the

vehicle.

Locking

Locking with the key

Turn the top of the key towards the front of the vehicle.

Locking with the remote control

Note:

The driver’s door can be locked with the key. This needs to be used if the remote control is not functioning.

Note:

Your vehicle can be locked with a rear door open. The door will be locked when it is closed.

Press the button.

Double locking

WARNING

Do not activate double locking when persons or animals are inside the

vehicle. You will not be able to unlock the doors from the inside if you have double locked them.

Note:

If you double lock your vehicle whilst inside, switch the ignition on to return the door locks to a single locked state.

Note:

Your vehicle can be double locked with a rear door open. The door will be double locked when it is closed.

Double locking is a theft protection feature that prevents someone from opening the doors from the inside.

Double locking with the key

Turn the key to the lock position twice within three seconds.

Double locking with the remote control

Press the button twice within three seconds.

Unlocking

Unlocking with the key

Turn the top of the key towards the rear of the vehicle.

Unlocking with the remote control

Note:

The driver’s door can be unlocked with the key. This needs to be used if the remote control is not functioning.

Note:

If the vehicle remains locked for several weeks, the remote control will be disabled. The vehicle must be unlocked and the engine started using the key. Unlocking and starting the vehicle once will enable the remote control.

Press the button.

Automatic relocking

The doors will relock automatically if you do not open a door within 45 seconds of unlocking the doors with the remote control. The door locks and the alarm will return to their previous state.

Reprogramming the unlocking function

The unlocking function may be reprogrammed so that only the driver’s door is unlocked ( See Programming the remote control (page 35). ).

Locks

Locking and unlocking confirmation

Note:

If your vehicle has double locking, the direction indicators will only flash twice once you have activated double locking.

When you lock the doors, the direction indicators will flash twice.

When you unlock the doors, the direction indicators will flash once.

Locking and unlocking the doors from inside

E102566

Press the button. For item location: See Quick start (page 10).

Luggage compartment lid

Power liftgate

WARNINGS

Do not operate the luggage compartment lid unless it is free from obstruction.

Careless opening and closing of the luggage compartment lid can override the protection function and

cause injuries.

Do not place objects on the luggage compartment lid.

Make sure the luggage compartment lid is fully closed after operation.

CAUTIONS

Operate the luggage compartment lid only when your vehicle is stationary.

Make sure there is enough headroom to open the luggage compartment lid.

CAUTIONS

On vehicles with automatic transmission, make sure the selector lever is in P.

In extreme weather conditions, automatic opening and closing will not work if the luggage compartment

lid is frozen to the seal.

Note:

The luggage compartment lid will stop automatically while opening, and reverse some distance if there is an obstacle in the way.

Note:

The luggage compartment lid will stop automatically while closing, and fully open if there is an obstacle in the way.

Note:

You can manually move the luggage compartment lid.

The luggage compartment lid can be operated using the remote control, the centre console switch, the luggage compartment lid switch or the luggage compartment lid release handle.

Luggage compartment lid switch

E129838

Remote control and centre console switch

Locks

Note:

Pressing any button again during operation will stop the luggage compartment lid. A further press will reverse the direction.

Note:

To operate the centre console switch, the ignition must be on.

To open a fully closed luggage compartment lid, you can either:

•

Press the button on the remote control twice within three seconds.

•

Press the centre console switch or luggage compartment lid release handle.

To fully open a partially opened luggage compartment lid, you can either:

•

Press the button on the remote control twice within three seconds.

•

Press and hold the button on the remote control for at least three seconds.

•

Press the centre console switch, the luggage compartment lid switch or the luggage compartment lid release handle.

To stop the luggage compartment lid, you can either:

•

Press the button on the remote control. A further remote control operation will be delayed for approximately three seconds.

•

Press the centre console switch, the luggage compartment lid switch or the luggage compartment lid release handle.

Programming the luggage compartment lid stop position

1. Open the luggage compartment lid.

2. Stop the luggage compartment lid at

the required height.

3. Press and hold the luggage

compartment lid switch for at least three seconds. A chime will be heard.

Reprogramming the luggage compartment lid to a new stop position

1. Open the luggage compartment lid.

2. Move the luggage compartment lid to the new required position.

3. Press and hold the luggage compartment lid switch for at least three seconds. A chime will be heard.

Closing the luggage compartment lid

WARNINGS

The anti-trap function will be deactivated when the luggage compartment lid comes into contact

with the vehicle body.

The luggage compartment lid will not detect obstacles when it comes into contact with the vehicle body.

Note:

Do not leave a passive key in the vehicle when closing the luggage compartment. A message will be shown in the display. See Information

messages (page 90).

Note:

A recessed grip is incorporated inside the luggage compartment lid to facilitate manual closing.

To close the luggage compartment lid, you can either:

•

Press the button on the remote control twice within three seconds.

•

Press and hold the button on the remote control for at least three seconds.

•

Press the centre console switch, the luggage compartment lid switch or the luggage compartment lid release handle.

Locks

E130232

The luggage compartment lid will close automatically when it comes into contact with the vehicle body.

Locking the doors individually with the key

Note:

If the central locking function fails to operate, the doors can be individually locked using the key in the position shown.

C-MAX

E112203

Left-hand side

Turn clockwise to lock.

Right-hand side

Turn anti-clockwise to lock.

Grand C-MAX

E130123

Push to lock.

Unlocking

Note:

If the child safety locks have also been activated, pulling the internal lever will only deactivate the emergency locking and not the child safety lock. The doors can only be opened using the external door handle.

Note:

If the doors have been unlocked using this method, the doors must be locked individually until the central locking function has been repaired.

Unlock the driver's door using the key. The other doors can be unlocked individually by pulling the interior door handles on those doors.

Locks

KEYLESS ENTRY

General information

WARNING

The keyless entry system may not function if the key is close to metal objects or electronic devices such

as mobile phones.

The passive entry system will not function if:

•

The vehicle battery is flat.

•

The passive key frequencies are jammed.

•

The passive key battery is flat.

Note:

If the passive entry system does not function, you will need to use the key blade to lock and unlock your vehicle.

The keyless system allows the driver to operate the vehicle without the use of a key or remote control.

E78276

Passive locking and unlocking requires a valid passive key to be located within one of the three external detection ranges. These are located approximately one and a half metres from the driver and front passenger door handles and the luggage compartment lid.

Passive key

The vehicle can be locked and unlocked with the passive key. The passive key can also be used as a remote control. See

Locking and unlocking (page 38).

Locking the vehicle

E87384

WARNING

The vehicle does not lock itself automatically. If the locking function is not activated, the vehicle will

remain unlocked.

Touch a front door handle lock sensor to lock the vehicle.

To activate central locking and arm the alarm:

•

Touch a front door handle lock sensor once.

To activate double locking and arm the alarm:

•

Touch a front door handle lock sensor twice within three seconds.

Note:

There must be clearance between

each touch of the door handle.

Locks

Note:

Once activated, the vehicle will remain locked for approximately three seconds. When the delay period is over, the doors can be opened again, provided the passive key is within the respective detection range.

Two short flashes of the direction indicators confirms that all the doors and the luggage compartment lid have been locked and that the alarm has been armed.

Luggage compartment lid

Note:

The luggage compartment lid cannot be closed and, will pop back up if the passive key is located inside the vehicle with the doors locked.

Note:

If a second valid passive key is located within the rear exterior detection range, the luggage compartment lid can be closed.

Unlocking the vehicle

Note:

If the vehicle remains locked for longer than three days, the keyless system will enter an energy-saving mode. This is to reduce the discharge of the vehicle battery. When the vehicle is unlocked while in this mode, the reaction time of the system may be a little longer than normal. Unlocking the vehicle once will deactivate the energy-saving mode.

Note:

If the vehicle remains locked for several weeks, the keyless system will be disabled. The vehicle must be unlocked using the key blade. Unlocking the vehicle once will enable the keyless system.

E87384

Open any door.

Note:

A valid passive key must be located within the detection range of that door.

One long flash of the direction indicators confirms that all the doors and the luggage compartment lid have been unlocked and that the alarm has been disarmed.

Unlocking only the driver's door

If the unlocking function is reprogrammed so that only the driver’s door and the luggage compartment lid are unlocked ( See Programming the remote control (page 35). ), note the following:

If the driver’s door is the first door which is opened, the other doors will remain locked. All the other doors can be unlocked from inside the vehicle by pressing the unlock button on the instrument panel. For item location: See Quick start (page 10). Doors can be unlocked individually by pulling the interior door handles on those doors.

Disabled keys

Any keys left inside the vehicle interior when it is locked will be disabled.

A disabled key cannot be used to turn the ignition on or start the engine.

Locks

In order to use these passive keys again, they have to be enabled.

To enable all your passive keys, unlock the vehicle using a passive key or the remote control unlocking function.

All passive keys will then be enabled if the ignition is turned on or the vehicle is started using a valid key.

Locking and unlocking the doors with the key blade

E87964

1. Carefully remove the cover.

2. Remove the key blade and insert it into the lock.

Note:

Only the driver's door handle is

fitted with a lock cylinder.

GLOBAL OPENING AND CLOSING

You can also operate the electric windows with the ignition off via the global opening and global closing function.

Note:

Global closing will only operate if

you have set the memory correctly for each window. See Electric windows (page 71).

Global opening

E71955

To open all the windows, press and hold the remote control unlock button for at least three seconds. Press any remote control button again to stop the opening function.

Global closing

Vehicles without keyless entry

WARNING

Take care when using global closing. In an emergency, press a remote control button immediately

to stop.

Locks

E71956

To close all the windows, press and hold the remote control lock button for at least three seconds. Press any remote control button again to stop the closing function. The anti-trap function is also active during global closing.

Vehicles with keyless entry

E87384

WARNING

Take care when using global closing. In an emergency, touch a door handle lock sensor to stop.

Note:

Global closing can be activated using the driver’s door handle. Global opening and closing can also be activated using the buttons on the passive key.

To close all the windows, press and hold the driver’s door handle for at least two seconds. The anti-trap function is also active during global closing.

Locks

PRINCIPLE OF OPERATION

The engine immobiliser is a theft protection system that prevents someone from starting the engine with an incorrectly coded key.

CODED KEYS

Note:

Do not shield your keys with metal objects. This may prevent the receiver from recognising your key as a valid one.

Note:

Have all of your remaining keys erased and recoded if you lose a key. Ask your dealer for further information. Have replacement keys recoded together with your existing keys.

If you lose a key, you can obtain a replacement from your Ford Dealer. If possible, provide them with the key number from the tag provided with the original keys. You can also obtain additional keys from your Ford Dealer.

ARMING THE ENGINE IMMOBILISER

The engine immobiliser is armed automatically a short time after you have switched the ignition off.

DISARMING THE ENGINE IMMOBILISER

The engine immobiliser is disarmed automatically when you switch the ignition on with a correctly coded key.

Engine immobiliser

PRINCIPLE OF OPERATION

Alarm system

Your vehicle may be equipped with one of the following alarm systems:

•

Perimeter alarm.

•

Perimeter alarm with interior sensors.

•

Category one alarm with interior sensors and battery back-up sounder.

Perimeter alarm

The perimeter alarm is a deterrent against unauthorised access to your vehicle through the doors and the bonnet. It also protects the audio unit.

Interior sensors

E129005

WARNING

The sensors in the interior lamp unit must not be covered up. Do not

activate the alarm with full guard if any persons, animals or other moving objects are inside the vehicle.

The sensors act as a deterrent against unauthorised intrusion by sensing any movement within the vehicle.

Battery back-up sounder

The battery back-up sounder is an extra alarm system which will sound a siren when the alarm is triggered. It is armed directly when you lock the vehicle. The sounder has its own battery and will sound an alarm siren even if someone disconnects the vehicle battery or the battery back-up sounder itself.

Triggering the alarm

Once armed, the alarm is triggered in any of the following ways:

•

If someone opens a door, the tailgate or the bonnet without a valid key or remote control.

•

If someone removes the audio or navigation system.

•

If the ignition is turned to position I, II or III without a valid key.

•

If the interior sensors detect movement within the vehicle.

•

On vehicles with a battery back-up sounder, if someone disconnects the vehicle battery or the battery back-up sounder itself.

If the alarm is triggered, the alarm horn will sound for 30 seconds and the hazard warning flasher will flash for five minutes.

Any further attempts to perform one of the above will trigger the alarm again.

Full and reduced guard

Full guard

Full guard is the standard setting.

In full guard, the interior sensors are activated when you arm the alarm.

Note:

This may result in false alarms if animals or moving objects are inside the vehicle.

Alarm

Reduced guard

In reduced guard, the interior sensors are deactivated when you arm the alarm.

Note:

You can set the alarm to reduced guard for the current ignition cycle only. The next time you switch on the ignition, the alarm will be reset to full guard.

Ask on Exit

You can set the information display to ask you each time which level of guard you wish to set.

If you select Ask on Exit, the message Reduced guard? appears in the instrument cluster display each time you switch the ignition off.

If you wish to arm the alarm with reduced guard, press the OK button when this message appears.

If you wish to arm the alarm with full guard, leave the vehicle without pressing the OK button.

Selecting full or reduced guard

Note:

Selecting Reduced does not set the alarm permanently to reduced guard. It sets it to reduced guard only for the current ignition cycle. If you regularly set the alarm to reduced guard, select Ask on Exit.

E70499

E74509

Full Guard

Alarm

Reduced Ask on Exit

1. Press the right arrow button on the steering wheel to enter the main menu.

Highlight Setup with the up and down arrow buttons and press the right arrow button.

Highlight Alarm and press the right arrow button.

Highlight Reduced or Full guard. If you prefer to be asked each time you switch off the ignition, select Ask on Exit.

Press the OK button to confirm the selection.

6. Press the left arrow button to exit the menu. To return to the trip computer display directly, hold the left arrow button pressed.

Information messages

See Information messages (page 90).

ARMING THE ALARM

To arm the alarm, lock the vehicle. See Locks (page 38).

Alarm

DISARMING THE ALARM

Vehicles without keyless entry

Perimeter alarm

Disarm and silence the alarm by unlocking the doors with the key and switching the ignition on with a correctly coded key, or unlocking the doors or the luggage compartment lid with the remote control.

Category one alarm

Disarm and silence the alarm by unlocking the doors with the key and switching the ignition on with a correctly coded key within 12 seconds, or unlocking the doors or the luggage compartment lid with the remote control.

Vehicles with keyless entry

Note:

A valid passive key must be

located within the detection range of that door for keyless entry. See Keyless

entry (page 42).

Perimeter alarm

Disarm and silence the alarm by unlocking the doors and switching the ignition on, or unlocking the doors or the luggage compartment lid with the remote control.

Category one alarm

Disarm and silence the alarm by unlocking the doors and switching the ignition on within 12 seconds, or unlocking the doors or the luggage compartment lid with the remote control.

Alarm

ADJUSTING THE STEERING WHEEL

WARNING

Never adjust the steering wheel when the vehicle is moving.

Note:

Make sure that you are sitting in

the correct position. See Sitting in the correct position (page 109).

E95178

E95179

WARNING

Make sure that you fully engage the locking lever when returning it to its original position.

AUDIO CONTROL

Select the required source on the audio unit.

The following functions can be operated with the remote control:

Type 1

E129462

Volume upA

Seek upB

Volume downC

Seek downD

ModeE

Steering wheel

Type 2

E129463

Volume upA

Seek upB

Volume downC

Seek downD

Mode

Press the mode button to tune the radio to the next preset station.

Press and hold the mode button to select the audio source.

Seek

Press the seek button to:

•

tune the radio to the next station up or down the frequency band

•

play the next or the previous track.

Press and hold the seek button to:

•

tune the radio up or down the frequency band

•

seek through a track.

VOICE CONTROL

E129464

Pull the button to select or deselect voice control. See Voice control (page 259).

Steering wheel

WINDSCREEN WIPERS

E128444

Single wipeA

Intermittent wipe or autowipersB

Normal wipeC

High speed wipeD

Intermittent wipe

E128445

Short wipe intervalA

Intermittent wipeB

Long wipe intervalC

The rotary control can be used to adjust the intermittent wipe interval.

Automatic wiper system

Some models without autowipers are fitted with a speed-dependent front screen wiper system.

When the vehicle is slowed to walking speed or is brought to a standstill, the wiper speed will automatically switch to the next lower wiper speed setting.

When the vehicle speed is increased, the wiper speed will return to the manually-chosen setting.

Moving the wiper lever when the system is operating will switch off the system.

If the vehicle is again slowed to walking speed or is brought to a standstill, the system is reactivated.

AUTOWIPERS

CAUTIONS

Do not switch autowipers on in dry weather conditions. The rain sensor

is very sensitive and the wipers may operate if dirt, mist or flies hit the windscreen.

Replace the wiper blades as soon as

they begin to leave bands of water

and smears. If you do not replace them, the rain sensor will continue to detect water on the windscreen and the wipers will operate, even though the majority of the windscreen is dry.

Fully defrost the windscreen in icy

conditions before you switch

autowipers on.

Switch autowipers off before you

enter a car wash.

Wipers and washers

E128445

High sensitivityA

OnB

Low sensitivityC

If you switch autowipers on, the wipers will not cycle until water is detected on the windscreen. The rain sensor will then continuously measure the amount of water on the windscreen and adjust the speed of the wipers automatically.

Adjust the sensitivity of the rain sensor using the rotary control. With low sensitivity, the wipers will operate when the sensor detects a lot of water on the windscreen. With high sensitivity, the wipers will operate if the sensor detects a small amount of water on the windscreen.

WINDSCREEN WASHERS

E129188

WARNING

Do not operate the washer for more than 10 seconds at a time, and never when the reservoir is empty.

Whilst the lever is pulled towards the steering wheel the washer will work in conjunction with the wipers.

After releasing the lever, the wipers operate for a short time.

REAR WINDOW WIPER AND WASHERS

Intermittent wipe

E129193

Intermittent wipeA

Low speed wipeB

Press the button at the end of the lever to change between off, intermittent and low speed.

Wipers and washers

Reverse gear wipe

The rear wiper will be activated automatically when selecting reverse gear if the rear wiper is not already switched on and the front wiper is operating.

The rear wiper will follow the front wiper interval (at intermittent or normal speed).

Rear window washer

E129194

WARNING

Do not operate the washer for more than 10 seconds at a time, and never when the reservoir is empty.

While the lever is pushed away from the steering wheel the washer will work in conjunction with the wipers.

After releasing the lever, the wipers operate for a short time.

ADJUSTING THE WINDSCREEN WASHER JETS

E73425

The eye ball jets can be adjusted precisely using a pin.

HEADLAMP WASHERS

The headlamp washers will operate with the windscreen washers when the headlamps are on.

Note:

To stop the washer fluid reservoir emptying quickly, the headlamp washers will not operate every time that you use the windscreen washers.

Wipers and washers

CHECKING THE WIPER BLADES

E66644

Run the tip of your fingers over the edge of the blade to check for roughness.

Clean the wiper blade lips with water applied with a soft sponge.

CHANGING THE WIPER BLADES

Windscreen wiper blades

CAUTIONS

Set the windscreen wipers in the service position to change the wiper blades.

You can use the service position in winter to provide easier access to

the wiper blades for freeing them from snow and ice. The windscreen wipers will return to their normal position as soon as you switch on the ignition so make sure that the outside of the windscreen is free from snow and ice before you switch on the ignition.

Note:

The windscreen wiper blades are

different in length. See Technical specifications (page 56). If you install wiper blades of the wrong length, the rain sensor may not work correctly.

Service position

E129989

E129986

Switch off the ignition and move the wiper lever to position A within three seconds. Release the lever when the windscreen wipers have moved to the service position.

Changing the windscreen wiper blades

Set the windscreen wipers in the service position and lift the wiper arms.

Wipers and washers

E129990

1. Press the locking buttons together.

2. Rotate and remove the wiper blade.

Note:

Make sure that the wiper blade

locks into place.

3. Install in the reverse order.

Rear window wiper blade

1. Lift the wiper arm.

E130060

2. Slightly rotate the wiper blade from the wiper arm.

3. Disengage the wiper blade from the wiper arm.

4. Remove the wiper blade.

Note:

Make sure that the wiper blade

locks into place.

5. Install in the reverse order.

TECHNICAL SPECIFICATIONS

Windscreen wiper blade lengths

Dimension in mm (inches)

Passenger sideDriver side

630 (24.8)730 (28.7)

Wipers and washers

LIGHTING CONTROL

Lighting control positions

E70718

A B C

OffA

Side and tail lampsB

HeadlampsC

Parking lamps

CAUTION

Prolonged use of the parking lamps will discharge the battery.

Switch off the ignition.

Both sides

Turn the switch to position B.

One side

E130139

Right-hand sideA

Left-hand sideB

Main and dipped beam

E130140

Push the lever forward to switch between main and dipped beam.

Headlamp flasher

Pull the lever slightly towards the steering wheel.

Lighting

Home safe lighting

Switch the ignition off and pull the direction indicator lever towards the steering wheel to switch the headlamps on. You will hear a short tone. The headlamps will go off automatically after 3 minutes with any door open, or 30 seconds after the last door has been closed.

The home safe lights can be cancelled by either pulling the direction indicator lever towards the steering wheel again or by turning the ignition switch ON.

AUTOLAMPS

WARNING

In severe weather conditions, it may be necessary to switch your headlamps on manually.

E70719

Note:

If you have switched autolamps on, you can only switch the main beam on when autolamps has switched the headlamps on.

The headlamps will come on and go off automatically depending on the ambient light.

The headlamps will remain on for a period of time after you switch the ignition off. You can adjust the time delay using the information display. See Information

displays (page 83).

FRONT FOG LAMPS

E70721

WARNING

Only use the front fog lamps when visibility is considerably restricted by fog, snow or rain.

REAR FOG LAMPS

E70720

WARNINGS

Only use the rear fog lamps when visibility is restricted to less than 50 metres.

Do not use the rear fog lamps when it is raining or snowing and visibility is more than 50 metres.

Lighting

HEADLAMP LEVELLING

Note:

Vehicles with Xenon headlamps are equipped with automatic headlamp levelling.

E70722

Raised headlamp beamsA

Lowered headlamp beamsB

You can adjust the level of the headlamp beams according to the vehicle load.

Recommended headlamp levelling switch positions

Switch posi-

tion

Load in

luggage

compartment

Load

Third row

seats

Second row

seats

Front seats

0---1-2

0 (0.5)

-2-1-2

1 (0.5)

--31-2

3 (0.5)

Max

-31-2

4 (1.5)

Max

--1

See Vehicle identification plate (page 213).

Vehicles with active suspension.

HAZARD WARNING FLASHERS

E71943

For item location: See Quick start (page

10).

Lighting

DIRECTION INDICATORS

E130141

Note:

Tap the lever up or down to make the direction indicators flash only three times.

CORNERING LAMPS

E72898

Headlamp beamA

Cornering lamp beamB

The cornering lamps illuminate the inside of a corner when you are turning.

Lighting

INTERIOR LAMPS

LED interior lighting

Driver LED lamp

E124991

Individual lamp on and off switchA

All lamps on and off switchB

You can control all lamps using switch B.

Note:

Individual lamps may be switched on independently, but not off if all lamps have been switched on by the driver.

The lamps will come on when you unlock or open a door or the luggage compartment lid. If you leave a door open with the ignition switch off, all lamps will go off automatically after some time to prevent the vehicle battery from discharging. To switch them back on, switch on the ignition for a short time.

If you press and hold switch B for 3 seconds all lamps will stay off regardless of the doors or luggage compartment lid position. Press the switch again to reverse.

REMOVING A HEADLAMP

WARNING

Have Xenon bulbs changed by a trained technician. There is a risk of electric shock.

Open the bonnet. See Opening and closing the bonnet (page 184).

E130143

2. Remove the screws.

3. Pull the headlamp as far as possible towards the centre of the vehicle to disengage it from the lower fixing point.

4. Lift the outer side of the headlamp and remove it.

Lighting

E88875

5. Disconnect the electrical connector.

Note:

When fitting the headlamp, make sure that you reconnect the electrical connector properly.

Note:

When fitting the headlamp, make sure that you fully engage the headlamp in the lower fixing point.

Note:

When fitting the headlamp, make sure that the screw is located in the headlamp moulding before you install it.

CHANGING A BULB

WARNINGS

Switch the lights and the ignition off.

Let the bulb cool down before removing it.

Have Xenon bulbs changed by a properly trained technician. There is a risk of electric shock.

CAUTIONS

Do not touch the glass of the bulb.

CAUTIONS

Only fit bulbs of the correct specification. See Bulb

specification chart (page 69).

Note:

The following instructions describe how to remove the bulbs. Fit replacements in the reverse order unless otherwise stated.

Headlamp

Note:

Remove the covers to gain access to the bulbs.

A B C

E130173

Direction indicatorA

Headlamp main beamB

Headlamp dipped beamC

Direction indicator

1. Remove the headlamp. See

Removing a headlamp (page 61).

Lighting

E130174

2. Turn the bulb holder anti-clockwise and remove it.

3. Gently press the bulb into the bulb holder, turn it anti-clockwise and remove it.

Headlamp main beam

CAUTION

Do not touch the glass of the bulb.

1. Remove the headlamp. See Removing a headlamp (page 61).

E130175

2. Remove the cover.

3. Disconnect the electrical connector.

4. Release the clip and remove the bulb.

Headlamp dipped beam

CAUTION

Do not touch the glass of the bulb.

1. Remove the headlamp. See

Removing a headlamp (page 61).

E130176

2. Remove the cover.

3. Turn the bulb holder anti-clockwise and remove it.

4. Remove the bulb.

Cornering lamp

1. Remove the headlamp. See Removing a headlamp (page 61).

Lighting

E130177

2. Remove the cover.

3. Disconnect the electrical connector.

4. Release the clip and remove the bulb.

Side lamp

1. Remove the headlamp. See

Removing a headlamp (page 61).

E130181

2. Remove the cover.

3. Remove the bulb holder.

4. Remove the bulb.

Side repeater

E72263

1. Carefully remove the side repeater.

E72291

2. Remove the bulb holder.

3. Remove the bulb.

Approach lamp

Note:

Position the mirror glass as far

inwards as possible.

Lighting

E72264

1. Insert a screwdriver into the gap between the mirror housing and the mirror glass and release the metal retaining clip.

E72265

2. Remove the lamp.

3. Remove the bulb.

Front fog lamps

E99405

Note:

You cannot separate the fog lamp

bulb from the bulb holder.

1. Using a suitable implement, remove the cover.

2. Remove the screws.

3. Remove the lamp.

E99406

Lighting

4. Disconnect the electrical connector.

5. Turn the bulb holder anti-clockwise and remove it.

Rear lamps

Direction indicator, tail and brake lamp

E130196

1. Remove the trim panel.

E130197

2. Disconnect the electrical connector.

3. Remove the wing nut.

4. Remove the lamp.

E130198

5. Remove the bulb holder.

6. Gently press the bulb into the bulb holder, turn it anti-clockwise and remove it.

A. Tail and brake lamp B. Direction indicator

Reversing lamp, tail lamp and fog lamp

E130199

1. Remove the trim panel.

Lighting

E130200

2. Remove the wing nut.

3. Remove the lamp.

E130201

4. Disconnect the electrical connector.

5. Remove the bulb holder.

6. Gently press the bulb into the bulb holder, turn it anti-clockwise and remove it.

A. Reversing lamp B. Tail and fog lamp

Central high mounted brake lamp

E87619

1. Detach the clips.

2 2

E130235

2. Insert a suitable object into the holes.

3. Carefully pull the lamp towards the front of the vehicle to release the spring clips.

Lighting

E130236

4. Remove the lamp.

E130205

5. Remove the bulb holder.

6. Remove the bulb.

Number plate lamp

E72789

1. Carefully release the spring clip.

2. Remove the lamp.

3. Turn the bulb anti-clockwise and remove it.

Interior lamps

Vehicles with LED lamps

Note:

The LED board is not a serviceable

item, please consult your dealer if this fails.

E125092

Lighting

Luggage compartment lamp, footwell lamp and tailgate lamp

E72784

1. Carefully prise out the lamp.

2. Remove the bulb.

BULB SPECIFICATION CHART

Power (watt)SpecificationLamp

21PY21WFront direction indicator

55H1Headlamp main beam

H7Headlamp dipped beam

55H1Cornering lamp

55H11Front fog lamp

5W5WSide lamp

5WY5WSide repeater

5W5WApproach lamp

21PY21WRear direction indicator

21/5P21/5WBrake and tail lamp

5W5WTail lamp

21P21WRear fog lamp

21P21WReversing lamp

5W5WNumber plate lamp

Lighting

Power (watt)SpecificationLamp

5W5WCentral high mounted stop lamp

5W5WLuggage compartment lamp

Fit a replacement with the same rating as the one you have removed.

Lighting

ELECTRIC WINDOWS

WARNING

Do not operate the electric windows unless they are free from obstruction.

Note:

If you operate the switches often during a short period of time, the system might become inoperable for a certain time to prevent damage due to overheating.

Switch on the ignition to operate the electric windows.

Global opening and closing

You can also operate the electric windows with the ignition off via the global opening and closing function. See Locks (page 38).

Driver's door switches

You can operate all the windows with the switches on the door trim panel of the driver’s door.

E70848

Opening and closing the windows automatically

Press or lift the switch to the second action point and release it completely. Press or lift it again to stop the windows.

Safety switch for rear windows

WARNING

On some vehicles, pressing the switch will also lock the rear doors from inside. See Child safety

locks (page 25).

Note:

You can always operate the rear

windows from the driver’s door.

E70850

A switch in the driver’s door disables the rear electric window switches.

The light in the switch comes on and the lights in the rear window switches go off when the rear windows are disabled.

Anti-trap function

WARNING

Careless closing of the windows can override the protection function and cause injuries.

Windows and mirrors

The electric windows will stop automatically while closing and reverse some distance if there is an obstacle in the way.

Overriding the anti-trap function

CAUTION

While you close the window for the third time, the anti-trap function is

disabled. Make sure there are no obstacles in the way of the closing window.

To override this protection function when there is a resistance, e.g. in the winter, proceed as follows:

1. Close the window twice until it

reaches the resistance and let it reverse.

2. Close the window a third time to the

resistance. The anti-trap function is disabled and you cannot close the window automatically. The window will override the resistance and you can close it fully.

3. If the window does not close after the

third attempt, have it checked by an expert.

Resetting the memory of the electric windows

WARNING

The anti-trap function is deactivated until you have reset the memory.

After the battery has been disconnected from the vehicle you must reset the memory separately for each window:

Note:

On vehicles with a convertible top, the roof and doors must be fully closed before carrying out the following procedure.

1. Lift and hold the switch until the window is fully closed.

2. Release the switch.

3. Lift the switch again for one more second.

4. Push and hold the switch until the window is fully open.

5. Release the switch.

6. Lift and hold the switch until the window is fully closed.

7. Open the window and try to close it automatically.

8. Reset and repeat procedure if the window does not close automatically.

EXTERIOR MIRRORS

WARNING

Do not overestimate the distance of the objects that you see in the

convex mirror. Objects seen in convex mirrors will appear smaller and further away than they actually are.

Manual folding mirrors

Folding

Push the mirror towards the door window glass.

Unfolding

Make sure that you fully engage the mirror in its support when returning it to its original position.

Windows and mirrors

ELECTRIC EXTERIOR MIRRORS

A C

E70846

Left-hand mirrorA

OffB

Right-hand mirrorC

Mirror tilting positions

E70847

The electric exterior mirrors are fitted with a heating element that will defrost or demist the mirror glass. See Heated

windows and mirrors (page 106).

Electric folding mirrors

Automatic folding and unfolding

Note:

If the mirrors have been folded using the manual fold button they can only be unfolded using the manual fold button.

The mirrors will fold automatically when you lock the vehicle with the key, the remote control or a keyless entry system request. The mirrors will unfold when you unlock the vehicle with the key, the remote control, a keyless entry system request, the driver's interior door handle or starting the engine.

Manual folding and unfolding

The electric folding mirrors operate with the ignition on.

Note:

You can operate the mirrors (mirror tilting and folding) for several minutes after you switch off the ignition. They will be deactivated as soon as a door is opened.

E72623

Press the button to fold or unfold the mirrors.

Windows and mirrors

If you press the switch again while the mirrors are moving, they will stop and reverse the direction of movement.

Note:

When the mirrors are operated often during a short period of time, the system may become inoperable for a period of time to prevent damage due to overheating.

AUTO-DIMMING MIRROR

E71028

The auto-dimming mirror will adjust automatically when hit by glaring light from behind. It will not work when you have selected reverse gear.

BLIND SPOT MONITOR

Blind spot information system (BLIS)

WARNINGS

The system is not designed to prevent contact with other vehicles

or objects. The system only provides a warning to assist you in detecting vehicles in the blind spot zones. The system will not detect obstacles, pedestrians or cyclists.

Do not use the system as a

replacement for using the side and

rear view mirrors, and looking over your shoulder before changing lanes. The system is not a replacement for careful driving and is only to be used as an aid.

The system is a convenience feature that aids the driver in detecting vehicles that may have entered the blind spot zone (A). The detection area is on both sides of the vehicle extending rearwards from the exterior mirrors to approximately 3 metres (10 feet) beyond the bumper. The system will alert you if certain vehicles enter the blind spot zone whilst driving.

E124788

Using the system

The system displays a yellow indicator located in the exterior mirrors.

E124736

Note:

Both indicators will illuminate briefly when you switch the ignition on to confirm that the system is operational.

Windows and mirrors

Note:

On vehicles with automatic

transmission, the system is active only in D and N.

The system is only active when you exceed 10 km/h (6 mph). The system is temporarily deactivated when you select reverse gear.

System detection and alerts

The system will trigger the alert for vehicles that enter the blind spot zone from the rear or merge from the side. Vehicles that you pass, or vehicles that enter the blind spot zone from the front, will only trigger the alert after the vehicle has remained in the blind spot zone for a short period of time.

Note:

Vehicles that pass through the blind zone quickly (typically less than 2 seconds) will not trigger the alert.

The system consists of two radar sensors each located behind the rear wheels hidden behind the bumpers.

CAUTIONS

Do not place items such as bumper stickers in this area.

Repairs to these areas using body filler will affect the performance of the system.

E124741

Detection limitations

There may be certain instances where vehicles entering and exiting the blind spot zones may not be detected.

Instances which may cause non-detection:

•

Debris build up on the rear bumper panels in the area of the sensors.

•

Certain manoeuvring of vehicles entering and exiting the blind zone.

•

Vehicles passing through the blind zone at high speed.

•

Severe weather conditions.

•

Several vehicles passing through the blind zone following each other closely.

False alerts

Note:

False alerts are temporary and will

self correct.

There may be certain instances when the system will alert with no vehicle present in the blind zone.

Circumstances where false alerts may occur:

•

Road guardrails.

•

Motorway concrete walls.

•

Construction areas.

•

Sharp turns around a building.

•

Bushes and trees.

•

Coming to a stop with a vehicle directly behind but very close.

Turning the system on and off

Note:

The on or off position will remain

until manually changed.

You can turn the system on and off using the information display. See Information displays (page 83).

Windows and mirrors

When you turn the system off no further alerts will be received. The BLIS warning indicator will illuminate. See Warning

lamps and indicators (page 79).

Detection errors

Note:

The alert indicator in the mirror will

not illuminate.

If the system senses a fault on either sensor, the system warning symbol will illuminate and remain on. The information display will confirm the fault and indicate whether the left or right side is affected.

Blocked sensor

WARNING

Prior to the system recognizing a blocked condition and issuing a warning, the number of missed

objects will increase.

CAUTION

The sensors may not detect vehicles in heavy rain or other conditions that cause disruptive reflections.

Note:

Keep the rear bumper area surrounding the sensors free from dirt, ice and snow.

If a sensor becomes blocked the system performance may degrade. A blocked sensor message may be displayed.

The system will automatically return to normal operation once two other vehicles have been detected on both sides.

Trailer towing false alerts

CAUTION

Vehicles fitted with a trailer tow module not approved by us may not correctly be detected. Switch the

system off to avoid false alerts. See Information displays (page 83).

If the vehicle is fitted with a trailer tow module approved by us, the system will detect a connected trailer and deactivate. A confirmation message will be shown in the information display. See Information messages (page 90). The BLIS warning indicator will illuminate. See Warning lamps and indicators (page 79).

Windows and mirrors

GAUGES

Type 1

BCDE

E130149

Information display. See Information displays (page 83).

SpeedometerB

Engine coolant temperature gaugeC

Fuel gaugeD

TachometerE

Instruments

Type 2

BCDE

E130150

Information display. See Information displays (page 83).

SpeedometerB

Engine coolant temperature gaugeC

Fuel gaugeD

TachometerE

Engine coolant temperature gauge

All vehicles

Shows the temperature of the engine coolant. At normal operating temperature, the needle will remain in the centre section.

CAUTION

Do not restart the engine until the cause of overheating has been resolved.

If the needle enters the red section, the engine is overheating. Stop the engine, switch the ignition off and determine the cause once the engine has cooled down. See Engine coolant check (page 190).

Fuel gauge

The arrow adjacent to the fuel pump symbol indicates on which side of the vehicle the fuel filler cap is located.

Instruments

WARNING LAMPS AND INDICATORS

The following warning lamps and indicators illuminate when the ignition is switched on:

•

Airbag

•

ABS

•

Stability control (ESP)

•

Low fuel

•

Brake system

•

Frost

•

Low screenwash

•

ESP off

If a warning or indicator lamp does not illuminate when the ignition is switched on, it indicates a malfunction. Have the system checked by properly trained technician.

ABS warning lamp

If it illuminates when you are driving, this indicates a

malfunction. You will continue to have normal braking (without ABS). Have the system checked by a properly trained technician as soon as possible.

Airbag warning lamp

If it illuminates when you are

driving, this indicates a

malfunction. Have the system checked by a properly trained technician.

Blind spot monitor indicator

E124823

It will illuminate when this feature

is deactivated or in conjunction

with a message. See Blind

spot monitor (page 74). See Information messages (page 90).

Brake system lamp

It illuminates when the parking brake is engaged.

WARNING

Reduce your speed gradually and stop your vehicle as soon as it is safe to do so. Use your brakes with

care.

If it illuminates when you are driving, check that the parking brake is not engaged. If the parking brake is not engaged, this indicates a malfunction. Have the system checked by a properly trained technician immediately.

Cruise control indicator

E71340

It will illuminate when you have set a speed using the cruise control system. See Using

cruise control (page 157).

Direction indicators

Flashes during operation. A sudden increase in the rate of flashing warns of a failed

indicator bulb. See Changing a bulb (page 62).

Engine warning lamp

If it illuminates with the engine running, this indicates a malfunction. If it flashes when

you are driving, reduce the speed of your vehicle immediately. If it continues to flash, avoid heavy acceleration or deceleration. Have the system checked by a properly trained technician immediately.

Instruments

CAUTION

If the engine warning lamp illuminates in conjunction with a message, have the system checked as soon as

possible.

Front fog lamp indicator

It will illuminate when you switch the front fog lamps on.

Frost warning lamp

WARNING

Even if the temperature rises to above +4ºC there is no guarantee that the road is free of hazards

caused by inclement weather.

It will illuminate and glow orange when the outside air

temperature is between 4ºC (39ºF) and 1ºC (34ºF). It will glow red when the temperature is below 1ºC (34ºF).

Glow plug indicator

See Starting a diesel engine

(page 131).

Headlamp indicator

It will illuminate when you switch

the headlamp dipped beam or

the side and tail lamps on.

Ignition warning lamp

If it illuminates when you are

driving, this indicates a

malfunction. Switch off all unnecessary electrical equipment. Have the system checked by a properly trained technician immediately.

Low fuel level warning lamp

If it illuminates, refuel as soon as possible.

Main beam indicator

It will illuminate when you switch the headlamp main beam on. It will flash when you use the

headlamp flasher.

Message indicator

It will illuminate when a new message is stored in the information display. See

Information messages (page 90).

Oil pressure warning lamp

CAUTION

Do not resume your journey if it illuminates despite the level being

correct. Have the system checked by a properly trained technician immediately.

If it stays on after starting or illuminates when driving, this

indicates a malfunction. Stop your vehicle as soon as it is safe to do so and switch the engine off. Check the engine oil level. See Engine oil check (page 190).

Rear fog lamp indicator

It will illuminate when you switch

the rear fog lamps on.

Seat belt reminder

See Seat belt reminder

(page 32).

Instruments

Stability control (ESP) indicator

While driving, it flashes during activation of the system. After

switching on the ignition, if it does not illuminate or illuminates continuously while driving, this indicates a malfunction. During a malfunction, the system switches off. Have the system checked by a properly trained technician as soon as possible.

If you switch ESP off, the warning lamp will illuminate. The

lamp will go out when you switch the system back on or when you switch the ignition off.

AUDIBLE WARNINGS AND INDICATORS

Switching the chimes on and off

You can deactivate certain chimes using the Information display control. For item location: See Quick start (page 10).

To set which chimes should sound:

1. Press the left arrow button on the

steering wheel to enter the main menu.

Highlight Settings with the up and down arrow buttons and press the right arrow button.

Highlight Chimes and press the right arrow button.

Highlight Information or Warning and press the OK button to switch the chime on and off.

5. Press the left arrow button to exit the

menu. Press and hold the left arrow button to return to the main menu display.

Automatic transmission

If position P is not selected, a warning chime will sound when the driver’s door is opened.

Frost

WARNING

Even if the temperature rises to above +4ºC there is no guarantee that the road is free of hazards

caused by inclement weather.

A warning chime will sound in the following conditions:

•

+4ºC or lower: frost warning

•

0ºC or lower: danger of icy roads.

Key outside car

Vehicles with keyless entry

If the engine is running and a passive key is no longer detected within the vehicle interior, a chime will sound.

Key-in-ignition

A warning tone will sound when any door is opened if the vehicle exceeds a relatively low speed.

Lights on

A warning chime will sound if the driver’s door is opened with the exterior lights switched on and the ignition switched off.

Low fuel

A warning chime will sound when the remaining fuel is less than 8 litres (1.8 gallons).

Instruments

Luggage compartment lid power liftgate

During operation and programming, the system may sound various chimes:

•

One short chime indicates that the liftgate will start to open or close.

•

Two short chimes during opening or closing will indicate that an obstacle has been detected.

•

Three short chimes indicate that the liftgate will not operate.

•

One long chime confirms successful programming of an end stop position.

See Locking and unlocking (page 38).

Seat belt reminder

WARNINGS

The seat belt reminder remains in stand-by mode when the front seat

belts have been fastened. It will be reactivated if either seat belt is unfastened.

Do not sit on top of a fastened seat

belt to prevent the seat belt

reminder from coming on. The occupant protection system will only provide optimum protection when you use the seat belt properly.

When the vehicle’s speed exceeds the pre-determined limit, a warning chime will sound if either of the front seat belts are unfastened. The chime will stop after four minutes.

Grand C-MAX rear seat belt reminder

WARNING

If multiple belts are unfastened

within a few seconds of each other,

only one audible chime will sound.

When the vehicle’s speed exceeds the pre-determined limit, a warning chime will sound if a rear seat belt is unfastened.

See Seat belt reminder (page 32).

Instruments

GENERAL INFORMATION

Note:

The information display will remain on for several minutes after you switch off the ignition.

Various systems on your vehicle can be controlled using the information display controls on the steering column. Corresponding information is displayed in the information display.

For detailed instructions on navigation, refer to the appropriate manual.

Device list

The icon changes to show the current function in use.

Radio

Auxiliary input

Phone

Settings

Controls

Press the up and down arrow buttons to scroll through and highlight the options within a menu.

Press the right arrow button to enter a sub-menu.

Press the left arrow button to exit a menu.

Hold the left arrow button pressed at any time to return to the main menu display (escape button).

Press the OK button to choose and confirm a setting.

Menu structure - information display

All vehicles

You can access the menu using the Information display control. For item location: See Quick start (page 10).

Information displays

Trip Computer

Trip odometer Dist to empty

Instant fuel Average fuel Average speed Outside air Total odometer

English Deutsch

Italiano

Français

Español

Türkçe Pyccкий

Nederlands

Polski

Português

Svenska

Traction ctrl

Hill start assist

BLIS

Language

Measure unit

Display

Driver assist

Deflat detection Seatbelts

l/100km Miles/Gallon

Rain light

Dimming

Ambient light

Lighting

Auto Manual

Hdlamp delay

Temp unit

°Celsius °Fahrenheit

Manual 20 seconds 40 seconds 60 seconds

Information

Settings

E130509

Information displays

Chimes

Convenience

Set time Monday

Tuesday

Wednesday

Thursday

Friday Saturday

Sunday

Park slot

Warning

Information

Aux heater Park heater

Alarm

Time 1

Set time Monday

Tuesday

Wednesday

Thursday

Friday Saturday

Sunday

Time 2

Once Heat now

Full guard Reduced Ask on exit

System check

E130510

Menu structure - information and entertainment display

You can access the menu using the buttons on the audio or navigation unit.

Information displays

All vehicles

FM FM AST DAB1 DAB2 AM

Adaptive volume

iPOD USB Bluetooth audio Line in

AM AST

Radio

Auxiliary

Dial number Phone book Call lists Bluetooth Redial Select phone Reject all calls

Phone

Audio settings

Sound Nav audio mixing DSP settings DSP equaliser News Alt frequency RDS regional DAB service link Bluetooth

Set time

Clock settings

Set date GPS time Set time zone Summertime 24-hour mode

E130532

Menu structure - information and entertainment display

You can access the menu using the Information and entertainment display control. For item location: See Quick start (page 10).

Information displays

Vehicles with navigation system

Navigation

Route

Route sections list

Block next section

Destination input

Unblock rt sectn

Eco Fast

Short

Always ask Leisurely Normal

Fast

Driver

Active guidance

City/postcode

Street District

Start guidance

Country

Traffic

TMC messages

Block next section Route sections list

Points of interest

Near destination

Along motorway POIs near address

Search by name

POIs nearby

Home address

Last destinations

Change address

Start guidance

Route options

Route

Tour planning

Stored tours

Store position

New tour

Favourites

Favourites A-Z

B CA

E130534

Information displays

Special functions

Trailer Roof box

Eco settings

Motorway

Tunnel Ferry/motorail

Toll Seasonal roads

Dynamic

Toll sticker

See separate menu structure

Radio

See separate menu structure

Auxiliary

See separate menu structure

Phone

See separate menu structure

Navigation

System info

Enter position Demo mode

GPS info

Driver

Eco Settings Dynamic

Motorway Tunnel Ferry/motorail Toll Seasonal roads

Route

Toll sticker

Route options

Arrows on map

Nav time display Map heading up

Best contrast

Map content

Map display

B C

E130535

Information displays

Audio Settings Clock Settings

Signs/lanes Speed limits

Nav icons in lists

Clear last destination Clear favourites

Delete home address Clear all

Assistance options

Personal data

Reset all settings

See separate menu structure See separate menu structure

B C

E130536

TRIP COMPUTER

Trip Odometer

Registers the mileage of individual journeys.

Distance to empty

Indicates the approximate distance the vehicle will travel on the fuel remaining in the tank. Changes in driving pattern may cause the value to vary.

Instantaneous fuel consumption

Indicates the current average fuel consumption.

Average fuel consumption

Indicates the average fuel consumption since the function was last reset.

Average speed

Indicates the average speed calculated since the function was last reset.

Outside air temperature

Shows the outside air temperature.

Odometer

Registers the total mileage of the vehicle.

Resetting the trip computer

To reset a particular display:

Highlight Trip Computer with the up and down arrow buttons and press the right arrow button.

2. Highlight the function to be reset.

Hold the OK button pressed.

PERSONALISED SETTINGS

Language setting

A choice of eleven languages are available:

English, German, Italian, French, Spanish, Turkish, Russian, Dutch, Polish, Swedish and Portuguese.

Information displays

Measure units

To toggle between metric and imperial units, scroll to this display and press the OK button.

Toggling the units of measure using this display will affect the following displays:

•

Distance to empty.

•

Average fuel consumption.

•

Instantaneous fuel consumption.

•

Average speed.

Temperature units

To toggle between metric and imperial units, scroll to this display and press the OK button.

Toggling the temperature units using this display will affect the following displays:

•

Outside air temperature.

•

The temperature display in the automatic climate control.

Chime deactivation

The following chimes can be deactivated:

•

Warning messages.

•

Information messages.

INFORMATION MESSAGES

Note:

Certain messages may be abbreviated or shortened depending upon which cluster type you have.

E130248

Press the OK button to acknowledge and remove some messages from the information display. Other messages will be removed automatically after a short time.

Certain messages need to be confirmed before you can access the menus.

Message indicator

The message indicator illuminates to supplement some

messages. It will be red or amber depending on the severity of the message and will remain on until the cause of the message has been rectified.

Message symbols

See Owner’s handbook.

Have the system checked at

the next service.

Have the system checked as

soon as possible.

Stop your vehicle as soon as it

is safe to do so.

Information displays

Airbag

Action

Message

indicator

Message

Have the system checked by a properly trained technician as soon as possible.

amberAirbag malfunction service now

Alarm

Action

Message

indicator

Message

See Alarm (page 47).

amberAlarm triggered check vehicle

Have the system checked by a properly trained technician.

Alarm malfunction service required

Battery and charging system

Action

Message

indicator

Message

Stop your vehicle as soon as it is safe to do so and switch off the ignition. Have the system checked by a properly trained technician as soon as possible.

red

Electrical system overvoltage stop safely

Have the system checked by a properly trained technician as soon as possible.

amberBattery low check handbook

Information displays

Blind spot monitor

Action

Message

indicator

Message

See Blind spot monitor (page

74).

amber

BLIS sensor blocked check handbook

Have the system checked by a properly trained technician as soon as possible.

amber

BLIS: right sensor fault service required

Have the system checked by a properly trained technician as soon as possible.

amber

BLIS: left sensor fault service required

See Blind spot monitor (page

74).

amberBLIS not available trailer attached

Child power lock

Action

Message

indicator

Message

Have the system checked by a properly trained technician as soon as possible.

amber

Child lock malfunction service required

Doors open

Action

Message

indicator

Message

Vehicle is moving. Stop the vehicle as soon as safely possible and close.

redDriver door open

Vehicle is moving. Stop the vehicle as soon as safely possible and close.

redDriver side rear door open

Vehicle is moving. Stop the vehicle as soon as safely possible and close.

redPassenger door open

Information displays

Action

Message

indicator

Message

Vehicle is moving. Stop the vehicle as soon as safely possible and close.

redPassenger side rear door open

Vehicle is moving. Stop the vehicle as soon as safely possible and close.

redLuggage compartment lid open

Vehicle is moving. Stop the vehicle as soon as safely possible and close. See Opening and closing the bonnet (page 184).

redBonnet open

Vehicle not moving. Close.-Driver door open

Vehicle not moving. Close.-Driver side rear door open

Vehicle not moving. Close.-Passenger door open

Vehicle not moving. Close.-Passenger side rear door open

Vehicle not moving. Close.-Luggage compartment lid open

Vehicle not moving. Close. See

Opening and closing the bonnet (page 184).

-Bonnet open

Have the system checked by a properly trained technician.

Power tailgate malfunction service required

Engine immobiliser

Action

Message

indicator

Message

Your key has not been recognised. Remove the key and try again.

amber

Immobiliser active check handbook

Have the system checked by a properly trained technician as soon as possible.

amber

Immobiliser malfunction service required

Information displays

Hill start assist

Action

Message

indicator

Message

Have the system checked by a properly trained technician.

amberHill start assist not available

Keyless system

Action

Message

indicator

Message

Keyless system.amberFord KeyFree key inside vehicle

Have the system checked by a properly trained technician.

amberSteering malfunction service now

Stop your vehicle as soon as it is safe to do so and switch off the ignition. Have the system checked by a properly trained technician as soon as possible.

redSteering malfunction stop safely

See Keyless entry (page 42).

-Ford KeyFree no key detected

See Keyless starting (page

131).

red

Ford KeyFree switch ignition off press POWER

See Keyless entry (page 42).

redFord KeyFree key not inside car

See Keyless starting (page

131).

-Ford KeyFree press brake to start

See Keyless starting (page

131).

-Ford KeyFree press clutch to start

See Keyless starting (page

131).

Ford KeyFree press brake and clutch

See Changing the remote control battery (page 35).

-Key battery low replace soon

See Steering wheel lock (page 129).

Steering lock engaged turn steering wheel

Information displays

Lighting

Action

Message

indicator

Message

One or both of the brake lamp bulbs have blown. Check the brake lamp bulbs. See Chan- ging a bulb (page 62).

-Brake lamp bulb fault

-Park lamp bulb fault

One or both of the rear fog lamp bulbs have blown. Check the rear fog lamp bulbs. See Changing a bulb (page 62).

-Rear fog lamp bulb fault

One or both of the headlamp dipped beam bulbs have blown. Check the headlamp dipped beam bulbs. See Changing a bulb (page 62).

-Dipped beam bulb fault

Have the system checked by a properly trained technician as soon as possible.

amber

Headlamp malfunction service required

One or both of the brake lamp bulbs on your trailer have blown. Check the brake lamp bulbs on your trailer.

-Trailer brake lamp bulb fault

One or both of the direction indicator bulbs on your trailer have blown. Check the direction indicator bulbs on your trailer.

-Trailer turn lamp bulb fault

Maintenance

Action

Message

indicator

Message

Stop your vehicle as soon as it is safe to do so and switch off the ignition. Have the system checked by a properly trained technician as soon as possible.

red

High engine temperature stop safely

Information displays

Action

Message

indicator

Message

See Engine oil check (page

190).

amberEngine oil level low check level

Service Indication-Engine oil change due

Have the system checked by a properly trained technician as soon as possible.

amber

Water detected in fuel service required

Check the brake fluid level. See

Brake and clutch fluid check

(page 191).

redBrake fluid level low service now

Stop the vehicle as soon as safely possible. Have the system checked by a properly trained technician immediately.

red

Brake system malfunction stop safely

Have the system checked by a properly trained technician as soon as possible.

amberEngine malfunction service now

Stop the vehicle as soon as safely possible and switch off the engine immediately. Have the system checked by a properly trained technician immediately.

redEngine malfunction service now

Check the washer fluid level. See Washerfluid check (page 191).

-Washer fluid level low

Information displays

Power steering

Action

Message

indicator

Message

Power steering. Full steering will be maintained but you will need to exert greater force on the steering wheel. Have the system checked by a properly trained technician as soon as possible.

amber

Steering assist malfunction check handbook

Have the system checked by a properly trained technician.

amberSteering malfunction service now

Stop your vehicle as soon as it is safe to do so and switch off the ignition. Have the system checked by a properly trained technician as soon as possible.

redSteering malfunction stop safely

Transmission

Action

Message

indicator

Message

Under certain driving conditions it is possible that the clutches in the transmission can overheat. In these circumstances it is necessary to press the brake pedal and stop the vehicle to prevent further

amberTransmission too hot press brake

overheating. Select N (NEUTRAL) or P (PARK) and apply the foot brake and parking brake until the transmission has cooled and the message disappears from the display.

redTransmission too hot press brake

overheating. Select N (NEUTRAL) or P (PARK) and

Information displays

Action

Message

indicator

Message

apply the foot brake and parking brake until the transmission has cooled and the message disappears from the display. If the vehicle is driven with this message active you may experience vehicle judder as a further overheat warning.

The transmission is too hot. In these extreme conditions the transmission will disengage drive in order to prevent damage due to overheating. You will not be able to drive until the transmission

red

Transmission overheating stop safely has cooled. Select N

(NEUTRAL) or P (PARK) and apply the foot brake and parking brake until the transmission has cooled and the message disappears from the display.

Have the system checked by a properly trained technician as soon as possible.

amber

Transmission limited function check handbook

Have the system checked by a properly trained technician as soon as possible.

red

Transmission malfunction service now

At low outside temperatures, after starting the engine, it may take the transmission several seconds to engage R (REVERSE) or D (DRIVE). Keep the brake pedal depressed until these messages disappear from the display.

Transmission warming up please wait

See Automatic transmission (page 139). See Starting the engine (page 129).

-Transmission not in Park select P
