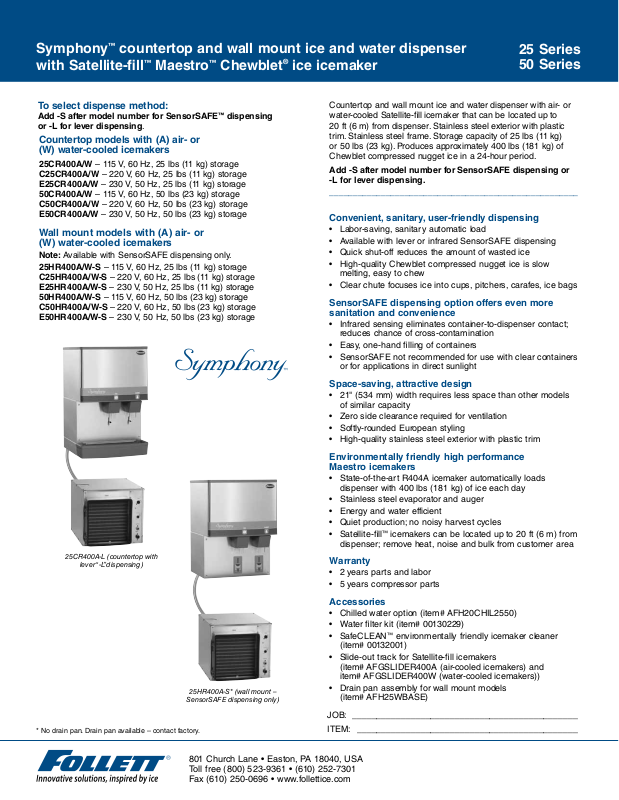

Follett 25CR400A User Manual
Symphony™ countertop and wall mount ice and water dispenser
™
with Satellite-ll
Maestro™ Chewblet® ice icemaker
25 Series
50 Series
To select dispense method:
Add -S after model number for SensorSAFE™ dispensing
or -L for lever dispensing.
Countertop models with (A) air- or
(W) water-cooled icemakers
25CR400A/W – 115 V, 60 Hz, 25 lbs (11 kg) storage
C25CR400A/W – 220 V, 60 Hz, 25 lbs (11 kg) storage
E25CR400A/W – 230 V, 50 Hz, 25 lbs (11 kg) storage
50CR400A/W – 115 V, 60 Hz, 50 lbs (23 kg) storage
C50CR400A/W – 220 V, 60 Hz, 50 lbs (23 kg) storage
E50CR400A/W – 230 V, 50 Hz, 50 lbs (23 kg) storage
Wall mount models with (A) air- or
(W) water-cooled icemakers
Note: Available with SensorSAFE dispensing only.
25HR400A/W-S – 115 V, 60 Hz, 25 lbs (11 kg) storage
C25HR400A/W-S – 220 V, 60 Hz, 25 lbs (11 kg) storage
E25HR400A/W-S – 230 V, 50 Hz, 25 lbs (11 kg) storage
50HR400A/W-S – 115 V, 60 Hz, 50 lbs (23 kg) storage
C50HR400A/W-S – 220 V, 60 Hz, 50 lbs (23 kg) storage
E50HR400A/W-S – 230 V, 50 Hz, 50 lbs (23 kg) storage
Countertop and wall mount ice and water dispenser with air- or
water-cooled Satellite-ll icemaker that can be located up to
20ft(6 m) from dispenser. Stainless steel exterior with plastic
trim. Stainless steel frame. Storage capacity of 25 lbs (11 kg)
or 50lbs (23 kg). Produces approximately 400 lbs (181kg) of
Chewblet compressed nugget ice in a 24-hour period.
Add -S after model number for SensorSAFE dispensing or
-L for lever dispensing.
_____________________________________________________
Convenient, sanitary, user-friendly dispensing
• Labor-saving, sanitary automatic load
• Available with lever or infrared SensorSAFE dispensing
• Quick shut-off reduces the amount of wasted ice
• High-quality Chewblet compressed nugget ice is slow
melting, easy to chew
• Clear chute focuses ice into cups, pitchers, carafes, ice bags
SensorSAFE dispensing option offers even more
sanitation and convenience
• Infrared sensing eliminates container-to-dispenser contact;
reduces chance of cross-contamination
• Easy, one-hand lling of containers
• SensorSAFE not recommended for use with clear containers
or for applications in direct sunlight
Space-saving, attractive design
• 21" (534 mm) width requires less space than other models
of similar capacity
• Zero side clearance required for ventilation
• Softly-rounded European styling
• High-quality stainless steel exterior with plastic trim
25CR400A-L (countertop with
lever “-L” dispensing)
25HR400A-S* (wall mount –
SensorSAFE dispensing only)
* No drain pan. Drain pan available – contact factory.
Environmentally friendly high performance
Maestro icemakers
• State-of-the-art R404A icemaker automatically loads
dispenser with 400 lbs (181 kg) of ice each day
• Stainless steel evaporator and auger
• Energy and water efficient
• Quiet production; no noisy harvest cycles
• Satellite-ll
dispenser; remove heat, noise and bulk from customer area
™
icemakers can be located up to 20 ft (6 m) from
Warranty
• 2 years parts and labor
• 5 years compressor parts
Accessories
• Chilled water option (item# AFH20CHIL2550)
• Water lter kit (item# 00130229)
• SafeCLEAN
(item# 00132001)
• Slide-out track for Satellite-ll icemakers
(item# AFGSLIDER400A (air-cooled icemakers) and
item# AFGSLIDER400W (water-cooled icemakers))
• Drain pan assembly for wall mount models
(item# AFH25WBASE)
JOB: ______________________________________________
ITEM: _____________________________________________
™
environmentally friendly icemaker cleaner
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
25 Series
F
C
50
10
60
16
70
21
80
27
90
32
60
16
510
232
482
219
454
206
424
193
394
179
70
21
454
206
435
198
417
190
385
175
354
161
80
27
397
180
389
177
380
173
347
158
313
142
90
32
335
152
329
150
323
147
297
135
270
123
100
38
273
124
270
123
266
121
247
112
227
103
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Inlet Water Temperature ˚F/˚C
Ambient Air Temperature ˚F/˚C
Air-cooled icemaker capacity/24 hrs.
Inlet Water Temperature ˚F/˚C
F
C
50
10
60
16
70
21
80
27
90
32
60
16
451
204
423
192
394
179
371
168
352
160
70
21
447
202
413
187
390
177
361
163
342
155
80
27
442
200
409
185
380
172
352
160
333
151
90
32
437
199
399
181
371
168
342
155
323
146
100
38
428
194
394
179
361
163
333
151
309
140
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
Condenser Water Inlet Temperature ˚F/˚C
Water-cooled icemaker capacity/24 hrs.
50 Series
Symphony™ countertop and wall mount ice and water dispensers
™
with Satellite-ll
Maestro™ Chewblet® ice icemaker
5.875"
(150 mm)
Rear View
access panel
7' (2.1 m) power
cord w/5-20 90°
hospital-gradeplug
(115 V models only)
ice transport
tube knockout
3/4 FPT
drain
8.75" (223 mm)
10.5" (267 mm)
14.75" (375 mm)
Front View*
21" (534 mm)
25 series
29.625"
(753 mm)
50 series
33.625"
(854 mm)
21"
(534 mm)
18.875"
(480 mm)
17" (432 mm)
* Shown with lever dispensing (-L); infrared SensorSAFE dispensing (-S) available.
8.625"
(219 mm)
Side View
23.5" (597 mm)
23"
(585 mm)
20.75"
(527 mm)
plumbing
connection
knockout
(internal 3/8"
FPT connection)*
Connections
Countertop models: utilities connect through back or bottom. Back entry shown.
Wall mount models: utilities connect through back.
Supplied 2" (51 mm) duct and louver must be installed for undercounter Satellite-ll icemaker installations.
Wall mount models
Deduct 3.625" (92 mm) from height and add 0.5" (13 mm) to depth shown.
Wall mount bracket and SensorSAFE standard.
Standard without drain pan. Drain pan available – contact factory.
Clearances
Air-cooled Water-cooled
Required for ventilation
Recommended for service
6" (153 mm) right side of icemaker N/A
12" (305 mm) top of
icemaker and dispenser
12" (305 mm) top of
icemaker and dispenser
Note: See Dispenser Detail Sheet, form# 2075, for important installation information
Electrical
Model number Electrical connection
25CR400A/W, 25HR400A/W
50CR400A/W, 50HR400A/W
C25CR400A/W*, C25HR400A/W*
C50CR400A/W*, C50HR400A/W*
E25CR400A/W*, E25HR400A/W*
E50CR400A/W*, E50HR400A/W*
115 V, 60 Hz, 1 phase 4 amps 11 amps 20 amps
220 V, 60 Hz, 1 phase 1.5 amps 5 amps 15 amps
230 V, 50 Hz, 1 phase 1.5 amps 5 amps 15 amps
amperage
It is preferred that circuit be protected by a GFCI breaker.
7 ft (2.1 m) cord and NEMA 5-20 hospital-grade plug provided with each dispenser. If local code
requires hard-wiring, separate disconnects also required.
Dispenser
Icemaker
amperage
Required
circuit
*Cord only. Ensure wiring is in accordance with all local codes.
Ice Production
Energy consumption
KWH per 100 lbs (46 kg) ice
Air-cooled 5.7
Water-cooled 5.5
† Air temp. 90 F (32 C); water temp. 70 F (21 C)
†
Heat rejection data
Model Heat rejected in BTU/hr
to air to water
Air-cooled
5000 N/A
Water-cooled 1400 3600
Water consumption
12.6 gal (48 L) of potable water usage
per 100 lbs (46 kg) of ice.
Approximate shipping weight 310 lbs (141 kg)
Specications Ice and water dispenser to be Follett
(22 kg) of storage. Environmentally friendly R404A icemaker to be (choose one) ___ air- or ___ water-cooled and to be removable for cleaning and maintenance. Dispenser
frame and cabinet to be stainless steel with plastic trim. Icemaker to produce approximately 400 lbs (181 kg) of Chewblet compressed nugget ice at air temp. of 70 F (21 C),
water temp. of 50 F (10 C). Icemaker to be equipped with printed circuit board and diagnostics to allow simplied servicing. Dispensers with Satellite-ll icemakers to be equipped
with 10' (3 m) of insulated ice transport tube, 2"(51mm) air duct for icemaker (air-cooled only) and lightweight plastic top that allows full access to the ice storage area for easy
cleaning and manual loading of back-up ice. Storage area to be insulated with non-CFC, high density, foamed-in-place polyurethane. 7ft(2.1 m) cord and NEMA 5-20 hospitalgrade plug provided (220 V/230 V models, cord only). Dispenser to be NSF, UL and cUL listed. 230 V models also CE compliant.
Maestro, SafeCLEAN, SensorSAFE and Symphony are trademarks of Follett Corporation.
Chewblet and Follett are registered trademarks of Follett Corporation, registered in the US.
Follett reserves the right to change specications at any time without obligation. Certications may vary depending on country of origin.
®
automatic load in (choose one) ___ countertop or ___ wall mount conguration, with ___ 25 lbs (11 kg) or ___ 50lbs
801 Church Lane • Easton, PA 18040, USA
Toll free (800) 523-9361 • (610) 252-7301
Fax (610) 250-0696 • www.follettice.com
115V only
115V only
230V only
© Follett Corporation
