Car DVR User Manual
Overview
This is a digital HD (high definition) video camera recorder with the most
advanced technology; this device is a common HD video camera as well as a
professional driving recorder. It can record the high resolution image with the pixel as
high as 1920X1080P FULL HD, the advanced Wide Dynamic technology,
And take the picture of 3.0 mega pixels. Using dual TF card as the storage device,
compact size, low power consumption, HD camcorder can record more detailed
perfect video image. Video also can be transferred by HDMI transmission wire
directly to the high quality LED TV (HDMI) for high resolution displaying.
Enjoy true high-definition lift by using this product.
Feature
Product features:
◎ 120 degree ultra wide angle lens.
◎ Advanced Wide Dynamic technology
◎ 1920×1080P FULL HD high quality resolution.
◎ Take an unique dual-card processing technology, to achieve two 32GB ,64GB
loop recording
◎ Advanced H.264 video compression technology.
◎ Using stents power supply system, make the products more attractive
user-friendly
◎ 3.0 mega pixels
◎ 4X digital zoom, ranges from 12cm to limitless distance.
◎ 2.7 inch high resolution LCD, can watching while shooting.
◎ Support HDMI high quality video transmission.
◎ 4 resolution forms can be changed for video recording.
◎ 30 frames per second for smooth video flow.
◎ Equipped with special auto suction cup holder. Conveniently fix and use.
◎ G-sensor to keep records of sensor data and real-time display on the player.
◎ Powerful document protection, even in the recording process, the occurrence of
sudden power outages, machine damage, etc., video files will be intact.
◎ Seamless continuous recording will not miss any data.
◎ Adopt auto cigarette lighter power supply, to make the video recording while
driving.
◎ To start the auto automatic off; to start the video recording function,
◎ Automatic circulating video recording, being able to set the record time for each
file.
◎ Watch video while make video recording in driving. Support on-spot playback.
◎ Improve time & date display, no need reset when re-start.
◎ Set the video recording time, stop recording when the setting time is up.
◎ To charge through USB.
Structure
1） HDMI port 2） Holder port 3）USB port 4）OK/REC button
5）Power indicator 6) Working indicator 7)Power button 8)Screen 9)
TF slot (A)
10）TF slot (A) indicator 11)TF slot B 12)TF slot B indicator 13)Reset
14)MODE button
15）MEAN button 16) UP button 17) DOWN button 18)MIC 19）
Speaker
20）Decorative circle 21)Lens 22)LED light
Key Functions
Power button ON/OFF
MENU button Optional menu
MODE button Switch operation mode and corresponding menu
REC button Start/pause
UP key UP/zoom
DOWN key DOWN/zoom
Operation
Starting to use the car camcorder
◣Turning ON/OFF
Press power button once to power on ,blue light indicator is on;
Press again to power off, blue light indicator is off.
Attention: Low battery is displayed before shutting down.
◣Changing Batteries
There 3 ways of changing the battery, Red light indicator is on while charging; full
charge time is 180 minutes.
Red light indicator will turn off when fully charged
1. Using the AC adaptor to charge battery
2. Using USB to charge battery
3 .Adopt auto cigarette lighter power supply
◣Placing the Micro SD card
Place the micro SD card into the memory card slot according to the image below;
press it until you hear a click sound.
Insert TF card A, TF Card A video display work
Insert TF card B, Video Display TF Card B work
If insert two TF card, the system will default to card A to recording at first, if card A is
full, it will automatically cycle to Card B
◣G-Sensor Function
Select Off/High/Middle/Low, when the impact dynamics reached the value your setup,
this video will be locked.
◣Basic operation:
◣How to switch between video, photos, playback modes
Press MODE to switch modes
◣How to enter setting mode
Press MENU once, press MENU key again, enter “System Setting” option, a blue
background will be displayed.
Format: Format Micro SD card (this action will delete have not locking data stored in
the Micro SD card)
Language setting: 1) English 2) Traditional Chinese 3) Simplified Chinese 4)
Japanese 5) Russian 6) German,7) French,8) Spanish,9) Italian,10) Portuguese,
Reset System settings:Cancel /Proceed
Frequency:50 Hz/60Hz
Date setup:Set Date/Time
◣How to record video and enter setup
◣Shooting video
Press OK to start recording ,press it again to stop.
◣Video option settings
Press MENU key ,enter video option setting
Image size: 1080HFD 1920*1080 720P 1280*720 WVGA 848*480 VGA 640*480
Time display:ON/OFF
Motion detect:ON/OFF
Recording:ON/OFF
Cycle recording: Off/3min/5min/10min
Auto power-off: Off/3min/5min/10min
Press button voice: Off/On
◣How to enter photo setting option
◣Taking photo
Press OK key to take photo
Photo shooting setup option
Press MENU key, Enter photo shooting setup option
Shooting way: Single /2sec clocking /5sec clocking/10sec clocking
Image resolution: VGA 640*480 1.3M 1280*960 12M 4032*3024 10M 3648*2736
8M 3264*2448 5M 2592*1944 3M 2048*1536 2M HD 1920*1080
◣Manage Files
Press MODE key to enter File Management mode
There are 2 types of files-Video playback, Image playback
Most recent file will be displayed on LCD.
For example: If your last action was photo shooting,
The photo will be displayed on LCD.
◣Video and Photo playback
◣Video Playback
Press UP/DOWN key to select the desired file for playback
Press OK key to start/stop the video playback, adjust volume by UP or DOWN button
when play the video
Press DOWN key while playback to rewind
Press OK to stop video playback
◣Image Playback
Press UP/DOWN key to select desired file for playback
Playback option setting
While playback press MENU key to Playback option setting:
1. Delete: Press OK key to select action Single/All/Select delete File
2. Protect file: select locking or daglocking the file
3. Slide play: Select 2sec/5sec/8sec to play the video
◣Connect to PC
2*3024
Downloading Videos and Images
After USB cable is connected to computer, LCD display appear start picture, blue
indicator will turn on, then will display two option (Mass storage and PC Camera)
press OK button, Computer will automatically detect the Micro SD card drive
Attention: System requirements: Windows 2000/XP/Vista/windows 7, MAC OS
*10.3.6 or above
Browse or manage files through computer
Unplug the USB cable turn the device off
Remarks: If device crashes during usage, press the RESET button and restart
Specification
LCD Display 2.7”LTPS（16:9）
Lens 120°A+ High Resolution Wide Angle Lens
Language selection 1) English 2) Traditional Chinese 3) Simplified Chinese 4)
Japanese 5) Russian 6) German,7) French,8) Spanish,9)
Italian,10) Portuguese,
Video resolution 1080HFD 1920*1080 720P 1280*720 WVGA 848*480
VGA 640*480
Video format MOV H.264 compress format
Image resolution VGA 640*480 1.3M 1280*960 12M 403
10M 3648*2736 8M 3264*2448 5M 2592*1944 3M
2048*1536 2MHD 1920*1080
Image format JPG
Memory card Micro SD
Microphone/Speaker Yes
Shooting way Single/2sec clocking/5sec clocking/10sec clocking
TV mode PAL/NTSC
Frequency 50HZ/60HZ
USB Port USB2.0
Power input 5V 500MA
Battery Rechargeable Li-ion 160MAH

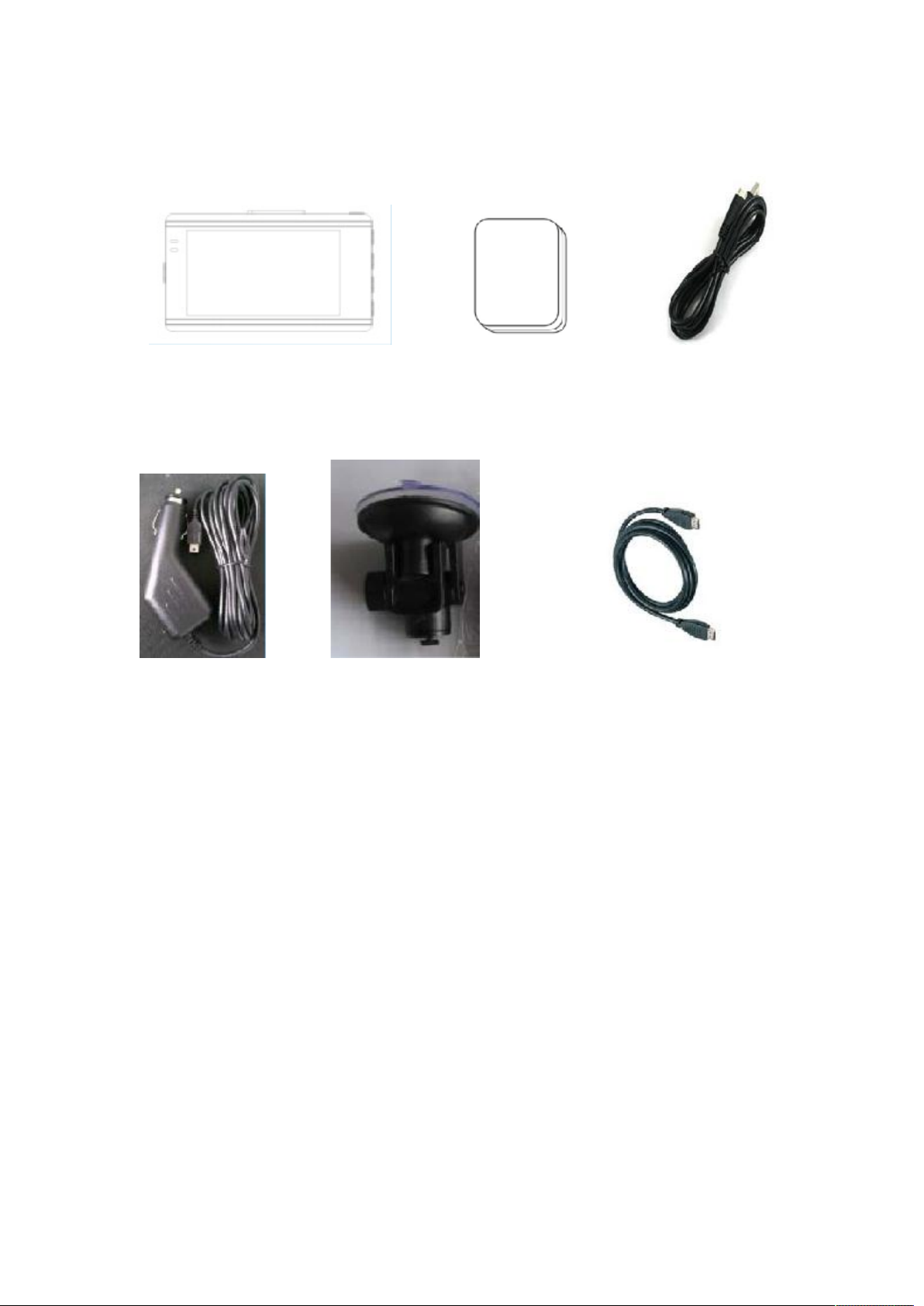

◣Accessories:
DVR User Manual USB cable
Car Charger Holder HDMI cable
