Flylink BW32 User Manual

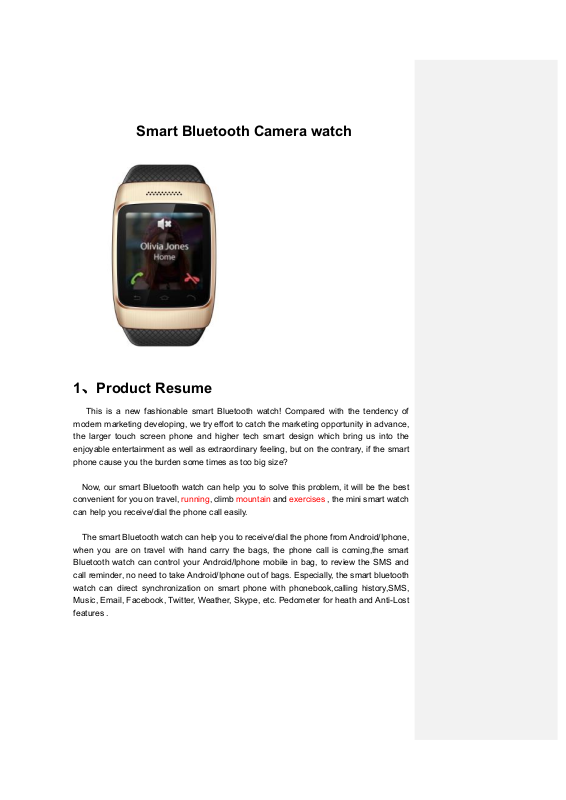

Smart Bluetooth Camera watch

1、Product Resume

This is a new fashionable smart Bluetooth watch! Compared with the tendency of

modern marketing developing, we try effort to catch the marketing opportunity in advance,

the larger touch screen phone and higher tech smart design which bring us into the

enjoyable entertainment as well as extraordinary feeling, but on the contrary, if the smart

phone cause you the burden some times as too big size?

Now, our smart Bluetooth watch can help you to solve this problem, it will be the best

convenient for you on travel, running, climb mountain and exercises , the mini smart watch

can help you receive/dial the phone call easily.

The smart Bluetooth watch can help you to receive/dial the phone from Android/Iphone,

when you are on travel with hand carry the bags, the phone call is coming,the smart

Bluetooth watch can control your Android/Iphone mobile in bag, to review the SMS and

call reminder, no need to take Android/Iphone out of bags. Especially, the smart bluetooth

watch can direct synchronization on smart phone with phonebook,calling history,SMS,

Music, Email, Facebook, Twitter, Weather, Skype, etc. Pedometer for heath and Anti-Lost

features .

2、Product Introduction

Watch appearance and functional specification

1：Loudspeaker
2：Power On/Off
3：USB port/Earphone port
4：Return button
5：Home button
6：Call button

*RESET button is on the back of the watch, when the watch crashed or can not power

on/off, use this button to reset the watch.

3、Menu

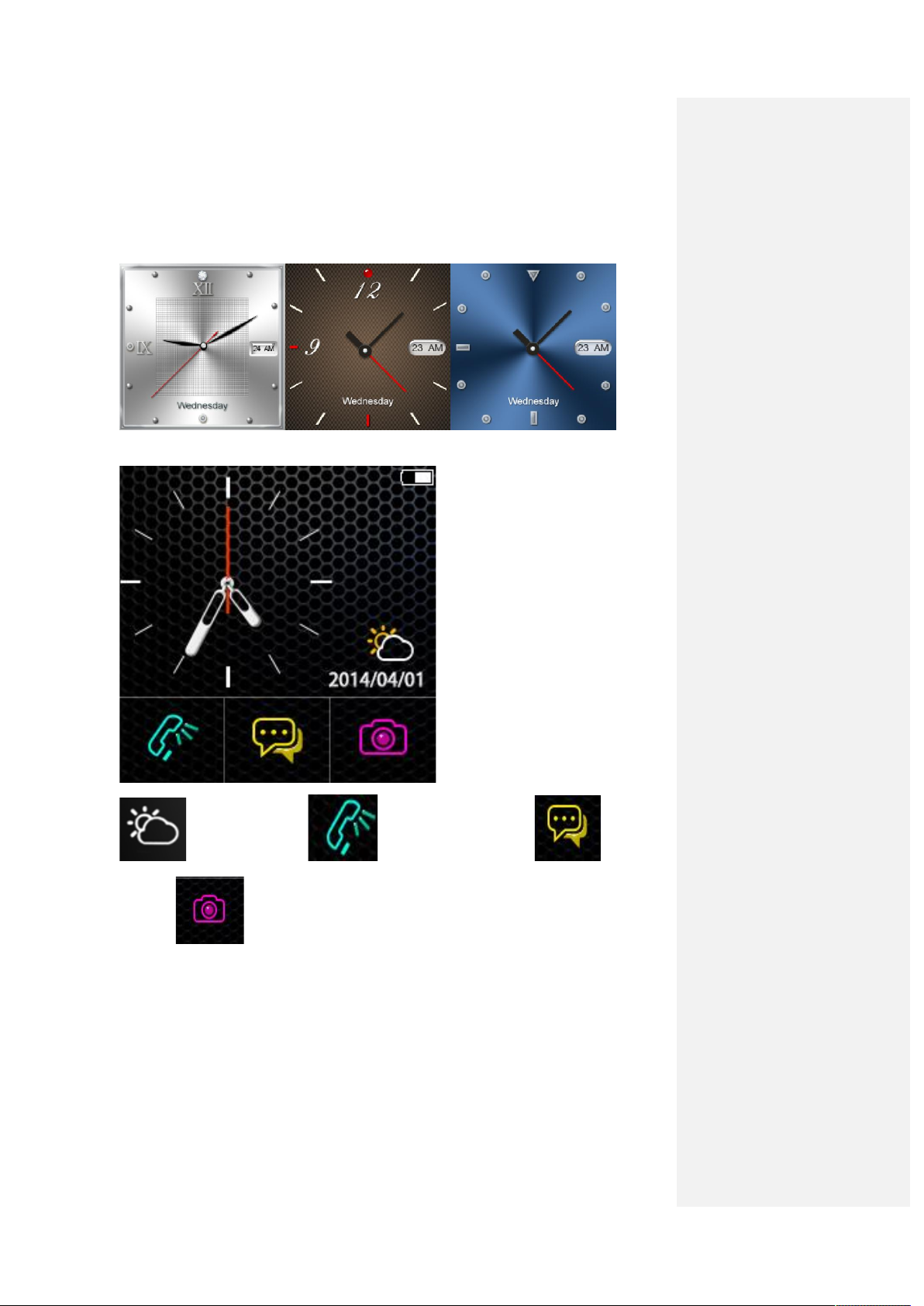

3.1：Main interface：

Sliding to right/left to change the clock interface.

1.

2. Click the clock display into the main interface

Weather MISSED CALL unread

message camera

Note：Sync the Weather and Message need the user’s smart phone have install the APK

software(Scan the QR-Code at the end of this user manual).

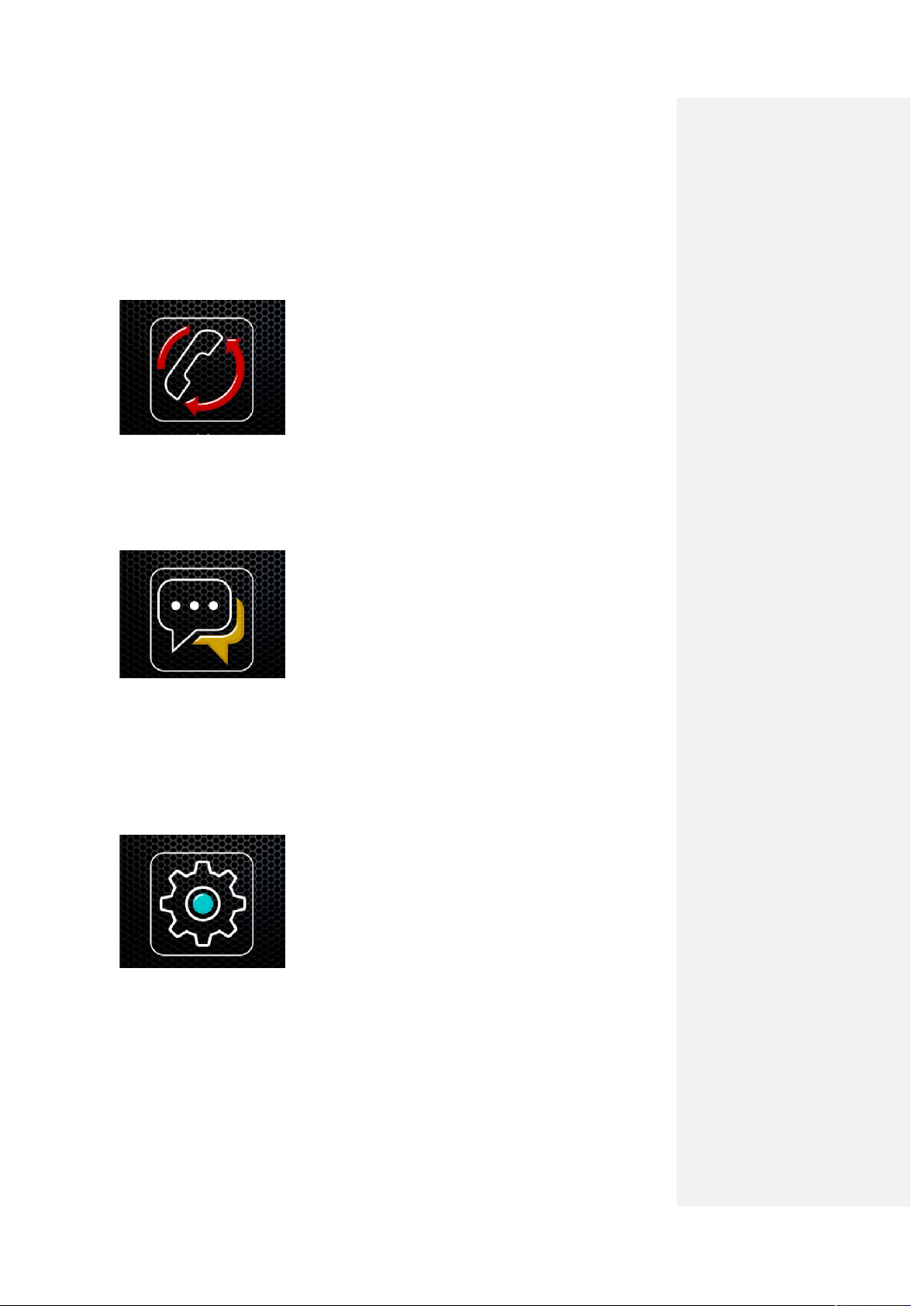

3.2: Call history

View your Missed calls, Dialled calls, Received calls and all calls records.

3.3：Messaging

first need install our APK software, click the bluetooth “connection” Icon after you finish the

installing, choose “PGD”, the Android phone will receive a request , confirm it. Then the

watch can receive the message when is coming.

3.4:Settings

1.Setting scene mode: General mode,Silence mode, Meeting mode. Outside mode

2. Watch setting: Set time/language/in put

3.File setting: SD card files

4.Security setting: Set up screen lock

5.

Restore to factory settings: Password (1122) is required for restoring to factory settings.

After restoring to factory settings, all customized system settings (e.g. Profiles) will be

restored to factory default ones and the data stored in the watch memory will be removed.

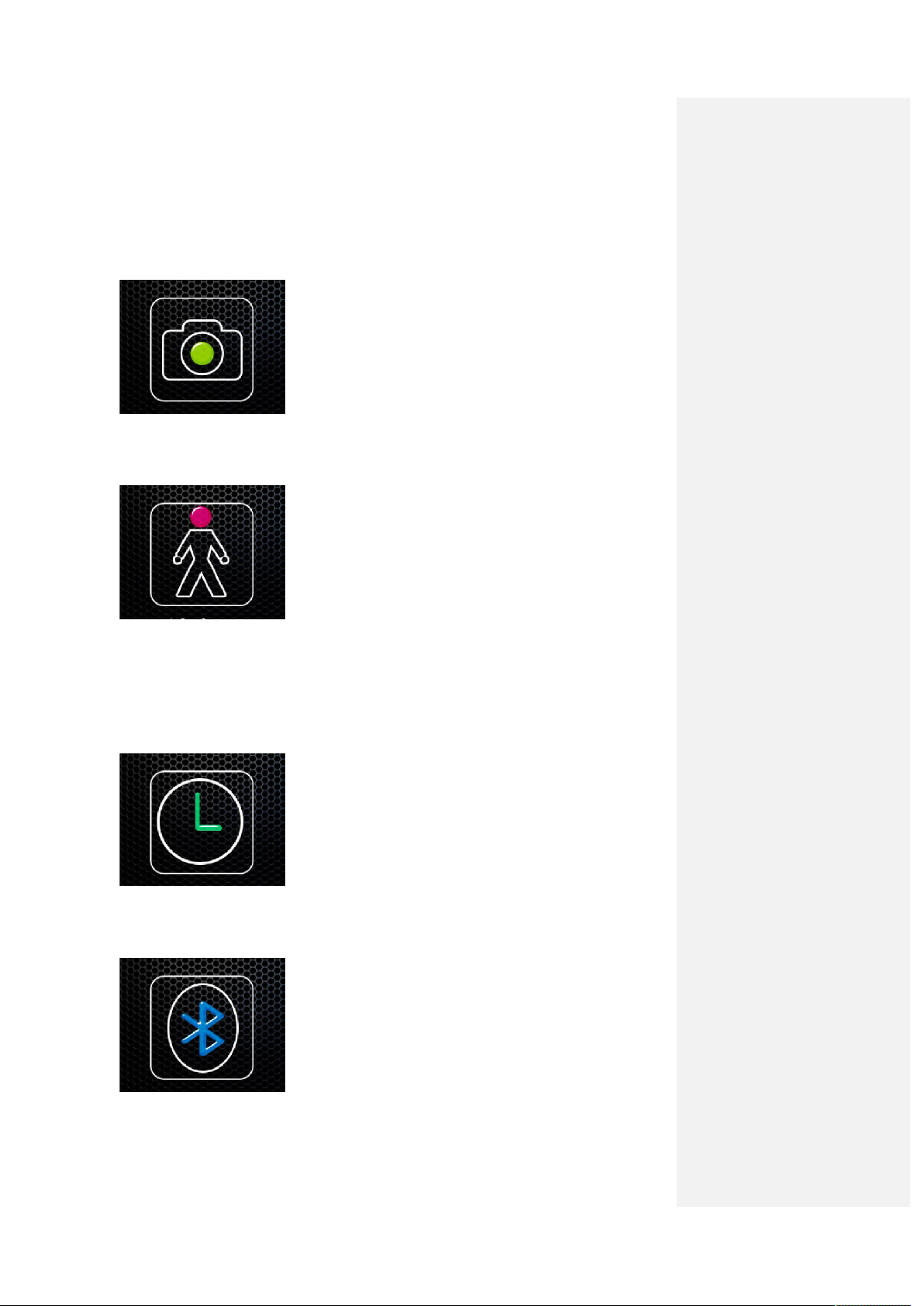

3.5 Camera

Smart Watch comes with 2M camera

3.6 Pedometer

Current time and step records can be viewed on Pedometer interface. Activate Pedometer

after wearing the Smart Watch. One hand shaking will be recorded as one walk step.

Pedometer will be deactivated after taping Stop. Tap Cont to continue recording steps.

Re-recording can be done after resetting Pedometer.

3.7

Alarm

Set up Alarm

3.8 Bluetooth Connect

Firstly power on the Bluetooth of Smart Watch, enter Bluetooth menu of smartphone,

search Bluetooth Device and choose Smart Watch PGD. Bluetooth will connect

successfully after confirming paring requests on both the Smart Watch and smartphone.

Anti-Lost function works through Bluetooth connected to the smartphone. After activating

the Anti-Lost, the Smart Watch will vibrate and alarm you the smartphone is leaving you or

lost. Tap Power On/off of Smart Watch to stop the alarm.

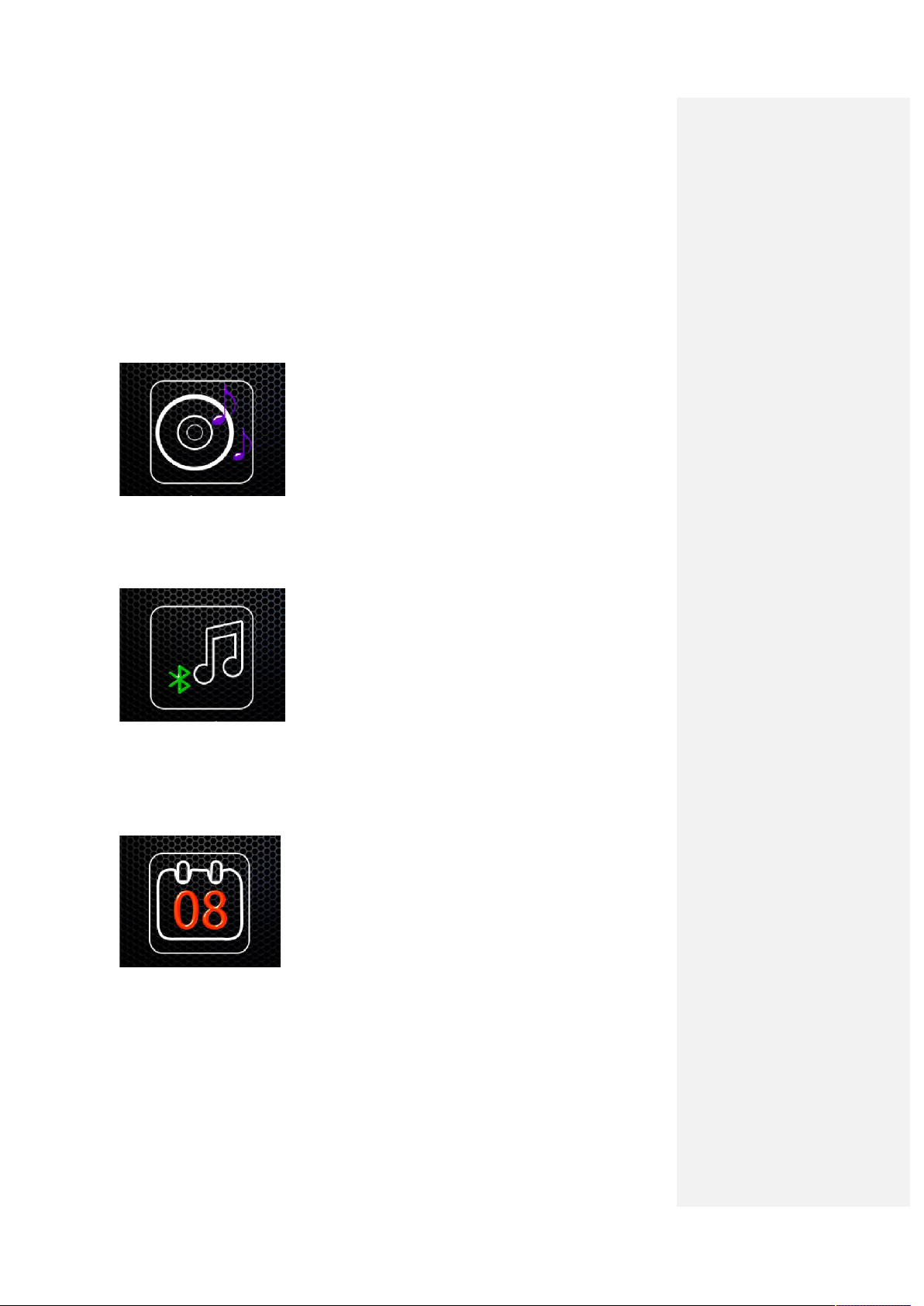

3.9 Audio Player

Smart Watch can play the music in the watch memory

3.10 Bluetooth Music

After Smart Watch Bluetooth connected to smartphone, Bluetooth Music function can play

(control music Previous / Next, Volume +/-) the music in the smartphone

3.11 Calendar：

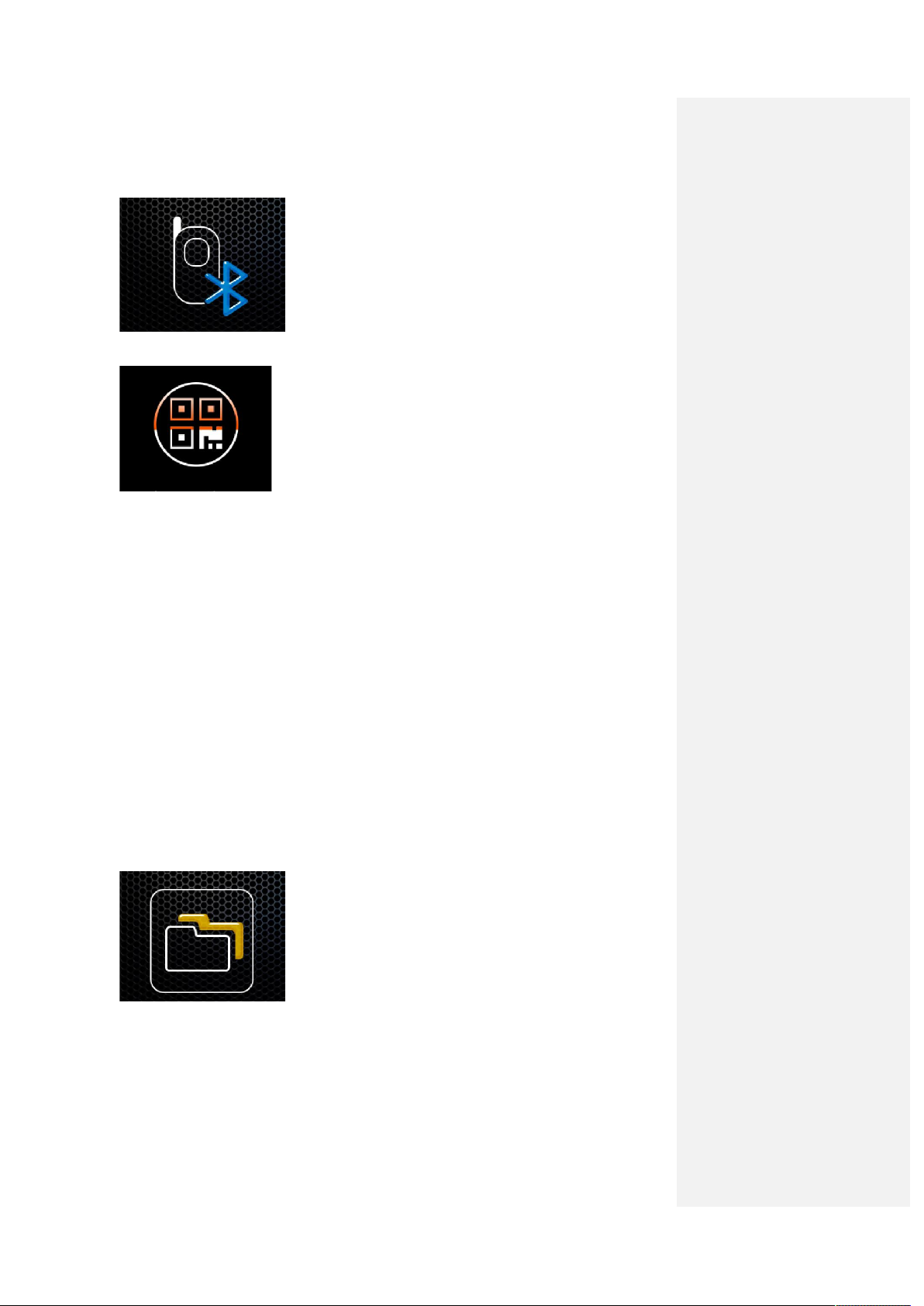

3.12 Remote notifier

3.13 QR code

Scan this QR- code to download this APK software(only for Android phone)

Then you can enjoy the below syncing functions with your Android phone:

Remind

Gmail

Email

Facebook

Twitter

Weather

Wechat ect...

3.14 File Manager

Manager the files in expand TF memory card

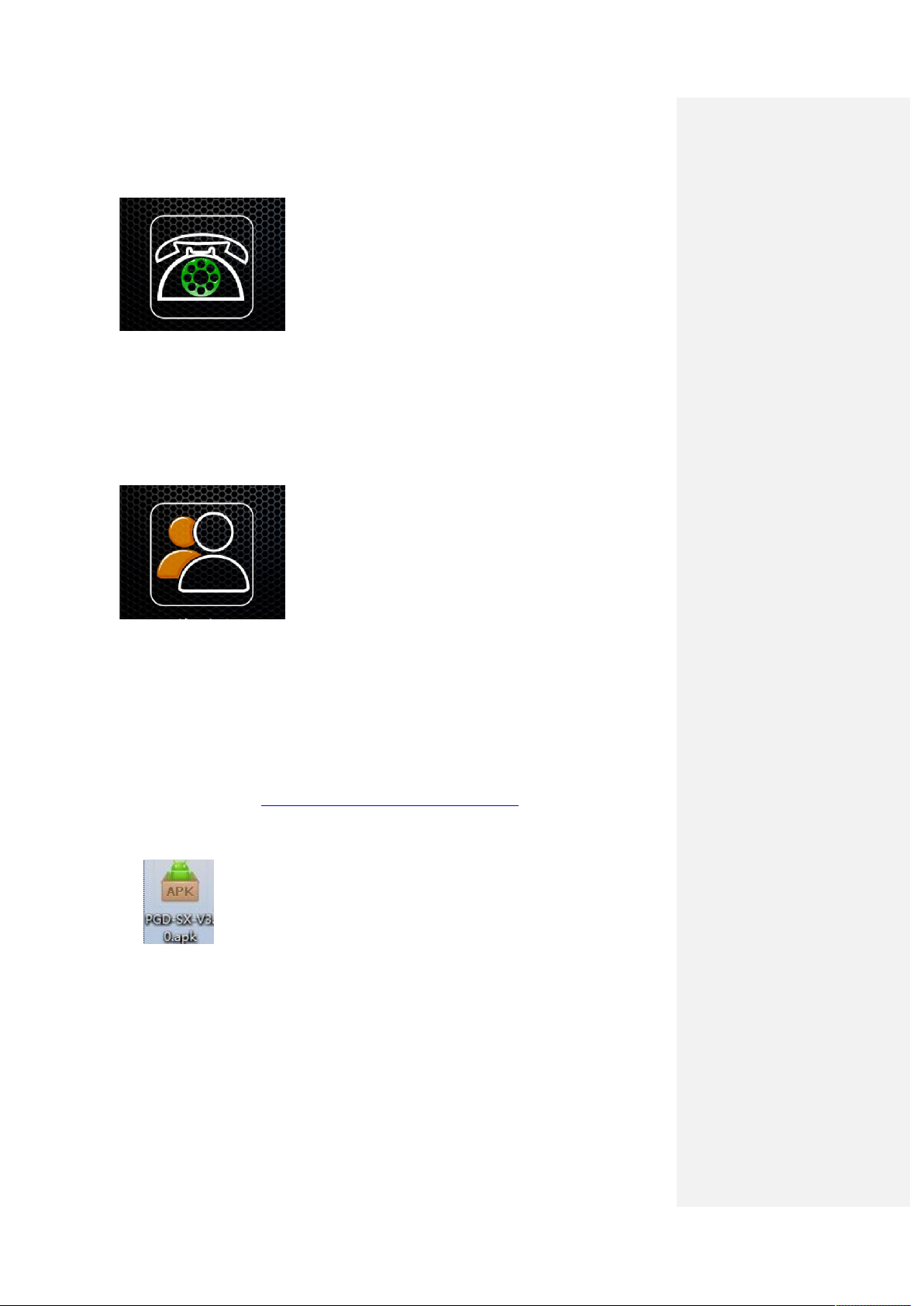

3.15 Dial

After pairing Smart phone and watch successfully, the watch can synchronize calls with

your phone , you can answer /make calls by the watch directly.

Note: When the user use mobile phone to make/answer calls, without any sound in the

watch . If you want to. make/answer calls by the watch, pls. use the watch first.

3.16 Phonebook

After pairing watch and mobile phone via Bluetooth, select “Phonebook”, then click

“connect”. It will a sync request on your Smart Phone, after confirming it, the watch will

sync the phonebook with your mobile phone.

3.17

Install APK in the Smart Phone

1: APK must be installed first in your Smart Phone , then the Sync service can work .

There are two ways to download APK:

1.1

: Find “APK “ from http://www.paxgps.com/PGD-SX-V3.0.apk

1.2

: Scan QC code to get “APK “(as 3.13), download this APK, install in the phone.

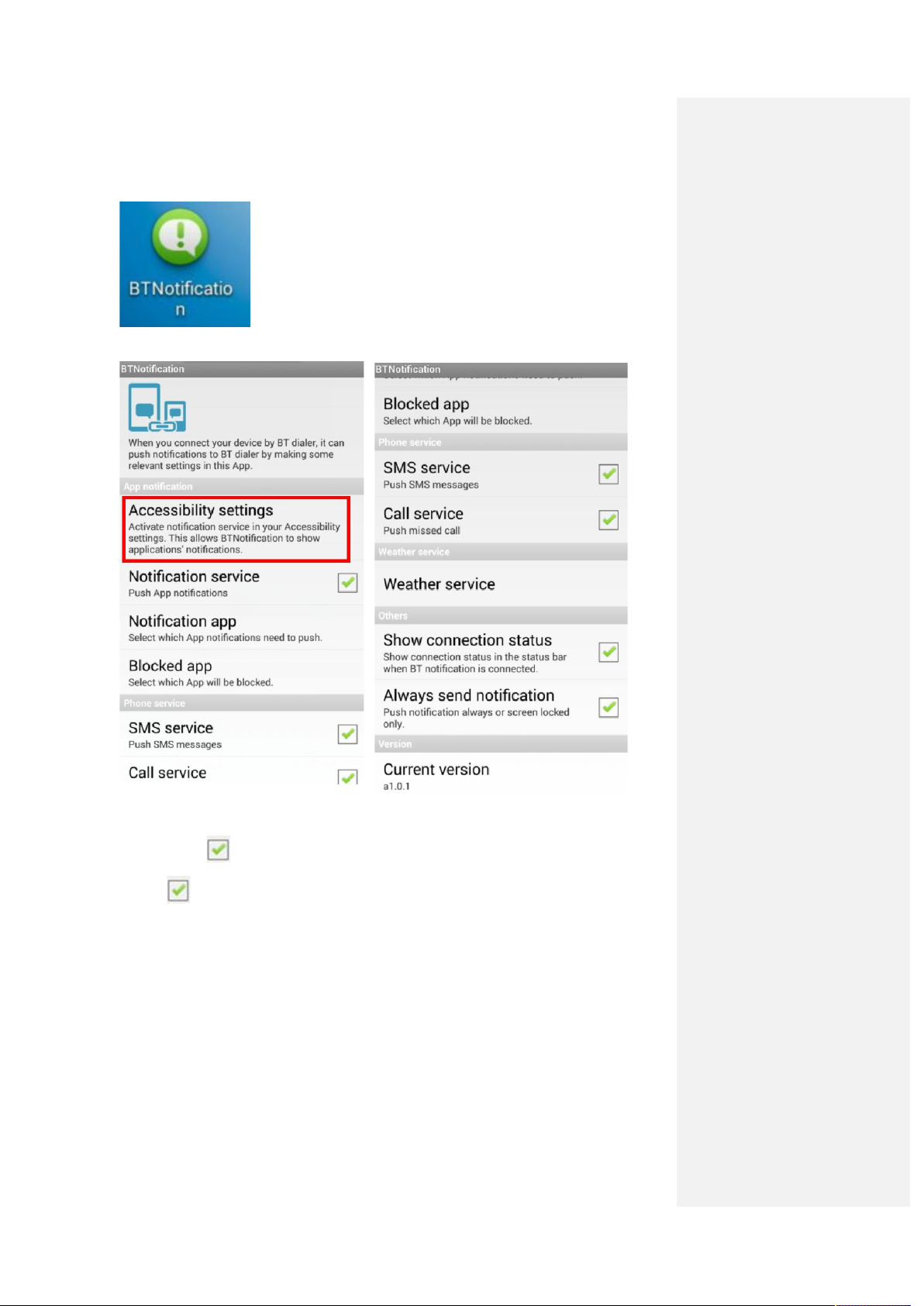

2: When you want to sync the phone’s Push Notification to the watch, click this APK ICON,

open this software. ( before this step, please make sure your phone have connect with the

watch via bluetooth.)

Then you will enter the below interface:

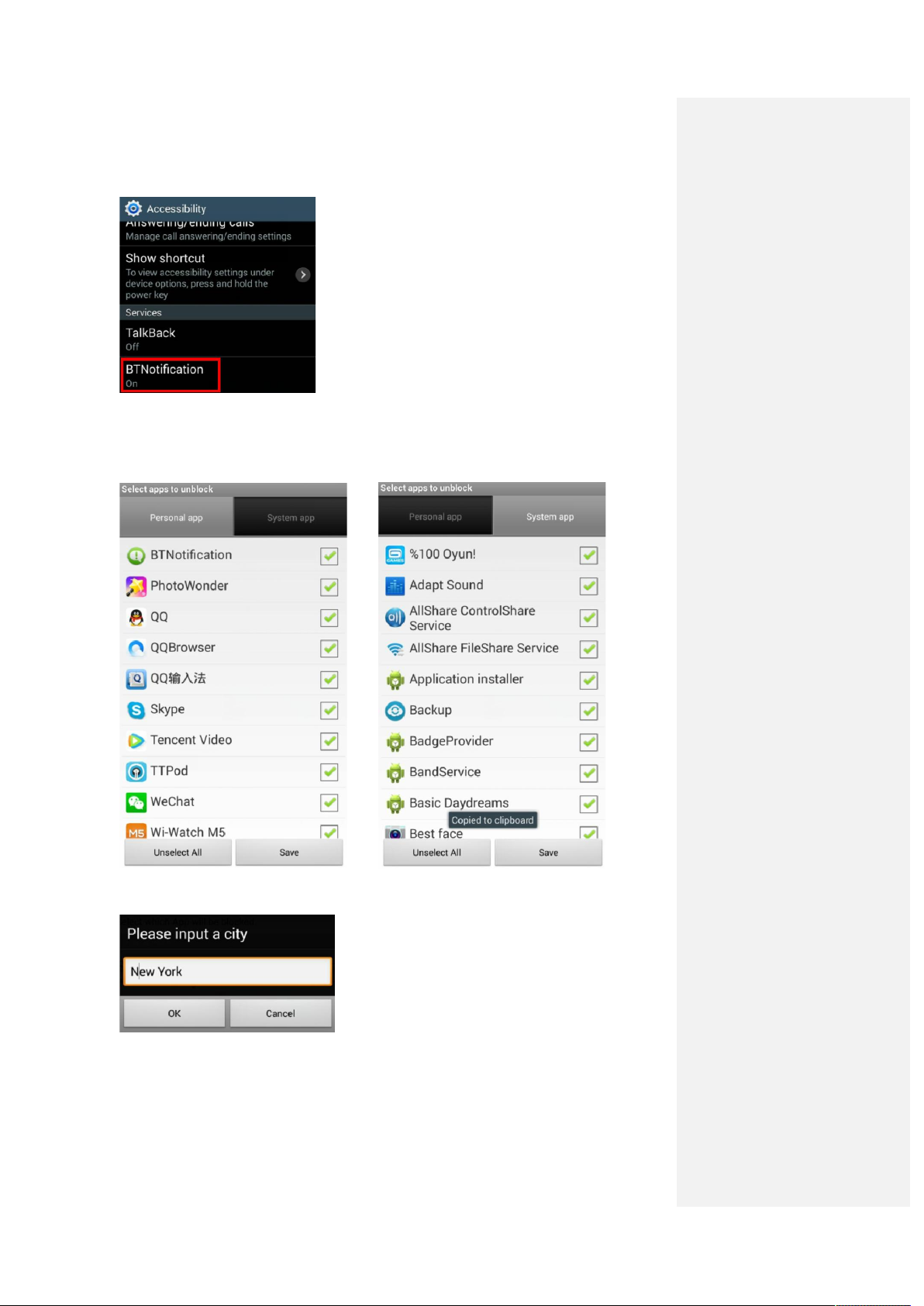

*you can click to choose open and closed about the push notification service to the

watch. ICON means” Open”.

3: Click “Accessibility settings” To activate the bluetooth notice. “ ON” means

state.

activated

4.Click “Notification APP”, can choose which APP notifications need to push to the watch:

5. Weather service, write the city name can synchronize the city weather information.

74：Common Troubleshooting

Any problems in the process of using the watch, please refer to the following terms and

conditions. If the problem still exists, please contact the dealer or the designated

maintenance personnel.

The watch can not power on.

• Press “on” button till startup screen

• Check the battery power

watch’s screen difficult to read

•Clean the screen.

• Start the backlight.

•According to the proposed conditions of use to use your watch.

带格式的: 项目符号和编号

The watch automatically shut down

•Check the battery life.

• Make sure LCD backlight not always open.

Using time is short

• Please make sure have not closed the screen savers

• Please make sure enough charging time(more than 3 hours)

• After charging parts of power, Battery level indicator might be
inaccurate. Please wait about 20minutes to get the accurate indication
after removing the battery char

Using time is short

• please check whether the battery is available, the use of the
performance of the battery will reduce after a few years.

• please make sure charging under normal condition

• make sure to use the designated charger.
