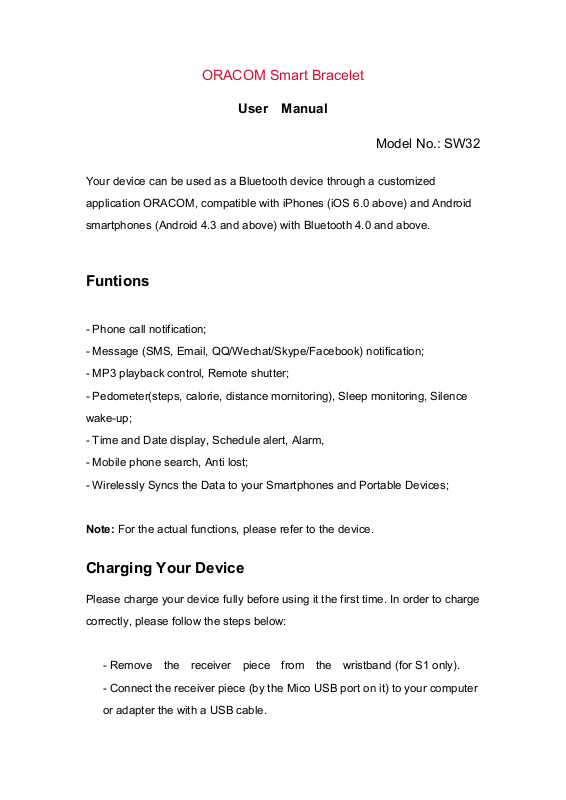

ORACOM Smart Bracelet
User Manual
Model No.: SW32
Your device can be used as a Bluetooth device through a customized
application ORACOM, compatible with iPhones (iOS 6.0 above) and Android
smartphones (Android 4.3 and above) with Bluetooth 4.0 and above.
Funtions
- Phone call notification;
- Message (SMS, Email, QQ/Wechat/Skype/Facebook) notification;
- MP3 playback control, Remote shutter;
- Pedometer(steps, calorie, distance mornitoring), Sleep monitoring, Silence
wake-up;
- Time and Date display, Schedule alert, Alarm,
- Mobile phone search, Anti lost;
- Wirelessly Syncs the Data to your Smartphones and Portable Devices;
Note: For the actual functions, please refer to the device.
Charging Your Device
Please charge your device fully before using it the first time. In order to charge
correctly, please follow the steps below:
- Remove the receiver piece from the wristband (for S1 only).
- Connect the receiver piece (by the Mico USB port on it) to your computer
or adapter the with a USB cable.
Page 2
NOTE: The device built- in lithium battery, to maximize the working life,
please use the suitable power to charge. (Suggested Output: DC5.0V,
300mA, such as a computer USB port). It may take about half an hour for a
full recharge.
Using Your Smart Bracelet
Button Functions:
- Short press: turn on the display; check the notification when the device is
vibrating and stop the vibration; turn to the next function;
- Long press: power on/off; go to the main interface; confirm/enter
Health Mornitoring Function
You can mornitor your daily activities with your device.
Step Mode: Display the amount of steps you have taken.
Calorie Mode: Display the amount of calories burned.
Distance Mode: Display the distance traveled
Sleep monitoring: Monitor the quality of sleep
Smartphone Assistant Funtions
Connect your device with a smartphone via Bluetooth to experience more
functions:
Page 3
Remote shutter: Control the smartphone to turn on the camera and take
pictures.
MP3 playback control: Control the music of the smartphone.
Search smartphone: Search your smartphone when you cannot find it.
The smartphone will ring when you search in the effective distance of
Bluetooth (15 meters normally).
Anti lost: Warming the distance between your smart bracelet and
smartphone is out of the effective distance.
Phone call notification: Notifying the incoming call of the smartphone.
Message notification: Notifying the incoming messages of the
smartphone.
Application ORACOM
Installing
The data of your activities can be synchronized from the device to your
smartphone automatically and wirelessly if you intalled ORACOM in your
smartphone. Your latest status will be showed in graphs and charts on your
smartphone.
The application ORACOM can be downloaded on App Store, Google Play or
Tencent APP Store(China) by scanning the below QR Code. If you already
have installed the application, you can check for available updates to make
sure you have the latest version.
Page 4
Initial Setup and Device Pairing
Your device must be paired directly through the application ORACOM to sync
the data.
1. Turn on your smart bracelet.
2. Turn on the Bluetooth of your smartphone.
3. Tap ORACOM on your smartphone to launch the application and begin the
initial setup.
4. Register: Input your email and password to create your account.
5. Pairing: Tap the icon ->Ble device, then the list of ORACOM Bluetooth
devices appears;
Select your device and then tap icon '+' to connect. The band icon will turn
to green and the smart band will vibrate when connected.
6. Press the icon ->Peronal Info to input your personal information and tap
Synchronize Smart band.
NOTE: The default stride length is 40cm. To measure your stride length,
you can walk ten steps, measure the distance and divide by ten.
7. Goals: Enter your personal goals for steps, distance, calories and sleep
time.
8. Synchronize: tap this item to sync the sleep data.
Page 5
FAQ
Quetions Reference Answers
Why I could not see the icons of
phone call and message on my
device?
Why I could not find the device in
the bluetooth list of my smartphone?
Why I could not download the
application ORACOM with my
phone?
Why my device could not record the
steps when I walk?
Can I connect 2 or more smart
Some icons are hidden, only showed
when they are activated by these
functions.
The device only can be paired with
smartphone in the application.
Smartphone needs to be iOS 6.0 and
above or Android 4.3 and above, with
Bluetooth 4.0 and above. Please check if
your phone meets the requiremens.
To avoid misdetect, the device will not
take record when the activity is less than
10 steps.
One smartphone can only connect with
bracelet to a same smartphone?
one device.
