Flylink Full HD GPS G-sensor User Manual

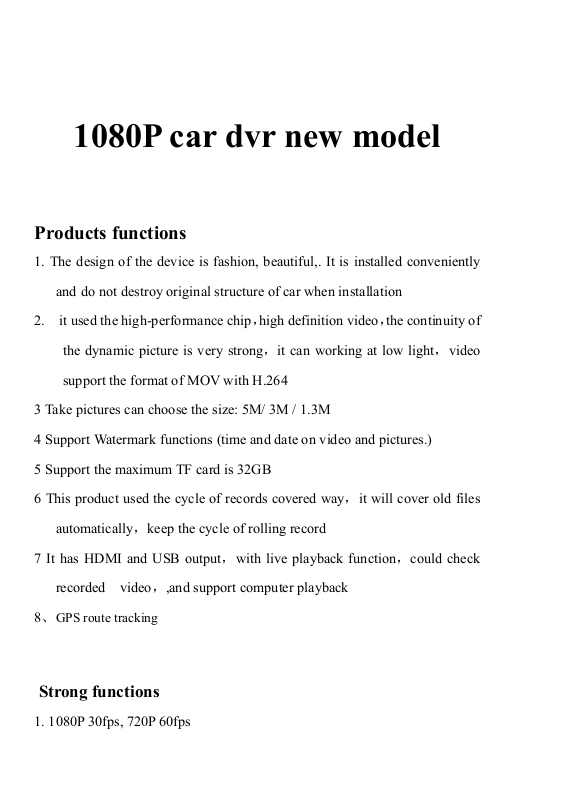

1080P car dvr new model
Products functions
1. The design of the device is fashion, beautiful,. It is installed conveniently
and do not destroy original structure of car when installation
2. it used the high-performance chip,high definition video,the continuity of
the dynamic picture is very strongit can working at low lightvideo
support the format of MOV with H.264
3 Take pictures can choose the size: 5M/ 3M / 1.3M
4 Support Watermark functions (time and date on video and pictures.)
5 Support the maximum TF card is 32GB
6 This product used the cycle of records covered wayit will cover old files
automaticallykeep the cycle of rolling record
7 It has HDMI and USB outputwith live playback functioncould check
recorded video,and support computer playback
8
GPS route tracking
Strong functions
1. 1080P 30fps, 720P 60fps
2. HDMI output.
3. SOS and G-sensor function
4. 3.0 Mega pixels, HD high quality resolution, 120 degree ultra wide angle
lens
5. Motion detection function
6. 30 frames per second for smooth video flow.
7. Seamless to cycle recordingIf the storage is full, it will cover old files
automatically.
8
GPS route tracking
Technical parameter
Lens: 0330 (3.0 mega pixels)
Solution: NTK 96650
Display screen2.7” TFT
Lens: Wide-angle of 120 degree
Video resolution:
1920*1080 30 frames/sec
1280*720P 60 frames/sec
Video formatMOV H.264
Picture formatJPG
USB portUSB 2.0
Battery: built-in polymer battery/500mAh
Record time: 2minute /5 minute/10 minute/not cycle
Menu language Traditional Chinese/ simplified Chinese/
English/Korean/Japanese/Russian/German/Italian/Spanish/portuguese/Fre
nch
LCD Display
Lens 120°A+High Resolution Wde Angle Lens
Language selection
Video resolution
2.7” LTPS16:9(960*240)
English、Traditional、Chinese、Japanese 、Russian
GermanFrenchSpanishItalianKorean
Portugal
1920*1080P 30 fps
1280*720P 60 fps
Video format MOV H.264
Image resolution
5M/ 3M / 1.3M
Image format JPG
Memory card Micro SD
Microphone/Speaker Yes
SOS and G-Sensor Supported
Frequency 50HZ/60HZ
USB Port USB2.0
Power input 5V 500MA
Battery Rechargeable Li-ion/500mAh
